DesPat: A Modeling Toolset for Designing and Implementing Software

Systems using Design Patterns

Mert Ozkaya

and Mehmet Alp Kose

Department of Computer Engineering, Yeditepe University, Istanbul, Turkey

Altinbas University, Institute of Graduate Studies, Istanbul, Turkey

Keywords:

Gang of Four Design Patterns, Combining Patterns, Pattern-centric Software Design, Code Generation, UML.

Abstract:

Software design patterns are considered as the general solutions to the problems that occur many times in the

context of software design. However, applying design patterns at code level is not so easy, as adding/removing

pattern elements, combining patterns, and checking software implementation against the pattern rules are not

supported with the existing implementation frameworks/tools. Generating code from the high-level pattern-

centric models is not so easy either due to the lack of modeling language and tool support. In this paper,

we propose a software design toolset called DesPat for applying design patterns abstractly at modeling level.

We focus on a subset of design patterns proposed by Gamma et al., which are observed to be highly used in

industry - i.e., the factory, composite, facade, observer, singleton, and visitor design patterns. DesPat offers a

graphical notation set for each pattern supported that is based on the UML class diagram. DesPat is supported

with a modeling editor to create pattern model(s) for software systems, combine different pattern models, and

check them for correctness. DesPat further generates Java code from the pattern models. We illustrated DesPat

with a set of real-world applications and evaluated DesPat via a set of ﬁnal-year CS undergraduate students.

1 INTRODUCTION

Software design patterns have been originated from

Alexander et al.’s idea on patterns for towns, build-

ings, and constructions (Alexander et al., 1977;

Alexander, 1979). A pattern is actually a solution to

a problem that occurs many times and described in

terms of (i) the context in which the pattern can be

applied, (ii) the problem that the pattern works out

in the context, and (iii) how the physical elements in

our environment are structured to solve the problem.

Alexander et al.’s idea on patterns has also inspired

the software engineering community where patterns

could further be used for the software design and de-

velopment. One of the most well-known studies on

applying patterns on software has been proposed by

Gamma et al. (aka Gang of Four) in the early nineties

(Gamma et al., 1994). Gamma et al. proposed 23

different design patterns for the object-oriented soft-

ware development (OOSD), which can be categorised

as the creational, structural, and behavioural patterns.

Creational patterns are concerned with the creation

of system components (i.e., objects in the context of

OOSD) in a way that enhances the quality of soft-

ware development. Structural patterns are concerned

with the compositions of the components to create the

whole systems. Behavioural patterns are concerned

with the interactions between components and their

responsibilities. Gamma et al. describe for each de-

sign pattern a set of participating component types

(i.e., class in OOSD) which act speciﬁc roles and how

the components may interact with each other in a way

that satisﬁes the intent of the design pattern. So, prac-

titioners may beneﬁt the design pattern descriptions

in understanding the intent and motivations of the de-

sign pattern(s), deciding on which pattern(s) can be

applied for their system development, and the vocab-

ulary of the pattern(s) (i.e., components and their re-

lationships) that need to be used.

1.1 Motivation and Goal

Practitioners may face with challenges on applying

design patterns at code level (Dong et al., 2009; Han-

nemann and Kiczales, 2002; Henninger and Corr

ea,

2007), including such difﬁculties as designing soft-

ware systems with design patterns, adapting any ex-

isting implementation for the design patterns, com-

bining multiple patterns, and analysing the correct use

of patterns. The existing development environments

Ozkaya, M. and Kose, M.

DesPat: A Modeling Toolset for Designing and Implementing Software Systems using Design Patterns.

DOI: 10.5220/0010438802510260

In Proceedings of the 16th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2021), pages 251-260

ISBN: 978-989-758-508-1

251

and software development frameworks do not pro-

vide adequate support for the pattern-centric develop-

ment, e.g., coding by re-using pattern templates and

checking code for the pattern rules. Also, while many

tools available detect design patterns at code level

(Al-Obeidallah et al., 2016), it is not clear how ac-

curate the results of these tools are and to what extent

these tools are used in practice. Another solution here

is to enhance the level of abstraction using a mod-

eling notation that promotes the use of design pat-

terns early at the modeling stage and supports creat-

ing high-level pattern models which can be processed

for model checking and code generation. In this pa-

per, we propose a modeling toolset called DesPat for

designing software systems using Gamma et al.’s de-

sign patterns. DesPat focuses on a sub-set of design

patterns proposed by Gamma et al. These are the

factory, composite, facade, observer, singleton, and

visitor design patterns, which have been observed by

Zhang et al. as the top-used design patterns in indus-

try (Zhang and Budgen, 2013). For each design pat-

tern, DesPat offers a high-level modeling notation set

that is based on UML’s class diagram. Practitioners

may ﬁrstly choose the design pattern(s) of their inter-

est and specify a separate model for each pattern using

DesPat’s notation set. By doing so, the separate pat-

tern models can clearly be understood and reasoned.

Also, the pattern models may be combined by shar-

ing the same set of elements that play different roles

in different patterns. DesPat’s modeling editor can

be used to check the correctness of the pattern mod-

els at modeling time. If the software design model

is correct, users may use DesPat’s code generator to

generate Java code from their models automatically.

DesPat is intended for education purposes and

teaching students how to apply design patterns on de-

signing software systems and the mapping between

the pattern-centric software design and code. DesPat

may also be perfectly used by any practitioners in in-

dustry who wish to use Gamma et al.’s design patterns

in designing their software systems but suffer from

existing development platforms’ lack of support for

the pattern-centric design and development.

2 RELATED WORK

2.1 UML and UML-based Languages

The design patterns proposed by Gamma et al. (or

any other design patterns) may be speciﬁed with

UML, which is one of the top-used software mod-

eling languages (Ozkaya, 2018c; Malavolta et al.,

2012). While practitioners may use UML’s class di-

agram notation for creating design pattern models,

UML does not provide pattern-centric support, in-

cluding re-using Gamma et al.’s patterns and deﬁn-

ing new patterns. The UML modeling tools (Ozkaya,

2019) do not support checking models for the pattern

rules and combining multiple pattern models. Also,

despite that UML has been extended many times

(Ozkaya, 2018a), the UML-based languages ignore

pattern-centric modeling and consider the needs of

particular domains.

2.2 Architecture Description Languages

Architecture description languages (ADLs) (Ozkaya,

2018b) may be used for specifying architectural pat-

terns that can be used for specifying software archi-

tectures and performing formal veriﬁcation and code

generation. However, ADLs focus on the architec-

tural modeling that consider how software systems

are decomposed into independent components and in-

teractions (e.g., the order of interactions). Design pat-

terns focus on how systems may be implemented and

the components that need to implemented along with

their relationships such as composition and generali-

sation. Indeed, design patterns suggested by Gamma

et al. such as singleton and composite may not be

speciﬁed with ADLs.

2.3 Pattern-centric Modeling

The literature also includes pattern-centric modeling

approaches, which either extend UML or offer formal

(i.e., process algebra based) notation sets. Most prac-

titioners do not prefer algebraic notation sets how-

ever (Malavolta et al., 2012). Also, note that the ear-

lier approaches from the nineties do not provide up-

to-date tool support. Among those approaches sup-

porting UML, none of them actually enables to use

and combine well-accepted patterns in UML mod-

els for the design of software systems, checking their

correctness, and transforming the correct UML mod-

els into code, as we address in our work. In (Kim,

2015), the authors proposed a meta-modeling ap-

proach for deﬁning UML-based languages for any

domain-speciﬁc patterns and provide tool for check-

ing models’ conformance for any deﬁned patterns and

transforming the models to satisfy the pattern rules.

In (Mak et al., 2004), the authors extended UML 1.5

with the deﬁnitions of design patterns that can be used

and combined in the UML-based software designs. In

(Mapelsden et al., 2002), the authors proposed a lan-

guage for deﬁning design patterns, specifying their

instance(s), and provide tool for checking the consis-

tencies of any UML model(s) with the design pattern

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

252

instances. In (Hedin, 1997), the author focussed on

checking the correctness of a software implementa-

tion with regard to any design patterns. In (Nicholson

et al., 2009), the authors proposed a formal but vi-

sual language for specifying any design patterns and a

tool for formally verifying any Java programs against

the design pattern speciﬁcations. In (Taibi and Ling,

2003), the authors also proposed a formal language

based on temporal logic and ﬁrst order logic for spec-

ifying the structural and behavioural aspects of de-

sign patterns and combining design patterns together.

In (Mikkonen, 1998), the author proposed another

temporal-logic based formalism for the modeling of

combined design pattern speciﬁcations and their for-

mal analysis via theorem provers. In (Saeki, 2000),

the author uses the LOTOS formalism to formally

specify and analyse the speciﬁcations of design pat-

terns and their combinations. In (Florijn et al., 1997),

the authors proposed a toolset for specifying graphical

models with GoF’s 12 design patterns, transforming

models into Smalltalk, and reverse engineering from

Smalltalk back to model for checking against the pat-

tern rules. However, the toolset is not available now.

3 DesPat’s NOTATION SET

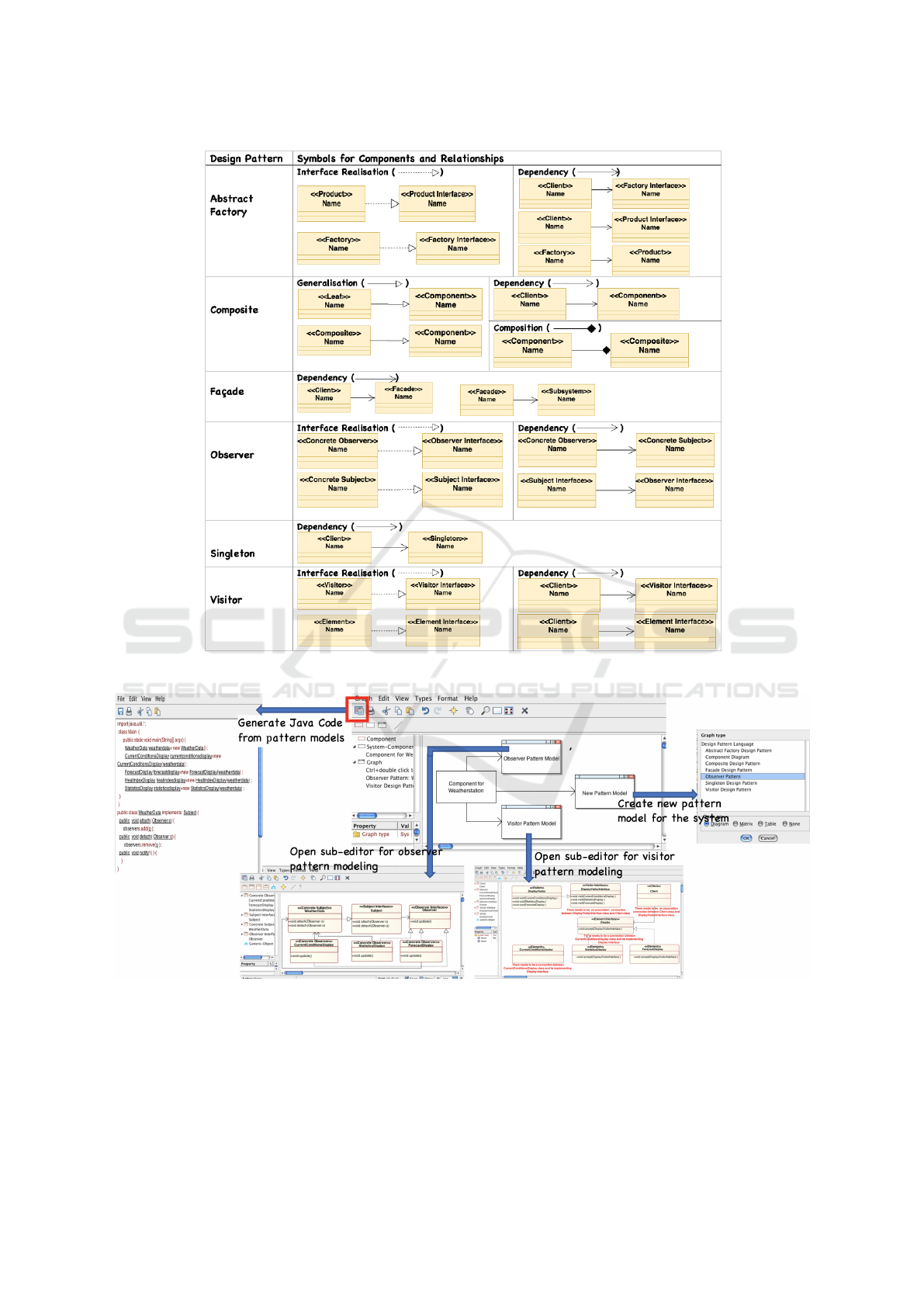

DesPat provides a graphical notation set that is based

on UML’s class diagram for specifying the pattern

models in terms of modeling elements and their re-

lationships. As depicted in Figure 1, the modeling el-

ements are speciﬁed with the UML class notation that

is supplemented with a stereotype which describes

the role of the element in the corresponding pattern

model. Four types of relationships are considered

whose existences depend on the design pattern type.

The interface realisation is for connecting an element

with its provided interface that other elements may

use for accessing the element’s operations. The de-

pendency is for connecting any two elements where

one requests the operations of the other. The general-

isation is for connecting the sub-elements with a base

element. The composition is for connecting the part

and whole elements.

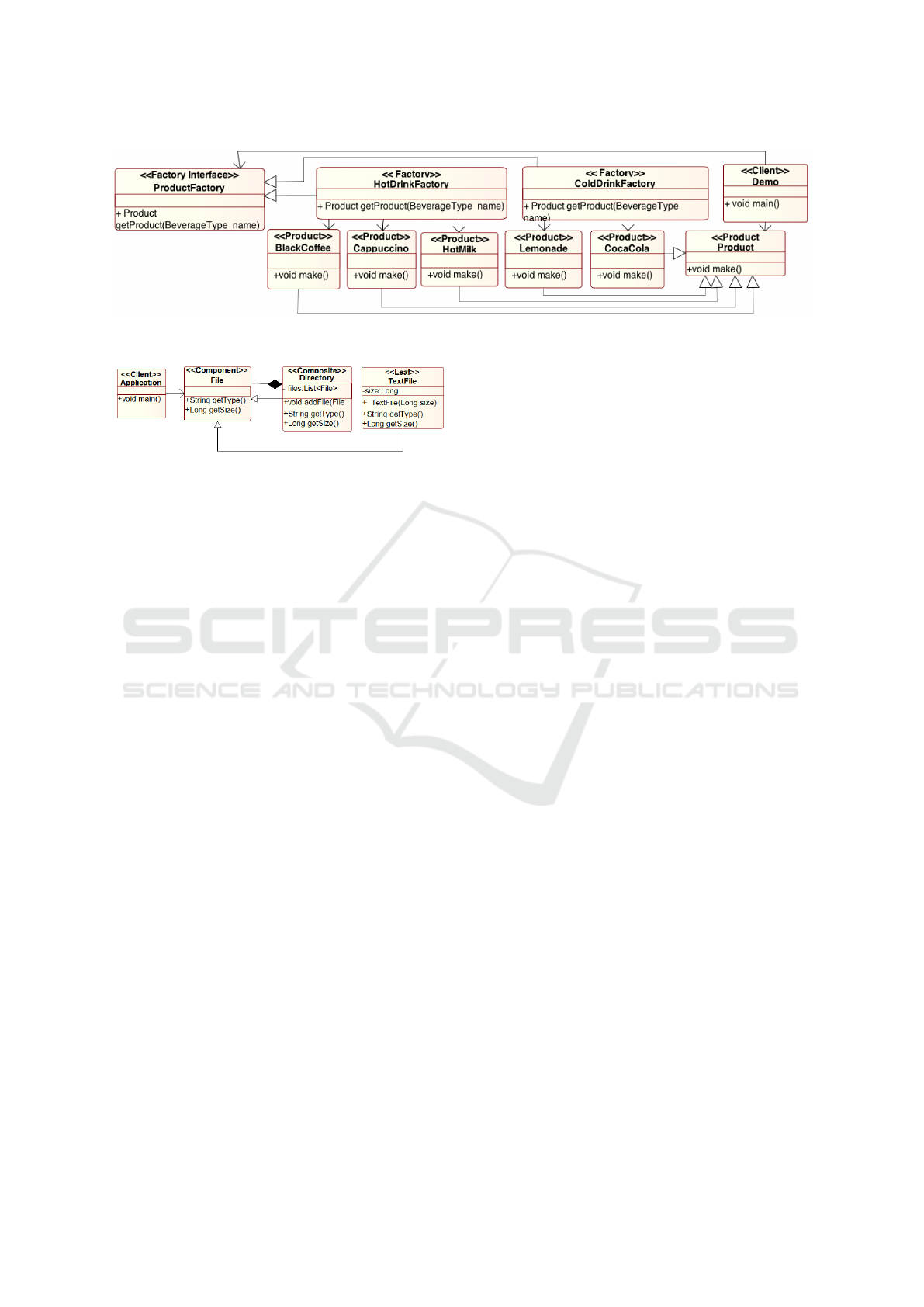

Abstract Factory Design Pattern. The abstract fac-

tory models may be speciﬁed with ﬁve elements that

are related to each other as depicted in Figure 1. Each

client may use the factory interface that the factories

provide to create any products. Whenever the factory

receives a request from the client, it may create the

relevant product by sending a request to that product.

Note that clients also use the product interface pro-

vided by the products to access the products that they

create via the factories.

Composite Design Pattern. A composite pattern

model may be speciﬁed with four elements whose

relationships are depicted in Figure 1. Each com-

ponent is a generalisation for the leaf and compos-

ite elements. That is, the component consists of the

attributes and operations that commonly exist in the

leaf and composite. A composite may have a compo-

sition relationship with the component as each com-

posite may be composed of zero or more components

(i.e., leaf or composite). Lastly, each client may send

a request to any component (i.e., leaf or composite).

Facade Design Pattern. As depicted in Figure 1,

three elements are considered herein – facade, subsys-

tem (i.e., software libraries), and client. Each client

may send a request to a facade, and then the facade

sends a request to the relevant sub-system.

Observer Design Pattern. An observer pattern

model is speciﬁed with the elements and relationships

depicted in Figure 1. Each concrete observer provides

an interface for receiving the update requests when

the subject is changed. So, the concrete subject uses

the observer interface to send a request to the con-

crete observers that realise the interface. Each con-

crete subject provides an interface for registering/un-

registering observers. So, the concrete observer uses

the subject interface to send a request to the concrete

subject for registering.

Singleton Design Pattern. As depicted in Figure 1,

a singleton pattern model may be speciﬁed with the

singleton and client elements where each client may

send a request to the same singleton element.

Visitor Design Pattern. As depicted in Figure 1, a

visitor pattern model is speciﬁed with the visitor and

elements. A visitor may include one or more opera-

tions each of which is to be operated on a different

element. Each visitor provides an interface for the

client, which may send a request to the visitor to ex-

ecute the operations on the elements. Also, each el-

ement provides an interface through which the client

may access the elements and get the visitor operation

to be operated on the elements.

4 TOOL SUPPORT

DesPat consists of a modeling editor, model analyser,

and code generator, which may be downloaded from

the project web-site

4.1 Modeling Editor

We used the Metaedit+ meta-modeling tool (Kelly

et al., 2013) to develop a modeling editor for DesPat,

DesPat’s web-site: sites.google.com/view/despat/

DesPat: A Modeling Toolset for Designing and Implementing Software Systems using Design Patterns

253

Figure 1: DesPat’s notation set.

Figure 2: The modeling editor for DesPat.

which is depicted in Figure 2. So, for any software

system to be modeled, the system may be decom-

posed into components using simple boxes. Users

may link the component box with a set of boxes each

of which represents a different pattern model speciﬁ-

cation for the design of that component. Whenever a

pattern model box is clicked, a list appears for choos-

ing the pattern type and then a new sub-editor opens

for drawing the pattern model using DesPat’s pattern-

speciﬁc notation set. Users may use the sub-editor to

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

254

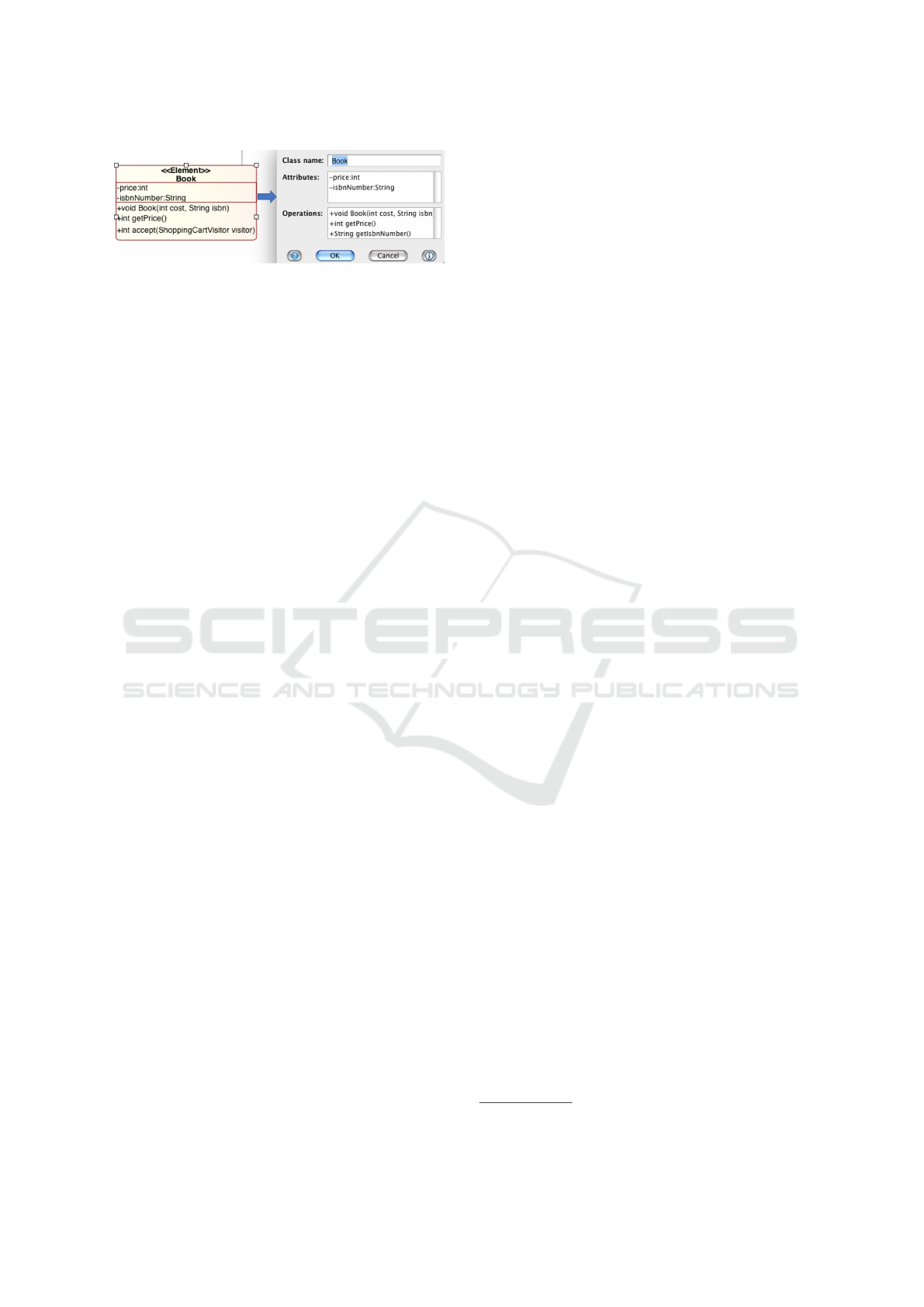

Figure 3: Adding/removing element attributes/operations.

drag and drop the modeling elements of the pattern-

speciﬁc notation set and add/remove attributes/opera-

tions to the elements. As depicted in Figure 3, when-

ever users click on the element, a dialog box opens for

editing the element attributes and operations.

4.2 Model Analyser

We used Metaedit+’s constraint deﬁnition technology

to deﬁne the validation rules for each design pattern,

which are given in Figure 4. So, those rules can be

checked by the modeling editor at modeling time. As

depicted in Figure 2, users are warned with the red-

colored messages at modeling time, which indicates

the violation of those rules and give information about

what the error stems from. Moreover, we introduced

the rules that constrain the elements involved in each

design pattern to provide some required operations.

For instance, in the observer design pattern, a sub-

ject must provide the operations attach and detach,

and an observer must provide the operations update.

So, the modeling editor warns the users automatically

at modeling time when such operations are missing.

Similarly, if the visitor element in a visitor pattern

model has no visit operation, a warning is generated.

4.3 Code Generator

We used Metaedit+’s generator deﬁnition technology

and develop a Java code generator for the modeling

editor. Whenever the icon shown in Figure 2 that are

displayed on the modeling editor is clicked for any

project, a single Java ﬁle is generated that represent all

the pattern models speciﬁed in that project. Figure 5

depicts the translation from a visitor pattern model

to a Java program. The translated Java program in-

cludes a class/interface deﬁnition for each modeling

element speciﬁed in the pattern model - an interface

element transformed as a Java interface while other

elements as a Java class. Each Java class and inter-

face consists of the method deﬁnitions that the corre-

sponding modeling element includes. Moreover, the

relationships between the modeling elements such as

generalisation, interface realisation, and composition

are also translated accordingly. Note that some of the

class methods (e.g., the accept methods in the Fruit

and Book classes) are translated with their implemen-

tation, as the behaviours of those methods should

never change so as to meet the pattern goals. How-

ever, the user-added operations in the model elements

are translated into the class methods with empty im-

plementation (see the methods in the Book, Fruit,

and ShoppingCartVisitor classes). Likewise, the class

methods that correspond to the operations whose be-

haviours need to be implemented by the users (e.g.,

the visit method in the ShoppingCartVisitorImpl) are

left empty. Also, in the case where the same mod-

eling elements are re-used in multiple patterns (i.e.,

see the weather station example in Section 5), a sin-

gle Java class/interface is transformed that includes

the translations of the attributes, operations, and rela-

tionships from each pattern model which the element

is involved in. It should be noted that the Java code

transformed from the pattern models of any model-

ing project is not actually a complete (i.e., executable)

code. The transformed code represents mainly the

system structure that is modeled in terms of differ-

ent design pattern models including the classes, their

attributes and methods. However, one needs to im-

plement the method behaviours to reach a complete

code. Due to the limited space, the translation algo-

rithms can be found in the project web-site

To determine the quality of the transformed Java

code, we used the Sonarqube platform

. Sonarqube

allowed us to detect any code smells such as miss-

ing comments, unused variables, and wrong access

modiﬁers for variables. We made the necessary ﬁxing

operations on the code generator and minimised the

code smells occurring in the transformed code from

the pattern model(s).

5 CASE-STUDIES

Now, we illustrate DesPat via some real-world appli-

cations that can be designed with the supported design

patterns. We used DesPat to draw the pattern models,

check correctness, and produce the Java code. The

full model speciﬁcations and the generated code are

accessible via the project web-site

To design the vending machine with many bever-

ages, we speciﬁed an abstract factory design pattern

model. As Figure 6 shows, two factory elements are

speciﬁed, one linked with the hot drink products (e.g.,

black coffee) and other linked with the cold drink

products (e.g., lemonade). Whenever the client re-

quests a beverage, the request is directed to the corre-

sponding factory via the factory interface. The factory

Sonarqube web-site: https://www.sonarqube.org/

DesPat: A Modeling Toolset for Designing and Implementing Software Systems using Design Patterns

255

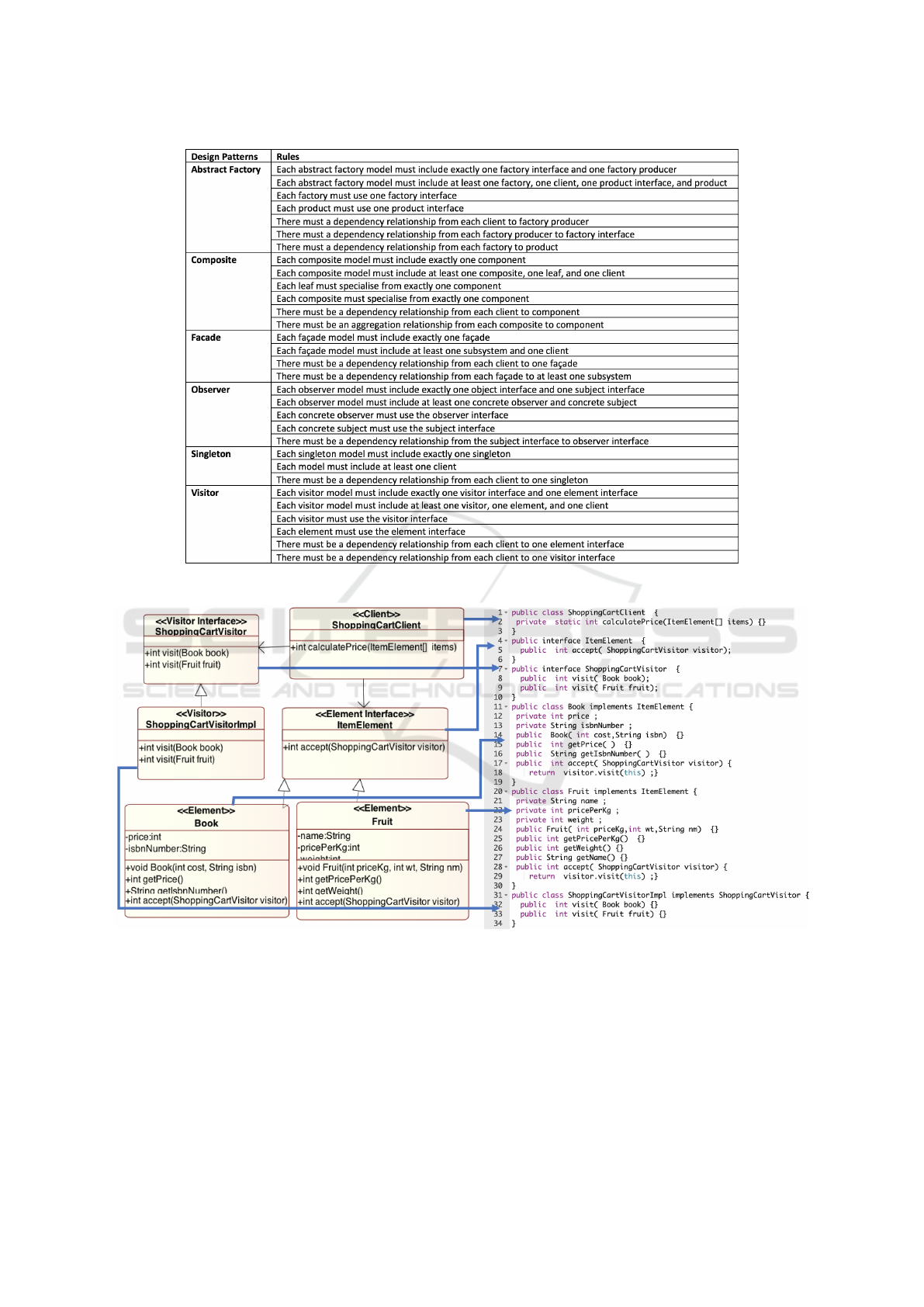

Figure 4: The validation rules for DesPat.

Figure 5: Transforming pattern model into Java code.

in question then creates the product.

To design the ﬁle directory system, we speciﬁed a

composite design pattern model. As Figure 7 shows,

the client sends a request to the ﬁle which is spe-

cialised by the text ﬁle (leaf) and the directory (com-

posite). Being composite, the directory may consist

of other ﬁles.

To design the video converter system that offers

services for video conversion, we speciﬁed a facade

design pattern model. As Figure 8 shows, the client

sends a request to the video converter that acts as a fa-

cade. The video converter facade is linked with differ-

ent sub-systems that each perform a video conversion

in a different format. The video converter facade di-

rects the request to the corresponding sub-system de-

pending on the service arguments passed by the client.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

256

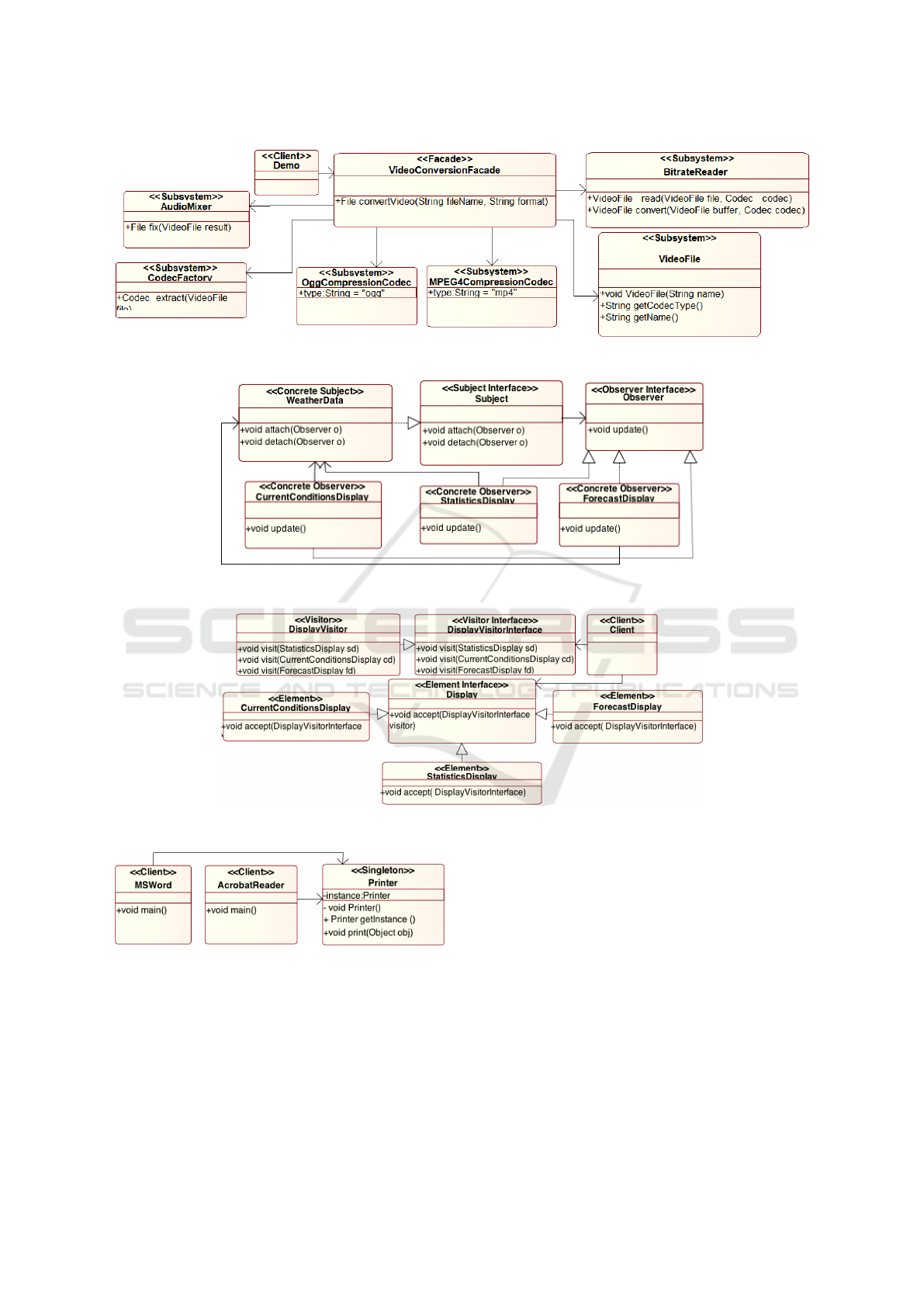

Figure 6: The abstract factory design pattern model for the vending machine system.

Figure 7: The composite design pattern model for the ﬁle

directory system.

Another case study is the weather station, where

the weather data are shared with the displaying

devices. We combined the observer and visitor

pattern models to design the weather station, as

shown in Figure 9 and and Figure 10 respectively.

The pattern models share the CurrentConditions-

Display, StatisticsDisplay, and ForecastDisplay ele-

ments, which play different roles in different pattern

models. While the three elements each play the ob-

server role in the observer pattern, they play the el-

ement role in the visitor pattern. Concerning the

observer pattern model, forecast-display, statistics-

display, and current-conditions-display are concrete

observers, which send requests to the weather data

subject to attach/detach themselves. The subject

may send a request to the observers attached via

their interfaces so as to update them whenever the

weather data change. Concerning the visitor pat-

tern model, forecast-display, statistics-display, and

current-conditions-display act as the elements that are

visited by DisplayVisitor which run the appropriate

display operation for each visited element.

We used the singleton design pattern to model a

printer sharing system where a single printer acts as

a singleton and shared by several client applications

(e.g., Word processor, PDF reader, etc.). As Fig-

ure 11 shows, different clients may send a request to

the same printer singleton.

We used the visitor design pattern to model a

shopping cart system. Here, any items can be sold

at any price where the price calculation operation ap-

plied to different items can be abstracted away from

the item speciﬁcations and dealt with by the visitor.

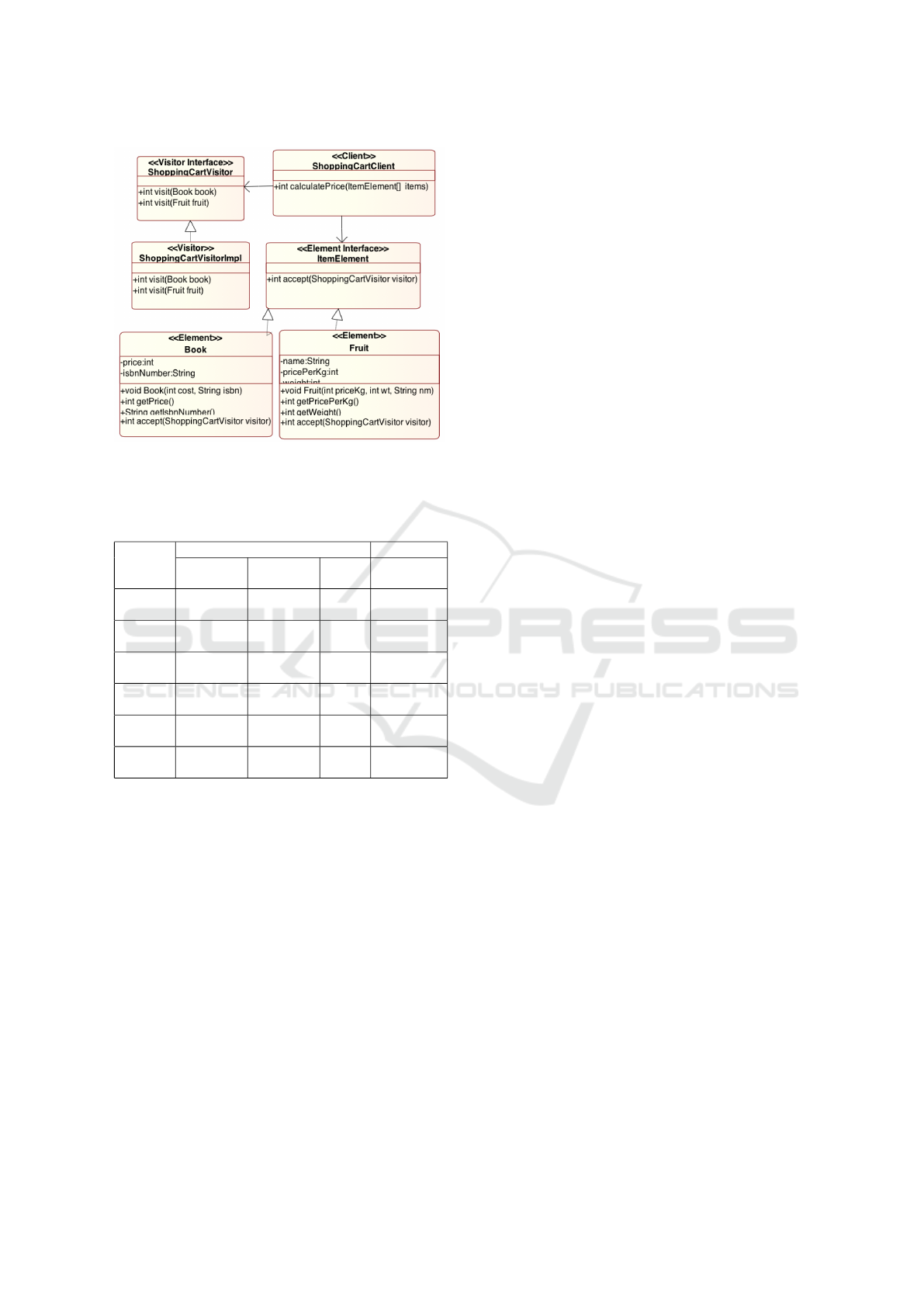

As Figure 12 shows, the shopping cart is speciﬁed

with two items (i.e., book and fruit). The client uses

the visitor interface to request from the visitor the

price calculation operation and then uses the item in-

terface to request the necessary item so as to get the

visitor operation to be executed on the requested item.

6 PRELIMINARY EVALUATION

We surveyed 6 ﬁnal-year undergraduate CS students

to evaluate DesPat’s usefulness in practice. The stu-

dents have been selected from those who has taken

the software engineering course where the design pat-

terns are taught and passed the course with grade B or

above (in USA grading system). In our survey, we

considered the case-studies that we discussed in Sec-

tion 5 - i.e., vending machine, ﬁle directory, shopping

cart, printer sharing, video converter, and weather sta-

tion. Each student has been assigned one speciﬁc

case-study and asked to directly implement the solu-

tion in Java. The students have been given a period

of time to ﬁnish their tasks and then asked to provide

feedback. Once ﬁnished, the students have been asked

to use DesPat to perform model-based development

this time. Note that the students have already been

informed about which design pattern(s) is required to

be applied for each case-study.

After the students completed their tasks, we con-

ducted an interview with each student separately.

Concerning the ﬁrst phase where solutions have been

implemented directly, we asked to learn (i) how long

it takes to have an executable implementation with

patterns, (ii) how the students ensure that the patterns

are applied correctly at code level, and (iii) any dif-

ﬁculties in applying the design patterns at code level.

Concerning the second phase, we asked to learn (i)

how easy it is to learn and use the language notation

set, (ii) how long it takes to create the pattern mod-

els, (iii) how easy it is to use the generated code from

models to obtain an executable implementation, (iv)

any difﬁculties in using the modeling language and

its toolset, (v) any suggestions on improving DesPat.

DesPat: A Modeling Toolset for Designing and Implementing Software Systems using Design Patterns

257

Figure 8: The facade design pattern model for video converter system.

Figure 9: The observer design pattern model for the weather station.

Figure 10: The visitor design pattern model for the weather station.

Figure 11: The singleton design pattern model for the

printer sharing system.

Table 1 shows (i) how much time the students spent

in documenting and implementing the case-studies

manually and (ii) the time they spent when they used

DesPat for modeling the pattern models for the case-

studies and obtaining code automatically. Note that

the time information given here are the approximate

times that the students stated themselves. So ap-

parently, using DesPat for each case-study consider-

ably reduces the time for obtaining the implementa-

tion of the case-study solutions. Note that modeling

the weather station system required relatively more

time as the weather station has been speciﬁed in terms

of the combinations of two pattern models (see Sec-

tion 5). According to the students’ feedback, this is

because the students who directly implemented the

solutions also needed to work out the system structure

ﬁrstly so as to determine the components and decide

on their relationships in accordance with the pattern

rules. The students either sketched their design on a

paper or used some modeling editors, which however

did not enable them to check the correctness of their

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

258

Figure 12: The visitor design pattern model for the shop-

ping cart system.

Table 1: The time spent by the students in developing the

case-studies (i) manually and (ii) by modeling with DesPat.

Case

Study

Without DesPat With DesPat

Documen-

tation Time

Implemen-

tation Time

Total

Time

Modeling

Time

File

Directory

1 hour 3 hours 4 hours 30 mins

Printer

Sharing

1 hour 2 hours 3 hours 17 mins

Shopping

Cart

1 hour 4 hours 5 hours 38 mins

Vending

Machine

1 hour 2 hours 3 hours 38 mins

Video

Converter

1 hour 2 hours 3 hours 20 mins

Weather

Station

1 hour 5 hours 6 hours 80 mins

models and generate code automatically. Another is-

sue pointed out here is having to manually check if the

implemented solution meets the pattern rules, which

required extra time and effort.

The students found DesPat’s notation set easy to

learn and use. Comparing DesPat with UML, the

students agreed that DesPat’s notation is similar to

UML’s class diagram which almost all software de-

velopers/engineers are familiar with. However, the

students also stated that UML’s class diagram is not

adequate for pattern-centric modeling, since UML

does not provide any particular syntax and semantic

for patterns and support such facilities as combining

patterns. Moreover, as also the students indicated, the

existing UML tools do not enable to specify UML

models for different patterns, check their correctness,

and produce the corresponding code either.

Concerning the quality of the generated code, the

students all agree that the generated code is easy to

use and modify given the comments supplementing

each snippet (e.g., methods and variables) and de-

scribing their purposes.

As the students also agreed, DesPat could be used

in the software engineering education so as to make

students gain the practical experience about design

patterns. Indeed, understanding the motivations and

beneﬁts of design patterns (e.g., re-usability, modu-

larity, and high analysability) is quite difﬁcult and any

tool such as DesPat that can aid in practicing about

design patterns would be so useful.

7 CONCLUSION

In this paper, we introduced a modeling toolset called

DesPat for designing software systems using Gamma

et al.’s six design patterns that are highly used in in-

dustry - i.e., the factory, composite, facade, observer,

singleton, and visitor design patterns. DesPat offers

for each supported design pattern a visual modeling

notation set that is inspired by UML’s class diagram.

That is, the components composing software systems

are speciﬁed using the class notation extended with

the appropriate stereotypes and the component rela-

tionships are speciﬁed with the relationships inherited

from UML such as generalisation, association, and in-

terface realisation. The pattern models are combined

by re-using the same component(s) in different pat-

tern models. DesPat’s modeling editor can be used for

specifying the pattern model(s) for any software sys-

tem to be designed and checking the pattern models

against the pattern rules at modeling time. DesPat’s

code generator may then produce Java code from the

pattern models speciﬁed for the software system. We

illustrated DesPat via a number of real-world applica-

tions, including the vending machine for the abstract

factory pattern, ﬁle directory for the composite pat-

tern, video converter for the factory pattern, weather

station for the observer pattern, printer sharing for the

singleton pattern, and online shopping cart for the vis-

itor pattern.

We are now extending DesPat with a new GUI

tool for enabling users to deﬁne their own patterns

that can be used via the existing modeling editor to

specify software models according to the user-deﬁned

patterns and generate Java code. Also, we plan to

use more complex case-studies to evaluate our toolset

in the near future, in which multiple different pat-

terns can be combined including both GoF’s patterns

and some user-deﬁned patterns. Another future im-

provement could be to do with improving the notation

DesPat: A Modeling Toolset for Designing and Implementing Software Systems using Design Patterns

259

set with the support for specifying the behavioural

design decisions. So, the behaviours of the opera-

tions that the components perform may be speciﬁed

with the well-known Design-by-Contract approach

(Meyer, 1992). Moreover, we could develop another

tool in the future, which can reverse engineer the Java

code to obtain the pattern-centric models in DesPat.

By doing so, one may check any Java code for their

conformance to design patterns.

ACKNOWLEDGEMENT

This work was supported by a project of the Scien-

tiﬁc and Technological Research Council of Turkey

(TUBITAK) under grant 120E144.

REFERENCES

Al-Obeidallah, M. G., Petridis, M., and Kapetanakis, S.

(2016). A survey on design pattern detection ap-

proaches. International Journal of Software Engineer-

ing (IJSE), 7(3):41–59.

Alexander, C. (1979). The Timeless Way of Building. Ox-

ford University Press.

Alexander, C., Ishikawa, S., Silverstein, M., Jacobson, M.,

Fiksdahl-King, I., and Angel, S. (1977). A Pattern

Language - Towns, Buildings, Construction. Oxford

University Press.

Dong, J., Zhao, Y., and Peng, T. (2009). A review of de-

sign pattern mining techniques. International Journal

of Software Engineering and Knowledge Engineering,

19(06):823–855.

Florijn, G., Meijers, M., and van Winsen, P. (1997). Tool

support for object-oriented patterns. In Aksit, M. and

Matsuoka, S., editors, ECOOP’97 - Object-Oriented

Programming, 11th European Conference, Jyv

askyl

Finland, June 9-13, 1997, Proceedings, volume 1241

of Lecture Notes in Computer Science, pages 472–

495. Springer.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1994). Design patterns: Elements of reusable object-

oriented software. Addison Wesley. ISBN-13: 978-

0201633610.

Hannemann, J. and Kiczales, G. (2002). Design pattern

implementation in java and aspectj. SIGPLAN Not.,

37(11):161–173.

Hedin, G. (1997). Language support for design patterns

using attribute extension. In Bosch, J. and Mitchell,

S., editors, Object-Oriented Technology, ECOOP’97

Workshop Reader, ECOOP’97 Workshops, Jyv

askyl

Finland, June 9-13, 1997, volume 1357 of Lecture

Notes in Computer Science, pages 137–140. Springer.

Henninger, S. and Corr

ea, V. (2007). Software pattern com-

munities: Current practices and challenges. In Pro-

ceedings of the 14th Conference on Pattern Languages

of Programs, PLOP ’07, New York, NY, USA. Asso-

ciation for Computing Machinery.

Kelly, S., Lyytinen, K., and Rossi, M. (2013). Metaedit+

A fully conﬁgurable multi-user and multi-tool CASE

and CAME environment. In Jr., J. A. B., Krogstie,

J., Pastor, O., Pernici, B., Rolland, C., and Sølvberg,

A., editors, Seminal Contributions to Information Sys-

tems Engineering, 25 Years of CAiSE, pages 109–129.

Springer.

Kim, D. (2015). Design pattern based model transformation

with tool support. Softw. Pract. Exp., 45(4):473–499.

Mak, J. K. H., Choy, C. S. T., and Lun, D. P. K. (2004).

Precise modeling of design patterns in uml. In Pro-

ceedings. 26th International Conference on Software

Engineering, pages 252–261.

Malavolta, I., Lago, P., Muccini, H., Pelliccione, P., and

Tang, A. (2012). What industry needs from architec-

tural languages: A survey. IEEE Transactions on Soft-

ware Engineering, 99.

Mapelsden, D., Hosking, J., and Grundy, J. (2002). De-

sign pattern modelling and instantiation using dpml.

In Proceedings of the Fortieth International Confer-

ence on Tools Paciﬁc: Objects for Internet, Mobile

and Embedded Applications, CRPIT ’02, page 3–11,

AUS. Australian Computer Society, Inc.

Meyer, B. (1992). Applying “Design by Contract”. IEEE

Computer, 25(10):40–51.

Mikkonen, T. (1998). Formalizing design patterns. In Torii,

K., Futatsugi, K., and Kemmerer, R. A., editors, Forg-

ing New Links, Proceedings of the 1998 International

Conference on Software Engineering, ICSE 98, Kyoto,

Japan, April 19-25, 1998, pages 115–124. IEEE Com-

puter Society.

Nicholson, J., Gasparis, E., Eden, A. H., and Kazman, R.

(2009). Veriﬁcation of design patterns with lepus3.

In Denney, E., Giannakopoulou, D., and Pasareanu,

C. S., editors, First NASA Formal Methods Symposium

- NFM 2009, Moffett Field, California, USA, April

6-8, 2009, volume NASA/CP-2009-215407 of NASA

Conference Proceedings, pages 76–85.

Ozkaya, M. (2018a). Analysing uml-based software mod-

elling languages. Journal of Aeronautics and Space

Technologies, 11(2):119–134.

Ozkaya, M. (2018b). The analysis of architectural lan-

guages for the needs of practitioners. Softw., Pract.

Exper., 48(5):985–1018.

Ozkaya, M. (2018c). Do the informal & formal software

modeling notations satisfy practitioners for software

architecture modeling? Information & Software Tech-

nology, 95:15–33.

Ozkaya, M. (2019). Are the UML modelling tools power-

ful enough for practitioners? A literature review. IET

Softw., 13(5):338–354.

Saeki, M. (2000). Behavioral speciﬁcation of GOF design

patterns with LOTOS. In 7th Asia-Paciﬁc Software

Engineering Conference (APSEC 2000), 5-8 Decem-

ber 2000, Singapore, pages 408–415. IEEE Computer

Society.

Taibi, T. and Ling, D. N. C. (2003). Formal speciﬁcation

of design pattern combination using BPSL. Inf. Softw.

Technol., 45(3):157–170.

Zhang, C. and Budgen, D. (2013). A survey of experienced

user perceptions about software design patterns. Inf.

Softw. Technol., 55(5):822–835.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

260
