Towards Real-time Object Recognition and Pose Estimation in Point

Clouds

Marlon Marcon

1 a

, Olga Regina Pereira Bellon

2 b

and Luciano Silva

2 c

Dapartment of Software Engineering, Federal University of Technology - Paran

a, Dois Vizinhos, Brazil

Department of Computer Science, Federal University of Paran

a, Curitiba, Brazil

Keywords:

Transfer Learning, 3D Computer Vision, Feature-based Registration, ICP Dense Registration, RGB-D Images.

Abstract:

Object recognition and 6DoF pose estimation are quite challenging tasks in computer vision applications. De-

spite efﬁciency in such tasks, standard methods deliver far from real-time processing rates. This paper presents

a novel pipeline to estimate a ﬁne 6DoF pose of objects, applied to realistic scenarios in real-time. We split

our proposal into three main parts. Firstly, a Color feature classiﬁcation leverages the use of pre-trained CNN

color features trained on the ImageNet for object detection. A Feature-based registration module conducts

a coarse pose estimation, and ﬁnally, a Fine-adjustment step performs an ICP-based dense registration. Our

proposal achieves, in the best case, an accuracy performance of almost 83% on the RGB-D Scenes dataset.

Regarding processing time, the object detection task is done at a frame processing rate up to 90 FPS, and the

pose estimation at almost 14 FPS in a full execution strategy. We discuss that due to the proposal’s modularity,

we could let the full execution occurs only when necessary and perform a scheduled execution that unlocks

real-time processing, even for multitask situations.

1 INTRODUCTION

Object recognition and 6D pose estimation represent

a central role in a broad spectrum of computer vision

applications, such as object grasping and manipula-

tion, bin picking tasks, and industrial assemblies ver-

iﬁcation (Vock et al., 2019). Successful object recog-

nition, highly reliable pose estimation, and near real-

time operation are essential capabilities and current

challenges for robot perception systems.

A methodology usually employed to estimate

rigid transformations between scenes and objects is

centered on a feature-based template matching ap-

proach. Assuming we have a known item or a part

of an object, this technique involves searching all the

occurrences in a larger and usually cluttered scene

(Vock et al., 2019). However, due to natural occlu-

sions, such occurrences may be represented only by

a partial view of an object. The template is often an-

other point cloud, and the main challenge of the tem-

plate matching approach is to maintain the runtime

feasibility and preserve the robustness.

https://orcid.org/0000-0001-9748-2824

https://orcid.org/0000-0003-2683-9704

https://orcid.org/0000-0001-6341-1323

Template matching approaches rely on RANSAC-

based feature matching algorithms, following the

pipeline proposed by (Aldoma et al., 2012b).

RANSAC algorithm has proven to be one of the most

versatile and robust. Unfortunately, for large or dense

point clouds, its runtime becomes a signiﬁcant limita-

tion in several of the example applications mentioned

above (Vock et al., 2019). When we seek a 6Dof esti-

mation pose, the real-time is a more challenging task

(Marcon et al., 2019). In an extensive benchmark of

full cloud object detection and pose estimation, (Ho-

dan et al., 2018) reported runtime of a second per test

target on average.

Deep learning strategies for object recognition and

classiﬁcation problems have been extensively studied

for RGB images. As the demand for good quality

labeled data increases, large datasets are becoming

available, serving as a signiﬁcant benchmark of meth-

ods (deep or not) and as training data for real appli-

cations. ImageNet (Deng et al., 2009) is, undoubt-

edly, the most studied dataset and the de-facto stan-

dard on such recognition tasks. This dataset presents

more than 20,000 categories, but a subset with 1,000

categories, known as ImageNet Large Scale Visual

Recognition Challenge (ILSVRC), is mostly used.

164

Marcon, M., Bellon, O. and Silva, L.

Towards Real-time Object Recognition and Pose Estimation in Point Clouds.

DOI: 10.5220/0010265601640174

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

164-174

ISBN: 978-989-758-488-6

Training a model on ImageNet is quite a challeng-

ing task in terms of computational resources and time

consumption. Fortunately, transferring its models of-

fer efﬁcient solutions in different contexts, acting as

a blackbox feature extractor. Studies like (Agrawal

et al., 2014) explore and corroborate this high ca-

pacity of transferring such models to different con-

texts and applications. Regarding the use of pre-

trained CNN features, some approaches handle the

object recognition on the Washington RGB-D Object

dataset, e.g., (Zia et al., 2017) with the VGG architec-

ture and (Caglayan et al., 2020) evaluate several pop-

ular deep networks, such as AlexNet, VGG, ResNet,

and DenseNet.

This paper introduces a novel pipeline to deal with

point cloud pose estimation in uncontrolled environ-

ments and cluttered scenes. Our proposed pipeline

recognizes the object using color feature descriptors,

crops the selected bounding-box reducing the scenes’

searching surface, and ﬁnally estimates the object’s

pose in a traditional local feature-based approach. De-

spite adopting well-known techniques in the 2D/3D

computer vision ﬁeld, our proposal’s novelty centers

on the smooth integration between 2D and 3D meth-

ods to provide a solution efﬁcient in terms of accuracy

and time.

2 BACKGROUND

Recognition systems work with objects, which are

digital representations of tangible real-world items

that exist physically in a scene. Such systems are

unavoidably machine-learning-based approaches that

use features to locate and identify objects in a scene

reliably. Together with the recognition, another task

is to estimate the location and orientation of the de-

tected items. In a 3D world, we estimate six degrees

of freedom (6DoF), which refers to the geometrical

transformation representing a rigid body’s movement

in a 3D space, i.e., the combination of translation and

rotation.

2.1 Color Feature Extraction

As a mark on the deep learning history, (Krizhevsky

et al., 2012) presented the ﬁrst Deep Convolutional

Architecture employed on the ILSVRC, an 8-layer ar-

chitecture dubbed AlexNet. This network was the ﬁrst

to prove that deep learning could beat hand-crafted

methods when trained on a large scale dataset. Af-

ter that, ConvNets became more accurate, deeper, and

bigger in terms of parameters. (Simonyan and Zis-

serman, 2015) propose VGG, a network that dou-

bled the depth of AlexNet, but exploring tiny ﬁlters

(3 × 3), and became the runner-up on the ILSVRC,

one step back the GoogLeNet (Szegedy et al., 2015),

with 22 layers. GoogLeNet relies on the Inception

architecture (Szegedy et al., 2016). Another type of

ConvNets, called ResNets (He et al., 2016), uses the

concept of residual blocks that use skip-connection

blocks that learn residual functions regarding the in-

put. Many architectures have been proposed based

on these ﬁndings, such as ResNet with 50, 101,

and 152 (He et al., 2016). Also, based on devel-

opments regarding the residual blocks, (Xie et al.,

2017) developed the ResNeXt architecture. The ba-

sis upon ResNeXt blocks resides on parallel ResNet-

like blocks, which have the output summed before the

residual calculation. Some architectures propose the

use of Deep Learning features on resource-limited de-

vices, such as smartphones and embedded systems.

The most prominent architecture is the MobileNet

(Sandler et al., 2018). Another family of leading net-

works is the EfﬁcientNet (Tan and Le, 2019). Relying

on the use of these lighter architectures, EfﬁcientNet

proposes very deep architectures without compromise

resource efﬁciency.

2.2 Pose Estimation

As presented in (Aldoma et al., 2012b), a compre-

hensive registration process usually consists of two

steps: coarse and ﬁne registrations. We can produce

a coarse registration transformation by performing a

manual alignment, motion tracking or, the most com-

mon, by using the local feature matching. Local-

feature-matching-based algorithms automatically ob-

tain corresponding points from two or multiple point-

clouds, coarsely registering by minimizing the dis-

tance between them. These methods have been exten-

sively studied and have conﬁrmed to be compliant and

computer efﬁcient (Guo et al., 2016). After coarsely

registering the point clouds, a ﬁne-registration algo-

rithm is applied to reﬁne the initial coarse registra-

tion iteratively. Examples of ﬁne-registration algo-

rithms include the ICP algorithm that perform point-

to-point alignment (Besl and McKay, 1992), or point-

to-plane (Chen and Medioni, 1992). These algorithms

are suitable for matching between point-clouds of

isolated scenes (3D registration) or between a scene

and a model (3D object recognition). This proposal

adopted two approaches to generate the initial align-

ment: a traditional feature-based RANSAC and the

Fast Global Registration (FGR) (Zhou et al., 2016).

Towards Real-time Object Recognition and Pose Estimation in Point Clouds

165

3 PROPOSED APPROACH

In this section, we explain in detail our proposed ap-

proach. Our proposed pipeline starts from an RGB

image and its corresponding point cloud, generated

from RGB and depth images. These inputs are sub-

mitted to our three-stage architecture: color feature

classiﬁcation, feature-based registration, and ﬁne ad-

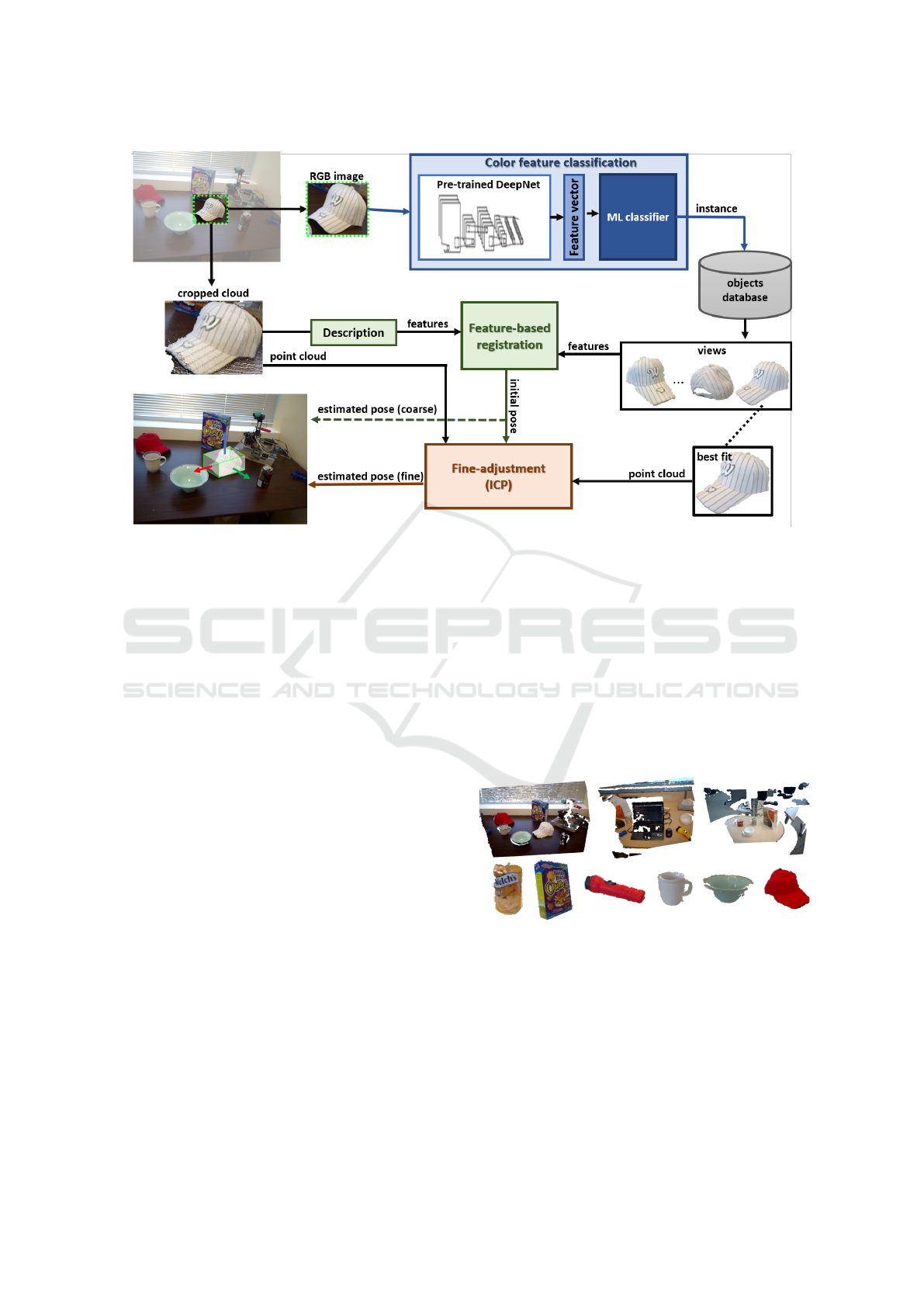

justment. We depict our proposal in Figure 1 and

present these steps in the next sections.

3.1 Color Feature Classiﬁcation

Our proposal starts detecting the target object and es-

timating a bounding box of it. After this detection, we

preprocess the image and submit to a deep-learning-

based color feature extractor. The preprocessing step

includes image cropping and resizing to adjust to the

network input dimensions. The deep network archi-

tectures employed in our experiments output a feature

vector, 1000 bins long, used to predict the object’s

instance, by a pre-trained ML classiﬁer. We empha-

size that our approach is size-independent regarding

the feature vector, but for a fair comparison we chose

networks with the same output size.

In our trials, we explored the achievements of

Table 2, and selected the most accurate networks:

ResNet101 (He et al., 2016), MobileNet v2 (Sandler

et al., 2018), ResNeXt101 32×8d (Xie et al., 2017),

and EfﬁcientNet-B7 (Tan and Le, 2019). These net-

works input a 224 × 244 pixel image and output a

1000 bins feature vector. We employed the Logis-

tic regression classiﬁer, chosen after a performance

evaluation of standard classiﬁers, to name: Support

Vector Classiﬁer (SVC) with linear and radial-based

kernels, Random forest, Multilayer perceptron, and

Gaussian na

ıve Bayes. We explore two variants of our

ML model: a pre-trained on the Washington RGB-

D Object dataset, and a distinct model, also in such

dataset, but with a reduced number of objects, i.e.,

those annotated on the Washington RGB-D Scenes

dataset. The latter provides an application-oriented

approach, reducing the number of achievable classes,

the inference time, and model size (Table 4). To verify

the best accurate classiﬁer, we do not perform object

detection. Instead, we get the ground-truth bound-

ing boxes provided by the dataset, hence verifying

for each ML system which is the best feasible per-

formance.

3.2 Feature-based Registration

We build a model database by extracting and stor-

ing useful information about the objects in a previous

step. The database is composed of information con-

cerning each item, as well as the extracted features of

them. We choose a local-descriptors-based approach

to estimate the object’s pose. For each instance of an

object, we store several partial views of it. Between

these views, our method will select the most likely to

the correspondent object on the scene.

Based on the predicted objects’ classes, we can

select a set of described views from the models’

database. We then perform a feature-based registra-

tion between these views and the point cloud of the

scene’s object (previously cropped based on the de-

tected bounding box). This method will estimate a

transformation based on the correspondences between

a scene and a partial view of an object. Then, the view

with the highest number of inliers and at least three

correspondences is selected. The estimated afﬁne

transformation will be input to the ICP algorithm and

perform a dense registration.

We process each cloud with a uniform sampling

as a keypoint extractor, adopting a leaf size of 1 cm.

After, we describe each keypoint using the FPFH

(Rusu et al., 2009) descriptor with a radius of 5 cm.

We choose this descriptor due to its processing time

and size (33 bins), well-suited for real-time applica-

tions. Methods like CSHOT (Salti et al., 2014) de-

scribes the color and geometric information and has

proven to be an accurate solution applied to single

object recognition on RGB-D Object dataset (Oua-

diay et al., 2016). However, with a descriptor length

of 1344 bins, it is not suitable for real-time feature-

matching. Another proposal that deals with color is

PFHRGB (Rusu et al., 2008), which, despite being

shorter (250 bins) than CSHOT, presents inefﬁcient

calculation time (Marcon et al., 2019).

To perform the coarse registration step, we test

two methods previously presented: RANSAC and

FGR. We considered for both techniques an inlier

correspondence distance lower than 1 cm between

scene and models. We set the convergence criteria for

RANSAC to 4M iterations and 500 validation steps,

and for FGR to 100 iterations, following (Choi et al.,

2015) and (Zhou et al., 2016).

3.3 Fine-adjustment

The previous step outputs an afﬁne transformation

that could work as a ﬁnal pose of the object con-

cerning the scene. However, to guarantee a ﬁne-

adjustment, we employ an additional step to the pro-

cess. We adopt the ICP algorithm, based on the point-

to-plane approach (Chen and Medioni, 1992), to per-

form a dense registration. We use the transforma-

tion resultant from the registration step, the scene, and

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

166

Figure 1: Pipeline of the proposed approach to pose estimation. To estimate the pre-segmented object’s instance, we extract

its features by a deep learning color-based extractor and a pre-trained ML classiﬁer. After selecting the objects database, the

view with the highest number of correspondences resulting from a feature-based registration algorithm. Finally, we apply an

ICP dense registration algorithm to estimate the position and pose of the object.

best-ﬁtted view clouds as input. We set the maximum

correspondence distance threshold to 1 cm. It is im-

portant to point that again, our proposal is generic,

and the ﬁne adjustment algorithm employed in this

stage is ﬂexible. Methods such as ICP point-to-point

(Besl and McKay, 1992) and ColoredICP (Park et al.,

2017) are perfectly adapted to our pipeline.

4 EXPERIMENTAL RESULTS

4.1 Dataset

We validate our proposal on the Washington RGB-D

Object and Scenes datasets. Proposed by (Lai et al.,

2011a) the RGB-D Object contains a collection of

300 instances of household objects, grouped in 51 dis-

tinct categories. Each object includes a set of views,

captured from different viewpoints with a Kinect sen-

sor. A collection of 3 images, including RGB, depth,

and mask is presented for each view. In total, this

dataset has about 250 thousand distinct images. The

authors also provide a dataset of scenes, named RGB-

D Scenes. This evaluation dataset has eight video se-

quences of every-day environments. A Kinect sensor

positioned at a human eye-level height acquires all the

images at a 640 × 480 resolution. This dataset is re-

lated to the ﬁrst one, composed of 13 of the 51 object

categories on the Object dataset. These objects are

positioned over tables, desks, and kitchen surfaces,

cluttered with viewpoints and occlusion variation, and

have annotation at category and instance levels. A

bidimensional bounding box represents the ground-

truth of each object’s position. Figure 2 presents ex-

amples of both datasets. Table 1 gives some details re-

garding the name and size of the sequences, and their

average number of objects.

Figure 2: Examples of models and scenes from the Wash-

ington RGB-D Scenes dataset (top row), and objects from

the RGB-D Object dataset (bottom row). Source: Adapted

from (Lai et al., 2011a).

4.2 Evaluation Protocol

We evaluate our proposal, quantitatively, and qualita-

tively. First, we consider CNN feature extraction and

classiﬁcation accuracy based on the models trained in

the Object dataset (Table 2). We also verify the entire

Towards Real-time Object Recognition and Pose Estimation in Point Clouds

167

Table 1: Details regarding the RGB-D Scenes datasets.

Scene Number of frames Models per frame

desk 1 98 1.89

desk 2 190 1.85

desk 3 228 2.56

kitchen small 1 180 3.55

meeting

small 1 180 8.79

table 1 125 5.92

table small 1 199 3.68

table small 2 234 2.89

Average 179.25 3.89

dataset’s processing time, looking at the frame pro-

cessing rate in both classiﬁcation and pose estimation

scenarios.

As the Scenes dataset does not provide ground-

truth annotations concerning the objects’ pose, we

had to ﬁnd a plausible metric to evaluate the regis-

tration results. We adopted two different metrics: the

Root mean squared error (RMSE) and an inlier ra-

tio measurement. The latter represents the overlap-

ping area between the source (model) and the target

(scene). It is calculated based on the ratio between

inlier correspondences and the number of points on

the target. We also evaluate the correctness of predic-

tions, both of object presence and pose. To do so, we

follow (Marcon et al., 2019) and employ the Intersec-

tion over Union metric (IoU), deﬁned as:

IoU =

∩ BB

Est

∪ BB

Est

(1)

we consider BB

the 3D projection of the 2D bound-

ing box, provided as ground-truth. BB

Est

refers to the

3D bounding box that circumscribes the selected ob-

ject view after applying the resulting transformation.

We found experimentally that, for this particular

dataset, when we estimate the IoU between the ob-

ject 3D BB and the scene 2D projection, often the

former is fully contained in the latter. However, due

to their sizes, the calculated IoU is too low. Hence,

we consider another metric, which we call Model In-

tersection Ratio (MIR) that represent the intersection

volume over the model estimation volume:

MIR =

∩ BB

Est

(2)

With the MIR metric, we guarantee that despite

the IoU, when the estimation transform places the

object inside (or nearly inside) the ground-truth 3D

projection, a successful detection is performed. We

consider a true positive when the IoU ≥ 0.25 or the

MIR ≥ 0.90.

We compared our proposal with the standard 3D

object recognition and pose estimation pipeline (Al-

doma et al., 2012b), and with a boosted version of

such pipeline, proposed by (Marcon et al., 2019). To

calculate precision-recall curves (PRC), we varied the

threshold on the minimum geometrically consistent

correspondences, starting from at least three, related

to each object’s best-suited partial view. The area un-

der the PRC curve (AUC) is then calculated and pro-

vides comparative results that assess our proposals’

efﬁciency against traditional approaches.

4.3 Implementation Details

We performed our tests on a Linux Ubuntu 18.04

LTS machine, equipped with a CPU Ryzen 7 2700X,

32GB of RAM, and a GPU Geforce RTX 2070 Su-

per. To process the point clouds, perform keypoint ex-

traction, description with FPFH, and registration with

RANSAC and FGR, we used the Open3D Library.

We preprocess images using Pillow and OpenCV.

Deep learning models were implemented in PyTorch,

and the pre-trained models extracted from torchvi-

sion. To implement traditional and boosted versions

of object recognition and pose estimation pipelines,

we use PCL 1.8.1, OpenCV 3.4.2, and the saliency de-

tection of (Hou et al., 2017), following (Marcon et al.,

2019).

4.4 Results

This section summarizes the Washington RGB-D

Scenes’ experimental evaluation results in terms of

accuracy and processing time.

4.4.1 Object Detection Benchmark

To assess the generalization capacity of CNN pre-

trained models, we perform an object detection eval-

uation on the Object dataset (Lai et al., 2011a). Ta-

ble 2 present results regarding classiﬁcation of partial

views of objects. We evaluate the instance recognition

scenario, following (Lai et al., 2011a), i.e., consider-

ing Alternating contiguous frame (ACF) and Leave-

sequence-out (LSO) scenarios. We compared our re-

sults with state-of-the-art object detection methods

on this dataset. We perceived that pre-trained net-

works provide reliable results as off-the-shelf color

feature extractors. In both evaluation approaches,

tested networks present competitive results concern-

ing the other competitors. In LSO, ResNet101 (He

et al., 2016) features ﬁgures in the third position, and

in ACF, 5 of 7 architectures outperform previous pro-

posals.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

168

Table 2: Comparison of CNN color features on the Wash-

ington RGB-D Object dataset. The best result reported in

blue, the second best in green, and the third in red.

Method LSO ACF

Lai et al. (RF) (Lai et al., 2011a) 59.9 90.1 ± 0.8

Lai et al. (kSVC) (Lai et al., 2011a) 60.7 91.0 ± 0.5

IDL (Lai et al., 2011b) - 54.8 ± 0.6

SP+HMP (Bo et al., 2013) 92.1 -

Multi-Modal (Schwarz et al., 2015) 92.0 -

MDSI-CNN (Asif et al., 2017) 97.7 -

MM-LRF-ELM (Liu et al., 2018) 91.0 -

HP-CNN (Zaki et al., 2019) 95.5 -

AlexNet (Krizhevsky et al., 2012) 89.8 93.9 ± 0.4

ResNet101(He et al., 2016) 94.1 95.3 ± 0.3

VGG16 (Simonyan and Zisserman, 2015) 88.8 91.0 ± 0.6

Inception v3 (Szegedy et al., 2016) 88.1 90.3 ± 0.4

MobileNet v2 (Sandler et al., 2018) 93.8 95.8 ± 0.3

ResNeXt101 32 × 8d (Xie et al., 2017) 93.9 95.7 ± 0.4

EfﬁcientNet B7 (Tan and Le, 2019) 93.8 95.6 ± 0.5

Despite the signiﬁcant results, this evaluation is

essential to select the most suitable to perform object

recognition in realistic scenarios, such as those pre-

sented by the Scenes dataset (Lai et al., 2011a). As

the trials’ output, we selected the top-four architec-

tures to apply in our proposed pipeline.

4.4.2 Object Recognition in Real-world Scenes

We opposed the selected CNN architectures exam-

ining only a classiﬁcation based on the RGB infor-

mation, taking the annotated bounding box, and sub-

mitting to the Color Feature Classiﬁcation stage of

our pipeline (as in Section 3.1). Table 3 relates to

instance-level recognition.

The ﬁrst outcome of this evaluation is the dom-

inance of two networks over the other competitors

considering different aspects. EfﬁcientNet (Tan and

Le, 2019) architecture outperforms in terms of ac-

curacy, and MobileNet v2 (Sandler et al., 2018) in

terms of processing time w.r.t. the others in almost

all scenes.

EfﬁcientNet reaches an average accuracy of al-

most 67%, followed by MobileNet v2, with almost

53%. However, when we aim efﬁciency in process-

ing time, EfﬁcientNet does not perform so well, be-

ing the slowest network with a frame-rate of 3.02 per

second. On the other hand, the MobileNet v2 fulﬁlls

the network’s main proposal to be time-efﬁcient and

accurate for embedded applications. It presents the

second-best accuracy and the best frame-rate, with al-

most 7 FPS.

The full-set of the Object dataset contains 51

categories and 300 distinct instances. Concerning

the Scenes dataset, the number of annotated samples

drops to 6 categories and 22 instances, i.e., only a

small set of objects of Object dataset is achievable on

the Scenes dataset. When we use a model trained on

the full-set, most categories or instances will never

be detected. Thou, we learned a lighter classiﬁer that

considers only such speciﬁc instances (Table 4).

After this change on the model speciﬁcity, we dis-

tinguish a noticeable improvement in accuracy and

the processing time, achieving MobileNet v2 a near

real-time performance on average. A signiﬁcant gain

on accuracy was established, with over 10% for every

architecture, pulling the best result to 83% for Efﬁ-

cientNet.

Regarding the frame processing rate, it is essential

to notice that the average number of models varies

from 1.85 to 8.79 over the scenes, with almost four

objects per frame in mean (Table 3). Thus, we can in-

fer that our proposal can deliver a near-real-time FPS,

inclusive in a multi-classiﬁcation problem. When we

consider only a single target, the performance is al-

most four times faster, as presented in Table 7, on the

Color only column.

4.4.3 Pose Estimation Results

Based on the assumption that we mapped the objects

we aim to detect in a real-world scenario, we adopted

those models trained on the RGB-D Object dataset

subset. We considered only the instance detection sit-

uation. The reason for disregarding categories is that

we could have intra-class misclassiﬁcations, corrupt-

ing the pose alignment step. For each instance de-

tected by the Color feature classiﬁcation stage, we

take ten views of the referred object from the mod-

els’ database.

In Table 5 we report an evaluation concerning the

Feature-based registration and Fine-adjustment stages

of our pipeline. Getting a set of ten randomly se-

lected views of the same object, we perform a coarse

estimation by using RANSAC or FGR. We evaluate

quantitatively such methods concerning the inlier ra-

tio, RMSE, and execution time. We apply the result-

ing afﬁne transformation as the input of an ICP dense

registration and evaluate if this input can imply differ-

ences in the processing time.

Indeed, the FGR method is much faster than

RANSAC. However, we observe that for both metrics

RANSAC outperforms it. The Inlier ratio presented

by the latter is around 50% higher than the faster

method and also shows an RMSE more consis-

tent. The transformation generated by the coarse

alignment algorithm also impacts the ICP execution

Towards Real-time Object Recognition and Pose Estimation in Point Clouds

169

Table 3: Instance classiﬁcation performance on the RGB-D Scenes datasets.

MobileNet v2 Resnet101 ResNeXt101 32x8d EfﬁcientNet-B7

Scene Acc FPS Acc FPS Acc FPS Acc FPS

desk 1 42.70% 13.03 51.89% 9.66 48.11% 7.63 49.73% 6.55

desk 2 41.76% 12.95 38.92% 9.31 55.40% 7.93 76.42% 6.35

desk 3 72.77% 9.84 52.57% 7.09 52.91% 5.78 90.58% 4.60

kitchen

small 1 36.31% 7.97 34.74% 5.29 48.20% 4.12 56.81% 3.25

meeting small 1 41.40% 3.29 38.05% 2.35 42.92% 1.74 50.63% 1.33

table 1 56.76% 4.62 38.11% 3.43 31.08% 2.49 61.49% 2.00

table small 1 75.03% 7.50 63.30% 5.33 65.35% 3.89 83.36% 3.16

table small 2 55.39% 9.13 45.35% 6.88 49.34% 5.04 65.88% 4.10

Average 52.77% 6.99 45.37% 5.03 49.16% 3.80 66.86% 3.02

Table 4: Performance comparison between full and a spe-

ciﬁc training set with objects from the Scenes dataset.

DeepNet

Full Scenes

Acc FPS Acc FPS

MobileNet v2 52.77% 6.99 67.35% 24.62

Resnet101 45.37% 5.03 61.41% 13.94

ResNeXt101 32x8d 49.16% 3.80 59.04% 8.86

EfﬁcientNet-B7 66.86% 3.02 82.94% 5.88

and we notice that a better estimation can speed

up the ﬁne-adjustment process.

To evaluate more deeply if the ICP, after the

feature-matching application, can surpass problems

like a more rough estimation, we must assess an an-

notated pose. Unfortunately, the adopted dataset does

not offer such data, and further studies may verify that

afﬁrmation on a pose-annotated dataset. However, we

can evaluate the estimation correctness by employing

the IoU and MIR metrics and verify if the feature-

based registration step’s estimation is reliable com-

pared to standard approaches. In Table 6 we perform

such comparison regarding the AUC and FPS values

of different setup of our proposed pipeline, the stan-

dard (Aldoma et al., 2012b), and the boosted (Marcon

et al., 2019) pipelines.

Results of Table 6 conﬁrm our claim that perform-

ing the object detection on the RGB images improves

results compared to traditional approaches. Both stan-

dard and boosted pipelines present accuracy results

worst than all trials we run in our pipeline, even con-

sidering the same conditions of descriptors and leaf

size, e.g., 1 cm of leaf size in Boost US

0.01

trial.

When we consider time processing, the difference

is even more discrepant when our approach presents

in the best case, a frame-rate of 14.18 against 0.09

FPS on the best standard approaches, which repre-

sents a remarkable improvement of more than 150×

in speed. When using the EfﬁcientNet/FGR pair, our

proposal presents AUC (0.4123) three times higher

than the Boosted pipeline (0.1372). We did not run

the Baseline US

0.01

because this method is very time-

consuming and does not represent a reasonable choice

regarding the boosted version (Boost U S

0.01

). We

found a frame rate of 0.0005 for a small set of frames

experimentally. Besides, the boosted pipeline (Mar-

con et al., 2019) gains on accuracy and time perfor-

mance regarding the traditional version, as seen on

the trials with a leaf size of 0.02 (Baseline US

0.02

and

Boost US

0.02

), and such behavior is also expected on

a smaller leaf size.

4.4.4 Time Processing Evaluation

Now we report the processing rate regarding execut-

ing the three stages of our proposed pipeline. Table 7

presents the frame processing rate based on a single

target object scenario. We evaluate referring to the

ﬁrst stage execution (Color only), the early two stages

(Columns RANSAC, and FGR), and a pipeline’s full

execution (+ICP).

At ﬁrst sight, one can conjecture that a RANSAC-

based approach is unpromising when presenting

around 2 FPS. However, considering an FGR-based

process, the results are indeed encouraging, with 8

FPS for the best accurate method, and more than 13

for the others. For many applications that deal with

real-time, a frame rate around eight or more is accept-

able. We agree that the facto standard for real-time

is at least 30 FPS, however, due to the modularity of

our proposed pipeline, the stages are independent, and

we could use the full execution only to indispensable

situations.

An application scenario may include a target ob-

ject’s location and pose recovering, for instance, by a

robot or a visually impaired person. The system could

execute a scheduled procedure, localizing this object

adopting only the ﬁrst stage of the pipeline, in real-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

170

Table 5: Comparison between feature-based registration methods. Values reported consider the processing time (in seconds)

for ten views of the same object and the ICP for the best one selected.

Methods

Feature-based

time (↓)

ICP time (↓) Inlier ratio (↑) RMSE (↓)

RANSAC 0.7688 0.0061 0.2689 0.0055

FGR (Zhou et al., 2016) 0.0580 0.0075 0.1895 0.0059

Table 6: Comparison of the proposed pipeline with standard

object recognition and pose estimation approaches. Base-

line refer to (Aldoma et al., 2012a) and Boost to (Marcon

et al., 2019). Every trial employed FPFH (Rusu et al., 2009)

as local descriptor with a uniform sampling as keypoint de-

tector. Excepting the ﬁsrt two rows, leaf size was set to 1

cm.

Method AUC FPS

Baseline US

0.02

0.0401 0.0023

Boost US

0.02

0.0868 0.0918

Boost US

0.01

0.1372 0.0339

Resnet101 + FGR 0.2228 13.8321

ResNet101 + RANSAC 0.2092 1.9649

MobileNet v2 + FGR 0.2922 13.8939

MobileNet v2 + RANSAC 0.2781 1.8905

ResNeXt101 32x8d + FGR 0.2090 14.1813

ResNeXt101 32x8d + RANSAC 0.1947 2.0268

EfﬁcientNet-B7 + FGR 0.4123 8.9429

EfﬁcientNet-B7 + RANSAC 0.2994 1.4344

time. Then, as the subject approaches the objective,

we could execute the second stage, estimating a rough

transformation, e.g., once a second. Finally, when the

object is next to the user, we can run the full pipeline,

including the ﬁne-adjustment stage.

To investigate more deeply the processing time

of a successfully detected object of our pipeline, we

summarize how much time takes each substep in Fig-

ure 3. We can infer that two main steps negatively

impact the time processing: classiﬁcation and feature-

based estimation. Regarding the former, the correct

selection of the network to extract color features is

fundamental to speed-up the whole process, present-

ing a signiﬁcant difference between the faster (San-

dler et al., 2018) and the slower (Tan and Le, 2019).

We perceive a considerable impact in time processing

when using RANSAC instead of FGR for the feature-

based stage. In this implementation, we do not use

any concurrent processing, which could signiﬁcantly

improve such time for both coarse pose estimation

methods. Our pipeline is highly ﬂexible, and the use

of recent proposals may enhance our results on coarse

estimation, for instance DGR (Choy et al., 2020).

Time (s)

Methods

MobileNet v2

ResNet101

ResNeXt101 32x8d

EfficientNet-B7

0,00 0,05 0,10 0,15

Preprocessing Classification Keypoint Description Ransac ICP

(a) FGR

Time (s)

Methods

MobileNet v2

ResNet101

ResNeXt101 32x8d

EfficientNet-B7

0,00 0,25 0,50 0,75 1,00

Preprocessing Classification Keypoint Description Ransac ICP

(b) RANSAC

Figure 3: Processing time (in seconds) of each step of the

execution of proposed approach. We consider only success-

fully detected objects on this comparison. (a) presents times

referring to the FGR (Zhou et al., 2016) method, and (b) to

RANSAC.

4.4.5 Qualitative Results

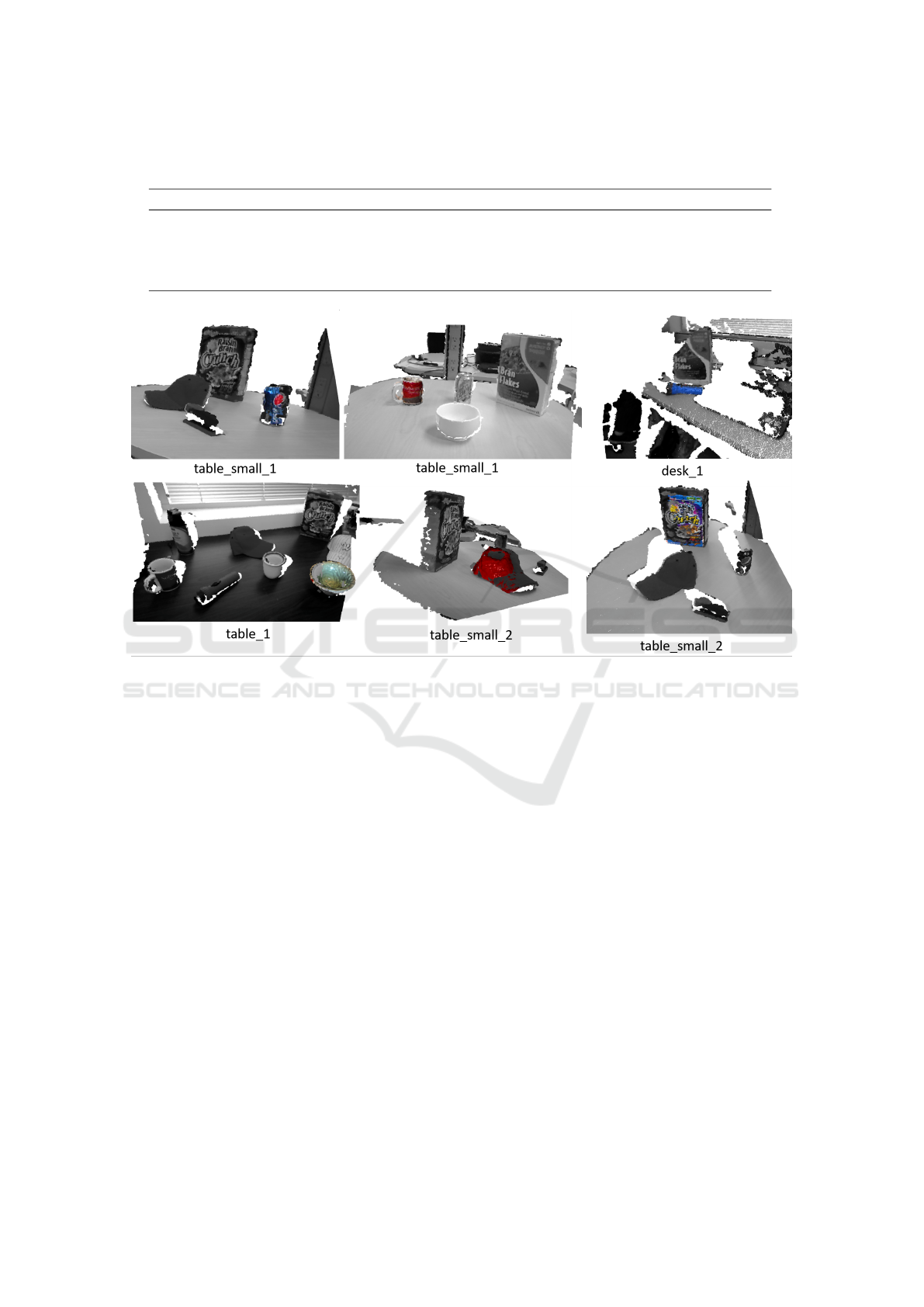

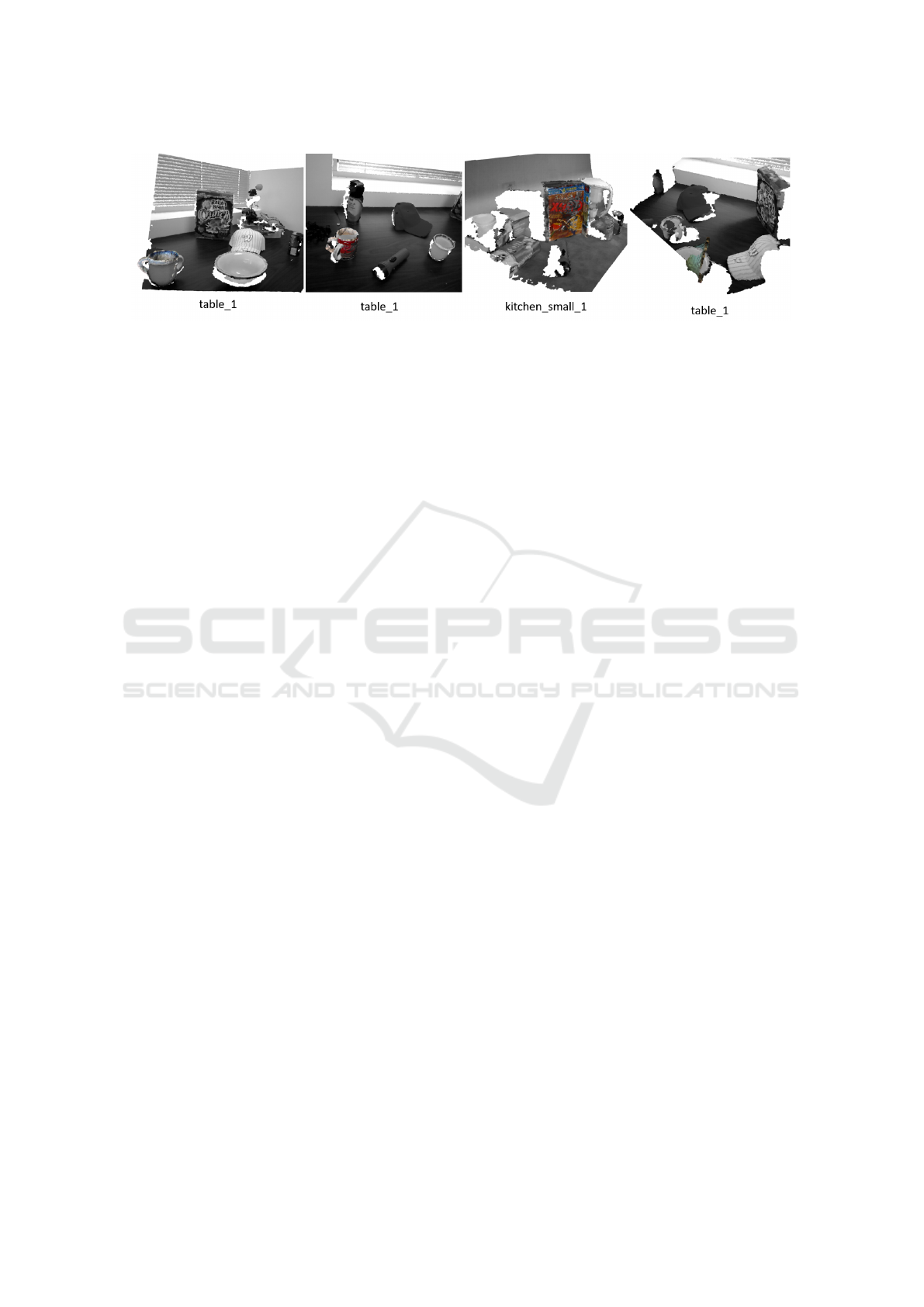

We provide qualitative visualizations of our proposed

method (RANSAC + ICP) in Figure 4. Our method

succeeds in aligning several different shaped mod-

els, such as planes (cereal box), cylinders (soda can,

coffee mugs, and ﬂashlights), and free form models

(caps). As we perform a rigid transformation to align

objects and scenes, the model’s choice is fundamen-

tal. Examples like the red cap that present a crum-

ple on top harm the alignment estimation. Other-

wise, we conﬁrm the robustness of the combination

of coarse and ﬁne alignments on the bowl object (bot-

tom row, on the left), partially cropped on the scene

cloud. Still, our method infers the pose correctly.

Towards Real-time Object Recognition and Pose Estimation in Point Clouds

171

Table 7: Single target pose estimation FPS. Color only refers to object classiﬁcation, other columns refer to the pose aligment

step, coarse (RANSAC and FGR) or ﬁne (plus ICP).

Color only RANSAC FGR RANSAC + ICP FGR + ICP

MobileNet v2 (Sandler et al., 2018) 89.49 1.89 13.89 1.82 13.57

ResNet101 (He et al., 2016) 52.45 1.96 13.83 1.81 13.39

ResNeXt101 32x8d (Xie et al., 2017) 33.73 2.03 14.18 2.09 13.32

EfﬁcientNet-B7 (Tan and Le, 2019) 22.51 1.43 8.94 1.40 8.55

Figure 4: Qualitative visualizations of successful pose alignment.

In Figure 5, we present some wrong alignments

of our proposals. We can observe that the objects’

main shape weights a lot on the alignment results.

For instance, the mugs had the body well aligned but

a misalignment on the handle. We also perceive a

ﬂip on the cereal box because of the large plane at

the front. The bowl in the rightmost example fails

in aligning, though, different from the previous ﬁg-

ure, where the method robustly handled a partial view

of a bowl, this particular case, have about 50% only

of the object visible. The ICP algorithm estimates a

locally minimal transformation, and such misalign-

ments may occur because of inaccurate inputs pro-

duced by RANSAC/FGR methods. We espy three

potential solutions: using novel CNN-based estima-

tion methods, e.g., DGR (Choy et al., 2020); adopt-

ing more robust local descriptors to the feature-based

registration phase, also considering color-based ap-

proaches; increasing the number of selected 2.5D

views to enhance pose covering of the scenes’ ob-

jects. The last two cited solutions may negatively

affect time-performance. Despite the misalignments

veriﬁed, as we reduce the surface search on the scene

cloud, we always have an estimation next or even in-

side the 3D projection of the 2D bounding box out-

putted by the detection.

5 CONCLUSIONS

3D pose estimation is a challenging task, mainly for

real-time applications. Sometimes developers must

surrender on the precision, aiming the response time.

In this paper, we introduced a novel pipeline that pro-

poses to combine the power of color features extrac-

tors deep networks, with a local descriptors pipeline

to pose estimation in point clouds. We evaluated

the detection of objects and achieved almost 83% on

an instance situation, in the best case. This preci-

sion is also accompanied by a high frame processing

rate, arriving up to 90 FPS. The pose estimation rate

is plausible for some applications, and by schedul-

ing the stages of our pipeline, we can reach stan-

dard real-time processing. We show experimentally

massive improvements concerning accuracy and time

processing compared to standard approaches for ob-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

172

Figure 5: Qualitative visualizations of wrong pose alignment. From left to right: two examples of coffee mugs with a

misoriented handles, ﬂipped cereal box, and a rotated bowl.

ject recognition and pose estimation. Our approach

is 3× more efﬁcient and 150× faster than traditional

and grounded methodologies.

Our three-staged detachable pipeline can be used

according to the user/application needs: the color fea-

ture classiﬁcation provides object detection in real-

time; the feature-based registration estimates an im-

precise but sometimes efﬁcient pose of the scenes’

object; the third stage performs a ﬁne alignment

of the estimation, resulting in a more accurate re-

sult. We believe that our proposal’s adoption may

help researchers and the industry develop reliable and

time-efﬁcient solutions for scene recognition prob-

lems from RGB-D data.

Parallelization strategies can improve time results

even more and also different local descriptors and

keypoint extractors could support this. Findings on

the deepnets architectures can help developing an

integrated region proposal and object detection al-

gorithm, and state-of-the-art deep learning methods

such as SSD (Liu et al., 2016), YOLO (Redmon et al.,

2016), and EfﬁcientDet (Tan et al., 2020) enable such

potentiality.

ACKNOWLEDGMENTS

We would like to thank UTFPR-DV for partly sup-

porting this research work.

REFERENCES

Agrawal, P., Girshick, R., and Malik, J. (2014). Analyzing

the performance of multilayer neural networks for ob-

ject recognition. In European conference on computer

vision, pages 329–344. Springer.

Aldoma, A., Marton, Z., Tombari, F., Wohlkinger, W., Pot-

thast, C., Zeisl, B., and Vincze, M. (2012a). Three-

dimensional object recognition and 6 DoF pose es-

timation. IEEE Robotics & Automation Magazine,

pages 80–91.

Aldoma, A., Marton, Z.-C., Tombari, F., Wohlkinger, W.,

Potthast, C., Zeisl, B., Rusu, R. B., Gedikli, S., and

Vincze, M. (2012b). Tutorial: Point cloud library:

Three-dimensional object recognition and 6 DoF pose

estimation. IEEE Robotics & Automation Magazine,

19(3):80–91.

Asif, U., Bennamoun, M., and Sohel, F. A. (2017). A multi-

modal, discriminative and spatially invariant CNN for

RGB-D object labeling. IEEE transactions on pattern

analysis and machine intelligence, 40(9):2051–2065.

Besl, P. J. and McKay, N. D. (1992). Method for registration

of 3-D shapes. In Sensor fusion IV: control paradigms

and data structures, volume 1611, pages 586–606. In-

ternational Society for Optics and Photonics.

Bo, L., Ren, X., and Fox, D. (2013). Unsupervised fea-

ture learning for RGB-D based object recognition. In

Experimental robotics, pages 387–402. Springer.

Caglayan, A., Imamoglu, N., Can, A. B., and Nakamura,

R. (2020). When CNNs meet random RNNs: To-

wards multi-level analysis for RGB-D object and

scene recognition. arXiv preprint arXiv:2004.12349.

Chen, Y. and Medioni, G. (1992). Object modelling by reg-

istration of multiple range images. Image and vision

computing, 10(3):145–155.

Choi, S., Zhou, Q.-Y., and Koltun, V. (2015). Robust recon-

struction of indoor scenes. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 5556–5565.

Choy, C., Dong, W., and Koltun, V. (2020). Deep global

registration. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition,

pages 2514–2523.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). Imagenet: A large-scale hierarchical

image database. In 2009 IEEE conference on com-

puter vision and pattern recognition, pages 248–255.

Ieee.

Guo, Y., Bennamoun, M., Sohel, F., Lu, M., Wan, J., and

Kwok, N. M. (2016). A comprehensive performance

evaluation of 3D local feature descriptors. Interna-

tional Journal of Computer Vision, 116(1):66–89.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Towards Real-time Object Recognition and Pose Estimation in Point Clouds

173

Hodan, T., Michel, F., Brachmann, E., Kehl, W., GlentBuch,

A., Kraft, D., Drost, B., Vidal, J., Ihrke, S., Zabulis,

X., et al. (2018). Bop: Benchmark for 6D object pose

estimation. In Proceedings of the European Confer-

ence on Computer Vision (ECCV), pages 19–34.

Hou, Q., Cheng, M.-M., Hu, X., Borji, A., Tu, Z., and

Torr, P. H. (2017). Deeply supervised salient object

detection with short connections. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 3203–3212.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. In Advances in neural information process-

ing systems, pages 1097–1105.

Lai, K., Bo, L., Ren, X., and Fox, D. (2011a). A large-

scale hierarchical multi-view RGB-D object dataset.

In 2011 IEEE international conference on robotics

and automation, pages 1817–1824. IEEE.

Lai, K., Bo, L., Ren, X., and Fox, D. (2011b). Sparse dis-

tance learning for object recognition combining rgb

and depth information. In 2011 IEEE International

Conference on Robotics and Automation, pages 4007–

4013. IEEE.

Liu, H., Li, F., Xu, X., and Sun, F. (2018). Multi-modal lo-

cal receptive ﬁeld extreme learning machine for object

recognition. Neurocomputing, 277:4–11.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). SSD: Single shot

multibox detector. In European conference on com-

puter vision, pages 21–37. Springer.

Marcon, M., Spezialetti, R., Salti, S., Silva, L., and Di Ste-

fano, L. (2019). Boosting object recognition in point

clouds by saliency detection. In International Confer-

ence on Image Analysis and Processing, pages 321–

331. Springer.

Ouadiay, F. Z., Zrira, N., Bouyakhf, E. H., and Himmi,

M. M. (2016). 3d object categorization and recogni-

tion based on deep belief networks and point clouds.

In Proceedings of the 13th International Conference

on Informatics in Control, Automation and Robotics

- Volume 2: ICINCO,, pages 311–318. INSTICC,

SciTePress.

Park, J., Zhou, Q.-Y., and Koltun, V. (2017). Colored point

cloud registration revisited. In Proceedings of the

IEEE International Conference on Computer Vision,

pages 143–152.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time object

detection. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 779–

788.

Rusu, R. B., Blodow, N., and Beetz, M. (2009). Fast point

feature histograms (FPFH) for 3D registration. In

2009 IEEE international conference on robotics and

automation, pages 3212–3217. IEEE.

Rusu, R. B., Blodow, N., Marton, Z. C., and Beetz, M.

(2008). Aligning point cloud views using persistent

feature histograms. In 2008 IEEE/RSJ international

conference on intelligent robots and systems, pages

3384–3391. IEEE.

Salti, S., Tombari, F., and Di Stefano, L. (2014). SHOT:

Unique signatures of histograms for surface and tex-

ture description. Computer Vision and Image Under-

standing, 125:251–264.

Sandler, M., Howard, A., Zhu, M., Zhmoginov, A., and

Chen, L.-C. (2018). Mobilenetv2: Inverted residu-

als and linear bottlenecks. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 4510–4520.

Schwarz, M., Schulz, H., and Behnke, S. (2015). RGB-

D object recognition and pose estimation based on

pre-trained convolutional neural network features. In

2015 IEEE international conference on robotics and

automation (ICRA), pages 1329–1335. IEEE.

Simonyan, K. and Zisserman, A. (2015). Very deep con-

volutional networks for large-scale image recognition.

In International Conference on Learning Representa-

tions.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2015). Going deeper with convolutions.

In Proceedings of the IEEE conference on computer

vision and pattern recognition, pages 1–9.

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., and Wo-

jna, Z. (2016). Rethinking the inception architecture

for computer vision. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 2818–2826.

Tan, M. and Le, Q. (2019). Efﬁcientnet: Rethinking model

scaling for convolutional neural networks. In Interna-

tional Conference on Machine Learning, pages 6105–

6114.

Tan, M., Pang, R., and Le, Q. V. (2020). Efﬁcientdet: Scal-

able and efﬁcient object detection. In Proceedings of

the IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 10781–10790.

Vock, R., Dieckmann, A., Ochmann, S., and Klein, R.

(2019). Fast template matching and pose estimation

in 3D point clouds. Computers & Graphics, 79:36–

45.

Xie, S., Girshick, R., Doll

ar, P., Tu, Z., and He, K. (2017).

Aggregated residual transformations for deep neural

networks. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 1492–

1500.

Zaki, H. F., Shafait, F., and Mian, A. (2019). Viewpoint in-

variant semantic object and scene categorization with

RGB-D sensors. Autonomous Robots, 43(4):1005–

1022.

Zhou, Q.-Y., Park, J., and Koltun, V. (2016). Fast global

registration. In European Conference on Computer

Vision, pages 766–782. Springer.

Zia, S., Yuksel, B., Yuret, D., and Yemez, Y. (2017). RGB-

D object recognition using deep convolutional neural

networks. In Proceedings of the IEEE International

Conference on Computer Vision Workshops, pages

896–903.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

174
