Characterization of Upper Limb Functionality Caused by

Neuromuscular Disorders using Novel Motion Features from a

Specialized Gaming Platform

A. Chytas

, D. Fotopoulos

, V. Kilintzis

, E. Koutsiana

, I. Ladakis

, E. Kiana

, T. Loizidis

and I. Chouvarda

Laboratory of Computing, Medical Informatics and Biomedical Imaging Technologies,

Aristotle University of Thessaloniki, Thessaloniki, Greece

Theodoros Loizidis Apokatastasi LTM, Thessaloniki, Greece

Kiana.Elpida@Gmail.Com, Loizidis@Yahoo.Com, Ioannach@Auth.Gr

Keywords: Gamification, Rehabilitation, Signal-analysis, Neuromuscular Disorder, Upper-limb Motion, Classification.

Abstract: This paper describes the methodology for analyzing upper limb motion data derived from a novel Gamified

Motion Control Assessment platform that is based on a virtual 3D game environment. The gamified approach

targets patients experiencing upper-limb movement hindrances, typically caused by neuromuscular disorders.

The leap motion controller is used for interaction. The game guides the avatar to move along the X and Y axis

following specific paths. The avatar mimics the movement of the user's hand that performs these movements

for rehabilitation. In order to use this method for the training and assessment patient’s motion, a quantified

approach that uses the game-based motion for patient assessment is required. Besides simple game scores that

are often used, the proposed data analysis aims to elaborate on the discrimination between pathological and

healthy movement with a machine learning approach, as well as the quantification of the patient’s progress

over time. For this purpose, movement and performance-related features were extracted from the leap sensor

recordings and their value was explored towards characterizing the patient state and progress in detail. A

dataset with multiple recordings from patients and healthy individuals was used for this purpose. All patients

suffered from neuromuscular disorders. The features with the highest discriminatory value between the two

groups were subsequently used to develop a set of classifiers for different sets of movements (e.g., horizontal,

diagonal, vertical). A patient was left out of the classifier creation procedure and used for external validation.

The models achieved high accuracy (92.13%). These results are deemed promising for the quantification of a

patient’s progress.

1 INTRODUCTION

Motor control is a complex process or a set of sub-

processes that involves the coordination of muscles

and limbs in order to perform a motor skill either

voluntary or as a reflex. Humans from birth are

trained in motor control by integrating sensory-motor

information, a procedure called Motor-learning.

Firstly, through observation and later via repetition,

movements are consolidated in the Central Nervous

System (CNS). Certain pathologies or injuries affect

https://orcid.org/0000-0001-8486-011X

https://orcid.org/0000-0001-8605-8593

https://orcid.org/0000-0002-9783-6757

https://orcid.org/0000-0001-8915-6658

the CNS resulting in the loss of cognitive functions of

the brain. This may impact several motor functions

and cause partial or complete loss.

Rehabilitation programs aim to detect motor

deficits and help patients regain control of their

movements through motor learning. The standard

procedure is the repetitive training of isolated

movements’ correct form.

There has been an increasing amount of studies

regarding the assistance of physical rehabilitation and

conventional treatment methods via technology

Chytas, A., Fotopoulos, D., Kilintzis, V., Koutsiana, E., Ladakis, I., Kiana, E., Loizidis, T. and Chouvarda, I.

Characterization of Upper Limb Functionality Caused by Neuromuscular Disorders using Novel Motion Features from a Specialized Gaming Platform.

DOI: 10.5220/0010244400600068

In Proceedings of the 14th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2021) - Volume 4: BIOSIGNALS, pages 60-68

ISBN: 978-989-758-490-9

(Meijer et al., 2018),(Ang and Guan, 2013). This

interest in technology-based rehabilitation has led to

the development of an emerging domain that

combines exergames, gamification mechanisms and

traditional rehabilitation methodologies (Smeddinck

et al., 2015). These novel treatment methodologies

combine software and hardware to facilitate the

process of Motor Learning, by introducing an

efficient (Veerbeek et al., 2017) and more rewarding

way of performing a series of repetitive and

functional movements, which are required for the

rehabilitation of patients with motor deficits.

Gamification and serious gaming are regarded as

means for inducing positive health behavioural

change (Sardi et al., 2017), but there is still lack of

solid evidence and consolidated approaches and

means for quantification progress.

There are various research approaches that are

integrating Leap motion sensor in their system. One

example is a system that was suggested in 2014

(Charles et al., 2014) for the rehabilitation of wrist

and fingers that used Leap as a part of a game that

engaged the user to pick up various objects and place

them correctly in order to form a specific shape or

construction. Another example is a system (Elnaggar

and Reichardt, 2017) that was also suggested for the

rehabilitation of hand, wrist and fingers and was

trying to exercise hand’s grip and movement.

Overall, gamification mechanisms integrated

appropriately in standard therapy regimens and

protocols, have been found to be sufficiently effective

in a wide range of diseases involving motion, for

example in stroke (Henderson et al., 2007; Tamayo-

Serrano et al., 2018) or in Parkinson’s disease with

leap motion (Oña et al., 2018).

The current work is based on a custom

rehabilitation platform that can be used as a tool for

the medical treatment of patients with physical

impairments of the upper limbs (Chytas et al., 2020),

including arm, axilla and shoulder. It supports the

idea of a ‘gaming as a health service’ (GaaHS),

providing the physician the ability to remotelly

monitor patients and adjust their treatmeant. The

platform is aiming to optimize the Motor Control and

Learning processes by providing an engaging way for

rehabilitation exercise execution along with a set of

statistical tools that evaluate quantitatively the

patient's upper limb motion and overall performance.

The analysis of upper limb motion is a challenging

task due to its multidimensional nature. We propose

a novel set of features that characterizes upper limb

motion along with gameplay related features. Our aim

is to establish a baseline that can distinguish between

healthy and pathological movement and additionally

quantify the patient's rehabilitaion progress and

improvement.

2 BACKGROUND AND

RATIONALE

Currently, the GaaHS platform (Chytas et al., 2020)

consists of one game scenario that incorporates basic

rehabilitation exercises in its mechanics. It follows

the flying simulation paradigm. The user is asked to

guide a red polygon airplane (avatar) through

orthogonal game objects (gates) that are placed across

the scene. The interaction between the user and his

avatar is achieved by the camera sensor Leap Motion

Controller, which utilizes computer vision

technology to recognize hands in its field of view and

calculates a set of measurements that describe them.

The general therapy protocol focuses on these

exercise movements: horizontal adduction/abduction

of the shoulder, and supination/pronation of the

forearm. The hand is placed above the sensor and

moves along the horizontal and vertical plane, as well

as rotate along the Z-axis. In the virtual world of the

game, the airplane mimics the hand’s movement.

Because of the strictly defined set of movement

exercises, it was a requirement-based design decision

that the airplane avatar of the game cannot move with

six degrees of freedom. Thus, the airplane’s

movement is confined to the X and Y plane, a

restriction that made it quite challenging to achieve a

degree of immersion of the user in the game world.

The gate objects that the user leads the aircraft

through, appears in a predefined 3x3 grid Figure 2.

The goal is the highest possible number of repetitions,

so the condition for the end of a game session is either

a time limit or a limit on the number of the gates. A

secondary objective of the game is to collect the

‘coins’ that are placed in the middle of a gate. This

provides the user with a clear target of where he/she

should aim to “fly” through, and it might later be

helpful in discerning patterns during the analysis

process.

After the completion of the course, a score is

awarded to the user that represents the number of

gates he/she managed to go through. A rough metric

of the performance is the percentage of successful

gates. This score is useful both as a means for

motivating the user and as a summarized, high level

index of the user’s ability to perform the task, useful

for the rehabilitation healthcare professional.

However, it is questionable whether this index is

adequately informative for the patient’s detailed

condition or for specific problems in movement and

their progress over time.

Characterization of Upper Limb Functionality Caused by Neuromuscular Disorders using Novel Motion Features from a Specialized

Gaming Platform

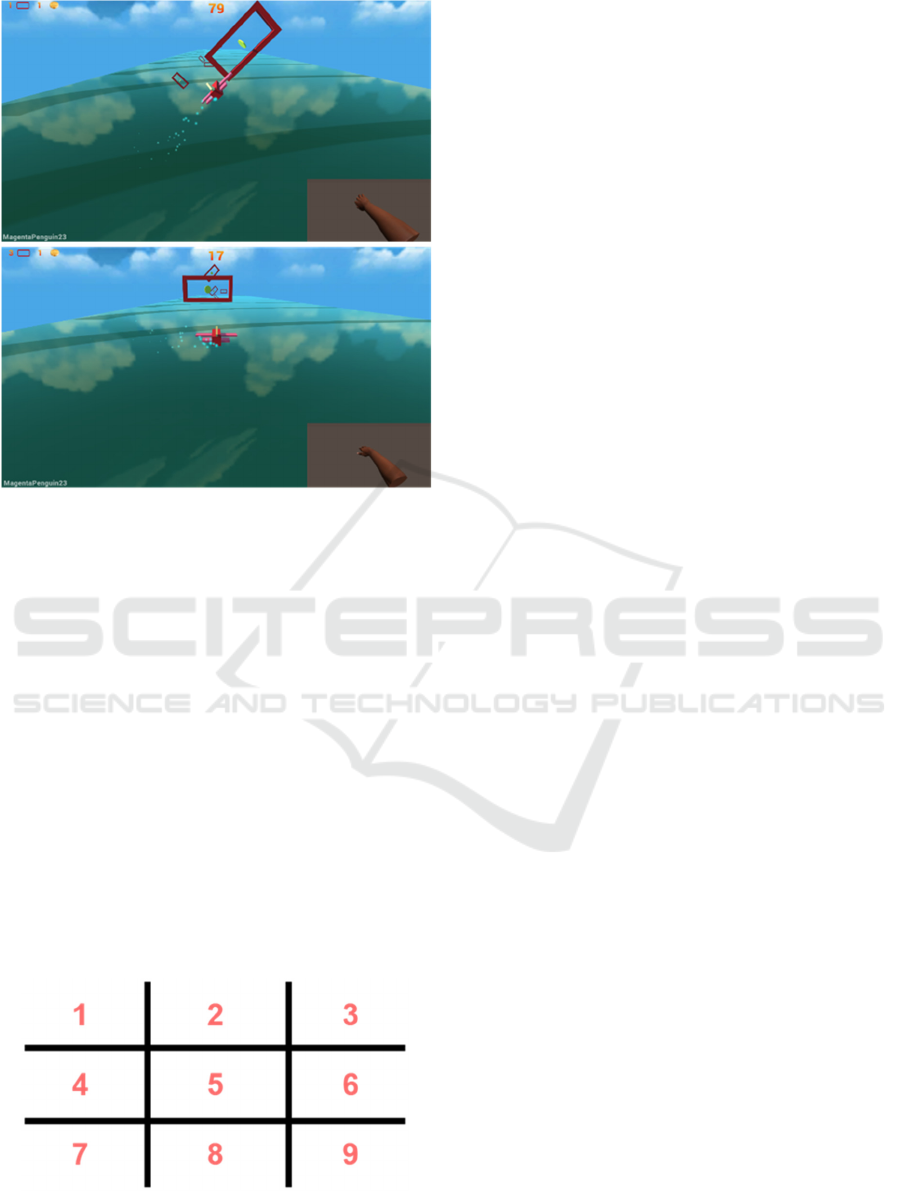

Figure 1: Movement of the hand and its effect on

the virtual world of the game.

Similar studies use the respective game score and

task completion time features to evaluate the patient’s

progress (De Leon et al., 2014) while others delve

further into analysing the trajectory using motion

features (Tang et al., 2017). We propose a new

strategy that enables detailed evaluation combining

elements of both approaches. We split hand

movement into discrete segments resulting in more

detailed time characteristics, use derived trajectory

characteristics (such as acceleration per axis), we also

include a variation of our game score (proximity to

the target instead of success or failure) and

distinguish between groups of movement that are

activated by different muscle groups. Our approach is

based on fine grained time features with a

combination of commonly used motion

characteristics that derive from medical needs and are

meaningful to the physician.

Figure 2: Gates 3x3 grid where the gates appear.

3 MATERIAL AND METHODS

The main focus of the analysis on the current stage is

to determine the variables that are going to be

examined and explore the differences between

healthy and pathological movement.

Our hypothesis is that the proposed movement

features differ among healthy subjects and patients,

and that they reflect changes over time. Regarding the

classification of movement, a two-phase procedure

was followed. In Phase 1, we examined if the creation

of such classifiers is feasible using a dataset

consisting of healthy subjects and patients. In Phase

2, we used external data to verify the results.

3.1 Data

For this analysis, we collected data from 8 subjects; 3

patients undergoing rehabilitation and 5 healthy

individuals not diagnosed with a related motor control

/ central neural system disorder. Healthy subjects

were of ages 25-38 with one of them being female

(20%), while all patients are males in their 20s. The

patients performed the games using the hand in need

of physiotherapy (right hand in both cases) while the

healthy subjects were using their dominant hand

(20% were left-handed). Those gaming sessions were

in addition to the routinely prescribed physiotherapy

treatment the patients were receiving at that time. The

data acquisition protocol was approved by the Bio-

ethics committee at the Aristotle University of

Thessaloniki (AUTH) and the patients signed a

consent form.

The data acquisition for the healthy subjects

lasted 2 weeks, while the patients’ data were retrieved

based on the amount of time they were receiving

physiotherapy, the occurrence rate of the therapy, and

the settings the physician deemed proper based on

their current condition and general progress. An

upcoming pilot will follow a more refined protocol

for all participants. The healthy subjects performed 2

sessions per week for 2 weeks (4 sessions total). The

first week’s sessions were performed in normal

difficulty settings while the second week’s, in hard

difficulty settings. Each session consisted of 10

games and each game had a duration of 90 seconds.

The difficulty settings affect the avatar’s constant

movement rate on the Z-axis, substantially reducing

the time required for the avatar to move from one gate

to another. Of note, according to all healthy subjects’

feedback, the normal settings were more bothersome

than the hard ones since the subjects were supposed

to keep their hand steady for a longer period. Each

healthy subject (H1-5) had 4 gaming sessions, 40

games and 800 gates. Percentages of gates the

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

subjects H1-5 successfully navigated through were 1,

0.942, 0.985, 0.995 and 1 respectively.

As far as the patients are concerned, their data

have been collected in a span of 9 months (P1) and 6

months (P2 and P3) accordingly. Specifically, P1 had

39 gaming sessions, 652 games played, and went

through 19033 gates, P2 had 24 gaming sessions, 378

games and 10300 gates, while P3 corresponding

statistics are 16 gaming sessions 184 games and 2107

gates. The difficulty settings were gradually changed

from normal to hard to eventually very hard in the

span of their treatment for P1 and P2. P3 difficulty

settings remained to normal. Percentages of

successful gates for the patients P1-3 were 0.946,

0.969 and 0.718 respectively.

The dataset used for the classification stage

consisted of 4000 gates for the healthy subjects H1-5

and 29333 gates for patients P1,2. The gates were

grouped based on the type of movement, vertical,

horizontal, diagonal and the direction (e.g., top to

bottom, etc.). P3 was used as an external validation

dataset.

The distinction of direction was deemed

important from a medical viewpoint, since such

movements involve the activation of different muscle

groups, e.g., horizontal abduction (Latissimus dorsi

and posterior fibers of deltoid) and adduction

(Pectoralis major and anterior fibers of deltoid)

(Elzanie and Varacallo, 2018). This distinction also

makes sense from a statistical analysis point of view

(e.g., the metrics of the X-axis are expected to differ

when the subject performs a horizontal movement vs

a vertical one).

3.2 Feature Extraction

The raw data points acquisition rate is tied to the

frame rate at which the game runs. Although the

frame rate for the game was capped at 60 fps it can

occasionally drop below 60, an occurrence more

common in systems with low computational

capabilities.

Another issue was the artefacts that occurred

when the leap sensor failed momentarily to correctly

identify the subject’s hand, typically other objects

interrupting the sensor’s field of view or nearby light

sources causing interferences. The abrupt changes in

the hand trajectory were identified using a high pass

filter, followed by an evaluation of the neighbouring

area in order to determine which part of the

movement was the artefact (if any). The data points

that were deemed as artefacts were subsequently

removed. Firstly by removing time windows that had

more than 25% out of the expected samples missing

and afterwards during the analysis.

As a next step, and in order to address both the

above issues and to facilitate an analysis that supports

exploration in the frequency domain, the time-series

of the hand coordinates were interpolated at a steady

rate of equivalent to 60 fps.

The gameplay can be distinguished into parts.

Each part corresponds to the period between two

consecutive gates (time window W

). The gates (G

)

are moving towards the avatar at a controlled pace.

Therefore, all the time windows have the same

duration, with the exception of the first gate, which

appears a few moments after the start, to provide the

user ample time to get accustomed to the game.

Each time window (W

) is further distinguished

into 3 different sub-periods (Figure 3). Those periods

were detected by examining the velocity on X and Y-

axes, considering the direction and the proximity to

the target gate.

1. Response (DT1: t0-t1): it refers to the time

period starting when the user has reached

the Gi gate until they become aware of the

upcoming gate Gi+1, and they begin to

move towards it. This is characterized as a

Steady state (orange).

2. Movement (DT2: t1-t2): it refers to the time

period where the user is moving from Gi

towards the upcoming gate Gi+1. This is a

Movement state (green).

3. Stabilization (DT3: t2-t3): it refers to the

time period from the time point that the user

has arrived to the X, Y coordinates that

correspond to the Gi+1 gate and is waiting

to reach it (plane pass through the gate) until

the time the avatar crosses the gate. This is a

Steady state (red).

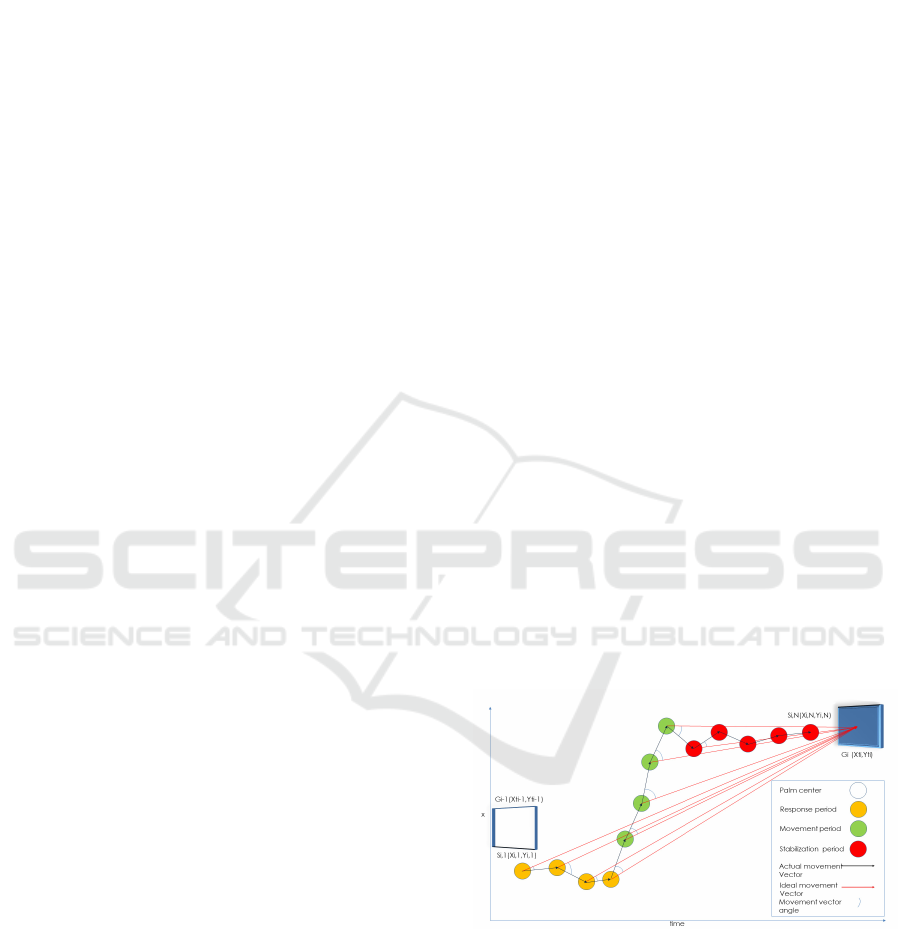

Figure 3: Movement from gate Gi-1 to Gi . The Si,j

represents the hand position on each j frame for every i

window (Wi).

The features currently examined involve the

description of the movement in the time domain

(velocity, acceleration, trajectory, jitter, etc.) The

distance and the metrics that derive from it (velocity

and acceleration) are measured in in-game units.

Characterization of Upper Limb Functionality Caused by Neuromuscular Disorders using Novel Motion Features from a Specialized

Gaming Platform

 Durations of DT1/DT2/DT3 in milliseconds

 Mean/SD Velocity DT1/DT2/DT3

X/Y/both: Mean/Standard deviation of the

hand velocity on parts DT1/DT2/DT3 on

axis X/Y/ both of them.

 Mean Velocity DT2 start calculated during

the first 0.25 seconds of the DT2 part.

 Mean/SD Acceleration DT1/DT2/DT3

X/Y/both: Mean/Standard deviation of the

hand acceleration on parts DT1/DT2/DT3

on axis X/Y/ both axes.

 Distances total travelled per time window

and total, ratio of minimum movement

required to actual

 Total Distance/ Total Distance

DT1/DT2/DT3: actual distance travelled

during the whole Wi, on parts

DT1/DT2/DT3, respectively.

 Minimum distance (final): minimum

distance from the center of the gate during

the whole Wi movement/ during the final 0.5

sec of the Wi movement

This amounted to a total of 28 features that were

subsequently examined.

3.3 Analysis

The gates were grouped based on the type of

movement, vertical, horizontal, diagonal and

direction.

Right to Left (r2l) Left to Right (l2r) , Up to

Bottom (u2d), Bottom to Up (d2u) Top Left to Bottom

Right (dg1) Top Right to Bottom Left (dg2), Bottom Left

to Top Right (dg3), Bottom Right to Top Left (dg4).

The analysis was focused on the subject’s

performance during the traversal from one gate to

another. For each subject, all the calculated

movement features were grouped together without

the distinction of individual games or sessions. The

order in which each gate was traversed was kept intact

and as such, we were able to examine the subject’s

progress through time. In more detail, t

he analysis

consists of following steps:

1. In each cross-validation round, split the

dataset into two parts: a) Train: 1 patient

(19033 or 10300 gates), 4 healthy subjects

(3200 gates), b) Test: 1 patient (19033 or

10300 gates), 1 healthy subject (800 gates)

2. Use one direction at a time (this reduces the

number of gates used for the training and

testing, e.g. out of the 19033 gates P1 has,

2203 belong in the u2d category)

3. On the training dataset, for each feature,

detect values that are outside the range of

four times the standard deviation. A single

out of bounds value would cause that gate to

be excluded. This further addresses the

artefact problem during data acquisition.

4. Test the features for normality using the

Shapiro–Wilk test (Shapiro and Wilk, 2015)

for normality.

5. If the variables were normally distributed,

the analysis of variation (AOV) was used,

otherwise the Kruskal–Wallis H test was

preferred (Kruskal and Wallis, 1952).

6. Adjust the p-values that derived from the

above tests using the Bonferroni correction

(B. Alt, 2006).

7. Select the statistically significant (p<0.05)

features.

8. Check those features for correlation using

the Pearson formula (Chen and Popovich,

2011).

9. Features that had a high degree of

correlation (0.8) were further examined and

the worst performing features were

removed.

10. Utilize the training dataset with the

remaining features and train a neural

network model (Kalchbrenner et al., 2014)

(these models yielded the best results in the

type of data that were used) using an internal

k-fold cross-validation with one hidden

layer and an adjustable size (range 3 to 15).

The model that was created using data from 5

subjects (4 healthy 1 patient) was tested using the

remaining two subjects (1 healthy, 1 patient). The

Leave-One-out (a healthy subject and a patient) cross-

validation approach was preferred over the k-fold

cross-validation with train and test samples mixed

from all using those 7 subjects, as this method is less

biased, i.e., the hypothesis that patients and healthy

subjects differ in their movement patterns can be

examined without any bias that is inserted by utilizing

the same subjects for testing and training.

After testing the validity of our hypothesis that

the movement patterns differ among healthy subjects

and that pathological patterns can be identified using

classifiers, we created a final set of 8 models, one for

each direction. These models were trained with the

dataset initially used in Phase 1 as a whole (P1,P2 and

H1-5). These classifiers were afterwards used in

Phase 2 on P3’s data as external validation.

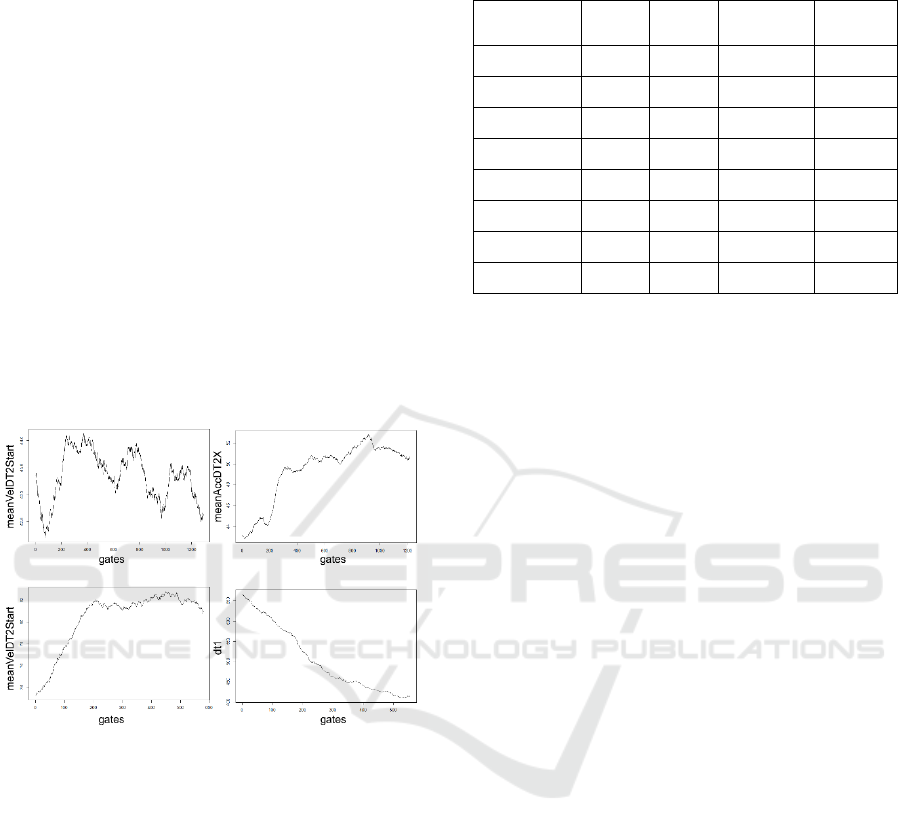

To observe the patients’ progress during their

treatment, the data points of each feature were aligned

in chronological order. Following, they were filtered

using a simple moving average window as a low-pass

filter to present the underlying trend.

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

Table 1: The details of the best performing models.

Balanced Acc stands for balanced accuracy, Sense for

sensitivity, Spec for specificity, Mov. for Movement.

Mov.

type

Test Data Balanced

Acc

Sense Spec Truth Table

u2d P1 – H4 0.979 0.979 0.979

2157 2

46 96

dg1 P1 – H4 0.978 0.980 0.976

1016 1

20 41

u2d P2 – H4 0.963 0.978 0.948

1155 5

25 93

l2r P2 – H5 0.962 0.979 0.944

1158 5

24 85

d2u P2 – H5 0.953 0.969 0.938

1160 4

37 61

d2u P1 – H4 0.946 0.934 0.958

2167 4

153 93

l2r P1 – H4 0.943 0.963 0.923

2060 7

78 85

dg1 P1 – H1 0.942 0.983 0.901

1019 5

17 46

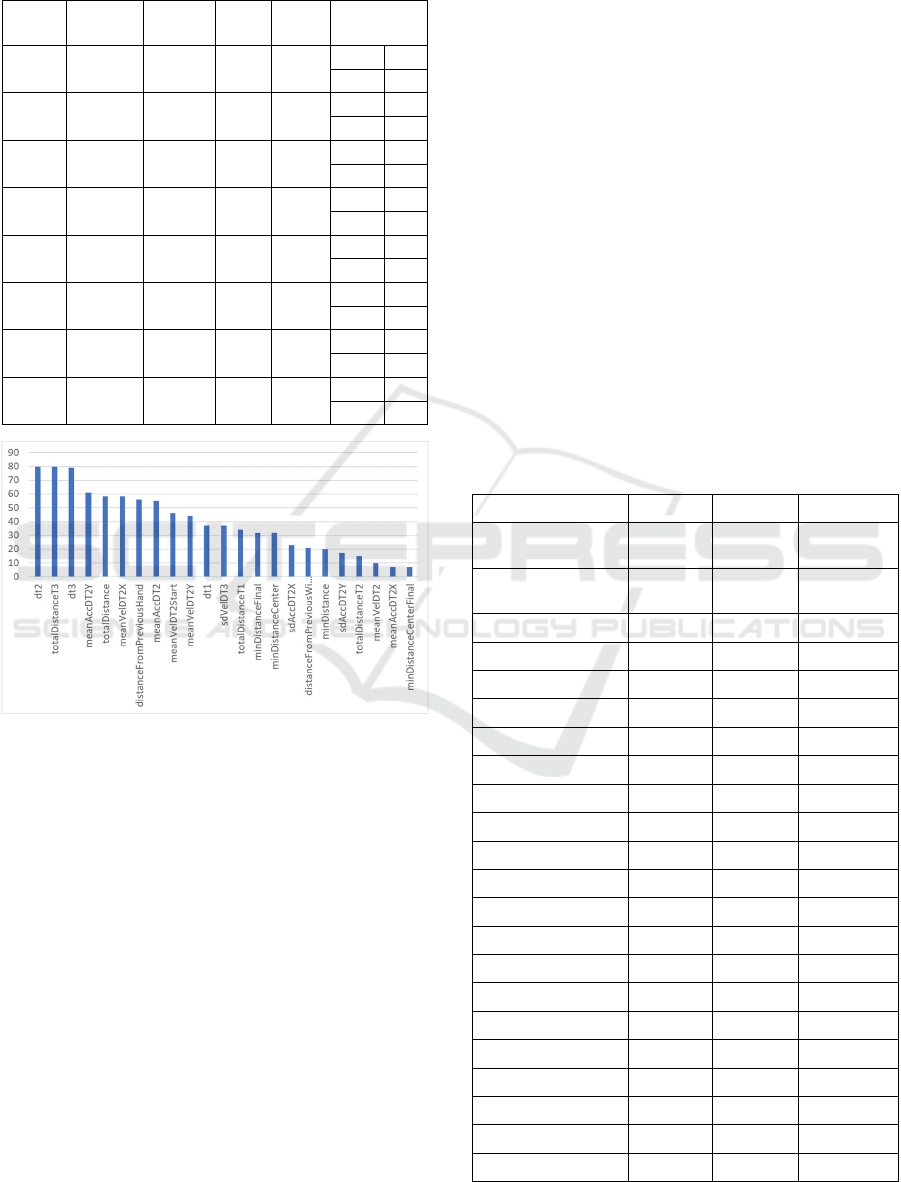

Figure 4: Feature Selection Rate, defined as the number of

times each feature is selected in the model, during the

training phase with different training sets.

4 RESULTS

Overall, the sensitivity of the proposed models

reached high levels (mean 95.35% sd 2.62%), while

the specificity varied depending on which healthy

subject was used for testing. Subjects H2 and H3 did

not fit the created models well (mean specificity

53.14% sd 14.44%), while subjects H1, H4, H5

responded significantly better (mean specificity

86.55% std 7,55%). Of note, when the above pipeline

was performed with the exclusion of the H2 and H3

subjects, there was a significant drop in the models’

metrics moving from ~95% to ~70%. This indicates

that healthy subjects can be heterogeneous, and

familiarity with games in general could be a reason

behind that. The proposed methods allow for patients

to be clustered into categories reflecting similar hand

movement patterns as a result of similar

neuromuscular disorders/physical trauma.

Performing the above pipeline for all 10

combinations of patient and health training set x 8

movement direction (e.g., right to left) resulted in 80

executions. The 8 best performing models based on

the balanced accuracy metric are depicted on Table 1.

The features finally utilized for the creation of

each model varied based on the selected direction,

and their p values varied also depending on the

selected training dataset. Figure 4 shows the selection

rate of each feature in the model creation. Out of the

28 features examined, 23 appeared at least once with

among the most common being the duration of the

Movement (dt2) and Stabilization (dt3) time periods.

Table 2 depicts the features used for the

development of the best performing model (direction

Top to Bottom, training P2|H1,H2,H3,H5, testing

P1|H4).

Table 2: Mean value for each feature per subject group

(Patients, Healthy). Adjusted p was calculated using the

Mann-Whitney U test.

Feature Mean P Mean H Adjusted p

distanceFromPrevio

usWindow

46.609 33.702 0

distanceFromPrevio

usHand

44.59231 34.55598 0

DT1 544.7925 460.2483 0.0036

DT2 712.3987 261.6593 0

DT2 1942.664 3633.71 0

sdVelDT2 37.42379 17.34871 0

meanVelDT2 50.25814 48.66921 0.004

meanVelDT2Start 41.81328 39.13429 0

meanAccDT2 1350.74 1003.941 0

sdVelDT2X 22.48586 10.47494 0

meanVelDT2X 25.97193 20.89285 0

sdVelDT2Y 30.99457 15.26332 0

sdAccDT2X 21.06343 8.583197 0

Feature Mean P Mean H Adjusted p

meanAccDT2X 23.09528 10.6853 0

sdAccDT2Y 27.11824 13.2992 0

meanAccDT2Y 29.69753 14.80098 0

totalDistance 100.5733 92.49089 0

totalDistanceT2 34.64196 14.41555 0

totalDistanceT3 35.84011 60.09226 0

minDistance 2.077342 1.231234 0

minDistanceCenter 3.828137 2.726778 0.0285

Characterization of Upper Limb Functionality Caused by Neuromuscular Disorders using Novel Motion Features from a Specialized

Gaming Platform

Figure 5. depicts a selection of

subject/feature/direction combinations over the

course of time for the patients during their

physiotherapy. It translates to 9 months for P1 and 6

months for P2. Significant spikes (top left) in certain

features can probably be attributed to the changes in

the difficulty settings in which the games were

played. In all cases, the features that were found to be

statistically significant, tended to improve over time

towards the values that the healthy subjects had

achieved. Some patient’s features show a steady

improvement, at least regarding the data collected

thus far, (bottom right, dt1). On the contrary, other

features seem to reach a plateau over time (bottom left

meanVelDT2Start) but at the same time not reaching

the performance of healthy subjects. Whether this

plateau is unsurmountable and characterizes the

nderlying pathology, or some movement

characteristics require more effort in order to improve

over a certain point (top right), remains to be

investigated.

Figure 5: Features’ trend over time. X-axis depicts the gates

the subject has played in chronological order. Top left

subject:P1| direction: u2d|feature:meanVelDT2Start. Top

right subject:P1| direction: l2r|feature:meanACCDT2X.

Bottom left subject:P2| direction:

l2r|feature:meanVelDT2Start. Bottom right subject:P2|

direction: ud2|feature:DT1.

Table 3 shows the final classifiers’ performance

when used on the external data that was P3. The

classifiers achieved over 90% accuracy in identifying

P3 as patient for 6 out of the 8 directions while the

remaining two where in the high 80%.

Table 3: Results of the final classifiers on the external

dataset (P3).

Movement

type

Total

Gates

Correct

Gates

False Gates Accuracy

u2d 258 243 15 0.94186

l2r 234 215 19 0.91880

r2l 224 200 24 0.89285

d2u 245 230 15 0.93877

diag1 147 137 10 0.93197

diag2 150 137 13 0.91333

diag3 144 136 8 0.94444

diag4 136 119 17 0.875

5 DISCUSSION

The detailed analysis presented in this work is based

on a system that extends the use of Leap sensor for

upper extremity’s functional rehabilitation exploiting

the quite precise detection that is provided.

Although there is distance to cover in the field for

gamification approaches such as ours to reach their

full potential as GaaHS, the presented results are

promising and novel. Specifically, the presented

approach stands out since it attempts to propose and

evaluate quantified metrics regarding not only the in-

game performance but also the hand motion

characteristics which reflect the underlying

pathology.

Looking at the score-based characterisation vs

movement-feature based classification, patients P1

and P2 achieved scores comparable to healthy

subjects, while P3 had significantly lower scores than

all the other subjects. The values of P3’s features

were further away from the healthy subjects than the

rest of the patients. This indicates that a single score

of success or failure in undertaking a task is not

always enough for a successful classification in the

GaaHS scope. On the other hand, the proposed

classifiers using movement features that carry a

higher degree of information, were able to distinguish

between healthy and pathological movement.

One of the challenges that we encountered during

this research was the parametrization of the game

scenario which translates to a varied range of motor

control exercises. The main problem was that

introducing several variables would introduce a high

degree of complexity and decrease the comparability

of the data. Furthermore, a major challenge is the

mapping of the game-specific features to generalized

concepts that are applicable in other scenarios.

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

Considering the limitations of the study, while the

number of gates is high the number of patients and

healthy subjects is low in terms of variability within

the population. While this can be understood for this

methodological study, a future wider study would be

useful to provide a more concrete evidence and

provide the correlation with the patients’ medical data

and progress as recorded by the physician. In these

next steps, the analysis will take into account the

effect that settings with different difficulty may have

on the result. The familiarization with the specific

game as well as the subject’s general aptitude with

video games, is something that can affect the

subject’s performance, and needs also to be

considered.

Furthermore, while the motion specific classifiers

(horizontal, vertical, diagonal) are useful in terms of

detailed characterization, a unification of the

classifiers will also be helpful in a clinical context,

providing an answer for a subject’s clinical image

regarding hand mobility as a whole and not divided

in specific directions.

6 CONCLUSIONS

This analysis has shown promising results during the

classification process especially as far as the patients

are concerned, the inconsistencies in the performance

of the healthy subjects can be attributed to the

heterogeneity of the healthy population. Additional

data will help in establishing a broader healthy

baseline. In general, the patients were slower in their

reaction time and had a greater distance from the gate

center compared to the healthy subjects.

Regarding future goals, our main objective is the

quantification of patient’s progress and effort will be

placed on matching their progress as indicated by our

features to the commonly used scores regarding upper

limb mobility, such as FMA-UE (Singer and Garcia-

Vega, 2017) and FIM (Hamilton et al., 1994).

Next steps will also involve the level of difficulty

in the analysis and define the optimal settings for

patients that share common characteristics.

Moreover, more complex feature extraction methods

will be explored. Expanding the dataset both in terms

of games and in subjects will facilitate a more robust

statistical analysis and additionally will allow us to

explore the clustering of patients based on their

performance and progress.

ACKNOWLEDGEMENTS

This research has been co-financed by the European

Union and Greek national funds through the

Operational Program Competitiveness,

Entrepreneurship and Innovation, under the call

RESEARCH – CREATE – INNOVATE (project

code:T1EDK-02488)».

REFERENCES

Ang, K. K., and Guan, C. 2013. Brain-computer interface

in stroke rehabilitation. J. Comput. Sci. Eng.

doi:10.5626/JCSE.2013.7.2.139.

B. Alt, F. 2006. “Bonferroni Inequalities and Intervals,” in

Encyclopedia of Statistical Sciences

doi:10.1002/0471667196.ess0163.pub2.

Charles, D., Pedlow, K., McDonough, S., Shek, K., and

Charles, T. 2014. Close range depth sensing cameras

for virtual reality based hand rehabilitation. J. Assist.

Technol. doi:10.1108/JAT-02-2014-0007.

Chen, P. Y., and Popovich, P. M. 2011. “Corellation:

Parametric and Nonparametric Measures,” in

Correlation doi:10.4135/9781412983808.n1.

Chytas, A., Fotopoulos, D., Kilintzis, V., Loizidis, T., and

Chouvarda, I. 2020. Upper limp movement analysis of

patients with neuromuscular disorders using data from

a novel rehabilitation gaming platform. in IFMBE

Proceedings doi:10.1007/978-3-030-31635-8_79.

De Leon, N. I., Bhatt, S. K., and Al-Jumaily, A. 2014.

Augmented reality game based multi-usage

rehabilitation therapist for stroke patients. Int. J. Smart

Sens. Intell. Syst. doi:10.21307/ijssis-2017-693.

Elnaggar, A., and Reichardt, D. 2017. Digitizing the hand

rehabilitation using serious games methodology with

user-centered design approach. in Proceedings - 2016

International Conference on Computational Science

and Computational Intelligence, CSCI 2016

doi:10.1109/CSCI.2016.0011.

Elzanie, A., and Varacallo, M. 2018. Anatomy, Shoulder

and Upper Limb, Deltoid Muscle.

Hamilton, B. B., Laughlin, J. A., Fiedler, R. C., and

Granger, C. V. 1994. Interrater reliability of the 7-level

Functional Independence Measure (FIM). Scand. J.

Rehabil. Med.

Henderson, A., Korner-Bitensky, N., and Levin, M. 2007.

Virtual reality in stroke rehabilitation: A systematic

review of its effectiveness for upper limb motor

recovery. Top. Stroke Rehabil. doi:10.1310/tsr1402-52.

Kalchbrenner, N., Grefenstette, E., and Blunsom, P. 2014.

A convolutional neural network for modelling

sentences. in 52nd Annual Meeting of the Association

for Computational Linguistics, ACL 2014 -

Proceedings of the Conference doi:10.3115/v1/p14-

1062.

Characterization of Upper Limb Functionality Caused by Neuromuscular Disorders using Novel Motion Features from a Specialized

Gaming Platform

Kruskal, W. H., and Wallis, W. A. 1952. Use of Ranks in

One-Criterion Variance Analysis. J. Am. Stat. Assoc.

doi:10.2307/2280779.

Meijer, H. A., Graafland, M., Goslings, J. C., and Schijven,

M. P. 2018. Systematic Review on the Effects of

Serious Games and Wearable Technology Used in

Rehabilitation of Patients With Traumatic Bone and

Soft Tissue Injuries. Arch. Phys. Med. Rehabil.

doi:10.1016/j.apmr.2017.10.018.

Oña, E. D., Balaguer, C., Cano-De La Cuerda, R., Collado-

Vázquez, S., and Jardón, A. 2018. Effectiveness of

serious games for leap motion on the functionality of

the upper limb in Parkinson’s disease: A feasibility

study. Comput. Intell. Neurosci.

doi:10.1155/2018/7148427.

Sardi, L., Idri, A., and Fernández-Alemán, J. L. 2017. A

systematic review of gamification in e-Health. J.

Biomed. Inform. doi:10.1016/j.jbi.2017.05.011.

Shapiro, and Wilk, M. B. 2015. The Shapiro-Wilk And

Related Tests For Normality. Statistics (Ber).

Singer, B., and Garcia-Vega, J. 2017. The Fugl-Meyer

Upper Extremity Scale. J. Physiother.

doi:10.1016/j.jphys.2016.08.010.

Smeddinck, J. D., Herrlich, M., and Malaka, R. 2015.

Exergames for physiotherapy and rehabilitation: A

Medium-term situated study of motivational aspects

and impact on functional reach. in Conference on

Human Factors in Computing Systems - Proceedings

doi:10.1145/2702123.2702598.

Tamayo-Serrano, P., Garbaya, S., and Blazevic, P. (2018).

Gamified In-Home Rehabilitation for Stroke Survivors:

Analytical Review. Int. J. Serious Games.

doi:10.17083/ijsg.v5i1.224.

Tang, H. K., Feng, Z. Q., Xu, T., and Yang, X. H. 2017. VR

system for active hand rehabilitation training. in ICCSS

2017 - 2017 International Conference on Information,

Cybernetics, and Computational Social Systems

doi:10.1109/ICCSS.2017.8091432.

Veerbeek, J., Langbroek-Amersfoort, A., van Wegen, E. E.,

Meskers, C. G., and Kwakkel, G. 2017. Effects of

Robot-Assisted Therapy for the Upper Limb After

Stroke: A Systematic Review and Meta-analysis.

Neurorehabil. Neural Repair.

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing
