Behavioral Predictive Analytics towards Personalization for

Self-management

Bon Sy

1,2,3 a

, Jin Chen

, Magdalen Beiting-Parrish

1,3

and Connor Brown

Graduate Center/City University of NY, 365 5

Ave, NY 10016, U.S.A.

Queens College/City University of NY, 65-30 Kissena Blvd., Queens NY 11367, U.S.A.

SIPPA Solutions, 42-06A Bell Blvd., Queens NY 11361, U.S.A.

Keywords: Self-health Management, Behavioral Predictive Analytics.

Abstract: The objective of this research is to investigate the feasibility of applying behavioral predictive analytics to

optimize diabetes self-management. In the U.S., less than 25% of patients actively engage in self-management

even though self-management has been reported to associate with improved health outcomes and reduced

healthcare costs. The proposed behavioral predictive analytics relies on manifold clustering to derive non-

linear clusters. These clusters are characterized by behavior readiness patterns for subpopulation segmentation.

For each subpopulation, an individualized auto-regression model and a population-based model are developed

to support self-management personalization in three areas: glucose self-monitoring, diet management, and

exercise. The goal is to predict personalized activities that are most likely to achieve optimal engagement.

This paper reports the result of manifold clusters based on 148 subjects with type 2 diabetes, and shows the

preliminary result of personalization for 22 subjects under different scenarios.

1 INTRODUCTION

Type 2 (Pre-)Diabetes is a chronic disease that affects

over 115 million Americans and over 440 million

people world-wide. Some of the risk factors are

mitigatable or even reversible through behavior

change towards a healthy lifestyle. It has been

demonstrated elsewhere (Bollyky, 2018) that

behavior change can achieve a 10% or more

improvement in diabetes symptoms if an individual is

engaged in proactive self-management of diabetes.

Self-management is generally accepted as a

viable intervention strategy (Hadjiconstantinou,

2020). Self-management is the patient’s ability to

manage their chronic disease through their own

activities, such as taking their blood glucose and

focusing on meeting diet and activity goals. However,

we do not fully understand the relationship between

the behavior readiness of an individual and the

specific intervention strategy that could deliver

optimal patient engagement in self-management

activities. As evidenced in a survey conducted

elsewhere (Volpp, 2016), less than 25% of patients

are considered as actively engaged in self-health

https://orcid.org/0000-0001-8827-2702

management. Population health management will not

be cost effective if self-management programs do not

consider the readiness of the patient population. A

contribution of this research is to provide an insight

into the technical feasibility of behavioral predictive

analytics. The goal is to optimize the effectiveness of

self-management strategies by means of

personalization based on predicting behavior

readiness and its relationship to engagement

outcomes. In this study, we aim to demonstrate a

potential predictive system that delivers personalized

content to the users based on their behavior readiness

and user profile.

Section 2 contains a brief review on the state-of-

the-art, and the context of this research within it. We

will first discuss the Theory of Planned Behavior, and

the use of behavior constructs as an attribute vector of

behavior readiness. In section 3 the research results

reported elsewhere will be restated as it is applied for

in this research. In section 4 we will discuss

predictive analytics for personalization using either

an auto-regression model, or a population-based

model. The population-based model provides a

fallback mechanism when the auto-regression model

derivation fails. This could occur when there is

Sy, B., Chen, J., Beiting-Parrish, M. and Brown, C.

Behavioral Predictive Analytics towards Personalization for Self-management.

DOI: 10.5220/0010231801110121

In Proceedings of the 14th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2021) - Volume 5: HEALTHINF, pages 111-121

ISBN: 978-989-758-490-9

111

insufficient data, or it fails the statistics test of the

model selection process based on Bayesian/Akaike

Information Criteria. In section 5 we will present the

results of manifold clustering based on the attribute

vector of behavior readiness of 148 subjects with type

2 diabetes. This will be followed by the results of a

preliminary study involving 22 subjects who were in

the intervention phase for personalization during the

study period. We will then summarize the results of

this paper, discuss the limitations, and conclude with

our future research plans.

2 RELATIONSHIP TO

STATE-OF-THE-ART

The Theory of Planned Behavior is a popular

theoretical framework in health psychology. It is used

to describe the underlying psychological mechanisms

that lead to changes in behavior. Within this

framework, the individual has many beliefs about

their behavior as well as beliefs about the normative

behaviors expected within a social context. These all

work together or in opposition to fuel behavioral

attitudes and beliefs in subjective norms, based on the

importance the individual places on these attitudes

and norms. This then decides the individual’s

intentions which lead to the behaviors in question

(Kan, 2017). In line with this theory, our research

proposes targeting a user’s behavioral beliefs to

change their attitudes and intentions toward

actionable health behaviors.

One of the most important features of our

approach is the use of frequent reminders to track

health activities that reveal information about

appropriate health behaviors. In a review of the

literature, Fry and Neff (Neff & Fry, 2009) found that

frequent periodic prompts around: improving diet,

increasing physical activity, and weight loss all led to

positive results for study participants. Tailored

prompts were especially found to be statistically

significant in encouraging user engagement;

however, for users who are already not engaged, these

prompts do little to engage users (Bidargaddi, Pituch,

Maaieh, Short, & Strecher, 2018). Sawesi et al.

(2016) found in a systematic review of the literature

that digital methods such as text messages, web

applications, and social media interventions all were

good intervention tools. These tools can support

behavioral change in users and usually improve

patient engagement. Finally, the use of mobile health

interventions has been found to be an engaging

method for improving health behaviors and is cost

effective for the behavioral change (Van Stee &

Yang, 2020).

3 PREDICTIVE ANALYTICS

FOUNDATION

SIPPA (Secure Information Processing with Privacy

Assurance) predictive analytics relies on two

foundational building blocks developed in research

reported elsewhere (Sy, 2017, 2019). The workflow

process for the application of the proposed predictive

analytics consists of three stages. In stage 1, an

individual responds to a survey instrument linked to a

behavior model for measuring readiness. In stage 2,

the outcome measure of the behavior readiness

determines the cluster/subpopulation that the

individual is assigned to. The assignment is based on

the similarity between the individual’s behavior

pattern and the statistically significant association

patterns that characterize the cluster/subpopulation.

In stage 3, the population based model and

individualized week-over-week engagement models

are applied to predict personalized weekly activities

that optimize the success rate of engagement in self-

health management. The details on stage 3 will be

presented in the following section.

The first building block of SIPPA predictive

analytics is a behavior model to enable behavior

readiness prediction. Behavior readiness is a 1x4

vector of continuous (Real) numbers quantifying

[ownership, motivation, intention, attitudes]. These

behavior attributes of Real are constructs of behavior

modelling grounded on the Theory of Planned

Behavior. Structural Equation Modelling (Duncan,

1975) was employed to link questions of a survey

instrument to the behavior constructs defined by a

weighing factor derived from the confirmatory factor

analysis. The behavior model linking to the survey

questions were statistically validated based on the

responses from over 500 participants (Sy, 2017).

The second building block is an unsupervised

learning approach for discovering manifold clusters.

The novelty of manifold clustering is to induce

patient subpopulation clusters based on statistically

significant association patterns. This approach is not

restricted to only continuous data (number of Real).

In other words, this approach could be applied to a

data set of mixed-type of both continuous and discrete

variables. A behavior pattern, which is manifested by

the instantiation of finite discrete variables, is

statistically significant if it survives two tests: (1) a

support measure − as defined by normalized

HEALTHINF 2021 - 14th International Conference on Health Informatics

112

frequency occurrence − exceeds a pre-defined

threshold according to the domain problem, and (2)

the association among the observed values does not

happen by chance as measured by the mutual

information measure. There are two important results

of the manifold clustering technique. First, each

manifold cluster has a semantic interpretation

characterized by statistically significant association

patterns; i.e., grouping according to behavior

readiness in this application. Second, the manifold

clustering does not require linearity assumption as is

in Principal Component Analysis (PCA). But it will

produce the same result as PCA if the linearity

assumption holds, and the iteration is based on

minimizing reconstruction errors; i.e., “phase 2”

regrouping is skipped in the manifold clustering.

While the behaviour constructs are related according

to the Theory of Planned Behavior, variations exist as

shown in the confirmative factor analysis regarding

the assumption on linearity; i.e., the existence (and

strength) of a linear relationship between the

behaviour constructs that quantifies behavior

readiness for self-management in a population.

4 PREDICTIVE ANALYTICS FOR

PERSONALIZATION

The behavior goal of personalization for self-

management is to target specific user-directed

activities that will be communicated to a user through

a mobile app, and to inform “fulfilment” through

feedback from the app. For example, when a

personalized recommendation is to walk 10,000 steps

a day, one would like to know whether a user follows

through after the user received the recommendation

from the mobile app. Two specific metrics are defined

for this research to gain insights into the effectiveness

of personalization:

Compliance Ratio (CR): Over a period of time,

compliance ratio is the ratio of the number of times a

proposed health related activity (i.e., actionable

health) was acted on over the recommended/expected

number of the related activity given the clinical

condition/disease state of an individual.

Example: Over a period of 30 days, a diabetes

user is encouraged to self-monitor one’s glucose once

a day under the clinical recommendation in

commensurate to one’s specific diabetic condition.

The expected number of self-monitoring

measurements is 30. Over this period the user self-

monitors 18 times. Therefore, the compliance ratio is

0.6.

Engagement Ratio (ER): Over a given period,

engagement ratio is defined as the total number of

user interactions to the messages over the total

number of messages sent. These messages are health

tips or reminder for health actions, and are sent

through text messaging, push notification, or as an in-

app message.

Example: Over a period of 30 days, three

messages are sent daily: one healthy tip, one reminder

to self-monitor, and one reminder on exercise. The

total number of messages sent is 90. A diabetes user

responds to half of the healthy tips (i.e., 15 out of 30),

and ⅕ of the reminders on self-monitoring, and ⅓ of

the reminders on exercise. The engagement ratio is

(15+6+10)/90 = 31/90.

4.1 Prediction based on

Auto-regression and Maximum

Likelihood

To facilitate the discussion on predictive analytics for

personalization, let P be a population consisting of n

individuals; i.e., |P| = n. C = {C1, … Ck} is the set of

subpopulations obtained by applying manifold

clustering described in section 3 to P; where Ci

⊆

Ci ∩ Cj=𝜙 if 𝑖≠𝑗 and P =

∪

Ci. p

is the j

individual in the subpopulation cluster Ci. Recall

each manifold cluster Ci is characterized by one or

more statistically significant association patterns of

behavior readiness attribute vector(s). For each p

individual, there exists a set of engagement/

compliance ratios over some period of time T. Let’s

denote the set of engagement ratios be {ER

, …, ER

T could be different from one individual to another

due to the rolling basis of the enrollment into the pilot.

For example, one individual who just starts self-

management may have (T=) 2 weekly engagement/

compliance ratios while another one in the same

subpopulation may have (T=) 6 weekly engagement/

compliance ratios. Yet they both belong to the same

subpopulation because of their behavior readiness.

This proposed predictive analytics is based on a

two-pronged approach. First, individualized auto-

regression will be applied for personalization when

there is “sufficient” data on the engagement

(compliance) ratio on a type of messages related to

self-management; e.g., healthy diet. Second, a

population-based model prediction for

personalization will be applied when an individual

does not (yet) have “sufficient” data on the

engagement (compliance) ratio, or the individualized

auto-regression model derivation fails on statistic

validation. There is sufficient data for generating an

individualized auto-regression model when T

≥ l

for

Behavioral Predictive Analytics towards Personalization for Self-management

113

l being the order of the auto-regression model as

discovered through model selection criteria such as

AIC (Akaike Information Criteria) or BIC (Bayesian

Information Criteria) that pass statistical tests.

4.2 Information-Theoretic Model

Selection Approach

Bayes and Akaike Information Criteria are two

common information-theoretic approaches for model

selection as stated below:

Bayes Information Criterion (BIC): BIC(l) =

ln(SSR(l)/T) + [(l+1)ln(T)]/

(1)

Akaike Information Criterion (AIC) AIC(l) =

ln(SSR(l)/T) + 2/

(2)

where l = number of lags,

T= total number of observations,

SSR(l) = sum of squared residual calculated from

the difference between the estimated value derived

from l

order auto-regression and the actual one.

Objective: choose l that minimizes BIC/AIC and

p-value < 0.05, and R

- correlation is “large.”

4.3 Predictive Analytics for

Personalization

Stage 1: The behavior readiness (a 1x4 vector of Real

[ownership, motivation, intention, attitude]) of each

individual in a population is derived based on the

user's response to a survey instrument.

Stage 2: The population is partitioned into

subpopulations based on the result of manifold

clustering; where each cluster is a subpopulation.

Further technical details about manifold clustering

based on statistically significant association patterns

could be found elsewhere (Sy, 2019).

Stage 3: Repeat the following for each possible

self-management activity (e.g., self-monitoring,

exercise, diet management):

For each subpopulation Ci, derive the population

statistical (joint) distribution of ER and ΔER based on

the available engagement ratios of all individuals

) in the subpopulation; for j = 1, 2, ... |Ci|. In other

words, the joint distribution characterized by Pr(ER,

ΔER) is derived from using the ER

and ΔER

t+1

(t = 1

… T-1) of each individual p

in the population who

has participated in the study for a time period T. This

is referred to as a population-based model to support

predictive analytics specific to the subpopulation

cluster Ci for the rest of the discussions in this paper.

For each individual p

residing in a

subpopulation (manifold cluster) Ci:

1. Perform l

order auto-regression (for l = 1 .. k

≤ T) on successive change in engagement ratio ΔER;

in other words, ΔER

t+1

=ER

t+1

– ER

where t = 1 .. T-

2. Perform AIC or BIC to determine the desirable

lag l given the time series data that minimizes

AIC/BIC.

3. Note the p-value and the correlation R

between

the actual and the estimated based on some pre-

selected threshold for R

4. Predict the change in engagement ratio ΔER

T+1

based on auto-regression using T, T-1, T-2 … T-l. If

the test statistics in (3) are reasonable (i.e., p-value <

0.05 and threshold ≤ R

), keep the predicted value

ΔER

T+1

and stop. Otherwise continue to step 5.

5. Determine the predicted value ΔER

T+1

based

on ΔER

T+1

= ArgMax

ΔER

Pr(ΔER| ER=ER

Among the choices on the actionable health (e.g.,

self-monitoring, exercise, diet), determine the

actionable health recommendation based on the one

with the largest ΔER

T+1

Predicting/recommending coaching agenda based

on compliance ratio is similar by repeating the steps.

5 PRELIMINARY STUDY

The proposed approach was applied to the diabetes

subjects of a self-health management pilot conducted

under an IRB-approved study protocol (CUNY IRB

#2018-1043). The objective was to investigate the

impact of digital health solutions to affect

individuals’ behavior towards self-management of

chronic diseases, particularly type 2 diabetes.

To be included in the study, the participants had

to be at least 18 years old. They also needed a

minimum education level of a high school diploma.

An additional criterion was that the participants had

to have an H1AC of 6.0, or a diagnosis of diabetes or

pre-diabetes. This means that participants also had a

perceived risk of developing or had already

developed diabetes and other associated chronic

illnesses.

The behavior model developed under previous

research for predicting behavior readiness was based

on a population of over 500 individuals. The

population consisted of both healthy individuals as

well as individuals with chronic diseases. The

statistically validated model was applied in stage 1 of

the proposed predictive analytics for personalization.

148 individuals with type 2 diabetes were

involved in stage two of the preliminary study. These

participants had a mean age of 49 and a mean H1AC

HEALTHINF 2021 - 14th International Conference on Health Informatics

114

of 7.89%. The population characteristics are shown

below:

Table 1: Participant Demographic Information.

Ethnicity:

Distribution:

Caucasian 41.40%

African American 30.90%

African

American/His

anic

3.10%

Asian 13.80%

Hispanic 7.50%

Hispanic/Caucasian 1.10%

Indian/Asian 1.10%

Mexican/Black 1.10%

Income (in U.S. $):

Distribution:

$0 - $24,999 27.50%

$25,000 - $49,000 23.33%

$50,000 - $99,999 28.33%

$100,000 - $150,000 12.50%

$150,000 - $199,999 4.17%

> $200,000 4.17%

Education level:

Distribution:

High school diploma

17.89%

Some college - no degree

21.95%

2-yr college degree

16.26%

4-yr college degree

26.83%

Some graduate work

5.69%

Graduate-level degree

11.38%

Self-perceived health

Distribution:

Poor

8.13%

Fair

28.46%

Good

43.09%

Very good

16.26%

Excellent

4.06%

Sex:

Distribution:

Female 51%

Male 49%

The survey responses of these 148 individuals

were used to identify manifold clusters

(subpopulations). Individuals were grouped into a

cluster when their behavior readiness measures were

close to the statistically significant association

patterns characterizing the cluster. Four manifold

clusters were obtained for stage 2 of this proposed

approach.

Among the 148 individuals participating in this

pilot on a rolling basis, some were still in a one-month

hold period for establishing a baseline without

intervention; i.e., they have not entered the pilot phase

for personalized intervention. On the other hand,

some others already completed the intervention phase

of the pilot. Excluding these two groups, 49 subjects

with type 2 diabetes were left to be included in

deriving the population-based models for

personalized intervention. These were the subjects

who entered/were in the intervention phase of the

study as of this report. The self-health management

focused on the following three health coaching

agenda items:

- Knowledge building and information gathering

(through daily wisdom sent via SMS and/or push

notifications)

- Discipline and skill development (through

notifications and reminders)

- Awareness improvement (through weekly survey)

Figure 1: Push notification. Figure 2: SMS reminder.

The self-health management activities of this pilot

included the delivery of (1) daily wisdom on diabetes

management, (2) text messaging, and/or notification

reminders on diet, physical exercise, and self-

monitoring, and (3) in-app services to track self-

monitoring, diet and steps. This is followed by

weekly online surveys to improve awareness on self-

management. An example of each of these are shown

in Figures 1 to 4. This study will focus on only a

retrospective analysis based on compliance ratio, and

a forward-looking prediction based on engagement

ratio, for evaluation purposes.

Behavioral Predictive Analytics towards Personalization for Self-management

115

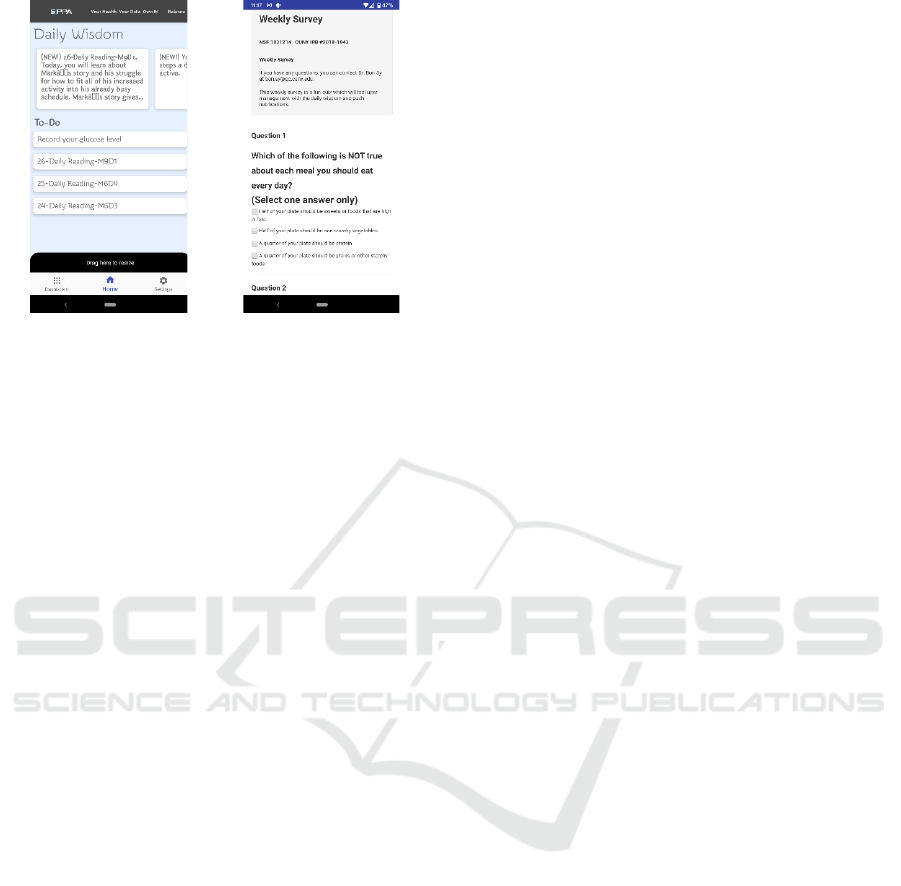

ure 3: In-a

service. Fi

ure 4: Weekl

surve

5.1 Data-driven Model Development

The data collected and used for this preliminary study

are a subset of our pilot sample. When a subject enters

the “intervention” phase of the study protocol, the

SIPPA Health platform collects de-identified activity

meta-data on user interactions with the SIPPA Health

mobile app. This allows us to infer adherence and

engagement in certain activities; e.g., using the app to

conduct medication research or schedule medication

reminders. The survey response data of 148 subjects

were used to derive individuals’ behavior readiness.

Among the 148 subjects, 49 of them have either

completed the study or were in the “intervention”

phase during the study period. The data from these

148 subjects were used for the manifold clustering to

identify subpopulation characteristics defined by

behavior readiness. The data from the 49 subjects just

mentioned were used to derive the population-based

models (section 4.3 stage 3) to support the behavioral

predictive analytics for personalization. The

personalization results reported in this paper are

based on 22 subjects who were in the “intervention”

phase during the study period of this research. A

subject in the “intervention” phase of the study

receives a recommendation on a weekly basis about

the activities on diet management, physical activities,

and self-monitoring of glucose and other vital signs.

Personalization for each subject is performed on a

weekly basis to recommend one activity to focus on

during a week.

Using the behavior readiness of 148 subjects as

training data, four manifold clusters were identified.

Each of the 49 subjects who completed/entered the

intervention phase were assigned to a cluster based on

the similarity of the behavior readiness measure

between the individual and behavior patterns

exhibiting statistically significant association that

define the cluster. Further details on the similarity

function could be found elsewhere (Sy, 2019).

Within each cluster subpopulation, a normalized

compliance ratio and an engagement ratio of each

subject, as well as the change on a weekly basis, are

derived for each one of the activities: diet

management, physical activities, and self-monitoring.

Each ratio is normalized to account for the different

starting times of the participants. For each subject, an

auto-regression model is derived for each activity for

each ratio. It is noted that developing an auto-

regression model is not always feasible. For example,

there may not be sufficient data because in an early

stage of the participation an individual may have only

activity data in one category (such as self-monitoring)

but not the others (such as physical activities).

Furthermore, the data may not yield a valid auto-

regression model because it fails the statistical test in

step 3 during the model selection process using

BIC/AIC. Typically, this happens when a subject is in

the intervention phase for less than four weeks.

In a scenario where an individual auto-regression

model is not feasible, prediction for personalization

for the individual will rely on the population-based

model. For each cluster subpopulation, we derive a

population-based model − one for each activity −

defined by the distribution of the compliance/

engagement ratio and the amount of change using the

data of all the subjects in the cluster subpopulation. In

other words, there are nxm such models to capture

engagement (compliance) ratios; where n is the

number of clusters, and m is the number of activity

categories. For example, m=3 if there are three

categories of activities such as diet management,

physical exercise, and self-monitoring. A population-

based model developed for an activity category Aj

(where j = 1 .. m) in a cluster Ci (where i = 1 .. n) is

used to predict an engagement (compliance) ratio for

an individual in Ci when an individual auto-

regression model is not available for the activity

category Aj.

5.2 Preliminary Study

The subjects included in this study were distributed

across four different clusters (subpopulations). The

results reported in this paper are based on an 11-week

(2.5 months) study of personalization in summer of

2020. In other words, the activity data of each subject

since participating in this pilot, leading up to the week

of personalization, was used to develop the prediction

models for the self-management activities. Then for

each subject a recommendation (either exercise or

HEALTHINF 2021 - 14th International Conference on Health Informatics

116

diet management) was derived using the prediction

algorithm described in the previous section.

5.2.1 Feasibility Assessment

To determine the feasibility on the real-world

application of the proposed behavioral predictive

analytic technique, the design of the preliminary

study consists of two parts. The first part is a

retrospective analysis using the data related to

compliance. The second part is looking forward

prediction on the engagement. The purpose of

retrospective analysis is to establish a base reference

for performance assessment based on historical

results. The looking forward prediction is for

evaluating the prediction performance as a time series

on a rolling basis in real time.

Retrospective Analysis

The predictive analytics will be greatly simplified if

personalization could be based on only the time-series

(engagement/compliance) data. That is, for each

subject, it is possible to derive an auto-regression

model that is also statistically valid according to the

information-theoretic model selection criteria

described in section 4.2. In such a case, manifold-

based clustering could be completely skipped because

a population-based model to support personalization

would not be necessary.

To gain insight into such scenario just described,

an attempt was made to derive an auto-regression

model for each subject who completed/entered the

intervention phase. Out of the 49 subjects, the auto-

regression model derivation was successful for 21

subjects (who completed or entered the intervention

phase). Therefore, manifold clustering is required for

this particular use case on applying the algorithm

described in section 4.3.

The compliance ratio is computed on the weekly

basis for each subject. A subject has n data points of

compliance ratio; where n is the number of weeks of

participation in the intervention phase. For deriving

the auto-regression model for a subject, (n-4) data

points were used to derive/train the auto-regression

model, and the model is used to predict the

compliance ratio of the last 4 data points for

evaluation purposes.

Forward Looking Prediction

In contrast to the retrospective analysis, forward

looking prediction involves only those subjects who

were in the intervention phase during the study

period. Out of the 49 subjects mentioned earlier, 22

of them were used to generate the engagement ratios

and predictive analytics.

The engagement ratio of each active subject was

computed on a weekly basis. Similar to the

retrospective analysis, an estimated engagement ratio

is derived for each week based on the predictive

analytics technique described in section 4.3. The

prediction was performed forward looking. For

example, the prediction on engagement ratio for week

n (n=2 … 11) of the 11-week study period for a

subject would be conducted at week n-1. Then the

actual observed engagement ratio was recorded at

week n. This forward looking prediction process was

repeated ten times in the 11-week study period.

5.3 Results

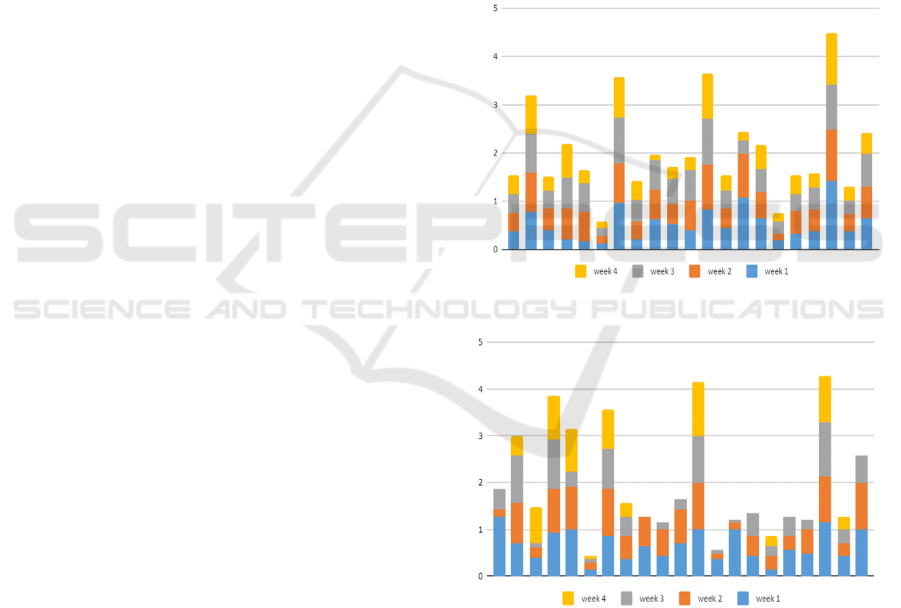

Figure 5: Predicted compliance ratio for an subject.

Figure 6: Observed compliance ratio for a subject.

5.3.1 Retrospective Analysis

Figures 5 and 6 show the predicted and observed

compliance ratios of the 21 subjects for whom a

statistically valid auto-regression model could be

derived. The result shows the predicted and observed

compliance ratios for each week on each of the 21

subjects; whereas a compliance ratio is derived based

on a 7-day average. As shown in Figure 7, there is a

Behavioral Predictive Analytics towards Personalization for Self-management

117

consistent pattern across the 4-week prediction

period. Below shows the R and the p-value of the 4

weeks; whereas R is the correlation coefficient

measuring the strength and direction of a linear

relationship between the predicted and observed

compliance ratio, and p-value is a probability

measure on the value of R that have occurred just by

random chance (which is typically compared against

the gold standard requiring it to be less than 0.05):

Table 2: R and p-values for the tests

Wee

1 Wee

2 Wee

3 Wee

0.5178 0.6673 0.7698 0.7008

p-value 0.0162 0.00095 4.5E-05 0.0004

Figure 7: Average predicted vs observed CR.

5.3.2 Forward Looking Prediction

In the forward-looking prediction experiment, the

prediction is on actionable health recommendations

based on the maximal posterior estimate as described

in section 4.3. In this study, the personalized

actionable health recommendation would be in either

diet management or exercise. 22 subjects were in the

intervention phase during this period of research.

Figures 5 through 7 show evidence of its accuracy

and consistency. But we are also interested in the

effectiveness of the prediction technique for

personalization. To evaluate its effectiveness for

improving self-efficacy on health management, this

study also attempts to show personalized actionable

health (recommended by the behavioral predictive

analytics) resulting in a more active engagement

when it is compared to that of without

personalization.

In order to understand the effect of

personalization on engagement, the weekly average

engagement ratio without personalization is

compared against the engagement ratio with

personalization. Figure 8 shows the aggregated

weekly engagement average, disregarding

subpopulations, for comparison purposes.

In calculating the engagement ratio without

personalization, the average engagement ratio of each

subject over time prior to personalization is first

calculated, then the average over all the subjects.

Note that the average engagement ratio of each

subject over time prior to personalization spans over

different time periods and lengths, as well as the

actionable health recommendations because of the

rolling nature of the subject participation in the pilot.

Figure 8: Aggregated ER w(/o) personalization.

Figure 9: Individual ER average (over 11 weeks).

Figure 9 shows the engagement ratio of each

individual averaged over the participation period.

There are half a dozen subjects with low/zero

engagement ratio in forward looking prediction. All

of them received follow-up from this research team to

understand these unusual outcomes. One withdrew

from the study, and two were unreachable during the

study period. Among the rest, one has limited

technology proficiency, and one other older adult

subject relies on her daughter to assist her on certain

self-management activities at a time convenient to her

daughter. Furthermore, one subject (participant 15 in

HEALTHINF 2021 - 14th International Conference on Health Informatics

118

Figure 9) was active until he damaged his phone

during the study period of this research.

Figure 10 shows the aggregated engagement

average of 22 subjects (with personalization) for each

week during the study period distributed across four

cluster subpopulations.

Figure 10: Observed ER by subpopulation clusters.

5.4 Discussion

5.4.1 Experimental Results

The results shown in Figures 5 through 7 in the

retrospective analysis show evidence of the feasibility

of behavioral predictive analytics in terms of

computational efficacy as measured by accuracy and

consistency.

Figure 8 shows the evidence of the applicability

of the approach in terms of health efficacy. It shows

that engagement level with personalization is better

than that without personalization.

The results shown in Figures 9 and 10 in the

forward-looking experiment demonstrate the

practical implementation feasibility. The results

shown in Figure 10 also reveal indirect evidence of

the effectiveness of the manifold-based clustering

technique for grouping subjects into subpopulations

by means of behavior readiness. In particular,

subpopulation clusters 1 and 2 are the more engaged

patient subpopulations reflected in the behavior

readiness characteristics of the clusters. Furthermore,

personalization with strategies tailored for a cluster

seems to show an effect over time for improving the

engagement, in particular, the second cluster

subpopulation that is not as high performing at the

beginning.

Finally, the overall average engagement ratio

with personalization had a mean value of 0.31 with a

standard deviation of 0.33. The 95% confidence

interval around this was [0.17, 0.45]. By contrast,

without personalization, the overall mean

engagement ratio is 0.26 with a standard deviation of

0.31. The 95% confidence interval for this value was

[0.13, 0.38]. These are overall promising results;

however, with such large standard deviations, one of

the next steps in the research would be to gather larger

samples to mitigate this issue.

5.4.2 Hypothesis Testing

Although the results shown in the previous figures are

encouraging, it is necessary to conduct a hypothesis

test analysis to understand the extent of improvement

with clustering and personalization, as well as its

statistical significance.

In reference to the results of the forward-looking

prediction shown in Figures 8 to 10, an analysis was

conducted to understand the effect of the population

size on the statistical power. In particular, is the

change in engagement ratio reported in this study

generalizable?

This question was approached by conducting a t-

test to compare the difference between the means of

the engagement ratio with personalization and

without personalization for the entire sample and

within each cluster by investigating such change of

each participant over the 11-week period of the study.

Table 3: Hypothesis testing results for each cluster.

t-statistic

-value

All data without clustering 0.51758 .303733

Cluste

1 0.32971 0.372949

Cluste

2 1.79319 0.061554

Cluste

3 -0.48247 0.319928

Cluste

4 -0.10798 0.459604

While the t-statistic shows an overall

improvement on engagement ratio when

personalization is applied --- irrespective to

clustering, and a more significant improvement with

clustering, none passes the p-value test for the result

to be generalizable. This suggests that the study will

need a larger population to achieve a power that

allows the result to be generalizable.

5.4.3 Limiting Factors

There are many human factors that need to be

explored in further analyses. These include time spent

in the training period, level of proficiency with

technology, and demographic features that can impact

engagement such as gender and socioeconomic

status.

Behavioral Predictive Analytics towards Personalization for Self-management

119

In addition to the non-technical limitations above,

two factors related to the population-based model are

noteworthy. First, the population-based model

approach is non-parametric and could potentially be

sensitive to the additional data available over time

that could change the behavior of the model as

measured by information-theoretic entropy. Second,

when a personalized recommendation is based on the

population model, it should be noted that the

prediction strategy is a “greedy” approach.

In reference to step 5 of the algorithm that

determines the predicted value ΔER

T+1

based on Max

Pr(ΔER

T+1

| ER

), a larger ΔER

T+1

is unlikely to

come from a large ER

. For example, if ER

=0.9, it

is not possible for ΔER

T+1

> 0.1; or Pr(ΔER

T+1

>0.1|

=0.9)=0. Therefore, the “greedy” approach has

an inherent bias to work better in personalization for

those who are moderately active compared to others.

6 CONCLUSION

A behavioral predictive analytics approach was

presented for self-management personalization. The

personalized recommendation is based on the

engagement outcomes that reveal the behavior

readiness of an individual in self-management. Auto-

regression and population models were derived to

support the proposed predictive analytics approach

for generating personalized recommendations. A

limitation of this research is the requirement for a

“wait” period to accumulate sufficient data to derive

a personalized auto-regression model. In this research

we adopt a strategy that aims to prioritize

personalization based on greatest improvement

possible on engagement in a self-management area.

This has an inherent bias that may negatively impact

individuals with limited potential improvement on

engagement. We do not yet know how this affects

engagement and in what pace. Our future research

will focus on understanding this aspect. An additional

future research goal will be to collect larger samples

in future, as our results were promising, but need

larger samples to be statistically significant for future

generalizability.

ACKNOWLEDGEMENTS

The authors are indebted to the reviewers for their

valuable comments that help to improve this paper.

This research is conducted under the support of U.S.

NSF phase 2 grant 1831214. Mike Wassil oversees

the pilot operation described in this research. Michael

Van der Gaag leads the usability study of the mobile

app used in this research. The pilot team consists of

Arora Ashima, Connor Brown,

Brandon Huang,

Rebecca Horowitz, Sumaita Hussain, and Pan Lin.

Dr. Catherine Benedict had advised on this research

regarding patient self-efficacy. Dr. Adebola

Orafidiya (MD) had helped this pilot team by sharing

clinical best practice on recommending self-

monitoring. This pilot team has also benefited from

the discussions with Dr. Joseph Tibaldi (MD) and

Caterina Trovato (CDE) on patient engagement.

REFERENCES

Bidargaddi, N., Pituch, T., Maaieh, H., Short, C., &

Strecher, V. (2018). Predicting which type of push

notification content motivates users to engage in a self-

monitoring app, Preventive Medicine Reports, 11: 267-

273. https://doi.org/10.1016/j.pmedr.2018.07.004.

Bollyky JB, Bravata D, Yang J, Williamson M, Schneider

J., 2018. Remote Lifestyle Coaching Plus a Connected

Glucose Meter with Certified Diabetes Educator

Support Improves Glucose and Weight Loss for People

with Type 2 Diabetes. J Diabetes Res. 2018;

2018:3961730. Published 2018 May 16.

doi:10.1155/2018/3961730

CDC, 2020. National Diabetes Statistics Report.

https://www.cdc.gov/diabetes/pdfs/data/statistics/natio

nal-diabetes-statistics-report.pdf

Duncan, Otis Dudley. 1975. Introduction to Structural

Equation Models. New York Academic Press.

Hadjiconstantinou M, Schreder S, Brough C, et al., 2020.

Using Intervention Mapping to Develop a Digital Self-

Management Program for People With Type 2

Diabetes: Tutorial on MyDESMOND. J Med Internet

Res. 2020;22(5):e17316. Published 2020 May 11.

doi:10.2196/17316

Kan M.P.H. & Fabrigar L.R., 2017. Theory of Planned

Behavior. In: Zeigler-Hill V., Shackelford T. (eds)

Encyclopedia of Personality and Individual

Differences. Springer, Cham

Neff R. & Fry, J., 2009. Periodic prompts and reminders in

health promotion and health behavior interventions:

Systematic review. Journal of Medical Internet

Research, 11(2). URL: https://www.jmir.org/2009/

2/e16 DOI: 10.2196/jmir.1138

Sawesi, S., Rashrash, M., Phalakornkule, K., Carpenter,

J.S., Jones, J.F., 2016. The impact of information

technology on patient engagement and health behavior

change: A systematic review of the literature. JMIR

Medical Informatics, 4(1):e.1, Doi: 10.2196/medin

form.4514

Sy B., 2017. "SEM Approach for TPB: Application to

Digital Health Software and Self-Health Management,"

2017 International Conference on Computational

Science and Computational Intelligence (CSCI), Las

HEALTHINF 2021 - 14th International Conference on Health Informatics

120

Vegas, NV, 2017, pp. 1660-1665, doi:

10.1109/CSCI.2017.289.

Sy B., Chen J. and Horowitz R., 2019. "Incorporating

Association Patterns into Manifold Clustering for

Enabling Predictive Analytics," 2019 International

Conference on Computational Science and

Computational Intelligence (CSCI), Las Vegas, NV,

USA, 2019, pp. 1300-1305, doi: 10.1109/CSCI

49370.2019.00243.

Van Stee, S. K., & Yang, Q., 2020. The effectiveness and

moderators of mobile applications for health behavior

change. In Technology and Health (pp. 243–270).

https://doi.org/10.1016/b978-0-12-816958-2.00011-3

Volpp KG, Mohta N., 2016. Insights Report: Patient

Engagement Survey: Improved Engagement Leads to

Better Outcomes, but Better Tools Are Needed. NEJM

Catalyst May 2016 Notes:https://catalyst.nejm.org/

patient-engagement-report-improved-engagement-

leadsbetter-outcomes-better-tools-needed/

Behavioral Predictive Analytics towards Personalization for Self-management

121
