Using Segmentation Networks on Diabetic Retinopathy Lesions:

Metrics, Results and Challenges

Pedro Furtado

DEI/CISUC, Universidade de Coimbra, Polo II, Coimbra, Portugal

Keywords: Deep Learning, Segmentation, Medical Images.

Abstract: Deep segmentation networks are increasingly used in medical imaging, including detection of Diabetic

Retinopathy lesions from eye fundus images (EFI). In spite of very high scores in most EFI analysis tasks,

segmentation measured as precise delineation of instances of lesions still involves some challenges and

deserves analysis of metrics and comparison with prior deep learning approaches. We build and confront

state-of-the-art deep learning segmentation networks with prior results, showing up to 15 percentage points

improvement in sensitivity, depending on the lesion. But we also show the importance of metrics and that

many frequently used metrics can be deceiving in this context. We use visual and numeric evidence to show

why there is still ample space for further improvements of semantic segmentation quality in the context of

EFI lesions.

1 INTRODUCTION

Diabetic Retinopathy (DR) is an eye condition related

to microvascular changes in the retina that affects

people with Diabetes. The changes involve leakage of

extra fluid and small amounts of blood in the eye

(microaneurysms and hemorrhages) and deposits of

cholesterol and other fats (exudates) (Wilkinson,

2003). Figure 1 shows some lesions and some

structures on eye fundus image (EFI), where the

coloured image indicates the lesions and the optic

disk.

The deep segmentation network is a software

system inspired in convolution neural networks that

uses supervised learning from training images and

groundtruths to learn how to segment images in a

certain context. These networks are increasingly used

in every medical imaging problem with great results

when compared to previous alternatives. Figure 2

shows one such network receiving an image as input

and outputting a segmentation map that is supposed

to classify each pixel as one of a number of classes.

https://orcid.org/0000-0001-6054-637X

Figure 1: EFI and lesions characteristic of Diabetic

Retinopathy.

128

Furtado, P.

Using Segmentation Networks on Diabetic Retinopathy Lesions: Metrics, Results and Challenges.

DOI: 10.5220/0010208501280135

In Proceedings of the 14th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2021) - Volume 2: BIOIMAGING, pages 128-135

ISBN: 978-989-758-490-9

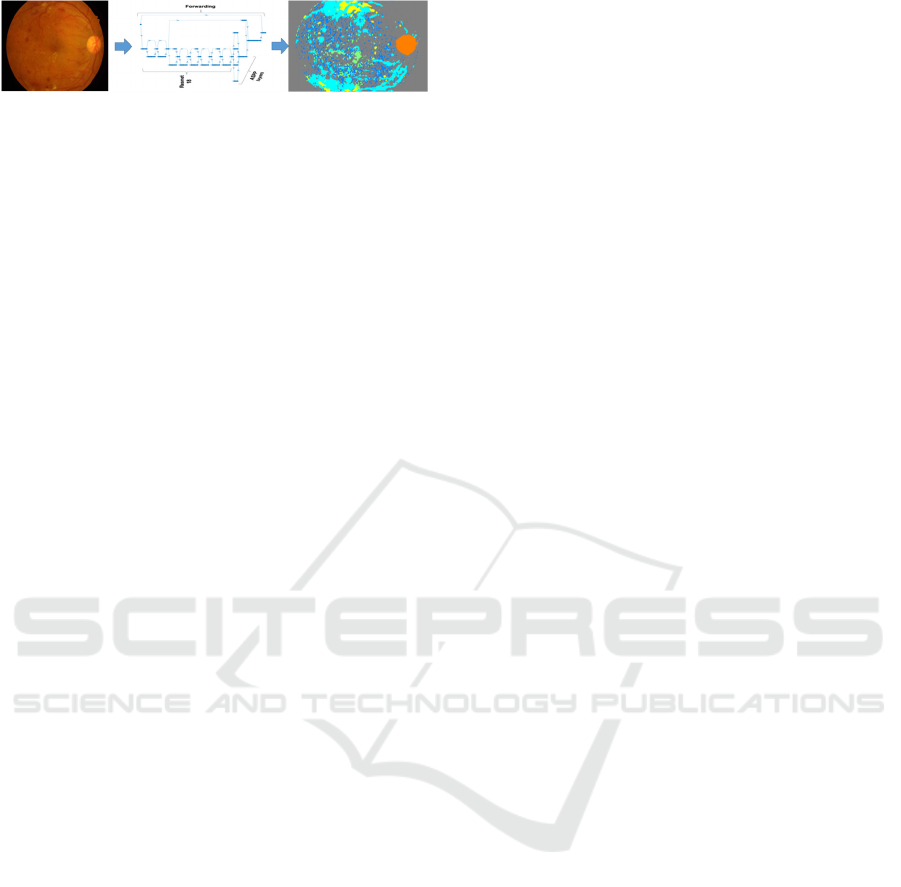

Figure 2: Illustration of the deep segmentation procedure.

The deep segmentation network shown in Figure

2 is made of an encoding and a decoding part. The

encoding part is a Convolution Neural Network

(CNN), and its function is to extract features from

images in the form of a compressed representation of

the main features, hence the label “encoding”. But

while CNNs classify images, segmentation networks

classify each individual pixel as belonging to one of

a set of classes, a.k.a. semantic segmentation.

Semantic Segmentation, also called scene

labeling, refers to assigning a semantic label (e.g. car,

people, and road) to each pixel of an image (Yu,

2018). In semantic segmentation each pixel must be

assigned the exact class to which it belongs in reality,

and groundtruths should be pixelmaps as much as

possible, as opposed to coarse regions defined around

groups of lesions. In analysis of EFI images, semantic

segmentation aims at finding areas and numbers of

lesions instances as accurately as possible, as opposed

to just detecting if images have lesions of certain

types or some regions engulfing sets of lesions.

Recent reviews of EFI analysis, such as in

(Qureshi, 2019), (Asiri, 2019), (Raman, 2019) report

highest scores (e.g. between 90% and 100%) in most

tasks related to analysis of EFI and DR classification.

A smaller fraction of the works reviewed there

mention lesion segmentation and, as we review in

related work section, an even smaller fraction actually

evaluate the whole process of segmentation of

lesions. For those we have to look into the details to

retrieve the actual reported scores. The sensitivities

found in those works for one False Positive per Image

are in the intervals, for different lesions: hemorrhages

HA=47-50%; hard exudates HE=40-57%; soft

exudates SE=64-70% and micro-aneurisms MA=7-

38%. These values contrast with scores between 90%

and 100% for other tasks such as detecting if an image

has any lesion of a certain type.

These reported prior works use various CNN-

based approaches to EFI analysis. Our purpose in this

work is twofold: on one hand we build and compare

a state-of-the-art semantic segmentation network

(DeepLabV3, FCN, UNET) with those prior works,

showing that it improves the results, but on the other

hand we also discuss metrics and the need to be

careful in the use of metrics when evaluating this kind

of systems. Analyzing the quality of segmentation in

terms of sensitivity versus false positives we find that

our proposed network is quite competitive and

overcomes prior work. But at the same time we also

reveal the limitations with some frequently applied

segmentation metrics in the context of evaluation of

segmentation of EFI lesions in general. We discuss

limitations of popular metrics that include

ROC/AUC, specificity and even sensitivity alone

(sensitivity versus false positives, which we use to

compare with prior works, does not have the problem)

in our context. We show that, from a perspective of

evaluation of semantic segmentation, where the class

of each individual pixel matters, work is still required

to improve the approaches further.

The paper is organized as follows: section 2

contains related work. Section 3 describes the

segmentation network we build and propose in this

work for the comparisons, and the limitations of some

metrics in the context of EFI lesions segmentation is

also discussed there. Section 4 contains experimental

work and section 5 concludes the paper.

2 RELATED WORK

Recent surveys on analysis of Eye Fundus Images

(EFI) for diagnosis of Diabetic Retinopathy (DR) and

for detection and localization of lesions (Qureshi,

2019), (Asiri, 2019), (Raman, 2019) report scores

between 90% and 100% for most tasks, including

some mentioning “segmentation” and “localization”.

The fraction of works reviewed that “segment”

lesions include Prentasic et al. (Prentašić,2015),

Gondal at al. (Goindal, 2017), Quellec et al. (Quellec,

2017) (exudates, hemorrhages and microaneurisms),

Haloi et al. (Haloi, 2015), Van Grinsven et al. (Van

Grinsven, 2016), Orlando et al. (Orlando, 2018) and

Shan et al. (Shan, 2016) (microaneurisms,

hemorrhages or both). From those, a considerable

number are classifiers of small windows. That is the

case of Prentasic et al. (Prentašić,2015), Haloi et. al.

(Haloi, 2015), Van Grinsven (Van Grinsven, 2016),

and Shan et al. (Shan, 2016), which are classification

CNNs that classify small square windows around

potential lesions. These works achieve high

classification scores, but they do not segment the

lesions, instead they classify small windows. For

instance, (Prentašić,2015) proposes applying a simple

CNN classifier to each pixel by obtaining a small

window around it, and achieves a classification score

of 77% sensitivity for exudates. Not only the

sensitivity is lower than 90 to 100% and target only

exudates, as also for training and evaluation the

authors collect windows statically, taking all the

exudate pixels as positive samples and the same

Using Segmentation Networks on Diabetic Retinopathy Lesions: Metrics, Results and Challenges

129

amount of pixels randomly sampled among all non-

exudate pixels but without repetition. The approach

does not deal with the difficulty of scaling to classify

all pixels in an EFI and realtime operation, a difficult

issue because the classifier has to be applied to each

pixel. More generically, it is not clear how to scale

approaches classifying small windows around pixels

to realtime semantic segmentation of lesions.

Other related works do segment lesions, e.g.

Gondal at al. (Gondal, 2017), Quellec et al. (Quellec,

2017) are two variations of DR classifiers

(classification of EFI images as DR or not), that at the

same time up-sample and extract heatmaps to get the

positions of lesions. Orlando (Orlando, 2018) uses a

different approach that combines DL with image

processing to find candidate regions. These works do

include evaluation of the quality of segmentation of

lesions, using a criterion of overlap of segments. They

reported the following sensitivities for segmentation

of lesions (for 1 false positive per image=FPI):

Quellec (Quellec, 2017) (HA=47%; HE=57%;

SE=70% and MA=38%), Gondal (Gondal, 2017)

(HA=50%; HE=40%; SE=64% and MA=7%) and

Orlando (Orlando, 2018) (HA:50%, MA: 30%).

These scores illustrate the fact that segmenting the

lesions does not result in scores near to 100%. Also

important, it must be noted that a “relaxed” connected

components evaluation criteria is used in those works

(described for instance in (Zhang, 2014)), where a

threshold of partial overlap between found segments

and groundtruth regions is sufficient for considering

a match. The connected components criteria,

described for instance in Zhang’s work (Zhang,

2014), considers a match if an overlap of 20% (or

another threshold) between found segments and

groundtruth regions exists. The groundtruths of the

datasets themselves are frequently large coarse

regions defined around groups of lesions (e.g.

datasets Diaret (Kälviäinen, 2007)] or e-ophtha

(Erginay, 2008)). We believed that a state-of-the-art

deep learning segmentation network (DeepLabV3)

can do better than many prior approaches, such as

(Gindal, 2017), (Quellec, 2017), (Orlando, 2018). For

that reason, we created the setup and compared the

approaches.

Some frequently used metrics are also an

important detail in this context (Tiu, 2019), (Csurka,

2013) and in particular class imbalance can bias the

evaluation scores. Zhang (Zhang, 2014) mentions

that, “given that the classes are clearly unbalanced,

TP, FN and FP are in practice negligible with respect

to TN, therefore computing the specificity, i.e.

TN/(FP+TN), and therefore ROC (Receiver operating

characteristic) curve does not seem appropriate”. For

that reason we pay a special attention to how metrics

should be used in our study. In that respect we both

discuss metrics and in the experimental work we

include a section revealing the false positives-related

limitations of current approaches that are exposed by

use of some metrics and/or visual inspection.

There exist some very popular segmentation

networks. The Fully Convolutional Network (FCN)

(Long, 2015) uses a CNN to encode (typicaly a

VGG16 (Simonyan, 2014)), replacing the final fully

connected layers by convolutional layers with large

receptive fields, and adds up-sampling layers based

on simple interpolation filters. The FCN we use in

this paper has around 50 layers. We would also

mention the use of forwarding paths. Ronneberger

(Ronneberger, 2015) proposed the U-Net, a DCNN

especially designed for segmentation of biomedical

images (around 75 layers). The architecture consists

of “a contracting path to capture context” and a

“symmetric expanding path that enables precise

localization”. The network beat other competitors in

the ISBI challenge for segmentation of neuronal

structures in electron microscopic stacks. Finally, the

DeepLabV3 network (Chen, 2017) that we

experiment with uses Resnet-18 encoder and applies

some new techniques to improve the quality,

including Atrous Spatial Pyramid Pooling (ASPP)

(Lin, 2017), capturing objects at multiple scales, and

Conditional Random Fields (CRF) for improved

localization of object boundaries using probabilistic

graphical models. We obtained some of the best

results using this network (Porwal, 2019).

3 SEGMENTATION NETWORKS

AND METRICS

3.1 Segmentation Networks

As already mentioned before, segmentation networks

have two well distinguished parts, the encoder, most

frequently an existing CNN encoding architecture,

and a decoder that reinstates the full image size, and

the pixel classifier layer that assigns a score for each

class to each pixel. DeepLabV3, with a rough sketch

shown in Figure 3, is a very successful segmentation

network. Our design for DeepLabv3 shown in Figure

3 includes well-known Resnet-18 CNN classification

network as encoder and benefits from the innovations

that include Atrous Spatial Pyramid Pooling (ASPP)

(Lin, 2017), which enables better segmentation at

multiple scales, and Conditional Random Fields

(CRF), which improve definition of contours in final

BIOIMAGING 2021 - 8th International Conference on Bioimaging

130

result. The network accepts as input the full EFI

image and outputs the classification for each

individual pixel as belonging to a specific lesion or

not. The fact that it classifies all individual pixels end-

to-end at the same time in one pass (typically taking

a few milliseconds to classify all pixels at once)

makes it the perfect tool for segmentation, as

compared with any CNN that would output an

accurate classification of a single pixel but would not

scale well. Since backpropagation learning is applied

end-to-end with segmentation masks as targets, the

network actually learns how to segment images based

on the groundtruths. DeepLabV3 is about 100 layers

deep. Figure 4 shows the architecture of FCN, another

well-known network architecture that uses VGG16

instead and has a total of about 50 layers.

Figure 3: DeepLabV3. Figure 4: FCN.

3.2 Limitations of Metrics

Most works on EFI analysis, and in particular in

segmentation of lesions in EFI images, frequently

report metrics such as sensitivity, ROC curves and

AUC. But in some circumstances, those metrics can

bias the analysis in the context that is being

considered. As we already reviewed in the related

work, Zhang (Zhang, 2014) mentions: “given that the

classes are clearly unbalanced, TP, FN and FP are in

practice negligible with respect to TN, therefore

computing the specificity, i.e. TN/(FP+TN), and

therefore ROC (Receiver operating characteristic)

curve does not seem appropriate”. The TN mentioned

by Zhang refers to the true negatives represented by

the background, which composes 90 to 95% of all

pixels in the EFI. The background is much easier to

segment than the rest of the objects because it is fairly

constant and huge, and the problem is that such huge

number may mask the real quality of segmentation of

lesions. Looking at the formulas of some popular

metrics we can see that specificity and false positive

rate (FPR) will both score very well “always” in the

EFI segmentation context due to that bias, and

therefore ROC curves and AUC using FPR are also

problematic:

𝑠𝑝𝑒𝑐𝑖𝑓𝑖𝑐𝑖𝑡𝑦 

𝑇𝑁

𝑇𝑁  𝐹𝑃

𝑓𝑎𝑙𝑠𝑒 𝑝𝑜𝑠𝑖𝑡𝑖𝑣𝑒 𝑟𝑎𝑡𝑒



𝐹𝑃𝑅





𝐹𝑃

𝐹𝑃  𝑇𝑁

ROC: a function usually based on TPR vs FPR

There is also a potential limitation with the metric

sensitivity, also known as recall or TPR if it is used

alone:

𝑠𝑒𝑛𝑠𝑖𝑡𝑖𝑣𝑖𝑡𝑦  𝑟𝑒𝑐𝑎𝑙𝑙  𝑇𝑃𝑅 

𝑇𝑃

𝑇𝑃  𝐹𝑁

In this case the limitation is that it does not consider

false positives (FP), meaning that a situation with a

huge number of FP could still have high sensitivity.

FPs are common because background pixels are

sometimes classified as a lesion since parts of the

background can resemble a lesion in colour or other

details. Evaluations using sensitivity versus false

positives (FP) solve this problem, as also does the use

of IoU (intersect-over-the-union) or the pair recall +

precision, because in those cases FPs are considered:

𝑝𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛 

𝑇𝑃

𝑇𝑃  𝐹𝑃

𝐼𝑜𝑈 

𝑇𝑃

𝑇𝑃  𝐹𝑁  𝐹𝑃

The last part of our experimental work concerns

precisely the analysis of the FP problem, revealing

that there are still important limitations of the

approaches due to a significant amount of FP. Future

work should try to handle that problem.

4 EXPERIMENTAL RESULTS

For this investigative work we work with two

datasets. On one hand we use the publicly available

dataset IDRID dataset (Porwal, 2019), with 83 Eye

Fundus Images (EFI) and groundtruth pixelmaps,

where most images have a large number of instances

of each specific lesion. To increase the variety and

size of the training data we introduced data

augmentation in the training process, with random

translations of up to 10 pixels. For the comparison

with prior works to be based on the same dataset and

evaluation approach, we use DIARET-DB1 dataset

(Kauppi, 2007). DIARET-DB1 consists of 89 color

fundus photographs collected at the Kuopio

Using Segmentation Networks on Diabetic Retinopathy Lesions: Metrics, Results and Challenges

131

University Hospital, in Finland (Kauppi et al., 2007).

Images were captured with the same fundus camera,

a ZEISS FF450plus digital camera with a 50-degree

field-of-view. Images all have a definition of 1500 x

1152 pixels. Independent markings were obtained for

each image from four medical experts. The experts

were asked to manually delineate the areas containing

microaneurysms (or ‘small red dots’), hemorrhages,

hard exudates and cotton wool spots (a.k.a ‘soft

exudates’) and to report their confidence (< 50 %, ≥

50 %, 100 %) for each segmented lesion.

We initially obtain performance scores for

DeepLabV3, FCN and even U-Net to choose

DeepLabV3 as the main contender for comparison

with prior Works. Then we report the results of

DeepLabV3 compared to results with prior works

(Gondal, 2017), (Quellec, 2017), (Orlando,2018)

regarding quality of segmentation. After showing that

DeepLabV3 improves compared with those

approaches, we use visual and metric approaches on

the first dataset (IDRID) to show the limitations

related to FP and the need for more work improve the

approaches further.

For all networks the SGDM learning optimization

function was used, with learning rate 0.005 that

allowed the networks to converge to a classification

of all lesions. Training used 300 epochs, since all

networks would stabilize much before that, minibatch

sizes of 32, momentum of 0.9. In terms of hardware,

we used a machine running windows 10. The

hardware was an intel i5, 3.4 GHz, 16 GB of RAM

1TB SSD disk. A GPU was added to the PC,

consisting of an NVIDEA GForce GTX 1070 GPU

(the GTX 1070 has a Pascal architecture and 1920

cores, 8 GB GDDR5, with memory speed of 8 Gbps).

Our first experiment intended to pick the

segmentation network that would exhibit best results

using IDRID. Figure 5 compares three networks.

FCN had very good accuracy and IoU (90%, 88%),

DeepLabV3 was also quite good, always > 75%, and

both exhibited improvements over U-Net. We will

show later on (Table 3) that IoU scores per lesion are

much worse than these metrics shown in Figure 5,

which is related to the need for a careful interpretation

of metrics. Accuracy measures the fraction of pixels

that were classified well versus all pixels, and

weighted IoU measures the degree of correct overlap

of regions. These metrics usually score very high

when averaged over all pixels simply because the

background is huge and most of it is well segmented

because it is fairly constant (eye fundus).

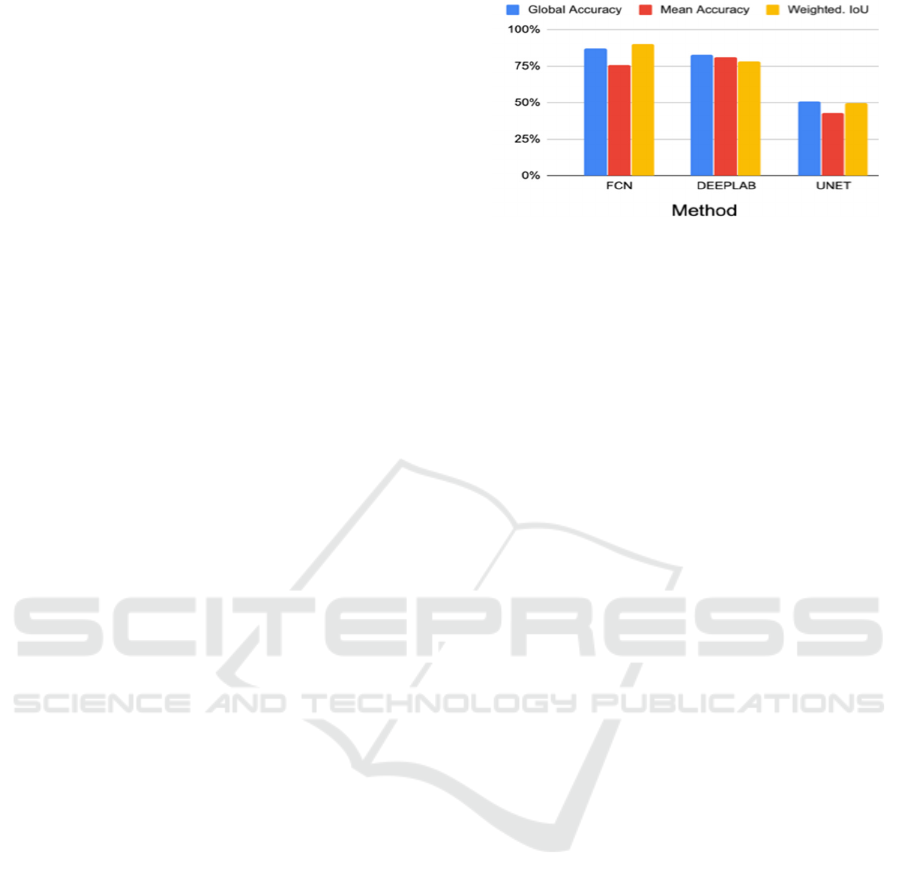

Figure 5: Comparing FCN, DeepLabV3 and U-Net.

4.1 Comparing Lesion and

Image-Level Sensitivities to Prior

Works

Table 1 shows the results we obtained concerning the

comparison of lesion-level sensitivities between our

approach and those in (Gondal, 2017) and in

(Quellec, 2017). These results were obtained using

the connected components model of evaluation

(Zhang, 2014) with similar conditions as used in the

compared works. The sensitivities are measured

against the number of false positives per image (FPI),

and both should be considered in the analysis of

results. Note that we used the approach in (Quellec,

2017) where FPIs can differ because they are

obtained against the class classification threshold (0

to 1). Since only thresholds in the interval 0.1 and 0.9

with 0.1 steps are tested, only some values for FPI are

obtained, and from those, one is chosen that allows

easy comparison, as much as possible.

In general these results show that sensitivities

vary significantly between works and varied between

50 and 87% for HE, 47 and 94% for HE, 71 and 90%

for SE and 21 and 61% for RSD, also depending on

the number of FPI to consider.

They show that DeeplabV3 actually improves

scores for most lesions, i.e. for HA, HE and SE, while

for MA the results seem worse than (Orlando, 2018)

but inline with the results of the remaining prior work

compared.

Table 2 compares image-level detection of lesions

for referral, DeepLabV3 ranks first in HA and SE and

also ranks well in HE and MA. We can also see that

this is a quite easy problem for any technique, since

the objective is only to tell whether there is any lesion

of a certain type in the whole EFI image, without the

need to locate any precisely.

BIOIMAGING 2021 - 8th International Conference on Bioimaging

132

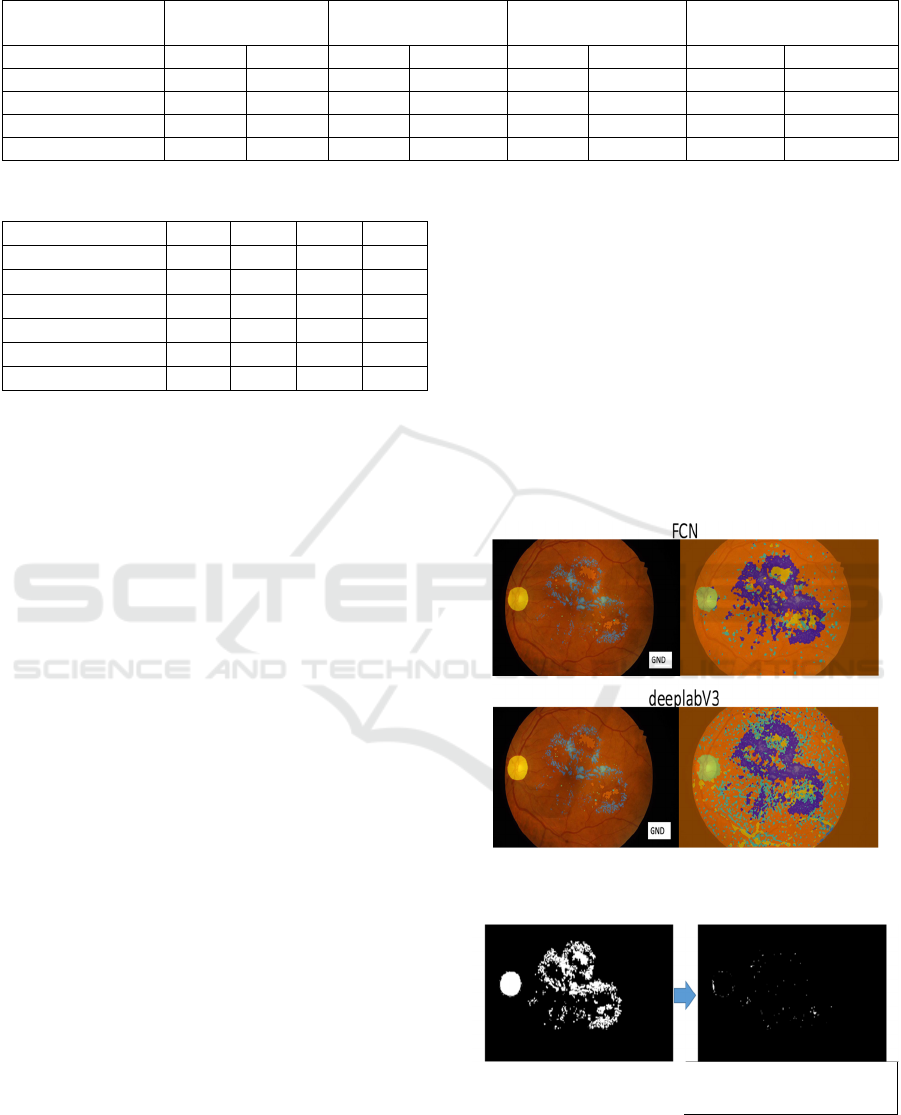

Table 1: Comparing lesion-level sensitivities.

Method Hemorrhages Hard Exudates Soft Exudates RSD

(micro-aneurisms)

SE% FPs/I SE% FPs/I SE% FPs/I SE% FPs/I

(Quellec, 2017) 71 10 80 10 90 10 61 10

Gondal, 2017) 72 2.25 47 1.9 71 1.45 21 2

(Orlando, 2018) 50 1 50 1

Ours 87 10 94 2.76 87.5 3.92 48 6.4

Table 2. Image-level sensitivities.

Method HA HE SE MA

(Zhou, 2016) 94.4 - - -

(Liu, 2017) - 83 83 -

(Haloi, 2015) - 96.5 - -

(Mane, 2015) - - - 96.4

(Gondal, 2017) 97.2 93.3 81.8 50

Ours 100 90 87.5 71

4.2 Limitations Revealed using

Semantic Segmentation Metrics

In spite of good comparative results when measured

using the connected components model (Zhang,

2014) that is used in most works on segmentation of

lesions in EFI, we also found that a large number of

false positives appears if we try to obtain higher

scores for lesions (sensitivities), especially apparent

if we evaluate in the perspective of semantic

segmentation. While in the connected component

model overlaps between segments are evaluated and

50%, 20% or any overlap at all are considered

matches, in “semantic segmentation” each pixel must

be assigned the exact class to which it belongs and

groundtruths should be pixelmaps with, as much as

possible, the exact class of each pixel. Since the

groundtruths of the IDRID dataset (Porwal, 2019) are

near to this concept where each pixel is assigned its

class, the next experiment evaluates based on this

principle. Figure 6 shows, on the left, the groundtruth

segments superimposed on the image, for FCN and

for DeepLabV3, and on the right the corresponding

segmentations. Many FP are apparent on the right,

more so in DeepLabV3.

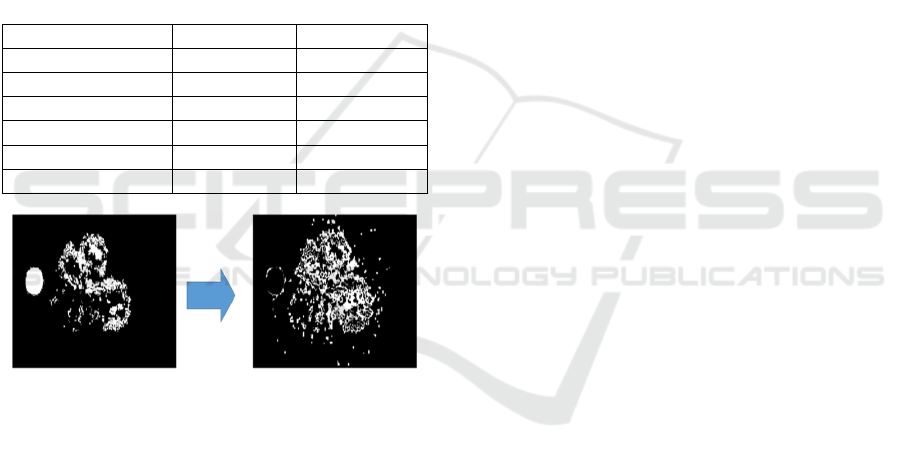

Taking the segmentation masks of the same image

on FCN, Figure 7 shows, on the left image, the real

groundtruth mask for the lesions and optic disk, and

the right image shows lesions and optic disk pixels

that were not detected. We can see that only a very

small fraction of all lesions (which corresponds to

around 2.2%) were undetected, which is a very good

result. This corresponds to high sensitivity (SE).

If we analyze IoU of each class (each lesion plus the

optic disk and the background), it reveals the

deficiencies of segmentation outputs. Those results

shown in Table III reveal that the background and

optic disk have high IoU scores, but the lesions, have

low IoU scores, between 19 and 38%.

This is also seen visually in Figure 8, showing the

groundtruth labels (a) and the background false

positives (b), which are background pixels classified

as lesions. The total area of those false positives is 8%

of all image pixels or around 100% of all lesions plus

optic disk pixels. This agrees with the large amounts

of FP previously in the outputs of segmentation in

figure 6. The conclusion is that more work is

necessary in the future to improve and filter out false

positives.

Figure 6: Comparing groundtruths with outputs: Deeplab

and FCN.

(a) Groundtruth

(b) Undetected Lesions

(2.2%)

Figure 7: FCN detections of lesions.

Using Segmentation Networks on Diabetic Retinopathy Lesions: Metrics, Results and Challenges

133

4.3 Conclusions from Experiments

It is a common misconception that segmentation of

eye fundus lesions already achieves almost 100%

quality, and this misconception is supported by the

way metrics are used and also by the interpretation of

the task. One example is to consider partial overlaps

(e.g. > 10%) as detected lesion, versus measuring

precise degree of overlap (semantic segmentation).

Our experiments show that a simple segmentation

network scores very high and higher than prior work

in the tasks using those loose interpretations, but still

has serious difficulties correctly segmenting small

lesions using the semantic segmentation

interpretation (e.g. 21 to 32% IoU for small lesions).

As a conclusion, further work is necessary in the

future to improve the approaches.

Table 3: Per-class IoU.

Class IoU FCN IoU Deeplab

Background 88 83

OpticDisc 75 70

SoftExudates 35 32

Haemorrhages 38 32

HardExudates 26 26

Microaneurs 19 21

(a) Groundtruth

(b) FP~=100% of lesions

area

Figure 8: FCN false positives.

5 CONCLUSIONS

In this work we have studied the problem of accurate

segmentation of Eye-Fundus-Lesions. We have

proposed and evaluated carefully the use of deep

segmentation networks, in particular DeepLabV3 and

FCN, concluding that the proposed approach

improves when compared with previous work. But

we also highlighted some limitations of current

approaches, which are revealed mostly if we evaluate

the quality of semantic segmentation and use false

positives revealing metrics, such as IoU. We also

explain why we need to be careful with some metrics,

such as specificity, ROC or AUC in the context of

segmentation of lesions in EFI, and what sensitivity

alone does not reveal. In our future work we will

experiment more with loss functions and filtering out

false positives as some post-processing step, but also

improvements in architectures to deal with small

lesions.

ACKNOWLEDGMENTS

We have used datasets (Porwal, 2019) (Kauppi, 2007)

in our experimental work, we thank the organizers of

those datasets for their availability.

REFERENCES

Asiri, N., Hussain, M., Al Adel, F., & Alzaidi, N. (2019).

Deep learning based computer-aided diagnosis systems

for diabetic retinopathy: A survey. Artificial

intelligence in medicine.

Chen, L. C., Papandreou, G., Kokkinos, I., Murphy, K., &

Yuille, A. L. (2017). Deeplab: Semantic image

segmentation with deep convolutional nets, atrous

convolution, and fully connected crfs. IEEE

transactions on pattern analysis and machine

intelligence, 40(4), 834-848.

Csurka C., Perronnin (G. and F.), “What is a good

evaluation measure for semantic segmentation?,”

Proceedings of the British Machine Vision Conference

, 32.1–32.11. (2013).

Decencière et al.. Feedback on a publicly distributed

database: the Messidor database. Image Analysis &

Stereology, v. 33, n. 3, p. 231-234, aug. 2014. ISSN

1854-5165.

Erginay, A., Chabouis, A., Viens-Bitker, C., Robert, N.,

Lecleire-Collet, A., Massin, P., Jun 2008. OPHDIAT:

quality-assurance programme plan and performance of

the network. Diabetes Metab 34 (3), 235–42.

Giancardo, L., Meriaudeau, F., Karnowski, T., Li, Y., Garg,

S., Tobin, K., Chaum, E., 2012. Exudate-based diabetic

macular edema detection in fundus images using

publicly available datasets. Med. Image Anal. 16 (1),

216–226.

Gondal, W. M., Köhler, J. M., Grzeszick, R., Fink, G. A.,

& Hirsch, M. (2017, September). Weakly-supervised

localization of diabetic retinopathy lesions in retinal

fundus images. In 2017 IEEE international conference

on image processing (ICIP) (pp. 2069-2073).

Haloi, M. (2015). Improved microaneurysm detection using

deep neural networks. arXiv preprint

arXiv:1505.04424.

Kälviäinen, R. V. J. P. H., & Uusitalo, H. (2007).

DIARETDB1 diabetic retinopathy database and

evaluation protocol. In Medical Image Understanding

and Analysis (Vol. 2007, p. 61).

BIOIMAGING 2021 - 8th International Conference on Bioimaging

134

Kauppi, T., Kalesnykiene, V., Kamarainen, J.-K., Lensu,

L., Sorri, I., Raninen, A., Voutilainen, R., Pietila ̈, J.,

Ka ̈lvia ̈inen, H., Uusitalo, H., 2007. The DI-

ARETDB1 diabetic retinopathy database and

evaluation protocol. In: Proc BMVC. Warwik, UK.

Lin, T. Y., Dollár, P., Girshick, R., He, K., Hariharan, B.,

& Belongie, S. (2017). Feature pyramid networks for

object detection. In Proceedings of the IEEE

Conference on Computer Vision and Pattern

Recognition (pp. 2117-2125).

Liu Q., Zou B., Chen J., Ke W., Yue K., Chen Z., and Zhao

G., “A location-to-segmentation strategy for automatic

exudate segmentation in colour retinal fundus images,”

Computerized Medical Imaging and Graphics, vol. 55,

pp. 78–86, 2017.

Long, J., Shelhamer, E., & Darrell, T. (2015). Fully

convolutional networks for semantic segmentation. In

Proceedings of the IEEE conference on computer vision

and pattern recognition (pp. 3431-3440).

Mane V., Kawadiwale R., and Jadhav D., “Detection of red

lesions in diabetic retinopathy affected fundus images,”

in IEEE Inter- national Advance Computing

Conference (IACC), 2015, pp. 56–60.

Orlando, J. I., Prokofyeva, E., del Fresno, M., & Blaschko,

M. B. (2018). An ensemble deep learning based

approach for red lesion detection in fundus images.

Computer methods and programs in biomedicine, 153,

115-127.

Porwal, Prasanna, S. P. R. K. M. K. G. D. V. S. and

Meriaudeau, F., “Indian diabetic retinopathy image

dataset (idrid).,” IEEE Dataport. (2019).

Prentašić, P., & Lončarić, S. (2015). Detection of exudates

in fundus photographs using convolutional neural

networks. In 2015 9th International Symposium on

Image and Signal Processing and Analysis (ISPA) (pp.

188-192).

Quellec, G., Charrière, K., Boudi, Y., Cochener, B., &

Lamard, M. (2017). Deep image mining for diabetic

retinopathy screening. Medical image analysis, 39, 178-

193.

Qureshi, I., Ma, J., & Abbas, Q. (2019). Recent

development on detection methods for the diagnosis of

diabetic retinopathy. Symmetry, 11(6), 749.

Raman, R., Srinivasan, S., Virmani, S., Sivaprasad, S., Rao,

C., & Rajalakshmi, R. (2019). Fundus photograph-

based deep learning algorithms in detecting diabetic

retinopathy. Eye, 33(1), 97-109.

Ronneberger, O., Fischer, P., & Brox, T. (2015). U-net:

Convolutional networks for biomedical image

segmentation. In International Conference on Medical

image computing and computer-assisted intervention

(pp. 234-241). Springer, Cham.

Salehi, S., Erdogmus D., and Gholipour A., “Tversky loss

function for image segmen- tation using 3d fully

convolutional deep networks,” in International

Workshop on Machine Learning in Medical Imaging,

379–387, Springer (2017).

Sánchez, C., Niemeijer, M., Išgum, I., Dumitrescu, A.,

Suttorp-Schulten, M., Abràmoff, M., van Ginneken, B.,

2012. Contextual computer-aided detection: Improving

bright lesion detection in retinal images and coronary

calcification identification in ct scans. Med. Image

Anal. 16 (1), 50–62.

Shan, J., & Li, L. (2016). A deep learning method for

microaneurysm detection in fundus images. In 2016

IEEE First International Conference on Connected

Health: Applications, Systems and Engineering

Technologies (CHASE) (pp. 357-358).

Simonyan, Karen, and Andrew Zisserman. "Very deep

convolutional networks for large-scale image

recognition." arXiv preprint arXiv:1409.1556 (2014).

Tiu E., “Metrics to evaluate your semantic segmentation

model. (2019). [URL Accessed 8/2019]. URL:

https://towardsdatascience.com /metrics-to-evaluate-

your-semantic-segmentation-model-6bcb99639aa2.

Van Grinsven, M. J., van Ginneken, B., Hoyng, C. B.,

Theelen, T., & Sánchez, C. I. (2016). Fast convolutional

neural network training using selective data sampling:

Application to hemorrhage detection in color fundus

images. IEEE transactions on medical imaging, 35(5),

1273-1284.

Wilkinson C., Ferris F., Klein R.,et al. (2003). Proposed

international clinical diabetic retinopathy and diabetic

macular edema disease severity scales, in

Ophthalmology110(9),1677–1682 (2003).

Yu, H., Yang, Z., Tan, L., Wang, Y., Sun, W., Sun, M., &

Tang, Y. (2018). Methods and datasets on semantic

segmentation: A review. Neurocomputing, 304, 82-

103.

Zhang, X., Thibault, G., Decencière, E., Marcotegui, B.,

Laÿ, B., Danno, R. & Chabouis, A. et al. (2014).

Exudate detection in color retinal images for mass

screening of diabetic retinopathy. Medical image

analysis, 18(7), 1026-1043.

Zhou L., Li P., Yu Q., Qiao Y., and Yang J., “Automatic

hemorrhage detection in color fundus images based on

gradual removal of vascu- lar branches,” in IEEE

International Conference on Image Processing (ICIP),

2016, pp. 399–403.

Using Segmentation Networks on Diabetic Retinopathy Lesions: Metrics, Results and Challenges

135
