Integration of CAD Models into Game Engines

Bruno Santos

, Nelson Rodrigues

1,2

, Pedro Costa

and António Coelho

1,3

Faculdade de Engenharia da Universidade do Porto, Rua Dr. Roberto Frias s/n,4200-465 Porto, Portugal

Abyssal, S.A, Porto, Portugal

INESC TEC, Rua Dr. Roberto Frias s/n, 4200-465 Porto, Portugal

Keywords: CAD, Mesh Parameterization, UV Mapping, Boundary First Flattening.

Abstract: Computer-aided design (CAD) and 3D modeling are similar, but they have different functionalities and

applications. CAD is a fundamental tool to create object models, design parts, and create 2D schematics from

3D designed objects that can later be used in manufacturing. Meanwhile, 3D modeling is mostly used in

entertainment, to create meshes for animation and games. When there is the necessity of using real-life object

models in game engines, a conversion process is required to go from CAD to 3D meshes. Converting from

the continuous domain of CAD to the discrete domain of 3D models represents a trade-off between processing

cost and visual accuracy, in order to obtain the best user experience. This work explores different methods for

the creation of meshes and the reduction of the number of polygons used to represent them. Based on these

concepts, an interactive application was created to allow the users to control how the model looks in the game

engine, in a simple way, while also optimizing and simplifying the mapping of textures for the generated

meshes. This application (CADto3D) generates accurate 3D models based on CAD surfaces while giving the

user more control over the final result than other current solutions.

1 INTRODUCTION

One of the main processes when creating a 3D

application with a game engine is asset creation.

However, the 3D objects that are typically displayed

on a game are modeled by designers from scratch,

using specific modeling software. This type of

software gives the user the ability to sculpt objects to

match their needs and artistic vision and with the aim

of performance. On the other hand, CAD models

describe objects that are supposed to be created and

manufactured in real life instead of just being digital.

Thus, these models must ensure the necessary

accuracy for a perfect assembly and to assure the

physical properties. Current tools to integrate CAD

models into game engines mainly rely on file format

conversion. The main objective of this work is to

provide the user with a way to control how the mesh

is created and to provide control of the outcome of the

process, interactively. Also, as a secondary objective

we present the development of a method that can

create texture coordinates automatically for the

generated meshes. Since the created meshes are 3D

objects, while images belong to a two-dimensional

domain, a parameterization process is required to

assign 2D coordinates to 3D vertices. This paper will

explore how this mapping is done to obtain UV

coordinates that minimize both discontinuities and

distortion of the used textures.

In Chapter 2, concepts on mesh simplification and

automatic UV mapping are discussed, and the tools

and libraries available for converting CAD models to

mesh are analyzed. Chapter 3 describes the

methodology used to simplify mesh geometry, how

automatic UV wrapping, and patches

parameterization is manufactured. Chapter 4 is

presented as the application of the proposed

methodology to build a prototype named CADto3D.

Results and comparison with Datasmith are presented

on chapter 5. The last chapter describes the

conclusions and future work.

2 LITERATURE REVIEW

CAD applications store objects by the mathematical

functions that define them. This mathematical

representation allows better accuracy and good

translation into manufacturing. The need for high

fidelity also means that, to analyze and display these,

Santos, B., Rodrigues, N., Costa, P. and Coelho, A.

Integration of CAD Models into Game Engines.

DOI: 10.5220/0010201701530160

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 1: GRAPP, pages

153-160

ISBN: 978-989-758-488-6

153

CAD surfaces, it is preceded a transformation on

these surfaces, from the original continuous domain

into a discrete sampled domain.

Unlike CAD models, Game Engines represent the

objects in a scene using polygonal meshes. The

composition of polygons in a mesh serves as a linear

approximation of their underlying surface (Gregory,

2014). Triangular meshes are widely used because

triangles are automatically convex, planar, and easy

to interpolate, making geometric transformations, and

color and lightning calculations easier (Foley et al.,

1990).

2.1 Tessellation

Triangulation refers to the tessellation of surfaces into

triangles (Gregory, 2014). Triangular meshes are

typically characterized by being unstructured and

having greater freedom in the placement of nodes,

which allows to significantly reduce the number of

vertices used to represent a surface while maintaining

the same accuracy regarding the distance to the

surfaces (Shewchuk, 1999).

There are three different approaches to generating

triangular meshes identified by (Baker, 2005): the

moving/advancing front method (Lo, 1985),

Delaunay based methods (Shewchuk, 2014), and the

Octree approach.

2.2 Mesh Simplification

When generating a mesh, there exists a trade-off

between the number of polygons used and the

performance of the mesh when used in real-time

environments like game engines. This is especially

true when multiple objects are visible at the same

time, meaning some sort of optimization has to be

done in order to increase performance (Low & Tan,

1997).

Frequently, there exist vertices and faces in a

mesh that are visually redundant. When the

underlying mathematical surface of a mesh is known,

this issue can be resolved by re-meshing the surface

with a higher error tolerance. However, when the

mathematical surface is not known, mesh

simplification algorithms have to be applied to try to

obtain a good approximation. These algorithms work

by removing vertices and reconstructing polygons

into larger ones, reducing the geometry used to

represent a mesh while keeping the perceptual

difference between original and simplified at a

minimum (Talton, 2004). Even though these

algorithms tend to be faster than re-meshing, they

introduce irregularities that substantially alter the

topology of the mesh, often in an unpredictable

manner.

2.3 CAD to Geometry Conversion

While the study of surface meshing spans several

decades, the integration of CAD models into game

engines seems to be an under-explored area.

Datasmith (Datasmith, 2020) is a built-in plugin

of Unreal Engine that was first introduced in 2017,

and is currently in beta testing. Datasmith reads many

common CAD file formats, both open formats like

STEP and IGES, but also proprietary formats like the

ones used in CAD applications like SolidWorks and

3ds Max (Datasmith Overview, 2020).

Optim (Theia Optim, 2020) is also an Unreal

Engine plugin by Theia, developed on top of

Datasmith and, like Datasmith, is also in beta (Theia

Optim, 2020). Optim provides visualization tools for

an easier analysis of a generated mesh, displaying

triangle count, distribution and scale, and material

and light lists, among others (Optim Documentation,

2020). It also allows the creation of rules to optimize

imported meshes.

PiXYZ is a company focusing on CAD data, mesh

generation, and optimization (PiXYZ, 2020). They

have two main products related to mesh generation

from CAD files. The PiXYZ Plugin is available for

both Unreal Engine and Unity and works much like

Unreal's Datasmith. The user selects the CAD file,

and what tessellation quality they want. A 3D mesh is

generated and imported into the game engine (PiXYZ

Plugin, 2020). The PiXYZ Studio is a standalone

application that can import CAD files and export the

desired mesh file format. It features tessellation by

parts, hole removal, the decimation of vertices, and

provides repair functions such as removal of

duplicated faces or normal orientation unification

(PiXYZ Studio, 2020).

2.4 Automatic UV Mapping

Meshes are usually defined in three-dimensional

space, while texture images have a two-dimensional

domain. Mesh parameterization is the name given to

the process of calculating and assigning UV

coordinates to vertices of a mesh.

Most parameterization algorithms can only

handle surfaces homeomorphic to a disk. Since CAD

model parts are closed surfaces, it is necessary to

introduce seams when passing the mesh into a 2D

domain representation. This subject causes the

process of UV mapping to have two parts: the

computation of optimal cuts, as so to reduce seam

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

154

length and discontinuity artifacts, and the

minimization of distortion of triangles of the mesh

mapped onto the plane, as so to reduce distortion

artifacts (Poranne et al., 2017).

More seams result in lower distortion, but too

many seams will result in an inadequate

parameterization with too much discontinuity

(Sorkine et al., 2002). The goal is to optimize

distortion and cuts simultaneously.

2.4.1 Bounded-distortion Piecewise Mesh

Parameterization

The algorithm proposed by (Sorkine et al., 2002)

starts with a random seed triangle. This triangle is

mapped to the plane without any distortion, and

constitutes the initial patch, with its edges being

referred to as the patch front. The algorithm then

examines all of the triangles adjacent to the patch

front, grading each of the "free" vertices of these

triangles (vertices that do not already belong to the

patch) according to multiple criteria such as distortion

of the resulting flattened triangle. New triangles are

then added to the patch iteratively, by selecting the

vertex with the highest grade and mapping it to the

plane, with its "free" neighbours’ grades being

recalculated based on its position. This mapping has

a distortion threshold defined by the user and is

checked for intersections with the patch, as to avoid

overlaps. When there are no more triangles that can

be added to the patch due to the previous constraints,

a new unmapped triangle is selected randomly to start

a new patch, with the algorithm terminating when

there are no more unmapped triangles left.

The distortion measure used is given by the

Jacobian of the transformation function between the

original 3D triangle and its counterpart on the plane.

Other criteria can be added to the distortion measure

like crease angles or the ratio between the patch area

and its squared perimeter, to avoid long, thin patches.

2.4.2 Autocuts

Autocuts (Poranne et al., 2017) tries to parameterize

meshes with minimal distortion and a minimal length

of cuts by optimizing an energy function that takes

into account both measures.

The distortion measure is the symmetric Dirichlet

energy (Smith & Schaefer, 2015), which computes

the Frobenius norm (square root of the sum of the

absolute squares of elements of a matrix) of the

Jacobian of the transformation associated with each

face. The measure that defines a seam (separation of

an edge into two) is given by a monotonic function

that is either 0 if the projection of an edge is

coincident in both faces, or 1 if the distance between

endpoints is different from zero. These measures are

weighted over the area of the faces and length of the

edges, respectively, and are then balanced by a λ

value defined by the user. Autocuts use a homotopy

optimization technique that uses a δ value to control

the smoothness of the function. The initial smoothed

function eliminates many local minima, making

finding a global minimum easier. In each iteration,

the function is sharpened back by reducing the value

of δ, and a local minimum of the new smoothed

function is found by using the previous minimum as

a starting point. This way, this method quickly

converges into an optimal solution.

Besides the unassisted cutting and

parameterization of the mesh, Autocuts also provides

the user with the possibility to interact with how the

UV mapping is done. This feature can be achieved by

tuning the values of the parameters δ and λ, or by

bounding the UV shape to a specific rectangle.

The main limitation of Autocuts is that it does not

guarantee that no global overlaps exist, delegating

that process to the manual interaction by the user.

2.4.3 OptCuts

OptCuts (Li et al., 2018) is an effort to improve on the

solution proposed by Autocuts.

The method introduced by this paper removes the

need for the user to set a λ value to balance face

distortion and seam length, instead of needing a user-

provided distortion bound, for which it minimizes

seam length. OptCuts also has the option to apply

bijectivity constraints to the mapping, removing

overlaps.

OptCuts starts with a bijective UV map created by

Tutte's method, cutting it enough to induce disk

topology if necessary. OptCuts between minimizing

distortion and seam length, updating the

λ value iteratively until the function converges to the

minimum seam length for the distortion bound.

3 METHODOLOGY

The process of having a CAD model as reference and

recreating a similar 3D mesh is manually done by 3D

artists, which is a consuming, costly process and

difficult to achieve with good results when timelines

are shorter. 3D modeling software provides the

designer a finer control over how tessellation is done,

like controlling polygon density in different parts of

the mesh or removing unimportant features.

Integration of CAD Models into Game Engines

155

3.1 Simplification of Geometry

The initial approach taken, regarding the

simplification of geometry, was to select and

implement a mesh decimation algorithm.

Despite their good performance, timewise, the

results obtained when using these algorithms were not

visually satisfactory. Despite being slower, re-

tessellation obtained the best results, as new vertices

are sampled along the surface, which allows the

resulting mesh to better approximate the original

surface, while also maintaining the workflow

associated with it.

3.2 Automatic UV Mapping

The simultaneous optimization of cuts and distortion

in UV mapping is a complex problem. What these

algorithms try to achieve is to minimize objective

metrics such as seam length and distortion. In

practice, this approach often results in "ideal" seams

that do not look as good as the seams defined by a

human designer. Instead of handling the cutting and

parameterization of the mesh at the same time, the

developed method intended to emulate how designers

map UVs: first determine where is the best place to

introduce seams, then calculate the texture

coordinates.

The first step of the developed method is dividing

the mesh into subdivisions, or patches. Since the

CAD models represent parts that had to be

manufactured and assembled, it is normal for there to

be straight angles, in order for everything to fit

together. These natural seams are a good starting

point to begin the patching process, as the

discontinuity of the mapping becomes less noticeable

when the cuts are made alongside these seams. In the

triangular mesh, this criteria for patching means

dividing the surface alongside the edges whose

vertices have multiple normals pointing in different

directions (normal discontinuity).

The patches obtained either have disk topology or

close to it. This is especially useful as it allows the

application of surface parameterization algorithms

directly. The patches that are not homeomorphic to a

disk can generally be categorized into three groups:

surfaces with holes, open surfaces of revolution (e.g.

cylinders and open cones), and the combination of the

first two. The meshes associated with these patches

must be prepared and turned into meshes with disk

topology, to apply a parameterization algorithm. For

the surfaces with holes, the approach is to create a

vertex at the center of the boundary of each hole. This

vertex is then connected to each of the vertices of the

boundary, eliminating the hole. For surfaces of

revolution, the solution is to cut the mesh from one

boundary to the other. This is done by the following

steps:

1. One of the boundaries is identified as stack

2. All the vertices adjacent to the vertices of

stack 0 that are not in stack 0 constitute stack

3. This is repeated until a stack is formed that

has vertices on a boundary.

4. A random vertex from stack 0 is selected and

becomes the first vertex of the cut.

5. The orientation of the mesh between stack 0

and stack 1 is given by the difference

between the centroid of both stacks.

6. The next vertex of the cut is: contained in

stack 1; adjacent to vertex 0; the vertex in

which the edge that connects it to vertex 0

makes the smallest angle with the

orientation of the mesh.

7. This is repeated until the final stack is

reached.

8. The vertices alongside the cut are duplicated

and the faces on one side of the cut are edited

to use these new vertices, this creating a

mesh with disk topology.

This method results in seams that closely follow

the orientation of the mesh.

It is important to notice that finding an edge flow

on a triangular mesh is only possible if the mesh is

tessellated in a regular way, equivalent to a quad

mesh. For irregular meshes the method will produce

sub-optimal results.

Simultaneous cutting and hole-filling is not

supported, which results in unsatisfactory results for

surfaces of revolution with holes. This is because,

even though it is easy to the determine if a vertex is

on a boundary or not, there is no reliable, general way

to determine if that boundary is a hole or the second

outer boundary of the surface.

The ambiguity between what is considered an

outer boundary and what is considered a hole also

affects the decision of how to categorize a surface.

A practical example of this is given by the

comparison between a flat circle with a circular hole

in its center (first surface in Figure 1) and an open

cone (third surface in Figure 1). If the axis of both

surfaces is aligned with the Y axis, and the vertices of

the topmost boundary of the open cone are translated

to Y=0, two similar surfaces are obtained. Therefore,

even though one is an open surface of revolution and

the other is a surface with a hole, they are

homeomorphic to each other. The problem with this

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

156

then becomes where alongside the transition, the

surface change from one category to the other (second

surface in Figure 1).

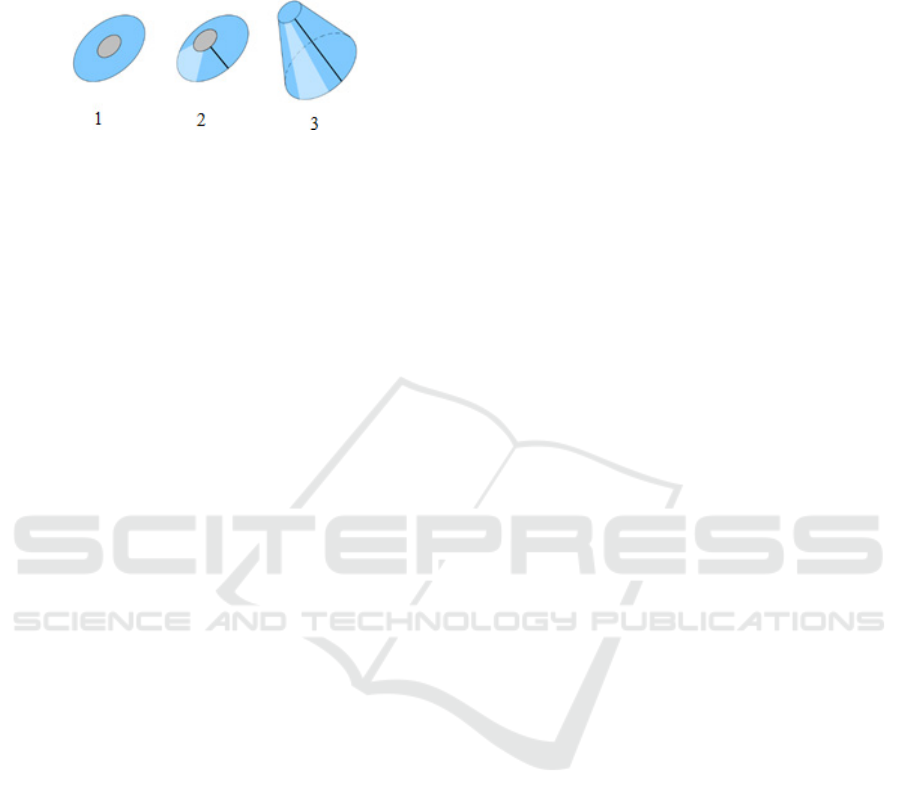

Figure 1: Surface 1 gets hole-filled, surface 3 gets cut, what

about surface 2?

Solutions to this problem could include some

heuristics involving the area of the boundaries, the

number of vertices, or the direction of the normals

alongside them. Instead, the approach taken was to

consider both options as possible for every mesh.

Thus, UV mappings are calculated for both

approaches, as well as the distortion error, with the

final mapping being the one that has the lowest error

value.

3.3 Parameterization

The final step of the process it to parameterize the

obtained patches. The chosen parameterization

algorithm was Boundary First Flattening (Sawhney &

Crane, 2017), because it is fast and generates a

flattening with minimal area distortion and virtually

zero angle distortion. Moreover, because the library

that implements it was simple to integrate. The UV

coordinates generated by the algorithm become the

new UV coordinates of the component.

4 IMPLEMENTATION

The implemented solution is a desktop application

developed using Electron (Electron, 2020).

A Three.js (three.js, 2020) canvas is used inside

of the application, which provides high-level

abstractions for controlling cameras, lights and

interacting with the scene.

Python subprocesses handle the importing, re-

tessellation and exporting of the objects, by using

OpenCascade to import and convert STEP files into

meshes and using the FBX SDK to generate the

output file that can be imported into a game engine.

4.1 UV Coordinates Calculation

The foundation of the developed method to calculate

UVs automatically is the Boundary First Flattening

algorithm implemented in the library geometry-

processing-js (geometry-processing-js, 2020).

The focus of the work done was how to integrate this

library into the project and adapt it, so non-disk

topology objects could have their UVs mapped. The

original mesh of the object is first divided by the

points that have multiple normal vectors with

different orientations. This process is done by starting

a new subset with a random triangle and then

iteratively adding adjacent triangles to it. If the

vertices of the shared edge between a triangle of the

subset and an un-visited triangle have different face

normals, then this un-visited triangle is not added to

the subset. New subsets are created until every

polygon of the mesh belongs to a subset. When the

user paints patches on the main canvas, what is done

is a simple merge of the list of points of both subsets

into a single subset.

Calculating the UVs of a part entails iterating over

every subset of the mesh creating a half-edge mesh

structure for each of them, applying the BFF

algorithm, and packing the obtained UVs into the 0 to

1 range, without overlapping. The application of the

BFF algorithm can be made directly if the subset has

disk topology, or it requires extra preparation. The

process of hole-filling consists of, first, calculating

the longest boundary of the subset. This process is

done by iterating over each of the edges of every

boundary and summing up their length. For every

boundary that is not the longest, a vertex is created in

the polygon soup whose coordinates are the centroid

of the polygon created by the boundary’s vertices.

The half-edge geometry is also altered, with this new

vertex being added and half-edges created between it

and every vertex of the boundary, thereby creating

new faces that eliminate the hole.

The process of cutting the mesh requires finding

its flow. All the vertices adjacent to one boundary are

found, with these vertices constituting a stack. This

process is repeated until a stack has at least one vertex

on a boundary. For each of the stacks, its centroid is

calculated, with the difference between one centroid

and the next being the orientation of the mesh

between those two stacks.

Then, one of the vertices of the first boundary is

selected randomly. The orientation of the plane

created by this vertex, the centroid of the boundary

and the centroid of the next stack, are given by the

cross product of the vectors centroid2-centroid1 and

vertex-centroid1. For every vertex adjacent to this

one on the next stack the same is done, with the next

vertex selected being the one whose cross vector

makes the smallest angle to the previous cross vector.

Integration of CAD Models into Game Engines

157

Table 1: Comparison between import times using Datasmith and the developed application using linear deflection of 1.

ect1 Ob

ect2

Datasmith CADto3D Datasmith CADto3D

ort 70s 75s 340s

Export 5s 25s

Import into Ureal 30s 160s

Total import time 70s 110s failed 525s

Re-tessellation 60s 30s 130s

When a vertex is obtained in each of the stacks, the

cutting process starts. This process is done by basically

duplicating each of the vertices alongside the cut in the

polygon soup, changing the faces on one side of the

cut, on the half-edge mesh, to use these new vertices,

and updating the connectivity of the half-edges, thus

creating one continuous outer boundary.

Both the hole-filling process and the cutting

process are done for each non-disk topology subset,

with the BFF algorithm being applied to the two sets

of polygon soups and half-edge meshes. To decide

what is the best method for the given part, the

quasiconformal error is calculated for both mappings.

The final process of the generation of the UV

coordinates is packing the obtained UV coordinates

into the 0 to 1 UV space, so a single texture file can

be used when applying textures to the object.

5 RESULTS

The focus of the tests was to compare the proposed

solution (CADto3D) with Datasmith to understand if

the former was a viable alternative to the latter. To do

this, the performance of the workflow of both

applications was measured, and the 3D models

created were evaluated for visual fidelity and

geometry complexity.

5.1 Results and Workflow Comparison

with Datasmith

The main workflow of CADto3D is the import of a

STEP file and subsequent export of an FBX. To

evaluate the performance of this process, the models

in Figure 2 and Figure 3 were used, and the time

taken by this process was compared to the import time

of Datasmith on Unreal Engine. The execution time

on Object 1 and Object 2 are given in Table 1.

For smaller files, Datasmith seems to perform well

when importing, compared to the developed

application. This is mainly because CADto3D

requires two import processes (from the STEP file to

the application and from the FBX to Unreal Engine).

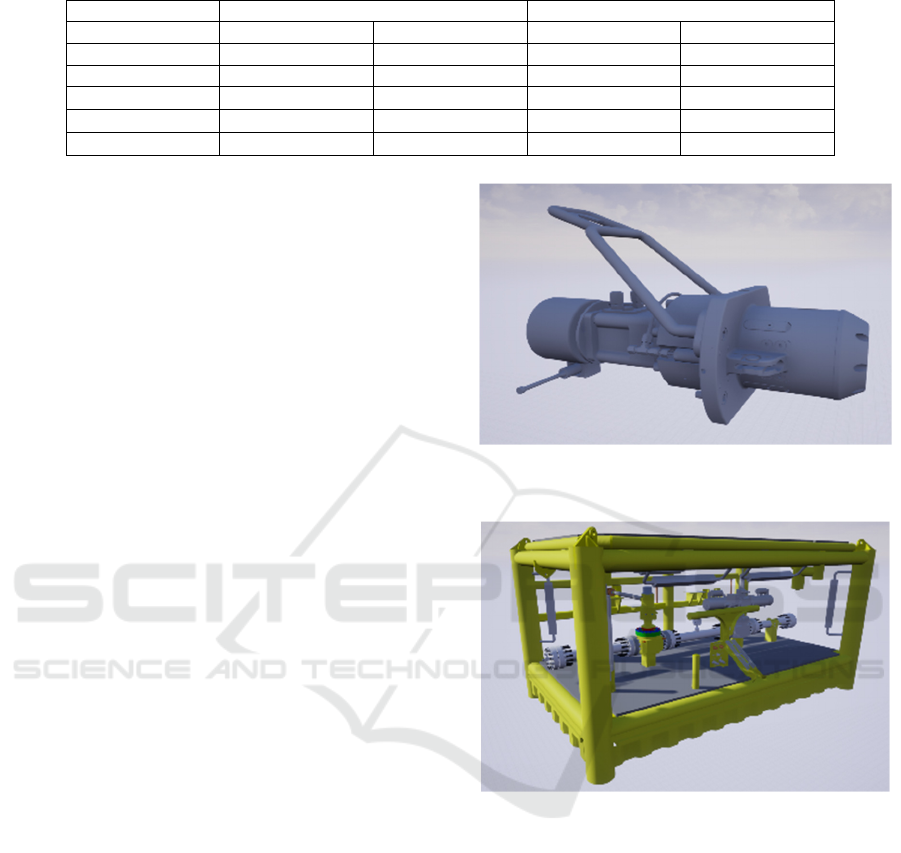

Figure 2: Object 1 (STEP file with approximately 230K

entities).

Figure 3: Object 2 (STEP file with approximately 810K

entities).

For larger files, Datasmith does not seem to be very

optimized, and Unreal Engine stopped responding

several times during import, and ultimately failed.

Regarding re-tessellation, the proposed solution

of using temporary files to store shape information

proved to be successful, cutting the time used in fully

re-tessellating a scene in more than half, as opposed

to re-importing with a different linear deflection,

which is what Datasmith does.

Another advantage of CADto3D is that it creates

an FBX file, which does not limit the created mesh to

Unreal Engine, as it can be imported into multiple

applications such as game engines and modeling

software.

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

158

5.2 Re-tessellation

Besides re-tessellating the object entirely, it is also

possible to re-tessellate a single part or groups of parts

individually, something that cannot be done using

Datasmith.

Tessellation speed is dependent on two factors.

The size and complexity of the shape, that directly

affects the size of the temporary file used to store the

shape information and how much time it takes for the

tessellation to be done. Tessellation quality also

affects tessellation speed, as more vertices and

polygons mean more time transferring the geometry

from the Python process to Three.js and more time

creating the scene.

5.3 UV Calculation

Unlike tessellation, where every part of every model

should be able to be tessellated, not every part can

have its UVs appropriately calculated by the proposed

algorithm in its current state, if at all.

Limitations of the algorithm include continuous

closed surfaces (no normal discontinuities at all),

meshes with complex geometry, surfaces of

revolution with holes, and irregular surfaces of

revolution.

Even though the method proposed produces good

results for many parts some problems were identified:

- Surfaces of revolution that are not straight

produce UVs that have curved boundaries,

which causes grid textures to not line up.

- Dividing by the discontinuities of the

normals often produces good patches but can

also produce too few or too many patches,

limiting the assistance of the user or requiring

them to do too much work joining them.

- Irregularities in the tessellation can lead to

the method not finding the flow of the mesh,

producing bad seams.

- Mapping cylinders with holes in them is

impossible since the algorithm cannot

recognize what is a hole and what is a main

boundary.

6 CONCLUSIONS AND FUTURE

WORK

The application developed can import STEP files,

tessellate models and export FBX files, while

providing a user-friendly interface with available

options for the user to control the characteristics of

the final mesh.

The proposed method to calculate UV coordinates

generates valid maps, with the main contribution in

this step being the preparation process that allows the

application of the BFF algorithm to meshes that do

not have disk topology.

Both the hole-filling method and the cutting

method with detection of mesh flow allow the

generation of UV maps for meshes that generally

could not have BFF applied to them, while still

having acceptable distortion.

6.1 Future Work

In the future, we would like to explore the ability to

import more file types than just STEP. Also, there is

more room for improvement in the developed

application as in the automatic UV method.

The division of the mesh in patches, occasionally

sub or over divides the mesh, which prevents the user

from interacting fully with the subdivisions or

requires too much work to join adjacent patches,

respectively. In situations that not enough patches are

created, a better approach would be to divide the

mesh where normals vary over a certain threshold, in

groups of vertices, instead of just using single vertex

discontinuities. For over-patching, the solution could

be to limit the patch area, relative to object size, or

limit the angle between adjacent patches. Another

solution could be to allow the user to set where the

mesh should be divided by selecting the seam edges

directly.

The other problem is that surfaces of revolution

are cut in sub-optimal ways if they are not tessellated

regularly or have holes in them. To handle irregularly

tessellated meshes, the solution would be to rework

how the flow of the mesh is obtained and develop a

method that can detect edge loops in triangular

meshes, or approximations of these loops since they

not always exist. For surfaces of revolution with

holes, the process would be to identify what is a hole

and what is an outer boundary, applying the hole-

filling technique already defined, and cut the mesh

accordingly.

Finally, since the UV mapping method proposed

often requires user interaction to obtain better results,

an improvement could be the automatic merge of

adjacent patches. This process could either be done

using analytical methods like those in Autocuts and

Optcuts.

Integration of CAD Models into Game Engines

159

ACKNOWLEDGEMENTS

This work was developed under the project POCI-01-

0247-FEDER-024508 - “OceanTech/ Sistema de

Gestão de Operações com base em Veículos

Robóticos Inteligentes para a Exploração do Mar

Global a partir de Portugal”, approved through the

Incentive Scheme R&TD Co-promotion Projects and

co-funded by the European Regional Development

Fund, supported by Portugal2020 through

Compete2020.

REFERENCES

Baker, T. J. (2005). Mesh generation: Art or science?

Progress in Aerospace Sciences, 41(1), 29–63.

https://doi.org/10.1016/j.paerosci.2005.02.002

Datasmith. (2020). Unreal Datasmith | Unreal Engine

Documentation. Retrieved August 12, 2020 from

https://docs.unrealengine.com/en-us/Studio/Datasmith

Datasmith Overview. (2020). Datasmith Overview | Unreal

Engine Documentation. Retrieved August 12, 2020

from https://docs.unrealengine.com/en-

US/Engine/Content/Importing/Datasmith/Overview/in

dex.html

Electron. (2020). Electron | Build cross-platform desktop

apps with JavaScript, HTML, and CSS. Retrieved

August 12, 2020 from https://www.electronjs.org

Foley, J. D., van Dam, A., Feiner, S. K., & Hughes, J. F.

(1990). Computer Graphics: Principles and Practice

(2Nd Ed.). Addison-Wesley Longman Publishing Co.,

Inc.

geometry-processing-js (2020). geometry-processing-js -

fast and flexible framework for 3D geometry

processing. Retrieved August 12, 2020 from

https://geometrycollective.github.io/geometry-

processing-js

Gregory, J. (2014). Game Engine Architecture, Second

Edition (2nd ed.). A. K. Peters, Ltd.

Li, M., Kaufman, D. M., Kim, V. G., Solomon, J., & Sheer,

A. (2018). OptCuts: Joint optimization of surface cuts

and parameterization. SIGGRAPH Asia 2018 Technical

Papers, SIGGRAPH Asia 2018, 37(6).

https://doi.org/10.1145/3272127.3275042

Lo, S. H. (1985). A new mesh generation scheme for

arbitrary planar domains. International Journal for

Numerical Methods in Engineering, 21(8), 1403–1426.

Low, K.-L., & Tan, T.-S. (1997). Model Simplification

Using Vertex-clustering. Proceedings of the 1997

Symposium on Interactive 3D Graphics, 75--ff.

Optim Documentation. (2020). What is Optim. Retrieved

August 12, 2020 from https://docs.theia.io

PiXYZ. (2020). Pixyz | Get your 3D data ready for new

experiences. Retrieved August 17, 2020 from

https://www.pixyz-software.com

PiXYZ Plugin. (2020). PixyzPlugin - The bridge for

connecting 3D data to the gaming world - PiXYZ

Software. Retrieved August 17, 2020 from

https://www.pixyz-software.com/plugin/

PiXYZ Studio. (2020). PixyzStudio - The ultimate 3D

preparation software - PiXYZ Software. Retrieved

August 17, 2020 from https://www.pixyz-

software.com/studio/

Poranne, R., Tarini, M., Huber, S., Panozzo, D., & Sorkine-

Hornung, O. (2017). Autocuts: Simultaneous distortion

and cut optimization for UV mapping. ACM

Transactions on Graphics, 36(6).

https://doi.org/10.1145/3130800.3130845

Sawhney, R., & Crane, K. (2017). Boundary First

Flattening. ACM Trans. Graph., 37(1), 5:1--5:14.

https://doi.org/10.1145/3132705

Shewchuk, J. R. (1999). Lecture Notes on Delaunay Mesh

Generation. Department of Electrical Engineering and

Computer Science, University of California at Berkeley

Shewchuk, J. R. (2014). Reprint of: Delaunay refinement

algorithms for triangular mesh generation.

Computational Geometry: Theory and Applications,

47(7), 741–778.

https://doi.org/10.1016/j.comgeo.2014.02.005

Smith, J., & Schaefer, S. (2015). Bijective Parameterization

with Free Boundaries.

ACM Trans. Graph., 34(4),

70:1--70:9. https://doi.org/10.1145/2766947

Sorkine, O., Cohen-Or, D., Goldenthal, R., & Lischinski,

D. (2002). Bounded-distortion Piecewise Mesh

Parameterization. Proceedings of the Conference on

Visualization ’02, 355–362.

Talton, J. O. (2004). A short survey of mesh simplification

algorithms. University of Illinois at Urbana-

Champaign.

Theia Optim. (2020). OPTIM - Theia Interactive. Retrieved

August 17, 2020 from https://theia.io/optim/

three.js. (2020). three.js – JavaScript 3D library. Retrieved

August 17, 2020 from https://threejs.org.

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

160
