Generic User-guided Interaction Paradigm for Precise

Post-slice-wise Processing of Tomographic Deep Learning

Segmentations Utilizing Graph Cut and Graph Segmentation

Gerald A. Zwettler

1,2,3 a

, Werner Backfrieder

, Ronald A. Karwoski

and David R. Holmes III

Research Group Advanced Information Systems and Technology (AIST), Department of Software Engineering,

University of Applied Sciences Upper Austria, Softwarepark 11, 4232 Hagenberg, Austria

Biomedical Analytics and Computational Engineering Lab, Department of Physiology and Biomedical Engineering,

Mayo Clinic College of Medicine, 200 First St. SW, 55905 Rochester, MN, U.S.A.

Medical Informatics, Department of Software Engineering, University of Applied Sciences Upper Austria,

Softwarepark 11, 4232 Hagenberg, Austria

Keywords: Graph Cut, Graph Segmentation, U-Net, Deep Learning Image Segmentation, Evolution-strategy,

User-guided Medical Image Analysis.

Abstract: State of the art deep learning (DL) manifested in image processing as an accurate segmentation method.

Nevertheless, its black-box nature hardly allows user interference. In this paper, we present a generic Graph

cut (GC) and Graph segmentation (GS) approach for user-guided interactive post-processing of segmentations

resulting from DL. The GC fitness function incorporates both, the original image characteristics and DL

segmentation results, combining them with weights optimized by evolution strategy optimization. To allow

for accurate user-guided processing, the fore- and background seeds of the Graph cut are automatically

selected from the DL segmentations, but implementing effective features for expert input for adaptions of

position and topology. The seamless integration of DL with GC/GS leads to marginal trade-off in quality,

namely Jaccard (JI) 1.3% for automated GC and JI 0.46% for GS only. Yet, in specific areas where a well-

trained DL model may potentially fail, precise adaptions at a low demand for user-interaction become feasible

and thus even outperforming the original DL results. The potential of GC/GS is shown running on ground-

truth seeds thereby outperforming DL by 0.44% JI for the GC and even by 1.16% JI for the GS. Iterative slice-

by-slice progression of the post-processed and improved results keeps the demand for user-interaction low.

1 INTRODUCTION

Precise segmentation with the need of no or only

marginal user interaction is of high importance in

computer-assisted medical diagnostics, both in

research and clinical practice. Thereby automated and

generally applicable image processing methods are

still in focus of research. A fully automated albeit

highly precise segmentation approach shipping as

black box thereby is not necessarily of highest interest

as the diagnostician always holds the ultimate

responsibility for segmentation accuracy and

diagnostic outcome. With the advances in medical

image processing, a broad range of semi-automated

https://orcid.org/0000-0002-4966-6853

https://orcid.org/0000-0003-2466-5245

approaches is available for processing tomographic

datasets, such as Region Growing, Live-Wire, Level

Sets, Graph Cuts or Graph segmentation that are

provided by various frameworks and tools (Strakos et

al. 2015). While the radiographer or diagnostician

using these tools and algorithms keeps full control of

his actions, the achievable accuracy, the high demand

for user interaction and the subjectivity of the

findings and interpretations are a constant drawback

during the last decades.

In recent years, the application of deep learning

(DL) neural networks led to a sustainable impact in

many segmentation domains in industry as well in

medicine. Trained on a huge amount of reference

datasets, these DL models allow for fully automated

Zwettler, G., Backfrieder, W., Karwoski, R. and Iii, D.

Generic User-guided Interaction Paradigm for Precise Post-slice-wise Processing of Tomographic Deep Learning Segmentations Utilizing Graph Cut and Graph Segmentation.

DOI: 10.5220/0010190702350244

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 4: VISAPP, pages

235-244

ISBN: 978-989-758-488-6

235

and highly precise segmentation, analysis and

classification in specific diagnostic domains. Due to

their black-box nature, the user must accept the

generally impressive results as they are. Nevertheless,

this is only acceptable as long as there is no need for

adaptions. As no machine learning approach ever will

have perfect sensitivity and specificity, the seamless

integration of DL models in clinical routine necessita-

tes for user-centric post-processing paradigms.

1.1 State of the Art and Related Work

In the domain of fully automated segmentation,

classic approaches such as Statistical Shape Models

(Cootes et al. 1992) utilizing PCA or Active

Appearance Models (Cootes et al. 1998) need to be

adapted for specific domains, modeling the shape

variability and finding individual concepts for robust

positioning, registration and reference point

determination.

In recent years, the advance in GPU hardware and

machine learning frameworks enable deep neural

networks to find their way into industrial and medical

image processing and computer vision domains.

While feed forward neural networks are successfully

applied for multi-modal image fusion (Zhang and

Wang 2011), self-organizing neural networks allow

clustering in complex domains such as classification

of renal diseases (Van Biesen et al. 1998). Deep

semantic knowledge as present in natural language

processing is covered by incorporation of recurrent

cycles introduced by Hochreiter (Hochreiter and

Schmidhuber 1997) as long short-term memory

(LSTM) showing huge potential for predicting

diagnostics from several input sources (Lipton et al.

2015). First deep feature networks were introduced

with Haar Cascades (Viola and Jones 2011), thereby

combining and boosting a large number of weak

convolution features at varying scale. A specific CNN

architecture perfectly applicable for medical image

segmentation in 2D and 3D is the U-Net architecture

(Ronneberg et al. 2015) (Cicek et al. 2016).

In the field of user-centric segmentation

approaches, conventional Region Growing, LiveWire

Segmentation (Mortensen and Barrett 1995) and

Graph cut (GC) (Boykov et al. 1998) are of high

relevance utilizing input image intensities or edges.

Graph cut refers to application of min-cut/max-flow

algorithms from the domain of combinatorial

optimization, generally utilizing Gaussian mixture

models (GMM) as fitness function. Graph cut is

perfectly applicable to user-guided video processing

at low demand for interaction and high accuracy.

With the GMM iteratively improved along the border

areas, denoted as Grab cut (Rother et al. 2004), the

results achievable by conventional Graph cuts are

further improved.

Combination of high-quality DL segmentation

with applications for user-guided post-processing is a

topic of ongoing research. In the work of (Sakinis et

al. 2019), the DL model is trained together with

reference user markers roughly indicating the target

shape. Thus, after training, these markers are placed

and adapted to control the contour in incorrect areas

in an iterative optimization process. Thereby, the DL

model has learned to obey the user markers. While

this is a very intuitive and adequate solution, the

application to arbitrary DL models is not possible as

the image data always has to be trained together with

reference user adaptions. A similar approach for real-

world RGB images is presented in the work of Xu et

al. (Xu et al. 2016), where Euclidean distance maps

calculated from user-clicks are provided as channel

for a fully convolutional network (FCN) and graph

cut is used to refine the probability segmentation

resulting from the FCN.

In the domain of GC, Boykov demonstrated the

benefit of arbitrary fitness functions, thus modelling

an energy function similar to snakes or geodesic

contours where edges are incorporated too (Boykov

and Funka-Lea 2006).

1.2 Graph Cut / Segmentation for

User-guided Post-processing of DL

To overcome the limitations of DL segmentation

models with respect to frequently needed post-

processing, the utilization of Graph cut and Graph

segmentation technology is evaluated in this paper.

We present a generic approach that is perfectly

applicable for post-processing all kinds of

segmentations. Instead of a GMM, the graph weights

are derived from the DL segmentation combined with

edge information from the original slice. To allow for

inevitable user intervention only, the foreground (FG)

and background (BG) seeds for the graph are derived

from the DL segmentation, too. Thus, user-interaction

after visual inspection is in the range between simple

confirmation of the initial segmentation result and

mild adaptions by altering the FG and BG graph.

2 MATERIAL

For training, validation and testing 131 abdominal CT

datasets of the liver from the Medical Segmentation

Decathlon database (MedDecathlon 2019) providing

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

236

reference segmentations are used. After scaling to iso

voxel spacing, 27,000 slices are split into a training

set (22,500) and a validation set (4,500) with strict

separation of the volumes. All slices are clipped to

size 308x372 with a 10 pixel outer margin around the

borders for reasons of data augmentation during DL

model training.

The input slice intensities a

are rescaled to 8bit in

range 0 to 255 with mean intensity value µ

liver

per

volume shifted to 127.0, transformed according to

scale factor s and truncated to [0;255], see Eqn. 1-2.

𝑠

115

3∙σ



(1)



𝑎







127 

𝑎



µ



∙𝑠 𝑎



µ



127 

𝑎



µ



∙𝑠 𝑎



µ



(2)

For DL segmentation, a U-net cascade approach

is utilized, thereby incorporating axial, sagittal and

coronal views for improved robustness (Zwettler et

al. 2020), see Fig.1. The reconstructed axial

segmentations from S

axial

, S

sagittal

and S

coronal

input are

thereby slightly varying and combined with another

U-net expecting these three input channels per slice

leading to robust segmentation S

comb

. These DL

segmentations utilized as testing data for this research

work are of good quality with DSC=97.5 and JI=95.2

for S

comb

. The single slice results are e.g. DSC=96.2

and JI=92.6 for S

axial

. In the work of Zwettler et al.

(Zwettler et al. 2020) another improvement

incorporating spatio-temporal aspects between

neighbouring slices was presented increasing to

DSC=98.9 and JI=97.9 overall. This improvement is

not applied for this paper to allow the evaluation of

the GC and GS potential for correcting DL models in

an unbiased and objective manner.

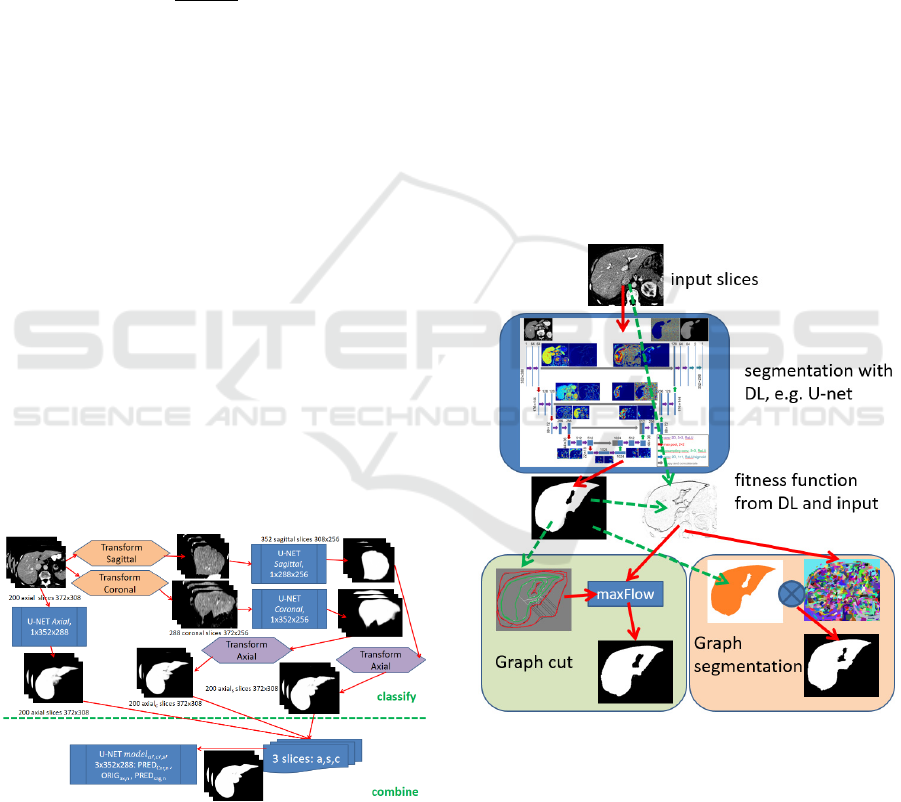

Figure 1: The slice-wise segmentations are performed in

axial, sagittal and coronal view utilizing specific U-nets.

Another U-net then combines the three slices as input for

processing the final segmentation result.

To perform a GC study, two test sets with each

n=30 slices randomly selected from the validation set

are utilized. The test sets refer thereby to intervention

with and without skeleton support. Within the 30

slices, the initial segmentation comes from the axial

view only (10), from combined U-net model (10) and

axial with manually applied errors (10), i.e. left out

parts, closed/opened vessels or attached artefacts. A

group of three test persons, all experts in medical

image segmentation, evaluates these 60 slices.

To test the result propagation in case of user post-

processed DL results with Graph cut/segmentation,

the m=10 volumes from the Medical Segmentation

Decathlon database are manipulated within the 3D

volume in areas of topographic changes of the liver

parenchyma in axial view. This way, the propagation

of corrected results is evaluated on the slice stack.

3 METHODOLOGY

To allow for seamless post-processing of DL

segmentation results utilizing GC or GS, a specific

fitness function is required as input. Thereby, the

Figure 2: Process Overview. Based on DL segmentation

results and original image (gradients), a fitness function is

calculated. Graph cut is then performed with FG and BG

seeds (red and green) from the DL segmentation and the

fitness function utilizing maxFlow. For Graph

segmentation, the fitness function is used for pre-

fragmentation. The pre-fragmented regions are selected

according to at least 0.5 overlap-ratio compared with the

DL segmentation. Both GC and GS allow for expert user

adaption by either altering the FG and BG seeds or

selecting/unselecting the GS regions.

Generic User-guided Interaction Paradigm for Precise Post-slice-wise Processing of Tomographic Deep Learning Segmentations Utilizing

Graph Cut and Graph Segmentation

237

fitness function incorporates the DL results as seeds

to conserve the high accuracy at the provided

flexibility of expert user-centered post-processing.

The process overview is shown in Fig. 2 while the

utilized fitness functions are illustrated in Fig. 3.

Figure 3: Per column illustration of horizontal results

ORIG, EXP, S1 and S4 for the datasets #506, #13789 and

#11623 as basis for fitness-function.

For each slice i, the original image ORIG

, the

expected intensity profile EXP

, and the

segmentations Sax

, Ssag

, Scor

and Scomb

(axial,

sagittal, coronal and combined) are incorporated in

the fitness function:

ORIG

: horizontal (H) and vertical (V) edges of

the original intensity profile after shift to 𝜇



 127

window centre as ORIG

and ORIG

respectively,

cf. Eqn. 1.

EXP

: H and V edges of the original image

damped or amplified by a difference image from the

expected intensity level processed by a median filter

𝑟1 followed by Gaussian smoothing (𝑟5, 𝜎

2.5), referred to as EXP

and EXP

respectively.

and S4

: H and V edges from the binary

segmentation results from axial, sagittal, coronal and

combined with 1 and 4 hits per voxel respectively as

, S1

, S4

and S4

. The 2 and 3 hit cases are

omitted due to expected high correlation and thus low

entropy. Thus, either a pixel is an element of all

segmentations or only of one to handle the optional

segmentation regions S1

Conservation of the gradient magnitude is of high

relevance for calculating the cumulated fitness

function. Thus, for the combination of ORIG

, EXP

and S4

, a max-operation is preferred over

building the mean. To combine the four edge images

utilizing a max function

𝐹



max

𝑠



𝑂𝑅𝐼𝐺



,𝑤





,𝑠



𝐸𝑋𝑃



,𝑤





𝑠



𝑆1



,𝑤





,𝑠



𝑆4



,𝑤





 (3)

with function s() for scaling to [0; 𝑤



], an adequate

set of weights 𝑤



is required, thereby conserving the

segmentation outcome of the DL model and still

allowing adaption with respect to original image

intensities. These weights need to be calculated for

each segmentation domain, e.g. liver parenchyma

from CT modality, only once. The weights are

thereby optimized utilizing Evolution Strategy (ES)

with recombination (μ/ρ+, λ) with epochs=100,

batchSize=8, populationSize=8, children λ=32,

mutationChance=0.4, mutationRate=0.25 dropping

by around 4% each epoch. The fitness function is

calculated for vertical and horizontal orientation as

and F

, respectively.

The fitness landscape is considered very flat and

ambiguous as only the proportion of the weights is of

relevance. As max-flow execution takes 400ms per

slice, a higher number of epochs or larger batch sizes

are not practical. Instead, iterative refinement using

the ES is applicable.

3.1 Graph Cut Method

To facilitate little need for user interaction, the FG

and BG markers for Graph cut are derived from the

DL segmentation mask Scomb

for slice i as

initialization. The FG and BG markers thereby

comprise a skeleton with minimal distance

minDist=5 from the FG/BG borders together with

inner region boundaries at a distance of

borderDist=10, see Fig. 4. A topological cut of the

skeleton graph when demanding minDist=5 is

omitted which is of high relevance in narrow sections,

i.e. the minimum distance is only enforced for leaf-

sections of the skeleton graph.

In case of inaccuracies, the user alters the FG and

BG markers suggested by the algorithm, i.e. by

removing/adding seeds for both, the BG and the FG.

With the FG and BG seed markers provided, the

Graph cut is performed on fitness image F

leading to

graph-cut post-processed image GC

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

238

3.2 Graph Segmentation Method

Based on the same fitness function F

as used for the

Graph cut, a graph segmentation algorithm is

applicable leading to a watershed-like fragmentation

of the input image denoted as GS

with fragmented

regions 𝑅



⊆𝐹



. To transfer GS

with j region labels

back to a binary segmentation representation, each

region R

is either assigned a FG or BG label,

according to the largest intersection set with DL result

Scomb

leading to result segmentation GS’

, see

Equation 4 with pixel 𝑥,𝑦 ∈ 𝑅



𝐺𝐶





𝑥,𝑦







𝐹𝐺 𝑅



∩𝑆



𝐹𝐺  𝑅



∩𝑆



𝐵𝐺

𝐵𝐺 𝑒𝑙𝑠𝑒

(4)

Thus, the binary label assigned to the pixel

coordinates of each region R

result from majority

voting of pixel-wise AND operation with the DL

segmentation Scomb

, see Fig. 5.

Besides running this process in a fully automated

way, i.e. utilizing the DL outcome for selecting the

FG regions from Graph segmentation, the user can

correct results too by selecting/unselecting the

fragmented regions.

Figure 4: From the deep learning result Scomb

(left

column), the FG markers (green) are derived as skeleton

besides the inner contour with distance borderDist=10 to

the binary contour borders. The outside marker (red) is

calculated as skeleton from background in Scomb

3.3 Slice-wise Propagation of

Post-processed Results

In case of slice-wise processing a tomographic

volume in axial direction, due to the high resolution

of the imaging modalities the pixel-wise differences

of two neighbouring slices slice

and slice

i+1

expected to be marginal. Furthermore, the

automatically derived FG and BG markers for Graph

cut show a safety margin to the border areas. Thus,

the manually corrected results after user-guided

Graph cut post-processing of slice slice

denoted as

can be applied as basis for FG and BG markers

of the subsequent slice slice

i+1

. Consequently, FG and

BG markers are derived from GC

instead of Scomb

i+1

for slice slice

i+1

The same slice-wise propagation of corrected

results is applicable for the Graph segmentation

approach elucidated in section 3.2, too. Thereby, the

corrected / post-processed GS’

replaces Scomb

i+1

for

slice slice

i+1

by combining with 𝐺𝑆

𝑖1



𝐺𝑆

𝑖

′

∩

𝐺𝑆

𝑖1

instead. The fragmented regions after Graph

segmentation yield sharp edges in the border sections

and thus expected to be tolerant by applying the

corrected previous slice for logic combination.

(a)

(b)

(e) (f)

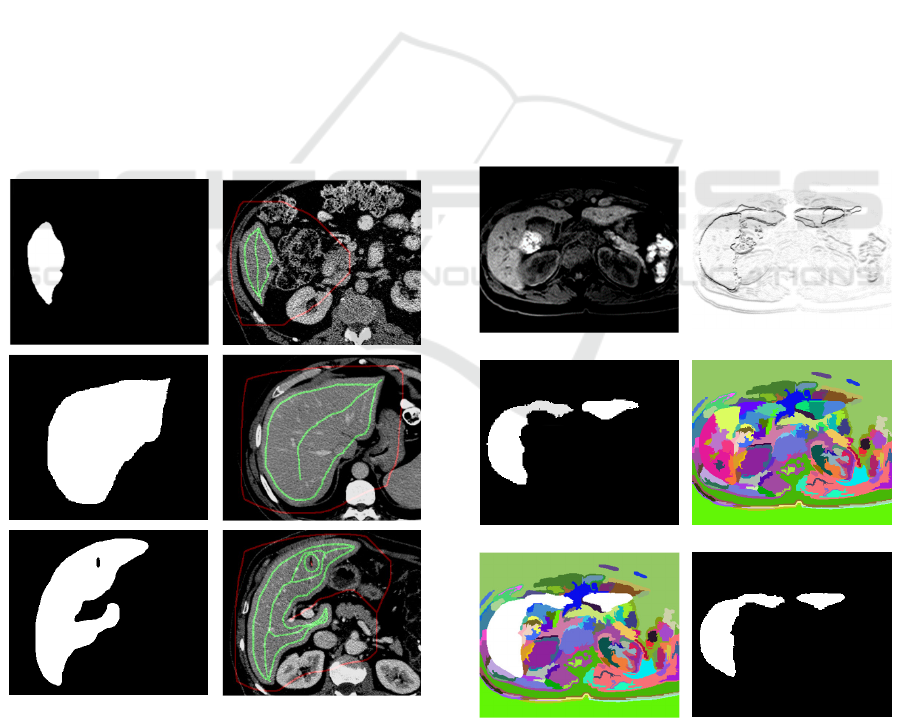

Figure 5: Based on input slice i (a) the fitness function F

(b) is used for Graph segmentation GS

(d). With DL

segmentation result Scomb

𝑆𝑐𝑜𝑚𝑏



∩ 𝐺𝑆



(e) leading to binary result GS’

(f).

Generic User-guided Interaction Paradigm for Precise Post-slice-wise Processing of Tomographic Deep Learning Segmentations Utilizing

Graph Cut and Graph Segmentation

239

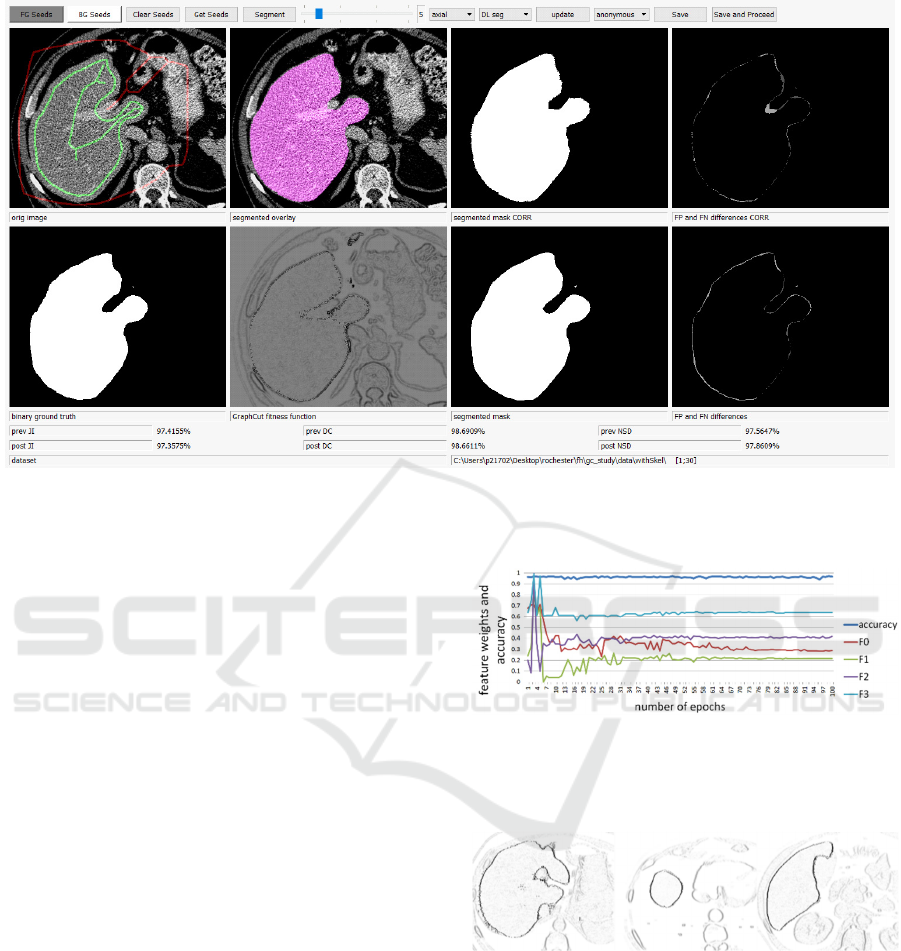

Figure 6: GC GUI in non-study mode showing full information. After adaptions by the user, the JI is increased from 0.974 to

0.977 compared to the axial DL model.

4 IMPLEMENTATION

A prototype for GC post-processing is implemented

with Python using PyQt5 for the GUI and library

maxflow for the GC implementation as proposed in

(Zabriskie 2020) for RGB images.

Besides the input slice, the GC fitness, the GC

result and a FP/FN view of the adapted result, also the

results from the DL model together with a FP/FN

view of the initial results as well as the ground truth

are presented. Furthermore, the quality metrics JI, DC

and NSD are evaluated, see Fig. 6.

For the study, only input slice and GC results are

presented and no quality metrics reported to do not

give the test persons a hint for the correct and

expected outcome regarding the ground truth.

5 RESULTS

Evolution Strategy optimizes the weights for ORIG

), EXP (w

), S1 (w

) and S4 (w

) with w

=0.287,

=0.217, w

0.419, w

0.641, cf. Fig. 7.

The result slices with maximum-function applied

and scaled to the target weights are shown in Fig. 8.

Thereby, the fitness function combines an edge

representation of the binary segmentation as well as

input image information.

Figure 7: Parameter optimization of weights w

for the

first 100 epochs with achievable accuracy close to 1.0.

Despite the absolute weights, only the relative proportion is

of relevance with stability in rank after around 60 epochs.

Figure 8: Horizontal edges of the combined fitness function

for slices #506, #13789 and #11623 respectively.

5.1 Graph Cut Post-processing

5.1.1 Automated GC Test Runs

With the FG and BG derived from the initial DL

segmentation, cf. Fig. 9, almost the same accuracy is

reached in a fully automated way, see Tab. 1

processing all n=4859 slices. Due to the Graph cut

processing, the JI marginally drops by 1.3% on

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

240

average (+537=55-4267) yet allowing the user to

correct obviously incorrect areas on demand. If the

FG and BG marker skeletons are derived from ground

truth reference segmentations, the DL accuracy is

even outperformed by the GC based post-processing

by 0.44% JI and improving 2846 of the slices

(+2846=1-2012), indicating the GC potential in post-

processing.

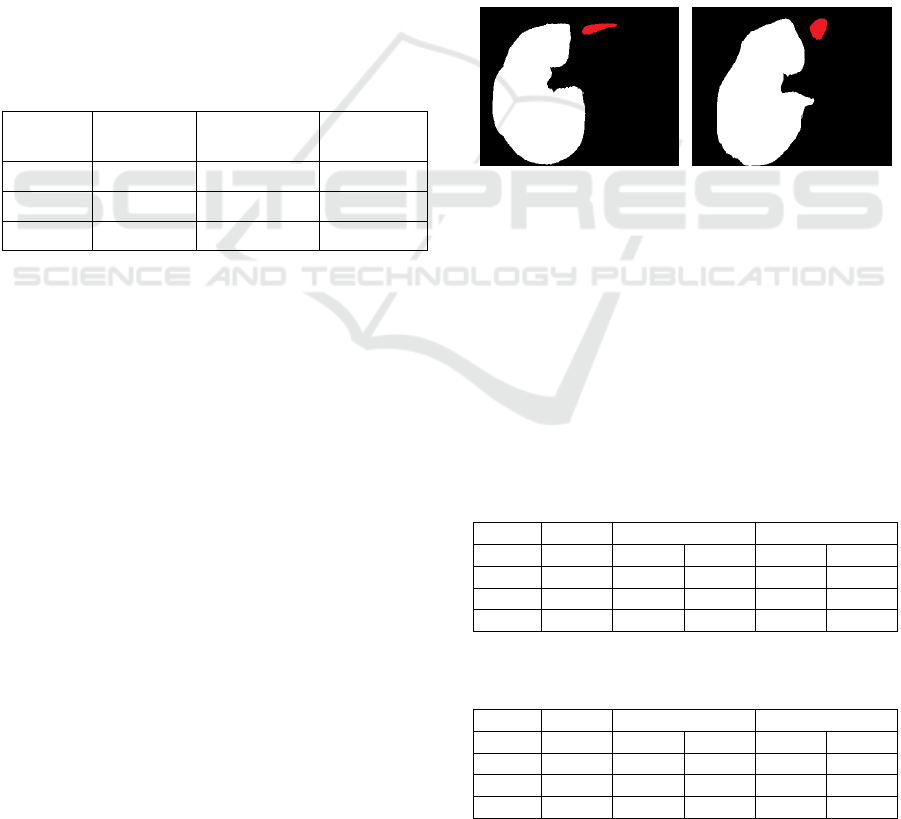

Table 1: Achievable Jaccard (JI), Dice Coefficient (DC)

and Normalized Surface Distance (NSD) tested on n=4859

slices for original DL models, GC with skeleton from DL

and GC with skeleton seeds from the ground truth (GT).

Thereby, GC is applied in a fully automated way.

metric DL GC, DL seeds GC, GT seeds

JI .9488 .9358 .9532

DC .9737 .9668 .9760

NSD .9507 .9488 .9602

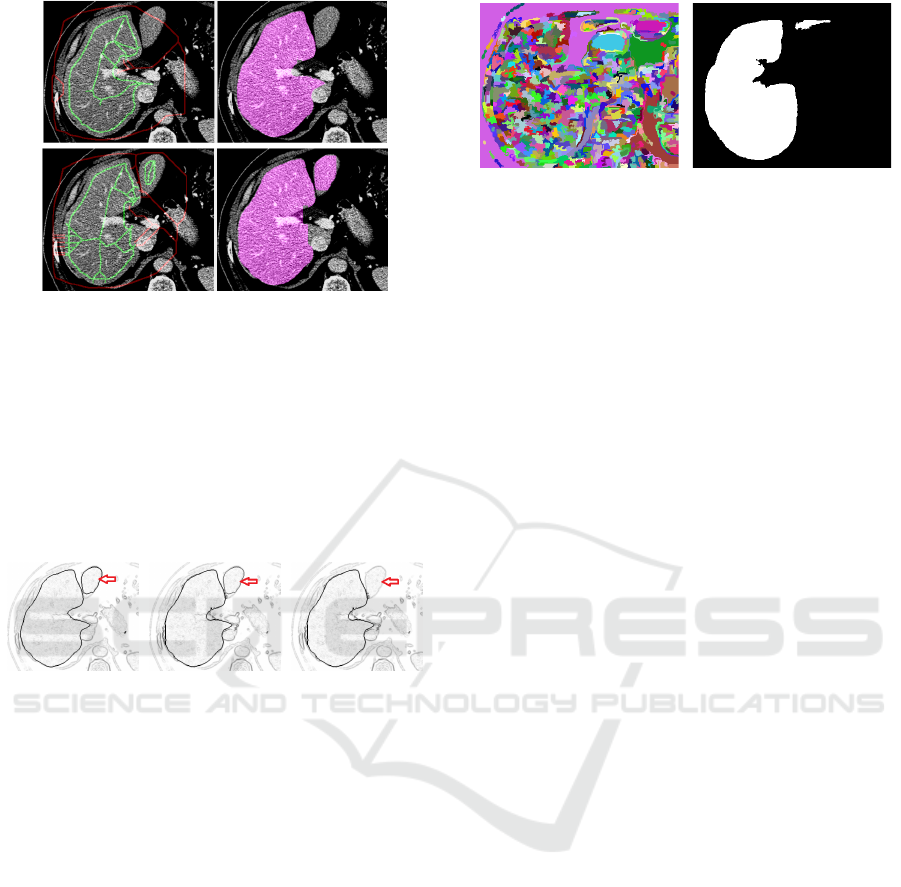

Figure 9: The FG (green) and BG (red) skeletons and inner

surface borders are well suited for performing GC

segmentation almost at the same accuracy as the input DL

model results.

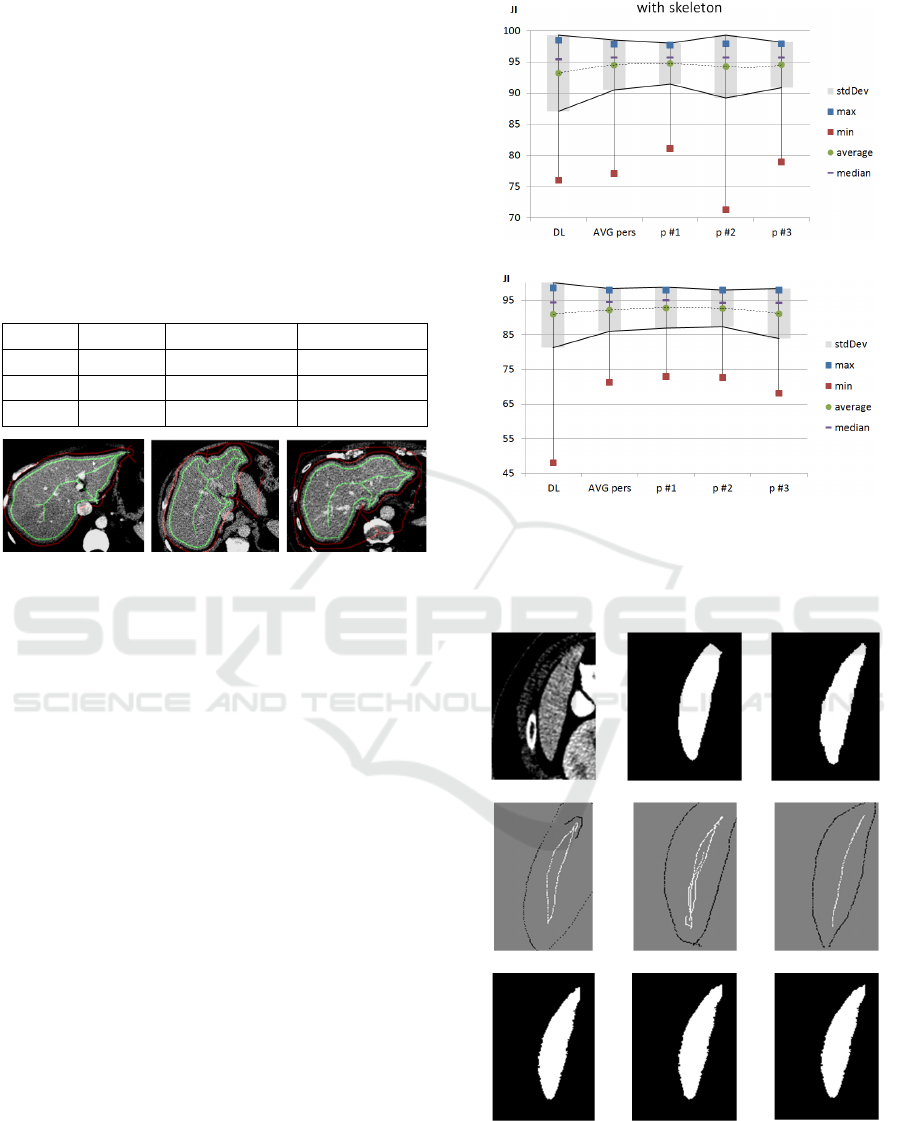

5.1.2 Manual Post-processing

With support of the skeleton for the three test persons,

processing of the 30 slices took on average 35.3sec

per slice and 51.3sec for the 30 slices of the dataset

without skeleton support. With the preset skeleton to

adapt, the average amount of FG and BG seeds per

slice is 1915.8 achieving an average accuracy of

JI=.9573 and DC=.9782 and NSD=.9589 compared

to the axial DL model with JI=.9548, DC=9769 and

NSD=9577 at 1772.6 seeds per slice on average, see

Fig. 10.a. Thus, due to manual post-processing, the

average accuracy is increased. On average 16 out of

30 slices outperform the DL model, mainly the ones

with small applied errors. For slices with already a

high quality result from the DL model, results rather

get worse as expected due to GC discretization.

Without skeleton support, the test persons place

1099.7 seed pixels on average achieving an accuracy

of JI=.9265, DC=.9618 and NSD=.9206 compared to

JI=.9251, DC=.9611 and NSD=.9192 at 1873.6 seeds

per slice on average, see Fig. 10.b. Generally, results

are quite invariant w.r.t. placed FG and BG markers.

Thus, results are very robust and “drawing” close

to the borders is not necessitated, see Fig. 11.

(a)

(

)

Figure 10: JI for GC results with (a) and without skeleton

support (b). The accuracy of the DL model is conserved,

while the standard deviation and min/max range is

generally reduced.

(a) (b) (c)

(d)

(e) (f)

(g) (h) (i)

Figure 11: Slice 28 (a) without skeleton support and

expected ground truth (c) with suboptimal DL result

JI=.877 (b) can be improved by all test persons (g-i) in

range [.911;.920]. The axial error of missing upper part can

be corrected with different skeleton interpretations (d-f).

Generic User-guided Interaction Paradigm for Precise Post-slice-wise Processing of Tomographic Deep Learning Segmentations Utilizing

Graph Cut and Graph Segmentation

241

With GC post-processing the obvious errors are

corrected as indicated by the smaller JI standard

deviation calculated for the slices with σ

JI,users

=.0400

compared to σ

JI,DL

=.0614 for the DL model all with

skeleton support. Without the skeleton support,

similar results are noted, namely σ

JI,users

=.0613

compared to σ

JI,DL

=.0964.

5.2 Graph Segmentation

Post-processing

Running Graph segmentation on DL results of the

MedDecathlon test datasets in an automated way, the

trade-off between the deep learning results and the

Graph segmentation results is low. While for DL,

accuracy of JI=94.88% is reported, the Graph

segmentation leads to JI=94.42%, which is a marginal

drop by 0.46%, see Table 2.

Table 2: Achievable Jaccard (JI), Dice Coefficient (DC)

and Normalized Surface Distance (NSD) tested on n=4857

slices for original DL models, GS with auto-selection from

DL and GS with selection from the ground truth (GT).

metric DL GS auto-run

GS, using

JI .9488 .9442 .9604

DC .9737 .9713 .9798

NSD .9507 .9478 .9702

If the ground truth (GT) is used for assigning the

fragmented regions the BG and FG label respectively,

then the accuracy can theoretically be gained to

JI=0.9604 showing high potential in post-processing.

The n=4,857 test slices are thereby fragmented

into 2,829,228 regions utilizing a minimum region

size 𝑟𝑒𝑔



40 and a constant border threshold

𝐾50. Most of these regions are perfectly

overlapping with the DL pre-segmentation, namely

27.86% for the FG and 64.84% for the BG. These

perfect matches are thus classified at very high

confidence. Only the remaining regions close to the

border areas that are partly overlapping with both, BG

and FG areas of the DL segmentation, need to be

assigned according to majority voting. From these

regions, 1.96% are probably FG, i.e. FG ratio >= 0.5

and 5.33% probably BG, i.e. BG ratio < 0.5.

Nevertheless, even these regions show a clear trend

for either FG or BG, which becomes obvious from the

average DL classification values per region. For the

probably FG regions, this average 𝜇



 230.18

is far above the equilibrium at 127.5. Similarly, for

the probably BG regions, 𝜇



 28.52 indicates

high confidence. Thus, even for the small amount of

regions fluctuating between FG and BG, they show a

clear trend for either BG or FG.

5.3 Slice-wise Propagation of

Post-processed Results

To test the propagation of both, GC and GS post-

processing, four datasets are prepared, namely:

 case 0: slices 22504-22516 with correct axial

 case 1: slices 22504-22516, all views invalid

 case 2: slices 25004-25012 with correct axial

 case 3: slices 25004-25012, all views invalid

For these test cases, the sagittal, coronal and

combined DL results are manipulated in the selected

slice range, cutting a part of the liver parenchyma, see

Fig. 12. By adding test cases with and without invalid

axial input the 1 or 4 hit count of the fitness function

is tested.

Figure 12: For the test cases 0/1 (left, combined slice

#22505) and 2/3 (right, combined slice #25005) the caudal

part of a liver lobe is removed from the DL results, shown

as red areas in the images.

As shown in Table 3 and Table 4, for all test

datasets the automated propagation of the corrected

first slice leads to an improvement of the subsequent

slices too. Thus, the missing part in the DL

segmentation, i.e. parts removed for testing purposes,

are precisely reconstructed, see Fig. 13 for slice

#2512.

Table 3: Slice-wise propagation of the corrected first slice

for test cases 0 and 1 in slice-range 22504-22516.

case 0 case 1

metric DLer

GC GS GC GS

JI 0.9176 0.9403 0.9584 0.9385 0.9534

DC 0.9570 0.9692 0.9788 0.9683 0.9762

NSD 0.9019 0.9424 0.9632 0.9405 0.9575

Table 4: Slice-wise propagation of the corrected first slice

for test cases 2 and 3 in slice-range 25004-25012.

case 2 case 3

metric DLer

GC GS GC GS

JI 0.9073 0.9246 0.9321 0.9216 0.9262

DC 0.9514 0.9608 0.9648 0.9592 0.9617

NSD 0.8850 0.9306 0.9292 0.9275 0.9190

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

242

Figure 13: Results prior and post propagating the

corrections from slice to slice. By adding the missing part

thanks to FG/BG marker from previous slice, the JI is

increased from JI

=0.8624 to JI

post

=0.8971.

Comparing test case 0 to 1 and test case 2 to 3 it

becomes obvious, that results drop a bit.

Consequently, the fitness function decreases in

quality, if not even the axial direction is correct and

all segmentation is solely performed on input image

edges, see Fig. 14.

Figure 14: With correct DL results (left), the fitness

function shows sharp edges in the test area, while for one

axial hit (middle) and zero hits (right) the missing liver part

is vanishing, marked with red arrows.

The slice-wise automated propagation of user

corrected slices is applicable for GS strategy too as

compared in Tables 3-4, thereby even outperforming

the Graph cut approach. For case 0 the JI

=0.9176

is increased to JI

postGS

=0.9584 while JI

postGC

=0.9403 is

around 1.8% below.

Analysing the FG/BG ratio it becomes obvious,

that most regions still show 100% congruency with

either FG or BG and for the in-between regions,

𝜇



 230.75 and 𝜇



 24.24

recpectively indicate, that at high resolution of the

tomographic volume in z-direction, the corrected

results of the previous slice can be applied in a very

robust way. With GS propagation, the one and zero

hit cases (0/2 and 1/3) perform at very comparable

accuracy, see Fig. 15 for slice #25012 in test case 1

with the object borders strong enough for GS

fragmentation even in case the DL models lack

correct results.

Figure 15: For the test case with zero hit count, shows still

borders strong enough to facilitate result-propagation with

GS for significantly improved accuracy.

6 DISCUSSION

Preparing results of binary segmentation together

with edge information of the original slices allows the

utilization of GC or GS as generic tool for user-

guided post-processing. In case of significant

misclassification, results from DL models or other

segmentation strategies can be corrected in a post-

processing step by experienced analysts. Thus, one

can benefit from the high classification accuracy of

well-trained DL models and yet overrule the black

box outcome in case of obvious discrepancies.

The trade-off in quality of the GC method with

seeds derived from the DL results is marginal due to

fitness function weights optimized by ES. Utilizing

the same fitness function, the trade-off for GS is to be

considered even lower.

Propagation of corrected slices as pattern mask to

the subsequent slices for automated post-processing

allows for significant reduction in user interaction,

yet featuring high quality result. Thereby, GS

outperforms GC w.r.t. both, accuracy and robustness.

This is the fundament for innovation in user-guided

image processing, thereby incorporating the accuracy

and precision of well-trained DL models together

with adequate interaction paradigms for user-guided

post-processing in rare cases of error.

Although the trade-off in accuracy of GC post-

processing is marginal compared to particular DL

models, there is still potential for further

improvement. Instead of constructing the pixel graph

with N

adjacency based on vertical and horizontal

edges derived from the fitness function, one can

extend to N

additionally incorporating diagonal

edges to overcome the GC tendency of straight edges

and discrepancies in narrow region areas. The same

improvement is applicable to GS strategy.

With respect to the user interaction, instead of

mouse-based FG and BG pixel-area masking for GC,

the skeleton graph could be manipulated too, i.e. sub-

Generic User-guided Interaction Paradigm for Precise Post-slice-wise Processing of Tomographic Deep Learning Segmentations Utilizing

Graph Cut and Graph Segmentation

243

tree parts removed by selection, thus further

improving efficiency.

7 CONCLUSION AND OUTLOOK

In diagnostic domains with initial lack of training

data, DL models cannot be trained at highest accuracy

from the very beginning. Yet, both the GC and the GS

post-processing allow to post-process routine datasets

and thus allow for steady improvement and adaption

of the DL models if iteratively trained on the enlarged

reference data. The chicken-egg problem of an

insufficient amount of training data in the DL domain

tackling new diagnostic domains is conquered by

applying the proposed strategy.

Future test runs will focus on different imaging

modalities and anatomies as well as on low-data DL

training tasks with incrementally enriching the

database with GC or GS post-processed reference

segmentations.

To conclude, the proposed method shows a very

high potential for application in medical diagnostics,

meeting the needs of a real hospital environment, i.e.

large number of patients and highly accurate

segmentation. The generic approach does not require

adaptions on the network architecture or training

process and thus is applicable to both, arbitrary deep

learning models and arbitrary diagnostic domains.

ACKNOWLEDGEMENTS

Many thanks to the BIR (biomedical imaging

resource) research team at Mayo Clinic, Rochester,

MN, USA for valuable discussion, great support and

the provided GPU infrastructure.

REFERENCES

Boykov, Y., Veksler, O., Zabih, R., 1998. Fast

Approximate Energy Minimization via Graph Cuts. In

IEEE Transactions on PAMI, vol. 23(11), pp. 1222-

1239.

Boykov, Y., Funka-Lea, G., 2006. Graph Cuts and Efficient

N-D Image Segmentation. In International Journal of

Computer Vision, vol.70(2), pp.109-131.

Cicek, Ö., Abdulkadir, A., Lienkamp, S.S., Brox, T.,

Ronneberg, O., 2016. 3D U-Net: Learning Dense

Volumetric Segmentation from Sparse Annotation. In

Proc. of MICCAI 2016.

Cootes, T.F., Taylor, C.J., Cooper, H.D., Gramah, J., 1992.

Training Models of Shape from Sets of Examples. In

Proceedings of the British Machine Vision Conference,

pp. 9-18, Leeds UK.

Cootes, T. F., Edwards, G.J., Taylor, C.J., 1998. Active

Appearance Models. In Proceedings of the 5th

European Conference on Computer Vision, pp.484-

498.

Hochreiter, S., Schmidhuber, J., 1997. Long Short-Term

Memory. In J. Neural Computation 9(8), pp.1735-1780

Lipton, Z.C., Lale, D.C., Elkan, C., Wetzel, R., 2015.

Learning to Diagnose with LSTM Recurrent Neural

Networks. In CoRR, abs/1511.03677.

MedDecathlon, 2019. MSD-Ranking Scheme,

http://medicaldecathlon.com/files/MSD-Ranking-

scheme.pdf, last accessed 2019-11-26

Mortensen, E.N., Barrett, W.A., 1995. Intelligent scissors

for image composition. In Proceedings of the

SIGGRAPH '95, pp.191-198.

Ronneberg, O., Fischer, P., Brox, T., 2015. U-Net:

Convolutional Networks for Biomedical Image

Segmentation. In Proc. of the International Conf. on

Medical Image Computing and Computer Assisted

Intervention (MICCAI) 2015, pp. 234— 241.

Rother, C., Kolmogorov, V., Blake, A., 2004. “GrabCut":

interactive foreground extraction using iterated graph

cuts. In Proc. of the ACM SIGGRAPH '04, pp. 309-

314.

Sakinis, T., Milletari, F., Roth, H., Korfiatis, P., Kostandy,

P., Philbrick, K., Akkus, Z., Xu, Z., Xu, D., Erickson,

B.J., 2019. Interactive segmentation of medical images

through fully convolutional neural networks. In Proc. of

the International Conf. on Medical Image Computing

and Computer Assisted Intervention (MICCAI) 2019

Strakos, P., Janos, M., Karasek, T., Vavra, P., Jonszta, T.,

2015. Review of the Software Used for 3D Volumetric

Reconstruction of the Liver. In: Int. Journal of

Computer and Information Engineering vol. 9(2).

Van Biesen, W., Sieben, G., Lameire, N., Vanholder, R.,

1998. Application of Kohonen neural networks for the

nonmorphological distinction between glomerular and

tubular renal disease. In Nephrol Dial Transplant vol.

13(1), pp. 59-66.

Viola, P., Jones, M., 2011. Rapid Object Detection using a

Boosted Cascade of Simple Features. In Conf. on

Computer Vision and Pattern Recognition.

Xu, N., Price, B., Cohen, S., Yang, J., Huang, T., 2016.

Deep Interactive Object Selection. In CoRR,

abs/1603.04042

Zabriskie, N., 2020. Graph cut image segmentation with

custom GUI. In https://github.com/NathanZabriskie/,

last visited 2020-1-2

Zhang, J., Wang, X.W., 2011.

The application of feed

forward neural network for the X ray image fusion. In

Journal of Physics: Conference Series 312.

Zwettler, G.A., Backfrieder, W., Holmes, D.R., 2020. Pre-

and Post-processing Strategies for Generic Slice-wise

Segmentation of Tomographic 3D datasets Utilizing U-

Net Deep Learning Models Trained for Specific

Diagnostic Domains. In Proc. of VISAPP 2020, Valetta,

Malta.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

244
