Self-recovery Service Securing Edge Server in IoT Network against

Ransomware Attack

In-San Lei, Su-Kit Tang, Ion-Kun Chao and Rita Tse

School of Applied Sciences, Macao Polytechnic Institute, Macao, China

Keywords: Edge Computing, Ransomware, Recovery.

Abstract: Edge server takes an important role in IoT networks that distributes the computing power in the network and

serves as a temporary storage for IoT devices. If there is any ransomware attack to the edge server, its network

segment will be paralyzed, raising the data integrity and accuracy issues in the IoT system. In this paper, we

propose a self-recovery method, called Self-Recovery Service (SRS), which can detect ransomware signature

and recover victim files automatically. No interruption to the operation of edge server would be caused by

ransomware. SRS is evaluated in the simulation test and the result shows that SRS takes insignificant system

resources for its operation that does not degrade the performance of the edge server.

1 INTRODUCTION

The rapid development of smart cities has driven the

deployment of Internet of Things (IoT) system in

solving specific problems in different fields, resulting

in a dramatical growth in the number of deployed IoT

devices. IoT devices are heterogeneous and of low

computing capability. An IoT device collects and

generates data continuously and data are forwarded to

backend servers for processing. If an IoT system is

connecting to a large number of IoT devices, a

bottleneck problem may be created at the backend.

Adding edge servers into the system can ease the

bottleneck problem and complicated computing tasks

can be simplified at the early stage.

In general architecture, edge servers are

interconnected and they serve as a gateway for their

IoT local subnet. (Fernández et al, 2018) (Lopez et al,

2015) (Shi et al, 2016) An edge server comes with

computing capabilities to pre-process dynamic data

generated from IoT devices. If intensive computing

tasks on the data are involved, the pre-processing not

only reduce the workload of backend servers, but it

also simplifies the logic of the data processing. This

distributes the power across a network and improves

the efficiency of the entire IoT system. For this

reason, the market size of edge servers grows steadily

and is expected to climb up to 1031 million by 2025

while the number of IoT devices will be projected to

reach 75 billion by 2025 (Statista, 2017) (Statista,

2020). In this context, edge server is likely to raise

interest from the academia and the industry. It is also

very attractive to cyber extortionists, as attacking

edge servers rather than IoT devices makes more

significant impact to IoT systems. It would raise

many challenges related to security and privacy

concerns (Shi et al, 2016).

A number of studies (Xiao et al, 2019) (Alrowaily

& Lu, 2018) (Hafeez et al, 2016) (Caprolu et al, 2019)

(Zhang et al, 2018) have been conducted regarding to

the security and privacy of edge server. Edge servers

in IoT networks are normally accessible in the public.

Any design flaws, misconfigurations and

implementation bugs may put them at risk, suffering

a number of cyber-attacks including ransomware

attack. Recently, ransomware has rapidly become one

of the severe network threats for enterprises and

individual users, causing billions of dollars in loss

globally. The maturity of ransomware has even

reached a new height that can attack millions of

computers at a time. Files encrypted by ransomware

are often unable to be decrypted, unless the

decrypting key is obtained. Reasonable defense

measures for edge servers to reduce the chance of

being attacked is definitely needed. Suppose that a

ransomware is injected into an edge server under the

malware injection attack, the server would stop

accepting data from IoT devices. No processing is

done for the IoT system. This results in data lost that

prevents the system from making critical decision and

thus downgrades the performance of the system.

Lei, I., Tang, S., Chao, I. and Tse, R.

Self-recovery Service Securing Edge Server in IoT Network against Ransomware Attack.

DOI: 10.5220/0009470303990404

In Proceedings of the 5th International Conference on Internet of Things, Big Data and Security (IoTBDS 2020), pages 399-404

ISBN: 978-989-758-426-8

399

In this paper, we aim at easing the damage caused

by ransomware to edge server by proposing a self-

recovery method, called Self-Recovery Service

(SRS), for edge server. SRS can detect ransomware

signature and recover victim files automatically. Its

concept is to monitor important files by a system

service. If ransomware is detected, SRS recovers

infected files by restoring the corresponding backup

of raw data. No interruption would be caused to the

operation of edge server. The service only takes

insignificant system resources for its operation that

does not degrade the performance of the server.

The remaining of this paper is organized as

follows. In Section 2, we review the ransomware

attack. In Section 3, we present the design of SRS.

Section 4 will highlight the verification of SRS.

Finally, we conclude this paper in Section 5.

2 RANSOMWARE ATTACK

Ransomware is a kind of malicious trojan horse

program which is secretly injected into victim's

devices (computers, smartphones, servers, etc.) and

interferes with their operation by encrypting some

important files, such as user data files or system files.

To rescue the files and even save the devices, the

decrypting key is needed which can be obtained by

paying for the ransom (O'Gorman & McDonald,

2012). In 1989, the first ransomware, called PC

Cyborg, had successfully forced the user to pay a

ransom of $189 by encrypting its hard disk (Gazet,

2010).

There are five types of ransomware reported

(Johansen, 2018), which are Crypto malware,

Lockers, Scareware, Doxware and RaaS. Crypto

malware is a well-known ransomware that can spread

over thousands of computers and make damages

worldwide. One of the noticeable examples is

WannaCry; Lockers is another type of ransomware

that aims to attack operating system. It locks down a

victim’s computer. No files or applications can be

accessed; Similarly, Scareware would lock down a

victim’s computer and pop up annoying messages to

ask for ransom; Doxware is another type of

ransomware that may reveal a victim’s sensitive

information. It threatens the victim by posting the

information online, if ransom is not paid; The last

one, called “Ransomware as a Service (RaaS)”,

contributed greatly to the growth of ransomware

attack because it enables anyone to be a cyber

attacker. RaaS is deployed as a portal that enables

legitimate venders to unintentionally setup malicious

services to their customers (victims).

Ransomware has been evolved gradually since

1989. It has expanded their scope of attack on devices

from computers to mobile devices, covering

individuals, enterprises, governments, medical

institutions, banking systems, etc. A number of attack

cases have been reported, including Hollywood

hospital network system and Muni subway in San

Francisco. They targeted the healthcare industry and

government organizations because it makes

significant impact to the public. In 2016, the first

ransomware for mobile devices, called “Gooligan”

has been reported, which led to 1 million Android

devices being attacked, by maliciously obtaining the

root permission of the devices (Adhikari, 2016).

There are a number of methods to inject

ransomware into edge servers: 1) by injecting

malicious scripts/codes or 2) by compromising an

edge server to spoof other edge servers. In 1), an

escape character can be used to attach malicious

string into a SQL query that can spoof the database to

execute the string, loading unexpected file remotely

into an edge server (victim) (Anley, 2002). Similarly,

XSS in HTML/JavaScript allows loading expected

codes remotely into the edge server (victim) as the

victim does not verify XSS codes (Martin & Lam,

2008). On the other hand, in 2), as edge servers are

interconnected and would work collaboratively with

each other, they would exchange data for processing.

If an edge server (victim) is spooled to listen to a

compromised edge server (attacker), the victim will

execute malicious codes from the attacker. XML

signature wrapping is commonly used when

launching the attack (McIntosh & Austel, 2005).

Nevertheless, ransomware attack is not detectable

immediately when it is taking place in an edge server.

In case of being attacked, the IoT system would face

the data integrity and data accuracy problems, which

may not cause significant harm to them. However, the

problems for data-oriented IoT systems (Tse et al,

2018) (Tse & Pau, 2016) (Aguiari et al, 2018) may

affect the quality of critical decision the systems

make. Thus, a self-recovery function against

ransomware attack should be enabled in edge servers.

In the next section, we present the Self-recovery

service (SRS), which secures edge servers against

ransomware attack.

3 SELF-RECOVERY SERVICE

In this paper, the Self-recovery service (SRS) is

proposed to ease the damage caused to an edge server

by ransomware. SRS is a system service that runs at

the kernel level, monitoring the activity of the file

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

400

system in an edge server. It is particularly sensitive to

the ransomware attack. If any suspected activity in

storage is detected, it checks for the ransomware

signature. If the signature is found in any IoT data

files, data files should be unexpected encrypted. It is

confirmed that the server is under the ransomware

attack. To resolve this situation, SRS takes an

immediate action to recover the encrypted file, by

recalling its backup copy from the backup node. If

there is no suspected activity, SRS continues to send

IoT data to the backup node.

It is noteworthy that an edge server may be free

from ransomware attack if IoT data is not kept in its

storage. However, some existing IoT systems (Tse et

al, 2018) (Tse & Pau, 2016) (Aguiari et al, 2018)

working in the environment without stable Internet

connection is required to keep the data in local storage

temporarily. In this context, those systems are

vulnerable to the ransomware attack during the

blackout period. Thus, SRS is highly recommended.

3.1 Architectural Design

SRS provides a seamless integrating solution that

does not require complicated modification to existing

IoT systems. Figure 1 shows the architectural design

of SRS.

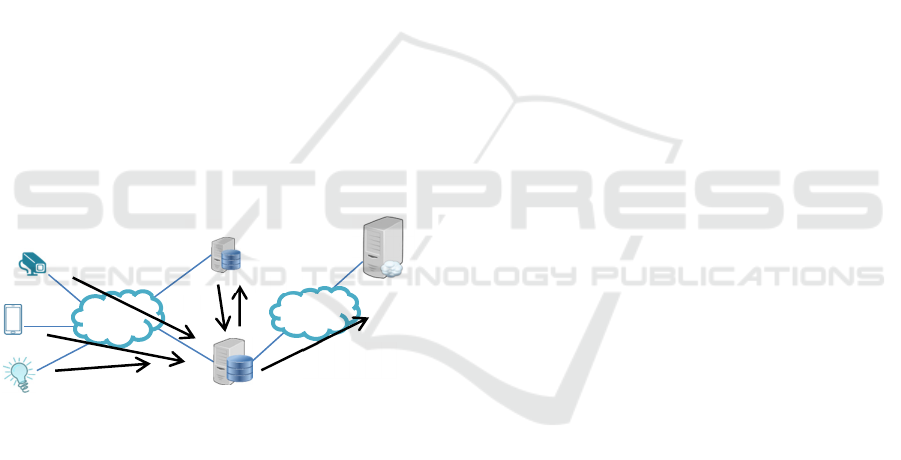

Figure 1: Architectural Design of SRS.

As can be seen in Figure 1, there are a number of

IoT devices (i.e., camera, smartphone and lightbulb)

connecting to the edge server via Local Area Network

(LAN). The edge server collects IoT data from the

devices and immediately forwards them to the backup

node before doing any pre-processing on the data.

The backup node, which is located in the same subnet,

acts as a secondary storage for the edge server only.

When the recovery process is activated in the edge

server, it will recall the data from the backup node.

Once the recovery process is done and the data is

processed, it is then sent to the backend server

through the internet for further processing. It ensures

that the entire IoT system operates continuously.

3.2 Backup Node

In SRS architecture, the backup node will receive IoT

data periodically from the edge server using a secure

network connection, e.g., sftp. Data is received in a

form of raw data format. When it is stored in the file

system, extra information, such as its originality, will

be associated to it. Moreover, SRS maintains the data

consistency by Subversion server, tracking its

generation date, time and version. The tracking

operation also covers system files and folders, in

order to recover the edge server if its system is

attacked.

To detect the ransomware in the edge server, SRS

monitors the activity of the file system. The detection

logic will be explained in the next section.

3.3 Ransomware Detection

Ransomware attack typically aims to take control of

important files in a computing system by

cryptographic encryption. There are a number of file

types that ransomware is interested in, which are the

user files (e.g., docx, pptx, pdf, etc.) in home folder

and system files in the system folders. In addition,

other particular files and folders may be their targets

depending on their goal. Thus, in SRS, the detection

logic is designed to work at the file I/O level. It is

rule-based, monitoring the activity of local file

system. There are two rules in the logic, as listed

below.

Rule 1) File removal for over 30% of data files in

local file system; and

Rule 2) Change of file extension in any physical file

path.

In Rule 1), if data files are encrypted under

ransomware attack, their original file would be

deleted. If there are more than 30% of data files

deleted in a short period of time, it is assumed that

ransomware is taken place. This does not disturb the

normal operation of the edge server as the probability

of the deletion is very low. In Rule 2), if the file

extension of data files is renamed into something

unrecognizable in the system, it is also assumed to be

under ransomware attack. Figure 2 outlines the

decision making of the Detection logic.

Recovery

Backup node

Edge server

Backend

server

Int

IoT data

processed

data

IoT data

Self-recovery Service Securing Edge Server in IoT Network against Ransomware Attack

401

Figure 2: Ransomware Detection Logic.

When SRS finds an edge server under

ransomware attack, the recovery process will be

activated automatically and the system alert will be

sent out for ransomware removal.

3.4 Recovery Process

When ransomware attack is detected, the recovery

process will be activated instantly. A secure network

connection will be established to the backup node,

requesting for the IoT data for a certain period of

time. It is noted that the recovery process will not be

activated when the Internet connection is not

available. When the data is received, it will be sent to

the backend server after pre-processing.

4 EVALUATION

A simulation test has been conducted on SRS for

verifying its correctness. In the test, for verification

purpose, a standard computer running windows 7 SP2

operating system is used as the test platform. The core

hardware component of the computer is listed in

Table 1. It is noted that the computing power for an

edge server depends on the need of the IoT system. It

does not need to be a high-ended computer. A

raspberry pie device may be used as an edge server.

Table 1: Configuration of Simulation Test Platform.

Component Type

CPU i7 – 6700 HQ (8-core)

RAM 8 GB

Storage SSD

As a system service running in the background,

SRS takes system resources when it works. To ensure

that it does not degrade the system performance, the

test aims to verify the disk performance (I/O), CPU

performance, and the disk average transfer rate of the

system.

4.1 SRS Performance

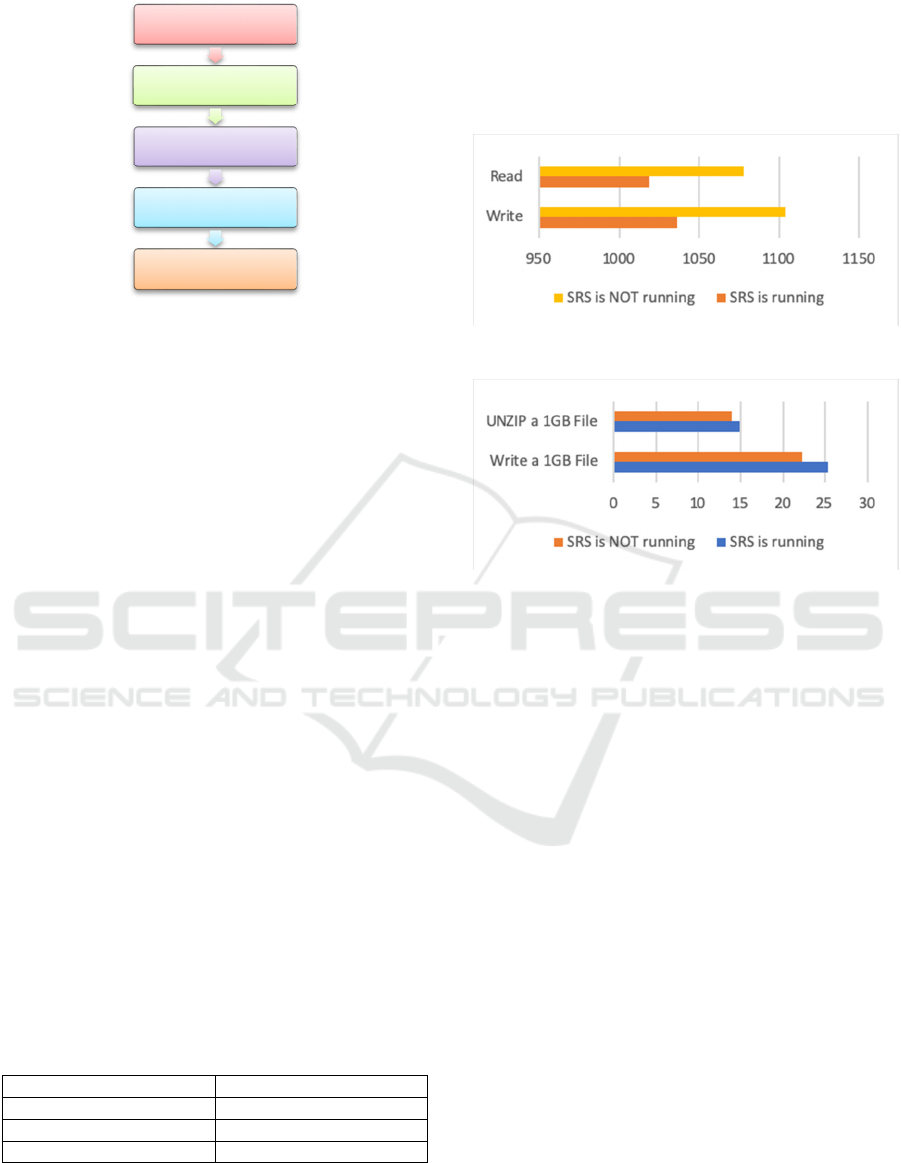

(a) Read/Write Speed

(b) Writing Big File

Figure 3: Disk Performance.

In the simulation test, as can be seen in Figure 3(a),

the disk read/write speed is about

1077.6MB/1104.03MB per second when SRS is not

running. When it is running, the read/write speed

drops down to 1019MB/1036.01MB per second,

which is about 5.44%/6.16%. In the meantime, the

access (read/write) time increases, while SRS is

running, from 0.5ms/0.289ms to 0.519ms/0.296ms,

which is about 3.8%/2.42%.

To further test the disk performance, a binary file

of 1 GB in size was used in unzipping and writing

operations. (See Figure 3(b)) When SRS is not

running, it takes about 13.93 seconds in unzipping

(for testing the read speed). When SRS is running, it

takes about 14.92 seconds. There is around 1 second

time putting on the unzip operation by SRS which is

about 7%. On the other hand, it takes about 22.25

seconds in the writing operation when SRS is not

running. When it is running, it takes about 25.32

seconds. It is about 3 seconds (13.8%) of time putting

on the operation by SRS. The performance in disk

writing is slightly degraded.

Moreover, it revealed that the CPU performance

is slightly degraded. It takes around 0.2% (1.195% -

0.917%) of CPU time when SRS is running. The test

Detection Logic

1) File Removal (30%)

2) Change of File

Extension

Recovery Process

System Alert

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

402

Table 2: Summary of the Test.

SRS is NOT running SRS is running Result

Disk Read/Write Speed (MB per second)

1077.6MB/s,

1104.03MB/s

1019MB/s,

1036.01MBs

5.44%/6.16% DROP

Disk Access Time (Millisecond) 0.5ms/0.289ms 0.519ms/0.296ms 3.8%/2.42% INCREASE

UNZIP a 1GB File (Second) 13.93s 14.92s 7% INCREASE

Write a 1GB File (Second) 22.25s 25.32s 13.8% INCREASE

CPU Usage (%) 0.917% 1.195% 0.2% INCREASE

Disk Average Transfer Rate (Second) 1.051s 1.253s 0.2s INCREASE

also showed that the disk average transfer rate is

about 1.051 seconds when SRS is not running. When

it is running, the transfer rate is about 1.253 seconds,

which is about 0.2 seconds increase in the transfer

operation. Table 2 summarized the result of the test.

The result shows that SRS take insignificant

system resources from the system in terms of the disk

performance, CPU performance and disk average

transfer rate. However, it ensures the continuity of the

operation of edge server after ransomware attack.

5 CONCLUSIONS

Ransomware is arbitrary and destructive. Its harm to

IoT systems may create disastrous consequences. To

avoid the disaster happens, preventive measures are

commonly employed. SRS is one of the solutions that

eases the damages caused to edge servers by

ransomware. It ensures the continuity of the operation

of edge server after ransomware attack. It also ensures

that the data integrity and accuracy issues would not

be raised in IoT systems. In addition, SRS takes

insignificant system resources for its operation that

does not degrade the performance of the edge server.

REFERENCES

Fernández, C. M., Rodríguez, M. D., & Muñoz, B. R.

(2018). An Edge Computing Architecture in the

Internet of Things. In ISORC, 21st International

Symposium on Real-Time Distributed Computing,

IEEE, Singapore, 99-102. https://dx.doi.org/10.1109/

ISORC.2018.00021

Lopez, P. G., Montresor, A., Epema, D., Datta, A.,

Higashino, T., Iamnitchi, A., Barcellos, M., Felber, P.

& Riviere, E. (2015). Edge-Centric Computing: Vision

and Challenges. SIGCOMM Computer Communica-

tion Review, 45(5), 37–42. https://dx.doi.org/

10.1145/2831347.2831354

Shi, W., Cao, J., Zhang, Q., Li, Y. & Xu, L. (2016). Edge

Computing: Vision and Challenges. IEEE Internet

Things Journal, 3(5), 637–646. https://dx.doi.org/

10.1109/JIOT.2016.2579198

Statista. (2017). Edge Computing Market Size Forecast in

the United States From 2017 to 2025, by Segment (in

Million U.S. Dollars). Retrieved from https://www.

statista.com/statistics/909308/united- states-edge-

computing-market-size-segment/

Statista. (2020). Internet of Things (IoT) connected devices

installed base worldwide from 2015 to 2025. Retrieved

from https://www.statista.com/statistics/471264/iot-

number-of-connected-devices-worldwide/

Xiao, Y., Jia, Y., Liu, C., Cheng, X., Yu, J. & Lv, W.

(2019). Edge Computing Security: State of the Art and

Challenges. In Proceedings of the IEEE, 107(8), 1608-

1631. https://dx.doi.org/10.1109/JPROC.2019.29

18437

Alrowaily, M. & Lu, Z. (2018). Secure Edge Computing in

IoT Systems: Review and Case Studies. In SEC

IEEE/ACM Symposium on Edge Computing, Seattle,

WA, 440-444. https://dx.doi.org/10.1109/SEC.2018.

00060

Hafeez, I., Ding, A. Y., Suomalainen, L., & Tarkoma, S.

(2016). Demo Abstract: Securebox — A Platform to

Safeguard Network Edge. In SEC IEEE/ACM

Symposium on Edge Computing, Washington, DC, 117-

118. https://dx.doi.org/10.1109/SEC.2016.12

Self-recovery Service Securing Edge Server in IoT Network against Ransomware Attack

403

Caprolu, M., Pietro, R. D., Lombardi, F. & Raponi, S.

(2019). Edge Computing Perspectives: Architectures,

Technologies, and Open Security Issues. In EDGE

IEEE International Conference on Edge Computing,

Milan, Italy, 116-123. https://dx.doi.org/10.1109/

EDGE.2019.00035

Zhang, J., Chen, B., Zhao, Y., Cheng, X. & Hu, F. (2018).

Data Security and Privacy-Preserving in Edge

Computing Paradigm: Survey and Open Issues. IEEE

Access, 6, 18209-18237. https://dx.doi.org/10.1109/

ACCESS.2018.2820162

O'Gorman, G., & McDonald, G. (2012). Ransomware: A

Growing Menace. Symantec Corporation. Retrieved

from https://www.symantec.com/content/en/us/

enterprise/media/security_response/whitepapers/ranso

mware-a-growing-menace.pdf

Gazet, A. (2010). Comparative Analysis of Various

Ransomware Virii. Journal in Computer Virology, 6(1),

77-90.

Johansen, A. G. (2018). What is Ransomware and How to

Help Prevent Ransomware Attacks. Symantec.

Retrieved from https://us.norton.com/internetsecurity-

malware-ransomware-5-dos-and-donts.html

Adhikari, R. (2016). Gooligan Ransacks More than 1M

Android Accounts. TechNewsWorld. Retrieved from

https://www.technewsworld.com/story/84132.html

Anley, C. (2002). Advanced SQL Injection in SQL Server

Applications. CGI Security. Retrieved from https://

www.cgisecurity.com/lib/advanced_sql_injection.pdf

Martin, M. & Lam, M. S. (2008). Automatic Generation of

XSS and SQL Injection Attacks with Goal-Directed

Model Checking. In 17th Conference on Security

Symposium, Berkeley, CA, USA, 31-43.

McIntosh M., & Austel, P. (2005). XML Signature Element

Wrapping Attacks and Countermeasures. In Workshop

Secure Web Services, 20–27. https://dx.doi.org/

10.1145/1103022.1103026

Tse, R., Aguiari, D., Chou, K.-S., Giusto, D., Tang, S.-K.,

& Pau, G. (2018). Monitoring Cultural Heritage

Buildings via Low-Cost Edge Computing/Sensing

Platforms: The Biblioteca Joanina de Coimbra Case

Study. In GOODTECHS, 4th EAI International

Conference on Smart Objects and Technologies for

Social Good. ACM Press. New York, NY, 148-152.

https://dx.doi.org/10.1145/3284869.3284876

Tse, R., & Pau, G. (2016). Enabling Street-Level Pollution

and Exposure Measures. In MobiHealth, 6th ACM

International Workshop on Pervasive Wireless

Healthcare. ACM Press. New York, NY, 1–4.

https://dx.doi.org/10.1145/2944921.2944925

Aguiari, D., Delnevo, G., Monti, L., Ghini, V., Mirri, S.,

Salomoni, P., Pau, G., Im, M., Tse, R., Ekpanyapong,

M., & Battistini, R. (2018). Canarin II: Designing a

Smart e-Bike Eco-System. In CCNC, 15th IEEE Annual

Consumer Communications Networking Conference.

IEEE. https://dx.doi.org/10.1109/CCNC.2018.

8319221

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

404
