Improving Dysarthric Speech Intelligibility using Cycle-consistent

Adversarial Training

Seung Hee Yang

and Minhwa Chung

1,2

Interdisciplinary Program in Cognitive Science, Seoul National University, Republic of Korea

Department of Linguistics, Seoul National University, Republic of Korea

Keywords: Dysarthric Speech Intelligibility, Cycle-consistent Adversarial Training, GAN for Speech Modification.

Abstract: Dysarthria is a motor speech impairment affecting millions of people. Dysarthric speech can be far less

intelligible than those of non-dysarthric speakers, causing significant communication difficulties. The goal of

our work is to develop a model for dysarthric to healthy speech conversion using Cycle-consistent GAN.

Using 18,700 dysarthric and 8,610 healthy Korean utterances that were recorded for the purpose of automatic

recognition of voice keyboard in a previous study, the generator is trained to transform dysarthric to healthy

speech in the spectral domain, which is then converted back to speech. Objective evaluation using automatic

speech recognition of the generated utterance on a held-out test set shows that the recognition performance is

improved compared with the original dysarthic speech after performing adversarial training, as the absolute

SER has been lowered by 33.4%. It demonstrates that the proposed GAN-based conversion method is useful

for improving dysarthric speech intelligibility.

1 INTRODUCTION

Dysarthria refers to a group of speech disorders

resulting from disturbances in muscular control of

speech mechanism due to a damage in the central or

peripheral nervous system. Individuals with

dysarthria have problems in verbal communication

due to paralysis, weakness, or incoordination of the

speech musculature (Darley et al., 1969). It is the

most commonly acquired speech disorder affecting

170 per 100,000 persons (Emerson, 1995). Dysarthria

is present in approximately 33% of all people with

traumatic brain injury, and 20% of persons with

cerebral palsy.

Moderate to severe dysarthric speech is often

unintelligible to unfamiliar communication partners.

To ease the difficulty, speech generating devices in

the clinical field of augmentative and alternative

communication have been developed (Beukelman

and Mirenda, 2005). The devices are developed to

recognize and interpret an individual’s disordered

speech and speak out an equivalent message in a clear

synthesized speech. For example, “VIVOCA”

commercial device aims to clarify dysarthric speech

with an adaptive equalizer in order to amplify the

regions of speech that are relevant to speech

perception (VIVOCA, 2006). Such technology is also

applied in speaking-aid devices that use electrolarynx

devices (Bi and Qi, 1997; Nakamura et al., 2006;

2012).

On the other hand, a number of research has been

done in speech modification and style conversion

towards improving the intelligibility and

comprehensibility of dysarthric speech. This is

beneficial because dysarthric speakers prefer to use

their own natural voicing to express thoughts (Drager

et al., 2004). These conversion systems can

potentially be used to help people with speech

disorders by synthesizing more intelligible or more

typical speech (Kain et al., 2007; Hironori et al.,

2010; Toda et al., 2012; Yamagishi et al., 2012;

Aihara et al., 2013; Tanaka et al., 2013; Toda et al.,

2014; Kain and Van Santen, 2009). These

transformation systems were used to help people with

speech disorders. For example, intelligibility of

dysarthric vowels of one speaker was improved from

48% to 54% using an optimal mapping feature set

(Kain, 2007). At the short-term spectral level,

prosodic extraction and modifications were

implemented to improve intelligibility from 68% to

87% (Hosom, 2013).

More recently, Biadsy (2019) introduced an end-

to-end-trained speech-to-speech conversion model

that maps an input spectrogram directly to another

308

Yang, S. and Chung, M.

Improving Dysarthric Speech Intelligibility using Cycle-consistent Adversarial Training.

DOI: 10.5220/0009163003080313

In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020) - Volume 4: BIOSIGNALS, pages 308-313

ISBN: 978-989-758-398-8; ISSN: 2184-4305

spectrogram. The network is composed of an encoder,

spectrogram and phoneme decoders, followed by a

vocoder to synthesize a time-domain waveform. The

model succeeded in impaired speech normalization.

However, the speaker voice identity is lost in this

approach. Yang (2019) proposed a GAN-based

conversion method that preserves the speaker’s voice

in the foreign-accented speech domain.

The survey of related works demonstrates that

despite the recent growth in spoken language

processing technologies, the existing voice conversion

methods for dysarthric speech mostly rely on

traditional feature engineering methods instead of

exploiting the state-of-the-art technologies. In this

article, we present our research with the goal of

improving intelligibility of dysarthric speech using

deep generative modelling. Our approach is to

transform the original dysarthric speech signal in the

spectral domain by using a cycle-consistent Generative

Adversarial Network (CycleGAN) (Zhu et al., 2017),

and to synthesize a new speech signal from the trained

model. The resulting speech signals are used in an

objective evaluation to measure the efficacy of our

method.

2 SPEECH MATERIAL

Speech database of 100 dysarthric persons of low,

moderate and severe degrees of disability has been

recorded in a related project called QoLT (Quality of

Life Technology) supported by Korea Technology

Innovation Program for the purposes of developing

technologies to help the disabled lead better lives (Choi,

2011).

2.1 Reading Prompts

The reading prompts in Korean comprised of 37 APAC

(Assessment of Phonology and Articulation for

Children) words, 100 isolated command words, and 50

PBW (Phonetically Balanced Words) words, as shown

in Table 1. The command words were designed to

represent the Korean alphabet letters for the purpose of

speech recognition when controlling electronic

appliances, such as a cell phone, PC, TV, and a radio.

They corresponded to each Korean alphabet and

numbers, analogous to “alpha” for “a” and “bravo” for

“b” in English.

In order to avoid words that are difficult to

pronounce for people with dysarthria due to

complexity or unfamiliarity, 167 nouns with less than

four syllables were first extracted from a newspaper

corpus

(Kim, 2013). Five words were shown to each

Table 1: Composition of Read Speech Tasks and Number of

Speakers for Dysarthric and Control Groups in the QoLT

database.

Speakers Reading Prompts

100

Dysarthric

Persons

- 37 APAC words

- 100 command words

- 50 PBW words

30 Control

Persons

- 37 APAC words

- 100 command words

- 150 PBW words

dysarthric speakers who were asked to select their

preferred word for indicating each of the 28 Korean

alphabet letters and 10 numbers, in the order of their

preference. The list of selected words showed that they

preferred food and animal names and shorter words.

2.2 Dysarthric and Control Speakers

Dysarthric speakers were limited to those with cerebral

palsy due to brain damage before or during birth. The

speakers suffered from weak limbs and muscles and

experience difficulty in articulation due to neurological

injury or disease. The age range of the speakers was

from 30 to 40, and the ratio of male and female

speakers was 2:1. Healthy control speakers were also

recorded with the same age and gender distributions.

All speakers were recruited from Seoul National

Cerebral Palsy Public Welfare. Recordings were made

in the environment of a quite office with a Shure

SM12A microphone (Choi, 2011).

In order to manually assess the degree of disability,

a specialist in speech therapy who had 5 years of

experiences in PCC (Percentage of Consonant Correct)

assessed the severity of articulation of the dysarthric

speakers by listening to the APAC word recordings.

For the total 100 dysarthric speakers, four groups were

classified from mild (PCC: 85~100%), mild to

moderate (PCC: 65~84.9%), moderate to severe; (PCC:

50~64.9%), to severe (PCC: less than 50%) levels,

according to diagnostic classification of phonological

disorders suggested by Shriberg and Kwiatkowski

(Shriberg, 1982). The intra-rater reliability was .957,

calculated using Pearson's product moment correlation.

3 METHOD

3.1 Generative Adversarial Networks

GANs (Goodfellow et al., 2014) have attracted

attention for their ability to generate convincing

images and speeches. Conditional GANs are able to

solve

the style transfer problem between black and

Improving Dysarthric Speech Intelligibility using Cycle-consistent Adversarial Training

309

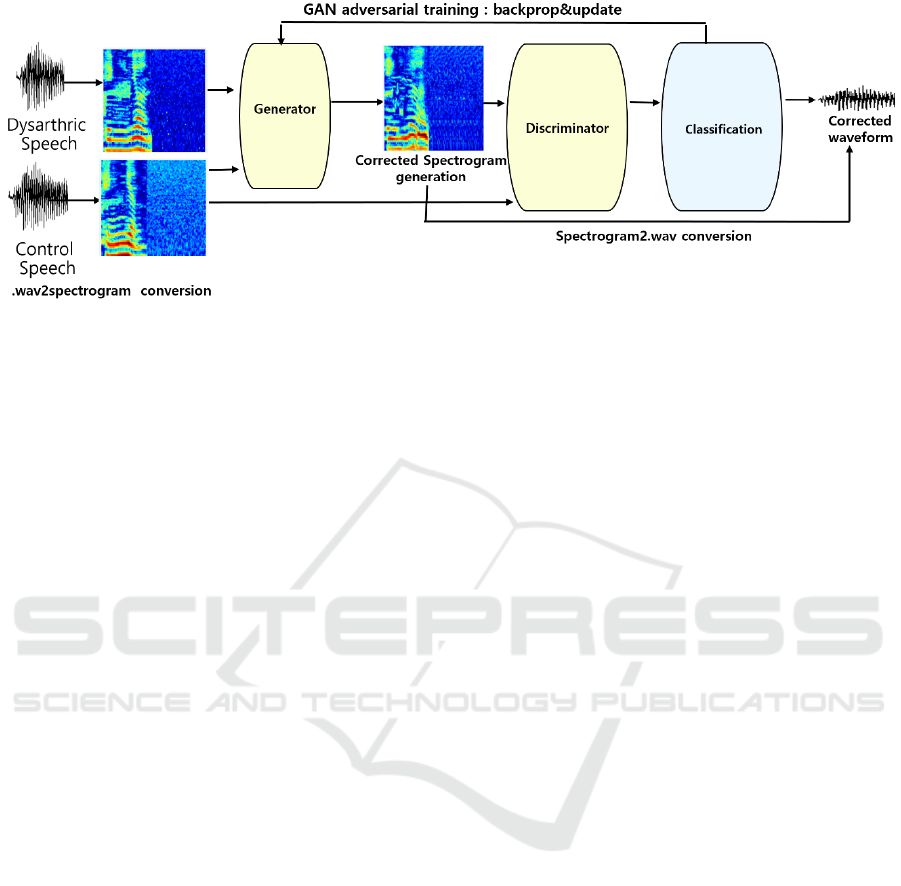

Figure 1: Framework of the proposed model: Control and dysarthric speech are first converted into spectrograms, which are

both fed into the generator that outputs fake samples. Discriminator classifies whether the input comes from the generator or

the control samples. After training, the generator model is applied to the test spectrograms, and its results are converted back

into waveforms for better intelligibility. The figure is adopted from a previous work (Yang and Chung, 2019) that used the

framework for accented speech conversion for pronunciation feedback generation.

white images to colored photos, aerial photos to

geographical maps, and hand-sketches to product

photos, to mention a few (Isola et al., 2017

). By

interpreting dysarthric speech improvement task as a

style transfer problem, we further explore the ability

of the generative adversarial learning.

GANs are generative models that learn to map the

training samples to samples with a prior distribution.

The generator (G) performs this mapping by imitating

the real data distribution to generate fake samples. G

learns the mapping by means of an adversarial

training, where the discriminator (D) classifies

whether the input is a fake G sample generated by G

or a real sample. The task for D is to correctly identify

the real samples as real, and thereby distinguishing

them from the fake samples. The adversarial

characteristic is due to the fact that G has to imitate

better samples in order to make D misclassify them as

real samples.

The misclassification loss is used for further

improvement of the generator. During the training

process, D back-propagates fake samples from G and

correctly classifies them as fake, and in turn, G tries

to generate better imitations by adapting its

parameters towards the real data distribution in the

training data. In this way, D transmits information to

G on what is real and what is fake. This adversarial

between G and D, which is formulated as:

min



max



V(D,G)= 

~







[log D(x)] +



~







[log(1-D(G(z))].

)

where P

data

(x) is the real data distribution, and

(z) is the prior distribution. For a given x, D(X) is

the probability x is drawn from P

data

(x), and D(G(z))

is the probability that the generated distribution is

drawn from P

(z).

The adversarial loss alone may not guarantee that

the learned function can map the input to the desired

output. In our case, this may result in inappropriate or

unwanted corrections generated by the network,

which is highly undesirable for communication

purposes. Cycle-consistency loss was further

introduced to reduce the space of possible mapping

functions (Zhu et al., 2017). This is incentivized by

the idea that the learned mapping should be cycle-

consistent, which is trained by the forward and

backward cycle-consistency losses described in the

following objective function:





G, F





~

[||F(G(x) - x||



] +



~

[||G(F(y) - y||



)

Here, the network contains two mapping

functions G : X → Y and F : Y → X.

This loss fucntion enforces forward-backward

consistency between two different domains and is

expected to be an effective way to regularize such

structured data (Kalal, 2010). Assuming that there is

some underlying spectral structure shared between

non-native and native linguistic domains, the trained

network can be thought of as learning a latent

representation of the input that maintains information

about the underlying linguistic content. This

motivates the proposal in the current study to

experiment with CycleGAN.

For each image x from domain X, the translation

cycle should be able to bring x back to the original

image, and vice versa. While the adversarial loss

trains to match the distribution of generated images to

the data distribution in the target domain, the cycle-

BIOSIGNALS 2020 - 13th International Conference on Bio-inspired Systems and Signal Processing

310

consistency losses can prevent the learned mappings

G and F from contradicting each other.

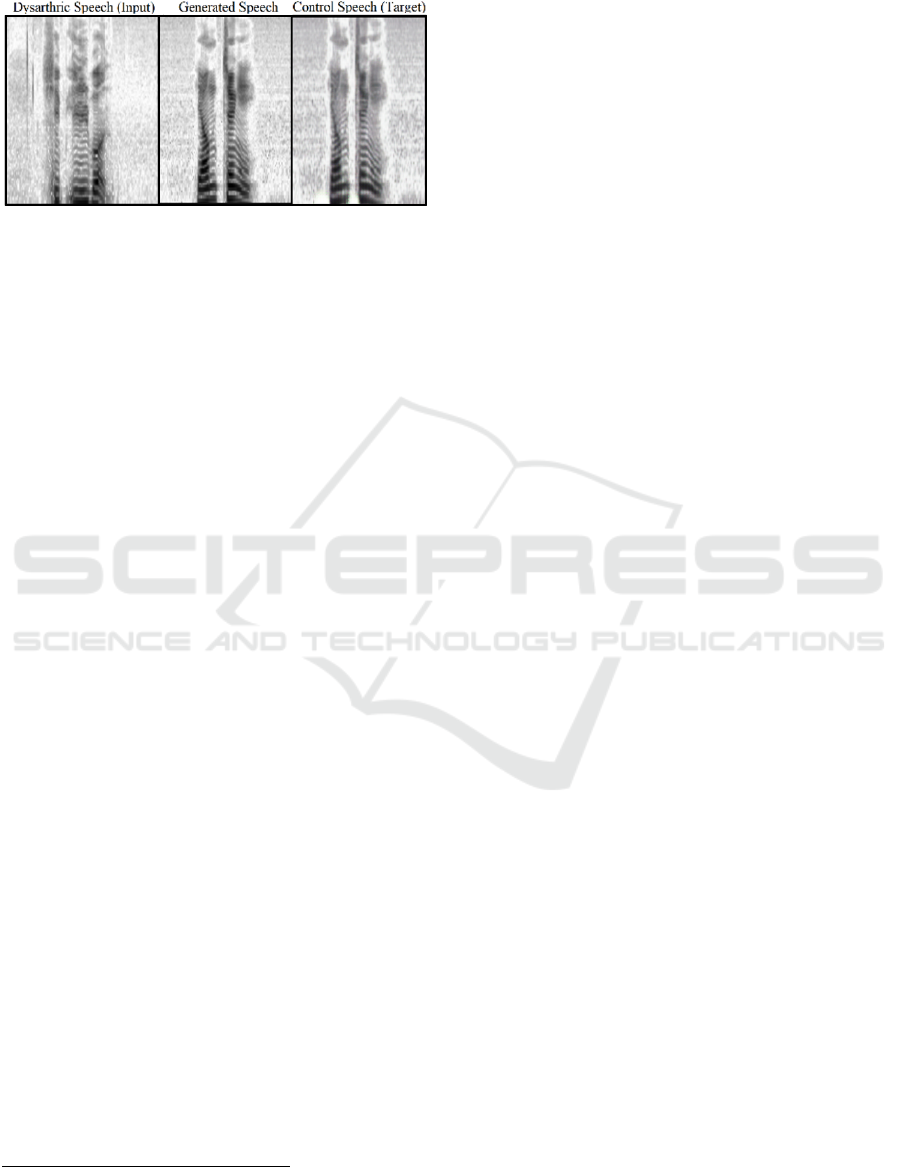

Figure 2: Comparison among input, output, and target

spectrograms. The generator learns to imitate the healthy

control group’s spectrogram by generating a fake version of

the reference.

3.2 CycleGAN for Improving

Dysarthric Speech

In this work, CycleGAN was adopted for the

dysarthric to healthy speech mapping task based on

two reasons. First, different renderings of the same

speech are possible since there can be numerous

“golden references,” and in theory, there are infinitely

many possible outputs. In order to avoid such

confusion, cycle-consistency loss seems desirable.

Moreover, despite the differences in the two

speech styles, the speech of the same utterance shares

an underlying structure. Since cycle-consistency loss

preserves the translation cycle, it is our hypothesis

that it will have the effect of preserving the global

structure of the input spectrograms. Therefore, it is

the hypothesis in this work that CycleGAN may have

the effect of prohibiting from generating infinitely

many possible acceptable outputs while preserving

the global structure of the input speech.

In the proposed method, features are

automatically learnt in an unsupervised way, in which

the generator learns to map dysarthric to control

speech distributions. This is implemented in the

following in five steps: 1) speech preparation in

dysarthric and healthy control domains, 2) speech-to-

spectrogram conversion, 3) spectrogram-to-

spectrogram training, 4) inversion back to

audiosignal, and 5) playback of the generated audio.

GAN is used in the third step and the conversion

techniques are used during the second and the fourth

steps. In order to train using GAN, the prepared

samples are fed into the generator, where adversarial

training is done using the discriminator which

classifies whether the samples are fake (generated

https://github.com/bkvogel/griffin_lim

speech) or real (healthy speech). The process is

shown in Figure 1.

3.3 Speech and Spectrogram

Conversions

We first convert audio signal to a wideband

spectrogram using Short-Time Fourier Transform

(STFT) with windows of 512 frames and 33% overlap.

It is converted to wideband spectrograms ranging

from 100-200Hz, which allows for high quality

output in the time resolution. It is then converted to

dB amplitude scale, and padded with white noise to

generate 128x128 pixels images. White noise padding

is done in order to adjust the variability in speech

length to a fixed size. We use the python

implementation of the Griffin and Lim algorithm to

reconstruct the audio signal from the spectrograms by

using the magnitude of the STFT (Griffin et al., 1984).

The algorithm works to rebuild the signal such that

the magnitude part is as close as possible to the

spectrogram. For high quality output and minimum

loss in transformations, it is run for 1,000 iterations,

as suggested in the python implementation of the

framework

3.4 CycleGAN Implementations

The cycle-consistent adversarial training follows the

same network architecture as (Zhu et al., 2017),

which adopts the generator architecture from

(Johnson et al., 2016) that uses deep convolutional

generative adversarial network. For the discriminator

training, Markovian PatchGAN (Isola et al., 2017) is

used for classifying if each N x N patch in an image

is real or fake.

Dysarthric and control spectrogram images are

fed into the CycleGAN network. Data augmentation

option by flipping images is disabled and batch size

was increased to 4 from the default 1. When the

training is finished, the model is applied to all the test

spectrograms. Web interface visualization of the

training process, which was offered in the python

implementation, was used to monitor the training and

track how spectrogram and the corresponding sounds

evolve over time.

4 RESULTS AND EVALUATION

Figure 2 shows the spectrograms for dysarthric,

generated, and healthy control speeches. It shows that

Improving Dysarthric Speech Intelligibility using Cycle-consistent Adversarial Training

311

the generator learns to imitate the healthy control

group’s spectrogram by generating a fake version of

the reference. After training, the generator has

discovered to generate spectrograms with higher

proximity to the health control. Since the test data was

completely held out, this means that the model

learned to recognize which word the spectrogram

represents, and identified how dysarthric speech

spectrogram should be mapped to the healthy control

spectrogram.

4.1 Evaluation

Table 2 displays the automatic speech recognition

performance in terms of Sentence Error Rate (SER)

obtained from 100 test samples of generated speech

signals and 200 samples of the original signals from

the QoLT database. We report SER scores instead of

the Word Error Rate (WER) because each sample

consists of an isolated word. The test samples are

generated sounds and contains a certain amount of

noise and artifacts, which may lower recognition

accuracies. The latter includes clean speeches from

control and dysarthric groups. An open source speech

recognition engine is used (Google, 2018).

The isolated word recognition of the clean speech

of the control group shows 7% error rate. Comparing

the recognition accuracies of the original dysarthric

with the generated speech the system performance is

improved using the proposed method. The absolute

SER rate has been lowered by 33.4%, even with some

artifacts introduced in the course of lossy conversions.

The performance gain in this objective evaluation

suggests that the proposed method can bring benefits

to dysarthric speech intelligibility.

Table 2: Automatic speech recognition performances of the

proposed CycleGAN approach. Open source API is used

and is measured in SER.

Type

Control

Speech

CycleGAN

Generated

Speech

Dysarthric

Speech

SER (%) 7 33.3 66.7

5 CONCLUSION

This study lays the groundwork for an automatic

speech correction system for dysarthria speech.

Motivated by the visual differences found in

spectrograms of dysarthric and control group

speeches, we investigated applying GAN to enhance

dysarthric speech intelligibility by utilizing

generator’s ability through adversarial training.

Because this mapping is highly under-constrained, we

also adopt cycle consistency loss to encourage the

output to preserve the global structure, which is

shared by dysarthric and control group utterances.

Trained on 18,700 spectrogram images in the

dysarthric domain and on 8,610 spectrogram images

in the control group domain, composed of short

utterances in Korean, the generator is able to

successfully transform the impaired speech

spectrogram input to a spectrogram. The evaluation

shows that cycle-consistent adversarial training is a

promising approach for dysarthric speech conversion

task. In our future work, we plan to conduct

perception test in order to verify the improved

intelligibility. Also, we plan to improve speaker voice

imitability and explore other speech reconstruction

method to minimize the noise in the generated speech.

ACKNOWLEDGEMENT

This research is supported by Ministry of Culture,

Sports and Tourism(MCST) and Korea Creative

Content Agency(KOCCA) in the Culture

Technology(CT) Research & Development Program

2020.

REFERENCES

Beukelman, D.R., Mirenda, P., 2005. Augmentative and

Alternative Communication Management of Severe

Communication Disorders in Children and Adults, In

third ed. Paul H. Brookes. Baltimore, MD.

Bi, N., Bi, Y., 1997. Application of speech conversion to

alaryngeal speech enhancement IEEE Trans. In Speech

Audio Process., 5 (2), pp. 97-105.

Biadsy, Fadi, et al. Parrotron: An End-to-End Speech-to-

Speech Conversion Model and its Applications to

Hearing-Impaired Speech and Speech Separation. In

Proceedings of INTERSPEECH, Graz, Austria. 2019.

Choi, Dae-Lim, et al., 2011. Design and creation of

dysarthric speech database for development of QoLT

software technology. In 2011 International Conference

on Speech Database and Assessments (Oriental

COCOSDA). IEEE.

Darley, F., Aronson, A., Brown, J., 1969. Differential

diagnostic patterns of dysarthria. In Journal of Speech

Hearing. 12 (2), 246–269.

Drager, K., Hustad, K., Gable, K., 2004. Telephone

communication: Synthetic and dysarthric speech

intelligibility and listener preferences. In Augment.

Alternat. Comm. 20 (2), 103–112.

Enderby, P., and Emerson, L., 1995. Does Speech and

Language Therapy Work? In Singular Publications

p.84.

BIOSIGNALS 2020 - 13th International Conference on Bio-inspired Systems and Signal Processing

312

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

WardeFarley, D., Ozair, S., Courville A., and Bengio.

Y., 2014. Generative adversarial nets. In Advances in

Neural Information Processing Systems, pp. 2672–

2680.

Griffin D., and Lim, J., 1984. Signal Estimation from

Modified Short-Time Fourier Transform, In IEEE

Transactions on Acoustics, Speech and Signal

Processing. vol. 32, , pp. 236–243.

Google, “Cloud speech-to-text,”

http://cloud.google.com/speech-to-text/, 2018.

Hawley, Mark S., et al., 2006. Development of a voice-

input voice-output communication aid (VIVOCA) for

people with severe dysarthria. In International

Conference on Computers for Handicapped Persons.

Springer, Berlin, Heidelberg,

Hironori, D., Nakamura, K., Tomoki, T., Saruwatari, H.,

Shikano, K. 2010. Esophageal speech enhancement

based on statistical voice conversion with gaussian

mixture models. IEICE Trans. Inf. Syst. 93 (9), 2472–

2482.

Hosom, J-P., et al., 2003. Intelligibility of modifications to

dysarthric speech. In 2003 IEEE International

Conference on Acoustics, Speech, and Signal

Processing, 2003. Proceedings. (ICASSP'03). Vol. 1.

IEEE.

Isola, P., Zhu., Efros., 2017. Image-to-Image Translation

with Conditional Adversarial Networks," In

Proceedings of CVPR.

Johnson J., A. Alahi, and L. Fei-Fei., 2016. Perceptual

losses for real-time style transfer and super-resolution.

In Proceedings of ECCV.

Kain., Alexander B., et al., 2007. Improving the

intelligibility of dysarthric speech. In Speech

communication 49.9. pp.743-759.

Kain, Van Santen, A. Kain, J. Van Santen., 2009. Using

speech transformation to increase speech intelligibility

for the hearing-and speaking-impaired. In Proceedings

of the ICASSP.

Kalal, Z., K. Mikolajczyk, Matas J., Forward backward

error: Automatic detection of tracking failures. In

ICPR, 2010.

Kim, S., et al., 2013. VUI development for Korean people

with dysarthria." Journal of Assistive Technologies 7.3.

pp. 188-200.

Takashima, A., Takiguchi, A., Takashima, T. Takiguchi,

Ariki, Y., 2013. Individuality-preserving voice

conversion for articulation disorders based on non-

negative matrix factorization. In Proceedings of the

ICASSP (2013).

Tanaka, T., Toda, G., Neubig, S., Sakti, S., Nakamura A.,

2013. Hybrid approach to electrolaryngeal speech

enhancement based on spectral subtraction and

statistical voice conversion. In Proceedings of the

INTERSPEECH (2013)

Toda, N., Shikano, M., Nakagiri, K., 2012. Statistical voice

conversion techniques for body-conducted unvoiced

speech enhancement. In IEEE Trans. Audio Speech

Lang. Process., 20 (9), pp. 2505-2517

Toda, N., Saruwatari S., Shikano, et al., 2014. Alaryngeal

speech enhancement based on one-to-many eigenvoice

conversion In IEEE/ACM IEEE Trans. Audio Speech

Lang. Process

., 22 (1) (2014), pp. 172-183

Nakamura, T., Toda, H., Saruwatari, K., Shikano., 2006. A

speech communication aid system for total

laryngectomies using voice conversion of body

transmitted artificial speech. In J. Acoust. Soc. Am., 120

(5) (2006), p. 3351

Nakamura, T., Toda, H., Saruwatari, K., Shikano., 2012.

Speaking-aid systems using GMM -based voice

conversion for electrolaryngeal speech In Speech

Commun., 54 (1), pp. 134-146

Shriberg, L. D., and Kwiatkowski J., 1982. Phonological

disorders I: A diagnostic classification system. In

Journal of Speech and Hearing Disorders., 47.3, pp.

226-241.

Yamagishi, C., Veaux, S., King, S. 2012, Renals Speech

synthesis technologies for individuals with vocal

disabilities: voice banking and reconstruction. In

Acoust. Sci. Technol., 33 (1), pp. 1-5.

Yang, S. H., and Chung, M., 2019. Self-imitating Feedback

Generation Using GAN for Computer-Assisted

Pronunciation Training. In Proceedings of Interspeech

2019., pp. 1881-1885.

Zhu, J. Park, T., Isola, Efros A., 2017. Unpaired Image-to-

Image Translation using Cycle-Consistent Adversarial

Networks," In Proceedings of ICCV.

Improving Dysarthric Speech Intelligibility using Cycle-consistent Adversarial Training

313
