Encryption Algorithms for WSN - IOT: A Software based Analysis

with Contiki Cooja

Yves Frederic Ebobisse Djene

1,2 a

, Amine Berrazzouk

, Brahim El Bhiri

and Youssef Fakhri

LARIT- IBN Tofail University, Kenitra, Morocco

SMARTiLab EMSI, Rabat, Morocco

Keywords: Wireless sensor network (WSN), IOT, simulation, cryptography, algorithms, contiki, analysis, evaluation

Abstract: IOT has increasingly become part of people’s daily lives and is applied in an incredibly broad range of

domains (transport, logistics, agriculture, etc…). Though initial applications of IOT did not take security into

consideration, it has become an important field of research. This paper focuses on encryption algorithms

evaluation using Contiki Cooja simulator. We mainly analyze the impact of the mode of operation, key length

and blocks as we measure the number of clock ticks on sensor nodes.

1 INTRODUCTION

The IOT (Internet of Things) global market is meant

to reach 1.6 trillion US dollar in 2025, with more

devices interconnected and communicating through

the internet (Tankovska, 2020). As we go through

literature, there are several definitions of IOT (Ray,

2018):

– ‘‘3A concept: anytime, anywhere and any media,

resulting into sustained ratio between radio and man

around 1:1”

– ‘‘A global infrastructure for the information society

enabling advanced services by interconnecting

(physical and virtual) things based on, existing and

evolving, interoperable information and

communication technologies”

(Ray, 2018) identified several functional blocks

required to build an IOT infrastructure. Among these

are:

– Devices: sensors, actuators, monitoring devices,

etc... that collect data and process it locally or send it

to centralized servers. These devices usually have

constrained capabilities in terms of storage and

processing for instance.

– Communication: an important part of the

architecture that involves protocols at the datalink,

network, transport and application layer

https://orcid.org/0000-0003-4929-7362

– Services: such as device control and monitoring, as

well as data publishing and analytics which need to

be provided by a complete system

– Applications: in order to monitor the overall system,

fields-oriented applications (agriculture, health,

transport, smart grids) are required to keep track of

the changes in the system and ease decision making.

– Security: copes with everything related to security

in the system.

An IOT architecture is based on 3 important layers

(Rwan, 2015):

 The perception layer “senses” the environment,

in other words, it collects data from the real

world (physical environment or nodes) and

transmits it to the Network layer.

 The Network layer is in charge of data routing

and transmission from one end to another end

of the system (for example from a sensor to a

sink, a gateway, or base station, etc..).

 Application layer guarantees confidentiality,

authenticity and integrity of the collected data

and helps create the smart environment.

If security was a neglected issue at the early stages of

IOT development, it became a non-negligible aspect

that needs to be properly addressed in IOT systems.

Some IOT security issues relate to (Ray, 2018):

 Confidentiality: we need to secure data and

deliver it to authorized users

 Integrity: ensure that the accuracy of the data

received and transmitted using end-to-end

security in communications.

 Availability: data and devices must be

accessible and reachable whenever required

 Authentication: be able to identify each IoT

entity in the system

 Lightweight solutions: because of their

constrained capabilities in terms of energy,

computational power and storage, IoT devices

require lightweight protocols and applications

as we will later examine in this study.

 Heterogeneity: entities in an IOT system may

come from different vendors, with different

levels of specifications, but these specifications

should still be able to seamlessly cooperate.

 Key Management System: whenever

exchanged, data needs to be encrypted.

There are further security issues in IOT systems

mentioned by (Sha, 2018) as :

 Integration with the physical world: a corrupted

or wrong data transmitted by sensors in a train

or a plane can have irremediable consequences.

If the data is for example tampered by

unauthorized access, it can endanger people’s

lives.

 Heterogeneity of devices and communications:

depending on the domain of application, IOT

systems do not have the same requirements

when it comes to devices. Monitoring a farm,

an industrial compound, a home or smart Grid

comes with different costs in terms of physical

architectures and communication schemes.

While some may stress on data updates others

may rely on more secure channels.

 Scalability: Deploying IoT systems increase

interactions within the architecture, between

nodes and outside the environment, with data

servers, etc… As the number of entities grows,

it is important to ensure the availability, the

liability and the reliability of the system

 Resource constraints: as we previously

mentioned, due to resource limitations, IoT

devices are designed with low capabilities.

Some features that need to be integrated in IoT

architectures involve more challenges just as

encryption, trust management and PKI usually

require more powerful systems.

Addressing these issues and implementing

solutions within IoT systems have an impact in

several aspects of the behaviour of the environment

in terms of energy consumption, reliability and

availability.

Our focus in this paper is the evaluation of some

encryption algorithms on nodes in IoT/WSN

architectures.

The present study explores literature and related

work defining encryption modes and types as well as

some performance analysis. Simulations,

methodologies, results and their analysis are also

presented.

2 RELATED WORK

When it comes to security challenges in IOT and

WSN architectures, there are several aspects that can

be addressed. (Mardiana binti Mohamad, 2019)

analysis of publications in IoT security from 2016 to

June 2018 (Elsevier, IEEE, Hindawi and Springer)

showed that most papers focused respectively on

authentication, trust, encryption and secure routing.

It is important to note that this evaluation may

suffer some flaws because cryptography (encryption

and decryption) is transverse to the previously

mentioned fields. We can simply consider encryption

as the process of transforming a plain text into a

cypher text using a hash. This process can be reverted

by the receiver via a key (deciphering).

Cryptography helps achieving several security

goals in information systems in general. Through

encryption and decryption, the sender and the

receiver can communicate with a certain level of

security. Depending on the encryption method,

messages are meant to be useless for any

unauthorized third party. By using hashing and

message digests, data’s integrity can be verified,

while digital signatures and certificates tackle

authentication goals.

(Mardiana binti Mohamad, 2019) also pointed out

that security can be applied at different layers of an

IoT architecture (physical, network or application).

As we examine encryption systems, we will gradually

investigate their effect on IoT or WSN devices and

networks.

2.1 Encryption Modes

Encryption can be either done through a stream cipher

that is byte-by-byte, or with block cyphers of fixed

lengths when you work on larger blocks (Meneghello,

2019). Different operating modes can be used to

encode and decode larger blocks namely (Kowalczyk,

2020):

 ECB (Electronic CodeBook): each plain block

is encrypted and decrypted separately with a

key.

 CBC (Cipher Block Chaining): the initial block

is encrypted with the initializing vector. A

XOR operation is performed with the plaintext

block before encryption with the key. Next

block uses the previous cypher block in the

same manner. In order to decipher the stream,

the first encrypted block is decrypted, then a

XOR operation is applied to the result to get

one plaintext block. Next step involves

deciphering the new block with the key and

applying a XOR operation with the cyphertext

of the previous step.

 CTR (Counter): a number used once (nonce) is

added to a counter and encrypted using the key.

The final cipher block is then obtained through

a XOR operation with the plain text. If you

have several blocks, the counter increases for

each block. The same operation is done for

decryption by switching the positions of the

cipher and the plaintext.

More modes are available such as OFB (Output

FeedBack), CFB (Cipher FeedBack), and PCBC

(Propagating or Plaintext Cipher-Block Chaining) but

were not part of our study.

It is important to mention that these modes are

related to the way blocks/stream are treated when

encryption/decryption is performed. When you

consider encryption algorithms, there are two main

techniques.

2.2 Encryption Techniques

 Asymmetric Encryption

Also referred as the public key cryptography, it

requires two keys: one public key used by the sender

to encrypt data and the corresponding private key

used by the receiver to decrypt the data.

 Symmetric Encryption

The secret key cryptography or symmetric

encryption involves a unique key that is used by the

sender and the receiver. At one end of the

communication, encryption is performed and at the

other end, decryption, using the same key.

AES (Advanced Encryption Standard), DES

(Data Encryption Signature), 3DES (Triple DES) and

Blowfish are examples of symmetric encryption

algorithms while Diffie Hellman Key agreement,

RSA (Rivest Shamir Adleman), El Galmal, DSA

(Digital Signature Algorithm) and ECC (Elliptic

Curve Cryptography) are asymmetric. These

algorithms usually necessitate heavy computational

power and resources that IoT devices may not have.

The performance of four algorithms namely AES,

DES, 3DES and Blowfish was compared with ECB

and CBC modes respectively as shown in figures 1 &

2 (Tamimi, 2006). The amount of time required to

perform encryption and decryption was then

analyzed. According to their work, Blowfish was the

fastest in both modes, and AES increased rapidly with

the size of the block. They also stated that these

results were different from other works in literature

because of the size of data size used.

It is important to mention that these experiments were

conducted on 3500+ AMD 64bits processor with 1Gb

of RAM and using C# and visual studio. Even if this

work seems to be outdated, it does not comply with

the IoT/WSN environment that impose some

limitations in terms of RAM, storage and

computational power in order to evaluate the effect on

IoT and WSN networks and devices.

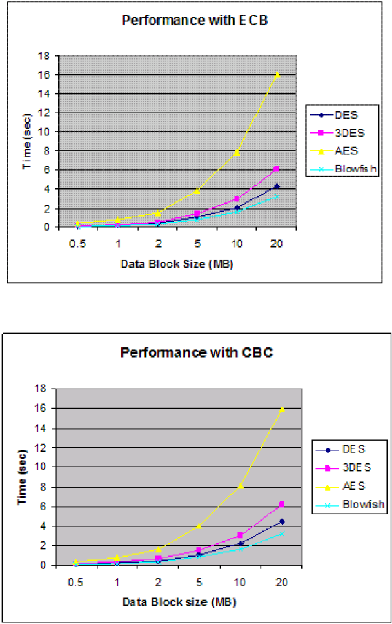

Figure 1 : ECB mode Performance

Figure 2 : CBC mode Performance

(Mansour, 2012) evaluated several algorithms (both

symmetric and asymmetric) on sensors nodes with

regard to energy consumption. They implemented

their algorithms in nesC, a programming language for

networked embedded systems using TelosB motes

(sensors with 16-bit 8MHz

TI MSP430 micro-processor) while their asymmetric

implementation of algorithms was based on

TinyECC. Their results encompassed every stages of

the encryption, from initialization to

encryption/decryption phases (for symmetric keys) as

well as the generation and exchange of private/public

keys, the calculation of symmetric key between two

nodes (for asymmetric encryption). They compared

AES, CHAOS (CTR mode) - two symmetric

algorithm on one hand - and ECIES (Elliptic Curve

Integrated Encryption Scheme) coupled with AES

and CHAOS with regard to execution time but also in

terms of energy consumption. From their results 1

byte consumes the same amount of energy for

encryption and decryption for AES and CHAOS

while Asymmetric Algorithms show a higher

consumption for the respective operations.

Asymmetric algorithms tend to consume minimum

100 times amount of energy as illustrated in table I

based on their work.

Table 1: Energy Consumption in mJ (Mansour, 2012)

Algorithm Encrypt Decrypt

SYMME

-TRIC

AES-CTR

0.07 0.07

CHAOS-

CTR

0.01 0.01

ASYM-

METRIC

ECIES/AES

2.1 1.4

ECIES/

CHAOS

1.9 1.3

Meanwhile, (Ghehioueche, 2019) evaluated the

performance of AES, Trivium, ECIES, RSA and

McEliece algorithms. TOSSIM and AVRORA

simulators were used to evaluate computational and

power consumption, using MICAZ sensor. McEliece

was implemented using NesC without optimization.

Their work came in line with the result obtained in

(Mansour, 2012) meaning that private key encryption

algorithms are faster and consume less energy than

public shared algorithms. Table 2 provides a

summary of the work by (Ghehioueche, 2019).

Table 2: Energy Consumption in mJ (Ghehioueche, 2019)

orith

Encr

tion Decr

tion

SYMME

TRIC

AES

0.013 0.016

TRIVIUM

25.4391 25.3159

ASYMME

TRIC

ECIES

33.535 20.658

RSA

44.012 43.249

Mc Eliece

110.5004 -

3 EXPERIMENTS AND

SIMULATIONS

Based on related work, we explored several

possibilities to establish our own simulations and

tests. Our main objective was to first find a way of

calculating the Energy consumption of an algorithm

regardless of initialization phases on the nodes part of

the system.

3.1 Environment

There are several simulators that can be used to

simulate WSN IOT. (Mardiana binti Mohamad,

2019) ‘s review of related work mentioned

MATLAB, NS2 &3, AVISPA, OPTNET, MICA2

and Contiki. Some of them are meant to simulate

networks without really emulating sensors. We ended

up working with Contiki because we could program

several types of nodes as well as using a Java

graphical tool to simulate (Cooja) and collect data.

Contiki (Contiki, 2019) programs are written in C

while the simulator requires Java. Contiki does not

only allow simulation of sensor nodes, but also IOT

devices.

Our experiments were conducted on i-5 3400Ghz

8Go RAM computer with Windows 7 (64bytes). We

used a VMware virtual Machine based on Ubuntu

18.04LTS 64bytes version and 8Gb of RAM. We

were also able to install two versions of Contiki and

compared the results obtained. We used the following

implementations of AES(Kokke, 2019), DES and

3DES(Ibeatu, 2019). It is also important to note that

although there are several models of sensors available

in Contiki Cooja simulator, we mainly worked with

Skymote.

3.2 Methodology

As we mentioned in the previous paragraph, we used

two methods to run simulations. These methods are

directly related to the version of Contiki used.

 Method 1 using Contiki 3.0: this method just

requires to add or copy the header and c files

(aes.h and aes.c for example), either at the root

of the project or in the libraries’ directory

 Method 2 using Contiki 2.7: here, there is need

to first build a library using MSP430-GCC.

This operation requires to build libraries for

each type of node used

In the simulator, we created nodes implementing

different encryption algorithms with different block

sizes. We measured clock sticks at the beginning of

the process (encryption or decryption) and calculated

the difference (number of clock sticks executed to

perform an operation). We did not set initialization

phases (exchange of keys, vector) but rather

considered that they were already available for the

node. We tested different sizes of blocks (16, 32,48

and 64 bytes) as well as various operational modes

(ECB, CTR, CBC for AES in instance), and different

key lengths (48, 128, 192, 256) depending on the

parameters available for the algorithm. Each node

implemented an encryption algorithm with specific

parameters. For each type of node, 100 rounds were

executed and the mean clock ticks of the round were

used in order to compare the algorithms.

Table 3 summarizes the available algorithms,

mode of operation, cipher block size and key length.

Each of the entries of Table III has been implemented

into a node and tested. We choose to present our

results based on the number of clock ticks for each

operation because, combined with the mote data sheet

characteristics (voltage, current, and CLOCK TIME)

the amount of energy consumed by encryption or

decryption for a specific algorithm can easily be

calculated.

Table 3: Encryption Algorithms (Mode, keylength, Size)

Algorithm

Mode Key length Block Size

AES

CBC

256,192,128 16,32,48,64

ECB

256,192,128 16

CTR

256,192,128 16,32,48,64

DES Not

available

48 16,32,48,64

3DES

Not

available

48 16,32,48,64

3.3 Results and Discussion

It is important to note at this level that Method 1 is

presented here because it generated quicker results.

Method 2 gave similar observations with different

values and will be presented at the end of the paper.

The first noticeable remark is the fact that using a

specific mode and size of block, the key length has no

effect on the calculation. It is illustrated with CBC

Mode at 16bytes (figure 3) and 32 bytes (figure 4)

block sizes, respectively. Similar observations were

obtained at 48 and 64 bytes block sizes for CBC (not

presented).

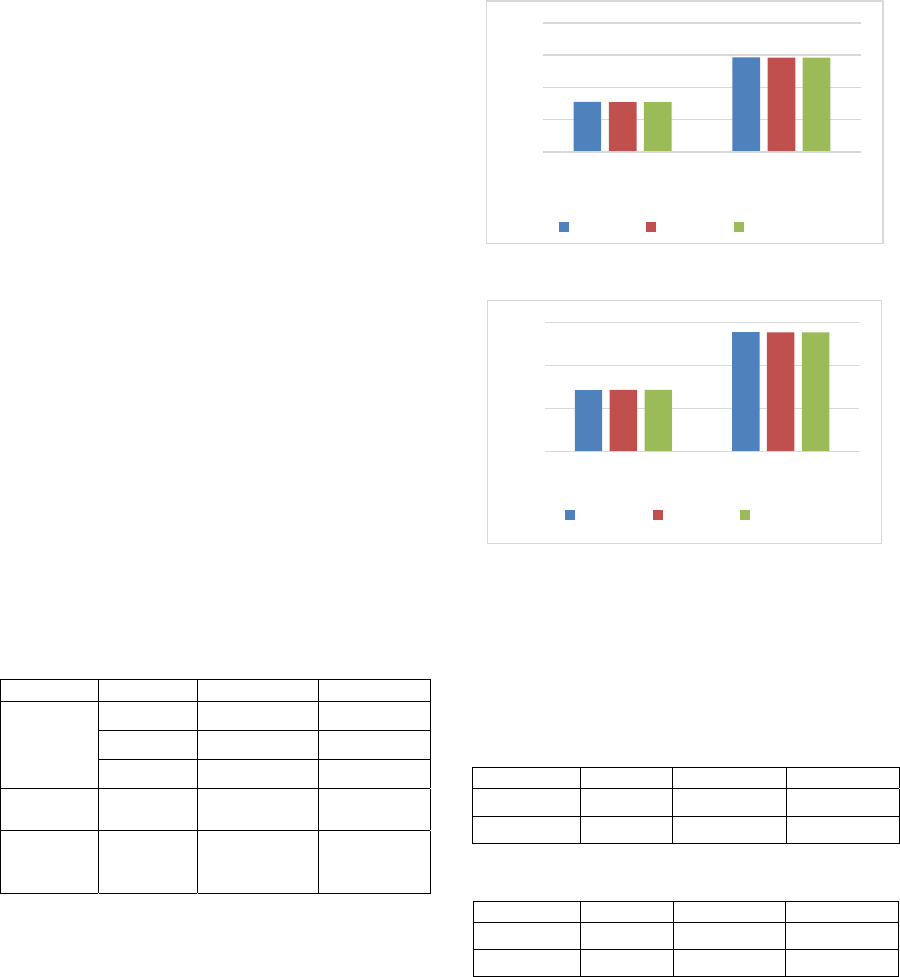

Figure 3: CBC results with 16bytes block size

Figure 4: CBC results with 32bytes block size

Tables 4 and 5 show that similar measurements

were obtained when we compared CTR and ECB

modes with 128, 192 and 256 bytes key lengths

respectively, for the same block size to encrypt and

decrypt.

Table 4: AES CTR 32 bytes block size

CTR128 CTR192 CTR256

ENCRYPT

290 291 291

DECRYPT

290 290 290

Table 5: Clock ticks (AES ECB 16 bits block size)

ECB128 ECB192 ECB256

ENCRYPT

150 149 149

DECRYPT

286 286 286

It was also observed that for the same block size

and key length, encryption with CBC, ECB and CTR

use almost the same number of clock sticks (figure 5).

On the other hand, when it comes to decryption of

blocks, CTR Mode tends to use almost half of the

value needed by CBC and ECB which were relatively

close.

100

200

300

400

Encrypt Decrypt

CBC128 CBC192 CBC256

200

400

600

Encrypt Decrypt

CBC128 CBC192 CBC256

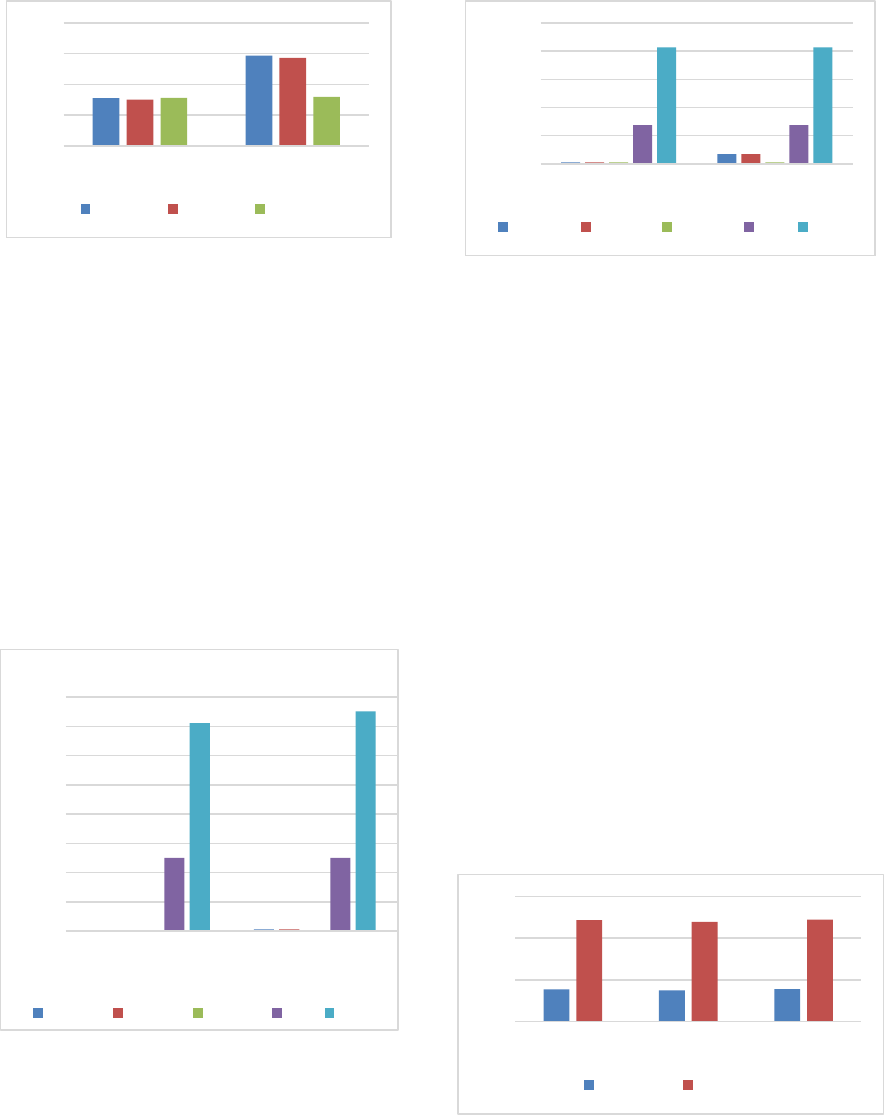

Figure 5: CBC, ECB, CTR results using 128 bytes key

length and 16 block size.

As illustrated in figure 6, and conformingly with

previous studies, DES and 3DES consume a far

greater number of clock ticks than AES in various

modes (16 bytes blocks). The tendency reported by

studies using computers was clearly observed in

sensor nodes.

Figure 7 illustrates the same conclusion using

Method 2. The same huge difference between DES,

3DES and AES with the same size of block was

observed. Thus, these two algorithms (DES, 3DES)

are not suitable for Wireless Sensor Networks and

IoT devices as they will consume more energy and

subsequently reduce the lifespan of nodes in the

network.

Figure 6: AES (CBC, ECB, CTR) vs DES/3DES for

16bytes block (Method 1)

Figure 7: AES (CBC, ECB, CTR) vs DES/3DES for

16bytes block (Method 2)

Finally, comparing the two methods used in this

study. It was noticed that Method 1 gave, for the same

type of node (Skymote), better results compared with

Method 2. The second method uses almost three times

the number of clock ticks used in the first method

(figure 8) and even more when deciphering a 16 block

of data, except for the CTR Mode. Using a different

type of node (for example wismote) also generated

different results although the same pattern was

maintained.

It was mentioned earlier in this study that CTR

Mode consumed almost the same number of clock

ticks for encryption and decryption. However, DES

and 3DES results were not included in figures 8 and

9 as a conclusion was previously drawn compared to

other algorithms.

At this point it is important to note that method 2

only works with targeted devices i.e a library has to

be built for each targeted device and some

incompatibilities might arise. For example, we were

able to compile, simulate and take measurements with

Wismote using method 1 while no solution was found

for method 2.

Figure 8: Comparison of Method 1 and Method 2 for

(encryption)

100

200

300

400

Encrypt Decrypt

CBC128 ECB128 CTR128

5000

10000

15000

20000

25000

30000

35000

40000

Encrypt Decrypt

CBC128 ECB128 CTR128 DES 3DES

10000

20000

30000

40000

50000

Encrypt Decrypt

CBC128 ECB128 CTR128 DES 3DES

200

400

600

CBC128 ECB128 CTR128

Method1 Method2

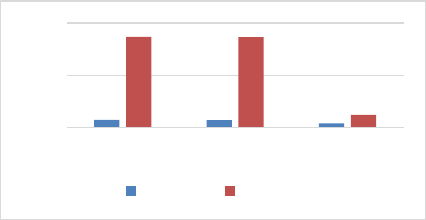

Figure 9: Comparison of Method 1 and Method 2 for

decryption

4 CONCLUSIONS

Our work focused on evaluating the number of clock

ticks required to perform encryption and decryption

on wireless sensor nodes using different modes (ECB,

CBC, CTR) for AES, DES and 3DES with different

key lengths and block size of data (16, 32, 48 and 64).

We observed that the length of the key does not have

a significant impact on the consumed energy

irrespective of the block size and the mode used or the

method. As concluded by previous studies, DES and

3DES consume more energy compared with AES.

CTR mode proved to be more efficient when it comes

to decryption of data, compared with other AES

modes. Depending on the method used (1 or 2), the

results are different. Method 1 exhibited the capacity

to be deployed on different sensor types of and

consumed less energy while Method 2 requires the

creation libraries for each type of nodes. We were

unable to create libraries for other nodes other than

skymote. Future works may include testing on real

sensors, adding more encryption algorithms,

introducing improvements made in IoT architectures

compared with WSN and evaluating the performance

of these methods on a network.

ACKNOWLEDGEMENTS

The authors would like to thank SMARTiLab/ EMSI

for support and material.

REFERENCES

Contiki Operating System. 2019 [C, Java, C++, Python].

Retrieved April 12, 2020, from

https://github.com/contiki-os/contiki/releases

Ghehioueche, A. A., Chikouche, N., Mezrag F., 2019.

Performance Evaluation and Analysis of Encryption

Schemes for Wireless Sensor Networks. In

International Conference on Digitization (ICD),

Sharjah, United Arab Emirates, 2019, pp. 187-191

Ibeatu, 2019. The TRIPLE-DES Algorithm Illustrated for

C code. https://github.com/lbeatu/The-TRIPLE-DES-

Algorithm-Illustrated-for-C-code

Kokke, 2019. TinyAES Implementation (1.0).

https://github.com/kokke/tiny-AES-c

Kowalczyk, C., 2020. Block Ciphers Modes of Operation.

CRYPTO-IT. http://www.crypto-

it.net/eng/theory/modes-of-block-ciphers.html

Mansour, I., Chalhoub, G. 2012. Evaluation of different

cryptographic algorithms on wireless sensor network

nodes. 2012 International Conference on Wireless

Communications in Underground and Confined Areas.

pp1–6.

Mardiana binti Mohamad, N., Wan Haslina, H., 2019.

Current research on Internet of Things (IoT) security: A

survey. In Computer Networks, 148, pp 283–294.

Meneghello, F., Calore, M., Zucchetto, D., Polese, M.,

Andrea Zanella, A., 2019. IoT: Internet of Threats? A

survey of practical security vulnerabilities in real IoT

devices. In IEEE Internet of Things Journal, 5(6), pp

8182–8201.

Ray, P.P., 2018. A survey on Internet of Things

architectures. Journal of King Saud University –

Computer and Information Sciences, 30, pp 291–319.

Rwan, M., Tasneem, Y., Fadi, A., Imran, Z., 2015. Internet

of Things (IoT) Security: Current Status, Challenges

and Prospective Measures. In 10th International

Conference for Internet Technology and Secured

Transactions (ICITST), pp. 336-341

Sha, K., Wei, W., Yang, A., Wang, Z., Shi, W., 2018. On

security challenges and open issues in Internet of

Things. Future Generation Computer Systems, 83, pp

326–387.

Tamimi, A., (2006). Performance Analysis of Data

Encryption Algorithms.

https://www.cse.wustl.edu/~jain/cse567-

06/ftp/encryption_perf/

Tankovska, H., 2020. Forecast end-user spending on IoT

solutions worldwide from 2017 to 2025. Statisticca.

https://www.statista.com/statistics/976313/global-iot-

market-size/

2000

4000

CBC128 ECB128 CTR128

Method1 Method2
