The addRole-EA: A New Evolutionary Algorithm for the Role Mining

Problem

Simon Anderer

, Daniel Kreppein

, Bernd Scheuermann

and Sanaz Mostaghim

Faculty of Management Science and Engineering, Hochschule Karlsruhe, Moltkestrasse 30, Karlsruhe, Germany

Institute for Intelligent Cooperating Systems, Otto-von-Guericke Universit

at, Magdeburg, Germany

Keywords:

Role Bases Access Control, Role Mining Problem, Evolutionary Algorithm.

Abstract:

Role Based Access Control is an important feature of cyber security and authorization management. The

search of an optimum set of roles and their assignment to users can be modeled as an optimization problem,

which is known as the Role Mining Problem (RMP) and has been shown to be NP-complete. Thus, fast

heuristics are needed to search for solutions for the RMP in affordable time. This paper proposes a new

evolutionary algorithm for the RMP, which is based on iteratively adding and deleting roles, while avoiding

deviations from the original user-permission assignment. A range of experiments are presented which indicate

that the proposed EA performs well on established benchmarking problems.

1 INTRODUCTION

In our increasingly digitized world, cyber security

plays an important role to protect data and informa-

tion systems. Especially, enterprise data are a likely

target of external attacks. In addition, erroneous and

fraudulent behavior of employees can lead to sub-

stantial damage (Verizon, 2019). To overcome these

issues, access control systems manage authorization

by assigning access rights to users, such that critical

data is only accessible by a restricted set of selected

users. While originally, permissions were directly as-

signed to users, nowadays they are combined to roles

as additional level of access control. This approach

is known as Role Based Access Control (RBAC). It

was deﬁned by (Sandhu et al., 1996) and is now one

of the widest-spread access control models, as the

grouping of permissions to roles reduces complexity,

while increasing security comprehensibility and man-

ageability, thus leading to reduced security manage-

ment costs.

The task of deﬁning roles is called role engi-

neering and can be realized in two ways: top-down

or bottom-up. The top-down approach consists in

mostly human analysis of business functions and pro-

cesses to deﬁne proper roles. Due to the large number

of users and permissions and the even larger num-

ber of possible combinations, this is a very time-

consuming and hardly scalable task. The bottom-up

approach is based on the user-permission assignment,

which, in most enterprises, is easily available (Mitra

et al., 2016). At this, data-mining techniques are used

to mine roles.

The corresponding optimization problem is called

the Role Mining Problem (RMP) and is NP-complete

(Vaidya et al., 2007). This paper presents an Evolu-

tionary Algorithm for the RMP, the addRole-EA. Ad-

ditionally, an overview of current work on the RMP is

given.

The remainder of this paper is organized as fol-

lows: In Section 2, the formal framework of the RMP

is presented. Section 3 reviews different solution

strategies for the Role Mining Problem with more de-

tailed focus on EA-based approaches. Section 4 illus-

trates the setup and structure of the addRole-EA. In

Section 5, the proposed algorithm is evaluated. Sec-

tion 6 and 7 conclude the paper and present paths for

future research.

2 PROBLEM DESCRIPTION

In this section, the Role Mining Problem and some

of its variants are presented. A ﬁrst deﬁnition of the

RMP was given in (Vaidya et al., 2007). In the fol-

lowing, the standard notation of the main elements of

the RMP are introduced:

• U = {u

, u

, ..., u

} a set of m = |U| users

• P = {p

, p

, ..., p

} a set of n = |P| permissions

Anderer, S., Kreppein, D., Scheuermann, B. and Mostaghim, S.

The addRole-EA: A New Evolutionary Algorithm for the Role Mining Problem.

DOI: 10.5220/0010025401550166

In Proceedings of the 12th International Joint Conference on Computational Intelligence (IJCCI 2020), pages 155-166

ISBN: 978-989-758-475-6

155

• R = {r

, r

, ..., r

} a set of k = |R| roles

• U PA ∈ {0, 1}

m×n

the user-permission assignment

matrix, where U PA

i j

= 1 implies, that permission

is assigned to user u

• UA ∈ {0, 1}

m×k

the user-role assignment matrix,

where UA

i j

= 1 implies, that role r

is assigned to

user u

• PA ∈ {0, 1}

k×n

the role-permission assignment

matrix, where PA

i j

= 1 implies, that role r

con-

tains permission p

From this, we can now give a deﬁnition of the Ba-

sic Role Mining Problem. Given a set of users U, a set

of permissions P and a user-permission assignment

UPA, ﬁnd a minimal set of Roles R, a correspond-

ing user-role assignment UA and a role-permission as-

signment PA, such that each user has exactly the set

of permissions given by UPA:

|R| → min (1)

s.t.

UPA −UA ⊗ PA

= 0 (2)

where

denotes the L

-norm for matrices and ⊗

the Boolean Matrix Multiplication:

(UA ⊗PA)

i j

l=1

(UA

∧ PA

l j

) (3)

A tuple

U, P, R, UA, PA

is called RBAC scheme.

If constraint (2) holds, the corresponding RBAC

scheme is said to be 0-consistent. In further variants

of the RMP, the 0-consistency-condition is relaxed,

which means that the deﬁnition of roles and their as-

signment to users may result in deviations compared

to the original UPA. Thus, we deﬁne the resulting

user-permission assignment DUPA := UA ⊗ PA. The

different variants of the RMP can now be deﬁned as

in Table 1.

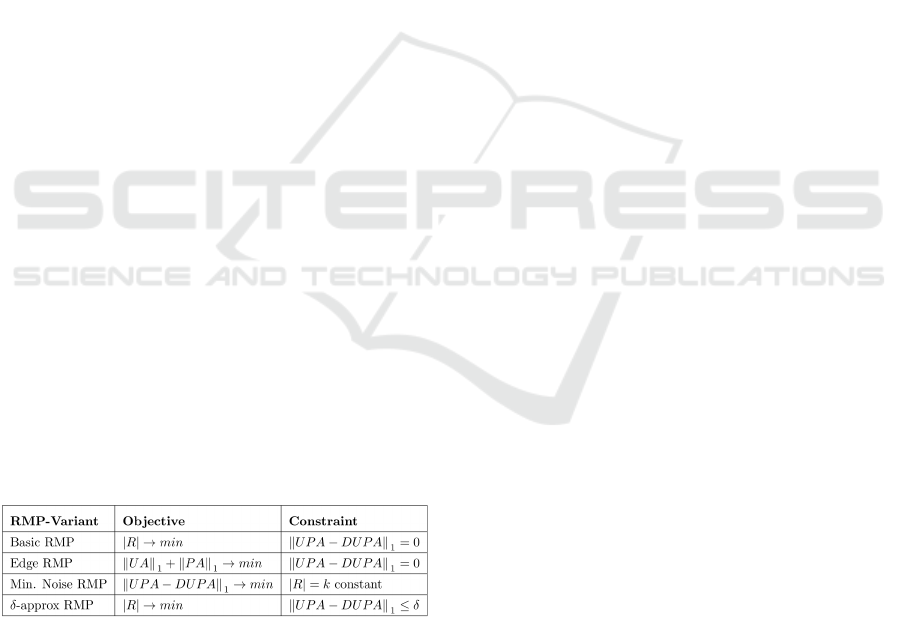

Table 1: Different variants of the Role Mining Problem

based on (Saenko and Kotenko, 2016).

There are several other RMP-variants consider-

ing speciﬁc business-driven aspects of role mining

e.g. the interpretability or meaningfulness of roles

(Xu and Stoller, 2012), (Molloy et al., 2008), ad-

ministrative costs (Colantonio et al., 2008) or RBAC-

reconﬁguration problems (Saenko and Kotenko,

2016). All variants of the RMP have been proved to

be NP-complete problems (Vaidya et al., 2007).

3 RELATED WORK

The Role Mining Problem and its different variants

are well-studied problems. Many solution techniques

have been applied in the last years e.g. cluster-

ing techniques, problem transformation, permission

grouping etc. Subsection 3.1 gives a short overview of

the applied methods. Subsequently, in subsection 3.2,

evolutionary algorithms in the context of role mining

are explained in more detail.

3.1 General Solution Strategies

One common approach consists in mapping the RMP

to other problems in data mining. Lu et al. con-

sider the different variants of the RMP as Matrix De-

composition Problems and use greedy algorithms to

solve the corresponding binary integer programming

problems (Lu et al., 2008). Huang et al. propose a

pre-processing step to reduce the input UPA by re-

moving similar users and users whose permission set

corresponds to the union of other users’ permission

sets. Furthermore, they show the equivalence of the

RMP and the Set Cover Problem and use greedy algo-

rithms (GA

Basic

, GA

Edge

, MR

Basic

) as solution strat-

egy for the latter (Huang et al., 2015). Vaidya et

al. map the RMP to the Minimum Tiling problem

and use greedy algorithms to mine tiles, which are

then converted into roles (Vaidya et al., 2007). In

(Ene et al., 2008) the equivalence of the Basic-RMP

and Minimum Biclique Cover Problem is shown and

again greedy algorithms are applied as solution strat-

egy. From this, the Role Minimization (RM), Edge

Concentration (EC) and Lattice Postprocessing (LP)

algorithms are derived. In addition, a set of real-world

datasets, the HP-Labs benchmark set, is described,

which now constitutes the standard benchmark for

role mining.

Zhang et al. use graph optimization (GO) to mine

roles (Zhang et al., 2007). They iteratively merge two

roles depending on their intersection to improve the

RBAC scheme. In (Zhang et al., 2010) roles are it-

eratively merged, created or deleted from the under-

lying graph to reduce the cost function. Dong et al.

propose the Network-Clique Finding Model to map

the Role Mining Problem onto problems of graph the-

ory, which enables the use of graph optimization tech-

niques for its solution (Dong et al., 2014).

One of the ﬁrst role mining tools is ORCA

(Schlegelmilch and Steffens, 2005). Roles are ob-

tained by clustering permissions, thus obtaining a hi-

erarchy of permission clusters. One drawback of this

approach consists of the fact that overlapping of per-

missions is only allowed among roles that are hierar-

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

156

chically related. The work of (Kuhlmann et al., 2003)

is also based on a clustering approach. Kumar et al.

add an additional cardinality constraint to role min-

ing, which limits the number of permissions in each

role to a maximum number and propose the Con-

strained Role Miner (CRM), which is also based on

permission clustering (Kumar et al., 2010). Molloy

et al. propose the HierarchicalMiner (HM), which

is based on formal concept analysis by using a re-

duced concept lattice as initial role hierarchy and then

heuristically prunes it to obtain improved role con-

cepts (Molloy et al., 2008).

Algorithms like the Simple Role Mining Algorithm

(SMA) (Blundo and Cimato, 2010), CompleteMiner

(CM) and FastMiner (FM) (Vaidya et al., 2010) or

Pair Count (PC) (Molloy et al., 2009) are based on the

concept of permission grouping. A set of candidate

roles is obtained by grouping permissions to roles.

This is often done by intersecting the permission sets

of two or more users. Subsequently, the roles in

the candidate set are ranked by different prioritization

functions and then assigned to users. Zhang et al. use

permission utilization counts to be able to also con-

sider top-down information in their Data-Driven Role

Evolution approach (DDRE) (Zhang et al., 2013).

Lu et al. consider different sets of candidate roles.

One set (IT) consists exactly of the user-permission-

assignment deﬁned by UPA. Hence, this corresponds

to the Discrete Basis Problem. For the other set (INT),

all intersections of two user permission sets are added.

In both cases greedy algorithms are applied to obtain

the ﬁnal RBAC scheme (Lu et al., 2014).

A more detailed description of the different al-

gorithms for the RMP can be found in (Mitra et al.,

2016).

3.2 Evolutionary Algorithms in Role

Mining

Even if evolutionary algorithms seem to be a straight-

forward approach in solving the Role Mining Prob-

lem, not much research has been conducted in this

direction.

Hu et al. apply evolutionary algorithms in the

RBAC context. However, instead of mining roles to

improve RBAC schemes, the EA is used for insider

threat detection by mining role-action mapping rules

connecting roles to processes. Based on these map-

pings, discrepancies in process execution can be de-

tected, which results in a reduction of internal fraud-

ulent behaviors in enterprises (Hu et al., 2006).

Suganthy and Chithralekha examine the structural

change in organizations including employees chang-

ing their compartment, new employees joining or ex-

isting employees leaving the organization (Suganthy

and Chithralekha, 2018). From this, they derive the-

oretical methods for role evolution to adapt the out-

dated RBAC scheme to the new organization struc-

ture, comprising the creation of new roles, deletion

of existing roles, merging and splitting of roles and

delegation/revocation of permissions, which implies

extending/reducing existing roles by a set of per-

missions. Although not having been directly imple-

mented by the authors, these methods provide a good

basis of evolutionary operators for evolutionary algo-

rithms in the RBAC context.

Saenko and Kotenko are the ﬁrst to apply EAs for

Role Mining (Saenko and Kotenko, 2011). This ap-

proach assumes exactly k = m roles at all times of the

optimization process. This is due to the observation

that the Role Mining Problem has a trivial solution

in which each of the m users gets assigned only one

role, that contains all of the user’s permissions given

by UPA. Each individual is represented by three chro-

mosomes: the matrices Chr[X] := UA

∈ {0, 1}

m×m

and Chr[Y ] := PA ∈ {0, 1}

m×n

, and an an additional

vector Chr[Z] ∈ {0, 1}

. Note that the UA matrix is

quadratic and transposed, such that the columns of

both matrices correspond to roles. For an example

see Figure 1.

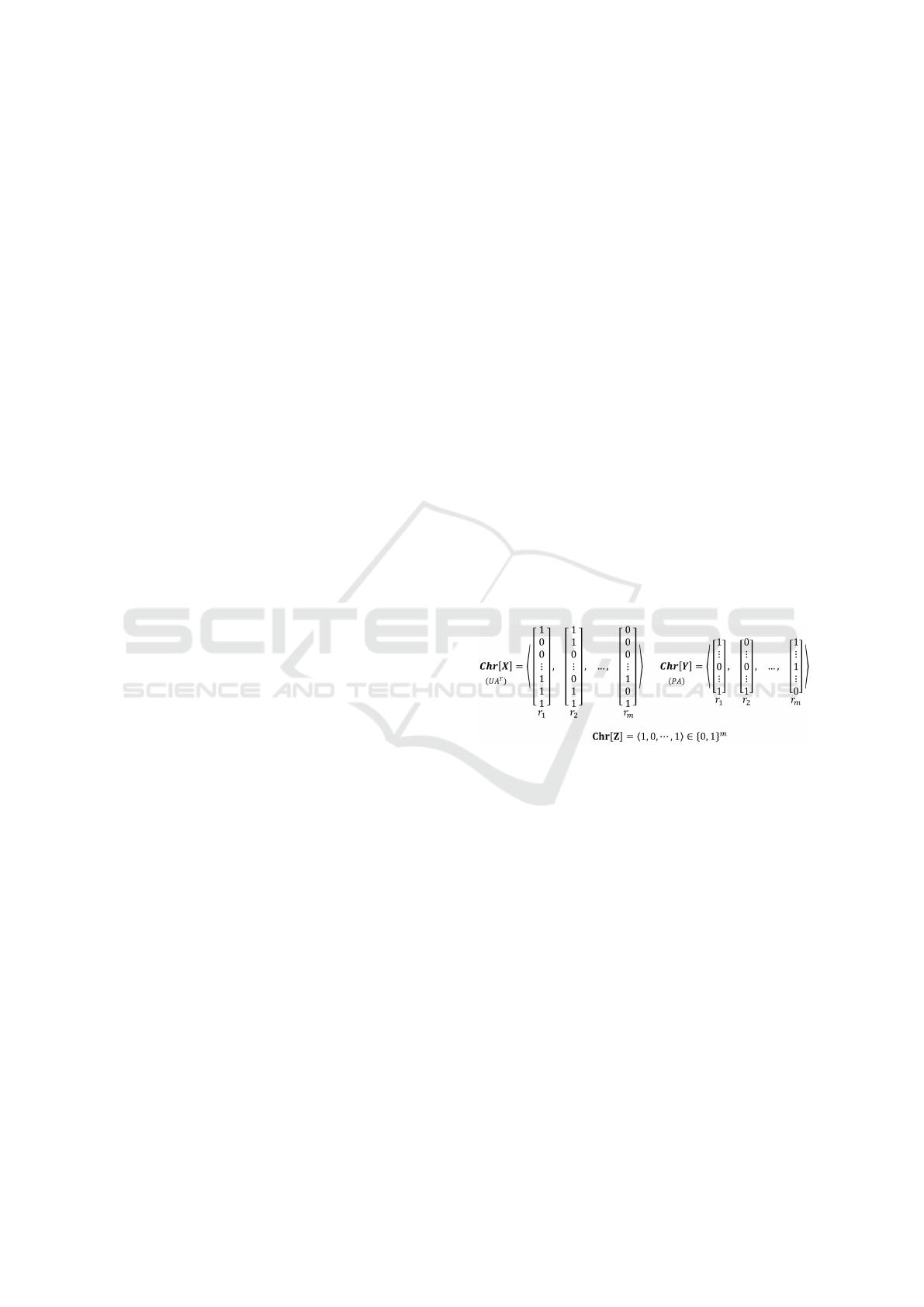

Figure 1: Representation of the individuals in (Saenko and

Kotenko, 2011).

The entries of Z describe which role is active in

the RBAC scheme corresponding to the individual. In

the evolutionary loop, crossover is done by applying

one-point-crossover to Z, UA and PA, while mutation

on these elements is based on bit ﬂip. A weighted

sum of the number of active roles

Chr[Z]

and the

number of deviations between DUPA = UA ⊗ PA and

the original U PA is used as ﬁtness function. Finally,

this approach is evaluated on synthetic data based on

randomly generated binary matrices.

In (Saenko and Kotenko, 2012), the authors

present an improved version of their EA. It is based on

a new representation of individuals and the omission

of passive roles. Each individual gets assigned one

chromosome Chr := hr

, r

, ..., r

i, where each r

cor-

responds to one role. Further, r

:= hL

, L

i, where

is the list of users and L

the list of permissions

of role r

, implying that each permission in L

is as-

The addRole-EA: A New Evolutionary Algorithm for the Role Mining Problem

157

signed to each user in L

. For crossover, the one-

point-crossover method is adapted to the new repre-

sentation of the individuals (see Figure 2).

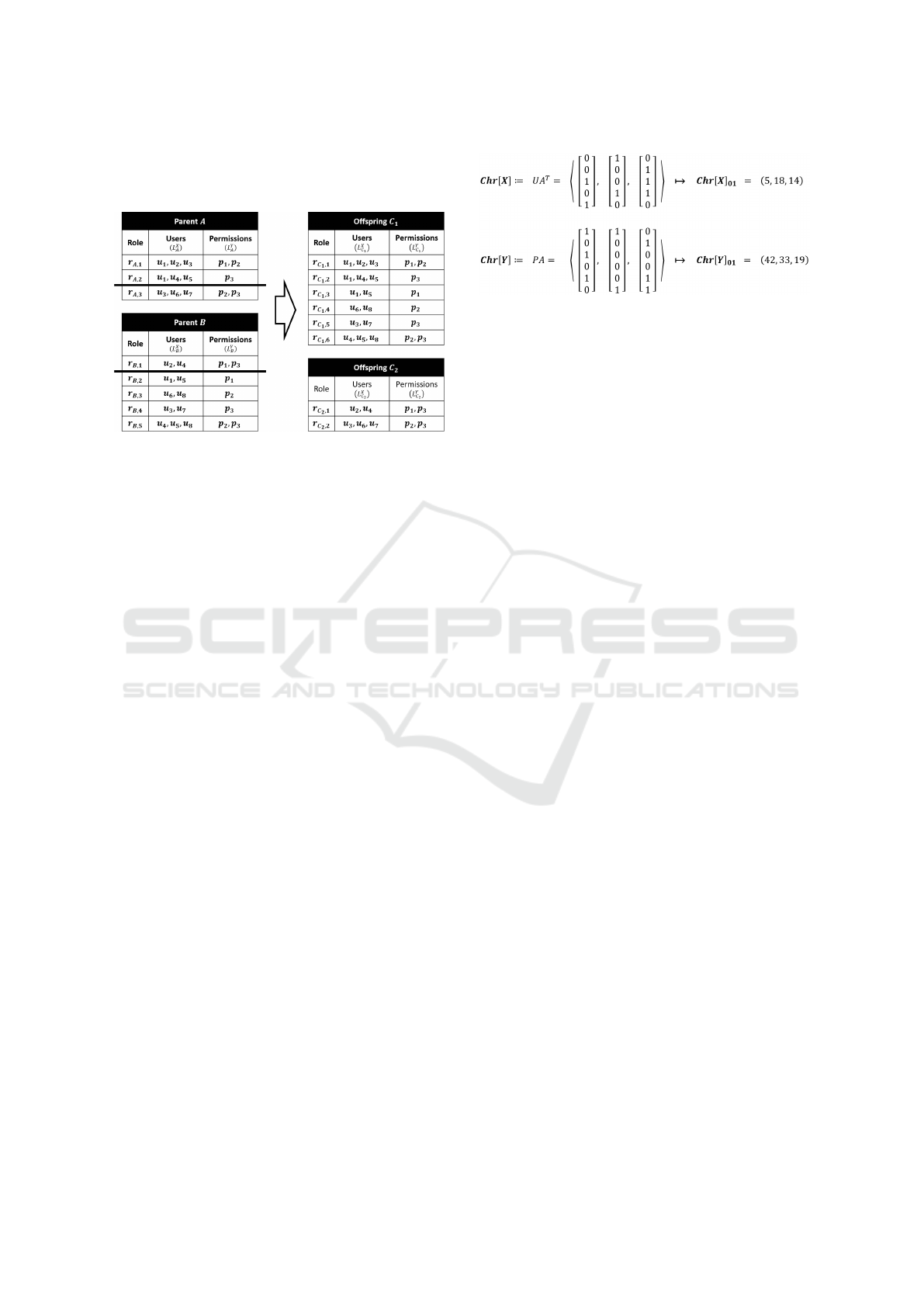

Figure 2: One-Point-Crossover adapted to the new repre-

sentation of individuals in (Saenko and Kotenko, 2012).

Mutation is realized by adding, deleting or chang-

ing values in L

and L

according to the given prob-

ability of mutation. The ﬁtness function remains as

in (Saenko and Kotenko, 2011). The authors show

that the new representation of the individuals and es-

pecially the variable-length list of roles (containing

only roles that are active in the sense of (Saenko and

Kotenko, 2011)) result in a performance gain.

In (Kotenko and Saenko, 2015) the developed EAs

are applied to the problem of ﬁnding optimal access

control schemes in virtual local networks.

In (Saenko and Kotenko, 2016) (Saenko and

Kotenko, 2017a) and (Saenko and Kotenko, 2017b)

the RBAC Scheme Reconﬁguration Problem, which

is based on dynamically changing access con-

trol policies, is deﬁned. Given an access con-

trol policy UPA

init

, a corresponding RBAC scheme

U, P, R

init

, UA

init

, PA

init

and a new policy U PA

new

the Reconﬁguration Problem aims at ﬁnding a new

RBAC scheme

U, P, R

new

, UA

new

, PA

new

that on the

one hand satisﬁes the requirement of the new policy

as good as possible (4), while on the other hand has

minimal differences to the initial RBAC scheme (5):

UPA

new

−UA

new

⊗ PA

new

→ min (4)

new

−UA

init

new

− PA

init

→ min. (5)

At this, EAs are used for mining the initial RBAC

scheme

U, P, R

init

, UA

init

, PA

init

as well as the re-

conﬁgured RBAC scheme

U, P, R

new

, UA

new

, PA

new

Furthermore, a new representation of individuals is

presented, where the columns of UA and PA are inter-

preted as binary numbers (see Figure 3).

In (Saenko and Kotenko, 2018), the authors ex-

tend their work on RBAC to other domains of ac-

Figure 3: Representation of the individuals in (Saenko and

Kotenko, 2017a).

cess control (VPN- and VLAN-problems) and eval-

uate their methods in a real-world case study on data

derived from enterprise resource planning systems.

In (Dong et al., 2011) a deﬁnition of the δ-approx

Least Privilege Mining Problem is given. This is,

given a set of users, a ﬁxed set of roles in PA and a

user-permission-assignment U PA, to ﬁnd a user-role-

assignment UA such that

UPA −UA ⊗ PA

≤ δ.

The authors apply an EA as solution strategy. In this

approach, a role is deﬁned by its users and permis-

sions as in (Saenko and Kotenko, 2012), while the

combination of different roles constitutes the chro-

mosome of an individual. Subsequently, a series of

crossover, mutation and selection operations, which

are not further speciﬁed by the authors, are applied

iteratively to improve the solution quality.

Du and Chang also use EAs to solve the Role Min-

ing Problem (Du and Chang, 2014). Firstly, a set

of candidate roles CR is created based on (Xu and

Stoller, 2012), in which a role is again deﬁned by the

contained permissions and the set of users to which

the role is assigned. Choosing a role r

to be acti-

vated in an RBAC scheme implies assigning each of

its contained permissions to each user in r

. Secondly,

an initial population of RBAC schemes is created ran-

domly. Each individual has assigned two binary vec-

tors S

and H

, where:

:= hs

(1)

, s

(2)

, ..., s

(|CR|)

:= hh

(1)

, h

(2)

, ..., h

(|CR|)

At this, s

( j)

= 1 means that role j is activated in the

RBAC scheme corresponding to individual i, while

( j)

= 0 implies deactivation of role j in individual i

in the next generation (only if possible without creat-

ing deviations compared to the original UPA). In the

evolutionary loop, new individuals are created by one-

point crossover and bit ﬂip mutation of the H

-vectors

and the corresponding update of S

. A 2-tuple consist-

ing of a weighted sum to describe the structural com-

plexity of an RBAC scheme and an interpretability-

measure to describe the meaningfulness of the con-

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

158

tained roles (Xu and Stoller, 2012) constitutes the ﬁt-

ness function.

One main drawback of the presented algorithms

is the violation of the 0-consistency property as the

proposed mutation and crossover methods are de-

signed in a way that causes deviations between the

DUPA = UA ⊗ PA and the original user-permission

assignment UPA. Furthermore, instead of the com-

monly used HP-Labs benchmark set, random matri-

ces are used for evaluation, which complicates per-

formance comparison.

4 A NEW EA FOR THE RMP

In this section, a new evolutionary algorithm for the

Role Mining Problem, the addRole-EA, is presented.

It is based on a new technique for addition and conse-

quential deletion of roles to UA and PA, such that the

0-consistency property is fulﬁlled at all times.

At ﬁrst, a pre-processing procedure, which is ap-

plied to initial input data of the EA to reduce the prob-

lem dimension, is presented. Subsequently, the main

aspects of the addRole-EA are outlined. This com-

prises the representation of individuals, the addRole-

method as primary method of the algorithm as well as

the typical evolutionary components like ﬁtness, mu-

tation and crossover.

To provide an overview of the proposed role-

mining algorithm, its components and their order,

the operational course of the addRole-EA in Pseudo-

Code is given below:

Input: Users U, Permissions P,

User-Permission Assignment UPA

Output: User-Role Assignment UA,

Role-Permission Assignment PA

Begin addRole-EA

Pre-Processing of initial UPA;

Initialization();

Evaluation of Fitness();

Repeat (Until stopping condition met)

Crossover();

Mutation();

Evaluation of Fitness();

Replacement();

End Repeat.

Post-Processing of resulting UA and PA.

End.

4.1 Pre-processing

Simpliﬁcation of input data, in our case, means dele-

tion of redundant data in the UPA matrix, resulting

in the reduction of the initial number users and per-

missions without effecting the solution of the corre-

sponding RMP (see (Huang et al., 2015)). For this,

we apply a four-step procedure:

(PP1): Deletion of Empty Rows and Columns.

Deletion of permissions that are assigned to no

user respectively users that have an empty permis-

sion set. This equals the deletion of columns and

rows of the UPA matrix that contain only zero-

elements.

(PP2): Aggregation of Permissions.

Aggregation of permissions that are assigned to

exactly the same users. This corresponds to the

deletion of all columns, which are identical copies

of another column, except for one representative.

(PP3): Aggregation of Users 1.

Aggregation of all users that have exactly the

same permission sets. This corresponds to the

deletion of all rows, which are identical copies of

another row, except for one representative.

(PP4): Aggregation of Users 2.

Deletion of users whose permission set is equal to

the union of other users’ permission sets.

By applying the inverse of (PP1-4) to the resulting

UA and PA matrices in a post-processing step, the pro-

posed solutions can easily be extended to the original

user and permission sets.

4.2 Chromosome Encoding

Each individual is represented by two chromosomes:

its UA matrix and its PA matrix. In real-world use

cases, the number of users and permissions is usu-

ally very large, whereas the number of roles per user

and the number of permissions per role is quite low.

Thus, the UA and PA matrices are of high dimension,

but rather sparsely populated. This leads to a dispro-

portionally high occupation of memory space, if the

classical representation as binary matrices is utilized.

As a consequence, we use binary sparse matrices to

represent the pre-processed UPA as well as the cor-

responding UA and PA matrices in the addRole-EA.

Unlike ordinary binary matrices, binary sparse ma-

trices only store the position of the one-elements in

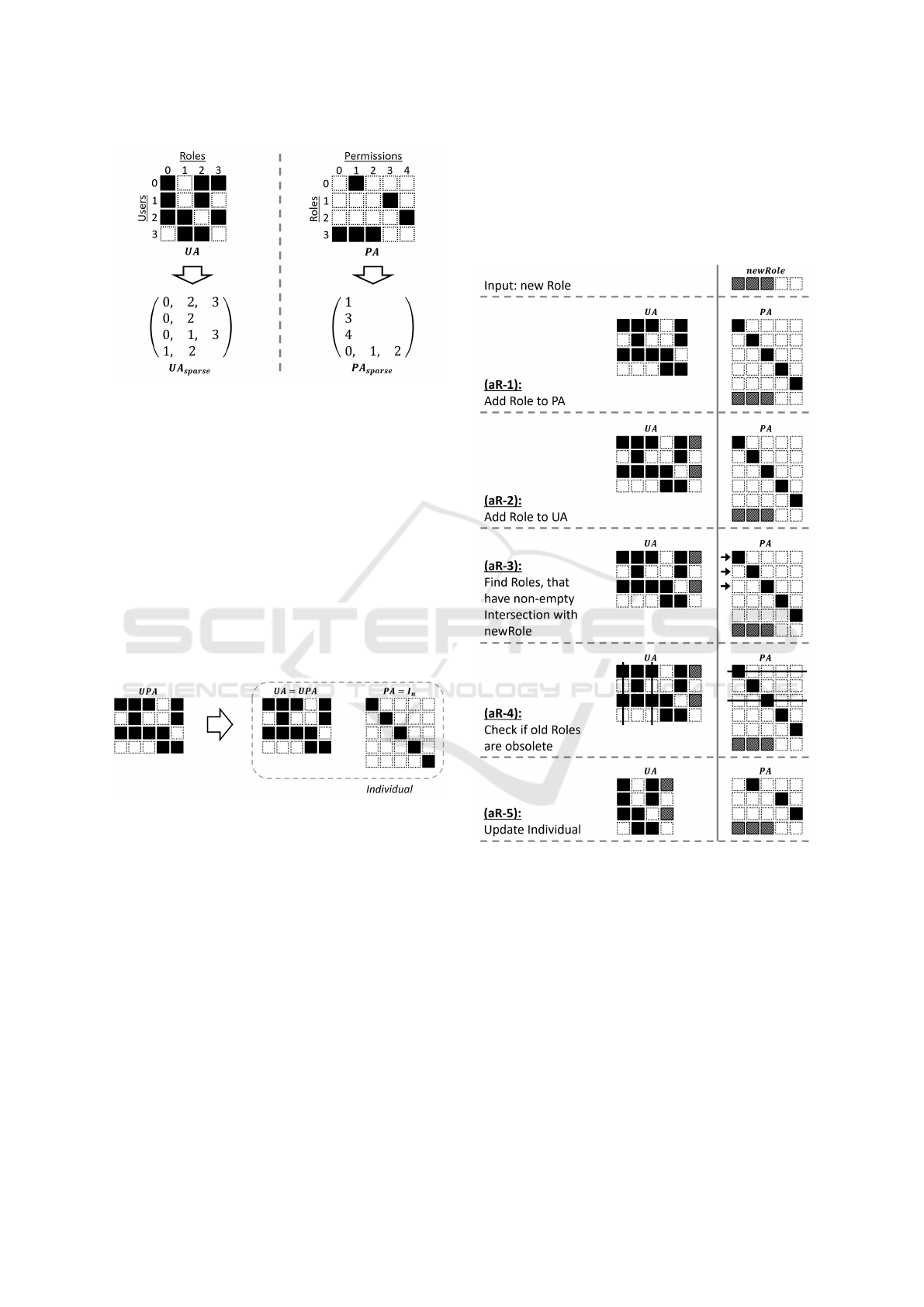

each row, as illustrated in Figure 4. Thus, the zero-

elements, which constitute the majority of the matri-

ces’ elements, are omitted, resulting in huge savings

of memory space.

The addRole-EA: A New Evolutionary Algorithm for the Role Mining Problem

159

Figure 4: Representation of individuals in the addRole-EA.

4.3 Initialization

The initialization of the individuals is conducted in

two steps. In the ﬁrst step, an initial population of

pop

identical individuals are generated. We start

from n different roles, each containing exactly one of

the n permissions. Thus, PA = I

, where I

denotes

the n × n identity-matrix. To ensure the 0-consistency

property of the initial population, we set UA = UPA

(see Figure 5). In a second step, we use a series of

mutation operations, which are explained in Section

4.7, to ensure diversity among the population. The

selection of the mutation operations is conducted ran-

domly, based on the uniform distribution.

Figure 5: Initial individual before mutation.

4.4 The addRole-method

The principle method of the addRole-EA is the

addRole-method, in which a new role is added to the

UA and PA of a given individual. An example of

the operating principle of the addRole-method can be

found in Figure 6.

The addition of the new role to the PA matrix can

easily be done by attaching a new row to the PA ma-

trix, containing the permissions of the new role (aR-

1). For the addition of the new role to the UA matrix,

the permissions of the new role are compared to the

permission sets of the users deﬁned by the UPA ma-

trix. If all permissions of the new role are contained

in a user’s permission set, the new role is assigned to

that user (aR-2). As a result of adding new roles to an

individual, an old role may become obsolete, in the

sense that it can be removed from a user’s role list,

while the remaining roles of the user still cover all

of the permissions contained in his permission set. If

this holds for all users in the individual, the old role is

deleted from its UA and PA matrix (aR3-5).

Figure 6: The addRole-method (example).

4.5 Fitness Function

The fact, that new roles are only assigned to users

whose permission sets completely cover the permis-

sions contained in the new role and old roles are only

deleted if they became obsolete by adding the new

role, ensures the 0-consistency property at all time of

the EA. Thus, the constraint of the Basic Role Mining

Problem

UPA −UA ⊗ PA

= 0 is always fulﬁlled

and no penalty costs are required, when modeling the

ﬁtness function, which is therefore equivalent to the

total number of roles f itness = |R|.

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

160

4.6 Replacement

Based on the values of the previously deﬁned ﬁtness

function, next generations’ individuals are chosen by

the elitist selection scheme. This implies the survival

of the best elitismRate·N

pop

individuals, while the re-

maining (1 − elitismRate) · N

pop

individuals are cho-

sen randomly to maintain diversity.

4.7 Mutation

In each evolutionary step, a new role is created for

each individual and then added to its UA and PA ma-

trix using the addRole-method. The creation of roles

is based on the permission grouping concept (see Sec-

tion 3.1). To reduce the search space, only such per-

missions are grouped to roles that form a subset of at

least one user’s permission set. For this, the following

role-creation methods are available:

(M1): Intersection of Permission Sets.

This role-creation method creates a new role by

intersecting the permission sets of different users.

For this, a random subset of all users is selected

for permission set intersection. As a result, the

new role can be assigned to at least all of the

selected users. To avoid the creation of empty

roles, the number of selected users is limited by

usersForIntersection

max

(M2): Merging of Two Roles.

Creating one new role from two old roles may di-

rectly decrease the total role number. To ensure

that the new role is assigned to at least one user,

this role-creation method selects a random user

and two random roles of this user’s role set to de-

rive a new role. The role is then created by the

union of the permissions of the two selected roles.

(M3): Role Setminus other Role.

Contrarily, reducing the number of permissions

contained in a role, increases the probability that

this role can be assigned to more users. For this,

two roles r

, r

of one user are selected randomly.

If they have non-empty intersection, all permis-

sions of r

are removed from r

to create the new

role.

(M4): Permission Set of a User.

Whenever a user’s permission set has little inter-

section with the permission sets of other users,

it may be reasonable, to assign one role to this

user that contains all of his permissions given by

the user-permission assignment. Therefore, a new

role is created that equals the permission set of a

randomly chosen user.

(M5): Permission Set Setminus Union of Roles.

In practice, RBAC schemes are often constructed

by distributing a set of predeﬁned roles to users.

In addition, special permissions which are not

covered by an explicit role are given to selected

users like managers or administrators. Thus, this

role-creation method tries to gather the permis-

sions, that cannot be covered by regular roles

(roles derived from (M1-4)), in an extra role. For

this, a user and a subset of this user’s role set are

selected randomly. Then, a new role is created

containing all permissions of the user’s permis-

sion set, except the ones contained in one of the

selected roles.

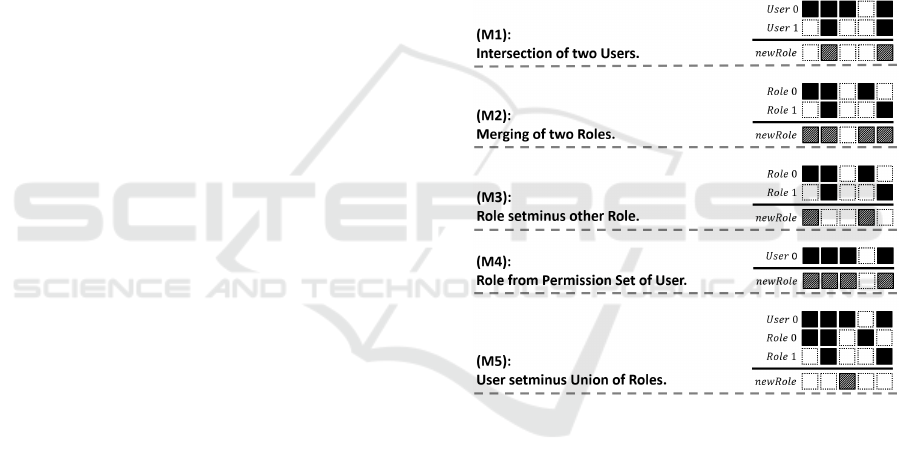

An example of the different role-creation methods

for mutation is illustrated in Figure 7.

Figure 7: The role-creation methods (example).

Mutation-Method in Pseudo-Code:

Input: Individual

Output: mutated Individual

Begin Mutation

Choose role-creation method from (M1-5)

randomly based on uniform distribution;

Create new Role r based on chosen method;

Mutate Individual by addition of r to

individual using addRole-method;

End.

4.8 Crossover

The crossover method of the addRole-EA consists in

reciprocal exchange of roles between individuals. At

The addRole-EA: A New Evolutionary Algorithm for the Role Mining Problem

161

ﬁrst, two parent individuals parent

and parent

are

selected for crossover. From these, two child indi-

viduals child

and child

are derived as copies of the

corresponding parent. For each of the child individ-

uals, a set of roles from the role set of the other par-

ent is selected by one of the following role-selection

methods and added to its PA and UA matrix by the

addRole-method. As a consequence, roles are not

only exchanged, but old roles that became obsolete

are deleted from the UA and PA matrix of the child

individuals. The main difference compared to the mu-

tation method consists in the fact, that no new roles

are created, but taken from already existing roles in

the PA matrix of the other individual. There are three

different methods for crossover role-selection:

(C1): Random-role Selection.

At this, a random set of roles is chosen from each

parent individual’s role set and then added to the

opposed child individual by the addRole-method.

(C2): User-role Set Selection 1.

Instead of choosing random roles, one user is se-

lected randomly. The roles for exchange are then

determined by the roles assigned to this user in the

respective parent individual.

(C3): User-role Set Selection 2.

This method again exchanges the roles of one

user. Selection of the user is carried out by com-

paring the number of assigned roles to this user in

the parent individuals, choosing the user with the

highest difference.

Crossover-Method in Pseudo-Code:

Input: Individual parent_1, parent_2

Output: Individual child_1, child_2

Begin Crossover

Choose role-selection method from (C1-3)

randomly based on uniform distribution;

Initialize child_1 (copy of parent_1);

Initialize child_2 (copy of parent_2);

Select set of roles R2 from parent_2

by chosen method;

Select set of roles R1 from parent_1

by chosen method;

Add R2 to child_1 by addRole-method;

Add R1 to child_2 by addRole-method;

End.

5 EVALUATION

The evaluation of the proposed approach is conducted

in two steps. At ﬁrst, the pre-processing procedure,

deﬁned in Section 4.1, is applied to the HP-Labs

benchmark set. In a second step, these benchmarks

are used to evaluate the performance of the addRole-

EA. For more detailed information on the different

benchmark instances see (Ene et al., 2008).

5.1 Pre-procession of Benchmark Data

In the ﬁrst step of the addRole-EA, redundancies are

removed from the input data, as outlined in Section

4.1. To examine the degree of redundancy, the four

steps of the pre-processing procedure (PP1-4) are ap-

plied to the HP-Labs benchmarks. The results can

be seen in Table 2, where the ﬁrst line corresponding

to each benchmark shows the original data sizes. As

(PP2) only reduces the number of permissions, while

(PP3) only inﬂuences the number of users, the results

of those two steps are summarized in one line in the

table. It is visible, that the application of (PP1) has no

inﬂuence on the benchmark data. However, in real-

world cases, it remains important to detect users with-

out permissions or permissions that are assigned to no

user.

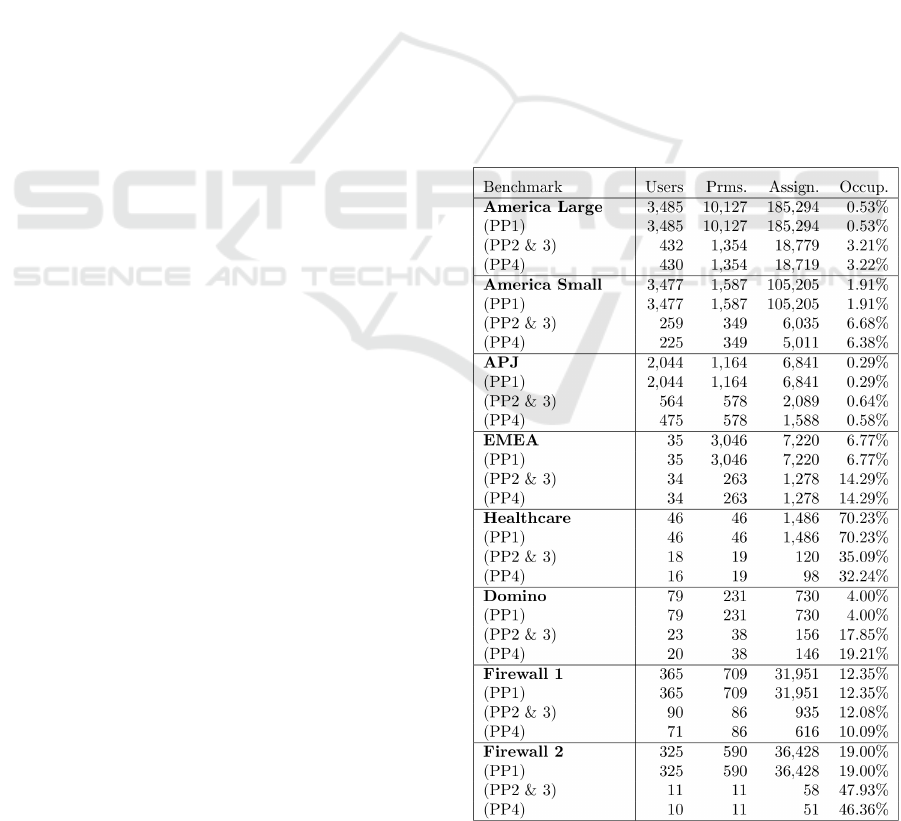

Table 2: Pre-Processing of benchmark data.

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

162

The results show that the pre-processing proce-

dure can signiﬁcantly reduce the size of the input

data. Furthermore, comparing the lower bound of

roles given in Table 3 to the remaining number of

users after applying all pre-processing steps, reveals,

that for EMEA, Domino and Firewall 2 the optimum

number of roles can already be attained by deﬁning

one role for each of the remaining users containing

the corresponding permissions.

For the other benchmarks, Table 3 indicates that

the difference between the number of remaining users

and the role lower bound leaves little room for proper

evaluation of role mining algorithms. Thus, future re-

search should focus on the creation and provision of

new and more conclusive benchmarks.

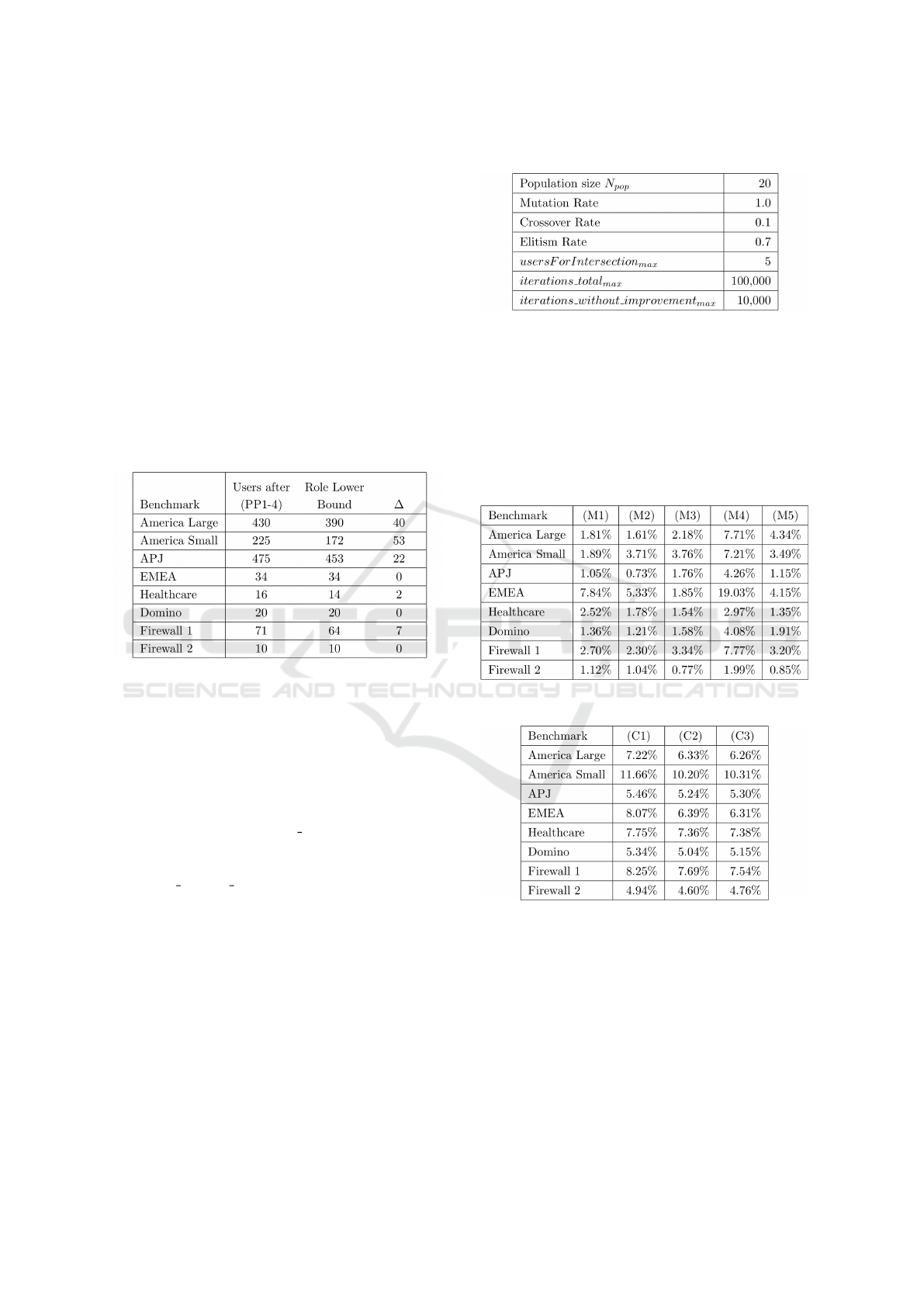

Table 3: Number of users after pre-processing compared to

role lower bounds based on (Ene et al., 2008).

5.2 Performance Evaluation

For performance evaluation, the addRole-EA was

tested 20 times on each of the eight bench-

mark instances of the HP-Labs benchmark set.

Each run was terminated if one of the two stop-

ping conditions was met: either a total num-

ber of iterations iterations total

max

was reached

or no improvement of the current best solution

could be attained for a given number of iterations

iterations without improvement

max

The values of the relevant parameters were deter-

mined by parameter performance tests based on dif-

ferent parameter value sets. These tests were per-

formed on one medium-sized instance of the HP-Labs

benchmarks, namely Firewall 1 as well as the largest

instance America Large. As the derived parameters

also showed good performance on the other bench-

mark instances they were adopted for the ﬁnal test

setup as shown in Table 4.

In Table 5 and Table 6 the different mutation and

crossover methods are examined. For this, the number

of cases in which the application of one mutation or

crossover method on one individual led directly to an

Table 4: Test parameters.

improvement of the ﬁtness function is divided by the

method’s total application count. The positive rates

in Table 5 show that all set operations performed by

the different mutation methods lead to the creation

of roles that contribute to the reduction of the total

role number during the evolutionary process. Table 6

shows that the exchange of roles during crossover can

further decrease the total number of roles.

Table 5: Evaluation of mutation.

Table 6: Evaluation of crossover.

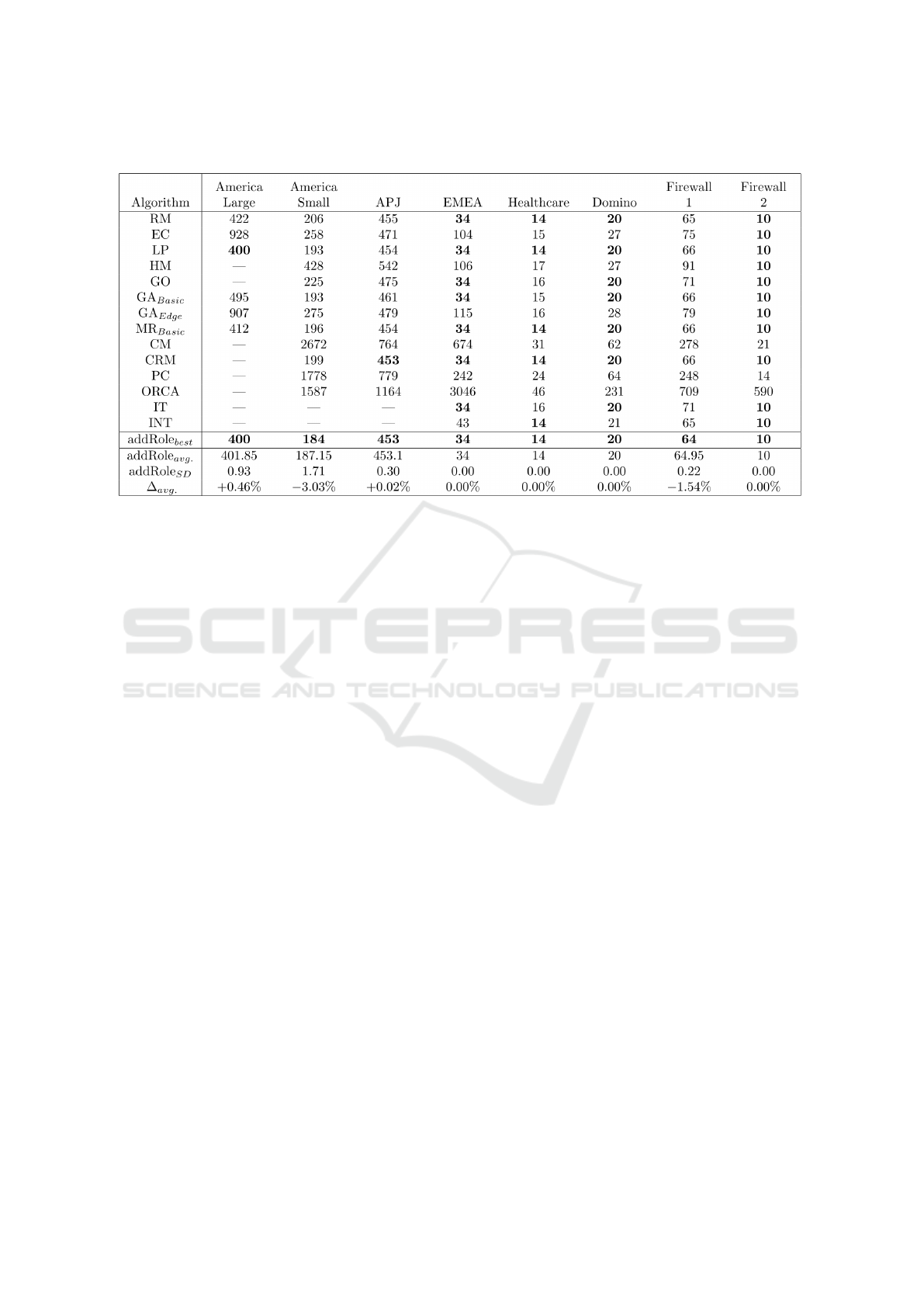

The results of the conducted tests, in terms of the

resulting number of proposed roles, are displayed in

Table 7. At this, addRole

best

denotes the best re-

sult attained in each instance, while addRole

avg.

de-

notes the average number of resulting roles across

all test runs and addRole

denotes the correspond-

ing standard deviation. Furthermore, the results of

the addRole-EA are compared to the results attained

by different role mining algorithms found in litera-

ture (see Section 3). ∆

avg.

denotes the deviation be-

tween the average results obtained from the applica-

The addRole-EA: A New Evolutionary Algorithm for the Role Mining Problem

163

Table 7: Evaluation of addRole-EA in comparison with other role-mining algorithms based on (Mitra et al., 2016).

tion of the addRole-EA addRole

avg.

and the best so-

lution found by the other role-mining algorithms. It

is noticeable, that in each benchmark instance, the

currently best solution is attained in at least one run.

For America Small and Firewall 1, the best solution

can even be improved by nine, respectively one role.

The average values attained by the addRole-EA range

from −3.03% to +0.46% of the best solution known

in literature. This emphasizes the high performance

of the addRole-EA.

6 CONCLUSION

In this paper, a new evolutionary algorithm for the

Role Mining Problem was proposed. It is mainly

based on a new method for adding roles to the chro-

mosomes of an individual and the implicit deletion

of roles that became obsolete due to the new role.

This ensures the 0-consistency of the created RBAC

scheme and the initial user permission assignment at

all times of the algorithm. Furthermore, methods for

the creation of new roles (mutation) and the exchange

of existing roles between individuals (crossover) were

presented. Evaluation shows, that the proposed algo-

rithm can compete with current state-of-the-art algo-

rithms in terms of the number of generated roles.

7 FUTURE WORKS

The current implementation of the addRole-EA con-

tains many components which are based on random

decisions. Role-creation methods during mutation

or role-selection methods for role exchange during

crossover are chosen randomly. Hence, the exten-

sion of the addRole-EA by more speciﬁc operators

like the consideration of similarity measures between

users or roles or the application of prioritization func-

tions for more focused addition of roles are subject

to further investigation. The analysis of the HP-

Labs benchmark set shows, that the contained bench-

mark instances leave little space for detailed evalua-

tion of role-mining algorithms. Thus, new standard-

ized benchmarks have to be developed.

Choosing an evolutionary approach for solving

the Role Mining Problem has many advantages. Its

scalability allows for easy application in enterprise-

driven use cases. In this context, further require-

ments, like the consideration of role hierarchies, com-

pliance constraints or the semantic quality of roles,

gain focus. Thus, these business aspects have to be

included in a future version of the addRole-EA. In

addition, academic benchmarks covering those fea-

tures have to be derived. Furthermore, as evolution-

ary algorithms are able to handle dynamic events, it

is desirable to adapt our approach to the dynamic sur-

roundings of enterprises by the development of real-

time-event-handling methods for common events like

permission-requests, employees joining or leaving the

company or employees changing departments within

one enterprise.

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

164

REFERENCES

Blundo, C. and Cimato, S. (2010). A simple role mining

algorithm. In Shin, S. Y., Ossowski, S., Schumacher,

M., Palakal, M. J., and Hung, C.-C., editors, Proceed-

ings of the 2010 ACM Symposium on Applied Com-

puting - SAC ’10, pages 1958–1962, New York, New

York, USA. ACM Press.

Colantonio, A., Di Pietro, R., and Ocello, A. (2008). A cost-

driven approach to role engineering. In Wainwright,

R. L. and Haddad, H. M., editors, Proceedings of the

2008 ACM symposium on Applied computing - SAC

’08, pages 2129–2136, New York, New York, USA.

ACM Press.

Dong, L., Wu, J., Gong, C., and Pi, B. (2014). A network-

cliques based role mining model. Journal of Net-

works, 9(8):2079–2088.

Dong, L. J., Wang, M. C., and Kang, X. J. (2011). Min-

ing least privilege roles by genetic algorithm. Applied

Mechanics and Materials, 121-126:4508–4512.

Du, X. and Chang, X. (2014). Performance of ai algo-

rithms for mining meaningful roles. In 2014 IEEE

Congress on Evolutionary Computation (CEC), pages

2070–2076. IEEE.

Ene, A., Horne, W., Milosavljevic, N., Rao, P., Schreiber,

R., and Tarjan, R. E. (2008). Fast exact and heuristic

methods for role minimization problems. In Ray, I.

and Li, N., editors, Proceedings of the 13th ACM sym-

posium on Access control models and technologies

- SACMAT ’08, pages 1–10, New York, New York,

USA. ACM Press.

Hu, N., Bradford, P. G., and Liu, J. (2006). Applying role

based access control and genetic algorithms to insider

threat detection. In Menezes, R., editor, Proceedings

of the 44th annual southeast regional conference on -

ACM-SE 44, pages 790–795, New York, New York,

USA. ACM Press.

Huang, H., Shang, F., Liu, J., and Du, H. (2015). Handling

least privilege problem and role mining in rbac. Jour-

nal of Combinatorial Optimization, 30(1):63–86.

Kotenko, I. and Saenko, I. (2015). Improved genetic al-

gorithms for solving the optimisation tasks for de-

sign of access control schemes in computer networks.

International Journal of Bio-Inspired Computation,

7(2):98–110.

Kuhlmann, M., Shohat, D., and Schimpf, G. (2003). Role

mining - revealing business roles for security admin-

istration using data mining technology. In Ferrari, E.

and Ferraiolo, D., editors, Proceedings of the eighth

ACM symposium on Access control models and tech-

nologies - SACMAT ’03, pages 179–186, New York,

New York, USA. ACM Press.

Kumar, R., Sural, S., and Gupta, A. (2010). Mining rbac

roles under cardinality constraint. In Jha, S. and

Mathuria, A., editors, Information Systems Security,

volume 6503 of Lecture Notes in Computer Science,

pages 171–185. Springer Berlin Heidelberg, Berlin,

Heidelberg.

Lu, H., Vaidya, J., and Atluri, V. (2008). Optimal boolean

matrix decomposition: Application to role engineer-

ing. In 2008 IEEE 24th International Conference on

Data Engineering, pages 297–306. IEEE.

Lu, H., Vaidya, J., and Atluri, V. (2014). An optimization

framework for role mining. Journal of Computer Se-

curity, 22(1):1–31.

Mitra, B., Sural, S., Vaidya, J., and Atluri, V. (2016). A

survey of role mining. ACM Computing Surveys,

48(4):1–37.

Molloy, I., Chen, H., Li, T., Wang, Q., Li, N., Bertino, E.,

Calo, S., and Lobo, J. (2008). Mining roles with se-

mantic meanings. In Ray, I. and Li, N., editors, Pro-

ceedings of the 13th ACM symposium on Access con-

trol models and technologies - SACMAT ’08, pages

21–30, New York, New York, USA. ACM Press.

Molloy, I., Li, N., Li, T., Mao, Z., Wang, Q., and Lobo, J.

(2009). Evaluating role mining algorithms. In Carmi-

nati, B. and Joshi, J., editors, Proceedings of the 14th

ACM symposium on Access control models and tech-

nologies - SACMAT ’09, pages 95–104, New York,

New York, USA. ACM Press.

Saenko, I. and Kotenko, I. (2011). Genetic algorithms

for role mining problem. In 2011 19th International

Euromicro Conference on Parallel, Distributed and

Network-Based Processing, pages 646–650. IEEE.

Saenko, I. and Kotenko, I. (2012). Design and perfor-

mance evaluation of improved genetic algorithm for

role mining problem. In 2012 20th Euromicro In-

ternational Conference on Parallel, Distributed and

Network-based Processing, pages 269–274. IEEE.

Saenko, I. and Kotenko, I. (2016). Using genetic algorithms

for design and reconﬁguration of rbac schemes. In

Unknown, editor, Proceedings of the 1st International

Workshop on AI for Privacy and Security - PrAISe ’16,

pages 1–9, New York, New York, USA. ACM Press.

Saenko, I. and Kotenko, I. (2017a). Administrating role-

based access control by genetic algorithms. In Un-

known, editor, Proceedings of the Genetic and Evo-

lutionary Computation Conference Companion on -

GECCO ’17, pages 1463–1470, New York, New York,

USA. ACM Press.

Saenko, I. and Kotenko, I. (2017b). Reconﬁguration of rbac

schemes by genetic algorithms. In Badica, C., El Fal-

lah Seghrouchni, A., Beynier, A., Camacho, D., Herp-

son, C., Hindriks, K., and Novais, P., editors, Intelli-

gent Distributed Computing X, volume 678 of Studies

in Computational Intelligence, pages 89–98. Springer

International Publishing, Cham.

Saenko, I. and Kotenko, I. (2018). Genetic algorithms for

solving problems of access control design and recon-

ﬁguration in computer networks. ACM Transactions

on Internet Technology, 18(3):1–21.

Sandhu, R. S., Coyne, E. J., Feinstein, H. L., and Youman,

C. E. (1996). Role-based access control models. Com-

puter, 29(2):38–47.

Schlegelmilch, J. and Steffens, U. (2005). Role mining with

orca. In Ferrari, E. and Ahn, G.-J., editors, Proceed-

ings of the tenth ACM symposium on Access control

models and technologies - SACMAT ’05, pages 168–

176, New York, New York, USA. ACM Press.

The addRole-EA: A New Evolutionary Algorithm for the Role Mining Problem

165

Suganthy, A. and Chithralekha, T. (2018). Role-evolution in

role-based access control system. International Jour-

nal of Emerging Research in Management and Tech-

nology, 6(7):223–227.

Vaidya, J., Atluri, V., and Guo, Q. (2007). The role mining

problem. In Lotz, V. and Thuraisingham, B., editors,

Proceedings of the 12th ACM symposium on Access

control models and technologies - SACMAT ’07, pages

175–184, New York, New York, USA. ACM Press.

Vaidya, J., Atluri, V., Warner, J., and Guo, Q. (2010). Role

engineering via prioritized subset enumeration. IEEE

Transactions on Dependable and Secure Computing,

7(3):300–314.

Verizon (2019). Data breach investigations report 2019.

Computer Fraud & Security, 2019(6):4.

Xu, Z. and Stoller, S. D. (2012). Algorithms for min-

ing meaningful roles. In Atluri, V., Vaidya, J., Kern,

A., and Kantarcioglu, M., editors, Proceedings of the

17th ACM symposium on Access Control Models and

Technologies - SACMAT ’12, pages 57–66, New York,

New York, USA. ACM Press.

Zhang, D., Ramamohanarao, K., and Ebringer, T. (2007).

Role engineering using graph optimisation. In Lotz,

V. and Thuraisingham, B., editors, Proceedings of the

12th ACM symposium on Access control models and

technologies - SACMAT ’07, pages 139–144, New

York, New York, USA. ACM Press.

Zhang, D., Ramamohanarao, K., Versteeg, S., and Zhang,

R. (2010). Graph based strategies to role engineering.

In Sheldon, F. T., Prowell, S., Abercrombie, R. K., and

Krings, A., editors, Proceedings of the Sixth Annual

Workshop on Cyber Security and Information Intelli-

gence Research - CSIIRW ’10, pages 1–4, New York,

New York, USA. ACM Press.

Zhang, W., Chen, Y., Gunter, C., Liebovitz, D., and Ma-

lin, B. (2013). Evolving role deﬁnitions through per-

mission invocation patterns. In Conti, M., Vaidya, J.,

and Schaad, A., editors, Proceedings of the 18th ACM

symposium on Access control models and technolo-

gies - SACMAT ’13, pages 37–48, New York, New

York, USA. ACM Press.

ECTA 2020 - 12th International Conference on Evolutionary Computation Theory and Applications

166
