Design of Data Warehouse in Library Circulation using Pentaho

Totok Suprawoto

Department of Information System, STMIK AKAKOM, Jl. Janti No. 143, Yogyakarta

Keywords:

library collection, library circulation, data warehouse, pentaho.

Abstract:

Library is a source of knowledge that can be accessed by students, lecturers and employees both from inside

and outside campus. Library as a tool that can be used for the development and improvement of knowledge for

its members, plays an important role in disseminating information and providing references for the academic

community. Current and previous circulation of lending and returning data books can be stored in a data

warehouse. Data warehouse is a database that is designed to work on the query process, create reports and

further analysis for the decision making process. In this research, 5 dimensions have been designed, namely:

the time dimension, the member dimension, the publisher dimension, and the author dimension. Furthermore,

it is implemented using 2 fact tables, namely: borrowing tables and book returns tables. Data Warehouse that

has been built can be used by management to use certain software to produce information that can be used for

decision making.

1 INTRODUCTION

Library is one source of knowledge that can be ac-

cessed by students and employees. The library col-

lection includes textbooks, research journals, theses,

scientiﬁc magazines, lecture modules, ebooks, and e-

journals. The library is a tool used for the develop-

ment and improvement of knowledge, plays a very

large role in the series of information dissemination

because the library provides collections that can be

used as a reference for the academic community. Cir-

culation of library materials, is one of the main activi-

ties of the library in providing services to its members.

There are two activities in the circulation of li-

brary collections, namely lending activities and li-

brary material return activities. Borrowing activities

carried out by members are divided into two types,

namely: 1) lending to lecturers with a maximum of 4

titles in 1 semester, and 2) lending to students with a

maximum of 2 titles with a maximum borrowing of

1 week and can be extended again once. Book return

transactions are carried out in stages and / or at the

same time as long as they are still within the deadline

for borrowing. If a member is late returning books, a

late fee will be imposed. Many books are borrowed

by members, are not returned on time and it is difﬁ-

cult to get information about who the borrower is and

when it should be returned. So that it can provide op-

portunities for other members to borrow certain books

to support their learning process. In addition, library

leaders still ﬁnd it difﬁcult to obtain information re-

lated to books most borrowed by members, making it

difﬁcult for leaders to make plans for procurement of

books.

Data Warehouse is a database that designed to

work on the query process, create reports and anal-

ysis. Data stored in a data warehouse is historical

data from an organization / company that has not been

stored in detail. Data Warehouse is different from

OLTP (Online Transactional Processing) data whose

data is stored until the process is complete. The tra-

ditional approach to the ETL process takes data from

the data source, places it in the staging area, and then

transforms and loads it to the datawarehouse shown

in Figure-1 below.

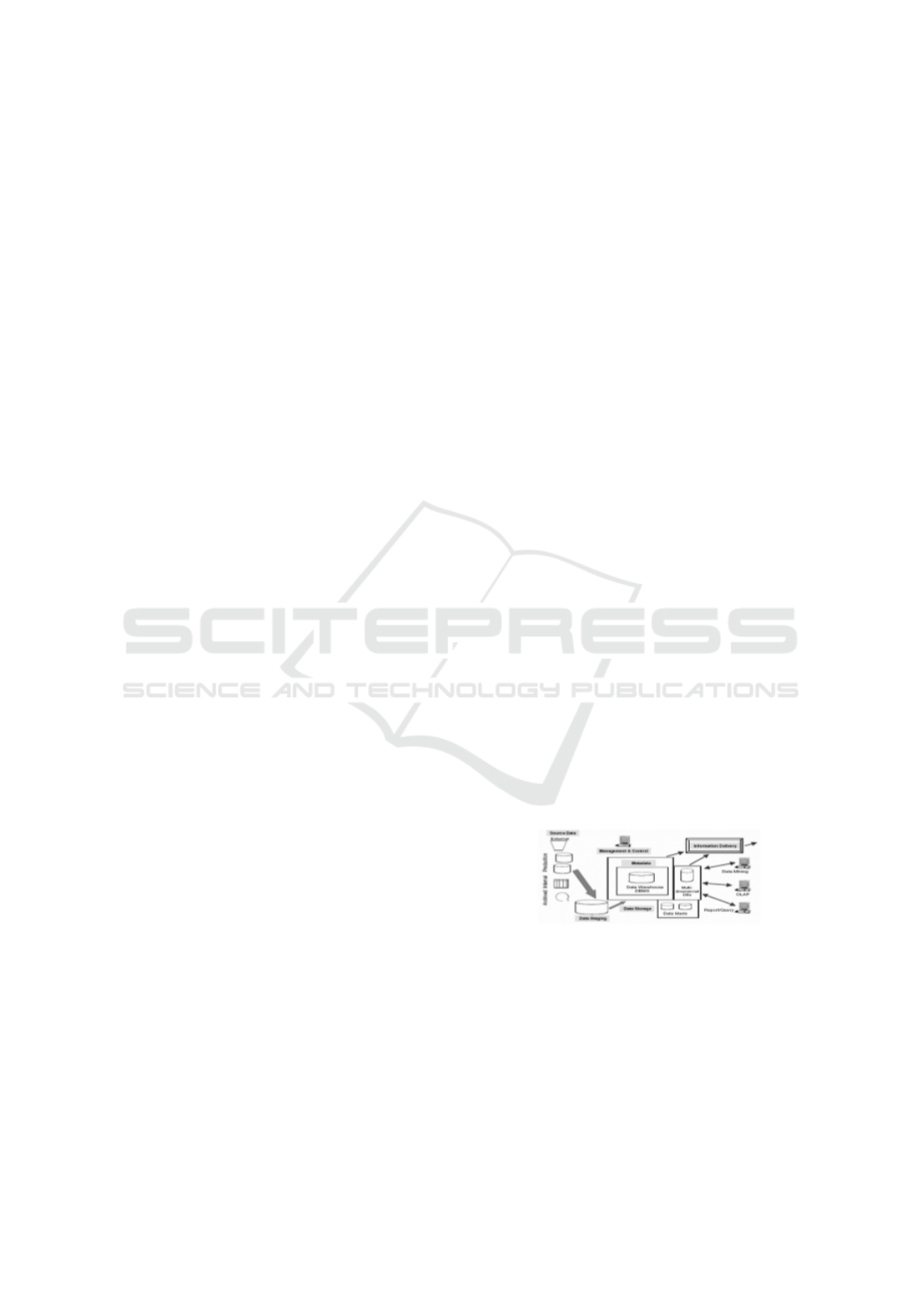

Figure 1: Data Warehouse Architecture

Research (Kurniawati, 2006) on the design and

manufacture of cluster analysis applications on book

transaction data in Petra Christian University Library.

This study aims to determine the relationship between

lending patterns and student GPA using the cluster

analysis method. Being research from (Supriyatna

and Wahyudi, 2012) about data warehouse design in

the Bina Sarana Informatika library, aims to build

a database that can be used by leaders to analyse

Suprawoto, T.

Design of Data Warehouse in Library Circulation using Pentaho.

DOI: 10.5220/0009431200590063

In Proceedings of the International Conferences on Information System and Technology (CONRIST 2019), pages 59-63

ISBN: 978-989-758-453-4

and make decisions appropriately, and make appli-

cations that can analyze deeply on the subjects de-

sired. Researchers (Andri and Tujni, 2015) designed

a Data Warehouse as a library repository that was

implemented using Pentaho Kettle assistive software.

Research (Suprawoto et al., 2017) on integration of

morbidity data of puskesmas patients into the data

warehouse at the district health ofﬁce in the Bantul,

emphasized on how to integrate outpatient morbidity

data from puskesmas in the Bantul district health of-

ﬁce. Furthermore, the data is further processed to pro-

duce information according to the needs of leaders to

support decision making.

2 METHOD

2.1 Data Collection

The ﬁrst step in this research is data collection. For

this purpose researchers conducted data collection by

taking data from the library information system (Si-

pusta) which was the object of research and conducted

a literature review to explore information related to

library data management systems and business pro-

cesses.

In this study, researchers used a top-down ap-

proach, this approach begins with deﬁning organiza-

tional goals and policies and then analyzing informa-

tion needs and then down to transaction processing.

Before starting to create a data model for a data ware-

house, identiﬁed information and data requirements

speciﬁcations available in the Library. The data ob-

tained at this stage are operational data from the cir-

culation of books in the library. Furthermore, a deeper

analysis of the information needs of the leadership is

carried out. Furthermore, the data obtained will be

used as input to the system analysis process.

2.2 System Analysis

The data source used in this study came from a book

circulation database at library. The database taken

consists of book data, library members, loan transac-

tions and library book return transactions. The Data

Warehouse design methodology used in this study

uses the nine-step methodology. The process of in-

tegrating data is carried out with the concept of ETL

(Extracts, Transformation, Loading). Data that has

been integrated and stored in the same format is fur-

ther grouped into the form of dimension tables and

fact tables.

Pentaho Kettle software can be used as a device

to integrate data. Pentaho Kettle provides facilities

for ETL (Extraction, Transformation and Loading)

processes. The main elements of Pentaho Kettle are

Transformation and Job. Transformation is a set of in-

structions to change the input into the desired output.

Whereas Job is a collection of instructions for carry-

ing out transformation. There are three main com-

ponents in Pentaho Kettle namely, Spoon, Pan and

Kitchen. Spoon is the user interface for creating Job

and Transformation. Pan is a tool that functions to

read, change and write data, and Kitchen is a program

that executes jobs.

2.3 System Design

Before designing the system, an analysis of business

processes from the circulation of library collections

in library includes: 1) Member registration (students

and lecturers), 2) Procurement of library collections

(books, journals, magazines), 3) Borrowing books, 4)

Returning books, and 5) Free submission of student

libraries.

After knowing the business processes that occur

in the library, then do the grain selection process. The

selected grain will be used as a fact table in the Data

Warehouse. Based on the business processes that have

been deﬁned, the resulting grains include: the number

of books, the number of members (number of students

and number of lecturers), and the number of books

borrowed.

Next identify and adjust the dimensions associated

with the fact table. From the results of the identiﬁca-

tion of fact tables, 6 dimensions can be determined in

this design, namely: 1) Dimensions of members, 2)

Dimensions of books, 3) Dimensions of time, 4) Di-

mensions of categories, 5) Dimensions of publishers,

and 6) Dimensions of authors.

The next step is to choose a fact table based on

the selection of grains in the previous stage. The fact

table obtained from the analysis consists of borrowing

and returning library collections in book form. The

design of the fact table produced in this study is the

borrowing fact table and the book return fact table.

The loan fact table and the book return fact table can

be seen in Figure-1 and Figure-2.

2.4 Detailed Design Stage

2.4.1 Save Initial Calculations and Fact Tables

Aggregation in the loan fact table is total borrowing of

books based on time (days, weeks, months and years)

and aggregate factual returns of books are total returns

based on time (days, weeks, months and years).

CONRIST 2019 - International Conferences on Information System and Technology

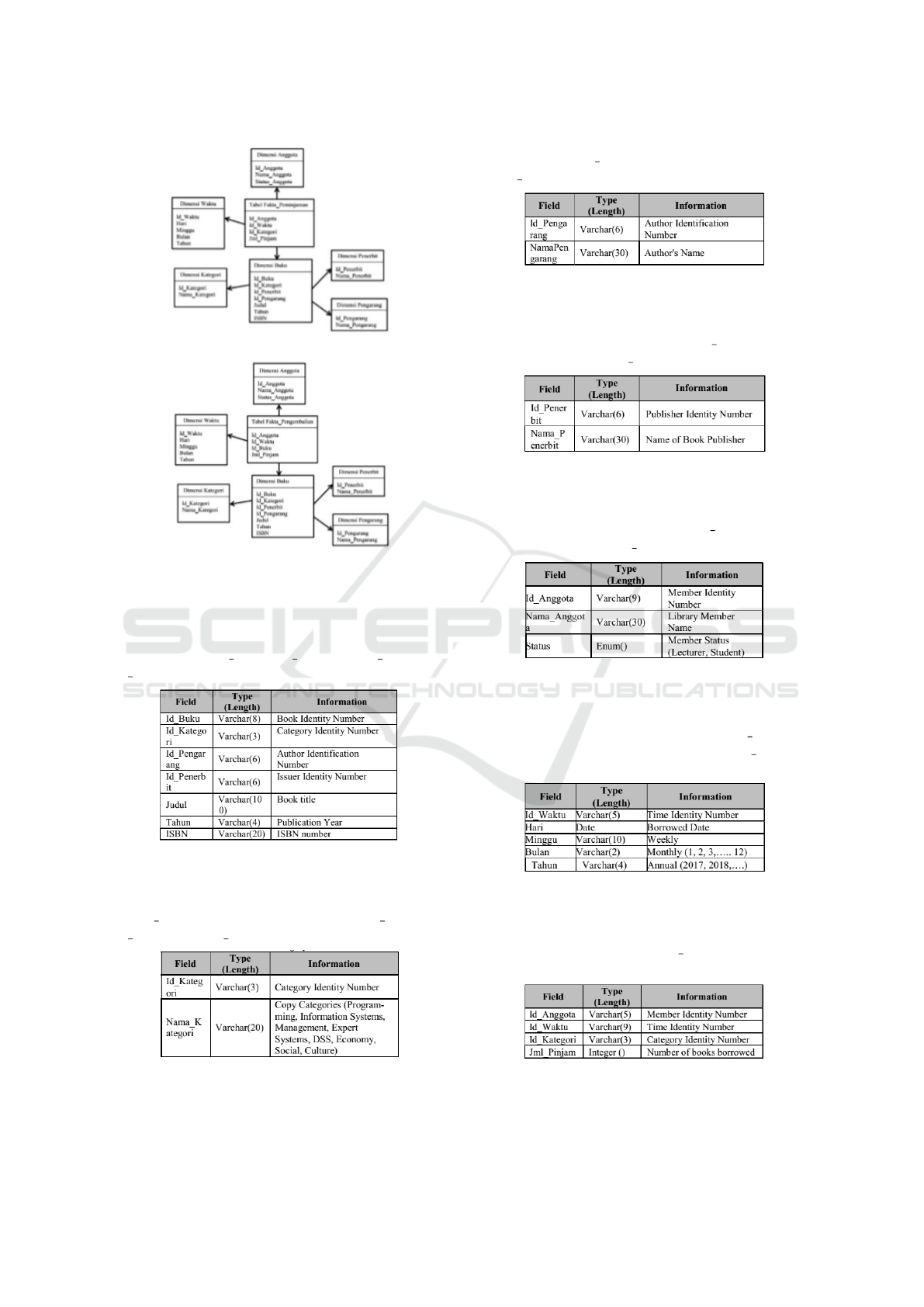

Figure 2: Borrowing Facts Table

Figure 3: Return Fact Table

2.4.2 Complete Dimension Tables

The book dimensions table and its attributes in this

study include: Id Book, Id Category, Id Publisher,

Id Author, Title, Year, and ISBN.

Figure 4: Book Dimensions.

The book dimensions in Figure 4 function to hold

the book data, there are 7 attributes, with the primary

key Id Book, and 3 guest keys, namely: Id Category,

Id Author, and Id Penerbit.

Figure 5: Book Category Dimensions.

The Category dimension in Figure 5 serves to hold

the book category data, there are two attributes, with

the primary key Id Kategori and is equipped with the

Nama Kategori attribute.

Figure 6: Author Dimensions.

Author dimension in Figure 6 has the function to

accommodate the data of the author’s name, there are

2 attributes, with the primary key Id Pengarang and

equipped with the name Pengarang.

Figure 7: Publisher Dimensions.

The Publisher Dimension in Figure 7 functions to

hold the data of the book publisher’s name, there are

2 attributes, with the primary key Id Penerbit and is

equipped with the Nama Penerbit attribute.

Figure 8: Members Table.

The Member Dimension in Figure 8 serves to hold

the data of the name of the author of the book, there

are 3 attributes, with the primary key Id Anggota,

which is equipped with the attribute Nama Anggota

and Status.

Figure 9: Time Dimension.

The Time Dimension in Figure 9 serves to hold the

data of borrowing and returning books, there are 5 at-

tributes, with the primary key Id Waktu and equipped

with attributes of hari, minggu, bulan and tahun.

Figure 10: Borrowing Fact.

The Borrowing Facts in Figure 10 have the func-

tion to store the data of borrowing books from mem-

Design of Data Warehouse in Library Circulation using Pentaho

bers, there are 4 attributes, with a combined key (com-

posite key) Id Anggota, and Id Waktu, Id Kategori,

which is equipped with attributes Jml Pinjam.

Figure 11: Return Fact Table.

The Borrowing Facts in Figure 11 functions to

collect the book return data from members, there

are 4 attributes, with a combined key (composite

key) Id Anggota, and Id Waktu, Id Kategori, which

is equipped with attributes Jml Pinjam.

2.5 Database Duration Selection

In designing this library Data Warehouse, the duration

of time used is 3 years. The data stored in this Data

Warehouse will be the last 3 years of data.

3 RESULTS AND DISCUSSION

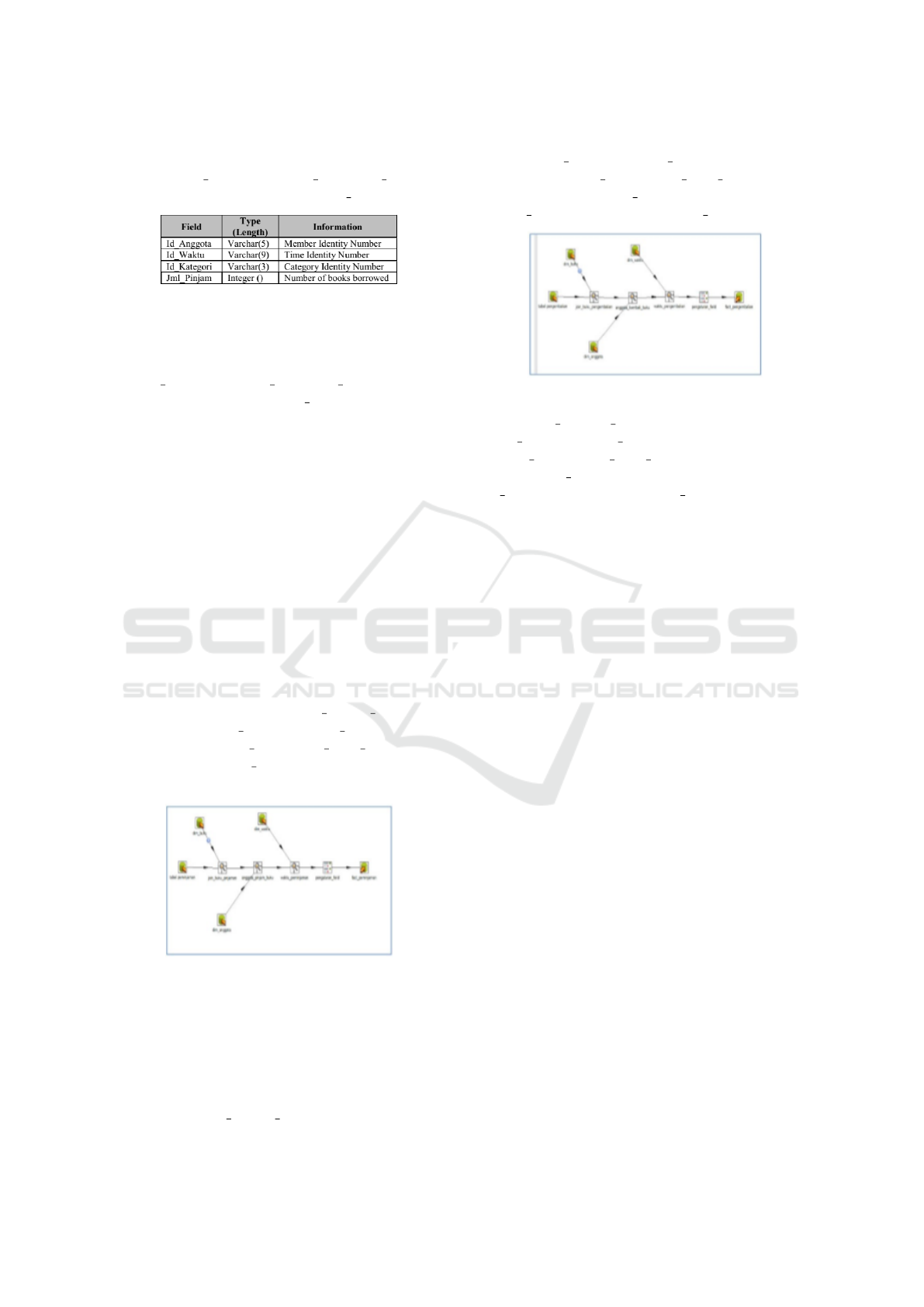

3.1 Making Facts on Borrowing Books

The results of the design of the fact of borrowing

books, after being implemented into Pentaho can be

seen in Figure 12. In the loan table consists of

ﬁve attributes, namely: anggota pinjam buku asso-

ciated with dimensi anggota, waktu peminjaman as-

sociated with dimensi waktu, jum buku pinjaman as-

sociated with dimensi buku, and the end node is tot-

peminjaman.

Figure 12: Formation of Book Borrowing Facts

3.2 Making Fact Returns Books

While the results of the design of the return of books

after being implemented using Pentaho can be seen in

Figure 13. In the return table consists of six attributes,

namely: anggota pinjam buku which is connected

with dimensi anggota, waktu pengembalian associ-

ated with dimensi waktu, jum buku pengembalian

associated with dimensi buku, associated with pen-

gaturan ﬁeld and the end node is tot pengembalian.

Figure 13: Making of Fact Returning Books

Anggota kembali buku associated with di-

mensi anggota, waktu pengembalian associated with

dimensi

waktu, jum buku pengembalian associated

with dimensi buku, associated too with pengatu-

ran ﬁeld, and the end node is tot pengembalian.

4 CONCLUSIONS

From the results of the discussion in the previous

chapter it can be concluded that the design of the Li-

brary circulation Data Warehouse with case studies in

the Library can be designed, in 5 dimensions, namely:

the time dimension, the member dimension, the pub-

lisher dimension, the author dimension, and the cate-

gory dimension. Furthermore, it is implemented us-

ing 2 fact tables, namely: borrowing tables and book

returns tables. Data warehouse that has been built can

be utilized by interested parties by using certain soft-

ware to produce information that can be used to sup-

port decision making.

The advice given for this research is so that it can

be expanded even further, to produce a more detailed

output in helping the decision making process that is

more speciﬁc to the leadership.

CONRIST 2019 - International Conferences on Information System and Technology

REFERENCES

Andri, A. and Tujni, B. (2015). Analisis dan perancan-

gan data warehouse perpustakaan (studi kasus: Per-

pustakaan universitas binadarma palembang). In Sem-

inar Nasional Informatika (SEMNASIF), volume 1.

Kurniawati, A. S. (2006). Perancangan dan pembuatan ap-

likasi cluster analysis terhadap data sirkulasi buku di

Perpustakaan UK. Petra. PhD thesis, Petra Christian

University.

Suprawoto, T., Sela, E. I., and Windarti, S. (2017). Prototipe

integrasi data morbiditas pasien puskesmas kedalam

data warehouse di dinas kesehatan kabuten bantul. Ju-

rnal TAM (Technology Acceptance Model), 7:1–10.

Supriyatna, A. and Wahyudi, M. (2012). Perancangan

data warehouse pada perpustakaan bina sarana infor-

matika. In Seminar Nasional Aplikasi Teknologi In-

formasi (SNATI).

Design of Data Warehouse in Library Circulation using Pentaho
