Assisted Composition of Linked Data Queries

Imen Sarray

and Aziz Salah

Computer Science Department, Université du Québec à Montréal, 201 President Kennedy Avenue, Montreal, Canada

Keywords: Linked Data, RDF, SPARQL Queries, Semantic Web, Schema Construction, Resource Clustering, Query

GUI Tool.

Abstract: Much research has been undertaken to facilitate the construction of SPARQL queries, while other research

has attempted to facilitate the construction of the RDF dataset schema to understand the structure of RDF

datasets. However, there is no effective approach that brings together these two complementary objectives.

This work is an effort in this direction. We propose an approach that allows assisted SPARQL query

composition. Linked data interrogation is not only difficult because it requires mastering a query language

such as SPARQL, but mainly because RDF datasets do not have an explicit schema as what you can expect

in relational databases. This paper provides two complimentary solutions: synthesis of an interrogation-

oriented schema and a form-based RDF Query construction tool, name EXPLO-RDF.

1 INTRODUCTION

An increasing number of RDF datasets is available on

the Web for users and their applications. A key

challenge for the users to reuse these data is in

exploring, querying and understanding the large and

unfamiliar RDF sources.

Today, the SPARQL query language is almost the

de facto tool for RDF data queries and exploration.

However, the formulation of SPARQL queries is a

complex task. Indeed, the user should know the

syntax of SPARQL and requires technical knowledge

and some understanding of RDF, RDFS and URIs,

among others. Moreover, RDF data is not only

intended for the Semantic Web community, but also

for non-expert users and experts of other fields who

are not necessairly familiar with the different

technologies used. Subsequently, it becomes very

difficult for these users to query and explore an RDF

dataset with SPARQL.

Before an RDF dataset can be reused and in order

to write a SPARQL query, the user must understand

the data and must have information about the RDF

dataset schema to locate the relevant information for

their specific needs and to determine whether such

data can be easily reused.

https://orcid.org/2222-3333-4444-5555

https://orcid.org/0000-1111-2222-3333

Users currently face the problem that schema

information for RDF data is often not available or

even missing. Even when it is available, it tends to be

incomplete or does not adequately represent the RDF

data because the latter does not have to conform to a

constraining schema. It can therefore be hard for users

to obtain the big picture when handling a large and

complex RDF dataset.

The lack of schema can limit the interrogation of

RDF linked data: for example, writing a query

without knowing of the existing classes and their

properties (known as predicates) is not

straightforward. In this case, the user must first

submit multiple queries and manually browse the

results in order to collect all the relevant classes and

properties, which will be used to formulate the main

query that will provide the final result.

In recent years, some work has been done to

provide the user with exploration approaches of RDF

schema. Thus, the user will build a global view of the

RDF source and can select relevant classes and their

properties. The user must use a query language like

SPARQL or data exploration tools to explore and get

more details about the data.

There is also work to explore directly RDF data

sources. These works help users to query and

understand RDF data without needing to know the

Sarray, I. and Salah, A.

Assisted Composition of Linked Data Queries.

DOI: 10.5220/0008169601850194

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 185-194

ISBN: 978-989-758-382-7

185

query language. To query a dataset, the user needs a

minimum of knowledge about the data structure.

However, this information is often not available.

To the best of our knowledge, no approach allows

the exploration of the schema on the one hand and

data on the other, although these two types of

exploration are complementary and depend on each

other. In this context, we propose EXPLO-RDF, a

tool for assisted composition of SPARQL queries.

This tool offers two complementary approaches:

schema construction and form-based query

composition. The two approaches together allow a

user to understand the content of an RDF source as

quickly as possible and to better fulfil their needs of

RDF dataset interrogation.

The reminder of this paper is organized as

follows. Section 2 reviews related work. Section 3

describes how to extract and visualize schema

information from RDF dataset, based on a number of

SPARQL queries. The visualisation will use UML

class diagram extended with some statistics to better

understand the profile of the RDF dataset. Section 4

describes our approach for form-based query

composition featuring keyword search and

completion suggestions, a simple and intuitive way to

RDF dataset interrogation. Section 5 presents and

reports our experimental results.

2 PRELIMINARIES AND

RELATED WORK

RDF

(Ressource Description Framework) is a

standard data model that represents the spinal cord of

the semantic web. An RDF dataset is composed of

triples in the form (subject, predicate, object),

representing statements, example (<Bill> <name>

”Bill Gates”.) The predicate is a property

representing a relationship between the subject (a

resource) and the object (either a resource or a literal).

Resources and predicates are identified with URIs

(Uniform Resource Identifier). An RDF dataset is a

directed graph where subjects and objects are the

nodes, connected with directed edges representing the

predicates.

RDF is very flexible as it accepts any triple

respecting its syntax. RDFS which stands for RDF

Schema is an extension of RDF that allows the

definition the vocabulary to be used in an RDF

dataset. RDFS defines

rdfs:Class, rdfs:range etc,

but are not used in most published RDF datasets. An

important feature in RDF is declaring the type of

https://www.w3.org/TR/rdf11-primer/

resources (eg. <Bill> rdf:type <Person>.) which

allows to easily construction the schema of the RDF

dataset. This schema is similar to the schema of

relational databases. Resources for which type

declarations are missing are untyped resources.

Inferring the schema of an RDF dataset with untyped

resources is a challenging task. The schema is very

important for RDF dataset query because it provides

a summary of the RDF dataset that reveals it

structure.

SPARQL

represents for RDF datasets what SQL

is for relational databases. A SPARQL query is

mainly composed of triple patterns in which the three

components subject, predicate and object are either

variables or closed constants (i.e. URIs or literals).

The SPARQL engine executes the query by matching

its triple patterns with the triples of the RDF graph.

Each match can be part of the query response.

Related work to RDF dataset querying concerns

two tasks: schema exploration and construction, and

RDF dataset interrogation. We also discuss their

limitations.

2.1 RDF Schema Construction

Visualization of the RDF dataset schema can help get

a better overview of the data structure and may be a

useful starting point for queries and further analysis.

There are two main methods for constructing the

schema of an RDF dataset: graph-based model, and

UML class diagram based.

2.1.1 Graph based Model

Several approaches allow the graph-based schema

construction, such as: LD-VOWL (Weise, Lohmann,

& Haag, 2016), LODSight (Dudáš, Svátek, &

Mynarz, 2015) and LODeX (Benedetti, Bergamaschi,

& Po, 2014).

LD-VOWL is a web-based tool that extracts and

visualizes schema information of Linked Data

sources based on the VOWL notation. SPARQL

queries are used to infer the schema information from

the RDF data which is then gradually added to an

interactive VOWL graph visualization (Weise,

Lohmann, & Haag, 2016).

LODSight

is a dataset summary visualization tool.

It uses also SPARQL to find all type-property and

datatype-property paths in the dataset. The RDF

schema will be represented as a graph and visualized

in a format allowing the user to see the generalized

structure of the dataset. The visualization is

https://www.w3.org/TR/sparql11-query/

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

186

interactive, and the user can also filter the displayed

paths to show only those with lower or higher

frequency (Dudáš, Svátek, & Mynarz, 2015).

LODeX summaries the schema as a graph where

the vertices are the classes. An undirected non-tagged

edge relates two classes if there exists a property

linking at least two of their respective instances.

LODeX provides also the average number of a

property or an attribute in the instances of a given

class. It offers a visual query editor where the user can

add/remove filters.

The schema summary relies on RDF schema,

meaning that it assumes all instances are linked to

their classes in the dataset. This assumption is not true

for most existing RDF datasets, where the type

declaration is often missing. Thus, the data source

sometimes does not follow an explicit schema and, in

this case, the tool does not really support such RDF

datasets. In addition, we could not see the properties

that link two classes directly from the graph, because

we have to select one class at a time to display its

properties.

LODSight, LD-VOWL, and LODeX do not

handle untyped resources. Subsequently, the schema

of the dataset is not complete. Then, these tools would

only show a schema composed of typed resources

only, which provides a better understanding of the

data structure covering typed resources only.

However, they do not cover all RDF data in the

dataset. Finally, with the exception of LOdDeX, most

of these tools do not offer the possibility to

manipulate SPARQL queries.

2.1.2 UML Class Diagram based Schema

There is surprisingly few work on extracting and

visualizing schema information from linked data as a

UML diagram, principally (Li & Zhang, 2013) and

(Jin-Sung & Mi-Kyung, 2005).

(Li & Zhang, 2013) proposes a SPARQL-based

tool that, given an RDF dataset, it builds a data

inferred schema represented as a UML class diagram,

extended with a collection of statistics. The number

of instances per class and the number of instances of

each property allow users to better understand the

RDF dataset.

This type of exploration makes it possible to

present the schema in a visual way that we judge to

be the best for understanding the data structure.

However, it does not provide the means to write

effective queries and to explore the data locally in the

RDF graph. The authors mentioned the problem of

processing untyped instances but did not propose a

well-explained solution.

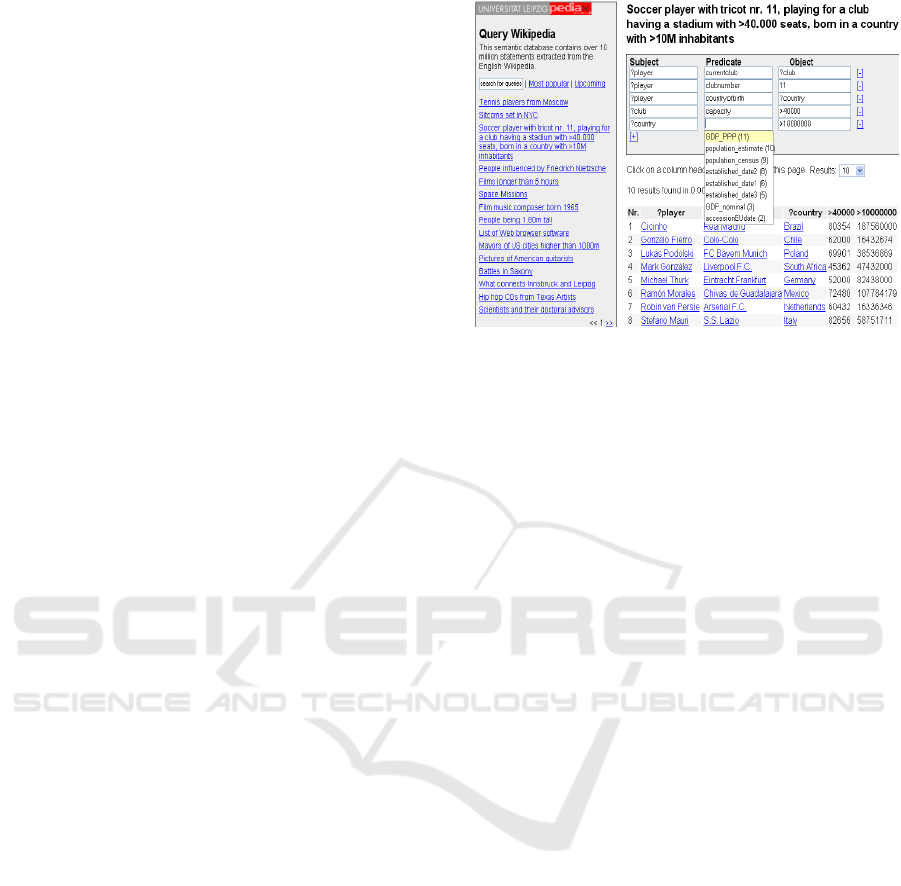

Figure 1: Graph pattern builder (Auer, et al., 2007).

2.2 Query Construction

We can classify SPARQL query construction tools

into three main categories according to their

approaches: semantic browsers based, forms based

and visual composition based query.

2.2.1 Semantic Browsers based Query

Semantic browsers provide a GUI that implicitly

supports query composition in a text editor while the

user is navigating the RDF dataset.

As a tree-based semantic browser, Tabulator (Tim

Berners-Lee & Sheets, 2016) displays an increasing

level of refinement as the user navigates the tree

structure. It features assisted SPARQL query

composition and editing, supporting simple and

complex queries as well.

Query composition based on semantic browser is

designed to be easy and fast to learn for new users and

for developers who would like to expand their own

ideas about a dataset. However, before exploring the

RDF dataset and formulating queries, the user needs

to understand the structure of the dataset to determine

the different links.

The user needs to explore an entire tree, which can

be a tedious task and expensive in time and effort. On

the other hand, if the user needs a specific

property/resource, he has to navigate through the

entire data tree every time in order to select what he

needs; a non-simple task since RDF data can be large

and eventually the path may be too long. Having a

schema of the RDF dataset would have made things

easier for users.

Assisted Composition of Linked Data Queries

187

2.2.2 Form-based Query

This is a popular approach where queries are created

from the elements of a form such as text fields, drop-

down lists, etc. Examples of this approach are

SPARQL Viz (Jethro, 2006), Konduit VQB (Ambrus,

Möller, & Handschuh, 2010) and Graph Pattern

Builder (Auer, et al., 2007). Graph Pattern Builder

(Figure 1) was developed specifically to query

Wikipedia data. Users query the knowledge base

through a basic graph that consists of a set of triple

patterns where each one is composed three form

fields. These fields represent the subject, predicate

and object of a triple pattern. Each field can receive

either a variable, an identifier or a filter.

Form based query is an effective approach for data

exploration and for SPARQL query composition.

However, the user must first understand the structure

of the RDF dataset: the classes and their

optional/mandatory properties. Such information,

that represents the schema of the dataset, is generally

not easily grasped with these methods of data

exploration. Therefore, the user will be forced to try

to understand and collect the schema pieces

manually, a task not easy and not obvious for the user

as the schema is not fixed, as recourses may be

untyped and have optional properties.

2.2.3 Visual Query Construction

A visual query construction tool, such as

NITELIGHT (Smart, Russell, & Braines, 2008),

RDF-GL (Hogenboom, Milea, Frasincar, & Uzay,

2010) and LUPOSDATE (Groppe, Groppe, &

Schleifer, 2011), defines a visual language in which a

query is represented with a graph that the tool

translate into a SPARQL query.

Visual query construction can cover most of the

expressiveness of SPARQL while maintaining an

intuitive simplicity. However, the same problem

persists, since the user has no idea about the schema

nor links between different classes, he will be forced

at first to understand the structure of RDF dataset by

making SPARQL queries. A tedious and repetitive

task.

In this section, we have pointed out several

limitations of the presented approaches. The main

limitation common to all these approaches, regardless

of the category to which they belong, is the fact that

no one combines the RDF schema construct and the

RDF data query composition, although they are

Calling schema this model is inspired by relational DB

and should not be confused with RDFS (RDF Schema)

by W3C.

complementary and dependent on one another. Their

complementarity is a consequence of the flexibility of

RDF that does not impose a fixed schema, which

makes it difficult to query RDF datasets.

3 RDF DATASET SCHEMA

CONSTRUCTION

Our goal is to identify classes and their properties in

an RDF graph in order to construct a model which

summarises the RDF dataset. We call this summary a

schema

and its main purpose is query construction

not dataset design.

The identification of the classes in an RDF graph

can be easy if its vocabulary was properly declared

using RDFS. Each resource would have a class to

which it belongs using

rdf:type property.

However, the specification of the class of a

resource is not mandatory in the RDF model.

Consequently, real world RDF dataset may show

untyped resources, the ones that are without any

rdf:type property. Untyped resources make it

difficult to identify their classes to be represented in

the schema summarizing the RDF dataset. That's why

we’ll be talking about a group of a resource rather

than the class of a resource. Of course, declared

classes are groups of ressources. Other groups will be

defined by clustering untyped resources.

We can formulate the problem of identifying

resource clustering as follows: Given an RDF graph,

group identification is the discovery of resource

groups, not necessarily disjoint, each representing a

set of resources having at least a property in common.

The set of properties of the resources of a group

define the group’s properties. A resource may have

more than one type and subsequently may belong to

more than one group, making groups not necessarily

disjoint.

To illustrate our approach, we consider

throughout this section a small RDF graph

(Figure 2), adapted from Jamendo RDF dataset

(Raimond, 2016), which describes artists and their

recordings.

3.1 Groups of Typed Resources

For typed resources, their groups are defined by their

classes. The groups and their properties are

determined using the following SPARQL query:

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

188

SELECT distinct ?class ?prop

WHERE {

?ressource rdf:type ?class .

OPTIONAL { ?ressource ?prop ?objet } .

Filter (?prop != rdf:type).

}

Figure 2: An RDF graph adapted from Jamendo dataset.

Applied on the RDF graph in Figure 2, the former

SPARQL query returns the results shown in Table 1.

There are four classes (

mo:MusicArtist

mo:Record

mo:Lyrics

and

mo:Signal

) each one will represent a

group. For example,

mo:MusicArtist

is a group

having two resources (

artist:1009

and

artist:1044)

, and characterized with three optional

properties (

mo:biography

foaf:made

and

foaf:name

Table 1: Typed resource groups and their properties.

class prop

mo:MusicArtist| mo:biography

mo:MusicArtist foaf:made

mo:MusicArtist foaf:name

mo:Record dc:title

mo:Record mo:image

mo:Record foaf:maker

mo:Lyrics

mo:Signal

3.2 Groups of Untyped Resources

Assigning untyped resources to groups is not a

straightforward task. The resources of a group should

share a similarity from schema point of view. To

solve this problem, we studied many alternatives. A

simple solution would be to group all untyped

resources in a single group. The group of untyped

resource would be composed of heterogeneous

unrelated resources. This basic representation does

not help the user to understand the structure of the

RDF graph.

On the other extremum, another basic solution,

would be to create a group for each property in

untyped resources. In this case, a resource with many

properties will be assigned to many groups.

Consequently, it would lead to an explosion of the

number of groups which is against the principle of

constructing a schema, summarizing the RDF dataset.

Figure 3: Example of an RDF graph with untyped

resources.

By avoiding the drawbacks of the two previous

trials, the chosen solution is to group untyped resources

based on their common properties. Two untyped

instances belong to the same group if they have at least

one property in common. In order to capture business

domain groups in the RDF dataset, properties such as

rdfs:label, rdfs:comment, etc are excluded.

Using a binary relation R, we formalize the

extraction of the groups of untyped resources in an

RDF graph. Two instances i and j are R-related if and

only if prop(i)∩prop(j)≠∅, where prop(i) represents

the set of properties of resource i. A property p

belongs to prop(i) if and only if there exists in the

dataset an RDF triple having i as its subject and p as

its property (i.e. predicate).

Figure 3 shows an RDF graph having five untyped

resources. For this dataset, we draw in Table 2 a

matrix presenting the binary relation R.

We define the relation R* to be the transitive

closure of R. The transitive closure R* is the smallest

transitive binary relation that contains R. The binary

relation R* is an equivalence relation by construction

and its equivalence classes are exactly the groups of

untyped resources in the RDF dataset and can be

obtained by computed the transitive closure of R.

In the case of R in Table 2, there are two

equivalence classes {i1, i2} and {i3, i4, i5} in R*.

These two classes represent the groups of untyped

instances in the RDF graph. Since groups are

equivalence classes, they are necessarily disjoint.

This disjointness was not targeted, but it is a good

feature resulted from our formalization of the

clustering problem. We characterize each group by

the properties of their respective untyped resources.

Table 2: A matrix representation of the relation R based on

the RDF graph in Figure 3.

Ressources i1 i2 i3 i4 i5

i1 1 1 0 0 0

i2 1 1 0 0 0

i3 0 0 1 1 0

i4 0 0 1 1 1

i5 0 0 0 1 1

Assisted Composition of Linked Data Queries

189

The class diagram graphical representation enables

visual exploration of the RDF dataset structure and

facilitates query construction.

Table 3 defines and illustrates our detailed

translation rules for constructing the UML class

diagram from the RDF dataset and the groups of

typed and untyped resources.

Table 3: Translation rules for constructing the UML class

diagram from RDF data.

Scenarios UML Mapping

UML

Classes:

Groups of

typed

instances

A UML class whose name is the type

specified in the RDF source.

Example

artist:1044 rdf:type

mo:MusicArtist .

MusicArtist is a UML class

UML

Classes:

Groups of

untyped

instances

A UML class whose name will be

Class 1 in which 1 is representing the

group index. These classes will be

represented with another color to

distinguish them from the UML classes

representing typed resource groups.

Example

performance:100252

mo:recorded_as signal:100252.

performance:100252

belongs to group1 presented by Class1.

UML

Attributes:

The object

is a literal

The property targeting this object will

be an attribute in the UML class

representing the subject of an RDF

triple.

Example

artist:1044 rdf:type

mo:MusicArtist .

artist:1044 foaf:name

"Stian" .

As "Stian" is a literal, so

foaf:name property will be an

attribute in class MusicArtist.

UML

Association:

The object

is a

resource

The property targeting this object will

be an association relating two classes.

Example

artist:1044 rdf:type

mo:MusicArtist .

artist:1044 foaf:maker

record:1084 .

record:1084 rdf:type

mo:Record .

record:1084 is a resource then

the class

MusicArtist and Record

are related with an association labeled

with property foaf:maker.

3.2.1 Extending the Class Diagram with

Statistics

We add statistics to the schema such as the number of

resources in each group and the number of resources

that are the subjects of a property. These statistics are

computed through the following SPARQL queries:

Query1 :

SELECT ?C, count (distinct ?i) as ?count

WHERE { ?r rdf:type ?C . }

Query2 :

SELECT ?C,?p, count(distinct ?r) as ?count

WHERE { ?r ?p ?o .

?r rdf:type ?C.

?o rdf:type ?C1. }

GROUP BY ?C,?p

It is obvious that Query1 and Query2 computes

statistics for typed resource groups. However, a

simple trick allowed us using the same queries for

untyped resource groups as well. The trick consists of

inserting in the RDF dataset fictive triples to make

each untyped resource typed with its group.

Statistics allow the user to have an idea about the

structure of the RDF dataset. Since resources within

the same group may not have the same properties,

statistics may inform whether a property is optional

by comparing the number of resources in a group with

the number of participating resources in the property.

If they are the same, all of the resources of the group

participate in the property otherwise, the property is

optional. SPARQL queries can be refined in case of

optional properties using the OPTIONAL graph

pattern, for example.

3.2.2 Example of Application

We have applied our approach for RDF dataset

schema construction on Jamendo, an RDF dataset, as

an example of application. After clustering typed and

untyped resources into groups, we constructed the

MusicArtist

Class1

MusicArtist

foaf:name

MusicArtist

foaf:name

Record

foaf:maker

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

190

Figure 4: Jamendo RDF dataset schema.

dataset schema showed in Figure 4 by applying the

transformation rules explained in Table 3.

The schema contains 17 classes of which 11

classes represent typed resource groups and 6 classes

represent untyped resource groups, obtained using the

equivalence relation R*. For each class, the number

of instances is provided as well as the number of

instances for each property of each class. This

diagram is convenient for users since it allows to

explore and understand the structure of the RDF

dataset in a fast, intuitive, efficient and visual way

which facilitates the formulation of appropriate

SPARQL queries and the retrieval of interesting

detailed information.

4 GUI BASED SPARQL QUERY

CONSTRUCTION

Our approach to construct SPARQL queries is guided

by the RDF dataset schema and uses two friendly GUI

based features: keyword search and form-based query

construction. Keyword search is an easy way to

explore the neighbourhood of a resource in the RDF

graph in order to assist the user in constructing

SPARQL queries by filling triple patterns slots.

The approach consists of three tasks: indexing the

RDF dataset, searching RDF data by keywords and

assisting in the construction of SPARQL queries.

4.1 Indexing the RDF Dataset and

Keyword Search

The RDF dataset is composed of triples that the

SPARQL engine try to match with triple patterns in a

SPARQL query. A triple pattern in the

WHERE

clause

has three slots, one for the subject, the property and

the object. In Figure 5, landmark B pinpoints triple

pattern slots in the GUI of our prototype, EXPLO-

RDF. Each slot in a triple pattern can receive as input

either a variable (when it starts with ‘?’), a URI or a

literal. A literal in the triple pattern triggers a keyword

search and retrieves relevant matching values in the

position of its slot from the RDF dataset. For

example, if there is a literal in the subject slot of the

triple pattern, only information about subjects in the

RDF dataset are looked into to retrieve a matching

candidate list. The user can select from the retrieved

list the value she wants, either a literal or a URI to

build a triple pattern to add to the query under

construction.

Consequently, we built three indices: subject

index, property index and object index. Information

from

rdfs:label

and

rdfs:comment

triples are also

indexed with their resources and can be used to

retrieve relevant resources in keyword search.

Assisted Composition of Linked Data Queries

191

Figure 5: GUI of EXPLO-RDF, our prototype.

4.2 SPARQL Query

The GUI of EXPLO-RDF allows SPARQL query

assisted composition. The

WHERE

clause (Figure 5:B)

is constructed as the triplet patterns are filled. If the

user indicates that a triple pattern is optional then this

information will be added for this triple in the query.

The select clause is constructed based on the list of

user-defined variables. The "distinct" option can be

activated to remove duplicates from the results.

LIMIT

OFFSET

and

ORDER BY

clauses (Figure 5:C) can also

be added to the query. Triple patterns can be

activated/deactivated (with radio buttons “Active” in

Figure 6: Excerpt from Jamendo RDF dataset.

Figure 5:B) to allow the exploration a neighbourhood

in the RDF graph.

Once a SPARQL query is composed through the

GUI, it is translated into a text format and showed in

the editor text box. The user can eventually create and

update SPARQL queries manually in the editor text

box. EXPLO-RDF submits queries to the SPARQL

engine and displays the results.

5 VALIDATION AND

DISCUSSION

The EXPLO-RDF (Figure 5) supports two tasks. The

first one is the automatic construction of the schema

summarizing the RDF dataset under use, in the form

of an extended UML class diagram (Figure 4). The

second task consists of assisting the user in

composing SPARQL queries based on triple pattern

form GUI. The schema is very important for query

construction as it provides the user with a blue print

of the RDF dataset which inspires a first version of

the query. When executed, the first version query may

return no results. This is very common because of the

flexibility of RDF. The user then studies the triple

patterns of the first version using EXPLO-RDF forms

and incrementally fine-tunes his query to make it

right for extracting targeted information from the

RDF dataset. Fine-tuning triple patterns uses

keyword search and neighbourhood exploration

within the RDF graph.

In summary the schema provides a global view of

the RDF dataset while the triple pattern form GUI in

EXPLO-RDF compensates with local views for the

construction of effective SPARQL queries.

5.1 Validation

To validate our schema construction, we converted a

relational database into an RDF dataset and

constructed its schema. Then we compared the RDF

dataset schema we have constructed with EXPLO-

RDF with the relational database schema. It was a

perfect match.

In our approach, resource groups (Figure 4) can

be compared to the classes in the UML class diagram

by (Li & Zhang, 2013) modelling a schema for

Jamendo RDF dataset. Their schema shows 18

classes of which 7 are anonymous classes grouping

untyped resources. EXPLO-RDF, our tool identified

17 classes (Figure 4) of which 16 classes match

perfectly the schema of (Li & Zhang, 2013). The only

difference (red-circled classes in Figure 4) was the

group of untyped class8 in which EXPLO-RDF

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

192

gathered the resources participating in properties

mo:recorded_as and event:factors because there

exists a resource having both properties as shown by

the excerpt from Jamendo RDF dataset in Figure 6.

In (Li & Zhang, 2013) schema there was two

anonymous classes one for

mo:recorded_as and the

other for event:factor. The fact that EXPLO-RDF

produces less untyped resource groups (i.e.

anonymous classes) in its schemas than (Li & Zhang,

2013), make our schemas more concise and

consequently easier to grasp and comprehend for

users.

5.2 Complementarity of Form-based

Query Construction and RDF

Dataset Schema

The final goal of a user is to formulate queries. On the

one hand, with a tool that just provides an RDF

dataset schema, the user will be forced to manually

create queries, a tedious time-consuming task that

requires expertise. In addition, these queries could

return empty result because of optional properties.

Our prototype EXPLO-RDF with its form-based

query construction offers the possibility to explore

data in detail that helps to check the RDF data

structure and validate the class diagram as it is a

valuable summary of the RDF graph.

On the other hand, in the absence of the schema,

the user will have to get an idea about the schema

manually to understand the RDF data structure. A

simple method is to explore the RDF dataset through

simple queries using pattern triples in the form-based

query construction GUI. In this case, the user will

look for typed resources and their classes and explore

their neighbourhood to determine their properties.

The user is in fact unconsciously trying to build a

schema for the RDF dataset. Providing the user with

a well-constructed schema simplifies her task and

saves him time and effort.

6 CONCLUSION

In this article, we’ve presented an approach that

allows assisted SPARQL query composition. Our

main contribution is to combine two approaches,

namely the construction of a schema that summarises

the structure of the RDF dataset, and a form-based

query construction tool, supporting keyword search

and neighbourhood exploration. Our experiments

showed the relevance and the complementarity of the

two tasks.

We project the extension of work into three axes:

implementation environment, usability and schema

design. Although EXPLO-RDF can be used to build

queries, the user has to install GraphViz and some

Java libraries for the SPARQL engine. It would be

more convenient if EXPLO-RDF could be used as a

web application. Currently, EXPLO-RDF support

only RDF dumps, an extension to support SPARQL

endpoints will make other RDF data sources easily

usable.

On the usability axis, feedback from users is

needed in order to improve EXPLO-RDF GUI and its

features to meet their expectations. For example, it

would be possible to rank keyword search completion

list according to retrieval information metrics such as

TF-IDF.

EXPLO-RDF builds a schema for the RDF

dataset under query. Such schema is constructed for

the purpose of querying only and it is a useful

summary of the RDF dataset. Reengineering the RDF

dataset in order to create real RDF schema can start

from EXPLO-RDF schema. The question would be:

how to break down an untyped resource group to

obtain real world classes?

REFERENCES

Ambrus, O., Möller, K., & Handschuh, S. (2010). Konduit

VQB: A visual query builder for SPARQL on the social

semantic desktop. Proceedings of the Workshop on

Visual Interfaces to the Social and Semantic

Web(VISSW 2010), (pp. 1-5).

Auer, S., Bizer, C., Kobilarov, G., Lehmann, J., Cyganiak,

R., & Zachary, I. (2007). DBpedia: A Nucleus for a

Web of Open Data. ISCW, pp. 722–735.

Beek, W., & Folmer, E. (2017). An Integrated Approach for

Linked Data Browsing. International Society for

Photogrammetry and Remote sensing, pp. 35-38.

Benedetti, F., Bergamaschi, S., & Po, L. (2014). A Visual

Summary for Linked Open Data sources. In

Proceedings of the ISWC 2014 Posters &

Demonstrations, 15(24), pp. 173-176.

Dudáš, M., Svátek, V., & Mynarz, J. (2015, 5 9). Dataset

Summary Visualization with LODSight. The Semantic

Web: ESWC 2015 Satellite Events, 15(20), pp. 36-40.

Groppe, J., Groppe, S., & Schleifer, A. (2011). Visual

Query System for Analyzing Social Semantic Web.

International World Wide Web Conference Committee,

pp. 217-222.

Hitzler, P., Krotzsch, M., & Rudolph, S. (2011).

Foundations of semantic web technologies. Chapman

and Hall/CRC.

Hogenboom, F., Milea, V., Frasincar, F., & Uzay, K.

(2010). RDF-GL: A SPARQL-based graphical.

Emergent Web Intelligence: Advanced Information

Retrieval, pp. 87–116.

Assisted Composition of Linked Data Queries

193

Jethro, B. (2006). Graphical query composition and natural

language processing in an RDF visualization. Erasmus

University Rotterdam.

Jin-Sung, K., & Mi-Kyung, L. (2005). Object Modeling of

RDF Schema for Converting UML Class Diagram. In

Proceedings of the International Conference on

Computational Science and Its Applications, pp. 31-41.

Li, H., & Zhang, X. (2013, Mai 2). Visualizing RDF Data

Profile with UML Diagram. Semantic Web and Web

Science, pp. 273-285.

Raimond, Y. (2016, July 30). DBTune.org Jamendo RDF

Server. Retrieved from Datahub: https://old.datahub.io/

dataset/jamendo-dbtune

Smart, P., Russell, A., & Braines, D. (2008). A Visual

Approach to Semantic Query Design Using a Web-

Based Graphical Query Designer. EKAW 2008, pp. 275

– 291.

Tim Berners-Lee, Y. C., & Sheets, D. (2016). Tabulator:

Exploring and Analyzing linked data on the Semantic

Web. In 3rd Int. Semantic Web User.

Weise, M., Lohmann, S., & Haag, F. (2016). LD-VOWL:

Extracting and Visualizing Schema Information for

Linked Data. International Conference on Knowledge

Engineering and Knowledge Management, pp. 120-

127.

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

194
