Memory Nets: Knowledge Representation for Intelligent Agent

Operations in Real World

Julian Eggert, J

¨

org Deigm

¨

oller, Lydia Fischer and Andreas Richter

Honda Research Institute Europe, Carl-Legien Strasse 30, 63073 Offenbach, Germany

Keywords:

Memory Nets, Semantic Net, Common Sense, Knowledge Graph, Knowledge Base, Property Graph,

Grounding, Situated Interaction.

Abstract:

In this paper, we introduce Memory Nets, a knowledge representation targeted at Autonomous Intelligent

Agents (IAs) operating in real world. The main focus is on a knowledge base (KB) that on the one hand is

able to leverage the large body of openly available semantic information, and on the other hand allows to

incrementally accumulate additional knowledge from situated interaction. Such a KB can only rely on operable

semantics fully contained in the knowledge base itself, avoiding any type of hidden semantics in the KB

attributes, such as human-interpretable identiﬁer. In addition, it has to provide means for tightly coupling the

internal representation to real-world events. We propose a KB structure and inference processes based on a

knowledge graph that has a small number of link types with operational semantics only, and where the main

information lies in the complex patterns and connectivity structures that can be build incrementally using these

links. We describe the basic domain independent features of Memory Nets and the relation to measurements

and actuator capabilities as available by autonomous entities, with the target of providing a KB framework for

researching how to create IAs that continuously expand their knowledge about the world.

1 INTRODUCTION

In the artiﬁcial intelligence domain, the term

Intelli-

gent Agent (IA)

is commonly used for autonomous

entities with sensors and actuators which act within

an environment in a purposeful way (Wikipedia, 2019;

Franklin and Graesser, 1996; Kasabov and Kozma,

1998). Albeit being very general, there are several as-

pects of this deﬁnition which directly point to the very

essence of the underlying scientiﬁc and technological

problems. First, the agent has some degrees of free-

dom which it can use to decide about its own behavior

in an independent way, pursuing its own goals. Sec-

ond, it is always embedded within an environment and

has to be considered as an integral part of it, and it op-

erates by interacting with the environment. And third,

it tries to achieve its goals by exploiting its own and

the environment’s limited resources (including time)

in an efﬁcient manner (Kurzweil, 1999).

In essence, an IA combines three aspects: It in-

corporates new information about selected parts of its

environment by means of its sensors, connects and

combines it with already existent, previously known

information about the environment, and uses the com-

bined information to derive conclusions which help

in achieving its goals and executing the actuators. In

any case, an internal

Knowledge Base (KB)

system is

involved. This system has two roles: On the one hand,

the system provides the KB itself which serves to store

and retrieve complex structured and unstructured in-

formation about the environment and the world. Its

content is updated by incorporating knowledge from

external sources as well as from the information fed by

the agents’ sensors. On the other hand, the KB system

provides a reasoning engine which allows to infer or

derive additional knowledge from available informa-

tion. This becomes necessary for the solution of tasks

in complex conditions as well as for the incremental

expansion of the KB by learning and exploration.

This paper introduces

Memory Nets

, a KB system

that enables autonomous IAs to leverage knowledge

during their interaction with the real world. Our belief

is that future IAs need an understanding of who, what

and where they are, what the important things are that

they have to care about, and how they use all this

understanding to pursue their goals in the best way.

The important properties of such IAs supported by the

KB system are:

1. Situatedness

: They know about their current con-

text and task

Eggert, J., Deigmöller, J., Fischer, L. and Richter, A.

Memory Nets: Knowledge Representation for Intelligent Agent Operations in Real World.

DOI: 10.5220/0008068101150126

In Proceedings of the 11th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2019), pages 115-126

ISBN: 978-989-758-382-7

Copyright

c

115

2. Operability

: They use this knowledge to operate

in the world

3. Incrementality

: They expand their knowledge

about the world via interaction

In addition, point 1) comprises several subitems,

most importantly 1.a)

Grounding

the IAs have to es-

tablish links to those real-world items (objects, sub-

jects) which are relevant for a targeted task, 1.b)

Com-

mon sense

they need a basic background knowledge

about world items and processes similar to humans

and 1.c)

Self-reference

they need to know about their

role(s), capabilities/limitations and own observations.

Hence, what are representational structures that

support a KB system with the indicated properties 1)-

3)? And what are processes/operations of an inference

engine that support the situatedness, operability and

incrementality, since a KB system implies such an

engine using the KB always?

In the remainder of the paper, we will approach

these questions by sketching some necessary princi-

ples of a KB system that supports the described IAs

properties. With this in mind, we ﬁrst shortly review

the KB landscape (section 2), highlighting some of

the issues that to our knowledge fall short for their

implementation as IA’s knowledge base. In the fol-

lowing section 3 we explain the main principles of

the Memory Nets KB approach. Then we describe

implementation details of Memory Nets in sections 4,

and show an example in section 5.

2 RELATED WORK

2.1 Knowledge Representation in

General Domains

Understanding KB systems as a combination of knowl-

edge representation and reasoning capabilities, with

the advent of the internet and its huge amount of in-

terlinked documents, it was proposed that it could

be beneﬁcial to provide a uniﬁed access to the cross-

website information stores. Therefore the

Semantic

Web

provides an augmentation of the internet by an

additional semantic layer which describes the “mean-

ing” of sites in a standardized, human-interpretable

way, and which can be used for search and inference in

a more effective way than by inspecting the document

data (Berners-Lee et al., 2001). For this purpose, spe-

cial markup languages based on the XML format have

been speciﬁed. The Resource Description Framework

(RDF) is a speciﬁcation for a metadata model, as a way

to describe formally and conceptually the information

that is contained in web resources, with basic capa-

bilities to deﬁne classes, subclasses and properties of

objects. The Web Ontology Language (OWL) builds

on top of the RDF and provides additional levels of se-

mantics to describe ontologies of concepts (Antoniou

et al., 2012; Knublauch et al., 2006). The underlying

triple structure of RDF relates two objects

x, y

via a

predicate

P

, which could be interpreted as a logical

formula

P(x, y)

. On the other hand, it could be seen as

a directed graph with

x

being the subject and

y

being

the object of a statement, which is a

Semantic Net

(Collins and Quillian, 1969; Simmons, 1973). One

famous example of a Semantic Net is WordNet (Miller,

1995).

Later on, the Linked Data (Wood et al., 2014)

development focused on interfacing as many RDF

databases as possible and using them as one huge

knowledge source. This organization of knowledge

changed the thinking from carefully built databases to

Knowledge Graphs

that collect any kind of machine-

readable structured data. In principle, a Knowledge

Graph can be seen as any graph-based representation

of knowledge (Paulheim, 2017). In 2012, Google in-

troduced its “Google Knowledge Graph” that is an

accumulated information about the searches, query

sessions, and clicks that searchers perform on the Web

each day (Singhal, 2012). Other examples of Knowl-

edge Graphs are Freebase (Bollacker et al., 2008) or

WikiData (Vrandecic and Kr

¨

otzsch, 2014) that are

edited by the crowd. DBPedia (Lehmann et al., 2015)

or Yago (Suchanek et al., 2007) extract their knowl-

edge from large-scale, semi-structured web bases such

as Wikipedia. The target of all previously mentioned

databases is to describe general facts as well as re-

lations of everyday facts, also called

Commonsense

Knowledge, and make them globally accessible.

On the one hand, the Semantic Web facilitates the

creation of domain speciﬁc databases and shareable

ontologies (formal descriptions of knowledge). On

the other hand, there are attempts to describe domain

independent databases that support a semantic inter-

operability among the domain speciﬁc ones, so-called

Upper Ontologies

(Degen and Herre, 2001). An Up-

per Ontology usually differentiates between universals

and individuals - which are instances of universals lo-

cated in space and time. Individuals, in turn, cannot

have instances. Upper Ontologies are philosophically

motivated and try to describe basic categories and re-

lations that are valid among ontologies. Some of the

most well-known Upper Ontologies are SUMO (Pease

et al., 2002), Cyc, DOLCE, PROTON and Sowa’s

ontology (Sowa, 2000).

The mentioned standardization and interfacing ef-

forts, together with the growing amount of available

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

116

knowledge, suggest that a KB system for IAs is in-

creasingly getting into reach. In the ideal case, a large

amount of the knowledge that an IA needs would al-

ready be available, providing it a jump start when

exploiting it to tackle ambitious problems. However,

even if the available knowledge is machine readable,

its semantics are not yet fully understandable by IAs

operating in real world. Nearly all of the available

ontologies have been created with a human designer

in the loop, requiring human interpretation. This ap-

plies especially to the predicates/relationships (such as

e. g. “movingTo”, “peformedBy”, but also as complex

as “hasLastRegisteredMovementAt”) which contain

implicit semantics that are not directly accessible to

an IA, and difﬁcult to connect to daily operation in

real world. In addition, even if inference frameworks

are able to operate upon the ontologies, again this is

used rather as analyzing tool for humans, and not for

an autonomous incremental ontology extension.

2.2 Knowledge Representation for

Autonomous Intelligent Agents

Nevertheless, for real-world operation, the robotics

community is trying to make use of the previously

mentioned knowledge databases and frameworks to

link conceptual information to the physical world. The

main focus here is to ﬁll in missing information re-

quired by a robot for executing tasks and reaching

goals. Unfortunately, most of the knowledge bases in

the semantic web were created for understanding and

processing text. Hence, even Upper Ontologies like

Cyc or SUMO are not very useful from a robotics point

of view which has to connect symbols with sensations

and actions (Tenorth et al., 2011; Fischer et al., 2018).

A promising direction in bringing both worlds to-

gether is by describing objects by their affordances

(Horton et al., 2012) or linking capabilities of robots

and actions to symbols (Kunze et al., 2011). This re-

sulted in open robot ontologies built for executing spe-

cial tasks (Lemaignan et al., 2010; Beetz et al., 2018).

Other branches of research tackle the decomposition

of real-world objects into their conceptual components

to share situational knowledge on a more fundamen-

tal and prototypical level (Rebhan et al., 2009; Wyatt

et al., 2010; R

¨

ohrbein et al., 2009).

However, the gained knowledge representation

frameworks are rather domain-speciﬁc and constrained

in their generalization towards continuous real-world

operation. The dynamic extension of an IA’s knowl-

edge representation based on situation analysis and a

rich existing foundation of available knowledge is still

an unresolved problem. The same holds for the ability

of an IA to transfer knowledge to different and new

situations based on their conceptual description. To

tackle these problems, we argue that we likely need

KB systems with speciﬁc properties. Some of these

properties are explained in the following sections.

3 MEMORY NETS: MAIN

PRINCIPLES

In this section we outline the main guiding principles

which are the basis of Memory Nets representations

and processes that operate on it. There are two key

ideas which markedly differ from standard KB ap-

proaches. First, Memory Nets are targeted to be open

for intrinsic extension by the system itself, leading to

an open-ended creation of new concepts and problem

solving capabilities, and as such to a larger ﬂexibility

to react dynamically and adapt to changing situations.

Second, as a consequence of the intrinsic extension,

the KB can be operated without the knowledge of an

external interpreter or designer that needs to make

sense of the data.

3.1 General Guiding Principles

•

The elementary representational substrate for

Memory Nets are

labeled property graphs

, i. e.,

graphs with deﬁned link types and with nodes and

links which can have key-value attributes. The rea-

son is the expressive power of graphs (e. g., an RDF

structure can be easily embedded into a graph), its

natural handling in terms of visually discernible

structures, and the point that much of the interest-

ing information in KBs lies in the structure of the

connectivity.

•

Concepts are described in the graph by prototypi-

cal

patterns

. A pattern is a reoccurring structure

(in terms of graph similarity measures, i .e. arrange-

ment of nodes and links) with an identiﬁable inner

part (nodes and links) and further links which con-

nect to other patterns and which embed the concept

within a web of related concepts.

•

Compositionality and inheritance are used for

re-

dundancy reduction and minimum description

length

principles. The idea is to identify common

structures which can be reused as common com-

ponents in different concepts, and to represent re-

peated occurrence of structures in a compact way.

•

The graph representation should serve as a basis

for

different inference paradigms

on the same

data or on subsets of the data, e. g. ﬁrst order logic

calculus, graph similarity ﬁnding, pattern match-

Memory Nets: Knowledge Representation for Intelligent Agent Operations in Real World

117

ing, activity spread algorithms, and probabilistic

reasoning.

•

Graph elements (especially links) have

no hidden

identiﬁer semantics

. Identiﬁer do not provide any

item-speciﬁc semantic meaning, so that concepts

of the KB have meaning without the need of a

human-interpretable identiﬁer, and can be used

without the knowledge of the data designer. The

purpose of different types of links is only to pro-

vide operational semantics, i .e., setting constraints

on graph structures and specifying how we can

operate on them.

•

Instead of using natural language identiﬁer to con-

nect from outside (real world) to concepts within

the graph, we use

measurement patterns

, which

by inference (e. g. pattern matching) have to be

matched to the most likely concepts.

•

Natural language labels (“utterances”) are stored

in the same way as all other measurable proper-

ties, contributing if desired to pattern matching and

pattern ﬁnding processes.

3.2 Requirements for Real-world

Operation

•

The KB is based on

open world

assumptions, i. e.,

everything we do not know is undeﬁned (Mazzoc-

chi, 2005), which is necessary for an open-ended

expandability during operation. In addition, the

KB should be able to incorporate information from

external sources, like semantic web databases and

services, which also rely on the open world as-

sumption.

•

Within the KB,

new concepts can be created by

the system itself

during operation, either by in-

ference or by incorporation of new measurement

patterns. The KB should be capable of building

new concepts based on existing ones (straightfor-

ward examples are hierarchical or chaining com-

positionality); as well as building specialized or

modiﬁed concepts from more general ones. This is

in synchronization with the assumption of no item-

speciﬁc semantic information of graph element

identiﬁers.

•

The properties of concepts stored in the KB es-

tablish a link to the real world. They should be

measurable

, or derived from measurable proper-

ties, and information should be contained in the

KB on how the properties are measured (e .g. about

sensory devices). As a consequence, there would

be no completely isolated parts of the graph with

no relation to the real world.

•

The KB should be capable of operating in synchro-

nization with a highly dynamic real-world. This

implies the support of

grounding

processes that

allow the creation of short-lived instances of real-

world item representations, their life-time manage-

ment, keeping them in focus and updating them

over time, as well as the generation of short-lived

prediction, hypothesis generation and testing. It

also implies that time plays a special role both in

representational as well as in processing aspects.

4 MEMORY NETS:

IMPLEMENTATION

Here we provide a description of the main operational

principles of Memory Nets. They are based on the prin-

ciples of no hidden identiﬁer semantics, measurable

properties, compositionality and compact representa-

tion. We start by identifying a minimal set of link types

which provide operational and inference semantics and

on which the more complex structures are build upon.

Then we explain the notion of concept patterns, spe-

cialization, inheritance and transformation chains, and

sets.

4.1 Link Types

In knowledge graphs, nodes and relationships in

form of (source)–[linktype]

→

(target) are often read

as semantic subject-predicate-object triples where the

link types play a special role, as e. g. in (“Bob”)–

[“knows”]

→

(“John”) with the link type “knows” con-

necting “Bob” with “John”. This is also the basis for

triplestore databases and the atomic data entity for the

RDF data model. The link to the external world is

then given by the deﬁnition of the predicates and the

interpretation of their meaning by a human designer.

This rapidly turns into complex design decisions, as

we can see in expressions like “The car has the color

blue”, where “has-the-color” now works as a predicate

between “car” and “blue”.

In Memory Nets, there are no hidden semantics

stored in the link types. Therefore, we use a small

set of link types which rather provide operational se-

mantics which apply to all KB structures regardless

of their content. Differently to e. g. RDF triple predi-

cates, Memory Net link types do not encode directly

a possible relationship between a subject (represented

by the source node) and an object (represented by the

target node), but they encode what can be done with

the source and target nodes within the graph.

Table 1 shows the most important basic Memory

Net directed link types and their operational mean-

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

118

Table 1: The Memory Net KB is based on a labeled property

graph structure with purely operational semantics. The mean-

ing of concepts is therefore given by the connectivity pattern,

and the link types have consequences for the interpretation

of the connectivity pattern and for inference processes. All

Memory Net operations and concepts are based on a small

set of link types. The labels of the link types do not, however,

convey any semantics related to the concepts stored in the

database, so that e. g. there are no special link types with

hidden semantics like “isMadeOf” or “createdBy”, which

would require an external interpretation. The table shows

the basic relationship types and their operational meaning.

Operational link

semantics

Forward

link type

Abbr.

type

Link

properties

Source/target roles

Specialization specializesTo specTo transitive Parent/child

Transformation transformsTo transTo transitive Starting point/result

Properties hasProperty hasProp Property

holder/property

Composationality hasPart hasPart transitive Whole / part

Set elements hasElement hasEl Set / element

Binary operator hasOperator hasOp ﬁrst / second argument

Order/sequentiality hasNext hasNext transitive Preceeding / successor

ing. They provide the framework for the elementary

structures that can be built in the Memory Net KB.

Further explanations are given in the following sec-

tions 4.2, to 4.5. More complex content semantics

should then be created by exploiting the basic link

types. E. g., instead of introducing a “isMadeOf” link

(“Object”)–[“isMadeOf”]

→

(“Material”), we would

consider a separate concept “Material” which spe-

cializes to the concrete material “CMaterial” the ob-

ject is composed of and a corresponding relationship

(“Object”)–[“hasProperty”]

→

(“CMaterial”). In par-

allel, we could think of separately representing the

process of making the object out of a certain material

by using links that indicate transformation. As can be

seen, the composition of semantic content usually hid-

den in complex, human interpretable predicates forces

a representation that is closer to the actual processes

and causal chains as they occur in the real world, and

this is exactly the target of Memory Nets.

From table 1, it can be seen that four link types

are transitive, i. e. that if (A)–[linktype]

→

(B) and (B)–

[linktype]

→

(C) then it follows (A)–[linktype]

→

(C).

This leads to a natural ordering of the involved nodes.

In Memory Net, we therefore have at least four dimen-

sions for ordered ontologies: The specialization dimen-

sion (which can be used to build class taxonomies),

the transformation dimension (for transformation and

causality chaining), the compositionality dimension

(for building partonomies) and the sequential ordering

dimension. All of these provide different semantic

views on concepts and coexist within the same KB by

crossing at common nodes.

4.2 Concepts as Patterns

Concept patterns are knowledge subgraphs with a num-

ber of features, represented by characteristic nodes and

links, that together describe an aspect of the world, i. e.,

a concept, relevant for the IA. The single nodes contain

describable, derivable resp. measurable components

and properties of the concept. Patterns are represented

by subgraphs which start from a central node to which

all other nodes are directly or indirectly attached. This

is the so-called hub node which is often taken as a

proxy for the whole concept. The meaning of a con-

cept name is given by its own nodes and links and by

its contextual embedding within the graph (how is it

related with other concepts) and not by a text identiﬁer

of its hub node (in explanatory images text identiﬁer

are included for illustrative purposes).

Figure 1: The simplest memory Net concept pattern rep-

resented by a hub node (“Car”) and attached properties

(“Model”, “Length”, “Power”) with values. The node iden-

tiﬁer names (e. g. “Car”) are indicated here for illustrative

purposes only, since the semantics of the Memory Net is

purely given by the structure of the KB graph that contains

the concept. Representing properties as separate nodes rather

than attributes of a single node enables a better embedding

in the graph, e. g. by specializing properties or putting them

in relation with each other. See section 4.2 for more details.

A property pattern consists of a hub node with

“property nodes” attached via “hasProperty” links. An

example of such a pattern for the concept of “Car”

displays Fig. 1. A property node has a special value

attribute which contributes to a measurable quantity

and provides the link to the real world. Property nodes

are ﬁnal, in the sense that they themselves cannot have

further properties (e. g., it would not be meaningful to

speak of a subproperty of “red”, however see later the

idea of property specialization).

Concept patterns are compositional, i. e. they can

be composed to form larger patterns. Inversely, a con-

cept pattern can have subpatterns, and subpatterns of

subpatterns. The subpatterns’ hub nodes are attached

Memory Nets: Knowledge Representation for Intelligent Agent Operations in Real World

119

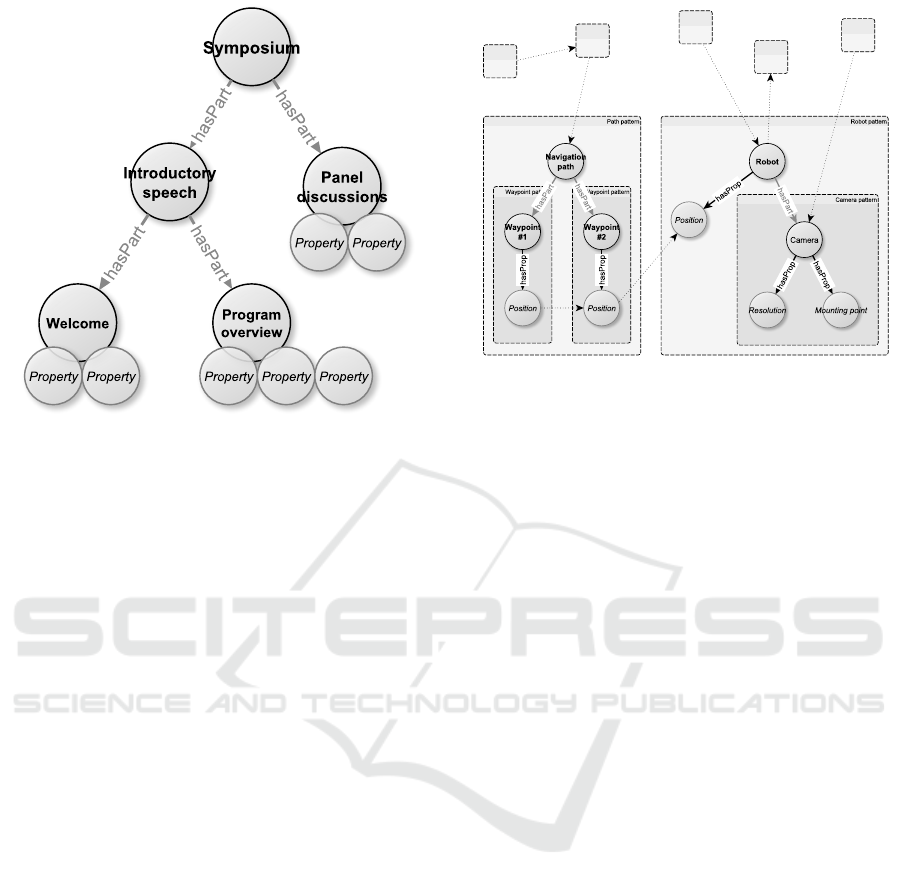

Figure 2: Example of non-physical partonomy and composi-

tion of patterns by subpatterns with “hasPart” relationships.

Subpatterns help in the repeated usage of common modules

in different patterns and enable a compact encoding.

to the higher level concept hub node by inverse “has-

Part” links, leading to a part-of hierarchy (partonomy).

The exact link designation as “hasPart” is somewhat ar-

bitrary and in natural language it suggests mainly phys-

ical composition, here however it is used for arbitrary

reusable subpatterns that contribute to the description

of the original pattern. An example of a non-physical

partonomy can be seen in Fig. 2.

In detail, a pattern is a tree-formed subgraph that

starts from a hub node and which has links of type

“hasProperty”, “hasPart” and “hasElement”, with the

“hasPart” links forming branches. Further, links be-

tween pattern nodes can be used to express additional

internal (intra-pattern) relations, and inter-pattern rela-

tions embed the concept in the KB. Fig. 3 shows two

concept patterns for “Robot” and “Navigation path”

with parts and properties as intra-pattern relations and

with other intra- and inter-pattern relations (dotted

lines). In this case, the dotted lines represent spatial

relations and ordering, expressing that in the path one

waypoint is followed by the other and that the spatial

position of the robot is close to one of the waypoints.

A concept pattern has deﬁnitory character, in the

sense that it should contain the important features that

make up a concept or that allow it to be separated

from other concepts. All other possible, not explicitly

represented features are assumed to be unknown. One

important task is to ﬁnd the best match between new

/ unknown and existing concept patterns, e. g. when

analyzing sensory measurements.

Figure 3: Patterns with parts and exemplary inter- and intra-

pattern relationships. In larger networks, patterns form a

dense web of interconnected concepts. The meaning of each

concept is then given by its internal structure (all nodes of

the tree given by outgoing “hasProperty”, “hasPart” and

“hasElement” links from the hub node with all additional

intra-pattern relationships) and its semantic context, which

results from the connection with other patterns (indicated by

yet unspeciﬁed, dotted line relationships).

4.3 Specialization and Inheritance

Memory nets can represent similar concepts in a com-

pact way by specialization. This denotes the operation

that starts from a general pattern and derives from it

a more specialized pattern by addition of further fea-

tures. Concretely, it is allowed to specialize a concept

by incorporation of additional nodes attached by links

of “hasProperty”, “hasPart” and “hasElement” type

compatible with the pattern tree structure described

in section 4.2. This results in a more precise deﬁni-

tory scope of the derived concept. As a consequence,

the concept will be applicable in more speciﬁc cases

only, or, the other way round, if a specialized concept

applies to a new pattern, then also does the original

concept it was derived from.

Pattern specialization is indicated by a “special-

izesTo” link from the general pattern hub node to the

specialized pattern hub node. For a compact represen-

tation, when specializing a concept we do not repeat

all the features of the original concept. Instead, we

assume all the parent features (given by further pat-

tern links) to be automatically inherited. The “special-

izesTo” link therefore indicates that the target node

should be read as a sort of proxy, as if it was the equiv-

alent to the source node. This applies to all links from

the source node with the exception of the outgoing

specialization link to the target node and incoming

pattern tree links of the known types “hasProperty”,

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

120

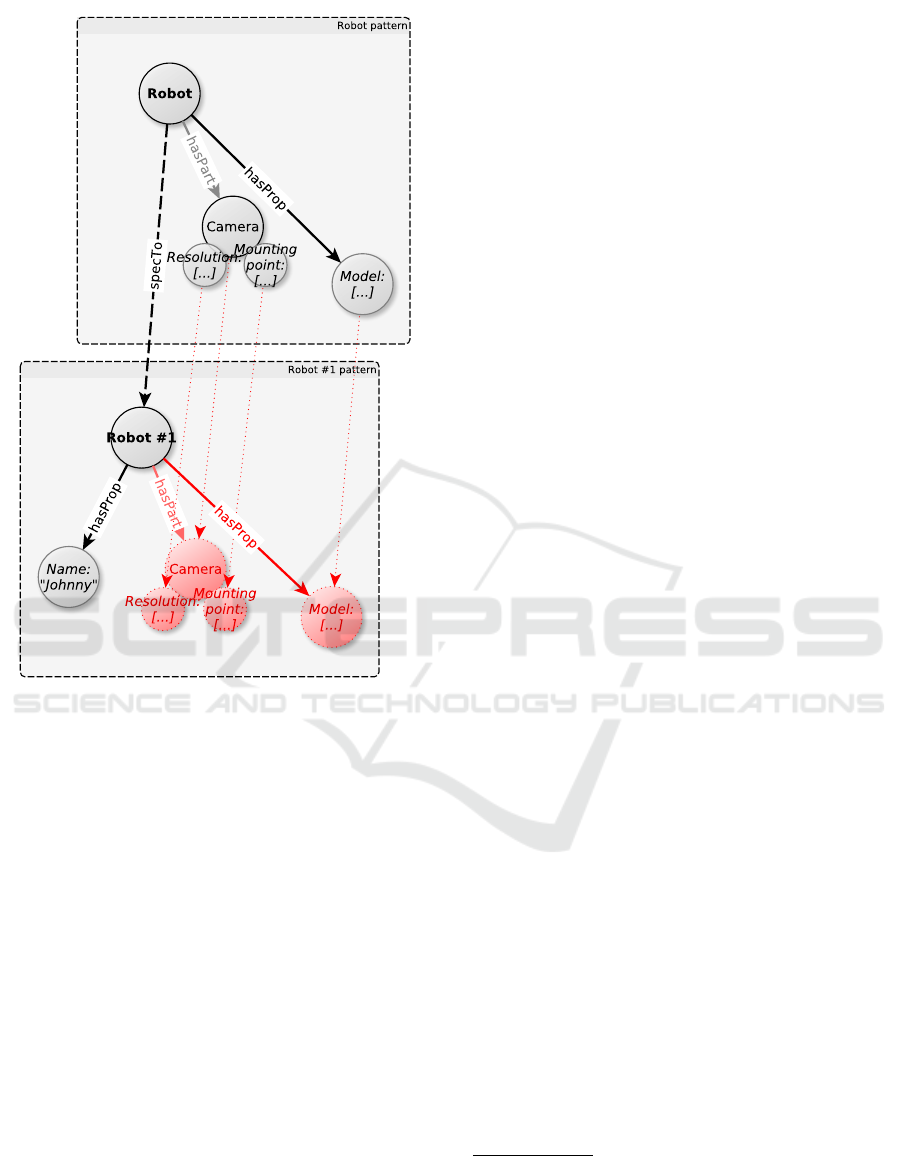

Figure 4: Pattern extension by specialization and inheri-

tance. Patterns that are extensions of existing patterns (in the

sense that they have additional properties, parts or elements

resp. additional intrapattern relations) are represented via

“specializesTo” links. In this example, we have a general

pattern “Robot” that describes a speciﬁc robot model, and

a concrete robot “Robot #1”. By the “specializesTo” link,

the Memory Net infers that the “Robot #1” concept is a spe-

cialization of the concept of “Robot”, inheriting all of its

pattern features, indicated by the red nodes (these are virtual

replicas that do not exist in the network, however during

operation the KB treats them as if they would exist). In ad-

dition, more speciﬁc details can be added to the specialized

pattern (e. g. the name property “Johnny”).

“hasPart” and “hasElement”.

In this way, representations with short description

lengths can be gained and synergies can be exploited

when matching unknown patterns to available con-

cepts. Fig. 4 shows a general concept pattern and its

specialization, as well as an indication of the inher-

ited features of the specialized pattern (red nodes and

links).

The same principles apply to partial subpattern and

property inheritance. Partial subpattern inheritance

occurs when the inheritance of features of the spe-

cialized pattern applies to only some branches of the

original concept pattern. Property inheritance occurs

when the property value specializes, i. e., when the

property value of the specialized pattern is a subset

of the admissible value(s) of the original pattern. A

special case is given when the value of the original pat-

tern is undetermined, which we denote by “

{}

”, in this

case any value of the specialized property is a valid

specialization. Property inheritance lets you create

concepts which describe features that in principle can

/ should be measured and which might have a certain

value range, and the specialized property then having

a concrete property value. In this case we speak of

truly specialized pattern nodes, as opposed to inher-

ited ones. Fig. 5 shows such a pattern specialization

with the different specialization cases. The red nodes

and links indicate direct inheritance from the general

pattern which are not explicitly represented in the KB

but indicated here for explanation. To the contrary,

there are truly specialized parts and properties where

concrete values of the specialized pattern have been

ﬁlled, e. g. by sensory measurements.

Specialization in Memory Net can be used to con-

struct an ontology in terms of the classical notion of

parent and child classes and instances. However, we do

not distinguish classes vs. instances, since for purely

measurement-based concepts it is impossible to estab-

lish a class vs. instance boundary

1

. Just imagine the

concepts of “Dog”, “My dog” and “My dog yesterday

when I went for a walk with him”. Whether “My dog”

is an instance (of the class “Dog”) or “My dog yester-

day ...” is an instance (of a class “My dog”) depends on

the interpretation of the meaning of the concept “My

dog”. In standard deﬁnitions classes refer to abstract,

long-lived stable constructs vs. instances, which are

supposed to be concrete exemplars and rather short-

lived. Considering that Memory Net concepts ulti-

mately all potentially originate in real-world measure-

ments avoids this problem and the specialization on-

tologies do not require a class vs. instance decision.

A specialized concept can be derived (inherited

resp. specialized) from more than one concepts. This

allows for parallel ontologies addressing different spe-

cialization aspects. Just consider a KB about persons

in a company where there might be a specialization

ontology on the associates’ competences and another

one about their contribution to projects. The corre-

sponding specialization trees would then cross on the

specialized concept of a concrete person which then

1

The deeper underlying reason is the contradiction that

arises in classical class / instance ontologies when class con-

cepts are interpreted as categorical prototypes and when they

are interpreted as the set of instances that together describe

a class.

Memory Nets: Knowledge Representation for Intelligent Agent Operations in Real World

121

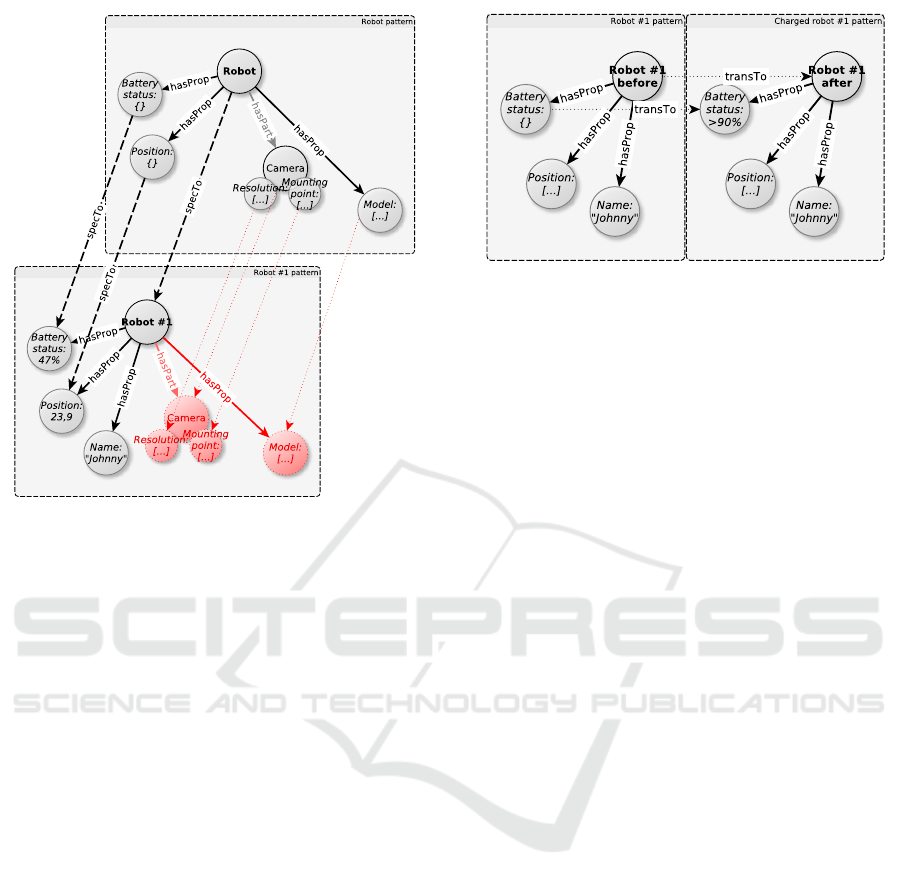

Figure 5: Pattern inheritance with property specialization. In

this case, pattern “Robot #1” is specialized from “Robot” in

3 different variants: First, it directly inherits some of “Robot”

features which remain valid without modiﬁcation (red nodes

and links). Second, it specializes its concept further by

adding new features, in the case the name property with

value “Johnny”. And third, it provides concrete values to

the measurable properties “Battery status” and “Position”,

which from the graph are known to be part of the parent

concept “Robot”. The “specializesTo” links between the

parent and child properties indicate here that the values of

the properties have been specialized.

would simultaneously inherit some competences and

participate in some projects.

4.4 Transformation Chains

Over time, in a Memory Net containing items and

events registered from the current environment, new

measurements constantly ﬂow into the system which

have to be interpreted in relation to the existing KB

structure. Many of them have a particular property:

They are updated measurements of the “same” concept

(e. g. describing a real-world object) already registered

previously in memory. Processes and structures that

support concept persistence are therefore important.

For this purpose the link type “transformsTo” is

used, which connects two properties or two concept

patterns. It expresses the fact that a stored concept

undergoes a change to another concept, and it can be

used to express concept persistence but also concept

transformation. Fig. 6 shows an example of the con-

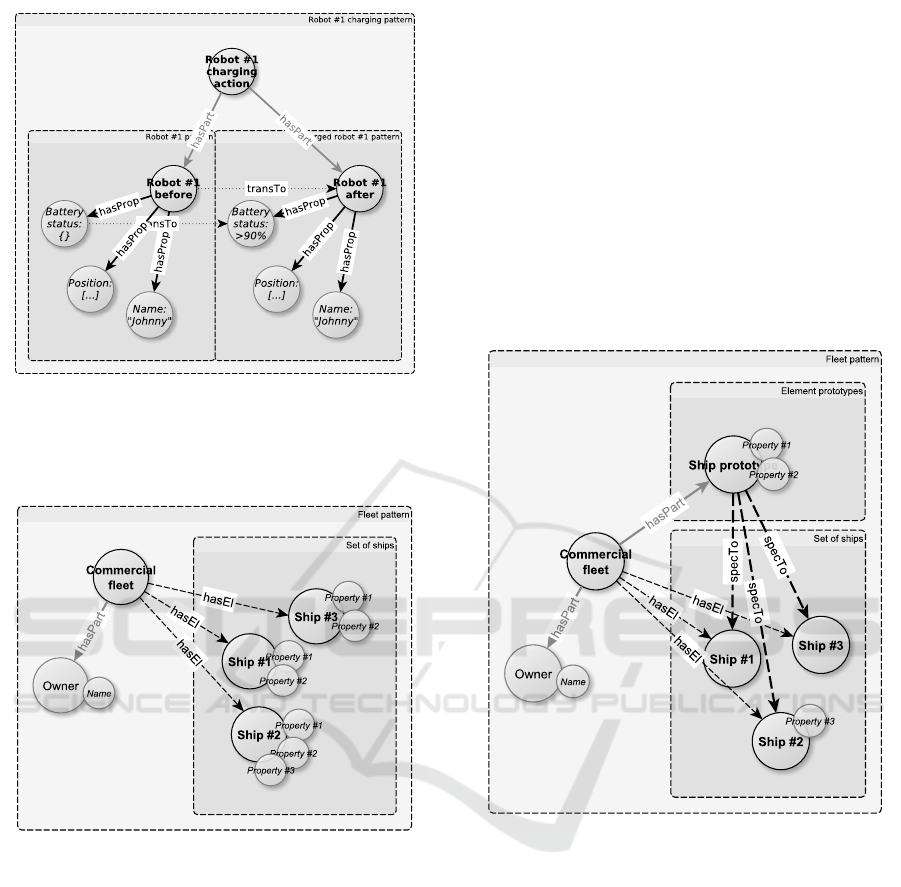

Figure 6: Transformation from one concept pattern to an-

other using the “transformsTo” type links. In this example,

concepts of the robot before and after charging are connected

bz “transformsTo” links which indicate that the pattern trans-

formation involves the change in its battery status from any

({}) to > 90%.

cept for the “Robot #1” measurement before and after

charging its battery. The “transformsTo” links indicate

that the pattern and with it some features (in this case

the battery status property) are being transformed.

Since the transformation usually only applies to a

few features of a pattern, the “transformsTo” link can

be used in combination with the previously introduced

“specializesTo” link to inherit most of the source pat-

tern features to avoid representation redundancy. In

addition, if certain transformations occur repeatedly

or should be explicitly represented, a

transformation

pattern

can be created. Fig. 7 shows such a trans-

formation pattern for the robot example. This can be

repeated to gain transformation chains and concate-

nated transformation patterns, and is an important step

towards representing actions and action sequences in

an Intelligent Agents’ Knowledge Base.

4.5 Sets of Patterns

A special structure in Memory Nets is that of a

Set

. A

Set is a group of objects with similar characteristics

or that belong together in some way. Now, when we

speak of certain categories or classes of objects, we

implicitly and ambiguously do refer not only to the

category, but also to the set of objects that make up the

category.

On the other hand, there are concepts which ex-

plicitly mention the set characteristics of a concept.

This is the case e. g. for “ﬂeet”, which is a group of

ships that somehow sail together, engage in the same

activity, or are under the same ownership - i. e., they

are grouped to one thing, and it does not really matter

why.

To be able to represent sets, we use the “hasEle-

ment” links. Any node with patterns attached to it with

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

122

Figure 7: The two patterns from Fig. 6 linked by “transform-

sTo” relations combined into a prototypical transformation

pattern that represents the overall transformation in a way

that is accessible and reusable within the KB.

Figure 8: A set is a group of objects that somehow belog

together. Nodes with outgoing “hasElement” links acquire

the role of a set. In this example we represent the concept

of a ﬂeet as a set of ships, with additional properties like its

owner.

outgoing “hasElement” links, has the characteristics

of a set, so that we can query set-related information

from it, like the number of elements in the set. Fig. 8

shows the example of a concept pattern for a concrete

“Commercial ﬂeet”, with the owner and the single ships

as elements that add to the group of ships.

The interesting point is that whereas for the case

of a concrete ﬂeet with concrete ships this works, it

is not yet sufﬁcient for the deﬁnition of a concept of

an abstract ﬂeet, where we do not know the concrete

ships yet. In this case there are no elements that de-

ﬁne the set-based concept. However, it is important

that a ﬂeet contains ships or vehicles, but not other

things like e. g. animals, so the types of elements are

characteristic for the set-based concept representation.

Conveniently, we can use the introduced specialization

and inheritance properties from Memory Nets (section

4.3) together with element prototypes for that purpose:

If we represent the ships in a compact way by spe-

cializing them from some common prototypes (there

can be several of them, without limitation), then the

prototypes are deﬁnitory parts of the ﬂeet concept rep-

resentation. This is shown in Fig. 9, and we can easily

see how the “Commercial ﬂeet” concept representa-

tion remains valid even if there are no ship elements

in the ﬂeet at all.

Figure 9: The ﬂeet concept, this time with a compact rep-

resentation using ship prototypes. The single ships in the

set do not deﬁne what a ﬂeet is, but the prototypes do (it

is relevant that the elements of the ﬂeet are ships and not,

say, animals). In this example we have one prototype but

there can be several in a set-based concept, and they can

even build specialization hierarchies.

5 EXAMPLE IMPLEMENTATION

As an exemplary application, and for future scalability

experiments, we implemented a Memory Net as a KB

with inference capabilities on top of a graph database

(Neo4j, (Neo4j, 2019)). Whereas the graph database

provides raw access to nodes, links and attributes, the

Memory Net provides functions that operates at the

level of concept patterns as outlined in the last section

Memory Nets: Knowledge Representation for Intelligent Agent Operations in Real World

123

4 and provides capabilities for dealing with specializa-

tion, inheritance and compositionality. In particular,

we developed interfaces for creating new patterns with

or without inheritance, ﬁnding and querying patterns

(e. g. by pattern match), inserting a new pattern and

resolving missing properties and parts from the parent

pattern, as well as rudimentary spatial reasoning.

The IAs in this case are several domestic robots on

wheels equipped with various sensors, speaker and an

arm with a gripper. In addition, there is an “intelligent

room”, also equipped with microphones, cameras and

loudspeaker.

Each IA is represented within the Memory Net

with its sensors and actuators to enable the interaction

with the real-world. In addition, each IA gets access to

the representation of the other agents, including their

current states and possible relations between the agents

(including humans as another interacting agent). It also

gets basic information of a static spatial representation

of its context and ways to operate (e. g. navigate) in

this context. The background is that we want to use

the Memory Net, to explore problem solving strate-

gies which require cooperative interactions between

the agents, therefore inter-agent inference of the corre-

sponding sensor and actuator capabilities.

Each sensor is linked to a description of the abstract

sensor measurement concept pattern with properties

and value ranges. The actuators are linked via capa-

bilities to executable actions in a similar way. These

entry and exit points from the real world to the Memory

Nets are specially tagged. Each time a new sensor mea-

surement event is registered, a concrete measurement

pattern is specialized and consistently linked to the

knowledge graph. Since each measurement is attached

to the sensor description of a particular agent, we can

then easily infer which aspects have been measured

by whom. Using the sensory information, the state

of the physical world can be measured and registered

at the right places in the Memory Net, whereas the

capabilities allow for executing actions which again

have an effect on the state of the world.

We equipped the Memory Net with the concepts

for waypoints, rooms, persons and entities (identical

to IA) that can have several measurable properties like

shape, utterance and position. Utterances are under-

stood as a property in form of a the natural language

description that could contain the name of an object or

a description attached by natural language processing.

Position and shape are general purpose properties that

allow for spatial reasoning. All those properties are

domain independent and each node has a time stamp

information.

A special role is given by a concept pattern which

describes a capability, and which can be assigned gen-

erally to agents (persons or entities). Each capability

pattern has a node which provides a reference to an

executable function within the system, correspond-

ing to a sort of actuation primitive. For example the

“move“ capability refers to a function that executes the

physical action of moving the robot to a certain place.

Fig. 10 depicts the specialization of an entity with its

capability. Other capabilities are currently “speak“ or

“inform person“, which recognizes a certain person and

provides information to this person. A simple plan-

ning framework utilizes these capabilities by taking

the state of the world reﬂected in the KB into account.

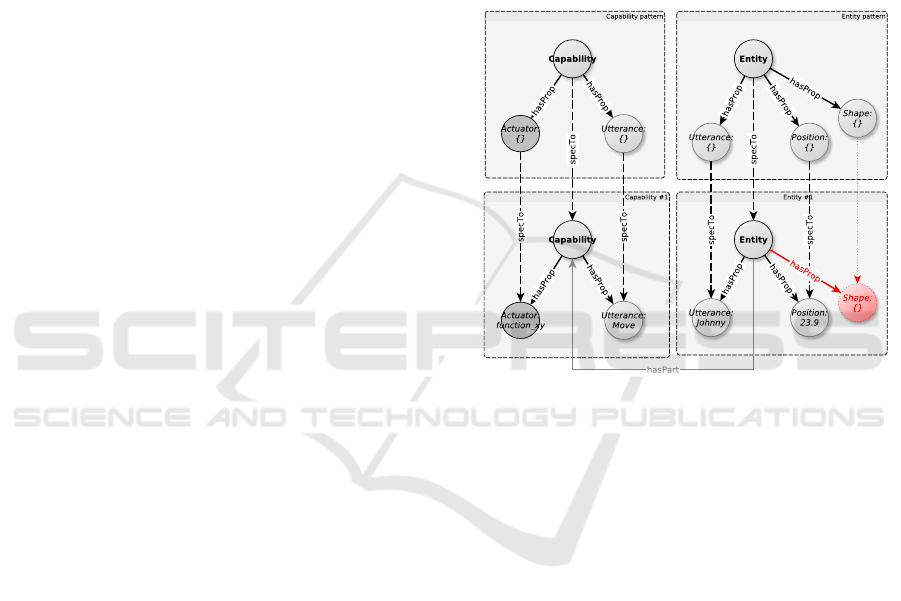

Figure 10: Simpliﬁed diagram of the concept patterns for

“Capability” and “Entity” within the Memory Net. For con-

crete entities resp. capabilities, the patterns are specialized.

As no shape information has been measured yet about the

entity, the specialized pattern still inherits it from its parent.

The “Actuator function” property of the abstract capability

pattern refers to a speciﬁc module that executes a physical

action.

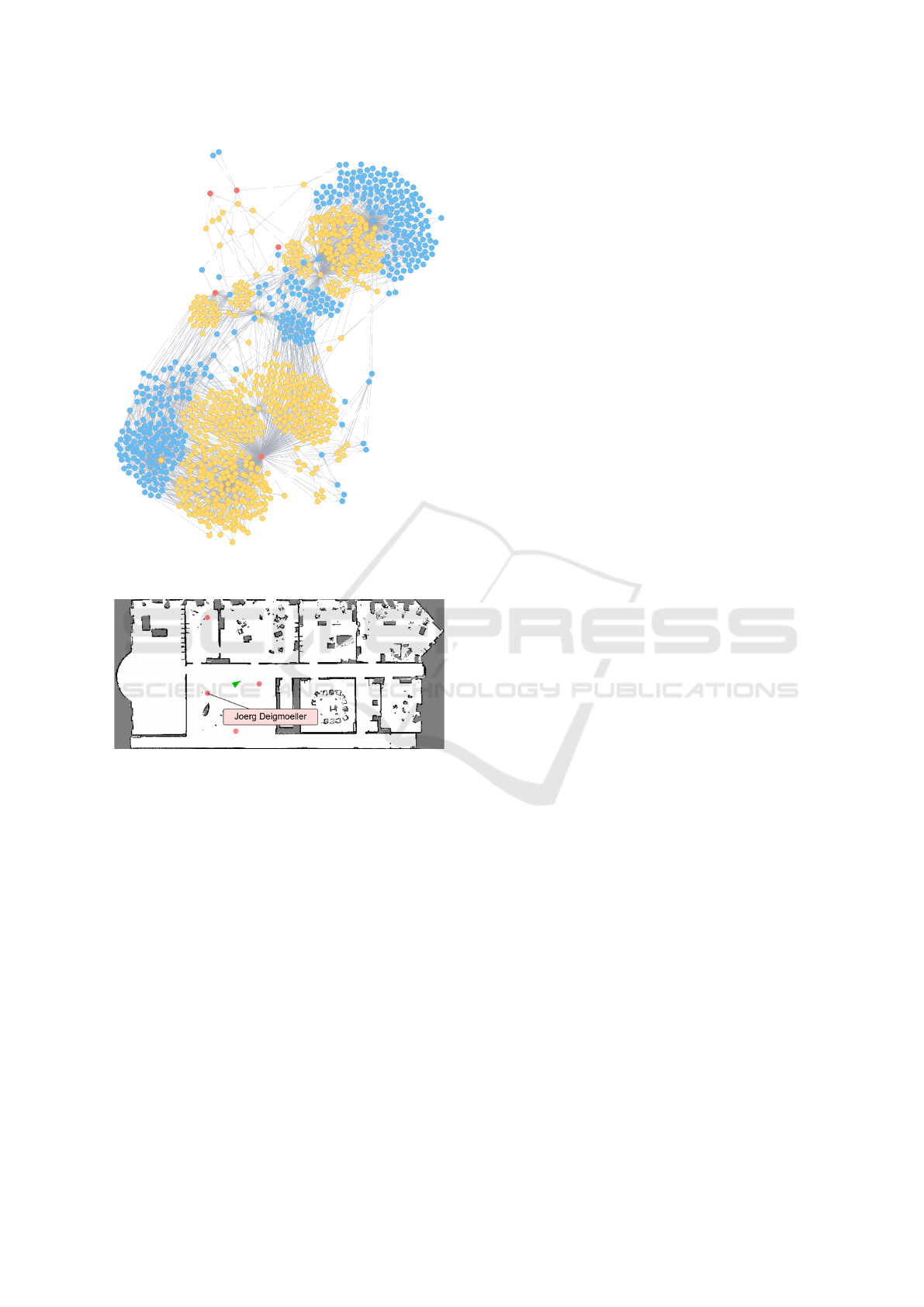

The complete Memory Net graph including enti-

ties, persons and rooms is depicted in Fig. 11. To

illustrate information stored in the graph, we render re-

cent spatial pattern information into a map of our ofﬁce

environment. Fig. 12 shows the positions of persons

(red dots) and robots (green triangle). To interact with

an IA, we implemented a simple dialog that allows to

ask in which spatial concept (e. g. a room) a pattern

with a certain utterance (e. g. a certain person) has been

seen last time. For example, if the system is asked:

“Where did you see Joerg Deigmoeller

?

“, it will an-

swer “Johnny has seen Joerg Deigmoeller in the lobby.“

, where Johnny is the utterance of the observing robot

and lobby is the utterance of the correponding room

found by spatial reasoning.

The long-term goal is to use this basic implemen-

tation as a starting point and let IAs learn to interact in

our ofﬁce environment. This requires a self-referenced

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

124

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasPr…

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

ha…

hasPro…

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

h…

hasProperty

connected_to

hasProperty

specializesTo

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

specializesTo

specializ…

specializesTo

speciali…

specializesTo

specialize…

specializesTo

hasProperty

specializesTo

speci…

specializesTo

specializ…

specializesTo

specializ…

specializesTo

specialize…

specializesTo

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

hasPr…

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

hasProp…

hasProperty

hasProp…

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

sp…

specializesTo

s…

specializesTo

sp…

specializesTo

specialize…

specializesTo

hasProperty

specializesTo

hasProperty

h…

hasProperty

hasPart

hasProperty

hasPart

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

specializesTo

hasProperty

connected_to

hasProperty

connected_to

h…

connected_to

hasProperty

specializesTo

hasProperty

hasElement

ha…

hasElement

hasE…

hasElement

hasEl…

hasElement

hasEl…

hasElement

hasEle…

hasElement

hasPart

hasProperty

hasElement

hasProperty

specializesTo

hasElement

hasPart

hasElement

hasProperty

hasElement

hasProperty

hasElement

hasProperty

hasElement

specializesTo

speciali…

hasPart

specializesTo

specialize…

specializesTo

hasProperty

specializesTo

specialize…

specializesTo

special…

specializesTo

specia…

special…

hasProperty

specializesTo

speciali…

hasProperty

hasElement

hasProperty

specializesTo

hasProperty

specializesTo

hasProperty

specializesTo

s…

specializesTo

specialize…

specializesTo

spec…

hasProperty

specializesTo

specializ…

specializesTo

hasProperty

specializesTo

hasElement

specializesTo

hasElement

hasProperty

specializesTo

hasProperty

specializesTo

hasProperty

specializesTo

hasProperty

connected_to

hasProperty

specializesTo

hasProperty

hasPrope…

hasProperty

hasPr…

hasProperty

hasP…

hasProperty

hasPart

h…

hasPart

specializesTo

speci…

specializesTo

special…

specializesTo

speci…

specializesTo

hasProperty

connected_to

hasProperty

specializesTo

hasPro…

specializesTo

hasProperty

move_myself_related

hasProperty

move_myself_related

hasProperty

move_myself_related

hasPart

hasProperty

hasPart

hasProperty

move_myself_related

mo…

move_myself_related

hasProperty

move_myself_related

mov…

move_mys…

move_mysel…

move_myself_related

hasProperty

move_myself_related

hasProperty

move_myself_related

move_…

move_myself…

m…

move_myself_r…

move_myself_related

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

hasPart

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

specializesTo

spec…

specialize…

specializesTo

speci…

specializesTo

speciali…

specializesTo

specialize…

specializesTo

specialize…

specializesTo

hasProperty

specializesTo

sp…

specializesTo

specializ…

specializesTo

specializ…

specializesTo

spe…

specializesTo

spe…

specializesTo

specializ…

specialize…

specializesTo

s…

specializesTo

sp…

specializesTo

specialize…

specializesTo

speciali…

specializesTo

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

hasPr…

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasPrope…

hasProperty

connected_to

hasProperty

connected_to

hasProperty

hasProp…

connected_to

hasProperty

specializesTo

hasProperty

specializesTo

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProp…

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

connected_to

hasProperty

require…

passage

require…

passage

require…

passage

require…

passage

require…

passage

require…

passage

require…

passage

require…

passage

require…

passage

require…

passage

require…

passage

require…

access…

passage

require…

access…

passage

require…

access…

passage

require…

access…

passage

require…

passage

head

utteran…

require…

passage

require…

passage

require…

passage

gender

access…

gender

access…

gender

access…

gender

access…

require…

passage

require…

access…

gender

position

require…

gender

access…

gender

functio…

access…

require…

feature

capabil…

parame…

explain…

utteran…

feature

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

data_ty…

function

support…

geomet…

position

geomet…

position

geomet…

position

hri_fac…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

entity

utteran…

active

geomet…

position

geomet…

position

hri_fac…

position

hri_fac…

position

geomet…

position

hri_fac…

position

geomet…

position

geomet…

position

hri_fac…

position

geomet…

position

hri_fac…

position

hri_fac…

position

geomet…

position

geomet…

position

hri_fac…

position

geomet…

position

geomet…

position

hri_fac…

position

geomet…

position

geomet…

position

hri_fac…

position

geomet…

position

hri_fac…

position

hri_fac…

position

geomet…

position

geomet…

position

hri_fac…

position

geomet…

position

hri_fac…

position

geomet…

position

geomet…

position

geomet…

position

hri_fac…

position

geomet…

hri_fac…

position

hri_fac…

position

hri_fac…

position

hri_fac…

position

hri_fac…

position

hri_fac…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

hri_fac…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

hri_fac…

position

geomet…

position

hri_fac…

position

geomet…

position

hri_fac…

position

geomet…

position

hri_fac…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

functio…

require…

passage

require…

support…

require…

passage

require…

passage

require…

passage

require…

passage

geomet…

require…

passage

require…

passage

require…

passage

require…

passage

require…

passage

head

require…

functio…

passage

shape

utteran…

room

functio…

shape

utteran…

room

functio…

shape

head

person

passage

require…

shape

utteran…

room

utteran…

shape

room

utteran…

shape

room

utteran…

require…

shape

room

utteran…

shape

room

utteran…

shape

room

utteran…

shape

room

utteran…

shape

room

utteran…

shape

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

geomet…

position

room

utteran…

shape

room

utteran…

shape

room

utteran…

shape

room

utteran…

shape

room

utteran…

shape

explain…

parame…

room

utteran…

shape

object

require…

passage

require…

parame…

require…

shape

utteran…

room

parame…

explain…

capabil…

utteran…

vector_…

utteran…

coordin…

vector_…

utteran…

coordin…

vector_…

utteran…

coordin…

vector_…

person

vector_…

utteran…

coordin…

object

entity

agent

room

vector_…

capabil…

room

shape

utteran…

entity

utteran…

coordin…

position

utteran…

shape

room

battery

active

coordin…

capabil…

utteran…

capabil…

utteran…

position

battery

active

capabil…

entity

utteran…

position

battery

active

capabil…

entity

utteran…

battery

active

person

utteran…

person

utteran…

person

passage

utteran…

position

require…

passage

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

person

utteran…

room

utteran…

shape

room

utteran…

shape

room

utteran…

shape

room

utteran…

shape

room

utteran…

shape

room

utteran…

shape

room

utteran…

shape

room

utteran…

shape

room

utteran…

room

utteran…

room

utteran…

shape

room

shape

room

utteran…

shape

room

utteran…

functio…

room

utteran…

functio…

room

utteran…

room

utteran…

functio…

shape

room

utteran…

shape

passage

require…

access…

room

utteran…

functio…

passage

gender

access…

gender

access…

parame…

capabil…

gender

passage

explain…

capabil…

passage

require…

gender

access…

gender

access…

utteran…

require…

gender

access…

gender

access…

gender

require…

access…

gender

access…

gender

access…

require…

passage

gender

access…

gender

access…

gender

access…

gender

access…

gender

access…

gender

access…

gender

require…

gender

access…

require…

passage

access…

gender

access…

gender

require…

passage

functio…

passage

access…

motor_…

capabil…

parame…

explain…

require…

shape

room

utteran…

room

utteran…

shape

require…

utteran…

capabil…

scitos_…

geomet…

motor_…

capabil…

scitos_…

geomet…

motor_…

require…

passage

shape

require…

functio…

room

utteran…

shape

functio…

room

utteran…

shape

functio…

room

passage

require…

passage

require…

passage

require…

passage

require…

passage

require…

passage

require…

passage

require…

head

require…

functio…

passage

require…

functio…

room

utteran…

shape

passage

require…

passage

require…

access…

passage

require…

access…

passage

require…

access…

passage

require…

passage

require…

position

passage

require…

passage

require…

utteran…

shape

room

utteran…

shape

functio…

room

utteran…

shape

require…

capabil…

position

geomet…

scitos_…

position

geomet…

position

geomet…

position

hri_fac…

position

head

Figure 11: Illustration of whole Memory Net graph with

pattern nodes (blue) and property nodes (yellow).

Figure 12: Ofﬁce map that contains spatial information ex-

tracted from the graph about robots (green triangle icon) and

persons (red dot icons). The icons are interactive and show

the corresponding utterance by clicking on them.

view and situational awareness for a given task. Here,

the requirement for a KB is to break down the number

of hypothesis that contribute to executing tasks and

hence limit the search space for the later planning step.

If a goal has been reached, this could be reﬂected in

the KB and serve as individual experience of each IA

for future tasks. In other words, we provide IAs with

basic patterns that allow to act in the physical world

on a high level and leave the assessment of additional

own capabilities to the system, which acquires them

based on experience. This high level representation

leaves room for, on the one hand, enriching the KB

by external knowledge sources e. g. from Semantic

Web, and, on the other hand, allows for low level ma-

chine learning methods to project high dimensional

problems on a more abstract, interpretable level.

6 CONCLUSION

We proposed Memory Nets, a new knowledge repre-

sentation for IAs that mainly encodes semantics in a

graph structure and less in natural language identiﬁers.

Memory Nets are deﬁned by a minimal set of link

types embedded in patterns with their supporting prop-

erties. Such granularity leads to operational semantics

and a strong connectedness between nodes - which is

the great strength of graphs.

A key component of Memory Nets is the central

representation of an IA and its connection through dif-

ferent levels, starting from its own concept, through its

capabilities and measurements up to observed patterns

and properties. This representation allows for a con-

textual embedding of a situation an IA is currently in

and its operability. An additional important feature is

incrementality, that is enabled by possible abstraction

from observations or linking of external knowledge

sources. Encoding the knowledge in relations and in

the amount of connected information also allows for

machine learning methods on top of the representation.

Memory Nets facilitates for operations in multiple

dimensions like specialization of patterns for class

taxonomies, transformation patterns, compositionality

(for building partonomies) and sequential ordering.

The future direction of our research is on the one

hand using Memory Nets as central backend for mul-

tiple physical embodiments of IAs. Another focus is

the incrementality of the KB and usage of machine

learning approaches.

REFERENCES

Antoniou, G., Groth, P., Harmelen, F. v. v., and Hoekstra, R.

(2012). A Semantic Web Primer. The MIT Press.

Beetz, M., Beßler, D., Haidu, A., Pomarlan, M., Bozcuoglu,

A. K., and Bartels, G. (2018). Knowrob 2.0 – a 2nd gen-

eration knowledge processing framework for cognition-

enabled robotic agents. In International Conference on

Robotics and Automation (ICRA), Brisbane, Australia.

Berners-Lee, T., Hendler, J., and Lassila, O. (2001). The

Semantic Web. A New Form of Web Content that is

Meaningful to Computers will Unleash a Revolution of

New Possibilities. Scientiﬁc American, 284(5):34–43.

Bollacker, K., Evans, C., Paritosh, P., Sturge, T., and Taylor,

J. (2008). Freebase: a collaboratively created graph

database for structuring human knowledge. In Proceed-

ings of the 2008 ACM SIGMOD international confer-

ence on Management of data, pages 1247–1250. ACM.

Collins, A. M. and Quillian, M. R. (1969). Retrieval time

from semantic memory. Journal of Verbal Learning

and Verbal Behavior, 8(2):240–247.

Degen, W. and Herre, H. (2001). What is an upper level

ontology. In Workshop on Ontologies. Citeseer.

Memory Nets: Knowledge Representation for Intelligent Agent Operations in Real World

125

Fischer, L., Hasler, S., Deigmoeller, J., Schnuerer, T., Redert,

M., Pluntke, U., Nagel, K., Senzel, C., Ploennigs, J.,

Richter, A., and Eggert, J. (2018). Which tool to use?

grounded reasoning in everyday environments with

assistant robots. In Proceedings of the 11th Cognitive

Robotics Workshop 2018, pages 3–10.

Franklin, S. and Graesser, A. C. (1996). Is it an agent, or

just a program?: A taxonomy for autonomous agents.

In Intelligent Agents III, Agent Theories, Architectures,

and Languages, ECAI ’96 Workshop (ATAL), Budapest,

Hungary, August 12-13, 1996, Proceedings, pages 21–

35.

Horton, T. E., Chakraborty, A., and Amant, R. S. (2012).

Affordances for robots: a brief survey. AVANT, 2:70–

84.

Kasabov, N. and Kozma, R. (1998). Introduction: Hybrid

intelligent adaptive systems. International Journal of

Intelligent Syststems, 13(6):453–454.

Knublauch, H., Oberle, D., Tetlow, P., Wallace, E., Pan,

J., and Uschold, M. (2006). A semantic web primer

for object-oriented software developers. W3c working

group note, W3C.

Kunze, L., Roehm, T., and Beetz, M. (2011). Towards

semantic robot description languages. In 2011 IEEE

International Conference on Robotics and Automation,

pages 5589–5595.

Kurzweil, R. (1999). The Age of Spiritual Machines: When

Computers Exceed Human Intelligence. Viking.

Lehmann, J., Isele, R., Jakob, M., Jentzsch, A., Kon-

tokostas, D., Mendes, P. N., Hellmann, S., Morsey,

M., Van Kleef, P., Auer, S., et al. (2015). DBpedia–

a large-scale, multilingual knowledge base extracted

from wikipedia. Semantic Web, 6(2):167–195.

Lemaignan, S., Ros, R., M

¨

osenlechner, L., Alami, R., and

Beetz, M. (2010). ORO, a knowledge management

platform for cognitive architectures in robotics. In

2010 IEEE/RSJ International Conference on Intelligent

Robots and Systems, pages 3548–3553. IEEE.

Mazzocchi, S. (2005). Closed world vs. open world:

the ﬁrst semantic web battle. https://web.archive.

org/web/20090624113015/http://www.betaversion.org/

stefano/linotype/news/91/ [Online; accessed 23-April-

2019].

Miller, G. A. (1995). Wordnet: a lexical database for english.

Communications of the ACM, 38(11):39–41.

Neo4j (2019). Neo4j graph platform. https://neo4j.com/

product/ [Online; accessed 23-April-2019].

Paulheim, H. (2017). Knowledge graph reﬁnement: A survey

of approaches and evaluation methods. Semantic web,

8(3):489–508.

Pease, A., Niles, I., and Li, J. (2002). The suggested upper

merged ontology: A large ontology for the semantic

web and its applications. In Working notes of the AAAI-

2002 workshop on ontologies and the semantic web,

volume 28, pages 7–10.

Rebhan, S., Richter, A., and Eggert, J. (2009). Demand-

driven visual information acquisition. In Computer

Vision Systems, Lecture Notes in Computer Science,

pages 124–133. Springer, Berlin, Heidelberg.

R

¨

ohrbein, F., Eggert, J., and K

¨

orner, E. (2009). Child-

friendly divorcing: Incremental hierarchy learning in

bayesian networks. In Proceedings of the International

Joint Conference on Neural Networks, pages 2711–

2716.

Simmons, R. (1973). Semantic networks: Their computa-

tion and use for understanding english sentences. In

Computer Models of Thought and Language.

Singhal, A. (2012). Introducing the knowledge graph:

things, not strings. http://googleblog.blogspot.co.uk/

2012/05/introducing-knowledge-graph-things-

not.html [Online; accessed 23-April-2019].

Sowa, J. (2000). Knowledge Representation: Logical, Philo-

sophical, and Computational Foundations. Brooks

Cole Publishing Co.

Suchanek, F. M., Kasneci, G., and Weikum, G. (2007). Yago:

A core of semantic knowledge. In Proceedings of the

16th International Conference on World Wide Web,

WWW ’07, pages 697–706. ACM.

Tenorth, M., Klank, U., Pangercic, D., and Beetz, M. (2011).

Web-enabled robots. IEEE Robotics Automation Mag-

azine, 18(2):58–68.

Vrandecic, D. and Kr

¨

otzsch, M. (2014). Wikidata: A free

collaborative knowledge base. Communications of the

ACM, 57:78–85.

Wikipedia (2019). Intelligent agent — Wikipedia, the free

encyclopedia. https://en.wikipedia.org/wiki/ Intelli-

gent agent#CITEREFKasabov1998 [Online; accessed

23-April-2019].

Wood, D., Zaidman, M., Ruth, L., and Hausenblas, M.

(2014). Linked Data: Structured Data on the Web.

Manning Publications, 1 edition edition.

Wyatt, J. L., Aydemir, A., Brenner, M., Hanheide, M.,

Hawes, N., Jensfelt, P., Kristan, M., Kruijff, G. J. M.,

Lison, P., Pronobis, A., Sjoo, K., Vrecko, A., Zen-

der, H., Zillich, M., and Skocaj, D. (2010). Self-

understanding and self-extension: A systems and rep-

resentational approach. IEEE Transactions on Au-

tonomous Mental Development, 2(4):282–303.

KEOD 2019 - 11th International Conference on Knowledge Engineering and Ontology Development

126
