IoT Forensics: A State-of-the-Art Review, Challenges and Future

Directions

Ahmed Alenezi

1,3

, Hany F. Atlam

, Reem Alsagri

, Madini O. Alassafi

and Gary B. Wills

Electronic and Computer Science Dept., University of Southampton, University Road, SO17 1BJ, Southampton, U.K.

Department of Computing, Solent University, E Park Terrace, SO14 0YN, Southampton, U.K.

Computer Science Dept., Faculty of Computing and Information Technology, Northern Border University, Rafha, K.S.A.

IT Dept Faculty of Computing and Information Technology, King Abdulaziz University, Jeddah, K.S.A.

Keywords: Internet of Things (IoT), Digital Forensics, IoT Forensics, IoT Forensics Challenges, State of the Art, IoT

Forensics Future Directions.

Abstract: The IoT is capable of communicating and connecting billions of things at the same time. The concept offers

numerous benefits for consumers that alters how users interact with the technology. With this said, however,

such monumental growth within IoT development also gives rise to a number of legal and technical challenges

in the field of IoT forensics. Indeed, there exist many issues that must be overcome if effective IoT

investigations are to be carried out. This paper presents a review of the IoT concept, digital forensics and the

state-of-the-art on IoT forensics. Furthermore, an exploration of the possible solutions proposed in recent

research and IoT forensics challenges that are identified in the current research literature are examined. Picks

apart the challenges facing IoT forensics which have been established in recent literature. Overall, this paper

draws attention to the obvious problems – open problems which require further efforts to be addressed

properly.

1 INTRODUCTION

As a ground-breaking innovation, the Internet is

constantly transforming into certain new types of

software and hardware, meaning that nobody can

avoid it (Atlam, et al., 2018). The kind of

communication which we now witness is either

human-device communication or human-human

communication; the Internet of Things (IoT),

however, has promise, and is looking to deliver a

fantastic future for the Internet, as it offers machine-

machine (M2M) communication (Farooq et al.,

2015). The IoT concept was first alluded to by Ashton

in 1999 (Ashton, 2009), according to whom “The

Internet of Things has the potential to change the

world, just as the Internet did. Maybe even more so”.

Following this, 2005 saw the formal presentation of

the IoT by the International Telecommunication

Union (ITU) (ITU, 2005). As per the ITU definition,

the IoT is: “a global infrastructure for the Information

Society, enabling advanced services by

interconnecting (physical and virtual) things based

on, existing and evolving, interoperable information

and communication technologies” (ITU, 2012).

The IoT is capable of communicating and

connecting billions of things at the same time. It

offers consumers numerous benefits that will alter the

way in which users employ the technology (Atlam, et

al., 2018). An assortment of interconnected objects

and low-cost sensors make it possible for information

to be collected from our environment, thus in turn

making it possible to improve our living standards

(Atlam, et al., 2017).

The IoT is presently a hot topic, drawing attention

from both academic institutions and businesses. It is

capable of altering our lives significantly (Atlam, et

al., 2017). In comparison to the adoption of telephony

and electricity, the rate of IoT adoption is at least five

times higher (Li, et al., 2015). Cisco (2016) predicted

that, by the year 2030, 500 billion devices will be

linked up to the Internet. All of these devices contain

sensors that collect data, engage with the

environment, and communicate using a network.

Moreover, such activity is becoming the core element

of the future of the Internet, which encompasses

numerous different types of services and applications

(Atlam, et al., 2017). Said IoT devices are connected

to one another using various communication

106

Alenezi, A., Atlam, H., Alsagri, R., Alassaﬁ, M. and Wills, G.

IoT Forensics: A State-of-the-Art Review, Challenges and Future Directions.

DOI: 10.5220/0007905401060115

In Proceedings of the 4th International Conference on Complexity, Future Information Systems and Risk (COMPLEXIS 2019), pages 106-115

ISBN: 978-989-758-366-7

technologies, e.g. networks which are wired, wireless

and mobile et al., 2013).

Recent times have seen a rapid increase in the use

of IoT technology. These smart devices have been

employed in the major areas, such as transportation,

healthcare, smart cities and smartphones, etc. With

this said, light has been shed on the technology’s

numerous vulnerabilities, and so cybercrime might be

perpetrated using these devices. The number of

incidents linked to IoT devices is a cause for concern,

and thus there is the need for a new investigation

approach to tackle the crime linked to said IoT

devices. Indeed, as stated in Symantec’s Internet

Security Threat Report (wood et al., 2016), there is an

expectation that the number of cybercrime cases

linked to the technology will rise. Incidents including

ransomware, malicious attacks, fraud, node

tampering, SQL injections, phishing, and numerous

other attacks have been detected. Such crimes are

either perpetrated by employing the IoT

devices/application or by exploiting devices to carry

out said crimes (Roman, et al., 2011; Sun and Wang,

2011; Xiaohui, 2013; Islam et al., 2015). Said devices

are connected to each other’s devices throughout the

networks, meaning it is extremely difficult to conduct

static digital forensics, and indeed much more

difficult than it is to conduct other computing

forensics (Oriwoh et al., 2013; Zawoad and Hasan,

2015). Moreover, given the limitations of IoT devices

and the features of digital evidence, which require

proper handling, real-time investigation is necessary

in order to conduct the IoT forensics (Oriwoh and

Sant, 2013).

The aim of this paper is to review the IoT, as well

as digital forensic areas, and to unveil the challenges

linked to both while simultaneously setting out

directions for future research. Section 2 and Section 3

presents a review of IoT forensics and digital

forensics respectively. In Section 4, discussion

focuses on the state of the art of IoT forensics

frameworks. Following this, Section 5 examines the

IoT challenges and Section 6 highlights the directions

for future research. Finally, a conclusion and future

research are presented in Section 7.

2 DIGITAL FORENSICS

The years following the technological revolution,

which began around the 1960s, have seen significant

growth in the number of crimes perpetrated using

computers. Due to this, from that point on, digital

forensics has been used to combat a cybercrime or

attack should one arise, as well as to ameliorate and

obtain legal evidence discovered in digital media. As

per the definition offered by NIST, digital forensics is

the use of science to identify, collect, examine and

analyse data, all the while preserving data integrity

and the chain of custody (Kent et al., 2006).

2.1 Digital Forensics Process

Many scholars have agreed that there is not one single

forensics procedure on its own which can be adhered

to in every digital investigation et al., 2014).

Nevertheless, however, there exist numerous popular

standards (Ruan et al., 2013; Almulla, et al., 2014)

which are applicable to the digital forensics process,

such as: Integrated Digital Investigation Process

(IDIP), Digital Forensics Research Workshop

(DFRW), National Institute of Justice (NIJ) and

National Institute of Standards and Technology

(NIST). Numerous practitioners and researchers

(Agarwal et al., 2011; Almulla, et al., 2014; Pichan,

et al., 2015) have reached a consensus on the process

steps of NIJ, which are set out below (Ashcroft, et al.,

2004):

 Assessment: Examiners specialising in

computer forensics should analyse digital

evidence rigorously in regard to the scope of

the case in order to decide on which course of

action should be taken;

 Acquisition: The very nature of digital

evidence means that it is delicate and can be

changed, damaged, or destroyed if it is

improperly handled or examined. Indeed, best

practice is to examine a copy of the original

evidence. Said original evidence ought to be

obtained in a way that protects and preserves

the evidence’s integrity;

 Examination. The examination process seeks to

draw out and assess digital evidence.

Extraction is simply the recovery of data from

its media.

 Analysis: Pertains to the recovered data,

specifically interpreting and presenting said

data in a format which is useful and which

makes sense;

 Documenting and reporting: Observations and

actions ought to be documented during every

stage of the forensic processing of evidence.

This will culminate in the compiling of a report

which will detail the findings in writing.

IoT Forensics: A State-of-the-Art Review, Challenges and Future Directions

107

3 IoT FORENSICS

The Internet of Things (IoT) poses a number of

unique and complicated challenges to the field of

digital forensics. Estimates state that the number of

networked devices will stand at 50 billion by 2020,

and said devices will produce a substantial amount of

data (Botta et al., 2014). The processing of huge

amounts of IoT data will lead to a proportionate rise

in the workloads borne by data centres; this will, in

turn, mean that providers are left to deal with new

challenges related to capacity, security, and analytics.

Ensuring that said data is handled conveniently

constitutes an important challenge, since the

application performance as a whole depends heavily

on the data management service’s properties

(MacDermott, et al., 2018).

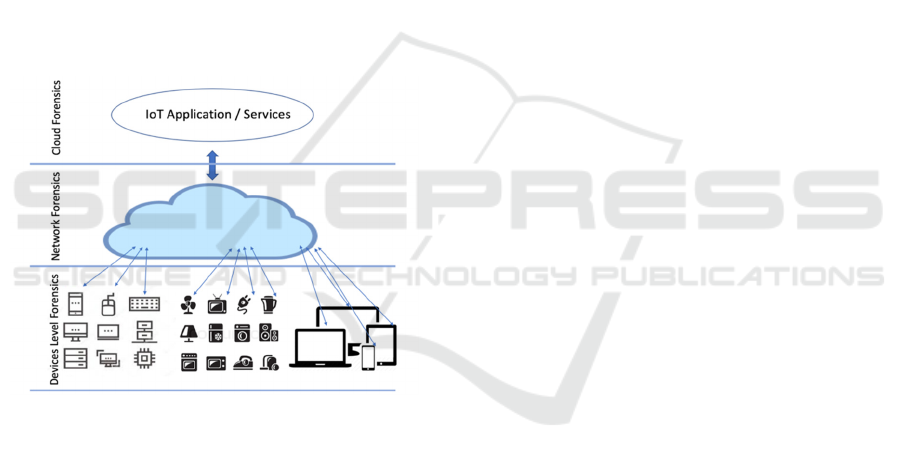

It is thought that IoT forensics consists of a mix of

three digital forensics schemes: cloud forensics,

device level forensics, and network forensics

(Zawoad and Hasan, 2015) as shown in figure 1.

Figure 1: IoT Forensics.

 Device level forensics: There are times when

an investigator might need to collate data from

the IoT devices, and specifically their local

memory. The device level forensics scheme is

employed when there is the need to collect,

from the IoT devices, a vital piece of evidence.

 Network forensics: Using network logs, it is

impossible to identify the source(s) of different

attacks. As such, network logs can serve as a

crucial tool when it comes to declaring that a

suspect is guilty or not guilty. The

infrastructure of the IoT comprises various

forms of networks, e.g. Personal Area Network

(PAN), Body Area Network (BAN), Wide

Area Networks (WAN), Home/Hospital Area

Networks (HAN), and Local Area Networks

(LAN). Vital pieces of evidence can be drawn

from any of these networks.

 Cloud forensics: Among the most crucial roles

in the area of IoT forensics will be cloud

forensics. As the majority of the IoT devices

are characterised by low storage and

computational capability, data generated from

said IoT devices and the IoT networks is stored

in the cloud and indeed dealt with in the cloud.

This is due to the fact that cloud solutions bring

about numerous benefits, such as substantial

capacity, scalability, and accessibility on

demand.

It is true that a number of models have been

developed to deal with the one-of-a-kind

characteristics of the IoT, but while this is the case,

there remain a plethora of challenges which have still

not been overcome (Chernyshev et al., 2018). Of

particular note, for example, is the underlying

complexity which is encountered when drawing out

data from the IoT infrastructure, the devices of which

can make it harder for the investigator to generate

evidence which is admissible and solid in terms of

forensics (Kebande and Ray, 2016). The above-

mentioned complexity results from numerous

challenges, e.g.: uncertainty regarding the origin of

the data and where it is stored, the fact that the

traditional techniques used for the digital forensics

process are inapplicable, ensuring that the chain of

custody is secure, and the formats of data (Hegarty, et

al., 2014). Due to this, the Internet of Things forensics

is still in the process of maturing, specifically because

of the many existing challenges and the smaller

number of studies in the field. Below, the discussion

focuses on the state of the art of IoT forensics.

4 STATE-OF-THE-ART ON IoT

FORENSICS FRAMEWORKS

Many research scholars have dedicated attention to

the difficult task of carrying out IoT forensics. With

this in mind, a framework is proposed, namely the

Digital Forensic Investigation Framework for IoT

(DFIF-IoT); said framework strengthens the

capabilities of the investigation and has a high level

of certainty. Among the key points of strength of the

framework is that adheres to the ISO/IEC 27043:

2015 – an internationally-recognised standard

on process, information technology, techniques used

for security, and the principles of incident

investigation. The results gathered using qualitative

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

108

methods show that incorporating the DFIT-IoT into

tools used for digital forensics in the future can aid

effective forensic crime investigation in the area of

the IoT (Kebande and Ray, 2016). Moreover,

Kebande and his colleagues put forth a framework

called CFIBD-IoT; this cloud-based framework

comprises three parts: (a) a digital forensic

investigation layer, (b) a cloud/IoT infrastructure

layer, and (c) a forensic evidence isolation layer. The

paper makes a recommendation, namely that a

standardised mechanism be adopted for the extraction

and isolation of evidence, such as, for example,

ISO/IEC 27043 (Kebande, et al., 2017).

Another piece of important work comes from

Meffert and his colleagues, who proposed a practical

approach and a general framework for IoT forensics

via IoT device state acquisition (Meffert et al., 2017).

In the above-mentioned work, the scholars explained

that it is possible to collect and log IoT state data in

real-time by employing a Forensic State Acquisition

Controller (FSAC), whereby it is possible to obtain

data from the cloud, an IoT device, or from another

controller. The above scholars leveraged the Nest open

APIs in order to pull the state of the Nest thermostat on

any occasion when data is transferred to the cloud. The

authors put forth proof of the concept’s

implementation; they did so by employing openHAB

and self-created scripts, to mimic a FSAC

implementation. The results obtained by these scholars

showed that practically pulling state data, which is

forensically relevant, from IoT devices is possible.

Hossain and his colleagues proposed FIF-IoT – a

forensic investigation framework which employs a

public digital ledger to pinpoint facts in criminal

incidents which take place within IoT-based systems.

The FIF-IoT framework stores evidence in the form

of interactions such as device-to-cloud, device-to-

device, and device-to-user; said evidence is kept in a

public digital ledger which resembles that used for

Bitcoin. The FIF-IoT framework is capable of

providing the anonymity, confidentiality, and

nonrepudiation of the publicly-available evidence.

The FIF-IoT is also able to provide interfaces which

can be used for the acquisition of evidence, as well as

a scheme to verify the integrity of the evidence

employed throughout the investigation of a crime. A

case study of an adversarial scenario was presented.

It revealed that FIF-IoT was tamper-proof against a

potential collusion scenario. They also introduced the

use of a prototype of the FIF-IoT framework and

evaluated the performance (Hossain, et al., 2018).

In addition to this, Chi, Aderibigbe and Granville

(2018) suggested the use of a framework designed for

the acquisition and analysis of IOT data. The goal of

the framework is to collate data from numerous, and

varied, IoT devices. The aim of the authors was to

provide an evidence format, centralised in nature, for

IoT investigations and to compile an overview of how

events happened in a cloud-based setting. The

approach put forth by said authors provides the user

with a mobile application which can aid in pulling

data from the Android mobile device; the artefacts

which have been extracted are saved in a centralised

evidence format, while a desktop application aids in

creating a timeline analysis of all of the evidence.

With this said, however, the framework is yet to be

validated experimentally.

Other work to note comes from Chhabra, Singh

and Singh (2018), who proposed an approach aimed

at big data forensics, with excellent precision and

sensitivity. Indeed, they proposed a generalised

forensic framework which employs the programming

model of Google, namely MapReduce, as the core of

traffic translation, extraction, and the analysis of

dynamic traffic features. They have also employed

tools which are open source in nature and which lend

support to parallel processing and scalability.

Moreover, they put forth a comparative analysis of

globally-accepted machine learning models used for

P2P malware analysis in mocked real-time. A dataset

from CAIDA was adopted and implemented in

parallel so as to verify the proposed model. The

findings revealed that the model’s forensic

performance metrics exhibited a 99% sensitivity.

Moreover, Al-Masri, Bai and Li (2018) proposed

a Fog-Based IoT forensic framework that is able to

identify and mitigate cyber attacks which target IoT

systems during their initial stages. The inspiration for

the proposed framework was the DFRWS

Investigative Model. However, the framework is yet

to be validated experimentally.

Kebande et al. (2018) proposed an Integrated

Digital Forensic Investigation Framework (IDFIF-

IoT) for an IoT ecosystem; said framework is an

extension of an initially-proposed generic Digital

Forensic Investigation Framework for Internet of

Things (DFIF-IoT) (Kebande and Ray, 2016). The

main goal of the project is to suggest an integrated

framework complete with acceptable digital forensic

techniques that are capable of analysing Potential

Digital Evidence (PDE) generated by the IoT-based

ecosystem which could be used to prove a fact.

While numerous frameworks have been proposed

to deal with the unique characteristics of the IoT

forensics, there are a plethora of challenges which

still have to be resolved. Below, discussion focuses

on some of the important challenges faced by the field

of digital forensics in the IoT environment.

IoT Forensics: A State-of-the-Art Review, Challenges and Future Directions

109

5 IoT FORENSICS CHALLENGES

IoT will soon be present in all areas of our life,

whether it be taking care of homes or managing

smart cities. While it is true that this development

makes the lives of humans easier, said development

also gives rise to numerous issues related to digital

forensics and security. This section briefly reviews

the key forensics challenges encountered in IoT

environments.

5.1 Complexity and Diversity of IoT

Within the IoT market, brand new IoT devices are

currently being pioneered and developed to make our

lives trendy and easier. In addition to the

manufacturers, it must be noted that the service

providers have also come up with numerous options

and offer for their customers. In technical terms, said

devices are being operated by numerous operating

systems and may connect to a plethora of network

technologies simultaneously. With characteristics

such as dynamicity and interactivity present, the IoT

becomes increasingly complicated and complex. This

situation could give rise to a great deal of

manipulation or exploitation on the part of the

adversary (Zulkipli, et al., 2017).

With regard to the forensic perspective, file

formats used to store data that is forensically

relevant are becoming proprietary, and commonly

require complex reverse engineering efforts. It is

common for data to be broken up into numerous

components and stored in various locations.

Moreover, there exist challenges of a legal nature

that place limitations on the data which investigators

can access (Meffert et al., 2017). In addition to this,

IoT devices pose a complicated problem for digital

forensic investigators as a result of the numerous

different systems which can be found on the market.

While it is true that a few IoT devices might be

obtained and assessed by employing traditional

digital forensic techniques, numerous IoT devices

are engineered using software and file structures that

are proprietary and closed source (Meffert et al.,

2017; Zulkipli, et al., 2017). In addition to this

complexity, the communication protocols of said

IoT devices can be equally diverse, be it Bluetooth,

WiFi, RF, or ZigBee, etc. Such challenges mean that

investigators are unable to acquire and examine IoT

evidentiary data in a way which is timely and simple

(Meffert et al., 2017).

5.2 Cloud Forensics

The numerous applications which are deployed in a

cloud environment and the limitations of IoT devices

mean that the cloud is where the majority of the data

is stored. Gaining access to forensic evidence in a

cloud environment involves the service provider, who

may be hesitant when it comes to sharing information

or providing investigators with access to their cloud-

based environments. Furthermore, dealing with

digital forensic evidence on the cloud may differ

based on the cloud platforms, such as Software-as-a-

Service (SaaS), Platform-as-as-Service (PaaS) or

Infrastructure-as-a-Service (IaaS).In SaaS and PaaS,

the method used to obtain evidence primarily

involves service providers, while in IaaS said method

involves the service providers as well as the client(s).

As such, it is vital that digital forensic methods take

into account the fact that cloud computing is

distributed in terms of its nature; such methods must

also adapt to the changes in the way data and

applications are deployed to accommodate this

distributed nature (Alenezi, Hussein, et al., 2017; Al-

Masri, et al., 2018). Data Location: A great deal of

IoT data is scattered across different locations –

locations which are out of the control of the user. This

data could be in the cloud, with a third party, on a

mobile phone, or on other devices. As such, with

regard to IoT forensics, identifying where the

evidence is located is seen as one of the greatest

challenges that an investigator can face while trying

to gather the evidence. Moreover, IoT data might be

being kept in different countries and be mixed with

other users’ information, means the regulations of

different countries are involved (Liu, et al., 2017;

Alabdulsalam et al., 2018).

5.3 Limitations of IoT Devices’ Storage

IoT devices are commonly linked with extremely

limited computational resources and memory; with

regards the lifespan of data in IoT devices, this is

short and data can be overwritten easily, thus leading

to the possibility that evidence will be lost (Rajewski,

2017). The process of dealing with devices plagued

by limited or no storage capacity involves challenges;

one of said challenges is the period for which the

evidence in IoT devices can survive before being

overwritten. It is common for IoT application to

exploit services provided by the cloud services for

data processing and storage. Due to this, switching

the data to the cloud could represent an easy solution

to this problem. On the other hand, such a switch

presents another challenge which is linked to securing

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

110

the chain of evidence and how to prove that the

evidence has not been modified or altered (Hegarty,

et al., 2014).

5.4 Securing the Chain of Custody

The chain of custody is of vital importance when it

comes to guaranteeing the validation of the evidence

in the court. Simply put, this process revolves around

sustaining the history chronology of the evidence

during all stages of the investigation process. A court

will only accept the digital evidence as legitimate if

the chain of custody can make a convincing argument

about the integrity of the evidence, and how handling

procedures were conducted in relation to the

information, e.g. the process used for examination

and analysis and the presenting of the findings from

the investigation. Moreover, it is the job of the chain

of custody to prove precisely at each stage of the

investigation procedure where, when and who came

into contact with the electronic evidence and

scientific point of view to consider reliable any

existing digital evidence (Zulkipli, et al., 2017).

5.5 Security Issues

IoT devices are plagued by numerous security issues

that might leave these devices vulnerable, with

hackers potentially able to find new vulnerabilities

(Atlam, et al., 2018). It may also be the case that said

issues will affect potential digital investigations

(Rajewski, 2017). The following are some of the

possible security issues which may be faced by IoT

devices (Bekara, 2014): Identity Spoofing: Such a

type of attack attempts to communicate on behalf of

a legitimate thing in an unauthorised way, by making

use of its identity. Data tampering: With this activity,

an attacker may modify or delete data, thus rendering

the evidence not solid enough to be accepted in a law

court. Control Access: Since it would be possible to

remotely monitor and configure numerous devices, an

attacker may attempt to obtain unauthorised access

rights and seize control of data. DoS: This kind of

attack involves an attacker flooding the network with

a great deal of useless traffic, thus leading to the

targeted system becoming exhausted of resources,

which in turn means that the network is unavailable

to the users.

5.6 Lack of Forensics Tools

It is widely accepted that the forensics tools which are

available are plagued by numerous limitations and are

unable to cope with developments in the

technological world. The current tools in the field of

digital forensics are incapable of fitting with the

infrastructure of the IoT environment, which is

heterogeneous in nature. Of note here is the

substantial amount of possible evidence which is

produced by many IoT devices; indeed, this will lead

to new challenges when it comes to collecting

evidence from distributed IoT infrastructures

(Alabdulsalam et al., 2018). A mix of network

forensics tools and computer forensics tools is

required in order to obtain forensics data and then

analyse the data rapidly. Traditional forensics tools

can be employed to collate the active data while also

preserving the integrity of said data. It is possible to

employ network forensics tools to gather additional

data over the network, including activity logs

(Alqahtany et al., 2015). While certain commercial

tools (e.g. Encase and FTK) can be employed to

obtain evidence successfully, no one tool is capable

of doing everything or capable of doing everything

very well. The use of numerous tools is also a very

effective method when it comes to validating one’s

findings. If the same results are acquired with two

different tools, this substantially enhances the

evidence’s reliability. It is for this reason that there

exists a need for tools that are reliable and affordable

and which are capable of obtaining and analysing

forensics. The reliable and affordable would give

numerous SMEs the ability to conduct digital

investigations.

5.7 IoT Forensics Process

Numerous challenges are encountered by examiners

during IoT forensics. Detecting the presence of IoT

systems is a fair challenge considering that said

devices are designed in a specific way so that they

function in a passive and autonomous manner. Even

so, in the majority of cases, once an IoT device has

been identified, there exists no documented method

or reliable tool which can be used to gather residual

evidence from the device in a manner which is

forensically solid. Indeed, the preservation of

collected data by employing traditional techniques,

e.g. hashing, is not difficult. However, one huge

challenge is preserving the scene, especially in an IoT

environment. Were real-time and autonomous

interactions between various nodes to occur, these

would make it extremely difficult, and perhaps even

impossible, to identify the scope of a compromise and

the boundaries of a crime scene.

Most IoT nodes do not store any kind of metadata,

including temporal information; indeed, this means

that provenance of evidence becomes a challenging

IoT Forensics: A State-of-the-Art Review, Challenges and Future Directions

111

issue for an investigator. If there is an absence of

temporal information, e.g. modified, accessed and

created time, correlation between pieces of evidence

gathered from various IoT devices is nigh on

impossible. Technical challenges aside, another

major issue to consider when analysing and

correlating collected data is privacy, particularly

since most IoT sensors collect information which is

innate and personal. In addition to this, the amount of

data that is gathered in heterogeneous IoT

environments means it is nigh on impossible to offer

an end-to-end analysis of residual evidence. In

conclusion, it is essential that the final report puts

before the court acceptable evidence (Conti et al.,

2018).

6 FUTURE DIRECTIONS

Analysis of the relevant literature examined above

has made it possible for us to spot areas of weakness,

as well as potential research gaps in the field of IoT

forensics as depicted in figure 2.

6.1 IoT Forensics Procedures

The diversity of IoT devices and the complicated

nature of the IoT environment mean it may be the case

that a traditional forensics process is not a solution.

While procedures employed at present may fit some

of the computer forensics, the features of the IoT give

rise to new challenges for the investigators when it

comes to acquiring evidence. Indeed, procedures,

guidelines and standards that guide the IoT

investigations are essential and urgently needed.

6.2 Multi-jurisdictions

The IoT-based environment commonly employs

cloud services which could perhaps store data in

numerous different jurisdictions. Indeed, such a

situation gives rise to many legal issues for forensics

investigators. There is difficulty when it comes to

deciding under which law the case should be

prosecuted: data storage jurisdiction, the device

jurisdiction, or the attacker jurisdiction. Legal

challenges that arise because of multi-jurisdictions in

the IoT-based environment must be investigated

rigorously in the future; indeed, it will be necessary

to employ standard techniques so as to pick apart and

analyse the numerous locations and problems with the

networks.

6.3 Big IoT Data Analysis

As with the IoT, the data is collected from numerous

objects; the ability to analyse a huge amount of IoT

data aids investigators in dealing with a great deal of

information that could influence the investigation.

With this said, however, the more complicated

procedure of processing big IoT data means that it is

difficult to smoothly analyse the data which is

available for the investigation (Yaqoob et al., 2019).

Indeed, there is an urgent need to investigate new

approaches on how exactly to tackle the massive

amount of data.

6.4 Anti-forensics Data Pooling

Digital forensics tools and methodologies have taken

on a crucial role in terms of investigating cybercrime

and collating digital evidence in a case. The normal

approach is for experts in digital forensics to follow a

common workflow and to employ known

methodologies and tools while investigating a case.

Cybercriminals and attackers are also aware of which

methodologies are employed in an investigation and

the way in which digital forensics tools work. As

such, said cybercriminals and attackers have

discovered and started to utilise a new methodology,

known as anti-forensics, which they use to mislead

investigators or make a case last longer than would

usually be the case. Recent times have seen anti-

forensics acknowledged as a true study field, and thus

it can be seen as an area of interest which is emerging;

indeed, there is an insufficient amount of knowledge

pertaining to anti-forensics techniques (Geradts,

2018). It is vital that both private sectors and

governments share experience and bring together data

on anti-forensics techniques.

6.5 IoT Forensic Readiness

IoT has given rise to a plethora of new challenges for

the digital forensics field. In IoT-based cases,

investigators more often than not must deal with three

different levels: cloud, network, and device level

forensics. Moreover, numerous challenges have been

raised, this means IoT forensics readiness is still

challenging and it is vital that organisations be

prepared to carry out IoT investigations. Furthermore,

digital forensic readiness not only prepare

organisations to undertake digital investigations but it

can also enhance the security level (Alenezi, et al.,

2017).

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

112

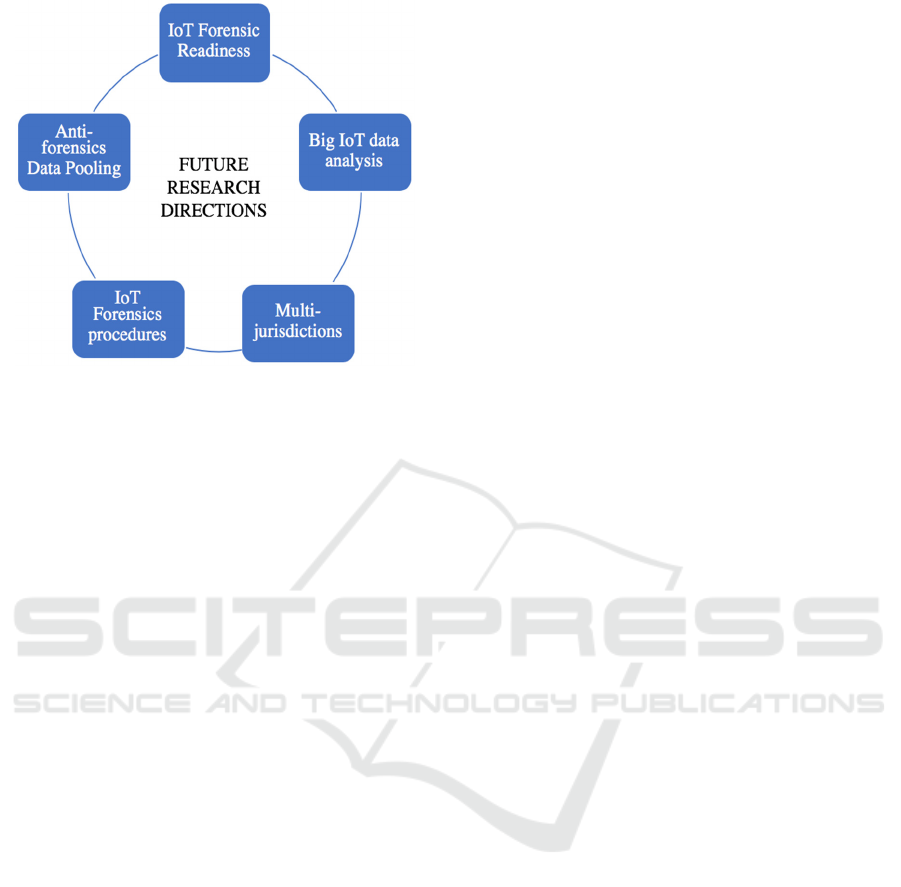

Figure 2: IoT forensics future research directions.

7 CONCLUSIONS

The increased number of connected devices to the IoT

means there is a high possibility of cyber threats.

Indeed, numerous researchers have identified and

examined the issues with which digital investigators

are confronted as they carry out forensics

investigations in cases related to the IoT. However,

only a small number of researchers have proposed

solutions to address or even mitigate some of these

challenges. There remain a number of open issues in

the field of IoT forensics which must be addressed.

As such, this paper presents a review of IoT and

digital forensics as well as IoT forensics, following

which came a discussion of the state of the art

regarding IoT forensics frameworks. In addition to

this, numerous challenges related to IoT forensics

have been discussed, followed by an outline of future

research directions. As future research, further studies

will be carried out on how to achieve IoT forensic

readiness in order to empower organisations to carry

out digital investigations.

REFERENCES

Agarwal, A. et al. (2011) ‘Systematic Digital Forensic

Investigation Model’, International Journal of

Computer Science and Security (IJCSS), 5(1), pp. 118–

131.

Al-Masri, E., Bai, Y. and Li, J. (2018) ‘A Fog-Based Digital

Forensics Investigation Framework for IoT Systems’,

in 2018 IEEE International Conference on Smart Cloud

(SmartCloud), pp. 196–201.

Alabdulsalam, S. et al. (2018) ‘Internet of Things Forensics

– Challenges and a Case Study’, in IFIP International

Conference on Digital Forensics, pp. 35–48.

Alenezi, A., Hussein, R. K., et al. (2017) ‘A Framework for

Cloud Forensic Readiness in Organizations’, in 5th

IEEE International Conference on Mobile Cloud

Computing, Services, and Engineering (MobileCloud),

pp. 199–204.

Alenezi, A., Zulkipli, N. H. N., et al. (2017) ‘The impact of

cloud forensic readiness on security’, in The 2nd

International Conference on Internet of Things, Big

Data and Security, IoTBDS, pp. 511–517.

Almulla, S., Iraqi, Y. and Jones, A. (2014) ‘A state-of-the-

art review of cloud forensics’, Journal of Digital

Forensics, Security and Law, 9(4), pp. 7–28.

Alqahtany, S. et al. (2015) ‘Cloud Forensics: A Review of

Challenges, Solutions and Open Problems’, in 2015

International Conference on Cloud Computing (ICCC),

pp. 1–9.

Ashcroft, J., Daniels, D. J. and Hart, S. V. (2004) Forensic

examination of digital evidence: a guide for law

enforcement, National Institute of Justice.

Ashton, K. (2009) ‘That “internet of things” thing’, itrco.jp.

Atlam, H. F., Alenezi, A., Walters, R. J. and Wills, G. B.

(2017) ‘An overview of risk estimation techniques in

risk-based access control for the Internet of Things’, in

The 2nd International Conference on Internet of

Things, Big Data and Security (IoTBDS 2017).

Atlam, H. F., Alenezi, A., Walters, R. J., Wills, G. B., et al.

(2017) ‘Developing an adaptive Risk-based access

control model for the Internet of Things’, in 2017 IEEE

International Conference on Internet of Things

(iThings) and IEEE Green Computing and

Communications (GreenCom) and IEEE Cyber,

Physical and Social Computing (CPSCom) and IEEE

Smart Data (SmartData), pp. 655–661.

Atlam, H. F., Alenezi, A., Alharthi, A., et al. (2017)

‘Integration of cloud computing with internet of things:

Challenges and open issues’, in Proceedings - 2017

IEEE International Conference on Internet of Things,

IEEE Green Computing and Communications, IEEE

Cyber, Physical and Social Computing, IEEE Smart

Data, iThings-GreenCom-CPSCom-SmartData 2017,

pp. 670–675. doi: 10.1109/iThings-GreenCom-

CPSCom-SmartData.2017.105.

Atlam, H. F., Alenezi, A., Alassafi, M. O., et al. (2018)

‘Blockchain with Internet of Things: Benefits,

challenges, and future directions’, International

Journal of Intelligent Systems and Applications (IJISA),

pp. 40–48.

Atlam, H. F., Alenezi, A., Hussein, R. K., et al. (2018)

‘Validation of an Adaptive Risk-based Access Control

Model for the Internet of Things’, International Journal

of Computer Network and Information Security

(IJCNIS), pp. 26–35.

Atlam, H. F., Alassafi, M. O., Alenezi1, A., et al. (2018)

‘XACML for Building Access Control Policies in

Internet of Things’, in f the 3rd International

Conference on Internet of Things, Big Data and

Security (IoTBDS 2018), pp. 253–260.

IoT Forensics: A State-of-the-Art Review, Challenges and Future Directions

113

Bekara, C. (2014) ‘Security Issues and Challenges for the

IoT-based Smart Grid’, International Workshop on

Communicating Objects and Machine to Machine for

Mission-Critical Applications (COMMCA-2104),

34(1), pp. 532–537.

Botta, A. et al. (2014) ‘On the Integration of Cloud

Computing and Internet of Things’, in 2014

International Conference on Future Internet of Things

and Cloud, pp. 23–30.

Chernyshev, M. et al. (2018) ‘Internet of Things Forensics:

The Need, Process Models, and Open Issues’, IT

Professional, 20(3), pp. 40–49.

Chhabra, G. S., Singh, lVarinder P. and Singh, M. (2018)

‘Cyber forensics framework for big data analytics in

IoT environment using machine learning’, Multimedia

Tools and Applications, pp. 1–20. doi: 10.1007/s11042-

018-6338-1.

Chi, H., Aderibigbe, T. and Granville, B. C. (2018) ‘A

Framework for IoT Data Acquisition and Forensics

Analysis’, in 2018 IEEE International Conference on

Big Data (Big Data), pp. 5142–5146.

CISCO (2016) Internet of Things.

Conti, M. et al. (2018) ‘Internet of Things security and

forensics : Challenges and opportunities’, Future

Generation Computer Systems. Elsevier B.V., 78, pp.

544–546. doi: 10.1016/j.future.2017.07.060.

Farooq, M. et al. (2015) ‘A Review on Internet of Things

(IoT)’, International Journal of Computer Applica-

tions, 113(1), pp. 1–7. doi: 10.5120/19787-1571.

Geradts, Z. (2018) ‘Forensic challenges on Multimedia

analytics , Big Data and the Internet of Forensic

challenges on Multimedia analytics , Big Data and the

Internet of Things’, (August).

Hegarty, R., Lamb, D. J. and Attwood, A. (2014) ‘Digital

Evidence Challenges in the Internet of Things.’, in The

Tenth International Network Conference (INC) 2014,

pp. 163–172.

Hossain, M., Karim, Y. and Hasan, R. (2018) ‘FIF-IoT: A

Forensic Investigation Framework for IoT Using a

Public Digital Ledger’, in 2018 IEEE International

Congress on Internet of Things (ICIOT), pp. 33–40.

Islam, S. et al. (2015) ‘The Internet of Things for Health

Care: A Comprehensive Survey’, IEEE Access, pp.

678–708.

ITU (2005) ITU Internet Reports 2005: The internet of

things.

ITU (2012) ‘2060: Overview of the Internet of things’.

Kebande, V. R. et al. (2018) ‘Towards an Integrated Digital

Forensic Investigation Framework for an IoT-Based

Ecosystem’, in 2018 IEEE International Conference on

Smart Internet of Things (SmartIoT), pp. 93–98.

Kebande, V. R., Karie, N. M. and Venter, H. S. (2017)

‘Cloud-Centric Framework for isolating Big data as

forensic evidence from IoT infrastructures’, in 2017 1st

International Conference on Next Generation

Computing Applications (NextComp), pp. 54–60.

Kebande, V. R. and Ray, I. (2016) ‘A Generic Digital

Forensic Investigation Framework for Internet of

Things (IoT)’, in 2016 IEEE 4th International

Conference on Future Internet of Things and Cloud

(FiCloud), pp. 356–362.

Kent, K. et al. (2006) Guide to Integrating Forensic

Techniques into Incident Response, Nist Special

Publication.

Li, S., Xu, L. Da and Zhao, S. (2015) ‘The internet of

things: a survey’, Information Systems Frontiers, 17(2),

pp. 243–259. doi: 10.1007/s10796-014-9492-7.

Liu, C., Singhal, A. and Wijesekera, D. (2017) ‘Identifying

Evidence for Cloud Forensic Analysis’, in IFIP

International Conference on Digital Forensics.

Springer, pp. 111–130.

MacDermott, A., Baker, T. and Shi, Q. (2018) ‘Iot

Forensics: Challenges for the Ioa Era’, in 2018 9th IFIP

International Conference on New Technologies,

Mobility and Security (NTMS), pp. 1–5.

Mahmoud Elkhodr, Shahrestani, S. and Hon Cheung (2013)

‘The Internet of Things: Vision & challenges’, in IEEE

2013 Tencon - Spring. IEEE, pp. 218–222.

Meffert, C. et al. (2017) ‘Forensic State Acquisition from

Internet of Things (FSAIoT): A general framework and

practical approach for IoT forensics through IoT device

state acquisition’, in The 12th International Conference

on Availability, Reliability and Security.

Oriwoh, E. et al. (2013) ‘Internet of Things Forensics:

Challenges and approaches’, in ieeexplore.ieee.org, pp.

608–615.

Oriwoh, E. and Sant, P. (2013) ‘The Forensics Edge

Management System: A Concept and Design’, in 2013

IEEE 10th International Conference on Ubiquitous

Intelligence and Computing and 2013 IEEE 10th

International Conference on Autonomic and Trusted

Computing, pp. 544–550.

Pichan, A., Lazarescu, M. and Soh, S. T. (2015) ‘Cloud

forensics: Technical challenges, solutions and

comparative analysis’, Digital Investigation, 13, pp.

38–57.

Rajewski, J. (2017) ‘Internet of Things forensics’, in

Endpoint Security, Forensics and eDiscovery

Conference.

Roman, R., Najera, P. and Lopez, J. (2011) ‘Securing the

internet of things’, IEEE Computer, pp. 51–58.

Ruan, K. et al. (2013) ‘Cloud forensics definitions and

critical criteria for cloud forensic capability: An

overview of survey results’, Digital Investigation,

10(1), pp. 34–43.

Sun, X. and Wang, C. (2011) ‘The Research of Security

Technology in the Internet of Things’, in Advances in

Computer Science, Intelligent System and Environment,

Springer, pp. 113–119.

wood, p et al. (2016) Symantec global internet security

threat report: White Paper, Symantec Enterprise

Security.

Xiaohui, X. (2013) ‘Study on Security Problems and Key

Technologies of the Internet of Things’, 2013

International Conference on Computational and

Information Sciences.

Yaqoob, I. et al. (2019) ‘Internet of things forensics: Recent

advances, taxonomy, requirements, and open

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

114

challenges’, Future Generation Computer Systems, 92,

pp. 265–275.

Zawoad, S. and Hasan, R. (2015) ‘FAIoT: Towards

Building a Forensics Aware Eco System for the Internet

of Things’, in 2015 IEEE International Conference on

Services Computing, pp. 279–284.

Zulkipli, N. H. N., Alenezi, A. and Wills, G. B. (2017) ‘IoT

Forensic: Bridging the Challenges in Digital Forensic

and the Internet of Things’, in The 2nd International

Conference on Internet of Things, Big Data and

Security, IoTBDS, pp. 315–324.

IoT Forensics: A State-of-the-Art Review, Challenges and Future Directions

115
