Function-as-a-Service Benchmarking Framework

Roland Pellegrini

, Igor Ivkic

2,3

and Markus Tauber

Plan-B IT, Vienna, Austria

Lancaster University, Lancaster, U.K.

University of Applied Sciences Burgenland, Eisenstadt, Austria

Keywords:

Cloud Computing, Function-as-a-Service, Benchmarking.

Abstract:

Cloud Service Providers deliver their products in form of ”as-a-Service”, which are typically categorized by

the level of abstraction. This approach hides the implementation details and shows only functionality to the

user. However, the problem is that it is hard to measure the performance of Cloud services, because they

behave like black boxes. Especially with Function-as-a-Service it is even more difﬁcult because it completely

hides server and infrastructure management from users by design. Cloud Service Prodivers usually restrict the

maximum size of code, memory and runtime of Cloud Functions. Nevertheless, users need clariﬁcation if more

ressources are needed to deliver services in high quality. In this regard, we present the architectural design

of a new Function-as-a-Service benchmarking tool, which allows users to evaluate the performance of Cloud

Functions. Furthermore, the capabilities of the framework are tested on an isolated platform with a speciﬁc

workload. The results show that users are able to get insights into Function-as-a-Service environments. This,

in turn, allows users to identify factors which may slow down or speed up the performance of Cloud Functions.

1 INTRODUCTION

In the past, many benchmark tools have been devel-

oped and characterized to evaluate the performance of

hard- and software components (Berry et al., 1991).

The standardization of those benchmark tools by or-

ganizations such as Standard Performance Evaluation

Corporation (SPEC, 2019) made it possible to ob-

jectively assess single components or an entire sys-

tem. Traditionally, computer benchmarks are mainly

focused on performance qualities of computer sys-

tems, which are under the direct control of the bench-

marking program. Cloud service benchmarking, in

contrast, is about IT benchmarking of software ser-

vices where the underlying infrastructure is abstracted

away (Bermbach et al., 2017). Nevertheless, it can

not be avoided that Cloud services may become un-

available, slow to respond, or limited with regards to

resources such as memory, computing time, or max-

imum number of requests. Therefore, Cloud Service

Consumers (CSC) need a clear statement if a Cloud

service fulﬁlls its purpose with the existing resources

or if additional Cloud resources are needed. Conse-

quently, new methods for benchmarking and perfor-

mance metrics for Cloud services must be taken into

account. As shown in Figure 1, an external client calls

a Cloud service (S), which is provided by a Cloud Ser-

vice Provider (CSP). Since the client and Cloud ser-

vice are geographically dispersed, a variety of perfor-

mance issues can occur, which may be a compound

result of many various causes. In this scenario, the re-

quest may be delayed by service provisioning mech-

anism (1) inside the CSP infrastructure, while code

execution (2) of the Cloud Service itself, or by net-

work delays (3) between CSP and the client. Since

the Cloud infrastructure is hidden by design, the CSC

is not able to identify the exact location of the root

cause. As a result, the CSC can not get to the bottom

of the issue in order to solve the problem as well as to

prevent it in the future.

Figure 1: Various performance issues (1, 2, 3) while invok-

ing and executing a Cloud service (S).

Pellegrini, R., Ivkic, I. and Tauber, M.

Function-as-a-Service Benchmarking Framework.

DOI: 10.5220/0007757304790487

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 479-487

ISBN: 978-989-758-365-0

479

Function-as-a-Service (FaaS) is a relatively young

technology in the ﬁeld of Cloud Computing, which

provides a platform for CSC to develop and run appli-

cations without managing servers and providing low-

level infrastructure resources. In a FaaS environment,

applications are broken down into granular function

units of scale, which are invoked through network

protocols with explicitly specifed or externally trig-

gered messages (Spillner, 2017). All functions are ex-

ecuted in a fully-managed environment where a CSP

handles the underlying infrastructure resources dy-

namically and manages the runtime environment for

code execution. The software development and ap-

plication management remains with the CSC whereas

the responsibility for running and maintaining the en-

vironment shifts from the CSC to the CSP.

In recent years, a large number of commercial and

Open-source FaaS platforms have been developed and

deployed. Under the hood, all platform are hetero-

geneous in nature, because they use different hard-

ware and software components, different runtime sys-

tems and programming languages, routing gateways,

resource management tools and monitoring systems.

As an example, Malawski et al. (2017) points out that

most platforms use Linux, but Azure functions run on

Windows. With the rising popularity of FaaS, an in-

creasing need to benchmark different aspects of FaaS

platforms has been recognized by research and indus-

try (Kuhlenkamp and Werner, 2018). However, the

authors add that it remains challenging to efﬁciently

identify a suitable benchmarking approach. They fur-

thermore point out that there is a need for efﬁciently

identifying the current state of the art of experiments,

which validates FaaS platforms.

In this paper, we present a prototype of a frame-

work for benchmarking FaaS, which takes Cloud

Functions and the underlying environment into ac-

count. We describe the architectual design, the com-

ponents, and how they interact with each other. Typ-

ically, benchmark tools are used to evaluate the per-

formance of hard- or software components in terms

of speed or bandwidth. However, we show how this

benchmarking framework can also be used to iden-

tify limitations and restrictions on top of the FaaS in-

frastructure. This, in turn, helps CSC to identify if

the overall performance of Cloud Functions and FaaS

platform meets their business requirement.

The remainder of this paper is as follows: we pro-

vide a summary of the related work in Section II,

followed by a detailed description of the benchmark

framework archictechture in Section III. Afterwards,

we present our test scenario and the results in Section

IV. Finally, we conclude our work with a short sum-

mary and future work in Section V.

2 RELATED WORK

An initial introduction and guideline have been done

by Bermbach et al. (2017) who are mainly interested

in client-observable characteristics of Cloud Services.

The authors cover all aspects of Cloud service bench-

marking including motivation, benchmarking design

and execution, and the use of the results. The au-

thors point out that Cloud benchmarking is important

as applications depends more and more on Cloud ser-

vices. However, this work describes a general picture

of Cloud benchmarking but does not focus on FaaS,

in particular, and speciﬁc characteristics of this new

Cloud Service.

Kuhlenkamp and Werner (2018) identify the need

to benchmark different qualities and features of FaaS

platforms and present a set of benchmarking ap-

proaches. They present a preliminary results for a sys-

tematic literature review in support of benchmarking

FaaS platforms. The results show that no standardized

and industry-wide Benchmark suite exists for measur-

ing the performance and capabilities of FaaS imple-

mentations. Their results indicate a lack of bench-

marks that observe functions not in an isolated but in

a shared environment of a Cloud Service.

Spillner et al. (2017) analyze several resource-

intensive tasks in terms of comparing FaaS models

with conventional monolithic algorithms. The au-

thors conduct several experiments and compare the

performance and other resource-related characteris-

tics. The results demonstrate that solutions for sci-

entiﬁc and high-performance computing can be re-

alized by Cloud Functions. The authors mainly fo-

cus on computing intensive tasks (e.g. face detec-

tion, calculation of π, etc.) in the domain of scientiﬁc

and high-performance computing but they do not take

other FaaS qualities of interest into account. For ex-

ample, FaaS environments offer a timeout parameter,

which speciﬁes the maximum time for code execu-

tion. After this time, any code execution stops and

the FaaS platform returns an error status. A timeout

might become crucial when it comes to Cloud Func-

tion pricing since CSC is charged for the entire time

that the Cloud Function executes. Therefore, a lack

of precision can lead to early and misleading time-

outs during code execution, which, in turn, can end in

uncompleted tasks and high costs.

McGrath and Brenner (2017) present a

performance-oriented serverless computing platform

to study serverless implementation considerations.

Their prototype provides important insights how

functions are managed and executed in serverless

environments. The authors also discuss several

implementation challenges such as function scaling

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

480

and container discovery in detail. Furthermore, they

propose useful metric to evalute the performance of

serverless platform. The presented prototype and its

internal architecture, in particular, helped us to design

and implement the FaaS Benchmarking Framework.

Malawski et al. (2017) present an approach for

performance evaluation of Cloud functions and take

the heterogeneity aspects into account. For this pur-

pose, the authors developed a framework with two

suites of computing-intensive benchmarks for perfor-

mance evaluation of Cloud functions. Their results

show the heterogeneity of Cloud Function Providers,

the relation between function size and performance

and how providers interpret the resource allocation

policies differently. The authors conclude that there

is need of research that should analyse the impact of

parallelism, delays, and warm-up on performance.

Lloyd et al. (2018) study the factors that inﬂu-

ence the performance of microservices provided by

serverless platforms. In detail, the authors focus on

infrastructure elasticity, load balancing, provisioning,

infrastructure retention, and memory reservation. For

this purpose, Lloyd et al. (2018) implement two ded-

icated functions, which are executed on the platforms

Azure Functions (Microsoft, 2019) and AWS Lambda

(Amazon, 2019). This approach is useful when com-

paring the performance of different FaaS platforms

but it does not take the performance of business-

related Cloud Functions into account. Therefore, the

FaaS Benchmark Framework presented in this pa-

per is able to benchmark Cloud Functions which are

not speciﬁcally adapted for benchmarking. Instead,

it is also applicable for performance evaluation of

production-related Cloud Functions including the un-

derlying FaaS platforms.

Hwang et al. (2016) present a generic Cloud Per-

formance Model and provide a summary of useful

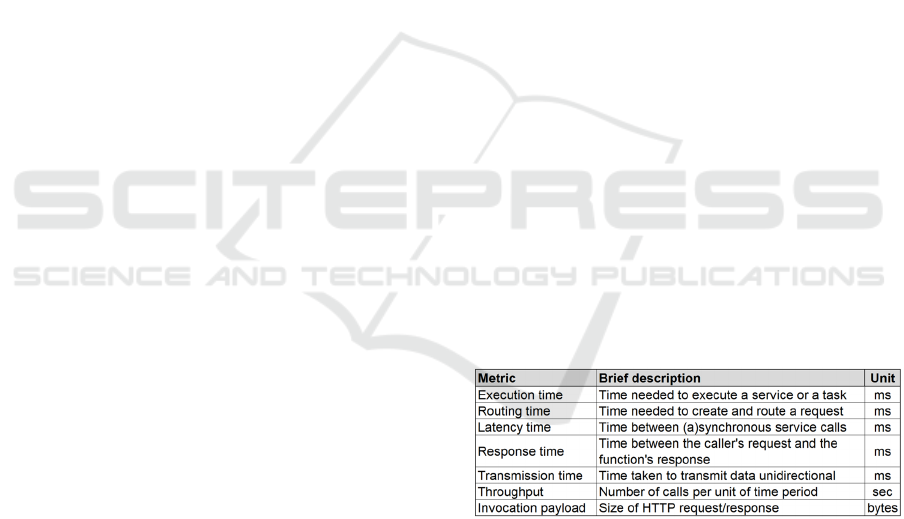

Cloud Performance Metrics (CPM) on three levels:

Basic performance metrics, Cloud capabilities, and

Cloud productivity. The Basic performance metrics

include traditional metrics such as execution time

or speed. The Cloud capabilities describe through-

put, bandwidth, and network latency. Finally, Cloud

productivity deals with productivity metrics such as

Quality of Service (QoS), Service Level Agreement

(SLA) and security. The authors encourage the Cloud

community to test Cloud capability in big-data ana-

lytics and machine learning intelligence. In particu-

lar, they argue that the Cloud community is short of

benchmarking tests. In this regard, the authors moti-

vated us to develop the FaaS Benchmarking Frame-

work and to adapt existing tests for FaaS platforms.

This includes also the analysis and feasibility of ap-

propriate FaaS performance metrics.

Back and Andrikopoulos (2018) discuss the use

of a microbenchmark in order to evaluate how dif-

ferent FaaS solutions behave in terms of performance

and cost. For this purpose, the authors develop a mi-

crobenchmark in order to investigate the observable

behavior with respect to the computer/memory rela-

tion of different FaaS platforms, and the pricing mod-

els currently being in use.

Mohanty et al. (2018) analyse the status of

Open-source serverless computing frameworks Fis-

sion (2019), Kubeless (2019) and OpenFaaS (2019).

For this purpose, the authors evaluate the performance

of the response time and ratio of successfully re-

sponses under different loads. The results show that

Kubeless has the most consistent performance across

different scenarios. In constrast, the authors notice

that OpenFaaS has the most ﬂexible architecture with

support for multiple container orchestrators.

Finally, the FaaS Benchmark Framework pre-

sented in this paper is built upon a previous work of

Pellegrini et al. (2018), who present an initial inves-

tigation of benchmarking FaaS and outline the archi-

tectural design. Pellegrini et al. (2018) present a two-

tier architecture of a benchmarking framework where

requests are invoked by a sender and processed by

a Cloud Function on the CSP platform. This paper

takes up the idea of previous research and introduces

an additional third component that enables testers to

evaluate the performance of the FaaS platform more

precisely. Details about this third component and its

improvements for benchmarking FaaS are discussed

in Section III.

3 FaaS BENCHMARKING

FRAMEWORK

The components of the FaaS Benchmarking Frame-

work are shown in Figure 2. Basically, it consists of

two software components, a Java-based application

(FaaSBench) and a JavaScript-based Proxy Cloud

Function (PCF). The FaaSBench is responsible to cre-

ate and invoke workloads on the Target Cloud Func-

tion (TCF) while the PCF collects benchmark relevant

metrics of the TCF and the FaaS platform.

Figure 2: Architecture of the Faas Benchmarking Frame-

work with FaaSBench, PCF (P), and TCF (T).

Function-as-a-Service Benchmarking Framework

481

The following subsections provide a detail de-

scription about the architecture of the FaaS Bench-

mark Framework, the components involved and how

they communicate and exchange data with each other.

3.1 Framework Architecture

As illustrated in Figure 2, the proposed architecture

divides the intial request into two separate calls. The

ﬁrst call between FaaSBench and the PCF allows the

measurement of transmission relevant metrics such as

bandwith, byte size, or transfer rate. Since Cloud

Functions are invoked over network protocols, laten-

cies and delays during the data transmission can be

easily identiﬁed. In contrast, the second call between

PCF and TCF is used to measure benchmark relevant

metrics on top of the FaaS platform. This includes

not only the time measurement of compute-intensive

tasks on top of the CSP’s infrastructure but also to

measure the routing time for invocation calls the time

needed for launching a new function instance, and the

time a function instance stays active.

In addition, the proposed architecture supports a

variety of implementation and application options.

Since the PCF is under the control of the CSC, it can

be easily adapted, modiﬁed, and extended with addi-

tional benchmark-relevant proﬁling methods or log-

ging functionalities without adapting the source code

of the TCF. Furthermore, the PCF can decode and an-

alyze the communication between any client and the

TCF in both, production and test environments. For

this purpose, the PCF can split, enrich and invoke new

requests on-demand, if necessary. In summary, the in-

troduction of the PCF allows the measurement of time

and resource critical factors of Cloud Functions on top

of FaaS platforms.

3.2 FaaSBench Application

The ﬁrst component of the FaaS Benchmark Frame-

work is a Java-based application named FaaSBench.

This tool is responsible for generating workloads, in-

voking requests, collecting metrics, and providing

statistical reports. Since the FaaSBench application

is written in Java, it can be installed on any client ma-

chine which provides a Java runtime environment.

Technically, the FaaSBench application consists

of a set of Java classes, which are grouped in three

main packages. The ﬁrst package, the Generator, con-

sists of Java classes, which are responsible for execut-

ing a set of benchmark tests by extracting workloads

from the properties. For this purpose, the Genera-

tor supports different operations, which take techni-

cal aspects and speciﬁc characteristics of FaaS plat-

forms into account. In the context of this paper, the

following three types of operations have been im-

plemented: ﬁrst, if the workload focuses on peak

performance evaluation, the Generator executes re-

quests or in groups of batches, synchronously or asyn-

cronously. Second, in order to test the responsive-

ness of the FaaS environment, the Generator uses an

operation with an automatic retry logic, which pro-

gressively longer waits between the retries. This op-

eration evaluates the time when functions need to be

provisioned in as a short time span due to incomming

requests. Finally, if the maximum time for Function

code execution is crucial, the Generator executes an

operation, which provokes a timeout error, either on

the FaaS Gateway or on Cloud Function level. Typi-

cal uses are therefore situations when it comes to re-

source planing in terms of timing and accuracy.

The purpose of the second package, the Metrics, is

three-fold: ﬁrst, it records the status of each invoca-

tion call. This logic helps to identify and distinguish

successful invocation calls from unsuccessful or un-

completed calls. Second, it records the responses of

the TCF for the purpose of transparency and provid-

ing proof of the correctness. Finally, the package also

records all benchmark relevant performance metrics

during each benchmark run. At the time of writing,

the FaaS Benchmark Framework records only a set of

well-established metrics. A detailed overview of all

supported metrics are listed in Table 1, including a

brief description and the measured units, expressed in

milliseconds (ms), seconds (sec), or in bytes.

Table 1: Metrics provided by the FaaS Benchmarking

Framework.

Finally, the Java-classes of the Reporting package

provide different forms of presentation of the mea-

sured values (e.g. total runtime, total byte size, etc.).

The package generates a set of logﬁles and comma-

separated values (CSV) ﬁles, which can be processed

by a various spreadsheet applications or command-

line programs for data visualization.

3.3 Proxy Cloud Function (PCF)

The second and innovative component of the FaaS

Benchmark Framework is the PCF, a JavaScript-based

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

482

Cloud Function, which is installed on a FaaS plat-

form. From the viewpoint of a workﬂow, the PCF

is placed between the FaaSBench application and the

TCF. The PCF receives requests from the FaaSBench

application and forwards them to the TCF. After-

wards, it sends all responses of the TCF back to the

FaaSBench application.

Since the PCF acts as an intermediary, it gains

new opportunities and solutions by solving following

problems efﬁciently:

1. The PCF is useful when any kind of modiﬁcation

of the testbed for benchmark-relevant proﬁling in-

tegration is not allowed or possible. In addition,

the PCF can be easily adapted and modiﬁed to

meet very special requirements of the TCF. For

example, a request can be split up and its data can

be enriched with additional workﬂow-relevant in-

formation at runtime. As a result, the PCF can

be used not only in test environments but also in

production-related environments.

2. The PCF is able to collect useful performance

metrics of the FaaS environment itself. As an

intermediary, the PCF is able to measure and

evaluate the routing time of invocation calls, the

throughput and the data transfer capabilities of the

Cloud network inside the FaaS environment.

3. The PCF is useful when problems with clock syn-

chronization between the FaaSBench and the TCF

occur. Since the CSP dictates the system time for

the FaaS platform, PCF and TCF can rely on this

unifom time basis.

4. Multiple PCF instances can be installed in dif-

ferent regions of the CSP. In terms of Google

(2019), a region is deﬁned as a geographical loca-

tion where resources and services are hosted and

executed. Running multiple PCF instances in dif-

ferent regions can be helpful in choosing a loca-

tion that is close to the service and has minimal

network and transmission latency.

3.4 Target Cloud Function (TCF)

TCFs usually represent a set of Cloud Function,

which are optimized for production environments.

They are characterized by the fact that code modiﬁ-

cations for a benchmark-relevant proﬁling integration

are not permitted or possible. Typical use-cases for

productive TCF are data and event processing, server-

side back-ends for mobile apps, or the orchestration

of microservice workloads. The FaaS Benchmark

Framework uses representative real-world workloads

for performance evaluation of productive TCFs.

However, the FaaS Benchmark Framework also

includes a set of non-productive TCFs. These func-

tions include benchmark-relevant proﬁling methods

and execute synthetical workloads, which take the

unique characteristic of FaaS platforms into account.

For example, a TCF may provoke a timeout errors

when executing a long-running operation for deter-

mining the behavior of the FaaS platform. Another

non-productive TCF supports workloads for evaluat-

ing the responsivness of FaaS platform by executing

requests periodically with progressively longer waits

between two requests.

By using productive and non-productive TCFs,

the FaaS Benchmark Framework can be used in

test and production-related environments without the

need of implementing a complex testbed. Due to

performance reasons, however, all non-productive

TCFs do not log information to external logging

tools. Instead, all benchmark-relevant data are kept in

memory-based messages and distributed between the

components of the FaaS Benchmarking Framework.

3.5 Communication Flow

The interaction between the FaaSBench, the PCF, and

the TCF in sequential order as well as their corre-

sponding method calls are shown in Figure 3.

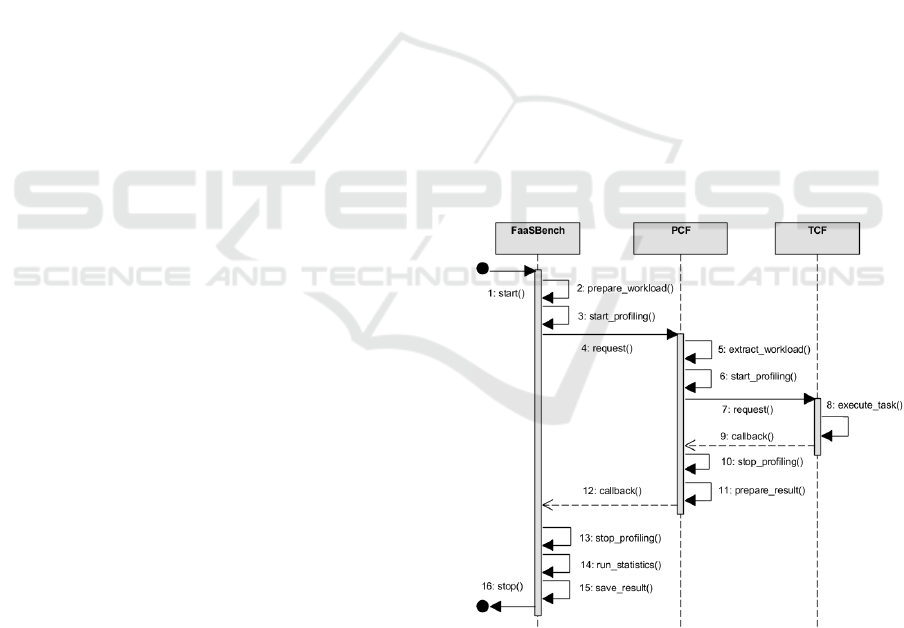

Figure 3: Interaction between the components FaaSBench,

PCF, and TCF.

The communication between the components is

as follows: After starting (1) the FaaSBench applica-

tion, the program prepares the workload (2), starts the

corresponding proﬁling method (3), and invokes the

initial request (4). On the recipients’ side, the PCF

extracts the workload from the request (5), starts its

Function-as-a-Service Benchmarking Framework

483

internal proﬁling method (6), and invokes a separate

request (7) to the TCF. After executing the requested

task (8) and receiving (9) the result from the TCF, the

PCF stops its internal proﬁling method (10), prepares

the result message (11) and returns it back (12) to the

FaaSBench application. Finally, the FaaSBench stops

its internal proﬁling (13) as well, runs the statistical

analysis (14) and saves the results locally (15). This

also marks the end of the benchmark run (16).

3.6 Data exchange

FaaSBench, PCF, and TCF (if non-productive) use a

common way to exchange workloads, data and log-

ging information. Both components communicate

with each other by using JSON-based (JavaScript

Object Notation) messages, which contain self-

describing data ﬁelds. Each ﬁeld name starts with a

preﬁx, which indicates the location of its origin. For

example, the ﬁeld ”proxy start time” refers to the in-

ternal timer of the PCF, and only the PCF is able to

create this ﬁeld.

In order to evaluate the performance of a TCF for

counting letters, the following example illustrates a

JSON message used for the communication between

FaasBench and the PCF.

{ "faasbench_workload_uuid": "112c338d",

"target_uri": "https://faas:8080/func/word",

"faasbench_workload_data":"F a a S" }

The request message is structured as follows: the

ﬁeld ”faasbench workload uuid” speciﬁes the uni-

versally unique identiﬁer (UUID) for this request.

This ensures uniqueness over the entire lifetime of

the benchmark run. The ﬁeld ”target uri” refers to

the location of the TCF and instructs the PCF to

forward this request to it. Finally, the key ”faas-

bench workload data” contains the workload which

has to be processed by the TCF. In the example above,

the workload consists of a text with four (4) letters,

which has to be counted by the TCF.

After the TCF has executed its task, the follow-

ing sample response shows an extract of the JSON

message created by the PCF and reported back to the

FaaSBench application.

{ "proxy_workload_uuid": "112c338d",

"target_start_time":1533675892375,

"target_stop_time":1533675892401,

"target_run_time_hr_seconds":0,

"target_run_time_hr_nanoseconds":26250589,

"target_workload_result": "4" }

Each response message is structured as follows:

The ﬁeld ”proxy workload uuid” speciﬁes the UUID

of this response which must be identical to the

original UUID of ”faasbench workload uuid”, other-

wise the workload will be marked as invalid. The

ﬁelds ”target start time” and ”target stop time” refer

to the start and stop time of the TCF. All time val-

ues are representatives of the Long data type, and

refer to the Unix Epoch Time (The Open Group,

2019). The ﬁelds ”target run time hr seconds” and

”target run time hr nanoseconds” refer to the time of

TCF execution in high-resolution realtime of a [sec-

ond, nanosecond] tuple array. Finally, the result of

the function execution can be found in the ﬁeld ”tar-

get workload result”.

4 EVALUATION SCENARIO

The last section described the architecture of the FaaS

Bechmark Framework. This section demonstrates

how the framework is used on basis of a concrete ex-

ample and discusses the results of the benchmark run.

4.1 Setup & Procedure

The testbed is based upon the Open-source FaaS

implementation OpenFaaS (2019), a framework for

building serverless functions on top of containers.

The testbed consists of a virtual machine (VM) run-

ning Debian 9.1 with 4 GigaByte (GB) of memory al-

located, which is deployed on a physical QNAP server

with a quad-core Intel i5-4590S CPU @ 3.00 Giga-

Hertz (GHz) and 16 GB of memory in total. This

isolated testbed eliminates any effects of interference

and perturberation that could affect the experiment.

A PCF and a non-productive TCF, as discussed in

Section 3.3 and 3.4, are deployed on the same VM.

The experiment does not focus on performing high-

performance computating tasks, which are preferably

used in most researches. Instead, the proposed testbed

allows the study of request and response messages on

top of the FaaS platform. For this purpose, the TCF

expects a text and answers immediately with the num-

ber of words and letters in this text. In the context of

the work, a word represents a character separated by

at least one space from another character.

Figure 4: Measurement points with routes for HTTP trafﬁc.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

484

A schematic overview of the workﬂow is shown

in Figure 4, illustrating four measurement points (m1,

m2, m3, and m4) where HTTP trafﬁc is decoded,

stored, and prepared for further analysis.

The aim of the benchmark run is to evaluate the

size of the Hyptertext Transfer Protocol (HTTP) re-

quests/responses inside the FaaS environment in re-

lation to the size of the workload. For this purpose,

the benchmark run uses different workloads (10, 10

, 10

, and 10

words). The ﬁrst measurement

point (m1) evaluates the size of the initial request,

sent by FaaSBench. Measurement point m2 exam-

ines the request size of the HTTP invocation for the

TCF, while measurement point m3 evaluates the size

of the reply message. Finally, measurement point m4

collects the size of the response message, returned by

the PCF. In addition, more data such as runtimes or

latencies are measured by FaaSBench, PCF, and TCF

in order to identify variances and trends.

4.2 Results & Findings

Table 2 illustrates the collected measurement values

for progressively increasing word count per row. Each

column of the table refers to a measurement point

(m1, m2, m3, m4) that evaluates the size of the HTTP

message header (Header) and the message body data

(Data) in Kilobyte (KB). Finally, the last row of the

table summarizes the total size in KB.

Table 2: Size of HTTP messages per measurement point, all

values in KB.

Measurement points m1, m2 and m3 report an in-

crease of the size of message body data in sync with

the payload, while the size of the message headers re-

mains stable. However, measurement point m3 shows

a completely different picture. While the size of the

HTTP message body data increases slowly in sync

with the result of the word count, the HTTP message

header increases rapidly. Analyses of the logging data

(see 3.6 for more details) demonstrate that the reason

for the growth of the header is caused by the under-

lying JavaScript runtime environment. In detail, the

engine creates an internal message object, which con-

tains the result of the function call but also the original

workload data of the benchmark run. As a result, the

size of the HTTP message header increases in sync

with the workload. This, in turn, may have impact to

total runtime caused by the amount of time it takes for

the HTTP response to travel from TCF to PCF.

In order to get a clear picture, Table 3 summarizes

the effect to the transmission time in response to the

HTTP requests and responses. The column ”Request

(m2)” refers to the route PCF to TCF and represents

the total byte size (in KB) of the HTTP requests and

the transmission time (in ms) per HTTP request and

word count. In contrast, the column ”Response (m3)”

refers to the route TCF to PCF and represents the to-

tal byte size (in KB) of the HTTP responses and the

transmission time (in ms). The last row summarizes

the total byte size of the HTTP requests/responses

sent and their total runtimes.

Table 3: Time for transmission (in ms) of HTTP requests

and responses (in KB) per measurement point m2 and m3.

As expected, the transmission times for HTTP re-

sponses increases in sync with the word count but not

in the same way as the transmission times for HTTP

requests. The time values for HTTP requests range

from 80 up to 107 ms, with a total runtime of 526

ms. However, the time values for HTTP responses

range from 7 up to 9 ms, resulting in a total runtime of

46 ms. The results are even more surprising because

the total byte size of HTTP requests are only slightly

different from the total byte size of the correspond-

ing HTTP responses. A possible explanation for this

is the use of caching mechanism inside the Node.js

(2019) runtime. However, a detailed examination of

the reasons for this divergence is not in focus of this

paper but offers opportunities for further research in

this area.

4.3 Discussion

The FaaS Benchmark Framework demonstrates that

CSCs are able to get insights into the FaaS environ-

ment. It overcomes the limitation of abstraction be-

cause the PCF acts as an middleman between the

FaaSBench and a TCF. When the FaaSBench sends

a request to our PCF, it forwards the request to the

Function-as-a-Service Benchmarking Framework

485

TCF and waits for the response. As an intermediary, it

monitors the HTTP trafﬁc and measures the byte size

of outbound requests and inbound responses. This ap-

proach allows CSC to compare the size of all inbound

and outbound HTTP messages, which are handled by

the FaaS environment. As demonstrated in the ex-

periment, the FaaS Benchmarking Framework uncov-

ers HTTP overhead while transmitting data inside the

FaaS platform.

In this experiment, we have evaluated and ana-

lyzed the size of the HTTP requests/responses in-

side the FaaS environmnent in relation to the size of

the workload. We have shown that the cascading of

Cloud Functions generates an overhead in the HTTP

message header with the potential of negative perfor-

mance impacts for the runtime environment. How-

ever, we have not evaluated critically the performance

of the testbed. The reason for this is that most re-

search, as discussed in Section 2, have evaluated and

compared the performance of commercial and Open-

source FaaS platform. Instead, we believe that the

performance evaluation of a business-related Cloud

Function with its underlying FaaS platform is a more

reliable indicator for the CSC.

We encountered three issues while preparing and

executing the experiment. First, we noticed that time

synchronization becomes crucial when it comes to

benchmarking, monitoring and realtime control of

Cloud Functions as timestamps must by synchronized

across multiple geographical regions, between differ-

ent Cloud infrastructures, and clients. Second, we

observed performance degradation caused by logging

services of the FaaS platform. This is because logging

requires additional resources that must be handled by

the FaaS platform during the function’s execution. Fi-

nally, we observed issues with performance isolation

between the coresident PCF and TCF instances. The

phenomenon with ”noisy neighbors” may be ﬁxed

by isolation through dedicated FaaS platforms or by

moving workloads across physical servers. We there-

fore encourage researchers to work jointly in devel-

oping methods for dealing with these issues.

The proposed architecture has room for improve-

ments. First, the FaaS Benchmark Framework has

been tested with different sizes of workloads. How-

ever, the limiting factor are not the number of re-

quests or the size of workloads but computer mem-

ory and network bandwidth. The FaaS Benchmark

Framework code is not optimized for benchmark runs

that exceed these limits. Second, the PCF does not

provide any functionality to store a speciﬁc workload

temporary on the FaaS Platform when re-using it for

multiple runs. Finally, CSPs usually provide logging

functionality which records detailed activities of the

FaaS Platform. Currently, FaaSBench and PCF are

not able to retrieve logging data from FaaS platforms.

5 CONCLUSION

In this paper, we introduced a benchmarking frame-

work for measuring the performance of Cloud Func-

tions and FaaS environments. First, we explained the

idea behind FaaS, its beneﬁts for CSC and CSP, but

also the challenges for benchmarking FaaS. Next, we

explained the architecture of the framework, its com-

ponents, and how they are linked together. Finally,

in Section IV we prepared and executed a benchmark

run executed on an isolated FaaS platform. The re-

sults showed a growth of message sizes generated by

the underlying runtime environment and identiﬁed the

root cause. In summary, the main contribution of this

paper is a FaaS Benchmarking Framework framework

which allows performance evaluation of FaaS envi-

ronments by a using proxy-based implementation.

The current version of the FaaS Benchmark

Framework provides interesting insights of a FaaS en-

vironment. Nevertheless, many experiments, adap-

tations, and scientiﬁc intensiﬁcation of knowledge

in FaaS have been left for the future. First of all,

we plan to migrate our project to OpenJDK (Ora-

cle, 2019). Afterwards, we will make the soure code

of the FaaS Benchmark Framework publicly avail-

able. Furthermore, we plan to implement additional

PCF and non-productive TCFs written in different

programming languages and supporting more runtime

environments. In addition, we plan to deﬁne new

workloads, which are specially tailored to the fea-

tures of FaaS enviromnents. For example, we want

to examine how precisely a FaaS environment works

in case of time controlling for code execution ver-

sus billing. For this purpose, we plan to examine the

timeout parameter of Cloud Functions, which speci-

ﬁes the maximum time for code execution. Inaccu-

racies in the timing may lead to uncompleted tasks

and high costs for CSCs. More workloads for high-

performance computing will complete the portfolio.

Finally, we consider using the FaaS Benchmark-

ing Framework on public FaaS platforms. For future

work, it would be interesting to know how the bench-

marking results of the different FaaS providers would

differ from the reference testbeds. We also plan to

analyse different conﬁgurations of existing autoscal-

ing solutions in respect to performance.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

486

ACKNOWLEDGEMENTS

The research has been carried out in the context of

the project MIT 4.0 (FE02), funded by IWB-EFRE

2014-2020. The technical infrastructure needed for

the research has been provided by Plan-B IT.

REFERENCES

Amazon (2019). AWS Lambda - Serverless Compute.

https://aws.amazon.com/lambda/.

Back, T. and Andrikopoulos, V. (2018). Using a mi-

crobenchmark to compare function as a service solu-

tions. In European Conference on Service-Oriented

and Cloud Computing, pages 146–160. Springer.

Bermbach, D., Wittern, E., and Tai, S. (2017). Cloud Ser-

vice Benchmarking - Measuring Quality of Cloud Ser-

vices from a Client Perspective. Springer, Berlin.

Berry, M., Cybenko, G., and Larson, J. (1991). Scien-

tiﬁc benchmark characterizations. Parallel Comput-

ing, 17(10-11):1173–1194.

Fission (2019). Serverless Functions for Kubernetes.

https://ﬁssion.io/.

Google (2019). Regions and Zones. https://cloud.

google.com/compute/docs/regions-zones/.

Hwang, K., Bai, X., Shi, Y., Li, M., Chen, W. G., and

Wu, Y. (2016). Cloud Performance Modeling with

Benchmark Evaluation of Elastic Scaling Strategies.

IEEE Transactions on Parallel and Distributed Sys-

tems, 27(1):pages 130–143.

Kubeless (2019). The kibernetes native serverless frame-

work. https://kubeless.io/.

Kuhlenkamp, J. and Werner, S. (2018). Benchmarking

FaaS Platforms: Call for Community Participation.

In 2018 IEEE/ACM International Conference on Util-

ity and Cloud Computing Companion (UCC Compan-

ion), pages 189–194. IEEE.

Lloyd, W., Ramesh, S., Chinthalapati, S., Ly, L., and Pal-

lickara, S. (2018). Serverless computing: An in-

vestigation of factors inﬂuencing microservice perfor-

mance. In 2018 IEEE International Conference on

Cloud Engineering (IC2E), pages 159–169. IEEE.

Malawski, M., Figiela, K., Gajek, A., and Zima, A. (2017).

Benchmarking Heterogeneous Cloud Functions. In

Euro-Par 2017: Parallel Processing Workshops, Lec-

ture Notes in Computer Science, pages 415–426.

Springer.

McGrath, G. and Brenner, P. R. (2017). Serverless com-

puting: Design, implementation, and performance.

In Distributed Computing Systems Workshops (ICD-

CSW), 2017 IEEE 37th International Conference on,

pages 405–410. IEEE.

Microsoft (2019). Azure Functions – Serverless

Architecture. https:// azure.microsoft.com/en-

us/services/functions/.

Mohanty, S. K., Premsankar, G., and Di Francesco, M.

(2018). An evaluation of open source serverless com-

puting frameworks. In 2018 IEEE International Con-

ference on Cloud Computing Technology and Science

(CloudCom), pages 115–120. IEEE.

Node.js (2019). Node.js. https://nodejs.org/.

OpenFaaS (2019). OpenFaaS - Serverless Func-

tions Made Simple for Docker & Kubernetes.

https://github.com/openfaas/faas/.

Oracle (2019). Openjdk. http://openjdk.java.net/.

Pellegrini, R., Ivkic, I., and Tauber, M. (2018). To-

wards a Security-Aware Benchmarking Framework

for Function-as-a-Service. In CLOSER, pages 666–

669.

SPEC (2019). SPEC - Standard Performance Evaluation

Corporation. https://www.spec.org/.

Spillner, J. (2017). Snafu: Function-as-a-Service (FaaS)

Runtime Design and Implementation. arXiv preprint

arXiv:1703.07562.

Spillner, J., Mateos, C., and Monge, D. A. (2017). FaaSter,

Better, Cheaper: The Prospect of Serverless Scientiﬁc

Computing and HPC. In High Performance Comput-

ing, Communications in Computer and Information

Science, pages 154–168. Springer, Cham.

The Open Group (2019). Deﬁnition of Epoch.

http://pubs.opengroup.org/onlinepubs/9699919799.

Function-as-a-Service Benchmarking Framework

487
