Architecture Modelling and Formal Analysis of Intelligent Multi-Agent

Systems

Ashalatha Kunnappiilly, Simin Cai, Raluca Marinescu and Cristina Seceleanu

Mälardalen University, Västerås, Sweden

Keywords:

Cyber-physical Systems, Ambient Assisted Living, Multi-Agent Systems, Architecture Analsysis And Design

Language, Model Checking, PRISM.

Abstract:

Modern cyber-physical systems usually assume a certain degree of autonomy. Such systems, like Ambient As-

sisted Living systems aimed at assisting elderly people in their daily life, often need to perform safety-critical

functions, for instance, fall detection, health deviation monitoring, communication to caregivers, etc. In many

cases, the system users have distributed locations, as well as different needs that need to be serviced intel-

ligently and simultaneously. These features call for intelligent, adaptive, scalable and fault-tolerant system

design solutions, which are well embodied by multi-agent architectures. Analyzing such complex architec-

tures at design phase, to verify if an abstraction of the system satisﬁes all the critical requirements is beneﬁcial.

In this paper, we start from an agent-based architecture for ambient assisted living systems, inspired from the

literature, which we model in the popular Architecture Analysis and Design Language. Since the latter lacks

the ability to specify autonomous agent behaviours, which are often intelligent, non deterministic or prob-

abilistic, we extend the architectural language with a sub-language called Agent Annex, which we formally

encode as a Stochastic Transition System. This contribution allows us to specify behaviours of agents involved

in agent-based architectures of cyber-physical systems, which we show how to exhaustively verify with the

state-of-art model checker PRISM. As a ﬁnal step, we apply our framework on a distributed ambient assisted

living system, whose critical requirements we verify with PRISM.

1 INTRODUCTION

Equipped with various sensors, actuators and com-

putation units, modern cyber-physical systems have

evolved into increasingly intelligent, autonomous and

adaptive systems. A representative category is Am-

bient Assisted Living (AAL) systems, which monitor

the conditions of elderly people and their surround-

ings, in order to provide them with intelligent and

timely assistance, autonomously. Due to such charac-

teristics, as well as the possibly distributed locations

of users and service providers, the multi-agent ar-

chitecture is deemed appropriate for designing multi-

user AAL systems. In a multi-agent system (MAS),

each agent is an autonomous entity that can perform

actions individually and intelligently, while adapting

to the environment. For instance, a pulse agent may

monitor an elderly user’s pulse, and decide whether

an alert should be sent to the caregiver. Multiple

agents can be distributed geographically, and cooper-

ate by exchanging network messages to achieve com-

plex tasks, such as a proper reaction to the fall caused

due to a sudden drop of pulse, via the cooperation of a

pulse agent and a fall-detection agent. In many cases,

such system behaviours are often probabilistic due

to random component failures, communication fail-

ures, arbitrary service connection requests, user inter-

actions, etc.

In order to guarantee the system’s safety and

achieve the desired quality of service (QoS), it is ben-

eﬁcial to ensure the correctness of the AAL system

design, with respect to the real-time, fault-tolerant

and probabilistic behaviors of agents, both individu-

ally and in cooperation. To achieve this, speciﬁcation

and rigorous analysis of such behaviors are necessary,

which should go hand-in-hand with the speciﬁcation

and analysis of the entire architecture in which the

agents are integrated. Existing techniques either do

not support the integrated speciﬁcation and analysis

of architecture and agent behaviors, or lack reason-

ing capabilities of combined real-time, fault-tolerant

and probabilistic behaviors that are essential to many

AAL systems (Kunnappilly et al., 2018; Rodrigues

et al., 2012).

In this paper, based on existing solutions (Tapia

114

Kunnappiilly, A., Cai, S., Marinescu, R. and Seceleanu, C.

Architecture Modelling and Formal Analysis of Intelligent Multi-Agent Systems.

DOI: 10.5220/0007730201140126

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 114-126

ISBN: 978-989-758-375-9

et al., 2009), we propose a MAS architecture for

AAL, comprising simple reﬂex agents based on if-

then-else rules, and complex intelligent agents with

self-learning based on Reinforcement Learning (RL)

(Sutton et al., 1998). As our basis for speciﬁcation,

we choose a commonly-used architecture speciﬁca-

tion language, that is, the Architecture Analysis and

Design Language (AADL) (Feiler et al., 2006). We

use the original AADL constructs to specify the ar-

chitecture including the agent components, their in-

terfaces and communication. However, since the core

AADL language lacks the ability to specify emergent

agent behaviours, which may be both probabilistic

and non deterministic, we propose an annex exten-

sion to the core AADL, referred to as Agent Annex.

Unlike the existing Behaviour Annex speciﬁcation of

AADL (Dissaux et al., 2006), usually used for encod-

ing component behavior, the Agent Annex allows one

to describe the combined real-time, fault-tolerant and

probabilistic behaviors. We formulate the new annex

by extending the AADL meta model, and deﬁne its

semantics as a stochastic transition system. To en-

able formal veriﬁcation, we also provide formal se-

mantics to the AADL architectural model, in terms of

Stochastic Transition Systems (STS). We employ the

state-of-the-art probabilistic model checker, PRISM

(Kwiatkowska et al., 2002), to formally verify a set of

crucial functional and quality-of-service properties of

an illustrative AAL use case.

The rest of the paper is organized as follows.

Section 2 overviews the basics of AADL, STS and

PRISM. In Section 3, we describe our AAL system

architecture based on MAS. We present the AADL

modeling constructs and the Agent Annex extension

in Section 4. Section 5 describes the formal encod-

ing of the AADL model, and in Section 6, we present

the veriﬁcation results applying the PRISM model-

checker on a representative AAL system. Related

work is described in Section 7. Some discussion

points are presented in Section 8 and conclusions and

future work in Section 9.

2 PRELIMINARIES

In this section, we give an overview of AADL, STS

and PRISM, in Sections 2.1, 2.2 and 2.3, respectively.

2.1 Architecture Analysis and Design

Language

The Architecture Analysis and Design Language

(AADL) (Feiler et al., 2006) is a textual and graph-

ical language for modeling and analyzing a real-time

system’s hardware and software architecture as hier-

archies of components at various abstraction levels.

AADL component categories like Application

Software, Execution Platform and System are used

to represent the run-time architecture of the system,

whereas a more generalized representation is also

possible by specifying it as abstract. A component

in AADL can be deﬁned by its type and implemen-

tation; the ﬁrst deﬁnes the interface of the compo-

nent and its externally-observable attributes, whereas

the second deﬁnes its internal structure. AADL al-

lows possible component interactions via ports/fea-

tures, shared data, subprograms, and parameter con-

nections, whereas a communication protocol over a

network connection is modeled by a bus. The com-

ponents can also be associated with various proper-

ties, like period, execution time, and dispatch proto-

col. The dispatch protocol speciﬁes if the component

trigger is periodic or aperiodic. We also employ vari-

ous user-deﬁned properties for representing the prob-

abilistic distribution of an aperiodic event and the rate

at which a component recovers from the failure. All

the AADL declarations are declared in packages and

are therefore accessible to other packages, or they can

be declared directly in an AADL speciﬁcation and not

be accessible to packages.

The AADL core language is designed to be ex-

tensible and can be extended via user-deﬁned proper-

ties and annex sub-languages. User-deﬁned proper-

ties are relatively simpler extensions, when compared

to sub-languages, and can be associated with model-

ing elements as simple values, for instance, integers

or strings. However, sub-languages allow more com-

plex structures to be added to an AADL model. A

sub-language can be standardized and published as an

AADL annex. Several such annexes have been de-

ﬁned, for example, the behavior annex to model the

component’s behaviour, and the error annex for mod-

eling the error behaviour of the system. Annex sub-

languages are included into AADL speciﬁcations as

annex libraries or annex subclauses. An annex library

is used to deﬁne classiﬁers deﬁned in an anonymous

namespace, or in a public or private part of a pack-

age. Annex subclauses are inserted into component

types and component implementations and can refer-

ence the classiﬁers declared in the annex library. In

AADL, annexes are considered to be separate from

the core AADL, i.e., if we remove all the annex li-

braries, subclauses, and annex-related property asso-

ciations, the resulting model is a valid core AADL

model. For further details, the reader can refer to the

work (Feiler et al., 2006).

Architecture Modelling and Formal Analysis of Intelligent Multi-Agent Systems

115

2.2 Stochastic Transition Systems

Stochastic transition systems (STS) (De Alfaro, 1998)

are transition systems that support non determinism,

and transitions with unspeciﬁed delay distributions,

providing concise and compositional means to rep-

resent systems in terms of probability, waiting-time

distributions, non determinism, and fairness.

A stochastic transition system is deﬁned by a tuple

S =< V, Θ, T >, where V = V

∪V

, V

is a ﬁnite set

of local state variables with ﬁnite domain, and V

is the ﬁnite set of global variables of the system. In

case a subset of V

is used in a particular module,

i.e., V

∩V

0, implies that V

also contributes to

the state-space of the module. We denote by s[[v]] the

value in state s ∈ S of v ∈ V

(the interpretation of

function [[·]] is extended to terms in the obvious way).

Θ is an assertion over V

denoting the set {s ∈ S | s |=

Θ} of initial states, and the assertions over V

. T

is a set of transitions. The following quantities are

associated with each transition τ ∈ T:

• An assertion ε

over V

, which speciﬁes the set of

states {s ∈ S | s |= ε

} on which τ is enabled.

• A number m

of transition modes, where each

transition mode i ∈ {1, . . . , m

} corresponds to a

possible outcome of τ. Each transition mode i is

speciﬁed by V

: (i) a set of assignments {v

i,v

}

v∈V

, where each f

i,v

is a term over V

and

: S 7→ S is a function that maps every state s ∈ S

to a successor s

= f

(s) such that s

[[v]] = s[[ f

i,v

]]

for all v ∈ V

, and (ii) the probability p

∈ [0, 1]

with which mode i is chosen, where

∑

i=1

= 1.

The set of transitions T is partitioned into

the set of immediate transitions T

and the set

of delayed transitions T

. Immediate transitions

must be taken as soon as they are enabled, and

a subset of these transitions T

⊆ T

is the set of

f air transitions. In turn, the set of delayed tran-

sitions is partitioned into: (i) the set of transi-

tions with exponential delay distribution T

, where

for each τ ∈ T

there is an associated transition

rate γ

> 0, and (ii) the set of transitions with

unspeci f ied delay distributions T

that are taken with

non-zero delay, but the probability distribution of the

delay and the possible dependencies between this dis-

tribution and the system’s state or past history are not

speciﬁed.

Given a state s ∈ S, we indicate by T (s) = {τ ∈ T |

s |= ε

} the set of transitions enabled by s. To ensure

that T (s) 6=

0 for all s ∈ S, an idle transition τ

idle

added to every STS deﬁned by ε

idle

= true, m

idle

1, p

idle

= 1, γ

idle

= 1 and by the set of assignments

:= v}

v∈V

2.3 Probabilistic Timed Automata and

PRISM

To analyze our multi-agent systems, in this paper we

use the PRISM model checker (Kwiatkowska et al.,

2002). Among other supported formal notations,

PRISM provides symbolic model checking of sys-

tems modeled as networks of Probabilistic Timed Au-

tomata (PTA), which are semantically described by

Timed Probabilistic Systems (TPS)(Norman et al.,

2013). De Alfaro shows that an STS can be straight-

forwardly translated into (fair) TPS, yielding the same

state space (De Alfaro, 1998).

In PRISM, a PTA is represented by a module,

which is deﬁned as a tuple M =< Var,Clock,C >,

in which Var is a set of local ﬁnite-valued variables,

Clock is a set of local clock variables that progress

with step of 1, and C is a set of commands. The state

of a PTA is the valuation of Var ∪ Clock. The com-

mands, which deﬁne the transitions of the system, are

speciﬁed as guarded probabilistic updates of states in

the following form: [a] g → p

: u

+ ... + p

: u

Here, guard g is a predicate over the variables that

enable the transition. Variables p

, ..., p

are proba-

bilities within the interval (0,1], whose values sum up

to 1. Each u

is an update of the state by assigning

new values to variables, or by resetting clocks. The

update of a variable v is speciﬁed as v

= n, where n

is the new value. A command is enabled if the guard

of the command evaluates to true. If multiple com-

mands are enabled, one command is selected non-

deterministically, and one of its updates is executed

probabilistically. In the brackets, a is a labeled action.

Commands with same actions are forced to be taken

simultaneously. We can also augment the model with

rewards, which are real values associated with states

or transitions. Rewards can be both positive or nega-

tive depending on the system behaviour.

A system is deﬁned as a network of modules via

parallel composition: Sys = M

||...||M

. A global

state is the valuation of all variables of all modules.

A module can both read and write its own local vari-

ables, but only has read access to the local variables of

other modules. Synchronized transitions of modules

are identiﬁed by the commands with the same labels.

The property speciﬁcation language of PRISM

for PTA is based on Probabilistic Computation Tree

Logic (PCTL) (Hansson et al., 1994). The model

checker can verify whether the probability of a path

property pp is within a bound b, which is speciﬁed

as: P b [ pp]. Here, b can be any of >= p, > p,

<= p or < p, where p is a double within [0,1]. A

path property pp is a formula that evaluates to either

true or false for a single path in the model, in which

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

116

one can apply the following operators: X (next), U

(until), F (eventually), G (always), W (weak until), R

(release). PRISM can also compute the minimum and

maximum probabilities of a path property, in the form

of: Pmin =?[ pp ], and Pmax =? [ pp ], respectively. In

order to check a path property for paths that start from

multiple states, ﬁlters are used to identify the starting

states. For instance, the “forall” ﬁlter returns true if

the property is true for all states satisfying the ﬁlter.

In the following section, we present a multi-agent

system (MAS) architecture for the AAL domain.

3 A MULTI-AGENT SYSTEM

ARCHITECTURE FOR AAL

Our proposed architecture consists of multiple agents,

and ensures improved fault-tolerance, scalability and

adaptability, compared to centralized architectures in

the domain, such as CAMI (Kunnappilly et al., 2017).

The architecture is inspired from similar existing ar-

chitectures in literature (Tapia et al., 2009). How-

ever, existing solutions usually suffer from additional

overhead encountered during agent synchronization

for collective decision-making and data consistency

maintenance. This overhead can sometimes hamper

the real-time behavior of the system. Hence, we in-

vestigate how we can use these systems for develop-

ing integrated solutions that ensure a safe trade off

between autonomous behavior and consistency over-

heads. This is challenging since agents are interde-

pendent, and have only a limited view of the envi-

ronment. Concretely, the agent-based solution should

ensure a consistent view of the environment, in terms

of processed data and events, as well as an inter-

agent communication overhead that should not result

in breaching the real-time system demands. We en-

sure this by allowing each agent to cater for a partic-

ular functionality, respectively; for instance, a health-

monitoring agent detects health-parameter variations

and raises a notiﬁcation to caregiver. However, in

order for the agents to cooperate in real time, each

agent maintains the dependencies it can have with

other agents, in a list that can change at run time

The architecture is described brieﬂy in the follow-

ing, and is shown in Fig. 1. It consists of the following

components:

• Agents: In our solution, each agent tackles a

particular functionality, in response to the sensor

This claim is based on the simulation of the AADL

model of the architecture for end-to-end latency according

to the process detailed here: https://github.com/ashalatha-

0504/Real-time-behvaiour-of-MAS

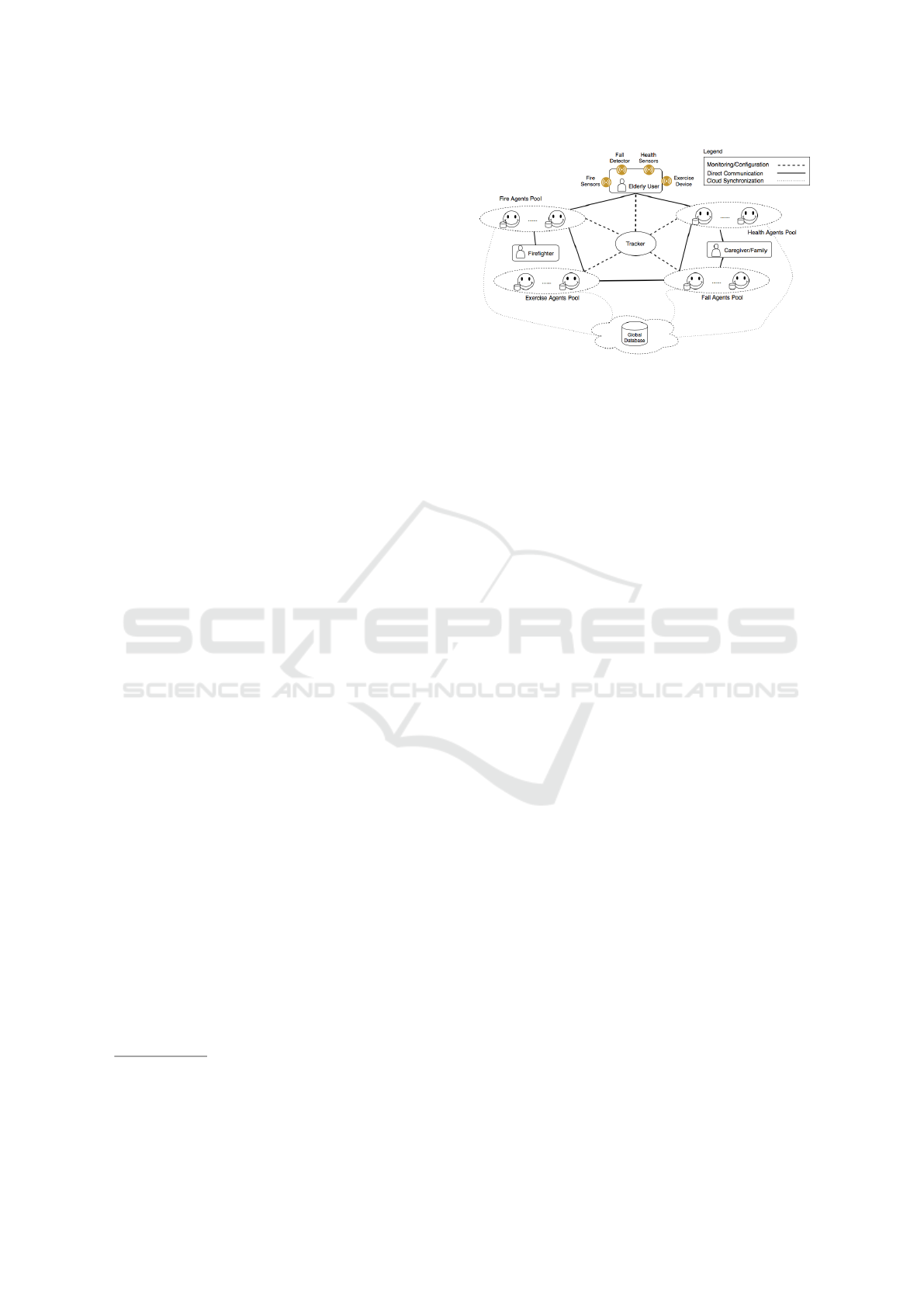

Figure 1: A MAS Architecture for AAL.

data, that is, the ﬁre agent deals with detecting ﬁre

events from ﬁre sensors and sends a notiﬁcation to

ﬁreﬁghters, the pulse agent detects the pulse data

variations and sends a notiﬁcation to the caregiver,

the fall agent detects the user fall and alerts the

caregiver, the exercise agent schedules and mon-

itors the exercise session of the user, etc. These

agents can belong to different categories, ranging

from simple reﬂex agents to complex intelligent

agents. In our case, we use the exercise agent

as an example of an intelligent agent with em-

bedded reinforcement learning (RL) algorithms.

This provides an optimized exercise session for

the user, taking into account his/her health con-

dition, preferences and exercise trends. All other

agents are modelled as reﬂex agents encoded us-

ing “if-then-else” rules to handle the particular

scenario. To be able to cooperate efﬁciently in real

time (by reducing extra overheads), each agent

is equipped with a list of possible dependencies

with other agents. For instance, a fall agent has

a dependency relation with a pulse agent. If a

heavy fall occurs, the fall is ﬁrst communicated to

the caregiver, and then the fall agent synchronizes

with the pulse agent to see if there are any pulse

deviations (like a low pulse). If a low pulse is de-

tected, the fall agent updates its notiﬁcation to the

caregiver indicating that the fall may be due to a

low pulse. Each agent also maintains a small lo-

cal database to store the individual data and keep

track of the processed events and the decisions

taken. The dependency lists are also maintained

in the local database.

• Tracker: The system has a tracker that keeps the

record of the IP addresses of all the agents in the

system. The user’s connections to the agents are

established via the tracker. If the tracker fails at

any point in time, the system continues to func-

tion via direct connections between user requests

and agents. As shown in Fig 1, we have multi-

Architecture Modelling and Formal Analysis of Intelligent Multi-Agent Systems

117

ple agents of each category, which can accept re-

quests from multiple users, arbitrarily, based on

availability.

• Cloud Database: We also maintain a large-scale

database in the cloud. All the local databases of

the agents eventually synchronize with this cloud

database. The cloud database also maintains the

domain information about the user, like age, dis-

ease history, user preferences, etc.

• End Users of the System: There are two types

of users, elderly users and the service providers

(caregivers, ﬁreﬁghters, etc.).

We assume the following: (i) Each of the agents

can accept a maximum of m connections, and

there is a maximum of n users of the system,

(ii) The number of accepted connections is al-

ways smaller than or equal to the number of users,

that is, m ≤ n, (iii) The system components com-

municate via various network protocols, (iv) The

communication between agents is mediated by the

tracker and is assumed instantaneous; however, if

the tracker fails, then the agents can communicate

to each other with an assumed delay.

3.1 Reinforcement Learning in Exercise

Agents

The interaction between the exercise agent and its

environment is modeled as an RL problem as fol-

lows: An exercise agent proposes 2 kind of exercise

categories for its user - Low-intensity, and Medium-

intensity, speciﬁcally tailored for cardiac patients, and

normal users, respectively. Each category has a set

of individual exercises. If a calendar notiﬁcation is

raised for the start of the exercise session, the ex-

ercise agent becomes operational and communicates

with the health agent to see if the user has a normal

pulse range. If the pulse level is normal, the health

agent is ready to propose an optimized exercise ses-

sion for the user. At any point in time, the exercise

agent has 2 choices to make: a) choose an exercise

category out of the 2 options, and b) suggest an ex-

ercise duration. The choice is made initially by con-

sidering user preferences and health condition. For

simplicity, we assume that both options for exercise

sessions are initially set to 10 minutes. The exercise

duration is subdivided into intervals of 5 minutes. In

these sub-intervals, the user gets an exercise recom-

mendation of the same category. If the user quits

in between (or not satisﬁed), the exercise category is

re-adjusted in the next sub-interval. For each of the

action that the agent suggests, it gets a reward back,

based on the utility of the suggested action. The util-

ity is calculated as a weighted sum of the following

parameters: (i) user satisfaction for the prescribed ex-

ercise (u_st), based on a user feedback recorded and

(ii) session completion, that is, if the user has com-

pleted the prescribed exercise duration (ss_com):

Utility = w1 ∗ (u_st) + w2 ∗ (ss_com), (1)

where w1, w2 are the respective weights, where

w1>w2. In this case, we assume that these weights

are assigned to 0.6 and 0.4.

u_st =

(

1 if user satisﬁed

−1 if user not satisﬁed

(2)

ss_com =

(

1 if exercise duration completed

−1 if exercise duration not completed

(3)

In this paper, we consider that the reward signal

is directly proportional to system utility, i.e, we get a

higher reward for taking an action with higher utility.

For this purpose, the initial system reward is calcu-

lated as its utility. After this, we always add up the

successive reward values to determine the cumulative

reward. In our case, we calculate the cumulative re-

ward for each of the chosen exercise category, and the

best action is considered as the one that has the max-

imum cumulative reward at any time point. In addi-

tion to the reward function, we also take into account

the domain knowledge to make the choice of the ex-

ercise. The domain knowledge in our case consists

of the user disease history, and preferences. It should

be noted that the initial choice of exercise is made

based on domain knowledge and thereafter, the choice

is made by comparison of the reward variables., i.e.,

an exercise of a higher reward is always weighted over

the other choice.

3.2 Use-Case Scenarios and System

Requirements

In this paper, we consider a MAS consisting of a pulse

agent, a ﬁre agent, a fall agent, and an exercise agent,

each with its replica, respectively. Each agent can ac-

cept a maximum of 2 connections, while the system

is simultaneously utilized by two elderly adults, say

Jim and Mary, living independently in their respec-

tive homes. Jim is also a cardiac patient. We consider

the following two scenarios where the AAL system

assists its users.

• Scenario 1: Fall due to a Low Pulse: The pulse-

detection sensor worn by Jim detects the low

pulse, and the wearable fall-sensor detects the fall.

The sensors forward the sensed data to the tracker,

which assigns a pulse agent and a fall agent to user

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

118

1 (arbitrarily, based on availability). The agents

communicate with each other and reach the con-

clusion that the fall is due to a low pulse, and send

a notiﬁcation alert to the caregiver.

• Scenario 2: Fire and Fall Occurring Simultane-

ously: Mary is cooking dinner, and suddenly she

feels dizzy and falls. The cooker is still on, start-

ing a ﬁre at home. In this case, the sensors alert

the tracker of the respective events, and the former

assigns a ﬁre agent and a fall agent to Mary. The

agents communicate with each other, synchronize

the simultaneous occurrences of both events, and

alert both the ﬁreﬁghter and the caregiver.

• Scenario 3: Health Abnormality during the Ex-

ercise Session: Jim gets a calendar notiﬁcation to

start the exercise session. The tracker then assigns

an exercise agent to Jim to schedule and moni-

tor the exercise session. The exercise agent com-

municates with the health agent and identiﬁes that

Jim’s health is normal and suggests the medium-

complexity exercise for cardiac patients based on

his preferences and health condition. In the mid-

dle of the exercise session, Jim’s health agent in-

dicates a sudden increase in pulse and hence the

exercise agent suggests an exercise of lower com-

plexity in the next sub-interval. The following

system requirements are formulated for the above

scenarios:

– R1: If a fall occurs due to low pulse, then raise

an alert to caregiver indicating fall due to low

pulse within 20 s. It relates to Scenario 1.

– R2: If a ﬁre and a fall event occur simultane-

ously, then raise an alert to both caregiver and

ﬁreﬁghter indicating the issue, within 20 s. This

requirement relates to Scenario 2.

– R3: The exercise session is scheduled only if

the health agent indicates a normal pulse.

– R4: The initially suggested exercise is based on

user preferences and health condition.

– R5: If any health abnormality is detected in

the ﬁrst sub-session of the exercise, a different

set of exercises of lower intensity is prescribed.

Requirements R3, R4 and R5 are formulated

based on Scenario 3. It should be noted that

R1-R5 are safety-critical requirements.

In addition, the system has quality-of-service

(QoS) requirements as follows:

– R6: If the tracker fails, the system continues its

functionality.

– R7: If one of the agent fails, its function is car-

ried out by the back-up.

4 MODELING MULTI-AGENT

SYSTEMS IN AADL

In this section, we illustrate the AADL modeling

of our MAS, depicted in Fig 1. The components

are modeled as follows: the agents and tracker are

modeled as abstract components, which can be ex-

tended to suit a hardware or software implementa-

tion, at later stages of design. The sensors are mod-

eled as hardware devices. The databases are modeled

as data components in AADL. All the components

have their respective component type and implemen-

tation deﬁned. The component type deﬁnes the com-

ponent features and properties. We use bus connec-

tions to represent the respective communication pro-

tocols used by the components. The bus access is

modeled as a feature of the component. We restrict to

only using properties like dispatch protocol, period,

execution time and user-deﬁned properties to specify

the scope of global variables in the system. However,

based on the requirements, certain user-deﬁned prop-

erties can also be added to specify the rate of occur-

rence of an aperiodic event or so (Kunnappilly et al.,

2018). In the component implementation, we deﬁne

the sub-components and connections.

Listing 1 shows an excerpt of the AADL model of our

system with an exercise agent, and a bus component;

the Agent Communication Protocol (ACP) models

the communication protocol between multiple agents.

For simplicity, we assume that the communication

protocols deﬁned here work via shared variables. The

Agent component is modeled as an abstract compo-

nent in AADL (Lines 1-8), which can be later reﬁned

towards a particular hardware or software, based on

the application. We also show a system-level rep-

resentation (Lines 10-26) with its sub-components,

user-deﬁned properties (some of which needs asser-

tion in the respective agent annex, where the property

is applied) and their connections deﬁning the commu-

nication.

Listing 1: An excerpt of the system modeling in AADL.

1 a b s t r a c t Ex c_Ag ent1

2 f e a t u r e s

3 BA1 : r e q u i r e s bu s a c c e s s ACP ;

4 BA2 : r e q u i r e s bu s a c c e s s SA_comm1 ;

5 p r o p e r t i e s

6 D i s p a t c h _ P r o t o c o l => A p e r i o d i c ;

7 C o m pu t e _Ex e c ut i o n_ t i me => 2ms . . 2 ms ;

8 en d Exc_ Agen t1 ;

9 b u s ACP . . . end ACP ;

10 s ys t e m a g e n t _ s y s t e m

11 p r o p e r t i e s

12 m y p r o p e t r i e s : : w1= 0. 6 a p p l i e s t o Exc_A gent 1 ;

13 m y p r o p e t r i e s : : w2= 0. 4 a p p l i e s t o Exc_A gent 1 ;

Architecture Modelling and Formal Analysis of Intelligent Multi-Agent Systems

119

14 m y p r o p e r t i e s : : u t i l i t y

=> " The v a l u e n e e d s a s s e r t i o n i n annex ! "

15 a p p l i e s t o Ex c_Ag ent1 ;

16 m y p r o p e r t i e s : : r e wa r d =>

17 " The va l u e n e ed s a s s e r t i o n i n annex ! "

18 a p p l i e s t o Ex c_Ag ent1 ;

19 en d a g e n t _ s y s t e m ;

20 s ys t e m i m p l e m e n t a t i o n a g e n t _ s y s t e m . i mpl

21 s u b com p o n e nts

22 A1 : a b s t r a c t Exc _Age nt1 ;

23 Agent_Comm_Proto : bus ACP ;

24 c o n n e c t i o n s

25 BAsys1 : bu s a c c e s s Agent_Comm_Proto <−>A1 . BA1 ;

26 en d a g e n t _ s y s t e m . i m p l ;

After specifying the components and their inter-

faces, the next step is to specify the behaviour of the

agent system. In the following sub-section, we pro-

pose an AADL annex speciﬁcation tailored to mod-

eling the autonomous behaviours of multi-agent sys-

tems and their learning algorithms.

4.1 Modeling Behaviours of Agents in

AADL: Agent Annex

We present the syntax and semantics of our proposed

Agent Annex, the AADL extension that we introduce

in order to encode behaviors of agents.

Metamodel Extension of AADL. The structure of

our Agent Annex is deﬁned by extending the AADL

metamodel (Society of Automotive Engineers, 2006),

represented as UML2 class diagrams. All classes in

the Agent Annex metamodel are deﬁned as subclasses

of class AObject, the root class of the AADL meta-

model. Named objects in the Agent Annex model is

a subclass of the Property Holder class, allowing an

object to have a name and associated AADL prop-

erties. Abstract classes in the metamodel are tagged

by an “A”. The Agent Model Annex is formulated

Figure 2: Agent Annex Metamodel.

by extending the AADL abstract classes, Annex Li-

brary and Annex subclause. All the expressions of

the Agent Annex are introduced as subclasses of these

abstract classes. The Annex Library is used to de-

clare classiﬁers of our Agent Annex in packages. The

Annex Library concepts are attached to an AADL

model by using the Annex subclause within a compo-

nent type or component implementation declaration.

An Annex subclause can refer to items in the Annex

Library, and to basic AADL model elements. The

Agent Annex metamodel is presented in Fig. 2.

Like all other components, Agent Annex also has

a type and an implementation classiﬁer. The Agent

Model feature includes the deﬁnitions of annex vari-

ables, states and transitions. Any speciﬁc kind of

variable, including clocks, can be declared in the

Agent Annex. The state of an Agent Annex can also

be associated with an invariant. The transitions are

deﬁned by using guards and updates. The updates

support probabilistic choices.

Semantics and Syntax of Agent Annex. The

Agent Annex (AA) is formally encoded as an STS,

as follows:

AA = hVar, Init, T ti (4)

• where: Var represents the set of local and global

variables deﬁned in the AA ;

• Init is the assertion over Var denoting the set of

initial states, formulas and also speciﬁes associa-

tion of reward values to a state or transition ;

• T t is the set of state transitions, deﬁned accord-

ingly as in Section 2.3.

An excerpt of the Agent Annex subclause of the exer-

cise agent is deﬁned in Listing 2. As shown in Listing

2, the annex deﬁnes a probabilistic transition system

with 7 states - Idle, Op, Comm, Exc_sc, Ex1, Ex2

and Fail, and a clock variable x. Idle represents the

initial state. It also deﬁnes a probabilistic transition

from state Idle. The transition is enabled aperiodi-

cally based on the calendar schedule for exercise and

it has a probability of 0.999 to reach the state Op, and

of 0.001 to reach the state Fail. Lines 11-21 deﬁne

the other transitions speciﬁc to exercise agent. For

instance, Lines 11-13 deﬁne the transitions for initi-

ating communication with the user’s pulse agent. If

the agent reaches the Comm state, it will initiate com-

munication with the pulse agent and the exercise ses-

sion starts only if the user pulse is normal. Lines 16-

23 illustrate the exercise recommendation based on

RL. Upon reaching the Exc_sc state initially, an ex-

ercise recommendation is made to the user based on

the user preferences and disease history. The exer-

cise duration is 10 min split in 2 intervals of 5 min

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

120

each. Upon an initial recommendation (say category

1), the agent moves to the state Exc1 (Lines 14-16).

The agent stays in this state until the completion of

split duration of 5 min or until the user has decided to

quit the exercise session. If the exercise split interval

is less than 2 and greater than 0 (assuming the dura-

tion is 10 min), the exercise schedule has to continue

and in the next split interval the agent recommends

the action with the highest reward (Lines 20-21). The

associated variables and their assertions are deﬁned

in the variables section Lines 22-30. Lines 28-30 in-

dicates that the sys_rew1 is associated with the state

Exc1 depending on user satisfaction or session com-

pletion and also with the transition r1 deﬁned by lines

17-19. Similarly, there is sys_rew2 calculated for ex-

ercise 2, however due to space constraints, we do not

show transitions for exercise category 2.

Listing 2: An example of Agent Model Annex Subclause

attached to Exercise Agent.

1 s ys t e m i m p l e m e n t a t i o n exc . a g e n t

2 s u b com p o n e nts

3 e x e r c i s e _ s e n s o r : d e v i c e e x c _ s e n s o r ;

4 annex Agent_Model {∗∗

5 s t a t e s

6 I d l e , Op , Comm, Exc _sc , Exc1 , Exc2 , F a i l ;

7 I d l e : i n i t i a l s t a t e ;

8 t r a n s i t i o n s

9 [ ] s t a t e = I d l e & c a l _ e x c =1 − >0.999:

10 ( s t a t e ’ = Op & x ’ = 0 ) + 0 . 0 0 1 : ( s t a t e ’= F a i l ) ;

11 [ ] s t a t e =Op & x= exe −> s t a t e ’ = Comm & x ’ = 0 ;

12 [ ] s t a t e = Comm & h _ s t a t = 1 −> s t a t e ’

13 = E x c _ s c h & x ’ = 0 ;

14 [ ] s t a t e = Exc_sch & u _p r e =1 & d _ h i s =0 &

15 e x c _ s p l i t =0−> ( s t a t e ’ = Exc1 ) & ( ex c _r e c ’=1) &

16 & ( e x c _ s p l i t ’ = 2 ) & ( x ’ = 0 ) ;

17 [ r 1 ] s t a t e = Exc1 & ( x = 5 | u _ q u i t =1 ) & h _ s t a t =1

18 & e x c _ s p l i t < 2 −> ( s3 ’ = 5 ) & ( e x c _ s p l i t ’=

19 e x c _ s p l i t + 1 ) & ( x ’ = 0 ) ;

20 [ ] s t a t e =Ex c _ s c h & e x c _ s p l i t <2 & e x c _ s p l i t >0

21 &s y s_rew1 > ( s ys_ r e w 2 ) −> ( s t a t e ’= Exc1 ) ;

22 v a r i a b l e s

23 b o ol c a l _ e x c ; bo o l u _ q u i t ; b o o l ss_com ;

24 i n t ex c _ r e c ; c l o c k x ;

25 f o r m u l a u t i l i t y 1 = w1∗ ( u _ s t )+w2 ∗ ( ss_com ) ;

26 f o r m u l a sys _ r e w1 = u t i l i t y 1 ;

27 f o r m u l a sys _ r e w1 = s y s_r e w 1 + u t i l i t y 1 ;

28 r e w a r d _ a s s s t a t e =Exc1 & ( u _ s a t = 0 | u _ s a t =1)&

29 ( ss_ com = 1 | ss_com =0 ) : sy s _ r ew1 ;

30 r e w a r d _ a s s [ r 1 ] t r u e : s y s _ rew 1 ; ∗ ∗} ;

31 en d Exc . a g e n t ;

In the following section, we deﬁne the syntax and

semantic encoding of a complete AADL component,

consisting of its interface and agent annex, and dis-

cuss its semantic mapping to an STS.

5 FORMAL ENCODING OF MAS

The ﬁrst step of encoding our multi-agent architecture

formally is to assign formal semantics to the speciﬁc

AADL components that we utilize for modeling our

system. An AADL component employed in this paper

is deﬁned by the following tuple:

AADL

Comp

= hComp

type

,Comp

imp

, AAi, (5)

where Comp

type

is the component type, Comp

imp

rep-

resents the component implementation, and AA, the

agent annex speciﬁcation.

• Comp

type

is in turn deﬁned as a tuple: Comp

type

hFeatures, Propi, where:

– Features model the bus access that abstracts the

communication protocol utilized by the system.

– Prop lists the associated properties of the

component, like Deployment, Communication,

Timing, T hread-related properties, user-

de fined properties, etc. In this work, we

only consider a subset of Timing, T hread-

related properties, user-de fined properties as

follows: Prop = {T

, T

, Dispatch protocol},

where T

and T

represent the period and exe-

cution time of the component, respectively, T

∈ Timing properties, Dispatch protocol ∈

{P, AP}, where P and AP represent periodic ac-

tivation and aperiodic activation, respectively.

User-de fined properties are used to declare

global variables.

• Comp

imp

is deﬁned as Comp

imp

= hSC,Coni,

where:

– SC represents the sub-components of the sys-

tem,

– Con represents the set of connections. The

function F

con

: Con → Features assigns

Features to Con.

• Agent Annex AA follows the semantics deﬁned in

Section 4.1.

Deﬁnition 1. The AADL component deﬁned by Equa-

tion (2) is formally encoded as an STS. The MAS ar-

chitecture is represented as a parallel composition

of all the STS modules: MAS = ||

i=0

ST S_module

where n is the number of AADL components of the

system, excluding data components and bus compo-

nents, if deﬁned in the system. The STS_module

ele-

ments are deﬁned as follows:

• V

is deﬁned the set of AA variables that con-

tribute to the state space of STS_module

, local

and possibly global variables.. The clock vari-

ables values are given by the component’s period

Architecture Modelling and Formal Analysis of Intelligent Multi-Agent Systems

121

Table 1: Encoding of AADL Component as STS.

AADL comp STS

hComp

type

,Comp

imp

, AAi ST S

Invariant + Guard

User-deﬁned properties Variables

Bus Variable

Data Variable

A sub-component ST S

AA states Variable values

AA transitions Transitions

AA variables Variables

AA formulas Variable assertions

AA reward association Variable assertions

and execution-time properties of Comp

type

deﬁni-

tion. V

is deﬁned by the global variables that do

not contribute to the state of the system.

• Θ

denotes assertion over V

and V

• T

represents the set of transitions deﬁned in the

AA of an agent.

The formal encoding is tabulated in Table 1. We

now present an example of the above formal encod-

ing, by applying it on a exercise agent of our use case.

The excerpt of the exercise agent (EA) presented in

Listings 1 and 2 is formally encoded as an STS mod-

ule, where:

• V

(where by EA we denote the exercise agent)

: {(s1, cal_exc, ss_com, exc_rec, exc_split, x,

sys_rew1) ∪ (utlity1, w1, w2)}

• θ

: {s0 |= (s1 = 0 ∧ cal_exc = 0 ∧ ss_com =

0 ∧ exc_rec = 0 ∧ exc_split = 0 ∧ x =

0 ∧ sys_rew1 = 0), weights |= (w1 =

0.6 ∧ w2 = 0.4), utility |= (utlility1 =

w1∗u_st +w2 ∗ ss_com), reward |= ((sys_rew1 =

utility1) ∪ (sys_rew1 = sys_rew1 + utility1),

reward association |= (s1 = 4&(u_sat =

0|u_sat = 1)&(ss_com = 1|ss_com = 0) :

sys_rew1) ∧ ([r1]true : sys_rew1)}

• T

is deﬁned by the transitions as follows

: {τ1 : {(s1 = 0 ∧ cal_exc = 1 ∧ ss_com =

0 ∧ exc_rec = 0 ∧ exc_split = 0 ∧ x =

0 ∧ sys_rew1 = 0) −→ (s1

= 1 ∧ cal_exc

1 ∧ ss_com

= 0 ∧ exc_rec

= 0 ∧ exc_split

0 ∧ x

= 0 ∧ sys_rew1

= 0), P = 0.999 ∪ (s1

6 ∧ cal_exc

= 1 ∧ ss_com

= 0 ∧ exc_rec

0 ∧ exc_split

= 0 ∧ x

= 0), P = 0.001},

τ2 : {(s1 = 1 ∧ cal_exc = 1 ∧ ss_com =

Due to space constraints, we only illustrate the ﬁrst two

transitions according to Listing 2, however all other transi-

tions can be enlisted in a similar way.

0 ∧ exc_rec = 0 ∧ exc_split = 0 ∧ x =

2 ∧ sys_rew1 = 0) −→ (s1

= 2 ∧ cal_exc

1 ∧ ss_com

= 0 ∧ exc_rec

= 0 ∧ exc_split

0 ∧ x

= 0 ∧ sys_rew1

= 0), P = 1}

Similarly, all other AADL components are encoded

as STS modules, respectively. In the next section, we

describe our formal analysis approach with PRISM.

6 SYSTEM ANALYSIS WITH

PRISM

The STS modules are encoded as a set of PTA mod-

ules in PRISM. The architecture is a parallel compo-

sition of the PTA modules. Each agent can accept at

most 2 connections, and each has a redundant copy.

Therefore, in order to ensure parallel processing, we

assume 4 PTA for a single category of agent. Thus,

we have 16 agent PTA that deal with pulse moni-

toring, fall monitoring, exercise monitoring and ﬁre

monitoring. In addition, we have one tracker PTA,

through which connections between the agents are

established. The sensor data and internal databases

are modeled as variables, and their communication is

modeled via shared data access. For simplicity, we

have not chosen to model the cloud database.

Listing 3 shows an excerpt of exercise agent en-

coding in PRISM. Since PTA is a subset of STS,

the encoding of STS as PTA modules is a one-to-

one mapping, with the syntax adapted to match the

PRISM input language. All the global variables and

their assertions (weights, utility and rewards) are de-

ﬁned outside the module deﬁnition of the exercise

agent. Apart from these, the exercise agent module

uses a set of local variables. Variable s represent the

state, s = 0 (Idle), s = 1 (Op), s = 2 (Comm), s = 3

(Exc_sc), s = 4 (Exc1), s = 5 (Exc2), s = 6 (Fail).

There are variables that represent the user’s calendar

exercise input (cal_exc_u1: [0..1]), user quit u1_quit:

[0..1]), session completion (ss_comp: [0..1], where 0

indicates that the event has not occurred, whereas 1

indicates the opposite. There are also variables to rep-

resent the exercise split sessions ( exc_split[0..2]), 0

representing the initial value and 1 and 2 representing

the two split sessions respectively, and the exercise

recommendations (exc_rec [0..2]) where 0 represent

the initial condition and 1 indicating that exercise cat-

egory 1 is chosen and 2 indicates that category 2 is

chosen. Variable x is a clock variable. The invari-

ant associated with the states (Lines 15-17) depend

on the component’s execution time (deﬁned at the in-

terface of the AADL component’s model). The in-

variant of state Op is x ≤ Exec_time. The transitions

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

122

deﬁned in Lines 18-27 follow the transitions deﬁni-

tion of the Agent Annex speciﬁcation of the exercise

Agent. Finally, in Lines 29-33, we show the asso-

ciation of rewards to the respective states or transi-

tions. After modeling the respective PTA modules,

we can perform exhaustive probabilistic veriﬁcation

of the model, and generate probabilistic guarantees

for the satisfaction of the functional and QoS require-

ments listed in Section 3.1.

The veriﬁcation results are tabulated in Table 2.

The requirements are formulated as PCTL queries

and the model-checking method is Digital Clocks.

Since PRISM, by default, returns the value for

the (single) initial state of the model while model

checking, we employ ﬁlters to verify our properties

over all states. Requirement R1 ensures that if a fall

event occurs due to a low pulse for user1 (Jim), and

the tracker is operational, then the tracker initiates

the communication between the respective fall and

pulse agents associated with user Jim (the request can

be assigned to any of the agent sockets depending

on availability), and the probability that one of them

sends an alert to caregiver indicating that there is “fall

due to low pulse” is greater than 0.999 provided that

at least one of the sockets of each agent is functional.

Assuming that the communication via tracker takes

less time, the requirement is satisﬁed within 10

time units. Similarly, for R2, we verify for user2

(Mary) that in case of ﬁre and fall events occurring

simultaneously, an alert indicating both events is

raised and sent within 10 time units, provided that the

tracker has not failed. In case of R3, R4 and R5, we

verify the functionality of the exercise agent serving

Jim. By R3, we establish that the exercise session

is scheduled only if the corresponding health agent

indicates that the user’s pulse level is normal. R4

indicates that the initial exercise category is chosen

based on user preferences and health condition. By

verifying R5, we show that if a high pulse devia-

tion occurs during the exercise sub-session, a low

intensity exercise is chosen in the next sub-session,

irrespective of user preferences. In R6, we illustrate

a similar function as in R2, but assuming that the

tracker has failed. In this case, the functionality is

met by direct communication between the agents,

which takes more time than the communication via

tracker (it is shown that this requirement is satisﬁed

within 20 time units). Next, in R7, we assume a fall

event of user2, and one failed fall agent; then, a fall

alert is raised and sent to the caregiver by either one

of the redundant fall agents. PRISM shows that this

requirement is satisﬁed within 20 time units.

Listing 3: An excerpt of the PRISM Model of an Exercise

Agent.

1 p t a

2 co n s t d o u b le w1 = 1 . 0 ;

3 co n s t d o u b le w2 = 1 . 0 ;

4 f o r m u l a u t i l i t y 1 = w1 ∗ ( u _ s a t ) +w2 ∗ ( ss_ comp ) ;

5 f o r m u l a sys _ r e w 1 = u t i l i t y 1 ;

6 f o r m u l a sys _ r e w 1 = s y s_r e w 1 + u t i l i t y 1 ;

7 mod ule E x c _ a g e n t1

8 s : [ 0 . . 6 ] i n i t 0 ;

9 / / s t a t e s 0 −I d l e , 1−Op , 2−Comm, 3−Ex c_ sc , 4−Ex1 ,

10 5− Ex2 , 6− F a i l

11 c a l _ e x c _ u 1 : [ 0 . . 1 ] i n i t 0 ; u 1 _ q u i t : [ 0 . . 1 ] i n i t 0;

12 ss_ com : [ 0 . . 1 ] i n i t 0 ; e x c _ s p l i t : [ 0 . . 2 ] i n i t 0 ;

13 e x c _ r e c : [ 0 . . 2 ] i n i t 0 ;

14 x : c l o c k ;

15 i n v a r i a n t

16 ( s =1 => x <=2 )

17 e n d i n v a r i a n t

18 [ 1 ] s =0 & c a l _ e x c _ u 1 =1 −> 0 . 9 9 9 : ( s ’ = 1 ) & ( x ’= 0 ) +

19 0 . 0 0 1 : ( s ’ = 6 ) &(x ’ = 0 ) ;

20 [ 2 ] s =1 & x=2 −> ( s ’ = 2 ) & ( x ’ = 0 ) ;

21 [ 3 ] s =2 & h _ s t a t _ u 1 =1 −> ( s ’ = 3 ) & ( x ’ = 0 ) ;

22 [ 4 ] s =3 & u 1 _ p r e f =1 & u 1 _ d i s _ h i s =1 &e x c _ s p l i t =0

23 −> ( s ’ = 4 ) & ( e x c _ r e c ’ = 1 ) & ( e x c _ s p l i t ’ = 2 ) & ( x ’ = 0 ) ;

24 [ r 1 ] s =4 &(x = 5 | u 1 _ q u i t =1) & h _ s t a t _ u 1 =1 & e x c _ s p l i t

25 < 2 −> ( s ’ = 3 ) & ( e x c _ s p l i t ’ = e x c _ s p l i t +1) & ( x ’ = 0 ) ;

26 [ 5 ] s =3 & e x c _ s p l i t >0 & e x c _ s p l i t <2 & sy s_r ew1 >

27 sy s _r e w2 −> ( s ’ = 3 ) & ( e x c _ s p l i t ’= e x c _ s p l i t +1 ) & ( x ’ = 0 ) ;

28 en dm od ule

29 r e w a r d s

30 s =4 & ( u 1 _ s a t =0 | u 1 _ s a t =1) &(s s_ com = 1 | ss_co m = 0 ) :

31 s y s_r e w 1 ;

32 [ r 1 ] t r u e : s y s _ r ew1 ;

33 e n d r e war d s

7 RELATED WORK

Modern AAL systems are designed to tackle numer-

ous functions, and to cater for multiple, distributed

users, which makes the system design more complex,

and calls for design-time formal analysis.

Some related work is directed towards provid-

ing formalisms for agents in terms of various log-

ics (Che et al., 2006; Luo et al., 2005). However,

some others have proceeded further to develop spec-

iﬁcation languages/methodologies for agent systems.

Some examples include CASL (Shapiro et al., 2002),

DESCARTES (Medina and Urban, 2007), etc. These

methodologies employ different formalisms, however

some of them are complex and are not expressive

enough, like in case of CASL. For DESCARTES,

tool support for executing the speciﬁcations is also

provided. Although the approach is promising, the

DESCARTES language is still missing constructs to

specify adaptive capabilities of agents, nor it provides

an analysis framework for MAS. One of the other

common approaches, popular in industry also, is the

Agent UML (Bauer et al., 2001) one. The approach

does not specify the architectural constructs of the

system, and lacks formal analysis, unlike the frame-

work that we present in this paper. Few works have

considered the speciﬁcation and formal analysis of

agent behavior in architecture description languages

(Oquendo, 2004). The AADL-based modeling frame-

work for multi-agent systems, which we propose in

Architecture Modelling and Formal Analysis of Intelligent Multi-Agent Systems

123

Table 2: Veriﬁcation results.

Req. Query Result

f ilter( f orall, f all_user1 = 1&pulse_user1 ≤ 50&tracker_ f ail = 0 → P ≥ 0.999

[F((pulse_alert0_u1 = 3|pulse_alert1_u1 = 3| pulse_alert2_u1 = 3|pulse_alert3_u1 = 3)

& (y ≤ 10)&( f all_ f ail = 0) &(pulse_ f ail = 0))] satisﬁed

f ilter( f orall, f all_user2 = 1& f ire_user2 = 1&tracker_ f ail = 0 → P ≥ 0.999

[F(( f ire f all_alert0_u2 = 2| f ire f all_alert1_u2 = 2| f ire f all_alert2_u2 = 2|

f ire f all_alert3_u2 = 2)&(y ≤ 10) &( f all_ f ail = 0)&( f ire_ f ail = 0))] satisﬁed

f ilter( f orall, cal_notexc_user1 = 1&tracker_ f ail = 0&(pulse_user1 ≥ 60

&pulse_user1 ≤ 120) → P ≥ 0.999 [F(exc_sch_u1 = 1))] satisﬁed

f ilter( f orall, exc_sch_u1 = 1&u1_disease_history = 1&u1_pre f = 2

→ P ≥ 0.999 [F(exc_u1_int1 = 2)] satisﬁed

f ilter( f orall, exc_sch_u1 = 1&interval = 1 &y ≤ 5 &pulse_user1 ≥ 200

→ P ≥ 0.999 [F(exc_u1_int2 = 1)] satisﬁed

f ilter( f orall, f all_user2 = 1& f ire_user2 = 1&tracker_ f ail = 1 → P ≥ 0.999

[F(( f all_alert0_u2 = 2| f all_alert1_u2 = 2| f all_alert2_u2 = 2| f all_alert3_u2 = 2)

&(y ≤ 20) & ( f all_ f ail = 0)&( f ire_ f ail = 0))] satisﬁed

f ilter( f orall, f all_user2 = 1&tracker_ f ail = 0& f ail1_ f all = 1 & f all2_ f all = 0

→ P ≥ 0.999 [F(( f all_alert2_u2 = 1| f all_alert3_u2 = 1)&y ≤ 20)] satisﬁed

this paper, has the beneﬁt of being integrated into a

popular framework that also provides tool support.

There are also some approaches that focus on

the formal veriﬁcation of AAL systems. An inter-

esting related work is that of Rodrigues et al. (Ro-

drigues et al., 2012), who perform dependability anal-

ysis of AAL architectures using UML and PRISM.

Other interesting research work uses temporal reason-

ing (Magherini et al., 2013) to formally verify the

reliability of AAL systems. However, the above fo-

cus only on QoS requirements, and do not look into

the critical functions of AAL systems, which require

decision making. Unlike these approaches, we carry

out our analysis on an agent-based AAL system ar-

chitecture, focusing on both functional and QoS re-

quirements, and propose a complete modeling and

veriﬁcation framework for distributed AAL systems

that involve real-time, fault-tolerant and probabilis-

tic behaviours. As an advantage if compared to an-

other work (Kunnappilly et al., 2018), the veriﬁcation

results obtained with PRISM are exhaustive. In the

mentioned work, the authors have proposed a formal

assurance framework for AAL system architectures

described in AADL, and showed how to verify them

in UPPAAL SMC. As different from the work in this

paper, the approach assumes a centralized system ar-

chitecture, and the only probabilistic behaviour con-

sidered in the system is component failure, which can

occur arbitrarily. In addition, the statistical analysis

with UPPAAL SMC, is not exhaustive, but it relies

instead on a ﬁnite number of simulations.

8 DISCUSSION

This paper presents an architecture for MAS, which

we model in the architecture language AADL that

we extend with an agent annex intended to model

real-time, fault-tolerant and probabilistic behavior of

agents, in a uniﬁed manner. This approach allows an

agent to synchronize only with a limited number of

agents in the system (according to its dependency),

unlike the traditional case where each agent has to

communicate with every other agent in the system

to achieve a consistent view of the environment be-

fore making a decision (Kunnappilly et al., 2017).

We show the design of our MAS architecture applied

to AAL domain with 2 agent categories- simple re-

ﬂex agents, that use if-then-else rules and complex in-

telligent agents that employ learning techniques, like

Reinforcement Learning. Although we have demon-

strated the use-case of Ambient Assisted Living in the

paper, the approach ﬁts well for any other applications

employing MAS for handling multiple safety criti-

cal applications in real-time, e.g., those of automotive

systems for which earlier stage analysis is beneﬁcial.

The modeling framework used in this paper is re-

lying on the Architecture Analysis and Design Lan-

guage (AADL), one of the best-suited architecture de-

scription languages to describe real-time embedded

systems (Feiler et al., 2006). Although MAS spec-

iﬁcations based on logics and domain speciﬁc lan-

guages do exist and are popular, they are mostly lim-

ited to speciﬁcation of properties at the agent level

and also do not have tool support (see Section 7).

AADL, on the other hand, allows us to focus on the

component level (here agents) and also at the system

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

124

level (MAS architecture) and can effectively model

agents’ real-time characteristics. With our proposed

extension to AADL using Agent Annex, a user can

also specify the intelligent agent behaviours (which

are often probabilistic) and their failures. AADL also

supports a graphical plug-in in OSATE tool to visual-

izethe model and supports analysis with respect to la-

tency, schedulability, resource utilization, etc. (Feiler

and Gluch, 2012).

In this work, we encode the semantics of the

AADL model and its agent annex as Stochastic Tran-

sition Systems. The encoding is suitable due to

the probabilistic behaviour of such systems and al-

lows it to be model-checked exhaustively by proba-

bilistic model checkers, like PRISM, or statistically

by simulation-based model checkers like UPPAAL

SMC. This paper shows a reduced and abstract archi-

tecture with only 4 types of agents and hence can be

veriﬁed exhaustively with PRISM.

9 CONCLUSIONS AND FUTURE

WORK

In this paper, we have proposed an architecture mod-

eling and formal analysis framework for agent-based

AAL systems characterized by intelligent, probabilis-

tic, and real-time behaviours. The intelligence is in-

corporated by using learning algorithms, in our case,

the Reinforcement Learning algorithm. The model-

ing framework is based on one of the well-established

architecture description languages for modeling real-

time embedded systems, called AADL. As the core

AADL does not sufﬁce to represent the probabilis-

tic and non-deterministic behavior of our system, we

propose an annex extension to AADL, the so-called

Agent Annex that we formally encode as a stochas-

tic transition system. In order to verify a set of criti-

cal functional and QoS requirements like timeliness,

fault-tolerance etc., we use an exhaustive probabilistic

model-checking method, using the state-of-art model

checker PRISM.

Our contribution paves the way for the devel-

opment of formally assured distributed, adaptable,

scalable, fault-tolerant systems, with intelligent be-

haviours and autonomy. The scalability of the pro-

posed framework is supported by the semantic def-

inition of AADL elements that allows an encoding

in UPPAAL SMC for instance, for statistical model

checking of models that exceed the boundaries of ex-

haustive model checking. As future work, we intend

to extend our architecture with multiple categories

of agents and integrate the Agent Annex to the core

AADL.

ACKNOWLEDGEMENTS

This work is supported by the EU Celtic Plus /Vin-

nova project, Health

- Future eHealth powered by

5G, which is gratefully acknowledged.

REFERENCES

Bauer, B. et al. (2001). Agent UML: A formalism for speci-

fying multiagent software systems. International jour-

nal of software engineering and knowledge engineer-

ing, 11(03):207–230.

Che, H.-y. et al. (2006). A Description Logic Method of

Formalizing the Speciﬁcation of Multi-Agent System.

In Machine Learning and Cybernetics, 2006 Interna-

tional Conference on, pages 61–65. IEEE.

De Alfaro, L. (1998). Stochastic transition systems. In

International Conference on Concurrency Theory,

pages 423–438. Springer.

Dissaux, P., Bodeveix, J.-P., Filali, M., Gauﬁllet, P., and

Vernadat, F. (2006). Aadl behavioral annex. In Pro-

ceedings of DASIA conference, Berlin, volume 32.

Feiler, P. H. et al. (2006). The architecture analysis & design

language (AADL): An introduction. Technical report,

Carnegie-Mellon Univ Software Engineering Inst.

Feiler, P. H. and Gluch, D. P. (2012). Model-based engi-

neering with AADL: an introduction to the SAE archi-

tecture analysis & design language. Addison-Wesley.

Hansson, H. et al. (1994). A logic for reasoning about

time and reliability. Formal aspects of computing,

6(5):512–535.

Kunnappilly, A. et al. (2017). A Novel Integrated Archi-

tecture for Ambient Assisted Living Systems. In 41st

COMPSAC, pages 465–472. IEEE.

Kunnappilly, A. et al. (2018). Assuring intelligent ambient

assisted living solutions by statistical model checking.

In International Symposium on Leveraging Applica-

tions of Formal Methods, pages 457–476. Springer.

Kwiatkowska, M. et al. (2002). PRISM: Probabilistic sym-

bolic model checker. In International Conference on

Modelling Techniques and Tools for Computer Perfor-

mance Evaluation, pages 200–204. Springer.

Luo, J. et al. (2005). Multi-agent cooperation: A description

logic view. In Paciﬁc Rim International Workshop on

Multi-Agents, pages 365–379. Springer.

Magherini, T. et al. (2013). Using temporal logic and model

checking in automated recognition of human activi-

ties for ambient-assisted living. IEEE Transactions

on Human-Machine Systems, 43(6):509–521.

Medina, M. A. and Urban, J. E. (2007). An approach to

deriving reactive agent designs from extensions to the

descartes speciﬁcation language. In Eighth Interna-

tional Symposium on Autonomous Decentralized Sys-

tems (ISADS’07), pages 363–367. IEEE.

Norman, G. et al. (2013). Model checking for probabilistic

timed automata. Formal Methods in System Design,

43(2):164–190.

Architecture Modelling and Formal Analysis of Intelligent Multi-Agent Systems

125

Oquendo, F. (2004). π-ADL: an Architecture Description

Language based on the higher-order typed π-calculus

for specifying dynamic and mobile software architec-

tures. ACM SIGSOFT Software Engineering Notes,

29(3):1–14.

Rodrigues, G. N. et al. (2012). Dependability analysis in the

ambient assisted living domain: An exploratory case

study. JSS, 85(1):112–131.

Shapiro, S. et al. (2002). The cognitive agents speciﬁca-

tion language and veriﬁcation environment for multia-

gent systems. In Proceedings of 1st international joint

conference on Autonomous agents and multiagent sys-

tems, pages 19–26. ACM.

Society of Automotive Engineers, Warrendale, P. U. (2006).

AE-AS5506/1, SAE Architecture Analysis and De-

sign Language (AADL) Annex Volume 1, Annex C:

AADL Meta-Model and Interchange Formats.

Sutton, R. S., Barto, A. G., et al. (1998). Introduction to

reinforcement learning. 135.

Tapia, D. I. et al. (2009). An ambient intelligence based

multi-agent system for Alzheimer health care. Inter-

national Journal of Ambient Computing and Intelli-

gence, 1(1):15–26.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

126
