From Requirements to Automated Acceptance Tests of Interactive

Apps: An Integrated Model-based Testing Approach

Daniel Maciel

, Ana C. R. Paiva

and Alberto Rodrigues da Silva

INESC TEC, Faculdade de Engenharia da Universidade do Porto, Porto, Portugal

INESC-ID, Instituto Superior T

ecnico, Universidade de Lisboa, Lisboa, Portugal

Keywords:

Requirements Speciﬁcation Language (RSL), Test Case Speciﬁcation, Model-based Testing (MBT), Test

Case Generation, Test Case Execution.

Abstract:

Frequently software testing tends to be neglected at the beginning of the projects, only performed on the late

stage. However, it is possible to beneﬁt from combining requirement with testing speciﬁcation activities. On

one hand, acceptance tests speciﬁcation will require less manual effort since they are deﬁned or generated au-

tomatically from the requirements speciﬁcation. On the other hand, the requirements speciﬁcation itself will

end up having higher quality due to the use of a more structured language, reducing typical problems such as

ambiguity, inconsistency and incorrectness. This research proposes an approach that promotes the practice of

tests speciﬁcation since the very beginning of projects, and its integration with the requirements speciﬁcation

itself. It is a model-driven approach that contributes to maintain the requirements and tests alignment, namely

between requirements, test cases, and low-level automated test scripts. To show the applicability of the ap-

proach, two complementary languages are adopted: the ITLingo RSL that is particularly designed to support

both requirements and tests speciﬁcation; and the Robot language, which is a low-level keyword-based lan-

guage for the speciﬁcation of test scripts. The approach includes model-to-model transformation techniques,

such as test cases into test scripts transformations. In addition, these test scripts are executed by the Robot test

automation framework.

1 INTRODUCTION

Software systems are constantly evolving becoming

more complex, which increases the need for efﬁcient

and regular testing activity to ensure quality and in-

crease the product conﬁdence. Software systems’

quality is usually evaluated by the software prod-

uct’s ability to meet the implicit and explicit customer

needs. For this purpose, it is important that customers

and developers achieve a mutual understanding of the

features of the software that will be developed.

Requirements Engineering (RE) intends to pro-

vide a shared vision and understanding of systems

among the involved stakeholders and throughout its

life-cycle. The system requirements speciﬁcation

(SRS) is an important document that helps to struc-

ture the system’s concerns from an RE perspective

and offers several beneﬁts, already reported in liter-

ature (Cockburn, 2001; Kovitz, 1998; Robertson and

Robertson, 2006; Withall, 2007), such as the estab-

lishment of an agreement between users and develop-

ers, support validation and veriﬁcation of the project

scope, and support future system maintenance activi-

ties. The problem is that the manual effort required to

produce requirements speciﬁcations is high and it suf-

fers from problems, such as, incorrectness, inconsis-

tency, incompleteness, and ambiguity (Kovitz, 1998;

Robertson and Robertson, 2006; Pohl, 2010).

ITLingo is a long term initiative with the goal

to research, develop and apply rigorous speciﬁcation

languages in the IT domain, namely Requirements

Engineering, Testing Engineering and Project Man-

agement (Silva, 2018). ITLingo adopts a linguistic

approach to improve the rigorous of technical docu-

mentation (e.g., SRS, test case speciﬁcation, project

plans) and, as a consequence, to promote productiv-

ity through re-usability and model transformations, as

well as promote quality through semi-automatic vali-

dation techniques.

RSL (Requirements Speciﬁcation Language) is

a controlled natural language integrated in ITLingo

which helps the production of requirements speciﬁ-

cations in a systematic, rigorous and consistent way

(da Silva, 2017). RSL includes a rich set of con-

structs logically arranged into views according to RE-

Maciel, D., Paiva, A. and Rodrigues da Silva, A.

From Requirements to Automated Acceptance Tests of Interactive Apps: An Integrated Model-based Testing Approach.

DOI: 10.5220/0007679202650272

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 265-272

ISBN: 978-989-758-375-9

265

speciﬁc concerns that exist at different abstraction

levels, such as business, application, software or even

hardware levels.

Software testing can be used to track and evaluate

the software development process by measuring the

number of tests that pass or fail and by performing

continuous regression testing that allows to maintain

the product quality alerting developers of possible de-

fects as soon as the code is changed. Among differ-

ent types of tests, acceptance tests (Christie, 2008)

are those that have a greater relationship with the re-

quirements. They are used to test with respect to

the user needs, requirements and business processes,

and are conducted to determine whether or not a sys-

tem satisﬁes the acceptance criteria and to enable

users, customers or other authorized entities to deter-

mine whether or not shall accept the system (ISTQB,

2015). In order to improve the acceptance testing and

requirements speciﬁcation activities, it may be advan-

tageous to perform these activities in parallel which,

in addition to increasing the quality of the require-

ments, also allows to reduce the time and resources

spent with them. Even though, starting the testing ac-

tivities at the beginning of the project when the re-

quirements are elicited is considered a good practice,

this is not always the case because requirements elic-

itation and testing are separate in traditional develop-

ment processes.

This research proposes and discusses an approach

based on the Model-based Testing (MBT) technique

(ISTQB, 2015) capable of promoting the initiation

of testing activities earlier when specifying require-

ments. MBT is a software testing approach that gen-

erates test cases from abstract representations of the

system, named models, either graphical (e.g., Work-

ﬂow models (Boucher and Mussbacher, 2017), PBGT

(Moreira et al., 2017; Moreira and Paiva, 2014)) or

textual (e.g., requirements documents in an interme-

diate format)(Paiva, 2007).

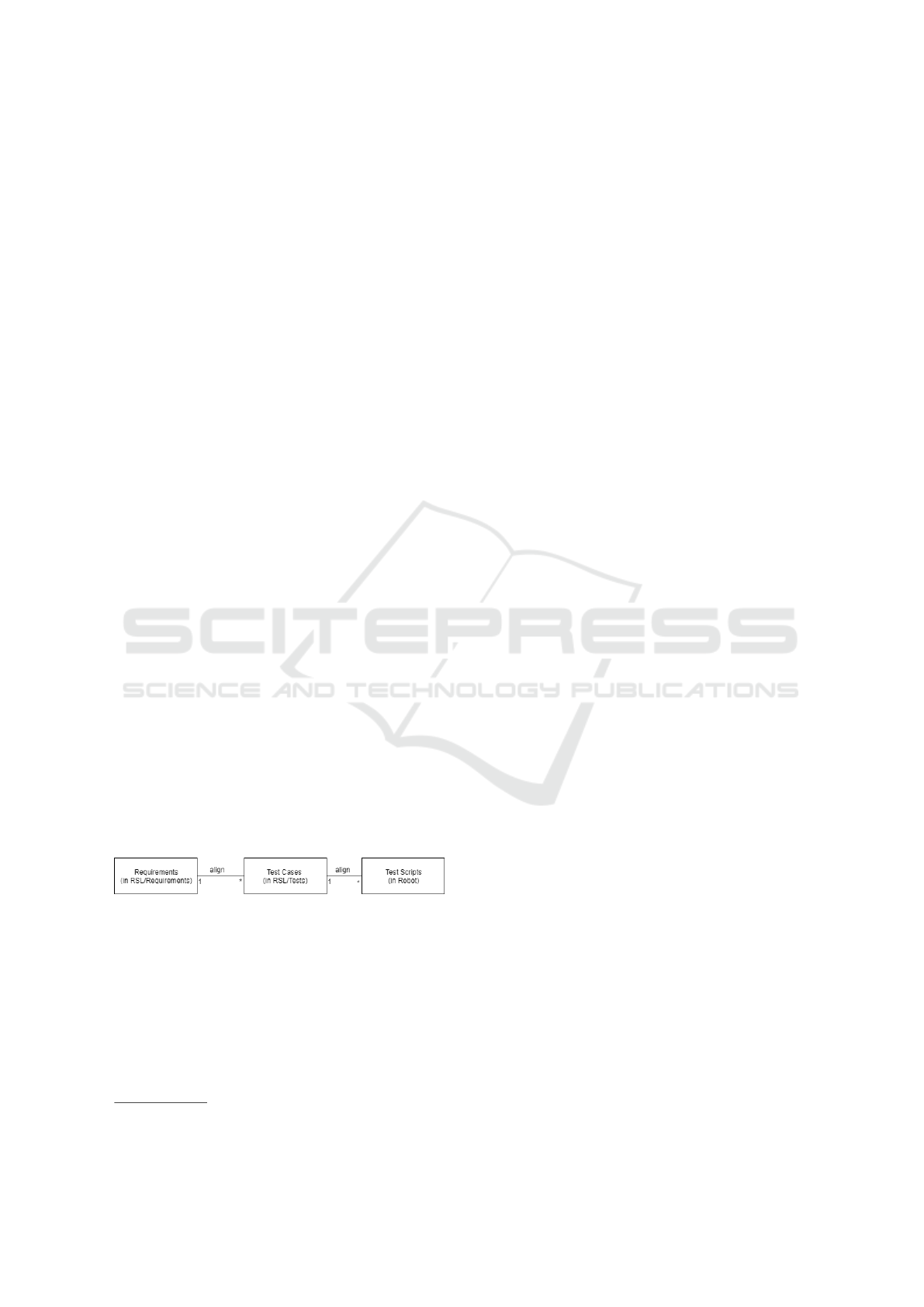

Figure 1: Approach terminologies.

Following the Figure 1, this approach uses RSL

Requirements speciﬁcations produced through a set of

constructs provided by the language according to dif-

ferent concerns. Then, each Requirement is aligned

with RSL Test Cases speciﬁcations. From the RSL

Test Cases speciﬁcations, it is possible to align and

generate Test scripts that can be executed automati-

cally by the Robot

test automation tool over the Sys-

tem Under Test (SUT).

http://robotframework.org/

This paper is organized in 6 sections. Section 2,

overviews the RSL language, showing its architec-

ture, levels of abstraction and concerns. Section 3 in-

troduces the concepts of the selected test automation

tool, the Robot Framework. Section 4 presents the

proposal approach with a running and illustrative ex-

ample. Section 5 identiﬁes and analyzes related work.

Finally, Section 6 presents the conclusion and brieﬂy

mention the future work.

2 RSL LANGUAGE

ITLingo research initiative intends to develop and ap-

ply rigorous speciﬁcation languages for the IT do-

main, such as requirements engineering and testing

engineering, with the RSL (Silva et al., 2018). RSL

provides a comprehensive set of constructs that might

be logically arranged into views according to speciﬁc

concerns. These constructs are deﬁned by linguistic

patterns and represented textually according to con-

crete linguistic styles. RSL is a process- and tool-

independent language, i.e., it can be used and adapted

by different organizations with different processes or

methodologies and supported by multiple types of

software tools (Silva, 2018). This paper focuses on

the RSL constructs particularly supportive of use case

approaches (e.g. actors, data entities and involved re-

lationships).

RSL constructs are logically classiﬁed according

to two perspectives (Silva, 2018): abstraction level

and speciﬁc concerns they address. The abstraction

levels are: business, application, software and hard-

ware levels. On the other hand, the concerns are:

active structure (subjects), behaviour (actions), pas-

sive structure (objects), requirements, tests, other con-

cerns, relations and sets. (This paper focuses the dis-

cussion on the requirements and tests concerns.)

2.1 Requirements Speciﬁcation

Figure 2 shows a partial view of the RSL metamodel

that deﬁnes a hierarchy of requirement types, namely:

goals, functional requirement, constraint, use case,

user story and quality requirement. (This paper fo-

cuses the discussion on only the UseCase requirement

type.)

RSL speciﬁcations based on Use Cases can in-

volve the deﬁnition of some views with the respective

constructs and inherent relations:

• DataEntity View: deﬁnes the structural entities

that exist in an information system, commonly as-

sociated to data concepts captured and identiﬁed

from the domain analysis. A Data Entity denotes

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

266

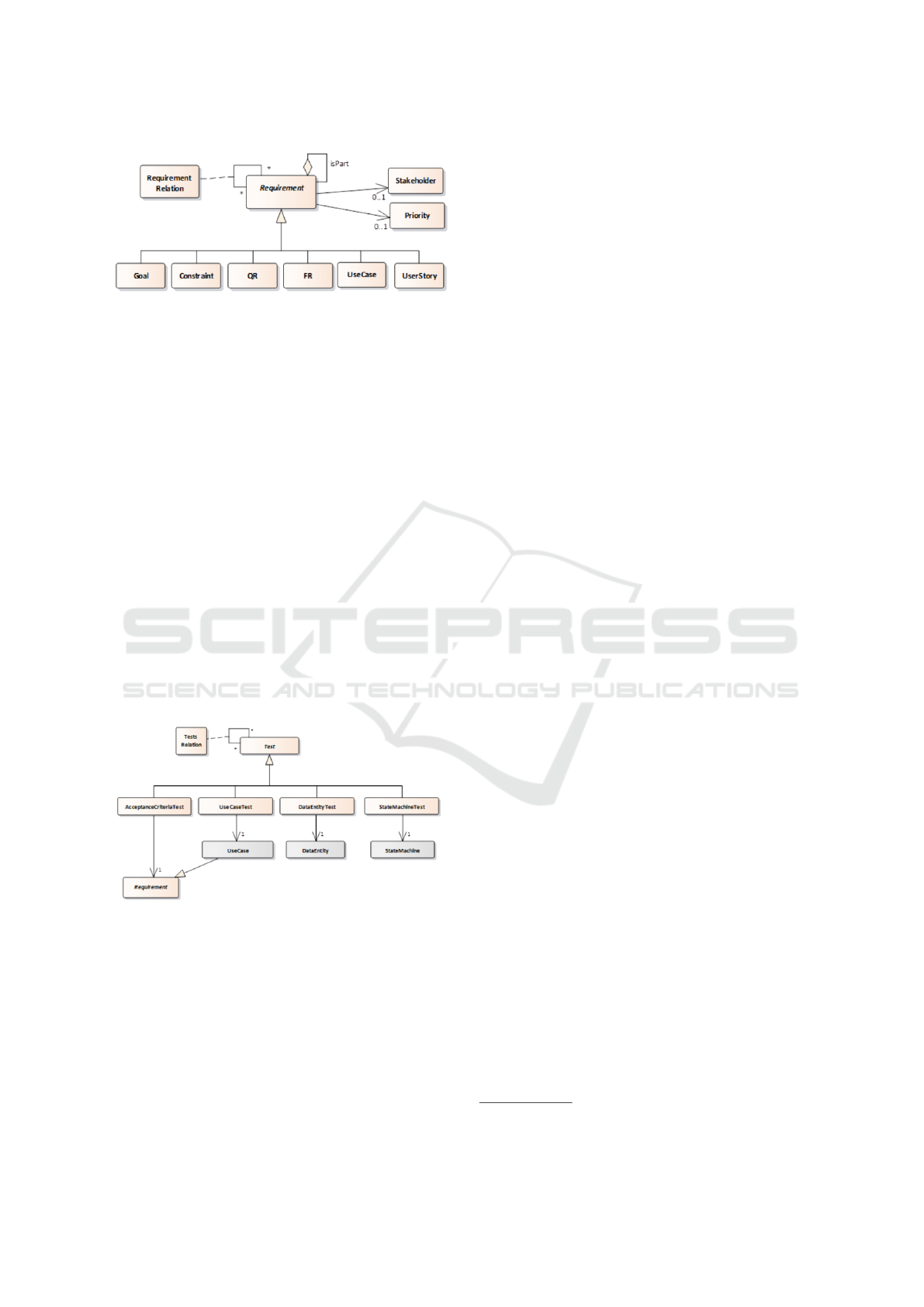

Figure 2: RSL partial metamodel: The hierarchy of require-

ments.

an individual structural entity that might include

the speciﬁcation of attributes, foreign keys and

other checkdata constraints;

• DataEntityCluster View: denotes a cluster of sev-

eral structural entities that present a logical ar-

rangements among themselves;

• Actor view: deﬁnes the participants of Use Cases

or user stories. Represent end-users and external

systems that interact directly with the system un-

der study, and in some particular situations can

represent timers that trigger the start of some Use

Cases;

• Use Case View deﬁnes the use cases of a system

under study. Traditionally a use case means a se-

quence of actions that one or more actors perform

in a system to obtain a particular result (Jacobson

and et al, 2015);

2.2 Tests Speciﬁcation

Figure 3: RSL partial metamodel: the hierarchy of Tests.

RSL supports the speciﬁcation and generation of

software tests, directly from requirements speciﬁca-

tions. As showed in Figure 3, RSL provides a hierar-

chy of Test constructs and supports the speciﬁcation

of the following specializations of test cases (Silva,

2018):

• DataEntityTest apply equivalence class partition-

ing and boundary value analysis techniques over

the domains deﬁned for the DataEntities (Bhat

and Quadri, 2015) in RSL DataEntities;

• UseCaseTest explores multiple sequences of steps

deﬁned in RSL use cases’ scenarios, and asso-

ciates data values to the involved data entities;

• StateMachineTest apply different algorithms to

traverse the RSL state machines so that it is possi-

ble to deﬁne different test cases that correspond to

valid or invalid paths through the respective state

machine;

• AcceptanceCriteriaTest deﬁne acceptance criteria

based on two distinct approaches: scenario based

(i.e., Given-When-Then pattern) or rule based;

this test case is applied generically to any type of

RSL Requirement

Regardless of these specializations, a Test shall be

deﬁned as Valid or Invalid depending on the intended

situation. In addition, it may establish relationships

with other test cases through the TestsRelation; these

relationships can be further classiﬁed as Requires,

Supports, Obstructs, Conﬂicts, Identical, and Relates.

3 ROBOT FRAMEWORK

Test cases can be executed manually by the tester or

automatically by a test automation tool. When a test

case is executed manually, the tester must perform

all test cases, having to repeat the same tests several

times throughout the product life cycle. On the other

hand, when test cases are run automatically, there is

the initial effort to develop test scripts, but from there,

the execution process will be automatic. So if a test

case has to run many times, the automation effort will

be less than the effort of frequent manual execution.

The Robot framework stands out for its powerful

keyword-based language that includes out-of-the-box

libraries. Robot does not require any kind of imple-

mentation, since it is possible to use keywords with

implicit implementations (with the use of speciﬁc li-

braries such as Selenium

). Robot is an open source

framework, related to the acceptance test-driven de-

velopment (ATDD) (ISTQB, 2014), which is inde-

pendent of the operating system and is natively im-

plemented in Python and Java, and can be executed in

Jython (JVM) or IronPython (.NET) .

The script structure is simple and can be divided

into four sections. The ﬁrst section, Settings, where

paths to auxiliary ﬁles and libraries used are conﬁg-

ured. The second section, Variables, speciﬁes the list

of variables that are used, as well as the associated

values. The third and most important section is the

Test Cases, where test cases are deﬁned. Lastly, the

https://www.seleniumhq.org/

From Requirements to Automated Acceptance Tests of Interactive Apps: An Integrated Model-based Testing Approach

267

Keywords section deﬁne custom keywords to imple-

ment the test cases described in the Test Cases sec-

tion. Among the sections mentioned above, only the

Test Cases section is mandatory.

As can be seen in the example presented in List-

ing 1, the libraries used are initially deﬁned. One of

the most used is the Selenium library that introduces

interactive applications test-related keywords, such as

‘Open Browser’ and ‘Input text’. The variables sec-

tion, assigns ‘Blouse’ to variable ‘product’ so, when-

ever ‘product’ is used, it will have value ‘Blouse’.

The Keywords section deﬁnes keywords and their pa-

rameters. In test cases using keywords, the values are

assigned to the corresponding parameters by placing

the values in the same place where parameters are de-

ﬁned.

Listing 1: Robot Framework speciﬁcation example.

*** Settings ***

Documentation Web Store Acceptance Test

Library Selenium2Library

*** Variables ***

${product} Blouse

*** Test Cases ***

Open the browser on <www.http://

automationpractice.com>

Input Text id=searchBar ${product}

...

*** Keywords ***

Open the browser on <$(url)>

Open Browser $(url)

4 PROPOSED APPROACH

This research intends to encourage and support both

requirements and tests practices, namely by generat-

ing test cases from requirements or at least foster the

alignment of such test cases with requirements.

The proposed approach (as deﬁned in Figure 4)

begins with the (1) requirements speciﬁcation that

serves as a basis for the (2) test cases speciﬁcation,

which can be further (3) reﬁned by the tester. Then,

(4) tests scripts are generated automatically from the

high-level test cases, and (5) associated the Graphical

User Interface (GUI) elements. Finally, (6) these test

scripts are executed generating a test report.

To illustrate and discuss the suitability of the ap-

proach, we applied it on an web application: the Web

Store

, because this was speciﬁcally designed to be

http://automationpractice.com

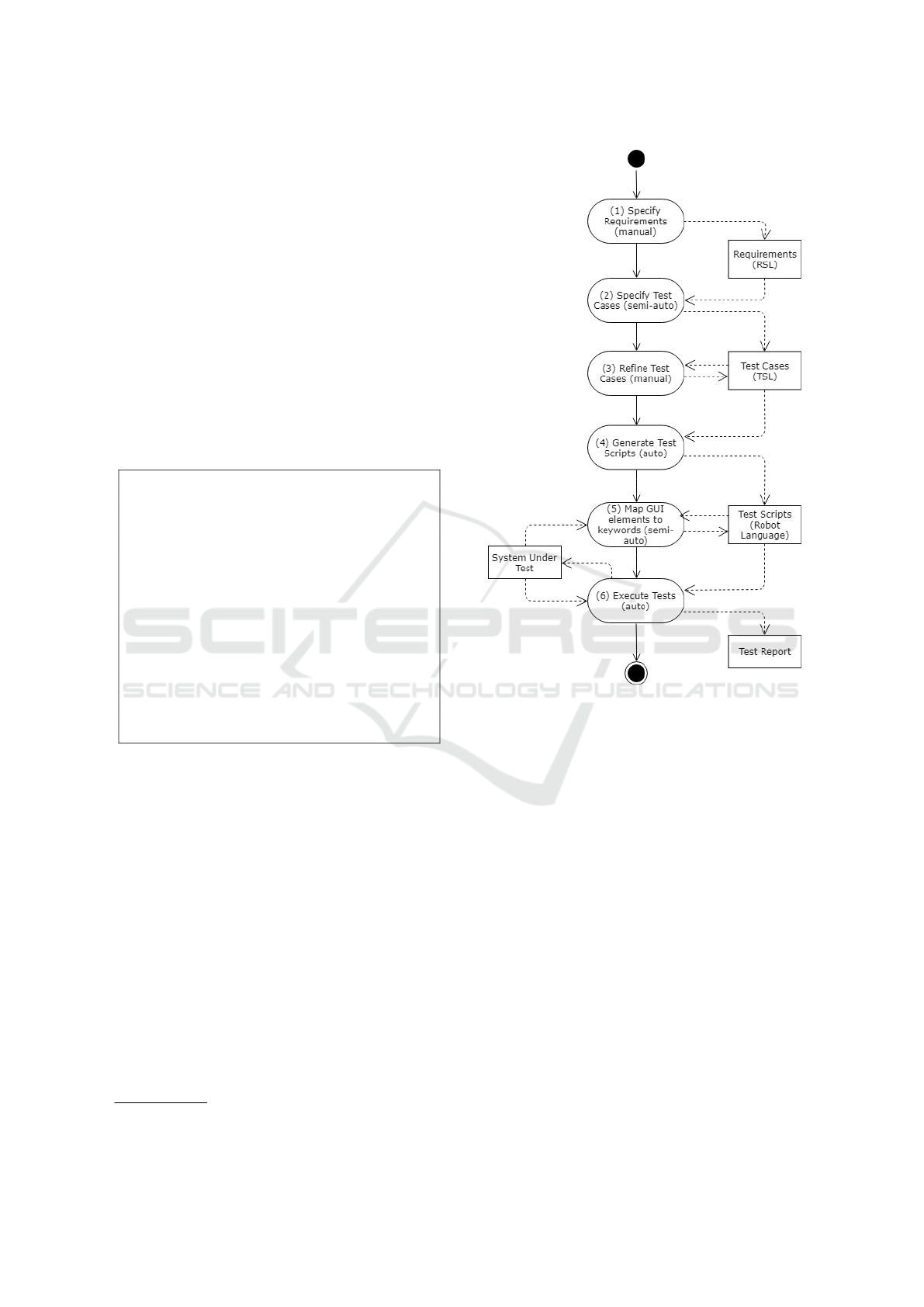

Figure 4: Proposed approach (UML activity diagram).

tested.

4.1 Specify Requirements

The ﬁrst task is the requirements deﬁnition that usu-

ally involves the intervention of requirements engi-

neers, stakeholders and eventually testers. In this

example, the speciﬁcation focuses on the most rele-

vant RSL constructors at the application and software

level, namely: Actor, UseCase, DataEntity. Listing

2 shows the constructs deﬁned for the ”search of a

product in the store”.

4.2 Specify Test Cases

Use Case Tests are derived from the various process

ﬂows expressed by a RSL UseCase. Each test con-

tains multiple test scenarios. A test scenario encom-

passes of a group of test steps and shall be executed

by an actor (Silva et al., 2018). UseCaseTest construct

begins by deﬁning the test set, including ID, name and

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

268

the use case type. Then it encompasses the references

keys [Use Case] indicating the Use Case in which the

test is proceeding and [DataEntity] referring to a pos-

sible data entity that is managed (Silva et al., 2018).

Listing 2: Example of a RSL speciﬁcation of Data Entity

Actor and UseCase.

DataEntity e_Product "Product" : Master [

attribute ID "ID" : Integer [isUnique]

attribute title "title" : Text [isNotNull]

attribute price "Price" : Integer [

isNotNull]

attribute composition "Composition" : Text

attribute style "Style" : Text

attribute properties "Properties" : Text

primaryKey (ID)]

Actor aU_Customer "Customer" : User

UseCase uc_Search "Search Products" :

EntitiesSearch [

actorInitiates aU_Customer

dataEntity e_Product]

4.3 Reﬁne Test Cases

The generated test cases may be subject to manual

reﬁnements (e.g., assign values to entities and cre-

ate temporary variables), resulting in other test cases.

The DataEntities and the temporary Variables are

fundamental for data transmission between TestSteps

involved in the test are deﬁned within TestScenarios.

The values of DataEntities and Variables are de-

ﬁned in a tabular format with several rows. In this

way, when an attribute is associated with N values,

it means that this scenario may be executed N times,

once for each value in the table.

Each scenario is also formed by Test-

Steps. A TestStep can have four types (Ac-

tor PrepareData, Actor CallSystem, System Execute,

System ReturnResult) and several OperationExten-

sions (see Table 1).

It is in the test cases that are introduced the funda-

mental concepts for the test scripts generation, which

include test scenarios and test steps. Listing 3 shows

the test cases for the ”search of products in the store”.

In the UseCaseTest speciﬁcation the respective

UseCase and DataEntities speciﬁcations are associ-

ated and temporary variables are initialized, such as

the name of the product that will be searched and the

number of expected results. Also in the UseCaseTest,

the TestScenarios are speciﬁed where the values are

assigned to the variables and inserted the TestSteps,

which contain the necessary information for the test

scripts.

Listing 3: Example of ’Search Products’ test case TSL spec-

iﬁcation.

UseCaseTest t_uc_Search "Search Products" :

Valid [

useCase uc_Search actorInitiates aU_User

description "As a User I want to search

for a product by name or descripton"

variable v1 [

attribute search: String

attribute expectedResults: String ]

testScenario Search_Products :Main [

isConcrete

variable v1 withValues (

| v1.search | v1.expectedResults +|

| "Blouse" | ’1’ +|

| "Summer" | ’3’ +|)

step s1:Actor_CallSystem:Click element(’

Home’)[\"The User clicks on the ’Home

’ element\"]

step s2:Actor_PrepareData:PostData

readFrom v1.search ["The User writes

’blouse’ in the search text field"]

step s3:Actor_CallSystem:Click button(’

Search_Product’)["The User clicks on

the ’Search’ button"]

step s4:System_Execute:Check

elementOnScreen(limit v1.

expectedResults)["The System checks

if the number of results is the

expected one"] ]

4.4 Generate Test Scripts

Once the speciﬁcation is complete, it follows the gen-

eration of the test scripts for the Robot tool. This

generation process is based on relations established

between the RSL speciﬁcation and the syntax of the

Robot framework. It is possible to make an associa-

tion of the the RSL concepts with the Robot frame-

work syntax and some of the keywords made avail-

able by the Selenium library (Table 1).

First, in Actor PrepareData type, it is expected

that any type of data will be entered by the actor, such

as text, passwords or even choose a ﬁle to upload. The

value of the data to be entered is acquired through

the DataEntities deﬁned previously in the TestSce-

nario when the OperationExtension of the TestStep is

‘readFrom’ followed by the identiﬁers of the respec-

tive DataEntity/Variable attributes.

Second, the Actor CallSystem type associates the

actions performed by the actor in the application, e.g.,

click a button, select checkbox. In OperationExten-

sion the type of action (e.g., Click, Select, Mouse

Over) and the element on which such action takes

place (e.g., button, checkbox, image) are identiﬁed.

Third, there is the System ReturnResult that is

used when it is necessary to collect application data to

From Requirements to Automated Acceptance Tests of Interactive Apps: An Integrated Model-based Testing Approach

269

Table 1: Mapping between test case (RSL) and test scripts (Robot).

Step Type Operation Extension Type Operation Extension Keyword generated

Actor PrepareData Input readFrom INPUT TEXT $locator $variable

Actor CallSystem Select checkbox SELECT CHECKBOX $locator

list by value SELECT FROM LIST BY VALUE $locator $value

Click button CLICK BUTTON $locator

element CLICK ELEMENT $locator

Over - MOUSE OVER $locator

System ReturnResult GetData writeTo $variable GET TEXT $locator

System Execute OpenBrowser - OPEN BROWSER $url

CloseBrowser - CLOSE BROSER

PostData readFrom INPUT TEXT $locator $variable

Check textOnPage PAGE SHOULD CONTAIN $text

elementOnPage PAGE SHOULD CONTAIN ELEMENT $locator $msg? $limit?

textOnElement ELEMENT SHOULD CONTAIN $locator $text

responseTime WAIT UNTIL PAGE CONTAIN ELEMENT $locator $timeout?

variableValue $variable = $expected

jScript EXECUTE JAVASCRIPT $code

be stored in temporary variables that will normally be

used for some type of veriﬁcation. In this type of op-

eration, the OperationExtension is ‘writeTo’ followed

by the attribute of the variable where the value will be

stored.

Finally, there is the System Execute where the ac-

tions that are executed by the system, e.g., ‘Open-

Browser’ and ‘Check’, are associated. Each TestSce-

nario must end with a Check in order to evaluate the

success/insuccess of the test. The types of checks in-

troduced are: text on element, element on page, text

on element, response time, variable value or custom.

For instance, the code of the Listing 4 is gener-

ated from the test case of the Listing 3 through the

mapping discussed.

At the end of this phase, the test scripts are created

with the base structure of the Robot framework syntax

and the keywords of the Selenium library.

Listing 4: Generated Test Script example (in Robot).

Search_Products-Test_1

[Documentation] As a User I want to search

for a product by name or descripton

Click element [Home]

Input text [Point&Click] ${search1}

Click button [Search_Product]

Page Should Contain Element [Point&Click]

limit=${expectedResults1}

Search_Products-Test_2

[Documentation] As a User I want to search

for a product by name or descripton

Click element [Home]

Input text [Point&Click] ${search2}

Click button [Search_Product]

Page Should Contain Element [Point&Click]

limit=${expectedResults2}

4.5 Map GUI Elements to Keywords

At this stage, there is the need to complete the test

scripts generated in the previous phase with the loca-

tors (e.g. GUI element identiﬁer, xpath) used for se-

lecting the target GUI elements (Leotta et al., 2016).

Web applications interfaces are formed by sets of

elements, namely, buttons, message boxes, forms,

among other elements that allow to increase the User

Interface (UI) interactivity. Each of these elements

has a speciﬁc locator, which allows it to be recognized

among all elements of the UI. During the acceptance

testing activity, these elements are used to achieve a

certain position deﬁned by the test case. In order to

automate the acceptance test cases generation and ex-

ecution, it is necessary to identify these locators to

be able to use the respective GUI elements during the

execution of the test.

Listing 5: Test Script with GUI elements xpath (in Robot).

Search_Products-Test_1

[Documentation] As a User I want to

search for a product by name or

descripton

Click Element //*[@id="header_logo"]/a/img

Input text //*[@id="search_query_top"] ${

search1}

Click button //*[@id="searchbox"]/button

Page should contain element //*[@id="

center_column"]/ul/li limit=${

expectedResults1}

Search_Products-Test_2

[Documentation] As a User I want to

search for a product by name or

descripton

Click Element //*[@id="header_logo"]/a/img

Input text //*[@id="search_query_top"] ${

search2}

Click button //*[@id="searchbox"]/button

Page should contain element //*[@id="

center_column"]/ul/li limit=${

expectedResults2}

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

270

Since element identiﬁers usually do not follow any

speciﬁc pattern, it becomes complex to do an auto-

matic mapping. So, it is necessary the manual in-

tervention of a technician to make the mapping be-

tween the GUI elements and the test scripts keywords.

To establish this mapping the user can insert the cor-

responding identiﬁers of the UI elements in the test

script or use a ‘point and click’ process (similar to the

one in (Paiva et al., 2005)) where he points the UI ele-

ment on screen to capture the identiﬁer of the clicked

element.

The elements of Listing 4 within the straight

parentheses ([]) are semi-automatically replaced by

the xpath of the web elements of the page to be tested

resulting the test script in Listing 5.

4.6 Execute Tests

Once the script is completely ﬁlled in, the tests are run

and the test results are displayed, as shown in Figure

5. In this test, when searching for ‘Blouse’, the test

returned one result as expected and so, the test suc-

ceeded. On the other hand, when searching for ‘Sum-

mer’, the test returned 4 which is different from the

expected result and so, the test failed.

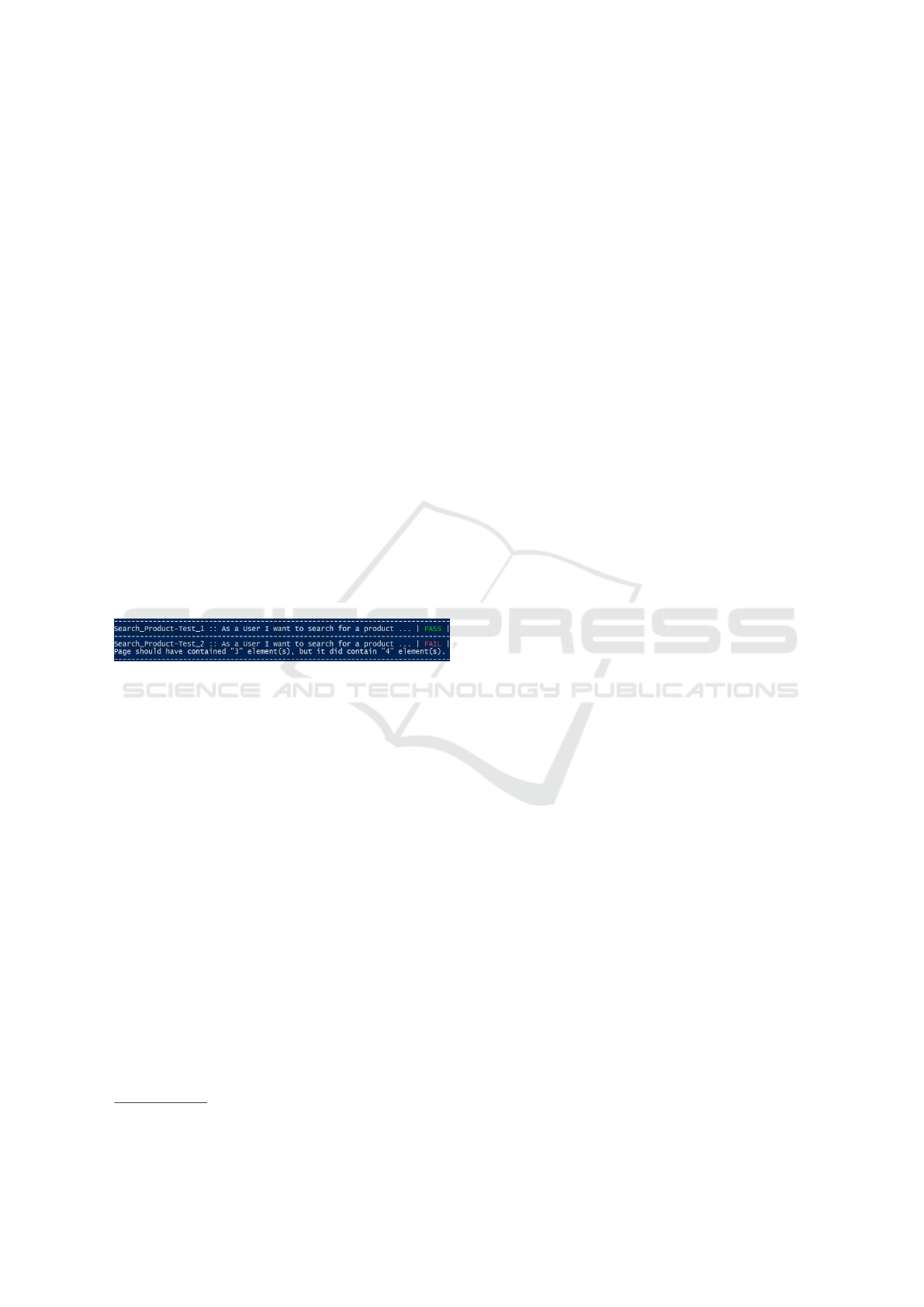

Figure 5: Result of the test case execution.

5 RELATED WORK

Acceptance test cases for complex IT systems are usu-

ally done manually and derived from functional re-

quirements written in natural language. This manual

process is challenging and time consuming.

Generating automatically test cases from textual

or graphical models is not a new idea. Some ap-

proaches require that the system is captured by graph-

ical models (e.g. worfkﬂow models (Boucher and

Mussbacher, 2017) and domain models (Wang et al.,

2015)) and others require textual models (e.g., use

cases (Hsieh et al., 2013; Moketar et al., 2016)).

There is an approach that uses workﬂow nota-

tion focused on the casual relationship of the steps

in a workﬂow without requiring the speciﬁcation of

detailed message exchange and data (Boucher and

Mussbacher, 2017). These models are transformed

into end-to-end acceptance test cases that can be auto-

mated with the Junit

testing framework. Comparing

https://junit.org/junit5/

with the approach proposed in this paper, this tech-

nique does not allow the alignment between require-

ments and tests.

Use Case Modeling for System Tests Generation

(UMTG) is an approach that automatically generates

system test cases from use case speciﬁcations and a

domain model, the latter including a class diagram

and constraints (Wang et al., 2015). Even though sup-

port test cases generation, this approach does not in-

tegrate any test execution automation tool associated

to run the generated tests.

Hsieh et al. proposed the TestDuo framework for

generating and executing acceptance tests from use

cases (Hsieh et al., 2013). In this approach speciﬁc

use case annotations are added by testers to explicate

system behaviours. Similar to the approach presented,

Robot compatible test cases are then generated. How-

ever, TestDuo does not cover the alignment between

requirements and test cases.

TestMEReq is an automated tool for early valida-

tion of requirements (Moketar et al., 2016). This tool

integrates semi-formalized abstract models called Es-

sential Use Cases. Abstract test cases that describe

the tested functionality of the requirements are gener-

ated from the abstract models, which helps to validate

requirements. However, this approach does not con-

template the generated tests execution.

In contrast to the tools and approaches refer above,

our proposed approach particularly promotes (i) the

alignment between high-level requirements and tests

speciﬁcations, with low-level test scripts, that is en-

sured by the adoption of languages like RSL and

Robol, as well as (ii) semi-automatic generation and

execution of test scripts, by the integration with tools

like Robot framework.

6 CONCLUSION

This paper describes a model-based testing approach

where acceptance test cases are derived from RSL re-

quirements speciﬁcations and automatically adapted

to the test automation Robot framework tool to be ex-

ecuted over a web application under test.

The process begins with the requirements elicita-

tion and speciﬁcation in the RSL. From these require-

ment speciﬁcations are generated test case speciﬁca-

tions. When the test cases are complete, it is made the

automatic generation of test scripts executable by the

Robot framework. This generation is based on map-

pings between the characteristic constructs of RSL

and the GUI elements identiﬁers of the SUT with the

syntax of the Robot automation tool. Once test scripts

are completed, they are executed and the results pre-

From Requirements to Automated Acceptance Tests of Interactive Apps: An Integrated Model-based Testing Approach

271

sented in a test report.

This approach allows to encourage the practice of

testing when specifying requirements. In addition to

reducing manual effort, time and resources dedicated

to the development of tests, also ensures higher qual-

ity of requirements. The RSL requirements speciﬁ-

cation for the described generation will make the re-

quirements speciﬁed more consistently and systemat-

ically and therefore less prone to errors and ambigui-

ties.

As a future work, we intend to apply this ap-

proach in real context scenarios and automate further

the overall process by automatically generating the

test speciﬁcation from RSL speciﬁcation and convert-

ing these test speciﬁcations into executable test scripts

that may be executed by other test automation tools,

such as Gherkin/Cucumber

ACKNOWLEDGEMENTS

This work was partially supported by national

funds under FCT projects UID/CEC/50021/2019 and

02/SAICT/2017/29360.

REFERENCES

Bhat, A. and Quadri, S. (2015). Equivalence class parti-

tioning and boundary value analysis - A review. 2nd

International Conference on Computing for Sustain-

able Global Development (INDIACom).

Boucher, M. and Mussbacher, G. (2017). Transforming

Workﬂow Models into Automated End-to-End Accep-

tance Test Cases. Proceedings - 2017 IEEE/ACM 9th

International Workshop on Modelling in Software En-

gineering, MiSE 2017, pages 68–74.

Christie, J. (2008). Test automation - does it make sense?

TE - Testing Experience, The Magazine for Profes-

sional, pages 73––77.

Cockburn, A. (2001). Writing Effecive Use Cases. Addison-

Wesley.

da Silva, A. R. (2017). Linguistic patterns and linguis-

tic styles for requirements speciﬁcation (i): An ap-

plication case with the rigorous rsl/business-level lan-

guage. In Proceedings of the 22Nd European Confer-

ence on Pattern Languages of Programs, EuroPLoP

’17, pages 22:1–22:27, New York, NY, USA. ACM.

Hsieh, C. Y., Tsai, C. H., and Cheng, Y. C. (2013). Test-

Duo: A framework for generating and executing auto-

mated acceptance tests from use cases. 2013 8th In-

ternational Workshop on Automation of Software Test,

AST 2013 - Proceedings, pages 89–92.

ISTQB (2014). ISTQB

 Foundation Level Extension Syl-

labus Agile Tester.

https://cucumber.io/

ISTQB (2015). ISTQB

 Foundation Level Certiﬁed

Model-Based Tester Syllabus.

Jacobson, I. and et al (2015). Object oreinted software engi-

neering: A use case driven approach. Addison-Wesley.

Kovitz, B. (1998). Pratical software requirements: Manual

of content and style. manning.

Leotta, M., Clerissi, D., Ricca, F., and Tonella, P. (2016).

Approaches and Tools for Automated End-to-End Web

Testing, volume 101. Elsevier Inc., 1 edition.

Moketar, N., Kamalrudin, M., Sidek, S., Robinson, M.,

and Grundy, J. (2016). TestMEReq: Generating ab-

stract tests for requirements validation. Proceedings -

3rd International Workshop on Software Engineering

Research and Industrial Practice, SER and IP 2016,

pages 39–45.

Moreira, R. M. and Paiva, A. C. (2014). PBGT Tool:

An Integrated Modeling and Testing Environment for

Pattern-based GUI Testing. In Proceedings of the 29th

ACM/IEEE International Conference on Automated

Software Engineering, ASE ’14, pages 863–866, New

York, NY, USA. ACM.

Moreira, R. M. L. M., Paiva, A. C. R., Nabuco, M., and

Memon, A. (2017). Pattern-based GUI testing: Bridg-

ing the gap between design and quality assurance.

Softw. Test., Verif. Reliab., 27(3).

Paiva, A. C. R. (2007). Automated Speciﬁcation-based Test-

ing of Graphical User Interfaces. PhD thesis, Faculty

of Engineering of the University of Porto, Porto, Por-

tugal.

Paiva, A. C. R., Faria, J. C. P., Tillmann, N., and Vidal, R.

F. A. M. (2005). A model-to-implementation map-

ping tool for automated model-based GUI testing. In

Formal Methods and Software Engineering, 7th Inter-

national Conference on Formal Engineering Methods,

ICFEM 2005, Manchester, UK, November 1-4, 2005,

Proceedings, pages 450–464.

Pohl, K. (2010). Requirements Engineering: Fundamen-

tals, Principles, and Techniques. Springer, First edi-

tion.

Robertson, S. and Robertson, J. (2006). Mastering the Re-

quirements Process. Addison-Wesley, 2nd edition edi-

tion.

Silva, A. R. (2018). Rigorous Requirements Speciﬁca-

tion with the RSL Language: Focus on Uses Cases.

INESC-ID Technical Report.

Silva, A. R., Paiva, A. C., and Silva, V. (2018). To-

wards a Test Specciﬁcation Language for Information

Systems: Focus on Data Entity and State Machine

Tests. Proceedings of the 6th International Confer-

ence on Model-Driven Engineering and Software De-

velopment (MODELSWARD 2018).

Wang, C., Pastore, F., Goknil, A., Briand, L., and Iqbal, Z.

(2015). Automatic Generation of System Test Cases

from Use Case Speciﬁcations. Proceedings of the

2015 International Symposium on Software Testing

and Analysis, pages 385–396.

Withall, S. (2007). Software Requirements Patterns. Mi-

crosoft Press.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

272
