Spatio-temporal Upsampling for Free Viewpoint Video Point Clouds

Matthew Moynihan

, Rafael Pag

1,2

and Aljosa Smolic

V-SENSE, School of Computer Science and Statistics, Trinity College Dublin, Ireland

Volograms Ltd, Dublin, Ireland

Keywords:

Point Clouds, Upsampling, Temporal Coherence, Free Viewpoint Video, Multiview Video.

Abstract:

This paper presents an approach to upsampling point cloud sequences captured through a wide baseline camera

setup in a spatio-temporally consistent manner. The system uses edge-aware scene ﬂow to understand the

movement of 3D points across a free-viewpoint video scene to impose temporal consistency. In addition

to geometric upsampling, a Hausdorff distance quality metric is used to ﬁlter noise and further improve the

density of each point cloud. Results show that the system produces temporally consistent point clouds, not

only reducing errors and noise but also recovering details that were lost in frame-by-frame dense point cloud

reconstruction. The system has been successfully tested in sequences that have been captured via both static

or handheld cameras.

1 INTRODUCTION

Recent years have seen a spike in interest towards vir-

tual/augmented reality (VR/AR), especially at consu-

mer level. The combined maturity and affordability is

reducing the barrier to entry for content creators and

enthusiasts alike. As a result, it has become largely

apparent that there is a need to close the content cre-

ation gap, speciﬁcally with respect to the capture and

reconstruction of live scenes and performances.

Free-viewpoint video (FVV) technology provides

the necessary tools for creators to capture and dis-

play real-world dynamic scenes. Current state-of-

the-art systems usually feature large arrays of high-

resolution RGB cameras and IR depth sensors in a

professional studio environment (Collet et al., 2015;

Liu et al., 2010). These systems normally operate

on a frame-by-frame basis, where they compute a

dense point cloud using different multi-view stereo

(MVS) techniques. With such high-density camera

conﬁgurations, temporal inconsistencies in the 3D re-

constructions are less conspicuous. However, these

systems are likely to be inaccessible to low-budget

productions and independent content creators. New

approaches are emerging that enable FVV capture

using wide-baseline camera setups that include only

consumer-grade cameras, some of which can even

be handheld (Pag

es et al., 2018). However, frame-

by-frame reconstructions (Mustafa et al., 2015) of-

ten include temporal artifacts in the sequence. This

is most often due to common fail case scenarios for

photogrammetry-based systems such as a lack of tex-

ture information or attempting to reconstruct non-

lambertian surfaces. In the absence of any spatio-

temporal constraints, it can be observed that sa-

lient geometric features can become distorted and

temporally incoherent across FVV sequences. Fi-

gure 1 demonstrates such an example as frame-wise

reconstruction suffers a loss of geometric informa-

tion where the reconstruction system failed to identify

enough feature points to guarantee an accurate recon-

struction, speciﬁcally in extremities such as hands and

feet. Temporal inconsistencies can also be observed

between frames in the form of structured noise pat-

ches and holes in the model.

We propose a system that both, upsamples low

density point clouds, and also enforces a temporal

constraint which encourages the selective recovery of

lost geometric information. They key contributions of

our work can be summarised as follows:

• A spatio-temporal consistency system for point

cloud sequences that coherently merges consecu-

tive point clouds, based on estimation of the Edge

Aware Scene Flow on the original wide-baseline

images.

• A self regulating noise ﬁlter based on a Hausdorff

distance quality metric as the conditioning crite-

rion of the coherent mesh.

As a baseline for improvement we compare this

proposed method to temporally-incoherent alternati-

684

Moynihan, M., Pagés, R. and Smolic, A.

Spatio-temporal Upsampling for Free Viewpoint Video Point Clouds.

DOI: 10.5220/0007361606840692

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 684-692

ISBN: 978-989-758-354-4

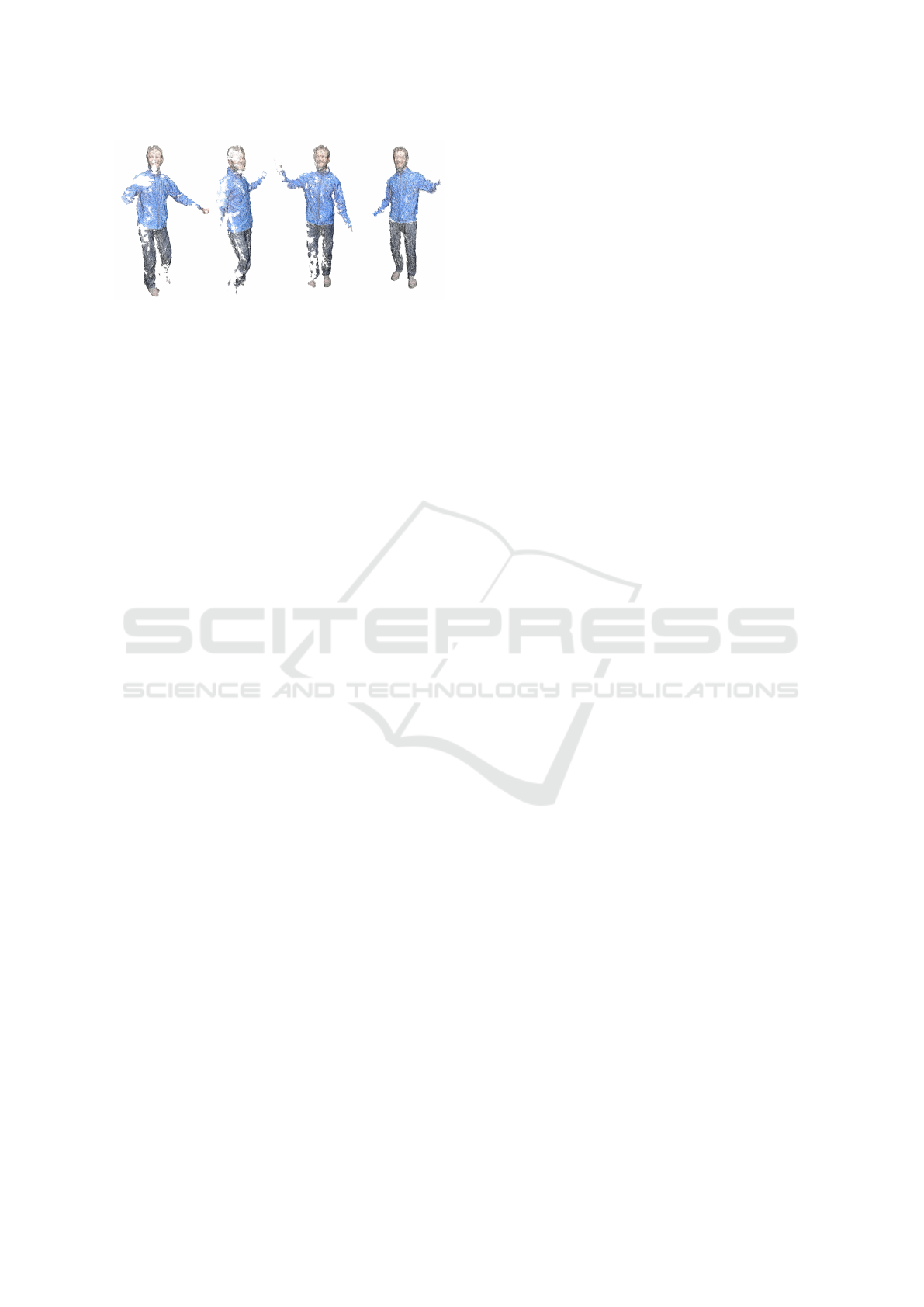

Figure 1: Four frames from a typical FVV sequence. These

unprocessed results show inconsistencies and noise due to

occlusions, fast-moving elements and sparse feature de-

tection. Some temporally-inconsistent structured noise pat-

ches can be observed also. Our system implements spatio-

temporal consistency which aims to remove the majority of

structured noise patches as well as recovering some lost ge-

ometry leading to a more temporally coherent result.

ves whereby point cloud densiﬁcation is achieved so-

lely by geometric upsampling.

2 RELATED WORK

Spatio-temporal consistency has been widely addres-

sed by modern FVV systems and dynamic recon-

struction algorithms. The addition of this consistency

ensures the reconstruction of smooth and realistic se-

quences with minimal temporal artifacts. However,

most techniques apply a registration-based temporal

constraint to the ﬁnal 3D meshes, and not in the early

processing stages (Huang et al., 2014; Klaudiny et al.,

2012). These techniques normally use some varia-

tion of non-rigid ICP (Li et al., 2009; Zollh

ofer et al.,

2014), such as the coherent drift point algorithm (My-

ronenko and Song, 2010). An example of this has

been demonstrated in the work by Collet et al. (Col-

let et al., 2015): they apply mesh tracking in the ﬁnal

processing stage, not only to provide a smoother FVV

sequence but also to improve data storage efﬁciency

as, between keyframes, only the vertex positions vary

while face indices and texture coordinates remain the

same. However, they do not apply temporal cohe-

rence in any other stage of the process, mainly be-

cause their system uses 106 cameras (both RGB and

IR) in a studio environment and the resulting dense

point clouds are very accurate on a frame-to-frame

basis. Another technique has been proposed by Mus-

tafa el al. (Mustafa et al., 2016), where they ensure

temporal coherence of the FVV sequence by using

sparse temporal dynamic feature tracking, as an ini-

tial stage, and also in the dense model, using a shape

constraint based on geodesic star convexity. However,

these temporal features are used to initialize a con-

straint which reﬁnes the alpha masks used in visual-

hull carving and are not directly applied to the input

point cloud. The accuracy of these methods are again,

highly inﬂuenced by the density of viewpoints and ba-

seline width. Furthermore, this constraint is applied

at a reﬁnement stage and so the initial point cloud is

still temporally unreﬁned before the poisson mesh has

been generated. Other techniques address temporal

coherence by trying to ﬁnd an understanding of the

scene ﬂow to recover not only motion, but also depth.

Examples of this are the works by Basha et al. (Basha

et al., 2013) and Wedel et al. (Wedel et al., 2011).

However, these techniques require a very precise and

dense motion estimation for almost every pixel in or-

der to acquire accurate depth maps and cameras conﬁ-

gured with a very narrow baseline. In our system, we

use the temporally consistent ﬂow proposed by Lang

et al. (Lang et al., 2012) which we apply to multi-view

sequences, allowing us to track dense point clouds

across the sequence even when we use cameras with

a wide baseline. While not speciﬁcally targeting FVV

systems, there is a well-established state of the art

for improving general 3D reconstruction accuracy via

point cloud upsampling or densiﬁcation (Huang et al.,

2013; Wu et al., 2015; Yu et al., 2018). However,

given that these systems are designed to perform ups-

ampling for a single input point cloud, they are unable

to leverage any of the temporal information within a

given sequence of point clouds. As a result, the use

of such techniques alone will still suffer from tem-

porally incoherent noise. Our system takes advan-

tage of the geometric accuracy of the state of the art

Edge-Aware Point Set Resampling technique propo-

sed by Huang et al. (Huang et al., 2013) and sup-

ports it using the temporal information obtained from

the inferred 3D scene ﬂow along with some spatio-

temporal noise ﬁltering. This is performed with the

rationale that increasing the density of coherent points

improves the accuracy of point cloud meshing proces-

ses such as Poisson Surface Reconstruction (Kazhdan

and Hoppe, 2013).

3 METHODOLOGY

3.1 Point Cloud Reconstruction &

Edge-Aware Upsampling

The input to our system is a temporally-incoherent

FVV point cloud sequence captured using an affor-

dable FVV pipeline similar to the system proposed

by (Pag

es et al., 2018). The target scene is captured

across a setup of multi-view videos spanning wide

baselines with known camera intrinsics. Extrinsics

Spatio-temporal Upsampling for Free Viewpoint Video Point Clouds

685

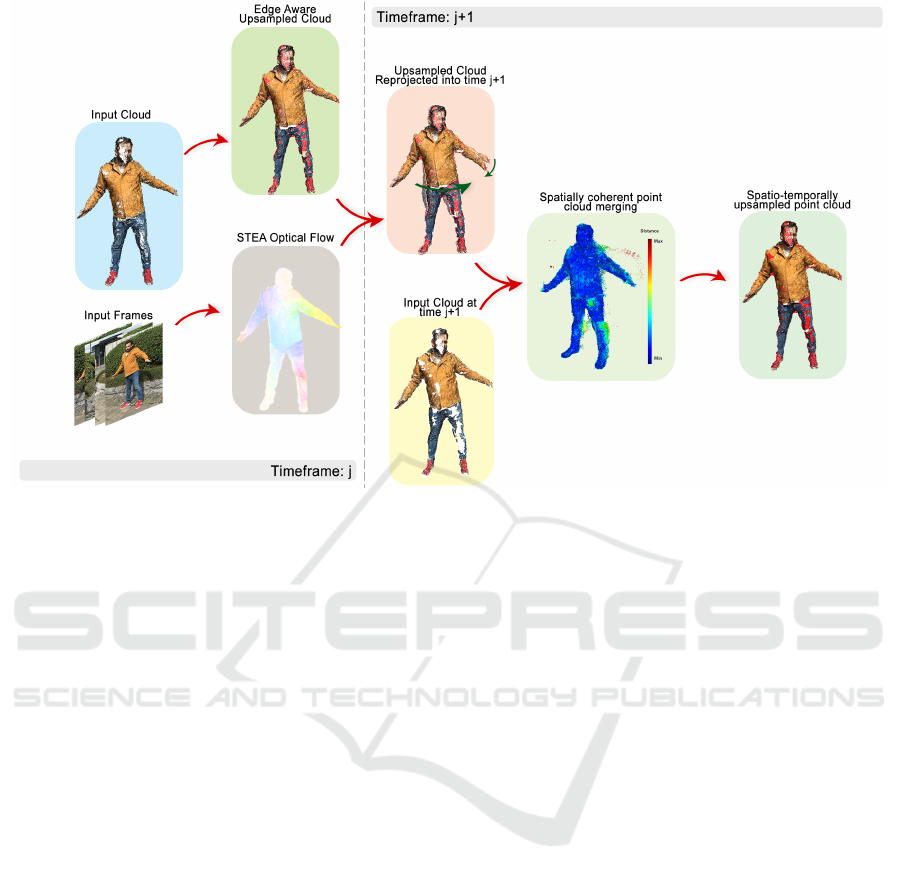

Figure 2: Temporally-Coherent upsampling and ﬁltering: system overview. The system input is the framewise-independent

point cloud sequence as well as the RGB images and calibration parameters used to generate it. The system upsamples the

input point cloud for a given timeframe j, then calculates the edge-aware scene ﬂow to project the upsampled cloud into

timeframe j + 1. The ﬁnal output is the result of a temporally-coherent merging and ﬁltering process which retains upsampled

geometric information from the previous frame as well as pertinent data from following frame.

are automatically calibrated using sparse feature ma-

tching and incremental Structure from Motion (Mou-

lon et al., 2012). When the cameras are handheld, ot-

her more advanced techniques such as CoSLAM (Zou

and Tan, 2013), can be used to estimate their position

and rotation. At every frame, a point cloud is initi-

ally calculated using structure from motion and den-

siﬁed using multi-view stereo. For instance, the ex-

amples shown in this paper use a denser sparse point

cloud estimation proposed by Berj

on et al. (Berj

et al., 2016), which is later densiﬁed even further

using the unstructured MVS technique proposed by

Sch

onberger et al. (Sch

onberger et al., 2016). For-

mally, we deﬁne S = {s

i=1

, ..., s

} as the set of all

m video sequences, where s

( j), j ∈ {1, ..., J} deno-

tes the jth frame of a video sequence s

∈ S, with J

frames. Then for every frame j, there will be an es-

timated point cloud P

. In a single iteration, P

taken as the input cloud which is upsampled using

Edge-Aware Resampling (EAR) (Huang et al., 2013).

This initializes the geometry recovery process with a

densiﬁed point cloud prior which will be temporally

projected into the next time frame j +1 and geometri-

cally ﬁltered to ensure both temporal and spatial cohe-

rence. Figure 2 presents an overview of the proposed

pipeline following the acquisition process in which

we present our temporally-coherent ﬁltering and ups-

ampling algorithm.

3.2 Spatio-Temporal Edge-Aware Scene

Flow

We use a pseudo scene ﬂow in order to project as

much pertinent geometry from the previous frame as

possible. In the context of the proposed system, scene

ﬂow is deﬁned as an extension of 2D optical ﬂow to

include depth information and provide a framework

for tracking point clouds in 3D. Dense scene ﬂow in-

formation is generated by computing the 2D optical

ﬂow for each input video, thus, for every sequence s

we compute its corresponding scene ﬂow f

. This ap-

proach of accumulating multiple 2D ﬂows ensures a

robustness to wide-baseline input in as each input is

calculated independently.

To retain edge-aware accuracy and reduce additive

noise we have chosen a dense optical ﬂow pipeline

that guarantees spatio-temporal accuracy:

• Initial dense optical ﬂow is calculated from the

RGB input frames using the Coarse to ﬁne Pa-

tch Match(CPM) approach described in (Hu et al.,

2016).

• The dense optical ﬂow is then reﬁned using a

spatio-temporal edge aware ﬁlter based on the

Domain Transfer (Lang et al., 2012).

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

686

Table 1: Effect of STEA ﬁlter initialization on geometry

recovered expressed as % increase in points. Tested on

a synthetic ground-truth sequence. Flow algorithms tes-

ted: Coarse-to-Fine Patch Match (CPM) (Hu et al., 2016),

Fast Edge-Preserving Patch Match (FEPPM) (Bao et al.,

2014), Pyramidial Lukas-Kanade (PyLK) (Bouguet, 2001)

and Gunnar-Farneb

ack (FB) (Farneb

ack, 2003).

STEA Initialization Area Increase (%)

CPM 37.73

FEPPM 34.9

PyLK 34.77

FB 29.7

The CPM optical ﬂow is used to initialize a spatio-

temporal edge aware (STEA) ﬁlter which regularizes

the ﬂow across a video sequence, further improving

edge-preservation and noise reduction.

While the STEA can be initialized with most

dense optical ﬂow techniques such as the popular

Gunnar-Farneb

ack algorithm (Farneb

ack, 2003), the

given initialization is less sensitive to temporal noise

and emphasizes edge-aware constraints at input, thus

producing more coherent results. We analysed other

approaches from the state-of-the-art and concluded

that they lack global regularization, edge-preservation

or are sensitive to large displacement motion. Table 1

demonstrates how initializing the ﬁlter with different

ﬂow algorithms affects the geometry recovered by the

proposed algorithm.

The STEA ﬁlter is implemented as in (Lang et al.,

2012) which features an extension to the Domain

Transform (Gastal and Oliveira, 2011) in the spatial

and temporal domains using optical ﬂow as a primary

application:

1. The ﬁlter is initialized as suggested in (Schaffner

et al., 2018), using coarse-to-ﬁne patch match (Hu

et al., 2016). The CPM algorithm estimates opti-

cal ﬂow as a quasi-dense nearest neighbour ﬁeld

(NNF) using a subsampled grid.

2. The edges of the RGB input are then calcula-

ted using the Structure Edge Detection Toolbox

(Doll

ar and Zitnick, 2013).

3. Using the calculated edges, the dense optical ﬂow

is then interpolated using Edge-Preserving In-

terpolation of Correspondences (Revaud et al.,

2015).

The interpolated dense optical ﬂow is then fed into the

STEA ﬁlter as an optical ﬂow video sequence where

it is ﬁltered in multiple passes through the spatial and

temporal domains to reduce temporal inconsistencies

and improve edge ﬁdelity. An example of the STEA

processing pipeline can be seen illustrated in Figure 3.

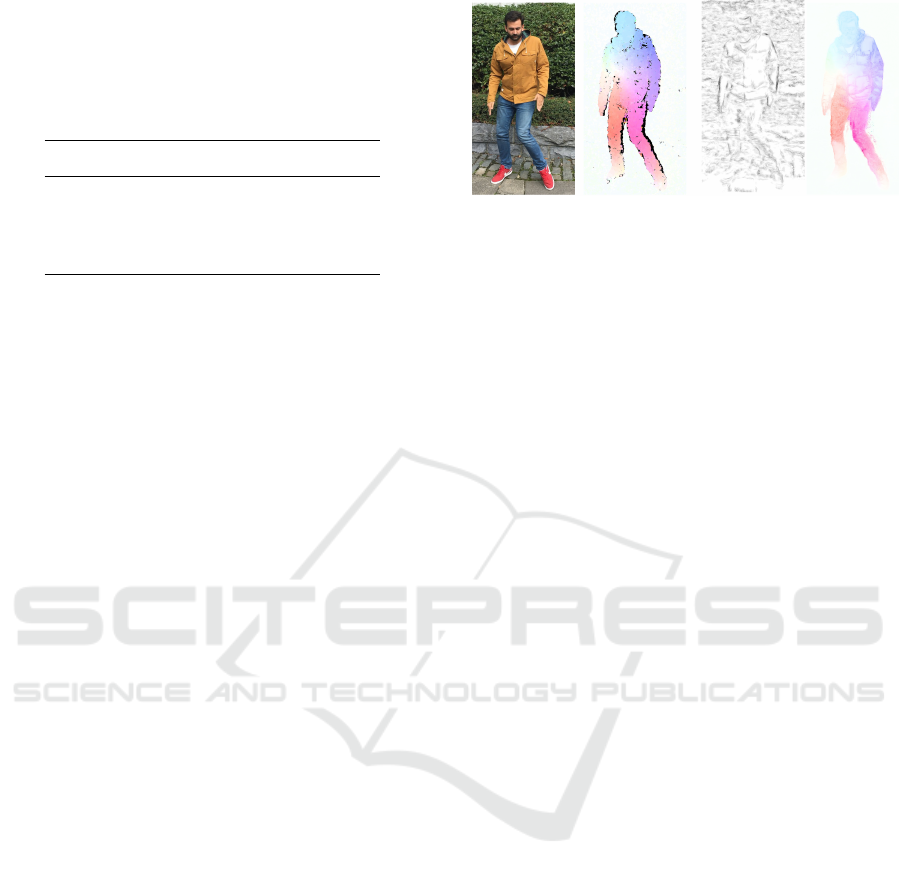

Figure 3: Pictured left to right, the STEA ﬂow processing

pipeline: input RGB image from a given viewpoint, (1)

CPM nearest neighbour ﬁeld estimate, (2) SED detected

edges, (3) interpolated dense STEA output. Conventional

colour coding has been used to illustrate the orientation and

intensity of the optical ﬂow vectors. Orientation is indicated

by means of hue while vector magnitude is proportional to

the saturation i.e. negligible motion is represented by white,

high-speed motion is shown in highly saturated color.

3.3 Point Cloud Motion Estimation

Knowing the camera parameters (C

, ...,C

, at the

jth frame), the set of scene ﬂows ( f

, ..., f

), and

the set of point clouds (P

, ..., P

), we can predict

how a certain point cloud moves across the sequence.

For this, we back-project every point P

∈ P

to each

ﬂow f

at that speciﬁc frame j . To avoid the back-

projection of occluded points, we check the sign of

the dot product between the camera pointing vector

and the normal of the point P

. Using the ﬂow, we can

predict the position of the back-projected 2D points

in sequential frames, p

Therefore, the predicted point cloud P

, at frame

j + 1, is the result of triangulating the set of predicted

2D points p

, using the camera parameters of frame

j + 1. This is done by solving a set of overdetermined

homogeneous systems in the form of HP

= 0, where

is the estimated 3D point and matrix H is deﬁned

by the Direct Linear Transformation algorithm (Hart-

ley and Zisserman, 2004). The resulting point un-

dergoes a Gauss-Markov weighted non-linear optimi-

sation which minimises the reprojection error (Luh-

mann et al., 2007).

3.4 Geometry-based Filtering &

Reconstruction

The last step of the proposed system involves per-

forming a coherent merging of the predicted point

cloud and the target frame. This coherent merge uses

a Hausdorff distance-based quality metric to allow

neighbouring geometry to persist and deform natu-

rally whilst also removing noise in an adaptive man-

ner. The Hausdorff distance threshold is computed

as the average resolution of the predicted and tar-

Spatio-temporal Upsampling for Free Viewpoint Video Point Clouds

687

Figure 4: A visual representation of the coherent merge

process. Pictured is the result of merging the predicted

point cloud (left) with the target cloud (middle) . All points

are color-coded with respect to the distance between their

nearest-neighbour match in the other cloud. Points labelled

hihger than the threshold for the given frame will be remo-

ved from the merged result.

get point clouds reduced by one order of magnitude.

This constrains the threshold to be set at some small

distance relative to the point cloud resolution which

ensures that only pertinent points remain. Formally,

is the Hausdorff distance threshold between the

ﬂow-predicted point cloud P

and the target sequen-

tial point cloud P

j+1

The coherent merged cloud P

∗

j+1

is given by the

logical deﬁnition in equation 1.

Given an ordered array of values D

such that

(k)

is the distance from point P

(k)

to its indexed

match in P

j+1

. We also deﬁne D

j+1

as an array of

distances in the direction of P

j+1

to P

. We then de-

ﬁne the merged cloud to be the union of two subsets

M ⊂ P

and T ⊂ P

j+1

such that,

M ⊂ P

∀ P

(k) : D

(k)

< d

, k ∈

{

1... j

}

T ⊂ P

j+1

∀ P

j+1

(k) : D

j+1

(k) < d

, k ∈

{

1... j

}

∗

j+1

= M ∪ T

(1)

By this deﬁnition, P

∗

j+1

contains only the points

in P

j+1

and P

whose distance to their nearest neig-

hbour in the other point cloud is less than the com-

puted threshold d

. The intention of this design is

effectively to remove any large outliers and incohe-

rent points while encouraging consistent and impro-

ved point density. Figure 4 shows an example of how

the coherent merge works.

3.5 Dynamic Object Point Validation

The result of the coherent merge, described in

Section 3.4, are the points upon which the input

cloud and the projected cloud agree. While this co-

dependence is well-suited to ﬁltering noise, it fails

to recover pertinent geometry that doesn’t happen to

reside within the distance threshold. In particular,

faster-moving objects tend to be trimmed as the over-

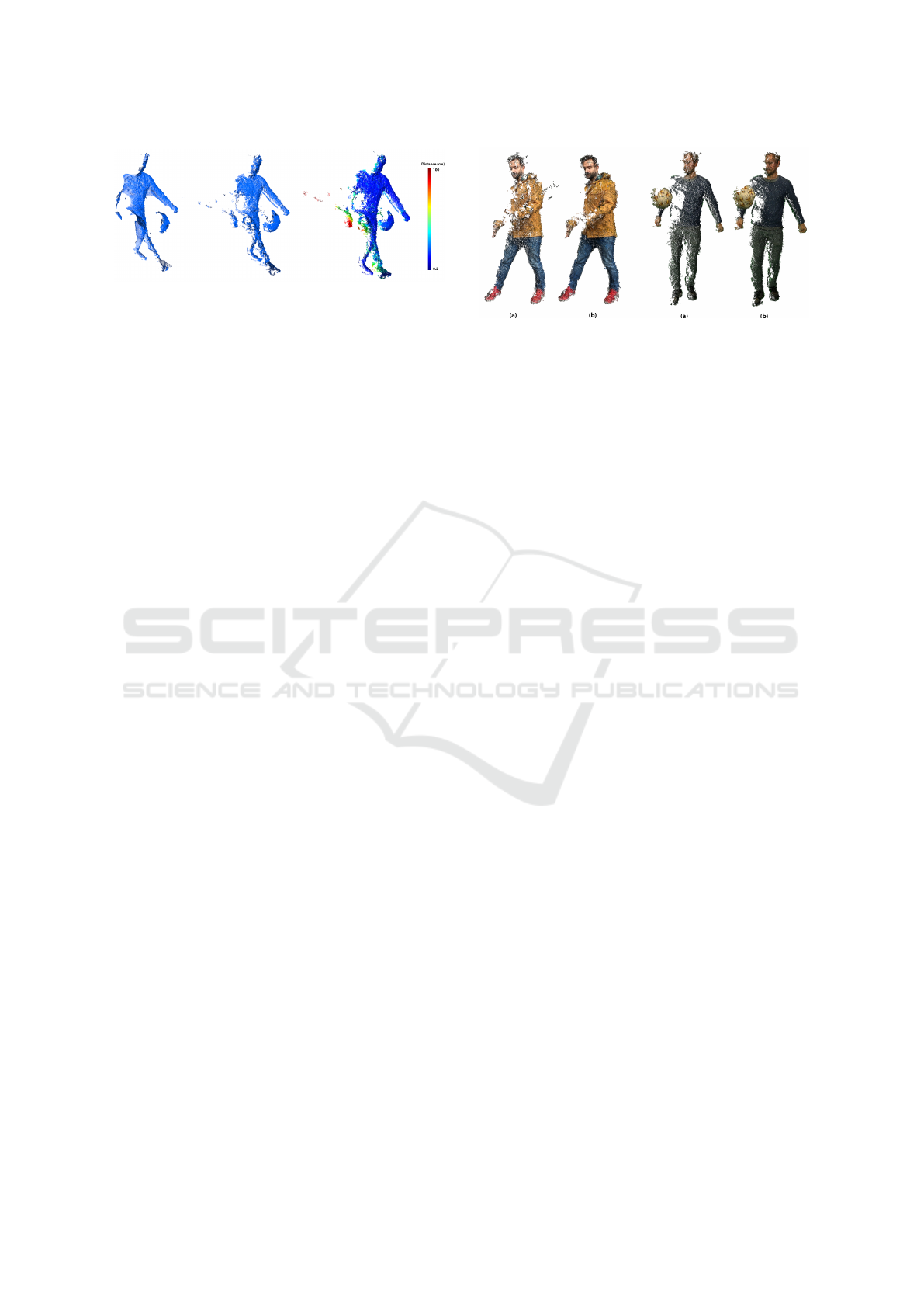

Figure 5: Filtered point clouds from two sequences, one

extracted from hand held cameras in outdoor setting (left)

and the other captured in a green screen studio (right). Both

show a comparison between the point cloud extracted from

framewise reconstruction (a), and the ﬁltered results (b).

lap between frames can be small. To further im-

prove the recovery of geometry we added a valida-

tion process which considers a conﬁdence value for

projected points in P

. Given that P

is a prediction

for frame j + 1, we validate each predicted point by

back-projecting P

into the respective scene ﬂow fra-

mes for time j + 1. The average magnitude of the

optical ﬂow vectors for each view of the given point

is then used as a conﬁdence value for that point. In

this way, points for which a high ﬂow magnitude ex-

ists in the sequential frame can be considered dynami-

cally tracked. A conﬁdence value proportional to the

average scene ﬂow magnitude is applied as a weight

to adaptively adjust the distance threshold d

for dyn-

amically tracked points. This allows for the retention

of pertinent, fast-moving geometry without hindering

the performance of the noise ﬁlter.

4 RESULTS

Figure 5 shows a direct comparison between two fra-

mes from two typical yet challenging FVV sequences.

The performance of the system was evaluated qualita-

tively on sequences captured outdoors using handheld

devices (i.e. phone and tablet device cameras) and on

sequences captured in a modest green screen studio

using 12 mounted (6 full HD and 6 4K) cameras. A

synthetic sequence was used to evaluate the results on

a quantitative basis. This sequence consists of a digi-

tally created character placed in a virtual environment

with simulated cameras.

4.1 Outdoor Handheld Camera

Sequences

Unique challenges arise from ﬁltering point clouds

extracted from unstable cameras with a non-uniform

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

688

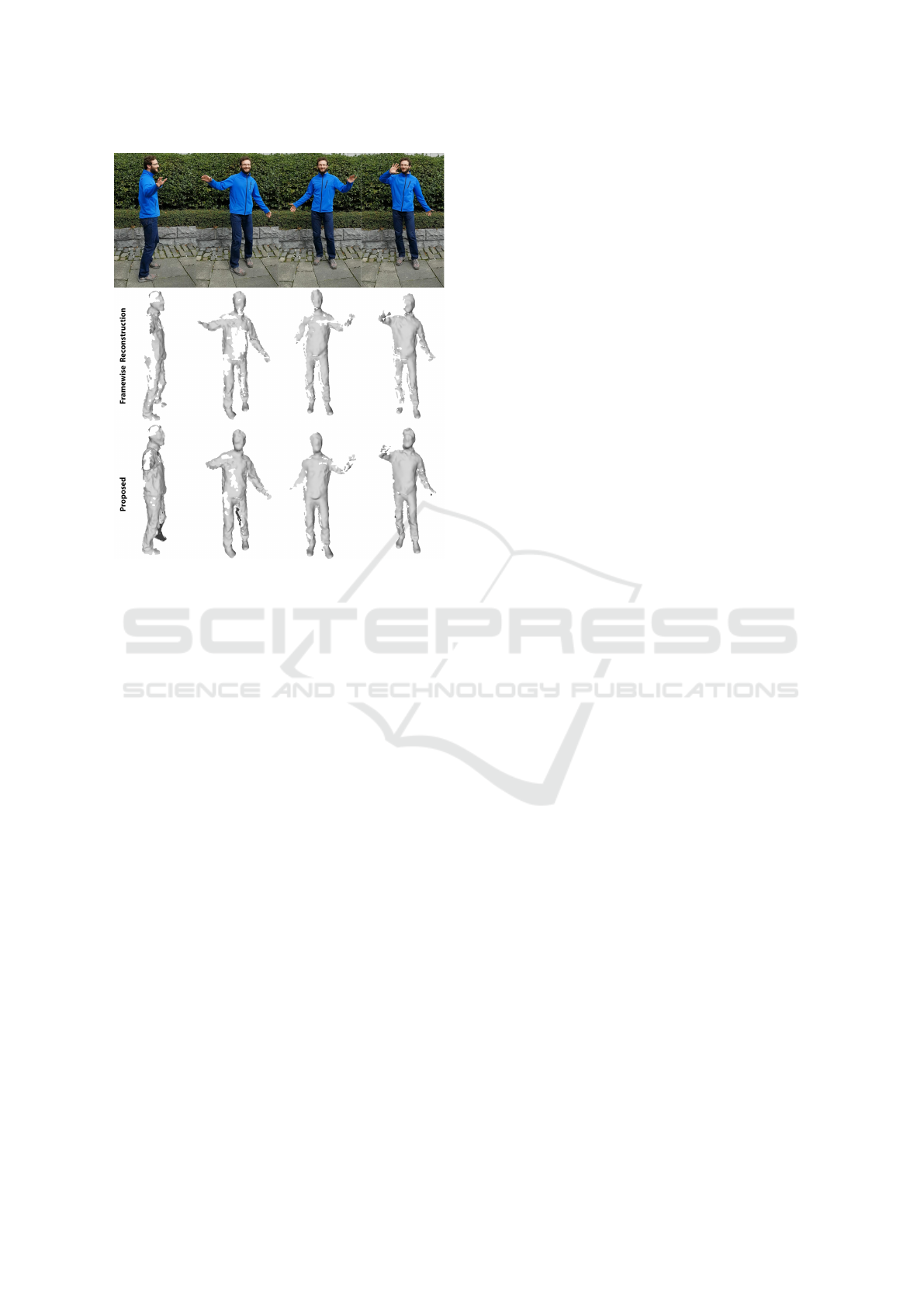

Figure 6: A selection of frames from a handheld outdoor

sequence. The RGB input from a single camera (top),

the result of poisson reconstruction on raw input (middle),

the result of poisson reconstruction on proposed method

(bottom).

and dynamic background. Errors in the camera ex-

trinsics, differences in colour balance, and irregular

lighting conditions result in reconstruction errors: in-

consistency in the frame-by-frame reconstruction and

a signiﬁcant amount of noise. An example of this is

shown in Figure 5 (left model): the ﬁgure shows the

difference between using framewise reconstruction

(a) and our method (b). As can be seen, large holes

in the subject have been ﬁlled and most of the un-

desirable noise has been ﬁltered. However, while the

Hausdorff quality metric is able to remove most of the

noise, the system is still sensitive to structured noise

patches, typical of MVS reconstruction inaccuracies.

Figure 6 shows four non-consecutive frames for

another outdoor sequence shot on the same location.

In the top row, the input images from one of the hand-

held cameras. The second and third rows demon-

strate the result of applying Screened Poisson Recon-

struction (PSR) (Kazhdan and Hoppe, 2013) to the

resulting point clouds. The meshes shown are the re-

sult of sampling the initial PSR-generated mesh with

the input point cloud to remove outlier vertices. As a

result, holes in the input point cloud become apparent

in the resulting mesh. This ﬁgure demonstrates the ef-

fect of coherent point cloud upsampling on reducing

the perforations in the mesh.

4.2 Indoor Studio Sequences

The use of stabilized, high resolution cameras in a

green screen studio brings many advantages to ﬁlte-

ring the reconstruction such as more accurate ﬂow in-

formation and far less temporal noise. In order to add

an extra degree of challenge to this sequence an ad-

ditional and fast-moving dynamic object has been ad-

ded to the scene by having the subject volley a soccer

ball. While this setup enables the estimation of com-

pelling dense point clouds, the relatively sparse ca-

mera array still suffers from occlusions, as demon-

strated when the ball crosses in front of the subject

(Figure 5, right model). Despite this, it can be seen

that similar to outdoor sequences, large portions of

the subject have been recovered while retaining the

fast-moving football.

4.3 Synthetic Data Sequences

In order to conduct a ground-truth analysis we have

performed an evaluation of our system using a synt-

hetic dataset. The dataset consists of a short 25 frame

sequence in which a digitally created human per-

forms some dynamic motion against an otherwise sta-

tic background. In this dataset, 12 camera views ar-

ranged in a 180

◦

arc, with known parameters, have

been synthesized to provide the input multi-view vi-

deo sequences. We compare the result of our system

with the results of framewise reconstructions by mes-

hing the output point clouds using PSR and calcula-

ting their Hausdorff distance with respect to the ori-

ginal model. Figure 9 illustrates the error heatmap of

the reconstructed mesh in the absence of point cloud

processing and following the proposed temporally-

coherent system. It can be seen that the proposed

coherent upsampling approach manages to recover

accurate geometry that would be otherwise missing

for the same frame.

As a baseline for comparison we have measured

the performance of our system against two framewise

reconstructions, SIFT+PMVS (Furukawa and Ponce,

2010) and RPS (Pag

es et al., 2018) as well as some

state of the art upsampling algorithms using the RPS

method as input; PU-Net (Yu et al., 2018) and the

Edge-Aware Resampling (Huang et al., 2013) met-

hod. The comparison with RPS+EAR also functions

as an ablation study as this is used as the initializer for

the proposed system.

The results of Table 2 show improvement on the

compared methods but may also be hindered by the

synthetic nature of the test data. This is, in part, due to

the lack of natural noise that one would expect for the

equivalent real-world application. In such a scenario

Spatio-temporal Upsampling for Free Viewpoint Video Point Clouds

689

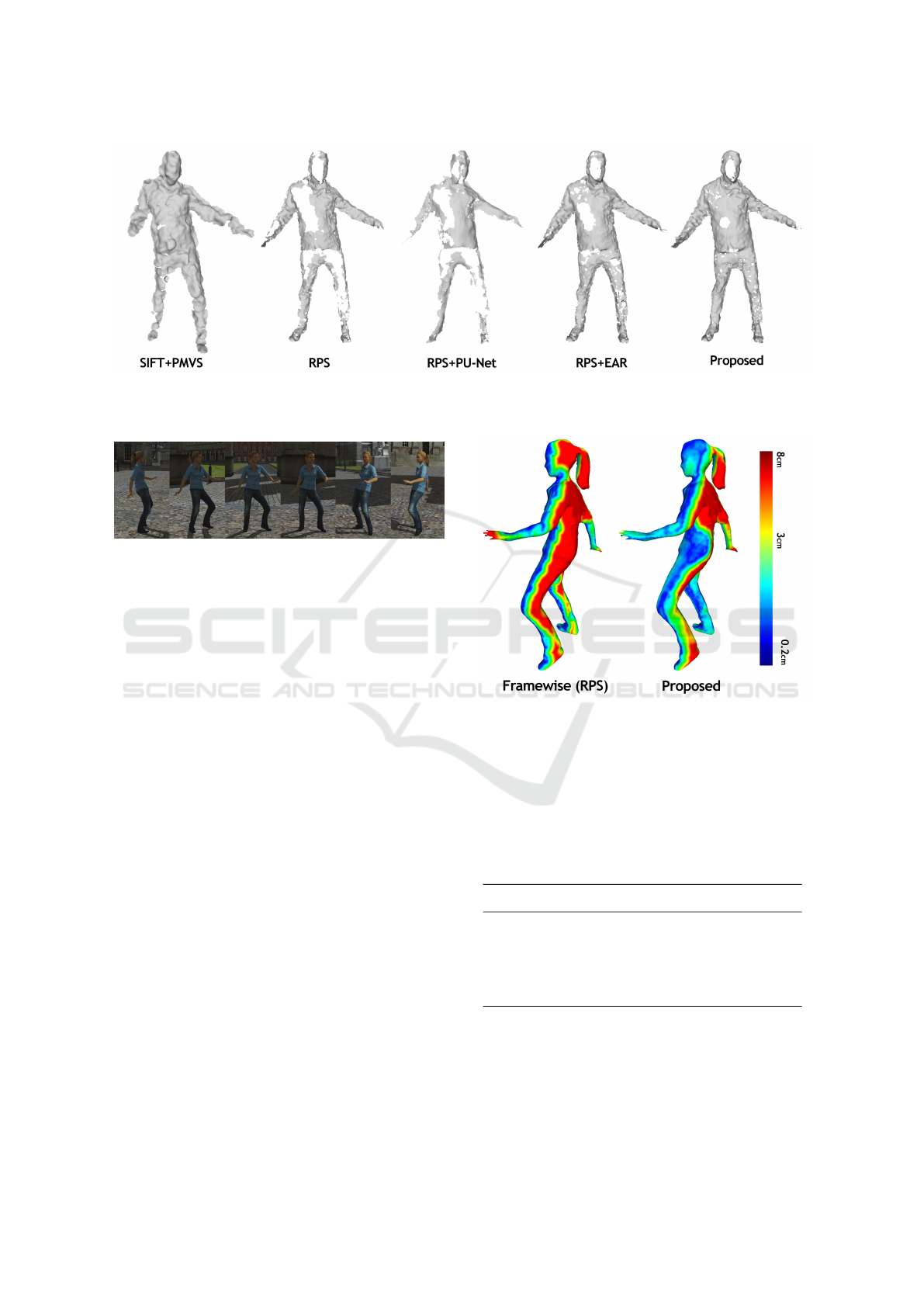

Figure 7: Results of applying PSR to resulting pointclouds. PSR is ﬁrst applied and then the input cloud is used to clean the

resulting mesh by removing faces which exceed a given distance to any input vertices. All inputs were processed using the

same octree depth and distance threshold for cleaning.

Figure 8: A selection of the images used to generate synthe-

tic data for a ground-truth analysis of the fvv reconstruction

system.

where more temporally-incoherent structured noise is

more prominent it would be expected that a further

margin of improvement could be achieved. We have

provided Figure 7 as a qualitative demonstration of

the margin of improvement achievable by the propo-

sed system when applied to noisy scenario. It should

also be noted that while the SIFT+PMVS method de-

monstrates a more complete mesh, it is largely conta-

minated with noisey data as evidenced by the results

of the quantitative study in Table 2.

4.4 Flow Initialization

The STEA ﬁlter described in section 3.2 is robust in

that it can be initialized using practically any dense

optical ﬂow algorithm, but in order to retain spatial

accuracy with regards to point projection it requires

an appropriate selection. Table 1 shows the effect of

initialization using the chosen CPM method in com-

parison to popular alternatives. CPM demonstrably

out-performs the chosen alternatives due to its edge-

preserving application. While FEPPM (Bao et al.,

2014) uses an edge-preserving patch match and NNF

approach, cpm improves upon typical NNF ﬁeld type

matching by adding global regularization.

Figure 9: Hausdorff distance with respect to the synthetic

model. On the left, using the result of a framewise recon-

struction. On the right, using our system. As the model is

synthetic, the units were scaled with respect to the bounding

box diagonal such that it’s length becomes 150cm.

Table 2: Hausdorff error (mean and root mean square

(RMS)) comparison between reconstruction results and

ground truth synthetic dataset. Figures presented are ex-

pressed as % with respect to bounding box diagonal of the

ground truth.

Method Mean Error(%) RMS Error(%)

SIFT+PMVS 6.18 8.09

RPS 2.17 3.27

RPS + PU-Net 2.44 3.50

RPS + EAR 2.40 3.64

Proposed 1.78 2.72

5 CONCLUSIONS

It remains a challenge for amateur and low-budget

productions to produce FVV content on a compara-

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

690

ble scale with that of more afﬂuent studios. Wide-

baseline FVV systems are likely to always be more

susceptible to inherent noise in the form of occlusi-

ons and photogrammetry errors. While this noise pre-

sents a difﬁcult obstacle we have shown that it is of-

ten temporally incoherent and so it can be corrected

by enforcing spatio-temporal constraints.

By leveraging the permanence of temporally co-

herent geometry, our system is able to effectively ﬁlter

noise while retaining pertinent geometric data which

has been lost on a frame to frame basis. By enforcing

this spatio-temporal consistency we demonstrate the

improvements that our system will have for modern

and future FVV systems alike.

We have shown that our system is suited to ﬁlte-

ring point clouds from both studio setups and hand-

held ”dynamic camera” outdoor scenes. Although the

effects are most appreciable for dynamic outdoor sce-

nes in which there tends to be much more noise, the

advantage of more accurate ﬂow information demon-

strates visible improvements for indoor, studio-based

sequences also. Some inherent limitations exist in the

amount of noise which can be ﬁltered whilst retaining

important geometry, as is typical of many signal-to-

noise ﬁltering systems. This is particularly evident in

the case of fast moving objects but our system allevia-

tes this problem by using a dense optical ﬂow method

with demonstrably good sensitivity to large displace-

ment as well as our proposed dynamic object tracking

constraint.

In comparison to temporally-naive geometric ups-

ampling approaches we can see that supplying spatio-

temporal information leads to more accurate results

and provides tighter framework for seeding geometric

upsampling processes. This is conﬁrmed by the re-

sults obtained from the synthetic dataset test whereby

the most accurate approach was achieved by spatio-

temporal ﬁltering of an edge-aware upsampled point

cloud.

ACKNOWLEDGMENTS

This publication has emanated from research con-

ducted with the ﬁnancial support of Science Founda-

tion Ireland (SFI) under the Grant No. 15/RP/2776.

REFERENCES

Bao, L., Yang, Q., and Jin, H. (2014). Fast edge-preserving

patchmatch for large displacement optical ﬂow. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 3534–3541.

Basha, T., Moses, Y., and Kiryati, N. (2013). Multi-view

scene ﬂow estimation: A view centered variational

approach. International journal of computer vision,

101(1):6–21.

Berj

on, D., Pag

es, R., and Mor

an, F. (2016). Fast fe-

ature matching for detailed point cloud generation.

In Image Processing Theory Tools and Applications

(IPTA), 2016 6th International Conference on, pages

1–6. IEEE.

Bouguet, J.-Y. (2001). Pyramidal implementation of the af-

ﬁne lucas-kanade feature tracker. Intel Corporation.

Collet, A., Chuang, M., Sweeney, P., Gillett, D., Evseev,

D., Calabrese, D., Hoppe, H., Kirk, A., and Sullivan,

S. (2015). High-quality streamable free-viewpoint vi-

deo. ACM Transactions on Graphics (ToG), 34(4):69.

Doll

ar, P. and Zitnick, C. L. (2013). Structured forests for

fast edge detection. In Computer Vision (ICCV), 2013

IEEE International Conference on, pages 1841–1848.

IEEE.

Farneb

ack, G. (2003). Two-frame motion estimation based

on polynomial expansion. In Scandinavian conference

on Image analysis, pages 363–370. Springer.

Furukawa, Y. and Ponce, J. (2010). Accurate, dense, and ro-

bust multiview stereopsis. IEEE transactions on pat-

tern analysis and machine intelligence, 32(8):1362–

1376.

Gastal, E. S. and Oliveira, M. M. (2011). Domain transform

for edge-aware image and video processing. In ACM

Transactions on Graphics (ToG), volume 30, page 69.

ACM.

Hartley, R. I. and Zisserman, A. (2004). Multiple View Ge-

ometry in Computer Vision. Cambridge University

Press.

Hu, Y., Song, R., and Li, Y. (2016). Efﬁcient coarse-to-

ﬁne patchmatch for large displacement optical ﬂow.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition, pages 5704–5712.

Huang, C.-H., Boyer, E., Navab, N., and Ilic, S. (2014).

Human shape and pose tracking using keyframes. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 3446–3453.

Huang, H., Wu, S., Gong, M., Cohen-Or, D., Ascher, U.,

and Zhang, H. (2013). Edge-aware point set resam-

pling. ACM Transactions on Graphics, 32:9:1–9:12.

Kazhdan, M. and Hoppe, H. (2013). Screened poisson sur-

face reconstruction. ACM Transactions on Graphics

(ToG), 32(3):29.

Klaudiny, M., Budd, C., and Hilton, A. (2012). Towards

optimal non-rigid surface tracking. In European Con-

ference on Computer Vision, pages 743–756.

Lang, M., Wang, O., Aydin, T. O., Smolic, A., and

Gross, M. H. (2012). Practical temporal consistency

for image-based graphics applications. ACM Trans.

Graph., 31(4):34–1.

Li, H., Adams, B., Guibas, L. J., and Pauly, M. (2009). Ro-

bust single-view geometry and motion reconstruction.

In ACM Transactions on Graphics (ToG), volume 28,

page 175. ACM.

Liu, Y., Dai, Q., and Xu, W. (2010). A point-cloud-

based multiview stereo algorithm for free-viewpoint

Spatio-temporal Upsampling for Free Viewpoint Video Point Clouds

691

video. IEEE transactions on visualization and com-

puter graphics, 16(3):407–418.

Luhmann, T., Robson, S., Kyle, S., and Harley, I. (2007).

Close range phoToGrammetry. Wiley.

Moulon, P., Monasse, P., and Marlet, R. (2012). Adaptive

structure from motion with a contrario model estima-

tion. In Asian Conference on Computer Vision, pages

257–270. Springer.

Mustafa, A., Kim, H., Guillemaut, J.-Y., and Hilton, A.

(2015). General dynamic scene reconstruction from

multiple view video. In Proceedings of the IEEE

International Conference on Computer Vision, pages

900–908.

Mustafa, A., Kim, H., Guillemaut, J. Y., and Hilton, A.

(2016). Temporally coherent 4d reconstruction of

complex dynamic scenes. In 2016 IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 4660–4669.

Myronenko, A. and Song, X. (2010). Point set registra-

tion: Coherent point drift. IEEE transactions on pat-

tern analysis and machine intelligence, 32(12):2262–

2275.

Pag

es, R., Amplianitis, K., Monaghan, D., Ondej, J., and

Smolic, A. (2018). Affordable content creation for

free-viewpoint video and vr/ar applications. Journal

of Visual Communication and Image Representation,

53:192 – 201.

Revaud, J., Weinzaepfel, P., Harchaoui, Z., and Schmid, C.

(2015). Epicﬂow: Edge-preserving interpolation of

correspondences for optical ﬂow. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 1164–1172.

Schaffner, M., Scheidegger, F., Cavigelli, L., Kaeslin, H.,

Benini, L., and Smolic, A. (2018). Towards edge-

aware spatio-temporal ﬁltering in real-time. IEEE

Transactions on Image Processing, 27(1):265–280.

Sch

onberger, J. L., Zheng, E., Frahm, J.-M., and Pollefeys,

M. (2016). Pixelwise view selection for unstructured

multi-view stereo. In European Conference on Com-

puter Vision, pages 501–518. Springer.

Wedel, A., Brox, T., Vaudrey, T., Rabe, C., Franke, U., and

Cremers, D. (2011). Stereoscopic scene ﬂow com-

putation for 3d motion understanding. International

Journal of Computer Vision, 95(1):29–51.

Wu, S., Huang, H., Gong, M., Zwicker, M., and Cohen-Or,

D. (2015). Deep points consolidation. ACM Tran-

sactions on Graphics (ToG), 34(6):176.

Yu, L., Li, X., Fu, C.-W., Cohen-Or, D., and Heng, P.-A.

(2018). Pu-net: Point cloud upsampling network. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 2790–2799.

Zollh

ofer, M., Nießner, M., Izadi, S., Rehmann, C., Zach,

C., Fisher, M., Wu, C., Fitzgibbon, A., Loop, C., The-

obalt, C., et al. (2014). Real-time non-rigid recon-

struction using an RGB-D camera. ACM Transactions

on Graphics (ToG), 33(4):156.

Zou, D. and Tan, P. (2013). CoSLAM: Collaborative vi-

sual SLAM in dynamic environments. IEEE tran-

sactions on pattern analysis and machine intelligence,

35(2):354–366.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

692
