An Extensible Deep Architecture for Action Recognition Problem

Isaac Sanou, Donatello Conte, and Hubert Cardot

LiFAT, EA 6300, Universit

e de Tours,

64 Avenue Jean Portalis, 37200, Tours, France

Keywords:

Human Action Recognition, Deep Learning, 3D Convolution, Model Extensible.

Abstract:

Human action Recognition has been extensively addressed by deep learning. However, the problem is still

open and many deep learning architectures show some limits, such as extracting redundant spatio-temporal

informations, using hand-crafted features, and instability of proposed networks on different datasets. In this

paper, we present a general method of deep learning for the human action recognition. This model ﬁts on any

type of database and we apply it on CAD-120 which is a complex dataset. Our model thus clearly improves

in two aspects. The ﬁrst aspect is on the redundant informations and the second one is the generality and

the multi-functionality application of our deep architecture. Our model uses only raw data for human action

recognition and the approach achieves state-of-the-art action classiﬁcation performance.

1 INTRODUCTION

The recognition of human actions has been a subject

of research since the early 1980s, because of its pro-

mise in many ﬁelds of application (Wang and Schmid,

2013), (Gan et al., 2015). We deﬁne gestures like the

basic components that describe the meaning of mo-

vements. “Raising an arm” and “shaking the sup-

ports” are movements in this category. So actions are

one-person activities that can be composed of several

gestures organized over time. “Walking”, “shaking”

and “drinking” are examples of simple actions. Then

activities are complex sequences of actions performed

by many people or objects. “Playing basketball” is an

example of activity consisting of actions such as run-

ning, shooting, dribbling and objects. Compared with

object recognition in images, human action recogni-

tion is much more difﬁcult because action contains

spatio-temporal informations.

To recognize actions, there are some methods cal-

led traditional methods (Laptev, 2005) that consist in

three parts: feature extraction, feature coding to ge-

nerate video-level feature descriptor and the descrip-

tor classiﬁcation. The main features for action recog-

nition using hand-crafted features are histogram of

oriented gradients (HOG), histograms of optical ﬂow

(HOF), motion boundary histogram (MBH). Hand-

crafted features have achieved great success in the

task of action recognition. However, over the last

few years, deep convolutional neural networks (CNN)

has become the most popular method and achieved

the state-of-the-art performance on several datasets.

The CNNs offer us the possibility to extract the fea-

tures instead of the classical method commonly used

in computer vision problems. Impressive results have

been obtained using convolution networks which is

an extension of 2D CNN (LeCun et al., 1998) for the

recognition of human action in video. Precisely 3-

dimensional convolutional neural networks are used.

The usage of 3D convolutions allows to capture spa-

tial information in time from the video data stream by

taking consecutive video frames into account. There

is a lot of work for human action recognition using

3D CNNs as two-stream convolutional networks (Si-

monyan and Zisserman, 2014), stacked convolutional

independent subspace analysis (Le et al., 2011), stra-

tiﬁed pooling based deep convolutional neural net-

works (Yu et al., 2017), trajectory-pooled deep convo-

lutional descriptors (Wang et al., 2015), etc. In con-

trast to image classiﬁcation, there are more aspects to

be consider when using video data. Firstly, the video-

based CNN weights must be trained on video data-

set from scratch while to image-based CNN can proﬁt

from transfer learning. Secondly the semantic under-

standing becomes more complex for example when

the camera moves or when the background changes

in time. Thirdly, the network takes more time to train

depending on the architecture. The work in (Wang

et al., 2014) shows good results on the CAD-120 da-

taset but the model is not extensible on another da-

taset where they get relatively low score. Still in the

work (Zolfaghari et al., 2017), the authors use many

Sanou, I., Conte, D. and Cardot, H.

An Extensible Deep Architecture for Action Recognition Problem.

DOI: 10.5220/0007253301910199

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 191-199

ISBN: 978-989-758-354-4

191

inputs for their models but these inputs are someti-

mes using hand-crafted features. Theses methods can

have temporal informations but have an impact on the

overall performance. In practice, due to the difﬁculty

in data collection and annotation, publicly available

action recognition datasets (e.g. UCF101 (Soomro

et al., 2012), HMDB51 (Kuehne et al., 2011)) remain

limited, in both size and diversity.

To tackle the above problems, we study:

• How to design an effective and efﬁcient video-

level framework for learning video representation

that is able to capture long-range temporal struc-

ture without using, in addition, hand-crafted fea-

tures;

• How to learn a model given limited training data;

• How to generalize a model to any databases.

Our proposition consists in a new deep architec-

ture for human actions recognition by video analy-

sis, precisely with RGB images. To achieve this task,

it is important to have both spatial and temporal in-

formations. We linearly segment our video to avoid

having a lot of redundant information. Our model

uses 3D convolutions layers and max pooling to per-

form operations through a stack of images, movement

can be captured in the resulting entities. In summary,

we build our method on top of the successful Tem-

poral Segment Networks (Wang et al., 2016) and Re-

conﬁgurable Convolutional Neural Networks (Wang

et al., 2014) while tackling the problems mentioned

above. Our method proposed a new deep architec-

ture for human action recognition which transforms

frame-level features to video-level feature descriptor.

Firstly, we extract short snippets over a long video se-

quence by linearly segmenting each video called cli-

que. Secondly, a clique is a part of our ﬁnal archi-

tecture and contains 3D CNN which includes some

fully-connected layers to extract features. Thirdly, fe-

atures from each clique are concatenate to form a ﬁ-

nal video-level feature descriptor. Finally, we use full

connection layers for action classiﬁcation.

The main contributions in this study are summari-

zed as follows:

(i) The uniform temporal sampling method preser-

ves enough video information for action recog-

nition. Furthermore, the network does not need

hand-crafted features dataset during the training

process just raw data for each clique. Then we

obtain signiﬁcant improvement on CAD-120 da-

tabase, which only contains 120 video clips.

(ii) The proposed method allows an arbitrary number

of cliques so any number of features to be aggre-

gated into video-level feature descriptor.

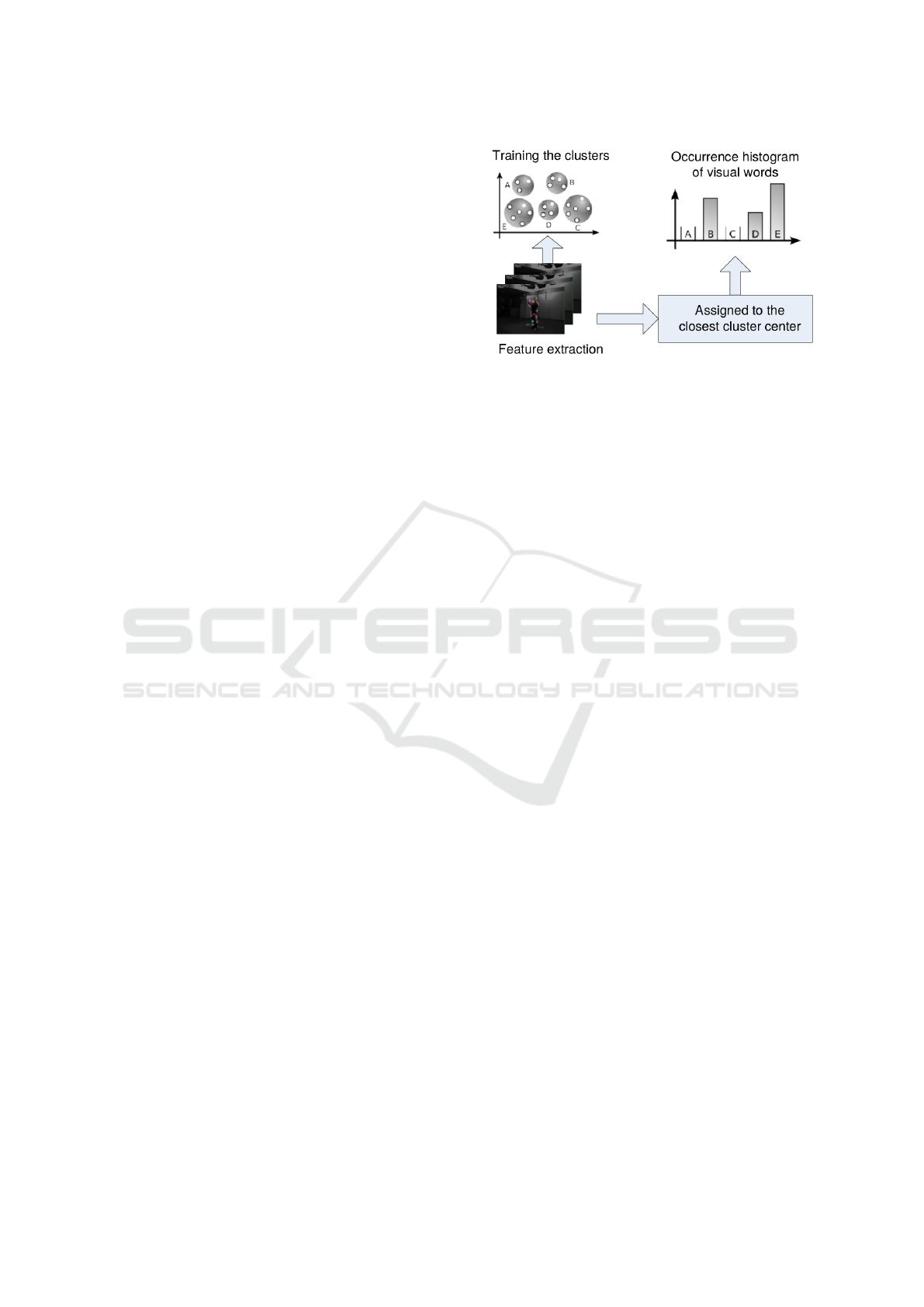

Figure 1: Pipeline for Human action recognition using tra-

ditional methods.

(iii) Our approach can be adapt to a large dataset and

can be generalized to apply on multi-channel vi-

deo frames.

The rest of the paper is structured as follows:

Section 2 introduce the state-of-the-art methods for

Human Action Recognition. Section 3 describes our

method for action recognition. In Section 4, we de-

monstrate the efﬁciency and practicality of the propo-

sed method on a public dataset which achieve state-

of-the-art action classiﬁcation performance. Finally,

Section 5 concludes the paper.

2 RELATED WORKS

A batch of works on human action recognition mainly

focus on developing robust and descriptive features

(Scovanner et al., 2007; Xia and Aggarwal, 2013;

Ni et al., 2013). Typical examples of local feature

descriptors include histograms of oriented 3D spatio-

temporal gradients (HOG3D) (Laptev et al., 2008),

speeded up robust features (SURF) (Klaser et al.,

2008), dense trajectory (IDT) (Wang et al., 2013)

and motion boundary histogram (MBH) (Bay et al.,

2006). In order to transform local descriptors into vi-

deo feature descriptor most commonly used algorithm

is bag of word (see Figure 1 (Fei-Fei and Perona,

2005)). The hand-crafted features based action recog-

nition achieve good performance, but these features

are not optimized for visual representation and lack

discriminative capacity when encounter background

clutter, large intra-class variations videos for action

recognition and redundant informations.

More recently, impressive results have been obtai-

ned using convolution networks. Speciﬁcally, CNN

3D (Rahmani et al., 2018; Zhou et al., 2014) was used

to extract spatio-temporal features from raw sequence

data for action recognition. Through their hierarchi-

cal representation of entities, deep networks learn to

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

192

capture localized features as well as temporal infor-

mation for 3D CNN as well as context index and

can exploit high-level information from large-scale

video datasets. Other work also focused on hand-

crafted features and combine with 3D CNNs (Hou

et al., 2018) to expect for increasing classiﬁcation

accuracy. With these impressive results of deep lear-

ning, our work is naturally in this direction. Recent

research showed that most of these approaches are

not only computationally expensive, but they also fail

on capturing context, high-level information, spatial,

temporal, and interactions information. (Wang et al.,

2014) shows that learning a model with a sequence

of frames, can bring more temporal informations and

can reduce over-ﬁtting during training phase. In the

work (Wang et al., 2016), the temporal segmentation

of each video without overlapping reduces redundant

information and results in solid feature for inference.

(Simonyan and Zisserman, 2014) proposed a model

with different inputs such as RGB, optical ﬂow but

this can be complicated when running the algorithm

and takes a lot of time too. These methods, however,

remain unable to take into account a learning pattern

to model the temporal structure. Our proposed linear

segmentation, while underlining this principle, con-

stitutes the ﬁrst framework of the temporal structure

without external information (such optical ﬂow or si-

milar) that could be harmful during the training phase.

The performance of recognition depends on the fact

that the model pays attention to the region concer-

ned, but discriminative localization is a problem for

video. Also there is a lot of problems on the recogni-

tion of an inter-action object/human and background,

the position of the camera, etc. So our deep structu-

red model can be viewed as an extension and impro-

vement of these existing architectures composed of

many cliques that represent a part of our architecture

and a part of sampling informations. Also we replace

hand-crafted features to gray-scales images for inputs

of each clique.

3 THE PROPOSED

ARCHITECTURE

We will introduce the structure of our deep model and

explain how it can handle large intra-class variance.

3.1 3D CNNs Spatio-temporal

Motivated by (Wang et al., 2014), the deep learning

model that we present is like a spatio-temporal con-

volutional neural network, shown in Figure 2. We de-

ﬁne a clique as a subpart of the network stacked up

Figure 2: Extraction of multiple features from frames. Mul-

tiple 3D convolutions can be applied to contiguous frames

to extract multiple features.

Figure 3: Illustration of a clique of our neural network. A

clique is a part of our architecture and each clique has, as

input, a short snippets from videos.

for several layers. Each clique extracts features from

one decomposed video segment and an illustration is

highlighted in Figure 3. Particularly, for each clique,

three 3D convolutional layers are ﬁrst built upon the

raw input (i.e. gray-scale data), which is made up of at

most one video image. Note that a max-pooling ope-

rator is applied on each 3D convolutional layer ma-

king our model robust to local different changes and

noises. By the way, the convolution results generated

by different cliques are concatenated into a long vec-

tor of features, on which we build three full connected

layers to associate with the activity label. In the fol-

lowing, we introduce the detailed deﬁnitions for these

components of our model.

1. 3D Convolutional Layer

In 2D CNNs, convolutions are applied on the

2D feature maps to compute features from

the spatial dimensions only. When applied to

video analysis problems, it is better to capture

the motion information encoded in multiple

contiguous frame (Ji et al., 2013). We know

that w, h represent the width and height of each

frame and w

, h

, m

respectively represents the

width, height and temporal length of the 3D

CNN. We can obtain a feature map via per-

forming 3D convolutions across the s-th to the

(s + m

− 1)-th frames. The response for the

position (x,y) in the feature map can be repre-

An Extensible Deep Architecture for Action Recognition Problem

193

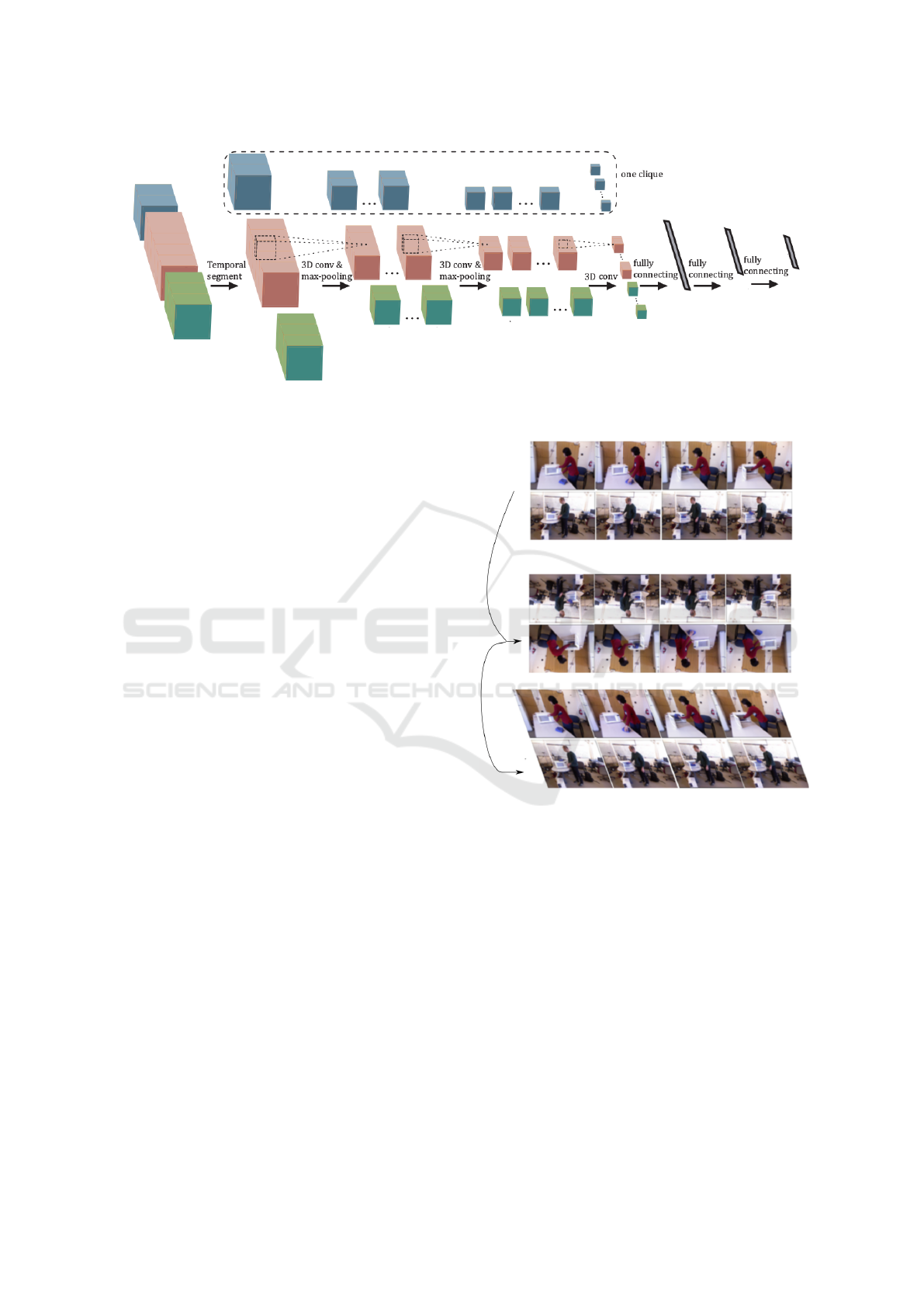

Figure 4: Example of our general deep architecture modiﬁed from (Wang et al., 2014)). Here we have three cliques (blue,

red, green). These cliques extract information and are concatenated during the ﬁnal classiﬁcation stage.

sented as

xys

tanh(b +

−1

∑

i=0

−1

∑

j=0

−1

∑

k=0

i jk

∗ P(x + i)(y + j)(s +k))

(1)

where p(x + i)(y + j)(s + k) is the input pixel va-

lue at position (x+i, y + j) in the (s+k)-th frame,

i jk

is the parameter for the convolutional kernel,

and b is the bias for the feature map. It results

in (m − m

+ 1) feature maps after the ﬁrst 3D

CNN and for each set of feature maps, we succes-

sively further perform 3D convolutions and gene-

rate another set of feature maps on a deeper layer

2. Max-pooling Operator

A max-pooling is applied after each 3D convolu-

tion result in order to obtain deformation and shift

invariance (Yu et al., 2011). Given a set of fea-

ture maps, the max-pooling operator reduces its

dimensionality and allows for assumptions to be

made about features contained in the sub-regions.

3. Full Connection Layer

The different sets of feature maps from the M mo-

del cliques, are concatenated into a long feature

vector and then we apply three fully connected

layers. Note that the number of the output neu-

rons is K, which is the same as the number of ca-

tegories of activities. Each neuron represents the

probability of an activity hypothesis and to nor-

malize the probabilities of output labels, we apply

the softmax function on them.

3.2 Our Approach

We linearly segment each video (Wang et al., 2016)

to avoid repeated information so as to improve clas-

siﬁcation during the learning phase. The number of

Figure 5: Illustration of the different transformations for

data augmentation.

cliques is chosen according to the dataset which is im-

portant for the recognition of human action to main-

tain data consistently. The choice of number can also

be used to increase the size of data, in place of using

overlapping windows. We will demonstrate an exam-

ple of cliques in section 4 on the CAD-120 dataset.

The last fully connected layer is important because

it is also chosen according to the extracted charac-

teristics. More we want to have relevant informa-

tion, more the number of cliques is needed, and more

the fully connected layer is raised. Our work shows

that with a small dataset it is empirically sufﬁcient to

choose a number of clique between 2 to 4. For a large

dataset the number of cliques can be increase to 8.

Once the different cliques have extracted the spatio-

temporal information (Zolfaghari et al., 2017), we

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

194

need to concatenate these features then applied two

fully connected layers and the last one corresponds to

the layer related to the number of labels (actions). In

the Figure 4 we show an example of our architecture.

3.3 Inference

The inference task is to recognize the category of the

activity given a video X across all the labels y (1 ≤ y ≤

K, K the number of classes). To do this, we divide the

video in N images sequences called clique. For each

clique C

∈ {C

, C

, . . . , C

} the classiﬁer gives a label

and an acceptance probability F

, ω) where ω

are the learned parameters of our deep architecture.

The ﬁnal action label of the video is the label of the

clique with the highest acceptance probability (Eq. 2).

ˆy = argmax

, ω) (2)

4 EXPERIMENTAL RESULTS

Following (Wang et al., 2014), we have conducted

three types of experiments using the CAD-120 acti-

vity dataset (Koppula et al., 2013). The CAD-120 da-

taset contains 120 RGB-D activity sequences of ten

categories. Some samples can be saw in Figure 6.

This dataset is frequently used in 3D human activity

recognition. These activities were done by four dif-

ferent subjects, and each activity was repeated three

times by the same actor. The insufﬁciency of RGB-D

data in human activities and the large variance in ob-

ject appearance, human pose, and viewpoint are com-

mon challenges in human action recognition. Most

papers on the human actions recognition using CAD-

120 work with depth images (Sung et al., 2012a;

Wang et al., 2014), but in our case we will just use

the RGB images to face with this challenge.

4.1 Architecture Implementation

Details

For the sake of reproducibility, we give here all the

details of our deep architecture.

We will not use the depth images so we do not

use the pose estimation for the recognition of human

action. Increasing the data is a solution we used to

ﬁll the information gap that the dataset offers us and

to remedy the non-use of the depth images. We do a

data augmentation with well-known image processing

techniques like rotation, translation etc. (Figure 5).

In the ﬁrst experiment, the number of decompo-

sed video segments (i.e. actions) is M = 4, and the

length of the maximum number of input frames of

each segment is m = 9. We scale the size of the in-

put frame to w = 80 and h = 60 in our experiments

and for each clique the number of the ﬁrst 3D convo-

lutional kernels is 7 with a kernel size of 9 × 7 × 3,

where each number represents the width, height and

temporal length. In the second layer, the number of

3D kernels is 5, with the size 7 × 7 × 3. We apply

3 × 3 × 3 max-pooling operator over the 3D convo-

lutions. Then in the last 3D convolutional layer, the

number of kernels is 4 kernels with size of 1 × 6 × 4.

Hence we can obtain 700 features maps as the out-

put for each network clique, and we merge the feature

maps together into a vector of 700×4 = 2800 dimen-

sions. Each unit in this vector is linked ﬁrstly to a

fully-connected layer of 128 neurons, then to a fully-

connected 64 layer. The last layer is connected to the

output layer whose size is the number of the activity

labels. We can see our full deep Architecture used for

this work on CAD-120 in Figure 7. We have four en-

tries in our network because the length of our video is

quite short. If we continue on this logic we choose a

temporal length a little above the limit necessary for

a recognition of human action by deep learning. This

choice m = 9 (Simonyan and Zisserman, 2014) is due

to our dataset which contains different objects in the

same label. We have a kernel 1 × 6 × 4 in the last

layer of 3D CNN and it behaves like a 2D CNN be-

cause we need at this level more spatial information

than temporal ones.

4.2 Fine-tuning the CNN on the Target

Dataset

The architecture is based on the AlexNet deep mo-

del (Wang et al., 2014; Krizhevsky A, 2012). Ge-

nerally, a CNN conﬁguration contains many parame-

ters. If the model is trained from scratch on video

dataset, it is easy to have an over-ﬁtting phenomenon

and it needs several weeks to train depending on the

architecture (Yu et al., 2017). We introduce a pre-

training scheme to optimize our model. It means that

we train our model in a ﬁrst step with the augmented

data, and we save the weights. We call these weig-

hts the latent variables (Niebles et al., 2010). Then,

we load the latent variables to initialize our deep ar-

chitecture by changing the objective function and the

hyper-parameters and train with the small set of data.

4.3 Inference

For inference, we train our network with the video of

three people and the video of the last person is used

as a test phase. It is important to note that the net-

work never sees the test data and is able to predict

An Extensible Deep Architecture for Action Recognition Problem

195

Figure 6: Example of samples extracted from (Wang et al., 2014). Several samples frames and depth maps are presented from

the same class.

the class. This strategy is called leave-one-person-out

cross-validation and it is commonly used for human

action recognition (Gao et al., 2010).

4.4 Results

Regarding experimentation, in a ﬁrst test we trained

our network and in a second test we make a ﬁne tu-

ning and transfer learning on our network. We apply

these methods because the weights and the bias are

initialized randomly and we apply these techniques

for a rather fast convergence. We studied the evolu-

tion of our network by learning ﬁrstly on three labels

and then four labels. We can notice how our model

scores well on three labels and even on four labels,

we can see it in Table 1, Table 2, and Table 3. Even if

mixing the order of the labels we always obtain excel-

lent results. If we train the network on all the labels of

our database we notice in the Table 4 that the overall

precision decreases but remains always better than the

best state-of-the-art methods. In the Table 4 we also

see that we have a higher result by using the methods

of ﬁne tuning and transfer learning.

Table 1: Accuracy from label 0 to label 2.

Action Our method Our method +

Fine-tuning

arranging-objects 88.3% 95.8%

cleaning-objects 86.6% 96.3%

having-meal 85.2% 93.4%

Overall Accuracy 86.7% 95.1%

Table 2: Accuracy from label 3 to label 5.

Action Our method Our method +

Fine-tuning

making-cereal 91.8% 97.3%

microwaving-food 84.1% 96.5%

picking-objects 89.0% 90.1%

Overall Accuracy 88.3% 94.6%

Table 3: Accuracy from label 6 to label 9.

Action Our method Our method +

Fine-tuning

stacking-objects 90.9% 96.0%

taking-food 92.0% 92.3%

taking-medicine 97.2% 97.9%

unstacking-objects 87.7% 95.1%

Overall Accuracy 92.0% 93.8%

Table 4: Accuracy of our deep architecture on CAD-120

with all activities.

Method Accuracy

Our method 86.4%

Transfer learning 88.9%

Our method + Fine-tuning 93.6%

4.5 Comparison with State of Art

On this dataset, we adopt four state-of-the-art met-

hods for comparison (Sung et al., 2012b; Koppula

et al., 2013; Xia and Aggarwal, 2013; Ji et al., 2013).

As show in Table 5 our approach obtains the average

accuracy of 86.4%, distinctly superior than results ge-

nerated by the competing methods. With ﬁne tuning,

our method is even higher. In Table 5, we report also

the detailed accuracies for each class, compared with

the method based on hand-crafted feature engineer-

ing (Xia and Aggarwal, 2013), and the deep archi-

tecture of convolutional neural networks (Wang et al.,

2014): in almost all cases we obtain the best results

even without ﬁne tuning.

Table 6 summarize the average accuracy on CAD

120 dataset against the considered best four exis-

ting methods. It is important to highlight that these

methods use also information taken from depth ima-

ges. It appears that our model outperforms previous

works although we do not use depth images. This

is a great advantage because in practical applications,

depth images are almost never available. Remark that

for all methods we train the models using the same

data annotation and we use the same evaluation pro-

tocol. The main contribution of our model is the fact

it works directly on the raw data, i.e on the RGB ima-

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

196

Figure 7: Our deep architecture used to train CAD-120. We have four cliques, 128 and 64-sized fully connected layers. Then

the last fully connected layer is 10 for all activities.

Table 5: Comparative table between our proposed method and other methods using the same dataset and using deep lear-

ning. Best scores (and second best scores) are ﬁlled in dark gray (light gray). Our approach achieves state-of-the-art action

classiﬁcation performance.

Action (Xia and Aggarwal, 2013) (Wang et al., 2014) Our method Our method +

Fine-tuning

arranging-objects 75.0% 82.3% 85.2% 92.1%

cleaning-objects 68.3% 79.7% 80.1% 95.6%

having-meal 41.7% 71.0% 75.9% 91.9%

making-cereal 76.7% 91.5% 90.8% 96.5%

microwaving-food 36.7% 85.3% 85.6% 93.4%

picking-objects 75.0% 97.2% 90.9% 92.7%

stacking-objects 75.0% 61.0% 82.4% 90.1%

taking-food 83.3% 93.5% 95.0% 96.3%

taking-medicine 58.3% 96.8% 97.5% 97.2%

unstacking-objects 33.3% 54.0% 81.2% 90.6%

Overall Accuracy 62.3% 81.2% 86.4% 93.6%

Table 6: The average accuracy on the CAD-120 database.

Best score (and second best score) is ﬁlled in dark gray

(light gray).

Method Accuracy

(Scovanner et al., 2007) 59.8%

(Koppula et al., 2013) 80.2%

(Wu et al., 2013) 62.1%

(Ji et al., 2013) 64.3%

Ours 86.4%

Ours + Fine-tuning 93.6%

ges.

Our experiments are executed on a server with two

multi-core processors, 32GB RAM and two Nvidia

GTX 1080 Ti. For model learning, we set the learning

rate at 0.001 value, for applying the stochastic gra-

dient descent algorithm. The training times on CAD-

120 dataset takes 5 hours for all videos including data

augmentation. For inference, it only takes around 0.6

seconds to complete recognition on a given video.

5 CONCLUSIONS

We presented an extensible deep architecture ables to

model long-term temporal structure and practice it on

a complex dataset for human action recognition task.

The proposed architecture is able to outperform ex-

isting methods, even with less data, in particular not

using depth images and it is able to extract informa-

tion of the sub-actions related to a main action.

Our model can still be improved and for that, we

anticipate as future work to combine the descriptors

extracted with our approach in a more complex archi-

tecture to extract the semantic of an action.

ACKNOWLEDGEMENTS

We gratefully acknowledge Region Centre-Val de

Loire (France) for its support on this work by DA-

NIEAL2 project funding.

An Extensible Deep Architecture for Action Recognition Problem

197

REFERENCES

Bay, H., Tuytelaars, T., and Van Gool, L. (2006). Surf:

Speeded up robust features. In European conference

on computer vision, pages 404–417. Springer.

Fei-Fei, L. and Perona, P. (2005). A bayesian hierarchical

model for learning natural scene categories. In Com-

puter Vision and Pattern Recognition, 2005. CVPR

2005. IEEE Computer Society Conference on, vo-

lume 2, pages 524–531. IEEE.

Gan, C., Wang, N., Yang, Y., Yeung, D.-Y., and Hauptmann,

A. G. (2015). Devnet: A deep event network for mul-

timedia event detection and evidence recounting. In

Proc. of the IEEE Conference on Computer Vision and

Pattern Recognition, pages 2568–2577.

Gao, Z., Chen, M.-Y., Hauptmann, A. G., and Cai, A.

(2010). Comparing evaluation protocols on the kth

dataset. In International Workshop on Human Beha-

vior Understanding, pages 88–100. Springer.

Hou, Y., Li, Z., Wang, P., and Li, W. (2018). Skeleton op-

tical spectra-based action recognition using convoluti-

onal neural networks. IEEE Transactions on Circuits

and Systems for Video Technology, 28(3):807–811.

Ji, S., Xu, W., Yang, M., and Yu, K. (2013). 3d convolu-

tional neural networks for human action recognition.

IEEE Transactions on PAMI, 35(1):221–231.

Klaser, A., Marszałek, M., and Schmid, C. (2008). A spatio-

temporal descriptor based on 3d-gradients. In BMVC

2008-19th British Machine Vision Conference, pages

275–1. British Machine Vision Association.

Koppula, H. S., Gupta, R., and Saxena, A. (2013). Learning

human activities and object affordances from rgb-d vi-

deos. The International Journal of Robotics Research,

32(8):951–970.

Krizhevsky A, Sutskever I, H. G. (2012). Imagenet classiﬁ-

cation with deep convolutional neural networks. pages

1097–1105. In Advances in neural information pro-

cessing systems.

Kuehne, H., Jhuang, H., Garrote, E., Poggio, T., and Serre,

T. (2011). Hmdb: a large video database for human

motion recognition. In Computer Vision (ICCV), 2011

IEEE International Conference on, pages 2556–2563.

Laptev, I. (2005). On space-time interest points. Internati-

onal journal of computer vision, 64(2-3):107–123.

Laptev, I., Marszalek, M., Schmid, C., and Rozenfeld, B.

(2008). Learning realistic human actions from mo-

vies. In Computer Vision and Pattern Recognition,

2008. CVPR 2008. IEEE Conference on, pages 1–8.

Le, Q. V., Zou, W. Y., Yeung, S. Y., and Ng, A. Y. (2011).

Learning hierarchical invariant spatio-temporal featu-

res for action recognition with independent subspace

analysis. In Computer Vision and Pattern Recogni-

tion (CVPR), 2011 IEEE Conference on, pages 3361–

3368. IEEE.

LeCun, Y., Bottou, L., Bengio, Y., and Haffner, P. (1998).

Gradient-based learning applied to document recogni-

tion. Proceedings of the IEEE, 86(11):2278–2324.

Ni, B., Pei, Y., Liang, Z., Lin, L., and Moulin, P. (2013).

Integrating multi-stage depth-induced contextual in-

formation for human action recognition and locali-

zation. In Automatic Face and Gesture Recognition

(FG), 2013 10th IEEE International Conference and

Workshops on, pages 1–8. IEEE.

Niebles, J. C., Chen, C.-W., and Fei-Fei, L. (2010). Mo-

deling temporal structure of decomposable motion

segments for activity classiﬁcation. In European con-

ference on computer vision, pages 392–405. Springer.

Rahmani, H., Mian, A., and Shah, M. (2018). Learning

a deep model for human action recognition from no-

vel viewpoints. IEEE transactions on pattern analysis

and machine intelligence, 40(3):667–681.

Scovanner, P., Ali, S., and Shah, M. (2007). A 3-

dimensional sift descriptor and its application to

action recognition. In Proceedings of the 15th ACM

international conference on Multimedia, pages 357–

360. ACM.

Simonyan, K. and Zisserman, A. (2014). Two-stream

convolutional networks for action recognition in vi-

deos. In Ghahramani, Z., Welling, M., Cortes, C.,

Lawrence, N. D., and Weinberger, K. Q., editors, Ad-

vances in Neural Information Processing Systems 27,

pages 568–576. Curran Associates, Inc.

Soomro, K., Zamir, A. R., and Shah, M. (2012). Ucf101:

A dataset of 101 human actions classes from videos in

the wild. arXiv preprint arXiv:1212.0402.

Sung, J., Ponce, C., Selman, B., and Saxena, A. (2012a).

Unstructured human activity detection from rgbd ima-

ges. In Robotics and Automation (ICRA), 2012 IEEE

International Conference on, pages 842–849. IEEE.

Sung, J., Ponce, C., Selman, B., and Saxena, A. (2012b).

Unstructured human activity detection from rgbd ima-

ges. In 2012 IEEE International Conference on Robo-

tics and Automation, pages 842–849.

Wang, H., Kl

aser, A., Schmid, C., and Liu, C.-L. (2013).

Dense trajectories and motion boundary descriptors

for action recognition. International journal of com-

puter vision, 103(1):60–79.

Wang, H. and Schmid, C. (2013). Action recognition with

improved trajectories. In IEEE international confe-

rence on computer vision, pages 3551–3558.

Wang, K., Wang, X., Lin, L., Wang, M., and Zuo, W.

(2014). 3d human activity recognition with reconﬁgu-

rable convolutional neural networks. In Proceedings

of the 22Nd ACM International Conference on Multi-

media, MM ’14, pages 97–106, New York, NY, USA.

Wang, L., Qiao, Y., and Tang, X. (2015). Action recog-

nition with trajectory-pooled deep-convolutional des-

criptors. In IEEE Conference on computer vision and

pattern recognition, pages 4305–4314.

Wang, L., Xiong, Y., Wang, Z., Qiao, Y., Lin, D., Tang, X.,

and Van Gool, L. (2016). Temporal segment networks:

Towards good practices for deep action recognition.

In Leibe, B., Matas, J., Sebe, N., and Welling, M.,

editors, Computer Vision – ECCV 2016, pages 20–36,

Cham. Springer International Publishing.

Wu, P., Hoi, S. C., Xia, H., Zhao, P., Wang, D., and Miao,

C. (2013). Online multimodal deep similarity learning

with application to image retrieval. In Proceedings of

the 21st ACM international conference on Multime-

dia, pages 153–162.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

198

Xia, L. and Aggarwal, J. (2013). Spatio-temporal depth

cuboid similarity feature for activity recognition using

depth camera. In The IEEE Conference on Computer

Vision and Pattern Recognition (CVPR).

Yu, K., Lin, Y., and Lafferty, J. (2011). Learning image

representations from the pixel level via hierarchical

sparse coding. In Computer Vision and Pattern Re-

cognition (CVPR), 2011 IEEE Conference on, pages

1713–1720. IEEE.

Yu, S., Cheng, Y., Su, S., Cai, G., and Li, S. (2017). Strati-

ﬁed pooling based deep convolutional neural networks

for human action recognition. Multimedia Tools and

Applications, 76(11):13367–13382.

Zhou, B., Lapedriza, A., Xiao, J., Torralba, A., and Oliva,

A. (2014). Learning deep features for scene recog-

nition using places database. In Advances in neural

information processing systems, pages 487–495.

Zolfaghari, M., Oliveira, G. L., Sedaghat, N., and Brox,

T. (2017). Chained multi-stream networks exploiting

pose, motion, and appearance for action classiﬁcation

and detection. In Computer Vision (ICCV), 2017 IEEE

International Conference on, pages 2923–2932.

An Extensible Deep Architecture for Action Recognition Problem

199
