ODYSSEY: Software Development Life Cycle Ontology

J. I. Olszewska and I. K. Allison

School of Computing and Engineering, University of West Scotland, U.K.

Keywords:

Software Engineering, Knowledge Engineering, Domain Ontology, Domain Analysis and Modeling, Decision

Support System, Intelligent Agents, Autonomous Systems.

Abstract:

With the omnipresence of softwares in our Society from Information Technology (IT) services to autonomous

agents, their systematic and efﬁcient development is crucial for software developers. Hence, in this paper,

we present an approach to assist intelligent agents (IA), whatever human beings or artiﬁcial systems, in theirs

task to develop and conﬁgure softwares. The proposed method is an ontological, developer-centred approach

aiding a software developer in decision making and interoperable information sharing through the use of the

ODYSSEY ontology we developed for the software development life cycle (SDLC) domain. This ODYSSEY

ontology has been designed following the Enterprise Ontology (EO) methodology and coded in Descriptive

Logic (DL). Its implementation in OWL has been evaluated for case studies, showing promising results.

1 INTRODUCTION

Software Development Life Cycles (SDLCs) have

been introduced in order to design and develop soft-

wares in a coherent, consistent, and efﬁcient way as

recommended in (ISO/IEC/IEEE 15288 International

Standard, 2015) and (ISO/IEC/IEEE 12207 Internati-

onal Standard, 2017).

SDLCs are mainly task-oriented processes. In

particular, they adopt a task decomposition approach

(Dix et al., 2004), i.e. they describe how the task to

develop a software is split into sub-tasks and in which

order these sub-tasks have to be performed.

On the other hand, software development has

been barely studied from the developers’ perspective

(Roehm et al., 2012). Hence, with the raise of in-

telligent and autonomous agents in today’s applicati-

ons, we suggest to assist the developers with the soft-

ware development task by adopting a software deve-

lopment approach based on developer experience or

more generally on intelligent agent experience we cal-

led AX.

Thenceforth, we propose to study the SDLCs from

a developer’s knowledge point of view and thus to

perform the SDLCs’ task analysis by applying both

knowledge-based technique and entity-relation ba-

sed analysis. Indeed, the knowledge-based technique

(Dix et al., 2004) looks at what users or developers

need to know about the objects and actions involved

in a task and how that knowledge is organized. On

the other hand, the entity-relation-based analysis (Dix

et al., 2004) identiﬁes actors (e.g. developers), ob-

jects and the relationships between them as well as

the action they perform.

For this purpose, we adopted an ontological ap-

proach, since an ontology is an artiﬁcial-intelligence

method (Davies et al., 2003) which provides an expli-

cit speciﬁcation of a conceptualization (Gruber, 1995)

and encompasses both knowledge concepts of the

analysed domain (i.e. classes such as actors, acti-

ons, objects) and the relations between them (Gua-

rino, 1998).

Ontologies have been used for various domains,

from intelligent vision systems (Olszewska, 2011),

(Olszewska, 2012), to autonomous and robotic sys-

tems (Olszewska et al., 2017), (Fiorini et al., 2017),

as ontologies are a convenient mode to share common

knowledge between various agents in an interoperable

way (Bayat et al., 2016).

The few ontologies developed for the software en-

gineering domain (Bermejo-Alonso, 2006) aim to pri-

marily contribute to the Model-Driven Software De-

velopment (MDSD) (Leonard et al., 2017) or Model-

Driven Architecture (MDA) and other software de-

velopment processes such as meta-models involving,

e.g. the Uniﬁed Model Language (UML) and/or

the Business Process Model and Notation (BPMN)

(Olszewska et al., 2014), resulting in the Ontology-

Driven Software Development (ODSD) (Pan et al.,

2012). Hence, the ODSD area focuses, despite its

Olszewska, J. and Allison, I.

ODYSSEY: Software Development Life Cycle Ontology.

DOI: 10.5220/0006957703030311

In Proceedings of the 10th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2018) - Volume 2: KEOD, pages 303-311

ISBN: 978-989-758-330-8

303

name, on the MDE analysis of a speciﬁc project (Iso-

tani et al., 2015) or a speciﬁc service (Knublauch,

2004) rather than on any SDLC process itself.

On the other hand, some ontologies have been

produced to serve as speciﬁc Computer-Aided Soft-

ware Engineering (CASE) tools for software quality

check, such as the Ontology-based Development En-

vironment (ODE) (Falbo et al., 2003), for software

requirement capture like the Ontology-driven Requi-

rements Analysis Tool (OntoRAT) (Al-Hroub et al.,

2009), or for software requirements traceability, e.g.

through the Marrying Ontology and Software Techno-

logy (MOST) project product (Pan et al., 2012). Ho-

wever, these ontologies are not dedicated to the full

software development life cycle modelling.

Hence, in this paper, we propose to develop an

ontology for the Software Development Life Cycle

(SDLC) domain.

This domain ontology for software development

life cycles we called ODYSSEY aims in ﬁrst instance

to capture the knowledge included in the SDLCs and

then, to formalize and implement the SDLC major

concepts and their properties.

The proposed ontology reﬂects a developer-

centric approach for software development life cy-

cles; the developer being an Intelligent Agent (IA),

whatever a human or an artiﬁcial one, i.e. an agent ca-

pable of knowing and acting as well as capable of em-

ploying its knowledge in its actions (Bermejo-Alonso,

2006). Furthermore, ODYSSEY ontology targets the

software SDLC methodologies conceivably followed

by developers rather than the possibly created soft-

ware artifacts.

The contributions of this paper are twofold. On

one hand, as far as we know, ODYSSEY is the

ﬁrst ontology for the software development life cy-

cle domain. On the other hand, ODYSSEY ontology

is the basis for software development based on intel-

ligent agent experience (AX).

The paper is structured as follows. In Section 2,

we present our ontology domain, i.e. the software de-

velopment life cycles (SDLC), while the domain on-

tology itself (ODYSSEY) is described and evaluated

in Section 3. Conclusions are drawn up in Section 4.

2 PRELIMINARIES: SOFTWARE

DEVELOPMENT LIFE CYCLES

Existing Software Development Life Cycles (SDLCs)

(Sommerville, 2015) could be categorized as Plan-

Driven Life Cycles Models or as Agile Development

Models.

Plan-driven life cycle models are characterized by

sequences of steps to undertake the solution formali-

sation, product(s) development, solution delivery, and

solution support. These software development met-

hods include SDLCS such as the Waterfall model, the

Prototyping model, the V-Model, and the Spiral mo-

del.

On the other hand, the Agile Development Models

are underpinned by the Agile manifesto

and mainly

consist in iteratively repeating three major phases, i.e.

the implementation phase, the delivery and feedback

phase, and the next-iteration planning phase. Well-

established Agile SDLCs are the Rapid Application

Development (RAD), the Dynamic System Develop-

ment Method (DSDM), Extreme Programming (XP),

and SCRUM.

Among all these SDLCs, the ﬁrst SDLC which has

been used in a more systematical way by software

developers is called Waterfall and was proposed by

(Royce, 1970). It is basically a linear, sequential mo-

del where each phase ‘is dependent of’ the previous

one, i.e. must be completed before the following one

can be started, leading to a ‘cascade’ effect, whence

a ‘waterfall’ model. This model has been extensively

applied to large engineering systems, with all the pro-

cess activities planned and scheduled before the start

of the software development, usually spanning over a

time scale of twelve months.

Originally, the Waterfall model was constituted

by seven, consecutive stages, namely, system require-

ments, software requirements, analysis, program de-

sign, coding, testing, and operations as presented in

Fig. 1.

The ﬁrst stage consists in specifying the system

requirements, i.e. the description of what the end sy-

stem is expected to provide to the customer/user. That

includes the particular functions the system must per-

form as well as the information about the environment

in which the ﬁnal product will operate. This descrip-

tion is usually recorded in the client’s language.

Thence, in the second stage, the software develo-

per/designer expresses the software requirements in a

language suitable for potential implementation.

The next stage focuses on the analysis of how the

system will produce the intended output(s). That le-

ads to the architectural design of the system and in-

volves a high-level decomposition of the system into

components or software units. This implies not only

the functional decomposition of the system to deter-

mine which component will provide which services,

but also the characterization of the components’ inter-

dependencies and the resources’ sharing between the

components. It is worth noting that the components

http://agilemanifesto.org/

KEOD 2018 - 10th International Conference on Knowledge Engineering and Ontology Development

304

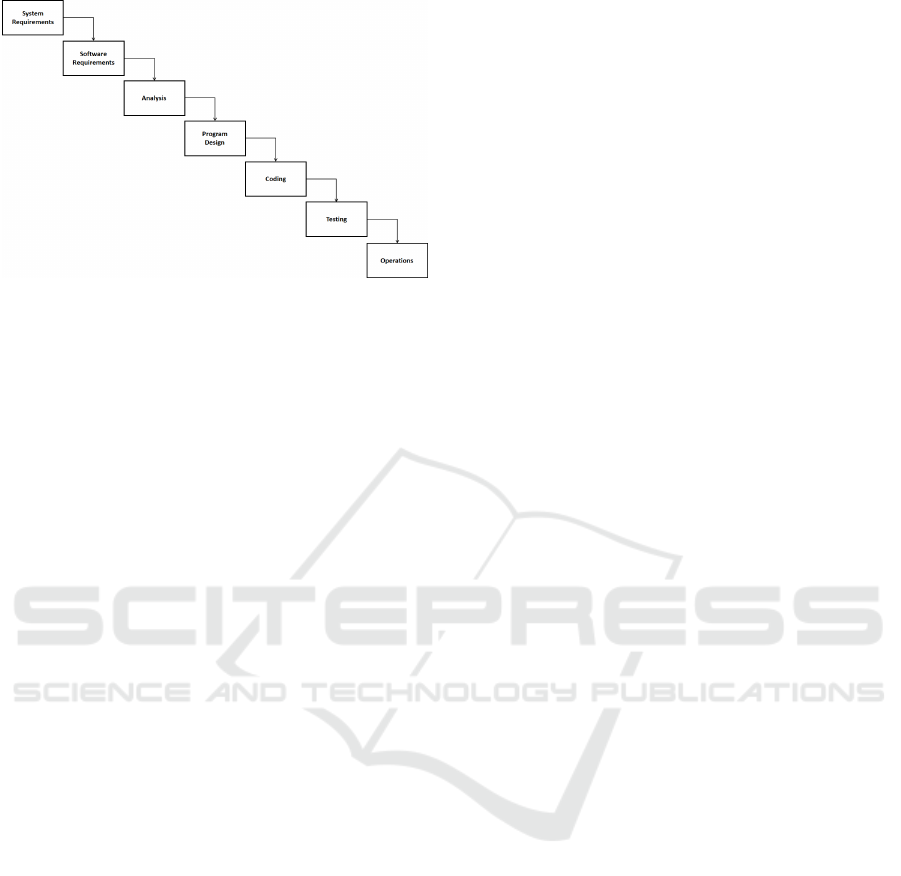

Figure 1: Overview of the original SDLC Waterfall model.

can either be imported from existing available soluti-

ons or be independently developed from scratch.

The next stage concentrates on the program de-

sign. This detailed design is a reﬁnement of the com-

ponent description provided by the architectural de-

sign. Whilst the program design aims ﬁrst to address

the behavioural constraints of higher-level descrip-

tion, it is even a better product when it also satisﬁes

non-functional requirements of the system such as ef-

ﬁciency, reliability, security, etc. Thus, the language

used for the detailed design must allow some analysis

of the design in order to assess these systems’ proper-

ties. At this stage, it is also important to keep track of

the considered design options and the justiﬁcations of

the choices which have been made.

Then, the ﬁfth stage is the implementation of the

detailed design in some executable programming lan-

guage.

After this coding stage, the next one consists in

testing each software component to verify it performs

correctly according to some test criteria. Once all the

components have been tested individually, they are in-

tegrated as per architectural design. Further testing is

done to ensure both the dependable behaviour of the

entire system and the acceptable use of any shared

resources. It is also possible at this time to perform

some acceptance testing with the clients to check that

the system meets their expectations. It is only after

acceptance of the integrated system that the product

could be released to the customer. However, in the

meantime, it may also be necessary to certify the ﬁ-

nal system according to international standards and/or

further requirements imposed by some authority.

The ﬁnal stage or operation stage deals mainly

with the system maintenance until a new version of

the product is developed or the product is phased out.

Consequently, the last stage is the longest one in terms

of duration (Dix et al., 2004).

The waterfall model presents the advantages of

being a simple linear process that addresses software

quality management and project management, and

that tries to eliminate as many problems as possible

in each phase. However, one of the main ﬂaws of this

sequential approach is that the idea of iteration has not

been embedded in the original waterfall’s model (Dix

et al., 2004).

Indeed, on one hand, in case of rapidly changing

businesses’ needs and operating environment, which

lead to important changes of the requirements over

time, freezing the system and software requirements

for months or years, while completing the design and

implementation, could be not efﬁcient. On the other

hand, if a requirement is identiﬁed in the implementa-

tion and unit testing phase as too expensive to be im-

plemented, this requires the update of the overall re-

quirement document in order to remove that require-

ment, i.e. the rework of the ﬁrst phase, and possibly of

the system and software design phase as well. conse-

quently, that drains resources and stirs up delays in the

overall development process. The early freeze of the

software speciﬁcations to avoid any change to it could

be a short-term solution, but such freeze could be con-

sidered later as premature and be not effective, since

problems will then have to be overcome by implemen-

tation tricks (Sommerville, 2015). Hence, the need to

rework on a software system when changes are made

to the requirements for whatever reason implies the

waterfall model is only appropriate for some types of

systems such as embedded systems, critical systems,

or large software systems (Sommerville, 2015).

As in practice, a SDLC has to inherently handle

change along the software development, some furt-

her variations of the Waterfall model have been pre-

sented in the literature, with some versions incorpo-

rating some levels of iterations (Sommerville, 2015).

Thence, the Waterfall SDLC could also be modeled in

terms of ﬁve fundamental software development acti-

vities, where the outputs from one activity are inputs

for the next one, while the last activity’s feedback in-

forms all the previous ones (Fig. 2).

More speciﬁcally, the ﬁrst phase or requirements

analysis establishes the system’s services, constraints,

and goals through consultations between the software

developer and the system user(s), leading to the de-

tailed system speciﬁcation.

Secondly, the system and software design phase

deﬁnes the software system architecture, identifying

and describing the fundamental abstractions and their

relationships of the overall system as well as allo-

cating the requirements to the corresponding subsys-

tems.

During the third phase called implementation and

unit testing, the software code is produced and results

in a set of programs or program units which are indi-

ODYSSEY: Software Development Life Cycle Ontology

305

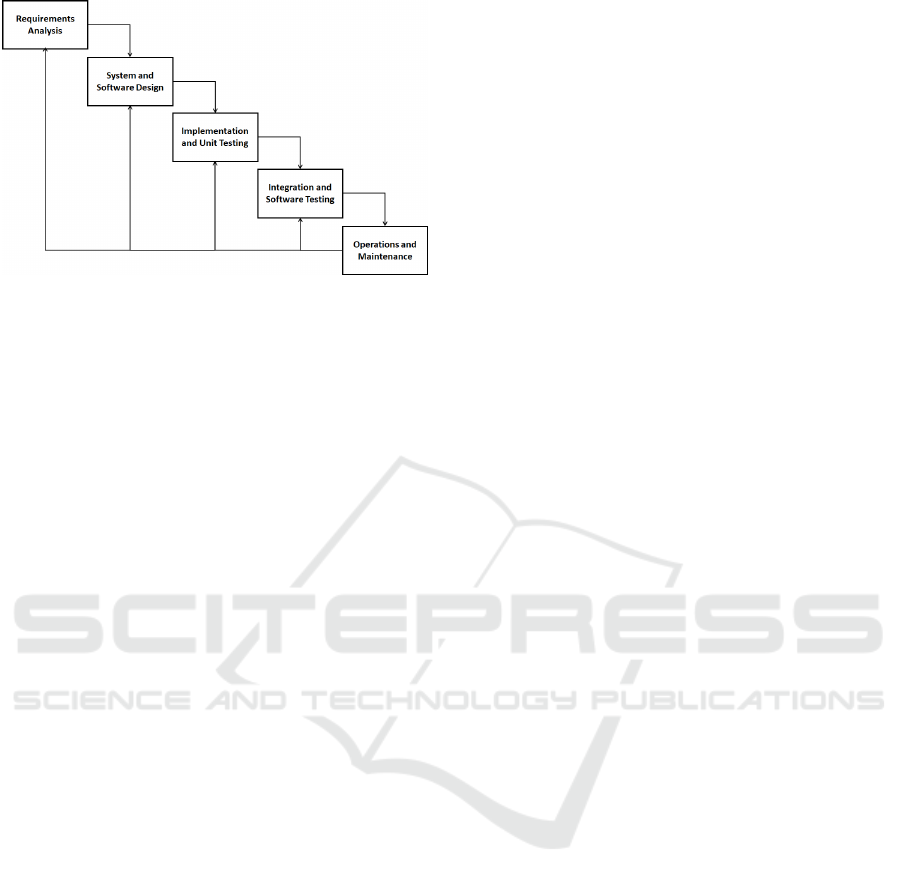

Figure 2: Overview of the enhanced SDLC Waterfall mo-

del.

vidually tested and veriﬁed to ensure each unit meets

its speciﬁcation.

The fourth phase is dedicated to the integration

and system testing, i.e. the individual program units

are integrated into the overall system and the overall

system is tested to check that all the software require-

ments have been met, before delivering the software

system to the customer.

Finally, the operations and maintenance phase

aims to install the product in its work environment and

to put it in practical use. In particular, maintenance,

which is the longest phase of the waterfall SDLC, in-

volves the correction of errors in the system which

were not discovered in the earlier stages of the life

cycle, i.e. before the release of the product. Mainte-

nance also consists in improving the implementation

of the software units and enhancing the system’s ser-

vices when new requirements are discovered. There-

fore, maintenance provides feedback to all of the ot-

her activities in the life cycle (Fig. 2). For example,

when a program error emerges, it implies a rework on

the implementation and unit testing phase, whereas if

a design errors appears, it involves repeating the sy-

stem and software design phase. On the other hand, in

case of omissions or when the need for a new functi-

onality is identiﬁed, the requirement analysis phase is

rerun to upgrade the product (Sommerville, 2015).

Hence, a SDLC such as the Waterfall approach

could be modelled in various ways, leading among ot-

hers to different names of the phases and to different

sequences of its execution. Therefore, the ODYSSEY

ontology as described in Section 3 aims to contribute

to the elicitation of the SDLC intra-model knowledge

as well as its interoperable sharing.

3 PROPOSED ONTOLOGY

To develop the ODYSSEY ontology, we followed

an ontological development life cycle (Gomez-Perez

et al., 2004) based on the Enterprise Ontology (EO)

Methodology (Dietz, 2006), since EO is well sui-

ted for software engineering applications (van Kervel

et al., 2012).

The adopted ontological development methodo-

logy consists of four main phases covering the whole

development cycle as follows:

1. identiﬁcations of the purpose of the ontology

(Section 3.1);

2. ontology building which consists of three parts:

the capture to identify the domain concepts and

their relations; the coding to represent the onto-

logy in a formal language; and the integration to

share ontology knowledge (Section 3.2);

3. evaluation of the ontology to check that the de-

veloped ontology meets the scope of the project

(Section 3.3);

4. documentation of the ontology (Section 3.4).

3.1 Ontology Purpose

The ODYSSEY ontology domain has been deﬁned by

the software development life cycles (SDLCs) presen-

ted in Section 2, while the scope of this ODYSSEY

domain ontology is to assist intelligent agent(s) when

using a SDLC to develop a software.

Indeed, it has been found that, on one hand, hu-

man software developers spent most of their time

in activities such as information seeking (Ponzanelli

et al., 2017) or interacting (Ciccozzi et al., 2017). On

the other hand, it has been recently identiﬁed than the

production of softwares for robotic systems (Ciccozzi

et al., 2017) requires, among other, subsystems inter-

operability and human-robot synergy such as Human-

Robot Interactions (HRI) (Calzado et al., 2018) or

Human-Swarm Teaming (HST) (Kolling et al., 2016).

Since ontologies intrinsically allow to elucidate

concepts, to share information in an interoperable

way, and to perform automated reasoning, the ODYS-

SEY ontology purpose is to contribute to (i) sup-

port a human developer in decision making about

SDLCs; (ii) help human developers in collaborating

on team’s software development; (iii) guide autono-

mous system(s) in reconﬁguring their softwares; (iv)

aid collaborative mixed human-robot teams in inte-

racting, synchronising or conﬁguring software agents.

KEOD 2018 - 10th International Conference on Knowledge Engineering and Ontology Development

306

3.2 Ontology Building

The knowledge capture consists in the identiﬁcation

of concepts and relations of the SDLC domain descri-

bed in Section 2. The knowledge coding is done in

Descriptive Logic (DL). In particular, the concept of

SDLC ‘waterfall model’ (Fig. 1) is deﬁned in DL as

follows:

Water f all Model v Model

u ∃hasPhase

={P

=System Requirement}

u ∃hasPhase

={P

=So f tware Requirement}

u ∃hasPhase

={P

=Analysis}

u ∃hasPhase

={P

=Program Design}

u ∃hasPhase

={P

=Coding}

u ∃hasPhase

={P

=Testing}

u ∃hasPhase

={P

=Operations}

(1)

Furthermore, the original waterfall model could

be formalised in temporal DL as follows:

Water f all1 v Water f all Model

u (t

...t

)

)...(P

k−1

)

· (P

u ... u P

)

(2)

with k = 7, the number of phases of the SDLC wa-

terfall model, and meet, the temporal relation deﬁned

in temporal DL as introduced by (Olszewska, 2016):

≡ meet(P

, P

) v Temporal Relation

u (t

)(t

)

= t

−

)

· (P

u P

(3)

where the temporal DL symbol  represents the

temporal existential qualiﬁer, and where a time inter-

val is an ordered set of points T = {t} deﬁned by end-

points t

−

and t

, such as (t

−

) : (∀t ∈ T)(t > t

−

) ∧ (t < t

The enhanced waterfall model (Fig. 2) could be

then represented in DL as follows:

Enhanced Water f all Model v Model

u ∃hasPhase

={S

=Requirement Analysis}

u ∃hasPhase

={S

=System and So f tware Design}

u ∃hasPhase

={S

=Im plementation and Unit Testing}

u ∃hasPhase

={S

=Integration and System Testing}

u ∃hasPhase

={S

=Operation and Maintenance}

(4)

with S

= P

t P

, S

= P

t P

, S

≡ P

, S

≡ P

, and S

≡ P

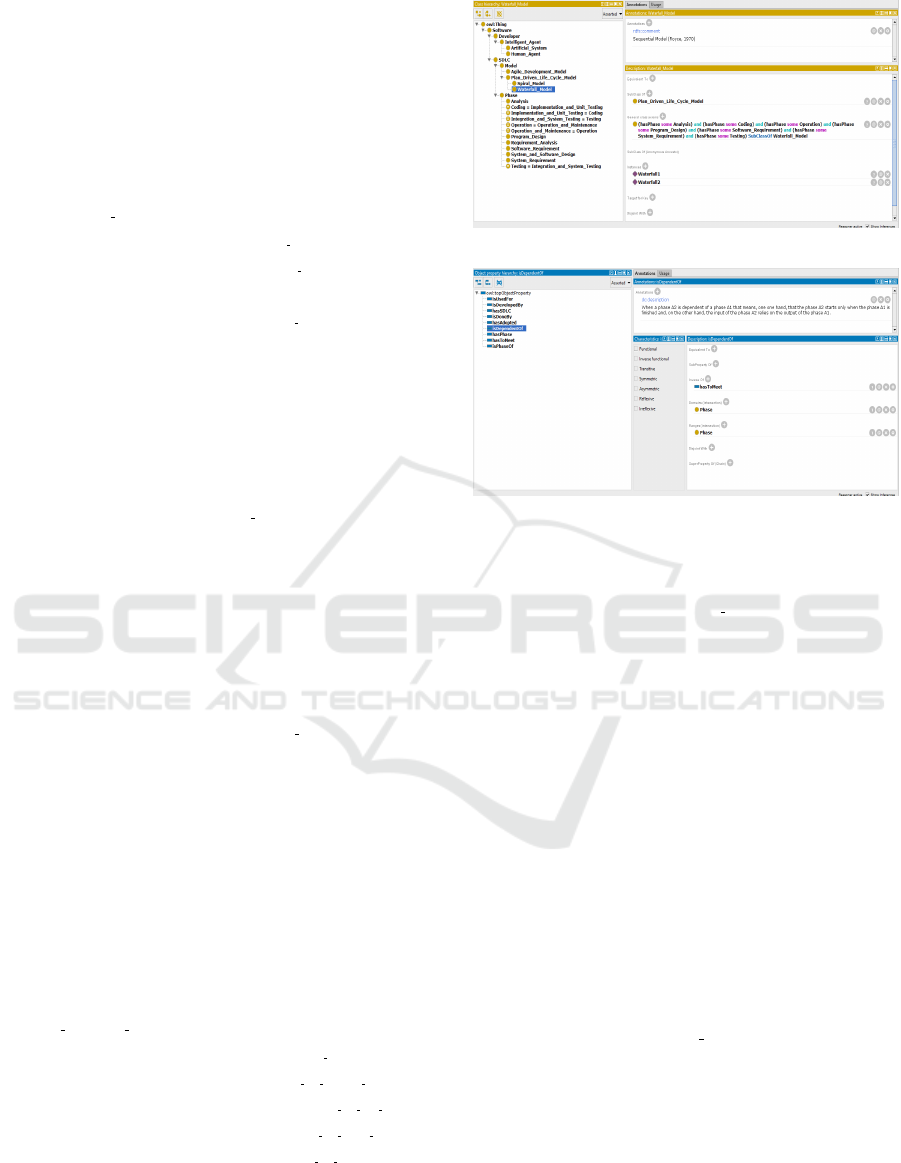

Figure 3: Main classes of the SDLC domain.

Figure 4: Main properties of the SDLC domain.

Moreover, the enhanced waterfall model could be

expressed in temporal DL as follows:

Water f all2 v Water f all Model

u (t

...t

)

)...(S

l −1

)

)...(S

l −1

)

· (S

u ... u S

(5)

with l = 5, the number of stages of the SDLC en-

hanced waterfall model.

The ontology is implemented in the Web Onto-

logy Language (OWL) language, using an appropri-

ate tool like Protege v5.2.0 IDE and applying HermiT

reasoner v1.3.8.413 (Glimm et al., 2014) to perform

automated reasoning. An excerpt of the encoded con-

cepts is presented in Fig. 3, while some properties are

shown in Fig. 4. It its worth noting that the property

isDependentOf could be represented in temporal DL

as follows:

isDependentO f v Phase Property

u (t

...t

)

) · (P

u P

(6)

3.3 Ontology Evaluation

The ontology evaluation ensures that the developed

ontology meets all the requirements (Dobson et al.,

2005).

ODYSSEY: Software Development Life Cycle Ontology

307

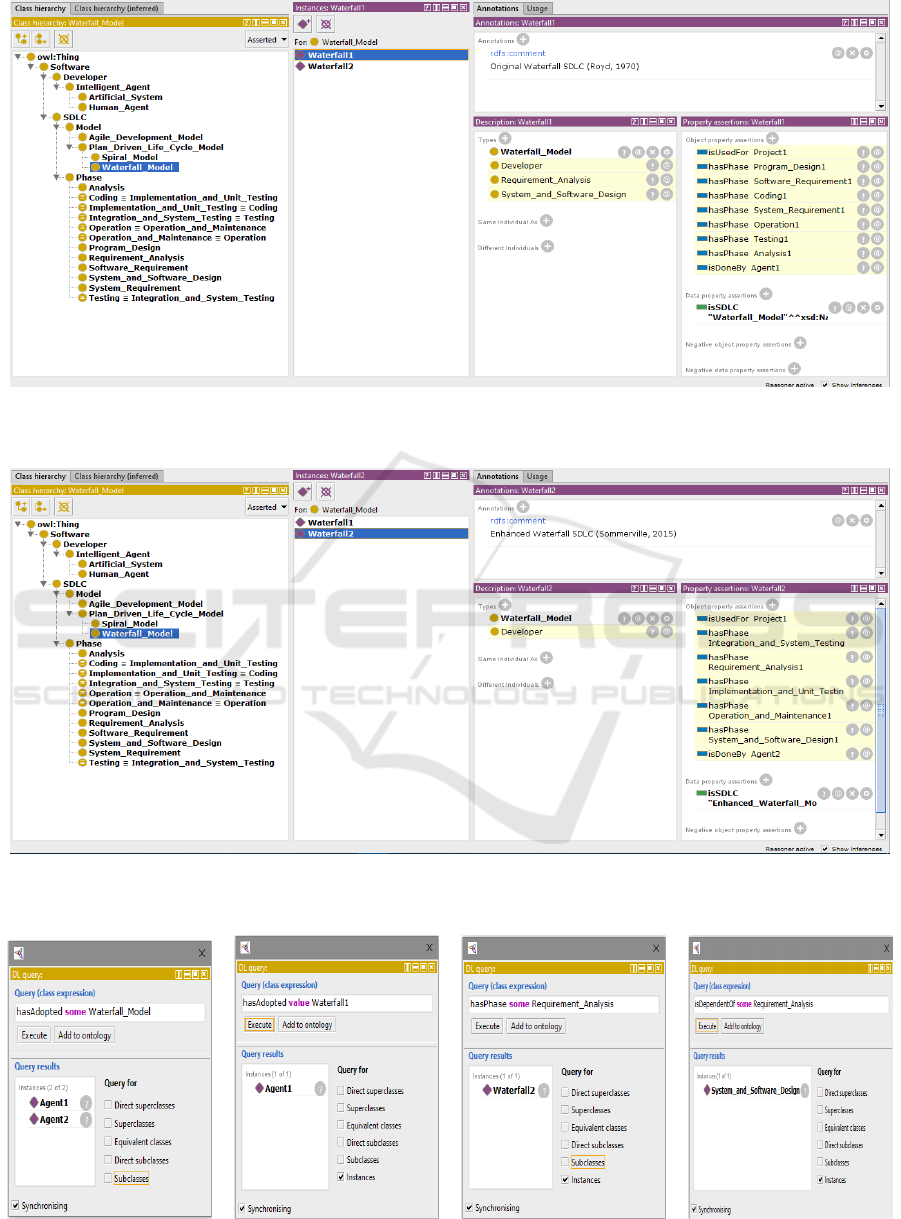

Figure 5: Excerpt of the scenario implementation, with the instantiation waterfall1 of the ‘waterfall model’ concept as well

as the asserted and inferred, related properties.

Figure 6: Excerpt of the scenario implementation, with the instantiation waterfall2 of the ‘enhanced waterfall model’ concept

as well as the asserted and inferred, related properties.

Figure 7: Some samples of query results in context of the proposed test scenario.

KEOD 2018 - 10th International Conference on Knowledge Engineering and Ontology Development

308

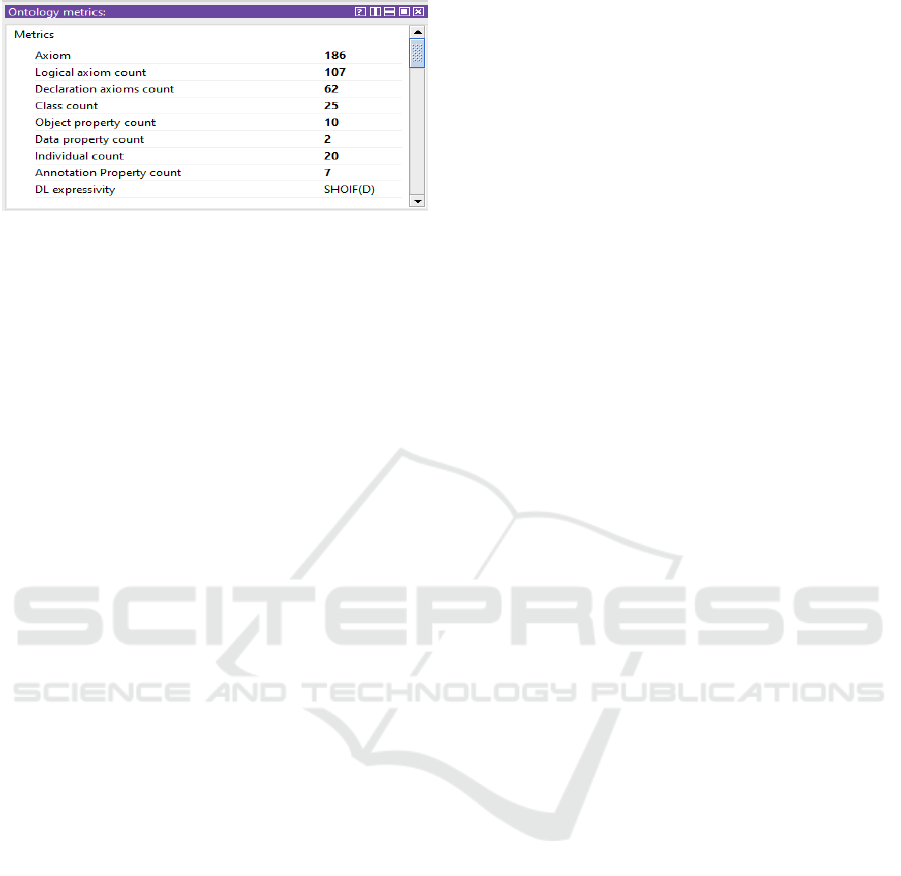

Figure 8: Some values of the ODYSSEY metrics.

For this purpose, experiments have been carried

out using Protege v5.2.0 IDE and applying HermiT

reasoner v1.3.8.413. In the experiment scenario, an

agent 1 which is a human being adopts the waterfall

model (instantiated as Waterfall1) to develop a project

1, while an agent 2 which is an artiﬁcial system uses

the enhanced waterfall model (instantiated as Water-

fall2) to work on the same project, as illustrated in

Figs. 5-6, respectively. A sample of queries for this

scenario is presented in Fig. 7.

In this case, the agent 1 could query the system,

on one hand, to receive guidance about the chosen

SDLC’s steps to follow (e.g. waterfall 1) and, on the

other hand, to further understand/synchronize with

another agent like the agent 2 which is working on

the same project, while having adopted a similar but

different SDLC (e.g. waterfall 2).

In these experiments, ODYSSEY has provided

100% correct answers and no inconsistency has been

reported.

Moreover, the evaluation of ODYSSEY uses me-

trics presented in (Tartir et al., 2018) and (Hlomani

and Stacey, 2014). The extracted values by Protege

are presented in Fig. 8. We can observe that the DL

expressivity is S H OI F

(D)

. It is worth noting the re-

asoner works under the open-world assumption, i.e. if

for a question, there is no information in the ontology,

then the answer of the system is ‘does not know’, and

not ’does not exist’. To obtain the latter one, infor-

mation should be explicitly provided, but adding all

these closure-type assertions can slow down the rea-

soner. So, in practice, a trade-off should be achieved

between computational efﬁciency and completeness.

Actually, ODYSSEY performs in real time and con-

tains 186 axioms for 25 classes, leading to its high

richness.

Furthermore, ODYSSEY cohesion could be asses-

sed using the number of root classes which is equal to

1, the number of leaf classes which is equal to 17, and

the average depth which is equal to 4.

All these metrics indicate ODYSSEY shows pro-

mising performance and could efﬁciently serve as

the basis for further extensions to include even more

SDLC model knowledge.

3.4 Ontology Documentation

The ODYSSEY ontology has been documented in

Section 3. It is a middle-out, domain ontology

which has been developed from scratch using non-

ontological resources such as primary sources, e.g.

(Royce, 1970). ODYSSEY is not dependent of any

particular software/system/service/project, but it fo-

cuses rather on the knowledge included in the main

SDLCs. It is worth noting the ODYSSEY has not

reuse any existing ontology, since it is the ﬁrst on-

tology in its kind for the SDLC domain. However,

the ODYSSEY ontology could be reused itself in the

future, since on one hand, more SDLC models (Abra-

hamsson et al., 2003) could be captured and formali-

sed. On the other hand, the formalization of the po-

tential changes which might occur through the soft-

ware development process (Allison and Merali, 2007)

could be added as well to expand the present ODYS-

SEY ontology and lead to a dynamic ontology.

4 CONCLUSIONS

In this work, ODYSSEY ontology aids developers to

choose and use SDLCs by expliciting the knowledge

contained in the SDLCs and by allowing implicitly a

ﬂexible use of the SLDCs. On the other hand, ODYS-

SEY allows an increased interoperability between hu-

mans and/or autonomous systems, when developing

a software or reconﬁguring it, and thus constitutes a

step further towards intelligent agents’ collaboration.

REFERENCES

Abrahamsson, P., Warsta, J., Siponen, M. T., and Ron-

kainen, J. (2003). New directions on Agile met-

hods: A comparative analysis. In Proceedings of the

IEEE International Conference on Software Engineer-

ing (ICSE), pages 244–254.

Al-Hroub, Y., Kossmann, M., and Odeh, M. (2009). De-

veloping an Ontology-driven Requirements Analysis

Tool (OntoRAT): A use-case-driven approach. In Pro-

ceedings of the IEEE International Conference on the

Applications of Digital Information and Web Techno-

logies, pages 130–138.

Allison, I. K. and Merali, Y. (2007). Software process

improvement as emergent change: A structuratio-

nal analysis. Information and Software Technology,

49(6):668–681.

Bayat, B., Bermejo-Alonso, J., Carbonera, J. L., Facchi-

netti, T., Fiorini, S. R., Goncalves, P., Jorge, V., Ha-

ODYSSEY: Software Development Life Cycle Ontology

309

bib, M., Khamis, A., Melo, K., Nguyen, B., Olszew-

ska, J. I., Paull, L., Prestes, E., Ragavan, S. V., Saeedi,

S., Sanz, R., Seto, M., Spencer, B., Trentini, M., Vo-

sughi, A., and Li, H. (2016). Requirements for buil-

ding an ontology for autonomous robots. Industrial

Robot, 43(5):469–480.

Bermejo-Alonso, J. (2006). Ontology-based software engi-

neering. Technical Report ASLab-ICEA-R-2006-016.

Calzado, J., Lindsay, A., Chen, C., Samuels, G., and Ol-

szewska, J. I. (2018). SAMI: Interactive, multi-sense

robot architecture. In Proceedings of the IEEE Inter-

national Conference on Intelligent Engineering Sys-

tems, pages 317–322.

Ciccozzi, F., Ruscio, D. D., Malavolta, I., Pelliccione, P.,

and Tumova, J. (2017). Engineering the software of

robotic systems. In Proceedings of the IEEE/ACM

International Conference on Software Engineering

(ICSE), pages 507–508.

Davies, J., Fensel, D., and Harmelen, F. V. (2003). Towards

the semantic web: Ontology-driven knowledge mana-

gement. Wiley.

Dietz, J. (2006). Enterprise Ontology. Springer.

Dix, A., Finlay, J., Abowd, G. D., and Beale, R. (2004).

Human Computer Interaction. Pearson, 3rd edition.

Dobson, G., Lock, R., and Sommerville, I. (2005). QoS-

Ont: A QoS ontology for service-centric systems. In

Proceedings of the EUROMICRO International Con-

ference on Software Engineering and Advanced Ap-

plications, pages 80–87.

Falbo, R. D. A., Natali, A. C. C., Mian, P. G., Bertollo,

G., and Ruy, F. B. (2003). ODE: Ontology-based soft-

ware development environment. In Proceedings of the

Congreso Argentino de Ciencias de la Computacion.

Fiorini, S. R., Bermejo-Alonso, J., Goncalves, P., de Frei-

tas, E. P., Alarcos, A. O., Olszewska, J. I., Prestes, E.,

Schlenoff, C., Ragavan, S. V., Redﬁeld, S., Spencer,

B., and Li, H. (2017). A suite of ontologies for robo-

tics and automation. IEEE Robotics and Automation

Magazine, 24(1):8–11.

Glimm, B., Horrocks, I., Motik, B., Stoilos, G., and Wang,

Z. (2014). HermiT: An OWL 2 Reasoner. Journal of

Automated Reasoning, 53(3):245–269.

Gomez-Perez, A., Fernandez-Lopez, M., and Corcho, O.

(2004). Ontological Engineering. Springer-Verlag.

Gruber, T. R. (1995). Toward principles for the design of

ontologies used for knowledge sharing. International

Journal Human-Computer Studies, 43(5-6):907–928.

Guarino, N. (1998). Formal ontology in information sys-

tems. In Proceedings of the International Conference

on Formal Ontology in Information Systems (FOIS),

pages 3–15.

Hlomani, H. and Stacey, D. (2014). Approaches, methods,

metrics, measures, and subjectivity in ontology evalu-

ation: A survey. Semantic Web Journal, 1(5):1–11.

ISO/IEC/IEEE 12207 International Standard (2017). Sys-

tems and Software Engineering - System Life Cycle

Processes.

ISO/IEC/IEEE 15288 International Standard (2015). Sys-

tems and Software Engineering - System Life Cycle

Processes.

Isotani, S., Bittencourt, I. I., Barbosa, E. F., Dermeval, D.,

and Paiva, R. O. A. (2015). Ontology driven software

engineering: A review of challenges and opportuni-

ties. IEEE Latin America Transactions, 13(3):863–

869.

Knublauch, H. (2004). Ontology-driven software develop-

ment in the context of the semantic web: An example

scenario with Protege/OWL. In Proceedings of the

IEEE International Workshop on the Model-Driven

Semantic Web (MDSW), pages 381–401.

Kolling, A., Walker, P., Chakraborty, N., Sycara, K., and

Lewis, M. (2016). Human interaction with robot

swarms: A survey. IEEE Transactions on Human-

Machine Systems, 46(1):9–26.

Leonard, S., Allison, I. K., and Olszewska, J. I. (2017).

Design and test (D&T) of an in-ﬂight entertainment

system with camera modiﬁcation. In Proceedings of

the IEEE International Conference on Intelligent En-

gineering Systems, pages 151–156.

Olszewska, J. I. (2011). Spatio-temporal visual ontology.

In Proceedings of the EPSRC Workshop on Vision and

Language.

Olszewska, J. I. (2012). Multi-target parametric active con-

tours to support ontological domain representation. In

Proceedings of RFIA, pages 779–784.

Olszewska, J. I. (2016). Temporal Interval Modeling for

UML Activity Diagrams. In Proceedings of the Inter-

national Conference on Knowledge Engineering and

Ontology Development (KEOD), pages 199–203.

Olszewska, J. I., Barreto, M., Bermejo-Alonso, J., Carbo-

nera, J., Chibani, A., Fiorini, S., Goncalves, P., Habib,

M., Khamis, A., Olivares, A., de Freitas, E. P., Pres-

tes, E., Ragavan, S. V., Redﬁeld, S., Sanz, R., Spen-

cer, B., and Li, H. (2017). Ontology for autonomous

robotics. In Proceedings of the IEEE International

Symposium on Robot and Human Interactive Commu-

nication (RO-MAN), pages 189–194.

Olszewska, J. I., Simpson, R. M., and McCluskey, T. L.

(2014). Dynamic OWL ontology design using UML

and BPMN. In Proceedings of the International Con-

ference on Knowledge Engineering and Ontology De-

velopment, pages 436–444.

Pan, J. Z., Staab, S., Assmann, U., Ebert, J., and Zhao,

Y. (2012). Ontology-driven software development.

Springer.

Ponzanelli, L., Scalabrino, S., Bavota, G., Mocci, A., Oli-

veto, R., Penta, M. D., and Lanza, M. (2017). Suppor-

ting software developers with a holistic recommender

system. In Proceedings of the IEEE/ACM Internatio-

nal Conference on Software Engineering (ICSE), pa-

ges 94–105.

Roehm, T., Tiarks, R., Koschke, R., and Maalej, W. (2012).

How do professional developers comprehend soft-

ware? In Proceedings of the IEEE/ACM Internatio-

nal Conference on Software Engineering (ICSE), pa-

ges 255–265.

Royce, W. W. (1970). Managing the development of large

software systems. In Proceedings of IEEE Conference

of Western Electronic Show and Convention , pages

205–210.

KEOD 2018 - 10th International Conference on Knowledge Engineering and Ontology Development

310

Sommerville, I. (2015). Software Engineering. Pearson,

10th edition.

Tartir, S., Arpinar, I., Moore, M., Sheth, A., and Aleman-

Meza, B. (2018). OntoQA: Metric-based ontology

quality analysis. In IEEE International Conference

on Data Mining Workshop, pages 559–564.

van Kervel, S., Dietz, J., Hintzen, J., van Meeuwen, T., and

Zijlstra, B. (2012). Enterprise ontology driven soft-

ware engineering. In Proceedings of the International

Conference on Software Technologies (ICSOFT), pa-

ges 205–210.

ODYSSEY: Software Development Life Cycle Ontology

311
