Single Rule Evaluation (SRE): Computational Algorithmic Debugging

for Complex SWRL Rules

Jannik Geyer, Johannes Nguyen, Thomas Farrenkopf and Michael Guckert

KITE, Technische Hochschule Mittelhessen, Wilhelm-Leuschner-Straße 13, Friedberg, Germany

Keywords:

Rule Evaluation, SWRL, OWL, Ontology Debugging.

Abstract:

SWRL is an extension for OWL which allows the use of Horn clause like rules in ontologies. SWRL ru-

les are an expressive instrument for OWL-based ontologies simplifying and augmenting deductive reasoning

capabilities. With increasing size and complexity rule bases becomes more and more fragile as logical incon-

sistencies in the overall structure of the rule base are difﬁcult to ﬁnd. However, available debugging options

require immense manual effort, if not even become an impossible task. Therefore, there is an expressed need

for developers and end users to get an efﬁcient and easy to use interactive rule evaluation instrument. In this

paper we present a new method for a simpliﬁed debugging process that we call Single Rule Evaluation (SRE).

This SRE method enables the user to iterate through the reasoning process of the ontology and the set of

inference rules and examines each atom of a selected SWRL Rule to deliver detailed information about the

inferred output. In addition to a theoretical concept, we present a prototypical implementation of SRE as a

Prot

e plugin that can be invoked during the modelling process to test rules for consistency.

1 INTRODUCTION

SWRL (Semantic Web Rule Language) is a rule lan-

guage based on RuleML extending OWL (Web On-

tology Language) with Horn clause like if-then rules

(Horrocks et al., 2004). With a growing number of

developers the need for appropriate debugging tools

for SWRL rules in large knowledge bases becomes

more prominent as was already stated by the creator

of Prot

e Martin O’Connor himself in a blog post

(O’Connor, 2018). Up to now there are only few

open source solutions for that purpose and only a sin-

gle commercial product called ODASE Rules Work-

bench (MacLarty et al., 2016). However, it should

be noted that most of the available solutions only of-

fer an insufﬁcient scope of debugging functionalities.

An example is the Fluent Editor 2015, which is able

to display all SWRL rules together with all relevant

elements from the ontology executed by the Rule En-

gine (ﬂu, ). Nonetheless, information about elements

that caused a rule to fail are missing. Computer-aided

debugging methods reduce manual efforts and incre-

ase the efﬁciency of the development process. Wit-

hout tool support, a developer must search for contra-

dictions in the rule antecedent of a rule manually, if

a rule consequent is not executed. For this purpose,

all atoms of the rule need to be individually examined

by hand, which often includes inspecting each corre-

sponding entry in the ontology. This tedious process

makes testing a long and inefﬁcient task. Therefore,

there is an urgent demand for an efﬁcient computer-

aided method for debugging single SWRL Rules.

1.1 Motivation

SWRL Rules consist of a rule antecedent (“if”) and a

rule consequent (“then”). If all conditions in the rule

antecedent are satisﬁed, the rule consequent is consi-

dered true and inferences are drawn. Otherwise, the

rule consequent is considered false and there is cur-

rently no method for developers to identify which of

the conditions in the rule antecedent are not met and

cause the rule to fail. SWRL does not provide infor-

mation about the evaluation process of an executed

rule. Therefore, it is difﬁcult to identify atoms clas-

siﬁed as false. A developer must manually resolve

the rules in the logical context of the relevant entities

in the ontology. In practical industrial applications

(e.g. from engineering disciplines), this issue beco-

mes considerably complicated and time consuming.

1.2 Idea

In this paper we address the task of developing a de-

bugging method for the evaluation of single SWRL

Geyer, J., Nguyen, J., Farrenkopf, T. and Guckert, M.

Single Rule Evaluation (SRE): Computational Algorithmic Debugging for Complex SWRL Rules.

DOI: 10.5220/0006924101910198

In Proceedings of the 10th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2018) - Volume 2: KEOD, pages 191-198

ISBN: 978-989-758-330-8

191

rules in the context of a given ontology. The algo-

rithm to be designed must potentially compute the

output values for each atom in the rule antecedent and

must be able to process rules with the help of arbi-

trary reasoners. Therefore this approach differs from

existing open source solutions, like the Prot

e plugin

SWRL-IQ which is based on an XSB Prolog inference

engine (Elenius, 2012). By computing the output va-

lues for each atom of the antecedent, the SRE answers

the question whether the conclusion of a speciﬁc rule

was drawn. Our algorithm rearranges the rule struc-

ture (atom ordering) in order to examine the integrity

of references for each atom in the rule antecedent and

then assigns values successively following the depen-

dencies within the rule. is the academic standard for

OWL ontology editors. It has an open architecture

and can easily be extended with plugins. We pre-

sent such a Prot

e plugin which iteratively evalua-

tes SWRL rules using our algorithm. The following

example illustrates the general idea.

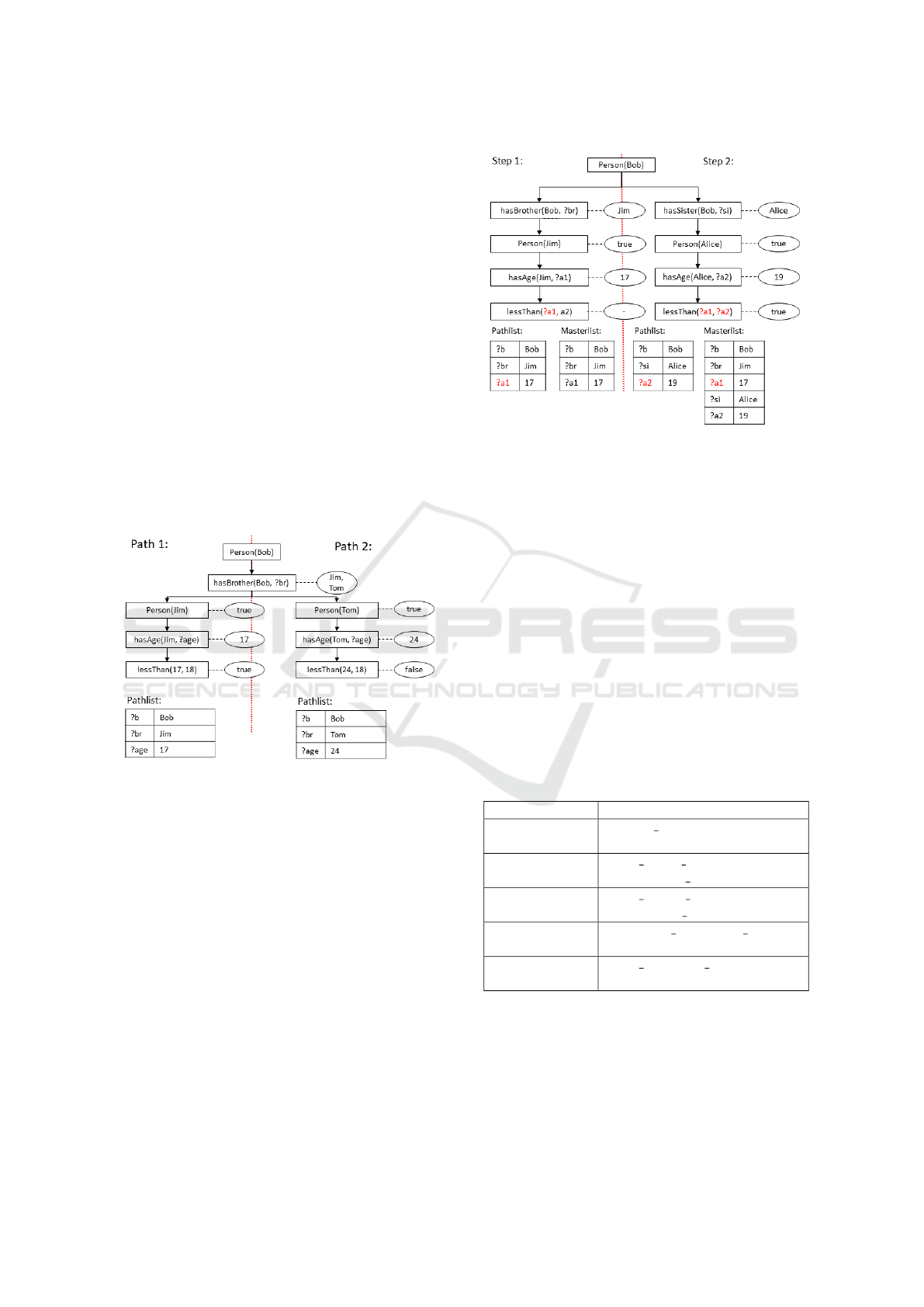

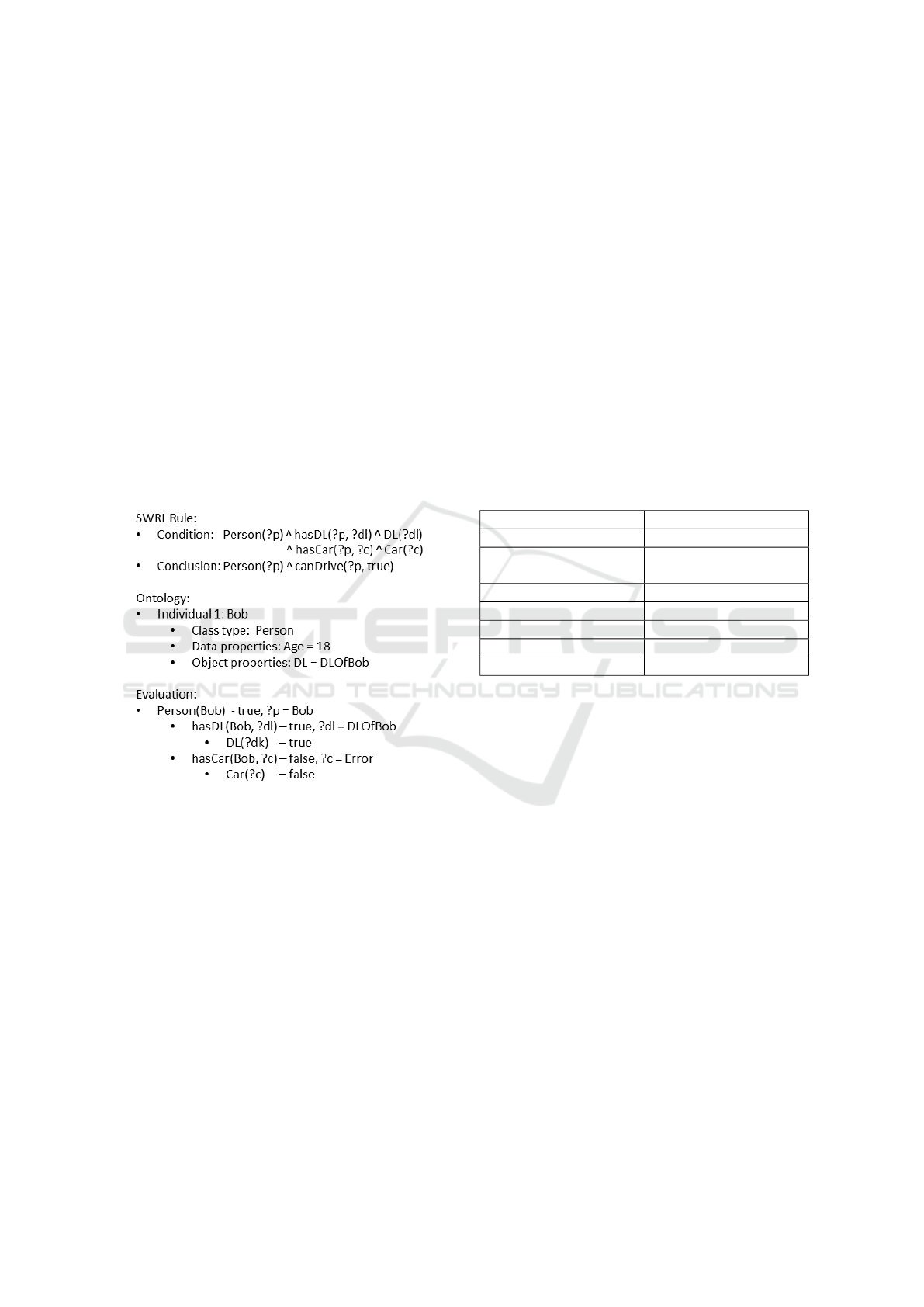

Figure 1: Example evaluation.

1.3 Outline of the Paper

The following section provides general background

knowledge for the work with OWL ontologies and in

particular SWRL. Section 3 describes the concept and

preconditions of our SRE algorithm. In section 4, we

present a practical example of application of SRE as

a proof of concept. Finally, this paper explains the

approach used for the implementation and showca-

ses the developed visualisation plugin for evaluating

SWRL rules.

2 BACKGROUND

OWL is a standardised general knowledge representa-

tion language deﬁned in the ofﬁcial W3C OWL guide

from 2004 (McGuinness et al., 2004). Being based on

description logic the language is object centred with

no real support for if then rules. This can be healed by

extending OWL with SWRL (Horrocks et al., 2004),

which offers Horn clause like rules to express such

inferences.

In addition to OWL elements that mainly pro-

vide class deﬁnitions and descriptions of their con-

textual interrelation i.e concepts, individuals and pro-

perties, SWRL further includes elements for functi-

ons (i.e. built-ins) and restrictions (McGuinness et al.,

2004). Built-ins can be described as operators similar

to functions in conventional programming languages,

e.g. they can be used to express mathematical ope-

rations. Results are not passed as return values but

are bound to variables. The following table summari-

ses the most signiﬁcant elements that can be used in

SWRL and shows their syntactic structure.

Table 1: OWL/SWRL Elements.

OWL/SWRL Element Syntax

Class Person

Individual /

Class instance

Person(bob) /

Person(alice)

Data Property canDrive(bob, true)

Object Property isSon(bob, alice)

Built-ins swrlb:lessThan(?age,18)

Restrictions integer[> 0]

Variable ?age

2.1 SWRL Syntax Diagram

SWRL rule consists of two sets of atoms (antecedent

and consequent). An atom has a name and depending

on the atom type (class, data property, object property,

built-in) they can contain i-objects and d-objects. An

i-object can either be an individual ID or an i-variable,

which is a URI referring to an entity deﬁned in the on-

tology. In contrast, d-objects are either data literals or

d-variables that also refer to an entity. Fig. 2 illus-

trates the syntactical structure of SWRL rule in more

detail.

2.2 Semantic Query-Enhanced Web

Rule Language

The Semantic Query-Enhanced Web Rule Language

(SQWRL) is a language based on SWRL, in which

the rule consequent is replaced by so-called SQWRL

selection operators. For this purpose, SQWRL provi-

des different operators such as selection of values or a

function for counting the number of entries in the re-

sult set of a query. As SQWRL is based on SWRL, it

KEOD 2018 - 10th International Conference on Knowledge Engineering and Ontology Development

192

Figure 2: SWRL syntax diagram.

makes use of syntactically similar rules to specify the

extraction of the data. The consequent of the rule is

replaced by a retrieval speciﬁcation (a set of SQWRL

selection operators) in order to specify the data that

should be extracted. In contrast to the retrieval speci-

ﬁcation (rule consequent), the antecedent follows the

regular SWRL syntax to specify patterns for the query

(O’Connor and Das, 2009). The following example

illustrates a SQWRL rule which selects all individu-

als in the ontology that belong to concept person and

possess a driver licence.

Person(?p) ˆ hasDL(?p, ?dl) → sqwrl:select(?p)

The operator sqwrl:select is one of the core functions

that return a list of relevant concepts i.e. persons ?p

(see (O’Connor and Das, 2009)).

2.3 Dependencies between SWRL

Atoms

Typically, variables are used in more than one SWRL

within a rule or a part of the rule. A fact that deﬁnes

logical dependencies e.g. through object properties

used. SWRL atoms that are not dependent on any

other atoms are called root atoms (see Fig. 3). Atoms

that are linked to other atoms are called child atoms.

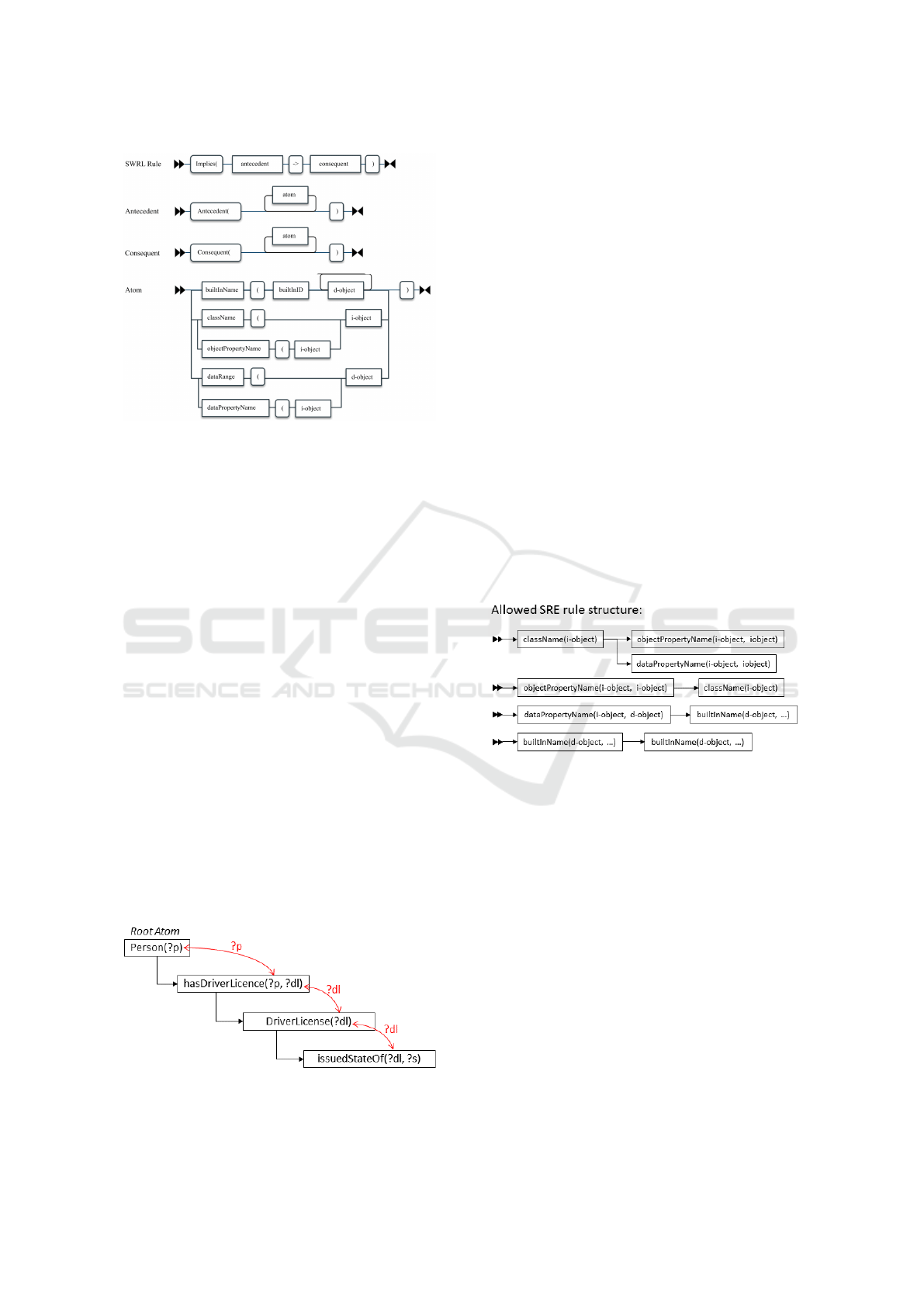

Figure 3: Dependencies between SWRL atoms.

3 SRE ALGORITHM

3.1 Speciﬁcation

SRE allows debugging SWRL rules by cascading va-

lues of variables along the logical dependencies bet-

ween the atoms of the rule. The debugging procedure

is supposed to deliver detailed output for each atom

in the rule antecedent to explain whether and why a

rule consequent was executed or not. Moreover, the

SRE algorithm provides an option to document results

from the evaluation.

3.2 Preconditions

In order to use SRE, the SWRL rules must meet cer-

tain conditions. While the general SWRL syntax, al-

lows rules without any class atoms in the antecedent,

our algorithm depends on the convention that class

atoms must explicitly be deﬁned for each variable

occurring in the rule. We can later improve the al-

gorithm by implicitly asserting variables without bin-

ding class atom to be of type Thing, which we have

not done yet because of performance considerations.

Figure 4: SRE Rule Structure.

As indicated in Fig. 4 SRE does not allow for ob-

ject property atoms to be directly followed by another

property atom. The SRE rule syntax convention re-

quires object properties to be explicitly followed by a

class atom. Otherwise, there will be errors in the SRE

path creation. If this is not guaranteed, it may happen

that the object property is appended by more than one

atom at the same time (see Fig. 5).

3.3 Algorithm Procedure

First, the algorithm selects a rule and restructures into

an internal representation. As SRE only focuses on

proving whether a rule consequent has been execu-

ted, the consequent is not relevant for the evaluation.

After the rule is rearranged, the algorithm detects root

atoms. Variables in root atoms must be bound to user

input (data literals or individual IDs) as they cannot

Single Rule Evaluation (SRE): Computational Algorithmic Debugging for Complex SWRL Rules

193

Figure 5: Inconsistent Rule Syntax.

be derived from other atoms. This input is passed to

SQWRL queries which are used in the evaluation pro-

cess. The algorithm creates a list in which results of

the evaluation are stored, so that the user debugging

the rule is able to get efﬁcient access to them after-

wards.

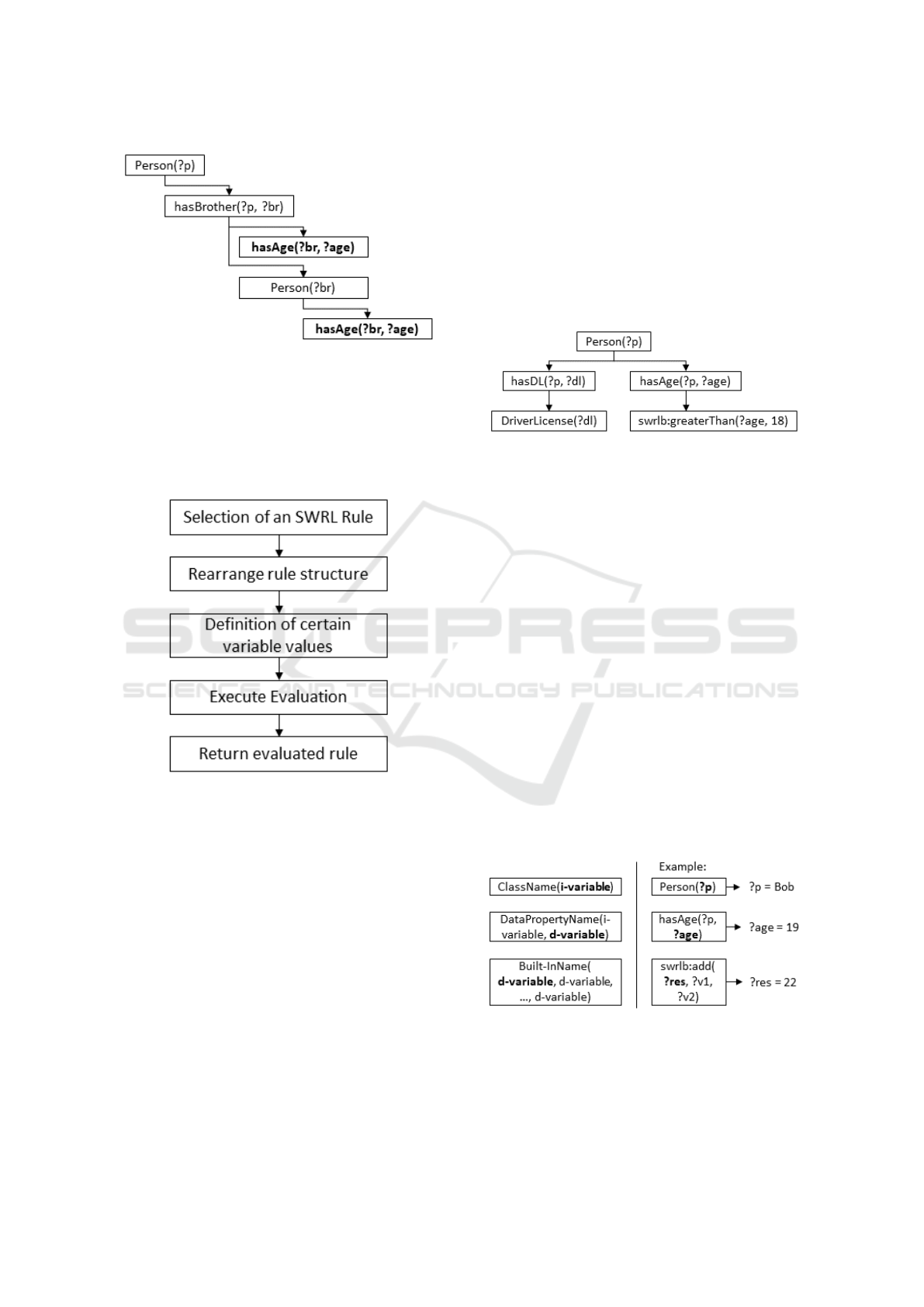

Figure 6: Algorithm procedure.

The following subsections provide a more detailed

explanation of the main processes.

3.3.1 Rearrange Rule Structure

In order to execute an evaluation, the rule antecedent

is rearranged into linked data structure that displays

single atoms and their dependencies to each other.

Therefore, the rule is split into single SWRL atoms

ﬁrst. After that root atoms are identiﬁed using a re-

cursive approach that inspects each atom and its de-

pendencies. These atoms become root nodes. De-

pendencies can derive from all atom types and are re-

presented as a directed link according to the order in

which variables appear as arguments. Based on this,

a depth-ﬁrst search is used to ﬁnd all relevant child

atoms. The result is a tree like structure with atoms as

nodes and dependencies as edges. Note that SRE can

not handle theoretically possible cyclic dependencies

of variables at the moment. This tree structure called

rule graph is then used in the evaluation process.

The following example shows how the rule antece-

dent is rearranged as a linked-list as illustrated in Fig.

Person(?p) ˆ hasDl(?p, ?dl) ˆ DriverLicense(?dl) ˆ

hasAge(?p,?age) ˆ swrlb:greaterThan(?age, 18)

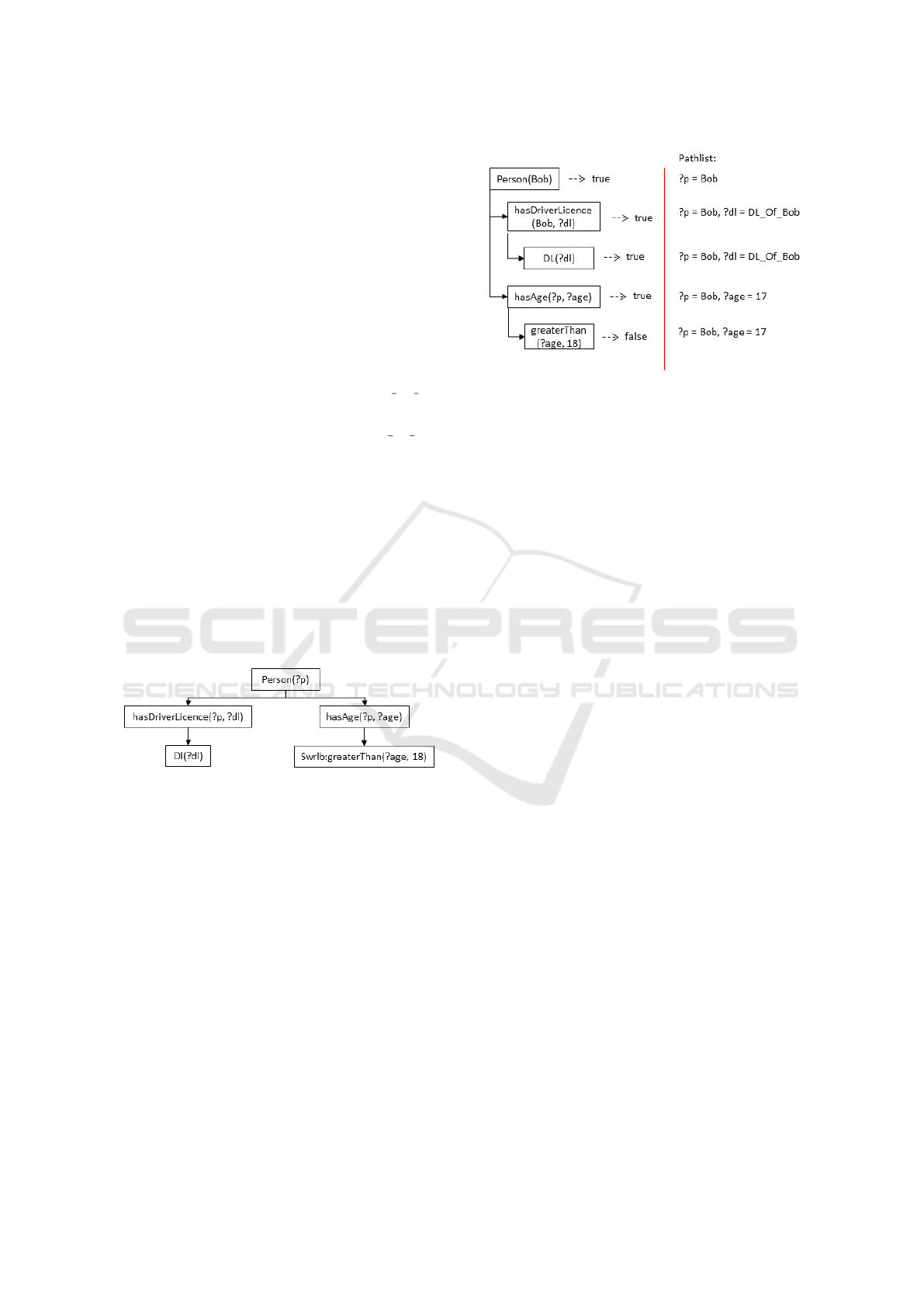

Figure 7: Rearranged Rule.

3.3.2 Deﬁnition of Variable Values

After the algorithm has rearranged the rule atoms and

built the rule graph, variables used in root atoms of

the antecedent need to be replaced by literals exter-

nally, i.e. by the user debugging the rule. In order

to determine these variables, SRE ﬁrst identiﬁes all

class atoms and all data property atoms in the rule

list. Object properties are not relevant for this search,

as the rule convention (see Section 3.2) ensures that

all object property variables that can be replaced by

literals, can also be found in the corresponding class

atom. Moreover, it is ensured that an object property

is followed by the referred class atom. Built-ins, on

the other hand, only provide variables to be replaced,

if they represent a function which binds a resulting

value into the ﬁrst argument of of the built-in atom.

This is the case for example with math built-ins such

as swrlb:add.

Fig. 8 shows the variables which can potentially

be deﬁned by a user.

Figure 8: Variable Deﬁnition.

It is essential that variables in root atoms of the

rule graph are replaced by literals before the evalua-

tion starts. This is a mandatory step as otherwise SRE

cannot produce results. In this case, SRE instantly

KEOD 2018 - 10th International Conference on Knowledge Engineering and Ontology Development

194

fails to evaluate the ﬁrst atom, as the algorithm pro-

duces an invalid SQWRL query with an empty retrie-

val speciﬁcation (see table 2 for valid SQWRL state-

ments).

3.3.3 Evaluation

The evaluation step is supposed to ﬁnd atoms that

cause the selected rule to fail. For this purpose, the ex-

ternally deﬁned values (see chapter 3.3.1) are copied

into two lists, called master-list and path-list respecti-

vely. In the beginning both lists contain the same va-

riables and their assigned values. The two lists are

crucial for evaluating built-ins used in the rule. The

path-list contains variables together with their values

that were found in a path found by the depth-ﬁrst se-

arch through the rule graph. This is necessary as eva-

luated atoms may lead to multiple entries in the result

set of the SQWRL query. Multiple results create new

paths, and each paths requires its own list. The follo-

wing example clariﬁes the issue.

Figure 9: Pathlist.

The master-list is ﬁlled with variables and the

corresponding values found during the evaluation

process. This list is used, whenever the SWRL rule

contains a built-in atom which refers to more than one

other atom. In this case, values from more than one

path-list are used. The following example illustrates

the role of this master-list.

The evaluation uses a depth-ﬁrst search to iterate

through the rearranged rule list (see section 3.3.1).

During each iteration, the current SWRL atom

needs to be classiﬁed to ﬁnd variables that can be

replaced by literals. After identifying the relevant

variables, the algorithm searches the path-list for

the corresponding value. In case a matching value

is found, the sqwrl:select operator is used to query

the ontology. Moreover, if an atom is an instance of

a built-in which refers to more than one other atom,

Figure 10: master-list.

the algorithm uses the master-list to ﬁnd the required

values.

For example in a query that checks whether

Person(Bob) owns Cars(?c) the SQWRL query

returns a list of all car individuals that belong to

Person(Bob) according to object properties in the

ontology.

ownsCar(Bob, ?c) → sqwrl:select(?c)

The sqwrl query delivers a set of values for que-

ried variables. These values are put into the path-list

and the globally accessible master-list. The path-list

is only valid until the depth-ﬁrst search switches to

another path. The following table deﬁnes the the dif-

ferent SQWRL queries that are required for each atom

type.

Table 2: SQWRL Queries.

Atom type Syntax

Class class(?i obj) → sq-

wrl:select(true)

Data Property dp(?i obj,?d obj) → sq-

wrl:select(?d obj)

Object Property op(?i obj1,?i obj2) → sq-

wrl:select(?i obj2)

Built-in (Typ 1) bi(?res, ?d obj1, ..., ?d objN) →

sqwrl:select(?res)

Built-in (Typ 2) bi(?d obj1, ?d obj2) → sq-

wrl:select(true)

A further rule list is simultaneously created and

documents the steps of the evaluation process. For

each SQWRL query which examines the outcome for

an atom a new entry containing information about the

current SWRL atom is appended to this list. The entry

is labelled as false if the query does not return any data

from the ontology.

Single Rule Evaluation (SRE): Computational Algorithmic Debugging for Complex SWRL Rules

195

4 EXAMPLE

In this section, an example of an SRE application pro-

vides a proof of concept.

4.1 Simple Evaluation Example

This example shows a simple evaluation process of

SRE. The following entries are provided by the given

ontology.

• Classes: Person, Dl(short form for “Driver Li-

cence”)

• Instances: Bob instance of Person, DL Of Bob

instance of Dl

• Relations: Bob hasDriverLicence DL Of Bob,

Bob hasAge 17

Based on this, the following example rule is to be

evaluated:

Person(?p) ˆ hasDriverLicence(?p, ?dl) ˆ Dl(?dl) ˆ

hasAge(?p, ?age) ˆ swrlb:greaterThan(?age, 18) →

Person(?p) ˆ canDrive(?p, true)

At ﬁrst, the rule is rearranged into the structure of

the corresponding rule graph. As the rule consequent

is not relevant for the assessment, it can be discarded.

The rule antecedent is now arranged as as shown in

Fig. 11.

Figure 11: Example 1: Rearranged Rule.

In the next step the rule graph is used to identify

variables that can be replaced by literals. Root atoms

of the rule graph must be replaced, as they deﬁne the

starting point for the evaluation. In our example va-

riable ?p is identiﬁed as root atom and is replaced by

the literal ”Bob”. The variable is now used in the cor-

responding SQWRL query.

As Fig. 12 shows person Bob is not

allowed to drive a car, because the built-in

swrlb:greaterThan(?age, 18) returns false.

5 IMPLEMENTATION

Based on the concept of SRE we implemented the

algorithm as a Java-based API. Java was chosen for

compatibility as the programming interfaces and the

Figure 12: Example 1: Evaluation Process.

ontology editor Prot

e are also written in Java. The

following sections describe the basis architecture of

the SRE API and how it is used to implement the pro-

totypical SRE Prot

e Viewer.

5.1 Single Rule Evaluation API

In order to make the SRE reusable the algorithm was

implemented in the form of an application program-

ming interface (API). This API focuses on usabi-

lity and provides different interfaces to monitor the

progress of the evaluation. The implementation fol-

lows architectural principles i.e. it conforms to de-

sign patterns especially the observer and the facade

pattern. The facade pattern provides a single entry

point for users which summarises the most impor-

tant methods. This entry point (facade class) provi-

des functions such as the registration of SRE obser-

vers and SRE main clients. Those two interfaces are

used for the observer pattern. A user that is registered

as a SREMainClient is able to deﬁne literals requi-

red to be assigned to variables during rule evaluation.

In contrast, SREObserver instances only receive log

messages and the evaluated rule after the assessment

has ﬁnished. The evaluation can be started, only when

the user has registered all observers. Moreover, by

using the executeEvaluation() function, a rule is se-

lected by addressing its rule name. The facade class

provides a function for this speciﬁc purpose.

When an ontology is submitted, the ExecutionU-

nit initialises the OntologyAccess component, which

provides a utility class to enable bi-directional data

exchange between the ontology and the system. This

utility class is mainly used by the EvaluationEngine,

which is responsible for the rearrangement process,

the identiﬁcation of to be replaced variables, and the

evaluation of a selected rule. Queries against the On-

tology are generated by the QueryGenerator compo-

nent and run by the EvaluationEngine. It provides

an interface that returns SQWRL queries based on

KEOD 2018 - 10th International Conference on Knowledge Engineering and Ontology Development

196

data delivered by the EvaluationEngine. The Node-

Generator component documents the progress of the

evaluation. It builds a rule graph, which is similar

to the rule graph for a rearranged rule. However, it

contains extra information for each evaluated SWRL

atom. Because of the observer pattern, the Evalua-

tionEngine is connected to an interface of the Upda-

terComponent. This component has the purpose to

handle communications with the user.

See Fig. 13 for an illustrated explanation of the

API.

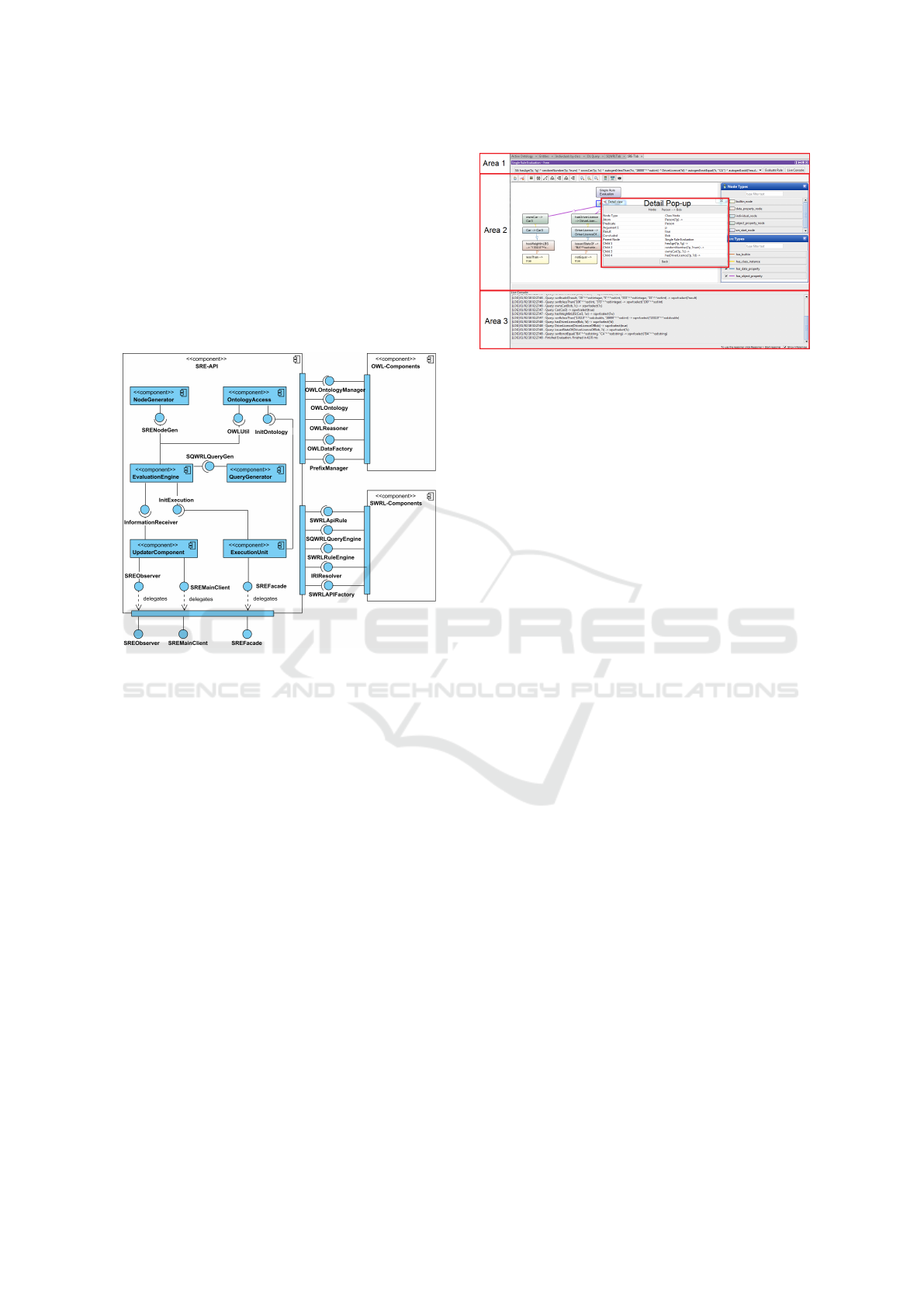

Figure 13: SRE API Component Diagram.

5.2 SRE Prot

e Viewer

The implementation of the SRE Viewer as a Prot

plugin makes use of the developed SRE API. The

plugin provides a graphical user interface via the

Prot

e ontology editor and is divided into three sub-

panels. The ﬁrst area contains a drop-down menu in

which a user can select the rule for the evaluation.

In order to execute the evaluation with a selected rule,

the panel provides a button that starts the process. The

panel in the middle of the perspective contains a can-

vas area on which the results of an evaluated rule are

displayed. As the assessed rule is a linked list of no-

des, it is displayed as a tree structure. For this, the

canvas area is inspired by the Prot

e plugin Onto-

graf, which is based on the Cajun Visualization Li-

brary (Falconer, 2010). Finally the GUI provides a

simple output console that displays log messages that

the SRE API produces while the evaluation is run-

ning. A single click on a node shows detailed infor-

mation about the assessment of a speciﬁc SWRL atom

in a pop-up window.

Figure 14: SRE Protege Viewer.

6 CONCLUSION AND FUTURE

WORK

In this paper we introduce a new method for evalu-

ating SWRL atoms in the rule antecedent of SWRL

rules in order to examine whether a rule consequent

will be executed. This can signiﬁcantly simplify the

work on complex ontologies as it reduces the effort to

ﬁnd atoms that cause rules to fail. The SRE algorithm

was implemented as an application programming in-

terface (API) that focuses on usability and creates new

possibilities for other projects as it can easily be inte-

grated in application programs. Moreover the SRE

and the developed API offer various applications for

real world problems, like form-input validation with

the help of SWRL rules. We also implemented a pro-

totypical SRE Viewer as a plugin for Prot

e since

we believe that it can become a useful tool for future

applications. The visualisation of the evaluated rule

simpliﬁes the debugging process, as the atoms that

produce false values are instantly visible. The deve-

loped plugin at this stage offers potential for extensi-

ons and improvements. A ﬁrst problem to be solved

is caused by the SQWRL query language as large on-

tologies may cause heap space errors which are due

to the underlying reasoning unit. Moreover, the deve-

lopment of an SRE syntax validator is a useful impro-

vement, as it supports the editing of complex SQWRL

rules. This validator can inspect rules suggest chan-

ges, if they do not conform to deﬁned conventions.

We will provide the source code for the SRE

project on github. The repository can be accessed

under the following URL: https://github.com/KITE-

Cloud/SRE

Single Rule Evaluation (SRE): Computational Algorithmic Debugging for Complex SWRL Rules

197

REFERENCES

Fluent editor 2015 help.

Elenius, D. (2012). Swrl-iq: A prolog-based query tool for

owl and swrl. In OWLED.

Falconer, S. (2010). Ontograf. Prot

e Wiki.

Horrocks, I., Patel-Schneider, P. F., Boley, H., Tabet, S.,

Grosof, B., Dean, M., et al. (2004). Swrl: A semantic

web rule language combining owl and ruleml. W3C

Member submission, 21:79.

MacLarty, I., Langevine, L., Bossche, M. V., and Ross, P.

(2016). Using swrl for rule-driven applications.

McGuinness, D. L., Van Harmelen, F., et al. (2004). Owl

web ontology language overview. W3C recommenda-

tion, 10(10):2004.

O’Connor, M. (2018). How to debug swrl rules?. https:

//mailman.stanford.edu/pipermail/protege-

owl/2008-May/007034.html. Last checked on

April 23, 2018.

O’Connor, M. and Das, A. (2009). Sqwrl: a query language

for owl. In Proceedings of the 6th International Con-

ference on OWL: Experiences and Directions-Volume

529, pages 208–215. CEUR-WS. org.

KEOD 2018 - 10th International Conference on Knowledge Engineering and Ontology Development

198
