Incremental Bidirectional Transformations:

Applying QVT Relations to the Families to Persons Benchmark

Bernhard Westfechtel

Applied Computer Science I, University of Bayreuth, D-95440 Bayreuth, Germany

Keywords:

Model Transformation, Bidirectional Transformation, Benchmark, QVT Relations.

Abstract:

Model transformations constitute a key technology for model-driven software engineering. In round-trip engi-

neering processes, model transformations are performed not only in forward, but also in backward direction.

Since deﬁning forward and backward transformations separately is both awkward and error-prone, bidirectio-

nal transformation languages provide a single deﬁnition for both directions. This paper evaluates the transfor-

mation language QVT Relations (QVT-R) which allows to specify incremental bidirectional transformations

— as required for round-trip engineering for propagating changes in both directions — declaratively at a high

level of abstraction. We apply QVT-R to a well-known benchmark example, the Families to Persons case.

This case study demonstrates a number of limitations of the QVT-R language which result from the strictly

state-based design of the language as well as from the way in which the semantics of QVT-R transformations

are deﬁned.

1 INTRODUCTION

Model transformations (Czarnecki and Helsen, 2006)

constitute a key technology for model-driven software

engineering. A model transformation takes a set of

source models as input and creates or updates a set

of target models. A transformation operates in ba-

tch mode if it generates the target models from scra-

tch; in contrast, an incremental transformation propa-

gates changes from sources to targets. Furthermore,

we may distinguish between unidirectional transfor-

mations which are executed only from source to tar-

get, and bidirectional transformations which are exe-

cuted also in the opposite direction. Bidirectional

transformations occur in a wide variety of application

domains (Czarnecki et al., 2009), including, but not

restricted to model-driven software engineering. In

this paper, we focus speciﬁcally on incremental bidi-

rectional transformations, as they are required e.g. in

round-trip engineering processes.

A bidirectional transformation language is a lan-

guage which allows to deﬁne bidirectional transfor-

mations with the help of a single transformation de-

ﬁnition being executable in both directions; see (Hi-

daka et al., 2016) for a survey. A bidirectional trans-

formation language promises to save speciﬁcation ef-

fort since the transformation developer does not need

to code each direction separately. Furthermore, a bidi-

rectional transformation language may assist in deﬁ-

ning mutually consistent forward and backward trans-

formations. For example, the forward and backward

transformations may satisfy certain round-trip laws

such as that the execution of a backward transfor-

mation, immediately following a forward transforma-

tion, leaves the original source model untouched (Fos-

ter et al., 2007).

QVT Relations (QVT-R) is a model transformation

language which was deﬁned by the Object Manage-

ment Group (OMG) as part of the QVT standard (Ob-

ject Management Group, 2016a). QVT-R is based

on the Meta Object Facility (MOF (Object Manage-

ment Group, 2016b)) for deﬁning models as instan-

ces of metamodels, and the Object Constraint Lan-

guage (OCL (Object Management Group, 2014)) for

expressing queries and constraints on MOF models.

QVT-R is a declarative language which allows to spe-

cify consistency relationships between patterns. In

QVT-R, a transformation developer may deﬁne a bi-

directional transformation which may be executed in

different ways: in forward or backward direction, in

batch or incremental mode, as well as in checkonly or

enforcing mode. In checkonly mode, the consistency

between a source and a target model is checked; in

enforcing mode, the target model is updated (or cre-

ated anew) to make it consistent with the source mo-

del. Thus, a single declarative transformation deﬁni-

Westfechtel, B.

Incremental Bidirectional Transformations: Applying QVT Relations to the Families to Persons Benchmark.

DOI: 10.5220/0006679700390053

In Proceedings of the 13th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2018), pages 39-53

ISBN: 978-989-758-300-1

Families

Model

Persons

Model

Updates

Change

Propagation

Change

Propagation

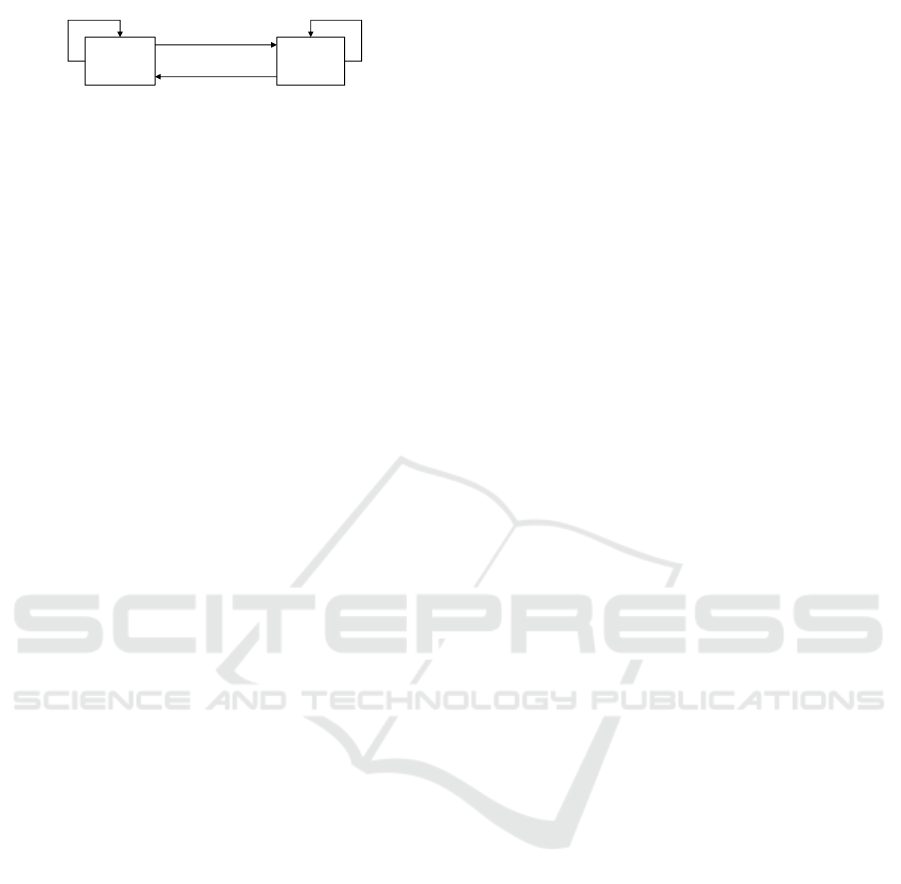

Figure 1: The Families to Persons case.

tion may be executed in up to six different ways. This

approach promises to make the development of bidi-

rectional transformations considerably easier.

In the light of the diversity of bidirectional trans-

formation languages, the need for benchmarks has

been identiﬁed early (Czarnecki et al., 2009). Later, a

proposal for structuring benchmarks for bidirectional

transformations was published (Anjorin et al., 2014).

Only recently, this proposal was materialized into an

implementation called Benchmarx, which constitu-

tes a practical benchmark framework for bidirectional

transformations (Anjorin et al., 2017b). Based on this

framework, a popular case from the literature — the

Families to Persons case — was implemented (Anjo-

rin et al., 2017a). In this paper, we evaluate incre-

mental bidirectional transformations in QVT-R with

the help of the Families to Persons benchmark case as

described in (Anjorin et al., 2017a).

The Families to Persons benchmark case is illus-

trated in Figure 1. In this informal diagram, boxes

represent models, while arrows stand for model up-

dates. Two related, but differently structured models

have to be kept consistent: A families model with pa-

rents and children, and a persons model containing a

ﬂat set of males and females. Updates may be per-

formed on both models, and have to be propagated in

both directions. While the Families to Persons case is

rather small and thus implementable with acceptable

effort, it poses a number of challenges such as hetero-

geneous metamodels, loss of information, the absence

of keys (uniquely identifying properties of model ele-

ments), non-determinism, conﬁgurability (of the bac-

kward transformation), renamings and moves, order

dependent update behavior, and application-speciﬁc

requirements to change operations.

Our contribution consists in the solution of the Fa-

milies to Persons case in QVT-R and its evaluation.

Surprisingly, our evaluation reveals a number of limi-

tations, resulting in a large number of failed test ca-

ses. A detailed examination shows that these failures

are due the semantic rules determining the execution

behavior of QVT-R transformation deﬁnitions. The

problems are not primarily caused by ambiguities or

contradictions in the semantics deﬁnition. Rather, the

Persons to Families case demands for behavior that

deviates from the semantics which QVT-R incorpora-

tes. Thus, our main intent is to clearly elaborate the

reasons for failures in the benchmark and discuss the

lessons learned from this case study.

In particular, we identiﬁed the following problems

when applying QVT-R to the Families to Persons

case:

Imprecise Change Propagation. Due to the strictly

state-based design and the absence of persistent

traces, changes may be propagated only impreci-

sely. For example, if the name of a family member

is changed, the corresponding person is deleted

and recreated, implying that the birthday is lost.

Unidirectional Transformations. Although QVT-R

supports the speciﬁcation of bidirectionally exe-

cutable transformations, our best-effort solution

requires to write two unidirectional transformati-

ons because the rules for forward and backward

transformations differ signiﬁcantly.

Non-injective Mappings. Due to the check-before-

enforce semantics of QVT-R, multiple family

members sharing the same name would be map-

ped onto the same person (and vice versa) unless

the transformation deﬁnition is written in such a

way that an injective mapping is enforced. Unfor-

tunately, enforcing injective mappings turns out to

be awkward, and it requires pairs of unidirectional

transformations (see above).

Duplicate Transformations. QVT-R applies all ru-

les to all matches, without checking for conﬂicts.

This may result in undesirable behavior. For ex-

ample, in the backward transformation from the

persons model to the families model there are two

rules for mapping females to mothers and daugh-

ters, respectively. The transformation developer

must ensure that the preconditions for applying

these rules are mutually exclusive.

The rest of this paper is structured as follows:

Section 2 introduces QVT-R. Section 3 describes the

Families to Persons case, which is solved in Section 4.

Section 5 evaluates the solution. Section 6 discusses

related work, and Section 7 concludes the paper.

2 QVT RELATIONS

This section summarizes some global properties of

QVT Relations (QVT-R); the language constructs will

be explained on demand in parallel to the solutions

presented in Section 4. For a detailed description of

QVT-R, the reader is referred to the standard (Object

Management Group, 2016a).

QVT-R is a declarative language for specifying

transformations between models which are typed by

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

Table 1: Properties of QVT-R.

Property Explanation

State-based Transformation depends only

on model states, not on deltas

Trace-less Transformation does not rely

on a persistent trace

n : 1

mappings

Multiple source pattern

instances may be mapped to the

same target pattern instance

Non-

conﬂicting

relations

Relations are applied

independently of each other

MOF-based metamodels. In general, any number n

of models may be involved in a transformation; in

the following explanations, we will assume n = 2.

A transformation is deﬁned in terms of relations bet-

ween patterns in the participating models.

A transformation is executed in the direction of a

speciﬁc model. A transformation is unidirectional if

it can be executed only in a speciﬁc direction; it is

bidirectional if it can be executed in both directions.

In the latter case, the transformation deﬁnition must

satisfy a number of restrictions (dataﬂow constraints)

ensuring that the transformation is actually executable

in both directions. QVT-R does not distinguish expli-

citly between uni- and bidirectional transformations.

QVT-R distinguishes between two modes of trans-

formation executions. In checkonly mode, it is chec-

ked whether the target model is consistent with the

source model. In enforcing mode, the target model is

updated in order to make it consistent with the source

model. With respect to enforcing transformations, ba-

tch transformations are considered as a special case of

incremental transformations (initially, the target mo-

del is empty).

QVT-R transformations are based on a for-all-

exists semantics: In checkonly mode, it is checked

for each relation and each match of a source pattern

whether a match of the corresponding target pattern

exists in the target model. In enforcing mode, a ma-

tch of the target pattern is created when it does not

exist yet. The for-all-exists semantics results in n : 1

mappings, i.e., it is allowed that multiple matches in

the source model are mapped to the same match in

the target model. This statement holds both within a

speciﬁc relation and across different relations.

Due to the for-all-exists semantics, a directed

check reports consistency of the target model with the

source model even if the target model contains “too

many” elements. Therefore, checking mutual consis-

tency requires two directed checks. In contrast, in en-

forcing mode all unmatched target elements are dele-

ted to ensure mutual consistency.

In QVT-R, all relations are non-conﬂicting. Thus,

if two relations are applicable to the same match, both

of them are applied. If it is intended that at most

one of them is executed, the transformation developer

must specify the application conditions accordingly.

Similarly, matches may have arbitrary overlaps —

both within a single relation and across multiple re-

lations.

QVT-R follows a purely state-based approach to

incremental transformations: The only information

which is assumed to be present are the states of the

source and the target model. In this way, the prerequi-

sites for the execution of incremental transformations

are minimized. Thus, for any pair of models s and t,

an incremental transformation for updating t may be

executed, regardless of the history of changes.

In particular, QVT-R does not assume the pre-

sence of deltas, which record sequences of change

operations on the source model and could be exploited

to improve change propagation. Nor does QVT-R rely

on (persistent) traces, which record the relationships

between source and target model elements of previous

transformation executions. Thus, in QVT-R an incre-

mental transformation from s to t may be performed

even if s and t have been created independently and

no knowledge regarding the changes on s is available.

Finally, incremental QVT-R transformations rely

on a check-before-enforce semantics: If a match of a

source pattern of some relation is located, it is chec-

ked ﬁrst whether a match of the corresponding target

pattern already exists. In this case, the match of the

source pattern is related to the already existing match

of the target pattern. The check-before-enforce se-

mantics differs from a trace-based semantics, where

a new target pattern instance is created when the re-

spective source pattern instance has not been transfor-

med yet.

Table 1 summarizes essential properties of QVT-R

being relevant to the case studied in this paper.

3 FAMILIES TO PERSONS

Different variants of the Families to Persons case have

been proposed. To make this paper self-contained, we

describe the variant on which our work is based, follo-

wing (Anjorin et al., 2017a). The case is rather small

such that it is implementable with acceptable effort.

On the other hand, it includes several challenges to be

summarized at the end of this section.

Below, the Families to Persons case is described in

an informal way (apart from the deﬁnition of metamo-

dels, see below). While informal descriptions suffer

from a lack of precision, we refrain from a formaliza-

Incremental Bidirectional Transformations: Applying QVT Relations to the Families to Persons Benchmark

FamilyRegister

Family

+name :String

FamilyMember

+name :String

father

0..1

father

Inverse

0..1

mother

0..1

mother

Inverse

0..1

sons

0..*

sons

Inverse

0..1

daughters

0..*

daughters

Inverse

0..1

families

0..*

families

Inverse

0..1

PersonRegister

Person

+name :String

+birthday :Date

persons

0..*

persons

Inverse

0..1

Male

Female

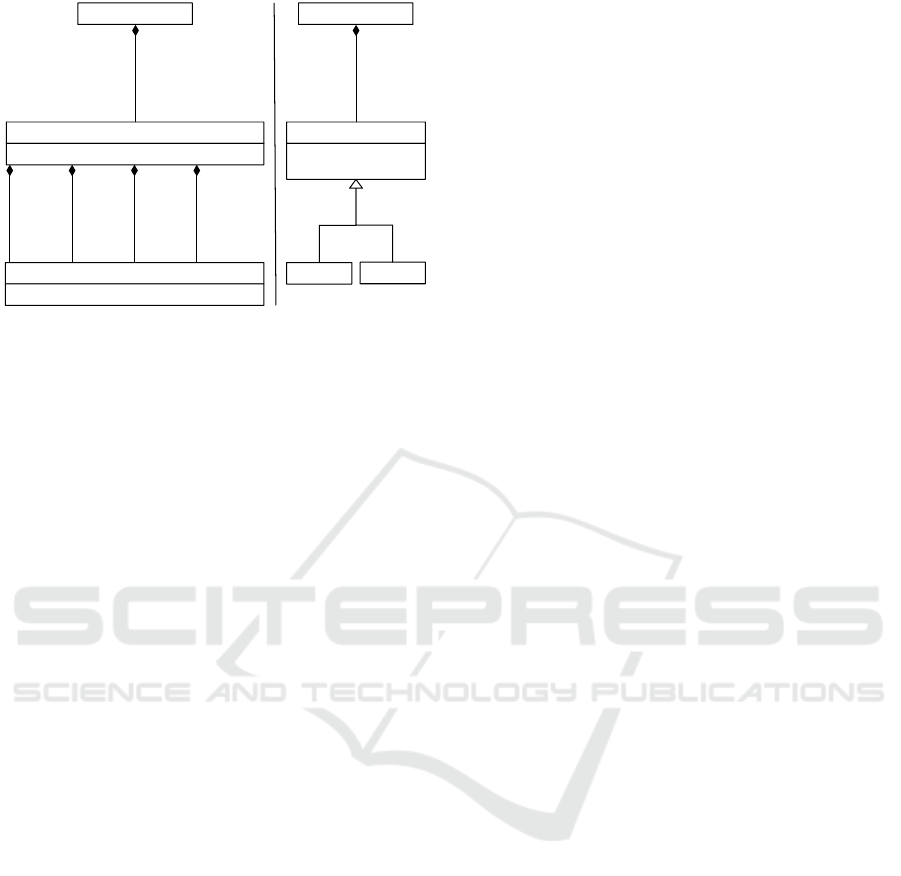

Figure 2: Metamodels.

tion, e.g., with the help of ﬁnite model theory (Libkin,

2004), which constitutes a challenge on its own and

considerably goes beyond the scope of this paper.

3.1 Metamodels and Consistency

The Families to Persons case deals with the synchro-

nization of a families model with a persons model.

The underlying metamodels are displayed in Figure 2

as class diagrams. For metamodeling, we employ

Ecore - an implementation of Essential MOF, a sub-

set of MOF, provided by the Eclipse Modeling Fra-

mework (Steinberg et al., 2009). Please note that we

adopt the following terminology: A model represents

a collection of instance data. A metamodel is a “mo-

del for models” and deﬁnes the types of objects, attri-

butes, and links, as well as the rules for their compo-

sition.

We assume a unique root in each model. A fa-

mily register stores a collection of families. Each fa-

mily has members who are distinguished by their ro-

les. The metamodel allows for at most one father and

at most one mother as well as an arbitrary number of

daughters and sons. A person register maintains a ﬂat

collections of persons who are either male or female.

Note that key properties may be assumed in neither

model: There may be multiple families with the same

name, name clashes are even allowed within a single

family, and there may be multiple persons with the

same name and birthday.

A families model is consistent with a persons mo-

del if a bijective mapping between family members

and persons can be established such that (i) mothers

and daughters (fathers and sons) are paired with fe-

males (males), and (ii) the name of every person p is

“ f .name, m.name”, where m is the member (in family

f ) paired with p.

3.2 Batch Transformations

After running a transformation in any direction, it is

required that the participating models are mutually

consistent according the deﬁnition given above. Ho-

wever, this requirement does not sufﬁce to deﬁne the

functionality of transformations in a unique way. Be-

low, we ﬁrst consider batch transformations, where

the target model is created from scratch.

The functionality of a forward transformation is

straightforward: Map each family member to a person

of the same gender and compose the person’s name

from the family name and the ﬁrst name; the birthday

remains unset. The backward transformation is more

involved: A person may be mapped either to a parent

or a child, and persons may be grouped into families

in different ways.

To reduce non-determinism, two Boolean para-

meters control the backward transformation, resulting

in a conﬁgurable backward transformation: prefer-

ParentToChild deﬁnes whether a person is mapped

to a parent or a child. preferExistingToNewFamily

determines whether a person is added to an existing

family (if available), or a new family is created along

with a single family member. If both parameters are

set to true, the second parameter takes precedence: If

a family is available with a matching family name,

but there is no matching family with an unoccupied

parent role, the member is inserted into an existing

family as a child.

3.3 Incremental Transformations

For incremental transformations, updates such as in-

sertions, deletions, changes of attribute values, and

move operations have to be considered. In forward

direction, insertion of a family has no effect on the

target model. Insertion of a member results in inser-

tion of a corresponding person; likewise for deletions.

If a family is deleted, all persons corresponding to its

members are deleted. If a member is renamed, the

corresponding person is renamed accordingly. If a fa-

mily is renamed, all persons corresponding to family

members are renamed. If a member is moved, diffe-

rent cases have to be distinguished. If the gender is re-

tained, the corresponding person object is preserved;

otherwise, it is deleted, and a new person object with

a different gender is created whose attributes are co-

pied from the old person object. A local move within

a family does not affect the corresponding person’s

name; a move to another family results in a potential

update of the person’s name.

In backward direction, the effect of an update

depends on the values of the conﬁguration parame-

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

ters which may vary between different transformation

executions. Please note that the parameter settings

must not affect already established correspondences;

rather, they apply only to future updates. Deletion of a

person propagates to the corresponding family mem-

ber. If a person is inserted, it depends on the conﬁ-

guration parameters how insertion propagates to the

families model (see above). Persons cannot be moved

because the persons model consists of a single, ﬂat,

and unordered collection. Changes of birthdays do

not propagate to the opposite model. If the ﬁrst name

of a person is changed, the ﬁrst name of the corre-

sponding family member is updated accordingly. Fi-

nally, if the family name of a person is changed, this

change does not affect the current family and its mem-

bers: The family preserves its name even if it does

not contain other members; thus, the update has no

side effects on the existing family. Rather, the corre-

sponding family member is moved to another family,

which may have to be created before the move; the

precise update behavior depends on the parameter set-

tings.

3.4 Transformation Laws

The transformations developed for the Families 2 Per-

sons benchmark should satisfy a set of general laws

(Stevens, 2010). First, the result of a transformation

from s to t should be correct, i.e., s and t should

be mutually consistent (see Section 3.1). Further-

more, transformations should be hippocratic: The tar-

get model should not be changed if consistency has al-

ready been established. Thus, an immediate re-run of

a transformation establishing correctness should have

no effect (even if conﬁguration paramaters are swit-

ched in the backward transformation). Finally, round-

trip laws (Foster et al., 2007) should be satisﬁed: A

backward transformation following a forward trans-

formation should leave the original source model un-

touched; likewise for a forward transformation follo-

wing a backward transformation.

3.5 Challenges

The Families to Persons case includes a number of

challenges which are summarized below:

Heterogeneous Metamodels. The transformation

has to perform a mapping between heterogeneous

metamodels, where the same information is

represented in different ways (concerning e.g.

names and genders).

Loss of Information. The family structure is lost in

the forward transformation; birthdays are lost in

the backward transformation.

No Keys. There are no uniquely identifying proper-

ties for family members or persons, which makes

propagation of changes difﬁcult.

Non-determinism. The families model does not

contain information for deﬁning birthdays in the

persons model. Conversely, the persons model

does not contain information about the family

structure. The forward and backward transforma-

tions have to resolve non-determinism.

Conﬁgurability. Non-determinism in the backward

transformation is handled by conﬁguration para-

meters which affect the family structure. The pa-

rameters may be changed from execution to exe-

cution and should affect only new elements of the

person model in each run.

Renamings and Moves. Change operations to be

propagated include not only creations and deleti-

ons, but also renamings and moves which must

not be reduced to deletions and creations (ot-

herwise, the principle of least change (Macedo

and Cunha, 2016), which demands that the chan-

ges are propagated in a minimally invasive way,

would be violated).

Order-dependent Update Behavior. The bac-

kward transformation depends on the order in

which changes to the persons model are pro-

cessed. For example, if two persons are to be

inserted into the same family as parents, the ﬁrst

one will be inserted as parent, and the second one

will follow as a child.

Speciﬁc Requirements to Change Operations.

The case description includes speciﬁc require-

ments to change operations. For example, if the

family name of a person is changed, the person

should be moved to another family (rather than

having the family name updated, with side effects

on other members).

4 SOLUTION

In the following, we will ﬁrst present an initial solu-

tion which is easy to understand (Section 4.1). Since

this proposal suffers from several deﬁcits, we will

reﬁne it into an improved, more sophisticated solu-

tion. In passing, we will mention a number of issues

which we faced in developing the solutions; these

will be summarized and discussed systematically in

Section 5.

Incremental Bidirectional Transformations: Applying QVT Relations to the Families to Persons Benchmark

Listing 1: QVT-R transformation, initial version.

1 tran s form a tion f a mili e s 2 p e r so n s _ b x ( f am D B : Famili e s , p e rDB : P er s o n s ) {

3 top r e l a t io n F a mi l y R e g i s t e r 2 P e r s o n R e g i s t e r {

4 en f or ce d o ma in fa m DB f a m i ly R e g i s t e r : F am il i e s :: F am i l y R e g i s t e r {};

5 en f or ce d o ma in pe r DB p e r s on R e g i s t e r : P er s on s :: P e rs o n R e g is t e r {};

6 whe r e {

7 Fa th er 2 M a l e ( fa mi l yR eg i st er , p e r s o n Re g i s t e r );

8 So n 2 M al e ( f a m il y R e gi s t e r , p e r s o nR e g i s t e r );

9 Mo t h e r 2 Fe m a l e ( f am il y Re gi s te r , p e r s o nR e g i s t er );

10 Da u g h te r 2 F em a l e ( f a mi l y R eg i s t er , p e r s on R e g i s te r );

11 }

12 }

14 r e l a ti on Fa t h e r 2M al e {

15 fam i lyN a me , firs t N ame , f u ll Na m e : S t ri n g ;

16 en f or ce d oma in fa m DB f a m i ly R e g i s t e r : F am il i e s :: F am i l y R e g i s t e r {

17 fa m i l ie s = fa m il y : Fa m i l i e s :: F am i ly {

18 name = fa m il y N am e ,

19 fa t he r = fa t he r : F a m il ie s :: F a m i l y M e mb er {

20 name = f ir st N a m e

21 }

22 }

23 };

24 en f or ce d oma in pe r DB p e r s on R e g i s t e r : P er s on s :: P e rs o n R e g is t e r {

25 pe r so n s = mal e : P er s o n s :: Ma l e {

26 name = f u l l N a me

27 }

28 };

29 whe r e {

30 fu l l N am e = f a m i l y N a m e + ’, ’ + f i r s t N am e ;

31 fi r s t N a m e = fi rs tN a m e ( f u l lN am e );

32 fa mi ly Na me = f a m i l y N a m e ( f u l l Na me );

33 }

34 }

35 ...

36 }

4.1 Initial Version

Listing 1 shows a straightforward bidirectional trans-

formation. The candidate models — models involved

in the transformation — are declared in line 1. Ple-

ase notice that there is no distinction between inputs

and outputs; e.g., the families model serves as input

for the forward transformation and as output for the

backward transformation.

The transformation deﬁnition consists of ﬁve re-

lations, two of which are shown in Listing 1. The re-

lation starting in line 3 is a top-level relation, i.e., it is

not called in any relation and is applied automatically

to each match located in the source model. This rela-

tion serves to relate the root elements of the families

and persons models. The source and target patterns

of a relation are deﬁned by domains. Each domain

belongs to one of the candidate models (e.g., the fa-

milies model famDB in line 4). Furthermore, it has a

unique root node which is typed (familyRegister).

The modiﬁer enforce allows to use the domain for

enforcement (instantiation of the domain in the tar-

get model). Since both domains in lines 4–5 are mar-

ked by this modiﬁer, the relation may be enforced in

both transformation directions. Finally, further relati-

ons are called in the where clause (lines 7–10). Only

one of these relations (Father2Male) is shown; the

other relations are deﬁned analogously.

The relation starting in line 14 is a called rela-

tion, which is applied only when it is called expli-

citly. Then, it is applied to all matches of its source

pattern for the root element ﬁxed in the call. Thus,

Father2Male is applied to all fathers in the families

a male person whose name is composed from the fa-

mily name and the ﬁrst name. If executed in backward

direction, the person is mapped to a father; the name

is decomposed accordingly. The variables declared in

line 15 are used for storing the values of the name at-

tributes involved in the transformation. The equations

in the where clause (lines 30–32) compose or decom-

pose name attributes, depending on the transforma-

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

tion direction. In forward direction, the equation in

line 30 binds the variable fullName; the following

equations perform redundant checks. In backward di-

rection, firstName and lastName are bound in li-

nes 31–32, followed by a redundant check in line 30.

Please notice that the order of execution of equations

is determined by dataﬂow constraints, not by the tex-

tual order (which is immaterial). All equations are

executed in each direction, but perform different tasks

(binding of a variable vs. checking of a constraint).

The transformation deﬁnition presented in Lis-

ting 1 is executable in both directions and easy to

understand (compared to the transformation deﬁniti-

ons to be presented below). However, it suffers from

two fundamental ﬂaws which will be addressed by

the improved version presented below. First, due to

QVT-R’s check-before-enforce semantics, mappings

are n : 1 rather than 1 : 1: For example, different mem-

bers in the families model sharing the same family

name and ﬁrst name will be mapped to the same per-

son in the persons model. Second, in backward di-

rection each person will be transformed twice, both

as a parent and as a child.

4.2 Improved Version

When implementing a bidirectional transformation in

QVT-R, the transformation developer may either pro-

vide a single transformation deﬁnition which is exe-

cutable in both directions (see above), or may create

two unidirectional transformation deﬁnitions. For full

consideration of the requirements in the Families to

Persons case, we have to resort to the latter option

because the rules for forward and backward transfor-

mations differ signiﬁcantly. These differences result

from the fact that the backward transformation needs

to be conﬁgurable with respect to the mapping of per-

sons to parents or children and to existing or new fa-

milies, respectively. Furthermore, the enforcement of

1 : 1 mappings is realized with the help of rules which

can be executed only in one direction.

4.2.1 Forward Transformation

Listing 2 shows a unidirectional forward transfor-

mation which enforces 1 : 1 mappings. In contrast

to the bidirectional transformation deﬁnition in Lis-

ting 2, domains in the families model are marked

as checkonly, indicating that they may not be used

for enforcement. In the transformation deﬁnition, we

make use of a language construct which has not been

mentioned so far: Primitive domains (e.g., line 19) are

parameters which are passed to called relations; here,

we employ them for passing collections.

Enforcing injective mappings requires a procedu-

ral style of speciﬁcation: The collection of elements

which have been matched or created so far is supp-

lied as parameter to called relations; a postcondition

ensures that the where clause fails if an element is

reused according to the check-before-enforce seman-

tics. The failing postcondition enforces the creation

or matching of a new element.

From the top-level relation, the relation Member2-

Person is called. Please notice that members are pro-

cessed sequentially; this is achieved by calling the

relation on a speciﬁc member (lines 9, 49). Furt-

hermore, the relation is supplied with two collecti-

ons: the collection of other members which still need

to be processed (line 19), and the collection of per-

sons which have already been created or matched

(line 21). These parameters are passed on to the re-

lations handling the speciﬁc cases. Thus, the relation

Member2Person acts as a switch; please notice that

exactly one of the called relations will be applicable,

such that sequential processing of matches is retained.

From the speciﬁc relations, only Daughter2Female

is shown. In its where clause, line 46 prevents reuse

of a person object in spite of the check before en-

force semantics: The person to be created or matched

must not be contained in the collection of elements

having been gathered so far. In the recursive call of

Member2Person, the new element is added to the col-

lection of persons which was passed as parameter. Si-

milarly, the collection of members which still need to

be processed is reduced by the current member.

While this approach works, it is a laborious way

to guarantee injective mappings. Furthermore, in the

opposite direction the roles of the collections passed

as parameters need to be switched. As a consequence,

different transformation deﬁnitions are needed for dif-

ferent directions.

4.2.2 Backward Transformation

To enforce injective mappings, we may apply the

same method in the backward transformation as in

the forward transformation. To simplify matters and

to avoid redundancies in the presentation, we will

provide a simpliﬁed backward transformation which

does not enforce injective mappings, but avoids du-

plicate transformations of persons into parents and

children (see remark at the end of Section 4.1). Furt-

hermore, the backward transformation is conﬁgurable

with respect to the mappings to parents or children

and existing or new families, respectively. Excerpts

from the transformation deﬁnition are displayed in

Listings 3 and 4.

Since only models may be passed as parameters to

transformations, we introduce a conﬁguration model

Incremental Bidirectional Transformations: Applying QVT Relations to the Families to Persons Benchmark

Listing 2: Forward transformation.

1 tr a n s f o rm a t i o n fa m i l ie s 2 p er s o n s ( fam D B : Fami l i es , p erD B : P e r so n s ) {

2 top r e l a t io n F a mi l y R e g i s t e r 2 P e r s o n R e g i s t e r {

3 me m be rs : S eq u e n c e ( F am i l i e s :: F am il y M e m b e r );

4 ch ec ko n l y do m ai n f amD B fa m i l y R e g i s t er : F a m i l ie s :: F a mi l y R e g is t e r {};

5 en f or ce d o ma in pe r DB p e r s on R e g i s t e r : P er s on s :: P e rs o n R e g is t e r {};

6 whe r e {

7 me m be r s = a ll Me mb er s ( f a m i l yR e g i s t e r );

8 if m e m b ers -> s ize () > 0 then

9 M em be r 2 P e r so n ( m embers -> fi r st () ,

10 members -> e xc lu di n g ( member s - > f i rst ()) ,

11 p e rs o n R eg i s t er , S e q u en ce { })

12 e lse

13 true

14 endi f ;

15 }

16 }

17 r e l a ti on Me mb e r 2 P e r s on {

18 ch ec ko n l y do m ai n f amD B mem b er : F am il i e s :: F am i l y M e m b e r {};

19 pr im it i v e do m ai n m e m be r s : S eq u e n ce ( F am i l i es :: F a m il yM e m b e r ) ;

20 en f or ce d oma in pe r DB p e r s on R e g i s t e r : P er s on s :: P e rs o n R e g is t e r {};

21 pr im it i v e do m ai n p e r so n s : S eq u e n ce ( P e r s on s :: P e rs o n );

22 whe r e {

23 Fa th er 2 M a l e ( m e m b e r , members , per s o n Re g i s te r , p er so n s );

24 So n 2 M al e ( member , m e m bers , p er so n Re gi s te r , pe r so ns );

25 Mo t h e r 2 Fe m a l e ( member , m e m b ers , p er so n Re g i s te r , p e r so n s );

26 Da u g h te r 2 F em a l e ( member , me m b e rs , p er s o n Re g i s te r , p er so n s );

27 }

28 }

29 ...

30 r e l a ti on Da ug h t e r2 F e m a l e {

31 firs t N ame , fam i ly N a me , f u ll Na m e : S t ri n g ;

32 ch ec ko n l y do m ai n f amD B mem b er : F am il i e s :: F am i l y M e m b e r {

33 n ame = fi r s tNa m e ,

34 d a u g h t e r s I n v e r s e = f a mi l y : F a mi li e s :: Fam i ly {

35 name = f am il yN am e

36 }

37 };

38 pr im it i v e do m ai n m e m be r s : S eq u e n ce ( F am i l i es :: F a m il yM e m b e r ) ;

39 en f or ce d o ma in pe r DB p e r s on R e g i s t e r : P er s on s :: P e rs o n R e g is t e r {

40 pe r so n s = f e ma l e : Pe rs o ns :: Fe m al e {

41 name = f u l l N a me

42 }

43 };

44 pr im it i v e do m ai n p e r so n s : S eq u e n ce ( P e r s on s :: P e rs o n );

45 whe r e {

46 p ersons -> e x c l u d es ( f e ma l e );

47 fu l l N am e = f a m i l y N a m e + ’, ’ + f i r s t N am e ;

48 if m e m b ers -> s ize () > 0 then

49 M em be r 2 P e r so n ( m e mbers -> fi r st () ,

50 members -> e xc lu di n g ( member s - > f i rst ()) ,

51 p e rs o n R eg i s t er , person s - > a ppe nd ( fe m al e ))

52 e lse

53 true

54 endi f ;

56 }

57 }

58 }

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

Listing 3: Backward transformation (part 1).

1 tr a n s f o rm a t i o n pe r s o ns 2 f a mi l i e s

2 ( p erD B : P e r s ons , c o n f : C o n f i g , fam D B : Fa mi l i e s ) {

3 top r e l a t io n F a mi l y R e g i s t e r 2 P e r s o n R e g i s t e r {

4 pre fe r Pa r en t , p r e f er E x i s t in g : B oo l ea n ;

5 ch ec ko n l y do m ai n p erD B pe r s o n R e g i s t er : P e r so n s :: Pe r s o n R eg i s t e r {};

6 ch ec ko n l y do m ai n c o nf c o n fi g u r a t io n : C o nf i g :: C o nf i g u r a t i on {

7 p r e fe r P a r e n tT o C h i l d = p re f er P ar e nt ,

8 p r e f e r E x i s t i n g T o N e w F a m i l y = p r e f er E x i s t in g

9 };

10 en f or ce d oma in fa m DB f a m i ly R e g i s t e r : F am il i e s :: F am i l y R e g i s t e r {};

11 whe r e {

12 Ma le 2M e m b e r

13 ( pe r so nR e gi st e r , pr e fe r Pa r en t , p re f e r Ex i st in g , f a m i l y R eg i s t e r );

14 Fe m a l e 2 Me m b e r

15 ( pe r so nR e gi st e r , pr e fe r Pa r en t , p re f e r Ex i st in g , f a m i l y R eg i s t e r );

16 }

17 }

18 r e l a ti on Fe ma l e 2 M e m b er {

19 f ullN a m e , f i rst N ame , fa mi ly Na me : S tr i ng ;

20 m a p T o M o t h e r : B oo l e a n ;

21 ch ec ko n l y do m ai n p erD B pe r s o n R e g i s t er : P e r so n s :: Pe r s o n R eg i s t e r {

22 pe r so n s = f e ma l e : Pe rs o ns :: Fe m al e {

23 name = f u l l N a me

24 }

25 };

26 pr im it i v e do m ai n pr ef e r P a r e n t : B o ol e a n ;

27 pr im it i v e do m ai n pr e f e r E xi s t i n g : B oo le a n ;

28 en f or ce d oma in fa m DB f a m i ly R e g i s t e r : F am il i e s :: F am i l y R e g i s t e r {};

29 whe r e {

30 fi r s t N a m e = fi rs tN a m e ( f u l lN am e );

31 fa mi ly Na me = f a m i l y N a m e ( f u l l Na me );

32 ma pT oM o t h e r = m a p T o M o t h e r ( f am il y Re g i s te r ,

33 pr e fe r Pa r en t , p re f er Ex i st in g ,

34 firs t Nam e , f a m i l y N a m e );

35 if ma pT oM o t h e r th e n

36 F em al e 2 M o t he r ( f e m a l e ,

37 p r ef e r E xi s t i ng , fi r s tNa m e ,

38 fa m ily N ame , f am i l y R e gi s t e r )

39 e lse

40 F em a l e 2 D a u g h t e r ( female ,

41 pr e fe rE x is ti n g , firs t Nam e ,

42 fam i l yN a me , f a m i l yR e g i s t er )

43 endi f ;

44 }

45 }

46 ...

(parameter conf in line 2 in Listing 3) which contains

a single conﬁguration object storing the values of the

conﬁguration parameters. Accordingly, the top-level

relation for mapping family to person registers is ex-

tended with a third domain from which the parameter

values are read (lines 6–9). These values are passed

on to called relations. Please recall that QVT-R al-

lows to deﬁne transformations among more than two

models; here, two models serve as input, and one mo-

del is created or updated as output.

From the top-level relation, two relations are cal-

led which are used to map males and females, re-

spectively. These relations serve as switches for de-

ciding whether a person should be mapped either to

a parent or to a child. This decision is performed

in the where clause. For example, in the relation

Female2Member the predicate mapToMother is eva-

luated which depends on the current state of the fa-

mily register, the conﬁguration parameters, and the

ﬁrst name and the family name of the female to be

transformed (lines 32–34). Depending on the result

of the evaluation, the female is mapped to a mother

or to a daughter by calling corresponding relations

Female2Mother or Female2Daughter, respectively.

Incremental Bidirectional Transformations: Applying QVT Relations to the Families to Persons Benchmark

Listing 4: Backward transformation (part 2).

1 ...

2 qu e ry m a p T o M o t h e r ( fa mi l y R e g is t e r : F am il i e s :: F a mi ly R eg i s t er ,

3 pr ef e r P a r e n t : Boolean , p r e f e rE x i s t i ng : B o o lean ,

4 fi r s t N a m e : St r i n g , fa mi ly Na me : S tr i ng ) : B oo l ea n {

5 if m a t c h i n g M o t h e r Ex i s t s ( f a mi l y R eg i st er , fi r s tNa m e , f a m i l y N a m e ) th e n

6 pr ef e r P a r e n t or

7 n o t m a t c h i n g D a u g h t er E x i s t s ( f am i ly Re g is te r , f i rst N a me , fa mi ly Na me )

8 e lse

9 n o t m a t c h i n g D a u g h t er E x i s t s

10 ( fa m il yR e gi st e r , firs t Nam e , f a m i l y N a m e ) a n d

11 pr e f e r P a r e n t and

12 n o t ( p r e f e r E x i s t in g and

13 ma t c h i n g F a m il y E x i s t s ( fa mi l yR e g i st e r , f a m i l y N a m e ) and

14 not m a t c h i n g F a m i l y W i t h o u t M o t h e r E x i s t s

15 ( f a m il y R e gi s t e r , f a mi ly N a me ))

16 end i f

17 }

18 r e l a ti on Fe ma l e 2 M o t h er {

19 ch ec ko n l y do m ai n p erD B fem a le : P er s o n s :: F em a le {};

20 pr im it i v e do m ai n pr e f e r E xi s t i n g : B oo le a n ;

21 pr im it i v e do m ai n fi r s t N a m e : S tr i ng ;

22 pr im it i v e do m ai n fa m i l y N a m e : S tr i ng ;

23 en f or ce d oma in fa m DB f a m i ly R e g i s t e r : F am il i e s :: F am i l y R e g i s t e r {

24 fa m i l ie s = fa m il y : Fa m i l i e s :: F am i ly {

25 name = fa m il y N am e ,

26 mo t he r = mo t he r : F a m il ie s :: F a m i l y M e mb er {

27 name = f ir st N a m e

28 }

29 }

30 };

31 w hen {

32 mot h er =

33 if m at c h i n g M o t h er E x i s t s

34 ( f a m il y R e gi s t e r , firs t Nam e , f a m i l y N a m e ) t h en

35 m at c h i n g Mo t h e r ( f am il y Re gi s te r , first N ame , f a m i l y N a m e )

36 else

37 mo t he r

38 end i f ;

39 fam i ly =

40 if n o t m o th e r . o c l Is U n d e f in e d () th e n

41 mo t he r . m o th e r I n v e r se

42 else

43 if p r e fe r E x i s ti n g a n d

44 m a t c h i n g F a m i l y W i t h o u t M o t h e r E x i s t s

45 ( f a m il y R e gi s t e r , f a mi ly N a me )

46 then

47 m a t c h i n g F a m i l y W i t h o u t M o t h e r ( f am i ly Re g is t e r , f a m i l y N a m e )

48 else

49 fam i ly

50 end i f

51 end i f ;

52 }

53 }

54 ...

55 }

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

The predicate mapToMother is deﬁned by an OCL

query (lines 2–17 in Listing 4) which realizes the

mapping rules explained in Section 3.2. As menti-

oned in Section 3.3, these rules should become ef-

fective only for new persons; the previous mappings

should remain untouched. Thus, it is checked ﬁrst

whether a matching member already exists in the fa-

milies model. For example, if the transformation is

conﬁgured such that children are preferred and a ma-

tching mother is available (but not a matching daugh-

ter), the current female is mapped to a mother rather

than to a daughter.

Finally, four relations are responsible for actu-

ally performing the required mapping. For exam-

ple, Female2Mother (lines 18–53) maps a female to a

mother. This relation is equipped with a when clause

which is executed before the target domain is instan-

tiated (lines 31–52). If the when clause were omit-

ted, either the check-before-enforce semantics would

apply, resulting in a reuse of both the family and

the mother, or both elements would be instantiated

anew. In this way, it would not be possible to insert

a new mother into an existing family. Therefore, the

when clause contains two equations which conditio-

nally bind the variables mother and family before

the target domain is processed. If the respective bin-

ding conditions do not hold, the variables retain their

previous bindings, i.e., they remain unbound. If the

mother may be reused, both variables are bound. If

only the family may be reused, the ﬁrst variable re-

mains unbound, while the second variable is bound.

5 EVALUATION

In the following, we will ﬁrst examine the behavior of

the transformations presented above. Subsequently,

we will discuss a number of issues which emerged

in the development of the solution to the benchmark

case.

5.1 Behavior

The following statements refer to the improved ver-

sion of the solution presented in Section 4.2. More

speciﬁcally, we will refer to the forward transfor-

mation ensuring injective mappings (Section 4.2.1)

and the conﬁgurable backward transformation avoi-

ding duplicate mappings (Section 4.2.2). Although

the backward transformation does not ensure injecti-

vity, it may be easily rewritten into an injective trans-

formation by applying the method demonstrated for

the forward transformation. Altogether, the injective

forward transformation and the injective and conﬁgu-

rable backward transformation constitute a best effort

solution in the sense that its functional behavior can-

not be improved further if QVT-R is used as the trans-

formation language (assuming the semantics deﬁned

in the standard).

5.1.1 Batch Transformations

The solution satisﬁes all requirements concerning ba-

tch transformations (Section 3.2). This is illustrated in

Figure 3, in which models are represented by a sim-

ple and intuitive textual notation. The family regis-

ter shown in Figure 3a is transformed into the per-

son register (b), even though the family register con-

tains two family members with the same name (John

Smith). Furthermore, a batch backward transforma-

tion of (b) results in (c) if parents and existing fami-

lies are preferred, in (d) if parents and new families

are preferred, in (e) for preferred children and exis-

ting families, and in (f) for preferred children and new

families. Notably, (c) depends on the order in which

family members are processed. Since there is no way

to resolve this non-determinism for batch transforma-

tions (please recall that all collections are assumed to

be unordered), this behavior does conform to the pro-

blem speciﬁcation.

5.1.2 Incremental Transformations

The requirements to incremental transformations

(Section 3.3) are satisﬁed only partially. Insertions

and deletions are propagated correctly in both directi-

ons as long as there are no duplicate names (see be-

low). In particular, in backward direction the transfor-

mation deﬁnition ensures that the conﬁguration para-

meters take effect only for new persons (e.g., it is en-

sured that a person who has already been mapped to a

parent is not re-mapped to a child).

The problems which are caused by duplicate na-

mes are illustrated by Figure 4. Let us assume that

the person register (a) has been transformed into the

family register (b), with both parents and existing fa-

milies being preferred. During this transformation,

a temporary trace is constructed which records the

mappings between family members and persons. This

trace is thrown away after the transformation; thus,

the correspondences are lost. Next, one of the per-

sons is deleted (c). When propagating this change,

we would like to ensure that the

corresponding family

member is deleted. However, it can only be guaran-

teed that a

corresponding family member is deleted,

resulting either in (d) or (e). Thus, propagation is

non-deterministic. A deterministic behavior could be

achieved only with the help of a persistent trace.

Incremental Bidirectional Transformations: Applying QVT Relations to the Families to Persons Benchmark

FamilyRegister

FamilySmith

FatherJohn

MotherMary

SonKevin

DaughterKatie

FamilySmith

FatherJohn

MotherClaire

FamilyMiller

PersonRegister

MaleSmith,John

FemaleSmith,Mary

MaleSmith,Kevin

FemaleSmith,Katie

MaleSmith,John

FemaleSmith,Claire

FamilyRegister

FamilySmith

FatherJohn

MotherMary

SonKevin

SonJohn

DaughterKatie

DaughterClaire

FamilyRegister

FamilySmith

FatherJohn

FamilySmith

MotherMary

FamilySmith

FatherKevin

FamilySmith

MotherKatie

FamilySmith

Father John

FamilySmith

MotherClaire

FamilyRegister

FamilySmith

SonJohn

SonKevin

SonJohn

DaughterMary

DaughterKatie

DaughterClaire

FamilyRegister

FamilySmith

SonJohn

FamilySmith

DaughterMary

FamilySmith

SonKevin

FamilySmith

DaughterKatie

FamilySmith

Son John

FamilySmith

DaughterClaire

Figure 3: Test cases for batch transformations.

Furthermore, there is no way to recognize name

changes or moves. This is illustrated in Figure 5 for

name changes. Initially, the family register (a) has

been transformed into the person register (b). Con-

currently, the ﬁrst name is changed in the family re-

gister (c), and the birthday is set in the person regis-

ter (d). Transforming incrementally in forward di-

rection results in the person register (e), where Mary

has been deleted and Mary-Anne has been re-inserted

(with an unset birthday). Thus, name changes result

in deletions and insertions. This behavior is caused

by the check-before-enforce semantics: Since there is

no matching target pattern any more, the old person

is deleted. Furthermore, a new person is inserted with

the matching full name. There is no way to “ﬁx” an

existing target pattern instance such it matches again

a modiﬁed source pattern instance.

Finally, it is not possible to propagate changes in

the order in which they occurred. This is illustrated

in Figure 6. Let us assume that an empty person re-

gister (a) has been transformed into an empty family

FamilyRegister

FamilySmith

FatherJohn

SonJohn

FamilyRegister

FamilySmith

FatherJohn

a)

PersonRegister

MaleSmith,John

MaleSmith,John

c)

PersonRegister

MaleSmith,John

FamilyRegister

FamilySmith

SonJohn

Figure 4: Test case for duplicates.

FamilyRegister

FamilySmith

MotherMary

b)

PersonRegister

FemaleSmith,Mary

Birthday=undefined

PersonRegister

FemaleSmith,Mary

Birthday=1980‐05‐07

FamilyRegister

FamilySmith

MotherMary‐Anne

PersonRegister

FemaleSmith,Mary‐Anne

Birthday=undefined

Figure 5: Test case for name changes.

FamilyRegister

a)

PersonRegister

c)

1:InsertMale

("Smith,John")

2:InsertMale

("Smith,Jack")

FamilyRegister

FamilySmith

FatherJohn

SonJack

e)

1:InsertMale

("Smith,Jack")

2:InsertMale

("Smith,John")

FamilyRegister

FamilySmith

FatherJack

SonJohn

g)

PersonRegister

MaleSmith,John

MaleSmith,Jack

Figure 6: Test case for order-dependent changes.

and families are preferred. In the delta (sequence of

change operations) shown in (c), John is inserted be-

fore Jack. An order-preserving propagation of these

changes results in (d). If changes are applied in the

opposite order (e), order-preserving propagation re-

sults in (f), which differs from (d). Since both deltas

result in the same person register (g), the QVT-R en-

gine cannot reconstruct the delta and returns either (d)

or (f), depending on the non-deterministic selection of

the order in which source pattern instances are proces-

sed.

5.1.3 Transformation Laws

In Section 3.4, we introduced the notions of correct-

ness and hippocraticness, as well as round-trip laws.

Correctness has already been discussed above. Both

forward and backward transformations are hippocra-

tic: If the transformation is re-executed in the same

direction, the target model is not modiﬁed any more.

Please notice that this property holds even if conﬁgu-

ration parameters are changed for the backward trans-

formation: The parameters affect only the transfor-

mation of new persons. Since no changes are applied

after the ﬁrst run, there are no new persons; rather, all

persons already have matching family members being

reused in the transformation.

Likewise, round-trip laws hold for both trans-

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

formation orders (forward-backward and vice versa).

For example, after having transformed the family re-

gister in Figure 3a into the person register (b), an im-

mediate incremental transformation in the opposite

direction does not modify the original family regis-

ter any more — even though this state of the families

model could not have been created by any batch trans-

formation.

However, it should be noted that in general neither

hippocraticness nor round-trip laws are guaranteed

per se: In QVT-R, transformations may be deﬁned

which violate these laws. Thus, transformation laws

need to be checked for each transformation deﬁnition.

5.2 Issues

In the case study presented in this paper, we identiﬁed

the following issues summarized below.

Issue 1 (Imprecise change propagation). Due to the

strictly state-based design, changes may be propaga-

ted only imprecisely.

As already mentioned in Section 2, QVT-R fol-

lows a purely state-based approach to incremental

transformations: The only information which is as-

sumed to be present are the states of the source and

the target model. In this way, the prerequisites for the

execution of incremental transformations are minimi-

zed. In particular, QVT-R assumes neither deltas nor

persistent traces. As shown in Section 5.1.2, this de-

cision limits the preciseness of change propagations:

In the presence of duplicates, precise change propaga-

tion requires persistent traces. For example, if one of

two family members with the same name is deleted, it

is impossible to guarantee deletion of “the correspon-

ding person” because the correspondences are not sto-

red. Furthermore, order-dependent changes can be

supported only with the help of deltas. Finally, chan-

ges in source pattern instances cannot be propagated

to target pattern instances, due to the check-before-

enforce semantics. Thus, name changes and moves

cannot be propagated.

Issue 2 (Unidirectional transformations). Bidirectio-

nal transformation problems may have to be solved by

pairs of unidirectional transformation deﬁnitions.

The Familes to Persons case demands for bidi-

rectional transformations. QVT-R supports the de-

ﬁnition of both uni- and bidirectional transformati-

ons. While we proposed a bidirectional transforma-

tion deﬁnition as an initial solution (Section 4.1),

the improved solution required two unidirectional

transformation deﬁnitions because the rules for for-

ward and backward transformations differ signiﬁ-

cantly (Section 4.2). First, the approach for ensuring

injective mappings requires a unidirectional transfor-

mation deﬁnition, due to the bookkeeping of mat-

ches in the source and the target model. Second,

the backward transformation needs to resolve non-

determinism in a conﬁgurable way; the respective ru-

les have no counterpart in the deﬁnition of the forward

transformation.

Issue 3 (Non-injective mappings). Due to the check-

before-enforce semantics, multiple source pattern in-

stances may be mapped to the same target pattern in-

stance.

The Families to Persons case is designed judici-

ously such that keys may be assumed neither in the

families nor in the persons model. Thus, the check-

before-enforce semantics results in a reuse of a per-

son if a person with the same name is already pre-

sent (likewise in the opposite direction). Neverthe-

less, we managed to present a solution which enfor-

ces injective mappings (Section 4.2.1). However, this

solution requires to keep track of matches in both the

source and the target model and has a strongly pro-

cedural ﬂavor. Furthermore, it excludes the develop-

ment of a single bidirectional transformation deﬁni-

tion.

Issue 4 (Duplicate transformation). Since relations

are applied independently of each other, model ele-

ments may be transformed multiple times.

In QVT-R, relations are applied to source pattern

instances when they satisfy the constraints deﬁned in

the relation. Thus, the same source pattern instan-

ces may be transformed multiple times. This problem

occurred in the initial version of the transformation

deﬁnition in backward direction (a person is mapped

both to a parent and a child, see Section 4.1). We sol-

ved this problem by rewriting the relations such that

each person is considered only once for being trans-

formed. This problem is not uncommon in rule-based

languages, but there are other approaches where con-

ﬂicts are recognized and resolved during execution

(Becker et al., 2007).

6 RELATED WORK

Research on QVT-R has primarily focused on theore-

tical work concerning the semantics deﬁnition (Ste-

vens, 2010). For example, (Bradﬁeld and Stevens,

2012) and (Bradﬁeld and Stevens, 2013) address the

formalization of check-only and enforcing transfor-

mations, respectively. Deviating from the standard,

(Macedo and Cunha, 2016) proposes a semantics de-

ﬁnition following the principle of least change. Ho-

wever, this proposal retains the restrictions resulting

Incremental Bidirectional Transformations: Applying QVT Relations to the Families to Persons Benchmark

from the state-based approach to change propagation.

A small number of application-oriented papers

aim at evaluating different aspects of QVT-R such

as expressiveness and conciseness. So far, all of

these studies have dealt with bidirectional batch (rat-

her than incremental) transformations (Westfechtel,

2016a; Westfechtel, 2015; Westfechtel, 2016b).

A precursor of the solution to the Families to Per-

sons benchmark presented in this paper was deve-

loped for the Transformation Tool Contest (Anjorin

et al., 2017a), based on the Benchmarx framework

proposed in (Anjorin et al., 2017b). This preliminary

solution was provided as an illustrative reference to

case developers, but it was not published and did not

take part in the contest. Furthermore, the preliminary

solution suffered from several limitations (e.g., non-

injective mappings) which were addressed in the im-

proved solution presented in this paper.

All solutions were developed and tested with me-

dini QVT — to the best of our knowledge the only

tool for QVT-R which is currently available (ikv++

technologies, 2017). While medini QVT conforms to

the syntax of the QVT-R standard, it deviates conside-

rably from the semantics deﬁned in the standard. To

avoid the discussion of tool-speciﬁc behavior, the cur-

rent paper exclusively uses the semantics deﬁnition in

the standard as reference point; medini QVT was em-

ployed primarily for syntax checking.

7 CONCLUSION

We presented a solution to the Families to Persons

case in QVT-R, a declarative bidirectional model

transformation language deﬁned as a standard by the

Object Management Group. The solution constitutes

a best effort approach in the sense that all require-

ments from the Families to Persons case were addres-

sed which can be addressed in QVT-R. An evaluation

of the solution identiﬁed several issues such as im-

precise change propagation, the need of providing a

pair of unidirectional transformation deﬁnitions, n : 1

mappings, and duplicate transformations. These ob-

servations motivate further studies concerning the ex-

pressiveness of QVT-R with respect to the deﬁnition

of bidirectional incremental transformations.

Furthermore, future work will address a detailed

analysis of the solutions to the Families to Persons

case, as described brieﬂy in (Anjorin et al., 2017b)

and the papers accepted for the Tool Transformation

Contest (Garcia-Dominguez et al., 2017). All of this

work is based on the Benchmarx framework, which

we consider the ﬁrst operational framework for eva-

luating bidirectional transformations. In addition, we

are implementing additional cases in the Benchmarx

framework, based on the cases proposed in (West-

fechtel, 2016a). In this way, we hope to trigger more

work on the evaluation of bidirectional transformati-

ons — which, as we believe, is urgently needed.

ACKNOWLEDGEMENTS

The author gratefully acknowledges the support pro-

vided by Anthony Anjorin and Erhan Leblebici for the

integration of the medini QVT implementation of the

Families to Persons benchmark into the Benchmarx

framework.

REFERENCES

Anjorin, A., Buchmann, T., and Westfechtel, B. (2017a).

The families to persons case. In (Garcia-Dominguez

et al., 2017).

Anjorin, A., Cunha, A., Giese, H., Hermann, F., Rensink,

A., and Sch

urr, A. (2014). BenchmarX. In Candan,

K. S., Amer-Yahia, S., Schweikardt, N., Christophi-

des, V., and Leroy, V., editors, Workshop Proceedings

of the EDBT/ICDT 2014 Joint Conference, volume

1133 of CEUR Workshop Proceedings, pages 82–86,

Athens, Greece.

Anjorin, A., Diskin, Z., Jouault, F., Ko, H.-S., Leblebici, E.,

and Westfechtel, B. (2017b). Benchmarx reloaded: A

practical framework for bidirectional transformations.

In Eramo, R. and Johnson, M., editors, Sixth Internati-

onal Workshop on Bidirectional Transformations (BX

2017), volume 1827 of CEUR Workshop Proceedings,

pages 15–30, Uppsala, Sweden.

Becker, S. M., Herold, S., Lohmann, S., and Westfechtel,

B. (2007). A graph-based algorithm for consistency

maintenance in incremental and interactive integration

tools. Software and Systems Modeling, 6(3):287–316.

Bradﬁeld, J. and Stevens, P. (2012). Recursive checkonly

QVT-R transformations with general when and where

clauses via the modal mu calculus. In de Lara, J. and

Zisman, A., editors, Proceedings of the 15th Inter-

national Conference on Fundamental Approaches to

Software Engineering (FASE 2012), volume 7212 of

Lecture Notes of Computer Science, pages 194–208,

Tallinn, Estonia. Springer-Verlag.

Bradﬁeld, J. and Stevens, P. (2013). Enforcing QVT-

R with mu-calculus and games. In Cortellessa, V.

and Varr

o, D., editors, Proceedings of the 16th Inter-

national Conference on Fundamental Approaches to

Software Engineering (FASE 2013), volume 7793 of

Lecture Notes of Computer Science, pages 282–296,

Rome, Italy. Springer-Verlag.

Czarnecki, K., Foster, J. N., Hu, Z., L

ammel, R., Sch

urr, A.,

and Terwilliger, J. F. (2009). Bidirectional transforma-

tions: A cross-discipline perspective. In Paige, R. F.,

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

editor, Proceedings of the Second International Con-

ference on Theory and Practice of Model Transforma-

tions (ICMT 2009), volume 5563 of Lecture Notes of

Computer Science, pages 260–283, Zurich, Switzer-

land. Springer-Verlag.

Czarnecki, K. and Helsen, S. (2006). Feature-based sur-

vey of model transformation approaches. IBM Sys-

tems Journal, 45(3):621–645.

Foster, J. N., Greenwald, M. B., Moore, J. T., Pierce, B. C.,

and Schmitt, A. (2007). Combinators for bidirecti-

onal tree transformations: A linguistic approach to

the view-update problem. ACM Transactions on Pro-

gramming Languages and Systems, 29(3):17:1–17:65.

Garcia-Dominguez, A., Hinkel, G., and Krikava, F., editors

(2017). Proceedings of the 10th Transformation Tool

Contest (TTC 2017), volume 2026 of CEUR Workshop

Proceedings, Marburg, Germany.

Hidaka, S., Tisi, M., Cabot, J., and Hu, Z. (2016).

Feature-based classiﬁcation of bidirectional transfor-

mation approaches. Software and Systems Modeling,

15(3):907–928.

ikv++ technologies (2017). medini QVT.

http://projects.ikv.de/qvt.

Libkin, L. (2004). Elements of Finite Model Theory.

Springer-Verlag, Berlin.

Macedo, N. and Cunha, A. (2016). Least-change bidirectio-

nal model transformation with QVT-R and ATL. Soft-

ware and Systems Modeling, 15(3):783–810.

Object Management Group (2014). Object Constraint Lan-

guage Version 2.4. Needham, MA, formal/2014-02-03

edition.

Object Management Group (2016a). Meta Object Facility

(MOF) 2.0 Query/View/Transformation Speciﬁcation

Version 1.3. Needham, MA, formal/2016-06-03 edi-

tion.

Object Management Group (2016b). OMG Meta Object Fa-

cility (MOF) Core Speciﬁcation Version 2.5.1. Need-

ham, MA, formal/2016-11-01 edition.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Addison-Wesley, Upper Saddle River,

NJ, 2nd edition.

Stevens, P. (2010). Bidirectional model transformations in

QVT: Semantic issues and open questions. Software

and Systems Modeling, 9(1):7–20.

Westfechtel, B. (2015). A case study for evaluating bidi-

rectional transformations in QVT Relations. In Filipe,

J. and Maciaszek, L., editors, Proceedings of the 10th

International Conference on the Evaluation of Novel

Approaches to Software Engineering (ENASE 2015),

pages 141–155, Barcelona, Spain. INSTICC, SCITE-

PRESS.

Westfechtel, B. (2016a). Case-based exploration of bidi-

rectional transformations in QVT relations. Software

and Systems Modeling. Online First.

Westfechtel, B. (2016b). A case study for a bidirectional

transformation between heterogeneous metamodels in

QVT Relations. In Filipe, J. and Maciaszek, L., edi-

tors, Proceedings of the 10th International Conference

on the Evaluation of Novel Approaches to Software

Engineering (ENASE 2015) — Revised Selected Pa-

pers, volume 599 of Communications in Computer

and Information Science, pages 141–161, Berlin, Hei-

delberg, New York. Springer-Verlag.

Incremental Bidirectional Transformations: Applying QVT Relations to the Families to Persons Benchmark
