The ATEN Framework for Creating the Realistic Synthetic

Electronic Health Record

Scott McLachlan

, Kudakwashe Dube

, Thomas Gallagher

, Bridget Daley

and Jason Walonoski

School of Electronic Engineering and Computer Science, Queen Mary University of London, London, U.K.

School of Engineering and Advanced Technology, Massey University, Palmerston North, New Zealand

Applied Computing and Engineering Technology, University of Montana, Missoula, U.S.A.

Western Sydney Local Health District, NSW Health, Australia

The MITRE Corporation, Massachusetts, U.S.A.

Keywords: Synthetic Data, Synthetic Healthcare Record, Knowledge Discovery, Data Mining, Electronic Health

Records, Computer Simulation, ATEN Framework, Validation, RS-EHR.

Abstract: Realistic synthetic data are increasingly being recognized as solutions to lack of data or privacy concerns in

healthcare and other domains, yet little effort has been expended in establishing a generic framework for

characterizing, achieving and validating realism in Synthetic Data Generation (SDG). The objectives of this

paper are to: (1) present a characterization of the concept of realism as it applies to synthetic data; and (2)

present and demonstrate application of the generic ATEN Framework for achieving and validating realism

for SDG. The characterization of realism is developed through insights obtained from analysis of the literature

on SDG. The development of the generic methods for achieving and validating realism for synthetic data was

achieved by using knowledge discovery in databases (KDD), data mining enhanced with concept analysis and

identification of characteristic, and classification rules. Application of this framework is demonstrated by

using the synthetic Electronic Healthcare Record (EHR) for the domain of midwifery. The knowledge

discovery process improves and expedites the generation process; having a more complex and complete

understanding of the knowledge required to create the synthetic data significantly reduce the number of

generation iterations. The validation process shows similar efficiencies through using the knowledge

discovered as the elements for assessing the generated synthetic data. Successful validation supports claims

of success and resolves whether the synthetic data is a sufficient replacement for real data. The ATEN

Framework supports the researcher in identifying the knowledge elements that need to be synthesized, as well

as supporting claims of sufficient realism through the use of that knowledge in a structured approach to

validation. When used for SDG, the ATEN Framework enables a complete analysis of source data for

knowledge necessary for correct generation. The ATEN Framework ensures the researcher that the synthetic

data being created is realistic enough for the replacement of real data for a given use-case.

1 INTRODUCTION

Rapid adoption of the Electronic Healthcare Record

(EHR) continues to increase demand for secondary

use of patient records. Synthetic EHRs have been

suggested as a privacy protecting solution for

producing available data sets, yet without the

property of realism these synthetic data will have

limited secondary use. The Realistic Synthetic EHR

(RS-EHR) has been suggested as a privacy protecting

technology for producing data for secondary use

(Dube and Gallagher, 2014). Early prototypes, such

as CoMSER (McLachlan et al., 2016), have

demonstrated the important characteristic of realism

when examined by clinicians. A continued challenge

in developing the RS-EHR is the lack of consistent

methods for validating and verifying realism.

Sourcing or developing experimental datasets can

be costly and often presents an insurmountable

challenge (Bozkurt and Harman, 2011, Whiting et al.,

2008, Williams et al., 2007). The use of synthetic data

has developed from concept to a key solution

routinely employed (Weston et al., 2015). Synthetic

220

McLachlan, S., Dube, K., Gallagher, T., Daley, B. and Walonoski, J.

The ATEN Framework for Creating the Realistic Synthetic Electronic Health Record.

DOI: 10.5220/0006677602200230

In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2018) - Volume 5: HEALTHINF, pages 220-230

ISBN: 978-989-758-281-3

data may be used in research and experimentation,

software and systems testing or for training and

demonstration purposes (Whiting et al., 2008,

Houkjaer et al., 2006, Mouza et al., 2010). The

literature describes an array of models and methods;

from those that simply remove or replace personally

identifiable information (Mouza et al., 2010) through

to those that entirely eschew using any personally

identifiable or confidential records (McLachlan et al.,

2016).

While generating synthetic data may sound

simple, generating good synthetic data proves to be

extremely difficult (Whiting et al., 2008). Articles

published across every domain propose new methods

for generating synthetic data. In the healthcare

domain synthetic data may take the form of health

records (McLachlan et al., 2016, Mwogi et al., 2014),

or models of gene expression (Van den Bulcke et al.,

2006) and nerve cells (Ascoli et al., 2001). An often

stated primary goal in many articles is that synthetic

data must comprise a suitable replacement for real

data (Wu et al., 2003, Stratigopoulos et al., 2009).

Some go so far as to prescribe that synthetic data

should possess the property of realism; that it should

be a realistic substitute for existing data (Bozkurt and

Harman, 2011, Jaderberg et al., 2014, Brinkhoff,

2003).

Very few SDG solutions perform true validation,

and for those that do it is only entertained once

development concludes and the generation process is

complete. This makes it difficult to ascertain where

issues identified in the synthetic dataset occurred

(Lydiard, 1992). It is almost impossible to establish

whether issues are an artefact of the seed information,

a coding or algorithmic miscalculation in the

generation process, an output error, or a combination

of all of these. These situations can be identified and

resolved through use of the validation method

described in this research.

The rest of this paper is organised as follows:

First, the paper presents the realism as an unresolved

issue in the SDG domain. Second, a review of

literature on realism and its validation in SDG

approach is presented. Third, realism is then

characterised and an approach for establishing the

elements of realism SDG is proposed. Fourth, an

approach for realism validation is presented with its

demonstration and evaluation using EHR examples

from the midwifery domain. Fifth, a discussion of the

application and benefits of the approaches to the

characterisation and validation of realism is

presented. Finally, future work is followed by a

summary and conclusion.

2 THE RESEARCH PROBLEM

The concept of realism remains largely unaddressed

in current SDG literature. In the case of the RS-EHR,

realism means synthetic patients should not just

statistically and structurally mirror real counterparts,

but that the concepts, symptomatology, treatments

and language used should also be consistent.

Certainly, any clinician accessing the record should

also find it to be realistic. A definition and description

for realism would enable the reader and any future

users to contextualize elements and relate them to the

SDG author’s desired outcomes. This paper seeks

such a definition, as well as a method for achieving

and validating results in SDG. Comprehensive and

systematic classification and validation is necessary

to facilitate the repeating of experiments and validate

whether the authors actually achieved their objectives

(Crawford and Stucki, 1990, Creswell, 2003).

This paper investigates the property of realism in

synthetic data within the healthcare domain. This

research provides a framework that can be used in SDG

to ensure: (a) realism is a properly considered

component in the development and testing of the

algorithm, generation method and outputs; (b) quality

of documentation, and; (c) a basis for validating and

substantiating the claim that synthetic data is a realistic

substitute for the real data it is intended to replace.

3 RELATED WORKS

In order to understand the concept of realism, its

utility and validation in SDG, this section reviews

works that; (a) discussed realism and/or a need for

synthetic data to be realistic, and; (b) provided some

discourse on validation approaches for synthetic data.

A search was conducted to identify works concerning

synthetic data generation (n = 7,746). The search was

narrowed further to works that also used the terms

realistic (n = 290) or realism (n = 6). This included

works that identified realism as a primary concern in

the generation of any synthetic data (Bozkurt and

Harman, 2011, Houkjaer et al., 2006, Tsvetovat and

Carley, 2005) or that discussed developing synthetic

data that would be realistic, sufficient to replace or be

representative of real data (Mouza et al., 2010,

Jaderberg et al., 2014, Richardson et al., 2008,

Sperotto et al., 2009). Given the low number of works

that specifically mentioned the terms realistic and

realism, a selection of the excluded works was further

reviewed. This review found that around one third of

SDG articles use functionally similar terminology

The ATEN Framework for Creating the Realistic Synthetic Electronic Health Record

221

such as authentic (Barse et al., 2003) and accurate to

real structures (Ascoli et al., 2001).

3.1 Realism in SDG

In order to be an accurate replacement for real data,

synthetic data must be realistic (Sperotto et al., 2009).

The presence of realism should only be asserted if it

is verified (Penduff et al., 2006, Putnam, 1977). The

property of realism is seen to bring a greater degree

of accuracy, reliability, effectiveness, credibility and

validity (Bozkurt and Harman, 2011). Realism is

therefore desirable; an important property needed of

most synthetic data (Bozkurt and Harman, 2011,

Mouza et al., 2010, Alessandrini et al., 2015, Bolon-

Canedo et al., 2013). Researchers should ascertain the

elements of realism in the data they seek to synthesize

(Laymon, 1984, McMullin, 1984).

Few authors provide a definition or foundation for

understanding realism (n = 2). In both cases this is

limited and vague, implying only that the aim of

realism was to be that the synthetic data needed to be

a representative replacement for real data (Sperotto et

al., 2009) and comparably correct in size and

distribution (Killourhy and Maxion, 2007). Neither

article discussed validating for realism in the

synthetic data they created.

3.2 Validation of Synthetic Data

The focus for the majority of SDG articles captured

in this review was on the synthetic data, rather than

on thoroughly documenting the generation method or

validation. The limited validation methods observed

consisted of comparisons between either the entire

dataset or attributes selected from it and minor

observations from the real data (Bozkurt and Harman,

2011) or provide imperfect graphical and statistical

comparisons which the authors admit only provide

indirect visual or structural comparison to a low

probability, and not true algorithm validation (Ascoli

et al., 2001, Efstratiadis et al., 2014, Gafurov et al.,

2015). Some focused on simply reporting the

performance of their method or discussing efficiency

of algorithms used to create synthetic data (Agrawal

et al., 2015). The majority of authors often included

no discussion of validation at all (Brinkhoff, 2003,

Brissette et al., 2007, Giannotti et al., 2005).

The term validation is representative of acts

which seek to prove accuracy and comparability, but

its meaning and use are often misunderstood (Carley,

1996, Oreskes et al., 1994, Oxford, 2016). The way

validation is used in contemporary literature more

correctly describes two related but separate concepts;

validation and verification (Oreskes et al., 1994).

Validation assesses functional correctness and

internal consistency while verification seeks

comparability of the synthetic data with observation

(Oreskes et al., 1994). A number of validation

approaches are regularly used and documented within

related fields such as Computational Modelling

(Carley, 1996), however no complete, applicable or

reusable validation approaches were observed across

the SDG literature reviewed.

4 MATERIALS AND METHODS

In the case of synthetic data, realism can be identified

as the sum of two levels of knowledge. The first level

is the extrinsic or overt knowledge; the structure. The

data fields and general statistical values easily

realised from observational data or other inputs being

used in the generation process: that is, the observable

quantitative and qualitative aspects of the input data.

The second level is intrinsic or covert knowledge.

The relationships, concepts, rules and representations

drawn out from within the input data. The method

proposed in this research utilizes established

Knowledge Discovery in Database (KDD) processes,

extended through application of Human Computer

Interaction (HCI)-KDD principles, Concept

Hierarchies (CH), Formal Concept Analysis (FCA)

and identification of Characteristic and Classification

rules that inherently describe the data.

Ensuring realism can mean different things for

data synthesis in the domain of healthcare. Strict

realism requires adherence to structural, statistical

and conceptual qualities of patient records. In the

healthcare context, there is an additional realism

element in the manner that information within the

synthetic patient record is recorded using medical

language, terminology and logic, especially in the

narrative of clinicians within the patient notes. We

recognize that this realism element is difficult to

reproduce and it is accordingly not covered in the

focus of this paper. Our solution to this problem is

appropriate synthetic patient narrative scripted by

practicing clinicians for application to particular

medical events (McLachlan et al., 2016).

5 THE ATEN FRAMEWORK

The ATEN Framework (Figure 1) is an SDG lifecycle

that provides researchers with a structured approach

for SDG projects including identifying and validating

HEALTHINF 2018 - 11th International Conference on Health Informatics

222

realism. The ATEN Framework is composed of the

THOTH, RA and HORUS approaches that

respectively provide for: (a) an approach to

generating synthetic data; (b) an approach to defining

and describing the elements of realism, and; (c) an

approach for validating synthetic data. ATEN was a

syncretized deity from the thirteenth century BC,

elevated for a time as the single central god of

Egyptian religion (Gore, 2001). ATEN, whose name

was abbreviated from Ra-Horakhty or Ra-Horus-

Aten (meaning Ra, who is Horus of the two horizons)

represented the synthesis of a number of gods from

Egyptian mythology (Gunn, 1923, Wilkinson, 2008).

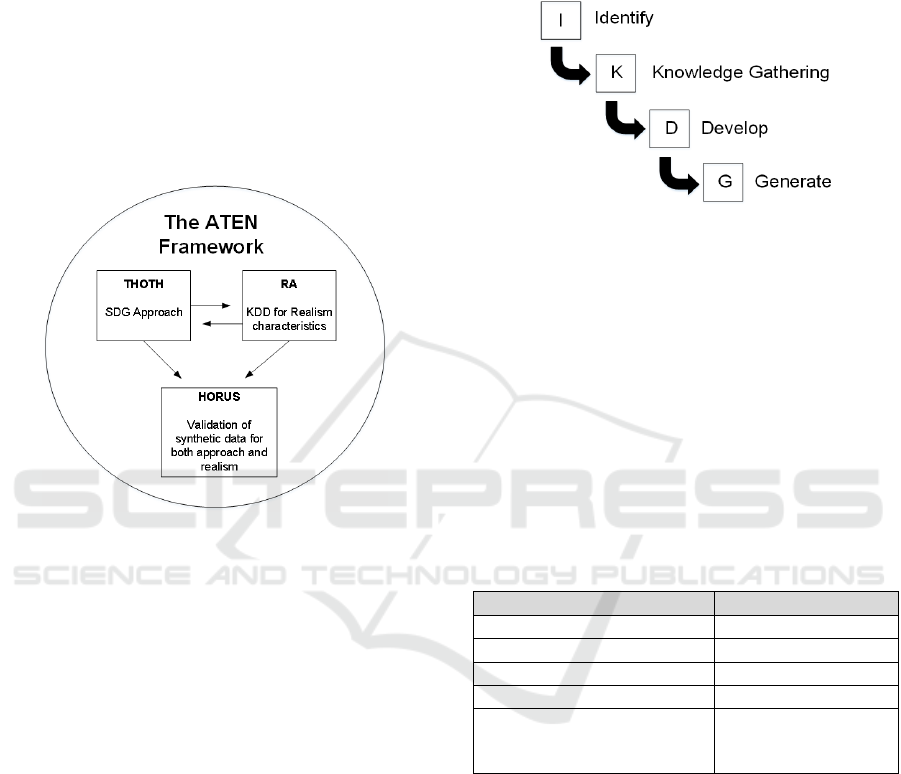

Figure 1: The ATEN Framework.

The THOTH approach describes the overarching

SDG process from conceptualisation to generation.

The primary focus of RA is knowledge discovery to

classify and characterize the realistic elements of the

input data including: structures, statistics, rules and

concepts. These elements are then made available to

the generation process (THOTH) with the intention of

ensuring that the synthetic data can be generated

consistent with the knowledge discovered. The

HORUS approach uses this knowledge to validate the

realism in the resulting synthetic data. In this way, the

RA approach identifies knowledge necessary for

achieving realism in synthetic data, while HORUS

considers whether realism has been achieved. The

next three sections present the THOTH, RA, and

HORUS approaches in greater detail.

5.1 THOTH – The Enhanced Generic

SDG Approach

THOTH describes the four-step generic SDG

approach observed in much of the SDG literature. The

four steps shown in Figure 2 include (1) Identifying

the need for synthetic data; (2) Gathering the required

raw information, datasets and knowledge required to

generate the synthetic data (and also input to RA); (3)

Developing the algorithm or method that will perform

the generation process, and; (4) The generation

process.

Figure 2: The four-step generic SDG approach.

The enhanced THOTH approach incorporates

additional steps shown in Figure 3 which characterise

the synthetic-ness of the data required, and classify

the generation method best suited to the task. The

synthetic-ness of generated data can range from real

data on which anonymisation processes may be

performed, through to truly synthetic data which

relied on no personally identifiable information

during creation. The generation method is drawn

from one of the five primary classification types

identified in our research, shown in Table 1.

Table 1: SDG Classification Models with examples from

the literature.

SDG Classification Model

Example

Data Masking

Mouza et al, 2010

Signal and Noise

Whiting et al, 2008

Network Generation

Ascoli et al, 2001

Random Generation Models

Mwogi et al, 2014

Probability Weighted Random

Models

Mwogi et al, 2014

Houkjaer et al, 2006

McLachlan et al, 2016

5.2 The RA Approach – The Generic

Approach to Realism in SDG

RA provides a structured approach to discovering,

classifying and characterizing knowledge and realism

elements for use in SDG. The process of RA,

including the steps of enhanced knowledge discovery

are both shown in Figure 4 and further elaborated in

Table 2. While encompassing the entire KDD

process, the structured enhancements prescribed by

RA are contained within the Data Mining step.

RA is built on the generic KDD process that

identifies both the extrinsic and intrinsic realism

elements. It follows a logical progression of steps that

The ATEN Framework for Creating the Realistic Synthetic Electronic Health Record

223

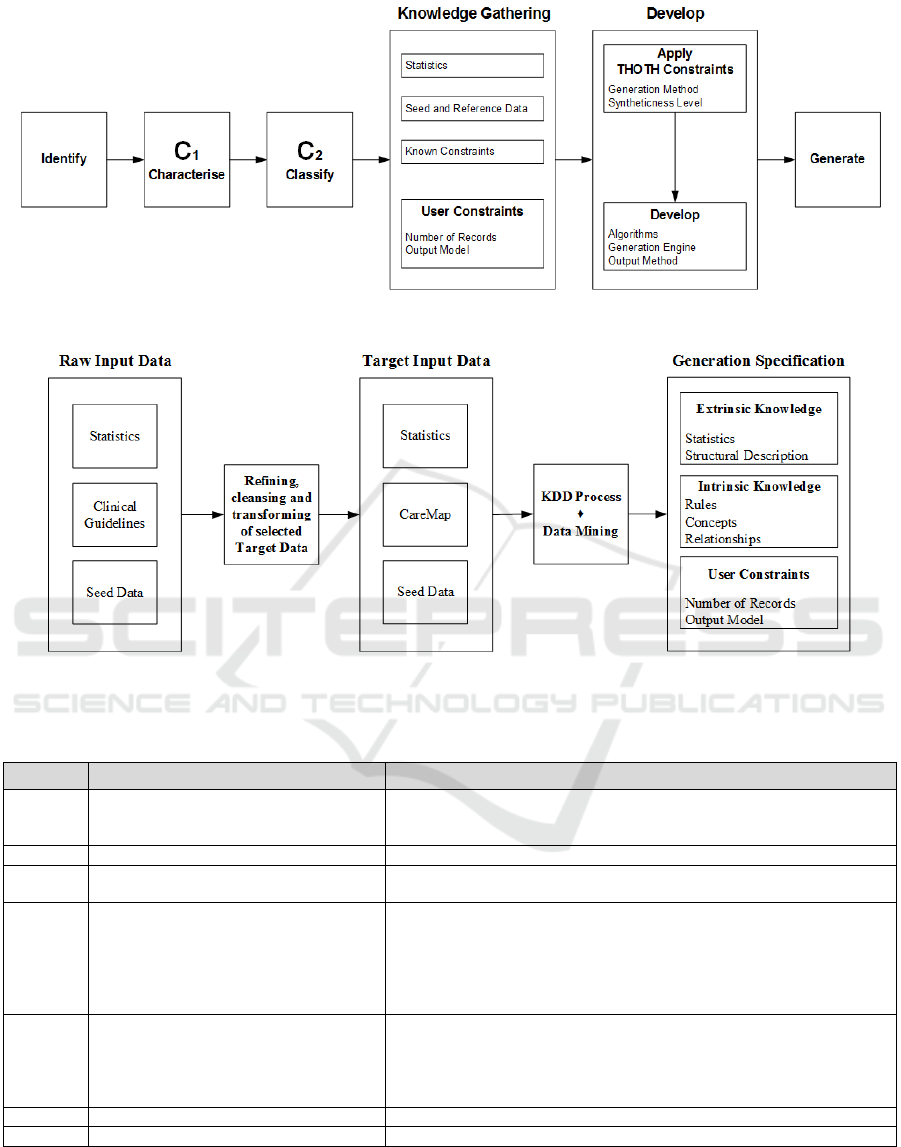

Figure 3: The Enhanced THOTH Approach.

Figure 4: Overview of the RA Approach to Realism in SDG.

Table 2: Enhanced Knowledge Discovery Process further describing the RA Approach to realism in SDG as presented in

Figure 4.

Step

Activity

Tasks

Develop and document information

(overlaps with THOTH)

Relevant prior knowledge;

An understanding of the application domain, and;

The goal(s) of the KDD process.

Collect raw data (overlaps with THOTH)

Selecting relevant datasets on which discovery is to be performed.

Refining and Cleansing of Raw Data

Cleanse and pre-process data to eliminate noise, and;

Remove incomplete or inconsistent data from the target data pool.

Create target data

Integrate data from multiple sources;

Transform raw data, for example: Clinical guidelines and health incidence

statistics into consistent input data sets;

Project data by identifying useful features for representing the data, for

example: as CareMaps, and;

Reduce the number of variables to those that are necessary for KDD process.

KDD and Data Mining

Identify data mining method to search for patterns within the target data

(summarisation, classification, regression, clustering, web mining

and others as described in Fayyad et al, 1996).

Perform concept hierarchy analysis, formal concept analysis, rule

identification of the methods used in HORUS

Interpret and evaluate mined patterns

Identify the truly interesting and useful patterns.

Presentation

Make the knowledge available for use in synthetic data generation

are observable within the literature (Fayyad et al.,

1996, Fernandez-Arteaga et al., 2016, Holzinger et

al., 2014, Mitra et al., 2002). The following

subsections present the processes used as part of the

KDD data mining in Step 5 of Table 2.

HEALTHINF 2018 - 11th International Conference on Health Informatics

224

5.2.1 Extrinsic: Identifying Quantitative and

Qualitative Properties

Identifying and documenting the quantitative and

qualitative properties of real data is the first step of

knowledge discovery. The synthetic data generated

must possess these properties to be a suitable

replacement. Examples of quantitative and qualitative

knowledge from the demographic portion of the EHR

are shown in Tables 3 and 4.

Table 3: An example of quantitative knowledge - Patient

Ethnicity data.

Patient Ethnicity (%)

European

22.24

Maori

25.13

Pacific Islander

34.30

Asian

16.14

Other

2.11

Not Stated

0.08

5.2.2 Intrinsic: Concept Hierarchies

Concept Hierarchies (CH) are a deduction of

attribute-oriented quantitative rules drawn from large

and very large datasets (Han et al., 1993). CH allow

the researcher to infer general rules from a taxonomy

structured as general-to-specific hierarchical trees of

relevant terms and phrases, for example: “bed in ward

in hospital in health provider in health district” (Han

et al., 1993, Mitra et al., 2002, Sanderson and Croft,

1999). Developing a concept hierarchy involves

organizing levels of concepts identified within the

data into a taxonomy, reducing candidate rules to

formulas with a particular vocabulary (Han et al.,

1993). CH are used in RA to identify an entity type,

the instances of that entity and how they relate to each

other; they help to ensure the identification of

Table 4: An example of qualitative knowledge - The

structure and field definitions from the Patient

Demographics table.

Patient

patientID

INT

title

TEXT(10)

lastName

TEXT(30)

firstName

TEXT(30)

dateOfBirth

DATETIME

gender

CHAR(10)

ethnicity

CHAR(20)

primaryLanguage

VARCHAR(100)

important relationships in the data that can be used to

synthesise meaningful results (Barnes, 1990).

Once the concept hierarchy tree is identified,

another pass across the source data should occur to

count the occurrence of each of the specific terms.

This second pass allows the researcher to enhance the

concept hierarchy with statistics that can be used as

knowledge to improve accuracy in the generation

model. An example of a concept hierarchy enhanced

with statistics is shown in Figure 5.

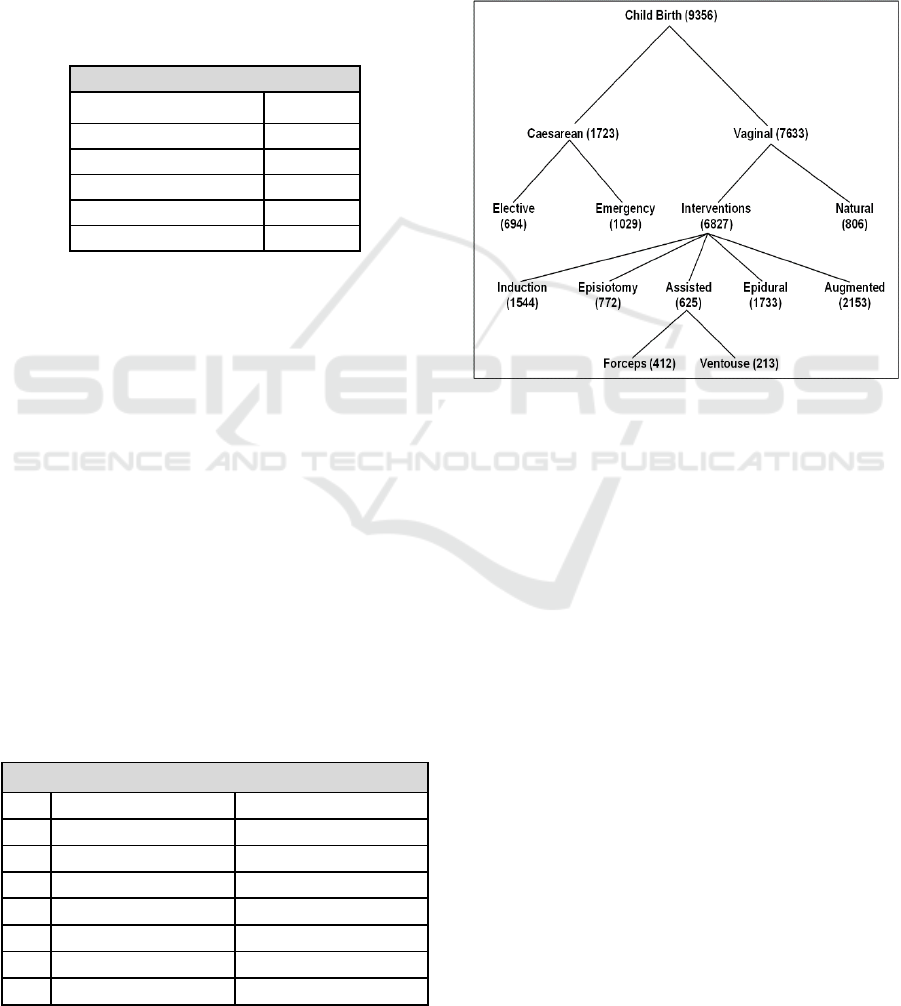

Figure 5: Concept Hierarchy enhanced with statistics.

5.2.3 Intrinsic: Formal Concept Analysis

Formal Concept Analysis (FCA) is a method of

representing information that allows the researcher to

easily realise relationships between instances of an

object and occurrences of a concept; for example:

occurrences of various nosocomial infections across

the different wards of a hospital. FCA starts with a

formal context represented as a triple, where an object

{G} and attribute {M} are shown with their incidence

or relationship {I} (Ganter and Willie, 1997). A table

is created displaying instances where a relationship

exists between an object and corresponding

attribute(s).

Concept creation, represented as rules, occurs

from the context table. For example, one might seek

to identify the smallest or largest concept structures

containing one of the objects.

The second step to FCA involves creating a

concept lattice. A concept lattice is a mapping of the

formal context, or intersections of objects and

attributes. The concept lattice allows easy

identification of sets of objects with common

attributes as well as the order of specialisation of

The ATEN Framework for Creating the Realistic Synthetic Electronic Health Record

225

objects with respect to their attributes (Rodriguez-

Jiminez et al., 2016).

5.2.4 Intrinsic: Characterization and

Classification Rules

Characterization and classification rules come from

within the target dataset and are used as constraints

during the generation process. When applied in the

generation process, these rules help to improve

overall accuracy.

Characterization Rules

The development of characteristic rules entails

three steps. First, data relevant to the learning process

is collected. All non-primitive data should be mapped

to the primitive data using the concept hierarchy trees

as shown in Figure 5 (e.g. Forceps would be mapped

to Assisted, Elective would map to Caesarean and so

on). Second, generalization should be performed on

components to minimize the number of concepts and

attributes to only those necessary for the rule we are

working to create. In this way, the Name attribute on

a patient record would be considered too general and

not characteristic to a set of data from which we could

make rules about the treatment outcomes for a

particular Ethnicity. The final step transforms the

resulting generalization into a logical formula that

identifies rules within the data. In the domain of

midwifery, we might find that while only those

pregnancies clinically described as low risk would

receive intermittent fetal heart monitoring, clinical

practice guidelines (CPGs) necessitate continuous

monitoring for a higher risk pregnancy. Properties of

this rule would be expressed as the sum of the four

elements. The characteristic rule expressed in the

conditional formula is shown in Figure 6 containing

the values Sex:Female, Pregnant:Yes, Pregnancy

Status:Low Risk, Fetal Heart Monitoring:Intermittent

in Labour.

 (midwiferyPatient(x)  ((Sex(x) = female) ^

(Pregnant(x) = Yes) ^ (pregnancyStatus(x) = Low Risk) ^

(fetalHeartMonitoring(x) = Intermittent)))

Figure 6: Example of a Characteristic rule conditional

formula from the domain of midwifery.

Classification Rules

Classification knowledge discovery discriminates

the concepts of a target class from those of a

contrasting class. This provides weightings for the

occurrence of a set of attributes for the target class in

the source dataset, and accounts for occurrences of

attributes that apply to both the target and contrasting

class. To develop a classification rule, first the classes

to be contrasted, their attributes and relevant data

must be identified. Attributes that overlap form part

of the generalisation portion of the target class only.

Attributes specific to a target class form the basis of

classification rules. Figure 7 demonstrates an

example of a classification rule showing that 100% of

patients will undergo a caesarean procedure for the

current birth if two or more of their previous births

have also been by caesarean section.

 (modeOfDelivery(x)  ((Multip(x) = Yes) ^ (Primip(x)

= No) ^ (previousDelivery=CSect<2(x) = No) ^

(previousDelivery=CSect>=2(x) = Yes[d:100%])))

Figure 7: Example of a Classification rule conditional

formula from the domain of midwifery.

5.2.5 Summary and Conclusion

The RA enhanced and extended KDD method

identifies realistic properties from real data, providing

improved input data quality, constraints and

generation algorithms used to generate synthetic data.

An obvious benefit is that generation methods

using this knowledge should deliver data that is an

accurate replacement for real data. Another benefit is

a set of knowledge and conditions that can be used to

validate realism in the generated data. Its use is

discussed in the next section.

5.3 The HORUS Approach to

Validation of the Realism of

Synthetic Data

The validation approach incorporates five steps that

analyse separate elements of the SDG method and

resulting synthetic data. These steps are identified in

the small boxes in Figure 8 and described in Table 5.

Collectively, the five steps provide the information

necessary for confirmation of whether synthetic data

is consistent with and compares realistically to real

data that the SDG model seeks to emulate.

5.3.1 Input Validation

Input validation concerns itself only with that

knowledge presented in the form of data tables and

statistics that come from the generation specification.

The input validation process verifies each item,

confirming that correct input data is being presented,

ensuring smooth operation of the data synthesis

process (Bex et al., 2006). Input validation is intended

HEALTHINF 2018 - 11th International Conference on Health Informatics

226

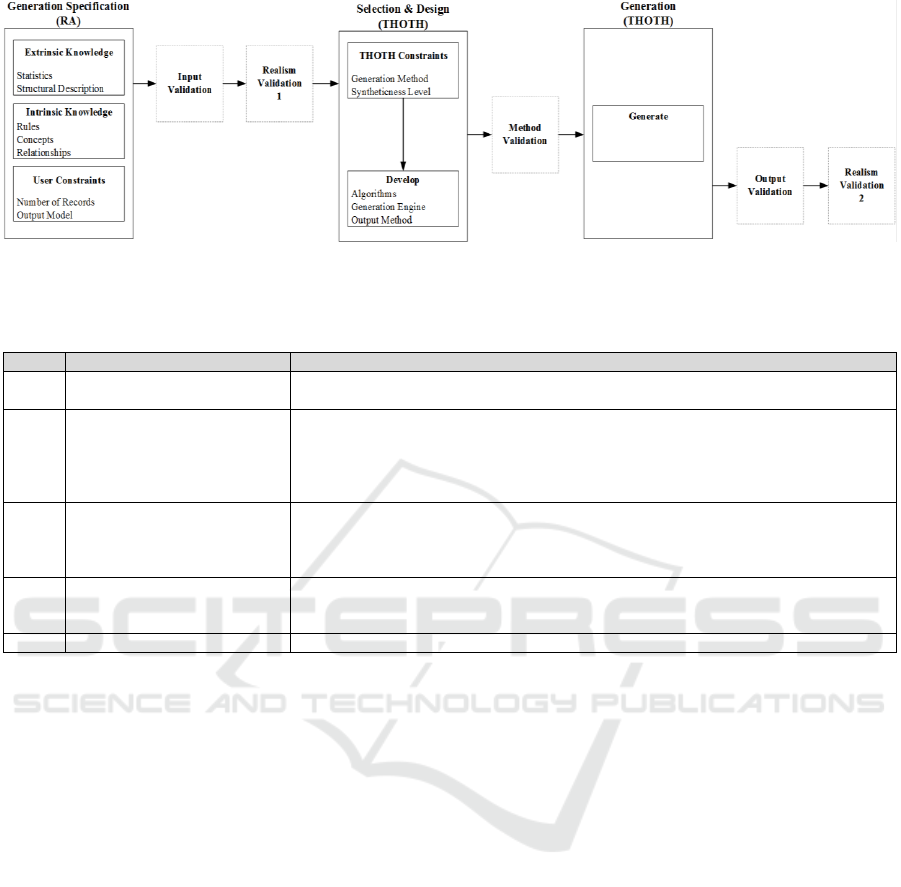

Figure 8: The HORUS Approach to Realism validation showing touch points with THOTH and RA.

Table 5: Activities and tasks in the HORUS Approach to synthetic data validation - a further elaboration of the HORUS

Approach shown in Figure 8.

Step

Activity

Task

Input Validation

Verify each piece of input data or information;

Confirm correctness & validity of input data & information

Realism Validation – I (RV1)

Verify concepts & rules derived from the KDD process & health statistical information

applied;

Review & test premise & accuracy of each rule to ensure consistency with domain semantics

Tests rules and semantics in real circumstances to eliminate irrelevancy due to interaction

with observed data

Method Validation

Review method and compare with others found in literature;

Ensures chosen method is appropriate for generating the synthetic data; and

Verify that the algorithm for the method to be used has been correctly and completely

constructed

Output Validation

Establish that output of the SDG model are consistent with observational data; and

Ensure that synthetically generated data conforms to qualitative and quantitative aspects

derived during the knowledge discovery phase.

Realism Validation – II (RV2)

Perform the same tasks as for Realism Validation – I (RV1)

to prevent corruption of the SDG process (Laranjeiro

et al., 2009).

For example, CoMSER used CPGs along with

treatment and outcome statistics. Input validation

necessitated ensuring that statistics could be located

or extracted that correctly applied to each part of the

process described by the CPGs. Cross-validation of

those statistics was performed through comparison to

more than one source. Clinicians were involved to

ensure that where any difference in terminology

existed between input datasets, correct linkage had

been applied (McLachlan et al., 2016).

5.3.2 Realism Validation 1

The first realism validation process verifies the

concepts and rules derived from the HCI-KDD

process, along with any statistical knowledge applied.

Realism validation reviews and tests the premise and

accuracy of each rule to ensure consistency with the

semantics of any data or guidelines used in their

creation, such as CPGs. Where required it tests them

in real circumstances to ensure they are not rendered

irrelevant through interaction with observed data.

Where any knowledge is at issue, the researcher

should return to the knowledge discovery phase.

5.3.3 Method Validation

Method validation reviews the efforts of others inside

and outside of the research domain. Attention should

be paid to methodological approaches common for

the domain, as well as methods other domains have

used for similar types of SDG. Assessing these

methods ensures the chosen method is appropriate for

generating the synthetic data. Method validation also

verifies that the algorithm to be used has been

correctly and completely constructed.

5.3.4 Output Validation

Output validation validates the output data and

verifies its basic statistical content. This step

demonstrates the difference between the terms

validation and verification. Oreskes describes

validation as ensuring the model is free from known

or detectable flaws and is internally consistent

(Oreskes et al., 1994). Verification seeks to establish

that the output or predictions of the SDG model are

The ATEN Framework for Creating the Realistic Synthetic Electronic Health Record

227

consistent with observational data. The output

validation step ensures that the synthetically

generated data conforms to the qualitative and

quantitative aspects derived during the knowledge

discovery phase.

5.3.5 Realism Validation 2

The second realism validation process performs all of

the same tests as the first except that the tests are

performed against the synthetic dataset. This ensures

the synthetic data is consistent with the knowledge

(rules, constraints and concepts) that were derived

and used for its creation. The second realism

validation step is the most important for establishing

and justifying any claim that the synthetic data is a

realistic and proper substitute for the real data it was

created to replace. If a synthetic patient was treated in

a manner that contradicted the principles or

application of a CPG, this could invalidate the entire

dataset. It is necessary for clinician validation to

present the synthetic EHR in a clinician-familiar

manner, as shown in Figure 9 from the CoMSER

midwifery case study used in this work.

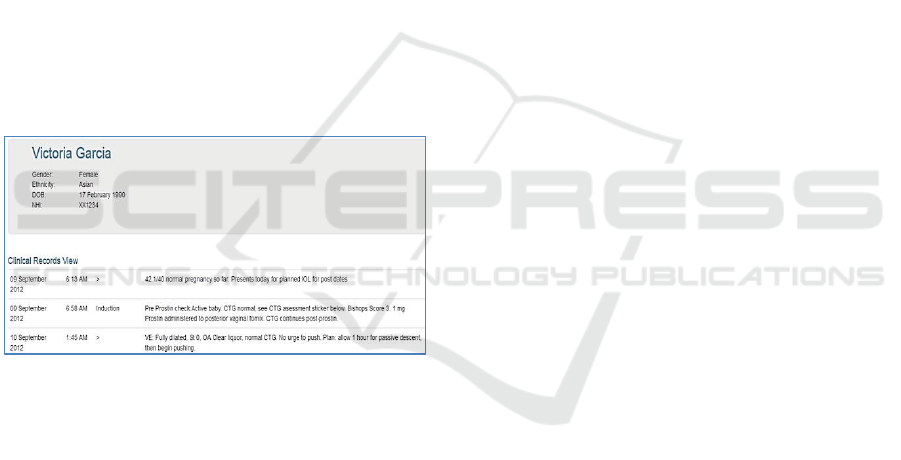

Figure 9: Sample realistic synthetic EHR.

5.3.6 Summary and Conclusion

The HORUS validation approach establishes and

justifies claims of realism in synthetic data. The

efficiency of HORUS comes from utilising the

knowledge extracted in the RA process. It is this

approach which supports realism claims, as it is one

which directly compares the extrinsic and intrinsic

elements of synthetic data with knowledge and

generation specifications previously learned from the

real data.

6 DISCUSSION

Realism is a collection of two levels of knowledge:

(1) the extrinsic knowledge, and (2) the intrinsic

knowledge. The extrinsic knowledge includes the

overt structural and readily observable statistical

information, while the intrinsic knowledge provides a

detailed picture of the covert concepts, relationships,

and interdependencies contained within the input

materials. The ATEN framework presented in this

paper ensures a complete analysis of requirements,

source data and the SDG method. More information

can only improve the generation approach, and a

better generation approach delivers better synthetic

data. The knowledge that is extracted and

documented also provides a solid base with which to

validate the synthetic data that has been created,

ensuring that it is an adequate replacement for real

data. The elements of realism can be identified

through the engagement of an extended knowledge

discovery in databases (KDD) approach. This

approach first establishes the quantitative and

qualitative aspects of the input data (the extrinsic),

and follows it with in-depth and structured

investigation of the concepts, relationships and rules

that exist within the data (the intrinsic). The intrinsic

results are then integrated with statistics from the

extrinsic phase for the purpose of realism in the

synthetic data generation phase.

The process of validating realism requires that

each of the identified realism elements can be found

in its correct form within the synthetic data.

Validation follows the same flow as knowledge

discovery, in that the quantitative and qualitative

aspects are first assessed. If accurately established,

each element of component knowledge that was

established is verified. In this way the validation

process is greatly simplified through the benefits

gained by having identified the realistic elements of

knowledge prior to generation. At any step of the

validation process a return to one of the previous steps

to address any identified issues is possible. If

successful, validation supports claims of correctness

of the SDG model, synthetic data and realism that

exists within the data. As discussed, many authors do

not describe validation of their SDG method and

results. Validation of SDG methods would go some

way to support the claims of realism that are

encountered in the literature. Use of the complete

realism identification and validation approach

presented here will not only provide guidance

throughout the SDG lifecycle, but also allow for

demonstration of faithful adherence to established

scientific methods. Finally, it empowers future SDG

creators with the requisite knowledge to utilise the

SDG method being described.

HEALTHINF 2018 - 11th International Conference on Health Informatics

228

7 FUTURE WORK

The most pressing direction for future work is further

validation of the ATEN framework in different

domains. A new SDG project should be

commissioned and undertaken as two streams: the

first would follow the common approach to SDG

without benefit of the ATEN framework. The second

would use the same raw input data but adhere to the

ATEN framework’s approach. The resulting

synthetic datasets should be comparatively validated

to assess which is more successful through its

proximity to real or observed data and its accuracy to

being realistic.

8 SUMMARY AND CONCLUSION

The attainment and validation of realism in modern

synthetically generated datasets represents a

complicated challenge that is largely unaddressed in

the literature. Many authors claim to have created

realistic synthetic data yet few even discuss simple

validation of their realism proposition. The ATEN

framework presented in this paper is a new, complete,

and comprehensive realism characterization and

validation solution. If SDG approaches and methods

in the literature had used and presented any one

validation method, then their claims of having created

realistic synthetic data could be given more credence.

The approach presented is simple and not overly

burdensome. Many of the component steps are

activities that data synthesizers may already be

undertaking, albeit unstructured or in an unconsidered

way that is not deliberately aimed at attaining high

levels of realism.

ACKNOWLEDGEMENTS

SM acknowledges support from the EPSRC under

project EP/P009964/1: PAMBAYESIAN: Patient

Managed decision-support using Bayes Networks.

For Danika, Thomas, Liam and James.

REFERENCES

Agrawal, D., Butt, A., Doshi, K., Larriba-Pey, J., Li, M.,

Reiss, F., Scheifer, B., Sozumura, T. & Xia, Y. 2015.

Sparkbench – A Spark Performance Testing Suite.

Performance Evaluation and Benchmarking: Traditional

To Big Data To Internet of Things, 9508.

Alessandrini, M., De Craene, M., Bernard, O., Giffard-

Roisin, S., Allain, P., Waecheter-Stehle, I., Weese, J.,

Saloux, E., Delingette, H., Sermesant, M. & D'hooge, J.

2015. A Pipeline For The Generation Of Realistic 3d

Synthetic Echocardiographic Sequences: Methodology

And Open-Access Database. IEEE Transactions On

Medical Imaging, 34.

Ascoli, G., Krichmar, J., Nasuto, S. & Senft, S. 2001.

Generation, Description And Storage Of Dendritic

Morphology Data. Philosophical Transactions Of The

Royal Society Of London, 365, 1131-1145.

Barnes, C. A. 1990. Concepts Hierarchies For Extensible

Databases. Monterey, Ca: Naval Postgraduate School.

Barse, E., Kvarnstrom, H. & Jonsson, E. Synthesizing Test

Data For Fraud Detection Systems. 19th Annual

Computer Security Applications Conference, 2003. 384-

395.

Bex, G., Neven, F., Schwentick, T. & Tuyls, K. Inference of

Concise Dtds From Xml Data. 32nd Int. Conference on

Very Large Databases, 2006. 115-126.

Bolon-Canedo, V., Sanchez-Marono, N. & Alonso-Betanzos,

A. 2013. A Review of Feature Selection Methods on

Synthetic Data. Knowledge Information Systems, 34.

Bozkurt, M. & Harman, M. 2011. Automatically Generating

Realistic Test Input From Web Services. 6th

International Symposium on Service Oriented System

Engineering. IEEE.

Brinkhoff, T. 2003. Generating Traffic Data. IEEE Data

Engineering Bulletin, 26, 19-25.

Brissette, F. P., Khalili, M. & Leconte, R. 2007. Efficient

Stochastic Generation of Multi-Site Synthetic Precipi-

tation Data. Journal of Hydrology, 345, 121-133.

Carley, K. 1996. Validating Computational Models.

Carnegie Mellon University.

Crawford, S. & Stucki, L. 1990. Peer Review and The

Changing Research Record. J. Am. Society of

Information Science, 41.

Creswell, J. 2003. Research Design: Qualitative,

Quantitative and Mixed Methods Approaches (2nd Ed.),

Sage Publications.

Dube, K. & Gallagher, T. Approach and Method For

Generating Realistic Synthetic Electronic Healthcare

Records For Secondary Use. International Symposium

on Foundations of Health Informatics Engineering and

Systems, 2014 Berlin, Heidelberg. Springer, 69-86.

Efstratiadis, A., Dialynas, Y., Kozanis, S. & Koutsoyiannis,

D. 2014. A Multivariate Stochastic Model for The

Generation of Synthetic Time Series at Multiple Time

Scales Reproducing Long-Term Persistence.

Environmental Modelling & Software, 62.

Fayyad, U. M., Piatetsky-Shapiro, G. & Smyth, P. 1996.

Knowledge Discovery and Data Mining: Towards A

Unifying Framework. Kdd, 96, 82-88.

Fernandez-Arteaga, V., Tovilla-Zarate, C., Fresan, A.,

Gonzalez-Castro, T., Juarez-Rojop, I., Lopez, I.,

Narvaez, L. & Hernandez-Diaz, Y. 2016. Association

Between Completed Suicide And Environmental

Temperature In A Mexican Population, Using The Kdd

Approach. Computer Methods and Programs In

Biomedicine, 135.

The ATEN Framework for Creating the Realistic Synthetic Electronic Health Record

229

Gafurov, T., Usaola, J. & Prodanovic, M. 2015.

Incorporating Spatial Correlation Into Stochastic

Generation Of Solar Radiation Data. Solar Energy, 115,

74-84.

Ganter, B. & Willie, R. 1997. Applied Lattice Theory:

Formal Concept Analysis. In: Gratzer, G. (Ed.) In

General Latice Theory. Birkhauser.

Giannotti, F., Mazzoni, A., Puntoni, S. & Renso, C. Synthetic

Generation Of Cellular Network Positioning Data. 13th

Annual Acm International Workshop on Geographic

Information Systems 2005. Acm, 12-20.

Gore, R. 2001. Pharaohs of The Sun. National Geographic,

199, 35-57.

Gunn, B. 1923. Notes on The Aten And His Names. The

Journal of Egyptian Archaeology, 9, 168-176.

Han, J., Cai, Y. & Cercone, N. 1993. Data-Driven Discovery

of Quantitative Rules In Relational Databases. IEEE

Transactions on Knowledge And Data Engineering, 5.

Holzinger, A., Dehmer, M. & Jurisica, I. 2014. Knowledge

Discovery And Interactive Data Mining In

Bopinformatics: State-Of-The-Art, Future Challenges

And Research Directions. Bmc Bioinformatics, 15.

Houkjaer, K., Torp, K. & Wind, R. 2006. Simple and

Realistic Data Generation. Vldb '06.

Jaderberg, M., Simonyan, K., Vedaldi, A. & Zisserman, A.

2014. Synthetic Data and Artificial Neural Networks For

Natural Scene Text Recognition. Arxiv:1406.2227.

Killourhy, K. & Maxion, R. Toward Realistic And Artefact-

Free Insider-Threat Data. 23rd Annual Computer

Security Applications Conference (Csac), 2007.

Laranjeiro, N., Vieira, M. & Madeira, H. Improving Web

Services Robustness. IEEE Int. Conference on Web

Services Icws’09, 2009. 397-404.

Laymon, R. 1984. The Path From Data To Theory. In:

Leplin, J. (Ed.) Scientific Realism. University Of

California Press.

Lydiard, T. 1992. Overview of The Current Practice And

Research Initiatives For The Verification And Validation

Of Kbs. The Knowledge Engineering Review, 7.

Mclachlan, S., Dube, K. & Gallagher, T. 2016. Using

Caremaps and Health Statistics For Generating The

Realistic Synthetic Electronic Healthcare Record.

International Conference on Healthcare Informatics

(Ichi'16). Chicago, USA: IEEE.

Mcmullin, E. 1984. A Case For Scientific Realism. In:

Leplin, J. (Ed.) Scientific Realism University of

California Press.

Mitra, S., Pal, S. & Mitra, P. 2002. Data Mining In Soft

Computing Framework: A Survey. IEEE Transactions

on Neural Networks, 13.

Mouza, C., Metais, E., Lammari, N., Akoka, J., Aubonnet,

T., Comyn-Wattiau, I., Fadili, H. & Cherfi, S. 2010.

Towards An Automatic Detection of Sensitive

Information In A Database. Advances In Database

Knowledge and Database Applications, 2nd

International Conference.

Mwogi, T., Biondich, P. & Grannis, S. An Evaluation of Two

Methods For Generating Synthetic Hl7 Segments

Reflecting Real-World Health Information Exchange

Transactions. Amia Annu Symp Proc, 2014.

Oreskes, N., Shrader-Frechette, K. & Belitz, K. 1994.

Verification, Validation and Confirmation of Numerical

Models In The Earth Sciences. Science 263.

Oxford. 2016. Definition of Validation In English [Online].

Available: Https://En.Oxforddictionaries.Com/Defini

tion/Us/Validation [Accessed].

Penduff, T., Barnier, B., Molines, J. & Madec, G. 2006. On

The Use of Current Meter Data To Assess The Realism

of Ocean Model Simulations. Ocean Modelling, 11.

Putnam, H. 1977. Realism and Reason. Proceedings and

Addresses of The American Philosophical Assoc, 50,

483-498.

Richardson, I., Thomson, M. & Infield, D. 2008. A High-

Resolution Domestic Building Occupancy Model For

Energy Demand Simulations. Energy and Buildings, 40,

1560-1566.

Rodriguez-Jiminez, J., Cordero, P., Enciso, M. & Rudolph,

S. 2016. Concept Lattices with Negative Information: A

Characterisation Theorem. Information Sciences, 369.

Sanderson, M. & Croft, B. Deriving Concept Hierarchies

From Text. 22nd Annual International Acm Sigir

Conference on Research And Development In

Information Retrieval, 1999. Acm, 206-213.

Sperotto, A., Sadre, R., Van Vliet, F. & Pras, A. A Labelled

Data Set For Flow-Based Intrusion Detection. 9th IEEE

International Workshop on IP Operations And

Management (Ipom ’09), 2009. 39-50.

Stratigopoulos, H., Mir, S. & Makris, Y. 2009. Enrichment

Of Limited Training Sets In Machine-Learning-Based

Analog/Rf Test. Date ’09.

Tsvetovat, M. & Carley, K. 2005. Generation of Realistic

Social Network Datasets For Testing of Analysis And

Simulation Tools. DTIC.

Van Den Bulcke, T., Van Leemput, K., Naudts, B., Van

Remortel, P., Ma, H., Verschoren, A. & Marchal, K.

2006. Syntren: A Generator of Synthetic Gene

Expression Data For Design And Analysis Of Structure

Learning Algorithms. Bmc Bioinformatics, 7.

Weston, J., Bordes, A., Chopra, S., Rush, A., Merrienboer,

B., Joulin, A. & Mikolov, T. 2015. Toward AI Complete

Question Answering: A Set Of Prerequisite Toy Tasks.

Under Review as A Conference Paper At ICLR.

Whiting, M., Haack, J. & Varley, C. Creating Realistic,

Scenario-Based Synthetic Data For Test And Evaluation

Of Information Analytics Software. 2008 Workshop On

Beyond Time And Errors: Novel Evaluation Methods

For Information Visualisation (Beliv'08), 2008.

Wilkinson, R. 2008. Anthropomorphic Deities. Ucla

Encyclopedia of Egyptology, 1.

Williams, K., Ford, R., Bishop, I., Loiterton, D. & Hickey, J.

2007. Realism and Selectivity In Data-Driven

Visualisations: A Process For Developing Viewer-

Oriented Landscape Surrogates. Landscape and Urban

Planning, 81.

Wu, X., Wang, Y. & Zheng, Y. 2003. Privacy Preserving

Database Application Testing. WPES ’03.

HEALTHINF 2018 - 11th International Conference on Health Informatics

230
