Micro-Segmenting 5G

Olli M

ammel

a, Jani Suomalainen, Kimmo Ahola, Pekka Ruuska, Mikko Majanen and Mikko Uitto

VTT Technical Research Centre of Finland Ltd, Finland

mikko.uitto@vtt.ﬁ

Keywords:

5G, Mobile Network, Security, Micro-segmentation, Virtualization, Isolation.

Abstract:

The forthcoming 5G mobile networks shall be heterogeneous in nature and embody a large number and variety

of devices. Moreover, Internet of Things applications – like surveillance and maintenance – will use 5G

extensively due to its high availability and quality of connectivity. However, the heterogeneous services,

applications, users, devices, and the large amount of network trafﬁc will bring challenges for the security of

the mobile network. It will be important to provide isolated segments from the network for applications that

require a high level of security. This paper presents the potential of micro-segmenting 5G networks. Micro-

segmentation is a concept that has been considered in data center networking to enforce the security of a data

center by monitoring the ﬂows inside the data center. In this paper we describe how the micro-segmentation

concept could ﬁt into the 5G security architecture and provide scenarios of how software mobile networks can

facilitate securing IoT.

1 INTRODUCTION

Mobile networks have substantially evolved through-

out the years. The ﬁrst generation (1G) of mobile

networks embodied analog telecommunications stan-

dards, such as Nordic Mobile Telephone (NMT). 1G

systems evolved into the second generation of mo-

bile networks (2G), in which digital telecommunica-

tion standards, such as the Global System for Mobile

Communications (GSM) were included. 2G systems

also introduced the Short Message Service (SMS),

plain text-based messages. The information transfer

rates were relatively low in 1G and 2G systems and

these systems were able to provide only elementary

services. The information transfer rate was improved

in the third (3G) and fourth (4G) generation of mobile

networks. This enabled the introduction of new use

cases and services, such as mobile video and Voice

over IP (VoIP). The upcoming ﬁfth generation of mo-

bile networks (5G) introduces even further improve-

ments to the information transfer rate, latency, and

availability as well as reducing management and op-

erating costs.

The completely new use cases, scenarios, and ser-

vices included in 5G bring large concerns as to the

security of the mobile network. For example, an In-

dustrial Internet of Things (IIoT) company may use

the 5G network for its operations, such as video mon-

itoring and factory control. If an adversary gets ac-

cess to the service and the network, the consequences

could be crucial. The more operations that are placed

in the network, the more opportunities there are for

an adversary to do signiﬁcant damage. Consequently,

the network and the used service should be highly se-

cure and isolated from the rest of the network. The

threat landscape should be minimized.

The topics of virtualization, Network Function

Virtualization (NFV) and Software-Deﬁned Network-

ing (SDN), and big data analysis are said (5G PPP

Architecture WG, 2017; 5G PPP Security WG, 2017)

to be important aspects of 5G mobile network secu-

rity. Moreover, it will be important to provide cus-

tomized network security depending on the demands

of the used service. For example, if a high data rate

or a small delay is desired for a service, the security

level of the service should be designed so that these

two Key Performance Indicators (KPIs) are kept at the

desired level. The security level of the service may

depend on multiple factors, such as access control,

security monitoring, privacy, trustworthiness metrics,

and isolation, to name a few. For example, the se-

curity level of the service could be customized by

providing the possibility of using different authenti-

cation methods with different privacy characteristics.

5G networks will use virtualization heavily, because

there is a need for efﬁcient and dynamic techniques

Mämmelä, O., Suomalainen, J., Ahola, K., Ruuska, P., Majanen, M. and Uitto, M.

Micro-Segmenting 5G.

DOI: 10.5220/0006662700170028

In Proceedings of the 3rd International Conference on Internet of Things, Big Data and Security (IoTBDS 2018), pages 17-28

ISBN: 978-989-758-296-7

to deploy virtual network functions (VNFs). There-

fore, efﬁcient and effective access control and iso-

lation mechanisms are mandatory for virtualization

platforms, such as Moby containers (Moby project,

2017; Docker Inc., 2017b).

This paper continues our previous

work (M

ammel

a et al., 2016) on the micro-

segmentation concept. Our previous work focused

on introducing the concept, originating from data

centers, into 5G mobile network security. This paper

provides further insight into the potential of the con-

cept and provides use cases for leveraging software

mobile networks to secure Internet of Things (IoT).

We survey related work in Section 2, describe

the micro-segmentation approach for 5G mobile net-

works in Section 3, and provide a description of the

testbed and use cases in Section 4. The conclusion

and possibilities for future work are presented in Sec-

tion 5.

2 RELATED WORK

2.1 Security in 5G Mobile Networks

5G mobile networks (Agiwal et al., 2016) are cur-

rently being designed and the vision is that 5G will

embody completely new services, applications, and

services compared to the previous mobile networking

scenarios. This brings closer attention to the security

of the network. With the advent of the IoT, more and

more devices are becoming connected to the Internet

and companies will be using 5G for many of their

operations. Examples include remote video surveil-

lance, remote control, autonomous vehicles, and re-

mote surgery, etc. In a case where an attacker ob-

tains access to the service and the network, the conse-

quences could be dramatic. Moreover, the novel and

diverse business requirements of vertical sectors have

rendered current network security approaches inade-

quate. Consequently, network security must be care-

fully designed in 5G.

5G security relates to various requirements (5G

PPP Security WG, 2017; 3GPP, 2017a). 5G should

provide a higher, or at least equal, security and pri-

vacy level compared to that of 4G. This means that

5G should be able to deliver a Service Level Agree-

ment (SLA) for availability, security, resilience, la-

tency, bandwidth, and access control from an end-to-

end perspective to verticals. As 5G infrastructures are

heterogeneous and complex, they require security to

be dealt with at multiple levels and across domains.

This means that automation of 5G security will be

important. 5G networks should include security mon-

itoring that can be used for detecting advanced cy-

ber security threats. Also, coordinated monitoring be-

tween different stakeholders and systems should be

supported. We describe an approach for an adaptive

management of security and also describe an interface

for sharing real-time security monitoring information

between different 5G stakeholders.

Mobile networks deploy different access control

mechanisms. Subscribers’ access control has been

based on Authentication and Key Agreement (AKA)

protocol (3GPP, 2017b), which decouples access con-

trol policies from enforcement. For instance, in 4G

the service operator enforces access control in base

stations (eNodeB) and uses a Mobile Management

Entity (MME) to query authorization from the Home

Subscriber Service (HSS) in a subscriber’s home net-

work. Operators also deploy ﬁrewalls and IPsec tun-

neling approaches to secure core networks, service

providers, and subscribers. Firewall mechanisms –

like Network Address Translation (NAT) and screen-

ing in the network edges – hide addresses of vulner-

able services and ensure that all incoming data ﬂows

originate from the trusted IP address spaces.

Management of access control policies in ﬁre-

walls is a challenge. Networks are complex (with a

large amount of actors and functions) and communi-

cation is heterogeneous (protocols ranging from IPsec

to Radius and Diameter, IPv4 and IPv6 as well as

LTE protocols like Stream Control Transmission Pro-

tocol, GPRS Tunneling Protocol, and Session Initia-

tion Protocol) as well as dynamic (new protocols and

communication paths emerge as the network evolves).

Hence, controlling which nodes can communicate us-

ing what protocols yields a massive amount of access

control polices. In 5G, new radio access interfaces

and cooperation between operators may further in-

crease the paths that must be protected with access

control approaches. To ease operations and costs,

typical ﬁrewall solutions already support centralized

management. However, in practice the security poli-

cies are not so ﬁne-grained as they could be in theory.

Access control is typically enforced only in critical

paths in the network. In 4G, networks ﬁrewalls have

been used, e.g. between:

• Mobile infrastructure and the Internet – to protect

infrastructure and subscribers against remote at-

tacks.

• Core networks and service provider’s infrastruc-

ture – to protect infrastructures from attacks orig-

inating from mobile subscribers.

• Core networks between partners – to protect im-

portant centralized functions, such as HSS, from

signaling attacks.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

Other challenges for ﬁrewalling approaches in-

clude speed and reliability requirements. The network

must be working 99.999% of the time. The costs of

ﬁrewalling, both investment and operation, are critical

factors when operators deﬁne the scope and granular-

ity of their ﬁrewall deployments. Our work provides

an alternative approach for access control. We pro-

pose an – easy to understand and easy to manage –

concept for ﬁne-grained access control.

Our approach can be ﬂexibly used to protect dif-

ferent parts and individual services and assets of the

mobile network. The proposed approach targets eas-

ing the management and reducing conﬁguration er-

rors (as a micro-segment must be conﬁgured to ad-

dress only those threats that are relevant for the seg-

ment user) as well as lowering costs (as ﬁrewalls can

be replaced with software networks).

2.2 Software Networks and Slicing

The key elements of 5G network design and secu-

rity will be network virtualization (Khan et al., 2012;

Wang et al., 2013; Liang and Yu, 2015), network

slicing (Ericsson, 2014; Ericsson, 2015b; Ericsson,

2015a; NGMN Alliance, 2016), and network pro-

grammability (5G PPP Architecture WG, 2017). In

network virtualization, the logical network compo-

nents are decoupled from hardware. This means that

it is possible to create isolated parts of the network.

Network slicing will be an essential concept of 5G

mobile networks. In this approach, nodes and com-

munication related to particular applications are iso-

lated from each other. A single network slice is thus a

logical instantiation of a physical network with all the

functionalities needed to run a particular service. Fi-

nally, the goal of network programmability is to con-

trol the behavior and communication of network de-

vices and ﬂows with software while operating inde-

pendently from network hardware.

All these elements can be implemented with SDN

and NFV technologies. The former may be used

for monitoring and controlling speciﬁc network parts,

while the latter can be used for the virtualization

of mobile network entities and functions. In a 4G

network, these functions are Packet Data Network

Gateway (PGW), Serving Gateway (SGW), Mobility

Management Entity (MME), load balancing, trafﬁc

monitoring, and QoS, etc.

The vision of 5G is as a ﬂexible and dynamic sys-

tem in terms of use cases, user equipment, radio ac-

cess network technologies and core network services.

The complexity of the system will become even more

evident if new deployment models, such as third party

and multi-operator deployments, and new third party

APIs, enabling, e.g. full conﬁguration control of net-

work functions, are supported. This means that it is

important to reduce the complexity of operating secu-

rity aware 5G services, provided by a Mobile Network

Operator (MNO) or Virtual Mobile Network Operator

(VMNO), speciﬁcally in terms of trust. Users and op-

erators would therefore need up-to-date information

on the trustworthiness of the 5G network.

2.3 Micro-Segmentation

The concept of micro-segmentation was originally

introduced by VMware to data center networking

(VMware, 2014; Miller and Soto, 2015; Fulton III,

2015; Huang, 2015). The main idea is that in addition

to network security at the perimeter, data center se-

curity should focus on the attacks and threats coming

from the internal network. Data center network se-

curity has generally considered securing the network

perimeter by having ﬁrewalls that ﬁlter incoming net-

work trafﬁc to the data center.

However, once adversaries get past the perime-

ter by bypassing the ﬁrewall, they are free to move

laterally inside the data center and carry out their

attacks. Micro-segmentation in effect enables se-

curity monitoring inside the data center in addition

to the traditional network security at the perimeter,

i.e. between internal components in addition to be-

tween the external and internal network. In general,

the trafﬁc inside the data center is differentiated into

small isolated parts, i.e. micro-segments depending

on the trafﬁc type. With micro-segmentation, a strict

micro-granular security model can be adopted that

ties security to individual workloads. Also, it pro-

vides the agility to provision policies automatically.

VMware has developed an NSX Network Virtualiza-

tion and Security Platform (VMware, 2017), which

enables micro-segmentation. Basically, through NSX

it is possible to create whole networks in software

and embed them into the hypervisor layer, which

is abstracted from the underlying physical hardware.

Software-deﬁned policies can enable more ﬂexible

network security than a manual conﬁguration work

would.

Security advantages of micro-segments include,

e.g.:

• Writing policies in a centralized manner for small

(application speciﬁc) networks is simpler and less

error prone than deﬁning low level device conﬁg-

urations in a distributed manner or when deﬁning

policies for large heterogeneous networks.

• Micro-segmentation provides an easy to under-

stand concept for adjusting and controlling secu-

rity. For each micro-segment, the amount of secu-

Micro-Segmenting 5G

rity policies is small and policies are easy to keep

consistent.

• Control can be automated to adjust situations and

threats in the data plane.

• Centralized controllers have knowledge of the

state of the whole network. Consequently, it is

easier to develop sophisticated control functions.

This awareness can be extended if controllers can

cooperate across domains.

• Each micro-segment can enforce different access

control policies. Such ﬁne-grained controls can be

used to prevent some threats from spreading. In

case an adversary successfully compromises one

micro-segment, the threats do not spread to micro-

segments that have been isolated from the com-

promised one.

• Trafﬁc ﬂows within a slice or micro-segment are

more homogeneous. Hence, security monitoring

can be more easily customized and focused com-

pared to that of heterogeneous networks with traf-

ﬁc ﬂows from various applications.

• Security enforcement (blocking of malicious

nodes) is done in low-cost software switches.

Blocking can be executed at any switch in the

micro-segment that is the closest to the attack

source. Hence, effects of attacks to network can

be minimized.

Thus, the concept increases the effectiveness and

trustworthiness of network security controls but may

also lower the operating costs.

2.4 Security for the IoT on Mobile

Networks

In general, the security mechanisms designed to pro-

tect communications must provide assurances for

conﬁdentiality, integrity, authentication, and non-

repudiation of the information ﬂows (Granjal et al.,

2015). For IoT based communication availability and

resilience are also two important requirements. For

example, IoT embedded devices could be infected by

a botnet (Traynor et al., 2009) that is capable of exe-

cuting Distributed Denial of Service (DDoS) attacks.

Privacy is also one of the major concerns in IoT sys-

tems, as there can be applications that handle critical

information, such as medical records or factory con-

trols. Moreover, IoT devices do not have methods for

protecting the privacy of location information. IoT

devices also have limited processing and battery capa-

bilities and they may not be able to support all avail-

able authentication methods. IoT devices have differ-

ent behavior patterns compared to user terminals. In

IoT networks, large amount of devices may become

active at the same time and send short signaling bursts

to the network. Hence, a large number of simul-

taneously IoT authenticating devices may cause an

overload situation for authentication services (Jover,

2013).

3 MICRO-SEGMENTING 5G

This section describes how the concept of micro-

segments can be utilized in 5G mobile networks.

First, we provide deﬁnitions and discuss the role of

micro-segments in a 5G ecosystem. Then, we pro-

pose a framework to illustrate the technical building

blocks that are needed to extract the potential from

micro-segments.

3.1 Micro-Segments in a 5G Ecosystem

In a 5G network, a micro-segment can be deﬁned as

a logical network portion that is decoupled from the

physical 5G hardware and dedicated to a particular

application or user group and that hosts functions with

the same or similar security requirements. Micro-

segments can be considered as a sub-slice in which

the emphasis is more on network security. While an

end-to-end slice provides all the necessary 5G func-

tions that are needed to organize an end-to-end ser-

vice, a micro-segment may contain only a subset of

functions (sometimes only one).

Several micro-segments can be chained together

to create end-to-end connectivity that maintains ap-

plication isolation. Each micro-segment can have its

own ﬁne-grained access controls as well as tuned se-

curity policies and mechanisms supporting unique ap-

plication speciﬁc trust models. Micro-segmentation

enables the creation of smaller and less heterogeneous

parts in the network. This means that better efﬁciency

and accuracy can be achieved for security.

For instance, requirements for an end-to-end slice

could be to include VNFs for radio access technology

(RAT) and trafﬁc acceleration from the access net-

work; for packet routing and mobility management

from the serving network; for subscriber authenti-

cation and accounting functions from the home net-

work; as well as functions for Internet connectivity

from the transport network. For a micro-segment, the

amount of functions can be smaller. RAT and accel-

eration functions in base stations or mobile edge data

centers at different locations can be in different micro-

segments. Mobility management, routing and authen-

tication functions reserved for different quality of ser-

vice levels can be kept in isolated micro-segments.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

Management domains Management domains

Management

domain

Management

domain

Infrastructure provider domains

Infrastructure

provider domains

Access domain

RAT1

Access domain

RAT2

Serving domain

Home domain

Transit domain

Mobile

equipment

domain

USIM domain

Slice

IM domain

Slice

UICC

domain

MEHW

domain

Slice

3rd party domain

IP service

Operator network domain (access and core network domains)

User equipment domain External network domain

Infra

domains

Tenant domains

Slice

μS μS μS

Slice

μS μS μS

Slice

μS μS μS

Slice

μS μS μS

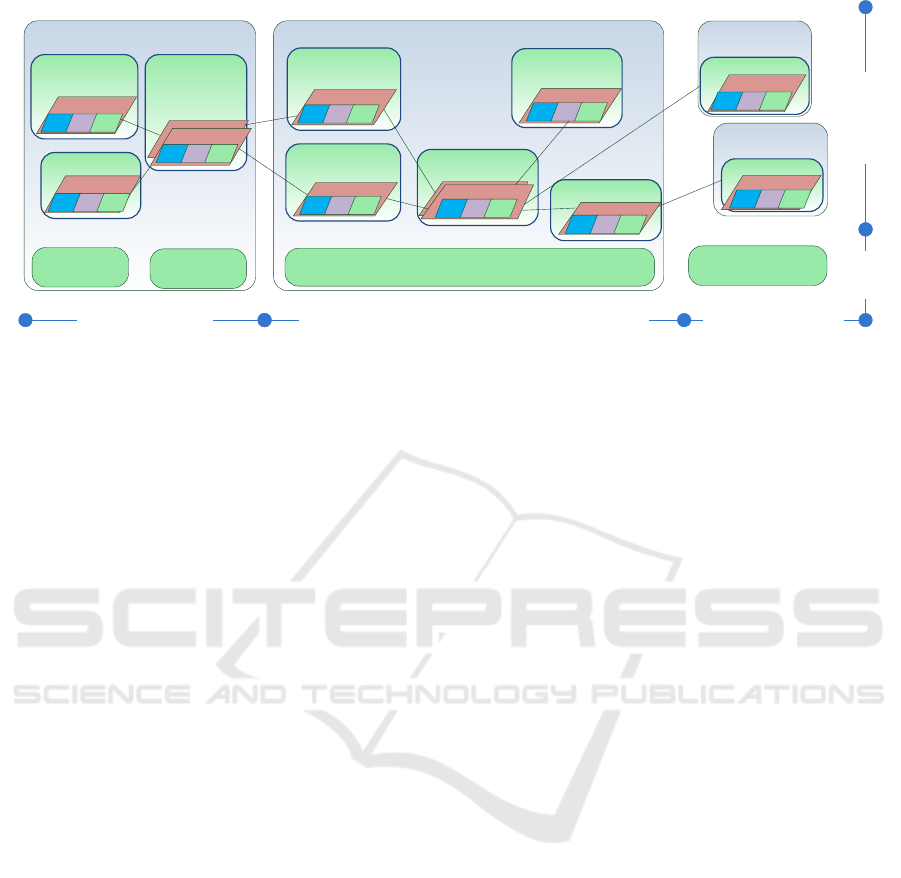

Figure 1: Micro-segmentation in 5G security architecture (5G-ENSURE, 2017; 5G-ENSURE, 2016) - a micro-segment is a

ﬁne granule security block that controls ﬂows within administrative domains and application-speciﬁc slices.

Solutions that are known to be more vulnerable, e.g.

some authentication mechanisms may be vulnerable

to DoS attacks, can be kept in a micro-segment to

which only trusted nodes are given access.

Micro-segments can be deployed to different parts

of the 5G architecture. Figure 1 shows how the micro-

segments map to the 5G security architecture (5G-

ENSURE, 2017; 5G-ENSURE, 2016). The illustrated

domain model is an evolution of the 3GPP’s security

architecture: it emphasizes the emerging infrastruc-

ture sharing by separating domains horizontally into

infrastructure (hardware) and tenants (software). The

management domains highlight the focus of 5G to-

wards more ﬂexible and cost-efﬁcient management.

Furthermore, the emerging concept of slicing is illus-

trated with domains distributed across different tenant

domains. As slices, micro-segments can be located in

all domains. In user equipment domains, the micro-

segments are visible in device speciﬁc application iso-

lation methods. In access, serving, transport, home

networks, and potentially also in 3rd party and IP

service providers networks, micro-segments are de-

ployed as logical network portions.

Micro-segmentation can be used to divide 5G net-

works – horizontally and vertically – into portions

in which different security controls can be applied.

Micro-segmentation enables application-speciﬁc cus-

tomization of security services. A micro-segment

could, for instance, provide its own AAA and secu-

rity monitoring functionalities. Consequently, differ-

ent segments have different security or trust levels, i.e.

can be trusted to address different security risks.

Generally, there are four entities involved in

the micro-segmentation concept: a micro-segment

provider, a micro-segment controller, a micro-

segment subscriber, and a security function provider.

A micro-segment provider is the infrastructure

provider that provides micro-segments for micro-

segment controllers on top of virtualized hardware.

A micro-segment controller is an entity that controls

the software switches and SDN controllers in micro-

segments and collects event information, e.g. net-

work statistics. This actor can be the MNO. A se-

curity function provider is an entity providing micro-

segment speciﬁc security controls. For instance, there

may be security monitoring and inferencing functions

acquiring security information from micro-segments

through the APIs that the micro-segment controller

keeps open. The actor can be a micro-segment

provider, a third-party, or the micro-segment sub-

scriber. A micro-segment subscriber is an organiza-

tion, company, or application service provider requir-

ing isolated 5G network services for a particular ap-

plication.

3.2 Micro-Segmentation Framework

The micro-segmentation concept is based on SDN

and NFV technologies. A micro-segment is essen-

tially a software network that is located on top of

virtualized hardware infrastructure. The realization

and orchestration (i.e. autonomous provisioning) of

micro-segments requires different management, con-

trol and security functions. The proposed framework,

illustrated in Figure 2, identiﬁes these building blocks

of micro-segments.

A virtualization platform separates 5G infrastruc-

ture from 5G software functionality. The platform

provides a common interface that hides the details

of hardware components (starting from base sta-

tions to switches and cloud computing centers) from

SDN (software switches and controllers) and 5G

VNFs (software components providing mobile net-

work functionality). The virtualization is controlled

Micro-Segmenting 5G

Tenant domain

End-to-end Slice

Tenant domain

End-to-end Slice

Tenant domain -

End-to-end slice

Cross-segment management

and orchestration

Trust metric

enabler

Micro-segmentation

enabler

Virtualization platform

with hardened isolation

Authentication and

access control

Micro-segment

Creates, controls

SDN controller

5G VNF

Monitoring and

control

5G VNF

Software network (switches)

5G VNF

5G (hardware) infrastructure

Secure cross-

segment tunneling

Real-time security awareness

Infrastructure domain

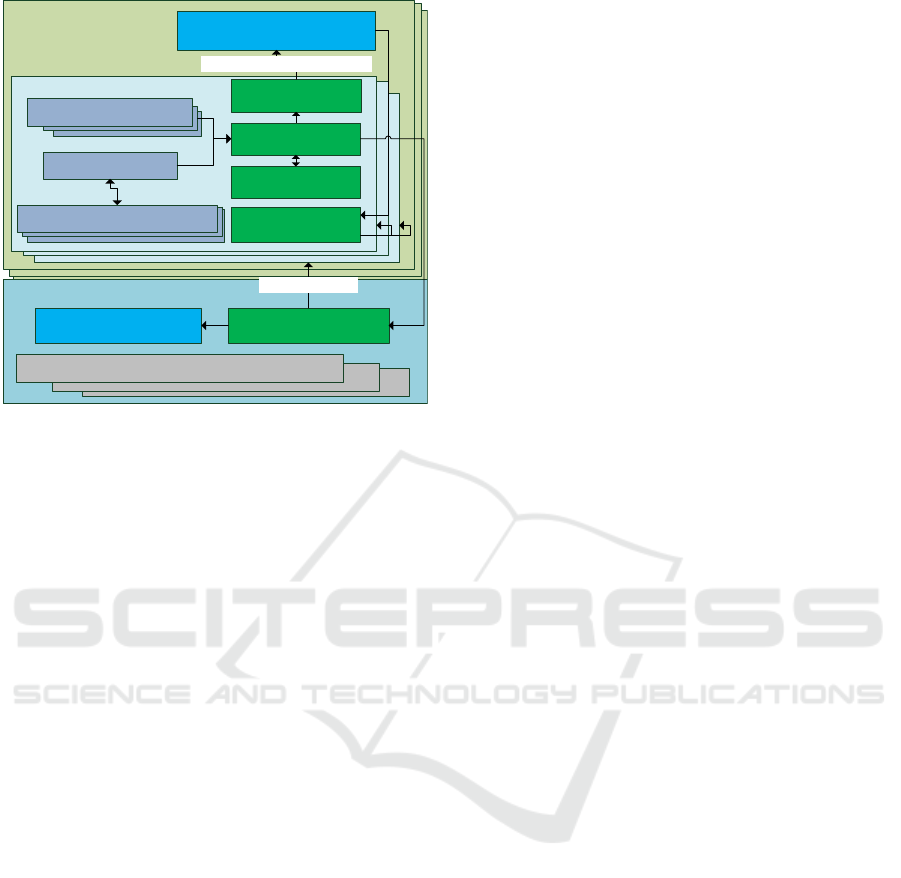

Figure 2: Micro-segmentation framework.

by the micro-segmentation enabler, which uses the

virtualization platform to create coarse granule slices

and ﬁne-granule micro-segments. The virtualiza-

tion platform is responsible for isolating the micro-

segment from other applications and users using the

same infrastructure. Consequently, the platform must

apply strong – hardened – access control and trust ver-

iﬁcation mechanisms, at operating system and hard-

ware level, to prevent intrusions from other micro-

segments.

5G subscribers may be able to handle different

risks and thus they may have different requirements

for security levels. Micro-segments host application

or subscriber speciﬁc security functions, such as au-

thentication and access control, as well as a monitor-

ing and inference-based security controller. Authen-

tication and access control function can support dif-

ferent mechanisms – with different security levels and

costs – which are suitable for the micro-segment sub-

scriber. The monitoring and inference-based security

controller collects security event information from

SDN and VNFs within the micro-segment and – us-

ing application speciﬁc inferencing algorithms – de-

duces risk-level information, and also adapts a micro-

segment’s behavior and control functions.

End-to-end connections through 5G networks are

created dynamically by chaining micro-segments and

their services. Multi-segment and multi-domain co-

operation is coordinated by cross-segment manage-

ment and orchestration functions. Micro-segments

support the creation of end-to-end connections over

multiple segments by providing tunneling func-

tions for generating secure Virtual Private Networks

(VPNs) between segments.

To enable managers to orchestrate connectivity

that fulﬁll subscribers’ trust requirements, the man-

agers must know how trustworthy each available seg-

ment is. Real-time awareness on the trust-level of

each micro-segment must be provided dynamically

for cross-segment managers to enable them to select

and change connected segments, e.g. in case of a de-

tected threat or attack situation.

A trust metric enabler provides an interface to

acquire knowledge on the security state of a micro-

segment. It provides real-time metrics that help

both cross-segment managers and micro-segment

subscribers to track segment’s current trust-level. On

the other hand, a trust metric enabler can be used

to deliver inferred knowledge with coarse granular-

ity so that the information remains simple and usable

as well as hiding privacy and operator critical details.

4 USE CASES FOR THE IoT IN 5G

The building blocks of the micro-segmentation frame-

work can be based on alternative technologies and im-

plementations. We developed a testbed that was used

to demonstrate three IoT use cases related to moni-

toring, authentication, and trust. The testbed and use

cases are described in the following subsections.

4.1 Testbed Implementation

The testbed consists of software security enablers ;

open source components for big data analytics, net-

work virtualization and softwarization; IoT devices

acting as service provider and adversaries; as well as

a software implementation of mobile networks.

The technology selections for the testbed are il-

lustrated in Figure 3. We developed three enablers

to realize the micro-segmentation framework: a Trust

Metric Enabler, a Security Monitoring Enabler, and

a Micro-Segmentation Enabler - cf. (5G-ENSURE,

2017) for speciﬁcations and implementation details.

Further, for the use cases, the testbed was inte-

grated with a Privacy Enhanced Identity Protection

Enabler (Baltatu et al., 2017, p. 89–104) and a Com-

pliance Checker Enabler (Klaedtke and Sforzin, 2017,

p. 252–260).

The micro-segmentation enabler facilitates the

creation, deletion, and control of micro-segments.

The enabler uses a modiﬁed OpenVirteX soft-

ware (OpenVirteX Project, 2017) to create micro-

segments and uses Ryu for an SDN controller (Ryu

SDN Framework Community, 2017). The develop-

ment and testing was done using the Mininet envi-

ronment (Mininet Team, 2017), which emulates an

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

Tenant domain

End-to-end Slice

Tenant domain

End-to-end Slice

End-to-end slice

Cross-segment management

and orchestration

Trust metric

enabler

Micro-segmentation

enabler

OpenVirteX

Authentication(EP

S-MD5, EPS-AKA)

Micro-segment

Creates, controls

SDN controller (Ryu)

OpenFlow

5G VNF

OpenEPC

Monitoring enabler

(Spark ML)

5G VNF

Software switches (Open

vSwitch)

5G VNF

Hardware switches (mininet)

Cross-segment

tunneling (IPsec)

Kafka

Infrastructure

provider

Operators

Security function

provider

IIoT

organization

Provides

subscribes

Provides,

controls

Control in cooperation

Mallory

attacks

uses

Carol

Hardened

Docker

Controls

alone

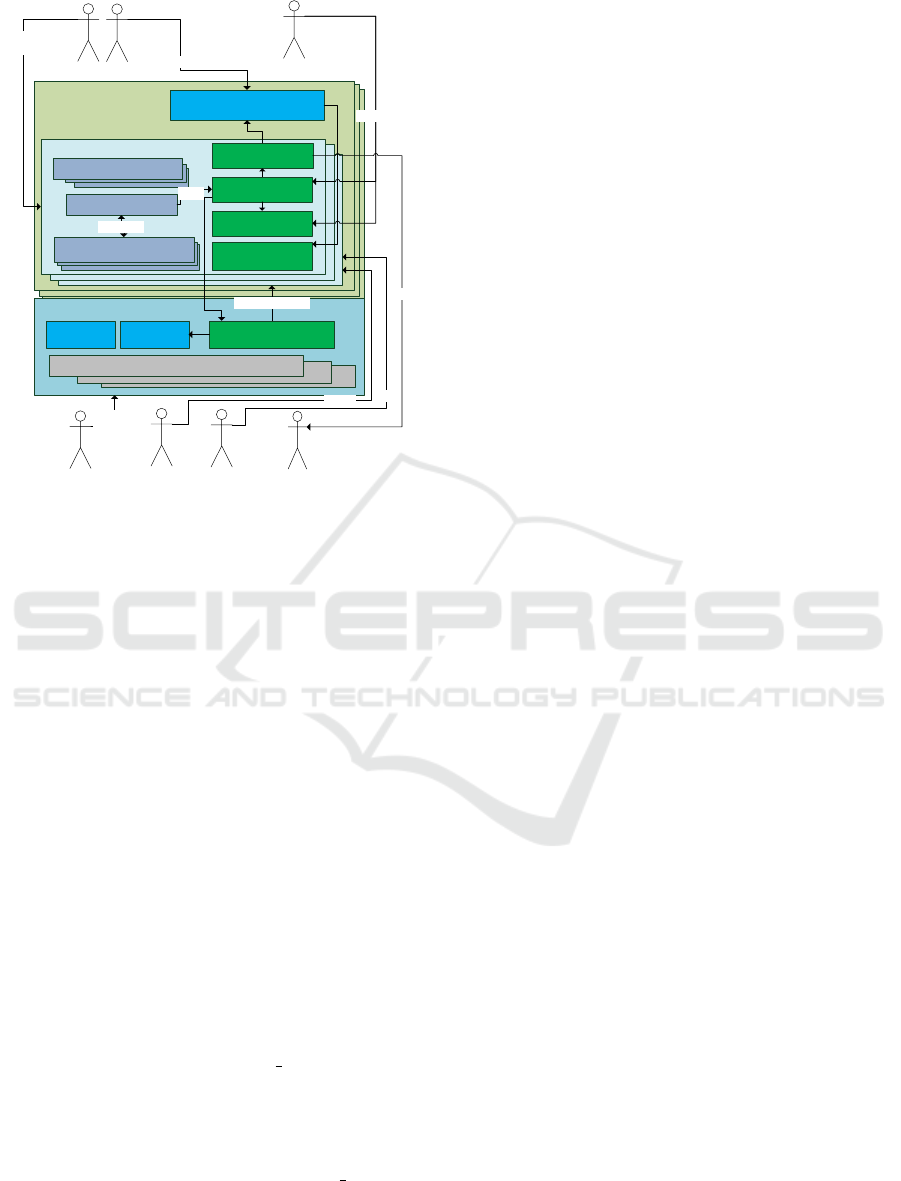

Figure 3: Micro-segmentation technology selections for

prototyping and roles in the IoT use case.

OpenFlow-supported network and hosts, using Open

vSwitch virtual switches (Open vSwitch, 2017) and

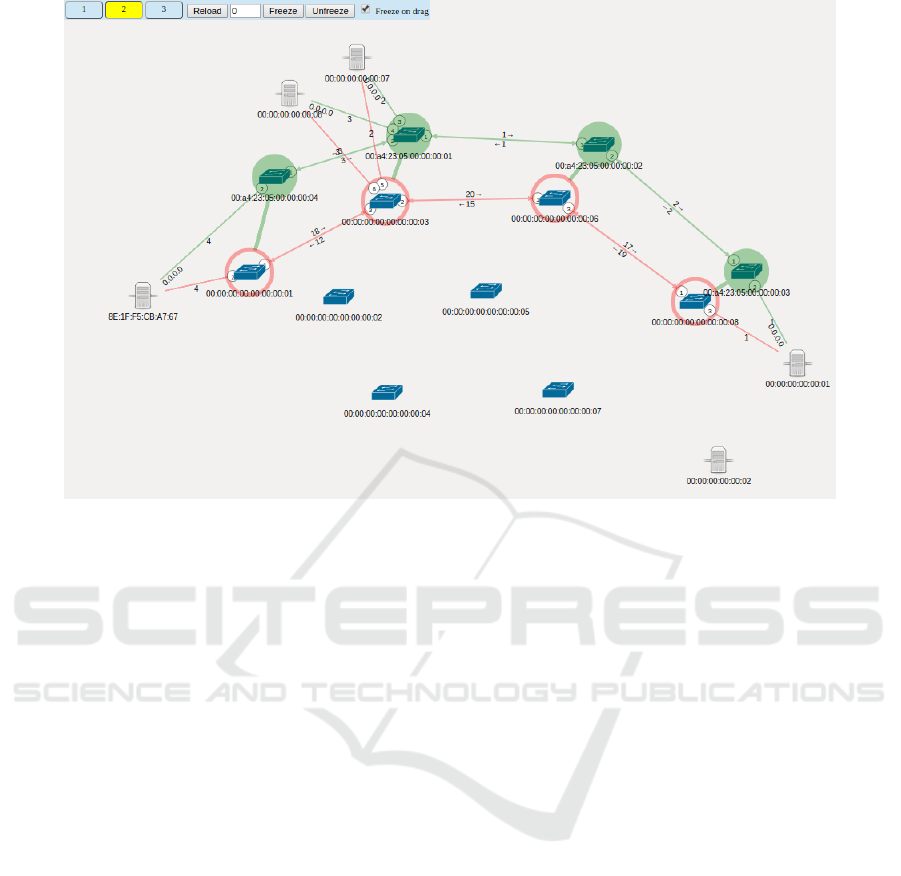

Linux namespaces. The enabler also provides a web-

based GUI for illustrating the topology of a virtual-

ized network (see Figure 4). Secure cross-segment

connections are enabled with IPsec. Furthermore, the

micro-segmentation enabler provides an interface that

can be used to collect trafﬁc statistics as well as infor-

mation topology change and authentication events.

Authenticator / access controller – This entity

is included in the micro-segmentation enabler and

it controls which node can access which micro-

segment. The access control is accomplished using

the Extensible Authentication Protocol authentication

with the support of two alternative methods: EAP-

MD5 (Extensible Authentication Protocol Method for

MD5 hash) and EAP-AKA (Extensible Authentica-

tion Protocol Method for 3rd Generation Authenti-

cation and Key Agreement). The authentication in

wired Ethernet environments is done using the Ex-

tensible Authentication Protocol over LAN (EAPoL).

Actual implementation uses wpa supplicant suppli-

cant (Malinen, 2013b), hostapd authenticator (Mali-

nen, 2013a), and FreeRADIUS (FreeRADIUS, 2017)

server. When using the Privacy Enhanced Identity

Protection Enabler as an additional access control ser-

vice, there is a need to use modiﬁed wpa supplicant

and hostapd versions Privacy Enhanced Identity Pro-

tection Enabler (Baltatu et al., 2017, p. 89–104).

The security monitoring enabler, which tracks and

autonomously controls a micro-segment’s security,

was build on top of the Kafka (Kafka Project, 2017)

and Spark (Spark Project, 2017b) frameworks. Kafka

provides a message brokering solution based on the

publish and subscribe paradigm. Spark provides li-

braries for near-real time analysis and processing of

streaming data. Both frameworks are very scalable

as they inherently support cluster-based computing.

The monitoring enabler is a Spark/Python applica-

tion that subscribes and processes monitoring data

streams (Kafka/JSON) from the micro-segmentation

enabler. The enabler captures authentication and

topology events, analyses network trafﬁc statistics for

anomalies, performs risk-level analysis on detected

anomalies, and triggers control actions on the micro-

segment.

The anomaly detection feature was implemented

using streaming-k-means (Freeman, 2015) Spark’s

machine learning library (Spark Project, 2017a). The

algorithm builds a model of the normal behavior by

clustering trafﬁc event information. Anomalies are

detected by calculating distances between modeled

cluster center points and new event information and

checking whether anomaly thresholds are exceeded.

The streaming-k-means learns normal behavior con-

tinuously and is therefore suitable for dynamic 5G

environments where new nodes may roam to the net-

work and new connections may be initiated at any

time. When the algorithm detects an anomaly, which

sufﬁciently exceeds thresholds levels, it quarantines

suspected nodes from the micro-segment and pub-

lishes warning notiﬁcations.

The trust metric enabler provides an interface for

cross domain exchange of security monitoring infor-

mation. The implementation is a python application

integrated to trust metric clients and a security mon-

itoring enabler with Kafka. The clients request trust

metrics by specifying trust models with three primi-

tives: a trust model may require a particular function

to be available as well as to set upper and lower lim-

its for speciﬁc security related KPIs. For instance,

a trust model may require use of particular security

algorithms and follow the trustworthiness of devices

in a micro-segment. The trust metric enabler tracks

that these requirements are fulﬁlled and provides near

real-time status information for the micro-segment

subscribers. The implementation also provides a web-

based GUI - trust indicator - for visualizing different

trust metrics as ’trafﬁc lights’.

The use case application is comprised of an IoT

real-time monitoring video, which holds a video

server running in Raspberry Pi 3 as well as a lap-

top video client. Dynamic Adaptive Streaming over

HTTP (DASH) protocol was utilized in order to pro-

Micro-Segmenting 5G

vide a possibility for adaptation against network at-

tacks by dropping the video quality. For this, the ac-

tual attacks could be visualized in the video player.

Adversaries – a malicious IoT botnet trying to

disable use case applications – were modeled using

Raspberry Pi 3 devices with hping packet generators,

capable of generating a large amount of crafted pack-

ages towards victim interfaces.

OpenEPC (OpenEPC Project, 2017) implements

LTE core network functions as well as an emulated

base station (eNodeB) and user terminal. It was uti-

lized to generate trafﬁc ﬂows for the use case analysis,

though the component was not integrated to the oper-

ative micro-segmentation testbed.

4.2 Use Cases

This subsection illustrates the potential of micro-

segmentation with three use cases

. Actors and their

roles in relation to technology are illustrated in Fig-

ure 3. The general storyboard is as follows. A com-

pany has a video surveillance equipment in its factory

where cameras and other equipment are connected us-

ing a 5G network. Carol, a company employee, uses

her 5G mobile device to view the video surveilance

service. This service should be highly secure and

isolated from the rest of the network so that mali-

cious nodes are not able to access or disturb it. Carol

is receiving data to her smart phone from a factory

surveillance camera that is connected to an IoT net-

work. An attacker that wants to invade the factory –

Mallory – has two options: either blackout the cam-

era by using an IoT botnet (Subsection 4.2.1) or track

the movement of Carol (Subsection 4.2.2). The com-

pany purchases hardened security from the operator

and receives near real-time information on the trust-

worthiness of the network (Subsection 4.2.3).

Physical topology and micro-segment topology

(logical) used in the use cases are shown in Figure 4.

The physical topology consists of eight OpenFlow en-

abled switches, two servers, one authenticated client,

and two devices belonging to the malicious IoT bot-

net. The servers, client, and IoT botnet are shown

in white. A micro-segment (shown in green) resides

on top of the physical topology. OpenVirteX virtu-

alizes the switches and the virtual network sees only

its part of the network topology. The micro-segment

is isolated and communication between other micro-

segments is not supported. The micro-segment topol-

ogy consists of four virtual switches (shown in green),

a server, a client, and two devices belonging to the

malicious IoT botnet.

A video animating the use cases is available in

https://youtu.be/xfuBEpt4l8Y.

4.2.1 IoT Botnet Detection

The storyboard of the ﬁrst use case is the following.

An attacker tries to blackout the camera by launch-

ing denial of service attack from an IoT botnet. In

the case of such an attack or intrusion, security mon-

itoring should be able to detect malicious nodes and

remove them.

In this scenario, the micro-segmentation enabler

is used for creating and deleting micro-segments,

adding and deleting nodes from micro-segments, and

providing strong access control to the micro-segment.

The security monitoring enabler monitors trafﬁc ﬂows

inside the micro-segment, uses machine learning to

model ’normal’ behavior and to detect any anomalous

behavior.

In the scenario, we also have several connected

IoT devices. As these IoT devices are harder to keep

up-to-date and may not have the capabilities for heavy

security mechanisms, they have been compromised

by Mallory and turned into a botnet. Mallory can

then instruct this botnet to initiate a denial of service

(DoS) attack against the monitoring camera. When

an anomaly revealing such an attack is detected, the

micro-segmentation enabler will be automatically be

contacted to quarantine suspected ﬂows. The ad-

vantages provided by micro-segmentation are evident

from the quick recovery of service quality.

Through the use of the enablers, we are able to

highlight the following points: 1) threats by the IoT

towards 5G infrastructure/services can be mitigated

by isolating the trafﬁc ﬂows (with SDN based vir-

tualization) and 2) access controlled and monitored

micro-segments enable quick detection of threats and

autonomous reaction. In non-segmented networks

such a reaction would not be possible as some ser-

vices may occasionally experience heavy loads. But

in application speciﬁc micro-segments large amounts

of messaging towards a service that has been previ-

ously only transmitting, can be interpreted as an at-

tack that can be blocked without human intervention.

4.2.2 Alternative Authentication Methods

The micro-segmentation concept in a 5G network can

support different authentication methods depending

on the required security level of the service. For ex-

ample, SIMless authentication can be provided for

cheap embedded devices. Authentication mecha-

nisms for battery restricted devices may also be more

lightweight when the application can accept lower se-

curity or privacy levels. For better security and pri-

vacy, EAP-AKA could be provided.

In the second use case, the storyboard is the fol-

lowing. An attacker will try to track the movement of

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

Figure 4: Micro-segment topology.

Carol. A possible adversary could do a considerable

amount of damage to the factory when Carol is not

at the factory. The tracking attack (Herzberg et al.,

1994) is possible as Carol is using the network with

her smartphone and her phone is associated with an

(unprotected, unencrypted) international mobile sub-

scriber identity (IMSI), which identiﬁes Carol to the

network.

For achieving a secure and private service to op-

erate the video service, the micro-segmentation en-

abler will create an isolated micro-segment for it. For

access control, the EAP-AKA implementation of the

Privacy Enhanced Identity Protection enabler will be

used. The enabler will protect the long term identiﬁer

(IMSI) with attribute-based encryption. In this way,

the IMSI is hidden and it is not visible for tracking by

possible adversaries.

In this scenario, it is possible to show that 1) we

can provide services that are isolated and provide au-

thentication that fulﬁlls subscribers’ requirements in

respect to privacy-level or capabilities of the devices

and 2) micro-segments can support different authenti-

cation mechanisms. Authentication mechanisms can

be easily customized according to the micro-segment

subscribers’ requirements.

4.2.3 Trust Measurements

In subscribing to a micro-segment and using it in

surveillance, Carol’s company need to be aware that

the network can be trusted and if something happens

they must be notiﬁed in at once. The trustworthi-

ness of the micro-segment depends on several factors

that are speciﬁed by the micro-segment subscriber. In

this use case the following metric is used to deﬁne

whether the segment is trusted or not:

• Functions and services hosted in the micro-

segment must be deployed to trustworthy plat-

forms. Particularly, hosting containers must be

up-to-date and isolated from other applications.

• The amount of devices that use lightweight and

potentially vulnerable security mechanisms is

limited.

• The micro-segment must have security functions

for authentication and authorization as well as for

security monitoring. Security functions mecha-

nisms must be veriﬁable, running, and working.

In this use case, the services that a micro-

segment hosts are brought in a Moby container (Moby

project, 2017) that is an open source version of

Docker (Docker Inc., 2017b). The network could

be attacked by an adversary that utilizes a vulnerable

container with outdated software. For instance, the

docker engine/hypervisor may also host a malicious

container able to also compromise other applications,

which are running in the same engine, and thus af-

fect the security and behavior of the micro-segment.

Hence, the security level of each container is mea-

sured and isolation is enforced. Essentially, in this

Micro-Segmenting 5G

use case the micro-segment subscriber has speciﬁed

a policy that the Docker engines should be dedicated

for services. When starting containers, with docker-

compose (Docker Inc., 2017a), we check that this pol-

icy is enforced.

The security monitoring enabler must be running

in the micro-segment in order to detect and react

to potential DoS situations. We use the compliance

checker to verify that the micro-segmentation enabler

really quarantines the ﬂows detected by the monitor-

ing enabler. The compliance checker gets notiﬁca-

tions from both enablers and veriﬁes that they occur

within a given time window.

Micro-segmentation and security monitoring en-

ablers also collect information on what authentication

mechanisms devices are using to access the micro-

segment. In this case, the trust level decreases if

there are MD5 authenticated IoT devices in the net-

work. Large amounts of IoT devices that authenticate

to the micro-segment using lightweight authentication

mechanisms (and that are more likely to fall into a

botnet) pose a threat to the availability of services.

The trust metric enabler is able to receive trust

measurements from the micro-segment through the

micro-segment monitor. The trust metric enabler will

combine this information and notify the company of

changes in micro-segments trust. The company can

visualize the trust information for Carol, e.g. by dis-

playing green, yellow or red icons or showing textual

information stating that the company’s trust require-

ments are either met or are not satisfactory. Through

the use of the trust metric enabler, service providers

and end-users are made more aware of a network’s

trustworthiness.

4.3 Beneﬁts and Costs of

Micro-Segmentation

Micro-segmentation aims to divide the network into

smaller segmented security zones. This has the po-

tential to improve the speed of detecting intrusions

and deleting malicious nodes. Also, with micro-

segmentation, the attacks can be tied to a speciﬁc lo-

cation and the spread of attacks can be minimized.

Micro-segments can also be customized based on the

needs of the application. For example, some micro-

segments may require a strong authentication proto-

col and encrypted trafﬁc and some may only allow

particular types of communication or protocols.

4.3.1 Managing Diversity in Mobile Networks

To evaluate the potential of micro-segments, we mea-

sured the diversity of trafﬁc ﬂows in our mobile net-

work testbed. The aim was to study how hetero-

geneous and diverse the communication is in differ-

ent parts of the network and thus enable us to assess

whether micro-segmentation could be applied to iso-

late more homogeneous parts of network.

We used IoT and video streaming applications to

generate realistic trafﬁc ﬂows and to trigger signaling

from our OpenEPC LTE functions. Then we collected

trafﬁc statistics ﬂowing between different LTE inter-

faces: from user terminal to eNodeB (net c), from eN-

odeB to serving gateway (net d), from serving gate-

way to packet gateway (net b), and from packet gate-

way to internet gateway (net a).

The trafﬁc statistics crossing different mobile net-

work interfaces, and caused by two applications (plain

IoT, as well as combined IoT, and video) are illus-

trated in Figure 5. It illustrates how the amount

of packets and the amount of involved protocols in-

creases when the application amount increases. The

application layer (IP) trafﬁc ﬂows through the whole

network but layer-2 signaling depends on the inter-

face. The numbers over 100% in the ﬁgure are due

to the GPRS tunneling between eNodeB and serving

gateway (the packets in the tunnel can have two IP

and UDP headers depend-ing on the inner packet).

CoAP packets were sent only once per 2 seconds,

while video packets were trans-mitted with a much

smaller packet interval. This explains the difference

in CoAP packet percentage numbers, as well as other

protocol numbers, between the two scenarios.

The results illustrate that micro-segmentation can

therefore be used to isolate different application cases

to get more homogeneous trafﬁc ﬂows that are eas-

ier to monitor. As the trafﬁc volumes of IoT trafﬁc

are much more moderate compared to those of com-

bined video and IoT data, the monitoring functions in

a micro-segment dedicated for just IoT trafﬁc needs

signiﬁcantly less resources and can also perform more

complex analyses.

Micro-segmentation can also be utilized when

deﬁning authorization policies for different domains.

For instance, as stream control transmission proto-

col is present and normal only in an access network

(eNodeB to serving gateway) it can be ﬁltered from

micro-segments where a packet gateway or an internet

gateway is hosted. Hence, packet and internet gate-

ways can be isolated from vulnerabilities related to

these protocols.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

Scenario:

IoT + video

IoT only

Capture point: net_a net_b net_c net_d net_a net_b net_c net_d

Protocol %Packets %Packets %Packets %Packets %Packets %Packets %Packets %Packets

Ethernet 100,00 100,00 100,00 100,00 100,00 100,00 100,00 100,00

Logical-Link Control 0,73 0,46 0,73 0,66 29,13 26,19 25,56 15,88

Spanning Tree Protocol 0,73 0,46 0,73 0,66 29,13 26,19 25,56 15,88

Internet Protocol Version 4 or IPv6* 99,10 99,54* 99,18 195,67 64,08 73,81* 70,61 93,13

User Datagram Protocol 64,04 163,34 64,08 160,86 56,31 119,05 57,83 81,12

Session Initiation Protocol 0,06 0,06 0,06 0,06

Real-Time Transport Protocol 62,54 62,95 62,69 61,92

MP4V-ES 62,54 62,95 62,69 61,92

GPRS Tunneling Protocol 99,23 97,74 64,29 44,42

GPRS Tunneling Protocol V2 0,03

Domain Name System 0,09 0,09 0,09 0,09 1,94 1,59 1,28 0,86

Constrained Application Protocol 1,35 0,97 1,24 1,06 54,37 53,17 56,55 35,84

Transmission Control Protocol 0,05 0,05 0,05

Stream Control Transmission Protocol 0,20 4,29

S1 Application Protocol 0,05

Internet Control Message Protocol (v6*) 0,35 0,28* 0,31 0,24 7,77 9,52* 12,78 7,73

Data 34,66 34,75 34,32

Address Resolution Protocol 0,17 0,09 1,41 6,80 3,83 35,41

Figure 5: Trafﬁc statistics in mobile network interfaces with IoT and video applications.

4.3.2 Costs

Micro-segmentation can also lead to additional costs

compared to normal SDN-based slicing. These ad-

ditional costs include, e.g. the overhead needed for

the control messages that security monitoring uses.

That overhead can be changed with the polling inter-

val of ﬂow information from the micro-segmentation

enabler. A longer polling time decreases the over-

head, but the acting time on anomalous events in-

creases. Other additional costs are caused by the ac-

curacy of rules inside switches: higher granularity of

monitored trafﬁc needs more speciﬁc rules and there-

fore the amount of rules increases, as do the moni-

toring costs: the processing cost of running anomaly

detection algorithms based on the large amount of

data gathered from the micro-segment switches and

the storage cost of that information.

5 CONCLUSIONS AND FUTURE

WORK

This paper presented the potential of micro-

segmenting 5G mobile networks. We described the

role of micro-segments in the 5G ecosystem and pro-

vided use cases that considered securing a video mon-

itoring service in an IoT network. We also described

the beneﬁts and costs of the approach.

Future research is needed to ease deployment

and to minimize management costs of micro-

segmentation. Automatizing dynamic creation of

micro-segments and instantiation of security func-

tions, particularly in end-to-end multi-domain scenar-

ios, is complex and solutions for orchestration are

needed. Micro-segmentation-as-a-service (with e.g.

container based packaging) might be one develop-

ment idea to make the approach easily deployable.

The micro-segmentation approach can be uti-

lized in different settings. A prominent micro-

segmentation use case for further studies could e.g.

be 5G Mobile Edge Computing, in which there is an

entity, such as a server or group of servers, located

between the base station (eNodeB) and the core net-

work. This entity brings the mobile network functions

closer to the edge of the network and user. In this way,

it is possible to enhance the performance of the appli-

cations and reduce the delay.

ACKNOWLEDGEMENTS

This research has been performed within 5G-

ENSURE project (www.5gensure.eu) and received

funding from the European Union’s Horizon 2020 re-

search and innovation programme under grant agree-

ment No 671562. The work has been supported by the

Challenge Finland 5G-SAFE project, partly funded

by Tekes and VTT.

REFERENCES

3GPP (2017a). TR 33.899 Study on the security aspects of

the next generation system, V1.3.

3GPP (2017b). TS 33.401 3GPP System Architecture Evo-

lution (SAE); Security Architecture, V15.0.

5G-ENSURE (2016). Deliverable D2.4 - Security Architec-

ture (draft). Technical report.

Micro-Segmenting 5G

5G-ENSURE (2017). Deliverable D3.6 - 5G PPP Security

Enablers Open Speciﬁcations (v2.0). Technical report.

5G PPP Architecture WG (2017). View on 5G Architecture

(Version 2.0). Technical report.

5G PPP Security WG (2017). 5G PPP Phase 1 Security

Landscape. Technical report.

Agiwal, M., Roy, A., and Saxena, N. (2016). Next

generation 5g wireless networks: A comprehensive

survey. IEEE Communications Surveys Tutorials,

18(3):1617–1655.

Baltatu, M., Costa, L., and Lombardo, D. (2017). Privacy

Enhanced Identity Protection Enabler. 5G-ENSURE.

Deliverable D3.6 - 5G PPP Security Enablers Open

Speciﬁcations (v2.0). Technical report.

Docker Inc. (2017a). Docker compose - web documenta-

tion. https://docs.docker.com/compose/.

Docker Inc. (2017b). Web site. https://www.docker.com/.

Ericsson (2014). Network functions virtualization and soft-

ware management. Technical report.

Ericsson (2015a). 5G Security - Scenarios and Solutions.

Technical report.

Ericsson (2015b). 5G systems – Enabling Industry and So-

ciety Transformation. Technical report.

Freeman, J. (2015). Introducing streaming k-means

in Apache Spark 1.2 - The Databricks Blog.

https://databricks.com/blog/2015/01/28/introducing-

streaming-k-means-in-spark-1-2.html.

FreeRADIUS (2017). Web site. https://freeradius.org/.

Fulton III, S. M. (2015). Microsegmentation: How VMware

Addresses the Container Security Issue. The New

Stack. http://thenewstack.io/microsegmentation-how-

vmware-addresses-the-container-security-issue/.

Granjal, J., Monteiro, E., and Silva, J. S. (2015). Security

for the internet of things: A survey of existing proto-

cols and open research issues. IEEE Communications

Surveys Tutorials, 17(3):1294–1312.

Herzberg, A., Krawczyk, H., and Tsudik, G. (1994). On

travelling incognito. In Mobile Computing Systems

and Applications, 1994. WMCSA 1994. First Work-

shop on, pages 205–211. IEEE.

Huang, G. (2015). Three Requirements For True

Micro-Segmentation. Network Computing.

http://www.networkcomputing.com/networking/three-

requirements-true-micro-segmentation/1151379004.

Jover, R. P. (2013). Security attacks against the availability

of lte mobility networks: Overview and research di-

rections. In Wireless Personal Multimedia Communi-

cations (WPMC), 2013 16th International Symposium

on, pages 1–9. IEEE.

Kafka Project (2017). Web site. https://kafka.apache.org/.

Khan, A., Zugenmaier, A., Jurca, D., and Kellerer, W.

(2012). Network virtualization: a hypervisor for

the internet? IEEE Communications Magazine,

50(1):136–143.

Klaedtke, F. and Sforzin, A. (2017). Component-interaction

audits enabler. 5G-ENSURE. Deliverable D3.6 - 5G

PPP Security Enablers Open Speciﬁcations (v2.0).

Technical report.

Liang, C. and Yu, F. R. (2015). Wireless network virtualiza-

tion: A survey, some research issues and challenges.

IEEE Communications Surveys Tutorials, 17(1):358–

380.

Malinen, J. (2013a). hostapd: IEEE 802.11 AP,

IEEE 802.1X/WPA/WPA2/EAP/RADIUS authentica-

tor. Web site. https://w1.ﬁ/hostapd/.

Malinen, J. (2013b). Linux WPA/WPA2/IEEE 802.1X Sup-

plicant. Web site. https://w1.ﬁ/wpa supplicant/.

ammel

a, O., Hiltunen, J., Suomalainen, J., Ahola, K.,

Mannersalo, P., and Vehkaper

a, J. (2016). Towards

Micro-Segmentation in 5G Network Security. In Eu-

ropean Conference on Networks and Communications

(EuCNC 2016). Workshop on Network Management,

Quality of Service and Security for 5G Networks.

Miller, L. and Soto, J. (2015). Micro-segmentation for

Dummies. Technical report, VMware.

Mininet Team (2017). Web site. http://mininet.org/.

Moby project (2017). Web site. https://mobyproject.org/.

NGMN Alliance (2016). Description of Network Slicing

Concept. Technical report.

Open vSwitch (2017). Web site. http://openvswitch.org/.

OpenEPC Project (2017). Web site.

http://www.openepc.com/.

OpenVirteX Project (2017). Web site. http://ovx.onlab.us/.

Ryu SDN Framework Community (2017). Web site.

https://osrg.github.io/ryu/.

Spark Project (2017a). Streaming K-Means Clustering -

Spark Documentation. https://spark.apache.org/docs/

latest/mllib-clustering.html#streaming-k-means.

Spark Project (2017b). Web site. https://spark.apache.org/.

Traynor, P., Lin, M., Ongtang, M., Rao, V., Jaeger, T., Mc-

Daniel, P., and La Porta, T. (2009). On cellular bot-

nets: measuring the impact of malicious devices on

a cellular network core. In Proceedings of the 16th

ACM conference on Computer and communications

security, pages 223–234. ACM.

VMware (2014). Data Center Micro-Segmentation: A

Software Deﬁned Data Center Approach for a “Zero

Trust” Security Strategy. Technical report.

VMware (2017). NSX Network Virtualization and Security

Platform - web site. https://www.vmware.com/ prod-

ucts/nsx.

Wang, A., Iyer, M., Dutta, R., Rouskas, G. N., and Baldine,

I. (2013). Network virtualization: Technologies, per-

spectives, and frontiers. Journal of Lightwave Tech-

nology, 31(4):523–537.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security
