Micro Expression Detection and Recognition from High Speed

Cameras using Convolutional Neural Networks

Diana Borza, Razvan Itu and Radu Danescu

Computer Science Department, Technical University of Cluj-Napoca,

28 Memorandumului Street, 400114, Cluj Napoca, Romania

Keywords: Micro Expression Recognition, Micro Expression Detection, Convolutional Neural Networks.

Abstract: In this paper, we propose a micro-expression detection and recognition framework based on convolutional

neural networks. This paper presents the following contributions: the relevant features are learned by a

convolutional neural network that uses as input difference images of three equally spaced frames from the

video sequence, capturing important motion information. Next, a sliding time window is used to iterate

through the video sequence and the output of the network in order to eliminate false positives. The method

was trained using images from two publicly available micro-expression databases. The effectiveness of the

proposed solution is demonstrated by the experiments we performed, from which a recognition rate of

72.22% was obtained.

1 INTRODUCTION

Micro expressions (ME) are brief facial expressions

that last between 1/15 and 1/25 of a second, and they

occur when people try to hide their feelings, either

as a suppression (deliberate concealment) or

repression (non-conscious concealment) (Ekman,

2009). Therefore, micro expressions are crucial in

understanding human behavior, detecting concealed

emotions, security and surveillance systems etc. For

example, the Transportation Security Administration

in the United States launched the SPOT program

(Wikipedia, 2017), in which airport employees are

trained to observe the passengers with suspicious

behavior by analyzing micro expressions and

conversational signs.

Although automatic recognition of facial

expressions has been intensively studied over the

last years, automatic analysis of micro-expressions is

a relatively new subject. There are two major

challenges in the automatic detection of micro-

expressions field. First, they are involuntary

movements and therefore training data is hard to

gather. Several micro-expression databases are now

publicly available (Rautio, H., 2013); (Yan et al,

2013), (Yan et al, 2014). Another challenge related

to micro expression analysis is data labelling; this

process is subjective, time-consuming and

challenging even for trained human labelers.

Therefore, not all the databases offer images labelled

at the same granularity level. For example, SMIC

database (Rautio, 2013) labels the images into 3

categories: positive, negative and surprise, while

CASME database (Yan et al, 2013) uses emotion

categories: amusement, sadness, disgust, surprise,

contempt, fear, repression and tension.

The second major issue related to ME is that they

are visible only a small number of frames, requiring

accurate motion detection and tracking algorithms.

Most solutions which tackle micro-expression

analysis use high speed cameras to overcome this

problem. Another challenge is the detection of

micro-expressions in real world situations, where

people can move their heads freely or where other

movements are present.

A typical ME has three key moments in time:

onset (the moment when the ME starts), apex (the

moment of maximum amplitude), and offset (the

time when the ME fades out). The symmetry and

amplitude of the facial changes with respect to these

three moments can be used to detect the concealed

emotions and deceit.

In this paper, we propose an original micro-

expression detection and recognition framework

based on convolutional neural networks. The

classical stages of machine learning (feature

extraction and learning) are replaced by the

Borza, D., Itu, R. and Danescu, R.

Micro Expression Detection and Recognition from High Speed Cameras using Convolutional Neural Networks.

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 5: VISAPP, pages

201-208

ISBN: 978-989-758-290-5

201

convolutional neural network which also learns the

features which are relevant in the classification

problem. In order to incorporate motion information,

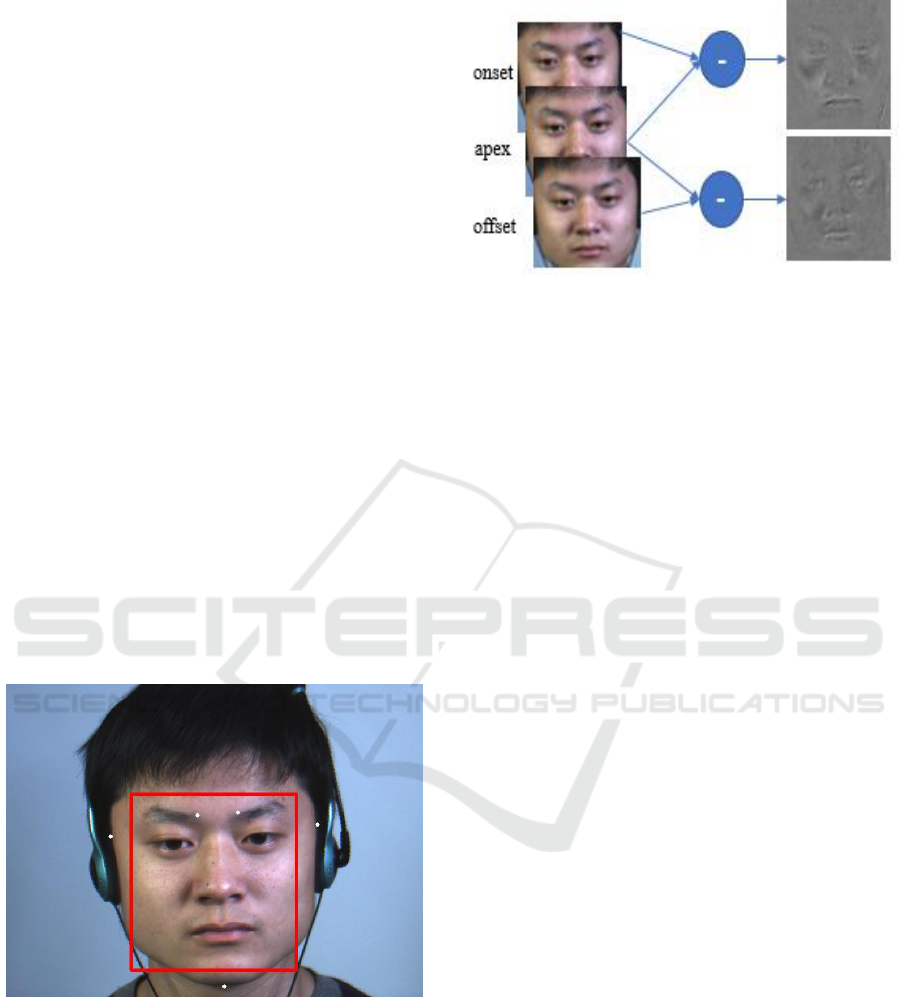

the input volume of the network is formed by two

image differences frames between three equally

spaced frames. The first image difference is

computed between the (potential) onset frame and

the (potential) apex frame, while the second image

difference is between the (potential) apex frame and

the (potential) offset frame. Another original

contribution highlighted by this paper is the use of a

sliding time window which iterates through the

video sequence and feeds the corresponding frames

to the neural network. The response of the neutral

network is further processed in order to eliminate

micro-expression false positives and to merge

together responses that belong to the same micro-

expression, as described in Section 3.3.

The proposed method is scalable and modular,

and it has the main advantage that by simply using

more training data it can “learn” to distinguish

between more micro-expression classes, or between

micro-expressions and other facial movements, such

as blinks and macro-expressions.

The remainder of this work is organized as

follows: in section 2 we present the recent advances

in the field of micro-expressions detection and

recognition. In Section 3 we discuss the general

outline and we detail the proposed solution. The

experimental results are discussed in Section 4, and

the conclusions and future directions of

improvement are detailed in Section 5.

2 STATE OF THE ART

Automatic micro expression recognition implies

three main steps: (1) selecting the facial regions of

interest, (2) defining and extracting the classification

features and (3) the actual recognition of the micro

expression using the selected features and state of

the art machine learning algorithms.

The first step involves establishing the facial area

which will be analyzed; for this step, the face is

either divided into several rectangular segments

around the most prominent facial features (eyes, lips,

nose) (Polikovsky et al, 2009) (Polikovsky et al,

2013) (Godavarthy et al, 2011) or a more complex

deformable model is used to split the face into more

accurate regions (Liu et al, 2015), (Pfister et al,

2011). Other methods (Liong et al, 2016), (Li et al,

2017) divide the face geometrically into n equal

cells and analyze the movement within these cells.

In the second step, several spatiotemporal

descriptors are extracted from the defined regions of

interest in order to describe the facial

transformations that occur over time. Several types

of descriptors can be used: dense optical flow (Liu et

al, 2015), optical strain (Liong et al, 2016), texture

based descriptors – Local Binary Patterns in Three

Orthogonal Planes (LBP-TOP) (Pfister et al, 2011)

or 3D histogram of oriented gradients (Polikovsky et

al, 2009), (Polikovsky et al, 2013). Finally, in the

last step, a machine learning algorithm (which can

be supervised (Pfister et al, 2011) or non-supervised

(Polikovsky et al, 2009), (Polikovsky et al, 2013)) is

used for the actual recognition of micro expressions.

Recently, several works tackle both the problem

of micro expression detection and the problem of

micro expression recognition. The method presented

in (Liong et al, 2016) uses optical strain features in

two different ways: first the classification is

performed based solely on optical strain information,

and second, the optical strain information is used for

weighting the LBP-TOP features. The best results

are obtained by the second method. In (Li et al,

2017), the authors propose a general micro

expression analysis framework that performs both

micro expression detection and recognition. The

detection phase does not require any training and

exploits frame difference contrast to determine the

frames where movement occurred. For the

recognition phase, several descriptors are extracted

(LBP-TOP, Histogram of Oriented Gradients (HOG)

and Histogram of Image Gradient Orientation

(HIGO)) and a support vector machine (SVM)

classifier is used to recognize the micro expression.

The majority of the works reported in the

literature follow “classical” stages of machine

learning: region of interest selection, the extraction

of motion descriptions and a classifier (usually a

SVM) to recognize the exact class of the micro-

expression. In this paper, we tackle the problem of

micro-expression detection and recognition using a

deep convolutional neural network, which is able to

automatically learn the motion features and classify

micro-expression from high speed video sequences.

As opposed to other method, the proposed solution

does not require complex face alignment or

normalization (Li et al, 2017) or the extraction of

motion features (as they are automatically learned by

the network). The network takes as input two frame

differences in order to capture the motion variation

across video frames.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

202

3 PROPOSED SOLUTION

3.1 Solution Outline

We propose an original micro-expression detection

and recognition framework based on convolutional

neural networks; the neural network automatically

selects the relevant features from the input image

and performs the classification. The outline of the

proposed solution is depicted in Figure 1.

We will first define the concepts involved in the

proposed solution. A sliding time window will be

used to iterate over the input video. Based on the

frame rate of the capturing device we compute the

average number of frames Δt a micro expression is

visible. This parameter was chosen based on the

physiological duration of a micro-expression: 1/15

of a second (Ekman, 2009). At each step, we inspect

the current frame Ft in order to determine if a micro

expression occurred at this frame and to recognize it

if the case. We also use the onset Ft - k and offset

frames Ft + k in order to extract the movement

features, where k = (Δt + 1)/2. The first and last k

frames from the video are excluded, because in this

case the onset and offset frames will exceed the

video boundaries.

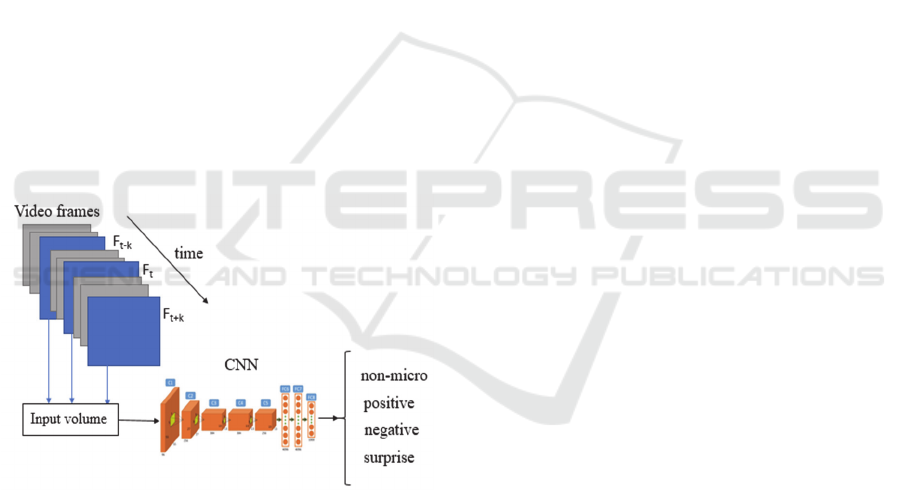

Figure 1: Solution outline.

Each frame of the input video, Ft, together with

its corresponding onset and offset frames, are fed to

a convolutional neural network (Li et al, 2017),

which will classify the state at time t, into one of the

following classes: micro (positive, negative,

surprise) or non-micro. The raw responses of the

convolutional neural network are further processed

in order to establish the exact time frame when the

micro expression occurred and to filter out false

positives.

It is generally acceptable that the micro-

expressions correspond to the seven universal

emotions: surprise, anger, fear, sadness, disgust,

contempt, happiness and fear. However, as

convolutional neural networks require large amounts

of training data we chose a taxonomy with only

three classes: positive, negative and surprise for the

micro-expression recognition part.

The distribution of micro-expressions classes in

the CASME II database (Yan et al, 2014) is the

following: happiness – 32 sequences, surprise – 25

sequences, fear – 2 sequences, disgust - 63

sequences, sadness -7 sequences, repression – 27

sequences and others – 99 sequences. Therefore, we

choose a three-class taxonomy: positive (happiness),

surprise and negative (disgust, fear, sadness). This

taxonomy is often used in the literature (Rautio, H.,

2013).

3.2 Classification using Convolutional

Neural Networks

Convolutional neural networks (CNN) have recently

received particular interest from the scientific

community since they achieved near human

performance in a variety of computer vision tasks.

These networks replace the traditional stages of

classification: feature pre-processing, feature

extraction. Classification is done by “learning” the

features that are relevant (to the classification

problem). The structure of these networks mimics

the mechanisms found in the visual cortex of the

biological brain. The neurons in a CNN are arranged

into 3 dimensions: (width, height and depth) and the

neurons within a layer are only connected to a small

region of the previous layer, to the receptive field of

the neuron. Numerous topologies of convolutional

neural networks have been proposed, but they all

share three types of basic layers: the convolutional

layer (CONV) – flowed by a non-linearity, e.g.

Rectified Linear Unit (ReLU) –, the pooling layer

and the fully connected (FC) layer.

The CONV layer is the main building block of a

CNN and it consists of a set of learnable kernels.

During the forward pass, several feature maps are

computed by convolving each kernel across the

width and height of the input volume. Pooling layers

are usually placed immediately after the CONV

layers and their main purpose is to simplify the

information of the output of the convolutional layers

by reducing the spatial size of the representation.

Pooling layers control over-fitting by reducing the

number of parameters and computations. The fully

connected layer is composed of neurons that have

full connections to all the activations from the

previous layer, as seen in classical neural networks.

Micro Expression Detection and Recognition from High Speed Cameras using Convolutional Neural Networks

203

The FC layers are used to perform high level

reasoning. In addition to these three, general type of

layers, some works also add normalization layers in

order to mimic the inhibition schemes observed in

the biological brain.

The proposed solution uses a variant of AlexNet

(Krizhevsky et al, 2012) network, originally

proposed for the ILSVRC (ImageNet Large Scale

Visual Recognition Challenge) contest, which aimed

at classifying different objects into 1000 different

classes. The network consists of three convolutional

layers and three fully connected layers. In order to

avoid overfitting, after each FC layer a dropout layer

is used (i.e. randomly setting the output value of

network neurons to zero). We modified the initial

topology of the network, such that the input has a

depth equal to 2 and, of course, the last fully-

connected layer of the network contains only three

neurons which are mapped to the probability of each

micro-expression class.

All the images from the training and test datasets

are cropped so that they only contain the regions

where micro expressions cause facial movements:

eyes, eyebrows, nose, mouth and chin area. We first

apply a facial landmark localization algorithm (Cox

et al, 2013), and based on these landmarks and

anthropometric constraints, the image is cropped so

that it contains only the relevant features. Figure 2

shows an example of this preprocessing step.

Figure 2: Region of interest (in red) selection based on

facial landmarks (in white) and anthropometric

constraints.

We compute the image differences between the

onset and current frame, and the onset and offset

frame, respectively. These two difference images are

stacked together to form a volume with depth 2 and

are used as input of the CNN. Figure 3 shows the

input used for the convolutional neural network.

Figure 3: CNN input.

These difference images are scaled to 227227

resolution and processed directly by the network.

The layers of the network are defined as follows:

▪ In the first CONV layer (C1), 96 filters of size

277 are applied to the input volume,

followed by a non-linearity, a max pooling

layer and a local response normalization layer;

▪ The second CONV layer (C2) contains 256

filters of size 96 × 5 × 5 pixels. C2 is followed

by ReLU, a max pooling layer and a local

response normalization layer;

▪ The last CONV layer (C3) operates on the 256

× 14 × 14 result from C2 by applying a set of

384 filters of size 256 × 3 × 3 pixels, followed

by ReLU and a max pooling layer;

▪ The first FC layer (FC1) contains 512 neurons

and is followed by a non-linearity and a

dropout layer;

▪ A second FC layer (FC2) receives the 512-

dimensional output of FC1 and contains 512

neurons, followed by a ReLU and a dropout

layer;

▪ The last FC layer (FC3) maps to the micro

expressions classes.

Finally, the output of the last fully connected

layer is fed to a soft-max layer that assigns a

probability for each class. For the minimization of

the loss function, we used the recently proposed

Adam optimizer (Kingma and Ba, 2014). The

prediction itself is made by taking the class with the

maximal probability for the given test image. The

learning rate is initially set to 0.01, β

= 0.9 andβ

0.9. The learning rate decays after each epoch.

3.3 ME Detection and Recognition

In the remainder of this section we describe the

micro expression spotting and recognition

algorithms. Micro expression spotting or detection

refers to the process of determining if a micro

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

204

expression occurred at frame t. The Micro

expression recognition algorithm is used to

determine the actual type of the micro expression

(positive, negative or surprise) that occurred.

For the micro expression detection part, a sliding

time window is used. Each frame t, together with its

corresponding onset and offset frames are fed to the

neural network and its response is saved to a

preliminary result feature vector R at position t. As

the first and last k are ignored, their corresponding

positions are set to neutral class, where k is half the

average micro-expression duration.

This feature vector is further analyzed in order to

determine the exact time frame when a micro

expression occurred. First, the feature vector is

binarized as follows:







 



 

 



 

, where R

is the CNN output class for frame t and

RB is the corresponding binarized feature vector. In

other words, we transform the feature vector so that

it contains only two classes: non-micro (neutral,

blink etc.) and micro. One would expect that the

feature vector contains agglomerations / clusters of

1s around the micro expression time and 0 values in

rest.

We select all the intervals that contain only

values of ‘1’ as micro expression interval

candidates. The intervals that are too close to each

other (the distance between the start of the first

cluster and the end of the second one is less than

Δt/4) are merged together. Finally, all the intervals

with a length lower than Δt/10 are considered false

positives as their duration is too short. Each interval

represents a micro-expression and we select the apex

frame as the centroid of the micro-expression.

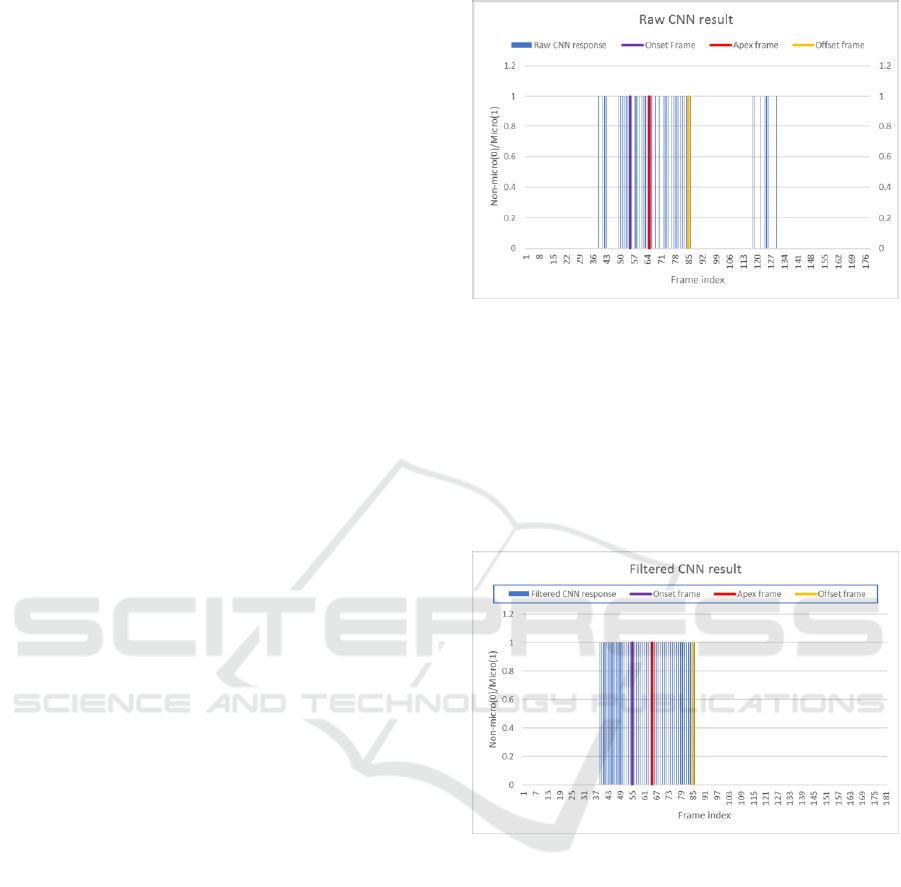

Figures 4 and 5 show the raw response of the

CNN on an input video sequence and the filtered

response of the CNN using the proposed algorithm.

The ground truth onset, apex and offset frames of

the video sequence are also marked on the plot.

In Figure 5, it can be noticed that the false positive

micro-expression interval (starting from frame 113

to frame 129) is filtered out because its length is too

short. Also, some intervals are merged together as

they are too close to each other.

Figure 4: Raw CNN result on a video sequence.

Next, all the intervals that were selected as micro

expression candidates are examined in order to

recognize the actual micro expression that occurred

at that time. Given a candidate micro expression

interval [t

start

, t

end

], we determine the actual micro-

expression that occurred at that time by a simple

voting algorithm: the class that is predicted the most

by the CNN.

Figure 5: Filtered CNN result (false positives are

eliminated and intervals that are “too” close are merged

together).

4 EXPERIMENTAL RESULTS

4.1 Dataset Gathering

An important issue that needs to be addressed in the

context of machine learning is the gathering of the

training data, a time-consuming process, which also

requires domain specific knowledge. As stated

before, there are few available datasets for genuine

micro-expression recognition. For the training data,

we combined video sequences from CASME I (Yan

Micro Expression Detection and Recognition from High Speed Cameras using Convolutional Neural Networks

205

et al, 2013), CASME II (Yan et al, 2014) and SMIC

(Rautio, H., 2013) databases.

CASME I (Yan et al, 2013) database contains

195 micro-expression clips captured with a 60-fps

camera at 1280 × 720 (CASME A) and 640480

(CASME B) spatial resolutions. 35 participants

(having a mean age of 22.03) were involved in the

gathering of the data. An extended version of (Yan

et al, 2013), CASME II (Yan et al, 2014) database

contains 247 micro-expression sequences, captured

from 26 participants; the mean age of the subjects is

22.03 years, with 1.6 standard deviation. Each video

sequence was captured by a high-speed camera (200

fps) with a resolution of 640  480 pixels. The video

sequences are labelled with the following classes:

happiness, disgust, surprise, repression and tense.

Finally, the SMIC (Rautio, 2013) database contains

164 micro-expression videos, of 16 participants with

mean age 28.1 years. The video sequences were

captured using a high-speed camera (100 fps) at 640

 480 pixels resolution, and the sequences were

labelled using only three classes: positive

(happiness), negative (sadness, fear and disgust) and

surprise. Also, SMIC database also contains some

examples with neutral sequences annotation.

One of the main drawbacks of CNNs is that they

require a large amount of training data in order to

give accurate results and to avoid overfitting. A

common approach to enlarge the training dataset is

to use augmentation.

We used the following augmentation techniques:

(1) random horizontal flips, (2) brightness

enhancement and (3) “reversing” the video

sequences. As the micro-expressions are

symmetrical: the subject starts from a neutral

expression, the micro-expression briefly occurs and

then the subject returns to a neutral expression, we

also used the data in reversing order: offset – apex –

onset.

In order to gather the training data, we use a

sliding time window to navigate through the video

sequence. If Δt is the average micro-expression

duration for the current dataset, and apex is the ME

apex frame, we use the following labelling criteria

for the current frame t:

▪ If t  [0, t

apex

- δ ∙Δt] or t  [t

apex

+ δ ∙Δt], then

the frame t is labelled as non-micro;

▪ If t  (t

apex

- δ ∙Δt, t

apex

+ δ ∙Δt), then the frame

t is labelled with the corresponding ME label

(negative, positive or surprise).

, where δ = 0.5.

The total training (after data augmentation) set

consists of approximately 15,000 images.

The evaluation of the network was conducted

using the leave one subject out cross validation

(LOSOCV) method; i.e. we selected video

sequences from 3 subjects that were not used in the

training process, and the network was evaluated on

these sequences. We evaluated the proposed

solutions only on images from CASME (Yan et al,

2013), (Yan et al, 2014) databases, as the sequences

from SMIC database are too short in order to apply

the proposed sliding time window micro-expression

detection algorithm.

The raw performance of the convolutional neural

network and the confusion matrix is shown in Tables

1 and 2 respectively:

Table 1: Raw performance of the CNN.

Precision

Recall

F1-

score

Support

neutral

0.96

0.76

0.85

2565

positive

0.29

0.92

0.44

negative

0.38

0.80

0.52

422

surprise

0.87

0.58

0.70

112

Average

0.87

0.76

0.79

3161

Accuracy

75.89%

From the confusion matrix, it can be noticed that

the majority of confusions are between the neutral-

negative and surprise-neutral classes. We observed

that the majority of the false positives are eye blinks.

This is an expected behavior, as blinking and

surprise and negative micro expressions cause facial

movements in the eyebrow area.

Table 2: Confusion matrix for the raw CNN classification.

Predicted

Accuracy

Neutral

Positive

Negative

Surprise

Actual

Neutral

1941

533

75.67%

Positive

91.93%

Negative

336

79.62%

Surprise

58.02%

After the analysis of the CNN output, all the

detected ME intervals are compared with the ground

truth labels, to decide whether they correspond to the

annotated location of the micro expression. In Table

3 we show the detection rate performance of the

proposed solution after the raw response from the

CNN was processed. If the centroid of a detected

micro-expression interval is within the frame range

of [onset, offset] of a labeled micro expression

sequence it is considered a true positive, otherwise it

will be counted as a false positive. All the false

negatives correspond to the “negative” micro

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

206

expression class. As stated before, the video

sequences belonging to 3 subjects (22 micro

expression clips) were not included in the training

data, and these videos were used only for the

validation of the proposed solution.

Table 3: Detection performance.

True positives

False negatives

False positives

Finally, in Table 4 we show the confusion matrix

for the proposed micro expression recognition

algorithm.

Table 4: Recognition performance.

Precision

Recall

F1 Score

Positive

0.67

Negative

0.71

0.91

0.80

Surprise

1.00

0.25

0.40

Average

0.77

0.72

0.69

Accuracy

72.22%

Our method is at least comparable, when not

better with recent state of the art works. In Table 5

we present the comparison of the proposed solution

with other state of the art works. ACC stands for

accuracy, FPR for false positive rate and TPR for

true positive rate.

Table 5: Detection performance.

Method

Detection

Recognition

accuracy

(Rautio, 2013) *

ACC: 65.49 %

49.30 %

(Yan et al, 2014)

N/A

63.41%

(Liong et al, 2016) *

ACC: 74.16%

63.16%

(Li et al, 2017)

TPR: 70%

57.49%

Proposed solution

TPR: 77.27%

72.22%

Methods marked with an asterisk * were

evaluated on SMIC database. To detect the micro

expressions, most of the works were only evaluated

on SMIC database. Therefore, the numerical

comparison with these methods might not be

relevant.

A video example of the detection performance

using convolutional neural networks can be found at:

https://drive.google.com/open?id=0ByAKFSXshk1

AdkdlelpCV29nWFk.

The network was trained in 50 epochs, using a

batch size of 128 samples on an NVidia Tesla K80

GPU.

In Figure 6 we plot the minimization of the loss

function over the training process and the accuracy

evolution.

Figure 6: CNN learning process: (a) loss function

evolution, (b) accuracy evolution.

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we have presented an original method

of detecting and recognizing micro expressions from

high speed camera using convolutional neural

networks. The CNN processes difference images

between the onset frame and the apex frame and the

apex frame and the offset frames, respectively, and

outputs one of the following classes: non-micro,

positive, negative and surprise. The network was

trained using images from three publicly available

micro-expression databases.

As a future work, we plan to gather more data for

the training process so that more data variation is

present and to have enough information to classify

into the six canonical facial expressions – disgust,

sadness, happiness, fear, anger and surprise.

In order to increase the magnitude of the micro-

expression movement, we plan to apply Eulerian

motion magnification (Li et al., 2017).

Several other features for the input volume of the

network are envisioned, dense optical flow or dense

trajectories.

ACKNOWLEDGEMENTS

This work was supported by the MULTIFACE grant

Micro Expression Detection and Recognition from High Speed Cameras using Convolutional Neural Networks

207

(Multifocal System for Real Time Tracking of

Dynamic Facial and Body Features) of the

Romanian National Authority for Scientific

Research, CNDI–UEFISCDI, Project code: PN-II-

RU-TE-2014-4-1746.

REFERENCES

Ekman, P., 2009. Telling Lies: “Clues to Deceit in the

Marketplace, Politics, and Marriage”, W. W. Norton

& Company.

Wikipedia, 2017 (28.04.2017), SPOT (TSA program),

[Online]. Available: https://en.wikipedia.org/

wiki/SPOT_(TSA_program).

Rautio, H., 2013. SMIC - Spontaneous Micro-expression

Database. University of Oulu, [Online], Available:

http://www.cse.oulu.fi/SMICDatabase.

Yan, W.-J., Wu, Q., Liu, Y.-J., Wang, S.-J. and Fu, X.,

2013. CASME database: a dataset of spontaneous

micro-expressions collected from neutralized faces, In

FG. IEEE, pp. 1–7.

Yan, W.-J., Li, X., Wang, S.-J., Zhao, G., Liu, Y.-J., Chen,

Y.-H. and Fu, X., 2014. CASME II: An improved

spontaneous micro-expression database and the

baseline evaluation, PloS one, vol. 9, no. 1.

Pfister, T., Li, X., Zhao, G. and Pietikainen, M., 2011.

Recognising Spontaneous Facial Micro-expressions,

In 2011 IEEE International Conference on Computer

Vision (ICCV), Barcelona.

Polikovsky, S., Kameda, Y. and Ohta, Y., 2009. Facial

micro-expressions recognition using high speed

camera and 3D-gradient descriptor, In 3rd

International Conference of Crime Detection and

Prevention, ICDP, London.

Polikovsky, S., Kameda, Y. and Ohta, Y., 2013. Facial

Micro-Expression Detection in Hi-Speed Video Based

on Facial Action Coding System (FACS), In IEICE

TRANSACTIONS on Information and Systems, vol.

E96, no. 1.

Godavarthy, S., Goldgof, D., Sarkar, S., and Shreve, M.,

2011. Macro- and micro-expression spotting in long

videos using spatio-temporal strain, In Automatic

Face & Gesture Recognition and Workshops (FG

2011).

Liu, Y.-J., Zhang, J.-K., Yan, W.-J., Wang, S.-J., and

Zhao, G., 2015. A Main Directional Mean Optical

Flow Feature for Spontaneous Micro-Expression

Recognition, IEEE Transactions On Affective

Computing, vol. 99.

Liong, S.T., See, J., Phan, R. C-W., Oh, Y.H., Le Ngo,

A.C., Wong, K.S., and Tan, S.W., 2016. Spontaneous

subtle expression detection and recognition based on

facial strain. Signal Processing: Image

Communication 47, pp: 170-182.

Li, X., Xiaopeng, H.O.N.G., Moilanen, A., Huang, X.,

Pfister, T., Zhao, G., and Pietikainen, M., 2017.

Towards Reading Hidden Emotions: A Comparative

Study of Spontaneous Micro-expression Spotting and

Recognition Methods. IEEE Transactions on Affective

Computing, Volume: PP Issue: 99.

Krizhevsky, A., Sutskever, I., and Hinton, G. E., 2012.

Imagenet classification with deep convolutional neural

networks. Advances in neural information processing

systems.

Cox, M., Nuevo, J., Saragih, J., and Lucey, S., 2013.

CSIRO Face Analysis SDK, [Online]. Available:

http://face.ci2cv.net/doc/.

Kingma, D. and Ba, J., 2014. Adam: A method for

stochastic optimization, [Online]. Available:

https://arxiv.org/abs/1412.6980.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

208
