A Security Approach using SIP Protocol in Imbedded Systems

Toniclay Andrade Nogueira, Adauto Cavalcante Menezes,

Admilson De Ribamar Lima Ribeiro and Edward David Moreno Ordonez

Computing Department, Segipe Federal University, Aracaju, Brazil

Keywords: VoIP, Asterisk, Embedded Systems, SIP, Safety.

Abstract: Voice over IP communication will dominate the world. However, given the growing demand for voice and

data communication to make any and all communication reliable and secure, several attacks occur frequently

in communication networks, so this work is based on verifying security, analyzing risks, vulnerabilities, such

as verifying the attacks and proposing a security measure for voice over IP communication on embedded

devices.

1 INTRODUCTION

The Voice Over Internet Protocol (VoIP) technology

consists in the integration of the services in the

telecommunication areas and the network services

provided by computers. In this way, it enables the

digitization and encoding of the voice signal and

transforms it into data packages for communication in

a network using UDP protocols.

In this context, the VoIP concept allows cost

reduction in installations, maintenance and

management of parallel networks. With this, a new

concept of telephony is created (Sitolino 1999).

However, it will be necessary equipment, techniques

and specific human resources (Silva, 2016).

Stapko (2007) understands as information

security the protection of personal or confidential

information, as well as the computational resources

of individuals or organizations. Without information

security, malicious individuals can destroy or use

such information for malicious purposes. The state-

of-the-art security in VoIP telephony involves audio

encryption between the two distinct points as well as

interoperability between communication server

manufacturers through indecipherable encryption and

centralized management (Stallings, 2008).

According to Barr (1999), Car and Wagner (2003)

and Marwedel (2011), embedded systems must be

reliable, since failures can compromise their

functionality and make system recovery unfeasible.

Embedded systems use hardware platforms, which

are driven by softwares. Several implementations of

processors can be used, which implies a great

reduction of costs.

Some reliability issues are found on embedded

devices, as they cannot be safely shut down for

repairs, the system must run continuously.

As its operating mode has reduced performance,

the environment tends to fail if it is turned off

(Akyildiz, 2002). Security in embedded systems was

not always considered, since most of these systems

were initially operated without Internet connectivity.

Information security and new embedded device

paradigms are increasingly present in our lives.

However, the communication between devices will

have a great impact on global communication, which

will increase the efficiency and security of VoIP

communication.

This article is organized as it follows: section 2 is

composed of theoretical grounding presentation,

section 3 presents related works, section 4 has a

description of the proposal, and section 5 show the

expected contribution of the research.

2 THEORETICAL FOUNDATION

2.1 VoIP

According to Raake (2007) and Walker, (2004), VoIP

is a technology that performs voice communication

over an IP network.

The communication process consists of

transforming the analog voice into digital, through the

352

Nogueira, T., Menezes, A., Ribeiro, A. and Ordonez, E.

A Security Approach using SIP Protocol in Imbedded Systems.

DOI: 10.5220/0006354403520355

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 352-355

ISBN: 978-989-758-246-2

fragmentation of the package and transport over the

IP network. The process is becoming more modern, it

is possible to mention some softwares that work with

this technology, among them, Facebook, Messenger,

Skype, Viber and WhatsApp.

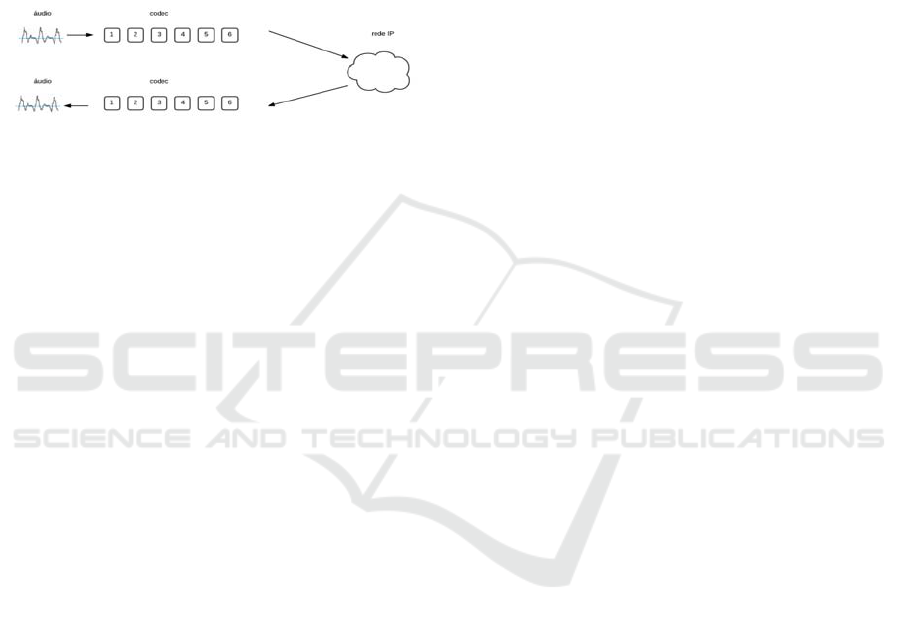

In image 01 we can observe the operation of a

VoIP application where the analog audio is converted

into digital and grouped into packages that are

transmitted to the IP network through the Real Time

Protocol (RTP) protocol, after arriving at the receiver

the packages are organized and then reproduced.

Figure 1: Scenario of the ideal operation of the VoIP

application, Shigueoka, 2016.

2.2 Embedded Systems

Some data researched in high technology shows that

more than 90% of microcomputers manufactured in

the world are intended for machines that are not called

computers, such as cell phones, automobiles, DVD

players, among others.

According to Reis (2004), what comes to

differentiate the set of devices from a computer is the

project based on a dedicated set and specialist,

consisting of Hardware, Software and Peripherals,

i.e., embedded system.

For Ball (2005), the system is classified as

embedded when it is dedicated to a single task and

continuously interacts with the environment around

it, by the use of actuators and sensors.

In their article, Siqueira, Menegotto, Weber,

César Netto and Wagner (2006) comment on the use

of embedded systems in critical applications, which

comprises as applications in which the risks

associated with the hazards involved are considered

unacceptable and need to be handled.

The embedded system is commonly a solution

formed from dedicated and specific microcontroller

and software to performing the operational functions

of equipment for which it was designed.

2.3 Session Initiation Protocol (SIP)

SIP has been developed to facilitate the

implementation of the basic aspects of a session,

which is a non-trivial process. Today it is used

worldwide and it is also a strong “competitor” of

H.323. Barbosa (2006) defines SIP as a protocol that

signals client-server sessions, and that stands out for

its simplicity and mobility; it has a primitives the

initialization, modification and termination of

sessions in a VoIP communication.

According to Defsip, together with Real-time

Transport Protocol (RTP), Real Time Streaming

Protocol (RTSP), Session Description Protocol

(SDP), SIP establishes a complete multimedia

architecture, providing complete services to the user.

SIP also provides participant management

services in a multimedia session.

According to Cuervo (2000), due to the ability of

working in conjunction with other protocols, it allows

integration with public telephony, allowing not only

the connection between IP extensions, but also for

public network telephones.

2.4 Types of Attacks to SIP Protocol

2.4.1 Main-in-the-middle

For this attack, the attacker can use two techniques:

ARP table poisoning, or DNS cloning. With either of

these, permission is granted to be between the SIP

server and the User Agent. With this type of attack,

the intruder does not necessarily know valid

usernames and passwords; they can simply route

traffic between the server the and client and act

intercepting the packages, preventing them from

reaching their real destination, which is the SIP server

(Nakamura, Emílio, Geus and Lício, 2007).

2.4.2 Subsection Titles

According to Thermos (2007), this attack aims to

obtain credentials from valid users in a SIP telephony

communication system using a brute-force attack,

which is, sending multiple ID requests and passwords

to from a dictionary.

2.4.3 Denial of Service

In attacks known as Denial of Service, it is possible

to layers of infrastructure in VoIP environment.

According to Thermos (2007) the DoS attacks have

as main objective to cause the interruption of the

target service. In this case, the attack is directed to

both the operating system and also to the network

services.

2.4.4 SIP Redirect

For Butcher, Li and Guo (2007), the attack employs a

server that receives requests from a telephone or

proxy and returns a redirect response, which indicates

A Security Approach using SIP Protocol in Imbedded Systems

353

where the request is to be repeated, thus enabling

users to have a call redirected to another location

rather than where they are located. However, the

caller normally dials only the number to reach the

user.

The attacker redirects the victim's calls to a

specific number, so the attacker starts receiving the

calls that were forwarded to the attacked user.

3 RELATED WORK

The work covered in this article contains a large

amount of research. Thus, the IEEE Base has been

used with works from the year 2012 to 2016.

3.1 The Communication System

In their article, Lomotey and Deters (2014) show that

IP communication systems have been the target of

attacks, such as call theft, attacks on servers, which

allows access to users' data. Thus, the author

proposed a solution to prevent the intrusion of

attackers in the communication system built in VoIP

Asterisk.

In his experiment, a complete platform for

Asterisk was not used because he proposed a cloud-

based middleware, which layer maintains the most

sensitive part of the information call.

3.2 VoIP Security Analyses

Rehman and Abbasi (2014) analyzed security in the

VoIP architecture with the Asterisk voice over IP

communication system. It has been noted that most of

the attacks are related to the fragility of the SIP

protocol, espionage attacks, modification and

involuntary interruption were detected.

The authors have proposed as solution of the

presented problem, an efficient and secure

mechanism of authentication for the protocol SIP,

with this, it is possible to assure greater protection to

the attacks.

It was suggested to assign a cryptographic token

that would authenticate the users allowing their

identification and providing greater security as well

as there would be the need for the user to enter a

password to use other available services.

3.3 VoIP Intrusion Detection with

Snort

Číž, Lábaj, Podhradský and Londák (2012), have

proposed in their experiment a model focused on DoS

attack in order to cause a malfunction in Asterisk

voice over IP communication software. The authors

used the SIP tool, in order to verify the functionality

of the detection system and cause anomalies in denial

of service attacks, the Snort software tool was also

used to detect open network attacks, capable of

performing analysis of the Traffic and packet logging

on IP networks.

4 DESCRIPTION OF THE

PROPOSAL

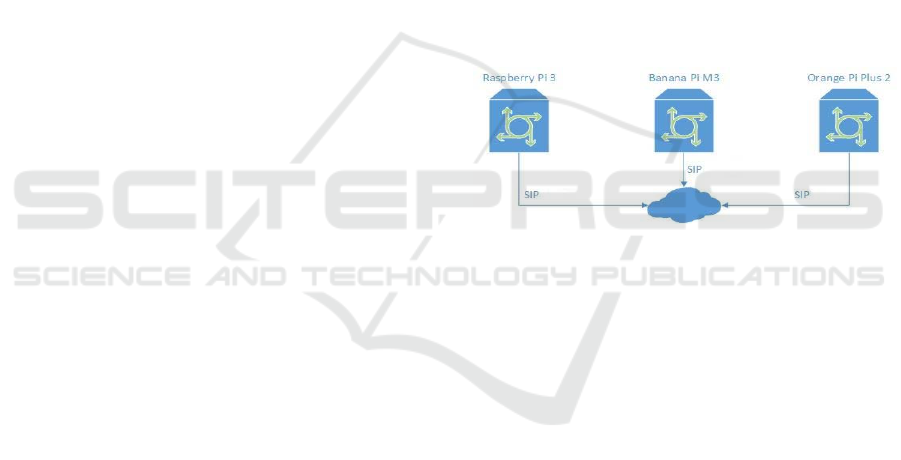

The present proposal aims at creating a defense

method for the IP asterisk over SIP protocol, in order

to use embedded devices (Raspberry Pi3, Banana Pi

M3 and Orange Pi Plus 2) as shown in image 2. The

method will be based on the main attacks that occur

in embedded systems, contemplated by authors in

related works in diverse bases.

Figure 2: Architecture of the scenario.

With the result of the main attacks, simulations

will be made in the device in order to propose security

methods.

It will be necessary to study the SIP protocol to

verify the vulnerabilities in order to apply the best

configuration and defense methods to ensure the

security of the device.

In order to achieve the objectives of this research,

it will be necessary to elaborate a scenario that makes

possible to carry out all the experiments as close as

possible to a real production environment, so the

scenario should include three low cost embedded

devices already configured with the system, which

must be directly connected to the Internet.

5 EXPECTED CONTRIBUTION

This proposal presents as main contribution the

elaboration of a security method for a VoIP

communication central in an embedded device using

the Asterisk system.

With the development of this proposal we intend

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

354

to obtain the following contributions: to survey the

main techniques used to attack the communication

systems, to survey the tools and materials necessary

to simulate the most significant attacks on embedded

devices; to perform a literature review of the SIP

protocol, to analyze the vulnerabilities of the SIP

protocol, to propose a defense for these attacks, to

write the dissertation and present the results of the

security analysis on the devices shipped with

Asterisks.

REFERENCES

Akyildiz, I. F., Su, W., Sankarasubramaniam, Y., and

Cayirci, E. (2002). Wireless sensor networks: a survey.

Computer networks, 38(4):393–422.

Ball, Stuart - ”Embedded Microproceessor Systems: Real

Woard Desing”, 3º edition, Editora:Mcpros, EUA,

2005.

Barbosa, Camila Soares. Voz sobre IP em Redes Locais sem

Fio. CEFET – Centro Federal de Educação Tecnológica

de Goiás. Goiânia, (2006).

Barr, M. (1999). Programming embedded systems in C and

C++. O’Reilly.

Carro, L. and Wagner, F. R. (2003). Sistemas

computacionais embarcados. Jornadas de atualização

em informática. Campinas: UNICAMP.

Číž, P., Lábaj, O., Podhradský, P., & Londák, J.

(2012). VoIP Intrusion Detection System with Snort. In

ELMAR, 2012 Proceedings (pp. 137-140). IEEE.

Cuervo, F., Greene, N., Rayhan, C., Rosen, B., and Segers,

J. (2000). Megaco Protocol Version 1.0 RFC 3015

(Proposed Standrd). Obsoleted by RFC 3525.

D. Butcher, X. Li, and J. Guo. Security challenge and

defense in VoIP infrastructures. IEEE Transactions on

Systems, Man, and Cybernetics, Part C: Applications

and Reviews, 37(6):1152–1162, November 2007.

DEFSIP. Definindo o que é um protocolo de sinalização.

Disponível em http://www.gta.ufrj.br/grad/06_1/SIP/

Definindooqueumprotocolodesinalizao.html, acessado

em 27 nov 2016.

Lomotey, R. K. and DETERS, R. (2014). Intrusion

Prevention in Asterisk-Based Telephony System. In

2014 IEEE International Conference on Mobile

Services, pages 116–123.IEEE.

Marwedel, P. (2011). Embedded system design. Springer.

Nakamura, Emílio T.; GEUS, Paulo Lício de. Segurança de

rede em ambientes corporativos. São Paulo: Novatec

Editora, 2007.

Raake, A. Speech quality of VoIP: assessment and

prediction. [S.l.]: John Wiley & Sons, 2007.

Rehman, U. U. and Abbasi, A. G. (2014). Security analysis

of VoIP architecture for identifying SIP vulnerabilities.

In 2014 International Conference on Emerging

Technologies (ICET), number i, pages 87–93. IEEE.

Reis, Claiton – “Sistemas Operacionais para Sistemas

Embarcados”, Tutorial, Editora: EDUFBA, BRASIL,

2004.

Silva, Adailton. Qualidade de Serviço em VoIP – Rede

Nacional de Ensino e Pesquisa. Maio/2000 –

Disponível em: http://www.rnp.br/newsgen - Acessado

em 18/11/2016.

Siqueira, Tórgan Flores de ; Menegotto, C. C. ; Weber, T.

S. ; César Netto, João ; Wagner, F. R. .

Desenvolvimento de Sistemas Embarcados para

Aplicações Críticas. In: Escola Regional de Redes de

Computadores, 2006, Passo Fundo. Escola Regional de

Redes de Computadores. Porto Alegre : Sociedade

Brasileira de Computação, 2006. v. 1. p. 1-10.

Sitolino, Cláudio Luiz., Voz sobre IP – Um estudo

experimental 1999. http://www.inf.ufrgs.br/pos/

SemanaAcademica/Semana99/sitolino/sitolino.html.

Acessado 16/08/2016.

Stallings, W. (2008). Criptografia e segurança de redes:

princípios e práticas. PRENTICE HALL BRASIL.

Stapko, T. (2011). Practical Embedded Security: Building

Secure Resource-Constrained Systems. Embedded

technology series. Elsevier Science.

Thermos, P.; Takanen, A. Securing VoIP networks: threats,

vulnerabilities, countermeasures. Boston: Pearson

Education, 2007.

Walker, J. Q.; HICKS, J. T. Taking charge of your VoIP

project. [S.l.]: Cisco Press, 2004.

A Security Approach using SIP Protocol in Imbedded Systems

355
