Avoiding Free Riders in the Cloud Federation Highways

Marcio Roberto Miranda Assis and Luiz Fernando Bittencourt

Institute of Computing, University of Campinas, Av. Albert Einstein 1251, Campinas, S˜ao Paulo, Brazil

Keywords:

Cloud Computing, Inter-clouds, Cloud Federations, Free Riders, Multi-clouds Tournament.

Abstract:

The maturity of the Cloud Computing paradigm has highlighted a set of obstacles which isolated cloud

providers are not being able to handle. To overcome these obstacles, isolated providers can organize them-

selves in entities called Inter-Clouds, mainly to share resources. However, this kind of resource-sharing envi-

ronment may face the emergence of free riders, which only consume resources without caring for the whole,

in a modern version of the Tragedy of the Commons. This work characterizes the free riders and proposes

an Inter-Cloud architecture to avoid them based on the main features of Cloud Federations. This Inter-Cloud

architecture, called Multi-Clouds Tournament, organizes multiple cloud providers in a tournament-based fash-

ion, allowing those with better scores, determined by a function of offer and consumption, to take advantage of

the system. On the other hand, those with low expected returns to the system, free riders for example, face dis-

advantages or even are eliminated from the tournament. We show preliminary tests of a score function within

the tournament, illustrating how the system promotes or eliminates participants according to their behavior.

1 INTRODUCTION

Cloud computing (Zhang et al., 2010; Mell and

Grance, 2009) is a paradigm that has emerged as

the answer to the search for solutions for delivering

computational assets as utilities (Assis et al., 2016).

A precursor of this paradigm is the Grid Comput-

ing (Berman et al., 2003; Foster et al., 2008), which

has been inspired by the electric power grids delivery

model to provide computing power to its stakehold-

ers. As grid computing was focused on non-utility

resource sharing, it has been applied for more suc-

cessfully in academic collaborations. On the other

hand, Cloud Computing has been focusing on more

diverse types of customers, making it suitable to a

wider range of areas and applications, including both

enterprises and academia.

In Cloud Computing, the computational assets are

made available to clients in the form of services -

infrastructure (IaaS), platform (PaaS), and Software

(SaaS). Customers in general acquire these services in

a self-service way, most often via portals. Such ser-

vices can be accessed ubiquitously, as long as there is

a network communication between the client and the

provider, and the quality of service requirements are

deﬁned in a service level agreement (SLA). Another

feature of the paradigm is the elasticity, which allows

customers to increase or decrease the amount of re-

sources acquired according to their current needs in a

pay-as-you-go basis.

As the Cloud Computing paradigm matured, a

number of limitations began to emerge. Because

the services offered are directly tied to the physical

resources, isolated Cloud Service Providers (CSPs)

are led to deny customer requests when their re-

sources become exhausted, thereby limiting the elas-

ticity. QoS is also compromised due to the impact of

the possibility of providers having their physicalfacil-

ities in regions temporarily subject to high data traf-

ﬁc for example. Moreover, certain customers, such

as governments, may have restrictions that prevent

them from storing data on providers physically lo-

cated in other countries. In addition, the lack of stan-

dards and market competition lead providersto imple-

ment their own data schemas, libraries, and function-

alities. Named Lock-in (Petri et al., 2014), this behav-

ior imprisons the clients to their respective providers,

making changes too costly, which can generate dis-

interest in this type of technology. To overcome

these and other limitations (Toosi et al., 2014) cloud

providers have begun to interconnect, forming associ-

ations called Inter-Clouds (Grozev and Buyya, 2012).

Inter-Clouds are pools of resources shared among

providers. These pools can stimulate the emergence

of free riders, which have a selﬁsh proﬁle aimed only

at maximizing its own needs to the detriment of the

Assis, M. and Bittencourt, L.

Avoiding Free Riders in the Cloud Federation Highways.

DOI: 10.5220/0006304901970207

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 169-179

ISBN: 978-989-758-243-1

169

needs of other providers. Such behavior may lead

to degradation of the association, either through re-

source exhaustion or disinterest in use. Some so-

lutions to avoid free riders in resource sharing en-

vironments have been proposed in the literature re-

cently, such as approaches involving game theory

(Mashayekhy et al., 2015; Khethavath et al., 2013),

deﬁnition of supply and demand policies (Toosi et al.,

2011), and networks of favors (Falc˜ao et al., 2015).

However, they are focused on speciﬁc types of Inter-

Clouds (centralized federations, decentralized feder-

ations, etc.), and do not focus at the same time on

promoting the offer/consumption of resources and the

elimination of selﬁsh providers in the environment. In

addition, they are implemented as a service over the

Inter-Clouds, and not built on the architecture itself.

This may lead to increased complexity and labouring

maintenance (Joe-Wong et al., 2016).

Considering the context described above, this

work formalizes one of the main economic problems

related to environments where there is resource shar-

ing: the presence of free riders. To deal with this

problem, we describe an architecture called Multi-

Clouds Tournament (MCT). Inspired by a soccer tour-

nament, the MCT implements, at the architectural

level, a mechanism to prevent free rider providers.

Section 2 shows the deﬁnition of free riders and

the historical/economic context from which the term

appeared. The set of Inter-Clouds composed of sev-

eral solutions of multiple cloud organizations pro-

posed to solve the limitations of isolated clouds

providers is described in Section 3. The main solu-

tions that multi-cloud organizationsimplement to pre-

vent free riders are covered in Section 4. Section 5

describes the MCT, the solution used by the proposed

Inter-Cloud architecture to avoid free riders. Section 6

discusses the simulation and preliminary results, and

section 7 concludes the paper.

2 THE TRAGEDY OF THE

COMMONS

In 1968 Garrett Hardin published The Tragedy of the

Commons (Hardin, 1968). This article was inspired

by a pamphlet written by William Forster Lloyd de-

scribing the overuse of a common area, called Com-

mons

by several users. In the article published by

Hardin, the consequences of the disordered consump-

tion of a set of resources were described when they

are made available to various stakeholders.

Private area offered to a group of people for explo-

ration: grazing, gathering of ﬁrewood, etc.

According to Hardin, there are several factors that

inﬂuence the dynamics of using a set of shared re-

sources where users are not owners but can consume

the resources present there. This behavior was de-

scribed in an example where a pasture area was of-

fered, without any control mechanism, to the var-

ious stakeholders to raise cows. Since no regula-

tions have been enforced, each pastor can put the

amount of animals that he/she ﬁnds convenient in

the area. Initially, this behavior generated beneﬁts

(products, revenues, etc.). However, with the multi-

plication of this behavior, the pasture consumption in-

creased proportionally to the number of animals (Fig-

ure 1), which led to the exhaustion of the food and the

decrease in the number of cows, causing injury to all

herders.

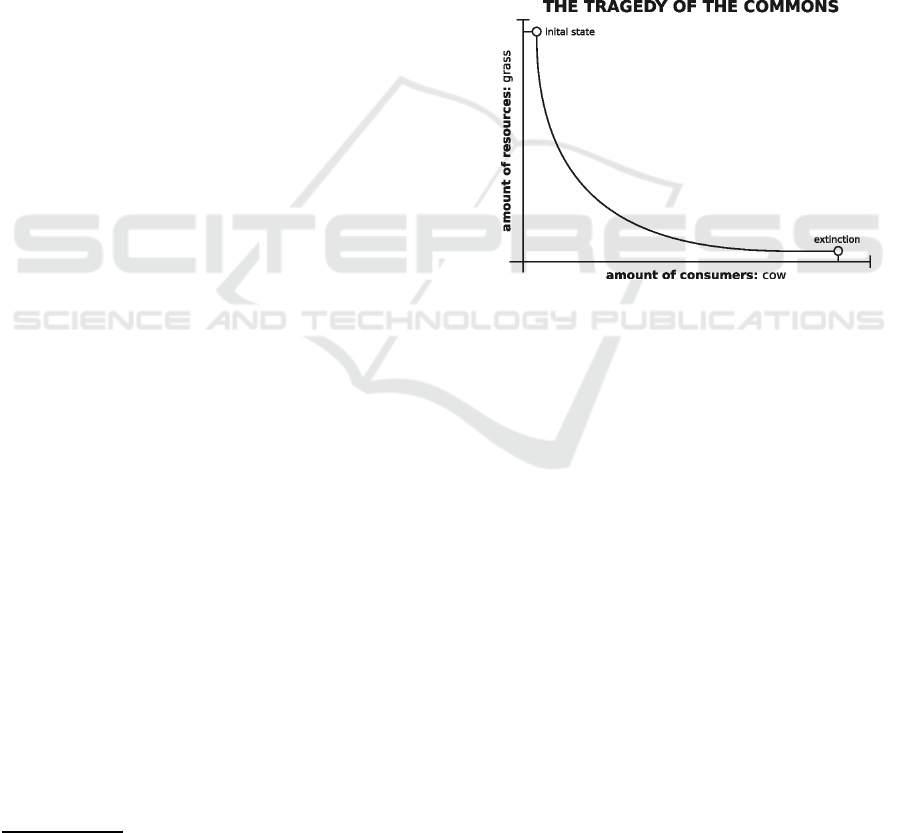

Figure 1: Without control mechanisms as the number of

consumers increases the resources are ﬁnishing.

In resource-sharing environments, consumers can

adopt different behaviors in relation to the consider-

ation of the stakeholders and the consumption of ex-

isting resources, which in one case can degrade the

entire environment (as in The Commons example).

Thus, we consider three roles of consumers in those

resource sharing environment: altruistic, conscious,

and selﬁsh.

2.1 Altruist

The altruist prioritizes the neighbor,not expecting any

kind of reward for his actions. The altruist offers the

maximum resources to the other stakeholders in the

shared environment, while maintaining the consump-

tion of resources to meet his/her needs at the mini-

mum level.

Considering a behavior function f : B → B (B =

Behavior), for the altruistic elements of an environ-

ment:

f(altruist) = (offer ↑, consume ↓)

It is possible to conclude that, because of disinter-

ested and selﬂess concern for the well-being of oth-

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

170

ers, the altruists consume as little as possible and offer

the most they can. Consequently, in case of resource

shortage, altruists may face lack of resources due to

no reserve. With this, it has a fragile life-cycle, being

the ﬁrst type of stakeholder to be harmed when the

amount of resources available starts to decrease.

2.2 Conscious

The conscious are aware of resources scarcity and

tries to keep the balance of the environment, thus con-

suming and providing resources at a proportional rate.

f(conscious) = (offer ≃ consume )

The conscious elements are more resistant to

enviroment’s resources shortage. This resistance

allows them to make decisions regarding mainte-

nance of their own environment (periods of greater

and lesser consumption) as well as abandonment of

the environment when the resources are being extin-

guished.

2.3 Selﬁsh

Also referred as free rider elements in the context of

multiple-cloud associations, this is the opposite of the

altruist. His/her behavior is oriented to maximize at-

tention to particular needs, consuming disorderly the

resources present in the environment and offering as

little as possbile (resources) back. Selﬁsh do not care

about maintaining the environmentand focus on max-

imum beneﬁt in the shortest possible time.

f(sel fish) = (offer ↓, consume ↑)

In resource shortage scenarios, this consumer is

one of the last elements to disappear from the environ-

ment because they have a greater reserve of resources

than altruists and conscious. They can also migrate to

another resource pool and maintain the same behavior

in order to keep resources avaliable.

2.4 Commons Maintenance

Elinor Ostrom et al. (Ostrom et al., 1999) com-

plement Hardin’s work by stating that to prevent

the degradation of environments that have shared re-

sources, there must be mechanisms of control of the

environment. Among these mechanisms, two of them

stand out: i) the election of a leader to regulate access

to the pool, or ii) incentives and punishment toward

the preservation of shared resources. In (i) an element

(individual, groups of individuals, or an organization)

is responsible for maintaining order of consumption

within the environment. In this approach, this element

can be established by consensus or by imposition, and

both cases involve problems regarding the leading ac-

ceptance factors that can be difﬁcult to solve in en-

vironments where there are elements with heteroge-

neous behavior (altruist, conscious, and selﬁsh). The

point (ii) involves the offer of incentives for good be-

havior and punishment if the behavior is not appropri-

ate. The challenge in this approach is to characterize

“good behavior” and ﬁnd ways to incentivize it, as

well as establish the set of punishments to be applied

to offenders without disencouraging participation.

3 INTER-CLOUDS

With the maturation of the Cloud Computing

paradigm, some providers have begun to associate

themselves. The purpose of this association was in-

creasing their respective revenues with the commer-

cialization of idle resources and overcoming limita-

tions of service provision. Additionally, expect to

overcoming challenges (Buyya et al., 2010) they face

when acting alone (limited elasticity, legal restriction,

and affected QoS).

• Limited elasticity: inability that some CSPs have

in providing scalability of resources to their cus-

tomers. This is because scalability is related to the

limited amount of physical assets present in CSPs,

which mainly affects small- and medium-sized

providers that have few resources and have dif-

ﬁculty acquiring more computational assets. The

main consequences of this property is the contain-

ment of resources, and possible loss of QoS.

• Legal restrictions: providers have the ability to be

physically located in a particular region and offer

their services to their target audience, regardless

of the geographical region they are in. This prop-

erty affects those customers who by rule or force

of laws (e.g. government) have restrictions on the

location of their data. This can limit their interest

in using Cloud Computing, harming CSPs.

• Affected QoS: the main communication network

used by CSPs to provide services is the Internet.

The Internet is composed of a set of networks with

distinct characteristics that are exposed to the re-

spective local trafﬁc. For example, during the sale

off day called Black Friday there is a signiﬁcant

increase in the access of virtual stores in the

USA. This behavior increases the network trafﬁc

in that region and can affect the providers present

there compromising the QoS of services provided.

Interconnected-Clouds (Grozev and Buyya, 2012;

GICT, 2010), or simply Inter-Clouds, can be deﬁned

Avoiding Free Riders in the Cloud Federation Highways

171

as a set of all associations of interconnected cloud

providers. The subsets of Inter-Clouds most cited

in the current literature are: Multi-Clouds, Hybrid

Clouds, Sky Computing, and Cloud Federations. The

Multi-Clouds (Kurze et al., 2011; Grozev and Buyya,

2012; Toosi et al., 2014) are associations of CSPs

made from applications with the support of libraries

– e.g. Libcloud (Foundation, 2015b) – or frame-

works – Jcloud (Foundation, 2015a). In the Hy-

brid Clouds (Mell and Grance, 2009; Bittencourt and

Madeira, 2011), CSPs intend to a speciﬁc group of

customers to use resources from provider open to the

general public to meet their needs when it is con-

venient (price, availability, resource expertise, etc.).

Sky-Computing (Keahey et al., 2009) is a facilitator

service that, through the execution requirements of an

application, creates an association of several indepen-

dent CSPs with sufﬁcient resources that meet the de-

mand of the application. Another signiﬁcant subset is

Cloud Federations which will be described below.

3.1 Cloud Federations

The cloud federations (Grozev and Buyya, 2012;

Buyya et al., 2010; Celesti et al., 2010; Manno et al.,

2012; Chaurasiya et al., 2012; Panarello et al., 2014),

are Inter-Clouds organizations with a set of particular

properties (Assis et al., 2016) that make them attrac-

tive to customers and CSPs. The main properties are:

• Autonomous and voluntary providers: CSPs can

leave the federation at any time, when they ﬁnd it

convenient.

• Geographic dispersion: the diversity of physical

location of the CSPs allows services to be mi-

grated to another region in a timely manner.

• Deﬁned by contract: all technical aspects of the

federation and the behavior of the providers are

described in a contract signed between the fed-

eration and the providers – the Federated Level

Agreement (FLA) (Assis et al., 2016; Toosi et al.,

2011).

• Real elasticity: providers can use federation to

scale horizontally (amount of resources for a ser-

vice) and/or vertically (classes of services).

• SLA end-to-end: SLAs between clients and

providers are honored when services migrate to

other providers within the federation.

From a customer point of view, federations are at-

tractive because they enable clients to acquire services

with resilience, guaranteed QoS, reliability that their

data will be in the region of interest, and the freedom

to migrate to another provider whenever convenient.

Providers can maximize their revenue by selling or

consuming resources and services to/from the feder-

ation, ensuring that the agreement among them and

their customers are being respected if there is a need

to use resources from other providers, and leave feder-

ation when convenient. In addition, the FLA guaran-

tees each provider the knowledge of the possible ac-

tions of the other elements present in the environment,

resulting in more predictability and stability to the

Cloud Federation. However, they are still resource-

sharing environments that are prone to the presence

of free riders.

4 RELATED WORK

Some solutions have been proposed to address the

presence of free riders in Cloud Federations. These

proposals can be grouped into three classes that de-

scribe the approach used to solve the problem: Poli-

cies, Game Theory, and Network of Favors.

4.1 Policies

Toosi et. al (Toosi et al., 2011) propose a set of re-

source provisioning policies by providers to increase

the proﬁtability of the federation and thereby encour-

age sharing. However, this approach only covers

cloud federations at the IaaS level. Another limitation

is that deﬁning a set of policies that meet the wishes

of all providers can be an arduous task, considering

the conﬂicting local policies that may exist among

providers. In addition, this approach does not di-

rectly address free riders, but rather offers incentives

to “good providers” (i.e., autruist and conscious).

4.2 Game Theory

In (Mashayekhy et al., 2015) game theory is used

to create a model of uniform and proportional dis-

tribution of proﬁtability obtained in the federation to

providers. Distribution works as an incentive mech-

anism, while allowing the rational deﬁnition of the

amount of resources offered to the organization by

each service provider. This is another approach that

deals with free riders, but in an indirect manner. In

addition, it is focused only on centralized federations,

which have a controlling element.

4.3 Network of Favors

Falc˜ao et. al (Falc˜ao et al., 2015), to avoid the pres-

ence of free riders, propose the incentive to share

resources in decentralized federations (Peer-to-Peer)

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

172

through the use of Network of Favors (Andrade et al.,

2004) focused on justice. Cloud providers when of-

fering resources to the federation receive credits that

can be used later in the acquisition of resources. Con-

sequently, the approach hopes to avoid the presence

of free riders within the federation while maintaining

the satisfaction of the participating providers. How-

ever, the solution only includes decentralized federa-

tions focused on IaaS.

5 MULTI-CLOUDS

TOURNAMENT

MultiClouds Tournament (MCT) (Assis and Bitten-

court, 2015) is an Inter-Clouds environment based on

cloud federations and focused on the resources of the

CSPs. Its main objective is to keep the resource-

sharing environment free of free riders. To do this,

MCT establishes (at an architectural level) the incen-

tive to the provision of resources through the consti-

tution of a tournament inspired by a divisions scheme

and a ruleset of a soccer tournament. The MCT is

deﬁned as:

An Inter-Clouds organized in a tournament

format, where volunteer CSPs, named play-

ers, are grouped into divisions ruled by a rule-

set that deﬁnes the players’ behavior within

the environment. Depending on the progress

(monitoring in regular periods of time) a

player can be raised to higher divisions ob-

taining advantages (e.g. access to special-

ized resources, more resources) or demoted to

a lower division, decreasing its access privi-

leges.

5.1 Architecture

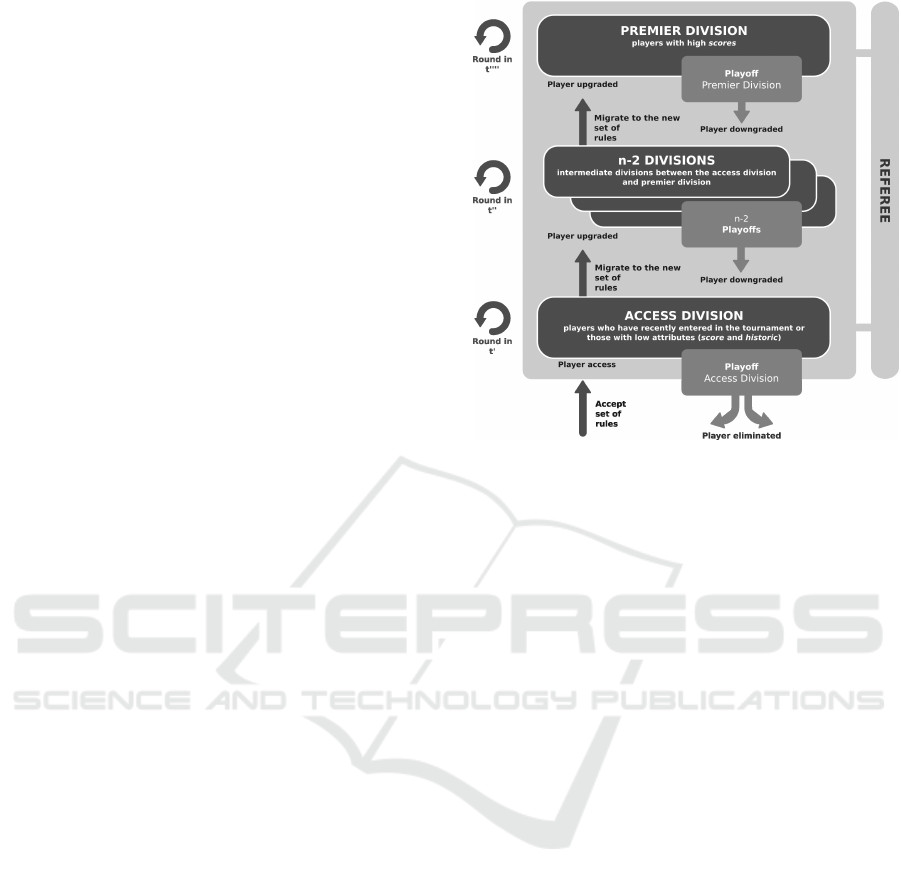

Architecturally (Figure 2), MCT is composed of n

divisions, the players (cloud service providers); the

shared resources available in the environment; the

statute with the set of tournament rules, and the ref-

eree that mediates the environment.

Formally, the proposal is described as a tuple T =

(D, J, Ψ) consisting of three elements: a ﬁnite set of

divisions D (|D| ≥ 2), a ﬁnite set players J, and a bi-

jective function Ψ : J → D responsible for mapping

each player j ∈ J to a division d ∈ D.

5.1.1 Divisions

The divisions D is a logical partition of the set of play-

ers. Each division has a speciﬁc set of rules described

Figure 2: Elements whitin MCT architecture.

in the statute (Section 5.1.3). These rules deﬁne the

behavior of the players within the environment. In

MCT there may be n divisions, among which two are

special and should be present in any implementation:

the access and the premier division. The access divi-

sion is where new players stay when they become part

of the tournament. In this division are found many re-

sources but there are no guarantees of specialization

or QoS. In this division is expected to contain those

players with multiple clients, lots of features and/or

specialized resources because this proﬁle contributes

to increase the provider’s score.

The divisions are hierarchical in the rules as well

as in the access to resources. Regarding the rules, in

higher divisions, more rules are inserted in the corre-

sponding subset. With this procedure, it is expected

that the excellence level from the players present in

those divisions increases. Regarding to the resources,

players at higher divisions will have more resources

available: in MCT, players have access to the re-

sources of their own division as well as the resources

belong to all other lower divisions.

The players’ life-cycle in the divisions is deﬁned

by a set of individual attributes. In MCT, two at-

tributes are provided: scores and history. The ﬁrst has

an immediate character, and describes the state of the

relation offer × consumption of a player at a certain

moment. The score is calculated at the end of each

time period called round. Also at the end of this time

period it is veriﬁed if the player’s score is within the

criteria to remain in that division, enabling the referee

to rise or to demote a player to other divisions. As the

history reﬂects the behavior over time of each player,

it can inﬂuence for example the amount of rounds of

Avoiding Free Riders in the Cloud Federation Highways

173

tolerance that a given player stays in the division if it

does not have a high enough score at a certain point

in time. The implementations of the score and his-

tory functions are deﬁned in the implementation of

the MCT, making it ﬂexible to different niches and

situations possible.

Within each division, there is an area called play-

off, where players who failed to keep the established

criteria can be sent if they have a history that subsi-

dizes this decision. Once in that area, a player can

be reinstated or recessed from the corresponding di-

vision. After a predetermined period of time, if the

player can improve its own score it is reinstated to the

division. Otherwise, it is demoted. This procedure

aims to give a chance to players who perform well

over time, but for exceptional reasons have failed to

maintain the division permanence criteria.

Another peculiarity of the divisions is the presence

of dimensions, which are structures that allow a given

player to be classiﬁed in more than one division at the

same time. This depends on the dimensions present in

the tournament. For example, in a tournament where

dimensions are service levels (IaaS, PaaS, and SaaS)

a player can be in several divisions according to each

level of service, or even give up exposing one of these

three.

5.1.2 Players

A player is a CSP where there are resources that will

be offered. These resources can be seen as the prizes

of the tournament. Players may be heterogeneous

in what regards to the type and amount of resources

available in their own domains. Another feature in-

herent to the players is that they are volunteers to join

the organization as well as free to leave the MCT at

any time. Each player or team j ∈ J is deﬁned as a

tuple j = (A

−→

), where A

stands for a set of

technical properties that the player j has,

−→

is a di-

mensional vector exposed by the player to allow the

classiﬁcation by divisions, and the vectors

−→

and

−→

respectively contain the calculated scores and the his-

tory of scores for each dimension in

−→

5.1.3 Statute

The statute, named Tournament Level Agreement

(TLA), is a set E consisting of a subset R represent-

ing the FLA in the MCT context. Unlike the FLA at a

global scope, each subset R the from TLA is applied

to a speciﬁc division of MCT. Another feature is that

a player may refuse a subruleset, so the player can re-

main in a division even having a score high enough to

be promoted to a superior division .

Subruleset R should not be empty (R 6=

0). Each

subset must have at least four rules called Fundamen-

tal Rules (FRs): FR

– score calculation criteria for

each player belonging to division; FR

– how the his-

tory of each player is deﬁned in the respective divi-

sion; FR

– upper and lower score limits to stay in

the division; and FR

– round time.

5.1.4 Referee

The referee is the mediator of the architecture and acts

as a Broker (Grozev and Buyya, 2012) centralizing

all activities within the MCT. It makes the process

of managing the players and the environment softer.

Among the activities of the referee there are: access

management and identity, monitoring, calculation of

player’s attributes, mapping player, scheduler, cata-

log, and data repository.

5.2 MCT Avoiding Free Riders

The MCT avoids the proliferation of free riders

through the divisions, accessible by a score that each

player has and that is determined by its behavior dur-

ing their life cycle within the tournament. Two sit-

uations may occur in relation to a free rider within

the MCT: i) the player is already a free rider when

entering the tournament or ii) the player modiﬁes its

behavior during the evolution of the divisions. In the

ﬁrst case, as the player does not offer resources to the

other players of the respective division its score is not

increased. Thus, free rider does not reach the lower

boundary of the access division at the same time that it

does not present sufﬁcient history to stay in the play-

off area, being eliminated from the tournament after

some rounds. In the second situation, a similar be-

havior occurs, however, depending on the division the

player is, while it is conducted to the lower divisions,

it is still able to consume resources until it becomes

eliminated from the tournament.

5.3 Prototype

For the initial proposal validation, a prototype of the

MCT was implemented in Python and submitted to 8

test cases. The prototype code and data resulting from

the tests below are stored in a public repository

Three divisions {d

, d

} named premier, sec-

ond and access have been deﬁned. All divisions share

the same value of round interval (t), but they aren’t

synchronous. The resources considered were: vCPU,

memory and storage. They were grouped into three

types of virtual machine ﬂavors describes in Table

https://github.com/mrmassis/mct.git

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

174

1. The dimension addressed was the Infrastructure

as Service (∀d ∈ D,

−→

v = [IaaS]). Finally, the statute

comprises three sets of rules R, E = {R

div

|div =

, d

}. One peculiarity is that the VMs used in the

tests are simulated and do not perform actual work-

load, so they have a ﬁxed duration time.

Table 1: Description of the types of VMs in the test cases.

VIRTUAL MACHINES

VM’s vCPUS MEMORY DISC RUNNING TIME

FLAVORS (MBytes) (GBytes) (minutes)

Big 8 8192 80 10

Small 4 4096 40 20

Tiny 2 1024 20 30

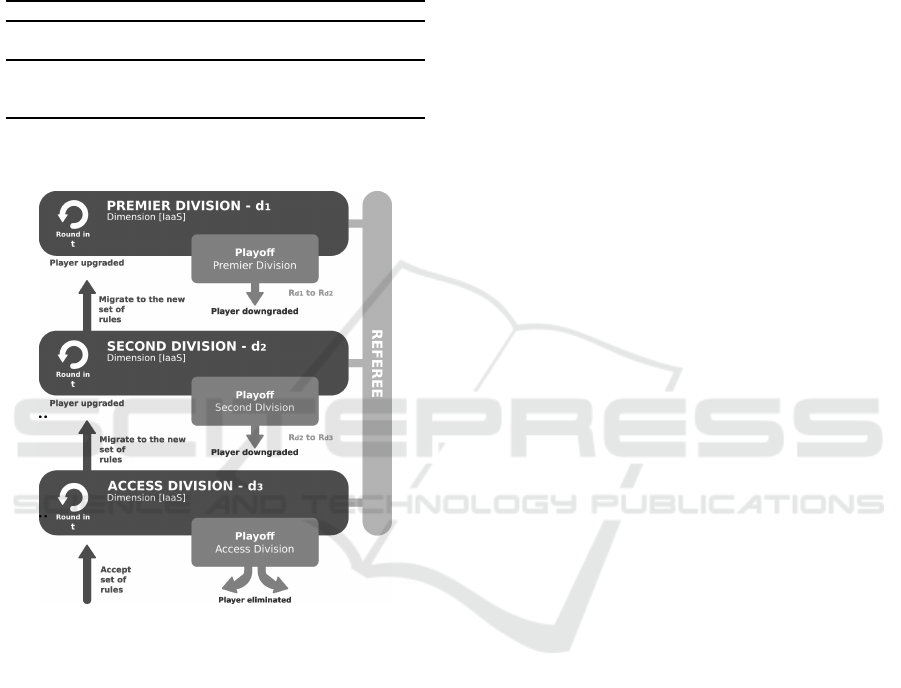

The Figure 3 illustrates the prototyped MCT.

Figure 3: Layered diagram representing the implementation

of the MCT prototype.

Equation 1 describes the function used to calcu-

late the players’ score (s

). In it, the score is deter-

mined by two terms: the ﬁrst one considers the sum

of the execution times of the VM instances (k = t, s, b

– tiny, small, and big) from the requests the provider

has accepted (I

execution

). The execution time of each

type of virtual machine is multiplied by a weight (p

)

that is proportional to the size (in capacity - Table

1) of the VM type considered: the larger the exe-

cuted virtual machine, the greater the weight applied

(Big > Small > Tiny). The second term of the equa-

tion considers the requests not fulﬁlled by the player,

i.e., the number of requests denied by the provider

(Qty

reject

request

). This amount is multiplied by a value

reject

request

) that represents the cost that the player will

be burdened for not fulﬁlling a request. The history

of each player is represented by the number of times

it had its score above the minimum limit of the divi-

sion at the end of each round.

= (

∑

k=t,s,b

× I

execution

)) − (Qty

reject

request

×C

reject

request

)

(1)

An initial score was also assigned to the new play-

ers, deﬁned as the harmonic mean of the scores of all

the players present in the access division. The def-

inition of this value had as a premise to avoid that

the player is disadvantaged in the environment or that

stands out exaggeratedly in front of the others players

as soon as it enters the tournament. If the disadvan-

tage was not considered, a new player when entering

the access division (depending on the dynamics of the

division) could be eliminated in the next round even

though it should remain in the tournament. On the

other hand, if a new player is offered a lot of advan-

tage, in the next round it could be raised to higher di-

visions without having collaborated to the other play-

ers in the tournament.

6 SIMULATION AND

PRELIMINARY RESULTS

The purpose of the simulation is to verify, as a proof

of concept, basic situations regarding the design and

objectives of the MCT. This proof of concept helped

validate and guide the research and development of

MCT. The basic situations were: i) permanence of

the players in the MCT; ii) ﬂow of players through

the divisions; and iii) elimination of free rider play-

ers from the tournament. To perform this veriﬁcation,

eight types of players identiﬁed as A, B, . . . , H have

been implemented. All players were implemented

in Python and based on the features of OpenStack

(OpenStack Foudantion, 2015). Each type of player

is distinguished from the others by the amount and

ﬂavors (Table 1) they accept. Another characteristic

of the players is the possibility of choosing which di-

vision they wants to achieve. The types and charac-

teristics of each player are shown in the Table 2.

The players were arranged in a set of eight test

cases. In each test case there are ﬁve instances of cer-

tain types of players (Table 2) that send requests for

big

, VM

small

, and VM

tiny

every 4 minutes (value

obtained empirically for the initial tests). The exe-

cution time of each type of VM is described in Ta-

ble 1 (value obtained empirically). Since there are

divergences between request period and VM execu-

tion time, some players can refuse new VM instances

request at certain occasions.

The performed tests were arranged as follows:

Avoiding Free Riders in the Cloud Federation Highways

175

Table 2: Types of players. Type B, C, and F have typical

free riders behaviors. The FINAL DIVISION ﬁeld indicates

which division a player expects to achieve.

PLAYER’S TYPE

PLAYER’ QTDE OF QTY OF QTY OF FINAL

TYPE VM

Big

small

tiny

DIVISION

A 10 0 0 First Division

B (free rider) 0 10 0 First Division

C (free rider) 0 0 10 First Division

D 10 10 0 First Division

E 10 0 10 First Division

F (free rider) 0 10 10 First Division

G 10 10 10 First Division

H 10 10 10 Variable

• Test 1 and 5:

– Description: in test 1 there are ﬁve players in

the tournament who only accept requests for

virtual machines of type Tiny. In test 5, the ﬁve

players accept requests for VMs

Tiny,Big

– Behavior: the chart of Figure 4 describes a

cyclic variation of players across divisions.

Each player after being promoted to intermedi-

ate division is put into a playoff state returning

to the access division after the number rounds

has been exhausted.

– Discussion: cyclic behavior happens because

when entering the second division, the players

generate negative scores because they do not

accept requests of virtual machines of Small

type. This returns them to the previous divi-

sion once the number of rounds of permanence

in the playoff ends.

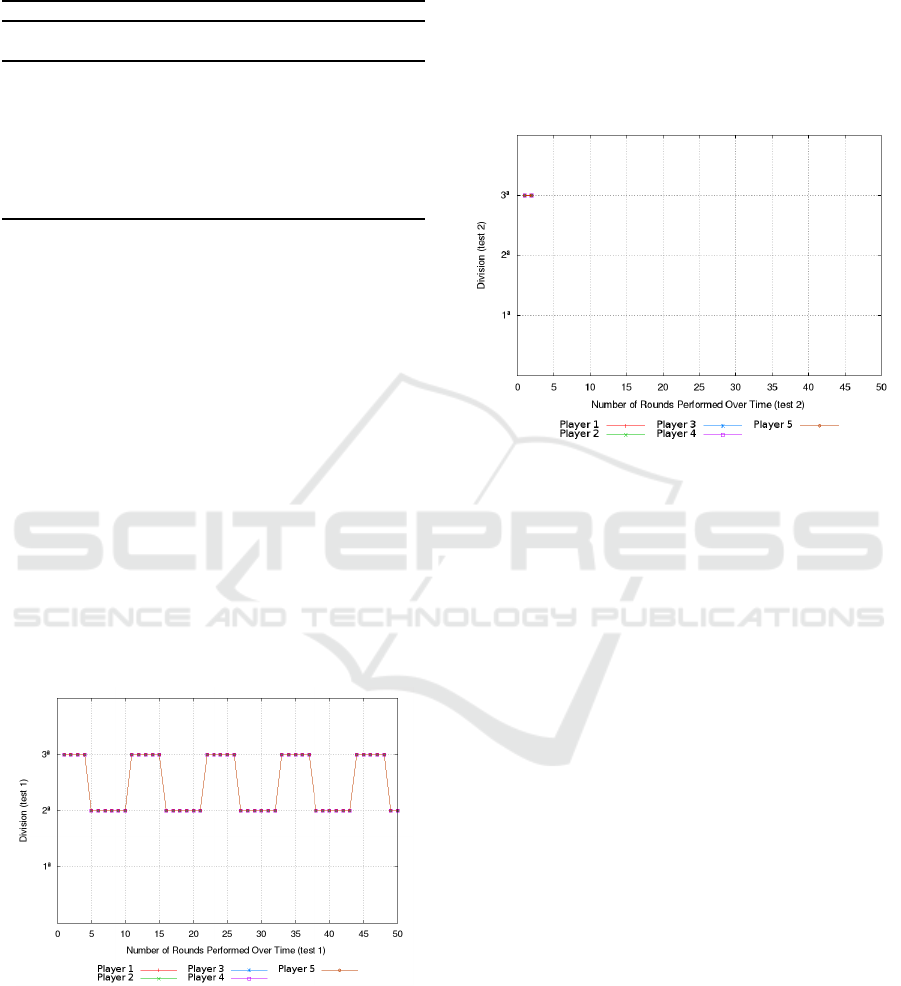

Figure 4: Behavior of players in test cases 1 and 5.

• Test 2, 3, and 6:

– Description: there are ﬁve players in the tour-

nament that do not accept requests for virtual

machines of type Tiny;

– Behavior: because players do not accept re-

quests from instances of VMs

Tiny

, they are

quickly eliminated from the competition as

they do not have enough score nor enough his-

tory to enter playoff status (Figure 5).

– Discussion: the behavior of the ﬁve players

in the three test cases is similar to that of free

riders who only expect to consume resources.

Thus, as expected, the MCT excludes this type

of player as quickly as possible.

Figure 5: Evolution of the ﬁve players in the test cases 2, 3,

and 6.

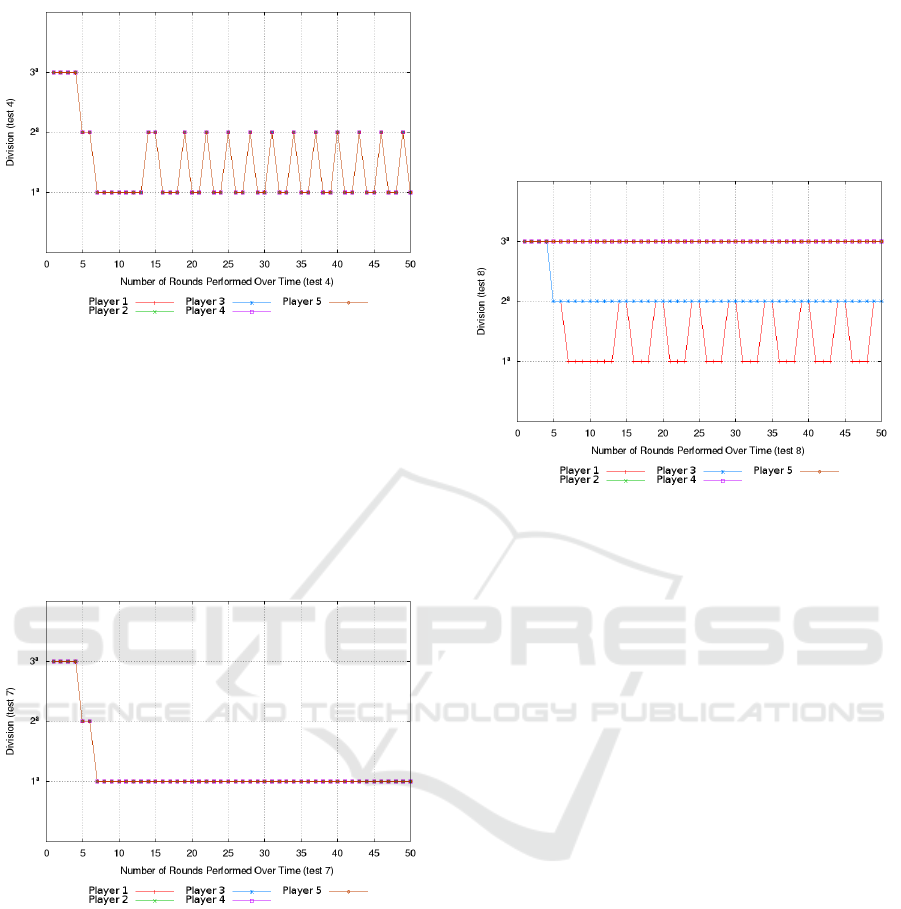

• Test 4:

– Description: there are ﬁve players in the tourna-

ment that accept requests for virtual machines

of types Tiny and Small. All players intend to

reach the premier division.

– Behavior: as the ﬁve players accept requests for

virtual machines of types Tiny and Small, they

can reach at most the second division. There

is a recurring behavior of rise to the premier

division and back to the second division.

– Discussion: this behavior comes from the fact

that no player is able to generate good scores

when they are in premier division. Good scores

are not generated because the ﬁve players do

not accept requests for virtual machines of type

Big. This behavior is described in Figure 6.

• Test 7:

– Description: there are ﬁve players in the tour-

nament. These players accept requests from all

types of VMs. All players intend to reach the

premier division.

– Behavior: the chart (Figure 7) shows the evo-

lution of the ﬁve players for the three divisions

available in the MCT instance. As the ﬁve play-

ers accept all types of VM requests, and there

is no restriction on permanence in divisions or

variation of behavior, they reach the premier di-

vision and remain in it indeﬁnitely.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

176

Figure 6: Cyclical behavior between divisions 2 and 1.

– Discussion: at ﬁrst, the result of this test is pre-

sented as the ideal to MCT execution. How-

ever, this situation can lead to a reduction in

the incentive to resource offers and specializa-

tion of the environment. If this behavior is ob-

served and it is not welcome, it may be con-

sidered the creation of dynamic divisions that

change in quantity and rules according to the

overall behavior of the tournament.

Figure 7: All players accept requests by VMs

Tiny,Small,Big

• Test 8:

– Description: test case similar to test 7, however

these players differ by the division they intend

to reach: player 1 - premier division; players

2 and 3 - intermediate division; and the other

players - access division.

– Behavior: as shown in the graph of Figure 8,

groups of players develop distinct behaviors

throughout rounds even though they have the

ability to reach the premier division. This is be-

cause each player explicitly deﬁnes which divi-

sion it wants to reach.

– Discussion: the deﬁnition of division is a proac-

tive property of each player and should be indi-

cated if appropriate. In addition, each player

may not accept a subset of rules from supe-

rior divisions and thus remain in the current di-

vision. With this property players can choose

which division to stay.

Figure 8: Distribution of players in the divisions.

7 CONCLUSION

The increasing use of Cloud Computing in different

domains has been highlighting some paradigm limi-

tations while leveraging new approaches to overcome

these limitations. One such approach is the associa-

tion of multiple providers called Inter-Clouds. How-

ever, these resource-sharing environments are suit-

able to the appearance of elements called free rid-

ers, which focus only on satisfying their own inter-

ests without regard to the other elements present in

the environment. In this scenario, this paper proposed

an Inter-Clouds architecture called MultiClouds Tour-

nament that has as premisses the main characteristics

of Cloud Federations. The MCT intends to encourage

the consumption and supply of resources by providers

through a tournament. In this way, it is expected to

eliminate the free riders of this type of resource shar-

ing environment. The literature shows that this is still

an open challenge, and the preliminary results of this

work point to an effective development of MCT.

7.1 Future Works

As future work, we will map the impacts of the ac-

tions that eventual free riders can perform inside the

divisions in the period from the beginning of the be-

havior to the elimination of it from the tournament.

This mapping will be analyzed and depending on the

results will be considered the use of a mechanism to

Avoiding Free Riders in the Cloud Federation Highways

177

mitigate the action of these elements. It will also

be evaluated the use of means that allow more spe-

cialized providers to be led to the superior division,

avoiding to interpret them as free riders. The im-

pact of the insertion of adaptive thresholds (lower

and upper limits) in each division will be veriﬁed.

These adaptive thresholds will be based on the play-

ers’ o f fering × consumption relationship dynamics

inside of each division (or entire tournament). In addi-

tion, it is expected that adaptative thresholds will help

maximize this relation while avoiding players who of-

fer the minimum resources to stay or evolve in the

tournament. Also as future work, the implementation

of a functional version of the MCT will be ﬁnalized

and evaluated in a real environment.

ACKNOWLEDGMENTS

This research was partially funded by the European

Commission H2020 programme under grant agree-

ment no. 688941 (FUTEBOL), as well from the

Brazilian Ministry of Science, Technology, Innova-

tion, and Communication (MCTIC) through Brazilian

National Research and Educational Network (RNP)

and CTIC. The authors also would like to thank CNPq

and CAPES for the ﬁnancial support.

REFERENCES

Andrade, N., Brasileiro, F., Cirne, W., and Mowbray, M.

(2004). Discouraging free riding in a peer-to-peer cpu-

sharing grid. In High performance Distributed Com-

puting, 2004. Proceedings. 13th IEEE International

Symposium on, pages 129–137.

Assis, M. R. M. and Bittencourt, L. F. (2015). Multiclouds

tournament blueprint. In IEEE/ACM 8th International

Conference on Utility and Cloud Computing, Limas-

sol, Cyprus.

Assis, M. R. M., Bittencourt, L. F., Tolosana-Calasanz, R.,

and Lee, C. A. (2016). Cloud federations: Require-

ments, properties and archictectures. In Kecskemeti,

G., Kertesz, A., and Nemeth, Z., editors, Develop-

ing Interoperable and Federated Cloud Architecture,

chapter 1, pages 1–41. IGI Global, 701 East Choco-

late Avenue, Hershey, PA 17033, USA.

Berman, F., Fox, G., and Hey, A. J. G. (2003). Grid Com-

puting: Making the Global Infrastructure a Reality.

John Wiley & Sons, Inc., New York, NY, USA.

Bittencourt, L. F. and Madeira, E. R. M. (2011). HCOC: a

cost optimization algorithm for workﬂow scheduling

in hybrid clouds. J. Internet Services and Applica-

tions, 2(3):207–227.

Buyya, R., Ranjan, R., and Calheiros, R. N. (2010). Inter-

cloud: Utility-oriented federation of cloud computing

environments for scaling of application services. In

Proceedings of the 10th International Conference on

Algorithms and Architectures for Parallel Processing -

Volume Part I, ICA3PP’10, pages 13–31, Berlin, Hei-

delberg. Springer-Verlag.

Celesti, A., Tusa, F., Villari, M., and Puliaﬁto, A. (2010).

How to Enhance Cloud Architectures to Enable Cross-

Federation. In 2010 IEEE 3rd International Confer-

ence on Cloud Computing.

Chaurasiya, V. K., Srinivasan, K., Thyagarajan, K., Govil,

S. B., and Das, S. (2012). An approach to identify

the optimal cloud in cloud federation. Institute of Ad-

vanced Engineering and Science, Vol 1, No 1 (2012).

Falc˜ao, E. d. L., Brasileiro, F., Brito, A., and Vivas, J. L.

(2015). Incentivising resource sharing in federated

clouds. In Bessani, A. and Bouchenak, S., editors,

Distributed Applications and Interoperable Systems,

volume 9038 of Lecture Notes in Computer Science,

pages 45–50. Springer International Publishing.

Foster, I., Zhao, Y., Raicu, I., and Lu, S. (2008). Cloud

computing and grid computing 360-degree compared.

In Grid Computing Environments Workshop, pages 1–

10. IEEE.

Foundation, T. A. S. (2015a). Apache jclouds – the java

multi-cloud toolkit. https://jclouds.apache.org/. Ac-

cessed: 2015-28-02.

Foundation, T. A. S. (2015b). Apache libcloud – one in-

terface to rule them all. https://libcloud.apache.org/.

Accessed: 2015-28-02.

GICT (2010). Use cases and functional requirements for

inter-cloud computing. Technical report, Global Inter-

Cloud Technology Forum.

Grozev, N. and Buyya, R. (2012). Inter-Cloud Architec-

tures and Application Brokering: Taxonomy and Sur-

vey. Software: Practice and Experience.

Hardin, G. (1968). The tragedy of the commons. Science,

162(3859):1243–1248.

Joe-Wong, C., Im, Y., Shin, K., and Ha, S. (2016). A perfor-

mance analysis of incentive mechanisms for coopera-

tive computing. In 2016 IEEE 36th International Con-

ference on Distributed Computing Systems (ICDCS),

pages 108–117.

Keahey, K., Tsugawa, M., Matsunaga, A., and Fortes, J.

(2009). Sky computing. IEEE Internet Computing,

13(5):43–51.

Khethavath, P., Thomas, J., Chan-Tin, E., and Liu, H.

(2013). Introducing a distributed cloud architecture

with efﬁcient resource discovery and optimal resource

allocation. In 2013 IEEE Ninth World Congress on

Services, pages 386–392.

Kurze, T., Klems, M., Bermbach, D., Lenk, A., Tai, S., and

Kunze, M. (2011). Cloud federation. In Proceedings

of the 2nd International Conference on Cloud Com-

puting, GRIDs, and Virtualization (CLOUD COM-

PUTING 2011). IARIA.

Manno, G., Smari, W. W., and Spalazzi, L. (2012). Fcfa: A

semantic-based federated cloud framework architec-

ture. In HPCS, pages 42–52.

Mashayekhy, L., Nejad, M., and Grosu, D. (2015). Cloud

federations in the sky: Formation game and mech-

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

178

anism. Cloud Computing, IEEE Transactions on,

3(1):14–27.

Mell, P. and Grance, T. (2009). The NIST deﬁnition of

cloud computing. Technical report, National Institute

of Standards and Technology, Information Technol-

ogy Laboratory.

OpenStack Foudantion (2015). OpenStack Framework.

https://www.openstack.org/. Accessed: 2016-15-01.

Ostrom, E., Burger, J., Field, C. B., Norgaard, R. B., and

Policansky, D. (1999). Revisiting the commons: local

lessons, global challenges. science, 284(5412):278–

282.

Panarello, A., Celesti, A., Fazio, M., Villari, M., and Pu-

liaﬁto, A. (2014). A requirements analysis for iaas

cloud federation. In Proceedings of the 4th Interna-

tional Conference on Cloud Computing and Services

Science, CLOSER 2014, pages 584–589, Portugal.

SCITEPRESS - Science and Technology Publications,

Lda.

Petri, I., Beach, T., Zou, M., Montes, J. D., Rana, O., and

Parashar, M. (2014). Exploring models and mecha-

nisms for exchanging resources in a federated cloud.

In Cloud Engineering (IC2E), 2014 IEEE Interna-

tional Conference on, pages 215–224.

Toosi, A. N., Calheiros, R. N., and Buyya, R. (2014). In-

terconnected cloud computing environments: Chal-

lenges, taxonomy, and survey. ACM Comput. Surv.,

47(1):7:1–7:47.

Toosi, A. N., Calheiros, R. N., Thulasiram, R. K., and

Buyya, R. (2011). Resource provisioning policies to

increase iaas provider’s proﬁt in a federated cloud en-

vironment. In Proceedings of the 2011 IEEE Inter-

national Conference on High Performance Comput-

ing and Communications, HPCC ’11, pages 279–287,

Washington, DC, USA. IEEE Computer Society.

Zhang, Q., Cheng, L., and Boutaba, R. (2010). Cloud com-

puting: state-of-the-art and research challenges. Jour-

nal of Internet Services and Applications, 1(1):7–18.

Avoiding Free Riders in the Cloud Federation Highways

179
