A Hierarchical Book Representation of Word Embeddings for

Effective Semantic Clustering and Search

Avi Bleiweiss

BShalem Research, Sunnyvale, U.S.A.

Keywords:

Word Vectors, Deep Learning, Semantic Matching, Multidimensional Scaling, Clustering.

Abstract:

Semantic word embeddings have shown to cluster in space based on linguistic similarities that are quantiﬁably

captured using simple vector arithmetic. Recently, methods for learning distributed word vectors have pro-

gressively empowered neural language models to compute compositional vector representations for phrases

of variable length. However, they remain limited in expressing more generic relatedness between instances of

a larger and non-uniform sized body-of-text. In this work, we propose a formulation that combines a word

vector set of variable cardinality to represent a verse or a sentence, with an iterative distance metric to eval-

uate similarity in pairs of non-conforming verse matrices. In contrast to baselines characterized by a bag of

features, our model preserves word order and is more sustainable in performing semantic matching at any

of a verse, chapter and book levels. Using our framework to train word vectors, we analyzed the clustering

of bible books exploring multidimensional scaling for visualization, and experimented with book searches

of both contiguous and out-of-order parts of verses. We report robust results that support our intuition for

measuring book-to-book and verse-to-book similarity.

1 INTRODUCTION

The attraction of using vector spaces for analyz-

ing natural language semantics, stems primarily from

providing an instinctive relation mechanism by sub-

scribing to lexical distance and similarity concepts.

In a large corpora of text, the structure of a seman-

tic space is created by evaluating the various con-

texts in which words occur. Thus leading to distribu-

tional models of word meanings with the underlying

assertion that words who transpire in similar contexts

tend to have similar interpretations (Turney and Pan-

tel, 2010). Distributed words, also known as word

embeddings, are each represented with a dense, low-

dimensional real-valued vector, and follow efﬁcient

similarity calculations directly from the known Vec-

tor Space Model (Salton et al., 1975). Word vectors

have been widely used as features in a diverse set of

computational linguistic tasks, including information

retrieval (IR) (Manning et al., 2008), parsing (Socher

et al., 2013), named entity recognition (Guo et al.,

2014), and question answering (Iyyer et al., 2014).

In recent years, neural network architectures have

inspired the deep learning of word embeddings from

large vocabularies to avoid a manual labor-intensive

design of features. The work by Bengio et al. (2003)

introduced a statistical language model formulated by

the conditional probability of the next word given all

its preceding words in a sequence, or a context. How-

ever, the time complexity of the neural model ren-

ders the scheme inefﬁcient due to the non-linear hid-

den layer. The succeeding Word2Vec (Mikolov et al.,

2013a) and GloVe (Pennington et al., 2014) methods,

preserve the probabilistic hypotheses founded in Ben-

gio et al. (2003) approach, and further eliminate the

hyperbolic tangent layer entirely, thus becoming more

effective and feasible tools for language analysis. No-

tably, these methods expand on the input context win-

dow to include the words that both precede and follow

the target word. Word embeddings are typically con-

structed by way of minimizing the distance between

words of similar contexts, and encode various simple

lexical relations as offsets in vector space. Our work

investigates the linguistic structure in raw text, and

explores clustering and search tasks using Word2Vec

to train the underlying word representations.

Applying unsupervised learning (Duda et al.,

2001) of distributed word embeddings to a broader set

of semantic tasks has not yet been fully established

and remains an active research to date. In their recent

work, Fu et al. (2014) utilize word embeddings to dis-

cover hypernym-hyponym type of linguistic relations.

154

Bleiweiss A.

A Hierarchical Book Representation of Word Embeddings for Effective Semantic Clustering and Search.

DOI: 10.5220/0006192701540163

In Proceedings of the 9th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2017), pages 154-163

ISBN: 978-989-758-220-2

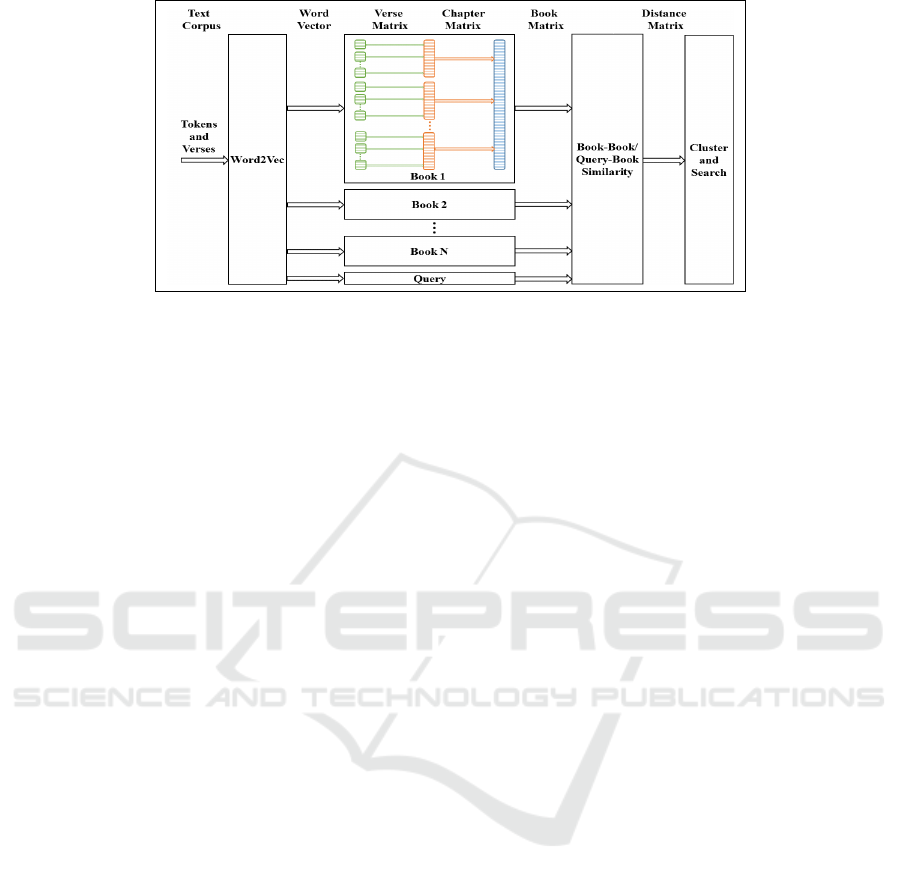

Figure 1: Framework overview: on the left, tokens and context from a text corpus are used to train word vectors. A collection

of word vectors is constructed to represent word-for-word the source text of every book. Word vectors are ﬁrst row bound

into a matrix to represent a verse. Then, verse matrices are concatenated into chapter matrices that are further coalesced into

a hierarchical book matrix. We run all-book-pairs and all-query-book-pairs similarity process on matrices of a non-uniform

row count, and generate a distance matrix that we use for cluster analysis and search ranking, respectively.

Noting that offsets of word pairs distribute into struc-

tured clusters, they modeled ﬁne-grained relations by

estimating projection matrices that map words to their

respective hypernyms, and report a reasonable test

F1-score of 73.74%. Socher et al. (2013) proposed a

recursive neural network to compute distributed vec-

tor representations for phrases and sentences of vari-

able length. Their model outperforms state-of-the-art

baselines on both sentiment classiﬁcation and accu-

racy metrics, however, its supervised method requires

extensive manual labeling and makes scaling to larger

sized text non trivial. A representation more rooted in

a convolutional neural architecture (Kim, 2014), pro-

duces a feature map for each possible window in a

sentence, and follows with a max-over-time pooling

(Collobert et al., 2011) to capture the most important

features. Pooling has the apparent beneﬁt of naturally

adapting to variable length sentences. At the higher

document level, Le and Mikolov (2014) introduced a

paragraph vector extension to the learning framework

of word vectors. Given their different dimensionality,

paragraph and word vectors are concatenated to yield

ﬁxed sized features, however, unique paragraph vec-

tors constrain context sharing across the document.

For a composition of words, most of the tech-

niques discussed tend to reshape the varying dimen-

sionality of input sentences into uniform feature vec-

tors. Rather, our implementation retains the word vec-

tors as distinct rows in a matrix form to construct any

of the verse, chapter, or book data structures for per-

forming our set of linguistic tasks. The main contribu-

tion of our work is a framework (Figure 1) with a lex-

ical representation that abides word-for-word by the

corpus source sequence, to facilitate a generic evalu-

ation of relationships among entities of non-uniform

text size. The rest of this paper is organized as fol-

lows. In section 2, we brieﬂy review the neural mod-

els to found Word2Vec, and proceed with motivating

our choice for a verse matrix representation that leads

to our chapter and book hierarchies. Section 3 derives

our book similarity measure as it applies to a pair of

non-conforming concatenations of verse embeddings,

whereas Section 4 proﬁles the compiled format of the

bible corpus we used for evaluation. We then present

our methodology for analyzing clusters of bible sub-

divisions and ranking book searches of unsolicited

keywords, and report extensive quantitative results of

our experiments, in section 5. We conclude with a

discussion and future prospect remarks in section 6.

2 EMBEDDING HIERARCHY

In Word2Vec, Mikolov et al. (2013a) proposed a

shallow neural-network structure for learning useful

word embeddings to support predictions within a lo-

cal bi-directional context-window. Both the skip-

gram and continuous bag-of-words (CBOW) models

offer a simple single-layer architecture based on the

inner product between a pair of word vectors. In the

skip-gram version the objective is to predict the not

necessarily immediate context words given the tar-

get word, and conversely, CBOW estimates the target

word based on its neighboring context. As a context

window scans over the corpus, the models attempt to

maximize the log probability of the generated objec-

tive function, based on their respective multi and sin-

gle output layers, and training word vectors proceeds

in a stochastic manner using back propagation. To im-

prove upon accuracy and training time, Mikolov et al.

(2013b) introduced both randomly discarding of fre-

quent words that exceed a prescribed count threshold,

A Hierarchical Book Representation of Word Embeddings for Effective Semantic Clustering and Search

155

and the concept of negative sampling that measures

how well a word pairs with its context drawn from a

noise distribution of a small sample of tokens. Empir-

ically, neural model performance shown mainly gov-

erned by tunable parameters, including the word vec-

tor dimension, d, the symmetric context-window size,

, and the number of negative samples, s

. Overall,

skip-gram works well with a small amount of training

data, while CBOW is several times faster to train.

The corpus we used for our study comprises a set

of tens of books and to train word embeddings we

ﬁrst ﬂattened the entire corpus into a linear array of

verses, or sentences. We then proceeded to construct

our basic data structures that culminate in an effective

hierarchical representation of a book object, which is

perceived nameless across subsequent clustering and

search analysis. Let w

(k)

∈ R

be the d-dimensional

word vector corresponding to the k-th word in a verse.

A verse S of length n is represented as a matrix

S = w

(1)

⊕ w

(2)

⊕ . . . ⊕ w

(n)

, (1)

where ⊕ is a row-wise binding operator and S ∈ R

n×d

S is thus regarded as a vector set and rows of S are

considered atomic. To index a word vector in a verse,

we use the notation s

. Similarly, a book chapter C

of m verses becomes a concatenation of verse matri-

ces, C = S

(1)

⊕ S

(2)

. . . ⊕ S

(m)

, where C ∈ R

×d

and

∑

j=1

( j)

|, and a book B comprises l chapter ma-

trices, B = C

(1)

⊕C

(2)

. . . ⊕C

(l)

, where B ∈ R

×d

and

∑

i=1

(i)

. Respectively, c

itemizes a verse ma-

trix in a chapter, and b

enumerates a chapter matrix

in a book. Equation 2 provides an alternate matrix

notation for each a verse, chapter, and book.

S =







(1)

(2)

(n)







C =







(1)

(2)

(m)







B =







(1)

(2)

(l)







. (2)

The length of a verse, |S

( j)

|, and the number of verses

per chapter, |C

(i)

|, are varying parameters that we

track and keep in a book map for traversing the book

hierarchy. For book similarity computations, we often

iterate a book matrix and access the entire collection

of word vectors. Conveniently, we use a three dimen-

sional indexing scheme, b

i jk

, where each of i, j, and

k points to a chapter matrix, verse matrix, and word

vector, respectively. Space complexity for book em-

beddings is linear, O (lmn), and for a vocabulary that

permits storing a 16-bit token enumeration instead,

memory area required is reduced by a half. We further

denote the corpus book set T = {B

(1)

, B

(2)

, . . . , B

(N)

where N, or cardinality |T |, is the number of books.

3 BOOK SIMILARITY

Measuring similarity and relatedness between dis-

tributed terms is an important problem in lexical se-

mantics (Agirre et al., 2009). Recently, the process of

learning word embeddings transpired compelling lin-

guistic regularities by simply probing the linear dif-

ference between pairs of word vectors. This evalua-

tion scheme exposes relations that are adequately dis-

tributed in a multi-clustering representation (Fu et al.,

2014). However, a single offset term is insufﬁcient to

assess similarity between a pair of books represented

by non-conforming matrices, each potentially retain-

ing many thousands of word vectors. For evaluating

semantic closeness of a pair of books, b

(u)

and b

(v)

we explored a similarity concept that expands on the

Chebychev matrix distance and is deﬁned by

d(u, v) =



(u)



∑

xyz



max

i jk



sim(b

(u)

xyz

, b

(v)

i jk

)





, (3)

where |b

(u)

| is the book cardinality that amounts to

the total number of distributed word vectors for rep-

resenting the book, and |b

(u)

| 6= |b

(v)

|. Whereas sim is

a similarity function that operates on two word vec-

tors and takes either a Euclidean or an angle form.

We chose cosine similarity (Baeza-Yates and Ribeiro-

Neto, 1999) that performs an inner product on a pair

of normalized vectors g and h,

g·h

kgk

khk

, and returns a

scalar value as a measure of proximity. The time com-

plexity of the distance algorithm is roughly quadratic,

as for each word vector in book b

(u)

, we ﬁnd the clos-

est word vector in book b

(v)

, and then calculate the

mean of all the closest distances derived formerly.

In our system, all possible pairs of the corpus

books, T , are evaluated for similarity in the context

of a |T |-dimensional squared distance-matrix, D. El-

ements of the distance matrix are considered direc-

tional and hence imply d(u, v) 6= d(v, u). Matrix D

facilitates unsupervised learning for clustering books

that apart from knowing their individual representa-

tions, they are perceived as a collection of unlabeled

objects. Following an identical vein, as the distance

metric provided by Equation 3 is generic and assumes

opaque matrix pairs, our framework extends the se-

mantic distance intuition to express a query-book type

of relations for conducting a search. A query, q, com-

prises an unsolicited keyphrase and as such abides by

our verse matrix formulation, S. The distance d(q, u),

where u ∈ {1, 2, . . . , |T |}, thus conveys a distinct rel-

evancy measure for ranking the search of a query in

each of the corpus books, T . Our system reports back

search results as a table of sorted distances paired with

the book enumeration (Cormen et al., 1990).

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

156

4 BIBLE CORPUS

We evaluated the performance of our model on raw

bible text we acquired online from the publicly avail-

able repository provided by Google (2008). Among

the editions offered, we chose the American Stan-

dard version of the Old Testament that is distributed

in constructive book folders, each with a list of chap-

ter ﬁles. The bible script comprises three major book

collections termed Torah, Neviim, and Ketuvim, also

known correspondingly as Pentateuch, Prophets, and

Writings. Compactly, we denote the compilation into

three timeline related components with the commonly

used acronym, TNK. Table 1 lists the book names as-

sociated with each of the TNK partitions.

Table 1: Book names for each of the TNK partitions.

Torah Neviim Ketuvim

Genesis Joshua Hosea Psalms

Exodus Judges Joel Proverbs

Leviticus 1 Samuel Amos Job

Numbers 2 Samuel Obadiah Song of Solomon

Deuteronomy 1 Kings Jonah Ruth

2 Kings Micah Lamentations

Isaiah Nahum Ecclesiastes

Jeremiah Habakkuk Esther

Ezekiel Zephaniah Daniel

Haggai Ezra

Zechariah Nehemiah

Malachi 1 Chronicles

2 Chronicles

The bible dataset contains 39 titles, as 5, 21, and

13 books subscribe to each of the TNK groups, re-

spectively. In total, the corpus incorporates 929 chap-

ters and 23,145 verses, with over one and a half mil-

lion tokens. Table 2 provides further TNK summa-

rizations of books-per-partition, chapters-per-book,

and verses-per-chapter, whereas the visualization of

both chapter and stacked verse distribution across all

the TNK books is outlined in Figure 2 and Figure 3,

respectively. To derive our word vectors, we trained

11,319 unique tokens that include stop words and

punctuation marks, with no preprocessing to attend

to any exclusion or exception. Notably, most tokens

are of a low frequency term with 3,536 tokens that oc-

cur only once in the dataset, and 8,254, or about 73%,

come up each under ten incidents. To construct a con-

text window, we randomly select an unlabeled book

enumeration in the [1, 39] range, and traverse our hi-

erarchy top-to-bottom by arbitrarily sampling chapter

and verse indices that are conﬁned to the limits set by

the singled out book. In the chosen verse, a random

target-word position is used to extract from left and

right context words that are delimited by the verse

start and end words. One of our system goals is to

discover semantic relations that closely align learned

book clusters with the handmade TNK partitions.

Table 2: Summarizations of TNK books-per-partition,

chapters-per-book, verses-per-book, and corpus tokens.

Books

Torah Neviim Ketuvim Total

5 21 13 39

Chapters

Min Max Mean Total

1 150 23.8 929

Verses

Min Max Mean Total

21 2,461 593.5 23,145

Tokens

Unique Total

11,319 1,507,790

5 EMPIRICAL EVALUATION

Previously, we discussed vector embedding tech-

niques, such as Word2Vec (Mikolov et al., 2013a)

and GloVe (Pennington et al., 2014), and their role

to transform natural language words into a semantic

vector space. In this section, we proceed to quantita-

tively evaluate the intrinsic quality of the produced set

of latent vector representations, and analyze their im-

pact on the performance of our unsupervised learning

tasks that comprise book clustering and search. As an

aid to tune our system level performance, we explored

varying some of the hyperparameters designed to con-

trol the neural models incorporated in the word em-

bedding methods. In practice, we have implemented

our own Word2Vec technique natively in R (R, 1997)

for better integration with our software framework.

Across all of our experiments we trained word vec-

tors employing mini-batch stochastic gradient descent

(SGD) with an annealed learning rate, and semantic

similarity results we report on both book-to-book and

verse-to-book relations presume anonymous books.

A Hierarchical Book Representation of Word Embeddings for Effective Semantic Clustering and Search

157

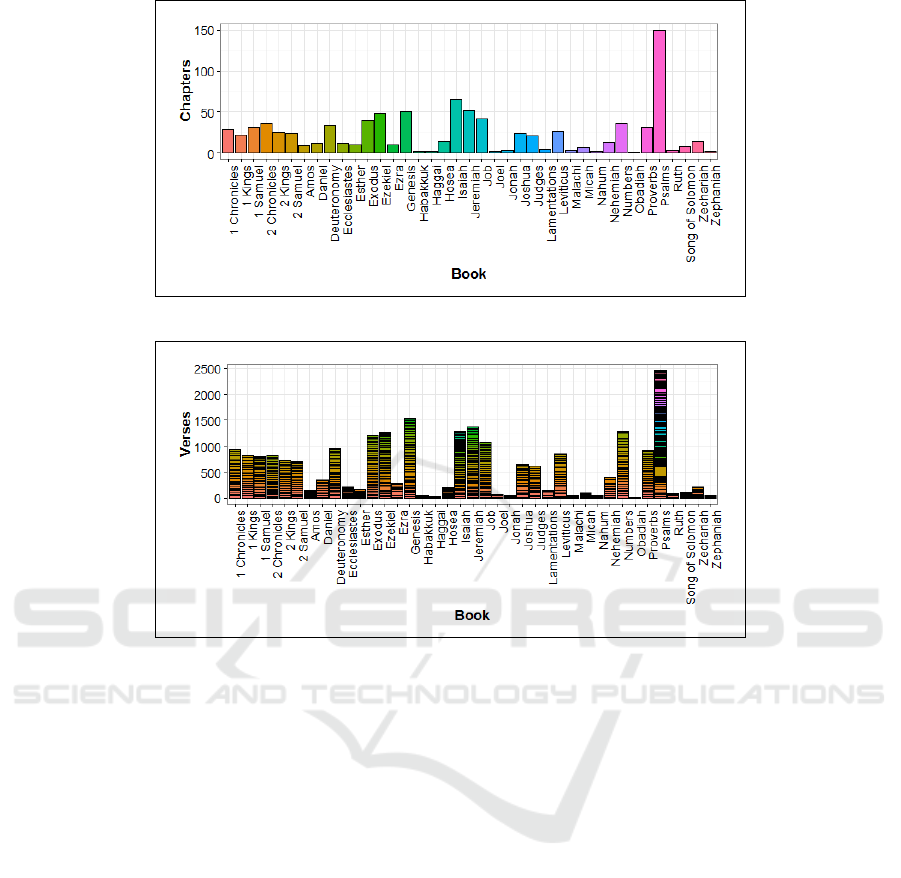

Figure 2: Chapter distribution across the entire TNK book suite.

Figure 3: Stacked verse distribution for chapters across the entire TNK book suite.

5.1 Experimental Setup

The raw bible text (Google, 2008) underwent a data

cleanup preprocess to properly space words from

punctuation marks and introduce a more deﬁnite sep-

aration symbol between a verse ID and the verse text.

We then tokenized the corpus using the R tokenizer

and built a maximal vocabulary of size |V | = 11, 319.

Each word in this sparse 1-of-|V | encoding is repre-

sented as a one-hot vector ∈ R

|V |×1

, with all 0s and a

single 1 bit at the word index in the vocabulary, that

is further mapped onto a lower-dimensional seman-

tic vector-space. Projecting onto the denser formula-

tion transpires preceding the hidden layer of the neu-

ral models that underlie the embedding technique.

In the absence of a large supervised training set of

word vectors, the use of pre-trained word vectors ob-

tained from an unsupervised neural model became a

favorable practice to boost system performance (Col-

lobert et al., 2011; Iyyer et al., 2014; Kim, 2014).

While proven useful for word analogy and multi-class

classiﬁcation tasks, clustering and search over a rather

unique dataset requires however randomly initialized

word-vectors. Hence our model generates distinct in-

put and output sets of word vectors, W and

W , that

only differ as a result of their random initialization.

To help reduce overﬁtting and noise, we used their

sum, W +

W , as our ﬁnal vectors and that typically

yields a small performance gain. To better assess the

space complexity of our book representation made of

the trained word embeddings, Figure 4 provides a vi-

sual interpretation of a ﬂattened book hierarchy, out-

lined as a single linear matrix with up to several tens-

of-thousands rows of word vectors, and shown dis-

tributed across the entire TNK book suite.

Recent study by Baroni et al. (2014) alluded

to neural word-embedding models that consistently

outperform the more traditional count-based distribu-

tional methods on many semantic matching tasks and

by a fair margin. Furthermore, much of the achieved

performance gains cited are mostly attributed to a sys-

tem design choice of the conﬁgured hyperparameters.

Motivated by these results, we evaluated task perfor-

mance comparing distinct book hierarchies generated

by each skip-gram and CBOW, and choose negative

sampling that typically works better than hierarchical

softmax (Mikolov et al., 2013b). For the learning hy-

perparameters, there seems no single selection for an

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

158

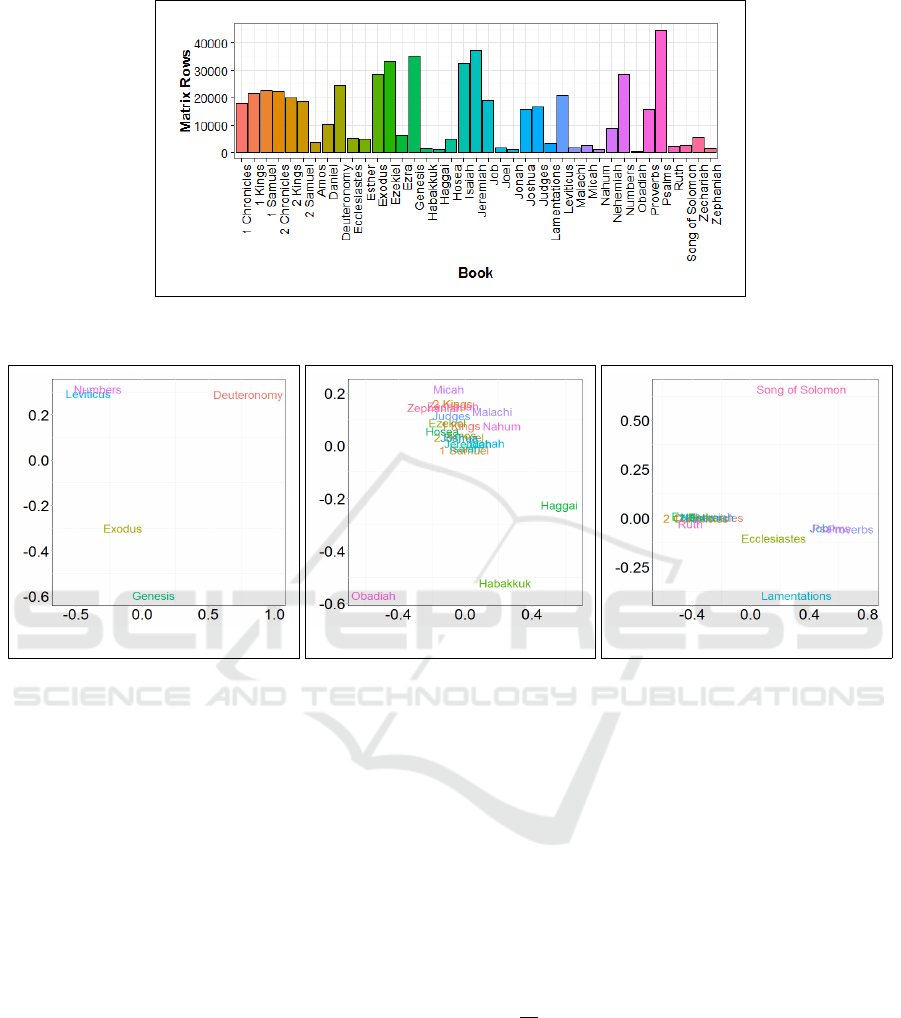

Figure 4: Flattened book hierarchy into a single linear matrix of word vectors w

(k)

∈ R

. Showing distribution of matrix row

count across the entire TNK book suite.

(a) Torah. (b) Neviim. (c) Ketuvim.

Figure 5: Visualization of book distance matrices using Multidimensional Scaling, representing the TNK subsets of Torah,

Neviim, and Ketuvim with 5, 21, and 13 books, respectively.

optimal word-vector dimension, d, as it tends to be

highly task dependent and varies from 25 for seman-

tic classiﬁcation (Socher et al., 2013) up to 300 for

word analogy (Mikolov et al., 2013a). Rather, we set

d = 10 and traded-off word vector dimension to attain

more tractable computation in building the distance

matrix that is inherently of a quadratic time complex-

ity, O (|T |

). Whereas, to better assess the impact

of the context window on our system performance,

we varied discretely its size c

= {5, 15, 25, 50}, in a

wide range of word counts. Evidently, Word2Vec per-

formance tends to decrease as the number of negative

samples increases beyond about 10 (Pennington et al.,

2014), thereby we used s

= 10. For our mini-batch

SGD to train word vectors, we used a batch size of

25 and an initial learning rate α = 0.1, as we ran 100

iterations and updated parameters after each window.

5.2 Experimental Results

We present book clustering results of our own trained

TNK corpus at both the component level and for the

entire suite of |T | = 39 books. To visualize TNK clus-

ters we used Multidimensional Scaling (MDS) (Torg-

erson, 1958; Hofmann and Buhmann, 1995) that ex-

tracts patterns of semantic proximities from our book

distance-matrix representation, D. The distance ma-

trix is composed of a set of pairwise book-similarity

values with O (|T |

) scaling that MDS further com-

piles and projects onto an embedding p-dimensional

Euclidean-space. This mapping is intended to faith-

fully preserve the clustering structure of the origi-

nal distance data-points, and often, data visualiza-

tion quality of clusters is directly proportional to the

ratio

|T |

. In our experiments, we consistently ren-

dered similarity measures of book pairs onto a two-

dimensional coordinate frame to inspect and analyze

formations of TNK book clustering.

In Figure 5, we provide baseline visualization of

MDS applied to our book distance matrices that repre-

sent each of the TNK components of Torah, Neviim,

and Ketuvim with dimensionality |T | = {5, 21, 13},

respectively. For this experiment, we used the CBOW

neural model to train word vectors, as hyperparame-

A Hierarchical Book Representation of Word Embeddings for Effective Semantic Clustering and Search

159

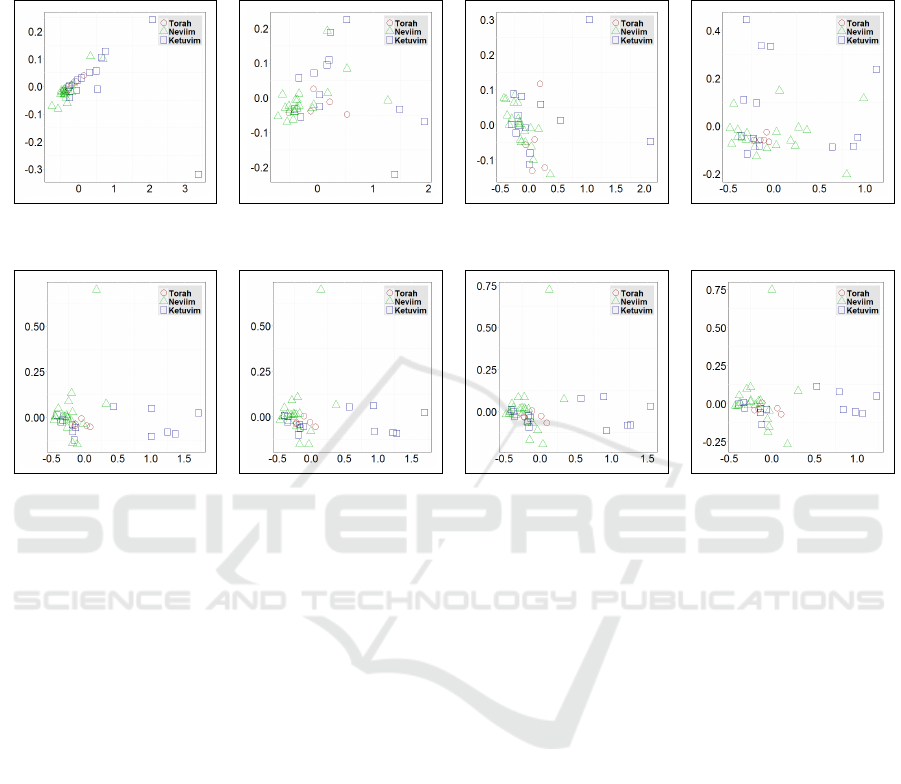

Table 3: Visualization of clustering the entire TNK book suite using Multidimensional Scaling, as each book is assigned its

formal TNK-subset legend post projecting onto the displayable embedding space. Shown as a function of a non-descending

context window-size, c

, for both the skip-gram and CBOW neural models.

Skip-gram

= 5 c

= 15 c

= 25 c

= 50

CBOW

= 5 c

= 15 c

= 25 c

= 50

ters were uniformly set to their defaults, using 5 words

for the context window size, c

. The Torah collection

shows Leviticus and Numbers semantically closely

related, as Genesis, Exodus, and Deuteronomy are

each of some distance apart. Given the Neviim largest

number of 21 book samples, clusters appear more

statistically sound, with 18 books grouped together

and only leaving the books of Habakkuk, Haggai, and

Obadiah somewhat disjoint. On the other hand, Ketu-

vim formed two major clusters with the book of Ec-

clesiastes close to both, whereas the books of Lamen-

tations and Song of Solomon are notably outliers.

A much broader interest of our work underscores

the cluster analysis of a single distance matrix with di-

mensionality |T | = 39 that represents the entire TNK

book suite. Through this evaluation, our main ob-

jective is to predict unsupervised book clustering and

assess its matching to the TNK formal subdivisions.

Table 3 shows the clustering produced by applying

MDS to the single matrix that captures all-book-pairs

semantic similarities, as each book is assigned its for-

mal TNK-subset legend post projecting onto the dis-

playable embedding space. In these experiments, we

compared unique word-vector sets generated by each

skip-gram and CBOW, as we stepped over the fairly

large extent of discrete values prescribed for the con-

text window size, c

. Expanding the context window

scope has a rather mild impact on cluster construc-

tion with word vectors trained by the CBOW neural

model, however for skip-gram, group formations are

considerably susceptible and affected by even a mod-

erate change of c

. Furthermore, the book partitions

we generated under CBOW training persistently re-

semble the ofﬁcial subdivision of TNK collections,

although for visualization in a 2D embedding space,

the Torah and Neviim sets do overlap each other.

In our book search experiments, we explored three

types of keyphrase queries including ﬁxed verses

drawn from a known book and chapter, reordered

words of random partial verses distributed uniformly

in each of the books of the TNK suite, and randomly

selected tokens from the TNK vocabulary composed

into a set of keywords that exclude stop words and

punctuation marks. Every search is preceded by con-

verting the query composition into a matrix of word

vectors and then pairing the query matrix with each of

the book hierarchies to compute similarity distances.

Thus resulting in a process of linear time complexity,

O(|T |). Unless otherwise noted, for the search exper-

iments we used CBOW-based trained word-vectors.

In Table 4, we list search queries of ﬁxed verses

and correspondingly enumerate their book origins.

Overall, for each of the ﬁve verses searched the pre-

dicted book title matched the expected label and was

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

160

Table 4: Search queries of ﬁxed verses from known books.

Book Search Query

Psalms Fret not thyself because of evil doers

Esther king delight to do honor more than to myself

Genesis his sons buried him in the cave of Machpelah

Jonah go unto Nineveh that great city

Proverbs lips of the wise disperse knowledge

ranked highest with a score of 1.0. Surprisingly, and

without any advanced knowledge, our search uncov-

ered that some of the ﬁxed keyphrases were sourced

by unlisted TNK books that equally claimed the top

rank. For example, the ﬁrst verse listed from the book

of Psalms, also shows up contiguously and in its en-

tirety to overlap a verse of the Proverbs book (chap-

ter 24, verse 19). Alternately, keyphrase words may

extend over chapters non-adjacently and would still

be ranked high for relevance in the context of a book

search. For instance, the book of Nahum scored high

on the keyphrase from the book of Jonah, while hav-

ing its keywords split to the subsets {Nineveh,great}

and {go,unto,that,city} that appear in chapters 1 and

3, respectively. Figure 7(a) provides visualization to

our ﬁxed-verse search results in the form of a confu-

sion matrix, with actual and predicted books listed at

the bottom and to the left of the grid, respectively.

In the second search experiment, we selected from

each of the TNK books ﬁve random samples of partial

verses, each with eight unordered context words. We

ran a total of 5 × 39 = 195 search episodes and con-

structed a search matrix by computing all directional

pairs of query-book distances, and then averaged the

score for multiple queries per book. In Figure 7(b),

we show our results for the random sub-verse search

and demonstrate consistent top ranking for when the

source book of the queries matches the predicted book

along the confusion matrix diagonal.

Our third task deployed cumulatively a total of

200 searches using a query keyphrase that is a com-

posite of randomly selected tokens from our entire vo-

cabulary, and thus implies a weak contextual relation

to any of the TNK books. Distributed non uniformly,

our token based keyphrases are evidently biased to-

wards afﬁliation with books of the largest content.

Figure 6 shows non-zero query allocations that result

in occupying only a subset of 20 out of 39 books. As a

preprocess step, we iterated over the extended search

matrix of dimensionality 39 × 200 and identiﬁed the

book that is closest to a given query. We followed by

averaging the distances in the case of multiple queries

per book, and ended up with a reduced search matrix

of dimensionality 39 × 20. Figure 7(c) shows the re-

sults of random token search as the straddling bright

line along the confusion matrix diagonal highlights

our best ranks. In this experiment, expected diverse

search-scores span a rather wide range of [0.15, 0.86].

Figure 6: Distribution of queries in random token search,

presented across 20 TNK books of the largest content.

Table 5: Running time for key computational tasks in per-

forming clustering and search. Figures shown in seconds.

Task Min Max Mean Total

Hierarchy Formation 0.01 1.25 0.29 11.52

Distance Matrix 1.03 107.68 28.01 1,092.62

Keyphrase Query 6.87 11.91 9.73 379.73

In table 5, we list computational runtime of our

implementation for key tasks in performing linguis-

tic clustering and search. All reported ﬁgures are

in seconds and were obtained by running our soft-

ware single-threaded on a Windows 10 mobile de-

vice, with Intel 4th generation Core

processor at

1.8GHz, and 8GB of memory. Book hierarchy con-

struction is linear with the number of verses per book,

and as expected the book of Psalms claimed the slow-

est to generate the data structure at 1.25 seconds.

The distance matrix item shows the time to com-

pute a set of similarities for one book paired with

each of the rest of the books in the TNK collection.

On average, book-to-book distance derivation amor-

tized across T = 39 books takes about 0.72 seconds.

Launching a keyphrase query task typically involves

a verse-to-book similarity operator that is linear in

the total number of verses for the entire book collec-

tion. Query response times are shown for each search

episode and they remain consistent regardless of the

keyphrase originating book, with a small standard de-

viation of two percent of the mean. The total column

of Table 5 further accumulates individual book pro-

cessing times and is roughly the mean column value

multiplied by the number of TNK books, T = 39.

6 CONCLUSIONS

In this study, we have demonstrated the apparent po-

tential in a hierarchical representation of word embed-

dings to conduct effective book level clustering and

A Hierarchical Book Representation of Word Embeddings for Effective Semantic Clustering and Search

161

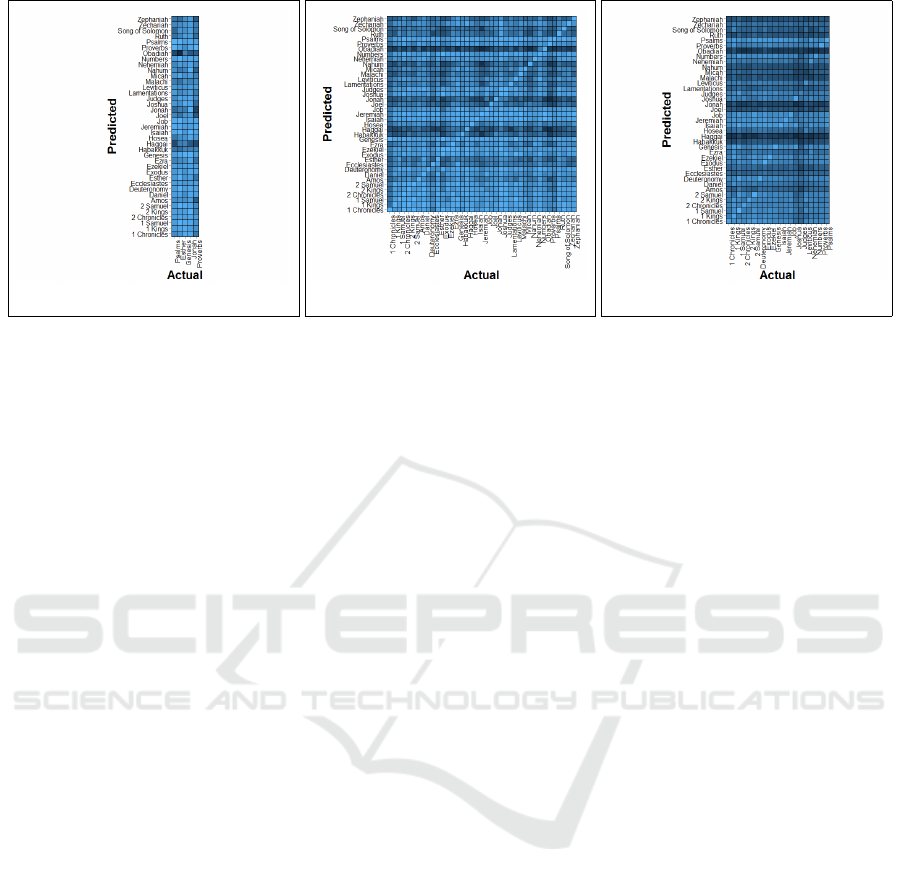

(a) Fixed full verse search. (b) Random sub-verse search. (c) Random token search.

Figure 7: Visualization of our search results in the form of confusion matrices for each of the experimental classes: ﬁxed full

verse search (a), random sub-verse search (b), and random token search (c).

search. We trained our system on a 39-book bible cor-

pus that comprises a vocabulary of 1.5 million tokens,

and generated our own word vectors for each of our

experimental choices of model-hyperparameter con-

ﬁgurations. We showed that the CBOW neural model

outperforms skip-gram for the linguistic tasks we per-

formed, and furthermore, clustering under CBOW

proved sustainable to modifying the context window

size in a fairly large extent. To evaluate any-pair se-

mantic similarity of both book-to-book and query-to-

book, we proposed a simple and generic distance met-

ric between a pair of word vector sets, each of up to

tens of thousands elements, that disambiguates non-

matching matrix dimensionality. We reported robust

empirical results on our tasks for deploying state-of-

the-art unsupervised learning of word representations.

At ﬁrst observation, our hierarchical representa-

tion of books might appear greedy storage wise, and

rather than a matrix interpretation, we could have re-

sorted to a more compact format by averaging all the

verse word vectors and produce a single verse vector.

While this approach seems plausible for the clustering

tasks to both reduce footprint and streamline compu-

tations, the data loss incurred by doing so adversely

impacted the performance of our search tasks. To ad-

dress this shortcoming, our experimental choice of a

modest 10-dimensional word vector appears as a rea-

sonable system-design trade-off that aids to circum-

vent excessive usage of memory space.

To the best of our knowledge and based on liter-

ature published to date, we are unaware of semantic

analysis systems with similar goals to evenhandedly

contrast our results against. The more recent work

by Yang et al. (2016), proposed a hierarchical at-

tention network for document classiﬁcation. Their

neural model explores attention mechanisms at both

a word and sentence levels in an attempt to differenti-

ate content importance when constructing a document

vector representation. However, for evaluation their

work focuses primarily on topic classiﬁcation of short

user-review snippets. Unlike our system that reasons

semantic relatedness between any full length books.

On the other hand, Jiang et al. (2015) skip the sen-

tence level construct altogether and combine a set of

word vectors to directly represent a complete Yelp re-

view. In their report, there is limited exposure to ﬁne-

grained control over the underlying neural models to

show performance impact on business clustering.

Given that the training of word vectors is a one

time process, a natural progression of our work is to

optimize the core computations of constructing the

distance matrix and performing a keyphrase query.

The inherent independence of deriving similarity ma-

trix elements and separating book search rankings,

lets us leverage parallel execution, and we expect to

reduce our runtime complexity markedly. For a larger

number of corpus books, we contend that projecting

the distance matrix onto a three-dimensional embed-

ding space is essential to improve cluster perception

for analysis. Lastly, we seek to apply our book dis-

tance matrix directly to methods that partition objects

around medoids (Kaufman and Rousseeuw, 1990) and

potentially avoid outliers.

ACKNOWLEDGEMENTS

We would like to thank the anonymous reviewers for

their insightful suggestions and feedback.

REFERENCES

Agirre, E., Alfonseca, E., Hall, K., Kravalova, J., Paca, M.,

and Soroa, A. (2009). A study on similarity and re-

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

162

latedness using distributional and WordNet-based ap-

proaches. In Human Language Technologies: North

American Chapter of the Association for Computa-

tional Linguistics (NAACL), pages 19–27, Strouds-

burg, PA.

Baeza-Yates, R. and Ribeiro-Neto, B., editors (1999). Mod-

ern Information Retrieval. ACM Press Series/Addison

Wesley, Essex, UK.

Baroni, M., Dinu, G., and Kruszewski, G. (2014). Don’t

count, predict! a systematic comparison of context-

counting vs. context-predicting semantic vectors. In

Annual Meeting of the Association for Computational

Linguistics (ACL), pages 238–247, Baltimore, MD.

Bengio, Y., Ducharme, R., Vincent, P., and Janvin, C.

(2003). A neural probabilistic language model. Ma-

chine Learning Research (JMLR), 3:1137–1155.

Collobert, R., Weston, J., Bottou, L., Karlen, M.,

Kavukcuoglu, K., and Kuksa, P. (2011). Natural lan-

guage processing (almost) from scratch. Machine

Learning Research (JMLR), 12:2493–2537.

Cormen, T. H., Leiserson, C. H., Rivest, R. L., and

Stein, C. (1990). Introduction to Algorithms. MIT

Press/McGraw-Hill Book Company, Cambridge, MA.

Duda, R. O., Hart, P. E., and Stork, D. G. (2001). Unsu-

pervised learning and clustering. In Pattern Classiﬁ-

cation, pages 517–601. Wiley, New York, NY.

Fu, R., Guo, J., Qin, B., Che, W., Wang, H., and Liu, T.

(2014). Learning semantic hierarchies via word em-

beddings. In Annual Meeting of the Association for

Computational Linguistics (ACL), pages 1199–1209,

Baltimore, MD.

Google (2008). Google Bible Text. https://sites.

google.com/site/ruwach/bibletext.

Guo, J., Che, W., and Wang, H., L. T. (2014). Revisiting

embedding features for simple semi-supervised learn-

ing. In Empirical Methods in Natural Language Pro-

cessing (EMNLP), pages 110–120, Doha, Qatar.

Hofmann, T. and Buhmann, J. (1995). Multidimensional

scaling and data clustering. In Advances in Neural

Information Processing Systems, pages 459–466. MIT

Press, Cambridge, MA.

Iyyer, M., Boyd-Graber, J., Claudino, L., Socher, R., and

Daume, H. (2014). A neural network for factoid ques-

tion answering over paragraphs. In Empirical Meth-

ods in Natural Language Processing (EMNLP), pages

633–644, Doha, Qatar.

Jiang, R., Liu, Y., and Xu, K. (2015). A general

framework for text semantic analysis and clustering

on Yelp reviews. http://cs229.stanford.edu/proj2015/

003 report.pdf.

Kaufman, L. and Rousseeuw, P. J., editors (1990). Finding

Groups in Data: An Introduction to Cluster Analysis.

Wiley, New York, NY.

Kim, Y. (2014). Convolutional neural networks for sentence

classiﬁcation. In Empirical Methods in Natural Lan-

guage Processing (EMNLP), pages 1746–1751, Doha,

Qatar.

Le, Q. V. and Mikolov, T. (2014). Distributed rep-

resentations of sentences and documents. ArXiv

e-prints, 1405.4053. http://adsabs.harvard.edu/abs/

2014arXiv1405.4053L.

Manning, C. D., Raghavan, P., and Schutze, H. (2008). In-

troduction to Information Retrieval. Cambridge Uni-

versity Press, Cambridge, United Kingdom.

Mikolov, T., Chen, K., Corrado, G., and Dean, J.

(2013a). Efﬁcient estimation of word representa-

tions in vector space. ArXiv e-prints, 1301.3781.

http://adsabs.harvard.edu/abs/2013arXiv1301.3781M.

Mikolov, T., Sutskever, I., Chen, K., Corrado, G. S., and

Dean, J. (2013b). Distributed representations of words

and phrases and their compositionality. In Advances in

Neural Information Processing Systems, pages 3111–

3119. Curran Associates, Inc., Red Hook, NY.

Pennington, J., Socher, R., and Manning, C. D. (2014).

GloVe: Global vectors for word representation. In

Empirical Methods in Natural Language Processing

(EMNLP), pages 1532–1543, Doha, Qatar.

R (1997). R project for statistical computing. http://www.r-

project.org/.

Salton, G., Wong, A., and Yang, C. S. (1975). A vector

space model for automatic indexing. Communications

of the ACM, 18(11):613–620.

Socher, R., Perelygin, A., Wu, J. Y., Chuang, J., Manning,

C. D., Ng, A. Y., and Potts, C. (2013). Recursive deep

models for semantic compositionality over a senti-

ment treebank. In Empirical Methods in Natural Lan-

guage Processing (EMNLP), pages 1631–1642, Seat-

tle, WA.

Torgerson, W. S. (1958). Theory and Methods of Scaling.

John Wiley and Sons, New York, NY.

Turney, P. D. and Pantel, T. (2010). From frequency to

meaning: Vector space models of semantics. Artiﬁ-

cial Intelligence Research (JAIR), 37:141–188.

Yang, Z., Yang, D., Dyer, C., He, X., Smola, A., and

Hovy, E. (2016). Hierarchical attention networks for

document classiﬁcation. In Human Language Tech-

nologies: North American Chapter of the Association

for Computational Linguistics, pages 1480–1489, San

Diego, California.

A Hierarchical Book Representation of Word Embeddings for Effective Semantic Clustering and Search

163
