Chinese Geographical Knowledge Entity Relation Extraction via

Deep Neural Networks

Shengwu Xiong, Jingjing Mao, Pengfei Duan* and Shaohao Miao

Computer Science and Technology, Wuhan University of Technology, 122 Ruoshi Road, Wuhan, Hubei, China

*corresponding author

Keywords: DNNs, Relation Extraction, Chinese Geographical Knowledge.

Abstract: Aiming at the problem of complex relation pattern and low relation extraction precision in the unstructured

free text, in this paper, a novel extraction model for Chinese geographical knowledge relation extraction

using a real end-to-end deep neural networks (DNNs) is proposed. The proposed method is a fusion DNNs

consisting of one convolutional neural networks and two neural networks, which contains word feature,

sentence feature and class feature. For the experiments, we construct geographic entity relation type system

and corpus. We achieve a good performance with the averaged overall precision of 96.54%, averaged recall

of 92.99%, and averaged F value of 94.56%. Experimental results confirm the superiority of the proposed

Chinese geographical knowledge relation extraction method. The data of this paper can be obtained from

http://nlp.webmeteor.cn.

1 INTRODUCTION

Relation extraction is an important but complex task,

which is normally used as an essential step in a wide

range of natural language processing applications

such as construction of question-answering and

knowledge corpus. However, Chinese relation

extraction often relies on a set of complex natural

language processing tasks, including Chinese word

segmentation, named entity recognition, part of

speech (POS) tagging, etc. Hence Chinese relation

extraction is a more challenging problem.

The complete and high quality knowledge corpus

determines the level of human like intelligence.

However, there is a lack of geographic knowledge

under construction and open geographic corpus, as

well as few studies on Chinese geographical

knowledge entity relation extraction.

To solve the problem concerning Chinese

relation extraction, a number of deep learning

approaches including multilayer neural networks,

recurrent neural networks, long-short term memory,

etc., have been recently applied. Machine learning

has been successfully applied in many different

natural language processing tasks such as part of

speech tagging (Santos et al.,2014), sentiment

analysis (Kim,2014; Santos et al.,2014), sentence

classification (Kalchbrenner et al.,2014), semantic

role labelling (Collobert et al.,2014), semantic

matching (Hu et al.,2015), etc. These methods based

on deep neural networks are in need of some

complex features, such as named entity, dependency

trees, and etc. However, the error in extracting

complex features may accumulate, and features

designed artificially are not certainly suitable for

Chinese geographical knowledge entity relation

extraction, and new tasks needs to design new

features artificially.

To address the aforementioned problem, this

paper proposes an extraction technique for Chinese

geographical knowledge relation extraction, using a

real end-to-end Deep Neural Networks coupled with

word features, sentence features and class features

after constructing geographic entity relation type

system and corpus. Firstly, we use a real-valued

vector to represent a character. Then we use a neural

network to extract the local features, utilize a

convolutional neural network to extract global

features, adopt a neural network to extract the class

features at the same time. Finally, we assemble the

three features head-to-tail in sequence, as the input

of fully connected layer, to predict the label of

character.

The main contributions of this paper are as

follows: (1) We construct geographic entity relation

type system and corpus artificially, and we make our

data public for others. (2) The relation extraction

doesn’t need complicated NLP pre-processing. (3)

We establish a real end-to-end deep neural network

coupled with word features, sentence features and

class features.

Xiong S., Mao J., Duan P. and Miao S.

Chinese Geographical Knowledge Entity Relation Extraction via Deep Neural Networks.

DOI: 10.5220/0006109700240033

In Proceedings of the 9th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2017), pages 24-33

ISBN: 978-989-758-220-2

The remainder of this paper is organized as

follows. Section 2 reviews related work and Section

3 gives a detailed account of the proposed deep

neural network and the features which have been

used in this paper. Section 4 details the geographical

corpus we constructed. The experimental results are

introduced in Section 5. We finally conclude our

work in Section 6.

2 RELATED WORK

Recently, deep learning has become an attractive

area for multiple applications. It has made major

breakthroughs in the field of computer vision and

speech recognition, and natural language

understanding is another area in which deep learning

is poised to make a large impact over the next few

years (LeCun et al.,2015). Among the different deep

learning strategies, convolutional neural networks

have been successfully applied to different NLP task

such as POS tagging, sentiment analysis, semantic

role labelling, etc.

Some people have applied deep learning on

relation extraction. Socher et al. (2012) tackle

relation classification using a recursive neural

network that assigns a matrix-vector representation

to every node in a parse tree. The representation for

longer phrases is computed bottom-up by

recursively combining the word according to the

syntactic structure of the parse tree. Mikolov et al.

(2013) found that the vector-space word

representations are surprisingly good at capturing

syntactic and semantic regularities in language, and

that each relationship is characterized by a relation-

specific vector offset. For example, the male/female

relationship is automatically learned, and with the

induced vector representations, “King – Man +

Woman” results in a vector very close to “Queen”. It

is an effective theoretical support for instance

relation and parallel relation extraction. Zeng et al.

(2014) proposed an approach to predict the

relationship between two marked nouns where

lexical and sentence level features are learned

through a CNN. The experimental results

demonstrate that the position features are critical for

relation classification, while the extracted lexical

and sentence level features are effective for relation

classification. Zhang et al. (2015) considered that a

key issue that has not been well addressed by the

CNN-based method, which is the lack of capability

to learn temporal features, especially long-distance

dependency between nominal pairs, so they

proposed a simple framework based on recurrent

neural networks and compared it with CNN-based

model. Experiments on two different datasets

strongly indicate that the RNN-based model can

deliver better performance on relation classification,

and it is particularly capable of learning long-

distance relation patterns. Xu et al. (2015) thought

the method of Zeng et al. has been proved

effectively, but it often suffers from irrelevant

subsequences or clauses, especially when subjects

and objects are in a longer distance. Moreover, such

information will hurt the extraction performance

when it is incorporated into the model. Therefore,

they proposed to learn a more robust relation

representation from a convolution neural network

model that works on the simple dependency path

between subjects and objects, which naturally

characterizes the relationship between two nominal

and avoids negative effects from other irrelevant

chunks or clauses. Simulation results indicates that

the performance has been improved to 85.4%.

3 THE PROPOSED DEEP

NEURAL NETWORK

The proposed deep neural network architecture is

shown in Figure 1. The deep neural network is

divided into three layers. In the first layer, each

character (or class key words) is mapped into

character embedding (or class embedding) space.

Extract features in the second layer which

include:(1) Select character embedding by sliding

window, then extract the character features by the

neural network;(2) Character embedding of a

sentence is taken as the input of the convolutional

layer, and sentence features is extracted after

pooling;(3) Class keywords embedding are

concatenated, then input them into the neural

network to extract the class features. In the last

layer, we assemble the three features head-to-tail in

sequence as the input of fully connected layer, to

predict the label of character.

3.1 Character Embedding

Traditionally, a word is represented by a one-hot-

spot vector. The vector size equals the vocabulary

size. The element at the word index is “1” while the

other elements are “0”s, which leads to the curse of

dimensionality and sparseness. Now, a word is

represented by a real-valued vector in

which

could learn through language model.

Character embedding is a finer-grained

representation of word embedding. Now, character

embedding is primarily applied to Chinese

segmentation via deep neural networks. The Chinese

Chinese Geographical Knowledge Entity Relation Extraction via Deep Neural Networks

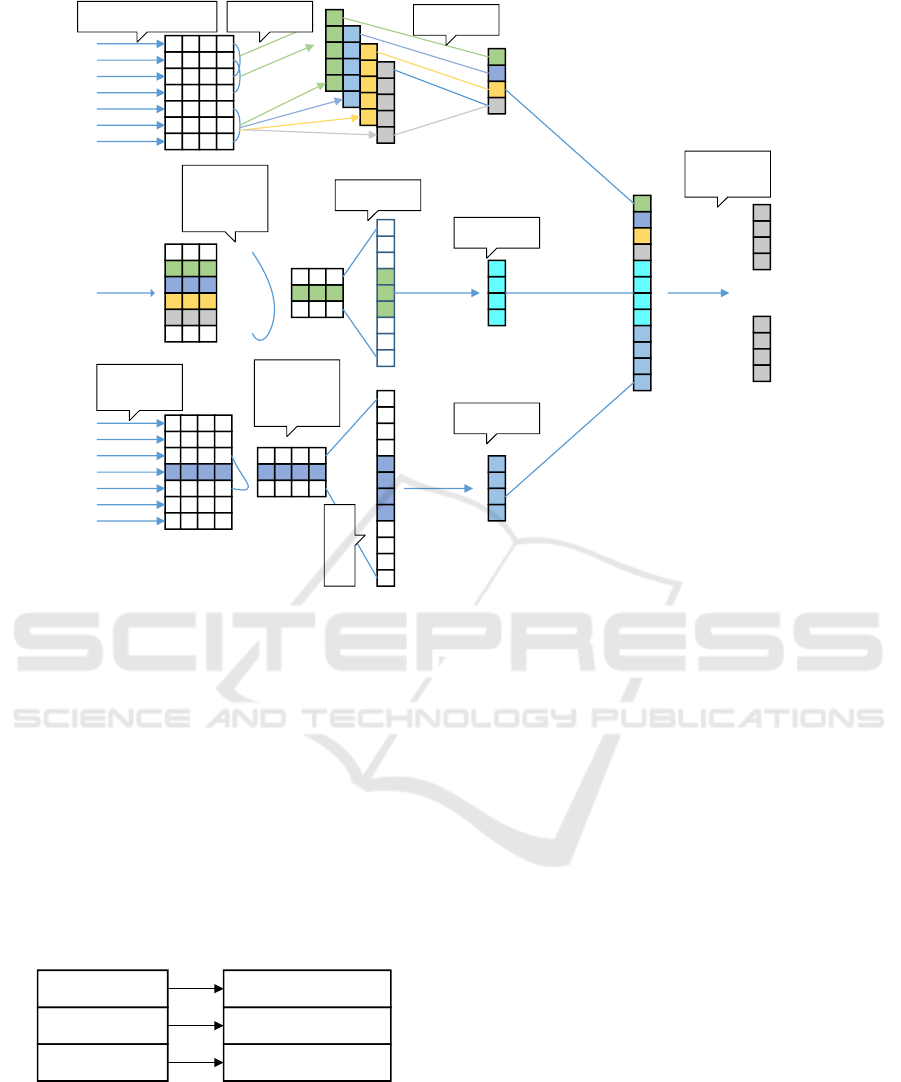

Figure 1: Architecture of the deep neural network.

segmentation, is one of the key problems in entity

relation classification via deep neural networks. In

these paper, we select character embedding, this is

because: (1) The accuracy of ICTCLAS (Institute of

Computing Technology, Chinese Lexical Analysis

System) is 98%, but the error propagation could be

accumulated through layers, and the accuracy of

Chinese segmentation in a specific area is lower than

common areas. We can avoid these errors by

character embedding which can be seen in Figure 2;

(2) Though coarse-grained word embedding would

lose important information easily in some specific

sentences, finer-grained character embedding could

improve the accuracy of entity relation extraction.

Figure 2: segmentation of word and character.

A character is represented by a real-valued

vector in

, where M is a hyper-parameter. A

dictionary has size of D. Formally, we assume a

given Chinese sentence

[1: ]n

that is a sequence of n

characters

1 in

. Then map the

[1: ]n

to a

real-valued matrix

[1: ]n

that is a sequence of n

character embedding

The feature vector of each character, starting

from a random initialization, can be automatically

trained. But the number of iterations increases, and

the convergence rate is poor. We should input

character embedding which contain more semantic

information after training on untagged data into

neural networks, which could improve the

convergence speed and accuracy.

3.2 Character Feature

We tag a character or a word mainly relied on its

adjacent character or word, so in this paper, we

extract character feature through sliding window.

We concatenate the vectors of words within a

window, K is the windows size, and then we input

these into the neural network to extract the features

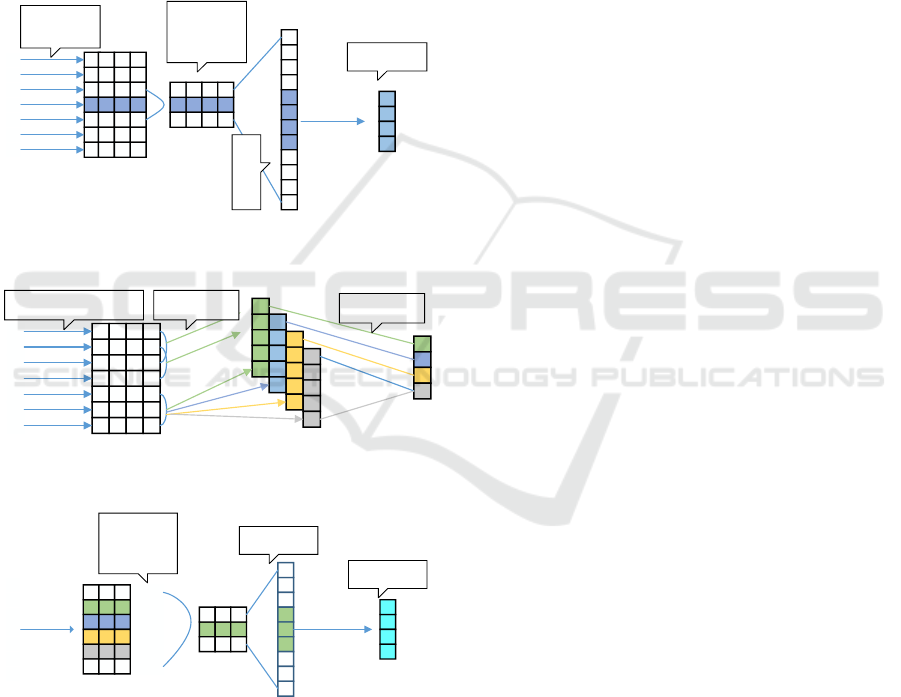

of the character. For example, in Figure 3, K=3, we

extract the feature of “ 于 ” through the character

representations of “属”,”于”,”中”.

3.3 Sentence Feature

In some complex tasks, such as semantic role

labelling and entity relation extraction, a window

候

属

于

中

温

带

气

候

属

于

中

温

带

气

气候

海拔

工业

名胜

...

候

属

于

中

温

带

气

...

X_I

X_E

X_S

X_B

Y_I

Y_E

Y_S

Y_B

...

Character embedding Convolution

Max pooling

Class key

word

embedding

Character

embedding

Character

embedding

in window

Hidden unit

Head to tail

Character

laber

ICTCLAS

character segment

correct segment

阿/什/河流/贯/全境

阿/什/河/流/贯/全/境

阿什河/流贯/全境

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

carrying local information is not enough, we need

global information. So we combine local features of

each character in a sentence into a global feature by

convolution, while we enhance primary character

features of a sentence by pooling. For example, in

Figure 4, each character is represented by a real-

valued vector in

. In the convolution layer, we

use a convolution kernel K to extract character

features around each window of the given sequence,

then we perform a max pooling over them to

produce a global feature vector in order to capture

the most useful local features produced by the

convolutional layer. We can also solve the problem

that the sentence length is different.

候

属

于

中

温

带

气

character

embedding

character

embedding

in window

head to tail

hidden unit

Figure 3: Character feature extraction based on neural

network.

候

属

于

中

温

带

气

character embedding convolution

max pooling

Figure 4: Sentence feature extraction via convolutional

neural network.

候

属

于

中

温

带

气

气候

海拔

工业

名胜

...

class key

word

embedding

hidden unit

head to tail

Figure 5: Class feature extraction based on neural

network.

3.4 Class Feature

If we can directly extract class keywords or

characters/words which can represent class

keywords (some class keywords are similar to the

third level attribute in Appendix 1), the feature of

these characters or words could represent what this

sentence want to say. And it is more directly and

useful. In this paper, we call these keywords and

features as class keywords and class feature. As the

class keywords are independent of each other, we

can extract class feature through common neural

network shown in Figure 5, which uses less time

than convolutional neural network.

4 DATA

As ACE relation type system and corpus aren’t

suitable for geography area, we need to construct

geographic entity relation type system and corpus

artificially.

4.1 Relation Type

There are seven Chinese relation types in ACE-07,

and the relation indicates 19 subset relationships, but

geographic area is not included. We define our

geographic relation type based on hierarchical model

of ACE entity relation type system. Entity attribute

has been divided into spatial and non-spatial

attribute, while spatial attribute is divided into

spatial measure, direction and shape, as well as non-

spatial attribute is divided into climate, social

attribute and thematic attribute. Each type is further

divided into subtypes, such as length, width, altitude,

annual average temperature, population, specialty,

etc., as shown in appendix 1, and we focus on the

third level relation type.

4.2 Entity Relation Corpus

In this paper, we get data from Chinese geography

of Encyclopaedia of China and geographic terms of

Baidu Baike. The text of Chinese geography of

Encyclopaedia of China has following

characteristics:(1) The content of each part text is

mainly the description of the entity at the beginning

of the text, such as ShidaoGang and ShiheziShi in

Figure 6. (2) The description of the text is mainly

geographical knowledge, but it also has a small

amount of history, therefore we label the entity at

the text beginning as the object, and other labelled as

the attribute. We don’t need complex pre-processing

such as Chinese word segmentation, named entity

recognition, etc. What we need to do is just the

ejectment of geographical irrelevant sentence and

the processing of punctuation of Chinese and

English. We develop seven labelling rules to

annotate geographic entity relation corpus in GATE

platform. The seven labelling rules are:

1. In this paper, we label the relation type of

Chinese Geographical Knowledge Entity Relation Extraction via Deep Neural Networks

Table 1: Annotation pattern.

model

beginning character

middle character

ending character

single character

other

BIESS

X-B

X-I

X-E

X-S

Table 2: Annotation pattern sample.

面

积

1710

平

方

公

里

MJ-B

MJ-I

MJ-E

character using the following label model (Table 1),

where X is the attribute name. Assuming the

property name of area called MJ, “面积1710平方公

里” could be labelled as in Table 2;

2. The multiple attribute value of same attribute all

need to be labelled;

3. Don’t need to label the said range of character or

word;

4. “~” need to be labelled;

5. Only label the place name for the highway and

railway;

6. Generalize the type;

7. Character in brackets are labelled as S.

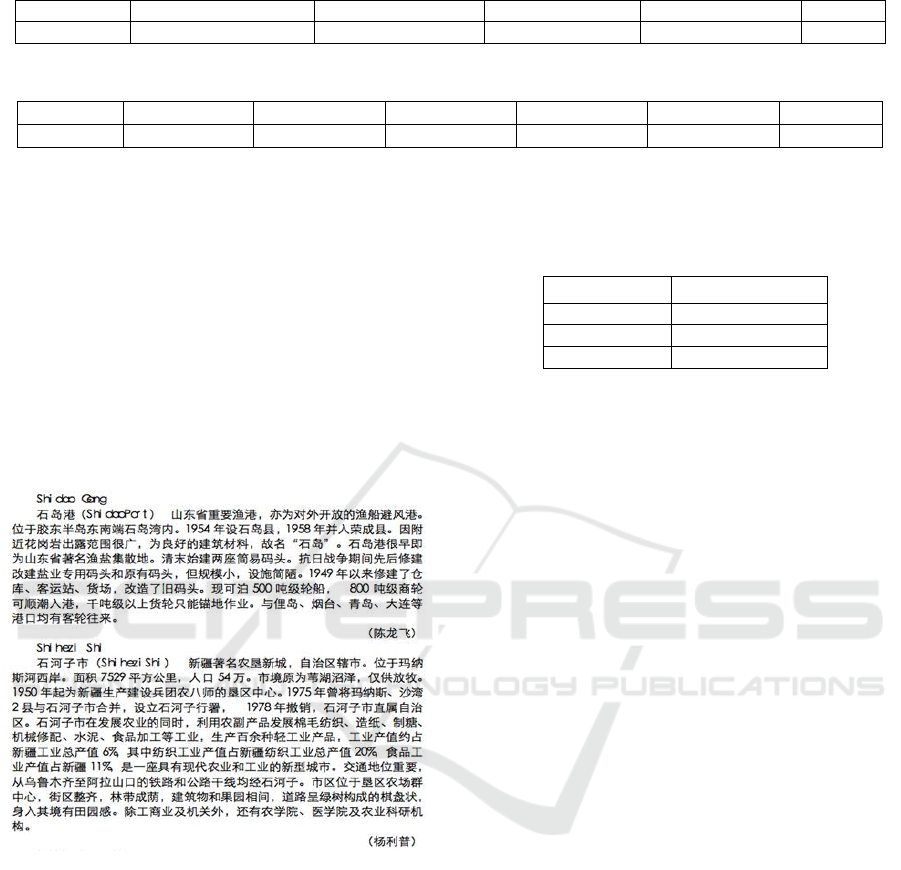

Figure 6: The entity description in Chinese geography of

Encyclopedia of China.

5 EXPERIMENTAL

EVALUATION

5.1 Data Sets

In the experiment, we choose 80% of the corpus as

the training set and the others as the test set as

shown in the Table 3. And we conduct experiments

use Keras-0.3.0 which is a deep learning framework

with CPU+GPU (12+2880CORES).

Table 3: Experiment data.

Data set

Size(characters)

Corpus

37,431

Training set

29,945

Test set

7,486

5.2 The Choice of Hyper-parameters

We need to select the dimension of the character

embedding and the class keyword embedding.

Furthermore, the deep learning framework requires

the specification of multiple hyper-parameters. This

includes the size k of the character window, the size

h of the hidden layers, the learning rate λ, and the

dropout rate. In this paper, we adjust these hyper-

parameters and consult the value range of Yanjun Qi

et al. (2014), Xiaoqing Zheng (2013) and Xinchi

Chen (2015) in Table 4.

F-scores on the same data set versus window

size, character embedding size, class keyword

embedding size, number of hidden units, dropout

rate, learning rate, are shown in Figure 7. It can be

seen that the F-scores drop when the window size is

larger than nine which shows that the size of

windows is too large so the information will be

redundant. However, if the window size is too small,

then the information will be deficient. Generally, the

number of the hidden units has a limited impact on

the performance if it is large enough. Because of the

limit size of corpus that we used, we can see that the

performance is no longer increasing when the hidden

number is larger than 600. Dropout is an effective

tool in prevent over-fitting, it is helpful to improve

performance when the dropout rate is 0.2.

We also adjust the learning rate consulting the

value range of Collobert et al (2011), in our

experiment. Results indicate that F-score is highest

when learning rate is 0.015. The hyper-parameters

we selected are shown in Table 4.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

Table 4: Hyper-parameters.

Hyper-parameters

Value range

Selected value

Sliding window

3,5,7,9,11,13,15

Character embedding size

50,80,100,120,150,200

100

Class keyword embedding size

100,200,300,400,500,600

300

Number of hidden units

300,500,600,700,900

600

Dropout rate

0,0.2,0.5

0.2

Learning rate

0.005,0.01,0.015,0.02

0.015

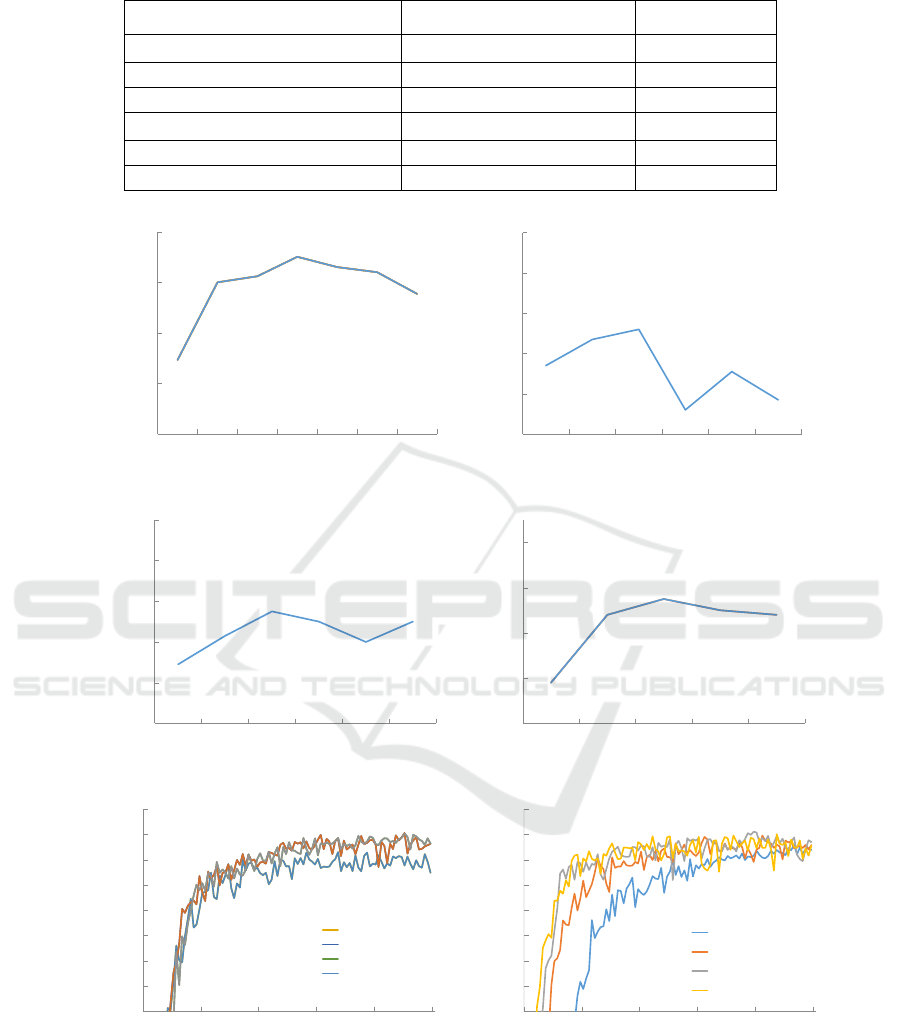

Figure 7: Average F-scores versus different hyper-parameters.

3 5 7 9 11 13 15

Avg F

-Score

window size

93.5

93.7

93.9

94.1

94.3

94.5

50 80 100 120 150 200

Avg

F-Score

character embedding size

93.5

93.7

93.9

94.1

94.3

94.5

100 200 300 400 500 600

Avg

F-Score

class keyword embedding size

93.5

93.7

93.9

94.1

94.3

300 500 600 700 900

Avg

F-Score

number of hidden units

0 20 40 60 80 100

Avg

F-Score

epoch

Dropout Rate = 0%

Dropout Rate = 20%

Dropout Rate = 50%

Dropout Rate = 0%

0 20 40 60 80 100

Avg

F-Score

epoch

Learning Rate = 0.005

Learning Rate = 0.01

Learning Rate = 0.015

Learning Rate = 0.02

Chinese Geographical Knowledge Entity Relation Extraction via Deep Neural Networks

Table 5: Experiment results based on the random initialization character vector.

configuration

Avg

Time(s)

94.35

93.47

83.96

88.13

590

CC+SC

94.84

94.48

85.31

89.4

40648

CC+TC

96.12

96.33

90.57

93.19

874

CC+SC+TC

96.39

96.48

91.51

93.74

40582

Table 6: Experiment results based on word2vec character embedding.

configuration

Avg

Time(s)

W2V+CC

94.86

89.78

93.35

85.85

89.15

459

W2V+CC+SC

95.71

92.64

95.06

88.95

91.65

42539

W2V+CC+TC

96.35

94.94

96.96

92.32

94.36

707

W2V+CC+SC+TC

96.69

95.41

96.54

92.99

94.56

40550

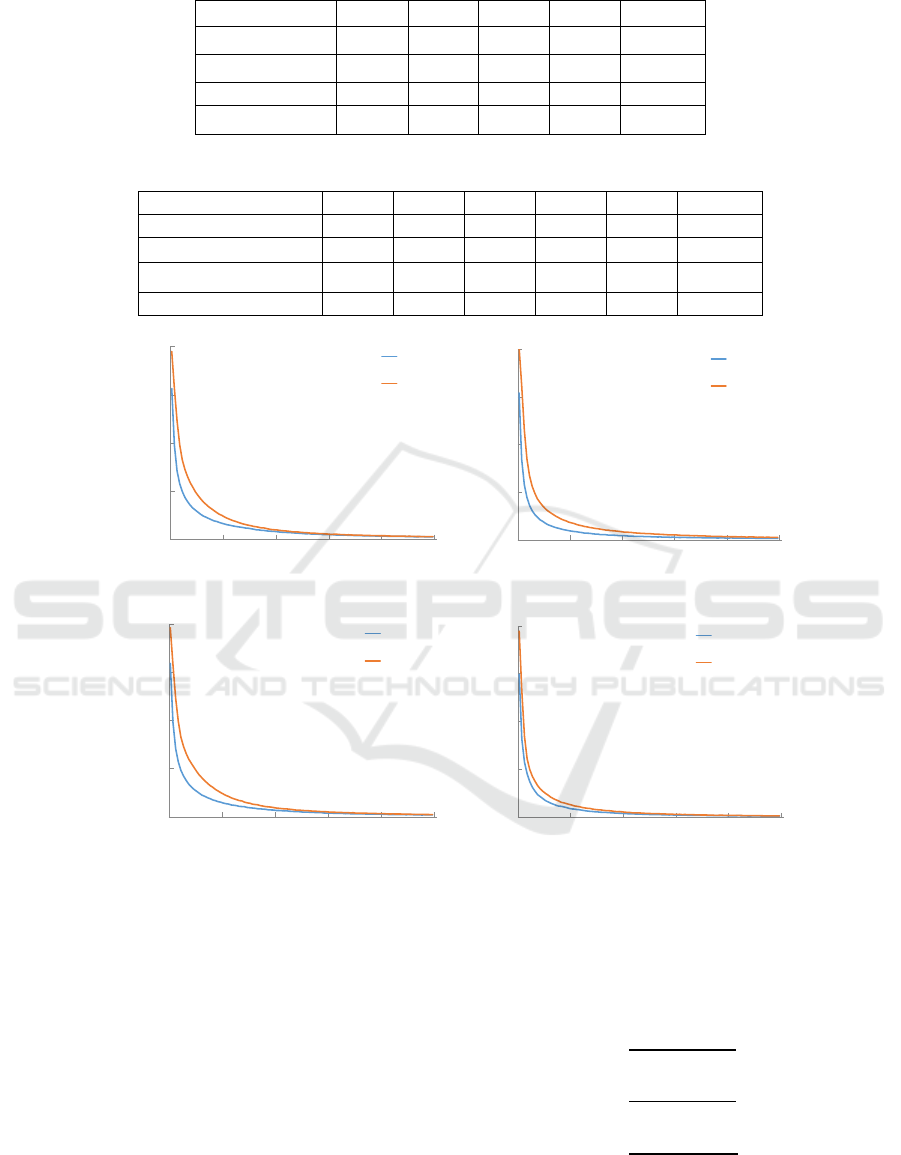

Figure 8: The influence of word2vec character embedding on the convergence speed.

5.3 Results and Discussion

We systematically test the incremental combinations

of multiple characters. For convenience, we rename

Word2Vec character embedding as W2V, character

feature as CC, sentence feature as SC, class feature

as TC.

At first, we conduct contrast experiments on

different combination of the features based on the

random initialization character vector. In the

supervised methods setting, relation extraction is

expressed as a classification task (tagging

characters). Hence, metrics like Precision (P), Recall

(R) and F-Measure (F) are used for performance

evaluation. Moreover, we also choose the weighted

average of all kind of metrics :



,



,









 





 



















(1)







 





 



















(2)







 





 



















(3)

0.5

1.5

0 20 40 60 80 100

training

loss

epoch

W2V+CC

0.5

1.5

0 20 40 60 80 100

training

loss

epoch

W2V+CC+TC

CC+TC

0.5

1.5

0 20 40 60 80 100

training

loss

epoch

W2V+CC+SC

CC+SC

0.5

1.5

0 20 40 60 80 100

training

loss

epoch

W2V+CC+SC+TC

CC+SC+TC

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

Where,



is the number of

class. And we add

accuracy of character tagging (



) and accuracy of

relation character tagging (





(4)

rct



(5)

Where,

is the number of correctly tagging

character,

is the number of tagging character in

the test data set,

is the number of correctly

tagging relation character,

rct

is the number of

relation character in the test data set.

As shown in Table 5, it is clear that the

performance has improved by adding sentence

features or class features, which makes up the error

of recognition because of the lack of window

information in long or complex sentences. It is

obvious that the performance of combination of

CC+TC has enhanced greatly. We need to design

class keywords manually, but training time is

reduced dramatically. As shown in Table 5, the time

of CC+TC (874s) is 1/48 of CC+SC (40648s) has

reduced about 4%. What if we could not find class

keywords in sentences? In that case, we need

sentence features, as in Table 5, we can see that F

Avg

of CC+SC+TC is higher than CC+TC.

When we compare CC, CC+SC and CC+TC, we

can find that CC+SC only brings an improvement of

1.3%, lower than CC+TC. There are three reasons.

Firstly, the information that sliding window (size is

9) contained is abundant for the label of characters.

Secondly, the class features are extracted from class

keywords which represent the global features of

sentence. Sentence features are extracted from

characters which only represent local features of

sentence, therefore, under certain conditions, class

features are more effective than sentence features.

Thirdly, as information redundancy of sentences, we

extract sentence features via convolutional neural

networks rely on big data.

Xiaoqing (2013), Wenzhe (2014) and other

scholars found that the pre-training character

embedding could improve the accuracy of

segmentation in experiment of Chinese word

segmentation. We train the character embedding by

Word2Vec of Mikolov (2013). In this experiment,

we find that the F

Avg

of the four combinations has

improved as shown in Table 6. It is clear that F

Avg

W2V+CC+SC+TC is highest. Another advantage of

character embedding trained by Word2Vct is fast

convergent. As shown in Figure 8, we can see effect

of W2V on convergence speed. Since the

experimental purpose and data are not the same, we

do not compare our method with other published

methods.

6 CONCLUSION AND FUTURE

WORK

In this work, we firstly construct geographic entity

relation type system and corpus, and then we make

our data public freely on the web for others.

Secondly, we tackle the Chinese geographical

knowledge entity relation extraction task using a

deep neural network. We perform the experiments

using the geographic dataset we constructed. Our

experimental results show that we achieve a good

performance with the averaged overall precision of

96.54%, averaged recall of 92.99%, and averaged F

value of 94.56%, which are relatively high.

In future, we will explore the following research

directions: (1) This paper only considers the triples

relations, which are not effective for some complex

entity relations, such as “AkesuShi is called

HuiCheng in 1757 and it is called HanCheng in

1883.”; (2) The training data is narrower, we need

more extensive corpus; (3) The hierarchy of

conception in this paper is relatively simple, we need

to complex hierarchy concept.

ACKNOWLEDGEMENTS

This work was supported in part by the National

High-tech R&D Program of China (863 Program)

under Grant No.2015AA015403, Science &

Technology Pillar Program of Hubei Province under

Grant No.2014BAA146, Nature Science Foundation

of Hubei Province under Grant No.2015CFA059,

Science and Technology Open Cooperation Program

of Henan Province under Grant No.152106000048,

the Fundamental Research Funds for the Central

Universities under Grant No.2016-zy-047, CERNET

Innovation Project under Grant No. NGII20150309.

REFERENCES

Santos, C., & Zadrozny, B. 2014. Learning Character-

level Representations for Part-of-Speech Tagging.

ICML 1818-1826.

Kim, Y. 2014. Convolutional neural networks for sentence

classification. arXiv preprint arXiv, 1408(5882).

Santos, C., & Gatti, M. 2014. Deep Convolutional Neural

Networks for Sentiment Analysis of Short Texts.

COLING, 69-78.

Chinese Geographical Knowledge Entity Relation Extraction via Deep Neural Networks

Kalchbrenner, N., et al., 2014. A convolutional neural

network for modelling sentences. arXiv preprint

arXiv,1404(2188).

Collobert, R., et al., 2011. Natural language processing

(almost) from scratch. Journal of Machine Learning

Research, 2493-2537.

Hu, B., et al., 2014. Convolutional neural network

architectures for matching natural language sentences.

Advances in Neural Information Processing Systems,

2042-2050.

LeCun, Y., et al., 2015. Deep learning. Nature,521(7553),

436-444.

Socher, R., et al., 2012. Semantic compositionality

through recursive matrix-vector spaces. Proceedings

of the 2012 Joint Conference on Empirical Methods in

Natural Language Processing and Computational

Natural Language Learning, 1201-1211.

Mikolov, T., et al., 2013. Linguistic Regularities in

Continuous Space Word Representations. HLT-

NAACL ,746-751.

Zeng, D., et al., 2014. Relation Classification via

Convolutional Deep Neural Network. COLING, 2335-

2344.

Zhang, D., & Wang, D. 2015. Relation Classification via

Recurrent Neural Network. arXiv preprint arXiv,

1508(01006).

Xu, K., et al., 2015. Semantic relation classification via

convolutional neural networks with simple negative

sampling. arXiv preprint arXiv, 1506(07650).

Qi, Y., Das, et al., 2014. Deep learning for character-based

information extraction. European Conference on

Information Retrieval, 668-674.

Zheng, X., et al., 2013. Deep Learning for Chinese Word

Segmentation and POS Tagging. EMNLP, 647-657.

Chen, X., et al., 2015. Long short-term memory neural

networks for chinese word segmentation. Proceedings

of the Conference on Empirical Methods in Natural

Language Processing,1385-1394.

Pei, W., et al., 2014. Max-Margin Tensor Neural Network

for Chinese Word Segmentation. ACL, 293-303.

Mikolov, T., et al., 2013. Efficient estimation of word

representations in vector space. arXiv preprint

arXiv,1301(3781)

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

APPENDIX

Geographical entity relation type system.

first level attribute

second level attribute

third level attribute

spatial attribute

spatial measure

length

width

altitude

area

east longitude

west longitude

south latitude

north latitude

location

direction

orientation

shape

terrain landform(geological structure)

terrain

non-spatial

attribute

climate

annual mean temperature

monthly mean temperature

mean temperature in Jan

mean temperature in July

the lowest temperature

the highest temperature

annual precipitation

average annual sunshine

rainy days

frost free days

climate

social attribute

population

provincial capital

county(county resident)

city(city resident)

country

province

city

nickname

thematic attribute

mineral

agriculture and husbandry

industry

specialty

river

highway

railway

places of interest（tour）

Chinese Geographical Knowledge Entity Relation Extraction via Deep Neural Networks
