C-TRAIL: A Program Comprehension Approach for

Leveraging Learning Models in Automated Code Trail Generation

Roy Oberhauser

Department of Computer Science, Aalen University, Aalen, Germany

Keywords: Program Code Comprehension, Learning Models, Recommender Systems, Obfuscation.

Abstract: With society's increasing utilization of (embedded) software, the amount of program source code is

proliferating while the skilled human resources to maintain and evolve this code remain limited. Therefore,

software tools are needed that can support and enhance program code comprehension. This paper focuses on

program concept location and cognitive learning models, and contributes an automatic code trail generator

approach called a Code Trail Recommender Agent Incorporating Learning models (C-TRAIL). Initial

empirical results applying the prototype on obfuscated code show promise for improve program

comprehension efficiency and effectiveness.

1 INTRODUCTION

The software industry continues to struggle to meet

society's seemingly insatiable demand for software

production and maintenance. Indicators for the

immensity of the problem include code size, the lack

and turnover of human resources, and costs. It has

been estimated that well over a trillion lines of code

(LOC) exist with 33bn added annually (Booch,

2005). E.g., Google has 2bn LOC accessible by 25K

developers (Metz, 2015). Active open source

projects double in size and number in ~14 months

(Deshpande & Riehle, 2008). Conversely, the pool

of programmers is not growing correspondingly.

E.g., Computer Science degrees in 2011 in USA

were equivalent to 1986 in number (~42K) and

percentage of 23 year olds (~1%) (Schmidt, 2015).

The situation is exacerbated by the typically high

employee turnover rates for software companies,

e.g., 1.1 years at Google (PayScale, 2016). As to

costs, Y2K exacted >$300bn globally (Mitchell,

2009)., while >50% of information systems in the

EU needed modification for Euro support (Jones,

2006).

Given limited resources and such a vast amount

of code, ~75% of technical software workers are

estimated to be doing maintenance (Jones, 2006).

Moreover, program comprehension may consume up

to 70% of the software engineering effort (Minelli,

2015). Activities involving program comprehension

include investigating functionality, internal

structures, dependencies, run-time interactions,

execution patterns, and program utilization; adding

or modifying functionality; assessing the design

quality; and domain understanding of the system

(Pacione et al., 2004).

One key challenge faced by programmers when

presented with an unfamiliar preexisting program

codebase is how to become sufficiently familiar with

relevant areas in a short time. Questions include:

Where should one start? What should one look at

next? What is relevant to know and what is optional?

To improve this program comprehension

situation, the solution approach Code Trail

Recommender Agent Incorporating Learning models

(C-TRAIL) contributes a code trail recommender

approach builds on our prior work (Oberhauser,

2016) by amalgamating diverse cognitive learning

model styles with granular computing, collaborative

filtering, and the traveling salesman paradigm.

Given only the program code, C-TRAIL provides a

web service offering automated code trail guidance

to help the user avoid missing relevant areas, avoid

dead ends, avoid reorientation waste, and avoid

irrelevant areas. Analogous to geographic route

planning via navigation software, it readjusts on-the-

fly to trail deviations and replans the route.

The paper is organized as follows: Section 2

discusses related work. Section 3 describes the

solution concept followed by its realization. Section

5 evaluates the solution, followed by a conclusion.

Oberhauser, R.

C-TRAIL: A Program Comprehension Approach for Leveraging Learning Models in Automated Code Trail Generation.

DOI: 10.5220/0005974901770185

In Proceedings of the 11th International Joint Conference on Software Technologies (ICSOFT 2016) - Volume 1: ICSOFT-EA, pages 177-185

ISBN: 978-989-758-194-6

177

2 RELATED WORK

(Robillard et al, 2014) provides an overview of

recommendation systems in software engineering.

Mylar (Kersten & Murphy, 2005) utilizes a degree-

of-interest model to filter out irrelevant files from

the File Explorer and other views in the Eclipse

integrated development environment (IDE).

NavTracks (Singer et al., 2005) recommends files

related to the currently selected files based on

previous navigation patterns. For maintenance tasks

in unfamiliar projects, Hipikat (Čubranić et al.,

2005) recommends software artifacts relevant to a

context based on the source code, email discussions,

bug reports, change history, and documentation. The

FEAT tool uses concern graphs either explicitly

created by a programmer or automatically inferred

based on navigation pathways utilizing a stochastic

model, whereby a programmer confirms or rejects

them for the concern graph (Robillard & Murphy,

2003). The Eclipse plugin Suade supports drag-and-

drop of related fields and methods into a view to

specify a context, and Suade utilizes a dependency

graph and heuristics to recommend suggestions for

further investigation (Robillard, 2008). Codetrail

(Goldman & Miller, 2009) connects source code and

hyperlinked web resources via Eclipse and Firefox.

(Yin et al., 2010) propose applying coarse-grained

call graph slicing, intra-procedural coarse-grained

slicing, and a cognitive easiness metric to guide

programmers from the easiest to the hardest non-

understood methods. (Cornelissen et al., 2009)

survey work on program comprehension via

dynamic analysis.

In contrast, C-TRAIL automatically generates a

code-centric time-limited trail of relevant areas via a

web service, ordered based on the selected learning

model while not requiring a project history or

visualization paradigm. Visualization also has the

potential issue of information overload versus

relevance, and auto-generated diagrams face ideal

element placement issues. Human-generated

diagrams may not remain consistent, and may reflect

abstractions but still leave a user unfamiliar with the

code. Furthermore, the user internal cognitive model

may not adhere to a presented visual model, while

visual-text paradigm switching may distract or be

cognitively burdensome. Support for not navigating

class relationships includes the empirical eye-

tracking study finding that "software engineers do

not seem to follow binary class relationships, such as

inheritance and composition" (Guéhéneuc, 2006).

3 SOLUTION APPROACH

Concepts are the fundamental building blocks of

knowledge and human learning, and are processable

by the human mind, exhibit some perceived

regularity, and can be designated by a label (Rajlich

& Wilde, 2002). Hence, we designate concept

location as the understanding about where a concept

is implemented in code relative to other concepts,

which is the primary focus of this paper within the

larger sphere of program comprehension. While the

exact identification of concepts and their locations in

a program remains an open problem, our solution

takes a pragmatic approach utilizing the existing

modularization within the program, especially

method to class and class to package relationships.

We assume a program comprehension activity is

time constrained, and that it is unrealistic to

understand a sufficiently large codebase in its

entirety (Rajlich & Wilde, 2002), nor is it necessary

or always possible (Lakhotia, 1993). Thus, an

inherent trade-off is assumed between sufficient

coverage (ensuring that at least the most essential

program areas were presented) and relevance

(minimizing irrelevant or optional program areas).

Given the diversity of individuals,

comprehension activities and intentions (Pacione et

al., 2004), programming languages, tooling, and

environments, we chose to support comprehension

via an automated approach that: 1) recommends a

code-centric navigation, 2) supports a spectrum of

learning models, 3) utilizes individual profiles and

collaborative filtering, and 4) can be readily

integrated in various tools and environments.

3.1 Cognitive Learning Models

In the constructivist theory of human learning,

humans actively construct their knowledge (Novak,

1998). We thus view program comprehension as

individualistic for aspects such as capacity, speed,

motivation, and how mental models are constructed.

Additionally, programmers possess different

application-independent general and application-

specific domain knowledge. Information processing

habits of an individual are known as cognitive

learning styles. C-TRAIL provides individual and

automated support for various learning model (M:)

styles, primarily ordering or adjusting concept

location (code area) visitation scope.

M:Bottom-Up: in this learning model, chunking

(Letovsky, 1986) is used with the program model

being correlated with a situation model (Pennington,

1987). Microstructures are mentally chunked into

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

178

larger macrostructures as comprehension increases.

C-TRAIL assumes a package hierarchy.

M:Top-Down: this model (Soloway et al., 1988)

is typically applicable when familiarity with the

code, system, domain, or similar system structures

already exists. Beacons and rules of discourse are

used to hierarchically decompose goals and plans.

To automate support, C-TRAIL assumes a cluster

hierarchy and starts trails from the highest hierarchy.

M:Topics/Goal: when programmers are given a

specific task, they tend to utilize an as-needed

strategy to comprehend only those portions relevant

for the task (Koenemann & Robertson, 1991). To

support this simply, C-TRAIL supports investigating

a limited code subset via topic filtering. Topic filters

(positive and negative) can be shared and support a

goal (e.g., optimize memory) or apply to a specific

topic (e.g., security, database access, user interface).

M:DynamicPath: in this model, ordering is

oriented on actual invocation execution traces

(Cornelissen et al., 2009).

M:Exploratory: this model supports either

discovery or analysis to confirm a hypothesis, with

the learner actively deciding and controlling the

navigation. It is supported by default, since a user

can deviate at any time.

3.2 Solution Principles

C-TRAIL includes these solution principles (P:):

P:POI: code locations, currently at the

granularity of functions or methods, are considered

concept locations identified and viewed as Points-

of-Interest (POI), a knowledge concept in a

knowledge landscape (the codebase) or a granule

(here a cluster of code lines) in granular computing

paradigm (Bargiela & Pedrycz, 2012), analogous to

geographical locations in navigational systems. A

POI is identified by a unique identifier, such as a

fully qualified name (FQN) in the Java programming

language (concatenating its package name, class

name, colon, and its method name).

P:POILocality: conceptually, POIs can be

viewed from the perspective of knowledge distance

(Qian et al., 2007) or closeness (locality). To reduce

the cognitive burden of code context switches, POI

visitations are ordered and clustered by locality to

reduce unnecessary switches. The T:POI Distance

technique (Section 3.4) is currently used.

P:POIRanking: a POI's relative importance for

comprehension is ranked in accord with a learning

model. Statically, the T:MethodRank technique

(Section 3.4) or a dynamic analysis can be applied.

P:POIFiltering: topic or named goal selection

supports a positive/negative POI filtering, currently

via FQN pattern matching.

P:POIVisitTime: given no initial data, visitation

times can be estimated using static code metrics like

LOC and complexity. When the historical visitation

times of similar users are available, T:UserBased-

CollaborativeFiltering (Section 3.4) can be used.

P:Timeboxing: comprehension is usually time-

bound, so a subset of priority ordered POIs that can

likely be visited in the given timebox is selected, and

may be reordered to accommodate POI locality.

P:CodeTrails: the recommendation service agent

provides code trails (in a format such as XML)

consisting of a navigation and visitation order for the

POIs while considering locality. A mapping of the

traveling salesman problem and related traveling

salesman planning (TSP) algorithms (Lawler et al.,

1985) are applied to these granules (the POIs) and

the associated knowledge distance between them.

While the recommended path may not necessarily be

optimal, it provides an efficient path nonetheless

through the knowledge landscape (source code).

Two modes are supported: initial mode generates a

trail from scratch, while adapt mode dynamically

reoptimizes it based on the actually visited POIs and

session time left. Visited POIs (including deviations)

are detected via events and automatically removed

from the adapted trail. Via events, the POI visitation

history is tracked and can be replayed later.

P:UserProfile: a user's individual knowledge

level (e.g., familiar vs. unfamiliar) and competency

level (junior vs. senior) are taken into consideration.

3.3 Solution Architecture

The conceptual architecture (Figure 1) consists of

four modules: Cognitive Learning, Knowledge

Processing, a Database Repository, and Integration.

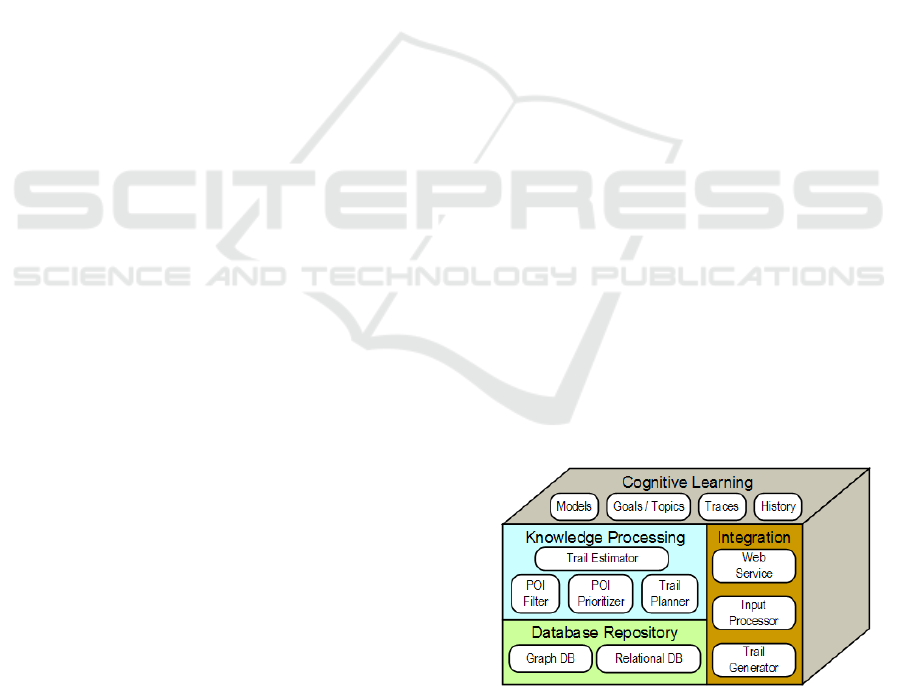

Figure 1: C-TRAIL conceptual architecture.

The Cognitive Learning module supports various

program code learning Models, Goals, Topics,

execution Traces, and visitation History. The

C-TRAIL: A Program Comprehension Approach for Leveraging Learning Models in Automated Code Trail Generation

179

Knowledge Processing module includes the

components POI Prioritizer for ranking POIs, a POI

Filter that filters based on visitations or topics, a

Trail Estimator for visitation times, and a Trail

Planner. The Database Repository utilizes

appropriate database types to retain metadata,

knowledge, or data. The Integration module

includes a REST Web Service API (application

programming interface) for development tool

integration, an Input Processor to process inputs,

transformations, and events (such as a POI visit)

including analysis and tracing inputs, and a Trail

Generator for generating a planned trail into a

desired format.

3.4 Solution Techniques

The solution incorporates these techniques (T:):

T:MethodRank: absent other indicators, it is

assumed that frequently utilized domain methods

should be comprehended before others. Thus to

prioritize POIs, a variation of the PageRank

algorithm (Page et al., 1999) we call MethodRank is

applied. Here, webpages correspond to methods

(code locations) and hyperlinks to invocations.

Methods with more static references (invocations) in

the code set are ranked higher. While runtime

invocations (such as loops) are not considered, it can

indicate methods with broader relative utilization

and thus likely of greater comprehension relevance.

T:POIDistance: granules (functions/methods) are

assumed to be grouped in classes/files and

packages/directories are ordered hierarchically.

(Sub)package depth is mapped to a vertical axis,

while classes group methods horizontally. Loosely

analogous to geographical distance, a distance

POIdist between any two POIs (3) A and B is

determined by the vertical vdist (1) and horizontal

hdist (2) distance.

vdist = | depth(A) − depth(B) | (1)

 = 

0 if class





= class(B)

1 otherwise

(2)

POIdist = vdist + hdist (3)

For example, the POIdist between methods in the

same class is thus 0, between classes in the same

package 1, etc. Although a higher cluster may

represent a greater abstraction (e.g., only interfaces)

and not necessarily be cognitively distant, any

clusters between them should still be cognitively

"closer". For instance, while the Java programming

language has no concept of subpackages (each

package is a separate entity), we assume a

convention with additional dots implying further

depth, and initial matching names implying a

common cluster up to the first mismatch.

T:HamiltonianCycle: For P:CodeTrails it is

assumed that proper modularity and hierarchy are

followed, implying a greater POIdist is equivalent to

a larger mental jump. To reduce the cognitive

burden, the shortest trail is sought that provides a

POI visitation order such that each POI is visited

exactly once (except the start is also the end, i.e. a

Hamiltonian cycle). This calculation problem is a

special case of the well-known TSP, so a constraint-

satisfaction solver can be utilized to calculate this.

T:UserBasedCollaborativeFiltering: predicting

POI visitation duration is difficult. Thus, analogous

to allotting sufficient visitation time for geographical

tourist destinations, user-based collaborative

filtering is used to detect profile similarities and then

recommend visitation times based on similar users.

3.5 Data Processing

Figure 2 shows the various data processing stages.

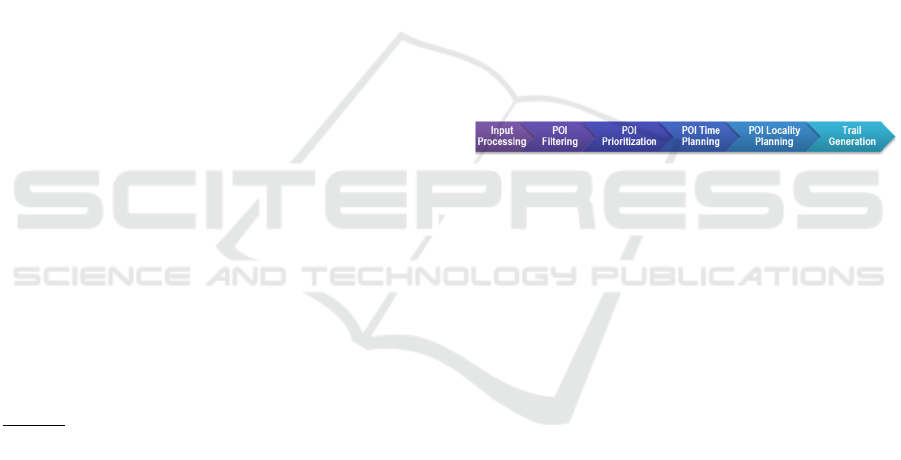

Figure 2: C-TRAIL data processing stages.

1) Input Processing: source code is imported

and analyzed, resulting in a list of all POIs as FQNs.

Each POI's cluster depth is determined by counting

FQN subpackage depth, used to apply the

T:POIDistance calculation. For M:DynamicPath,

dynamic runtime traces are also required as input.

2) POI Filtering: Any topic filters are applied,

and POIs visited by this user (either in the expected

order or out-of-order) are removed from the set.

3) POI Prioritization: An ordered list of POIs is

created. T:MethodRank is utilized when appropriate.

4) POI Time Planning: actual per-user POI

visitation times are tracked via events and stored.

T:UserBasedCollaborativeFiltering is used to

estimate visitation times. For a cold start, it can be

estimated based on factors such as the user's profile,

a configured default time per LOC, cyclomatic

complexity. Starting at the top, the POI prioritized

list is trimmed at the point where the cumulative

time exceeds the timeboxed session.

5) POI Locality Planning: POIs are reordered

using a T:HamiltonianCycle planner accounting for

locality (nearby POIs visited before distant POIs).

6) Trail Generation: the trail in the

recommended POI visitation order is then generated.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

180

4 REALIZATION

The C-TRAIL approach is independent of any

realization or specific programming language. To

determine its viability, a Java prototype was created

that generates XML code trails for Java codebases,

with a Neo4J graph and a H2 relational database.

4.1 Input Processing

T:MethodRank requires a static analysis of methods

(as FQNs) and their target invocation relationships

and counts. For Java code, jQAssistant 1.0.0 and the

GraphAware Neo4j NodeRank plugin (with a

damping factor of 0.85) were used. A Cypher query

selects all method FQNs and their invoked method

FQNs and the result exported to a CSV file, which is

imported to the C-TRAIL Neo4J server. A separate

simplified graph is created of FQN(Method)-

>INVOKES->FQN(TargetMethod) relationships.

Then, NodeRanks for every node (i.e., Method) are

calculated based on the number of invocations, with

the NodeRank stored in each node's property (see

Figure 3). Via the Neo4J REST API, the result is

retrieved in JSON (see Figure 4), parsed, converted

to FQNs, and stored in an H2 MethodRank table.

For simplification, the prototype only considers class

methods and ignores method overloading.

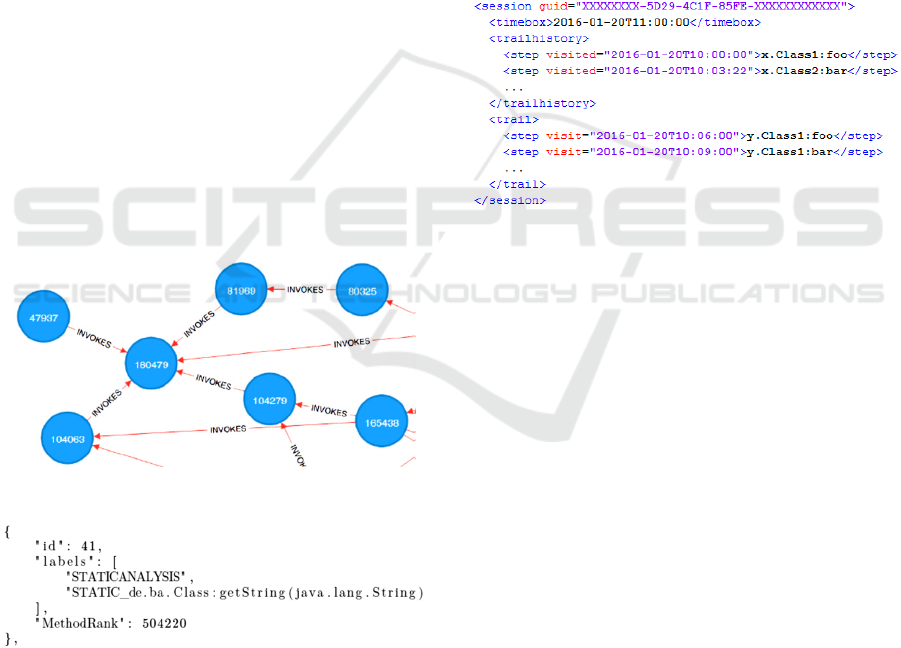

Figure 3: Partial Neo4J graph for T:MethodRank.

Figure 4: Example JSON NodeRank request result.

For M:DynamicPath, we wrote a parser for

Intrace-Agent trace output (timestamp, ThreadID,

method FQN, and entering/leaving file line),

following the ThreadID via a hashtable containing

stacks of method FQN strings (multi-threading was

excluded). Each graph (calling method-INVOKES-

>called method) is stored in Neo4J. H2 tables store

per method FQN:

TraceSessionsBreadth (b): number of traces

using this method (maximum of one per trace).

Thus, methods used in multiple scenarios (involved

in more trace sessions) have a higher value.

TraceHits (h): frequency a method was invoked.

TraceOrderPerSession: a sequential numbering.

4.2 C-TRAIL Service

The C-TRAIL service is accessed via REST

(Representational State Transfer) implemented with

Restlet. It runs locally or in the cloud and be readily

integrated in IDEs or other tooling. To support tool

integration, XML was chosen as the trail format (see

Figure 5). All learning models were supported.

Figure 5: Trail output snippet (simplified for space).

For P:UserProfile, UUIDs (universally unique

identifiers) differentiate users. Based on their

profile, in the absence of similar user historical

visitation times, configurable multiplication factors

(default = .5) are used to adjust visitation times for

senior or familiar users (a senior familiar user being

four times faster). All user sessions are tracked with

GUIDs (globally unique identifiers) and time-boxed

(a configurable setting, default is midnight) for

P:Timeboxing.

P:POIRanking weights various parameters

according to the selected learning model. Also,

WeightingMode provides maximum flexibility (via

total

) using configurable parameter weighting inputs

) (4). E.g., this supports deviations from strict

trace session order to weight frequently (f) or

broadly (b) executed or visited (hits) methods more.

tota

= w

⋅

hits + w

⋅

b + w

⋅

h + ...

(4)

The prioritized POI list is trimmed to where the

accumulated expected visitation times exceed the

remaining session time. Actual POI visitation time is

tracked via navigation events received from clients

and stored in H2 with FQN, UUID, and visitation

C-TRAIL: A Program Comprehension Approach for Leveraging Learning Models in Automated Code Trail Generation

181

time (in seconds). Visited POIs (expected or not) are

filtered and removed from the replanned trail.

T:UserBasedCollaborativeFiltering for POI

Time Planning was realized by integrating Apache

Mahout (Schelter & Owen, 2012), mapping the

typical triple (user, item, value) to (user, method,

time). CustomFileModelMahout was used to convert

UUIDs to a compatible Apache Mahout format.

P:POIFiltering was realized via a user-defined

function in H2 that filters using regular expressions.

Applying T:HamiltonianCycle on this set, the C-

TRAIL Trail Planner integrates OptaPlanner and

utilizes its constraint solver for TSP using

T:POIDistance, specifically optimizing the trail with

regard to P:POILocality and P:CodeTrails. For

responsiveness, solving was limited to 5 seconds to

permit finding a (not necessarily optimal) solution,

dependent on POI set size and hardware capability.

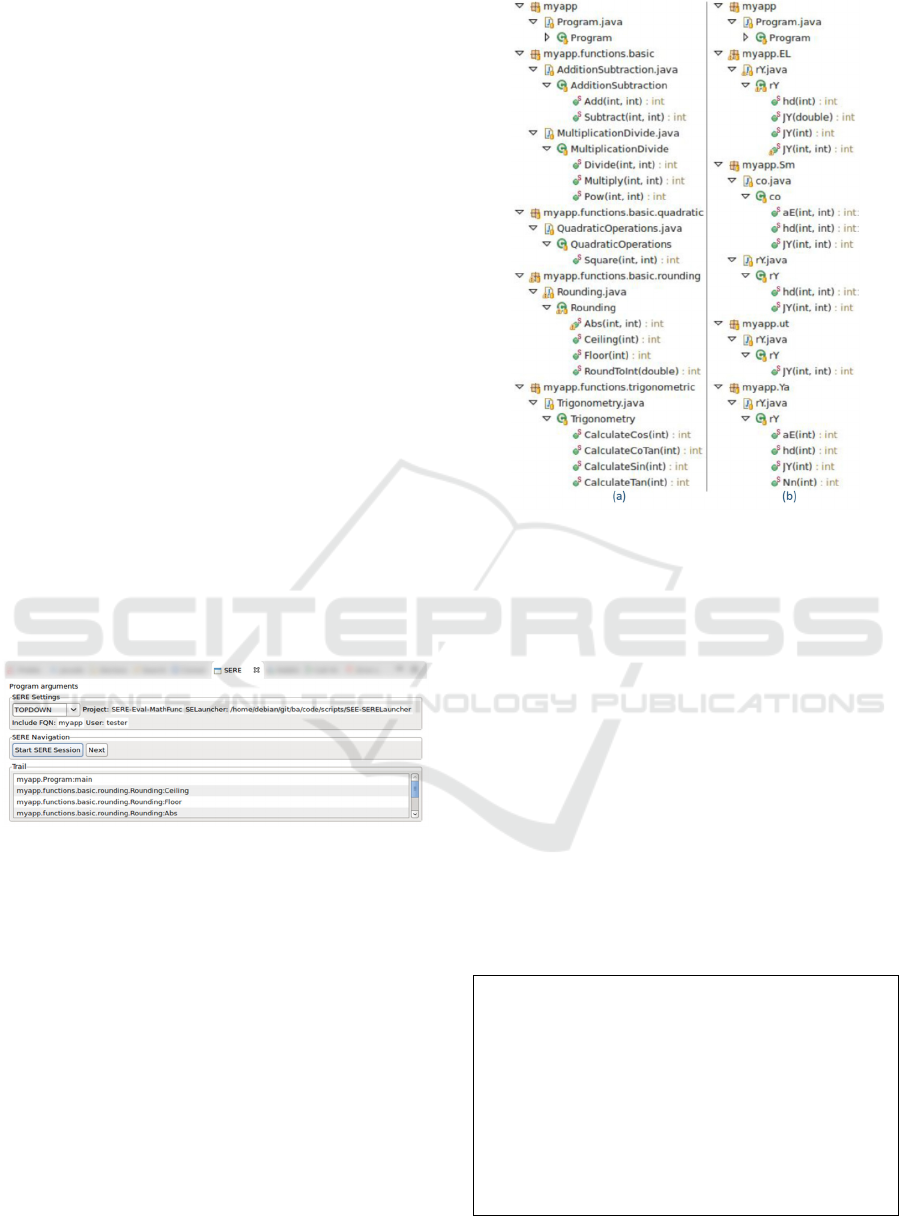

4.3 C-TRAIL Client

To demonstrate integratability, an Eclipse IDE

plugin was developed (see Figure 6), providing a

dropdown learning model choice. Selecting a POI in

SERE opens the Eclipse source view to that method.

Eclipse navigation events are monitored and sent via

REST to the C-TRAIL service to reoptimize and

regenerate the client trail based on actual POI visits.

Figure 6: Our Eclipse plugin SERE (a C-TRAIL client).

5 EVALUATION

As the prototype realization showed C-TRAIL's

feasibility, the evaluation focused on a practical

demonstration of key C-TRAIL conceptual features,

performance measurements, and a limited empirical

study with learning models and structural analysis.

A project codebase consisting of 15 POIs was used

(Figure 7a). Package names were abbreviated.

The prototype was run in a VirtualBox VM

(Debian 8 x86, one CPU, 1.7GB RAM) on a W10

x64 T9400 CPU@2.5GHz 4GB RAM notebook

(viewable as an intentionally non-ideal developer

deployment vs. a decent cloud deployment).

Figure 7: a) Original and b) obfuscated project structure.

5.1 Conceptual Features

To demonstrate key conceptual features including

P:POIRanking, P:POILocality, P:CodeTrails,

P:POI, T:HamiltonianCycle, T:MethodRank, and

T:POIDistance, the code trail in Figure 8 was

generated based on Figure 7a code. As the session

timebox was larger than the cumulative estimated

visitation (46 minutes and 4 seconds), no POI was

time-filtered. To demonstrate P:POIVisitTime and

P:Timeboxing, the session timebox was then limited

to 30 minutes. Lower ranked POIs (having fewer

invocations) were removed from the set and the code

trail replanned while preserving locality (Figure 9).

For P:UserProfile, it was verified that changing the

profile changed the expected visitation times

accordingly (not shown due to space constraints).

myapp.Program:main

myapp.f.basic.rounding.Rounding:Ceiling

myapp.f.basic.rounding.Rounding:Floor

myapp.f.basic.rounding.Rounding:Abs

myapp.f.basic.rounding.Rounding:RoundToInt

myapp.f.basic.quadratic.QuadraticOps:Square

myapp.f.trigonometric.Trigonometry:CalculateTan

myapp.f.trigonometric.Trigonometry:CalculateCos

myapp.f.trigonometric.Trigonometry:CalculateSin

myapp.f.trigonometric.Trigonometry:CalculateCoTan

myapp.f.basic.MultiplicationDivide:Divide

myapp.f.basic.MultiplicationDivide:Multiply

myapp.f.basic.MultiplicationDivide:Pow

myapp.f.basic.AdditionSubtraction:Add

myapp.f.basic.AdditionSubtraction:Subtract

Figure 8: Code trail without limiting session timebox.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

182

myapp.Program:main

myapp.f.trigonometric.Trigonometry:CalculateCos

myapp.f.trigonometric.Trigonometry:CalculateSin

myapp.f.trigonometric.Trigonometry:CalculateCoTan

myapp.f.basic.MultiplicationDivide:Divide

myapp.f.basic.MultiplicationDivide:Multiply

myapp.f.basic.MultiplicationDivide:Pow

myapp.f.basic.AdditionSubtraction:Add

myapp.f.basic.AdditionSubtraction:Subtract

Figure 9: Code trail with limited session timebox.

5.2 Performance Measurements

Average total latency (of 10 measurements) for trail

generation with 13 POIs and 1504 method visit

entries in Apache Mahout was 5.73 seconds.

Decomposing this latency, approximately 300 ms

was attributed to Apache Mahout, 100 ms to POI

prioritization, and less than 100ms for network

overhead. OptaPlanner TSP optimization (capped at

5 seconds) was the primary latency factor.

5.3 Empirical Study

“A person understands a program when he or she is

able to explain the program, its structure, its

behavior, its effects on its operation context, and its

relationships to its application domain in terms that

are qualitatively different from the tokens used to

construct the source code of the program”

(Biggerstaff et al., 1993). The human factor plays a

significant role in assessing program

comprehension, making it difficult to compare

results and benefits. In the absence of readily

available program comprehension assessment

frameworks, obfuscation was selected as a primary

technique in the empirical assessment method.

Obfuscation transforms or destroys the original

software structure and semantics and negatively

affects the efficiency of attacks while reducing the

gap between a novice and skilled attacker (Ceccato

et al, 2009). Although obfuscation is usually used to

avoid code from being understood by an attacker, we

apply it here to explicitly remove the semantic and

structural points of reference in order to determine if

C-TRAIL actually supports the navigation of

unfamiliar code (few semantic or domain anchors).

Using the convenience sampling technique, two

programmers having Eclipse, Java, and UML skills

were selected. Eclipse and C-TRAIL were used.

5.3.1 Learning Models

M:Top-Down: one programmer was tasked with

drawing the project structure of non-obfuscated code

without class revisitations (to avoid time-consuming

mental sorting techniques or determining POI

relations), but could take notes. Without C-TRAIL,

it took 13 minutes to produce Figure 10, and with C-

TRAIL it took 10 minutes to produce Figure 11 (the

circle is due to the trail ending at the starting POI), a

23 % improvement.

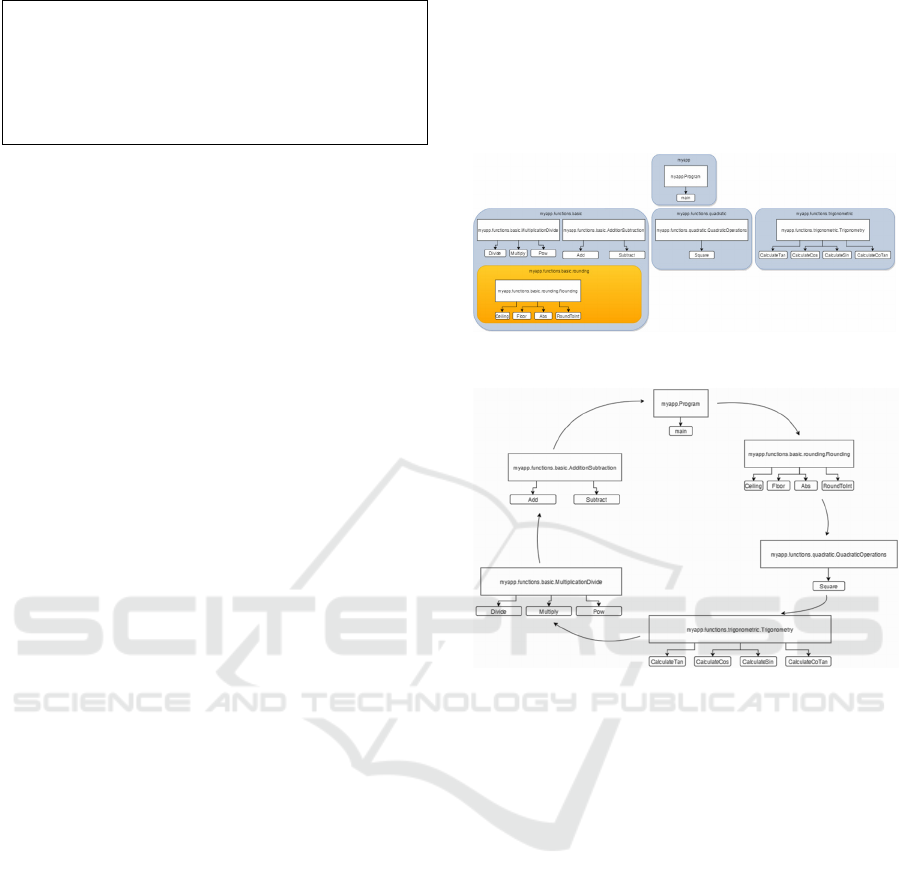

Figure 10: Transposed user diagram without C-TRAIL.

Figure 11: Transposed user diagram using C-TRAIL.

M:Bottom-Up: results similar to M:Top-Down.

M:DynamicPath: given only the source code

without debugging tools, a programmer inspected

the code and reconstructed how the application

executes based on the correct ordering of the first ten

steps of method execution. It took 3.5 minutes

without errors for non-obfuscated code, and 5.8

minutes (66% longer) using obfuscated code. After

inputting traces and utilizing a M:DynamicPath trail

generated by C-TRAIL, the trail distilled the answer.

M:Topics/Goal (utilizing P:POIFiltering) and

M:Exploratory were verified with manual testing.

The learning models support incorporated in C-

TRAIL appears promising for improving code

navigation and comprehension efficiency.

5.3.2 Structural Analysis

Code identifiers (as in Figure 12) were obfuscated

with ProGuard utilizing random dictionaries

containing strings of two-character length generated

by Random.org. Obfuscated .class files were

C-TRAIL: A Program Comprehension Approach for Leveraging Learning Models in Automated Code Trail Generation

183

decompiled to source code files with Java's

decompiler (see Figure 7b and Figure 13).

Two programmers were then asked to sketch

models first without C-TRAIL and then with (each

time with newly obfuscated code and prior

notes/diagrams removed). Diagrams with C-TRAIL

showed significantly less errors. Table 1 shows the

structural analysis time needed for obfuscated code.

package myapp.func.trigonometric;

...

public class Trigonometry {

...

public static int calculateTan (int x) {

int numeratorSin = calculateSin(x);

int denominatorCos = calculateCos(x);

return multiplicationDivide.divide(

numeratorSin , denominatorCos);

}

Figure 12: Snippet of original project source code.

package myapp.Ya;

...

public class rY {

...

public static int aE(int paramInt) {

int i = JY(paramInt);

int j = hd(paramInt);

return co.hd(i, j);

}

Figure 13: Obfuscated project source code snippet.

Table 1: Structural analysis efficiency for obfuscated code

(in minutes).

User1 User2

Without C-TRAIL 15.5 11.3

With C-TRAIL 8.3 7.5

Improvement 46% 34%

Some observations: Towards an explanation for

the efficiency benefit of using C-TRAIL in the

obfuscated code setting, the programmers reported

that without C-TRAIL support they intuitively

compared concept locations mentally (analogous to

Bubblesort) to try to somehow determine a concept

grouping and relations. We also observed that the

diagrams created by users using C-TRAIL code trail

guidance exhibited locality order (which C-TRAIL

preserves) and had fewer errors, even in the absence

of domain or meaningful semantic anchors.

With regard to structural analysis, the limited

empirical study indicates that C-TRAIL can

potentially improve the effectiveness and efficiency

in navigating unfamiliar program code. Future work

includes a large-scale empirical study with a diverse

pool of subjects utilizing various learning models

and project sizes.

6 CONCLUSIONS

The program comprehension situation is exacerbated

by a combination of a spiraling amount of program

code, ongoing demand for corrective and adaptive

maintenance and evolution of legacy or existing

codebases, high industry and open source developer

turnover rates, and a limited trained human resource

pool with the associated high labor costs and limited

time. Within the program comprehension sphere,

this paper focused on program code concept location

familiarity and structural understanding.

This paper contributed a practical solution approach

called C-TRAIL that automates the recommendation of

code visitation trails given only code or optionally code

execution traces. By amalgamating cognitive learning

model styles with the traveling salesman, granular

computing, and collaborative filtering paradigms, it

automates the planning of relevant visitation trails for

an available session timebox. Its guidance can help the

user not miss essential areas while avoiding dead ends,

reorientation waste, and irrelevant areas. As a web

service, it can easily be integrated in various tools and

IDEs while leveraging available user profile data and

collaborative filtering to estimate visitation times. It

requires no prior project history inputs and does not

depend on a visualization paradigm. The evaluation

demonstrated its viability with a prototype of various

conceptual features, including integration with an IDE.

The limited empirical study showed improved

navigation efficiency results when comprehending non-

obfuscated and obfuscated code, as well as structural

analysis efficiency and effectiveness improvements.

Future work includes a comprehensive empirical

study with a diverse population and code

repositories, an empirical comparison to other

comprehension approaches, support for additional

learning models and programming languages, a

study of C-TRAIL in an industrial setting, and

optimizations to address the TSP solver latency.

ACKNOWLEDGEMENTS

The author thanks Claudius Eisele for his assistance

with the realization, evaluation, and diagrams.

REFERENCES

Bargiela, A. and Pedrycz, W., 2012. Granular computing:

an introduction (Vol. 717). Springer Science &

Business Media.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

184

Biggerstaff, T.J., Mitbander, B.G. and Webster, D., 1993.

The concept assignment problem in program

understanding. In Proc. 15th Int. Conf. on Software

Engineering (pp. 482-498). IEEE CS Press.

Booch, G., 2005. The complexity of programming models.

Keynote talk at AOSD 2005, Chicago, IL, March 14-

18, 2005.

Ceccato, M., Penta, M.D., Nagra, J., Falcarin, P., Ricca,

F., Torchiano, M. and Tonella, P., 2009. The

effectiveness of source code obfuscation: an

experimental assessment. In IEEE 17th Int. Conf. on

Program Comprehension (pp. 178-187). IEEE.

Cornelissen, B., Zaidman, A., Van Deursen, A., Moonen,

L. and Koschke, R., 2009. A systematic survey of

program comprehension through dynamic analysis.

Softw. Eng., IEEE Trans. on, 35(5), pp.684-702.

Čubranić, D., Murphy, G.C., Singer, J. and Booth, K.S.,

2005. Hipikat: A project memory for software

development. Software Engineering, IEEE

Transactions on, 31(6), pp.446-465.

Deshpande, A. and Riehle, D.. 2008. The total growth of

open source. In Proc. 4

Conf. Open Source Systems

(OSS 2008). Vol. 275, pp. 197–209. Springer Verlag.

Goldman, M. and Miller, R.C., 2009. Codetrail:

Connecting source code and web resources. Journal of

Visual Languages & Computing, 20(4), pp.223-235.

Guéhéneuc, Y.G., 2006. TAUPE: towards understanding

program comprehension. In Proc. 2006 Conf. Center

Adv. Studies on Collab. Research (p. 1). IBM Corp.

Jones, C., 2006. The economics of software maintenance

in the twenty first century. Retrieved from:

http://www.compaid.com/caiinternet/ezine/capersjones

-maintenance.pdf. [4 Feb 2016].

Kersten, M. and Murphy, G.C., 2005. Mylar: a degree-of-

interest model for IDEs. In Proc. 4th Int. Conf. Aspect-

oriented Softw. Development (pp. 159-168). ACM.

Koenemann, J. and Robertson, S.P., 1991. Expert problem

solving strategies for program comprehension. In

Proceedings of the SIGCHI Conference on Human

Factors in Computing Systems (pp. 125-130). ACM.

Lakhotia, A., 1993. Understanding someone else's code:

analysis of experiences. Journal of Systems and

Software, 23(3), pp.269-275.

Lawler, E.L., Lenstra, J.K., Kan, A.H.G.R. and Shmoys,

D.B., 1985. The traveling salesman problem: a guided

tour of combinatorial optimization. Wiley, New York.

Letovsky, S., 1987. Cognitive processes in program

comprehension. Journal of Systems and software, 7(4),

pp. 325-339.

Metz, C., 2015. Google Is 2 Billion Lines of Code—And

It’s All in One Place. Retrieved from:

http://www.wired.com/2015/09/google-2-billion-lines-

codeand-one-place/. [4 Feb 2016].

Minelli, R., Mocci, A. and Lanza, M., 2015. I know what

you did last summer: an investigation of how

developers spend their time. In Proceedings of the

2015 IEEE 23rd International Conference on

Program Comprehension (pp. 25-35). IEEE Press.

Mitchell, R.L., 2009. Y2K: The good, the bad and the

crazy. ComputerWorld (December 2009).

Novak, J.D., 1998. Learning, creating, and using

knowledge. Lawrence Erlbaum Assoc., Mahwah, NJ.

Oberhauser, R., 2016. ReSCU: A Trail Recommender

Approach to Support Program Code Understanding. In

Proc. 8

Int. Conf. on Information, Process, and

Knowledge Manage. (pp. 112-118). IARIA XPS Press.

Pacione, M.J., Roper, M. and Wood, M., 2004. A novel

software visualisation model to support software

comprehension. In Reverse Engineering, 2004. Proc..

11th Working Conference on (pp. 70-79). IEEE.

Page, L., Brin, S., Motwani, R. and Winograd, T., 1999.

The PageRank citation ranking: bringing order to the

web. Technical Report. Stanford InfoLab.

PayScale. Full List of Most and Least Loyal Employees.

Retrieved from: http://www.payscale.com/data-

packages/employee-loyalty/full-list. [17 Feb 2016].

Pennington, N., 1987. Stimulus structures and mental

representations in expert comprehension of computer

programs. Cognitive psychology, 19(3), pp.295-341.

Qian, Y., Liang, J., Dang, C., Wang, F. and Xu, W., 2007.

Knowledge distance in information systems. J. of

Systems Science and Systems Eng., 16(4), pp.434-449.

Rajlich, V. and Wilde, N., 2002. The Role of Concepts in

Program Comprehension. In Proc. 10th IEEE Int.

Workshop on Program Comprehension, pp. 271-278.

Robillard, M.P. and Murphy, G.C., 2003. Automatically

inferring concern code from program investigation

activities. In Automated Software Engineering, 2003.

Proc.. 18th IEEE Int. Conf. on (pp. 225-234). IEEE.

Robillard, M.P., 2008. Topology analysis of software

dependencies. ACM Transactions on Software

Engineering and Methodology (TOSEM), 17(4), p.18.

Robillard, M.P., Maalej, W., Walker, R.J. and

Zimmermann, T. eds., 2014. Recommendation systems

in software engineering. Berlin: Springer.

Schelter, S. and Owen, S., 2012. Collaborative filtering

with apache mahout. Proc. of ACM RecSys Challenge.

Schmidt, B., 2015. Retrieved from:

http://benschmidt.org/Degrees/. [4 Feb 2016].

Singer, J., Elves, R. and Storey, M.A., 2005. Navtracks:

Supporting navigation in software. In Program

Comprehension, 2005. IWPC 2005. Proceedings. 13th

International Workshop on (pp. 173-175). IEEE.

Soloway, E., Adelson, B. and Ehrlich, K., 1988.

Knowledge and processes in the comprehension of

computer programs. In The Nature of Expertise, A.

Lawrence Erlbaum Associates, pp. 129-152.

Yin, M., Li, B. and Tao, C., 2010. Using cognitive

easiness metric for program comprehension. In 2nd

Int. Conf. on Softw. Eng. and Data Mining (pp. 134-

139). IEEE.

C-TRAIL: A Program Comprehension Approach for Leveraging Learning Models in Automated Code Trail Generation

185
