Silent and Continuous Authentication in Mobile Environment

Gerardo Canfora

, Paolo di Notte

, Francesco Mercaldo

1,2

and Corrado Aaron Visaggio

Department of Engineering, University of Sannio, Benevento, Italy

Centro Regionale Information Communication Technology - CeRICT scrl, Benevento, Italy

Reply, Torino, Italy

Keywords:

Continuous Authentication, Silent Authentication, Security, Behavioral Models, Android.

Abstract:

Due to the increasing pervasiveness of mobile technologies, sensitive user information is often stored on

mobile devices. Nowadays, mobile devices do not continuously verify the identity of the user while sensitive

activities are performed. This enables attackers full access to sensitive data and applications on the device, if

they obtain the password or grab the device after login. In order to mitigate this risk, we propose a continuous

and silent monitoring process based on a set of features: orientation, touch and cell tower. The underlying

assumption is that the features are representative of smartphone owner behaviour and this is the reason why

the features can be useful to discriminate the owner by an impostor. Results show that our system, modeling

the user behavior of 21 volunteer participants, obtains encouraging results, since we measured a precision in

distinguishing an impostor from the owner between 99% and 100%.

1 INTRODUCTION

Smartphones have become ubiquitous computing

platforms, allowing users to access the Internet and

many online services anytime and anywhere. As

a personal device, a smartphone contains important

private information, such as text messages, always-

logged-in emails, contact list etc. As a portable de-

vice, a smartphone is much easier to get lost or stolen

than conventional computing platforms. In order to

prevent the private information stored on smartphones

from falling into the hands of adversaries, the au-

thentication of mobile devices has become an impor-

tant issue. Most of the methods for authenticating

users on mobile devices deﬁne an entry point into the

system. Login-time pins and textual and graphical

passwords (Akula and Devisetty, 2004; Davis et al.,

2004; Dhamija and Perrig, 2000) are the most popu-

lar mechanisms for authenticating smartphone users.

With the growing popularity of touch interface based

mobile devices, the touch-surface has become the

dominant human-computer interface. This has led to

the need for authentication techniques better suited to

a touch interface, such as Sae-Bae and Memon (Sae-

Bae and Memon, 2013). These mechanisms suffer

from two drawbacks: (i) they are static, that means

they authenticate the user only at the beginning of the

session and does not offer any protection against illicit

access post login, i.e. in the case of abandoned device

or when a remotely controlled program runs on the

device, (ii) passwords and pins require user’s atten-

tion to their entry and therefore they are not suitable

for continuous authentication, and ﬁnally (iii) pass-

words can be stolen or forgotten. In order to over-

come this one-step authentication, the continuous au-

thentication, also called active authentication was in-

troduced, where the identity of the user is veriﬁed dur-

ing all the usage of the device. Continuous authenti-

cation methods complement the entry point methods

by monitoring the user after a successful login.

Research on continuous authentication started in

1995 when Shepherd (Shepherd, 1995) and Mon-

rose et al. (Monrose and Rubin, 1997) showed some

impressive results on continuous authentication us-

ing keystroke dynamics. Continuous authentication

is prevalently realized by checking two subsets of

biometric authentication, physiological and behav-

ioral. These authentication methods identify the user

through measurable physical or behavioral character-

istics.

Physiological biometric authentication measures

physical characteristics of users body that make them

unique. Physiological methods include ﬁngerprint

scanning, facial recognition, hand geometry recog-

nition or retinal scans (Bhattacharyya et al., 2009).

One drawback of physical biometrics is that they need

speciﬁc hardware to collect the biometric data. This

hardware entails additional costs and a layer to the

Canfora, G., Notte, P., Mercaldo, F. and Visaggio, C.

Silent and Continuous Authentication in Mobile Environment.

DOI: 10.5220/0005965500970108

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 97-108

ISBN: 978-989-758-196-0

physical biometric methods still produce an error rate

which is not acceptable for real applications (Bailey

et al., 2014).

Behavioral biometric authentication makes use of

behavioral proﬁles of a user resulting from both psy-

chological and physiological differences from person

to person. Behavioral methods include keystroke dy-

namics (Joyce and Gupta, 1990; Brown and Rogers,

1993), mouse dynamics (Ahmed and Traore, 2005;

Shen et al., 2010), voice recognition (Bhattacharyya

et al., 2009), signature veriﬁcation (Bhattacharyya

et al., 2009) and Graphical User Interface (GUI) us-

age analysis (Gamboa and Fred, 2004). Due to the

variability of the human body and mind, the adoption

of this type of biometrics has lagged behind physio-

logical biometrics.

In this paper we propose a method to silently and

continuously verify the identity of a mobile user. Our

method deﬁnes the user proﬁle by merging together

information about:

• how the user handles the device;

• how the user touches the keyboards;

• daily habits of the user.

Using well-known machine learning algorithms we

classify the features set obtained from real devices

employed in real environment to test the effectiveness

of the features extracted.

The experiment demonstrated that the fusion of

these three classes of features is able to detect impos-

tors with a precision of 0.995, a false acceptance rate

of 0.7% and a false rejection rate of 0.3%, which are

values largely better than the values gathered with the

antagonist methods for the continuous authentication

that can be found in literature.

The main advantages of our method are :

• these biometrics can be captured by using the de-

vice built-in sensors without additional hardware;

• the features can be gathered with a good degree of

precision and are not inﬂuenced by external fac-

tors (noises, air impurity);

• they can be collected while the user is using the

mobile phone: the user is not required to enter any

image or voice (this is the reason why our method

is called silent);

• the performances obtained are signiﬁcantly better

than those reported in literature.

The paper proceeds as follows: Section 2 de-

scribes and motivates our detection method; Section 3

illustrates the results of experiments; Section 4 dis-

cusses related work; ﬁnally, conclusions are drawn in

Section 5.

2 THE METHOD

In this section we discuss the approach we propose.

Basically, we extract a set of features, captured di-

rectly on the device, representing the user behaviour.

We consider the following elements of the human

behaviour in order to characterize mobile users:

• How users hold the devices: each user is inher-

ently characterized by the way she holds the de-

vice. The inclination is determined by the user’s

arm and eyes, in order to make the experience of

device use comfortable. Indeed the way in which

the device is held depends on both the anatomic

aspects and the personal habits, including the con-

ﬁdence degree with the device;

• How users write on the device keyboard: in addi-

tion to the combination of eyes and arm position,

an user is also characterized by the way she types.

It is a consequence of the ﬁrst aspect we expose,

e.g. an user that keeps the device with one hand

will have a different typing style from an user that

keeps the device with two hands;

• User daily habits: this feature captures the fre-

quency a user is located in a certain place. For

instance, people usually work in the same place,

and this is the reason why the device is connected

for many hours a day with the same cell tower.

Starting from these considerations we deﬁne the

information we need to collect to characterize mobile

users: information about orientation (How users hold

the devices), about touch (How users write on the de-

vice keyboard) and about cell (User daily habits).

In order to obtain Orientation information we use

the orientation sensor, which uses a device’s geo-

magnetic ﬁeld sensor in combination with a device’s

accelerometer. Using these two hardware sensors,

an orientation sensor provides data for the following

three dimensions (i.e., the orientation features):

• Azimuth, i.e. the degrees of rotation around the

z axis. This is the angle between magnetic north

and the device’s y axis. For example, if the de-

vice’s y axis is aligned with magnetic north this

value is 0, and if the device’s y axis is pointing

south this value is 180. Likewise, when the y

axis is pointing east this value is 90 and when it

is pointing west this value is 270.

• Pitch, i.e. the degrees of rotation around the x

axis. This value is positive when the positive z

axis rotates toward the positive y axis, and it is

negative when the positive z axis rotates toward

the negative y axis. The range of values is 180

degrees to -180 degrees.

SECRYPT 2016 - International Conference on Security and Cryptography

• Roll, i.e. the degrees of rotation around the y axis.

This value is positive when the positive z axis ro-

tates toward the positive x axis, and it is negative

when the positive z axis rotates toward the nega-

tive x axis. The range of values is 90 degrees to

-90 degrees.

The orientation sensor derives its data by process-

ing the raw sensor data from the accelerometer and

the geomagnetic ﬁeld sensor. Because of the heavy

processing that is involved, the accuracy and precision

of the orientation sensor is diminished (speciﬁcally,

this sensor is only reliable when the roll component is

0). As a result, the orientation sensor was deprecated

in Android 2.2 (API level 8).

With Orientation information, we are referring to

Pitch, Roll and Azimuth features.

The Touch information is retrieved using a 1 pixel

per 1 pixel size window, placed at the top left cor-

ner of the touch-screen. When a touch event occurs

the hardware layer sends a signal to a component

called dispatcher, that is able to perform a check us-

ing the User Identiﬁer. The check veriﬁes who gen-

erated the information: if the check fails, the infor-

mation is lost. The check was introduced in 2012

from API 17. We want to gather information ev-

erywhere in uncontrolled environment, and we used

the WATCH OUTSIDE TOUCH parameter. Android

documentation says “Note that you will not receive

the full down/move/up gesture, only the location of

the ﬁrst down”

. We obtain the timestamp for each

touch event and by a difference with the last touch

event we retrieve the Touch Gap, i.e. the Touch infor-

mation.

The Cell information is retrieved by using get-

Cid() and getLac() methods provided by the GsmCel-

lLocation class.

The getCid() method returns the GSM Cell ID

(CID), an unique number used to identify each Base

transceiver station (BST), while the getLac() method

returns the location area code. A location area is a set

of base stations that are grouped together to optimise

signalling. To each location area, a unique number

called location area code (LAC) is assigned. The LAC

is broadcast by each base station, known as a BST in

GSM, or a Node B in UMTS, at regular intervals.

Regarding the Cell information we consider as

features the CID and the LAC.

In order to collect the features we implemented

three components:

• an Android application: the application is able to

retrieve the user-oriented features we previously

https://android.googlesource.com/platform/frameworks/na

tive/+/master/include/android/window.h

described, the application works at user-level and

it does not require root privileges. The applica-

tion was developed to retrieve the full feature set:

(i) Orientation information, (ii) Touch informa-

tion and (iii) Cell information;

• Drop Server: we deployed a server to collect all

the information retrieved by various devices with

the Android application installed;

• NoSQL database: once the information is re-

trieved, it is stored in a non-relational database

(namely, MongoDB) for facilitating the analysis.

We chose this type of database because of the

great amount of data accumulated from the de-

vices, but also for its schema-less feature. We de-

veloped a script to read JSON ﬁles obtained from

the devices and to insert them into the database.

Using MongoDB we created one collection for

each device and we stored every received features

in an heterogeneous collection associated to it,

it stored JSON ﬁles using an own format called

BSON.

We use the Accessibility Service that must be en-

abled by users in order to collect the sensitive infor-

mation we need.

3 THE EVALUATION

We designed an experiment in order to evaluate the

effectiveness of the proposed technique.

More speciﬁcally, the experiment is aimed at ver-

ifying whether the features are able to classify a be-

haviour trace as performed by the owner or by an im-

postor. The classiﬁcation is carried out by using a

classiﬁer built with the features discussed in the pre-

vious section. The evaluation consists of two stages:

(i) a comparison of descriptive statistics of the pop-

ulations of traces; and (ii) a classiﬁcation analysis

aimed at assessing whether the features are able to

correctly classify the owner’s and the impostor’s be-

haviour traces.

We observed 21 users for 10 days: the evaluation

time window began on September 1, 2015 and ﬁn-

ished on September 11, 2015. At the end of the ob-

servation window we gathered approximately 1 GB

of raw data. Unfortunately two devices presented is-

sues with the sensors and we were forced to conduct

analysis on the remaining 18 users. Another user was

not considered in the ﬁnal results because the device

suffered of incompatibility.

Table 1 shows the observed devices used to evalu-

ate our method.

Silent and Continuous Authentication in Mobile Environment

Table 1: Devices involved in the evaluation with owner characterization.

# Device OS API AGE SEX USED

1 Samsung Galaxy S3 KitKat 19 19 Female Y

2 LGE Nexus 5 Marshmallow 23 22 Male Y

3 Samsung Galaxy S5 Lollipop 21 26 Male Y

4 Samsung Galaxy S3 KitKat 19 27 Male Y

5 Samsung Mini 2 Gingerbread 10 33 Male Y

6 Samsung Note 3 Lollipop 21 26 Male Y

7 Samsung S5 Dual Lollipop 5.1 22 28 Male Y

8 Samsung S4 Jelly Bean 18 56 Male Y

9 Samsung Galaxy S4 Jelly Bean 17 24 Male Y

10 LGE Nexus 5 Lollipop 22 23 Female Y

11 Samsung Galaxy A5 Jelly Bean 21 27 Male N

12 LGE G2 Jelly Bean 17 29 Male Y

13 Samsung Galaxy S2 Jelly Bean 16 30 Male Y

14 Samsung Corby Froyo 8 26 Male N

15 HUAWEI P6 Jelly Bean 17 24 Male Y

16 HUAWEI P1 Ice Cream 14 22 Female Y

17 OnePlus A0001 Lollipop 22 27 Male Y

18 HUAWEI Honor 6 KitKat 19 24 Female Y

19 HUAWEI P7 KitKat 19 27 Male Y

20 HUAWEI P8 Lite KitKat 19 25 Female Y

21 HUAWEI Y530 Jelly Bean 18 21 Male N

3.1 Descriptive Statistics

The analysis of box plots related to the six features

helps to identify whether the features are helpful to

discriminate the behaviour of users.

Figure 1 shows the box plots related to Pitch fea-

ture for each user involved in the evaluation, while

ﬁgure 2 shows the box plots related to Roll feature

and ﬁgure 3 shows the box plots related to Azimuth

feature. All these box plots do not exhibit signiﬁ-

cant differences among the different users. A similar

consideration can be done for the features related to

the touch information, represented in ﬁgures 4, and

5. The things change when we consider the LAC

box plots illustrated in ﬁgure 6. As a matter of fact,

users exhibit an evident diversity among each other,

which is represented by the different level of medians

for each user and by the variability of the box plots’

width. The analysis of descriptive statistics suggests

that both orientation and touch information singularly

taken could be insufﬁcient to discriminate the owner

from the impostor. The classiﬁcation analysis will

complete the picture, by indicating that the combina-

tion of all the measures can successfully help to iden-

tify correclty the impostors.

3.2 Classiﬁcation Analysis

We classiﬁed the features extracted using Weka

, an

open source machine learning library, using two clas-

http://www.cs.waikato.ac.nz/ml/weka/

siﬁcation algorithms: J48 and RandomForest.

Five metrics were used to evaluate the classiﬁca-

tion results: precision, recall, ROC Area, FAR and

FRR.

The precision has been computed as the propor-

tion of the examples that truly belong to class X

among all those which were assigned to the class. It

is the ratio of the number of relevant records retrieved

to the total number of irrelevant and relevant records

retrieved:

Precision =

t p

t p+f p

where tp indicates the number of true positives

and fp indicates the number of false positives.

The recall has been computed as the proportion

of examples that were assigned to class X, among all

the examples that truly belong to the class, i.e. how

much part of the class was captured. It is the ratio of

the number of relevant records retrieved to the total

number of relevant records:

Recall =

t p

t p+ f n

where tp indicates the number of true positives

and fn indicates the number of false negatives.

The Roc Area is deﬁned as the probability that a

positive instance randomly chosen is classiﬁed above

a negative randomly chosen.

The last two metrics we consider are used in bio-

metrics in order to verify the instance of a security

system incorrectly identifying an unauthorized per-

SECRYPT 2016 - International Conference on Security and Cryptography

100

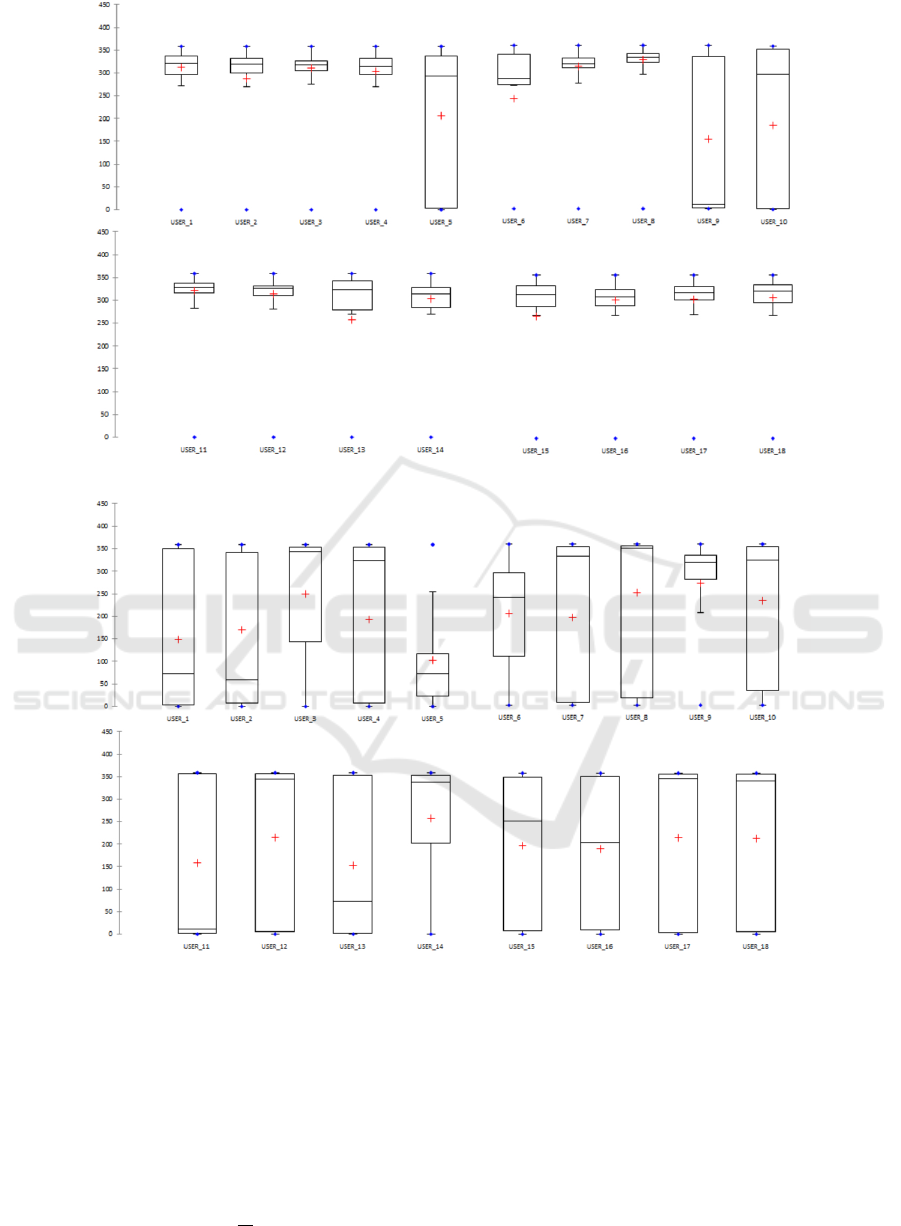

Figure 1: Box plots related to the pitch feature for each user involved in the experiment.

Figure 2: Box plots related to the roll feature for each user involved in the experiment.

son: False Acceptance Rate and False Rejection Rate.

The false acceptance rate (FAR) is the measure

of the likelihood that the biometric security system

will incorrectly accept an access attempt by an

unauthorized user. A system’s FAR typically is stated

as the ratio of the number of false acceptances (fa)

divided by the number of impostor attempts (ia):

False Acceptance Rate =

f a

The FAR spans in the interval [0,1]: closer to 0

the FAR is the better is the capability to recognize

correctly the impostor.

In biometrics, FRR, or false rejection rate is the

instance of a security system failing to verify or iden-

tify an authorized person. Also referred to as a type

I error, a false rejection does not necessarily indi-

cate a ﬂaw in the biometric system; for example, in

a ﬁngerprint-based system, an incorrectly aligned ﬁn-

ger on the scanner or dirt on the scanner can result in

Silent and Continuous Authentication in Mobile Environment

101

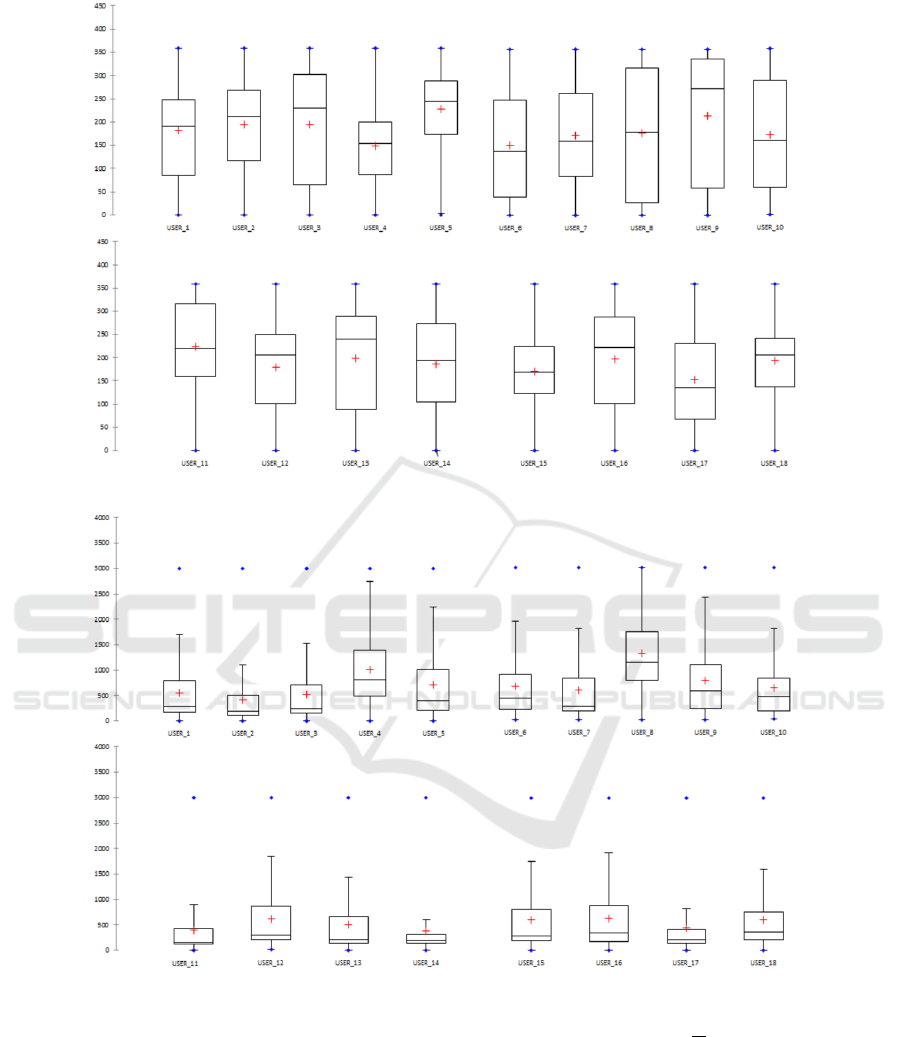

Figure 3: Box plots related to the azimuth feature for each user involved in the experiment.

Figure 4: Box plots related to the touch gap feature for each user involved in the experiment.

the scanner misreading the ﬁngerprint, causing a false

rejection of the authorized user. The false rejection

rate is the measure of the likelihood that the biomet-

ric security system will incorrectly reject an access

attempt by an authorized user. A system’s FRR typ-

ically is stated as the ratio of the number of false re-

jections (fr) divided by the number of owner attempts

(oa).

The FRR is deﬁned as:

False Rejection Rate =

f r

The best FRR has the value of 0, while the worst

FRR has the values of 1.

The classiﬁcation analysis consisted of building

classiﬁers in order to evaluate features accuracy.

For training the classiﬁer, we deﬁned T as a set

of labelled behaviour traces (BT, l), where each BT

is associated to a label l ∈ {impostor, owner}. For

each BT we built a feature vector F ∈ R

, where y

SECRYPT 2016 - International Conference on Security and Cryptography

102

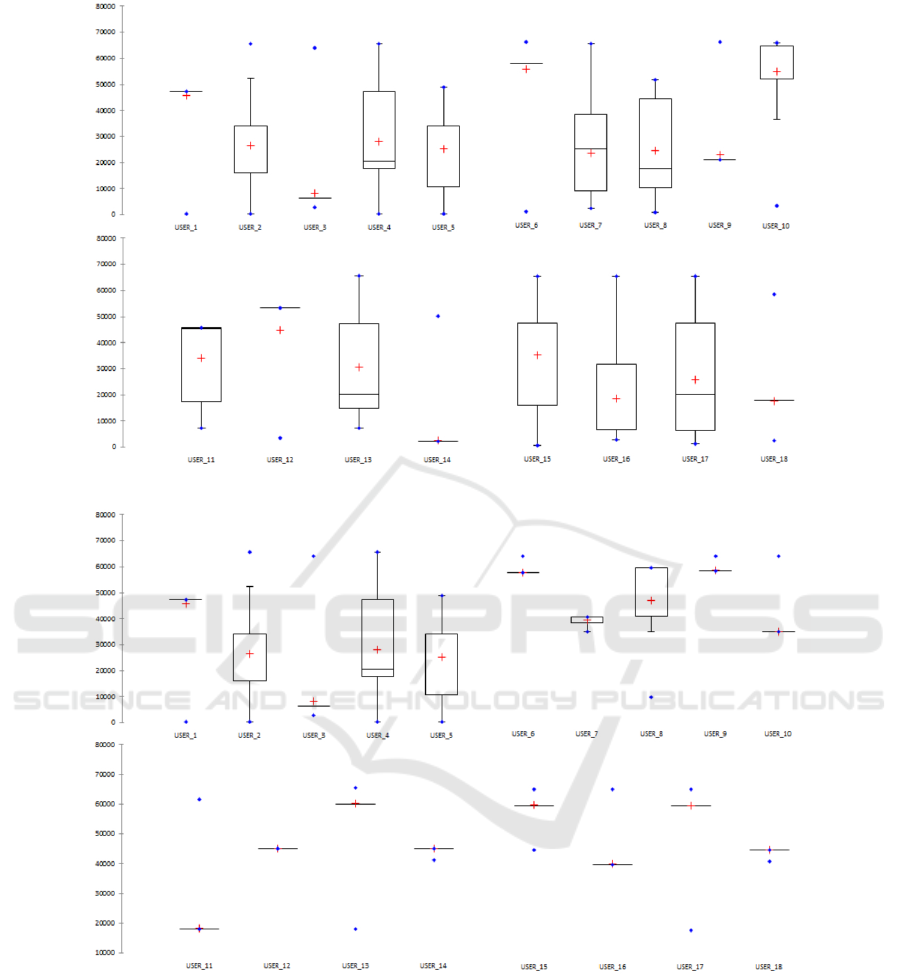

Figure 5: Box plots related to the CID feature for each user involved in the experiment.

Figure 6: Box plots related to the LAC feature for each user involved in the experiment.

is the number of the features used in training phase

(1≤y≤6).

For the learning phase, we use a k-fold cross-

validation: the dataset is randomly partitioned into k

subsets. A single subset is retained as the validation

dataset for testing the model, while the remaining k-

1 subsets of the original dataset are used as training

data. We repeated the process for k=10 times; each

one of the k subsets has been used once as the valida-

tion dataset. To obtain a single estimate, we computed

the average of the k results from the folds.

We evaluated the effectiveness of the classiﬁcation

method with the following procedure:

1. build a training set T⊂D;

2. build a testing set T’ = D÷T;

3. run the training phase on T;

4. apply the learned classiﬁer to each element of T’.

We performed a 10-fold cross validation: we re-

Silent and Continuous Authentication in Mobile Environment

103

peated the four steps 10 times varying the composi-

tion of T (and hence of T’).

We classify using three different sets of features:

• S1: orientation features;

• S2: orientation and touch features;

• S3: orientation, touch and cell-id features.

The aim of the classiﬁcation with the S1 feature

set is to achieve a behavioral pattern in order to suc-

ceed in identifying the owner or an impostor consid-

ering the device orientation. The S1 features set is

composed by: pitch, roll and azimuth that represents

an orientation event.

The second feature set, i.e. S2, adds to the S1 fea-

ture set the touch feature, i.e. the touch-gap.

The third features set, i.e. S3, adds to S2 fea-

tures set the cell-event characterized by Cell-Id and

Location-Area of a precise cell tower.

Each classiﬁcation was performed using 20% of

the dataset as training dataset and 80% as testing

dataset.

We deﬁned C

u,s

as the set of the classiﬁcations we

performed, where u identiﬁes the user (1≤u≤18) and

s represents the features set used in the classiﬁcation

(s = {S1, S2, S3}).

For sake of clarity we explain with an example the

method we adopted: when we perform C

2,1

classiﬁca-

tion, we label the traces related to the user #2 as owner

traces, and the traces of the other user as impostor us-

ing the S1 features set (i.e., just the orientation fea-

tures) for classiﬁcation.

Table 2 shows the results obtained with this pro-

cedure using the S1 features set.

The orientation features are too weak for identify-

ing the owner. As a matter of fact the greatest preci-

sion obtained is 0.979, but most values are smaller

than 0.96. Additionally, FAR and FRR show very

high values, i.e. around 0.1. By considering orien-

tation and touch features together, the performances

do not improve signiﬁcantly, as Table 3 shows.

Performances improve when we accomplish the

classiﬁcation with all the features grouped together,

as shown in Table 4. For most users, precision and

recall are over 99%.

Table 5 shows the average results obtained using

the S1, S2 and S3 features set, in order to facilitate the

comparison among the different features.

We obtain the following average values when clas-

sifying the behavioral traces by using the RandomFor-

est classiﬁcation algorithm:

• a precision of 0.910 and a recall of 0.859 using the

S1 feature set;

• a precision of 0.896 and a recall of 0.895 using the

S2 feature set;

Table 2: Classiﬁcation Results: Precision, Recall, ROC

Area, FAR and FRR for classifying Owner and Impostor

traces for each user involved in the experiment, computed

for S1 feature set with the J48 and RandomForest(RF) algo-

rithms.

User Alg. Precision Recall ROC FAR FRR

1 J48 0.873 0.892 0.903 0.136 0.117

RF 0.906 0.910 0.970 0.104 0.084

2 J48 0.776 0.740 0.824 0.230 0.2476

RF 0.854 0.880 0.935 0.165 0.128

3 J48 0.835 0.820 0.886 0.194 0.139

RF 0.901 0.910 0.964 0.120 0.079

4 J48 0.835 0.790 0.882 0.154 0.175

RF 0.879 0.820 0.947 0.130 0.112

5 J48 0.871 0.840 0.908 0.100 0.162

RF 0.908 0.920 0.964 0.097 0.086

6 J48 0.907 0.910 0.938 0.083 0.104

RF 0.946 0.930 0.983 0.053 0.056

7 J48 0.774 0.780 0.837 0.284 0.175

RF 0.872 0.770 0.953 0.154 0.104

8 J48 0.814 0.830 0.856 0.222 0.154

RF 0.857 0.840 0.938 0.186 0.106

9 J48 0.885 0.880 0.921 0.132 0.097

RF 0.932 0.950 0.972 0.080 0.056

10 J48 0.939 0.940 0.956 0.073 0.060

RF 0.961 0.978 0.991 0.0041 0.036

11 J48 0.896 0.880 0.922 0.131 0.079

RF 0.929 0.916 0.981 0.089 0.055

12 J48 0.823 0.840 0.868 0.224 0.136

RF 0.979 0.972 0.954 0.152 0.091

13 J48 0.924 0.934 0.946 0.089 0.064

RF 0.955 0.961 0.989 0.053 0.034

14 J48 0.882 0.800 0.917 0.121 0.115

RF 0.930 0.918 0.978 0.076 0.0063

15 J48 0.885 0.840 0.926 0.122 0.109

RF 0.936 0.922 0.982 0.073 0.056

16 J48 0.859 0.870 0.903 0.157 0.126

RF 0.915 0.900 0.974 0.099 0.070

17 J48 0.862 0.853 0.896 0.161 0.117

RF 0.915 0.899 0.974 0.099 0.071

18 J48 0.873 0.862 0.917 0.129 0.125

RF 0.921 0.934 0.973 0.089 0.071

• a precision of 0.995 and a recall of 0.995 using the

S3 feature set.

We notice that the precision diminishes when

moving from S1 to S2, although the latter includes

more features than S1. The best feature set in dis-

criminating between impostor and owner traces is the

S3 feature set.

In order to measure the performance of our

method, we report in Table 6 the average time em-

ployed for the classiﬁcation task. The machine used

was an Intel Core i5 desktop with 4 gigabyte RAM,

equipped with Linux Mint 15.

The J48 algorithm is faster in classiﬁcation task

than RandomForest, anyway all the classiﬁcations

employ less than a second.

SECRYPT 2016 - International Conference on Security and Cryptography

104

Table 3: Classiﬁcation Results: Precision, Recall, ROC

Area, FAR and FRR for classifying Owner and Impostor

traces for each user involved in the experiment, computed

for S2 features set with the J48 and RandomForest(RF) al-

gorithms.

User Alg. Precision Recall ROC FAR FRR

1 J48 0.876 0.869 0.899 0.134 0.114

RF 0.902 0.909 0.968 0.111 0.086

2 J48 0.776 0.765 0.832 0.234 0.234

RF 0.825 0.811 0.911 0.185 0.166

3 J48 0.832 0.839 0.877 0.191 0.146

RF 0.880 0.842 0.950 0.143 0.098

4 J48 0.840 0.856 0.895 0.180 0.142

RF 0.877 0.893 0.948 0.140 0.108

5 J48 0.874 0.872 0.911 0.120 0.133

RF 0.908 0.910 0.970 0.099 0.084

6 J48 0.896 0.905 0.928 0.265 0.111

RF 0.926 0.938 0.975 0.065 0.084

7 J48 0.785 0.800 0.837 0.265 0.169

RF 0.850 0.877 0.933 0.195 0.110

8 J48 0.881 0.897 0.917 0.162 0.082

RF 0.903 0.916 0.956 0.142 0.057

9 J48 0.882 0.891 0.918 0.139 0.098

RF 0.927 0.919 0.970 0.087 0.060

10 J48 0.925 0.918 0.956 0.091 0.060

RF 0.949 0.954 0.988 0.059 0.045

11 J48 0.862 0.879 0.896 0.191 0.092

RF 0.900 0.904 0.964 0.137 0.071

12 J48 0.820 0.841 0.866 0.228 0.138

RF 0.872 0.889 0.946 0.163 0.093

13 J48 0.917 0.908 0.939 0.106 0.061

RF 0.942 0.938 0.985 0.070 0.047

14 J48 0.840 0.890 0.890 0.156 0.165

RF 0.889 0.901 0.957 0.118 0.105

15 J48 0.880 0.897 0.918 0.129 0.112

RF 0.919 0.924 0.975 0.096 0.067

16 J48 0.850 0.872 0.892 0.167 0.135

RF 0.897 0.937 0.964 0.124 0.085

17 J48 0.811 0.824 0.873 0.208 0.170

RF 0.862 0.877 0.941 0.173 0.106

18 J48 0.853 0.849 0.901 0.165 0.129

RF 0.893 0.927 0.96 0.122 0.093

4 RELATED WORK

There are two categories of biometrics for user iden-

tiﬁcation: physiological (such as ﬁngerprints, facial

features) and behavioral biometrics (such as speak-

ing, typing, walking). Physiological biometrics usu-

ally requires special recognition devices. Some phys-

iological biometrics, like face and voice can be de-

tected by smartphones, but usually entail expensive

computation and energy costs and have a high error

rate. For example, in Koreman et al. (Koreman et al.,

2006), the (equal error rates) EER for face recog-

nition is around 28% and for voice is around 5%.

Keystroke is a popular behavioral biometric: Joyce

Table 4: Classiﬁcation Results: Precision, Recall, ROC

Area, FAR and FRR for classifying Owner and Impostor

traces for each user involved in the experiment, computed

for S3 features set with the J48 and RandomForest(RF) al-

gorithms.

User Alg. Precision Recall ROC FAR FRR

1 J48 0.992 0.997 0.994 0.011 0.006

RF 0.994 0.999 0.999 0.007 0.006

2 J48 0.995 0.992 0.995 0.007 0.002

RF 0.996 0.997 1.000 0.007 0.001

3 J48 0.999 0.999 0.999 0.001 0.001

RF 0.999 0.999 0.999 0.001 0.001

4 J48 0.977 0.969 0.983 0.025 0.021

RF 0.981 0.988 0.998 0.021 0.017

5 J48 0.993 0.996 0.996 0.013 0.001

RF 0.992 0.995 0.995 0.017 0.001

6 J48 0.995 0.990 0.998 0.005 0.005

RF 0.996 0.996 1.000 0.004 0.004

7 J48 0.996 0.995 0.997 0.005 0.004

RF 0.996 0.996 1.000 0.006 0.002

8 J48 0.992 0.994 0.997 0.014 0.002

RF 0.903 0.909 0.956 0.142 0.057

9 J48 0.997 0.998 0.997 0.005 0.001

RF 0.999 0.999 1.000 0.082 0.000

10 J48 0.998 0.998 0.999 0.002 0.001

RF 0.999 0.999 1.000 0.010 0.001

11 J48 0.999 0.999 0.999 0.002 0.001

RF 0.999 0.999 0.999 0.002 0.001

12 J48 1.000 1.000 1.000 0.000 0.000

RF 1.000 1.000 1.000 0.000 0.000

13 J48 0.985 0.989 0.990 0.021 0.008

RF 0.989 0.987 0.999 0.017 0.004

14 J48 0.999 0.999 1.000 0.001 0.001

RF 0.999 0.999 0.999 0.001 0.001

15 J48 0.987 0.988 0.992 0.016 0.010

RF 0.992 0.994 1.000 0.013 0.004

16 J48 0.997 0.998 0.999 0.004 0.001

RF 0.999 0.999 1.000 0.003 0.001

17 J48 0.991 0.990 0.995 0.013 0.06

RF 0.994 0.993 1.000 0.007 0.004

18 J48 0.997 0.998 0.998 0.030 0.030

RF 0.997 0.998 1.000 0.003 0.002

Table 5: Classiﬁcation Results: average value for Precision,

Recall, ROC Area, FAR and FRR for classifying Owner

and Impostor traces, computed for S1, S2 and S3 features

set with the J48 and RandomForest(RF) algorithms.

Feat. Alg. Precision Recall ROC FAR FRR

S1 J48 0.861 0.859 0.900 0.152 0.128

RF 0.910 0.859 0.900 0.098 0.072

S2 J48 0.855 0.854 0.897 0.165 0.127

RF 0.896 0.895 0.959 0.124 0.087

S3 J48 0.994 0.994 0.996 0.008 0.004

RF 0.995 0.995 0.999 0.007 0.003

and Gupta (Joyce and Gupta, 1990) presented a sur-

vey on the large body of literature on authentication

with keystroke dynamics.

Some researchers proposed authentication token

based mechanisms to identify legal users,e.g., wire-

Silent and Continuous Authentication in Mobile Environment

105

Table 6: The performance evaluation for classifying the S1,

S2 and S3 feature set, with the J48 and RandomForest(RF)

algorithms.

Feature Set Algorithm Time

S1 J48 0.47 s

RF 0.56 s

S2 J48 0.51 s

RF 0.72 s

S3 J48 0.68 s

RF 0.84 s

less token (Nicholson et al., 2006). However, they re-

quire additional hardware and are not convenient for

daily smartphone usage. On the smart phones with

touch screens, PINs, pass-phrases, and secret drawn

gestures are the commonly used authentication meth-

ods (Dunphy et al., 2010).

Recently, there is a growing body of work that

uses the features of touch behavior to verify users.

Several existing approaches have used the touch be-

havior biometrics for various security purposes. De

Luca et al. (De Luca et al., 2012) propose a pass-

word application, by which the user draws a stroke on

the touch screen as a input password. Pressure, coor-

dinates, size, speed and time of the stroke are used

to identify the valid user. Overall the accuracy of

this method is 77% with a 19% FRR and 21% FAR.

Zheng et al. (Zheng et al., 2014) use four features

(acceleration, pressure, size, and time) to distinguish

the true owner and impostor to enhance the secu-

rity of passcode. Their identiﬁcation system achieves

3.65% EER. A user enters a password by tapping sev-

eral times on a touch surface with one or more ﬁn-

gers. PassChord failed to authenticate for 16.3% of

the time. There are some other works addressing the

user identiﬁcation issue with touch features, e.g., Seo

et al. (Seo et al., 2012). With pure touch data, there

may be a high error rate.

Riva et al. (Riva et al., 2012), rather than explor-

ing a new authentication scheme, address the problem

of deciding when to surface authentication and for

which applications. Their approach combines mul-

tiple signals (biometric, continuity, possession) to de-

termine a level of conﬁdence in a users authenticity.

They built a prototype running on modern phones to

demonstrate progressive authentication and used it in

a lab study with nine users. Their system is able to re-

duce the number of required authentications by 42%.

Kwapisz et al. (Kwapisz et al., 2010) use ac-

celerometer data to identify or authenticate cell phone

users. They aggregate the raw time-series accelerom-

eter data into examples, since most classiﬁcation al-

gorithms cannot operate directly on time series data.

Each of these examples is associated with a speciﬁc

cell phone user, thus forming labeled training data.

For user authentication they build separate models for

each user in order to determine whether an example

came from that user or from someone else, obtaining

an accuracy value equal to 87.6% using the J48 classi-

ﬁcation algorithm of identiﬁcation of 10-seconds ex-

amples.

Frank et al. (Frank et al., 2013) propose a set of 30

behavioral touch features that can be extracted from

raw touchscreen logs and demonstrate that different

users populate distinct subspaces of this feature space.

They collected touch data from users interacting with

a smart phone using basic navigation maneuvers, i.e.,

up-down and left-right scrolling. They propose a clas-

siﬁcation framework that learns the touch behavior of

a user during an enrollment phase and is able to ac-

cept or reject the current user by monitoring interac-

tion with the touch screen. Their classiﬁer achieves

a median equal error rate of 0% for intra-session au-

thentication, 2%-3% for inter-session authentication

and below 4% when the authentication test was car-

ried out one week after the enrollment phase.

Killourhy et al. (Killourhy and Maxion, 2009)

collect a keystroke-dynamics data set, in order to

measure the performance of a range of detectors so

that the results can be compared soundly. They col-

lected data from 51 subjects typing 400 passwords

each, evaluating 14 detectors from the keystroke-

dynamics and pattern-recognition literature. The

three top-performing detectors achieve equal-error

rates between 9.6% and 10.2%.

Bo et al. (Bo et al., 2014) build a touch-based

biometrics model of the owner by extracting some

principle features, and then verify whether the cur-

rent user is the owner or guest/attacker. When us-

ing the smartphone, some unique operating dynam-

ics of the user are detected and learnt by collect-

ing the sensor data and touch events silently. When

users are mobile, the micro-movement of mobile de-

vices caused by touch is suppressed by that due to

the large scale user-movement which will render the

touch-based biometrics ineffective. To address this,

we integrate a movement-based biometrics for each

user with previous touch-based biometrics. We con-

duct extensive evaluations of our approaches on the

Android smartphone, showing that the user identiﬁ-

cation accuracy is over 99%.

Murmuria et al. (Murmuria et al., 2015) pro-

pose the continuous user monitoring using a machine

learning based approach comprising of an ensem-

ble of three distinct modalities: power consumption,

touch gestures, and physical movement. They eval-

uated the method using a dataset retrieved by mon-

itoring 73 volunteer participants using the same de-

vice (Google Nexus 5) with Android 4.4.4 version on

SECRYPT 2016 - International Conference on Security and Cryptography

106

board. In the evaluation, they obtain an equal error

rate between 6.1% and 6.9% for 59 selected users.

Gascon et al. (Gascon et al., 2014) analyze typing

motion behavior captured while the user is entering

text. The authors developed a software keyboard ap-

plication for the Android OS that stores all sensor data

for further learning and evaluation. In a ﬁeld study

with more than 300 participants, they reached a false

positive rate of 1% and a total positive rate of 92%.

Clarke et al. (Clarke and Mekala, 2006) discuss

the application of biometrics to a mobile device in

a transparent and continuous fashion and the subse-

quent advantages and disadvantages that are in con-

tention with various biometric techniques. In order

to facilitate the use of signature recognition trans-

parently, their method must verify users based upon

written words and not signatures. From the experi-

ment conducted they were found that current signa-

ture recognition systems could indeed perform suc-

cessful authentication on written words. Based upon

20 participants an average FAR and FRR of 0% and

1.2% respectively were experienced across 8 common

words.

Brocardo and Traore (Brocardo and Traore, 2014)

introduce a very novel approach for continuous au-

thentication which is based on micro messages, by ex-

tracting lexical, syntatic, and application speciﬁc fea-

tures. This technique should guarantee a shorter au-

thentication delay, essential for reducing the vulnera-

bility window of the device. This system obtained an

EER of 9.18%, but the main limitation is that it can be

applied only to messages, so it cannot be used if the

user does not write messages.

Wu et al. (Wu et al., 2015) propose a method pro-

ﬁling behavioral biometrics from keystrokes and ges-

tures, that also acquires the speciﬁc properties of a

one-touch motion during the users interaction with the

smartphone. The authors demonstrate that the man-

ner by which a user uses the touchscreen that is, the

speciﬁc location touched on the screen, the drift from

when a ﬁnger moves up and down, the area touched,

and the pressure used reﬂects unique physical and be-

havioral biometrics.

Piuri et al. (Piuri and Scotti, 2008) presented a

set of techniques to extract the ﬁngerprint ridge struc-

ture by image processing in images acquired by low-

cost cameras and webcams. The approach allows the

use of webcams and low-cost cameras as interopera-

ble devices for ﬁngerprint biometrics. Results show

that even in normal illumination conditions and by

using sensors of about 1Mpixel (or above), the ridge

structure can be effectively extracted. The limited res-

olution of current CCDs can produces several artifacts

in the extracted ridge structure, but experiments have

shown that the presence of artifacts can be reduced by

using higher image resolutions.

Kotroupolos and Samaras (Kotropoulos and

Samaras, 2014) obtain the user’s proﬁle from

recorded speech signals. They obtained as top accu-

racy 97.6% which is smaller than the one obtained

with our experiment.

The main novelty of our method with respect to

the existing literature stands in the set of features se-

lected and in the signiﬁcant performance obtained.

5 CONCLUSION AND FUTURE

WORK

Current authentication mechanisms in mobile envi-

ronment use as mechanisms to identify the device

owner pins at login time and textual and graphical

passwords. These mechanisms do not offer any pro-

tection against access post login. In this paper we pro-

pose a method to continuously and silently authenti-

cate the user by extracting a set of features able to

characterize the user behavior. The method is silent

because it builds the proﬁle of the user’s behavior

while the user is using the mobile phone, without re-

quiring any further entry by the user, like voice or fa-

cial image. Results are signiﬁcantly better than those

reported in literature: we obtain a precision and a re-

call greater than 0.99 collecting data from 18 volun-

teer participants in a 10-day time window. Addition-

ally we measured a FAR of 0.7 % and a FRR of 0.3%.

We plan to improve our experiment in several

ways. With respect to data collection, we intend to in-

crease the number of experimental subjects involved,

and to collect further features per user, as well as the

frequent pattern of applications used by the user.

REFERENCES

Ahmed, A. A. E. and Traore, I. (2005). Anomaly intrusion

detection based on biometrics. In Information Assur-

ance Workshop, 2005. IAW’05. Proceedings from the

Sixth Annual IEEE SMC, pages 452–453. IEEE.

Akula, S. and Devisetty, V. (2004). Image based registration

and authentication system. In Proceedings of Midwest

Instruction and Computing Symposium, volume 4.

Bailey, K. O., Okolica, J. S., and Peterson, G. L. (2014).

User identiﬁcation and authentication using multi-

modal behavioral biometrics. Computers & Security,

43:77–89.

Bhattacharyya, D., Ranjan, R., Farkhod Alisherov, A., and

Choi, M. (2009). Biometric authentication: A review.

International Journal of u-and e-Service, Science and

Technology, 2(3):13–28.

Silent and Continuous Authentication in Mobile Environment

107

Bo, C., Zhang, L., Jung, T., Han, J., Li, X.-Y., and Wang,

Y. (2014). Continuous user identiﬁcation via touch

and movement behavioral biometrics. In Perfor-

mance Computing and Communications Conference

(IPCCC), 2014 IEEE International, pages 1–8. IEEE.

Brocardo, M. L. and Traore, I. (2014). Continuous authen-

tication using micro-messages. In Privacy, Security

and Trust (PST), 2014, pages 179–188. IEEE.

Brown, M. and Rogers, S. J. (1993). User identiﬁcation via

keystroke characteristics of typed names using neu-

ral networks. International Journal of Man-Machine

Studies, 39(6):999–1014.

Clarke, N. and Mekala, A. (2006). Transparent handwriting

veriﬁcation for mobile devices. In Proceedings of the

Sixth International Network Conference (INC 2006),

Plymouth, UK, pages 11–14. Citeseer.

Davis, D., Monrose, F., and Reiter, M. K. (2004). On user

choice in graphical password schemes. In USENIX

Security Symposium, volume 13, pages 11–11.

De Luca, A., Hang, A., Brudy, F., Lindner, C., and Huss-

mann, H. (2012). Touch me once and i know it’s you!:

implicit authentication based on touch screen patterns.

In Proceedings of the SIGCHI, pages 987–996. ACM.

Dhamija, R. and Perrig, A. (2000). D ej a vu: A user study

using images for authentication.

Dunphy, P., Heiner, A. P., and Asokan, N. (2010). A closer

look at recognition-based graphical passwords on mo-

bile devices. In Proceedings of the Sixth Symposium

on Usable Privacy and Security, page 3. ACM.

Frank, M., Biedert, R., Ma, E.-D., Martinovic, I., and

Song, D. (2013). Touchalytics: On the applicabil-

ity of touchscreen input as a behavioral biometric for

continuous authentication. Information Forensics and

Security, IEEE Transactions on, 8(1):136–148.

Gamboa, H. and Fred, A. (2004). A behavioral biometric

system based on human-computer interaction. In De-

fense and Security, pages 381–392. International So-

ciety for Optics and Photonics.

Gascon, H., Uellenbeck, S., Wolf, C., and Rieck, K. (2014).

Continuous authentication on mobile devices by anal-

ysis of typing motion behavior. In Sicherheit, pages

1–12.

Joyce, R. and Gupta, G. (1990). Identity authentication

based on keystroke latencies. Communications of the

ACM, 33(2):168–176.

Killourhy, K. S. and Maxion, R. A. (2009). Compar-

ing anomaly-detection algorithms for keystroke dy-

namics. In Dependable Systems & Networks, 2009.

DSN’09. IEEE/IFIP International Conference on,

pages 125–134. IEEE.

Koreman, J., Morris, A., Wu, D., Jassim, S., Sellahewa,

H., Ehlers, J., Chollet, G., Aversano, G., Bredin, H.,

Garcia-Salicetti, S., et al. (2006). Multi-modal bio-

metric authentication on the securephone pda. In Pro-

ceedings of the MMUA workshop on Multimodal User

Authentication.

Kotropoulos, C. and Samaras, S. (2014). Mobile phone

identiﬁcation using recorded speech signals. In Digi-

tal Signal Processing (DSP), 2014 19th International

Conference on, pages 586–591. IEEE.

Kwapisz, J. R., Weiss, G. M., and Moore, S. A. (2010).

Cell phone-based biometric identiﬁcation. In Biomet-

rics: Theory Applications and Systems (BTAS), 2010

Fourth IEEE International Conference on, pages 1–7.

IEEE.

Monrose, F. and Rubin, A. (1997). Authentication via

keystroke dynamics. In Proceedings of the 4th ACM

conference on Computer and communications secu-

rity, pages 48–56. ACM.

Murmuria, R., Stavrou, A., Barbar

a, D., and Fleck, D.

(2015). Continuous authentication on mobile devices

using power consumption, touch gestures and physical

movement of users. In Research in Attacks, Intrusions,

and Defenses, pages 405–424. Springer.

Nicholson, A. J., Corner, M. D., and Noble, B. D. (2006).

Mobile device security using transient authentica-

tion. Mobile Computing, IEEE Transactions on,

5(11):1489–1502.

Piuri, V. and Scotti, F. (2008). Fingerprint biometrics via

low-cost sensors and webcams. In Biometrics: The-

ory, Applications and Systems, 2008. BTAS 2008. 2nd

IEEE International Conference on, pages 1–6. IEEE.

Riva, O., Qin, C., Strauss, K., and Lymberopoulos, D.

(2012). Progressive authentication: deciding when to

authenticate on mobile phones. In Presented as part

of the 21st USENIX Security Symposium (USENIX Se-

curity 12), pages 301–316.

Sae-Bae, N. and Memon, N. (2013). A simple and effective

method for online signature veriﬁcation. In BIOSIG,

pages 1–12. IEEE.

Seo, H., Kim, E., and Kim, H. K. (2012). A novel biometric

identiﬁcation based on a users input pattern analysis

for intelligent mobile devices. International Journal

of Advanced Robotic Systems, 9:1–10.

Shen, C., Cai, Z., Guan, X., and Cai, J. (2010). A hypo-

optimum feature selection strategy for mouse dynam-

ics in continuous identity authentication and monitor-

ing. In Information Theory and Information Secu-

rity (ICITIS), 2010 IEEE International Conference on,

pages 349–353. IEEE.

Shepherd, S. (1995). Continuous authentication by anal-

ysis of keyboard typing characteristics. In Security

and Detection, 1995., European Convention on, pages

111–114. IET.

Wu, J.-S., Lin, W.-C., Lin, C.-T., and Wei, T.-E.

(2015). Smartphone continuous authentication based

on keystroke and gesture proﬁling. In Security Tech-

nology (ICCST), 2015 International Carnahan Con-

ference on, pages 191–197. IEEE.

Zheng, N., Bai, K., Huang, H., and Wang, H. (2014).

You are how you touch: User veriﬁcation on smart-

phones via tapping behaviors. In ICNP, pages 221–

232. IEEE.

SECRYPT 2016 - International Conference on Security and Cryptography

108
