Conceptual Mappings to Convert Relational into NoSQL Databases

Myller Claudino de Freitas

, Damires Yluska Souza

and Ana Carolina Salgado

Center for Informatics, Federal University of Pernambuco, Professor Luis Freire ave, Recife, Brazil

Academic Unit of Informatics, Federal Institute of Education, João Pessoa, Brazil

Keywords: Relational Databases, NoSQL Systems, Conceptual Mappings, Data Conversion.

Abstract: Sometimes, data belonging to Relational databases need to be transferred to NoSQL ones. However, the

data conversion process between Relational to NoSQL databases is considered as not trivial, since it is

necessary to have considerable knowledge about the data models at hand. Regarding the structural

heterogeneity underlying this problem, we propose an approach, named as R2NoSQL, which defines

conceptual mappings to enhance the data conversion process. In this paper, we present our approach and

some implementation and experimental results, which show that, by using the defined conceptual mappings,

we obtain a consistent target NoSQL database with respect to a source Relational one.

1 INTRODUCTION

Due to the increasing amount of data generated by

user interactions on the Web or by big data

requirements, some companies are focusing on using

non-relational databases, usually referred to as

NoSQL systems, standing for ’Not only SQL’ (Han

et al., 2011). This term has been used to categorize

databases characterized by horizontal scalability,

less constrained structure or schema-less, and faster

access compared to traditional relational databases

(RDBMS) (McMurtry et al., 2013).

Experts comment that despite the rise of NoSQL

databases during the past years, NoSQL is not

necessarily a replacement for relational databases

(McMurtry et al., 2013). Instead, NoSQL databases

comply with big or social data demands or specific

projects which strain Relational ones. Nevertheless,

sometimes, data belonging to Relational databases

need to be transferred to NoSQL ones in order to be

used in specific projects. However, the data

conversion process is not trivial, since it is necessary

to have considerable knowledge about the data

models at hand.

In this scenario of structural heterogeneity, we

define our research problem as follows:

Let RDB be a Relational database and NSDB =

{NSDB

, ..., NSDB

} a set of databases belonging

to NoSQL models, where each NSDB

uses one

of the following NoSQL approaches A = {Key-

value, Column, Document, Graph}. We need to

establish conceptual mappings between RDB

elements and the different data structures

underlying NSDB

in such a way that RDB can be

converted to NSDB

With this in mind, and considering the structural

heterogeneity between Relational and NoSQL

models, this paper presents the R2NoSQL approach

for converting data between the referred models. To

this end, it compares the data structures belonging to

the Relational model with the four main NoSQL

approaches (key-value, columns, documents and

graphs), identifying a set of possible conceptual

mappings between RDB and a NSDB

. Also, it

provides a tool prototype, which implements a case

study with a Relational database and a Document

based NoSQL system. Experiments have been done

to evaluate the consistency of the generated

mappings by analysing the results obtained from the

same set of queries executed on both systems.

This paper is organized as follows: Section 2

introduces some concepts; Section 3 presents the

approach; Section 4 describes some obtained results.

Related work is discussed in Section 5. Section 6

draws our conclusions and points out future work.

2 NoSQL MODELS

NoSQL systems are a category of databases that do

not follow principles of the Relational Model (Han

et al., 2011). The term “NoSQL” does not relate to a

174

Freitas, M., Souza, D. and Salgado, A.

Conceptual Mappings to Convert Relational into NoSQL Databases.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 1, pages 174-181

ISBN: 978-989-758-187-8

specific data model, but to a group of data models

that differ from the relational approach and may

have in common some features such as: they are

usually open-source, distributed and horizontally

scalable, and they present schema flexibility or even

no schema (Han et al., 2011). NoSQL systems are

classified in some categories in which the four main

are: Key-value, Columns, Documents, and Graph.

Indeed, their implementations may differ from each

other, even when the systems belong to a similar

category. In order to base our descriptions, we have

chosen one example of each NoSQL category. They

are briefly discussed in the following.

2.1 Key-value Model

The Key-value Model is the one with the simplest

representation. Its structure consists of a list of pairs

composed by a key and a value (Istvan et al., 2013).

Usually, Key-value NoSQL implemented

systems allow, besides simple data types (e.g.,

numerals and strings), the use of lists and sets of

values of simple types. This is what happens, for

instance, in Redis (Redis, 2015), our example of

Key-value system. A Key-value system such as

Redis tends to support large volumes of data. Since

it does not present data schemas, the developer may,

by hand, introduce some metadata by naming the

keys. On the other hand, it does not support queries

to be performed on the data, but only on the search

keys. Thus, all access is done through the search

keys and only with the key it is possible to access

the value. This access usually is accomplished with

lower response times, one of its main benefits. This

model does not support relationships in terms of

reference keys and no referential integrity constraint.

2.2 Column Model

At a first sight, this model may be considered as

similar to the Relational one, since it is also

organized in terms of rows and columns. However,

this approach deals with data in a non normalized

way, i.e., by allowing nesting of tables inside tables

(Lakshman and Malik, 2010). In this approach, rows

do not store a tuple, but a set of attributes of the

same type, while the set of attributes of a column

contains the information from a given instance. Such

feature allows queries to be performed more

efficiently, although when recovering a complete

instance it may become more costly.

Another important concept regards a “family of

columns”, which means a set of instances of a given

entity. In this structure, it is possible to have non-

atomic attributes through the representation of value

lists. Instances may have a different number of

attributes, since there is no need to book storage

space for null values. Also, there is no need to use

join operations in order to query diverse entities.

2.3 Document Model

In Document Model, the data entities are grouped in

documents as objects, which are composed by keys

(properties) and values. These documents are usually

serialized in JSON syntax (McMurtry et al., 2013).

A document is a collection of objects that are

related to a data instance. The various documents

belonging to the same data domain are stored in a

collection of documents.Considering the MongoDB

document system (Mongo, 2015), an instance key

(called as an “objectId”) can be set at persistence

time, or may have its value generated randomly by

the database. It can provide uniqueness values for

other fields by the specification of an index.

This model allows more complex queries

involving different collections of documents. To this

end, it is necessary that a document has a DBRef

(Database Reference) to another related document or

establish a reference. Despite allowing references,

DBRef does not guarantee referential integrity

constraint. A query may consider these references or

use data embedded within the same document.

2.4 Graph Model

The Graph model is mainly concerned with

representation and access, where data items are

connected by relationships by means of a graph

structure (McMurtry et al., 2013). The elements

underlying a graph are, namely (McMurtry et al.,

2013): nodes, edges and properties. Nodes

correspond to data instances, edges refer to

maintained relationships among node instances, and

properties relate to data values. Some systems of

such category allow the definition of their properties

with the guarantee of unique values. One example

regards the Neo4j system (Neo4j, 2015).

Nodes and edges can contain labels (terms which

indicate a category) that classify them into more

specific groups. For the nodes, these labels can be

used to differentiate instances. On edges, labels may

also be used to determine the type of relationship

that is occurring.

An edge has an input node and an output node

linking them. This feature, besides supporting

references, also guarantees referential integrity by

ensuring that the input node always makes reference

Conceptual Mappings to Convert Relational into NoSQL Databases

175

to the output node. The access keys to the nodes are

automatically set by the system. However, it is

possible to establish unique constraints for other

node properties.

3 THE R2NoSQL APPROACH

In this section, we present some definitions along

with the proposed approach.

3.1 Some Definitions

At first, we provide some definitions regarding the

concepts underlying E-R and Relational models that

we consider in our approach. Since we need to

think about mappings between concepts, we define

what we consider by “Concept” in each one of the

working data models. Regarding the E-R Model, we

may summarize a Concept as follows.

Definition 1 – E-R Concept. The set of

concepts of an E-R conceptual model we are dealing

with are C

= {Entity, Simple Attribute, Multi-valued

Attribute, Composed Attribute, Relationship,

Specialization}.

In the light of the Relational Model, we define a

Concept as follows.

Definition 2 – Relational Concept. Concepts of

a relational structure are C

= {Table, Simple

Attribute, Primary Key (PK), Foreign Key (FK)}.

As discussed in Section 2, we observe that each

NoSQL database model has specific data structures.

Thereby, we provide the definition of the main

Concepts of the four categories of NoSQL systems

described previously.

Definition 3 – Key-value NoSQL Concept. A

concept in a Key-value Model may be C

= {Search

Key, Value, Value List, Value Set}.

Definition 4 – Column NoSQL Concept. In a

Column Model, a concept may be C

= {Column

Family, Line, Column, Value Set, Value List,

Primary Key (PK)}.

Definition 5 – Document NoSQL Concept. In a

Document Model, a concept may be C

{Document Collection, Document, Field, Embedded

Field, Field List, ObjectId, DBRef}.

Definition 6 – Graph NoSQL Concept. A

Graph model concept C

= {Label, Data Node,

Property, Property Set, Id, Edge, Value Set, Value

List}.

Data indeed are instantiated differently in each

one of the referred databases. Nevertheless, we can

think about a data item or a data instance, in a

general way, as follows.

Definition 7 - Data Item. A data item is an

instance or an individual of a real entity in the data

set at hand.

In the Relational Model, a data item is a tuple. In

NoSQL approaches, it can be a data node, a data

document, a column of a column family or simply a

value from the key value model.

3.2 Our Proposal

As discussed in the previous sections, each database

model has specific data structures and concepts,

what provides structural heterogeneity conflicts

among them. These conflicts occur because different

choices of construct representation or integrity

constraints are adopted in accordance with the

options underlying each data model. Thereby, in this

work, the task we are dealing with is concerned with

what is necessary to convert concepts of a given

RDB (a Relational database) to a NSDB

(a NoSQL

one). Thus, it becomes necessary to specify

conceptual mappings between concepts C

∈

RDB

and concepts C

∈

NSDB

Our proposal, named as R2NoSQL approach, is

based on three aspects: (i) defining conceptual

mappings between RDB and NSDB

; (ii) using these

conceptual mappings to allow metadata and data

conversion between the referred databases, and (iii)

classifying source tables to help understanding their

meaning in the database design. In the following, we

provide the definitions underlying these issues.

3.2.1 Conceptual Mappings

Our approach deals with the structural heterogeneity

of the data models and some aspects of database

design. In order to cope with these issues, our

mapping language handles the different existing

concepts, which belong to the data models, but as a

design reference, we consider some concepts not

only from the Relational model but also from the E-

R conceptual model. Thereby, we consider concepts

from the Conceptual E-R model, which are not

directly implemented in a Relational database, but

they are close to real world and can be implemented

in NoSQL systems. This conceptual mapping is the

base for our conversion solution and without it, the

process could not happen. These concepts regard

particularly the composed and multi-valued

attributes, and also specializations. By establishing

that, we deal with a source model and a target model

and we define the set of possible source Concepts, to

be considered in a Mapping, as the following:

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

176

Definition 8 – Source Concept. A source concept

is the set of possible E-R or Relational concepts

which may be used to compose a Mapping. Thus, C

= C

U C

. Proceeding with the union operation, the

final set results in C

= {Entity, Simple Attribute,

Multi-valued Attribute, Composed Attribute,

Relationships, Specialization, Table, Primary key

(PK), Foreign key (FK)}. Since a conceptual Entity

always results in a relational Table, we abstract both

ones only in the concept Table.

In the same way, we establish a target Concept,

as the following.

Definition 9 – Target Concept. A target concept

is the set of possible NoSQL concepts which may

be used to compose a Mapping. C

= C

| C

Thus, the set of target concepts is composed by

the possible concepts which belong to one of the

NoSQL systems instantiated by a specific model.

With these definitions in mind, we define, firstly,

in a general way, a Conceptual Mapping, as follows.

Definition 10 – Conceptual Mapping. A

conceptual mapping M represents an association

between a concept C

and a concept C

of a given

NSDS

, where NSDS

∈

A, and A = {Key-value,

Column, Document, Graph}. M defines a level of

similarity between C

and C

A conceptual mapping M may be understood as a

way of converting a given C

into a C

. Depending

on the target NSDS

, to a given C

, there may be no

corresponding C

i.e., there may be no concept in

the target model that can be used for data

conversion. When this fact happens, we point it as

an empty or non existing target concept (∄).

Based on the previous definitions, we establish

specific conceptual mappings between C

and C

according to the NSDS

at hand. To this end, we

consider the possibility of employing a table

denormalization technique, which is the process of

adding redundant data or grouping data, previously

fragmented in a number of relational tables.

Thereby, we may have nested tables or multi-valued

attributes in one or more target structures, which

may be sets, lists, documents or other ones,

depending on the data model.

Let RDB be a source database composed by C

and NSDB

, a Key-value NoSQL system, composed

by C

. Specific structural conceptual mappings

between C

and C

may be defined, as follows.

RDB:Table ≡ NSDB

∄

RDB:SimpleAttribute ≡ NSDB

:Value

RDB:ComposedAttribute ≡ NSDB

:ValueList

RDB:Multi-valuedAttribute ≡ NSDB

:ValueList

RDB:PK ≡ NSDB

:SearchKey

RDB:FK ≡ NSDB

∄

RDB:Specialization

≡

NSDB

:ValueSet

Regarding data items, we may establish a

mapping in the following way:

RDB:DataItem ≡ NSDB

:Value |

NSDB

:ValueList

Although there is no corresponding concept to a

Table, it is possible to simulate such concept by

using composed search keys. In this case, keys are

composed by a prefix together with the name of a

given property, in such a way that we may identify

to which entity it is associated. Indeed, it is not a

defined standard, but one of our proposals.

The representation of relationships occurs with the

storage of the search key values of a given data item

inside another one. In many-to-many relationships,

this happens in both sides of the data items at hand.

Now let RDB be a source database composed by

and NSDB

, a Column NoSQL system, composed

by C

. Specific structural conceptual mappings

between C

and C

are defined, as follows.

RDB:Table

≡ NSDB

:ColumnFamily

RDB:SimpleAttribute ≡ NSDB

:Column

RDB:ComposedAttribute ≡ NSDB

:ValueSet

RDB:Multi-valuedAttribute ≡ NSDB

:ValueList

RDB:PK ≡ NSDB

:PK

RDB:FK ≡ NSDB

∄

RDB:Specialization

≡

NSDB

: ValueSet

Regarding data items, we may establish a

mapping in the following way:

RDB:DataItem ≡ NSDB

:Line

In terms of relationships, a NSDB

allows their

implementation by two options: (i) a column family

may compose information from different but related

tables; or (ii) data items may have a reference to

other data items by storing the target primary key.

The former is the most common option, since it

allows a better response time.

Now let RDB be a source database composed by

and NSDB

, a Document NoSQL system,

composed by C

. Structural conceptual mappings

between C

and C

are defined, as follows.

RDB:Table ≡ NSDB

:DocumentCollection

RDB:SimpleAttribute ≡ NSDB

:Field

RDB:ComposedAttribute ≡

NSDB

:EmbeddedField

RDB:Multi-valuedAttribute ≡ NSDB

:FieldList

RDB:PK ≡ NSDB

:ObjectId

RDB:FK ≡ NSDB

:DBRef |

NSDB

:EmbeddedField

RDB:Specialization

≡

NSDB

: EmbeddedField

Regarding data items, we may establish a

mapping in the following way:

RDB:DataItem ≡ NSDB

:Document

Conceptual Mappings to Convert Relational into NoSQL Databases

177

Relationships are implemented by defining

object references between objects belonging to

documents. Thereby, queries may take into account

these references to get related objects information.

Now let RDB be a source database composed by

and NSDB

, a Graph NoSQL system, composed

by C

. Specific structural conceptual mappings

between C

and C

are defined, as follows.

RDB:Table ≡ NSDB

:LabelNode

RDB:SimpleAttribute ≡ NSDB

:Property

RDB:ComposedAttribute ≡ NSDB

:ValueSet

RDB:Multi-valuedAttribute ≡ NSDB

:ValueList

RDB:PK ≡ NSDB

:Id

RDB:FK ≡ NSDB

:Edge

RDB:Specialization

≡

NSDB

:ValueList

Regarding data items, we may establish a

mapping in the following way:

RDB:DataItem ≡ NSDB

:Node

In the next section, we provide the way we

classify identified tables in a given RDB.

3.2.2 Table Classification

Regarding the set of concepts C

∈ RDB, the main

one is always a Table. Since a table may be the

result of E-R conceptual entities, relationships,

specializations, multi-valued or composed attributes,

we need to understand what a Table means, and its

importance, to the RDB at hand. We have defined a

classification of the source Tables as follows.

 Main Tables: These are the main tables in a

RDB design. They usually correspond to

entities found in the conceptual model.

 Subclasses: These tables are a complement to

the definition of a main table. They represent

specializations of the main tables, but do not

exist independently.

 Relationships: This classification typifies a

specific kind of table, which implements a

many-to-many (N:N) relationship in the

conceptual model.

 Common Tables: The other types of tables are

defined as common in a source RDB schema.

Our proposed algorithms take into account such

table classification in order to identify the

conceptual mappings to be used.

3.2.3 Conversion Algorithm

Based on the specified conceptual mappings

between C

and C

, and on the table classification,

some algorithms have been developed to allow data

conversion. A main algorithm, named as

Algorithm1-Data Conversion, receives a RDB

enriched with a Table Classification as input and

generates a NSDB

as output.

--------------------------------------------

Algorithm1: Data Conversion.

--------------------------------------------

Input: RDB rel;

Output: NSDSi ns;

Begin

//Looks for main tables

1: For Each table of rel Do

2: If (table.classification() is “main”)

Then

3: get all table attributes to object

4: For Each table referencing table Do

//looks for related tables

5: goDeep(table, object);

//persists object on ns

6: persist(object) ;

7: End For;

8: End If;

9: End For;

End Data_Conversion;

--------------------------------------------

In our approach, the input RDB is composed by

its metadata and data. Tables were already classified

and this classification is also used as input. Based on

that, the algorithm verifies the kinds of existing

tables and, for each type, extracts the set of data

items. Through references (FKs), data tables are

traversed and analyzed. At such verification time,

decisions are taken according to each type of table.

--------------------------------------------

Algorithm2: goDeep.

--------------------------------------------

Input: table, object;

Output: table, object;

Begin

//Looks for tables that reference table

1: table2 := findTableDeep(table);

2: Do Switch table2.classification

3: case “common”:

4: get all table2 attributes to object;

5: goDeep(table2);

6: case “subclass”:

7: get all table2 attributes to object;

8: goDeep(table2);

11: End Switch;

//looks for related tables

10: goUp(table, object);

End goDeep;

--------------------------------------------

Main tables constitute the basis for the analysis.

With a main table at hand, the algorithm verifies if it

is related with other ones. In this case, it calls

another algorithm (Algorithm2–goDeep) where

existing relating tables are identified. Regarding

these selected tables, some options may be taken,

namely: (i) If the table is another main table, no

other procedure is accomplished because, later, the

opposite direction of the relationship will be

considered. At this later time, the second table will

refer to the first one; (ii) If the table is a relationship

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

178

table, no action is taken because, only when all the

data items are persisted, relationships can be

analyzed; (iii) If the table is a common one, it is

possible to add its attributes in that main table as

part of its structure; (iv) If the table is a subclass,

then its attributes are added to the main table. It is

understood that it is a specialization of the main one.

Each time a new table is found in-depth analysis,

the algorithm selects this table and repeats the

process until there are no more tables, or a stop

condition happens. This process is responsible for

the denormalization of the data, in which the data

related to the main table are included in a data item.

--------------------------------------------

Algorithm3: goUp.

--------------------------------------------

Input: table, object;

Output: object, reference_list,

referenced_list;

Begin

//Looks for tables that reference table

1: table2 := findTableUp(table);

2: Do Switch table2.classification

3: case “common”:

4: get all table2 attributes to object;

5: goUp(table2);

6: case “subclass”:

//saves data items to set relationship

7: reference_list.add(table);

8: referenced_list.add(table2);

8: goDeep(table2);

9: case “relationship”: break;

10: case “main”:

11: reference_list.add(table);

12: referenced_list.add(table2);

13: End Switch;

End goUp;

--------------------------------------------

After the identification of in-depth relationships,

the tables that the main table refers are searched up

(Algorithm3 – goUp). According to the identified

relationships, one of the following options will be

considered: (i) to capture the attributes and move up

or (ii) to save identified instances in a list. This

function separates tables in which there could be

composed or multi-valued attributes. It may also

show that a new entity has been found, and a

relationship should happen. The procedure is

repeated until a stop condition is reached.

After the main table and its related tables of a

data item are analyzed, the whole set of attributes is

persisted as an entity in the target database

(Algorithm1, line 6). Just after all instances have

been persisted, the algorithm must define the

relationships among them.

To establish the one-to-one or one-to-many

relationships, generated lists (when a main table

mentioned another one) are used. These lists are

included in the data items that have references, and

the data items that are referenced. For each type of

implemented target database, the algorithm must

implement a specific procedure. In this work, we

show one regarding the MongoDB system. This

algorithm, named as oneTo, was implemented to

provide DBRef storage. It stores in the

corresponding document of Table 1 a reference to

list2, and in the one corresponding to Table 2, a

reference to list1. In terms of many-to-many

relationships, it is necessary to identify the double

meaning of these references (manyToMany

algorithm). In MongoDB case, a DBRef of each

document involved in the corresponding document

is stored. For instance, the student Bill Gates held a

publication. Thus there is a publication document

reference in the student's document, and there is a

student document reference in the publication

document. Other solution would be to embed all

related data into one document. However, this

approach can let the execution of queries harder. For

instance, if student documents contain publication

information, more effort would be necessary to

retrieve people involved in a specific publication.

4 RESULTS AND EXPERIMENTS

In this section, we present some implementation and

experimental results.

4.1 Implementation and Example of use

We have developed the R2NoSQL approach in the

Java language. The main functional requirements

underlying the tool’s development are the following:

 Set Source Database: it includes the definition

of the relational DBMS to be used as well as

the metadata and data extraction step.

 Classify Table: The tables extracted from the

Relational database will be classified by the user.

 Set Target Database: The user chooses the

target NoSQL database.

 Execute Data Conversion: It analyzes the

extracted metadata and data from the source

database, verifies tables’ classification and

possible conceptual mappings, identifies the

target NoSQL concepts and persists

corresponding data in the target database.

In this current version, we have developed a

prototype which deals with a RDB (e.g., MySQL) as

a source database and a NSDB

as a target one. To

the latter, we have used the MongoDB system.

We provide an example in the following. As

source RDB, we have used a database with 15 tables

Conceptual Mappings to Convert Relational into NoSQL Databases

179

(e.g., Person, Publication, Student). Among them,

there are some relationships (e.g., between Person

and Publication), and some specializations (e.g.,

Student is a specialization of Person).

The Table classification is accomplished by the

user, since, in this version, we have a semi-

automated tool with respect to this functionality.

Thus, after extracting the source RDB metadata, the

tool asks the user to classify the extracted tables.

After table classification, the R2NoSQL tool is

able to proceed with the data conversion, in

accordance with the defined algorithms (Section

3.2.3). The tool selects instances of each table

classified as main, storing the table attributes and

their associated values. This happens according to

the existing mappings. When this process finishes,

the tool looks for instances related to what was

analyzed as a complement to the main tables. These

related tables can be a representation of a complex

value as a composed attribute, a multi-valued

attribute or even a specialization.

Considering a fragment of the source database at

hand, we show some instances belonging to tables

Person and Student in Table 1 and Table 2,

respectively. Taking into account the data presented

in Table 1 and Table 2, the tool produces a

document as depicted in Figure 1. The resulting

collection of documents is named by using the name

of the main table of that entity. The attributes and

values of the tables were converted into document

fields. However, new fields were introduced as

depicted in Figure 1: AR_master regards the key

attribute of table Master, a specialization of Student;

Person_X_Publication represents the many-to-many

relationship between Person and Publication.

4.2 Experiments

We have conducted some experiments to verify the

effectiveness of our approach. The goal of our

experiments was twofold: (i) to check whether a set

of queries formulated and executed in a RDB may be

either formulated and executed in a generated

NSDB

, and (ii) to verify if the query results

obtained from both databases are similar, i.e., if the

used mappings and algorithms have generated a

consistent target NSDB

. In order to verify the latter

goal, we checked both obtained query results and

compared the ones obtained in a NSDB

with respect

to the corresponding ones from a RDB.

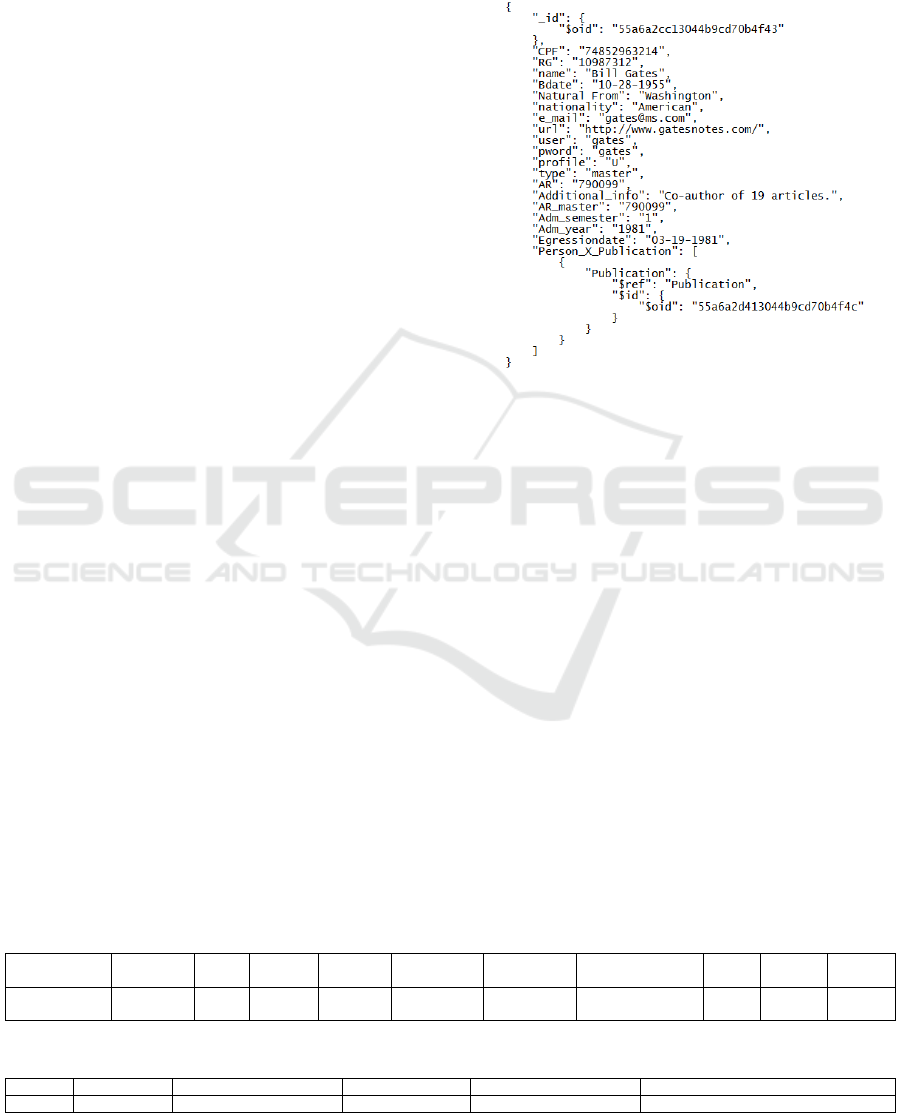

Figure 1: Document obtained after data conversion.

The working data scenario was the same

presented in the example of Section 4.1. This

database was populated with 45 tuples, and queries

were specified to be executed over them. Table 3

shows an examples of query used in our

experiments, which shows all professor attributes

according to his name. It is presented in SQL and in

MongoDB query language.

The first experiment goal was accomplished,

since, by using the tool, we could submit and

execute the same set of queries in both source and

target databases.

Regarding the latter goal, we have compared the

obtained query results in terms of data items

(instances) and their properties. For each query

submitted and executed in MongoDB, we measured

the degree of similarity of the answers with respect

to the set of answers obtained in the relational

database (which acted as a gold standard).

All queries returned similar instances with

identical property values (100%). Differences were

Table 1: Table Person with a tuple.

CPF RG name Bdate

Natural

From

nationality e_mail url user pword profile

74852963214 10987312

Bill

Gates

10-28-

1955

Washing

ton

American

gates@ms.

com

http://gatesnotes.

com

gates gates U

Table 2: Table Student with a tuple.

AR CPF Additional_info Adm_semester Adm_year Egressiondate

790099 74852963214 Co author of 19 articles. 1 1981 03-19-1981

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

180

obtained only in terms of query results presentation,

but not regarding the set of obtained data items.

Therefore, we can see that the goals of this

experiment were achieved. It was possible to require

the same information from both source and target

databases. In addition, it was possible to obtain the

same set of query results from both ones.

Table 3: A query example used in the experiment.

SQL

MongoDB

query language

select pe.*, pf.*

from Person pe inner join Professor

pf on pe.cpf=pf.cpf

inner join IC_Professor i on

pf.cpf=i.cpf

where pe.cpf = '95175368429'

union

select pe.*, pf.*

from Person pe inner join Professor

pf on pe.cpf=pf.cpf

inner join Invited_Professor ip on

pf.cpf= ip.cpf

where pe.cpf = '95175368429'

db.Person.find({cpf:

"98632541754",

$or:[{type: "ic"},{

type: "invited"}]},

{cpf:1, rg:1,

name:1, birth_date:1,

naturalness:1,

nationality:1, user:1,

password:1,

profile:1, e_mail:1,

type:1,

additional_info:1})

5 RELATED WORK

Data conversion approaches regarding Relational and

NoSQL models have been tackled. Zhao et al. (2014)

propose an automatic approach for converting

relational database schemas to NoSQL ones, which

establishes conceptual rules for the denormalization of

the original data. Potey et al. (2015) provide a tool to

perform data conversion, in which the target database is

an equivalent relational schema in a Document

structure. Karnitis and Arnicans (2015) instead provide

a semi-automatic approach, which allows a

comprehension of the relationships that the tables carry

one over the other by a classification strategy. Mpinda

et al. (2015) present a data conversion process that

aggregates data tables, which are analyzed along with

the established relationships.

Our proposal extends some of these concepts.

We provide a denormalization technique and we

deal with some kinds of conceptual relationships, by

producing references when possible. We have a

table classification strategy to enrich the overall

process. Finally, our approach may be applied to any

of the target NoSQL models.

6 CONCLUSIONS

We presented the R2NoSQL approach, which allows

data conversion between relational and NoSQL

databases. This approach is based on conceptual

mappings defined between structural concepts from

relational and NoSQL ones.

Experiments have shown that obtained NoSQL

database is consisted with the source relational one,

by executing the same set of queries in both source

and target databases. In fact, they produced similar

query results.

As future work, some enhancements will be

done: (i) the tool will be extended to accomplish

data conversion by considering other categories of

NoSQL systems, and (ii) an automated query

conversion process will also be taken into account.

REFERENCES

Han, J., Haihong, E., Le, G., Du, J., 2011. Survey on

NoSQL database. In: Pervasive computing and

applications (ICPCA), 2011 6th international

conference on. IEEE. p. 363-366.

Istvan, Z., Alonso, G., Blott, M., Vissers, K., A flexible

hash table design for 10Gbps key-value stores on

FPGAs. In: Field Programmable Logic and

Applications (FPL), 2013 23rd International

Conference on. IEEE. p. 1-8.

Karnitis, G. and Arnicans, G., 2015. Migration of relational

database to document-oriented database: Structure

denormalization and data transformation. Communication

Systems and Networks (CICSyN), 7th International

Conference on Computational Intelligence. p. 114–118.

Lakshman, A., Malik, P., 2010. Cassandra: a decentralized

structured storage system. ACM SIGOPS Operating

Systems Review, v. 44, n. 2, p. 35-40.

McMurtry, D., Oakley, A., Sharp, J., Subramanian, M.,

and Zhang, H., 2013. Data access for highly-scalable

solutions: Using sql, nosql, and polyglot persistence.

Microsoft patterns & practices.

MongoDB, 2015. Available at https://www.mongodb.org/.

Last access on December, 2015.

Mpinda, S. A. T., Maschietto, L. G., and Bungama, P. A.,

2015. From relational database to columnoriented

nosql database: Migration process. International

Journal of Engineering Research & Technology

(IJERT), 4. p. 399–403.

Neo4j, 2015. Available at http://neo4j.com. Last access on

December, 2015.

Potey, M., Digrase, M., Deshmukh, G., and Nerkar, M.,

2015. Database migration from structured database to

non-structured database. International Conference on

Recent Trends & Advancements in Engineering

Technology (ICRTAET 2015), p. 1–3.

Redis, 2015. Available at http://redis.io/. Last access on

December, 2015.

Zhao, G., Lin, Q., Li, L., Li, Z. 2014. Schema Conversion

Model of SQL Database to NoSQL. In: P2P, Parallel,

Grid, Cloud and Internet Computing (3PGCIC), 2014

Ninth International Conference on. IEEE. p. 355-362.

Conceptual Mappings to Convert Relational into NoSQL Databases

181
