A Fault-tolerant Aggregation Schema in WSN

Wang Na and Li Liping

School of Computer and information, Shanghai Second Polytechnic University, Jinhai RD, Shanghai, China

wnoffice@126.com

Keywords: Wireless Sensor Network, Two-Valued, Aggregation, Fault-tolerant, Byzantine Attack.

Abstract: One of the critical tasks in designing a wireless sensor network is to monitor, detect, and report various

useful occurrences of events. The result of data aggregation is very important for running of networks.

Fault-tolerant is critical to the efficiency of data aggregation scheme. In this paper, we considered a special

condition of two-valued data and present a data aggregation scheme on account of byzantine attack. It is

proved that the algorithm in this scheme has polynomial complexity and can tolerant about one fourth fault

in the whole network. Simulations showed the effect of our model with different number of nodes.

Comparison with EFSA showed our model has higher fault detection rate.

1 INTRODUCTION

Wireless sensor network consisting of large number

of micro sensor nodes can complement the

collaborative awareness in many areas. One of the

critical tasks in designing a wireless sensor network

is to monitor, detect, and report various useful

occurrences of events in the network domain. An

event can be defined as an exceptional change in the

environmental parameters such as temperature,

pressure, humidity. However, an event may occur in

many ways such as a sudden change of sensed

parameters or may have a gradual and continuous

change over time. Data aggregation is a popular

research recently to decide an event.

Nodes have several hardware and software

components that can produce malfunctions. For

example, the enclosure can suffer impacts and

expose the hardware of the sensor node to the

extreme conditions of the environment.

When the battery of a node reaches a certain

stage, sensor readings may become incorrect.

Hardware failures will generally lead to software

failure. A Data aggregation application will not

perform properly if the underlying sensors are

providing incorrect readings. So fault tolerance is

critical to the efficiency of data aggregation scheme.

In the paper discussed, although the node cannot be

used to provide correct sensor readings it still can be

used to route packages in the sensor network.

The rest of the paper is organized as follows. The

detailed aggregation schema is depicted in Section 3.

The analysis and evaluation of trust model are given

in Sections 4. The related work and our conclusions

are presented in Sections 2 and 5.

2 RELATED WORKS

2.1 Node Faults

Nodes have several hardware and software

components that can produce malfunctions. For

example, the enclosure can suffer impacts and

expose the hardware of the sensor node to the

extreme conditions of the environment. When the

battery of a node reaches a certain stage, sensor

readings may become incorrect. Hardware failures

will generally lead to software failure. A Data

Acquisition application will not perform properly if

the underlying sensors are providing incorrect

readings. Nevertheless, some hardware failures do

not affect all the services in a sensor node. In the

example discussed, although the node cannot be

used to provide correct sensor readings it still can be

used to route packages in the sensor network.

Organizing a network in clusters is an approach

used in many applications, for example to extend the

lifetime of the network. A small number of nodes

are selected to become cluster heads. They are

responsible for coordinating the nodes in their

clusters, for instance by collecting data from them

and forwarding it to the base station. In case that a

cluster head fails, no messages of its cluster will be

414

422

Liping L. and Na W.

A Fault-tolerant Aggregation Schema in WSN.

DOI: 10.5220/0006027504220417

In Proceedings of the Information Science and Management Engineering III (ISME 2015), pages 422-417

ISBN: 978-989-758-163-2

forwarded to the base station any longer. The cluster

head can also intentionally or due to software bugs

forward incorrect information. Depending on the

application case, the impact of such a failure can

vary from quality degradation of measurements to

alarm messages not being delivered to a back-end

system.

While forwarding messages, nodes can aggregate

data from multiple other nodes in order to reduce the

amount of data sent to the base station. One common

simple approach is to calculate the average of

correlated measured values such as temperature,

humidity and pressure, sending only one message to

the back-end. If a node generates incorrect data, the

data aggregation results can suffer deviations from

the real value. Also, if a node responsible for

generating the aggregated data is subject to a value

failure, the base station will receive incorrect

information of an entire region of the network.

2.2 Related Models

Fault tolerance has been recognized by some

authors. Yunxia Feng presents a fault Tolerant Data

Aggregation Scheduling with Local Information.

Authors divided a fault tolerant data aggregation

protocol into two parts: basic aggregation scheduling

and amendment strategies (Yunxia Feng, 2002). On

default, data is aggregated according to the basic

aggregation scheduling strategy. The amendment

strategy starts after a middle sensor node is out of

service. Nodes here are identified as Directly

Affected Node, Indirectly Affected Node and Non-

Affected Node. It emphasizes on how to amend the

tree according to various types of fault nodes.

XIAO Wei presents a Fault tolerant scheme for

data aggregation in event cluster. He used K-means

to aggregate data that can make approximated data

in a set and proposed a concept of creditability

whose value is calculated according to an average

value coming from the set (XIAO Wei, 2006). The

former described recovery of the aggregation tree

after the recognition of fault nodes, while the latter

devote to resolving faulty determination but does not

consider the isolated point. YANG Yan presented an

Ant Colony Algorithm MACCA which makes

different speed ant colony cluster with SACA

parallel to divide approximated set. But it also does

not present fault recognition and isolated point

(Yang Yan, 1984).

Ganeriwal S, Kumar R, Srivastava M B proposes

a fully distributed K-Means algorithm (Epidemic K-

Means) which does not require global

communication and is intrinsically fault tolerant.

The proposed distributed K-Means algorithm

provides a clustering solution which can

approximate the solution of an ideal centralized

algorithm over the aggregated data as closely as

desired(Ganeriwal S, Kumar R, Srivastava M B,

2003). But the algorithm assumes nodes

communicating peer to peer which doesn’t consider

the communication complex and energy

consumption.

3 A POLYNOMIAL ALGORITHM

FOR FAULT-TOLERANT

AGGREGATION

When detect abnormality, sensors must be clustered

into numbers of local sensor networks according to

the region they are located. Besides, each region of

sensors has their own autonomy. In other words, all

sensors, which are in the same region, can execute

the proposed protocol without the sink and other

unconcerned sensors. This can reduce the time for

collecting data and designing the final result. We

use LEACH to create clusters.

In classic WSN, if the detected value meets some

condition, then the initial value must be set to 1,

otherwise, 0. Take the fire control system for

instance, if the sensor detects the temperature is

higher than 50°C, then its initial value is 1,

otherwise, 0 as default (Dai Hui, Han R, 2004).

After clustering, the proposed protocol can let each

sensor reach an agreement and do the corresponding

action with the following assumptions.

➢ Let N be the set of all sensors in the local

autonomous WSN and| N |=n.

➢ The total number of faulty sensors and

transmission media in the local WSN is ہሺn-1)/4ۂ.

➢ Each sensor needs to collect messages through

ہ(n−1)/4ۂ+1 phases of message exchange and

each phase has two round.

➢ Each sensor has its own initial value Vi.

In the message exchange phase, each sensor collects

and exchanges messages from other sensors with

ہ(n−1)/4ۂ+1 phases of message exchange. As shown

in Fig. 1. In Fig 1, the algorithm contains f+1 phases,

each taking two rounds. Each node has a preferred

decision for each phase. At the first round of each

phase, all nodes in one cluster send their preferences

to each other. Let v

be the majority value in the set

of values received by node p

at the end of the first

round of phase k. If there is no majority, then a

A Fault-tolerant Aggregation Schema in WSN

415

A Fault-tolerant Aggregation Schema in WSN

423

default value is used. In the second round of the

phase, node p

which called the king of phase sends

its majority value v

to all nodes. If p

receives more

than n/2+f copied of v

then it sets its preference for

the next phase to be v

. Otherwise, it sets its

preference to be the phase king’s phase, the node

decides on its preference.

Algorithm(for single node)

Initially pref[i]=x and pref[j]=v⊥, for any j≠i

Round 2k-1, 1<=k<=f+1;

Send <pref[i]> to all processors

Receive <vj> from pj and assign to pref[j], for all

0<=j<=n-1, j≠i

Let maj be the majority value of pref[0], pref[1]……,

pref[n-1] (v⊥ if none)

Let mult be the multiplicity of maj

Round 2k, 1<=k<=f+1;

If i=k then send <maj> to all precessors

Receive <king-maj> fro, p

(v⊥if none)

If mult>n/2+f

Then pref[i]:=maj

Else pref[i]:= king-maj

If k=f+1 then y:= pref[i]

Figure 1: Deployment of nodes.

For example in Figure 2（the commander is not

faulty）, We consider the top two level which is a

cluster. In the tree, node 1 is proposed as a common

node. At the second level, there are four nodes and

we assume that N is 5 and f is 1. Then it needs 2

phases and 4 round to complete this two-valued

aggregation. We set initial values as:

(1) Initial value: p1=1, p2=1, p3=1, p4=1, p5=1.

And p3 is fault.

(2) Initial value: p1=1, p2=1, p3=0, p4=1, p5=0. p1

is the faulty.

Figure 2: Hierarchical cluster tree.

With execution of algorithm in Figure 1, the

result of (1) is shown in Table 1 and result of (2) is

shown in

Table 2.

Table 1: THE faulty nodes AND TESTING of (1).

p1 P2 P3 P4 p5

round1 Send 1 Send 1 send 0 Send 1 Send 1

Receive {1,0,1,1} {1,0,1,1} {1,1,1,1} {1,1,0,1} {1,1,0,1}

Maj= 1 1 1 1 1

Mul =4 4 5 4 4

round2 Pref=1 1 1 1 1

round3 Maj=1 1 1 1 1

Mul>=4 >=4 >=4 >=4 >=4

Round4 Pref=1 1 1 1 1(agreement)

Table 2: THE faulty nodes AND TESTING of (2).

p1 P2 P3 P4 p5

round1

send 0 to p2,

send 1 to p3,

send 0 to p4,

send 1 to p5

Send 1 send 0 Send 1 Send 0

Receive {1,0,1,0} {0,0,1,0} {1,1,1,0} {0,1,0,0} {1,1,0,1}

Maj= 1 0 1 0 1

Mul =3 3 3 3 3

round2 Pref=1 0 1 0 1

round3 Maj=1 0 1 0 1

Mul=3 3 3 3 3

Round4 Pref=0 0 0 0 0(agreement)

Table 1 and 2 show when node 5 or 1 (command

node) is fault, the prefer value still keep 1 since the

numbers of fault nodes is no more than ہሺn-1)/4ۂ.

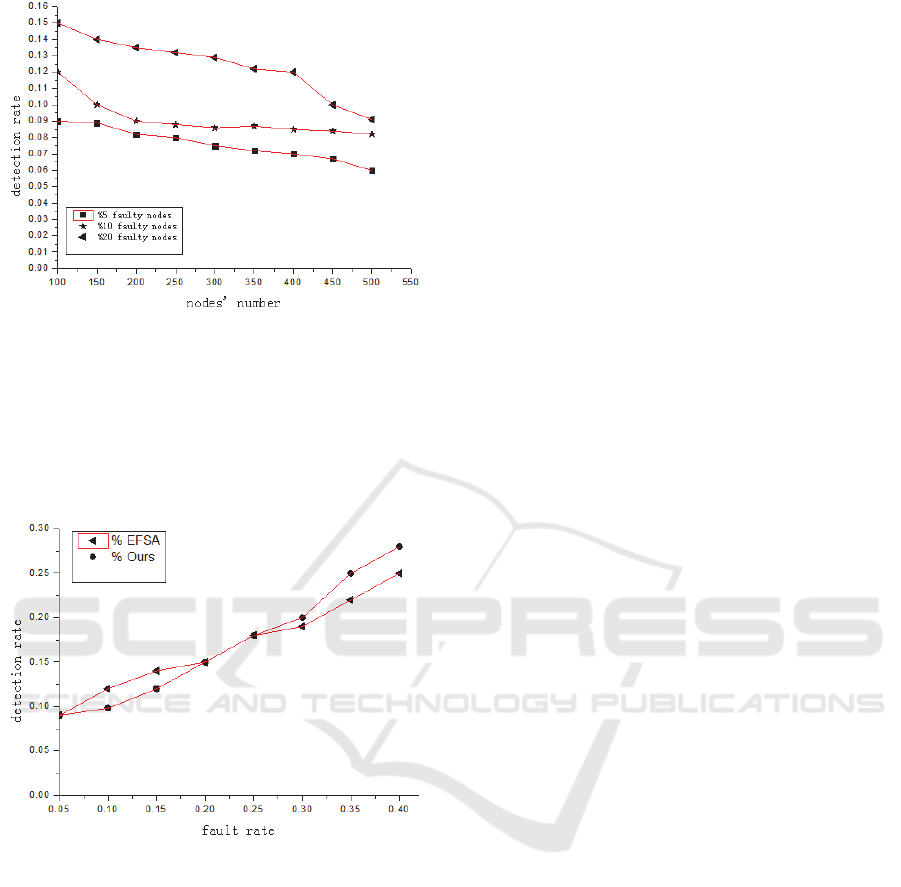

4 EVALUATIONS

Our simulation experiment is based on ns3. Fifty

sensor nodes are distributed in a space of 500×700,

and the communication radius is set as 60. Each

node has two to five neighbors in the experiment and

the node's location is already known.

We analyze the efficacy of Trust model against

abnormal data and fault data though generating a

few abnormal nodes and faulty nodes. Firstly, we

input 59 nodes and give a fixed probably faulty rate

as 0.2.

The relation between networks scale and

detection rate can be described as in Figure 3.

ISME 2015 - Information Science and Management Engineering III

416

ISME 2015 - International Conference on Information System and Management Engineering

424

Figure 3: Detection rate with different networks scale.

This figure shows that detection rate will rise

with the increasing of sensor nodes.

When fault rate is below 0.4, we may get

different result of faulty detection rate. The

simulation result compared with EFSA is shown in

Figure 4.

Figure 4: Detection rate with different fault rate.

This figure shows that detection rate will rise

with the increasing of faulty nodes. And our model

has higher detection rate than EFSA.

5 CONCLUSIONS

This algorithm is based on byzantine problem and be

used in aggregation of WSN. But it only suits for

two-valued data which can make a decision of

normal or abnormal. It can tolerant ہሺn-1)/4ۂ failures

with executing the proposed algorithm. Compare to

other algorithm, the communication complexity is

reduced leading to less energy consumption.

Meanwhile, the number of fault nodes that can be

tolerant also decreases. Therefore, the scheme can be

used in the early period of network, when the faulty

increasing, other algorithm should applied in the

case.

ACKNOWLEDGEMENTS

This work is supported by the key discipline of

Shanghai second polytechnic University named

software engineering (No.XXKZD1301). The

authors would like to thank the referees for their

invaluable comments and suggestions.

REFERENCES

Yunxia Feng Wireless sensor networks: a survey,

Computer Networks 38 (2002) 393–422

Xiao Wei, Byzantine Algorithms in Wireless Sensors

Network, ICIA 2006

Yang Yan. Using Time Instead of Timeout for Fault-

tolerant Distributed Systems. ACM Trans. onProg.

Lang. and Sys. 6, 2 (April 1984), 254-280.

Ganeriwal S, Kumar R, Srivastava M B. Timing-sync

Protocol for Sensor Networks[C]//Proc. of the 1st

ACM Conf. on Embedded Network Sensor Systems.

Los Angeles, CA, USA: [s. n.], 2003.

Dai Hui, Han R. TSync: A Lightweight Bi-directional

Time Synchronization Service for Wireless Sensor

Networks [J]. ACM Mobile Computing and

Communications Review, 2004, 18(1): 125-139.

A Fault-tolerant Aggregation Schema in WSN

417

A Fault-tolerant Aggregation Schema in WSN

425
