Data-driven Relation Discovery from Unstructured Texts

Marilena Ditta, Fabrizio Milazzo, Valentina Rav

ı, Giovanni Pilato and Agnese Augello

ICAR CNR, Viale delle Scienze Ediﬁcio 11, Palermo, 90128, Italy

Keywords:

Latent Semantic Analysis, Triplet Extraction.

Abstract:

This work proposes a data driven methodology for the extraction of subject-verb-object triplets from a text

corpus. Previous works on the ﬁeld solved the problem by means of complex learning algorithms requiring

hand-crafted examples; our proposal completely avoids learning triplets from a dataset and is built on top of

a well-known baseline algorithm designed by Delia Rusu et al.. The baseline algorithm uses only syntactic

information for generating triplets and is characterized by a very low precision i.e., very few triplets are

meaningful. Our idea is to integrate the semantics of the words with the aim of ﬁltering out the wrong triplets,

thus increasing the overall precision of the system. The algorithm has been tested over the Reuters Corpus and

has it as shown good performance with respect to the baseline algorithm for triplet extraction.

1 INTRODUCTION

Nowadays the knowledge contained in the Web has

exceeded the human capacity to access it and the use

of technology capable of automatically understanding

written texts has become mandatory. The major chal-

lenge for researchers in automatic text understanding

is thus to create tools that can scale to the Web: the

basic idea is to transform text in structured informa-

tion through using semantic contents.

Traditionally, Information Extraction (IE) systems

focus on the identiﬁcation of pre-speciﬁed target re-

lations between entities, such as person, organization

or location, or between tuples/pairs of common nomi-

nals (Bach and Badaskar, 2007). Such approaches use

language processing algorithms either supervised or

semi-supervised tuned for the domain of interest and

they are able to extract tuples of words linked by cer-

tain kind of relationships. In particular, the task of se-

mantic relation extraction consists in recognizing tu-

ples in the form (e

, e

, . . . , e

) where e

are entities or

common nominals in a predeﬁned relation r. To this

aim, Named-Entity Recognizers (NERs) (Nadeau and

Sekine, 2007; Richard Socher and Ng., 2015a) or de-

pendency parsers (Kubler et al., 2009; Richard Socher

and Ng., 2015b) may be used to ease relation ex-

traction: as an example, in the sentence “The bowl

contained apples, pears and oranges” the nominals

(bowl, pears) and (bowl, apples) are connected in a

contained-in relation.

The past literature proposed to solve the rela-

tion extraction task as a binary classiﬁcation problem

(Bach and Badaskar, 2007): a labeled training set of

sentences containing entities in a given relation r is

provided as input to the system; any new sentence

s is thus processed by the classiﬁer which provides

a binary output specifying whether the entities in s

are linked by r or not. The main drawback of these

approaches consists in the severe human intervention

required to create new hand-crafted extraction rules

or new hand-tagged training examples; even worse,

these approaches do not scale to wide heterogeneous

corpora such as the Web, where target relations are

not known in advance.

The Open Information Extraction (OIE)

paradigm, has been developed in order to over-

come the limits imposed by supervised and

semi-supervised approaches; OIE avoids rela-

tion speciﬁcity (Shinyama and Sekine, 2006), does

not need domain-speciﬁc training data and scales to

wide heterogeneous corpora such as the Web (Etzioni

et al., 2008). An OIE system, in a preliminary

stage, learns , for a language, a syntactic model of

the sentences where two entities are linked by a

relation;in a subsequent stage, the corpus is given

as input to the system, which returns a set of tuples

(i.e., entities or nouns and adjectives linked by a

relation) on the basis of the learned model. Such

tuples are usually generated in a verb-based form: as

an example in the sentence “Several investors form

an alliance in a hostile takeover.”, the system extracts

the tuple (investors, form, alliance). The works

(Soderland et al., 2010) implemented a prototype of

an OIE system, by using a noun-phrase chunker and a

Ditta, M., Milazzo, F., Ravì, V., Pilato, G. and Augello, A..

Data-driven Relation Discovery from Unstructured Texts.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 597-602

ISBN: 978-989-758-158-8

597

relation generator to extract the possible relations for

each sentence; in a second step, the system maps each

relation into a feature vector and trains a Na

ıve Bayes

model. The Reverb system (Fader et al., 2011) is an

evolution of such former works and is implemented

as an extractor for verb-based relations which uses

a logistic regression classiﬁer trained with syntactic

features. The extracted relations are ﬁltered by two

kinds of analysis: syntactic and lexical; the syntactic

analysis requires the constituents of the relation to

match a pre-deﬁned set of POS tags patterns. The

lexical analysis ﬁlters out overly-speciﬁc relations by

looking to the frequency of their constituents over the

considered input corpus.

Finally, the work (Rusu et al., 2007), (Atap-

attu Mudiyanselage et al., 2014) and (Ceran et al.,

2012) propose a rule-based approach for the ex-

traction of subject-verb-object triplets from unstruc-

tured texts: the parsing tree of the input sentence

is browsed and the subject is computed as the ﬁrst

noun found in the noun-phrase, the verb is the deep-

est leaf found in the verb-phrase, while the object is

the ﬁrst noun/adjective found in a phrase sibling of

the verb-phrase. Such an approach is very fast if com-

pared to its predecessors as it does not require learn-

ing pre-deﬁned relations; on the other hand its pre-

cision seems to be quite low (as shown further in the

experimental section) and this is due to the use of only

the POS Tagging information.

The main contribution of this paper is the de-

velopment of a methodology to extract meaningful

triplets from unstructured texts. We chose to build

our methodology on top of the baseline algorithm de-

veloped by Rusu et al. (Rusu et al., 2007): such

as algorithm, if compared to other state-of-the-art

methods, needs very low computational requirements,

avoids learning and does not need hand-tagged exam-

ples. Such baseline algorithm, on the other hand, uses

only syntactic information to extract relations and this

may lead to a low quality of the generated triplets

(poor precision/recall); to this aim we propose to in-

tegrate Latent Semantic Analysis (Landauer and Dut-

nais, 1997; Deerwester et al., 1990), whose statisti-

cal foundation has been recently explained in (Pilato

and Vassallo, 2015) in order to ﬁlter out low quality

triplets thus improving precision/recall. At a prelimi-

nary stage, pairs of tightly semantically related words

are extracted from the corpus; in a further stage the

sentences containing such words are parsed and syn-

tactically analyzed to discover the linking relations.

As this is a preliminary work, we will focus only on

the extraction of ﬁrst-order relationships i.e., triplets

in the form (subject, verb, object).

2 THE PROPOSED APPROACH

The main purpose of this work is to extract a set of

triplets of words in a subject-verb-object form from

a documents corpus; the proposed algorithm does not

require any pre-deﬁned relation and tries to discover

valid relations through the analysis of the semantic of

words. Firstly, the algorithm builds a semantic space

by means of the Latent Semantic Analysis (LSA) in

order to reveal pairs of words which are somehow re-

lated each other. Any pair of words in a tight semantic

association (high values of the cosine similarity in the

semantic space) is then expanded in a triplet form (if

possible) by looking into the corpus for a verb binding

that pair: i.e., the algorithm looks for s−v−o triplets.

The triplets extraction task is accomplished by

four main blocks: a) Micro-documents Extraction:

extracts sentences from the corpus and records them

as micro-documents; b)Word-Tags-Documents Gen-

eration: pre-processes the micro-documents and cre-

ates a list of unique words; each word will be as-

sociated to a tagset representing its different part of

speech (POS) tags as well as to its frequency counts

in the extracted micro-documents corpus; c) Pairs

Extraction: builds the LSA semantic space and se-

lects relevant pairs of words semantically related;

d) Triplet Generation: tries to match the relevant

pairs into s − v − o triplets extracted from the micro-

documents.

2.1 Micro-documents Extraction

The aim of this block is to segment the input corpus

in a sequence of sentences. As described in Figure 1,

the sentences-extractor module reads the corpus and

produces a sequence of sentences (i.e., a sequence of

words included between two periods). Case-folding

is applied to the sentences. Each sentence is therefore

saved in a text ﬁle.

2.2 Word-Tags-Documents Generation

As shown in Figure 2, the extracted micro-documents

are tokenized, tagged and lemmatized in order to re-

duce the dimensionality of the term-document matrix

that will be provided as input of LSA; stop-words are

also removed. After such pre-processing steps, the

dictionary extractor module associates to each dis-

tinct word w

∈ W its related tagset tags

∈ T and

the frequency counts doc f req

i, j

of the word w

each micro-document d

∈ D, where W, T, D are re-

spectively the sets of unique words, tags and micro-

documents. The output of the block is a dictionary

data structure W T D = {w

,tags

, doc f req

i, j

DART 2015 - Special Session on Information Filtering and Retrieval

598

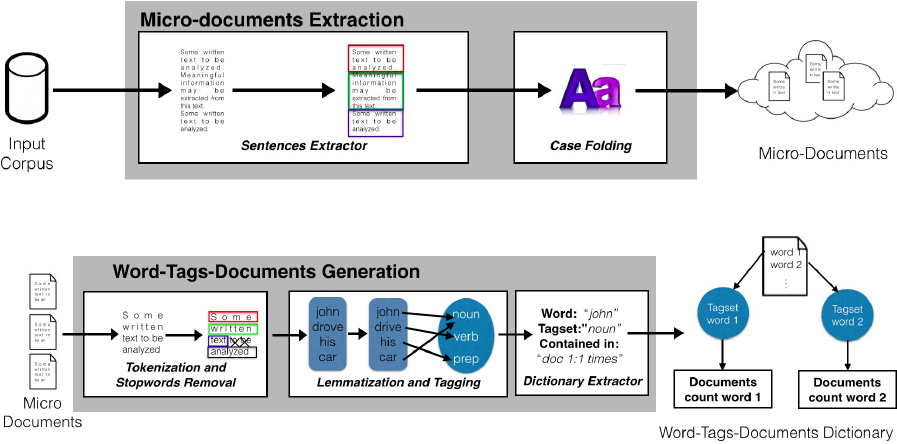

Figure 1: Micro-Documents Extraction block. The input corpus is split into sentences saved as text-ﬁles.

Figure 2: Word-Tags-Documents Generation block. Each word is associated to a tag-set and to a frequency vector.

2.3 Pairs Extraction

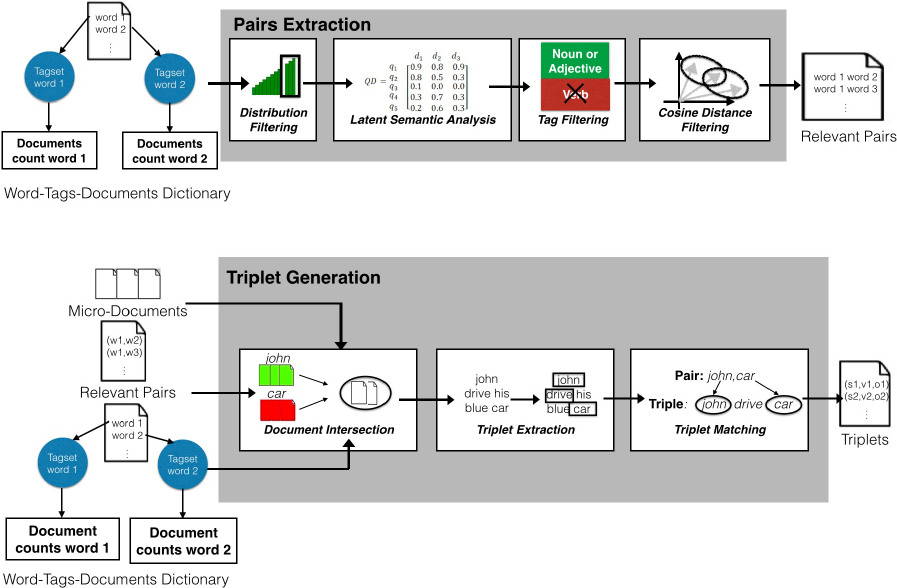

The Pairs Extraction block, depicted in Figure 3, ac-

cepts as input the W T D structure and provides as out-

put a list of pairs of semantically related words of the

type (noun, noun) or (noun, adjective).

The words belonging to the WTD structure are ini-

tially ﬁltered with respect to their frequency distribu-

tion, in order to reduce noise. In particular, a word-

frequencies histogram is built by computing the value

∑

doc f req

i, j

for each word w

; the words are

thus sorted according to their c

value. Finally, only a

percentage φ of the distribution is retained so that less

frequent words are ﬁltered-out and removed from the

W T D dictionary.

The next step involves computation of LSA which

projects the ﬁltered words onto a dimensionally-

reduced semantic space (Deerwester et al., 1990)

where semantically similar terms lie near each other.

The word-document matrix A ∈ R

|W|,|D|

is built by

linking W to D and then it is factorized in three matri-

ces: A = UΣV

where:

• U is a |W | × r matrix;

• V is a |D| × r matrix;

• Σ is a r × r diagonal matrix, containing the square

roots of the eigenvalues of AA

Truncated SVD considers only the largest k << r

singular values of Σ, and removes the least signiﬁcant

dimensions:

A = U

. Words are represented as

points in such k−dimensional space which is used to

evaluate semantic afﬁnity i.e., the degree of connec-

tion in terms of meaning, with their topological prox-

imity in the semantic space. The output terms are

ﬁltered by the tag-ﬁltering module, which produces

a set of candidate words CW i.e., all those words w

labelled as noun or adjective by the tagging module.

Thereafter, the cosine distance cd

i, j

between all the

words (w

, w

) ∈ CW ×CW is computed; the relevant

pairs RP will be selected so that cd

i, j

> θ, where θ is

a proper threshold.

2.4 Triplets Generation

The Triplets Generation block, shown in Figure 4 ac-

cepts as input the RP set, the W T D structure and

the micro-documents and produces as output a set of

triplets in the form s − v − o.

For each pair of words belonging to RP only the

micro-documents containing both the words are se-

lected by the document intersection block. In order to

extract a triplet of the form subject-predicate-object,

such micro-documents are syntactically parsed in or-

der to obtain a treebank representation (Surdeanu,

2015). The Triplet extraction module is implemented

by the algorithm presented in (Rusu et al., 2007),

which will be named as Blind Triplet Extraction

(BTE) in the following. Such algorithm runs along

the tree of each sentence and identiﬁes the subject as

the ﬁrst noun found in the NP subtree; a further search

detects the deepest verb in VP subtree; ﬁnally, the ob-

ject is extracted as the ﬁrst noun/adjective lying in the

siblings of the subtree containing the verb. The triplet

matching module tries to match the s-o portion of the

Data-driven Relation Discovery from Unstructured Texts

599

Figure 3: Pairs Extraction Block. A set of pairs subject-object is provided as output.

Figure 4: Triplet Generation block. Relevant pairs are matched with the (s-v-o) triplets found in micro-documents.

generated triplets with the pairs contained in RP; if a

match is found, that triplet is recorded and provided

as output of the block.

3 EXPERIMENTAL EVALUATION

The aim of this Section is to evaluate the performance

of the proposed algorithm under several different pa-

rameters settings. We extracted 150 KBytes of text

from Reuters Corpus (Rose et al., 2002) and gener-

ated 1640 micro-documents (sentences) which give

rise to a total amount of 2864 distinct words; after

running the blind triplet extraction (BTE) algorithm

described in (Rusu et al., 2007), 941 triplets in the

form subject-verb-object were extracted. A team of

three experts validated the 941 triplets and classiﬁed

436 as syntactically correct and 505 as wrong.

Different external tools were used to implement

the modules depicted in Figures 1,2,3 and 4:

• the lemmatization and tagging modules were im-

plemented by using TreeTagger (Schmid, 1995);

• The LSA module was implemented by using the

SVDLIBC package (Berry et al., 2015);

• The triplet extraction module was implemented by

using Stanford-Core-NLP (Manning et al., 2014),

which allowed for building the parsing trees,

while the BTE algorithm was used to extract the

s-v-o triplets.

In our experiments we set the number of LSA

components to k ∈ {70, 150}; the tag-ﬁltering mod-

ule was set to recognize all the words tagged as noun:

{NN, NNS, NP, NPS} or as adjective: {JJ, JJR, JJS}

so the candidate subject-object pairs, provided by the

pairs extraction block, were all of the types: noun-

noun, noun-adjective and adjective-adjective. The

threshold of the distribution ﬁltering module was set

to φ ∈ {0.5, 0.75, 0.85, 1.0} and ﬁnally, the cosine

distance ﬁltering threshold θ ranged in the interval

[−1.0, 1.0] with a step equal to 0.1.

Figures 5 and 6 provide a brief comparison of the

performance achieved by our algorithm against BTE.

As expected, BTE achieves the worst performance in

terms of precision (∼ 46%) which is also indepen-

dent on the recall value as the extraction method does

not take into account the statistical properties of the

triplets constituents. As it can be easily seen from the

ﬁgures, the more the infrequent words are discarded

(i.e., φ decreases), the more the average precision in-

creases. Also, while the θ threshold increases then

recall decreases (less triplets are selected by our al-

DART 2015 - Special Session on Information Filtering and Retrieval

600

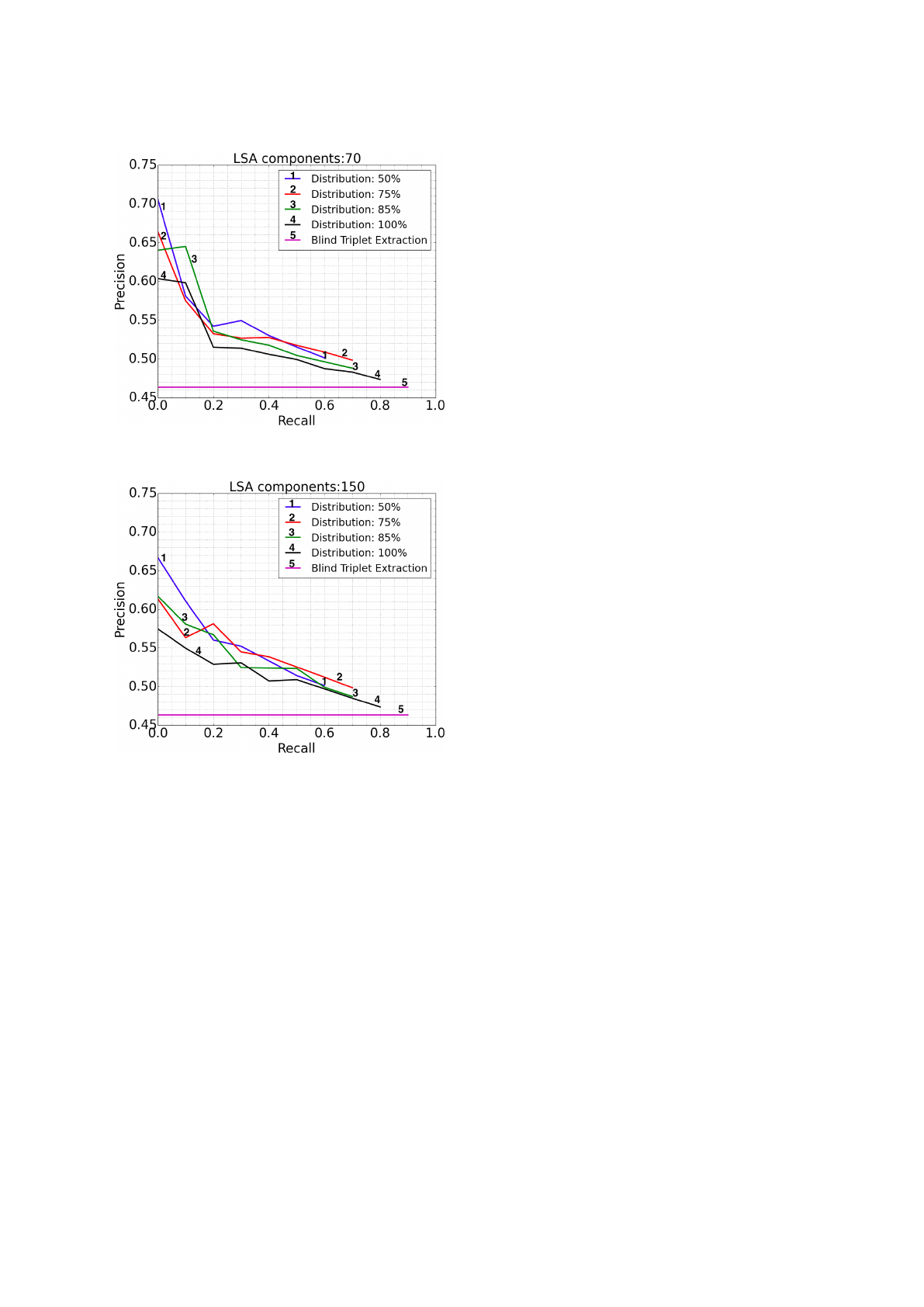

Figure 5: Average Precision as a function of the recall, for

k=70 components of the LSA.

Figure 6: Average Precision as a function of the recall, for

k=150 components of the LSA.

gorithm) but, at the same time, the related precision

increases (high values of the cosine distance repre-

sent tightly related constituents). In the best case,

the average precision approaches 70% in the case of

φ = 0.5, k = 70 which drops to 50% in the worst case

where φ = 1.0, k = 150; as a ﬁnal remark, the perfor-

mance, for this experiments set, appears to be slightly

better for k = 70 components of the LSA and this

is probably due to the small number of the involved

micro-documents.

4 CONCLUSIONS

This work presented an unsupervised data-driven

methodology to relation extraction from text corpus.

Unlike other works, our methodology does not re-

quire learning pre-deﬁned relations and discovers re-

lations by exploiting a mixed syntactical-semantic ap-

proach. The baseline algorithm needed very low

computational requirements but was characterized by

very low precision. In contrast, experimental results

demonstrated that our methodology shows a good de-

gree of precision if compared to the baseline triplet

extraction algorithm although the respective recall

stayed quite low. As a future work we are planning

to discover high-order relationships where more than

two constituents are involved in the relations; more-

over the use of our methodology may be investigated

as a tool to support the automatic creation of on-

tologies by generating sets of RDF triplets. Finally,

we are currently investigating the performance of our

proposal over the ClueWeb09 Dataset (Callan, 2009)

which is made up of about 1 billion pages and 604

million triplets.

REFERENCES

Atapattu Mudiyanselage, T., Falkner, K., and Falkner, N.

(2014). Acquisition of triples of knowledge from lec-

ture notes: a natural language processing approach.

In 7th International Conference on Educational Data

Mining (04 Jul 2014-07 Jul 2014: London, United

Kingdom).

Bach, N. and Badaskar, S. (2007). A Survey on Relation

Extraction.

Berry, M., Do, T., O’Brien, G., Krishna, V., and Varad-

han, S. (2015). Svdlibc. http://tedlab.mit.edu/∼dr/

svdlibc/.

Callan, J. (2009). The clueweb09 dataset. http://

www.lemurproject.org/clueweb09.php/.

Ceran, B., Karad, R., Mandvekar, A., Corman, S. R., and

Davulcu, H. (2012). A semantic triplet based story

classiﬁer. In Advances in Social Networks Analy-

sis and Mining (ASONAM), 2012 IEEE/ACM Interna-

tional Conference on, pages 573–580. IEEE.

Deerwester, S., Dumais, S., Furnas, G., Landauer, T., and

Harshman, R. (1990). Indexing by latent semantic

analysis. Journal of the American Society for Infor-

mation Science 41, pages 391–407.

Etzioni, O., Banko, M., Soderland, S., and Weld, D. S.

(2008). Open information extraction from the web.

Commun. ACM, 51(12):68–74.

Fader, A., Soderland, S., and Etzioni, O. (2011). Identifying

relations for open information extraction. In Proceed-

ings of the Conference on Empirical Methods in Nat-

ural Language Processing, EMNLP ’11, pages 1535–

1545, Stroudsburg, PA, USA. Association for Compu-

tational Linguistics.

Kubler, S., McDonald, R., Nivre, J., and Hirst, G. (2009).

Dependency Parsing. Morgan and Claypool Publish-

ers.

Landauer, T. K. and Dutnais, S. T. (1997). A solution to

platos problem: The latent semantic analysis theory

Data-driven Relation Discovery from Unstructured Texts

601

of acquisition, induction, and representation of knowl-

edge. Psychological Review, 104(2):211–240.

Manning, C. D., Surdeanu, M., Bauer, J., Finkel, J.,

Bethard, S. J., and McClosky, D. (2014). The Stan-

ford CoreNLP natural language processing toolkit. In

Proceedings of 52nd Annual Meeting of the Associa-

tion for Computational Linguistics: System Demon-

strations, pages 55–60.

Nadeau, D. and Sekine, S. (2007). A survey of named entity

recognition and classiﬁcation. Journal of Linguisticae

Investigationes, 30(1):1–20.

Pilato, G. and Vassallo, G. (2015). Tsvd as a statistical

estimator in the latent semantic analysis paradigm.

Emerging Topics in Computing, IEEE Transactions

on, 3(2):185–192.

Richard Socher, John Bauer, C. D. M. and Ng., A. Y.

(2015a). Stanford ner. http://nlp.stanford.edu/

software/CRF-NER.shtml.

Richard Socher, John Bauer, C. D. M. and Ng., A. Y.

(2015b). Stanford parser. http://nlp.stanford.edu/

software/lex-parser.shtml.

Rose, T., Stevenson, M., and Whitehead, M. (2002). The

reuters corpus volume 1 - from yesterdays news to

tomorrows language resources. In In Proceedings of

the Third International Conference on Language Re-

sources and Evaluation, pages 29–31.

Rusu, D., Dali, L., Fortuna, B., Grobelnik, M., and

Mladenic, D. (2007). Triplet Extraction From Sen-

tences. Proceedings of the 10th International Mul-

ticonference ”Information Society - IS 2007, A:218–

222.

Schmid, H. (1995). Treetagger a language independent part-

of-speech tagger. Institut f

ur Maschinelle Sprachver-

arbeitung, Universit

at Stuttgart.

Shinyama, Y. and Sekine, S. (2006). Preemptive informa-

tion extraction using unrestricted relation discovery.

pages 304–311.

Soderland, S., Roof, B., Qin, B., Xu, S., Etzioni, O.,

et al. (2010). Adapting open information extraction

to domain-speciﬁc relations. AI magazine, 31(3):93–

102.

Surdeanu, M. (2015). Penn treebank project. http://

www.surdeanu.info/mihai/teaching/ista555-spring15/

readings/PennTreebankConstituents.html.

DART 2015 - Special Session on Information Filtering and Retrieval

602
