New Schedulability Analysis for Real-Time Systems based on MDE

and Petri Nets Model at Early Design Stages

Mohamed Naija

, Samir Ben Ahmed

and Jean-Michel Bruel²

Laboratory of Computer for Industrial Systems, INSAT, Tunis, Tunisia

²Institute of Computer Science Research, IRIT, Toulouse, France

Keywords: Real-Time Embedded Systems, Concurrency Model, MARTE, Schedulability Analysis, Petri Nets, Design.

Abstract: Transforming a software functional model that describes the underlying application to a concurrency model

is considered as a critical issue in the model-based approaches for Real-Time Embedded Systems (RTES)

development process. The formal methods have proven to be useful for making the development process

reliable at a high abstraction level. Based on this approach, this current research proposes a generic

approach to task construction that allows early detection of unfeasible design. Having a component-oriented

specification as entry, the first stage of the methodology consists in the workload model specification. The

workload model represents the system end-to-end computations triggered by an external stimulus and

subject to hard real-time constraints. This model is then mapped into a Petri Nets formalism to perform P-

invariant method and generate all transactions in an optimized way. The refinement of the transaction set in

a Schedulability Analysis Model defining an optimized threading strategy model. The latter presents the set

of units of execution taken into account by the scheduler of the system and their scheduling parameters. We

illustrate the advantages and effectiveness of the proposed method by constructing a concurrency model for

a combined Cruise Control System and Anti-lock Braking System.

1 INTRODUCTION

In the development of Real-Time Embedded

Systems (RTES), component-oriented high-level

specifications are used to manage complexity. Each

software component encapsulates the

implementation of a specific functionality which is

accessible only through the input and output access

points. In that context, the software application is

described in a component-based model (called also

functional model) still being independent of any

specific platforms. Hence, this functional model

(Mraidha et al, 2011) constitutes a first step in the

definition of a structure able to fulfil requirements

for the system.

After building a logical component model, it is

necessary to synthesize a mapping of functional

blocks on threads in order to support the verification

of non-functional requirements (NFP) at early

design stages. The choice of the threading strategy

defines how the system reacts due to an external

event or a timer. Finding the adequate number of

threads and the good grouping of functions to

threads relies mainly on the designer experience

towards the definition of a concurrency model of the

system.

Thus, the real-time application is described in a

concurrency model that runs on a given target

hardware platform and satisfies timing constraints.

To this end an abstracted run-time model of the

platform has to be assumed.

In fact, the scheduling analysis phase makes it

possible to predict and validate the concurrency

model before the design stage. An analysis carried

out earlier makes it possible to guide the designer in

the construction of a valid design model with respect

to the threading strategy.

In this paper, we incorporate mapping functional

blocks on threads problem in the design

optimization. Since threading strategy is NP-hard

problem, it is recommended to apply formal

techniques intended to reduce the problem impact.

This allows the construction and the validation of

the concurrency model that is reliable at early design

stage. The proposed approach adopts the model-

driven engineering. Indeed, the system behavior that

is in response to external stimuli and platform

resources are annotated with MARTE (OMG, 2008)

330

Naija M., Ben Ahmed S. and Bruel J..

New Schedulability Analysis for Real-Time Systems based on MDE and Petri Nets Model at Early Design Stages.

DOI: 10.5220/0005514003300338

In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 330-338

ISBN: 978-989-758-114-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

profile stereotypes. This input model, also called

Workload model, is at the same level of abstraction

of the functional model. After that, the mapping

from UML into Petri Nets is performed in order to

generate a concurrency model. Finally, the obtained

concurrency model is automatically validated by

using traditional schedulability tests.

The present paper is organized as follows.

Section 2, provides an overview of the main

concepts of Petri Nets. In section 3 related work is

discussed. In section 4 a description of the proposed

methodology is given. Section 5 gives experimental

evaluation results. Finally, section 6 concludes the

paper and sketches some future work.

2 OVERVIEW OF PETRI NETS

In this section we provide enough information about

Petri Nets to understand how and why we use them

in our approach.

2.1 Formal Definition

Petri Nets (Murata, 1989) can be defined as 4-tuplet:

PN = (P, T, IN, OUT) (1)

where:

• P = {p

, p

, . . . , p

} is a finite set of places n > 0;

• T = {t

, t

, . . . , t

} is a finite set of transitions m

> 0;

• IN: (P × T)↦ℕ is the backward incidence

function;

• OUT: (P × T)↦ℕ is the forward incidence

function.

Each system state is represented by a marking M of

the net. The notation M(p) denotes the number of

tokens in place p in marking M. M

is the initial

marking of the net. A transition t is said to be

enabled if and only if each place p

in the common

pre-set of t has a token.

2.2 Structural Analysis of Petri Nets

Structural analysis makes it possible to prove some

properties regardless of the evolution of the marking

(without constructing the reachability graph). This

analysis can be applied through the method of place

invariant, which requires calculating the matrix of

incidence presented by definition 1.

Definition 1

The incidence matrix C of a PN = (P, T, IN, OUT) is

an (n × m) integer matrix whose rows correspond to

places and whose columns correspond to transitions.

The column t ϵ T denotes how the firing of t affects

the marking of the net (Narahari and Viswanadham,

1985):

C (t, p) = OUT (p

, t

) – IN (p

, t

) (2)

The solutions of the equation C

X = 0 are called

place invariants (P-invariants). A proper P-invariant

is a solution of C

X = 0 if X ≠ 0.

A P-invariant indicates that the number of tokens

remains unchanged in all reachable markings. In P-

invariant, tokens cannot evolve or disappear. They

can “move” from one place in a system net to

another and “change” their marking, i.e., inner state

(Frumin and Lamazova, 2014). So P-invariant

proves the conservative property of the net, i.e.,

places that can be fired with the same token (Murata,

1989). This analysis method can be used to prove

concurrency (places fired with the same token) and

mutual exclusion (same place fired with different

tokens) properties.

3 RELATED WORK

There have been a number of approaches proposed

for real-time applications enabling early analysis of

non-functional requirements. We will discuss in the

following the methodologies that focuses in

concurrency mapping from different structural

models.

COMET (Gomaa, 2000), proposes a

methodology for designing real-time and distributed

applications which integrates concurrency concepts

and uses the UML notation. It is here proposed to

support generation of concurrency models after the

definition of functional blocks of the system and

their connections. The concurrent real-time model

of the system is then designed in terms of active and

passive objects without supporting schedulability

validation.

In (Saksena and Karvelas, 2000) a method for

mapping the execution of active object methods

(actions) into threads is proposed. However, the

authors discuss two threading strategies: (i) a single

thread solution: where all actions are implemented

by a single thread and events are queued by priority,

and (ii) multi-threading solution: where threads

change their priority based on messages they handle.

Unfortunately, while the single threaded

implementation is analyzable and practically

applicable the multi-threading solution is difficult to

analyze or inapplicable (Bartolini et al., 2005).

NewSchedulabilityAnalysisforReal-TimeSystemsbasedonMDEandPetriNetsModelatEarlyDesignStages

331

In (Bartolini et al., 2005) the authors propose a

mapping process considering EDF schedulability

tests. In particular, the author defines two algorithms

to generate the task real-time scheduling parameters.

Nevertheless, there is not automated support for the

test which is an ad-hoc test (Mraidha et al., 2011).

In the same vein, (Kodase et al., 2003) have

introduced a mapping process of a structural model

to task model but only for a single-processor system.

In (Mraidha et al, 2011) OPTIMUM

methodology is provided for MARTE models

considering schedulability analysis at early stages.

Optimum is able to generate a concurrency model

from activity diagram. Although this work supports

MARTE notation, some elements of activity

diagrams will not be processed, this leads to the

impossibility of transforming complicated activity

diagram into set of task.

Other efforts have been specifically tailored to

automotive architectures. In (Wozniak et al., 2014)

(Mehiaoui et al., 2013) the partitioning of the set of

functions and signals in tasks and messages has been

treated in the design optimization. They assume that

each function is assigned to exactly one task unlike

these approaches, our approach proposes

methodological rules to build concurrency model

when actions are involved in multiple transactions.

4 METHODOLOGY

The proposed methodology intended the

construction and the validation of the concurrency

model at early design stage. The methodology

defines a process depicted on Figure 1: (i) the first

step consists in workload model that describe system

end-to-end scenarios and timing requirements

annotated with MARTE profile, (ii) this model is

mapped into Petri Nets formalism in order to

generate concurrency model and (iii) finally,

schedulability Analysis Results that describes the

evaluated concurrency model is provided.

The idea of performing scheduling analysis

based on MARTE models assumes that all the

information that is needed for the analysis is already

part of the MARTE model. Therefore, concurrency

model contains all necessary information for an

analysis (tasks, shared resources, platform,

scheduling algorithms, execution times, etc.). In

Table 1 all used stereotypes offered by UML

MARTE profile are presented.

The following subsections give details of the

intermediate models produced by our methodology.

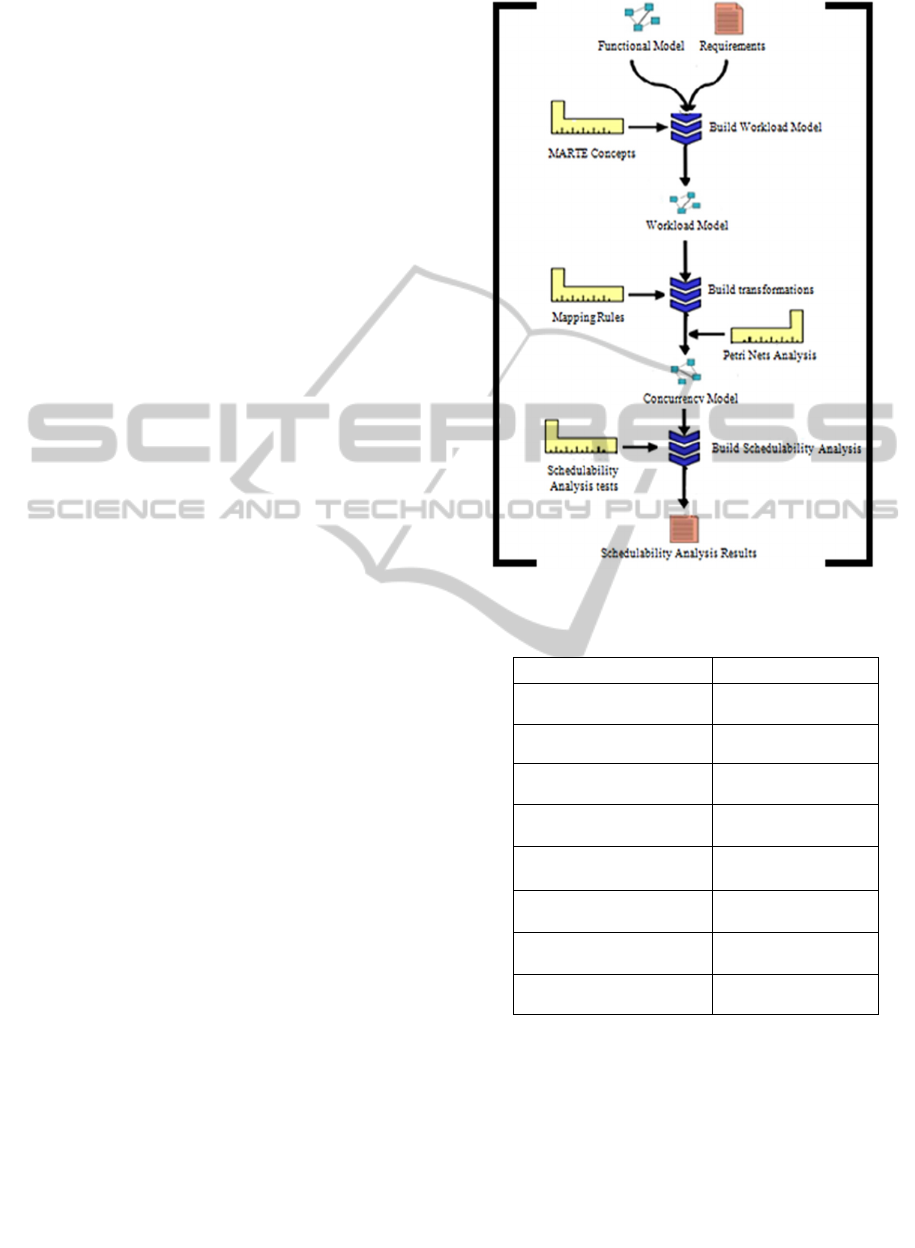

Figure 1: Methodology Process.

Table 1: MARTE Elements of our methodology.

MARTE Stereotype UML Extensions

«gaPlatformResources» Classifier

«saExecHost» Classes, Objects

«saCommHost» Classes, Objects

«schedulableResource» Classes, Objects

«saSharedResources» Classes, Objects

«saEndtoEndFlow» Activities

«gaWorkloadEvent» Initial-Node

«saStep» Methods

4.1 Workload Model

The definition of a well-formed analyzable model in

case of component-oriented specifications has two

steps. The first consists of gathering the components

structure and defining the workload behavior of the

system, the second representing platform resources.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

332

4.1.1 Workload Behavior

The workload behavior is built from the functional

model that is specifying the flow of the executed

actions during a certain system mode. Therefore,

workload situations are defined by activity diagram

stereotyped with MARTE «gaWorkloadBehavior»

stereotype. The latter (HadjKacem et al., 2012) is

able to expose the dynamics of a system and depict a

great degree of resemblance to the Petri Nets.

At this level, we focus on the MARTE

annotations applied to the activity diagram. Indeed,

end-to-end real-time constraints (deadline

properties) are specified on transactions, that is,

chains of operation activations enabled by external

stimuli. Each transaction is stereotyped

«saEndtoEndFlow». However, an event (e.g., timers,

internal event and external occurrences) that triggers

the behavior of a system and precedes all the action

is annotated with MARTE «gaWorkloadEvent»

stereotype. Each event is annotated with the property

«arrivalPattern» in order to fix its period. In

addition, any activity/action which represents the

execution of an operation is extended with the

«saStep» stereotype and has an execution time

(execTime property) specified for a given execution

host (host property).

4.1.2 Platform Resources

To this end an abstracted view of the execution

platform resources is assumed to have execution

time estimation for steps. Thus, the processor

resources are represented as components with the

«saExecHost» stereotype, bus resources are with the

«saCommHost» stereotype and platform resources

are stereotyped by «gaPlatformResources». To be

executed, a software resource must obviously be

mapped on processors or busses. Involved shared

resources should also be described.

4.2 Generation of Concurrency Model

In order to generate a concurrency model from a

workload behavior this stage consists of three steps:

(1) Mapping Workload Behavior diagram to Petri

Nets, (2) identify transactions in Petri Nets model

and (3) allocate actions in transactions to threads.

4.2.1 Mapping Workload Behavior Diagram

to Petri Nets

The first step consists in mapping the workload

behavior to Petri Nets formalism. Petri Nets

(Murata, 1989) are formal models based on strict

mathematical theories. They are powerful and

appropriate for modeling and analyzing systems

with parallelization, synchronization and confliction.

The mapping process consists of the deriving

activity diagram elements (nodes, transitions,

signals, actions, and synchronisation bar) and

MARTE annotations into Petri Nets elements. In

that context, several methods (Yang et al., 2010)

(HadjKacem et al., 2012) proposed mapping rules to

enhance formal analysis. In this paper, the rules for

transforming activity diagram elements into Petri

Nets are similar to those proposed in previous

literatures.

4.2.2 Transaction Identification

Once the mapping process is realized, the second

stage consists of determining all transactions in the

nets running in concurrency. A transaction is defined

as a sequence of actions performed in the end-to-end

processing in response to an external event. The

general problem is quite difficult because there are a

high number of transactions that derive all possible

system modes. Thus, to identify all transactions of

an optimized way we propose using the method of

invariants based on Petri Nets formalism.

Place invariant indicates a set of places in which

the number of tokens remains unchanged in all

reachable markings. As a consequence, it

corresponds to a constraint on the states and system

activities that will always be verified, regardless of

its evolutions.

As already mentioned, the solutions of the

equation C

X = 0 are called place invariants (P-

invariants). The solution is called proper if X≠ 0. In

this work we are interested only in proper place

invariants describing all the operations that will be

performed by the same token in only one

transaction. Thus, the set of places p

with X

> 0,

called the support of the P-invariant, is considered as

only transaction. The execution order of the

operation sequence in a specific transaction is given

by the crossing transitions order.

4.2.3 Generation of the Task Set

After identifying the transactions, it is necessary to

specify the so-called schedulable Resources. These

are units of execution taken into account by the

scheduler of the system, called tasks in scheduling

literature (Radermacher et al., 2010). The task set is

constructed by mapping all actions of the same

transaction to one task i.e. the execution operations

belonging to the place invariants must be assigned to

threads of execution. In fact, we apply a transaction-

NewSchedulabilityAnalysisforReal-TimeSystemsbasedonMDEandPetriNetsModelatEarlyDesignStages

333

based task model generation (to get one single

thread of execution for each transaction). Note that,

a software resource can be mapped into more than

one thread. However, she is denoted as a critical

sections needed to manage multi-threading whose

code must be protected.

Among these assumptions, the synchronization

protocol, used to protect the access to the shared

resource, must be considered in the concurrency

model. In this paper, we use a classical solution

(Mraidha et al., 2011) (Mzid et al., 2014) that

considers the Priority Ceiling protocol (Goodenough

and Sha, 1988) as a synchronization protocol in

order to avoid deadlocks at the implementation

level.

4.3 Schedulability Analysis

To this end, at this level, execution actions, shared

resources and synchronization protocol are

specified. This concurrency model is independent

from any particular Real-Time Operating System

(RTOS) in order to fulfill the MDA principals.

To be analyzable, we assume that the

schedulability analysis model must specify: (1)

threads, here called schedulable resources, along

with their scheduling parameters, (2) the allocation

of threads to hardware resources (e.g. processors)

and (3) the scheduler algorithm used by the

processing resources stereotyped <<SaExecHost>>

defined in the Workload model.

Note how the specification of scheduling

algorithm must be coherent with scheduling

parameters for tasks. A task is characterized by its

priority P

, its execution time C

, its activation period

, its blocking time B

and its deadline D

that

represents end-to-end limit in which a task must

complete its execution. The information on

deadlines was already provided in the Workload

Behavior. Let us remark that (Bartolini et al., 2005)

a task activated by an event is considered to be

periodic or aperiodic. In the case of a task that is

activated by another task cannot be assigned a

period. Anyway, dependencies between tasks allow

setting some priority orders i.e., t

may not be

executed before t

when t

depends on the output of

. Then, we assume that succeeding tasks have

higher priority than preceding ones. Tasks

dependencies are derived from the dependencies of

the functions mapped into them. Since a task is

strictly sequential, the worst case execution time

(WCET), denoted as C

, is given by the sum of

computational cost of the all actions contained in the

task. Note that if a task have more than one

execution path, the maximum execution time is

considered. Due to the presence of shared resources,

a task is also characterized by a blocking time B

The blocking time accounts for the time a higher-

priority task has to wait, before acquiring the lock,

since a lower-priority task owns this lock. The

computation of this term depends on the worst case

execution time C

of the task that owns the access to

the shared resource.

The Schedulability Analysis Model, as defined,

contains all the needed information to perform the

schedulability tests.

5 AUTOMOTIVE CASE STUDY

In this section we illustrate the application of our

methodology to an automotive case study

constructed by merging two subsystems consisting

of a CCS (Cruise Control System) (Anssi et al.,

2011) and ABS (Anti-lock Braking System)

(Mraidha et al., 2011).

The cruise control system maintains the vehicle

speed according to driver inputs. This subsystem

holds the correct distance from the vehicle in front to

prevent collisions through Diagnosis function (to

detect errors or inconsistencies in acquired data) and

Limphome function (decides which action to take in

case of detected error). Note that this Diagnosis

function is connected also to the ABS subsystem in

order to disable the anti-locking function in case a

fault is detected.

The ABS subsystem is composed of three

elementary functions: Dataprocessing (acquiring

data coming from the sensor), Diagnosis (to detect

errors or inconsistencies in acquired data) and

AntiLockControl (calculating the command to send

to the actuator).

5.1 Workload Model

5.1.1 Workload Behavior

The end-to-end computation represents the

processing load of the system. It represents the

different steps (functions) executed in the system

and triggered by one or more external stimuli. Each

step can be linked to a successor step with a control

flow. In our methodology, the application workload,

called Workload Behavior, is represented with a

UML activity diagram annotated with MARTE

profile in order to specify timing information. The

timing information contains both timing description

(computational budget, activation event, etc.) and

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

334

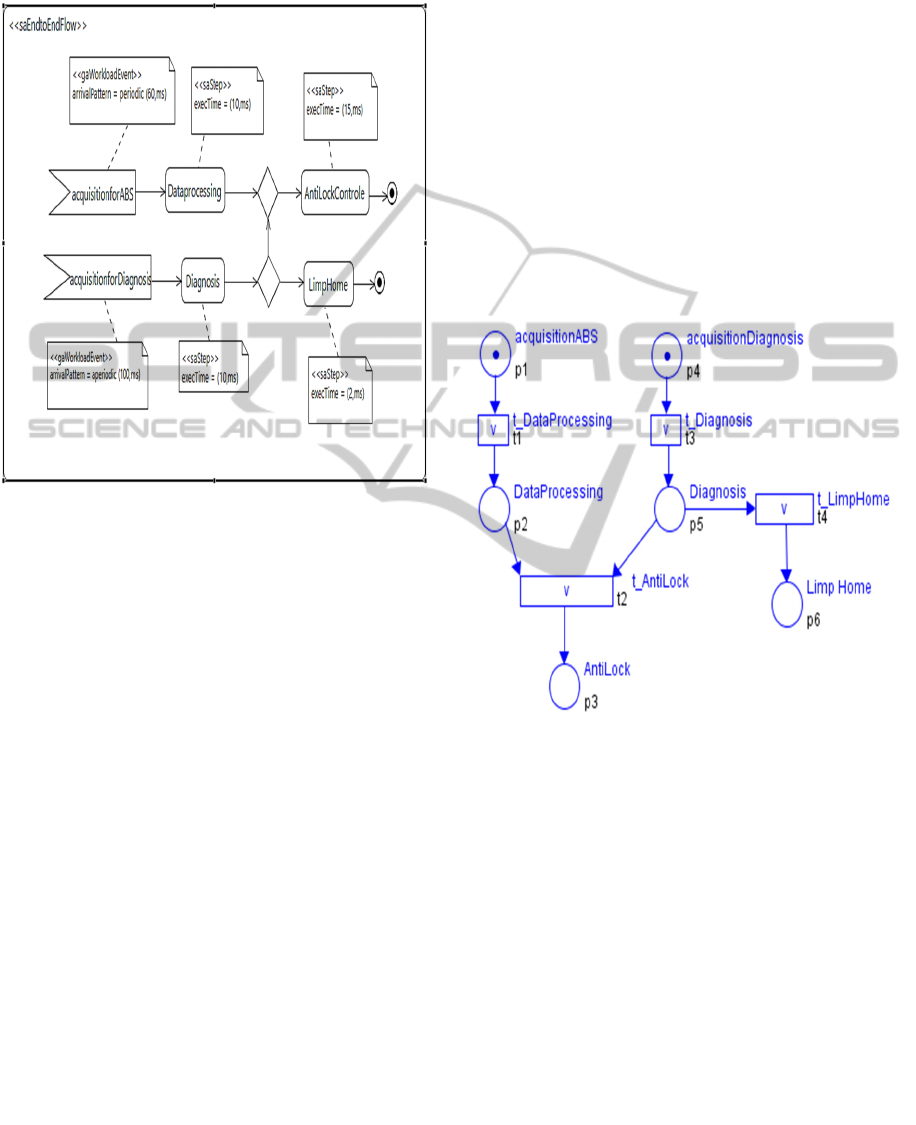

timing constraints (operation deadlines). Figure 2

shows the description of the workload behavior

scenario.

Figure 2: System-level end-to-end scenario.

The end-to-end computations, stereotyped

«saEndtoEndFlow», are activated by the both

external events acquisitionforABS and

acquisitionforDiagnosis with periods T

= 60 ms and

= 100 ms, respectively. The AntiLockControl step

is a successor step for both Dataprocessing and

Diagnosis steps. This precedence relation is modeled

with a merge node in activity diagram which

represents here the ‘or’ operator. In fact, the Limp

home step is a successor step of Diagnosis. This is

modeled with a decision node in the activity

diagram. From this, when it occurs, Diagnosis step

has two successor steps. The timing information of

each step is specified through exec- Time property.

5.1.2 Platform Resources

As explained previously, at this stage of the

methodology, a very abstract view of the system

hardware resources is needed to have an estimation

of execution time for steps. This estimation is used

to perform feasibility tests with respect to expressed

end-to-end deadlines and external events activation

rates. Execution nodes and communication resources

are specified with MARTE «saExecHost» and

«saCommHost» stereotype.

At this level, scheduling algorithm and operating

system resource concept must be specified in order

to perform feasibility tests and coordinate the

concurrent access of tasks to shared resources if

exist. This platform model is modeled in the

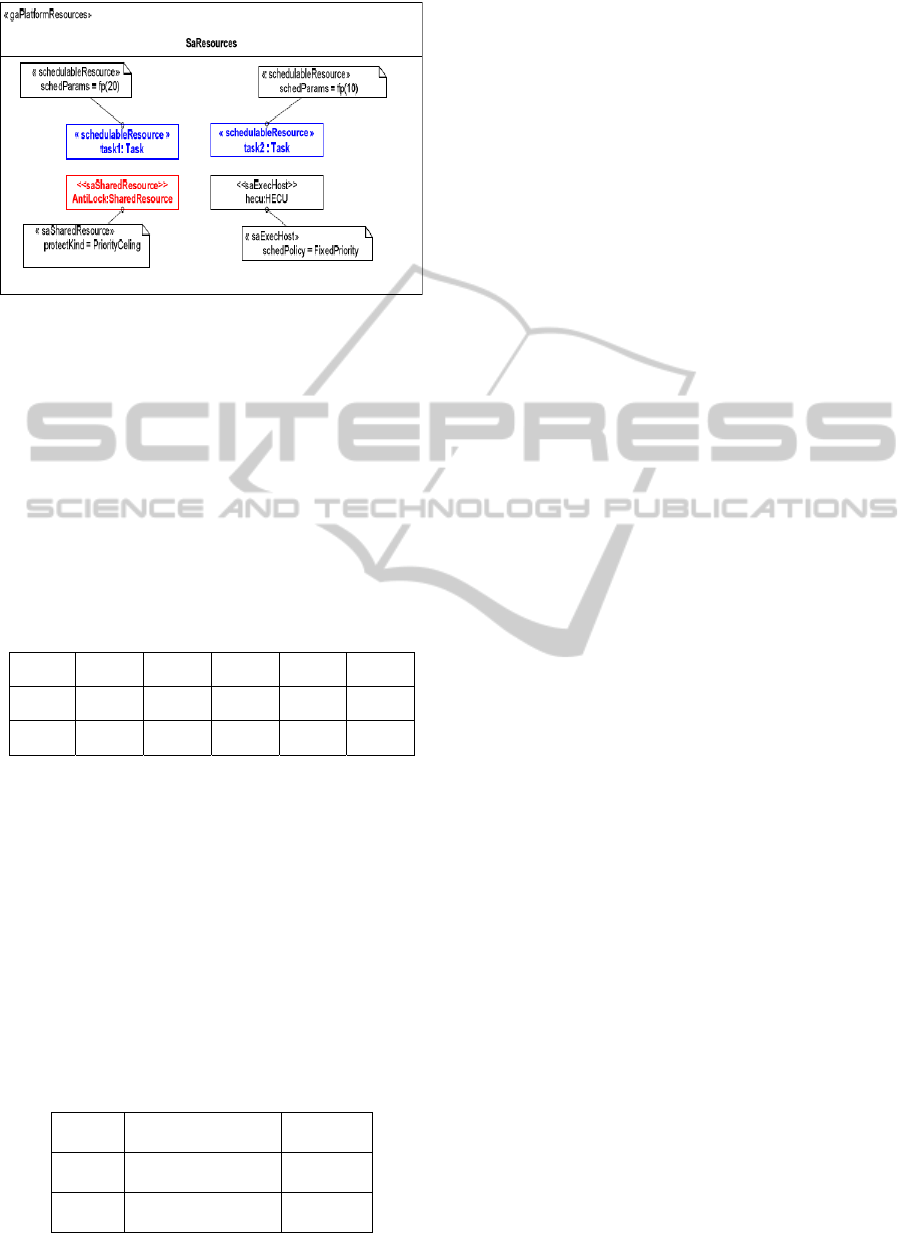

schedulability analysis stage (see Figure 4).

5.2 Generation of Concurrency Model

5.2.1 Mapping Workload Behavior Diagram

to Petri Nets

In order to generate concurrency model from the

workload model, a preliminary transformation of the

end-to-end scenario in Petri Nets is required. This

transformation is applied in graphical and formal

forms. Figure 3 depicts the mapping of the

Workload model of combined CCS and ABS sub-

systems to Petri Nets.

Figure 3: Petri Nets Model.

The initial node corresponding to the launching of

the scenario of the system (e.g, acquisitionABS and

acquisitionDiagnosis) is transformed into a place

marked with an initial token. Tokens are used to

simulate the dynamic behavior of systems. Activity

node is transformed into a place without any token at

the beginning connected to a transition by means of

an output arc. Thus, actions such as DataProcessing,

Diagnosis, AntiLock and LimpHome are transformed

to places without any token at the beginning.

A transition represents cause/effect places

relations and is enabled if its each input place that

contains tokens. The Diagnosis step can cross one

among all outgoing flows according to related guard

conditions. The crossing of the transition t

ensures

fusion of several incoming places (DataProcessing

and Diagnosis) to a single outgoing place

(AntiLock).

NewSchedulabilityAnalysisforReal-TimeSystemsbasedonMDEandPetriNetsModelatEarlyDesignStages

335

5.2.2 Transaction Identification

This stage of the methodology consists of

determining all transactions in Petri Net model

running in concurrency using the place-invariants

method. We use this analysis method to prove

concurrency (places fired with the same token) and

mutual exclusion (same place fired with different

tokens) properties. Corresponding to the Petri Nets

model (Figure 3), the input matrix IN, the output

matrix OUT and the incidence matrix C are

presented in the following:

t1 t2 t3 t4

1 0 0 0 p1

0 1 0 0 p2

IN = 0 0 0 0 p3

0 0 1 0 p4

0 1 0 1 p5

0 0 0 0 p6

t1 t2 t3 t4

0 0 0 0 p1

1 0 0 0 p2

OUT = 0 1 0 0 p3

0 0 0 0 p4

0 0 1 0 p5

0 0 0 1 p6

t1 t2 t3 t4

-1 0 0 0 p1

1 -1 0 0 p2

C = 0

1 0 0 p3

0 0 -1 0 p4

0 -1 1 -1 p5

0 0 0 1 p6

The initial marking M

of the net, representing

the initial distribution of tokens in places, is an

integer vector given by:

= (1 0 0 1 0 0) (3)

So, M

indicates that only p

and p

are marked with

only one token.

The solution based on matrix multiplication of

C X = 0 are called place invariants. For instance, the

vector X

= (1 1 1 0 0 0) and X

= (0 0 1 1 1 1) are P-

invariants, their multiplication by the incidence

matrix satisfies the property C X

=0 and C X

=0.

Note that each value in X

and X

vectors

corresponds to conservative places that can be fired

with the same token in all marking of the net.

A P-invariant indicates that the number of tokens

in all reachable markings satisfies some linear

invariant. For example, the invariant X

mean that all

reachable markings M of places p

, p

and p

denoted as M(acquisitionABS), M(DataProcessing)

and M (AntiLock) satisfy the initial marking

(in M

the sum of the tokens in p

, p

and p

is equal

to 1). The invariant X

mean that all reachable

markings M of places p

, p

and p

satisfy the

initial marking (is equal to1):

M (acquisitionABS) + M (DataProcessing)

+ M (AntiLock) = 1

(4)

M (acquisitionDiagnosis) + M (Diagnosis)

+ M (LimpHome) + M (AntiLock) =1

(5)

From these results, we identified two transactions:

(acquisitionABS, DataProcessing and AntiLock)

with sequential order of execution and T

(acquisitionDiagnosis, Diagnosis, LimpHome

andAntiLock) with sequential order of execution

between both acquisitionDiagnosis and Diagnosis

steps and decision execution between both

Diagnosis and LimpHome steps.

5.2.3 Generation of the Task Set

After identifying the transactions, it is necessary to

specify the so-called schedulable Resources. In this

case study we have specified two transactions T

and

running all function of the system. Schedulable

Resources are identified from transactions, we apply

a transaction-based task model generation (to get

one single thread of execution for each transaction).

In our combined CCS and ABS sub-systems, we

obtain two different threads namely task1

(acquisitionforABS, DataProcessing and

AntiLockControl) and task2

(acquisitionforDiagnosis, Diagnosis, LimpHome and

AntiLockControl).

The action AntiLockControl is shared among the

two threads. This critical section is added in resource

platform and extended with the property of actions

SharedResources which actually represents a mutual

exclusion.

5.3 Schedulability Analysis

Eventually, software resource must to be obviously

allocated to processors for schedulability analysis. In

Figure 4 the two threads task1 and task2 with

priorities are included in the platform resources

SaResources to perform schedulability analysis.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

336

Figure 4: Platform Resource Model.

Thus, in this case study the scheduling algorithm

(FixedPriority) has been chosen for the execution

host hecu stereotyped as «saExecHost» and the

synchronization protocol (Priority Ceiling) has been

specified to avoid deadlocks.

The Schedulability Analysis Model, as defined

in the previous subsection, contains all the needed

information to perform the schedulability analysis

tests. Table 2 gives a tabular description of the

concurrency model showing the different parameters

required to perform schedulability analysis.

Table 2: Schedulability analysis model.

Task T

task1

60 25 15 20 60

task 2

100 25 0 10 100

Consequently, a schedulability analysis test can be

carried out on this model (table 2). Such test

calculates the worst case response times for each

schedulable Resource. Note that the worst-case

response time includes the blocking time B

. Table 3

summarizes the results of the schedulability analysis

obtained. The property isSched of the

«saEndtoEndFlow» stereotype indicates the

schedulability of each task. The response times of

the two tasks are lower than their deadlines. Thus,

this concurrency model satisfies the timing

constraints of the system.

Table 3: Schedulability analysis results.

Task Response Time isSched

task1 40 True

task 2 25 True

The evaluation of the concurrency model is

produced as an artifact of our methodology in the

form of a Schedulability Analysis Results provided

to the designer. This evaluation can guide the

designer for the refinement toward a design and an

implementation model of the system.

6 CONCLUSIONS

In this paper, we propose a methodology of

transforming workload models to concurrency

models for schedulability with hard real-time

constraints expressed at specification phase. Our

method is integrated in the software life-cycle since

the very beginning that automates the transition from

functional model to design model. The proposed

approach is based on identifying transactions

through a formal method, which can compute the

optimal solution. After identifying transactions, the

so-called schedulable Resource is specified to

perform schedulability analysis. Such approach

provides a guideline for the designer to find an

implementable concurrency model describing a real-

time application of an optimized way. The feasibility

of our approach has been successfully assessed

through an automotive case study. The future tasks

we have assigned to ourselves is to define empirical

and comparative studies to provide quality indicators

and to measure the benefits of our proposal.

REFERENCES

Anssi,S., Tucci-Piergiovanni, S., Kuntz,S., Gerard,S. and

Terrier, F., 2011. Enabling scheduling analysis for

AUTOSAR systems. In ISORC ’11, 14

IEEE

International Symposium on Object-Oriented Real-

Time Distributed Computing.IEEE Computer Society.

Bartolini, C., Lipari, G. and Natale, M. D.,2005. From

Functional Blocks to the Synthesis of the Architectural

Model in Embedded Real-time Applications. In RTAS’

05, Proceedings of the 11th IEEE Real-Time and

Embedded Technology and Applications Symposium

,San Francisco, CA, USA. IEEE Computer Society.

Frumin, D. and Lamazova, I., 2014. Branching Process of

Conservative Nested Petri Nets. In VPT’14, second

international workshop on Verification and Program

Transformation. EPiC Series, vol.25,pp 19-35.

Gomaa, H., 2000. Designing Concurrent, Distributed and

Real-Time Applications with UML. Addison-Wesley.

Goodenough, J. B. and Sha, L., 1988. The priority ceiling

protocol: A method for minimizing the blocking of

high priority Ada tasks, volume 8. ACM.

HadjKacem, Y., Mahfoudhi,A., Magdich, A., Karamti, W.

and Abid, M., 2012. Using MDE and Priority Time

NewSchedulabilityAnalysisforReal-TimeSystemsbasedonMDEandPetriNetsModelatEarlyDesignStages

337

Petri Nets for the schedulability analysis of embedded

systems modeled by UML activity diagrams. In

ECBS‘12, 19

Annual IEEE International Conference

and Workshops on the Engineering of Computer

Based Systems. IEEE Computer Society.

Kodase, S., Wang, S. and Shin, K.G.,2003. protocol: A

Transforming Structural Model to Runtime Model of

Embedded Software with Real-time Constraints. In

DATECE’03, Design, Automation and Test in Europe

Conference and Exhibition. IEEE Computer Society.

Mehiaoui,A.,Wozniak, E., Natale, M.D., Zeng, H.,

Mraidha, C., Tucci-Piergiovanni, S. and Gerard, S.,

2013. A Two-step Optimization Technique for

Functions Placement, Partitioning, and Priority

Assignment in Distributed Systems. In LCTES’13,

14thconference on Languages, Compilers and Tools

for Embedded Systems. ACM.

Mraidha, C., Tucci-Piergiovanni, S. and Gerard,S.,2011.

Optimum: a marte-based methodology for

schedulability analysis at early design stages. In ACM

SIGSOFT Software Engineering Notes, 36(1):1–8.

Murata,T., 1989. Petri nets: Properties, analysis and

applications. In Proceedings of the IEEE, vol. 77, no.

4, pp. 541-580.

Mzid, R., Mraidha, C., Babau, J.P. and Abid, M., 2014.

SRMP: A Software Pattern for Deadlocks Prevention

in Real-Time Concurrency Models. In QoSA’14, 10th

International Conference on Quality of Software

Architectures, France. ACM SIGSOFT.

Narahari, Y. and Viswanadham, N., 1985. On the

invariants of coloured Petri Nets. In Proceedings of 6

European Workshop on Petri Net Theory and

Applications, pp. 330-345.

OMG Object Management Group., 2008. A UML Proﬁle

for MARTE: Modeling and Analysis of Real-Time

Embedded systems, Beta 2, Object Management

Group.

Radermacher, A., Mraidha, C., Tucci-Piergiovanni, S. and

Gérard,S.,2010. Generation of schedulable real-time

component implementations. In ETFA’10, 15

IEEE

International Conference on Emerging Technologies

and Factory Automation. IEEE Computer Society.

Saksena, M. and Karvelas, P., 2000. Designing for

Schedulability Integrating Schedulability Analysis

with Object-Oriented Design. In ECRTS’00, 12th Euro

micro Conference on Real-time Systems,

Stockholm,Sweden. IEEE Computer Society.

Wozniak, E., Natale, M.D., Zeng, H., Mraidha, C., Tucci-

Piergiovanni, S. and Gerard, S., 2014. Assigning Time

Budgets to Component Functions in the Design of

Time-Critical Automotive Systems. In ASE’14, 29 th

International Conference on Automated Software

Engineering. ACM.

Yang, N., Yu, H., Sun,H. and Qian,Z., 2010. Mapping

UML activity diagrams to Analyzable Petri Net

Models. In QSIC ’10, 10th International Conference

on Quality Software, pages 369–372, Washington,DC,

USA. IEEE Computer Society.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

338
