How does Oracle Database In-Memory Scale out?

Niloy Mukherjee, Kartik Kulkarni, Hui Jin, Jesse Kamp and Tirthankar Lahiri

Oracle Corporation, Redwood Shores, U.S.A.

Keywords: Oracle RDBMS in-Memory Option, Dual-format Distributed in-Memory Database, Scale-out, in-Memory

Compression Units (IMCUs), Automated Distribution, Distributed SQL Execution.

Abstract: The Oracle RDBMS In-memory Option (DBIM), introduced in 2014, is an industry-first distributed dual

format in-memory RDBMS that allows a database object to be stored in columnar format purely in-memory,

simultaneously maintaining transactional consistency with the corresponding row-major format persisted in

storage and accessed through in-memory database buffer cache. The in-memory columnar format is highly

optimized to break performance barriers in analytic query workloads while the row format is most suitable

for OLTP workloads. In this paper, we present the distributed architecture of the Oracle Database In-

memory Option that enables the in-memory RDBMS to transparently scale out across a set of Oracle

database server instances in an Oracle RAC cluster, both in terms of memory capacity and query processing

throughput. The architecture allows complete application-transparent, extremely scalable and automated in-

memory distribution of Oracle RDBMS objects across multiple instances in a cluster. It seamlessly provides

distribution awareness to the Oracle SQL execution framework, ensuring completely local memory scans

through affinitized fault-tolerant parallel execution within and across servers without explicit optimizer plan

changes or query rewrites.

1 INTRODUCTION

Oracle Database In-memory Option (DBIM)

(Oracle,

2014, Lahiri et al., 2015) is the industry-

first dual format

main-memory database architected

to provide

breakthrough performance for analytic

workloads in

pure OLAP as well as mixed OLTAP

environments,

without compromising or even

improving OLTP

performance by alleviating the

constraints in

creating and maintaining analytic

indexes (Lahiri et al.,

2015). The dual-format in-

memory representation

allows an Oracle RDBMS

object (table, table

partition, composite table

subpartition) to be

simultaneously maintained in

traditional row format

logged and persisted in

underlying storage, as well

as in column format

maintained purely in-memory

without additional

logging. The row format is

maintained as a set of

on-disk pages or blocks that

are accessed through an

in-memory buffer cache

(Bridge et al., 1997), while

the columnarized format is

maintained as a set of

compressed in-memory

granules called in-memory

compression units or

IMCUs (Oracle, 2014, Lahiri

et al., 2015) in an in-memory

column store (Lahiri et

al., 2015) transactionally consistent with the row

format. By building the column store

into the

existing row format based database engine,

it is

ensured that all of the rich set of features of

Oracle Database (Bridge et al., 1997, Oracle, 2013)

such as

database recovery, disaster recovery,

backup,

replication, storage mirroring, and node

clustering

work transparently with the IM column

store

enabled, without any change in mid-tier and

application layers.

The dual format representation is highly

optimized for maximal utilization of main memory

capacity. The Oracle Database buffer cache used to

access the row format has been optimized over

decades to achieve extremely high hit-rates even

with a very small size compared to the database

size.

As the in-memory column store replaces

analytic

indexes, the buffer cache gets better

utilized by

actual row-organized data pages.

Besides providing

query performance optimized

compression schemes,

Oracle DBIM also allows

the columnar format to be

compressed using

techniques suited for higher

capacity utilization

(Lahiri et al., 2015).

Unlike a pure in-memory database, the dual

format DBIM does not require the entire database

to have to fit in the in-memory column store to

Mukherjee N., Kulkarni K., Jin H., Kamp J. and Lahiri T..

How does Oracle Database In-Memory Scale out?.

DOI: 10.5220/0005497900390044

In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 39-44

ISBN: 978-989-758-114-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

become

operational. While the row format is

maintained for

all database objects, the user is

allowed to specify

whether an individual object

(Oracle RDBMS table,

partition or composite

subpartition) should be

simultaneously maintained

in the in-memory

columnar format. At an object

level, Oracle DBIM

also allows users to specify a

subset of its c o l u m n s

to be maintained in-memory.

This allows for the

highest levels of capacity

utilization of the database

through data storage

tiering across main-memory,

flash cache, solid state

drives, high capacity disk

drives, etc.

Section 2 presents a detailed description of

the

distributed architecture, with precise focus on a)

complete application-transparent, extremely scalable

and automated in-memory distribution mechanism

of Oracle RDBMS objects across multiple instances

in a cluster, and b) seamless provision of distribution

awareness to the Oracle SQL execution framework.

2 DISTRIBUTED DBIM

The distributed architecture of Oracle DBIM is

demonstrated through Figure 1.

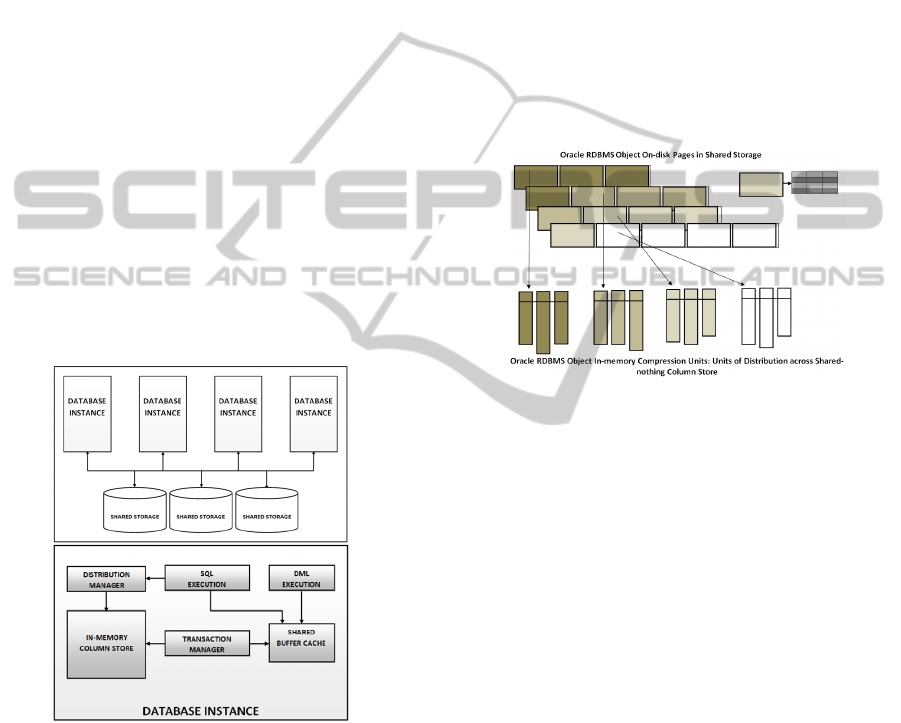

Figure 1: Distributed architecture of DBIM on Oracle

RAC.

Oracle DBIM employs Oracle Real

Application

Cluster (RAC) (Oracle 2014)

configuration for

scaling out across multiple

machines. RAC allows a

user to configure a cluster

of database server

instances that execute Oracle

RDBMS software

while accessing a single database

persisted in shared

storage. Data of an Oracle object

is persisted in

traditional row major format in

shared-storage as a

set of extents, where each extent

is a set of

contiguous fixed-size on-disk pages

(Oracle Data

Blocks) as shown in Figure 2. These

data blocks are

accessed and modified through a

shared Database

Buffer Cache. Each individual

instance can be

configured with a shared-nothing in-

memory

column store. For an object that is

configured to be

maintained in-memory, the

distribution manager is

responsible for maintaining

the corresponding in-

memory object as a set of In-

memory

Compression Units (IMCUs) (Oracle 2014)

distributed across all in-memory column stores in

the cluster, with each IMCU containing data from

mutually exclusive subsets of data blocks (Figure 2).

Transactional consistency between an IMCU and its

underlying data blocks is guaranteed by the IM

transaction manager.

Figure 2: A 3-column Oracle RDBMS table in both row-

major and in-memory columnar formats.

2.1 In-Memory Compression Unit

An In-Memory Compression Unit (IMCU) is

‘populated’ by columnarizing rows from a subset of

blocks of an RDBMS object and subsequently

applying intelligent data transformation and

compression methods on the columnarized data. The

IMCU serves as the unit of distribution across the

cluster as well as the unit of scan within a local

node. An IMCU is a collection of contiguous in-

memory extents allocated from the in-memory area,

where each column is stored contiguously as a

column Compression Unit (CU). The column vector

itself is compressed with user selectable

compression levels; either optimized for DMLS, or

optimized for fast scan performance, or for capacity

utilization (Lahiri et al., 2015).

Scans against the column store are optimized

using vector processing (SIMD) instructions (Lahiri

et al.,

2015) which can process multiple operands in

single CPU instruction. For instance, finding the

occurrences of a value in a set of values, adding

successive values as part of an aggregation

operation, etc., can all be vectorized down to one or

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

two instructions. A further reduction in the amount

of data accessed is possible due to the In-Memory

Storage Indexes (Lahiri et al., 2015) that are

automatically

created and maintained on each of

the CUs in the

IMCU. Storage Indexes allow data

pruning to occur

based on the filter predicates

supplied in a SQL

statement. If the predicate value

is outside the

minimum and maximum range for a

CU, the scan of

that CU is avoided in entirety. For

equality, in-list,

and some range predicates an

additional level of data

pruning is possible via the

metadata dictionary when

dictionary-based

compression is used. All of these

optimizations

combine to provide scan rates

exceeding billions of

rows per second per CPU

core. Apart from

accelerating scans, the IM column

store also

provides substantial performance benefits

for joins

by allowing the optimizer to select Bloom

filter

based joins more frequently due to the massive

reduction in the underlying table scan costs. A new

optimizer transformation, called Vector Group By

(Lahiri et al., 2015), is also used to compute multi-

dimensional aggregates in real-time.

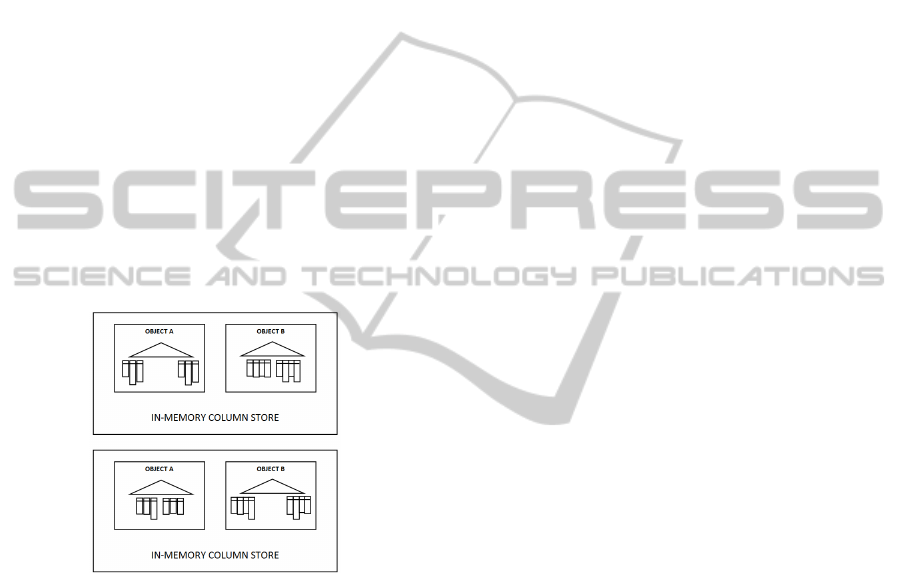

Figure 3: In-memory segments with IMCUs indexed by

Oracle data block addresses (2-instance cluster).

2.2 In-Memory Column Store

The In-Memory column store is carved out from the

Oracle System Global Area (SGA) (Oracle 2014)

per database instance based on a size provided by

the user. Logically, it is a shared-nothing container

of in-memory segments, where each in-memory

segment comprises of a set of IMCUs populated in

the instance. Each in-memory segment is equipped

with a data block address based in-memory home

location index that is used for efficient lookup of an

IMCU containing data from a particular underlying

data block. Depending on the distribution of IMCUs,

an in-memory object constitutes a set of one or more

in-memory segments across the cluster (Figure 3).

The in-memory home location index allows

for

seamless integration of the in-memory column

store

with the traditional row-store based instance-

local

Oracle data access engine (Oracle 2013) that

iterates

over a set of row-major block address

ranges. Using

the same scan engine as-is allows an

RDBMS object

to be perpetually online for queries.

For a given set

of block address ranges, the access

engine employs

the index to detect and scan an

IMCU if an IMCU

covering these ranges exists

locally; otherwise it

falls back to the buffer cache or

underlying storage.

As and when IMCUs get locally

populated and

registered with the index, the access

engine shifts

from performing block based accesses

to utilizing

IMCUs for faster analytic query

proceesing.

2.3 Distribution Manager

The primary component of the distributed

architecture is the Distribution Manager. We have

uniquely designed the component to provide

extremely scalable, application-transparent

distribution of IMCUs across a RAC cluster

allowing for efficient utilization of collective

memory across in-memory column stores, and

seamless interaction with Oracle’s SQL execution

engine (Parallel 2013) ensuring affinitized high

performance parallel scan execution at local memory

bandwidths, without explicit optimizer plan changes

or query rewrites.

The distribution manager uses a generic

mechanism for population of IMCUs for a given

database object. The mechanism is two-phase,

comprising of a very brief centralized consensus

generation phase followed by a decentralized

distributed population phase. A completely

centralized approach requires the coordinating

instance to undergo non-trivial cross-instance

communication of distribution contexts per IMCU

with the rest of the instances. On the other hand, a

purely de-centralized approach allows maximal

scale-out of IMCU population, but the lack of

consensus in a constantly changing row-store may

result in a globally inconsistent distribution across

the cluster.

Our two-phase mechanism aims to combine the

best of both worlds. While the centralized phase

generates and broadcasts a minimal distribution

consensus payload, the decentralized phase allows

each instance to independently populate relevant

IMCUs using locally computed yet globally

consistent agreements on IMCU home locations

based on the broadcast consensus. In this approach,

at any given time for a given object, an instance can

be either a ‘leader’ that coordinates the consensus

HowdoesOracleDatabaseIn-MemoryScaleout?

gathering and broadcast, or a ‘to-be follower’ that

waits to initiate IMCU population, or a ‘follower’

that coordinates the decentralized population, or

‘inactive’.

The remainder of the subsection explains our

approach in details. The on-disk hypothetical non-

partitioned table illustrated in Figure 2 in Section 2

is used to demonstrate the various steps of the

distribution mechanism in a hypothetical RAC

cluster of 4 instances.

2.3.1 Centralized Phase

Distribution of a given object can be triggered

simultaneously from multiple instances as and when

any of the managers detects portions of an in-

memory enabled object not represented by either

local or remote IMCUs. Leader selection therefore

becomes necessary to prevent concurrent duplicate

distribution of the same object. For each object, a set

of dedicated background processes per instance

compete for an exclusive global object distribution

lock in no-wait mode. The instance where the

background process successfully acquires the object

lock becomes the leader instance with respect to the

distribution of that object while rest of the

backgrounds bail out. Therefore, at any given time

for a given object, only one instance can serve as the

leader (figure 4). At this point, all other instances

remain inactive as far as the given object is

concerned.

The leader is responsible for gathering a set of

snapshot metadata for the object, which it broadcasts

to all nodes excluding itself. This snapshot provides

a consensus to all nodes so that each of them can

carry out IMCU population independently but

through a distributed agreement. The snapshot

information includes a) schema and object

identifier,b) the current system change number

(SCN) (Lahiri

et al.,

2015) of the database to get

consistent snapshot of

the object layout as of that

SCN, c) the SCN used in the previous distribution

(invalid if the object was

never distributed

previously), d) the set of instances

participating in

the population, e) the packing factor, f) the cluster

incarnation, and g) the

partition/subpartition number

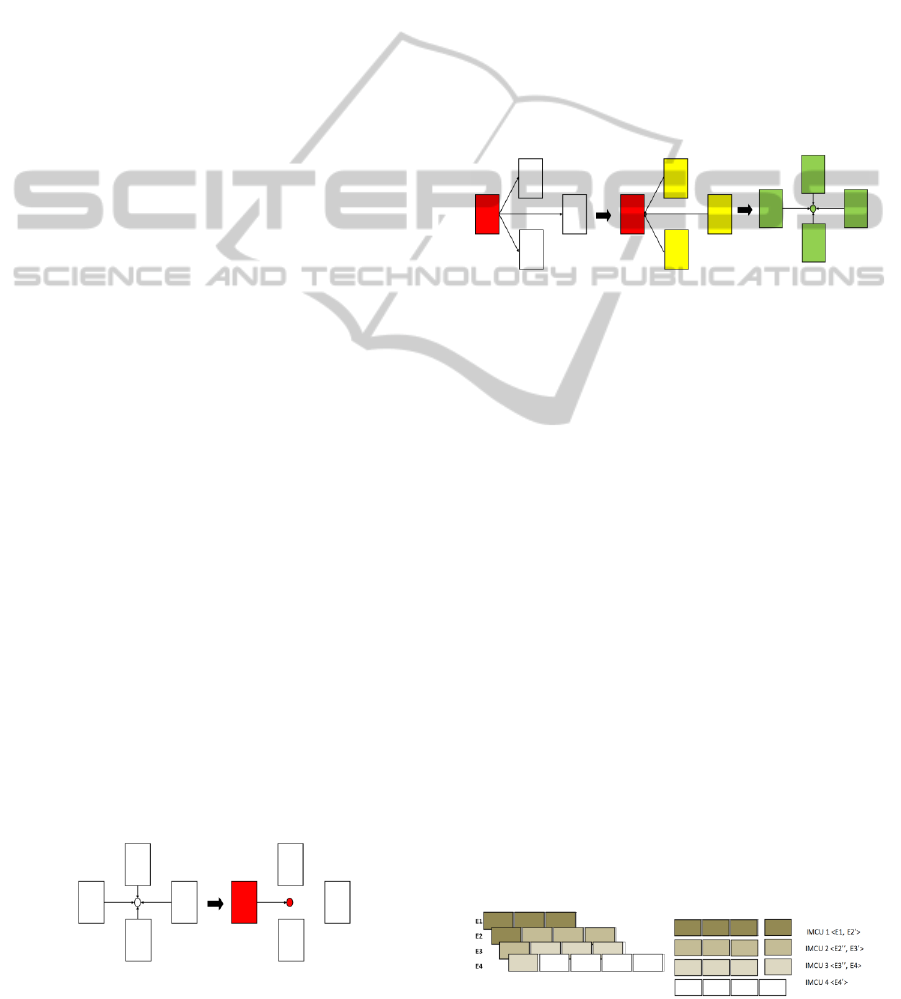

Figure 4: Election of a leader background process for an

Oracle RDBMS object.

(if distribute by

partition or subpartition is the

option used). The

extremely compact payload

implies minimal inter-

node communication

overheads.

Once an instance receives the message from the

leader, one of its dedicated background processes

initiates the population task by queuing a shared

request on the same object lock, changes its role of

the instance from ‘inactive’ to ‘to-be follower’, and

sends an acknowledgement back to the leader.

However as the leader holds exclusive access on the

lock, none of the instances can attain ‘follower’

status to proceed with the population procedure.

After the leader receives acknowledgement from all

instances, it downgrades its own access on the global

object lock from exclusive to shared mode.

Figure 5: Consensus broadcast, acknowledgement,

followed by leader downgrade.

Once the downgrade happens, the leader itself

becomes a ‘follower’ and all ‘to-be followers’ get

shared access on the lock to become ‘followers’ to

independently proceed with the distributed

decentralized IMCU population (Figure 5). Until all

followers release access on the shared object lock, none of

the instances can compete for being a leader again for the

object.

2.3.2 Decentralized Population Phase

Each follower instance uses the SCN snapshot

information in the broadcast message to acquire a

view of the object layout metadata on-disk. Based on

the previous SCN snapshot and the current one, each

follower instance determines the same set of block

ranges that are required to be distributed and then

uses the packing factor to set up globally consistent

IMCU population contexts, as demonstrated in

Figure 6 (assuming a packing factor of 4 blocks).

Once consistent IMCU contexts have been set

up,

the requirement arises to achieve distributed

agreement on the assignment of instance home

locations.

Figure 6: IMCU population context generation.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

Each instance is required to independently

come

up with the same assignment answer for the

same

input key, which leads to the need for a

uniform

hash function. Traditional modulo based

hashes may

not be well suited to serve the p u r p o s e

as they

result in unnecessary rebalancing costs as

and when

cluster topology gets impacted. The

distribution

manager employs a technique called

rendezvous

hashing (Laprie, 1985) that allows each

follower

background process to achieve distributed

agreement on the instance home location for a given

IMCU. Given a key, the algorithm computes a hash

weight over each instance in the set of participating

instances in the payload broadcast by the leader and

selects the instance that generates the highest weight

as the home location.

f(K, N) = ∑max(h(K, i)), i = 1..N

Table 1: Hypothetical home location assignments by each

follower instance.

IMCU

Context

IMCU

Boundaries

Assignments

IMCU 1 <E1, E2’> Inst. 1

IMCU 2 <E2’’, E3’> Inst. 2

IMCU 3 <E3’’, E4’> Inst. 3

IMCU 4 <E4’’> Inst. 4

In context of IMCU distribution, the key chosen

depends on the distribution scheme. If the

distribution is block range based, then the address of

the first block in the IMCU context is used as the

key. Otherwise, the partition number or the relative

subpartition number is used as the key. As the key is

chosen in consensus across all follower instances,

the rendezvous hashing scheme ensures global

agreement on their home locations (an example is

demonstrated in Table 1). Besides achieving low

computation overheads and load balancing, the

primary benefit of rendezvous hashing scheme is

minimal disruption on instance failure or restart, as

only the IMCUs mapped to that particular instance

need to be redistributed.

Once the follower background process

determines the instance locations for all IMCU

contexts, it divides the workload into two sets, one

where IMCU contexts are assigned to its own

instance and the other where they are assigned to

remote instances. For the first set, it hands off the

IMCU contexts to a pool of local background server

processes to create IMCUs from the underlying data

blocks in parallel. If an in-memory segment is not

present, the population of the first local IMCU

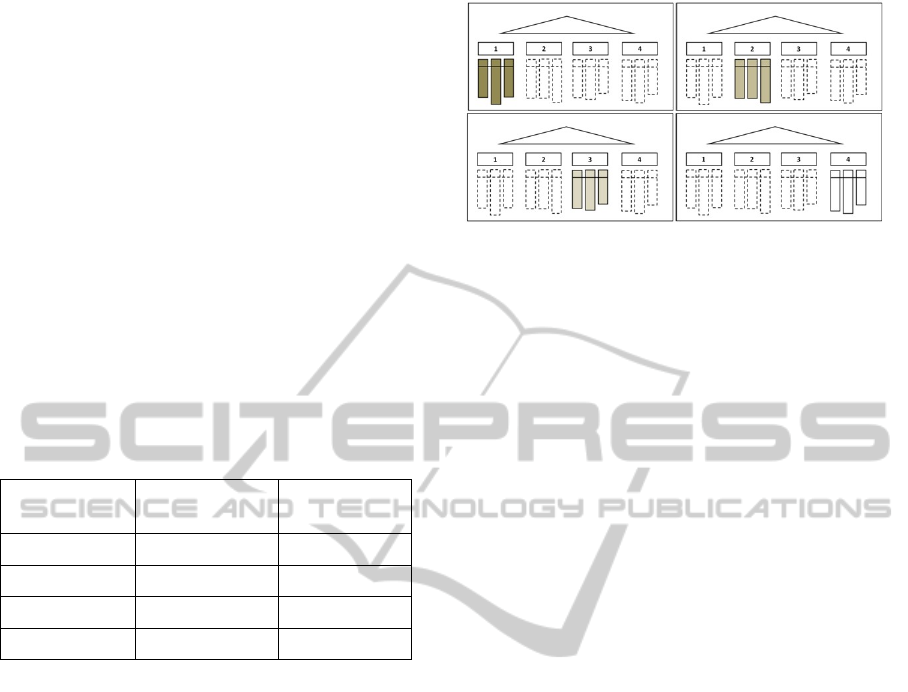

Figure 7: Logical view of in-memory home location

index

on completion of distribution across 4 RAC

instances.

creates the in-memory segment within the column

store. Once the IMCUs are created locally in the

physical memory, they are registered in the block

address based home location index described in

section 2.2. An IMCU becomes visible to the data

access as well as the transaction management

components once it has been registered in the index.

For the second set, the follower process iteratively

registers only the remote home location metadata

without undergoing actual IMCU population.

The follower background process waits for all

local background processes undergoing IMCU

population to complete. By the time all instances

release their accesses on the global object lock, the

mechanism results in laying out IMCUs consistently

across all participating home location nodes

resulting in a globally consistent home location

index maintained locally on every instance

(illustrated in Figure 7).

2.3.3 SQL Execution

The distribution manager is seamlessly integrated

with the Oracle SQL execution engine (Parallel

2013) to provide in-memory distribution awareness

to traditional SQL queries without explicit query

rewrites or changes in execution plan. For a given

query issued from any instance in the cluster, the

SQL optimizer component first uses the local in-

memory home location index to extrapolate the cost

of full object scan across the cluster and compares

the cost against index based accesses. If the access

path chooses full object scan, the optimizer

determines the degree of parallelism (DOP) based on

the in-memory scan cost. The degree of parallelism

is rounded up to a multiple of the number of active

instances in the cluster. This ensures allocation of at

least one parallel execution server process per

instance to scan its local IMCUs.

Once parallel execution server processes have

been allocated across instances, the Oracle parallel

HowdoesOracleDatabaseIn-MemoryScaleout?

query engine is invoked to coordinate the scan

context for the given object. The query coordinator

allocates (N+1) distributors, one for each specific

instance 1 to N, and one that is not affined to any

instance. Each distributor has one or more relevant

parallel execution server processes associated w i t h

it. The coordinator acquires a consistent version of

the on-disk object layout metadata to generate a set

of block range based granules for parallelism. It

uses the local in-memory home location index to

generate granules such that their boundaries are

aligned to IMCU boundaries residing within the

same instances.

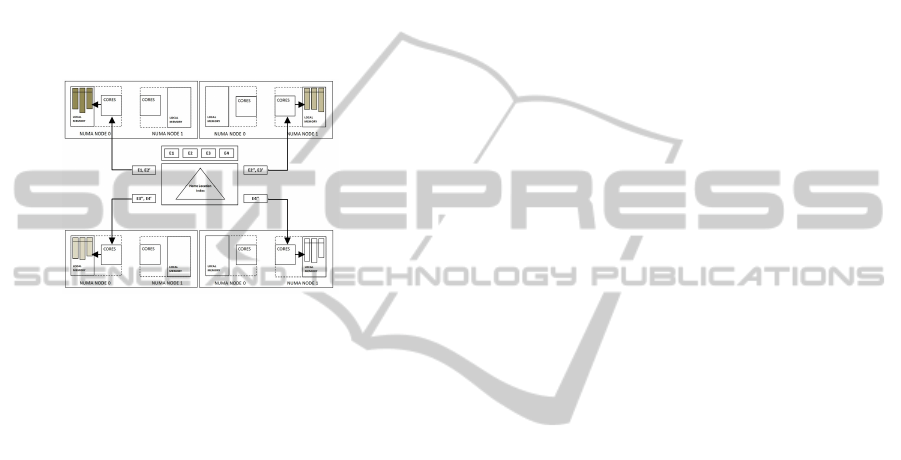

Figure 8: Home location aware parallel query execution.

The granules generated are queued up in relevant

distributors based on the home location affinities.

Each parallel server process dequeues a granule

from its assigned distributor and hands it over to

the

Oracle scan engine. As described before, the

scan

engine uses the same in-memory index to

either

process IMCUs if present in the local in-

memory

column store, or fall back to buffer cache

or disk if otherwise. Figure 8 demonstrates home

location

aware parallel execution of a query

undergoing fully

local memory scans across the

cluster.

The instance alignment ensures that a granule

consists of block ranges that are represented by

IMCUs residing in the same local memory. IMCU

boundary based alignment alleviates redundant

access of the same IMCU by multiple parallel server

processes. The globally consistent local home

location index that the same set of granules is

generated irrespective of the instance coordinating

the query.

3 CONCLUSIONS

The necessity to support real-time analytics on huge

data volumes combined with the rapid advancement

of hardware systems has served as the ‘mother of

invention’ of a new breed of main-memory

databases meant to scale. This paper presents the

distributed architecture of

the Oracle Database In-

memory Option. The

architecture is unique among

all enterprise-strength

in-memory databases as it

allows complete

application-transparent and

extremely scalable

automated in-memory

distribution of Oracle

RDBMS objects across

multiple instances in a

cluster. The distributed

architecture is seamlessly

coupled with Oracle’s

SQL execution framework

ensuring completely

local memory scans through

affinitized fault-

tolerant parallel execution within

and across servers,

without explicit optimizer plan

changes or query.

REFERENCES

Oracle Database In-Memory, an Oracle White Paper,

Oracle Openworld, 2014.

Lahiri, T. et. al. Oracle Database In-Memory: A Dual

Format In-Memory Database. Proceedings of the

ICDE (2015).

W. Bridge, A. Joshi, M. Keihl, T. Lahiri, J. Loaiza, and N.

MacNaughton, "The Oracle Universal Server Buffer

Manager", in Proceedings of VLDB ‘97, pp. 590-594,

1997.

Oracle12c Concepts Release 1 (12.0.1). Oracle.

Corporation (2013).

Parallel Execution with Oracle 12c Fundamentals, An

Oracle White Paper, Oracle Openworld, 2014.

Laprie, J. C. (1985). "Dependable Computing and Fault

Tolerance: Concepts and Terminology", Proceedings

of 15th International Symposium on Fault-Tolerant

Computing (FTSC-15), pp. 2–11.

R. Greenwal, M. Bhuller, R. Stackowiak, and M. Alam,

Achieving extreme performance with Oracle Exadata,

McGraw-Hill, 2011.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications
