A Top-down Feature Mining Framework for Software Product Line

Yutian Tang and Hareton Leung

Department of Computing, The Hong Kong Polytechnic University, Hung Hom, Hong Kong SAR, China

Keywords:

Variability, Feature Mining, Concept Location, Top-down Framework, Software Product Line.

Abstract:

Software product line engineering is regarded as a promising approach to generate tailored software products

by referencing shared software artefacts. However, converting software legacy into a product line is extremely

difﬁcult, given the complexity, risk of the task and insufﬁcient tool support. To cope with this, in this paper,

we proposed a top-down feature-mining framework to facilitate developers extracting code fragments for

features concerned. Our work aims to fulﬁll the following targets: (1) identify features at a ﬁne granularity,

(2) locate code fragments for concerned feature hierarchically and consistently, and (3) combine program

analysis techniques and feature location strategies to improve mining performance. From our preliminary case

studies, the top-down framework can effectively locate features and performs as good as Christians approach

and performs better than the topology feature location approach.

1 INTRODUCTION

Software product line engineering (SPLE), a promis-

ing approach in generating software product at a low

cost, is broadly applied and adopted in software pro-

duction nowadays (Kang et al., 2009). SPLE provides

software products in a large-scale with systematically

reuse of software assets, including documents, source

code, design and so forth (Chen et al., 2009). More-

over, SPLE enables tailoring software products to sat-

isfy various customers by providing products with

feature diversity.

Features, designed and declared in the speciﬁ-

cation, are used to represent functions and charac-

teristics of the system. Conceptually, features can

be classiﬁed into two categories including common

and distinguished features. Speciﬁcally, common

features are implemented in all products within the

software product line (SPL). On the contrary, distin-

guished features denote variants in SPLE, which are

employed to generate tailored software products for

customers (Benavides et al., 2010). For instance, a

banking product line provides common features in-

cluding creating accounts, deposit, and withdrawal

from accounts as well as some distinguished features

such as multi-language support and exchange calcu-

lation.

Despite SPL supports customized software prod-

ucts at a low cost and optimized time to market,

the adoption rate of SPL has been low, since sup-

pliers have to take the risk of converting software

legacy into SPL. Meanwhile, the complexity and the

cost of this task will also prevent suppliers to adopt

SPL as their preferred approach to generate soft-

ware products. Software product line could be built

based on software legacy by extracting and refactor-

ing features, which could save the cost at the prelimi-

nary stage, at which variants are designed and imple-

mented. Migrating software legacy to SPL normally

includes the following procedures: extracting features

from legacy; transferring extracted features into a fea-

ture model; and building product line architecture un-

der the feature guide (Laguna and Crespo, 2013).

To partially resolve the issues unsolved in migrat-

ing legacy to product line and enhance the perfor-

mance in feature mining, in this paper, our study will:

(1) provide a strategy to mine source fragments from

software legacy in ﬁne granularity; and (2) reduce

the cost and risk when migrating software legacy to

SPL and assist developer to locate speciﬁc feature ef-

ﬁciently.

The rest of this paper is organized as follows: in

Section II, our top-down feature mining framework

along with supporting recommendation strategies will

be introduced. Case study and experimental results

will be presented in Section III. Section IV reviews

the techniques related to feature mining. Conclusion

will be given in the last section.

Tang Y. and Leung H..

Top-down Feature Mining Framework for Software Product Line.

DOI: 10.5220/0005370300710081

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 71-81

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

2 PROPOSED FRAMEWORK

AND METHODOLOGY

Our vision is to recommend code fragments to de-

velopers to support learning and analyzing the code

legacy. As described in (Kastner et al., 2014), the

skeleton of a feature mining process should include

following steps: (1) a domain expert describes the

features and internal relationship, (2) automatically

or manually select the initial seeds to start feature

searching, (3) iteratively expand identiﬁed code to

include more code fragments that have not been as-

signed to features temporally, and (4) developers

could extract and rewrite the code segments as vari-

ants. Unfortunately, it is unrealistic to provide a fully

automatic approach to extract all code fragments at-

tached to the feature concerned given the complexity

and risk of the task. To follow the general procedure

of feature mining, in the coming subsections, we will

introduce our top-down framework by covering the

underlying model, extraction of relationship between

programming elements, recommendation mechanism

and concrete process of our top-down approach.

2.1 Fundamental Elements

The fundamental elements of a program are program-

ming elements and relationships among them. Tech-

nically, a program can be represented by a standard

graph with nodes to represent programming elements

and links to depict relations. Speciﬁcally, program-

ming elements (nodes), in ﬁne granularity, could be

ﬁelds, methods, statements, expressions, and local

variables. Meanwhile, relations between program-

ming elements describe the structure of the program

and dependencies between elements as well. Par-

ticularly, in Java, we could extract programming el-

ements using Java Development Tookit (JDT) API,

which is also the kernel compilation mechanism in

Eclipse. Relationships between programming ele-

ments are normally embedded in keywords deﬁned in

programing language under grammar rule and could

be employed to depict the structural information of

the code base. Speciﬁcally, in this paper, we adopt

AST (Abstract Syntax Tree) nodes to represent pro-

gramming elements. AST is an abstract representa-

tion of the program by categorizing programming el-

ements by types, for instance, IfStatement, ForState-

ment, and VariableDeclarationExpression.

2.2 Relation Extraction

Relations between programming elements need to be

normalized to be displayed directly and quantitatively.

All relations can be classiﬁed into control ﬂow and

data ﬂow. In this paper, we extract fundamental pro-

gramming elements by JDT and transfer keywords

under grammar rules of speciﬁc programming lan-

guages into the control ﬂow and data ﬂow respec-

tively. Speciﬁcally, we divide the data ﬂow relation

into two subsets by granularity: statement level and

function level. Statement level depicts how data are

transferred within a method. By contrary, function

level data ﬂow, also known as call ﬂow, provides

method invocation information and guides execution

path from one method to another.

2.2.1 Control Flow

Control ﬂow relation is normally represented by a

control ﬂow graph, which describes how the program

is constructed and organized. We adopt the con-

trol ﬂow model described in (Sderberg et al., 2013),

which constructs the control ﬂow graph based on ab-

stract syntax tree (AST) of a program. According to

(Sderberg et al., 2013), control ﬂow nodes could be

classiﬁed into three types, including non-directing,

internal ﬂow, and abruptly completing, according

to different types of execution control. Concretely,

non-directing node decides the next node by the con-

text; varAccess node, which represents variable ac-

cess, is an instance of this type. In practice, a state-

ment node could contain various sub AST nodes.

For instance, in ForStmt (for statement), ForInit, Ex-

pression, ForUpdate and forbody statements are em-

bedded in ForStmt. Internal ﬂow node directs the

control ﬂow inside the node and traverses all AST

nodes within it. For the ForStmt case, the control

ﬂow will go through ForInit, Expression, forbody, and

ForUpdate until the exit criteria is met. In addition,

WhileStmt and IfStmt are also examples in this cate-

gory. Abruptly completing node allows the program

goes to a speciﬁc location, which is outside the scope

of current block; examples include Break and Return.

2.2.2 Data Flow (Statement Level)

Data ﬂow depicts how data are transferred, accessed

and stored inside the program and is mainly built on

the control ﬂow graph. Technically, there are two

types of data ﬂow analysis (Sderberg et al., 2013):

liveness analysis, which detects the state of variable

at a certain point within the program, and reach-

ing deﬁnition analysis, which identiﬁes the destina-

tion that a deﬁnition can reach. Particularly, liveness

checking is applied for dead assignment checking and

reaching deﬁnition analysis mainly detects use-deﬁne

and deﬁne-use chain. To simplify this analysis, we

only detect and build use-deﬁne and deﬁne-use chains

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

(both intra-procedural and inter-procedural); for ex-

ample, we build the connection between variable ac-

cess and variable declaration, rather than checking

for any dead assignment. This aligns with our main

goal of locating feature code relate to a certain feature

rather than ﬁnding potential program defect, which is

the key application of dead assignment checking.

2.2.3 Call Flow (Function Level)

Call graph (Rountev et al., 2004) supports analysis of

calling relationships between methods, and displays

the potential behavior of the program. In call graph

analysis, two types of graphs (static and dynamic),

could be applied. Static call graph analysis merely

relies on structural information represented by pro-

gram. On the other hand, dynamic analysis also takes

runtime information into account. In this paper, we

adopt static call graph to detect method invocation

relationships. In static analysis, we extract follow-

ing three relationships: (1) method m

calls method

;(2) call site i

in method m

invokes method m

;

and (3) call site i

in method m

invokes method m

on an instanceof X, where X is the identiﬁer of class.

By extracting call relations mentioned above,the call

relation at ﬁne granularity could be derived.

2.3 Recommendation Mechanism

To support feature-mining, we provide a set of recom-

mendation strategies, which will assist locating fea-

tures precisely. Concretely, for a programming ele-

ment, there is a neighbor-set, which contains all pro-

gramming elements, which may have control rela-

tion and data (reference) relation. Nevertheless, the

connections between a programming element and its

neighbors could be strong and weak, which means

this element and its neighbor elements could and

could not belong to the same feature. To rank all pro-

gramming elements inside the neighbor-set, we use

text comparison, distance-based analysis, centrality-

based analysis, and topology approach to determine

their relevancy.

2.3.1 Text Comparison

Features could be extracted from textural aspect when

treating a source code ﬁle as a set of tokens. Thereby,

similarity between two programming elements can be

measured from the textural aspect. Using text com-

parison enables examination of potential connection

between the declaration of method, ﬁelds, variable,

and class. Text comparison is not restricted to dif-

ferent programming elements, as it can identify the

importance of various token and feature. Particularly,

for a feature, we identify a list of tokens (feature de-

scriptor) serving as a descriptor of this feature. When

a new code fragment is classiﬁed into this feature, the

featured tokens embedded in it will be added to this

feature list automatically. Within this feature list, all

tokens are ranked based on a weight value according

to Christians approach (Kastner et al., 2014);that is,a

token is ranked by counting relative occurrences of

substring in the current feature list after subtracting

occurrences of list outside this feature. That is:

score

T R

(e,extent( f ),exclusion( f )) =

∑

t∈tokenized(e)

(F(extent( f ),t) − F(exclusion( f ),t)) · ρ(t)

(1)

where extent(f ) represents the feature token list under

consideration, exclusion(f ) contains all programming

elements currently not annotated to feature f , e de-

notes a programming element, and function F gives

the frequency of token t in the feature list.

2.3.2 Distance-based Analysis

In a broader sense, clustering can be used for feature

mining, when the goal is to explore and extract all

code fragments attached to the feature concerned.

Speciﬁcally, each cluster could be adapted to rep-

resent a unique feature and all nodes within the

cluster are programming elements belonging to this

feature. As mentioned previously, a program could

be interpreted as a graph with programming elements

(nodes) and relationships (links). In graph clustering,

distance-based clustering algorithms are widely

adopted, of which K-medoid (Dhillon et al., 2005)

is a representative one. For feature mining purpose,

we modiﬁed the original algorithm by considering

following scenarios to classify un-annotated program-

ming elements: (1) for a single programming element

e, if it merely connects to an annotated feature cluster

, we compute its distance by: score

(e,c

) =

∑

t∈neighbors(c

)

D(e,t)/neighbors(e),to denotes the

possibility that it belongs to a feature cluster and

t represents e’s neighbor node inside the cluster

. For example, in Figure 1, node 11 is linked

with node 12 only.(2) If a programming element is

connected to various elements, which belongs to

different clusters as shown in Figure 2, then for any

two neighboring elements, we compute the distance

as: score

(e,c

) = (

∑

∈neighbors(c

)

D(e,t

) −

∑

∈neighbors(c

)

D(e,t

))/neighbors(e), where e is

the programming element currently under consider-

ation, and

∑

∈neighbors(c

)

D(e,t

) represents the total

distance between element e and all its neigbhors in

cluster i. Therefore,there is a negative correlation

between score

and the rank of the programming

Top-downFeatureMiningFrameworkforSoftwareProductLine

element. To simplify, we adjust the formula to:

score

(e,extent( f ),exclusion( f )) =

(

∑

∈neighbors(exclusion( f ))

D(e,t

)

−

∑

∈neighbors(extent( f ))

D(e,t

))/

max(

neighbors(extent( f ))

neighbors(exclusion( f ))

)

(2)

where extent(f ) represents proramming elements

inside the feature f , and exclusion(f ) shows

elements currently not annotated to feature

f .We adjust the original formula by changing

the order of

∑

∈neighbors(exclusion(f ))

D(e,t

) and

∑

∈neighbors(extent(f ))

D(e,t

) to guarantee the simi-

larity is positively correlated with score

, which

means the higher is the score, the larger the distance

to exclusion of feaeture f . That is, a higher score

indicates that a higher possibility of recommending

this programming element to the feature f .

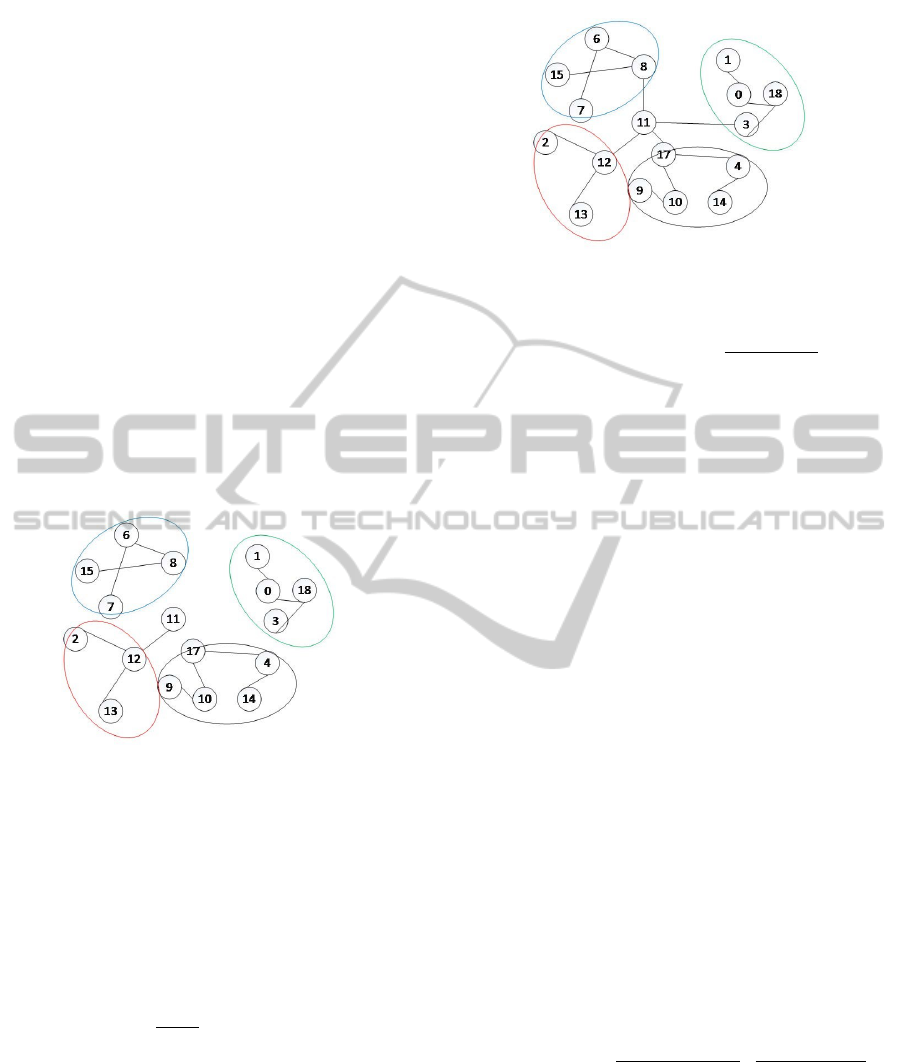

Figure 1: Example of single connection.

2.3.3 Centrality-based Analysis

Girvan-Newman algorithm (Newman and Girvan,

2004) is a graph-based community detection ap-

proach, which implements graph partitioning ac-

cording to betweenness centrality. The concept

betweenness centrality describes a property of the

network as well as the shortest paths between

nodes, and it is normally deﬁned as: for edge

e ∈ E,B(e) =

∑

u,v∈V

(u,v)

g(u,v)

, where g(u,v) represents

the number of paths from u to v and g

(u,v) repre-

sents the number of paths from u to v via e. Their

algorithm ranks all edges by betweennes and removes

the highest one iteratively. Girvan-Newman has been

shown to perform well for graph clustering in practice

(Figueiredo et al., 2008). To ﬁt our particular need in

software product line feature mining, we compute pri-

ority based on the extent and exclusion of the feature.

Figure 2: Example of multiple connections.

score

(e,extent( f ), exclusion( f )) =

∑

i∈extent( f ), j∈exclusion( f ),v∈V

(i,v)−g

( j,v)

(i,v)+g

( j,v)

(3)

2.3.4 Topology Analysis

Topology approach provides recommendations by

referencing the topology structure of a graph. Here,

we adopt Robillards topology approach (Robillard,

2008) to identify interested programming elements.

To rank all potential programming elements, it em-

ploys speciﬁcity and reinforcement metrics. Speci-

ﬁcity describes the case that if one programming el-

ement only refers to a single element, it will rank

higher than others that refer to many elements. In

contrast to speciﬁcity, the underlying intuition in re-

inforcement is that an element, which is referred by

many annotated elements, should be ranked higher.

Unfortunately, the original algorithm described in

(Robillard, 2008) is merely designed for method and

ﬁeld instead of programming elements at the ﬁne

granularity including statements, local variable and so

forth. Therefore, we adjusted the original algorithm

to the product-line settings by applying it to the ﬁne

granularity programming elements. To rank the prior-

ity of a programming element among all candidates,

we employed the following formula:

score

(e, f ) = topology(e,extent( f ))−

topology(e,exclusion( f ))

(4)

where topology is deﬁned as

topology(e,X) =

f orward(e)

f orward(e) |

backward(e)

backward(e) |

(5)

Forward represents a set of programming elements,

which are the target nodes of relation links.By con-

trast, backward refers to a group of elements, which

are the starting points of relation links. For in-

stance, in Figure 3, the forward set of node d is

forward

= {a,b, e} and the backward set of node b

is backward

= {d}.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

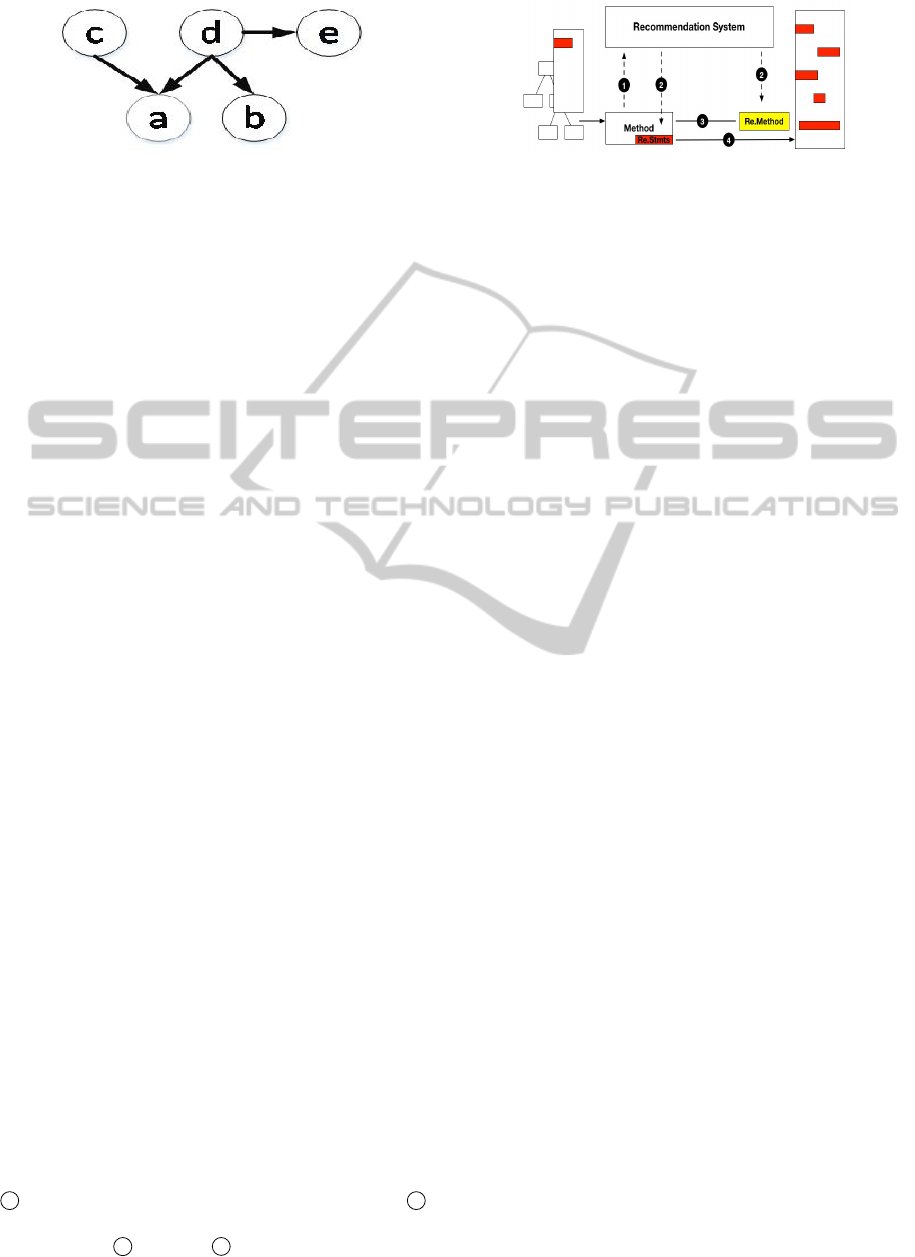

Figure 3: Example of backward and forward relation in a

graph.

2.3.5 Integrating All Approaches

To provide an overall recommendation strategy, we

adopt Robillards (Robillard, 2008) operator to merge

all recommendation approaches mentioned above. In

this approach, the formula x ] y = x + y − x · y is uti-

lized to combine two priority scores x and y to rank

the potential elements. Speciﬁcally, our integrated

strategy will consider all aspects and methods dis-

cussed above using the score

∗

= score

T R

] score

]

score

] score

2.4 Top-down Framework

In previous sections, we presented the strategy to ex-

tract potentially related programming elements for a

give programming element and four approaches to

rank all potential programming elements from various

aspects. Here potential programming elements mean

a set of programming elements, which connect with a

give element under a certain relation, which could be

data (call) or control. Next, we will introduce a top-

down framework by presenting seeds selection and

the key steps of our framework respectively. Our pro-

cess is named top-down because it locates the feature

from coarse granularity to ﬁne granularity. That is,

ﬁrstly it identiﬁes the class and method, which may

be related to the feature. Then, it locates the speciﬁc

statements inside the method.

Seeds Selection. To launch the top-down framework,

seeds should be determined by developers or domain

experts initially. Although they may not be familiar

with the whole implementation, developers can nev-

ertheless propose some start up points. Speciﬁcally,

in our method, all initial seed recommended are meth-

ods, which are MethodDeclaration nodes in java AST.

Top-down Process. Our framework ﬁrst locates the

class and method that may be related to feature. Then,

it looks inside the method and inspects associated

code segments for the feature concerned. The top-

down feature mining process contains four steps as

illustrated in Figure 4:

1 Call relation, data ﬂow, and control relation; 2

Data and control relation (Re.Stmts) and call relation

(Re.Method); 3 Replace; 4 Extract and rewrite.

Figure 4: Top-down recommendation procedure.

• STEP1. Initially, a domain expert or developer

will be required to select the seed (a single or a

set of methods) for feature concerned to launch

the mining process. This procedure is essential

and the seed should be carefully chosen to ensure

that it could be applied to represent the feature;

• STEP2. If it is the ﬁrst iteration, the start-up

method(s) should be the seed(s) selected by devel-

opers or domain experts. The start-up method(s)

serves as input to the recommendation system,

which will return two groups of programming el-

ements. The ﬁrst group includes recommended

methods and the second group programming ele-

ments within the start-up method(s). These pro-

gramming elements are considered to be part of

code that implements the feature. In this way,

the goal of ﬁne granularity mining is achieved,

since statement-level programming elements are

inspected to be contained in the feature con-

cerned;

• STEP3. The returns of STEP2 are recom-

mended method and statements based on the start-

up method. If the returned method is not null,

it will be redirect to STEP2 and serve as the

start-up method. For instance, ﬁrst we select

method BankAccount as the start-up method in

STEP2 and the recommendation system provides

the method getBankName as result. Then, in

STEP3, the method getBankName will turn back

to STEP2 and serve as the start-up method;

• STEP4. Eventually, code fragments related to the

feature concerned will be extracted.

Next, we will demonstrate the recommendation

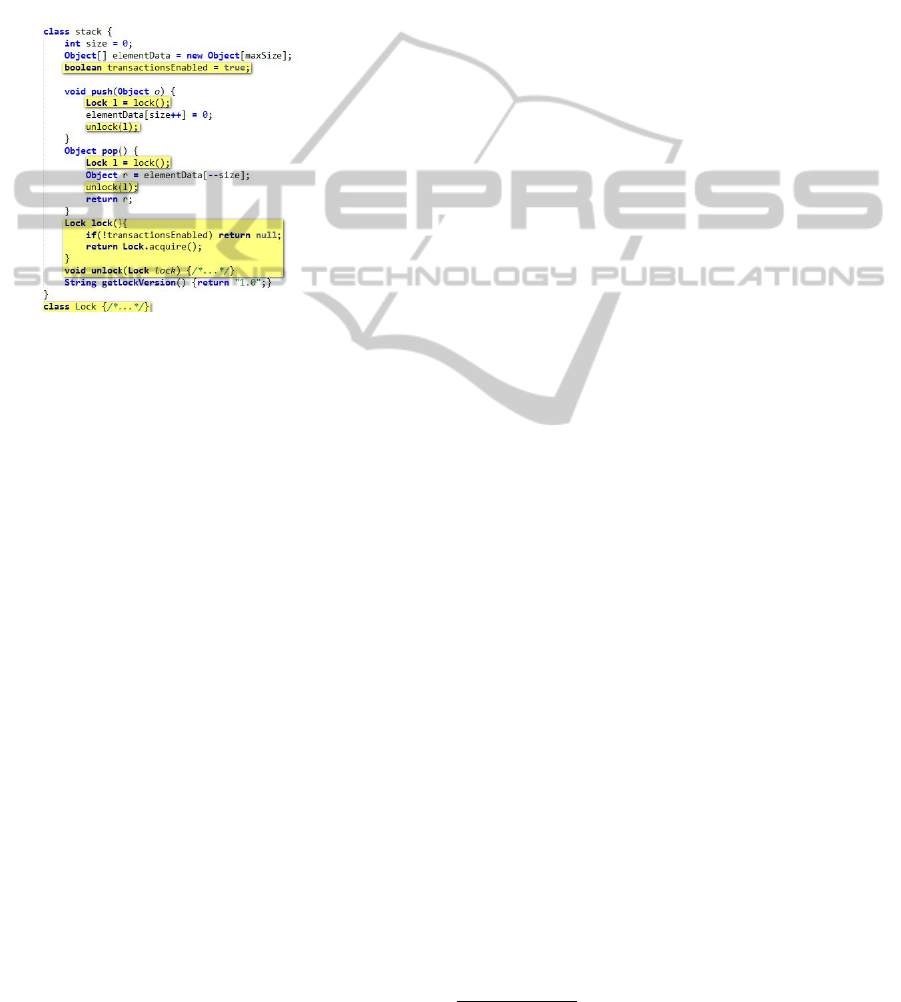

mechanism using the example shown in Figure 5:

• To extract code fragments related to feature lock-

ing, developers ﬁrst annotate the method lock as

a seed. After that, the call graph and control

chain graph are employed to detect internal and

external relations of this method. That is, method

push, pop and class lock are taken into further

consideration using the recommendation mecha-

nism (STEP 1).

• Next, the control and data ﬂow are utilized to de-

tect reference and potential branches, which may

Top-downFeatureMiningFrameworkforSoftwareProductLine

jump to code fragments that belong to other fea-

tures. For instance, assuming that feature Lock

is the feature cared; the developer/domain expert

might ﬁrst pinpoint method lock in class stack.

Moving on, methods which invoke lock (push and

pop) or invoked by lock (acquire) will be recom-

mended by the framework as a result of STEP 2.

Method push, pop and acquire will serve as input

of STEP 3, and then method unlock will be sug-

gested by our system.

Figure 5: Stack example shows feature locking (related

code are all highlighted).

Stopping Criteria. We next introduce the stopping

criteria of our top-down framework, which deﬁnes the

condition that the algorithm for a single programming

element (STEP 1 and 2 in Figure 4) will halt. When

one of following criteria is met, the recommendation

for current programming element will stop:

• All (data or control) neighbors of the current pro-

gramming element are annotated by other fea-

tures: when all data and control neighbors of

the current programming element are annotated to

some features, the mining procedure for this spe-

ciﬁc programming element will stop.

• All neighbors of the current programming ele-

ments are computed by using the recommenda-

tion system. A threshold is set to select program-

ming elements from all potential pools. That is,

if and only if the score computed is greater than

the threshold, then it will be annotated to this fea-

ture. Otherwise, it will be un-annotated and extra

analysis is done to decide whether it should be an-

notated by other features.

When there is no fresh programming element rec-

ommended by the top-down framework, the min-

ing process for current feature will stop. Top-

down framework will consider following attributes of

product line engineering when mining feature from

legacy:

• Consistent Feature Mining. To resolve the spe-

ciﬁc need in product line context, if a feature is

extracted and all code fragment related to this fea-

ture should be explored and located as well, since

in further step of product line constructing, vari-

ants will be compiled and constructed to imple-

ment product line variability. Top-down frame-

work tries to inspect relative code segment itera-

tively (in STEP 2 and 3) to fulﬁll the consistent

mining need.

• Binary Mapping. For a speciﬁc programming el-

ement at ﬁne granularity (could be a statement or a

variable), it should be classiﬁed to a feature. That

is, the relation between a feature and all code seg-

ments implemented it, is a belong-to relation. Bi-

nary mapping means there are two possible cases

to denote the relation between a feature and a

programming element, which are include and ex-

clude. To deal with this, we proposed several ap-

proaches to depict the closeness between a feature

and a programming element, with the computed

value supports the binary decision as described in

section 2.

3 EVALUATIONS

3.1 Case Study

To reduce bias and for comparison purpose, we se-

lect practical products that have been widely used

for our study. We select following systems includ-

ing Prevayler, MobileMedia, and Sudoku. To exclude

the bias in selecting features, all main features within

these systems are selected. In this paper, we concen-

trate on feature mining, and detecting feature interac-

tion is beyond the scope of this paper. Therefore, all

features are equally treated.

Prevayler. Prevalyer is an open source object persis-

tence library for Java. It is a Prevalent System design

pattern for keeping live in memory and transaction

during system recovery. This project is well inves-

tigated in (Kastner et al., 2014; Valente et al., 2012)

. We adopted the same Prevayler version

researched

by de Oliveira at the University of Minas Gerais, with

ﬁve features, including Censor, Gzip, Monitor, Repli-

cation, and Snapshot.

MobileMedia. MobileMedia is a medium size prod-

uct line originally designed by University of Lances-

ter to provide various operations including manipu-

late photo, music and video on mobile device on Java

See http://spl2go.cs.ovgu.de/projects/35.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

ME platform. Speciﬁcally, it offers six features in-

cluding Photo, Controller, Count Views, Persistence,

Favorites, and Exception Handling. MobileMedia

a mature product line that has been analyzed and in-

vestigated by many studies (Figueiredo et al., 2008).

Sudoku. Sudoku is a simple java puzzle game de-

signed by University of Passau, containing 1975 lines

of code within 26 ﬁles. It includes ﬁve features: Vari-

able Size, Generator, Undo, Solver, and States. Con-

sidering the structure described in (Apel et al., 2009),

this product is designed with a composition-based ap-

proach.

3.2 Quantitative Evaluation

To assess our framework for feature mining from soft-

ware legacy, we implement a tool named JFeTkit

(Java Feature Mining Tookit) to extract featured code

from the software legacy. JFeTkit is a compound sys-

tem, which uses several existing software analysis li-

braries, including BCEL (Byte Code Engineering Li-

brary), Crystal

analysis framework and JDT (Java

Development Tookit). JFeTkit collects the informa-

tion generated using these third-party APIs and anno-

tates software code legacy using our framework. To

start, the recommendation system provides a single

programming element each time. When the algorithm

stops, a set of programming elements are annotated to

the features concerned. Next, code fragments are ex-

tracted and rewritten in terms of feature.

To evaluate the performance of our recommenda-

tion mechanism quantitatively, metrics recall and pre-

cision are adopted. Recall is the number of correct re-

sults over the number of total results returned. That is,

the percentage of feature code detected and annotated

by the algorithm comparing to all code within this fea-

ture. Precision describes the number of correct rec-

ommendations comparing to all inspected code. Here,

we adopted the same quantitative functions as deﬁned

in (Kastner et al., 2014) and the metrics are calculated

based on LOC (line of code):

Precision =

Correct recommendation

All code inspection when stop

Recall =

Lines o f code annotated when stop

Lines o f code annotated in original

(6)

3.3 Mining Result

Table 1 gives the line of recommended code for each

Version 6, in 2009 and the feature name used in pre-

sented in (Figueiredo et al., 2008).

Crystal analysis framework: https://code.google.com/

p/crystalsaf/.

feature, precision and recall results along with the

basic information for studied systems. For all three

systems, our framework can reach a recall of 95%

on average along with a precision of 44%. Recall

denotes the degree at which our framework can ex-

tract the source code for speciﬁc feature concerned.

The recall results indicate our framework could de-

tect and extract almost the entire code fragment for

the feature concerned. That is, for a single feature, the

method could extract 95% of all programming seg-

ments, which should be annotated to this feature. Ac-

cording to the precision result, unfortunately, the low

score means our framework sometimes provides some

unnecessary code segments for developers. However,

by following the annotated code fragments, devel-

opers will have a general understanding and insight

into the code legacy instead of searching repository

for code segments that implement a certain feature.

Thereby, developers could ﬁnd most code fragments

for the feature concerned, although additional effort

is required to improve the precision and extract the

complete code fragments.

We compared the performance of our top-down

framework with Christians semiautomatic variability

mining approach(Kastner et al., 2014) and the topol-

ogy approach as shown in Figure 6 and 7. Here,

the values on horizontal axis represent ten features in

comparison. The underlying reasons to choose Chris-

tians variability mining approach for comparison are

follows: (1) both approaches are designed for soft-

ware product line use instead of traditional software

systems, since both consider ﬁne granularity instead

of coarse level. Differently, Christians approach can

be used to compare the similarity of ﬁne level pro-

gramming elements using strategy pool, which con-

tains text comparison, type checking, and topology

approach. (2) Secondly, we adopted the same per-

formance assessment metrics of recall and precision,

also the same evaluation procedure as described in

3.2. We found that the top-down framework per-

forms as well as the semiautomatic variability min-

ing approach and shows strength comparing to topol-

ogy approach. As demonstrated in Figure.6 and 7,

our feature mining approach performs almost as good

as Christians approach with small improvement in re-

call.

Additionally, we compare our feature-mining

framework with the topology approach, which is a

traditional feature location strategy. Note that the

topology approach is one of recommendation strate-

gies used in our framework. It was originally de-

signed for coarse granularity, which could only locate

methods and ﬁelds instead of elements at the state-

ment level. However, it has not been adapted for fea-

Top-downFeatureMiningFrameworkforSoftwareProductLine

ture mining in software product line. We compare

our merged recommendation system with topology

for the following reasons: (1) among all approaches

within our framework, only the topology approach is

designed for feature location, and (2) As, the topology

approach is a sub-method embed in our approach, it

is natural to provide comparison with this approach.

Although the original topology method is not fully

adapt to product-line context, we adjust it to serve the

ﬁne granularity need. Consequently, the topology ap-

proach could reach a recall of 79% and precision of

37% on average as shown in Figure. 6 and 7. There-

fore, our approach performs better than the topology

approach in both recall and precision.

We found following scenarios that may inﬂuence

the performance of our approach:

• Seed Selection. The performance of our frame-

work is highly inﬂuenced by the selection of ini-

tial seeds. A single seed sometimes might not

be sufﬁcient to represent a feature, and the seed

selected may not be strongly connected to a par-

ticular feature, that is, the seed may also contain

code segments belonging to other features. These

might be the reasons that lead to the bad perfor-

mance of Sample 7 shown in Figure 6 and 7.

• Paralleled Feature Selection. Comparing to ex-

tracting featured code one after one, if domain ex-

perts or developers select multiple seeds for each

feature concerned, the resulting precision will be

higher, since interaction among features will be

considered together. For instance, considering a

feature F in a Switch-Case statement, if there is

one sub-case branch annotated to feature T, then

local variables only used in this sub-branch should

be annotated to T.

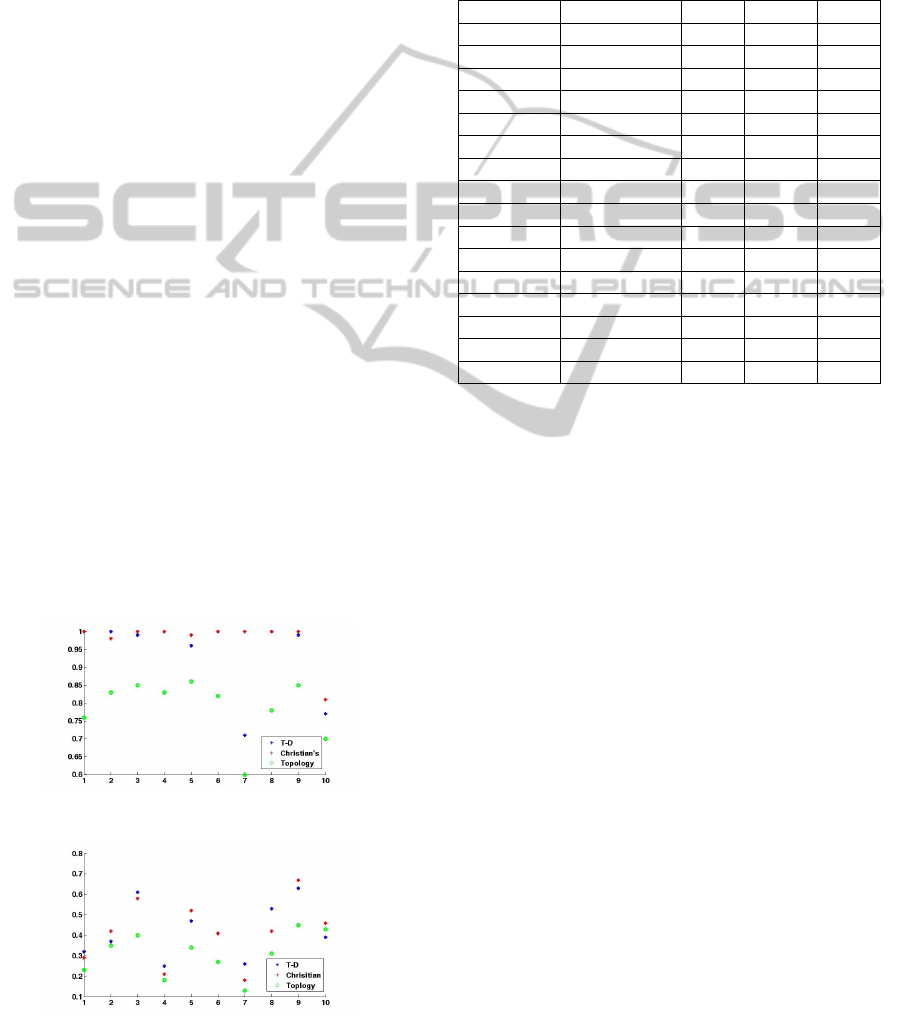

Figure 6: Recall performance comparison.

Figure 7: Precision performance comparison.

In any case, the top-down approach shows advan-

tages in efﬁciency, since, in essence, it is a search-

ing approach. To improve its performance, follow-

ing steps could be adopted: (1) select multiple seeds

instead of a single one, and (2) let multiple features

launched simultaneously to enhance the feature inter-

action.

Table 1: Feature Mining Result.

Project Feature LOC Recall Prec.

MobileM. Persist. 748 100% 42%

Favorite 88 100% 44%

CountV. 96 98% 26%

Control. 423 100% 68%

Photo 185 91% 49%

Exce. Hand. 434 99% 61%

Sudoku Vari.Size 44 100% 32%

Generator 172 100% 37%

Solver 445 99% 61%

Undo 39 100% 25%

State 171 96% 47%

Prevalyer Censor 105 100% 41%

Gzip 161 71% 76%

Monitor 240 100% 53%

Replica. 1487 99% 63%

Snapshot 263 77% 39%

3.4 Threats to Validity

To assess the experimental setting and procedure, and

ensure that experiments have been designed properly,

we consider the procedure to avoid bias introduced by

inappropriate settings. Speciﬁcally, three key aspects

of threats, including construct, internal and external

validity, will be discussed in this section. Construct

validity is the degree to which the variables measure

the concept purport to measure. Internal validity is

the degree, which reﬂects a causal relation between

the presumed process and expected result. External

validity is the degree to which experimental results

can be generalized to a larger population. Construct

validity and internal validity are highly dependent on

the projects selected for the case study. We studied

the selected software projects carefully to guarantee

all chosen cases are mature and suitable, which means

that features can be clearly deﬁned as investigated in

previous research. Furthermore, the recall and preci-

sion metrics are established upon LOC to count code

lines instead of function points to measure the perfor-

mance of our framework in a ﬁne granularity. Due

to the tool we use, there may be some inaccuracy in

the metrics result. Another issue of internal validity

is that sometimes a single line shared or annotated by

more than one feature might rise the risk of introduc-

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

ing interference. Notice that this case will only oc-

cur when launch the framework to locate feature se-

quentially, since when there are more than one feature

inspecting the same programming element, the close-

ness between features and the programming element

will be computed to decide belongings. For external

validity, since the object of experiments is to verify

and test the performance of our framework, the con-

clusions drawn are simply based on the cases selected

and not attempt to extend to all systems. Although the

scope of applying our conclusion is limited, the selec-

tion of case projects is reasonable, since they are from

research and industrial settings.

4 RELATED WORK

Feature mining is highly associated with feature lo-

cation, reengineering, feature identiﬁcation and other

relevant ﬁelds(Laguna and Crespo, 2013). The pri-

mary task of feature mining is to map features to the

related source code, which is often scattered all over

the system. Typically, techniques involved mainly in-

clude static, dynamic and textural analysis. Most ap-

proaches proposed are targeting conventional systems

instead of product lines. Whereas these approaches

are not principally designed for the SPL purpose, en-

hancement to these techniques could be applied to

meet the speciﬁc circumstances in SPL. Due to space

restriction, this section brieﬂy introduces some repre-

sentative approaches instead of providing a compre-

hensive list of relative work. Comprehensive reviews

can be found in (Dit et al., 2013; Galster et al., 2013;

Laguna and Crespo, 2013).

4.1 Static Analysis

In static analysis, the underlying structural relations

are extracted including structural control or data ﬂow

without requiring execution information. Generally,

static analysis concentrates on mining program ele-

ments related to the initial set, which is chosen by de-

velopers, based on a dependency graph and a series

of software artifacts manually or automatically(Dit

et al., 2013). Over the passing years, a vast amount

of research work has been conducted in static analy-

sis from various aspects. Speciﬁcally, Chen provided

an static analysis approach based on Abstract System

Dependence Graph (ASDG) to locate the code frag-

ments(Chen et al., 2009). Beneﬁt from Robillard and

Murphys work(Robillard and Murphy, 2007), a fea-

ture can be displayed in an abstract way, which allows

creating and saving the mappings between features

and code. Later, Robillard(Robillard, 2008) described

the topology approach to extract programming ele-

ments based on the initial set, which mainly serves

as input set to mine all relevant elements, with poten-

tial elements ranked by two different strategies named

speciﬁcity and reinforcement respectively. In addi-

tion, searching strategy is another feasible direction

in the category of static analysis. For instance, Saul et

al. presented an approach using a random walk algo-

rithm with a given starting point as input (Saul et al.,

2007).

4.2 Dynamic Analysis

On the contrary, execution information is collected for

analysis during runtime in dynamic analysis, which

is principally belonging to program comprehension.

Due to its long history, a vast amount of research

works has been conducted. Initially, dynamic anal-

ysis mainly supports debugging, testing and proﬁling,

since providing related source code at hand is cru-

cial for that kind of analysis. Focusing on feature

location, Wilde and Scullys work (Wilde and Scully,

1995) provides a software reconnaissance tool basi-

cally relying on dynamic information. The extension

of (Wilde and Scully, 1995) is called Dynamic Fea-

ture Traces (DFT), provided by Eisenberg (Eisenberg

and De Volder, ). This approach enables test scenar-

ios used to examine the feature to collect execution

information (Cornelissen et al., 2009). Other research

works include Wong et al.(Wong et al., 2000), Anto-

niol et al.(Antoniol and Gueheneuc, 2006) and Poshy-

vanyk et al.(Poshyvanyk et al., 2007).

4.3 Textual Analysis

Some useful information embedded in textual infor-

mation may imply the related feature, since identiﬁers

and comments are highly related to the feature that

code fragments are attached. This process includes

information retrieval (Cleary et al., 2009; Poshyvanyk

et al., 2007) and natural language processing (Hill

et al., ). Besides that, some code engines are em-

ployed to search for code. For example, LSI (Mar, ),

SNIFF(McMillan et al., ), and FLAT

(Savage et al.,

2010) are also well investigated to provide competi-

tive mining results.

4.4 Tool

In this section, tools which support feature-mining

process will be presented based on the types of tech-

nique. Rather than providing a comprehensive survey,

we just list some representative tools as shown in Ta-

ble 2, where Dyn. represents dynamic and Text. de-

Top-downFeatureMiningFrameworkforSoftwareProductLine

Table 2: Feature location tools.

Name Type Attributes

Ripples

(Chen et al., 2009)

Static

ASDG,

impact

analysis

Sude

(Warr and Robillard, 2007)

Static

Topology

analysis

TraceG.

(Lukoit et al., )

Dyn.

Emphasize ﬁrst

time call

STRADA

(Egyed et al., 2007)

Dyn.

Logical

constraints to

exclude unrelated

code

GES

(Poshyvanyk et al., 2006)

Text.

Unobtrusively

re-indexes search

spaces

IRiSS

(Poshyvanyk et al., 2005)

Text.

Sort the results

by granularity

notes textural. Detailed description can be found in

(Dit et al., 2013).

In summary, approaches presented mainly work

at the coarse granularity, which are not suitable for

extracting ﬁne level statement for software product

line. The reason ﬁne granularity is critical is that after

feature location, code segments should be extracted,

rewritten and organized to variants. Later, these vari-

ants will serve as basic infrastructures and compo-

nents of product line. Thereby, current approaches

should be adjusted to meet the speciﬁc need in the

software product line context. Our approach is like

a compound approach of feature location techniques;

particularly, we also apply clustering techniques to

improve feature mining. Comparing to original ap-

proaches in feature location, the top-down framework

shows advantages in the following aspects:

• It is designed for ﬁne granularity instead of coarse

granularity for the particular circumstance in SPL,

since featured code should be extracted and refac-

tored to variants. Approaches listed in related

work are mainly designed for conventional soft-

ware instead of product line; thus they are not

very effective for feature mining work in software

product line.

• A single strategy could provide a competitive

mining result in term of feature mining, but it

might not have a comprehensive analysis on the

system. Therefore, some meaningful information,

which indicate relations among programming el-

ements and features may somewhat omitted. To

cope with this issue, top-down framework com-

bines multiple methods to provide a more precise

recommendation.

5 CONCLUSIONS

Software product line engineering has received great

attention, as it offers software products with cus-

tomized features and opportunity for reuse. To reduce

the risk, complexity and cost of adopting software

product line, feature mining helps to extract useful

features from software legacy code. In this paper, we

demonstrate a top-down feature-mining framework,

which binds feature location strategies and program

analysis techniques. In the case studies with 3 sys-

tems, we demonstrate that our top-down framework

performs well in feature location.

For future work, we will initially migrate more ex-

isting feature location strategies to our recommenda-

tion system to improve its performance. One feasible

direction is to introduce dynamic program analysis for

extracting the relationship between programming el-

ements. Furthermore, to reduce potential impact in-

troduced by incorrect seeds selection, some natural

language processing algorithms could be considered

to improve the seed selection process.

REFERENCES

Antoniol, G. and Gueheneuc, Y. G. (2006). Feature identi-

ﬁcation: An epidemiological metaphor. Software En-

gineering, IEEE Transactions on, 32(9):627–641.

Apel, S., Kastner, C., and Lengauer, C. (2009). Feature-

house: Language- independent, automated software

composition.

Benavides, D., Segura, S., and Ruiz-Corts, A. (2010). Auto-

mated analysis of feature models 20 years later: A lit-

erature review. Information Systems, 35(6):615–636.

Chen, L., Babar, M. A., and Ali, N. (2009). Variability

management in software product lines: a systematic

review.

Cleary, B., Exton, C., Buckley, J., and English, M. (2009).

An empirical analysis of information retrieval based

concept location techniques in software comprehen-

sion. Empirical Software Engineering, 14(1):93–130.

Cornelissen, B., Zaidman, A., van Deursen, A., Moonen, L.,

and Koschke, R. (2009). A systematic survey of pro-

gram comprehension through dynamic analysis. Soft-

ware Engineering, IEEE Transactions on, 35(5):684–

702.

Dhillon, I., Guan, Y., and Kulis, B. (2005). A fast kernel-

based multilevel algorithm for graph clustering. In

Proceedings of the eleventh ACM SIGKDD interna-

tional conference on Knowledge discovery in data

mining, pages 629–634. ACM.

Dit, B., Revelle, M., Gethers, M., and Poshyvanyk, D.

(2013). Feature location in source code: a taxonomy

and survey. Journal of Software: Evolution and Pro-

cess, 25(1):53–95.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

Egyed, A., Binder, G., and Grunbacher, P. (2007). Strada:

A tool for scenario-based feature-to-code trace detec-

tion and analysis. In Companion to the proceedings of

the 29th International Conference on Software Engi-

neering, pages 41–42. IEEE Computer Society.

Eisenberg, A. D. and De Volder, K. Dynamic feature traces:

Finding features in unfamiliar code. In Software

Maintenance, 2005. ICSM’05. Proceedings of the 21st

IEEE International Conference on, pages 337–346.

IEEE.

Figueiredo, E., Cacho, N., Sant’Anna, C., Monteiro, M.,

Kulesza, U., Garcia, A., Soares, S., Ferrari, F., Khan,

S., and Dantas, F. (2008). Evolving software prod-

uct lines with aspects. In Software Engineering, 2008.

ICSE’08. ACM/IEEE 30th International Conference

on, pages 261–270. IEEE.

Galster, M., Weyns, D., Tofan, D., Michalik, B., and Avge-

riou, P. (2013). Variability in software systems-a sys-

tematic literature review.

Hill, E., Pollock, L., and Vijay-Shanker, K. Automatically

capturing source code context of nl-queries for soft-

ware maintenance and reuse. In Proceedings of the

31st International Conference on Software Engineer-

ing, pages 232–242. IEEE Computer Society.

Kang, K. C., Sugumaran, V., and Park, S. (2009). Applied

software product line engineering. CRC press.

Kastner, C., Dreiling, A., and Ostermann, K. (2014). Vari-

ability mining: Consistent semiautomatic detection of

product-line features.

Laguna, M. A. and Crespo, Y. (2013). A systematic map-

ping study on software product line evolution: From

legacy system reengineering to product line refactor-

ing. Science of Computer Programming, 78(8):1010–

1034.

Lukoit, K., Wilde, N., Stowell, S., and Hennessey, T. Trace-

graph: Immediate visual location of software features.

In Software Maintenance, 2000. Proceedings. Inter-

national Conference on, pages 33–39. IEEE.

McMillan, C., Grechanik, M., Poshyvanyk, D., Xie, Q., and

Fu, C. Portfolio: ﬁnding relevant functions and their

usage. In Software Engineering (ICSE), 2011 33rd

International Conference on, pages 111–120. IEEE.

Newman, M. E. and Girvan, M. (2004). Finding and eval-

uating community structure in networks. Physical re-

view E, 69(2):026113.

Poshyvanyk, D., Gueheneuc, Y. G., Marcus, A., Antoniol,

G., and Rajlich, V. (2007). Feature location using

probabilistic ranking of methods based on execution

scenarios and information retrieval. Software Engi-

neering, IEEE Transactions on, 33(6):420–432.

Poshyvanyk, D., Marcus, A., Dong, Y., and Sergeyev, A.

(2005). Iriss-a source code exploration tool. In ICSM

(Industrial and Tool Volume), pages 69–72.

Poshyvanyk, D., Petrenko, M., Marcus, A., Xie, X., and

Liu, D. (2006). Source code exploration with google.

In Software Maintenance, 2006. ICSM’06. 22nd IEEE

International Conference on, pages 334–338. IEEE.

Robillard, M. P. (2008). Topology analysis of software de-

pendencies. ACM Transactions on Software Engineer-

ing and Methodology (TOSEM), 17(4):18.

Robillard, M. P. and Murphy, G. C. (2007). Represent-

ing concerns in source code. ACM Transactions

on Software Engineering and Methodology (TOSEM),

16(1):3.

Rountev, A., Kagan, S., and Gibas, M. (2004). Static and

dynamic analysis of call chains in java. In ACM SIG-

SOFT Software Engineering Notes, volume 29, pages

1–11. ACM.

Saul, Z. M., Filkov, V., Devanbu, P., and Bird, C. (2007).

Recommending random walks. In Proceedings of the

the 6th joint meeting of the European software en-

gineering conference and the ACM SIGSOFT sym-

posium on The foundations of software engineering,

pages 15–24. ACM.

Savage, T., Revelle, M., and Poshyvanyk, D. (2010). Flat 3:

feature location and textual tracing tool. In Proceed-

ings of the 32nd ACM/IEEE International Conference

on Software Engineering-Volume 2, pages 255–258.

ACM.

Sderberg, E., Ekman, T., Hedin, G., and Magnusson, E.

(2013). Extensible intraprocedural ﬂow analysis at the

abstract syntax tree level. Science of Computer Pro-

gramming, 78(10):1809–1827.

Valente, M. T., Borges, V., and Passos, L. (2012). A semi-

automatic approach for extracting software product

lines. Software Engineering, IEEE Transactions on,

38(4):737–754.

Warr, F. W. and Robillard, M. P. (2007). Suade: Topology-

based searches for software investigation. In Proceed-

ings of the 29th international conference on Software

Engineering, pages 780–783. IEEE Computer Soci-

ety.

Wilde, N. and Scully, M. C. (1995). Software reconnais-

sance: mapping program features to code. Jour-

nal of Software Maintenance: Research and Practice,

7(1):49–62.

Wong, W. E., Gokhale, S. S., and Horgan, J. R. (2000).

Quantifying the closeness between program compo-

nents and features. Journal of Systems and Software,

54(2):87–98.

Top-downFeatureMiningFrameworkforSoftwareProductLine
