RBAC with ABS

Implementation Practicalities for RBAC Integrity Policies

Mikko Kiviharju

Finnish Defence Research Agency, Riihimaki, Finland

Keywords: MLS, RBAC, CBIS, ABE, Cryptography, Access Control Models.

Abstract: Role-based access control (RBAC) is the de facto access control model used in current information systems.

Cryptographic access control (CAC), on the other hand, is an implementation paradigm intended to enforce

AC-policies cryptographically. CAC-methods are also attractive in cloud environments due to their

distributed and offline nature of operation. Combining the capabilities of both RBAC and CAC fully seems

elusive, though. This paper studies the feasibility of implementing RBAC with respect to write-permissions

using a recent type of cryptographic schemes called attribute-based signatures (ABS), which fall under a

concept called functional cryptography. We map the functionalities and elements of RBAC to ABS

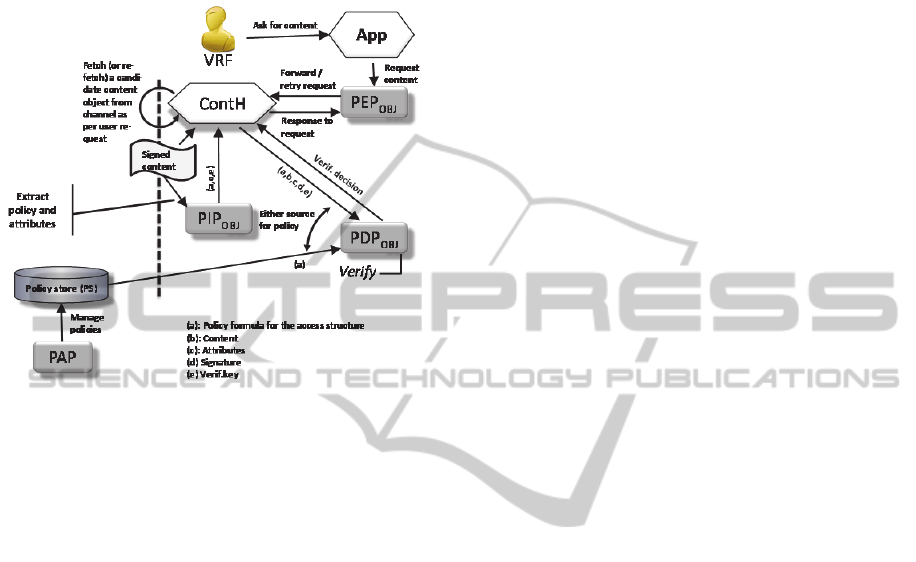

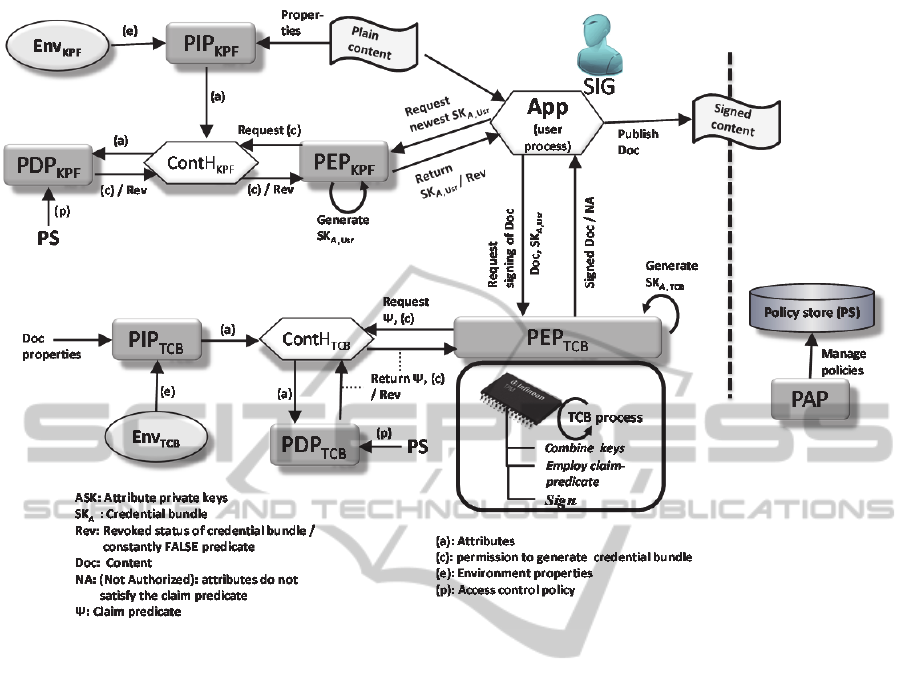

elements and show a sample XACML-based architecture, how signature generation and verification

conforming to RBAC-type processes could be implemented.

1 INTRODUCTION

Role-based access control (RBAC) is very often the

most practical model for access control, due its

versatility, dynamics and accurate modelling of real

world problems. RBAC policies are traditionally

enforced by a concept called reference monitor

(RM), which is instantiated as a security kernel,

typically operating system components.

The usual problem of security kernels is that they

need to implement the assumptions of an abstract

entity (the RM), which include non-passability,

ubiquity, and verifiability (leading to high assurance

in its correct and secure functioning). In today’s

highly distributed and heterogeneous environments

achieving these goals become either very expensive

or highly localized and suitable for special cases

only.

Cryptography, on the other hand, offers high

assurance on some aspects and is cost-effective to

implement. Solving access control problems with

cryptography is called cryptographic access control

(CAC), or when applied to RBAC directly, CRBAC.

Most of the work on CRBAC focuses on enforcing

confidentiality policies or high level models, but

there is a “middle ground”, between theory and

actual cryptographic schemes, that is almost entirely

lacking in current literature.

Our aim in this paper is to bridge this gap by

presenting a mapping for CRBAC integrity policies

from existing standards to existing cryptographic

schemes, as well as study their limitations. (By

“integrity policies” we mean that the RBAC

permission enforced is the write-permission, and

consider relatively static documents as the RBAC

objects.)

A recent cryptographic innovation called

functional cryptography, including such concepts as

attribute-based encryption (ABE, (Goyal, 2006)) and

attribute-based signatures (ABS), resolves many

requirements and operations in the RBAC-model.

Our contributions in this paper are as follows:

1) We investigate the practicalities of existing

ABS schemes w.r.t integrity policy enforcement

in reality, including status quo and some

overlooked details.

2) We provide an implementation model, which is

based on the XACML 3.0 reference architecture

(Rissanen, 2013), collaboratively managed

documents in a publish-subscribe-model and

cloud storage; and which can be used to enforce

access control cryptographically for write-

permissions with ABS. We use a widely

adopted standard in order to show the feasibility

to transform existing systems or create new

systems for the CAC paradigm.

500

Kiviharju M..

RBAC with ABS - Implementation Practicalities for RBAC Integrity Policies.

DOI: 10.5220/0005122105000509

In Proceedings of the 11th International Conference on Security and Cryptography (SECRYPT-2014), pages 500-509

ISBN: 978-989-758-045-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

3) We show how different RBAC standard model

elements and commands can be realized in

CAC with different ABS-methodologies.

Our main motivation in researching ways to

implement RBAC using mainly cryptographic

controls is the possibility to move the wealth of

existing practice and experience invested in RBAC to

an implementation paradigm, which is remarkably

more suitable for current cloud environments.

2 PRELIMINARIES

RBAC (Sandhu, 2000) is an access control model,

which decouples the user (subject) relations to

protected objects via a role. We use the RBAC

model and terminology described in the RBAC-

standard by INCITS (ANSI, 2012) (currently the

consolidated version referred to as RBAC

), and

restrict ourselves to the administrative commands of

the standard in the Core RBAC for brevity. We do,

however, consider Hierarchical and Constrained

RBAC in the structure and functionality they

provide to the whole, but not their dynamics (e.g.

adding inheritance relations or modifying dynamic

separation-of-duty- sets). Note that we include the

concept of an administrative role from ARBAC

(Sandhu, 1999).

The RBAC-standard includes a multitude of

commands to create, maintain and report the

necessary elements and their mappings. The relevant

commands we consider are from the Core RBAC,

together 13 different commands (see Table 3).

For the purpose of RM-implementations and

architecture, we refer to the XACML reference

architecture (Rissanen, 2013) and elements,

specifically: Policy Enforcement Point (PEP), Policy

Decision Point (PDP), Policy Administration Point

(PAP) and Policy Information Point (PIP)

3 CRYPTOGRAPHIC ACCESS

CONTROL

3.1 General

Following the access control meta-model presented

in (Barker, 2009) we may assume that there exists a

(countable) set of action types, which can be

associated with

 resource types, jointly called permissions (to

perform some action on a resource)

 resource and principal types, jointly called

authorizations (for a principal to have a

permission),

For many practical access control policies it is

justifiable to present subsets of permissions as

combinations of only two types of actions (read

and write), and a categorization of resource types

into data and metadata levels s.t. some combination

of these two rights together with appropriate

decomposition of the resource translates to the

original permission. For example, all the permission

types used in MS SQL Server 2000 DBMS, Linux,

Windows 7 and Bell-laPadula model were mapped

in (Kiviharju, 2012) to a subset of permissions such

that the subset of actions used was {read,

write}. The motivation and background for this

kind of decomposition was to be able to enforce

more policy types than just pure confidentiality and

integrity policies with cryptography.

3.2 CAC Models and Related Work

The work on CAC models traditionally has focused

on information flow control (IFC) policies and key-

assignment schemes (Crampton, 2006; Atallah,

2009). CRBAC is addressed for example in

(Crampton, 2006), where it is shown that hierarchical

key assignment schemes (HKAS) for IFC can also be

used to enforce read-rights in RBAC, and that each

ABE-policy also has a HKAS-enforced RBAC-

policy. The converse, however, is not shown.

The authors in (Zhu, 2011) develop a

cryptographic security model for CRBAC, and they

also map the RBAC commands to predicate

encryption (PE) scheme functionalities. The

CRBAC-paper, too, is somewhat detached from

actual crypto scheme practicalities: for example role

revocation entails assigning new attributes for roles

and complete re-encryption of the part of content,

which is both inefficient and against the principles of

any IBE-related scheme (i.e. identities should not be

changed).

Cryptographic signatures for CRBAC have been

considered for example in (Crampton, 2010), but

only for inter-domain authorization in the manner of

attribute certificates.

The work in (Crampton, 2008) gives a general

framework for a role key hierarchy usable for

encryption, signing and authentication. Their

viewpoint is rather on how to assign keys for

different cryptographic policies based on RBAC

policies (although for encryption, this is equivalent

for actually enforcing RBAC policies).

RBACwithABS-ImplementationPracticalitiesforRBACIntegrityPolicies

501

3.3 Signatures and Integrity

Digital signatures are a class of public-key

cryptographic primitives that work towards

providing assurance of the origin authenticity of a

message (= “Did the claimed entity produce this

message?”). One of the more modern classes

includes functional signatures (FS) and their

subclass, attribute-based signatures (ABS). They

raise the abstraction level for the authenticity to be

dependent on more general attributes (=”Was this

message produced in reality with the claimed

authorization?”). We postulate that enforcing the

write -permission cryptographically in the current

RBAC-model is most practically performed via ABS

schemes.

Protecting data integrity cryptographically with

digital signatures has three main goals: to provide

the verifier assurance of the data origin authenticity,

the absence of unauthorized modifications and also

of the content validity (as in: how accurate the

information itself is). In the case of conventional

signatures, where there is only one “attribute” (the

user identity) provided, these facets of integrity are

equal. However, in the attribute-based setting the

verifier may have a different concept of which

combination of attributes are sufficient to prove the

validity of the content than the combination used to

prove authenticity, such that the verifier would like

to specify the policy under which she verifies. The

problem is akin to the key-/ciphertext policy dualism

used in attribute-based encryption (ABE).

The current ABS-/FS-constructions aim to prove

data origin authenticity, thus they tie the policy to

the signing key, conforming to the key-policy model

(abbreviated here KP-ABS). Thus currently the

verifier is not able to select the policy (see table 1).

From the perspective of access control, content

validity via a scrutiny of content producers is more

akin to creating and viewing log files. The

associated permissions then are append, read,

edit and delete to the log file resource class.

Thus for the general write -permission, the history

and individual signers can be left out of scope.

4 RBAC AND ABS

4.1 General

Attribute-based signatures (ABS) were introduced as

a concept in 2007 (Khader, 2007). With ABS, the

signer can prove the authenticity via a predicate over

attributes rather than his/her identity. The

distinguishing feature of ABS over related concepts

is the ability to provide unforgeability, signer (and

policy) privacy and collusion prevention all at the

same time. Collusion prevention is especially

important in filling a loophole present in CAC in

general: reference monitors are able to separate

different users with (RBAC-/login-)sessions, but

CAC schemes need to differentiate between users

via other methods, such as personalized credentials.

The first full-fledged ABS was the scheme by

Maji et al. (Maji, 2011). On the technical side, it

appears that ABS can be realized either via non-

interactive proof techniques or based on encryption

schemes. (ABE is a derivative of IBE, and enjoys a

natural definition for signatures, where one creates a

one-time key-pair using the message (or hash of it)

as the public key and the private key as the

signature, making the IBE/ABE “master key” the

signing key). The latter technique offers signatures

an order of magnitude shorter than proof techniques.

The ABS scheme employed here is the scheme in

(Maji, 2011), referred to as MPR-ABS. Its basic

concepts include

 Credential bundles, which are personalized

per-attribute private keys (personalization is

performed e.g. by prepending globally unique

user identifiers to attribute information and

signing them with Boneh-Boyen signatures

(Boneh, 2004) and the actual attribute private

keys)

 Claim predicates, which are essentially policy

formulas applied to the attributes / credential

bundles. They are an analogue of access

control policies and RBAC active roles in that

they can restrict, which attributes user is

allowed to use and which not.

Related to an issue discussed above (the content

validity) is the concept of individual non-

repudiation: if someone has misused her authority to

sign content on false grounds, there should be a

mechanism to uncover the individual signer behind

the attributes. Non-repudiation is, in general, not

incorporated in ABS-schemes: although individual

signers have personalized key-material (e.g.

credential bundles in (Maji, 2011)), this is in the

form such that the personalization is not easily

extractable (e.g. the signed identifier-attribute

combinations in (Maji, 2011). While this feature can

be used for testing suspect individuals (if the

attributes used are known), it cannot be used to

directly extract the user identities behind the

signature. There are specific signature schemes to

accomplish this, such as (Escala, 2011), but these are

SECRYPT2014-InternationalConferenceonSecurityandCryptography

502

separate building blocks not easily integrated to

other functions.

Typical of all ABS schemes is that they are

inherently group signatures, and that the attributes,

the policy or both are tied to “manager”-level private

keys. If these master keys are under the authority of

one entity, it is usually referred to as signature

trustee.

ABS schemes have one common security goal,

unforgeability. Other goals are different privacy-

related goals: verifiers should not be aware, or

extract from the signature (without additional

information) the individual signer within a group of

signers, or the policy under which the signing was

performed. Arguably it is case-specific, whether the

access control policy itself should be public or not,

but we find it more natural and more convincing, if

the verifier is given the formula which the signature

was generated with. (This type of privacy is possible

to incorporate via e.g. DFS (Backes, 2013), but for

simplicity, we use schemes that do not allow policy

privacy).

4.2 ABS Relation to Policies

In functional cryptography in general it is possible to

specify, when and where the access control policy is

cryptographically possible to encode. The main

categories are key- and ciphertext policies (KP and

CP, respectively), although mixtures exist as well. In

the KP-model, the policy is encoded in the private

key and in the CP-model to the ciphertext. Signature

schemes bring more variety to the policy. Ideally

policies can be:

 encoded to the private key or the signature

 selected by the signer or the verifier

 can be private of public

The suitability for ABS for enforcing RBAC is

explored below, in table 1, with properties relevant

to RBAC enforcement given. The conventions used

in the table are as follows: S = individual signer, V =

verifier, K = private key of S, σ = signature, p =

policy, T

= signature trustee, I

= identity of S, I

identity of attributes.

From Table 1 it can be seen that signature

schemes, which are able to enforce authenticity

based on policies / attributes can be divided into two

categories: original ABS and functional signatures

(FS). The fundamental difference (policy-wise)

between these is that ABS divide the policy

enforcement into two: first creating the attribute

private keys and the user randomization (performed

by the signature trustee), and then allowing the

signer to select the policy (as far as his attributes

allow). FS schemes have the signature trustee

generate the policy and embed that into the user key.

Only the DFS-scheme can be used in such a manner

that some policy-defining power is given to the

individual signer (although it is not intended for

such a purpose).

In the RBAC-model user is decoupled from the

resource via the role. Thus user assignment and role

activation need to be performed separately. In ABS

this decoupling is naturally present via attribute

Table 1: Policy encoding and processing properties of the main ABS/FS schemes.

cheme Novelties Policy

Encoding

Policy

Selection

Process

privacy

(1)



Policyexpressiveness Main

technique

MPR‐ABS(a) FirstABS

σ

S I

,I

MonotonicBoolean

formulasoverattributes

NIWI(h)

DMA‐ABS(b) Nosignaturetrustee

σ

S I

Non‐monotonicBoolean

formulasoverattributes

DMA‐FE(b)

NM‐ABS(c) Non‐monotonicity,small

signaturesize

σ

S I

Non‐monotonicBoolean

formulasoverattributes

CP‐FE(i)

R‐ABS(d) “Revocability”(ofanonymity

ofindividualsigner)

σ

S I

(6)

MonotonicBoolean

formulasoverattributes

NIWI(h)

PBS(e) AllpolicylanguagesinP

K,

σ

p,I

,(I

) P‐languageover

messages

Groth‐Sahai

Proofs(h)

FS(f) Signaturesizeindependency

ofpolicysize

K,

σ

p,I

,(I

) Allpoliciesexpr.witha

poly‐sizecircuit

NIZKAoK(j)

DFS(g) Delegation,limited

malleability

(3)

,σ

S,T

(2)

(5)

,I

(4)

,(I

) Efficientlycomputable

functions

NIZKrequired

(k)

(1):Theelements,whicharehiddenfromtheverifier(inparenthesis, ifnotapplicable)

(2):Signaturetrusteeisabletoassignafamilyoffunc.tothesignertodelegatefurther

(3):Thedelegationkeywithrestrictionsonthefunctionalitiesallowedtobedelegated

(4):Includingdelegatedsigners

(5):Policyispublic

forintermediatesigners

(6):Unlessrevoked

a:(Maji,2011)

b:(Okamoto,

2013)

c:(Okamoto,2011)

d:(Escala,2011)

e:(Bellare,2014)

f:(Boyle,2013)

g:(Backes,2013)

h:(Groth,2008)

i:(Okamoto,2010)

j:(Bitansky,2013)

k:(Groth,2006)

RBACwithABS-ImplementationPracticalitiesforRBACIntegrityPolicies

503

private keys generation and user (process) applying

allowed policies. In FS, the signature trustee will

need to generate new private keys per each new set

of active roles. DFS (Backes, 2013) can be

employed for a similar purpose, but for simplicity

we select ABS as the schemes of choice in our

implementation model.

The ABS and FS have differences in the

complexity of the policy they are able to express.

ABS (including non-monotonic ABS) are limited to

the class NC

. FS-schemes are able to represent

general Boolean circuits in complexity class

NC 

⋃



. PBS extends this class of functions

even further. The advantage of using larger circuits

lies in the fact that some problems are not known be

contained within NC

(such as graph reachability,

which is known to be in NC

only). The most

common operators, AND, OR, NOT, =, <, >, ADD,

MUL, DIV, EXP, LOG, keyword search and

regexp are contained within NC

. With these, an

overwhelming percentage of real-life access control

policies can already be expressed, and thus there is

no need to go to general circuits from the

perspective of this paper.

5 IMPLEMENTATION MODEL

5.1 RBAC Model Mapping

The RBAC model is, as such, functionally more

fine-grained than using encryption schemes and

signatures without distributing keying material to

more than one entity type. For example, the model

Supporting System Functions require that active

roles can be changed within a session, if e.g.

environmental conditions change.

If the CAC implementation uses only a single

claim-predicate for the user per session, her

signatures will either be accepted during the session

or not – if a role should be deactivated, the user

needs to “log out” or request a new claim-predicate.

We introduce a remedy for this in the session

management description.

The different RBAC elements and functions are

mapped to ABS elements in Tables 2 and 3. Some of

the most crucial concepts are elaborated here.

Role: The attributes are natural embodiments for

roles (visible also in the XACML-architecture) –

however, there is the question whether to bundle

attributes into sets to map to one role in CAC.

Considering that the reference monitor also makes

access choices based on logical formulas over roles,

this principle carries easily to CAC as well. An

additional note for roles is that in ABS-schemes,

each attribute has a private key. This is not directly

used by an individual signer, but they are needed in

the signing process, as the verification is based on

attributes (rather, their public keys) only.

Table 2: RBAC elements mapping.

Session management: The purpose of the

Session-concept in RBAC is to model different

profiles for a user. Profiles include different active

roles, but they are normally activated in the same

batch as the session is created. From the CAC

perspective, different sessions are modelled via

giving the user multiple identities (which could be a

personal identity with her current profile identity).

When a session is created, it is automatically

assigned a default set of active roles. In CAC, and

particularly in ABS, this corresponds to defining a

claim-predicate over the attributes (essentially a

Boolean formula of how and which attributes are

used). Any change in the active roles (whether it

happens inside a session or via re-establishing a

session) requires establishing a new claim-predicate.

We note that in the current schemes nothing

prevents the signer from selecting a suitable claim-

predicate. Ideally, the claim-predicate itself should

be time-stamped and authenticated by the signature

trustee, or equivalent OBJ-subdomain (see the next

chapter for the subdomains definition) controller.

Session separation: Different sessions will be

separated from each other based on the personalized

credential bundles (with differing login IDs, if

needed).

User assignment: User can be assigned to the

role without yet activating the role. In this mapping

UA means delivering the user an item of the

KP-ABS

([MPR10] by default)

Object Document / Message / Content

Operation

write

Permission Private key existence for an attribute

User User

Role Attribute

Ses sion (diffe rentia tor) Use r cre dentia l bundle pe rsona liza tion

Session (active roles) User's possession of her personalized credentials

(with a given attribute set) and a defined claim-

predicate

PA Attribute secret key creation

UA User's possession of personalized credentials (with

a given attribute)

Role Hierarchy Static hierarchy: Attribute delegation

Admin role Role on meta da ta

Static SoD Non-monotonic claim-predicates (NM-KP-ABS,

[Oka11])

Dynamic SoD Non-monotonic claim-predicates (NM-KP-ABS,

[Oka11])

SECRYPT2014-InternationalConferenceonSecurityandCryptography

504

Table 3: RBAC commands mapping.

credential bundle corresponding to the attribute, to

which user is assigned.

Revocation: Revocation means in this context the

deletion of a user assignment or the role-permission

association (session-related changes require only

changing the claim-predicate). In order to define

revocation in CAC for the write-permission, we

recall that the policy enforcement is performed in

two locations: the OBJ-subdomain to allow access

to current private key material in the first place, and

then in the USR-subdomain to actually check the

validity of the signature. Since the signing operation

as such can be performed by anyone who is familiar

with the signing scheme, denying a revoked user

access to the signing software/hardware per sé does

not solve the problem, if the receiving end does not

perform her verification duties. Thus the revocation

needs to somehow communicate the revoked /

outdated status of the attributes or users to the

verifying parties. There are two possibilities for this:

time-stamped attributes and revocation list

distribution. Handling the revocation in CAC with

write is notably simpler than with read, since the

main part of the enforcement is always performed by

non-revoked (and thus benevolent) principals, and it

is even possible to extend the domain of revoked

content beyond the moment of compromise

detection.

A problem with revocation arises, when / if the

read-permission is also enforced cryptographically,

and ciphertext revocation is used. Ciphertext

revocation assumes the use of functional encryption

and provides a way to re-encrypt ciphertexts to be

compatible with a new FE-key. We assume hybrid

encryption (content encrypted with symmetric

algorithm and the symmetric key with FE), leaving

the content signatures unchanged. However, if the

keying material is also authenticated, there will arise

a need to resign it. To address this, there is a concept

called sanitizable signatures (SSS, explained e.g. in

(Backes, 2013)), which basically allow replacement

of structured content elements (not removal or

adding as such). In SSS, the modifier creates

additional signatures such that they can be verified

under the original public key, but the verifier is not

able to extract any information of the content

previously signed – in this case the encrypted

content key before ciphertext revocation. The

delegatable functional signatures (DFS (Backes,

2013)) also encompass SSS, and they can be viewed

as the attribute-based extension of SSS.

Should a verifier come across content with an

invalid or revoked signature, he should merely

ignore it and request another copy of the content.

Administrative roles (AR): these are roles that are

can create, manage and delete other roles. They can

be supported via CAC applied to RBAC metadata,

e.g. by attaching AR-signatures to a managed role’s

attribute and permission descriptors.

5.2 XACML-Conformant Architecture

There are three different subdomains: SIG, Channel

and VRF, for the signer, storage medium and

verifier functions, respectively. The model depicts a

publish-subscribe type of environment, where

information is first requested to be published, and

the request for subscribing and decryption only

follows afterwards. Publishers and subscribers are

usually not assumed to establish contact or exchange

keying material after the initial handshakes (Ion,

2010). The requesting application for publishing is

depicted in the SIG-subdomain, and the subscriber

in the VRF-subdomain, whereas the Channel

subdomain is responsible for the storage.

Using signatures is essentially a two-party

protocol, involving both the signer and the verifier.

As such, it is not sufficient to have correct private

keys in order to publish authorized material – the

verifier action is also needed (in case the signer uses

outdated or revoked keys, for example). Thus the

enforcement function is necessarily decoupled for

write in CAC.

The most frequently used definitions for the

XACML Core specification (Rissanen, 2013) data

flow architectural elements (the XACML

specification itself, RFC 3198, RFC2904, RFC2753

RBAC command Applicable function(s)

AddRole Role mgmt and PAP function

GrantPermission Create private key for an attribute

AddUser User mgmt function

AssignUser Generate user's (new) credential bundle

CreateSession Create user's current claim-predicate

AddActiveRole Change user's claim predicate

CheckAccess

SIG

-subdomain: sign;

VER

-subdomain: Try fetch

an instance of the signed content from the

Channel

and verify it

DropActiveRole Change user's claim predicate

DeleteSession Invalidate user's claim-predicate

DeassignUser (with

loss of auth. [8])

For the deassigned role: Exclude user from next

credential bundle update (time-stamped attribute

names) and/or Revocation list distribution

DeleteUser User mgmt function + DeassignUser (for all its

roles)

RevokePermission Exclude attribute from next attribute private key

update (time-stamped attribute-names) and/or

Revocation list distribution

DeleteRole Role mgmt and PAP function + RevokePermission

for all the permissions of the role

RBACwithABS-ImplementationPracticalitiesforRBACIntegrityPolicies

505

and ISO 10181-3) do not place restrictions on the

policy handling point locations as such. Thus we

conclude that the decoupling of PEP is not against

any previous models, only outside them.

The VRF-

subdomain is depicted in Figure 1.

Figure 1: The architecture VRF-subdomain.

The verification subdomain (VRF) is responsible

for the decisions whether the content fetched from

the Channel is available, endowed with valid

signatures and whether to re-fetch another instance

from the Channel. Mapping verification to

XACML-functionality is as follows:

 PDP: Verification of the signature requires

information of the policy against which the

decision is made, and is inherently a decisional

function. Although the verification value needs

to be computed, the computation is based on

the information attached to the content. From

the XACML perspective this becomes then the

responsibility of PDP. Other components, such

and PEP and PIP should not be base their

actions on the policy, although they may try to

forward it. PDP may get the policy from a

common policy store in the Channel as well.

PDP is assumed to maintain some bookkeeping

of the document instances such that in the case

of verification failure it can deduce whether it

is feasible to find valid instances in the

Channel. PDP is also assumed to return its

decision as belonging to the set: {verified,

retry, non-verified}.

 PIP: the role of PIP is to gather environmental

and object-related attributes. For the purpose of

verification of content, all the relevant

attributes and policies are (at least with the case

of ABS and FS) carried with or encoded in the

signature. This leaves little responsibilities for

the PIP; it may, signature scheme allowing, try

to extract the attributes and policy from the

signature.

 PEP: since the document verification itself is

left for the PDP, PEP is left mainly with

forwarding requests and responses. However, if

PDP returns retry, PEP will reissue the content

retrieval from the Channel.

 ContH: In XACML, the context handler

responsibility is to fetch the actual resource and

combine the necessary attributes, policies and

resource into one coherent resource context.

The only major change in its operation is the

way it is fetching the resource: it is not a local

disk or database-query, but rather a

subscription from a cloud-based environment

(the Channel).

PAP, PS and Application roles and functions need

not be changed.

The signing (SIG) subdomain has the main

responsibility of enforcing the write-permission.

In order to be able to separate user assignment from

role activation (as described in the model mapping)

in MPR-ABS scheme functionality, the claim

predicate needs to be separately controlled. In the

MPR-ABS, the claim predicate can effectively be

freely selected by the signer (his attributes

allowing), which is more coarse-grained control than

the role activation functionality in RBAC requires.

Thus in our model we employ trusted computing

base (TCB), which controls the claim predicate. In

the verification phase the VRF-subdomain needs to

ascertain that TCB was indeed used in the selection

of the claim predicate. This requires further that the

claim-predicate can be satisfied only if it includes

attributes in possession of only the TCB. This in turn

assumes that TCB and user attributes can be

combined, which is against the collusion prevention

principle usually employed in attribute-based

cryptography. There are both scheme-dependent

techniques to accomplish this kind of

combination/collusion in a controlled setting and

more general ways for less expressive formulas

using secret sharing schemes, but these techniques

are outside the scope of this paper. In the

verification phase the VRF-subdomain needs to

ascertain that TCB was indeed used in the selection

of the claim predicate. This requires further that the

claim-predicate can be satisfied only if it includes

attributes in possession of only the TCB. This in turn

assumes that TCB and user attributes can be

combined, which is against the collusion prevention

principle usually employed in attribute-based

SECRYPT2014-InternationalConferenceonSecurityandCryptography

506

Figure 2: The architecture SIG-subdomain.

cryptography. There are both scheme-dependent

techniques to accomplish this kind of

combination/collusion in a controlled setting and

more general ways for less expressive formulas

using secret sharing schemes, but these techniques

are outside the scope of this paper.

An alternative way of restricting the signer

capability in selecting the claim predicate is to

integrate the predicate directly in to the private key,

as done in FS and DFS. This scenario requires a

more available and more broadband connection to

the signature trustee, and thus not considered here.

The SIG-subdomain is depicted in Figure 2

 PDP: PDPs in both portions are responsible for

translating the current policy and attributes into

a decision, whether individual currently valid

signing keys (credential bundles) can be

released or not. They also communicate

attribute private keys to the PEP to use in the

actual creation of the bundles. PDP

TCB

communicates the active roles information in

the form of claim predicate, to PEP

TCB

 PIP: PIPs role is not changed from reference

monitor realm here.

 ContH: Context handler relays and formats the

material it handles, it’s role in CAC is not very

significant.

 Application: The application (on the user level)

is responsible for coordinating the credential

bundle retrieval and for requesting the final

signing. It also publishes the signed document

to the channel. The user application will act as

the XACML application for both the TCB and

KPF portions of the SIG-subdomain.

Some of the tasks are global (we are assuming only

one attribute authority), such as granting permissions

for a role, which translates to attribute private key

generation. This is implicitly a PAP function and the

necessary information is incorporated in the policy

received from the policy store.

6 EFFICIENCY

CONSIDERATIONS

A cryptographic scheme is a prescription of

operations (on varying levels of abstraction) that

should be realized in order to have an actual

RBACwithABS-ImplementationPracticalitiesforRBACIntegrityPolicies

507

instantiation of the scheme, i.e. it would need to be

programmed or burned into a chip.

ABS is mostly based on special elliptic curve

groups (ECG) and so-called pairing functions applied

to them. There are even existing libraries realizing

some ABE schemes already, such as (Bethencourt,

2011). We have investigated previously the

bandwidth and computational efficiency of existing

schemes on different security levels, and combining

them with results given in (Okamoto, 2011), we can

give some figures for 128-bit security parameter and

access control structure of size 10 (as in number of

clauses):

 ABGS (Khader, 2007) (ABE-based, aver.case):

0,9 kB

 MPR-ABS (Maji, 2011) (NIZK-based, worst

case): 23,5 kB

 MPR-ABS (Maji, 2011) (NIZK-based, best

case): 1,5 kB

 NM-ABS (Okamoto, 2011) (FE-based, best

case): 81 B

For implementation purposes the NIZK-based ABS

are clearly far less efficient than encryption-based

ABS. However, we believe that moving to

cryptographically enforced RBAC is no longer just a

feasibility study, but something that merely needs

integration work to make an actual demonstrable

system.

7 CONCLUSIONS

Our research shows that current ABS-schemes can

already support the Core RBAC, in a distributed

implementation model and considering the write-

permission. There are problems still, especially with

dynamic hierarchies and providing support to both

role activation separation from user assignment; and

strict control of role activation at the same time. The

Core RBAC commands can be simulated with ABS,

indicating a feasible transformation for RBAC

systems from RM to CAC.

The ABS are a sufficient and necessary class of

signature schemes for implementing the most

common access control needs and policies. The

reasons for going beyond ABS to FS would include:

 Complex policies requiring evaluation of

arguments beyond NC

 Moving the claim-predicate enforcement from

trusted hardware to key management (and

accepting a more frequent or hierarchical key

updates)

Future work will include e.g. designing

cryptographic schemes more suitable for content

validation, where the verifier is able to select the

policy (instead of signer).

REFERENCES

ANSI, 2012. American National Standard for Information

Technology – Role Based Access Control, INCITS

359-2012, ANSI.

Atallah, M., Blanton, M., Fazio, N., Frikken, K., 2009.

Dynamic and Efficient Key Management for Access

Hierarchies, In: ACM Transactions of Information and

System Security, Vol. 12, No. 3, Article 18, ACM.

Backes, M., Meiser, S., Schröder, D., 2013. Delegatable

Functional Signatures, In

https://eprint.iacr.org/2013/408, IACR.

Barker, S., 2009. The Next 700 Access Control Models or

a Unifying Meta-Model?, In SACMAT’09, pp. 187-

196, ACM New York.

Bellare, M., Fuchsbauer, G., 2014. Policy-Based

Signatures, In PKC 2014, Springer (to appear).

Bethencourt, J., Sahai, A., Waters, B., 2011. Ciphertext-

Policy Attribute-Based Encryption-project, in

Advanced Crypto Software Collection,

http://hms.isi.jhu.edu/acsc.,

Bitansky, N., Canetti, R., Chiesa, A., Tromer, E., 2013.

Recursive composition and bootstrapping for snarks

and proof-carrying data. In STOC 2013, pp. 111-120,

ACM.

Boneh, D., Boyen, X., 2004. Short signatures without

random oracles. In EUROCRYPT 2004, LNCS 3027,

pp. 56-73. Springer.

Boyle, E., Goldwasser, S., Ivan, I., 2013. Functional

Signatures and Pseudorandom Functions. In

https://eprint.iacr.org/2013/401, IACR.

Crampton, J., Martin, K., Wild, P., 2006. On Key

Assignment for Hierarchical Access Control. In CSF

2006.

Crampton, J., 2010. Cryptographic Enforcement of Role-

Based Access Control, In FAST 2010.

Crampton, J., Lim, H., 2008. Role Signatures for Access

Control in Open Distributed Systems. In SEC 2008.

Escala, A., Herranz, J., Morillo, P., 2011. Revocable

Attribute-Based Signatures with Adaptive Security in

the Standard Model, In AFRICACRYPT 2011, pp.224-

241, LNCS 6737. Springer.

Goyal, V., Pandey, O., Sahai, A., Waters, B., 2006.

Attribute-Based Encryption for Fine-Grained Access

Control of Encrypted Data, In Proc of 13

ACM

Conference on Computer and Communications

Security, pp. 89-98, ACM.

Groth, J., 2006. Simulation-sound NIZK proofs for a

practical language and constant size group signatures.

In ASIACRYPT 2006, LNCS 4284, pp. 444–459,

Springer, Germany.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

508

Groth, J., Sahai, A., 2008. Efficient non-interactive proof

systems for bilinear groups, In EUROCRYPT 2008,

LNCS 4965, pp 415-432. Springer.

Ion, M., Russello, G., Crispo, B., 2010. Supporting

Publication and Subscription Confidentiality in

Pub/Sub Networks. In SECURECOMM 2010, pp. 272-

289.

Khader. D., 2007. Attribute Based Group Signature

Scheme. In http://eprint.iacr.org/2007/159, IACR.

Kiviharju, M., 2012. Towards Pervasive Cryptographic

Access Control Models. In SECRYPT 2012.

Maji, H., Prabhakaran, M., Rosulek, M., 2011. Attribute-

based signatures”. In CT-RSA 2011, LNCS 6558, pp.

376–392. Springer.

Okamoto, T., Takashima, K., 2010. Fully secure

functional encryption with general relations from the

decisional linear assumption. In CRYPTO 2010, LNCS

6223, pp. 191–208. Springer.

Okamoto, T., Takashima, K., 2011. Efficient Attribute-

Based Signatures for Non-Monotone Predicates in the

Standard Model, In PKC 2011, LNCS 6571, pp.35-52.

Springer.

Okamoto, T., Takashima, K., 2013. “Decentralized

Attribute-Based Signatures”, In PKC 2013, LNCS

7778, pp.125-142. Springer.

Rissanen E. (ed.),2013. Extensible Access Control

Markup Language (XACML) Version 3.0, OASIS

Standard. In http://docs.oasis-

open.org/xacml/3.0/xacml-3.0-core-spec-os-en.pdf,

OASIS.

Sandhu, R., Bhamidipati, V., Munawer, Q., 1999. The

ARBAC97 model for role-based administration of

roles. In ACM Transactions on Information and

Systems Security, 2(1): 105-135, ACM.

Sandhu, R., Ferraiolo, D., Kuhn, R., 2000. The NIST

Model for Role-Based Access Control: Towards A

Unified Standard. In 5th ACM Workshop on RBAC,

pp. 47-63.

Zhu, Y., Ahn, G-J., Hu, H., Ma, D., Wang, S., 2013. Role-

Based Cryptosystem: A New Cryptographic RBAC-

system Based on Role-Key Hierarchy. In: IEEE

Transactions on Information Forensics and Security.

IEEE.

RBACwithABS-ImplementationPracticalitiesforRBACIntegrityPolicies

509
