HMM-based Breath and Filled Pauses Elimination in ASR

Piotr

Zelasko

, Tomasz Jadczyk

1,2

and Bartosz Zi´ołko

1,2

Faculty of Computer Science, Electronics and Telecommunications, AGH University of Science and Technology,

al. A. Mickiewicza 30, 30-059 Krak´ow, Poland

Techmo, Krak´ow, Poland

Keywords:

ASR, Breath, Breath Detection, Filled Pause, Filled Pause Detection, Filler, Filler detection, HMM, IVR,

Speech, Speech Recognition, Spontaneous Speech.

Abstract:

The phenomena of ﬁlled pauses and breaths pose a challenge to Automatic Speech Recognition (ASR) systems

dealing with spontaneous speech, including recognizer modules in Interactive Voice Reponse (IVR) systems.

We suggest a method based on Hidden Markov Models (HMM), which is easily integrated into HMM-based

ASR systems and allows detection of those disturbances without incorporating additional parameters. Our

method involves training the models of disturbances and their insertion in the phrase Markov chain between

word-ﬁnal and word-initial phoneme models. Application of the method in our ASR shows improvement of

recognition results in Polish telephonic speech corpus LUNA.

1 INTRODUCTION

The Automatic Speech Recognition (ASR) has be-

come a feature desired by many companies as a way

to provide modern and ergonomic customer support

via the telephone - it replaces the outdated Dual Tone

Multi Frequency (DTMF) code navigation in Interac-

tive Voice Response (IVR) systems dialogue menus,

introducing more comfortable interface for their cus-

tomers. In this scenario, the tasks of ASR systems are

usually simple enough - recognize the word or a short

phrase uttered by the end-user and provide recogni-

tion results to the overseeingIVR system. Commonly,

the possibilities of dialogue options in such systems

are limited, which leads to another simpliﬁcation for

the ASR - the dictionary is quite small, and may even

vary from menu to menu to decrease its size even

more.

One of the difﬁculties in such environments, how-

ever, is impossibility of guaranteeing, that the speaker

will talk to the system as planned by the dialogue

menu designers. A speaker rightfully assumes that

they can speak naturally, sometimes producing utter-

ances, phrases and sounds which do not exist in ASR

systems dictionary, or cannot be classiﬁed as speech.

This phenomenon is known as the out-of-vocabulary

(OOV) utterance. A special case of OOV that interests

us are sounds made by the user other than speech. We

call them acoustic disturbances, and classify several

of them: ﬁlled pauses (yyy, mmm, uhm, uh), breaths,

impulsive noises (e.g. tapping the phone), coughing,

blowing into the microphone, and similar. In normal

physiological conditions, people breathe at about 12-

20 breaths per minute (Konturek, 2007) (Ratan, 1993)

and when they speak, their breath frequencydecreases

to about 10-12 breaths per minute (Igras and Zi´ołko,

2013a). As for the ﬁlled pauses, frequency of their

usage depends largely on individual speakers – how-

ever, it can reach even up to 10 ﬁllers per minute (Bar-

czewska and Igras, 2012). Considering how frequent

these events are, means have to be developed to han-

dle them.

There exist some techniques for ﬁlled pause detec-

tion: cepstral variation based technique (Stouten and

Martens, 2003), pitch-based technique (Goto et al.,

1999) or formant-based technique (Audhkhasi et al.,

2009), which work under assumption that the spec-

tral variability of the ﬁlled pauses is low compared to

speech (see ﬁgure 1). Breaths may be either actively

looked for and detected (Igras and Zi´ołko, 2013b) or

intentionally omitted - Boakye and Stolcke (Boakye

and Stolcke, 2006) developed a speech activity detec-

tor based on Hidden Markov Models (HMM), which

does not react to breath events. A typical breath spec-

trum may be seen on ﬁgure 2.

We decided to investigate a different approach to

the problem. Because our ASR (Zi´ołko et al., 2011)

employs HMM to ﬁt word models into segmented re-

gions of speech, delivered by a voice activity detector

255

Zelasko P., Jadczyk T. and Ziółko B..

HMM-based Breath and Filled Pauses Elimination in ASR.

DOI: 10.5220/0005023002550260

In Proceedings of the 11th International Conference on Signal Processing and Multimedia Applications (SIGMAP-2014), pages 255-260

ISBN: 978-989-758-046-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Frequency [Hz]

2000

4000

6000

8000

0 0.2 0.4 0.6 0.8 1 1.2

Time [s]

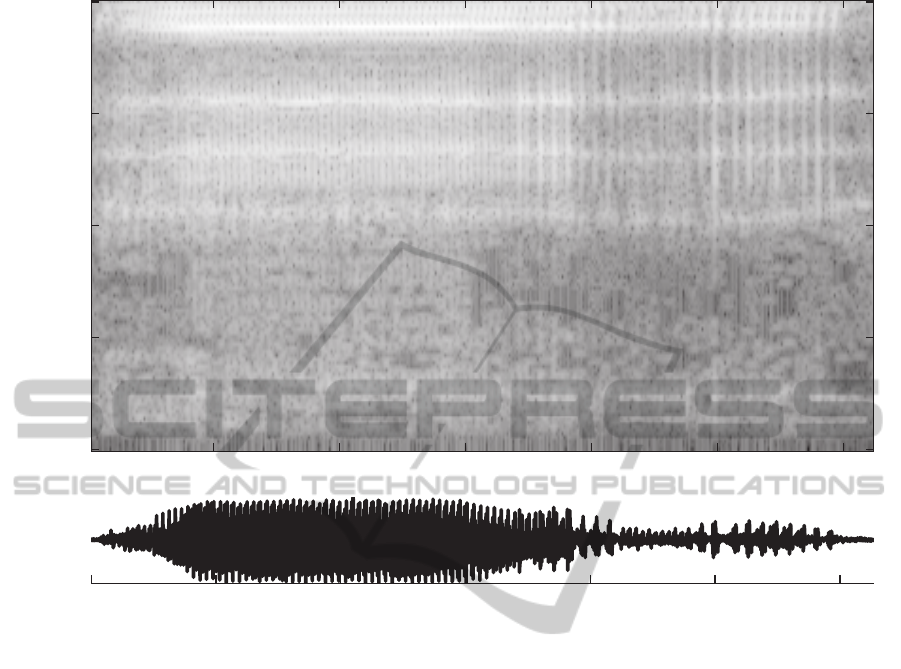

Figure 1: Time and spectral representation of an example of a ﬁlled pause. Notable features are its clearly distinguishable

formants and little spectral variation over time.

(VAD), it often occurs that a breath or a ﬁlled pause

is contained inside such a region. Those acoustic dis-

turbances may occur not only on phrase boundaries,

but also between words, if the speech is continuous.

We seek a way to allow the recognizer module to

deal with these disturbances without any additional

parametrisation steps (such as fundamental frequency

(F0) estimation or formants estimation), but based

only on the actual set of parameters deﬁned in our sys-

tem. For the purpose of this research, we chose to use

the 13 Mel Frequency Cepstral Coefﬁcients (MFCC)

along with their deltas and double deltas.

2 METHOD

We suggest a way to handle the speaker-generated

acoustic disturbances, especially the breaths and ﬁlled

pauses, by training their corresponding HMMs. Each

acoustic disturbance model is then added to the

phoneme model database of the ASR and is assigned

to a group of models that we call the sil group. The

idea behind introduction of group of models is to cre-

ate a set of optional paths in the Markov chain of the

word being detected, which allows skipping through

these grouped models - or a part of them - if a better

path can be found (i.e. the speaker had not uttered any

of the modelled disturbances, but he could have).

In our experiment, the sil group consists of a si-

lence model, a breath model and a ﬁlled pause model.

We investigated two types of insertion of this group:

in the ﬁrst one, the possible transitions between dis-

turbance models are ﬁxed, allowing detection of only

certain combinations of distrubances (Figure 3). For

example, a common sequence of (breath, ﬁlled pause)

would be detected, but a less common one: (ﬁlled

pause, breath) is not modelled by this type of inser-

tion. The second variant of insertion has noﬁxed tran-

sitions – every possible sequence of disturbances can

be modelled.

The models are inserted before the beginning

of each word and after its end, and in case of a

phrase they are inserted between each word and

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

256

Frequency [Hz]

2000

4000

6000

8000

0 0.05 0.1 0.15 0.2 0.25

Time [s]

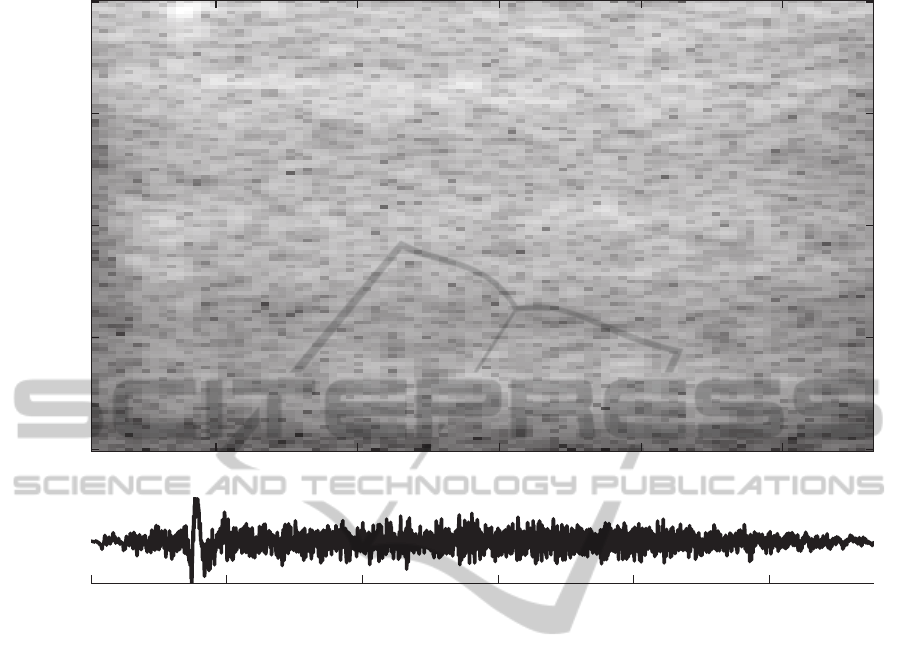

Figure 2: Time and spectral representation of an example of a breath. Unlike the ﬁlled pause, its spectrum is similiar to the

noise, although some indication of formants is observed.

on the phrase boundaries. An example of this in-

sertion - in our dictionary, there is a Polish phrase

o tak (in English: oh yes), which consists of four

phoneme models {O, T, A, K} and three optional si-

lence models {SIL}, represented by a Markov chain

{SIL, O, SIL, T, A, K, SIL}. After addition of acoustic

disturbances models {BREATH, FILLER}, the exact

Markov chain for this word looks like the following:

{SIL, BREATH, FILLER, O, SIL, BREATH, FILLER,

T, A, K, SIL, BREATH, FILLER}, where every non-

phoneme model may be omitted. Additionally, we

also checked the scenario which does not involve in-

sertion of silence models between words in a phrase,

leaving them only on phrases beginning and end.

In order to be able to control the sensitivity of

disturbances detection, we implemented an option to

include transition probability penalty for the distur-

bance models. The idea is to multiply between-model

transitions probabilities by weighting factors, which

sum to unity. The obligatory model transition weight

(i.e. the transition from the last phoneme of a preced-

ing word to the ﬁrst phoneme of a following word) is

set to a certain value, and the difference between unity

and this value is divided equally by the number of op-

tional (disturbance) models inserted after word-ﬁnal

phoneme model and assigned to each of them as their

transition probability weight. We investigated a total

of three scenarios: no penalty included (equal transi-

tion probability weighting factors), 50-50 penalty (0.5

weighting factor for the next phone model, and 0.5 to

split between disturbance models) and 75-25 penalty

(0.75 weighting factor for the next phone model, and

0.25 to split between disturbance models). For exam-

ple, on Figure 3, if a 50-50 penalty was applied, the

weighting factors would be 0.5 for O into T transition

and 0.(6) for O into SIL, O into BREATH and O into

FILLER transitions.

In order to perform the training of the acoustic dis-

turbances models, we prepared manual annotations of

breaths and ﬁlled pauses. Our data consists of record-

ings of Polish translations from Europarliament ses-

sions (Gollan et al., 2005) – 30 minutes, Polish radio

auditions – 60 minutes and LUNA, a corpus of Pol-

ish spontaneous telephonic speech (Marciniak, 2010)

HMM-basedBreathandFilledPausesEliminationinASR

257

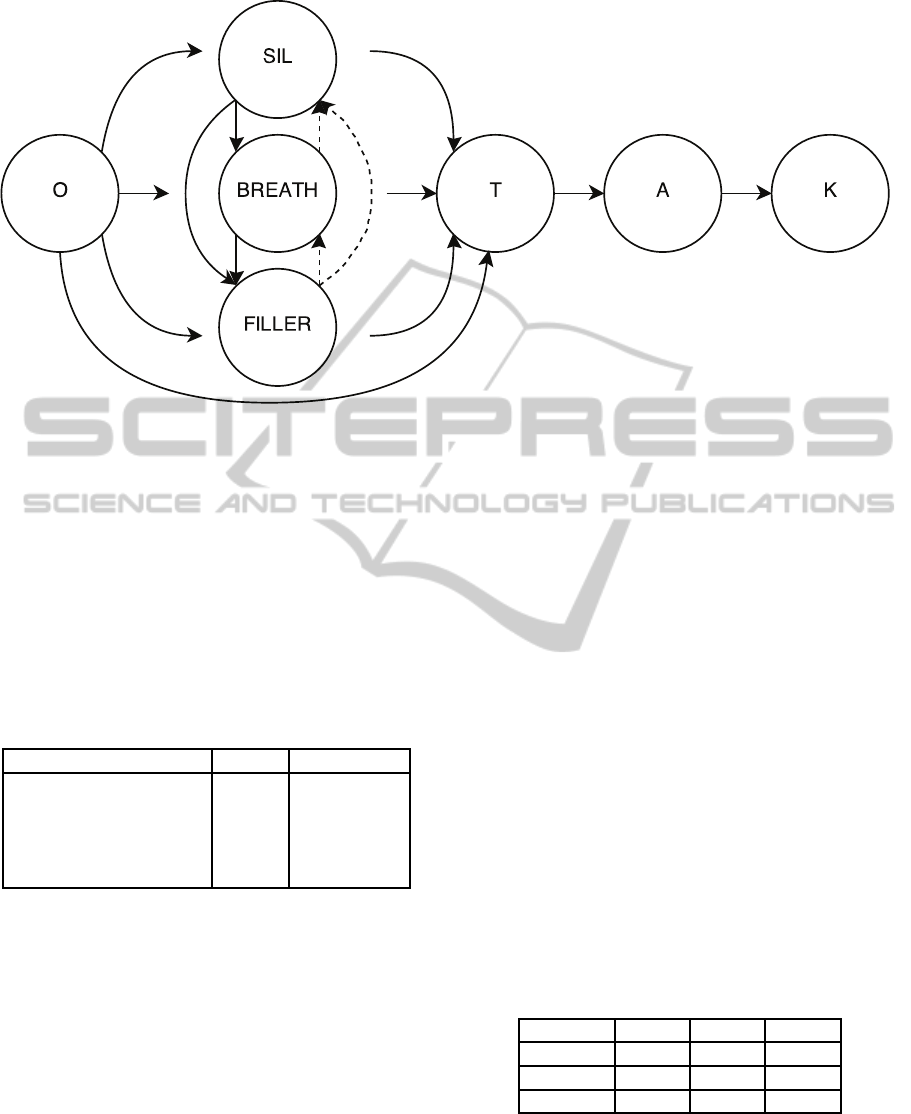

Figure 3: Example of disturbance models (SIL - silence model, BREATH - breath model, FILLER - ﬁlled pause model)

insertion into a Markov chain of a Polish phrase o tak (English equivalent: oh yes). If the transitions marked by the dashed

arrows are removed, then direction of transitions between disturbance models is ﬁxed, disallowing a previous disturbance

model to appear again in the alignment. Otherwise, the transition direction is arbitrary - any combinations of disturbances is

being modelled.

– we annotated breaths and ﬁllers in 80 minutes of

this corpus. A summary containing statistics of our

data is presented in Table 1. Each disturbance model

was trained to consist of three HMM states, with state

emission probability computed with use of a three-

component Gaussian Mixture Model (GMM).

Table 1: Statistics of training data used in acoustic distur-

bances model creation.

Disturbance Breath Filled Pause

Mean duration [ms] 372 417

Minimal duration [ms] 101 80

Maximal duration [ms] 1208 1350

Total duration [s] 217 249

Number of occurences 584 597

3 RESULTS

The testing corpus were another 80 minutes of

LUNA, which is 74 recordings, however, they were

different ones than used in the training. Each record-

ing from LUNA has an annotation of phrases being

spoken (in this context, a phrase is a sequence of

words separated by no more than 100ms silent pause),

but does not contain information about appearances

of breaths or ﬁlled pauses. We established, based on

the training data from LUNA (which contains 1258

phrases, that is 12% of all phrases in LUNA) that

breaths appear in about 13% of phrases and ﬁlled

pauses appear in about 15% of phrases.

We compared the recognition results of our ASR

in several different scenarios. In the ﬁrst one, we

present three variants of conﬁguration: NM – no addi-

tional models inserted between words in phrases, SM

– silence models inserted between words in phrases

and SM+DM, where both silence models and distur-

bance models were inserted between the words. The

results are presented in Table 2. In these tests, the

transitions between disturbance models were ﬁxed, as

presented on Figure 3. Later, penalties for transition-

ing into disturbance model were applied to check for

improvement. 50-50 and 75-25 denote different types

of penalties, as explained in the section 2; NP stands

for no penalty.

Table 2: Results of correct recognition percentage in dif-

ferent data sets in three variants: NM (no models inserted

between words), SM (silence models inserted) and SM+DM

(silence and disturbances models inserted). The directions

of transitions between disturbance models are ﬁxed.

NP 50-50 75-25

NM 80.3% – –

SM 77.6% – –

SM+DM 78.3% 79.2% 79.1%

These results suggested a problem with false

alarms raising at the current sensitivity level of distur-

bance (and silence) detection. Therefore, in the next

phase of testing, we continued to investigate the pos-

sibility of calibrating the system by forcing the tran-

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

258

77 78 79 80 81 82 83 84

100

120

Recognition Rate [%]

Bootstrap dataset counts

System without disturbances models

System with disturbances models

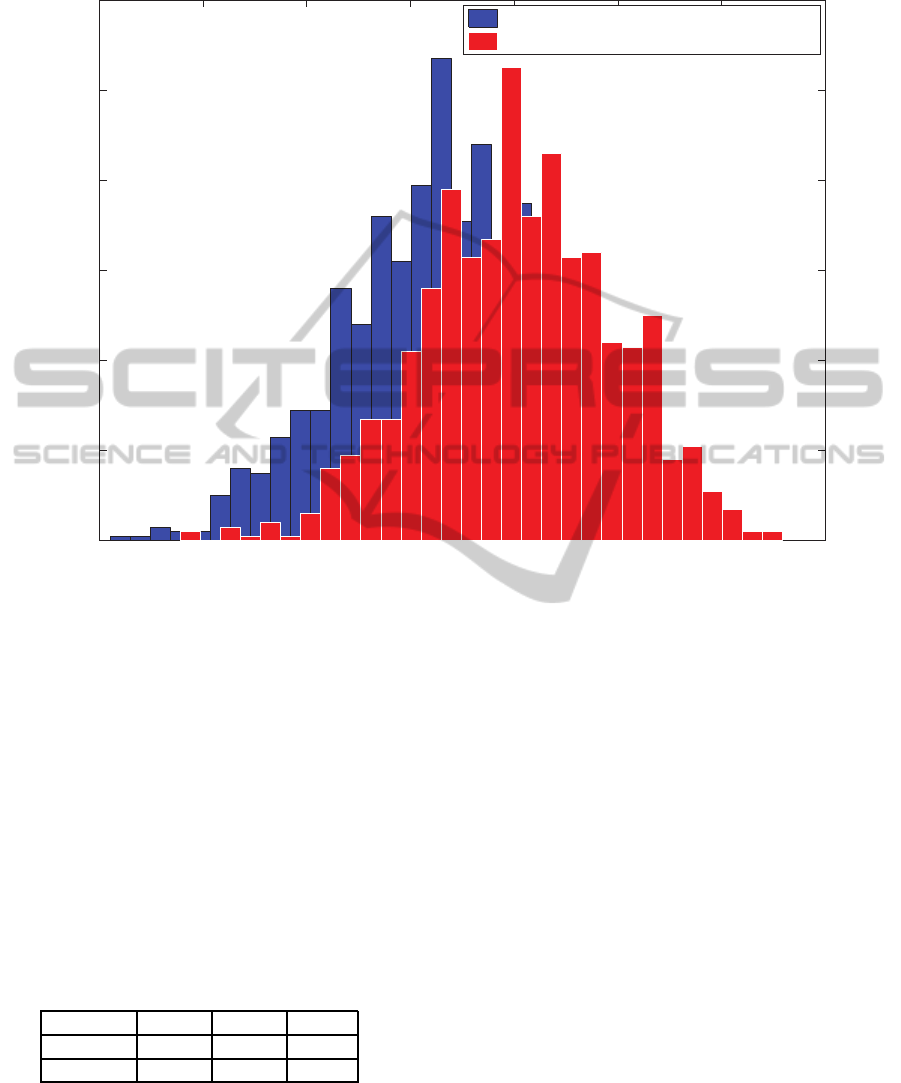

Figure 4: Histograms of bootstrapped recognition results from umodiﬁed (blue) and enhanced (red) variants of systems.

sitions from phoneme models to disturbance and si-

lence models to be less probable with help of tran-

sition penalties. We also noticed that a major factor

affecting negatively the recognition might be the in-

sertion of silence model, so we checked the results

of recognition without inserting it between the words.

We also introduced the arbitrary transition direction

between the disturbance and silence models, in order

to be able to detect every combination of disturbances.

The results are shown in Table 3.

Table 3: Results of correct recognition percentage in dif-

ferent data sets in two variants: with only silence models

inserted between words (SM) and with silence and distur-

bances models inserted between words (SM+DM). The di-

rections of transitions between disturbance models are arbi-

trary.

NP 50-50 75-25

SM+DM 80.2% 80.1% 80%

DM 81.1% 81.1% 81%

Introduction of the arbitrary transition directions

between disturbance models improved the effective-

ness of disturbances detection from 78.3% to 80.2%.

Further improvement was achieved by removing the

silence model from between the words at 81.1%,

which is higher score than NM variant at 80.3%. The

penalty system is unsatisfactory: it offers no improve-

ment with introduction of arbitrary model transitions.

In order to verify whether the best achieved out-

come (i. e. recognition rate of 81.1%) is a signiﬁ-

cant improvement compared to what we already had

without including disturbances models (i. e. recogni-

tion rate of 80.3%), we took the 1774 recognition re-

sults from both bare system and enhanced system and

performed bootstrapping on them (Bisani and Ney,

2004), which resulted in 1000 bootstrap populations

of recognition results for both system variants. Be-

cause both variants of the system were tested on the

same data, we made sure that the bootstrap popula-

tions were also the same, allowing us to directly com-

pare recognition rate of each system variant in every

population. We then calculated the mean recognition

rate, its standard deviation and conﬁdence intervals

for both systems (tab. 4). Histograms of this data are

presented on ﬁgure 4.

As the last step, we calculated the probability of

HMM-basedBreathandFilledPausesEliminationinASR

259

Table 4: Mean, standard deviation and 90% conﬁdence in-

tervals of recognition rate for two system variants - system

with no modiﬁcations and system with disturbance mod-

els, arbitrary transition directions, no penalties and no si-

lence models. We also present statistics for differences be-

tween recognition rate in each bootstrap sample in the Im-

prov. row.

Rec. rate Mean St. dev. Conf. interv.

Unmod. sys. 80.3% 0.92% (78.7 - 81.8)%

Enh. sys. 81.1% 0.92% (79.5 - 82.6)%

Improv. 0.8% 0.52% (-0.1 - 1.7)%

improvement (poi) measure, deﬁned by

poi =

∑

b=1

Θ(∆RR

) , (1)

where B is the number of bootstrap samples, Θ() is

the Heaviside function and ∆RR

is the recognition

rate difference between enhanced system and unmod-

iﬁed system for b’th bootstrap sample. This measure

shows the percentage of bootstrap samples in which

recognition rate has been improved in the enhanced

system. In our case, poi amounted to 93.95%, leading

to conclusion that system is improved by introduction

of disturbance models. More details on this measure

may be found in (Bisani and Ney, 2004).

4 CONCLUSIONS

Our approach of handling acoustic disturbances, such

as breaths or ﬁlled pauses, improves the resuts of

spontaneous telephonic speech recognition. In or-

der to achieve the improvement, arbitrary transitions

between disturbance models are preferred and inser-

tion of silence models inside a phrase is discour-

aged. The method is useful in ASR systems, which

incorporate Hidden Markov Models in the recogni-

tion task, serving as an extension to the existing sys-

tem. Application of the method can be found in any

scenario, where ASR system has to deal with spon-

taneous speech, an example of such scenario being

recognition of user commands in IVR system menu.

ACKNOWLEDGEMENTS

This work was supported by LIDER/37/69/L-3/11/

NCBR/2012 grant. We thank Magdalena Igras for as-

sistance in gathering recordings and transcriptions of

ﬁlled pauses and breaths and Jakub Gałka for advices

regarding statistical analysis of our results.

REFERENCES

Audhkhasi, K., Kandhway, K., Deshmukh, O., and Verma,

A. (2009). Formant-based technique for automatic

ﬁlled-pause detection in spontaneous spoken english.

In Acoustics, Speech and Signal Processing, 2009.

ICASSP 2009. IEEE International Conference on,

pages 4857–4860.

Barczewska, K. and Igras, M. (2012). Detection of disﬂuen-

cies in speech signal. In Young scientists towards the

challenges of modern technology: 7th international

PhD students and young scientists conference in War-

saw.

Bisani, M. and Ney, H. (2004). Bootstrap estimates for

conﬁdence intervals in asr performance evaluation. In

Acoustics, Speech, and Signal Processing, 2004. Pro-

ceedings. (ICASSP ’04). IEEE International Confer-

ence on, volume 1, pages I–409–12 vol.1.

Boakye, K. and Stolcke, A. (2006). Improved speech activ-

ity detection using cross-channel features for recog-

nition of multiparty meetings. In Proc. of INTER-

SPEECH, pages 1962–1965.

Gollan, C., Bisani, M., Kanthak, S., Schluter, R., and Ney,

H. (2005). Cross domain automatic transcription on

the tc-star epps corpus. In Acoustics, Speech, and

Signal Processing, 2005. Proceedings. (ICASSP ’05).

IEEE International Conference on, volume 1, pages

825–828.

Goto, M., Itou, K., and Hayamizu, S. (1999). A real-time

ﬁlled pause detection system for spontaneous speech

recognition. In Proc. of Eurospeech, pages 227–230.

Igras, M. and Zi´ołko, B. (2013a). Modelowanie i detekcja

oddechu w sygnale akustycznym. In Proc. of Mode-

lowanie i Pomiary w Medycynie.

Igras, M. and Zi´ołko, B. (2013b). Wavelet method for

breath detection in audio signals. In Multimedia and

Expo (ICME), 2013 IEEE International Conference

on, pages 1–6.

Konturek, S. (2007). Fizjologia człowieka. Podrecznik dla

student´ow medycyny. Elsevier Urban & Partner.

Marciniak, M., editor (2010). Anotowany korpus dialog´ow

telefonicznych. Akademicka Oﬁcyna Wydawnicza

EXIT, Warsaw.

Ratan, V. (1993). Handbook of Human Physiology. Jaypee.

Stouten, F. and Martens, J. (2003). A feature-based ﬁlled

pause detection technique for dutch. In IEEE Intl

Workshop on ASRU, pages 309–314.

Zi´ołko, M., Gałka, J., Zi´ołko, B., Jadczyk, T., Skurzok, D.,

and Ma¸sior, M. (2011). Automatic speech recogni-

tion system dedicated for Polish. Proceedings of In-

terspeech, Florence.

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

260
