An Automated Approach for Creating Workload Models from Server

Log Data

Fredrik Abbors, Dragos Truscan and Tanwir Ahmad

Department of Information Technologies,

Abo Akademi University, Joukahaisenkatu 3-5 A, Turku, Finland

Keywords:

Workload Model Generation, Log File Analysis, Performance Testing, Probabilistic Timed Automata.

Abstract:

We present a tool-supported approach for creating workload models from historical web access log data. The

resulting workload models are stochastic, represented as Probabilistic Timed Automata (PTA), and describe

how users interact with the system. Such models allow one to analyze different user proﬁles and to mimic

real user behavior as closely as possible when generating workload. We provide an experiment to validate the

approach.

1 INTRODUCTION

The primary idea in performance testing is to es-

tablish how well a system performs in terms of re-

sponsiveness, stability, resource utilization, etc, un-

der a given synthetic workload. The synthetic work-

load is usually generated from some kind of workload

proﬁle either on-the-ﬂy or pre-generated. However,

Ferrari states that synthetic workload should mimic

the expected workload as closely as possible (Ferrari,

1984), otherwise it is not possible to draw any reliable

conclusions from the results. This means that if load

is generated from a workload model, then the model

must represent the real-world user behavior as closely

as possible. In addition, Jain points out that one of

the most common mistakes in load testing is the use

of unrepresentative load (Al-Jaar, 1991).

There already exists a broad range of well estab-

lished web analytics software both as open source

(Analog, AWStats, Webalyzer), proprietary (Sawmill,

NetInsight, Urchin), as well as web hosted ones

(Google Analytics, Analyzer, Insight). All these tools

have different pricing models and range from free

up to several hundred euros per month. These tools

provide all kinds of information regarding the user

clients, different statistics, daily number of visitors,

average site hits, etc. Some tools can even visual-

ize paths that visitors take on the site. However, this

usually requires a high-priced premium subscription.

What the above tools do not provide is a deeper classi-

ﬁcation of the users or even a artefact that can directly

be used for load testing. Such an artefact, based on

real user data, would be the ideal source for gener-

ating synthetic load in a performance testing environ-

ment. Instead, the performance tester have to interpret

the provided information and build his own artefact,

from where load is generated. Automatically creat-

ing this artefact would also signiﬁcantly speed up the

performance testing process by removing the need of

manual labour, and thus saving time and money.

This paper investigates an approach for automat-

ically creating a workload model from web server

log data. More speciﬁcally, we are targeting HTTP-

based systems with RESTful (Richardson and Ruby,

2007) interfaces. The proposed approach uses the K-

means algorithm to classify users into groups based

on the requested resources and a probabilistic work-

load model is automatically built for each group.

The presented approach and its tool support inte-

grates with our performance testing process using the

MBPeT (Abbors et al., 2012) tool. The MBPeT tool

generates load in real-time by executing the workload

models in parallel. The parallel execution is meant to

simulate the concurrent nature of normal web requests

coming from real-world users. The tool itself has a

distributed master/slave architecture which makes it

is suitable for cloud environments. However, the ap-

proach proposed in this paper can be used indepen-

dently for analyzing and classifying the usage of a

web site.

The rest of the paper is structured as follow: In

Section 2, we give an overview of the related work. In

Section 3, we present the formalism behind the work-

load models that we use. In Section 4, we cover the

methodology whereas, in Section 5, we present the

tool support. Section 6 shows our approach applied

Abbors F., Truscan D. and Ahmad T..

An Automated Approach for Creating Workload Models from Server Log Data.

DOI: 10.5220/0005002200140025

In Proceedings of the 9th International Conference on Software Engineering and Applications (ICSOFT-EA-2014), pages 14-25

ISBN: 978-989-758-036-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

on a real-world example. In Section 7, we demon-

strate the validity of our work. Finally, in Section 8,

we present our conclusions and discuss future work.

2 RELATED WORK

Load testing is still often done manually by specifying

load scripts that describe the user behavior in terms

of a subprogram (Rudolf and Pirker, 2000), (Subraya

and Subrahmanya, 2000). The subprogram is then

run for each virtual user, possibly with the data be-

ing pre-generated or randomly generated. With regard

to the data, theses types of approaches exhibit a cer-

tain degree of randomization. However, the behavior

of each virtual user is a mainly a repetition of pre-

deﬁned traces. Most of these approaches are prone

to errors due to much manual work and lack of ab-

straction that stochastic models offer. However, the

question: ”How to create a realistic stochastic perfor-

mance model?” remains.

There exists a plethora of tools on the market that

can analyze HTTP-based logs and provide the user

with statistical information and graphs regarding the

system. Some tools might even offer the user with

common and reoccurring patterns. However, to the

best of our knowledge, there is no web analytics soft-

ware that will create a stochastic model from log data.

Kathuria et al. proposed an approach for cluster-

ing users into groups based on the intent of the web

query or the search string (Kathuria et al., 2010). The

authors divide the user intent into three categories:

navigational, informational, and transactional. The

proposed approach clusters web queries into one of

the three categories based on a K-means algorithm.

Our approach differs from this one in the sense that

we cluster the users by their behavior by looking at

the request pattern and accessed resources, whereas

in their approach, the authors cluster users based on

the intent or meaning behind the web query.

Vaarandi (Vaarandi, 2003) proposes a Simple Log-

ﬁle Clustering Tool consequently called SLCT. SLCT

uses a clustering algorithm that detects frequent pat-

terns in system event logs. The event logs typically

contain log data in various formats from a wide range

of devices, such as printers, scanners, routers, etc.

The tool automatically detects common patterns in

the structure of the event log. The approach is us-

ing data mining and clustering techniques to detect

normal and anomalous log ﬁle lines. The approach is

different from ours in the sense that we assume that

the logging format is known and we build a stochastic

model that can be used for performance testing from

common patterns found in the log.

Shi (Shi, 2009) presents an approach for cluster-

ing users interest in web pages using the K-means al-

gorithm. The author uses fuzzy linguistic variables

to describe the time duration that users spend on web

pages. The ﬁnal user classiﬁcation is then done using

the K-means algorithm based on the time the users

spend on each page. This research is different from

ours in the sense that we are not classifying users

based on the amount of time they spend on a web page

but rather on their access pattern.

The solutions proposed by Mannila et al. (Man-

nila et al., 1997) and Ma and Hellerstein (Ma and

Hellerstein, 2001) are targeted towards discovering

temporal patterns from event logs using data min-

ing techniques and various association rules. Both

approaches assume a common logging format. Al-

though association rules algorithms are powerful in

detecting temporal associations between events, they

do not focus on user classiﬁcation and workload mod-

eling for performance testing.

Another approach is presented by Anastasiou

and Knottenbelt (Anastasiou and Knottenbelt, 2013).

Here, the authors propose a tool, PEPPERCORN, that

will infer a performance model from a set of log ﬁles

containing raw location tracking traces. From the

data, the tool will automatically create a Petri Net

Performance Model (PNPM). The resulting PNPM

is used to make an analysis of the system perfor-

mance, identify bottlenecks, and to compute end-to-

end response times by simulating the model. The ap-

proach differs from our in the sense that it operates on

different structured data and that the resulting Petri

Net model is used for making a performance analysis

of the system and not for load generation. In addi-

tion, we construct probabilistic time automata (PTA)

model from which we later on generate synthetic load.

Lutteroth and Weber describe a performance test-

ing process similar to ours (Lutteroth and Weber,

2008). Load is generated from a stochastic model

represented by a form chart. The main differences be-

tween their and our approach is that we use different

type of models and that we automatically infer our

models from log data while they create the models

manually. In addition, due to their nature, form chart

models are less scalable compared to PTAs.

3 WORKLOAD MODELS

The work presented in this paper connects to our pre-

vious model-based performance testing process using

the MBPeT (Abbors et al., 2012) tool. A workload

model is the central element in this process, being

used for distributed load generation. Previously, the

AnAutomatedApproachforCreatingWorkloadModelsfromServerLogData

model was created manually from the performance re-

quirements of the system and based on an estimated

user behavior. In order to model as realistic workload

as possible, we use historic usage data extracted from

web-server logs.

3.1 Workload Models

Traditionally, performance testing starts ﬁrst with

identifying key performance scenarios, based on the

idea that certain scenarios are more frequent than oth-

ers or certain scenarios impact more on the perfor-

mance of the system than other scenarios. A perfor-

mance scenario is a sequence of actions performed by

an identiﬁed group of users (Petriu and Shen, 2002).

However, this has traditionally been a manual step in

the performance testing process. Typically, the iden-

tiﬁed scenarios are put together in a model or subpro-

gram and later executed to produce load that is sent to

the system.

In our approach, we use probabilistic timed au-

tomata (PTA) (Jurdzi

nski et al., 2009) to model the

likelyhood of user actions. The PTA consists of a set

of locations interconnected to each other via a set of

edges. A PTA also includes the notion of time and

probabilities (see Figure 1(a)). Edges are labeled with

different values: probability value, think time, and ac-

tion. The probability value represents the likelihood

of that particular edge being taken based on a prob-

ability mass function. The think time describes the

amount of time that a user thinks or waits between

two consecutive actions. An action is a request or a

set of requests that the user sends to the system. Exe-

cuting an action means making a probabilistic choice,

waiting for the speciﬁed think time, and executing the

actual action. In order to reduce complexity of the

PTA, we use a compact notation where the probabil-

ity value, think time, and action are modeled on the

same edge (see Figure 1(b)).

4 AUTOMATIC WORKLOAD

MODEL CREATION

In this section, we describe the method for automati-

cally creating the workload model from log data and

we discuss relevant aspects in more detail. The start-

ing point of our approach is a web server log provided

by web servers such as Apache or Microsoft Server.

A typical format for a server log is shown in Table 1.

The log is processed in several steps and a workload

model is produced.

0.6 / 0 /

0.4 / 0 /

1.0 / 3 / action1()

1.0 / 4 / action2()

1.0 / 0 /

1.0 / 6 / exit() 1.0 / 8 / exit()

(a) Original PTA

0.6 / 3 / action1()

0.4 / 4 / action2()

1.0 / 6 / exit() 1.0 / 8 / exit()

(b) Compact PTA

Figure 1: Example of a probabilistic timed automata.

4.1 Data Cleaning

Before we start parsing the log ﬁle we prepare and

clean up the data. This entails that irrelevant data is

removed from the log. Nowadays, it is not uncommon

to encounter requests made by autonomous machines,

also referred to as bots, usually used to crawl the web

and index web sites. These types of requests are iden-

tiﬁed and removed from the log into a separate list. At

the moment, we are only interested in HTTP requests

that result in a success or redirect (i.e., response codes

that start with 2xx or 3xx). Requests that result in an

error, typically response codes that start with 4xx or

5xx, are usually not part of the intended behavior and

are also put in a separate list.

4.2 Parsing

The cleaned log ﬁle is parsed line by line using a pat-

tern that matches the logging format. In our approach,

a new virtual user is created when a new client IP-

address

is encountered in the log. For each request

made to the sever, the requested resource is stored in

a list associated with a virtual user. The date and time

information of the request together with the time dif-

ference to the previous request is also stored. The

latter is what we denote as think time between two

requests.

4.3 Pre-processing

From the previous step, we obtain a list of virtual

users and for each virtual user a list of requests made

from the same client IP-address. In the pre-processing

Our approach uses IP-addresses for user classiﬁcation

since the UserId is only available for authenticated users

and usually not present in the log.

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

Table 1: Requests to be structured in a tree.

Client IP-address User-Identiﬁer User Id Date Method Resource Protocol Status Code Size of Object

87.153.57.43 example.site.com bob [20/Aug/2013:14:22:35 -0500] GET /browse HTTP/1.0 200 855

87.153.57.43 example.site.com bob [20/Aug/2013:14:23:42 -0500] GET /basket/book/add HTTP/1.0 200 685

87.153.57.43 example.site.com bob [20/Aug/2013:14:23:58 -0500] GET /basket/book/delete HTTP/1.0 200 936

136.242.54.78 example.site.com alice [21/Aug/2013:23:44:45 -0700] GET /browse” HTTP/1.0 200 855

136.242.54.78 example.site.com alice [21/Aug/2013:23:46:27 -0700] GET /basket/phone/add HTTP/1.0 200 685

136.242.54.78 example.site.com alice [21/Aug/2013:23:57:02 -0700] GET /basket/view.html HTTP/1.0 200 1772

phase, these lists of requests are split up into shorter

lists called sessions. A session is a sequence of re-

quests made to the web server which represent the

user activity in a certain time interval. It is not al-

ways trivial to say when one session ends and an-

other begins, since the time interval varies from ses-

sion to session. Traditionally, a session ends when a

certain period of inactivity is detected, (e.g., 30 min-

utes). Hence, we deﬁne a session timeout value which

is used to split the list of requests of a given user into

sessions. In other words, we are searching for a time

gap between two successive requests from the same

virtual user that is greater than the speciﬁed timeout

value. When a gap is found, the request trace is split

into a new session. An example using a timeout of 30

minutes is shown in Figure 2.

Req1 Req2 Req4 Req5 Req6 Req7 Req8Req3

Req1 Req2 Req4 Req5 Req6Req3

Req7 Req8

1 min

Time Out Value 30 min

3 min 32 min

GAP

12 min 5 min 35 min 22 min

1 min 3 min 12 min 5 min

GAP

22 min

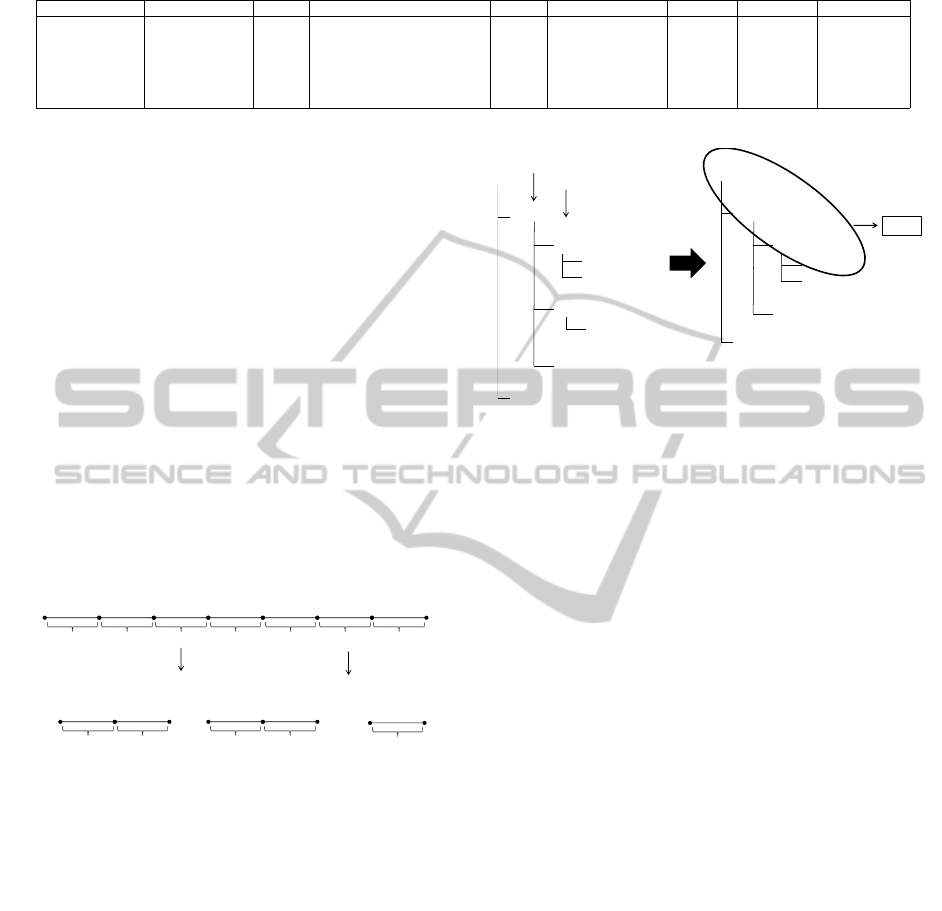

Figure 2: Example of splitting a list of requests into shorter

sessions.

4.4 Building a Request Tree

Visitors interact with web sites by carrying out ac-

tions. Actions can be seen as abstract transactions or

templates that ﬁt many different requests. These re-

quests can be quite similar in structure, yet not identi-

cal to each other. For example, consider a normal web

shop where users add products to the basket. Adding

two different products to the basket will result in two

different web requests even though the action is the

same. In this step, we group similar requests into ac-

tions.

To achieve this, we ﬁrst put the requests into a tree

structure. For example, consider the example in Ta-

ble 1. We split the string of the requested resource

/basket

/book

/phone

/add

/delete

/add

/basket

/book, phone

/add

/delete

[Collection]

[Resource]

action

/view.html

/browse

Figure 3: Example of request tree reduction.

by the ”/” separator and structure it into a tree. Fig-

ure 3-left shows how the requests in Table 1 would

be structured. We always keep count of how many

times we end up in a leaf node. For each new log line,

we try to ﬁt the request into the tree, otherwise a new

branch is created.

After parsing a large log ﬁle, we obtain a large

tree that might be difﬁcult to manage. However, the

tree can be reduced into a smaller tree by grouping to-

gether nodes. The algorithm is recursive and nodes at

the same level in the tree are grouped together if they

share joint sub-nodes. Figure 3-right shows how a tree

can be reduced into a smaller tree. Once the request

tree has been reduced as much as possible, every path

in the reduced tree, that reaches a leaf node, is then

considered as an action that can be executed against

the system.

Consider the second request made by both Bob

and Alice in Table 1. These two requests are basically

the same type of request. They both request a resource

from the same collection. This is similar to a REST

interface where one uses collections and resources. It

would seem obvious that these two requests are the

result of the same action, only that the user requested

different resources. Hence, by grouping together re-

quests of the same type to the same resources, the tree

can be reduced to a smaller tree. Similar requests are

grouped into an action.

Requests in the tree can also be joined by manu-

ally inspecting the tree and grouping nodes that are

a result of the same action. If a node in the path

has more than one parameter, (e.g., it is a result of

AnAutomatedApproachforCreatingWorkloadModelsfromServerLogData

grouping two resources) that part of the request can

be parameterized. For example, the request ”/bas-

ket/book,phone/add” is a parameterized action where

either book or phone should be used when sending the

actual request to the system.

4.5 User Classiﬁcation

Before we start constructing a workload model repre-

senting the user behavior, we cluster different virtual

users into groups according to their behavior. By user

behavior we mean a behavioral pattern that a group

of web site visitors have in common. A User Type

can be seen as a group abstracting several visitors of

a web site.

To group visitors based on the actions they per-

form we use the K-means algorithm (MacQueen,

1967). Table 2 shows the properties used for clus-

tering. The properties are the actions obtained from

the reduced request tree and the numbers represent

the number of times a visitor has performed that ac-

tion. Figure 5 show how the different visitors in Table

2 would be clustered into groups (or User Types) us-

ing the K-means algorithm. The only input in this

step is the number of desired clusters which has to be

speciﬁed a priori. Figure 4 depicts a typical exam-

ple of clustering data into two groups using K-means.

K-means clustering is an old method that involves as-

signing data points to k different clusters so that it

minimizes the total squared distance between each

point and its closest cluster center. One of the most

widely used algorithms is simply referred to as ”K-

means” and it is a well documented algorithm that

have several proposed optimization to it. The clus-

tering is executed as follows:

1. Choose k clusters and initialize the centroid by

uniformly choosing a random value from the data

points.

2. For every sample in the data set, assign it to the

closest cluster using the Euclidean distance.

3. Calculate a new centroid for every cluster by com-

puting the average of all samples in the cluster.

4. Repeat step 2 and 3 until the clusters no longer

change.

Table 2: Example showing the number of actions that dif-

ferent visitors perform.

Virtual User Action1 Action2 Action3 Action4 Action5

Visitor 1 2 0 0 3 3

Visitor 2 0 3 4 3 3

Visitor 3 1 0 1 8 9

Visitor 4 4 6 0 0 1

Visitor 5 0 0 4 8 7

Visitor 6 5 2 0 7 0

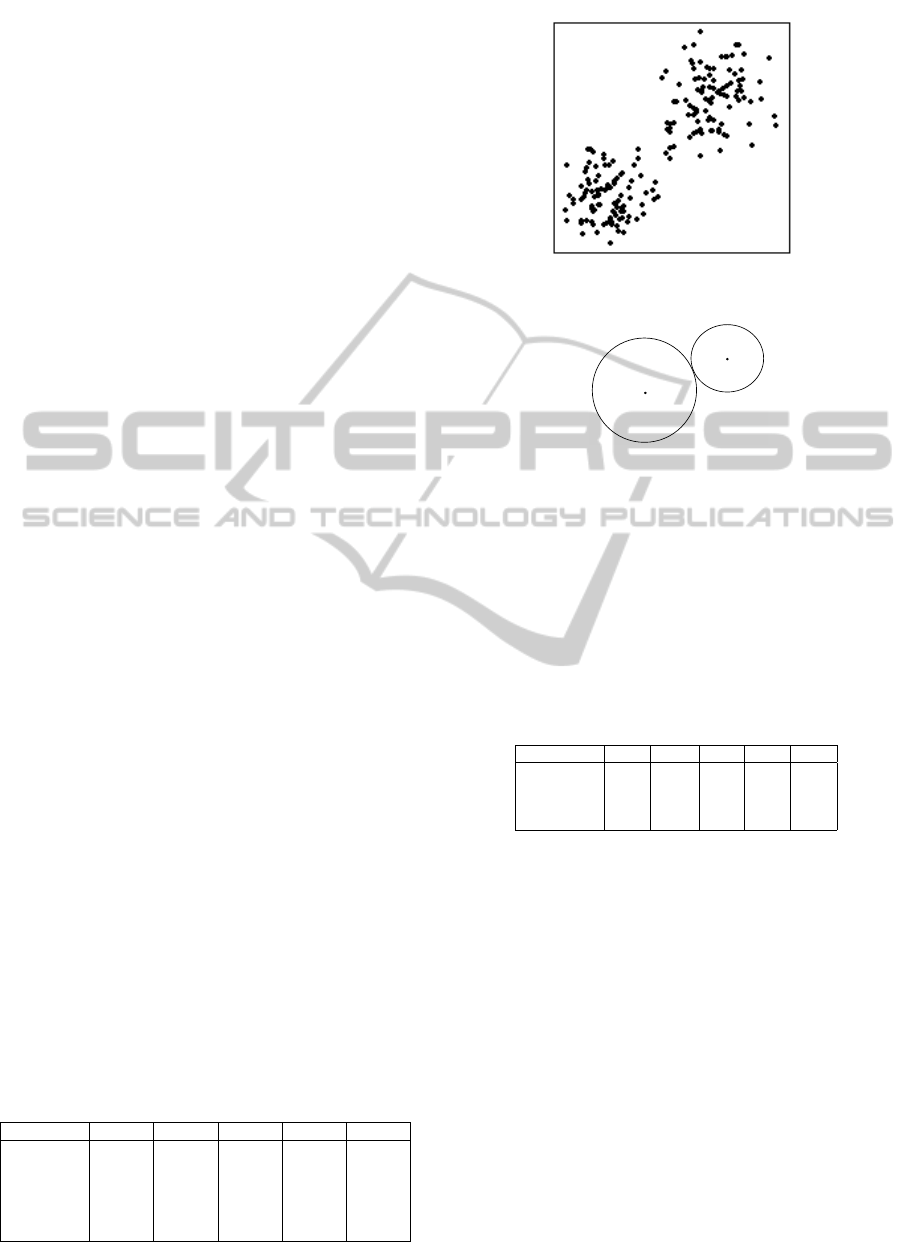

Figure 4: Example of two dimensional K-means clustering.

Visitor 1

User Type 1

User Type 2

Visitor 6

Visitor 4

Visitor 2

Visitor 3

Visitor 5

Figure 5: K-means clustering on data from Table 2.

Our approach also allows us to cluster virtual

users based on other characteristics. Table 3 shows an

example using different clustering parameters. Here

the variable #Get means the total number of GET re-

quests sent to the system and #Post means the total

number of POST requests sent to the system. ATT

stands for Average Think Time, ASL stands for Av-

erage Session Length, and ADT stands for Average

Response Size.

Table 3: Example showing different clustering parameters.

Virtual User #Get #Post ATT ASL ARS

Visitor 1 25 3 44 653 696

Visitor 2 17 0 25 277 1353

Visitor 3 31 3 54 1904 473

Visitor 4 19 1 23 444 943

This method, however, gives a different clustering

result than the method presented previously and can

be used as a complement if the ﬁrst method gives an

unsatisfactory result.

4.6 Removing Infrequent Sessions

Before we start building the workload model for each

selected cluster, we ﬁlter out low frequency sessions.

If we would include all possible sessions in the ﬁ-

nal workload model it would become too cluttered

and difﬁcult to understand and would include actions

which do not contribute signiﬁcantly to the load due

to their low frequency rate. We are mainly interested

in the common group behavior among visitors in the

same cluster.

Removing sessions that have low frequency is

achieved by sorting the sessions in descending or-

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

der according to their execution rate. We ﬁlter out

low frequent sessions according to a Pareto probabil-

ity density function (Arnold, 2008) by cutting off the

tail beneath a certain threshold value. The threshold

value is given as a percentage value. That means that

sessions below the threshold are simply ignored and

treated as irrelevant. The threshold value can how-

ever be adjusted on-the-ﬂy to include more or fewer

sessions in the workload model. Table 4 shows an

example of sessions listed in a descending order ac-

cording to their execution count. There is a total of

20 sessions, some of them have been executed several

times, (e.g., session 1 has been executed 7 times). A

threshold value of 0.7 would in this case mean that

we want 70 percent of the most executed sessions in-

cluded in our model, meaning a total of 14 sessions.

Thus, we would have to construct a model with (Ses-

sion1 * 7) + (Session2 * 6) + (Session3 * 1).

Table 4: Sessions listed in a descending order according to

number of times executed.

Session Number of times executed

Session 1 7

Session 2 6

Session 3 3

Session 4 2

Session 5 1

Session 6 1

Total 20

4.7 Building the Workload Model

The workload models that we create describes the

common behavior of all virtual users belonging to the

same cluster. We say that the model describes the be-

havior of a particular User Type. Creating the model

for a particular user type is a step-wise process where

we overlap sessions of all visitors belonging to the

same cluster.

Session by session we gradually build a model,

while reusing existing nodes in the model as much as

possible. At each step, we note the number of times

an edge has been traversed, the action, and the think

time value. We use this information to calculate the

probability and average think time of each edge in the

model.

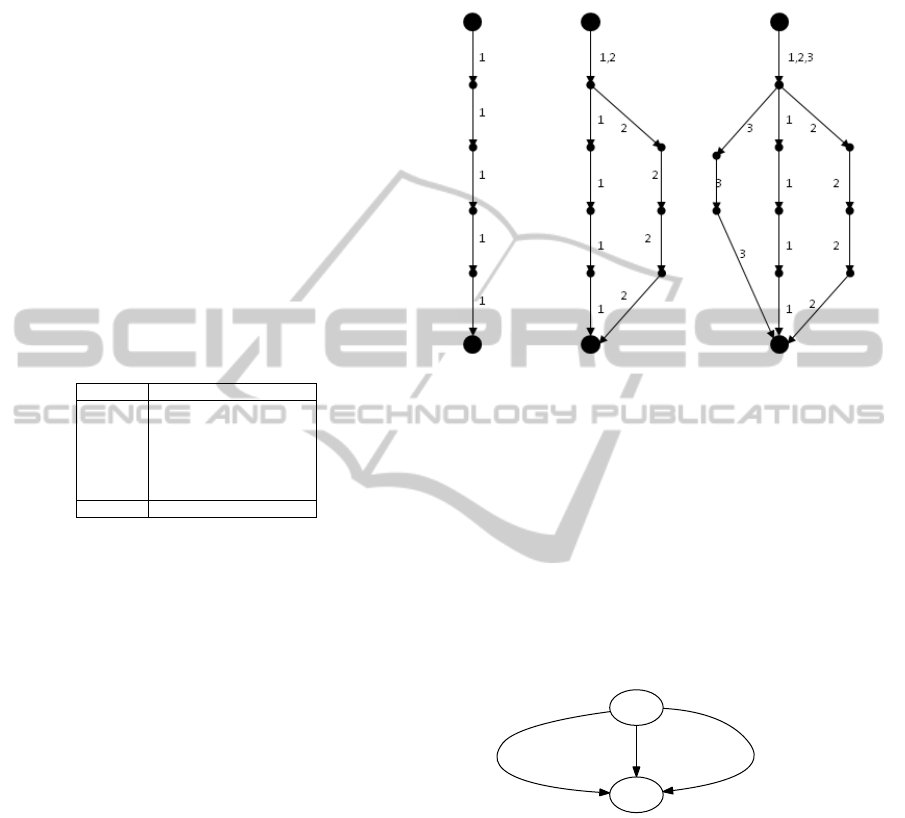

Figure 6 depicts how the workload model is grad-

ually built. One session at a time is included in the

workload model. An edge represents an action be-

ing sent to the system. The numbers associated to the

edges represent session IDs. Each node represents a

place, where the visitor waits before sending the next

action. One by one we include all the session belong-

ing to the same cluster, while reusing existing nodes

as much as possible. Identical sessions will be laid on

top of each other and at each step, we note the number

of times an edge has been traversed, the action, and

the think time value. We use this information to cal-

culate the probability and average think time of each

edge.

Figure 6: Model built in a step-wise manner.

We calculate the probability for an action as the

ratio of a particular action to all the actions going

out from a node. In a similar way, we calculate the

think time of an action by computing the average of

all think time values of an action.

In order to guarantee that the workload gener-

ated from the workload model matches the workload

present in the log ﬁle, we calculate the user arrival

rate. This information together with the distribu-

tion between user types is described in a higher level

model called the root model. Figure 7 depicts such a

model.

0.1 / 45 / user_type1 0.4 / 60 / user_type2 0.5 / 20 / user_type3

Figure 7: Root model describing different user types their

waiting times and probability.

The labels on the edges are separated by a ”/” and

refer to the probability, waiting time, and user type,

respectively. The probability value describes the dis-

tribution between different user types. The waiting

time describes the average waiting time between ses-

sions. The user type value simply denotes what work-

load model to execute. To calculate the waiting time

of a user type, we ﬁrst have to study the waiting time

between different sessions of a particular user. We

then calculate the user waiting time by computing an

average time between sessions for every user belong-

ing to a cluster.

AnAutomatedApproachforCreatingWorkloadModelsfromServerLogData

5 TOOL SUPPORT

Tool support for our approach was implemented using

the Python (Python, 2014) programming language.

To increase the performance of the tool and make use

of as many processor cores as possible for the most

computation intensive tasks, we made use of Python’s

multiprocessing library.

Our tool has a set of pre-deﬁned patterns for com-

mon logging formats that are typically used in mod-

ern web servers (e.g., Apache and Microsoft Server).

However, if the pattern of the log ﬁle is not automat-

ically recognized (e.g., due to a custom logging for-

mat) the user can manually specify a logging pattern

via a regular expression. Once the log is parsed, the

data is stored into a database. This way we avoid hav-

ing to re-parse large log ﬁles from one experiment to

another.

Before parsing a log ﬁle, the tool prompts the user

for a session time out value and the number of user

clusters. This information, however, has to be pro-

vided a priori. Once the ﬁle has been parsed and

the reduced request tree has been built, the user has

a chance to manually inspect the tree. Requests can

be grouped manually by dragging one node on top of

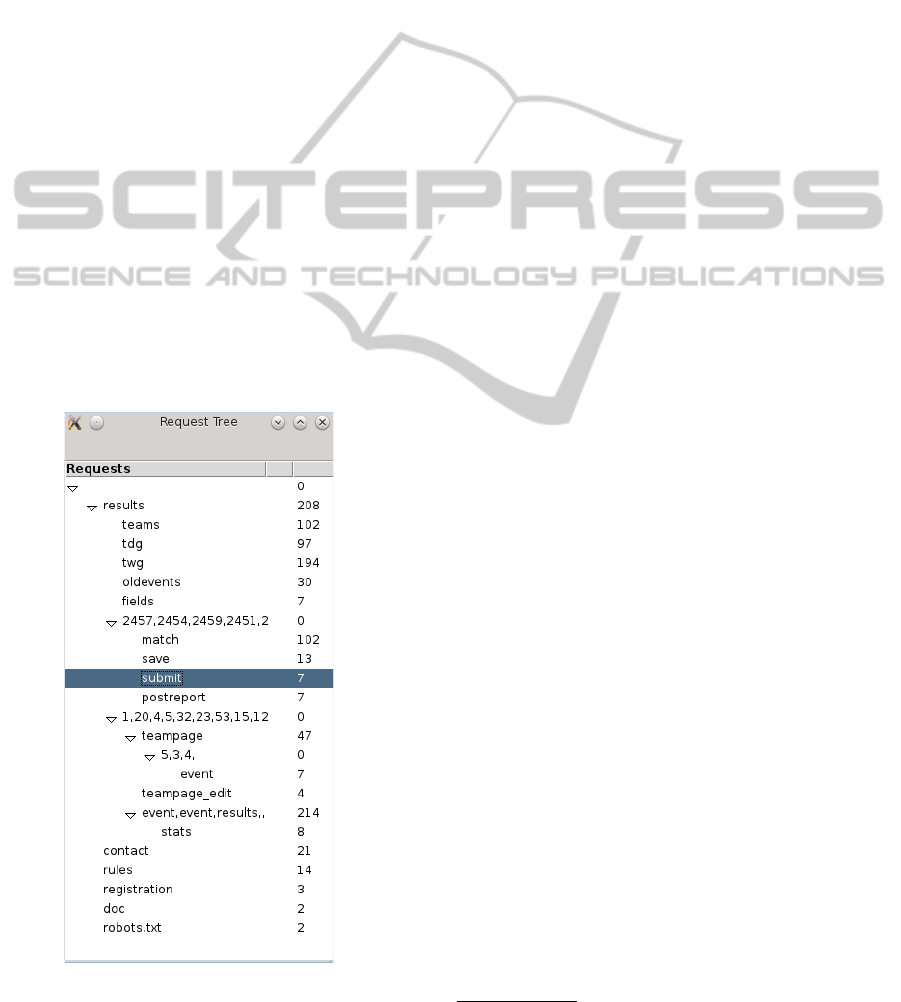

the other. Figure 8 shows an example of such a re-

quest tree.

Figure 8: Example of the request tree.

When the workload models have been built for

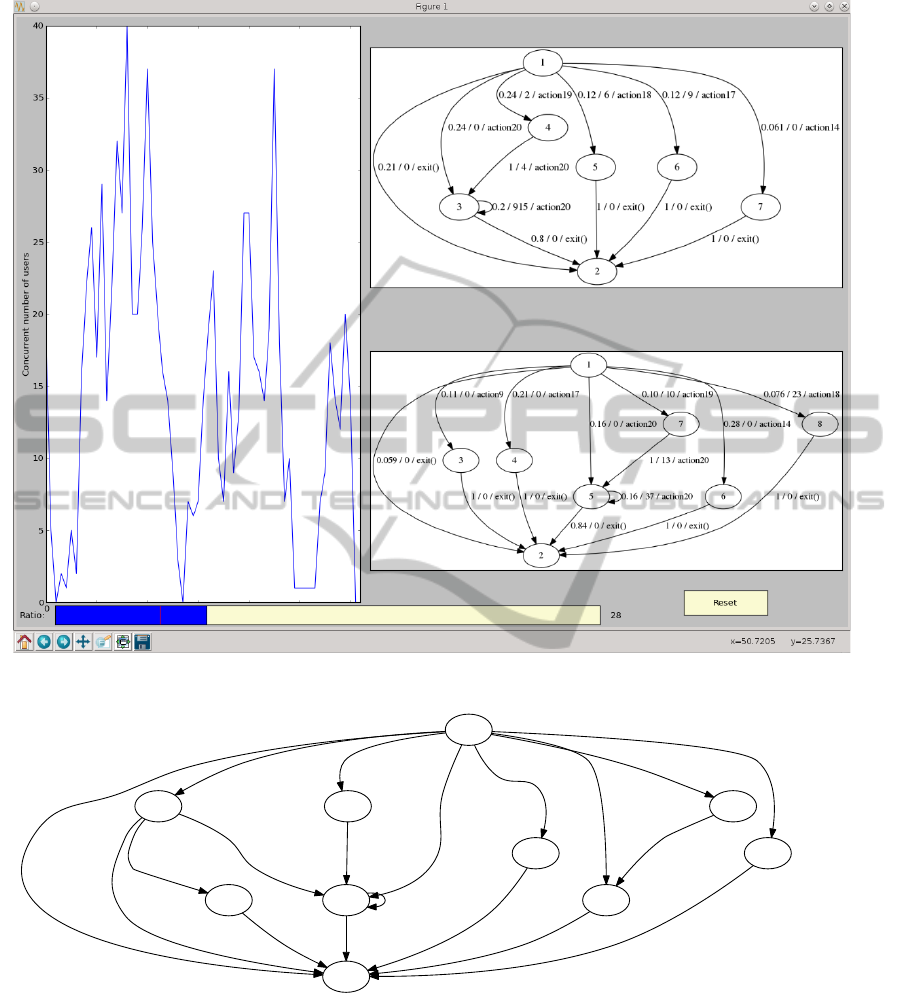

each cluster they are presented to the user. Figure 9

shows an example where 2 clusters have been used.

The left pane shows the number of concurrent users

detected throughout the logging period. The slider

bar at the bottom of the ﬁgure can be used to adjust the

threshold value, which determines how many sessions

to include in the model. A higher threshold value usu-

ally means more sessions are included in the model,

leading to a more complex model.

When saving the model, the tool will create two

artifacts: the workload models and the Python adapter

code. The latter contains the mapping of each action

in the models in a parameterized form and is used to

interface our MBPeT tool with the system under test.

6 EXAMPLE

In this section, we apply our approach to a web log

ﬁle containing real-users data.

The web site

used in this example maintains

scores of football games played in the football league

called pubiliiga. It also stores information about

where and when the games are played, rules, teams,

etc. The web site has been created using the Django

framework (Django Framework, 2012) and runs on

top of an Apache web server.

6.1 Data Cleaning

The log that we used was 323 MB in size and con-

tained roughly 1.3 million lines of log data. The web

site was visited by 20,000 unique users that resulted

in 365,000 page views between April 25th of 2009

and August 23rd of 2013. However, most of the users

only visited the web site once or twice and there were

only about 2,000 frequent users that regularly visited

the web site. Also, since the web site is updated fre-

quently on the same platform on which it is running,

the log contained a signiﬁcant amount of data from er-

roneous requests made by the simple method of trail

and error during development. All erroneous requests

and requests made from known robots were ﬁltered

out. The results that we are going to show in this sec-

tion are generated from a selected section of the log

data containing a mere 30,000 lines of log data, gen-

erated by 1092 unique users.

6.2 Pre-processing

We used a session timeout value of 60 minutes to de-

termine where to split the list of requests into ses-

sions. In this experiment, we clustered the users into

www.pubiliiga.ﬁ

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

Figure 9: The output window.

0.097 / 0 / exit()

0.086 / 0 / action224

0.44 / 6 / action27

0.043 / 5 / action24

0.043 / 0 / action208

0.20 / 5 / action26

0.032 / 22 / action25

0.054 / 0 / action23

0.84 / 0 / exit()

0.16 / 23 / action220.55 / 0 / exit()

0.29 / 5 / action22

0.17 / 11 / action23

1 / 0 / exit()

1 / 22 / action22 1 / 4 / action20

1 / 0 / exit()

Figure 10: Workload models recreated from log data.

two different groups. The total time to parse and pre-

process the data was around 10 seconds. The com-

puter was equipped with a 8 core Intel i7 2.93 GHz

processor and had 16 GB of memory.

6.3 Results

We used a threshold value of 0.3 when reconstruct-

ing the workload model for both clusters, meaning

that 30 percent of most executed traces are included in

the models. Figure 10 shows the workload model for

cluster 1. A total of 985 virtual users were grouped

into this cluster.

AnAutomatedApproachforCreatingWorkloadModelsfromServerLogData

For conﬁdentiality reasons the actual request types

have been left out and replaced by abstract types. Cre-

ating the model took approximately 2 seconds. How-

ever, the execution time may hugely vary depending

on the number of sessions that need to be included

in the workload model. That number of sessions in-

cluded in the model depends on what threshold value

is selected.

7 VALIDATION

In this section, we demonstrate the validity of our

approach on an auctioning web service, generically

called YAAS (Yet Another Auction Site). The YAAS

web service was developed as a university stand-alone

project. The web service has a RESTful interface and

has 5 simple actions:

• Browse: Returns all active auctions.

• Search: Returns auctions that matches the search

query.

• Get Auction: Returns information about a particu-

lar auction.

• Get Bids: Returns all the bids made to a particular

auction.

• Bid: Allows an authenticated user to place a bid on

an auction.

During this experiment we preformed two load

tests. First, we generated load from workload models

that we built manually. We then re-created the work-

load models from the log data that was produced dur-

ing ﬁrst load test. In the second load test, load was

generated from the re-created workload models. Fi-

nally, we compared the load that was generated during

both tests. In the ﬁrst step, we manually created mod-

els for two different user types. To test if the cluster-

ing works as expected, we made the workload mod-

els almost identical except for one request. One user

type is doing distinctively a browse request while the

other user type is always doing a search request. Fig-

ure 11(a) depicts the model for user type 1, the one

that is performing distinctively a browse request. A

similar model was also created for user type 2. If the

algorithm can cluster users into different groups when

only one action distinguishes them, then we consider

the clustering to be good enough.

7.1 Generating a Log File

Once the models were built, they were used to load

test the YAAS system using our in-house performance

testing tool MBPeT. We simulated 10 virtual users

(60% user type 1 and 40% user type 2) in parallel

for 2 hours. We set the virtual users to wait 20 sec-

onds between each session. This value is later going

to inﬂuence the timeout value during pre-processing

phase. From the produced log ﬁle, containing roughly

10,000 lines, we re-created the original models as ac-

curately as possible. We point out that the original

model is of a probabilistic nature, which means that

distinctly different traces with different lengths can

be generated from a fairly simple model. For exam-

ple, the shortest session had only 1 action, while the

longest session had 22 actions. Also, we do not have

exact control over how many times each trace is exe-

cuted by a user.

7.2 Recreating the Models

To make sure that we split the sessions in a similar

way we used a timeout value of 20 seconds. No other

delay between the requests was that large. We also

clustered the data into 2 user types. Each user type

is later going to be represented with a separate work-

load model. In this experiment we did not ﬁlter out

any user sessions, hence we used a threshold value

of 1.0, meaning all traces found in the log were used

to recreate the models. Figure 11(a) shows the origi-

nal workload model while Figure 11(b) shows the re-

constructed workload model for User Type 1. A sim-

ilar model was also created for User Type 2. As one

can see, the only difference from the original model

is the probability values on the edges. However close,

the probability values in the original models do not

match exactly those in the generated workload mod-

els. This is due to the fact that we use a stochastic

model for generating the load and we do not have

an exact control of what traces are generated. Figure

12(a) shows original root model while Figure 12(a)

shows the re-created root model. From the ﬁgures we

can see that the probability values of the re-created

root model match that of the original root model (60%

and 40%) and that the waiting time is close to 20 sec-

onds (19.97 and 19.98).

7.3 Data Gathering

Even though the models look similar, we also wanted

to make sure that the load generated from the origi-

nal models matched the load generated from our re-

created models. Hence, we let the MBPeT tool mea-

sure the number of requests sent to the YAAS system

during both steps. Table 5 shows a comparison be-

tween the tests.

As can be seen from the table, the re-created

model produced a slightly higher workload. However,

we like to point out that the load generation phase

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

1.0 / 0 / browse()

0.10 / 7 / browse()

0.87 / 4 / get_auction(id)

0.03 / 0 / exit()

0.05 / 4 / browse()

0.75 / 4 / get_bids(id)

0.20 / 0 / exit()

0.20 / 5 / browse()

0.50 / 3/ bid(id,price,username,password)

0.30 / 0 / exit()

0.25 / 6 / browse()

0.45 / 4 / get_bids(id)

0.30 / 0 / exit()

(a) User Type 1 original model.

1.0 / 0 / browse()

0.095 / 7 / browse()

0.033 / 0 / exit()

0.87 / 4 / get_auction(id)

0.052 / 4 / browse()

0.20 / 0 / exit()

0.75 / 5 / get_bids(id)

0.24 / 5 / browse()

0.29 / 0 / exit() 6

0.48 / 3 / bid(id, price, username, password)

0.23 / 6 / browse()

0.30 / 0 / exit()

0.48 / 4 / get_bids(id)

(b) User Type 1 recreated model.

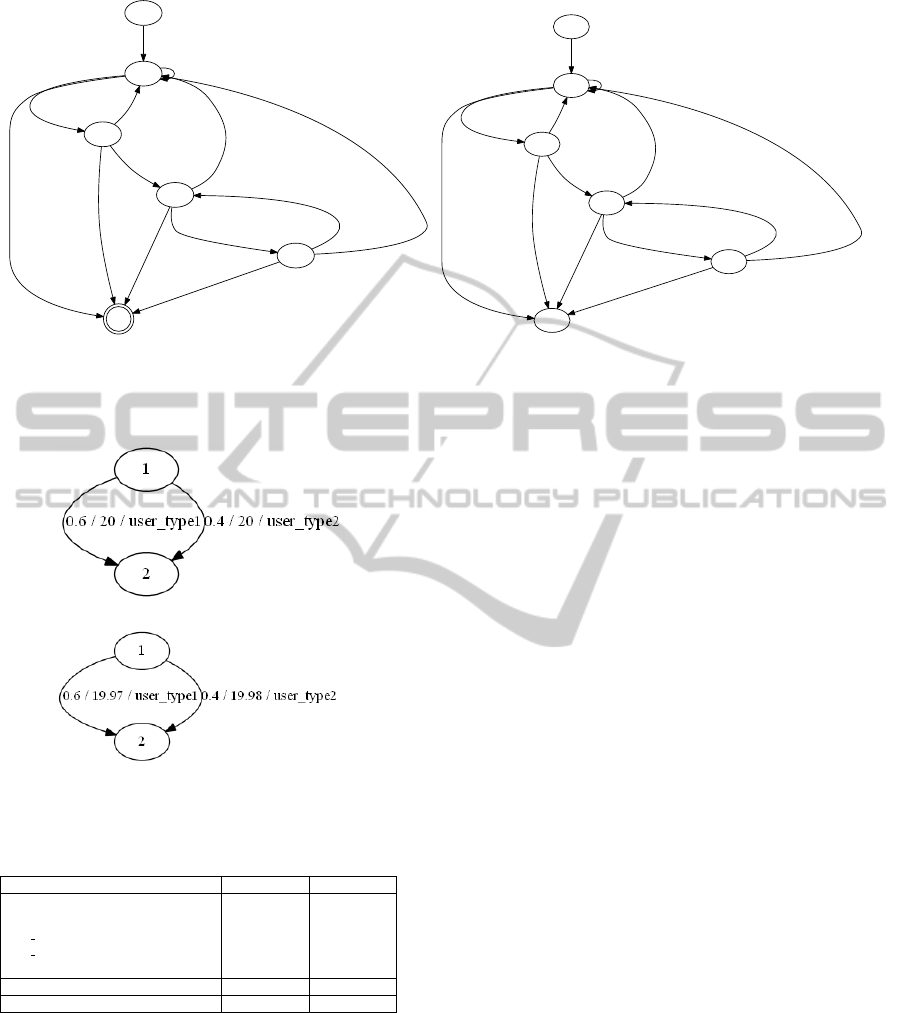

Figure 11: Original and re-created workload models.

(a) Original root model.

(b) Recreated root model.

Figure 12: Root models.

Table 5: Comparison between the two test runs.

Request Load Test 1 Load Test 2

Search(string) 1263 1294

Browse() 1895 1942

Get Auction(id) 2762 2821

Get bids(id) 2697 2625

Bid(id, price, username, password) 1288 1265

Total 9903 9947

Request Rate 1.37 req/sec 1.38 req/sec

lasted for 2 hours and we see a difference of 44 re-

quests. This is backed up by looking at the measured

request rate. Load test 1 generated 1.37 req/sec, while

load test 2 is virtually identical with 1.38 req/sec. Fig-

ure 13 shows the workload as a function of request

(actions) over time for both test sessions. As one can

see, the graphs are not identical but the trend and scale

is pretty much similar.

8 CONCLUSIONS

In this paper, we have presented a tool-supported ap-

proach for creating performance models from histor-

ical log data. The models are of a stochastic nature

and specify the probabilistic distribution of actions

that are executed against the system.

The approach is automated, hence reducing the ef-

fort necessary to create workload models for perfor-

mance testing. In contrast, Cai et al. (Cai et al., 2007)

report that they spent around 18 hours to manually

create a test plan and the JMeter scripts for the refer-

ence Java PetStore application (Oracle, 2014).

The experiments presented in this paper have

shown that the approach can adequately enough cre-

ate workload models from log ﬁles and they mimic

the real user behavior when used for load testing. Fur-

ther, the models themselves give insight in how users

behave. This information can be valuable for opti-

mizing functions in the system and enforcing certain

navigational patterns on the web site.

Future work will targeted towards handling larger

amount of log data. Currently the tool is not op-

timized enough to operate efﬁciently on large data

amounts. Another improvement is automatic session

detection. Currently the tool follows a pre-deﬁned

timeout value for detecting sessions. Automatic ses-

sion detection could suggest different timeout values

for different users, hence, improving on the overall

quality of the recreated model. Currently, we are only

clustering users according to accessed resources. In

the future, we would like to extend the K-means clus-

tering algorithm to cluster based on other relevant fac-

tors like: request method, size of resource, user re-

AnAutomatedApproachforCreatingWorkloadModelsfromServerLogData

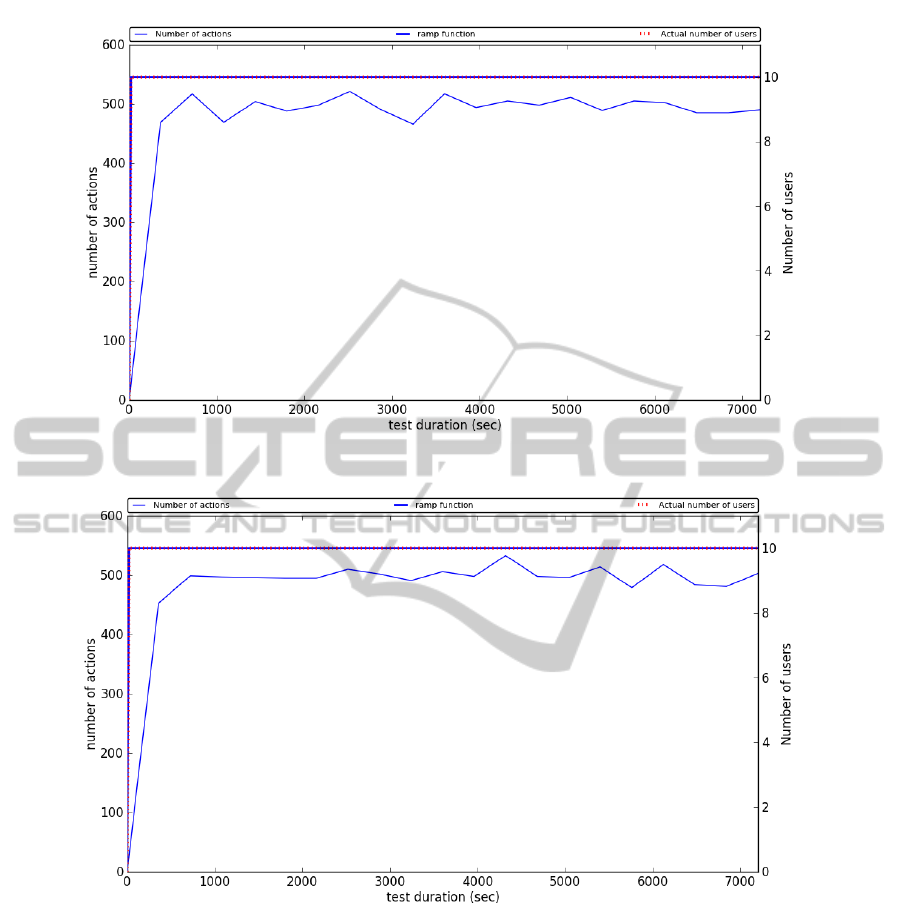

(a) Load Test 1

(b) Load Test 2

Figure 13: Number of request shows as a function over time.

quest rate, etc. This clustering method could suggest

models that, when executed, exercise the workload

patterns on the system, thus, potentially ﬁnding ”hid-

den” bottlenecks. Further, an interesting experiment

would be to analyze only failed or dropped requests.

This way one could for instance study the details of

how a DoS-attack was carried out and what pages

were hit during the attack.

ACKNOWLEDGEMENTS

Our sincerest gratitude go to the owners of

www.pubilliiga.ﬁ for letting us use their data in our

experiments.

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

REFERENCES

Abbors, F., Ahmad, T., Truscan, D., and Porres, I. (2012).

MBPeT: A Model-Based Performance Testing Tool.

2012 Fourth International Conference on Advances in

System Testing and Validation Lifecycle.

Al-Jaar, R. (1991). Book review: The art of computer

systems performance analysis: Techniques for exper-

imental design, measurement, simulation, and model-

ing by raj jain (John Wiley & Sons). SIGMETRICS

Perform. Eval. Rev., 19(2):5–11.

Anastasiou, N. and Knottenbelt, W. (2013). Peppercorn:

Inferring performance models from location tracking

data. In QEST, Lecture Notes in Computer Science,

pages 169–172. Springer.

Arnold, B. (2008). Pareto and generalized pareto distribu-

tions. In Chotikapanich, D., editor, Modeling Income

Distributions and Lorenz Curves, volume 5 of Eco-

nomic Studies in Equality, Social Exclusion and Well-

Being, pages 119–145. Springer New York.

Cai, Y., Grundy, J., and Hosking, J. (2007). Synthesiz-

ing client load models for performance engineering

via web crawling. In Proceedings of the Twenty-

second IEEE/ACM International Conference on Au-

tomated Software Engineering, ASE ’07, pages 353–

362. ACM.

Django Framework (2012). Online at

https://www.djangoproject.com/.

Ferrari, D. (1984). On the foundations of artiﬁcial work-

load design. In Proceedings of the 1984 ACM SIG-

METRICS conference on Measurement and modeling

of computer systems, SIGMETRICS ’84, pages 8–14,

New York, NY, USA. ACM.

Jurdzi

nski, M., Kwiatkowska, M., Norman, G., and Trivedi,

A. (2009). Concavely-Priced Probabilistic Timed Au-

tomata. In Bravetti, M. and Zavattaro, G., editors,

Proc. 20th International Conference on Concurrency

Theory (CONCUR’09), volume 5710 of LNCS, pages

415–430. Springer.

Kathuria, A., Jansen, B. J., Hafernik, C. T., and Spink, A.

(2010). Classifying the user intent of web queries us-

ing k-means clustering. In Internet Research, num-

ber 5, pages 563–581. Emerald Group Publishing.

Lutteroth, C. and Weber, G. (2008). Modeling a realis-

tic workload for performance testing. In 12th Inter-

national Conference on Enterprise Distributed Object

Computing., pages 149–158. IEEE Computer Society.

Ma, S. and Hellerstein, J. L. (2001). Mining partially pe-

riodic event patterns with unknown periods. In Pro-

ceedings of the 17th International Conference on Data

Engineering, pages 205–214, Washington, DC, USA.

IEEE Computer Society.

MacQueen, J. B. (1967). Some methods for classiﬁcation

and analysis of multivariate observations. In Pro-

ceedings of 5-th Berkeley Symposium on Mathemat-

ical Statistics and Probability, number 1, pages 281–

297. Berkeley, University of California Press.

Mannila, H., Toivonen, H., and Inkeri Verkamo, A. (1997).

Discovery of frequent episodes in event sequences.

Data Min. Knowl. Discov., 1(3):259–289.

Oracle (2014). Java Pet Store 2.0 reference applica-

tion. http://www.oracle.com/technetwork/java/index-

136650.html. Last Accessed: 2014-05-23.

Petriu, D. C. and Shen, H. (2002). Applying the UML

Performance Proﬁle: Graph Grammar-based Deriva-

tion of LQN Models from UML Speciﬁcations. pages

159–177. Springer-Verlag.

Python (2014). Python programming language. Online at

http://www.python.org/. Last Accessed: 2014-05-23.

Richardson, L. and Ruby, S. (2007). Restful web services.

O’Reilly, ﬁrst edition.

Rudolf, A. and Pirker, R. (2000). E-Business Testing: User

Perceptions and Performance Issues. In Proceedings

of the First Asia-Paciﬁc Conference on Quality Soft-

ware (APAQS’00), APAQS ’00, pages 315–, Washing-

ton, DC, USA. IEEE Computer Society.

Shi, P. (2009). An efﬁcient approach for clustering web ac-

cess patterns from web logs. In International Journal

of Advanced Science and Technology, volume 5, pages

1–14. SERSC.

Subraya, B. M. and Subrahmanya, S. V. (2000). Ob-

ject driven performance testing in web applications.

In Proceedings of the First Asia-Paciﬁc Conference

on Quality Software (APAQS’00), pages 17–26. IEEE

Computer Society.

Vaarandi, R. (2003). A data clustering algorithm for mining

patterns from event logs. In Proceedings of the 3rd

IEEE Workshop on IP Operations and Management

(IPOM03), pages 119–126. IEEE.

AnAutomatedApproachforCreatingWorkloadModelsfromServerLogData
