A Service Framework for Multi-tenant Enterprise Application in SaaS

Environments

Chun-Feng Liao, Kung Chen and Jiu-Jye Chen

Department of Computer Science, National Chengchi University, Taipei, Taiwan

Keywords:

Multi-tenant, Schema-mapping, Universal Table, Tenant-speciﬁc Storage, SaaS.

Abstract:

In recent years, Software as a service (SaaS), a service model for cloud computing, has received a lot of atten-

tion. As designing a multi-tenant enterprise application in SaaS environments is a non-trival task, we propose

a service framework to deal with three common issues for designing multi-tenant enterprise SaaS applications:

tenant context storage and propagation, schema-mapping, and the integration of ORM framework. A prototype

and a sample SaaS application have been implemented to verify the feasibility of our framework. In addition,

two tenant-speciﬁc virtual applications are constructed to demonstrate multi-tenancy. Finally, we conduct a

set of experiments to assess the overheads of making an enterprise application multi-tenant enabled.

1 INTRODUCTION

Over the past few years, a considerable number of

studies have been made on cloud computing. Among

the service models in cloud computing, SaaS (Soft-

ware as a Service) is reported to be the most com-

petitive (Momm and Krebs, 2011). To be econom-

ically scalable, a SaaS application must leverage re-

source sharing to a great extent by accommodat-

ing different tenants of the application while mak-

ing it appear to each that they have the application

all to themselves. Despite the beneﬁts and popular-

ity of multi-tenant SaaS applications, the approach

for implementing such applications is still not well-

studied and documented (Koziolek, 2012). Techni-

cally speaking, SaaS-level multi-tenancy employs a

single application instance to serve multiple tenants.

In other word, tenants of a SaaS application are obliv-

ious to the fact that the resources (e.g. CPU time, net-

work bandwidth, and data storage) are shared among

tenants. For instance, a SaaS application must imple-

ment afﬁnity (how tasks are transparently distributed),

persistence (how data are transparently distributed

and managed), performance isolation, QoS differenti-

ation, and tenant-speciﬁc customization (Krebs et al.,

2012). These issues are relatively hard to tackle and

require higher expertise.

Several architectural issues need to be addressed

when implementing a multi-tenant SaaS application,

which can be into two layers, namely, the applica-

tion layer and the data layer. The core issue of the

application layer is how to devise a transparent way

to store and to propagate the tenant-speciﬁc infor-

mation (or called tenant contexts). Typically, enter-

prise applications tend to store tenant contexts in a

platform-dependent session implementation. How-

ever, if the tenant contexts are stored in this way, then

in order to propagating tenant contexts into a busi-

ness method, either the method signature or the body

of the business method must be modiﬁed to access

the platform-speciﬁc session implementation. Both

of these approaches involve signiﬁcant modiﬁcation

of code and made business methods being tightly cou-

pled on platform-speciﬁc API.

In addition, traditional ”sticky session” (Galchev

et al., 2007) handling mechanisms are also platform-

speciﬁc and require careful conﬁguration in a clus-

tered environment. As nodes in the cloud environ-

ment is usually virtualized, heterogeneous and elas-

tic, it is even harder to devise a platform independent

approach for handling sticky sessions. A more trans-

parent way to store and propagate tenant context is

thus apparently required.

Meanwhile, although it is generally agreed that

the multi-tenant data layer is one of the most impor-

tant concerns (Fang and Tong, 2011), there is also

little investigation on data layer concerns in a multi-

tenant application. There are two inter-related issues

to be addressed in this layer: schema layout manage-

ment and tenant-speciﬁc schema customization. In

the design space of the multi-tenant schema layout

management strategy, various alternative approaches

Liao C., Chen K. and Chen J..

A Service Framework for Multi-tenant Enterprise Application in SaaS Environments.

DOI: 10.5220/0004995300050013

In Proceedings of the 9th International Conference on Software Engineering and Applications (ICSOFT-EA-2014), pages 5-13

ISBN: 978-989-758-036-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

form a continuum between the isolated data style and

the shared data style (Chong and Carroro, 2011). As

pointed out by Aulbach et al., the shared data style

provides very good consolidation but lacks schema

extensibility (Aulbach et al., 2008). Many shared data

style assumes that either each tenant has a dedicated

set of tables and have the same schema or all ten-

ants are consolidated in one set of tables but share an

identical schema. Among commonly used schema-

mapping techniques, Universal Table seems to be a

promising shared data style since it is possible to pre-

serve extensibility at the same time. Essentially, a

Universal Table is a generic structure that has virtu-

ally no schema attached to it. Although it is com-

monly held that Universal Table layout would incur

a large amount of performance overhead, it is the ap-

proach adopted by SalesForce.com, which is a suc-

cessful SaaS vendor best known for its CRM service

that supports more than 55,000 tenants (Weissman

and Bobrowski, 2009). However, it is not clear how

the Froce.com SaaS applications leased by tenants

transparently transform the query statements for the

logical schema to the ones for the physical schema.

As the above-mentioned design issues, applica-

tion layer or data layer, are cross-cutting concerns of

a multi-tenant application, they should be modular-

ized so that developers are able to implement, deploy,

and integrate to such customizations to the applica-

tions with minimal additional programming and con-

ﬁguration efforts. A general approach is to devise a

middleware-level facility that supports transparently

tenant context management, automatic mapping of

multiple single-tenant logical schemas to one multi-

tenant physical schema in the database, and ﬂexi-

ble customization of tenant-speciﬁc logical schemas.

Hence, we propose a middleware-level service frame-

work that addresses these issues.

Speciﬁcally, our objective is to design a service

framework that provides: 1) a platform indepen-

dent tenant context management service that stores

and propagates tenant contexts based on the thread-

speciﬁc storage pattern (Schmidt et al., 1996); 2) a

data service that implements multi-tenant Universal

Table schema layout; 3) a multi-tenant ORM (object-

relational mapping) customization service that en-

ables the customization of tenant-speciﬁc domain ob-

jects and their mappings to the underlying schema

layout. On top of this service framework, we con-

struct a simple SaaS application, ShoppingForce.com,

to demonstrate the feasibility of our approach. Fi-

nally, we also present results of the performance as-

sessments of this work.

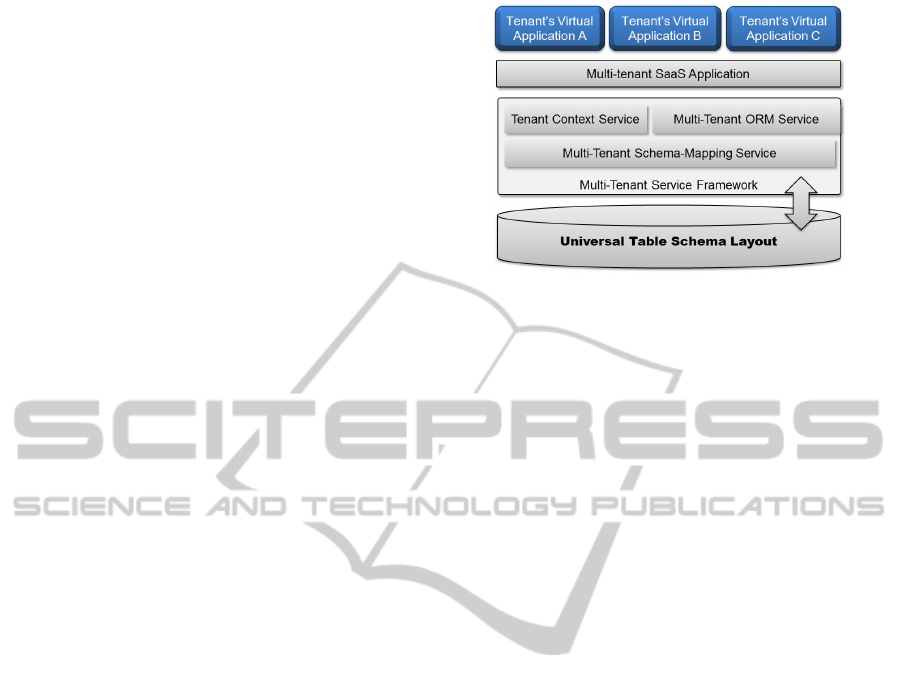

Figure 1: Overall architecture of the proposed service

framework.

2 RELATED WORKS

As mentioned, the design issues of multi-tenant en-

terprise applications fall into two groups: the ap-

plication layer and the data layer. In the applica-

tion layer, several challenges arise when transform-

ing these applications into multi-tenant ones: 1) how

to obtain tenant-speciﬁc information (or called ten-

ant contexts), 2) where to store the tenant contexts,

and 3) how to propagate tenant contexts among com-

ponents (Bezemer and Zaidman, 2010). Several ap-

proaches have been proposed to deal with the ﬁrst is-

sues mentioned above, including intercepting ﬁlters

(Cai et al., 2010), aspects (Wang and Zheng, 2010), or

contexts (Truyen et al., 2012). What seems to be lack-

ing, however, is an appropriate mechanism for storing

and propagating of tenant contexts.

In the data layer, Pereira and Chiueh mentioned

the concepts of a multi-tenant query rewriting en-

gine in the future work section (Pereira and Chiueh,

2007) . Li proposes a heuristic-based query rewrit-

ing mechanism for transforming queries to the log-

ical schema to HBase, which is an implementation

of BigTable (Li, 2010). Aulbach et al. survey sev-

eral schema-mapping techniques, including Universal

Table (Aulbach et al., 2008). The data architecture

used by Force.com (Weissman and Bobrowski, 2009)

falls into the category of Universal Table, which is the

foundation of our data layer design.

Several attempts have been made to provide a

common platform for multi-tenant enterprise applica-

tions. However, the objectives of these attempts either

focus on isolation issues (Azeez et al., 2010), admin-

istration issues (Strauch et al., 2012), or only provide

conceptual discussion (Shimamura et al., 2010). This

paper concentrates the issue of tenant context and data

management and realize our approach as a service

framework.

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

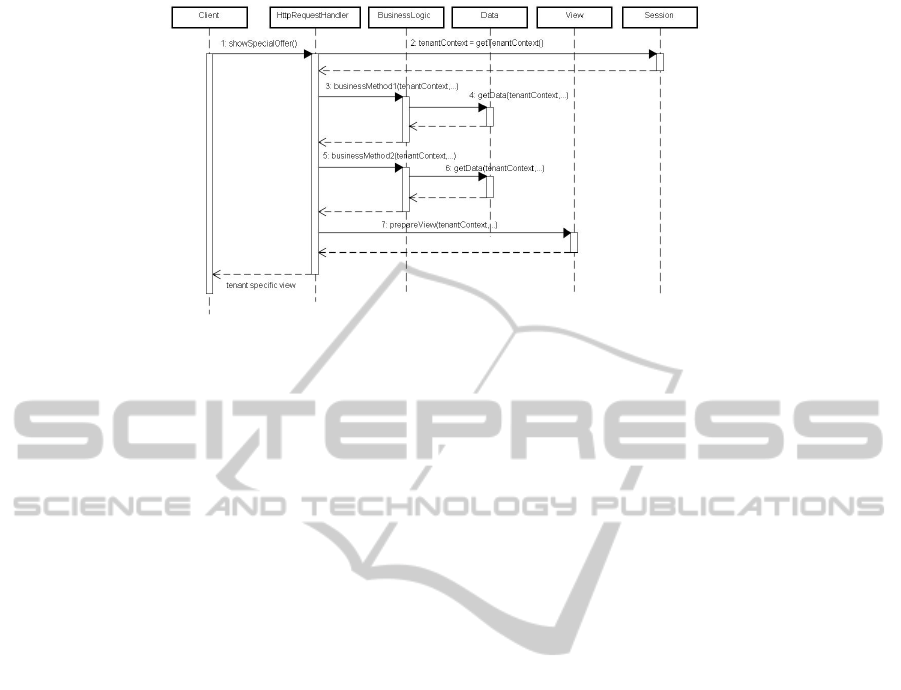

Figure 2: In traditional HTTP Session approach, all method signatures throughout the call sequences have to be modiﬁed.

3 DESIGN

In this section, we will present the design of the pro-

posed multi-tenant service framework for enterprise

applications. As depicted in Fig.1, The service frame-

work provides three core services that are common

for multi-tenant enterprise applications, namely, the

Tenant Context Service, the Multi-Tenant ORM Ser-

vice, and the Multi-Tenant Schema-Mapping Service.

A multi-tenant SaaS application, which is able to

host several tenant-speciﬁc virtual applications, can

be built on top of the service framework. The detailed

mechanisms of the three core services will be intro-

duced in the following sub-sections.

3.1 Tenant Context Management

A key characteristic of a multi-tenant SaaS applica-

tion is that it must provide tenant-speciﬁc user in-

terfaces, business logics and data to a certain extent.

To realize tenant-speciﬁc customization of an appli-

cation, some artifacts, usually called isolation points,

have to be isolated for different tenants (Cai et al.,

2010). To implement tenant-speciﬁc customization,

program logics in the isolation points must have ac-

cess to tenant contexts. Therefore, it is important to

ﬁnd a way for storing and propagating tenant contexts

among the isolation points spreading in a multi-tenant

SaaS application. If the clients of a SaaS application

are Web-based, then a common approach is to store

tenant contexts in a platform-dependent HTTP ses-

sion implementation. Essentially, an HTTP session

is an abstraction of a shared storage which is acces-

sible through a speciﬁc sequence of user-system in-

teractions. For instance, the shopping cart in an e-

commerce web site is usually stored in an HTTP ses-

sion.

However, the above-mentioned approach leads to

several problems. First, the approach is not applica-

ble to non-web-based clients. Second, if not care-

fully designed, the HTTP session can be unstable and

brittle due to the sticky session problem, proxy farm

problem, or net quasar problem (Joines et al., 2003).

Most importantly, the multi-tenant processing logic

will be ”polluted” by platform-speciﬁcs of the un-

derlying HTTP implementation. Taking Java-based

Web application as an example, the multi-tenant pro-

cessing logic must use a Servlet API to access ten-

ant contexts, causing the logic being dependent on the

Servlet API. Moreover, the method signatures for user

interfaces, business logics and data access have to be

modiﬁed to propagate tenant contexts (see Fig. 2).

To minimize the efforts of migrating an single-tenant

application into multi-tenant ones, it is preferable to

avoid signiﬁcant modiﬁcation of code or being tightly

coupled with some platform speciﬁc API.

Thread-speciﬁc storage is a design pattern that al-

lows multiple threads to access a logically global but

physically local for each individual thread (Schmidt

et al., 1996). Internally, a thread-speciﬁc storage is

essentially a globally accessible list of maps, where

the maps are indexed by thread IDs. Hence, program

logics in a speciﬁc thread t can only access one of the

map, that is, the map indexed by t. It is reported that

thread-speciﬁc storage is more efﬁcient, reusable and

portable (Schmidt et al., 1996). However, if it is not

carefully designed, it can lead to an obscure system

structure because of the use of a (logically) global ob-

ject. As a result, it is important to store and propagate

tenant contexts in a thread-speciﬁc storage through

an uniform API. Based on this observation, we de-

vise a platform independent mechanism that allows

the program logic to access tenant contexts, stored in

a tenant-speciﬁc storage, from user interfaces, busi-

AServiceFrameworkforMulti-tenantEnterpriseApplicationinSaaSEnvironments

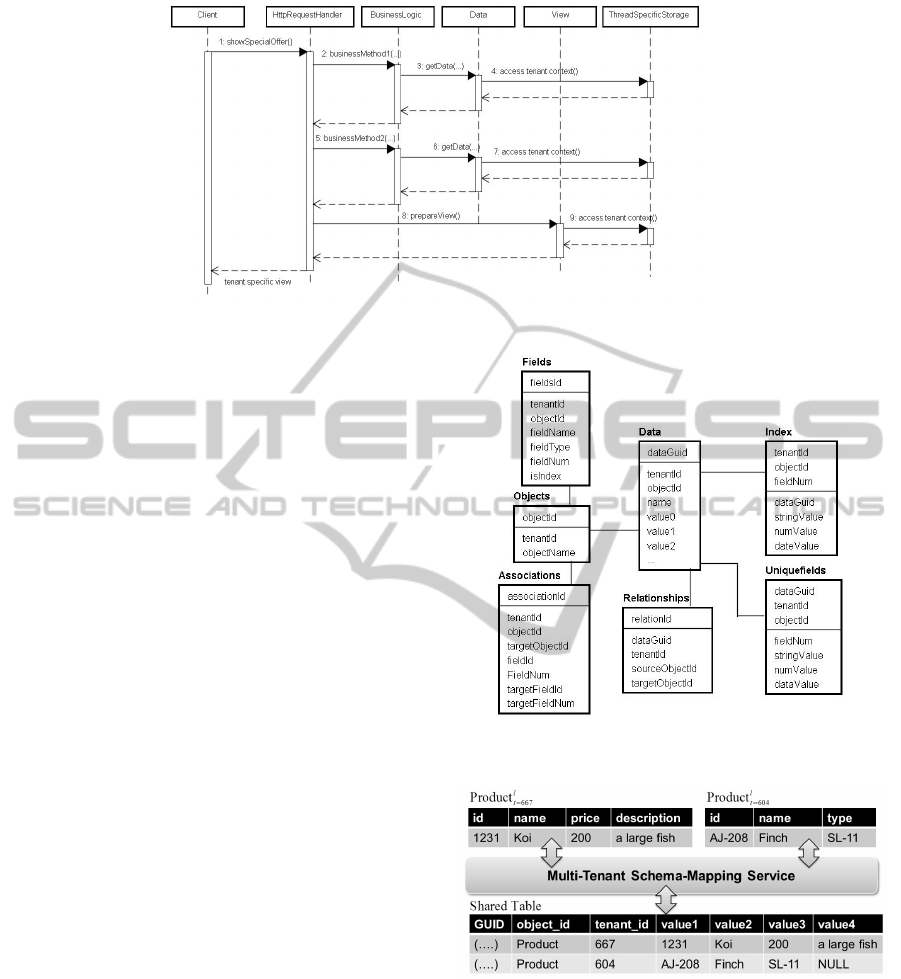

Figure 3: In the tenant speciﬁc storage approach, only isolation points are modiﬁed.

ness logics and data without depending on the HTTP

session, as shown in Fig.3.

3.2 Multi-tenant Schema-mapping

This section describes the design of the proposed

Universal-Table-based multi-tenant schema-mapping

service. Before examining the detailed mechanisms,

it is helpful to introduce the overall data architecture

and design issues of Universal Table. Essentially,

Universal Table is a generic storage consisting of a

GUID (Global Unique Identiﬁer), a tenant ID, and a

ﬁxed number of generic data columns (i.e. the Data

Table in Fig.4). The metadata of logical tables (ob-

jects), logical columns (ﬁelds), logical relationship,

logical primary keys, and logical index information of

records are stored in Objects, Fields, Relationships,

Uniqueﬁelds, and Index, respectively (see Fig.4). In

the sequel, we follow the convention in (Weissman

and Bobrowski, 2009) and use the term objects and

tables as well as ﬁelds and columns interchangeably.

Consider a hypothetical e-commerce SaaS appli-

cation, ShoppingForce.com, that enables its tenants

to sell products and to process orders on-line. Since

different tenants have their own unique needs in de-

scribing their products, ShoppingForce.com allows its

tenants to create their own customized schemas for

their products. Fig. 5 illustrates the scenario. Here

we have two product tables (i.e. Product

t=667

and

Product

t=604

, where l denotes ”logical” schema and

t denotes tenant id). The data in the two logical tables

will be stored together into a universal table (i.e. the

Shared Table) via the schema mapping service.

We now turn to the design of our Universal-Table-

based multi-tenant schema-mapping service. At the

core of the service is a set of query rewriting rules

that specify the transformations from logical queries

to physical queries via relational algebra. Due to

space limitation, the reader is referred to our previous

Figure 4: The data architecture of Universal Table schema-

mapping.

Figure 5: Example of Universal Table schema-mapping.

work for detailed speciﬁcation of those query rewrit-

ing rules (Liao et al., 2012). In the following, we

sketch the overall query rewriting mechanism via an

example of transforming a projection statement. Let

us assume that a tenant, whose id is 667, has submit-

ted a projection statement:

SELECT price, description FROM Product.

This projection statement will be rewritten to a form

that selects physical ﬁelds from the shared table,

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

Data. Firstly, the statement will be represented by

the following algebraic form:

<price,description>

[667](Product),

where

π denotes the projection operation that selects

subscripted ﬁelds, e.g., price, description, from a log-

ical table speciﬁed by its name and a tenant id anno-

tation, e.g., Product and 667.

Secondly, we look up the ob jectId from the Ob-

jects table via the logical table name, (Product), and

the tenant id, 667. This is speciﬁed by using the object

name transformation function ξ

ob ject

(Product, 667),

which is assumed to return 1 in this example. With

the physical object id and tenant id, we can select all

the rows of the tenant’s Product data from the shared

table Data, which is speciﬁed by the following equa-

tion.

ob jectId=1∧tenantId=667

(Data). (1)

Thirdly, given the ob jectId, we may obtain the

mapping between logical ﬁeld names and physical

ﬁeld names using the Fields table. We specify the

mapping via the ﬁeld name transformation func-

tion ξ

f ield

(Product, n

, 667), where the logical ﬁeld

names id, name, price, and description are obtained

by substituting n

by value1, value2, value3, and

value4, respectively. As a result, the logical table

Product can be reconstructed by appending a rename

operation, ρ, and a projection operation in front of the

expression in (1):

[667](Product) =ρ

(id,name,price,description)

<value1,value2,value3,value4>

ob jectId=1∧tenantId=667

(Data).

(2)

Note that the projection operation

<value1,value2,value3,value4>

is required since the

Data table has additional ﬁelds to keep track of

metadata of a record such as GUID, objectId and

tenantId ﬁelds of the Data table, as depicted in Fig.5.

Now that we have reconstructed the logical table

Product from Data, we can apply arbitrary query op-

erations to it:

<price,description>

[667](Product) =

<price,description>

(id,name,price,description)

<value1,value2,value3,value4>

ob jectId=1∧tenantId=667

(Data).

(3)

Then, the physical form of the tenant-aware logical

projection statement can be derived as follows:

SELECT price, description FROM (

SELECT value1 AS id, value2 AS name,

value3 AS price, value4 AS description

FROM Data

WHERE objectId=1 AND tenantId=667 ).

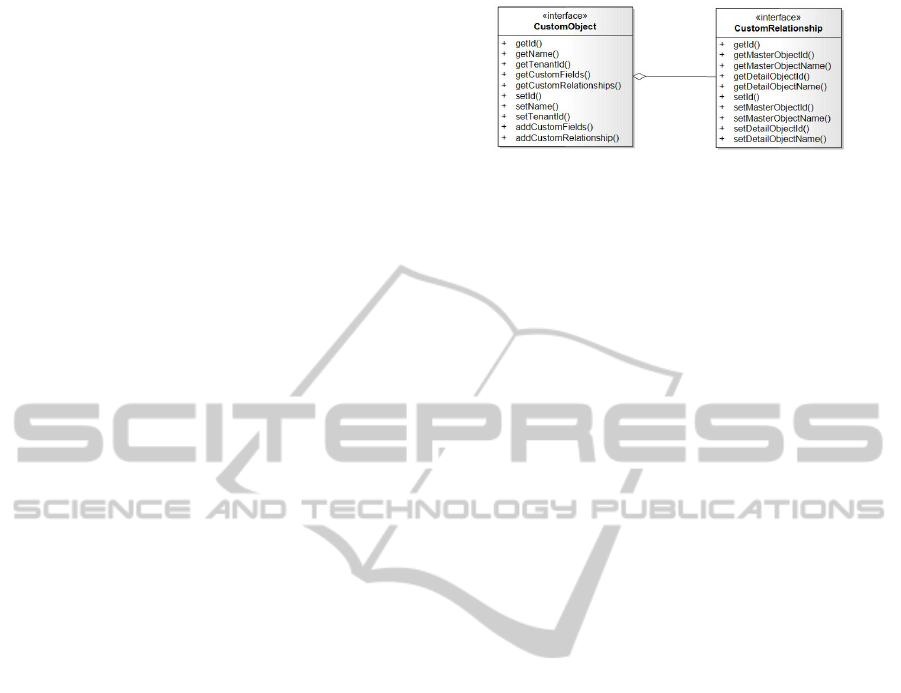

Figure 6: The structure of CustomObject and CustomRela-

tionShip.

Finally, it is important to point out that the rewrit-

ing rules are realized in MultiTenantDataServiceFa-

cade, as shown in Fig.7, which is the facade for the

adapters to the ORM framework. This design made

the implementation of rewriting rules easier to be in-

tegrated with the ORM framework, which will be ex-

plained in detail in the next section.

3.3 Multi-tenant Object-relational

Mapping

Because of the difﬁculties arising from object-

relational impedance mismatch (Ambler, 2003),

contemporary enterprise applications typically ac-

cess database through an Object-Relational Mapping

(ORM) framework. However, the SQL rewriting

mechanisms introduced in the previous section do

not deal with the interoperability issues with ORM.

Hence, in this section, we propose an transparent

approach for integrating SQL rewriting mechanisms

into an ORM framework.

Generally speaking, the ﬁrst step of ORM design

is to deﬁne the mappings between object ﬁelds and

database ﬁelds. Such mappings are usually speciﬁed

by the annotations in the source code. To be consis-

tent with the annotation-based convention, we use the

annotation @MultiTenantCapable to indicate that the

annotated object is going to be mapped to a multi-

tenant database. For instance, to annotate the Prod-

uct to be multi-tenant capable, the only additional ef-

fort is to add an @MultiTenantCapable annotation, as

shown below:

@MultiTenantCapable

Public class Product {...}.

Except the annotation, no additional modiﬁcation is

required from the developer’s point of view.

We are now ready to introduce the underlying

techniques of the proposed approach. In order to

map user-customized domain objects into Universal

Table schema layout, metadata information such as

class name, ﬁeld name and relationship has to be ex-

tracted and then attached to the mapping object. As

depicted in Fig.6, we deﬁned two general interface,

namely, CustomObject, CustomField and CustomRe-

AServiceFrameworkforMulti-tenantEnterpriseApplicationinSaaSEnvironments

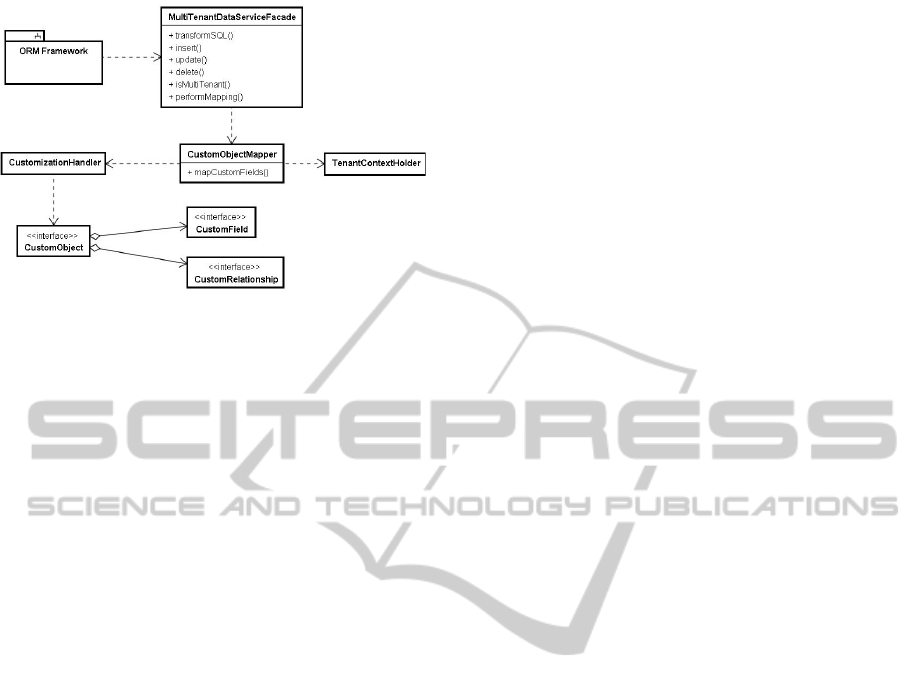

Figure 7: The overall design of multi-tenant ORM.

lationship, to store the metadata information men-

tioned above. At runtime, the system periodically

checks any newly added user-customized domain ob-

jects. If the annotation @MultiTenantCapable is ob-

served, then the annotated object will be enhanced to

implement the CustomObject and related interfaces

on the ﬂy by a bytecode rewriting mechanism to be

sketched below. In particular, the implementation of

the mappings between user-customized domain ob-

jects and the underlying schema layout is dynamically

generated and injected into the bytecode of these ob-

jects.

Figure 7 displays the overall structure of how

the proposed mechanism adapts to an existing ORM

framework. There is a class called MultiTenantSer-

viceFacade that serves as a uniﬁed entry point so that

the proposed mechanism is more portable to differ-

ent ORM frameworks. The SQL rewriting rules pre-

sented in the previous section in are implemented in

the insert, update, delete methods of MultiTenantSer-

viceFacade. The object-relational mapping tasks are

delegated to CustomObjectMapper, which uses Cus-

tomizationHandler to interact with user-customized

domain objects. It is worth mentioning that, due

to the use of thread speciﬁc storage pattern, Custo-

mObjectMapper and CustomizationHandler are able

to obtain the reference to tenant contexts in situ with-

out any parameter passing.

Currently, we implement the proposed design

based on JavaAgent (Aarniala, 2005), as the bytecode

transformation tool and DataNucleus’s JDO (Rus-

sell, 2010) implementation, as the underlying ORM

framework. DataNucleus (Miller et al., 2010) is de-

signed based on OSGi platform (Hall et al., 2011) so

that our extension can be easily integrated into it as a

bundle. The main transforming logic is implemented

in a speciﬁc class called MTAClassFileTransformer

which is initialized by JavaAgent and is hooked in

JVM. Before the annotated classes are loaded, JVM

will delegate to MTAClassFileTransformer so that it

has a chance to modify the bytecode.

4 EVALUATION

This section presents the preliminary results of the

feasibility study and performance evaluation of our

approach.

4.1 Feasibility

We studied the feasibility of the proposed service

framework by developing a Java-based prototype. To

verify the prototype, we also implemented a simple

SaaS application called ShoppingForce.com on top of

the service framework. The SaaS application is able

to access the underlying tenant context management,

ORM, and schame-mapping services.

In the application layer, we realize the thread-

speciﬁc storage via a static member variable, which is

realized by the ThreadLocal class provided by JDK.

Tenant contexts belonging to different threads are

isolated by ThreadLocal. In other words, although

thread-speciﬁc storage seems to be global to the sys-

tem, when a thread accesses it by calling the getCon-

text method, only the tenant context that is speciﬁc

to the calling thread is returned. In the data layer,

to access the physical schema, the application uses

JDOQL (JDO Database Query Language) (Russell,

2010) and manipulates JDO API. Then, The JDOQL

is translated internally to SQL statements and then

used as the inputs of the proposed rewriting schemes.

To create a virtual application, the tenant applies

for an account on-line and a tenant proﬁle is then

generated accordingly. We have created two differ-

ent on-line shopping applications hosted on Shop-

pingForce.com. Sometimes, a tenant needs to modify

default virtual schema such as adding tenant-speciﬁc

columns. In such case, ShoppingForce.com provides

a set of schema customization pages which can be ac-

cessed from the account management page, as shown

in Fig. 8.

4.2 Performance

To test the performance of the tenant-aware schema

layout management service in the data layer, we con-

ducted experiments in a stand-alone switched net-

work. In the network, the test client and the test server

are deployed on two separate PCs with Intel Core i7

3.4-GHz processor with 4G bytes memory. For the

test client, we use Apache JMeter 2.9 (Halili, 2008), a

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

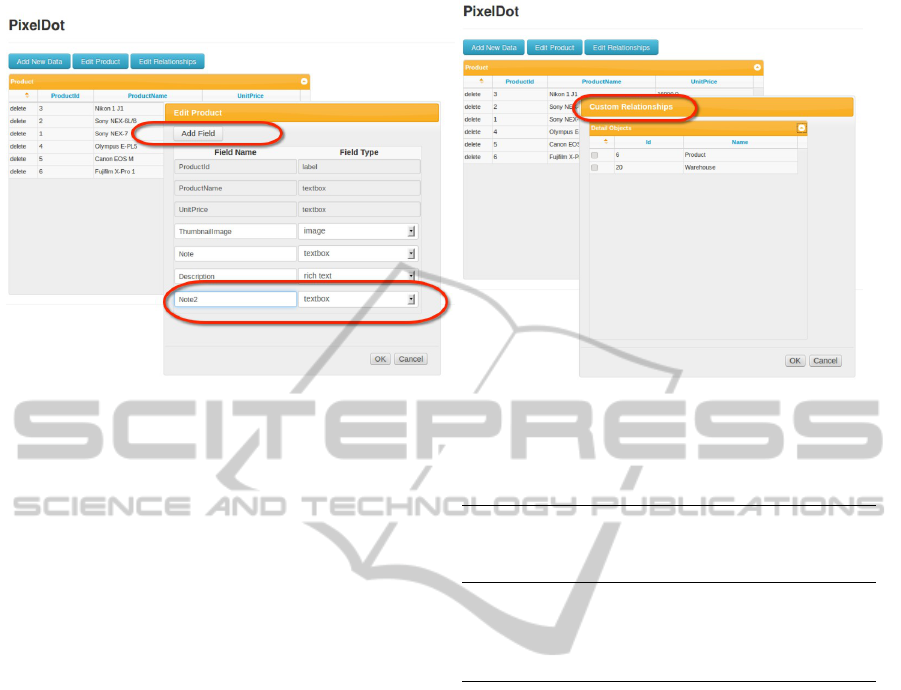

Figure 8: The object customization and relationship customization pages in ShoppingForce.com.

well-known open source and general-purpose perfor-

mance measurement platform, which can be used to

simulate arbitrary load types on the server or network

to test overall performance under different load types.

The service framework and the database is deployed

on the test server, where the database is MySQL Com-

munity Server 5.7 with InnoDB engine running on

Ubuntu Linux 12.04.

For the experiments, we set up a imaginary sce-

nario, in which there are 100 tenants and each tenant

stores 100,000 records in both a Universal Table im-

plementation and a Private Table implementation. In

the Universal Table implementation, there are respec-

tively 10 million, 10 million, and 5 million records

stored in the Indexes, UniqueFields, and Relation-

ships table. For each tests, based on the above sce-

nario settings, several concurrent threads that issue

query requests to the service framework. After a re-

quest is ﬁnished, the JMeter platform gathers the re-

sponded results and reports the turnaround time. We

performed experiments for Selection, Projection, and

Join statements of Private Table and Universal Table

implementations, respectively. When performing the

tests, built-in cache mechanism of query processer is

turned off to better reﬂect the actual overheads in-

duced by the transformed SQL.

A summary of experimental results for Private Ta-

ble and Universal Table is shown in Table 1. Com-

pared to the Private Table implementation, which

serves as a baseline, there is a great performance

penalty for ”multi-tenant-ifying” the database. The

main reason is that schema-mapping involves over-

heads of additional database access since all meta

information of logical-physical mapping has to be

stored in physical storage. However, we believe that

Table 1: Average turnaround time of queries on Private Ta-

ble and Universal Table schema layouts. (in milliseconds).

Operation

Type

Private

Table

(Baseline)

Universal

Table

(SQL)

Universal

Table

(ORM)

Select 0.4469 5.1793 14.0067

Insert 1.3823 13.7154 14.4246

Delete 0.5264 10.2565 16.0911

Update 0.5238 9.1029 15.3657

the overhead is acceptable for most enterprise SaaS

applications because the worst turnaround time of

query operations is still less than 20ms. Moreover,

the performance can be improved signiﬁcantly if the

built-in cache mechanism of query processor is turned

on. It is also worthy to point out that the turnaround

time for ORM implementation is a bit slower than the

direct SQL implementation. This result reﬂects the

trade-offs between code maintainability (via the use

of ORM framework) and performance.

5 CONCLUSION

In this paper, we have investigated the design of a

multi-tenant service framework for developing enter-

prise SaaS applications. The service framework ad-

dresses three essential design aspects, namely, tenant

context storage and propagation, schema-mapping,

and the integration of ORM framework, of enter-

prise SaaS applications. We have also presented a

prototype implementation of the proposed approach

and conducted performance evaluations to assess the

overheads. In addition, a sample multi-tenant SaaS

AServiceFrameworkforMulti-tenantEnterpriseApplicationinSaaSEnvironments

application, the ShoppingForce.com and two tenant-

speciﬁc virtual applications are also constructed to

demonstrate the feasibility of the service framework.

Moving ahead, further research is clearly required

to investigate approaches for enhancing the security

aspect of the proposed framework. Essentially, multi-

tenancy promotes resource sharing, which unavoid-

ably trades a certain amount of security for the lower

service costs. Fortunately, security issues caused by

resource sharing can be signiﬁcantly reduced if the

multi-tenant SaaS application is deployed on a mid-

dleware platform that employs advanced access con-

trol and program monitoring mechanisms for inter-

cepting unauthorized accesses to a shared resource.

Hence we shall look into those mechanisms and in-

vestigate how to leverage them to prevent unautho-

rized data accesses, such as checking tenant ID’s. On

a different front, we are going to explore more trans-

parent ways, such as aspect-oriented programming or

dependency injection, to help developers transform a

single tenant enterprise application into a multi-tenant

one based on the proposed service framework with

less efforts.

ACKNOWLEDGEMENTS

This work is partially sponsored by Ministry of Sci-

ence and Technology, Taiwan, under grant 102-2221-

E-035-039 and 102-2627-E-002-001.

REFERENCES

Aarniala, J. (2005). Instrumenting java bytecode. In Sem-

inar work for the Compilerscourse, Department of

Computer Science, University of Helsinki, Finland.

Ambler, S. (2003). Agile database techniques: Effective

strategies for the agile software developer. John Wiley

& Sons.

Aulbach, S., Grust, T., Jacobs, D., Kemper, A., and Rit-

tinger, J. (2008). Multi-tenant databases for software

as a service: Schema-mapping techniques. In Pro-

ceedings of the 2008 ACM SIGMOD International

Conference on Management of Data.

Azeez, A., Perera, S., Gamage, D., Linton, R., Siriwardana,

P., Leelaratne, D., Weerawarana, S., and Fremantle, P.

(2010). Multi-tenant soa middleware for cloud com-

puting. In Cloud computing (cloud), 2010 ieee 3rd

international conference on. IEEE.

Bezemer, C.-P. and Zaidman, A. (2010). Challenges

of reengineering into multi-tenant saas applications.

Delft University of Technology, Tech. Rep. TUD-

SERG-2010-012.

Cai, H., Wang, N., and Zhou, M. J. (2010). A transparent

approach of enabling saas multi-tenancy in the cloud.

In Proceedings of IEEE World Congress on Services.

Chong, F. and Carroro, G. (2011). Architec-

ture strategies for catching the long tail. In

Available at: http://msdn.microsoft.com/en-

us/library/aa479069.aspx.

Fang, S. and Tong, Q. (2011). A comparison of multi-tenant

data storage solutions for software-as-a-service. In

Proceedings of the 6th International Conference on

Computer Science and Education(ICCSE 2011).

Galchev, G., Fleischer, C., Luik, O., Kilian, F., and Stanev,

G. (2007). Session handling based on shared session

information. US Patent App. 11/322,596.

Halili, E. H. (2008). Apache Jmeter: a practical beginner’s

guide to automated testing and performance measure-

ment for your websites. Packt Publishing.

Hall, R., Pauls, K., and McCulloch, S. (2011). OSGi in Ac-

tion: Creating Modular Applications in Java. Man-

ning Publications Company.

Joines, S., Willenborg, R., and Hygn, K. (2003). Perfor-

mance Analysis for Java Web Sites. Addison Wesley.

Koziolek, H. (2012). The sposad architectural style for

multi-tenant software applications. In Proceedings of

the 9th Working IEEE/IFIP Conferences on Software

Architecture.

Krebs, R., Momm, C., and Konev, S. (2012). Architec-

tural concerns in multi-tenant saas applications. In

Proceedings of the International Conference on Cloud

Computing and Service Science (CLOSER12).

Li, C. (2010). Transforming relational database into hbase:

A case study. In Software Engineering and Service

Sciences (ICSESS), 2010 IEEE International Confer-

ence on. IEEE.

Liao, C.-F., Chen, K., and Chen, J.-J. (2012). Toward a

tenant-aware query rewriting engine for universal ta-

ble schema-mapping. In Cloud Computing Technol-

ogy and Science (CloudCom), 2012 IEEE 4th Inter-

national Conference on.

Miller, F., Vandome, A., and John, M. (2010). DataNucleus.

VDM Publishing.

Momm, C. and Krebs, R. (2011). A qualitative discussion

of different approaches for implementing multi-tenant

saas offerings. In Proceedings of Software Engineer-

ing 2011, Workshop.

Pereira, J. and Chiueh, T. C. (2007). SQL Rewriting Engine

and its Applications, Technical Report. Stony Brook

University.

Russell, C. (2010). Java Data Objects 2.0. JSR 243 Speciﬁ-

cation.

Schmidt, D. C., Stal, M., Rohnert, H., and Buschmann,

F. (1996). Pattern-Oriented Software Architecture,

Patterns for Concurrent and Networked Objects, vol-

ume 2. John Wiley & Sons.

Shimamura, H., Soejima, K., Kuroda, T., and Nishimura, S.

(2010). Realization of the high-density saas infras-

tructure with a ﬁne-grained multitenant framework.

NEC Technical Journal, 5(2).

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

Strauch, S., Andrikopoulos, V., S

aez, S. G., Leymann, F.,

and Muhler, D. (2012). Enabling tenant-aware ad-

ministration and management for jbi environments.

In Service-Oriented Computing and Applications

(SOCA), 2012 5th IEEE International Conference on.

IEEE.

Truyen, E., Cardozo, N., Walraven, S., Vallejos, J., Bain-

omugisha, E., Gunther, S., D’Hondt, T., and Joosen,

W. (2012). Context-oriented programming for cus-

tomizable saas applications. In Proceedings of ACM

Symposium on Applied Computing.

Wang, H. and Zheng, Z. (2010). Software architecture

driven conﬁgurability of multi-tenant saas application.

In Proceedings of International Conference on Web

Information Systems and Mining.

Weissman, C. D. and Bobrowski, S. (2009). The design of

the force.com multitenant internet application devel-

opment platform. In Proceedings of the 2009 ACM

SIGMOD International Conference on Management

of Data.

AServiceFrameworkforMulti-tenantEnterpriseApplicationinSaaSEnvironments
