Cloud Security Proposed and Demonstrated by Cloud

Computing Adoption Framework

Muthu Ramachandran and Victor Chang

School of Computing, Creative Technologies and Engineering, Leeds Metropolitan University,

Headinley, Leeds LS6 3QR, U.K.

Abstract. This paper presents the Cloud security by Cloud Computing Adop-

tion Framework (CCAF) from its system design, development and implementa-

tion. We illustrate the required attributes and explain its significance, including

the CCAF security design. To demonstrate how it works, software schema is

developed. CCAF can perform quarantine and protective actions based on

“Rescue”, an XML-based schema and feature for CCAF. The CCAF implemen-

tations have been illustrated to show how to enforce security and ensure all su-

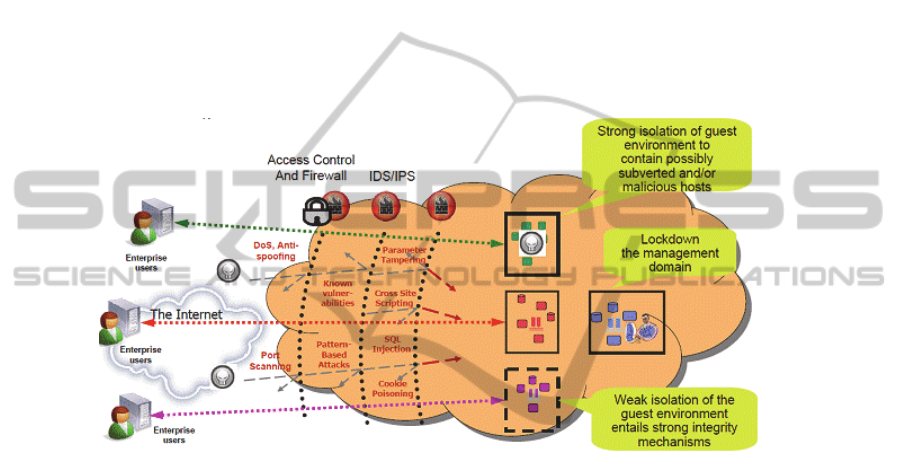

ers are protected. It provides three layers of security in Access control and

firewalls; Intrusion Detection Systems (IDS) and Prevention System; and Isola-

tion Management to maintain a high level of Cloud security. CCAF security of-

fers a framework to serve the Cloud community. The key characteristics have

been explained. We will develop more service updates and demonstrations for

our forthcoming projects to ensure that CCAF security can provide more use

cases and added value to the Cloud community.

1 Introduction

Cloud Computing has been an agenda for organizational adoption due to benefits in

cost-savings, improvement in work efficiencies, business agility and quality of ser-

vices [5, 7, 12]. With the rapid rise in Cloud Computing, software as a service (SaaS)

is particularly in demand, since it offers services that suit users need. For example,

Mobile applications allow users to play online games and easy-to-use applications to

interact with their peers. Health informatics help medical researchers diagnose chal-

lenging diseases and cancers [3]. Financial analytics can ensure accurate and fast

simulations to be available for investors [4]. While more people and organizations use

the Cloud services, security and privacy become important to ensure that all the data

they use and share are well protected. Some researchers assert that security should be

implemented before the use of any Cloud services in place [1, 9-10]. This makes a

challenging adoption scenario for organizations since security should be enforced and

implemented in parallel with any services. This motivates us to develop a framework,

Cloud Computing Adoption Framework (CCAF), to help organizations successfully

adopt and deliver any Cloud services and projects. In this paper, we demonstrate our

security design, implementation and solution for CCAF. The breakdown of this paper

is as follows. Section 2 presents security overview under CCAF. Section 3 describes

security design by CCAF and Section 4 explains security development schema by

Ramachandran M. and Chang V..

Cloud Security Proposed and Demonstrated by Cloud Computing Adoption Framework.

DOI: 10.5220/0004984000620070

In Proceedings of the International Workshop on Emerging Software as a Service and Analytics (ESaaSA-2014), pages 62-70

ISBN: 978-989-758-026-0

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

XML. Section 5 demonstrates CCAF security implementation. Section 6 explains

how CCAF can serve the Cloud community and Section 7 sums up topics for Conslu-

sion.

2 Security Overview under CCAF

We generalize the areas for security overview. The following are categories of CCAF

security aims to cover:

 Application software security which deals with how we can build systems that can

automatically protect itself.

 Network (LAN, MAN, GAN), Wireless network security, and Platform Security

include Operating Systems, Virtualisation, and other systems software.

 VoIP security as the application is gaining popularity.

 Convergence network security where converging, multi-network media infrastruc-

tures, social networks and technologies, which is one of the emerging areas of re-

search.

 Service-oriented security where issues related to system services such as denial of

service attacks, distributed denial of services, and web services.

 Cloud security deals with services security, data security and privacy so that ser-

vices delivered and assets are protected.

 Open-source software security deals with issues such as trust, certification and

qualification models.

 Software components and architecture, security which deals with building com-

ponents and architectures with security can be used as plug-ins.

 Web services security is essential to ensure secured services are delivered with

integrity.

 Systems & Software security engineering deals with building security in (CCAF)

right from requirements. This is also considered developing software applications

with CCAF.

Caminao project [2] provides a comprehensive framework for systems engineering

methods and concepts. However, it does not offer a complete solution for Cloud

Computing. This motivates us to have a comprehensive design, implementation and

service for Cloud security under the CCAF recommendation. CCAF is a framework

for organizations that we previously demonstrate how CCAF can be offered in

healthcare [3], finance [4] and education [6]. It is our goal to provide guidelines and

recommendation for security and privacy. Computer security has been classified into

a number of general concepts and processes such as identification, which identifies

objects, functions, and actions, authentication, authorization, privacy, integrity and

durability. The objective of the CCAF Cloud security is categorized and presented in

Figure 1. We have so far well established basic security features with identification,

authentication, authorization, and digital security encryption and decryption tech-

niques. Key features with their explanations are as follows.

Identification is a basic and first process of establishing and distinguishing amongst

person/user & admin ids, a program/process/another computer ids, and data connec-

tions and communications. Often we use alphanumerical string as user identification

key and some may use your email itself as the user identification key and this can be

checked against when a user login into the system. Authentication and authorisation

are two distinct form of allowing users to access what they are allowed not allowed to

access any information in the system.

Privacy is the key to maintaining the success of cloud computing and its impact on

sharing information for social networking and team work on a specific project. This

can be maintained by allowing users to choose when and what they wish to share in

addition to allowing encryption and decryption facilities when they need to protect

specific information/data/media content.

Integrity is defined as the basic feature of human being as a process of maintaining

consistency of actions, communications, values, methods, measures, principles, ex-

pectations, and outcomes. Ethical values are important for cloud service providers to

protect integrity of cloud user’s data with honesty, truthfulness and accuracy at all

time. In cloud computing terms, we can achieve integrity by maintaining regular

redundancy checks and digital certification in addition to other basic security features

of maintaining identification, authentication, and authorisation.

Durability is also known as, persistency of user actions and services in use should

include sessions and multiple sessions.

Security

Authentication

Authorisation

Durability

Functionalcapabilities

Accesscontrollists

Encryption&decryption

Information&datapadding

Screening,sharing,socialnetworks

Redundancychecks

Singlesession

Privacy

Integrity

Digitalcertificates

Multisession

Functions,Objects,Patterns

Identity

Processofestablishinganddistinguishingamongst

person/user&adminids,a

program/process/anothercomputerids,anddata

connectionsandcommunications

Fig. 1. CCAF digital research landscape.

3 CCAF Security Design

This section describes the system design required by CCAF. Capturing and identify-

ing requirements for security explicitly is one of challenges in Cloud security for

SaaS, which has an impact on the functionality of the system. Therefore, we need to

be able specify security requirements explicitly throughout the security-specific life-

cycle phases as part of achieving CCAF (security requirements, design for security,

security testing & securability testing). Tondel et al. [11] has provided an extensive

survey on security requirements methods which help to identify security requirements

systematically and structure them. For example, Mead [8] for the SEI’s (software

Engineering Institute) has identified a method known as SQUARE (Secure Quality

Requirements Engineering) which has been extended SysSQUARE (Systems Engi-

neering SQUARE) towards systems security engineering method. Our extended

method consists of nine steps as follow:

 Agree on definition which means to define a set of acronyms, definitions, and

domain-specific knowledge needs to be agreed by stakeholders. This will help

identify and validate security-specific requirements clearly by stakeholders

 Identify security goals which means to clearly define what is expected of the

system with respect to security of business drivers, policies, and procedures

 Develop artefacts which means to develop scenarios, examples, misuse cases,

templates for specifications, and forms

 Perform risk assessments which means to conduct risk analysis for all security

goals identified, conduct threat analysis

 Select an elicitation technique which includes systematic identification and

analysis of security requirements from stakeholders in the forms of interviews,

business process modeling and simulations, prototypes, discussion and focus

groups. As part of this phase, one has also to identify level of security, cost-

benefits analysis, and organizational culture, structure, and style

 Elicit security requirements which include activities such as producing security

requirements document based security specific principle structure as part of our

goal of developing CCAF earlier, risk assessment results, and techniques identi-

fies for analysis such as business process modeling and simulations, threat model-

ing, and misuse cases, etc.

 Categorize security requirements which include activities such as classifying

and categorizing security requirements based on company-specific requirements

specification templates and to use our recommended security principles as this

will help Systems Engineers to apply CCAF and track security-specific require-

ments for validation & verification at all stages of the systems engineering life-

cycle.

 Identify systems data security requirements which include activities on extract-

ing and carefully identifying data security and relevant sub-systems such as data

centers, servers, cloud VM, and software security, SQL security, and other types

of security that are relevant to data. This separation of concern allows systems en-

gineers to integrate, track, design, and develop data security as part of enterprise

wide systems development.

 Prioritize security requirements which include activities of selecting and priori-

tising security requirements based on business goals as well as cost-benefit analy-

sis.

 Inspect security requirements which mean to conduct requirements validation

process using requirements inspection and review meetings.

To achieve a fined-grained model for the iterated requirements, one can select key-

words as objects and components.

4 CCAF Security Software Schema by XML

This section describes the software scheme required by CCAF. Extensible Markup

Language (XML) is the language that can define the rule, permission, function and

interactions in the use of SaaS and Cloud security. A proposed XML section type,

Rescue, is described here as an example. “Rescue” is used to block virus, trojans and

attacks such as denials of services and unauthorized access. In the event of hacking,

all the files are backed up and retrieved from secure ports such as 21 for secure FTP

and 443 for secure HTTPS. Instead of displaying IP addresses in the traditional meth-

od, the IP addresses in all virtual machines are assigned at runtime. There is an OVF

ID that handles processing of the DR request. The syntax can be ovf:id =”rescue”

presented in Table 1

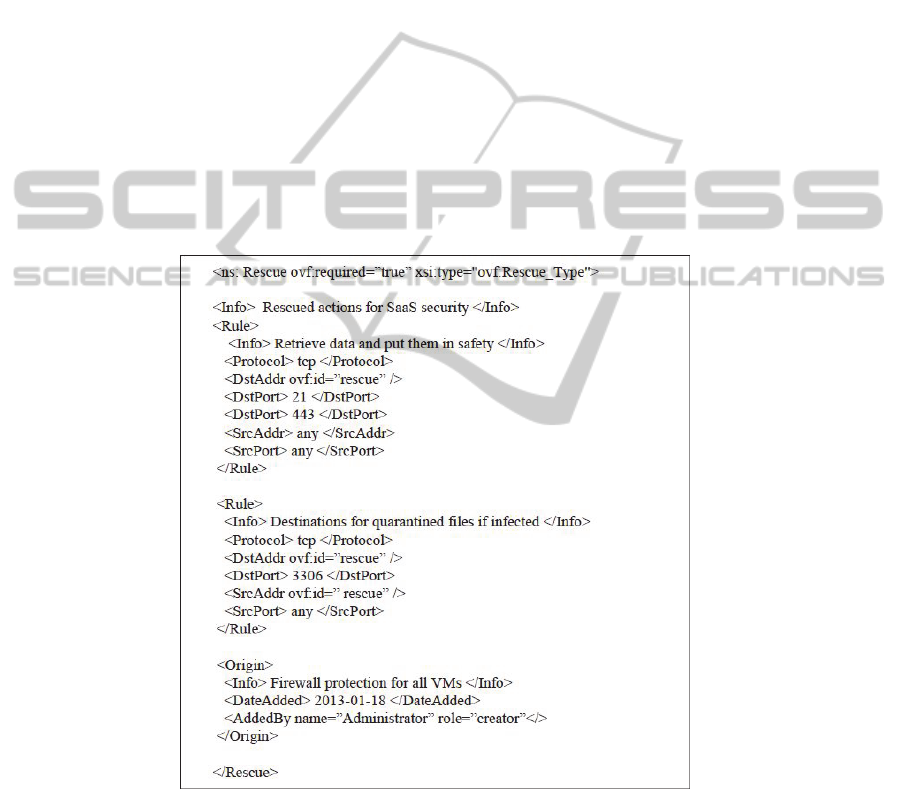

Tab le 1. The CCAS Security Software Schema.

All the OVF IDs can be mapped to the required IP addresses when a VM is de-

ployed. This allows “Rescue” to describe not just a single VM behavior, but expected

communications and actions between VMs required for rescued actions. Another

feature in Table 1 shows ovf:required=”true”. This means that Rescue action is on.

What triggers Rescue is when the security software detects activities from unknown

IPs in the list of unknown hosts to ensure Rescue can protect all the users in real-time.

5 CCAF Security Software Implementation

CCAF security software implementation is demonstrated by the use of the Fined-

Grained Security Model (FGSM), which has layers of security mechanism to allow

multi-layered protection. This can ensure reduction in the infections by trojans, virus,

worms, and unsolicited hacking and denial of services attack. Each layer has its own

protection and is in charge of one or multiple duties in protection, preventive meas-

urement and quarantine action presented in Figure 2.

Fig. 2. The Fined-Grained Security Model offered by CCAF.

All the features in FGSM include access control, intrusion detection (IDS) and in-

trusion prevention (IPS), this fine-grained security framework introduced fine-

grained perimeter defence. The layer description is as follows.

 The first layer of defence is Access Control and firewalls to allow restricted

members to access.

 The second layer consists of Intrusion Detection System (IDS) and Prevention

System (IPS). The aim is to detect attack, intrusion and penetration, and also pro-

vide up-to-date technologies to prevent attack such as DoS, anti-spoofing, port

scanning, known vulnerabilities, pattern-based attacks, parameter tampering, cross

site scripting, SQL injection and cookie poisoning.

 The third layer, being an innovative approach, Isolation Management, enforces

top down policy based security management; integrity management. This feature

monitors and provides early warning as soon as the behaviour of the fine-grained

entity starts to behave abnormally; and end-to-end continuous assurance which in-

cludes the investigation and remediation after abnormality is detected.

Within isolation management, it has weak and strong isolation. Weak isolation focus-

es more on monitoring and captures end-to-end provenance to allow investigation and

remediation to be greatly facilitated. Strong isolation and integrity management is

also required when the first few vulnerabilities of the cloud are exposed. It backups

data safely; quarantine infected data; and isolate quarantined data till further notice.

Part of this concept has been demonstrated in Section 4 to show how rescued actions

can be implemented and delivered.

6 CCAF Security – A Framework Serving the Cloud Community

This section describes how CCAF security can serve the Cloud community. Cloud

security is part of a quality requirements collection process and it consists of three

different requirements sub-categories: confidential & privacy builds the trust (trust is

one of the basic and backbone for establishing quality), integrity, and availability.

Therefore, security needs to be identified early, designed and to be tested as part of

the SaaS explicitly.

How CCAF can serve the community is described as follows. First, we need to

identify all the attributes of SaaS security so that we can assess and evaluate each

requirement against a set of security attributes that will enable us to extract security

related requirements. Security is an essential part of the system for achieving, protect-

ing systems and users. Security has several attributes that are related to a simple email

system (where most of the attacks, such as virus, spam, intrusions, and identity fraud

occur frequently); security baselines are standards that specify a minimum set of

security controls that has to be met for most organizations under normal circumstanc-

es. Second, Cloud and SaaS security also include both technical and operational secu-

rity concerns. Cloud computing has emerged to address the needs of the IT cost-

benefit analysis and also revolution in technology in terms of reduced cost for internet

data and speed. Therefore, the demand for securing our data in the cloud has also

increased as a way of building trust for cloud migration and to benefit business confi-

dence in the cloud technology by cloud providers such as Amazon, Microsoft,

Google, etc. In this way, we can ensure that our CCAF security is applicable to cloud

services as well as traditional systems. Figure 3 shows a model to structure cloud

security attributes to develop and integrate CCAF across system development life-

cycle. This model evolves based on further research and gain knowledge and experi-

ence of our own system and therefore the model will be expanded as and when we

discover new attributes.

Most of the security attributes and principles identified earlier are clearly applica-

ble to developing cloud services with systems engineering focus. However, there are

some cloud-specific security related issues such as security in virtualisation and serv-

er environments. Cloud security attributes can be found in many-fold as shown in

Figure 3. Although there are many attributes available, they can be further catego-

rized as follows:

Confidentiality, Privacy and Trust – These are well known basic attributes of digi-

tal security such as authentication and authorization of information as well protecting

privacy and trust.

Cloud Services Security – This includes security on all its services such as SaaS,

PaaS, and IaaS. This is the key area of attention needed for achieving cloud security.

Data Security – This category is again paramount to sustaining cloud technology.

This includes protecting and recovering planning for cloud data and service centers. It

is also important to secure data in transactions.

Physical Protection of Cloud Assets – This category belongs to protecting cloud

centers and its assets.

CCAFCloudSecurity

Privacy&Regulatory

compliance,Integrity,

andAvailability

PaaSsecurity&

governance&

vulnerabilities

PaaSsecurity&

governance&

vulnerabilities

Authentication&

Authorisationof

vices

PerimeterProtection

Servicetransaction

security

AssetProtection

PhysicalProtection

Security

Threats

Security&Risk

Managements

Privacy:audit&

monitoring

SaaSsecurity&

governance

&vulnerabilities

IdentificationofViruses,

Intrusions,Fraud

Datasecurity&recovery:atrest,

inmotion,intransaction

Fig. 3. CCAF Cloud Security Attributes serving for the community.

The above cloud security attributes/characteristics are essential and useful to un-

derstand non-functional aspects of services development and service provision. These

attributes are also useful for building CCAF and maintaining security. The following

section will use cloud security attributes and frameworks identified in this section as

the main input for CCAF not developing security patches after cloud services has

been delivered. Communities that have been positively influenced by CCAF in other

projects include Guy’s and St Thomas NHS Trusts (GSTT), King’s College London

(KCL), University of Southampton, University of Greenwich and Leeds Metropolitan

University. Organizations that have been involved also include Commonwealth Bank

of Australia (CBA), IBM in the US, SAP and University of Oxford in the develop-

ment of Cloud services and projects [5]. Forthcoming Cloud projects include SAS

and Mathematica for deliveries in modern education, and research and development.

7 Conclusion

We present the Cloud security presented by CCAF from its system design, develop-

ment and implementation. We illustrate the required attributes and explain its signifi-

cance for CCAF, including the security design. To demonstrate how CCAF works,

software schema is developed. CCAF can perform quarantine and protective actions

based on “Rescue”, a XML-based schema and feature. The CCAF implementations

have been illustrated to show how to enforce security and ensure all users are protect-

ed. It provides three layers of security in Access control and firewalls; Intrusion De-

tection Systems (IDS) and Prevention System; and Isolation Management to optimize

Cloud security. CCAF security offers a framework to serve the Cloud community.

The key characteristics have been explained. Organizations that are involved in the

development and adoption of CCAF have been presented. We will develop more

service updates and demonstrations for our forthcoming projects to ensure that CCAF

security can provide more use cases and added value for the Cloud community.

References

1. Armbrust, M., Fox, A., Griffith, R., Joseph, A. D., Katz, R. H., Konwinski, A., Lee, G.,

Patterson, D., Rabkin, A., Stoica, I., Zaharia, M. (2010), Above the Clouds: A Berkeley

View of Cloud computing. Communications of the ACM, 53(4), 50-58.

2. Caminao Project, Caminao’s Way: Do systems know how symbolic they are? Modelling

Systems Engineering Project, http://caminao.wordpress.com/overview/

?goback=%2Egde_3731775_member_251475288, accessed on 21st June, (2013).

3. Chang, V., Walters, R. J., & Wills, G., Cloud Storage and Bioinformatics in a private cloud

deployment: Lessons for Data Intensive research, Springer: CLOSER 2012, CCIS 367, pp.

245–264, (2013).

4. Chang, V., Business Intelligence as Service in the Cloud, Future Generation Computer

Systems, (2014).

5. Chang, V., Walters, R. J., & Wills, G., The development that leads to the Cloud Computing

Business Framework. International Journal of Information Management, 33(3), pp 524-538,

June, (2013).

6. Chang, V., Brain Segmentation – A Case study of Biomedical Cloud Computing for Edu-

cation and Research. In, Learning Technologies Workshop, Higher Education Academy

(HEA), University of Greenwich, (2013).

7. Marston, S., Li, Z., Bandyopadhyay, S. and Zhang, J. and Ghalsasi, A., Cloud computing –

The business perspective, Decision Support Systems, Elsevier, 51(1): pp 176-189, (2011).

8. Mead, N.R., et. al., Security Quality Requirements Engineering (SQUARE) Methodology,

TECHNICAL REPORT, CMU/SEI-2005-TR-009, (2005).

9. Ramachandran, M., Software components for cloud computing architectures and applica-

tions, Springer, Mahmmood, Z and Hill, R (eds.), (2011).

10. Ramachandran, M., Software Security Engineering: Design and Applications, Nova Sci-

ence Publishers, New York, USA, 2011.ISBN: 978-1-61470-128-6, (2011).

11. Tondel, I. A et al., Security requirements for rest of us: a survey, IEEE Software, Special

Issue on Security and Agile requirement engineer-ing methods, Jan/Feb. (2008).

12. Vouk, M. A., Cloud Computing – Issues, Research and Implementations, Journal of Com-

puting and Information Technology - CIT 16, page 235–246, Volume 4, (2008).
