External Database Extension Framework

Alexander Adam

and Wolfgang Benn

Dimensio Informatics GmbH, Br¨uckenstraße 4, 09111 Chemnitz, Germany

Chemnitz University of Technology, Straße der Nationen 62, 09111 Chemnitz, Germany

Keywords:

Database Extension, External Indexing, Query Processing, Legacy Systems.

Abstract:

Database systems nowadays show an incredible amount of extensibility interfaces, ranging from simple user

deﬁned functions to extensible indexing frameworks as seen in e. g. DB2 and Oracle. Approaching new

projects using these interfaces deﬁnitely is a valuable option. For legacy systems, already set up and running

in production environments, these options are often not available since most of them impose a change in

the applications. In this work we present a database extension framework, that enables the user to deﬁne

functionality which does not reside inside the database. We show different ways to integrate it into existing

application landscapes without further modiﬁcations.

1 INTRODUCTION

Currently there is a vast amount of database systems

on the market, ranging from small embedded solu-

tions up to full scale cluster versions. To meet the

needs of most customers, vendors integrate interfaces

into their systems to extend the database systems ca-

pabilities. They range from user deﬁned functions and

types up to user deﬁned indexing and data storage.

(Stolze and Steinbach, 2003; IBM, 2009; Rich, 2011;

Belden et al., 2009)

For new projects all of these options are avail-

able for usage and should be thoroughly evaluated.

However, running systems in production environ-

ments limit the amount of possibilities to modify the

databases structure. The main reason for this limita-

tion is the need to adapt the queries the application

passes to the database system. In deployed environ-

ments changing the application can be regarded as not

feasible. This leaves only to alter non-query-changing

options in the database.

Database administrators who are responsible for

keeping their systems up and running face this situ-

ation. As the amount of data stored grows, systems

change their behavior: certain content tables begin

having increasing data retrieval times, database par-

titions reach their size limits and many more. All of

these effects may lead to a degrading application per-

formance. Common approaches inside the database

are (not limited to) the use of partitioned tables, in-

dexes and the optimization of the database buffer

pools. On the hardware side there is the KIWI ap-

proach (“Kill It With Iron”). That is more main mem-

ory, more computing units, faster storage systems,

clustering and in-memory solutions.

As shown in (Leuoth et al., 2010) not all situa-

tions can be resolved by applying the aforementioned

standard methods changes inside the database would

be necessary. In this paper we present an extensibility

frameworkfor, especially but not limited to, relational

database management systems (RDBMS) to master

the challenge of introducing new functionality virtu-

ally “into” the database system. It can be applied in

production systems, where neither the database sys-

tem nor the software are allowed to be changed to

suite new needs or performance requirements.

The following sections present the current ap-

proaches to these problems and their limitations. As

examplary scenario used throughout this paper the in-

tegration of an indexing method was chosen. After

that we analyze the behavior of an environment con-

taining an RDBMS and how our framework can be

transparently plugged into it. Finally we present an

implementation of a database external indexing and

result cache.

249

Adam A. and Benn W..

External Database Extension Framework.

DOI: 10.5220/0004896302490255

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 249-255

ISBN: 978-989-758-027-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

2 CURRENT APPROACHES

2.1 Scenario

Sticking to the example of indexing, RDBMS cur-

rently include many indexing methods. In the ﬁeld

of high dimensional indexing (50+ dimensions) there

is no efﬁcient, non-KIWI solution available. There is

an indexing approach for exactly this problem, devel-

oped at the Chemnitz University of Technology, the

ICIx (G¨orlitz, 2005). This multi-dimensional index

resides outside of the database system and has to be

used explicitly by an application using an API. It de-

livers primary keys of the relevant data to the applica-

tion which in turn includes these information to enrich

its queries to the database.

We now have a look at how current RDBMS can

help to integrate such an index.

2.2 User Deﬁned Functions

A ﬁrst approach might be to work with user deﬁned

functions (UDF). User deﬁned functions are functions

made available to the user through the SQL language

interface. They are either written in the database

systems internal SQL programming language (e.g.

PL/pgSQL (Pos, 2009), PL/SQL (Rich, 2011) or

SQL/PSM (IBM, 2009)) or using an external lan-

guage that can be interfaced on a binary level with

the RDBMS.

Using UDF to incorporate a call to an external in-

dex, one has to deﬁne a function that calls the API

of the external index. We will not cover the details of

how to call an external API function, just assume, that

it is possible. Finally the new UDF has to be used in

the queries, so that it is called.

SELECT *

FROM employees

WHERE id IN ( idx_lookup_smaller(

employees.salary, 2000)

)

Obviously every query, using the index, has to in-

corporate the UDF. Every data modiﬁcation, has to

be transported manually to the index, e. g. using an-

other UDF. All in all that requires an adaption of the

application and the integration of the new functions

into the RDBMS. We consider the ﬁrst point being the

more pressing one, as it requires the software vendor

to change the software. Modiﬁcations to the database

can be isolated in other namespaces and are thus very

unlikely to interfere with the current operation.

2.3 Extensible Indexing Frameworks

Extensible indexing frameworks give the user a spe-

cialized interface, that enables the user to deﬁne func-

tions which are called on certain events. It further

gives a clean integration into the SQL language. The

RDBMS guarantees transaction safety of the actions

triggered in certain events. Those events include the

creation of the index, modiﬁcation of data and the se-

lection on columns managed by the index. For all but

the selection the extensible indexing frameworks pro-

vide a transparent access to the index. On selection

a special predicate has to be deﬁned and used, taking

the form of a function thats return is compared to a

value. (Belden et al., 2009) The following example

illustrates the use of such an indexing extension:

SELECT *

FROM employees

WHERE idx_lookup_smaller(

employees.salary, 2000)

) = 1

So the selection operation is not transparent to

the application and thus the application has to be

adapted. Though not as deeply integrated as the UDF

approach, not many vendors will be reluctant to inte-

grate a functionality on just a few customer requests.

2.4 Current External Approaches

Our example of the index integration is relatively

complex. For less complex functionalities, ap-

proaches that are integrated into the network commu-

nication exist.

The TDS Protocol Analyzer (TDS, 2013) is a tool

that operates on the TDS (Tabular Data Streams) pro-

tocol used to communicate with the Microsoft SQL

Server. Its use is the interception, recording and anal-

ysis of packets sent by a client to the database. These

packets can be inspected for statistical analysis and

vulnerability inspections. (Guo and Wu, 2009)

GreenSQL is an open source proxy with the goal

to increase the security of MySQL and PostgreSQL.

In a commercial version it also supports Microsoft

SQL Server with TDS. It scans the communication of

clients with the database for suspicious requests that

might be able to exploit security vulnerabilities. It

also is able to work as a ﬁrewall. (Gre, 2013)

In a last project, the Security Testing Framework,

syntactically wrong packages for the DRDA (Dis-

tributed Relational Database Architecture) (The Open

Group, 2011) protocol are generated, to test the ro-

bustness of the implementation. (Aboelfotoh et al.,

2009)

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

250

All of these tools concentrate on a top level view

of the protocol and do not deeply integrate into the

interaction of the application with a database.

3 DATABASE INTERACTION

To ﬁnd integration points we ﬁrst analyze how appli-

cations interact with databases. For the rest of this

paper, we assume that an application is a process us-

ing a library to communicate with a database process.

The communication channel is a network connection.

This basic setup is also shown in Figure 1.

Database

DB Driver

Network

Protocol

Network

Application

Network

Protocol

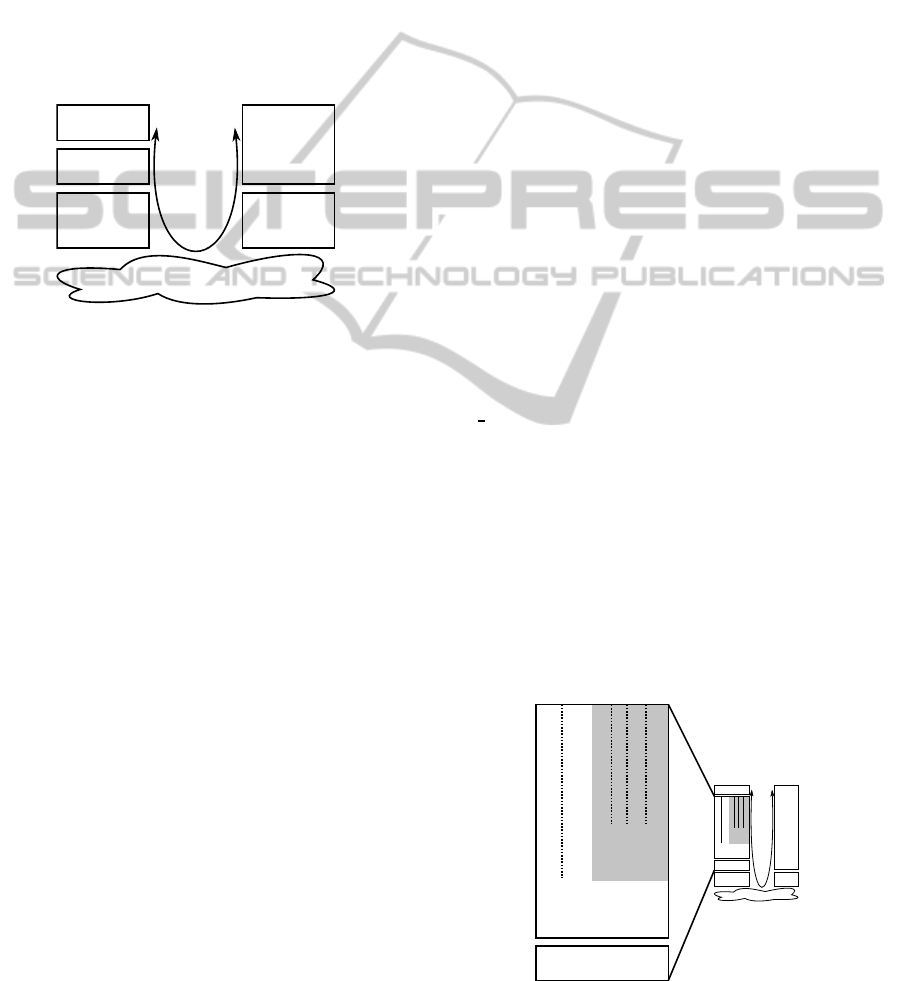

Figure 1: Basic scheme of how an application communi-

cates with a database.

The way of a query, beginning from the applica-

tion, includes the following steps:

1. application hands over query to RDBMS API

2. application gives additional information (such as

bind parameters) to RDBMS API

3. RDBMS API sends network packet with query to

RDBMS

4. RDBMS receives network packet, extracts infor-

mation and processes them (intentionally short-

ened here)

5. RDBMS sends results over network to applica-

tion’s RDMBS API

6. RDBMS API receives and extracts network

packet

7. RDBMS API provides results to application

We will have a closer look at the steps outside of

the database system and application. These are the

API communication (steps 1, 2 and 7) and the net-

working layer (steps 3 and 5). As the network level

simply reﬂects the steps initiated at the API level, we

can introduce an abstract interface for both of them.

The abstraction layer we use is thereby composed

of the above steps and named according to other

event driven functions with the preﬁx

‘‘on..."

and

the sufﬁx

‘‘...request"

and

‘‘...reply"

to indi-

cate the communication direction. For our work we

ﬁrst implement the basic functions

prepare

bind

execute

and

fetch

. The use of these functions to

implement helpful functionality, is shown in the fol-

lowing section and illustrated later in Figure 3.

Below we describe methods to integrate function-

ality into these layers.

3.1 API-level Integration

The ﬁrst possibility, we have a closer look at, will be

the integration into the API layer. Usually, database

vendors deliver at least one library to interact with

their database system. This library exposes a certain

API. Examples for these vendor speciﬁc APIs are e. g.

libpq(Pos, 2009) and OCI (Melnick, 2009). To have

an abstraction layer on top of these, portable APIs

were developed. Among these are ODBC (ODB,

1995), JDBC (Menon, 2005), OLE DB (Blakeley,

1997)and ADO.NET (Kansy and Schwichtenberg,

2012).

An application links against such a database li-

brary and subsequently uses its API. We showed that

it is possible to redirect the API calls to an own li-

brary that implements the exact same interface as the

library originally used by the application.

To minimize development efforts, one can use

system speciﬁc support. In Linux there is the

LD PRELOAD

environment variable, allowing a user to

load a speciﬁc library before any other library. This li-

brary populates the symbol tables of the process. Any

other library that is loaded afterwards is only able to

set the symbols not already set. In Microsoft Win-

dowsone can generate a wrapper library, which routes

all symbols, that are not directly needed to the origi-

nal ones and only “overloads”the ones that are needed

for the desired functionality. In both cases, the over-

loaded functionality has to redirect the calls to the

original library function after its completion. Figure

2 illustrates this setup.

Database

DB Driver

Network

Protocol

Network

Application

Network

Protocol

DB Driver

Wrapper

User

Function

prepareStatement

setInt

executeQuery

getString

getConnection

DB Driver

Wrapper

User

Function

prepareStatement

setInt

executeQuery

getString

getConnection

Figure 2: Partly changed driver to integrate user functional-

ity.

ExternalDatabaseExtensionFramework

251

It opens up the interaction of the application with

the database to user manipulations. To give an idea

of what is possible, we use the OCI API (Melnick,

2009) function

OCIPrepare

. This function gets the

statement that is to be sent to the database. If we over-

load the function to manipulate the statement we can

make the application do different things. We could in-

troduce a new selection after the ones already present,

we could change/amend the

WHERE

conditions or redi-

rect the database tables from which the statements

wants to take the data. The associate API functions in

our abstraction layer would be

on prepare request

and

on prepare reply

A very basic example of the possibilities, is the

amendment of the projection elements in a statement.

We additionally want to get the rowid (physical ad-

dress of a data record in Oracle):

SELECT id, name FROM employees

This statement could be changed to the following:

SELECT id, name, rowid FROM employees

As we also are able to modify the func-

tions to fetch the data–using our API method

on fetch reply

–we can easily ﬁlter out the addi-

tional element to hide this change from the applica-

tion.

3.2 Network-level Integration

All the actions, an application does on the API level,

have to be transported to the database. For this, in

most cases, a network connection is used. Database

vendors develop different protocols to interact with

their databases. Oracle introduced TNS, Microsoft

TDS and IBM the DRDA for DB2.

We developed a network proxy, that is capable of

understanding those protocols and gives an abstrac-

tion of the actions observed in the network. For this,

the applications simply enter this proxy as their new

database server and the proxy then relays the packets

to the “real” database system.

Our proxy is capable of presenting the actions,

that are observed in the network trafﬁc, to user written

modules. These actions are:

• preparation of statements

• binding of parameters

• execution of statements

• fetching results

• allocation and disposal of handles

As the network communication mirrors the ac-

tions on the API-level, it is possible to transform the

API-calls to that abstraction. We have shown the

feasability of this approach in (Phoonsarakun et al.,

2013). Using this technique enables us to use the

same modules on API as well as the network integra-

tion.

4 INTEGRATION EXAMPLES

Having shown how functionality can be introduced in

an application-database-environment,we also want to

give an example, how to use this technique to inte-

grate real functionality. As mentioned in the intro-

duction, we want to show this with an index and a

statement cache.

4.1 Index Integration

At ﬁrst, we have a closer look at how an index ac-

celerates queries inside a database. An index is a

data structure containing locations of data records or-

dered by attributes. We e. g. could have employ-

ees with names, identiﬁers and certain salaries. The

table is ordered according to the employees’ identi-

ﬁers. If a query only incorporates the salaries inside

its predicates, all data records have to be visited to

determine if the predicate is true. Having an index

on the salaries, the query would ﬁrst go to that in-

dex which in turn delivers the data records locations

that fulﬁll the predicate. The index lookup is much

faster due to its ordering according to the attribute it

is searched for. It returns the relevant data records.

Reading those is also faster than reading all records,

if the index lookup only turns up a fraction of all data.

Inside databases this is used widely. The nextsections

describe the different aspects of having a database-

external index.

4.1.1 Index Lookups

Our index, the ICIx, does not reside inside the

database. However, we can use the same techniques

that the database system uses inside to accelerate

statements. Have a look at the following statement

on our employee example from above:

SELECT name, id

FROM employees

WHERE salary > 2000

Let us further assume, that the database does not

have an index on the salary column. We could amend

the statement with the identiﬁers of the employees to

give in a predicate, that is indexed by the database in

the following way:

SELECT name, id

FROM employees

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

252

WHERE salary > 2000

AND id IN ( 17, 19, 29)

The database systems optimizer identiﬁes a pred-

icate on a column that is indexed and will prefer it.

After the selection on the

the remaining predicate

is only to be evaluated on a very reduced data set and

thus, fast.

We observed that the database system’s accepted

length of statements is limited and that the time for

simply parsing the statement increases at least linearly

with the length of the statement. To integrate the in-

dex results, we implemented a slight modiﬁcation of

the above approach. We insert our results into a sepa-

rate table and replace the

list with a subselect. The

ﬁnal statement for the above example then looks like

this:

SELECT name, id

FROM employees

WHERE salary > 2000

AND id IN ( SELECT idx_result FROM tmp_tbl)

Figure 3 shows the way the index is integrated into

the communication of the application with a database.

The kind of integration–library or proxy–does not

matter, as only the abstract functions introduced ear-

lier are used.

4.1.2 Index Maintenance

Up to now, we just had a look at how an index may

deliver results to amend a statement. Most real data

sets change over time. Database internal indexes are

created, deleted and updated as the corresponding ta-

ble changes. Further consistency conditions have to

be met.

We found the Extensible Indexing Frameworks of

databases (Stolze and Steinbach, 2003; Belden et al.,

2009) as a good point to be integrated. These frame-

works offer callback functions, that are called from

the database system. This is done in a way that the

ACID conditions are met. We use these callbacks,

that are called in the events of creation, deletion, up-

date and transactional operations to manage our index

outside the database.

4.2 Statement Cache

Using our framework, it becomes possible to cache

the results of statements, that are repeatedly executed.

Allthough databases already implement such func-

tionality, dependent on the application, we found, that

some statements are executed over and over, without

ever to expect any different result. Every statement

triggers a database roundtrip, even with a database-

side result cache. So what we did was to remove that

Database

Integration

Client

on_prepare_request

on_prepare_reply

on_bind_request

on_bind_reply

on_execute_request

prepare

bind

execute

query index and

insert results

prepare

on_execute_reply

on_fetch_request

on_fetch_reply

bind

execute

fetch

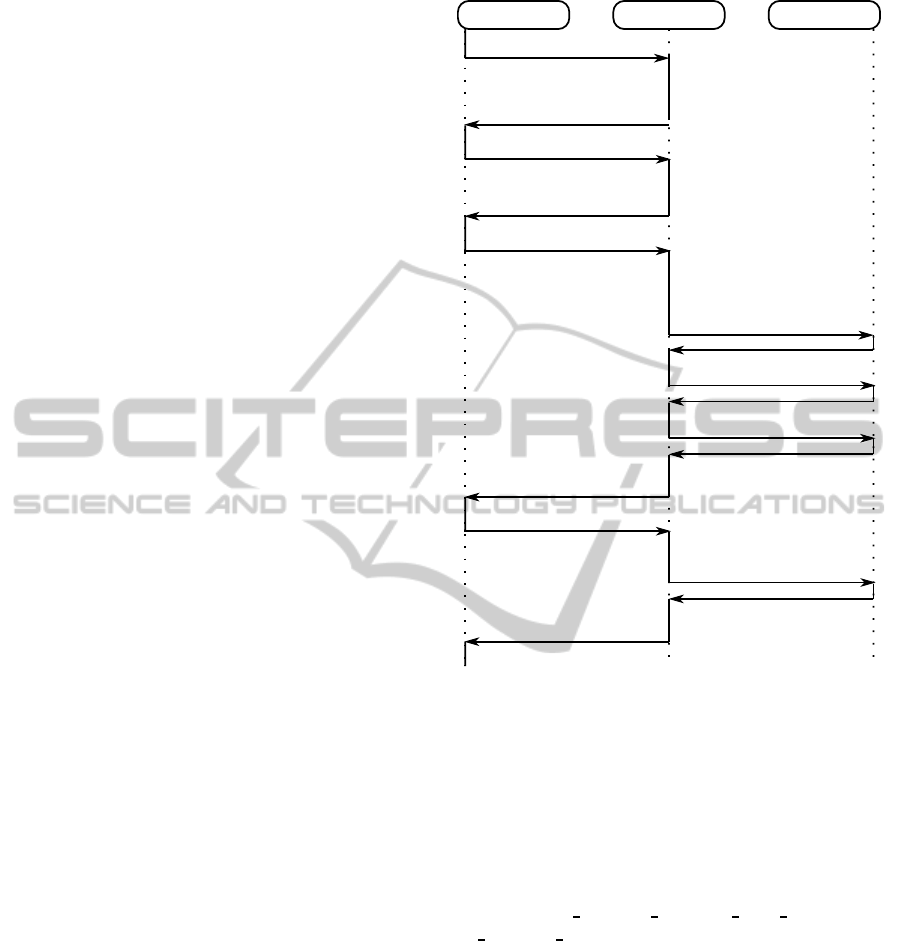

Figure 3: Scheme of how an index can be integrated into

the communication of an application with a database.

roundtrip. In local networks that saves around 1 ms

of network time, in wide area networks this time in-

creases, depending on the network quality and tech-

nology.

Our approach is to intercept the function calls,

that set up the statement execution. In our API

these are

on prepare ...

on bind ...

and

on execute ...

. We cache only statements, that are

listed in a conﬁguration, so to not accidentally alter

statement results. If the statement matches a conﬁg-

ured one, then we either execute it, in case the state-

ments parameters were not already cached, and store

the results. Otherwise, we answer the query from our

cache.

5 RESULTS

For the results we want to concentrate on our frame-

work. There are two major parts, the API integration

and the network integration. All our tests were con-

ExternalDatabaseExtensionFramework

253

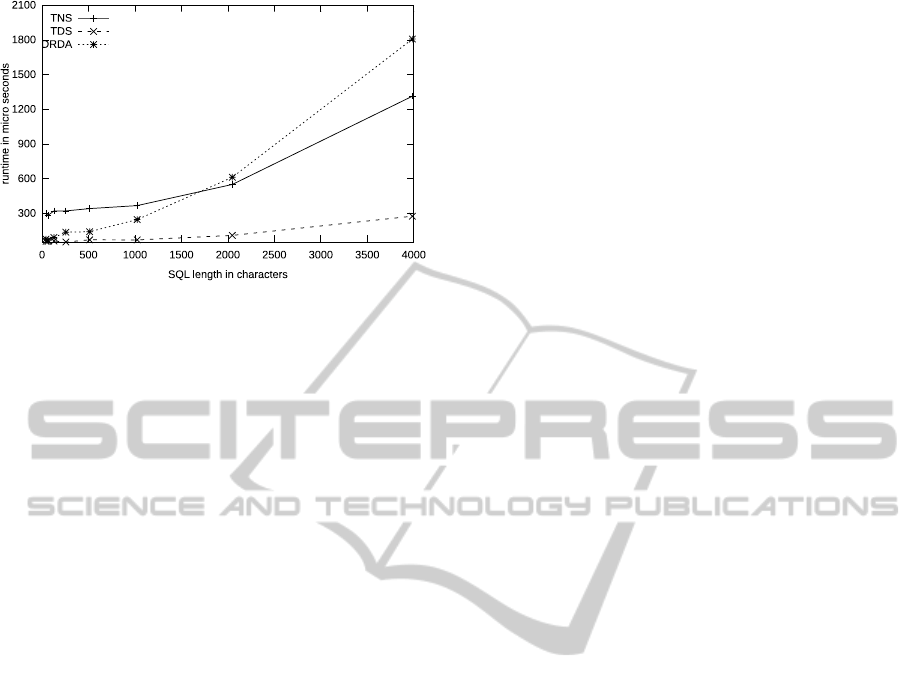

Figure 4: Times for different SQL lengths and protocol

types.

ducted on an Intel Core i5 with 3 GHz and 4 GB of

main memory running Debian 6 64 bit.

For the API integration, there is one relevant time,

the overhead for the call into our framework and back

to the “real” API. We measured function calls with

approximately 3µs. When an overloaded function is

called within our framework, the only overhead is one

additional call to the real function as well as the time

needed to run the code inside.

The more interesting analysis concerns the net-

work level integration. The proxy introduces one ad-

ditional network hop into the communication of the

application with the database server. In our local area

network we measured this with approximately 100µs

per message. As the proxy needs to analyze the trafﬁc

to and from the database server, this time is doubled

for each communication step.

A second time, introduced by the proxy is the time

needed to understand the data that was sent. Figure 4

shows the times needed to parse SQL statements of

different length using different database protocols. It

is clearly visible, that the various protocols need dif-

ferent time to process. This is due to the amount of

work that has to be put into the parsing of the pro-

tocol packets. For TNS we had to reverse engineer

the semantics and have some testing in the protocol

analysis. This makes TNS the hardest to understand.

DRDA then at increasing packet lengths shows in-

creasing parsing times because of the inherent com-

plexity. Of course the times also increase with the

length of the statement. At the network layer this

effect also increases the overall response times, as a

packet has to ﬁrst fully arrive at the proxy before it

can be parsed and forwarded to the database system.

For the test with the index, we used our employ-

ees example. A table with an index only on the id col-

umn, and a statement, whose

WHERE

condition uses

an unindexed attribute

salary

. We could show that

the index worked the way we showed above. We only

give a short overview of the results as they vary de-

pending on the database system, its conﬁguration and

the hardware environment.

The statement cache worked also as expected.

We could almost completely eliminate the network

roundtrip times. The cache we implemented did a

simple string matching of the statements and was very

fast. For a number of less than 1000 statements in the

cache, the lookup times were regularly less than 1ms.

6 FUTURE WORK

Our future work has two directions, a technological

and a systematic one. For the technological part,

we want to extend our framework to support more

database systems. The market is in constant change

and so will be this technological foundation. Then

there is the speed of the integration. Our results show

delays introduced with our technology, especially us-

ing the network proxy. We want to minimize these

times.

For the systematic part, we have to futher abstract

the low level APIs of database vendors, especially

when it comes to specialized functions such as the at-

tributes of queries and parameters. Currently we ig-

nore these and are thus limited in the application of

our framework.

We also want to explore more ways to integrate

results of our index. This is not always transparent to

the application. We could e.g. organize the table in

the database in a way that corresponds to the internal

structure of our index, this could drastically lower the

read times inside the database. In this scenario also

automation is of interest for us. We need to incorpo-

rate metrics to decide whether or not to use our index

with certain queries.

REFERENCES

(1995). International Standard for Database Language SQL

- Part 3: Call Level Interface.

(2009). PostgreSQL 8.4.3 Documentation. The Post-

gresSQL Global Development Group.

(2013). http://www.greensql.com.

(2013). Tabular Data Stream Protocol. Microsoft Corpora-

tion.

Aboelfotoh, M., Dean, T., and Mayor, R. (2009). An em-

pirical evaluation of a language-based security testing

technique. In Proceedings of the 2009 Conference of

the Center for Advanced Studies on Collaborative Re-

search, pages 112–121. ACM.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

254

Belden, E., Chorma, T., Das, D., Hu, Y., Kotsovolos, S.,

Lee, G., Leyderman, R., Mavris, S., Moore, V., Morsi,

M., Murray, C., Raphaely, D., Slattery, H., Sundara,

S., and Yoaz, A. (2009). Oracle Database Data Car-

tridge Developers Guide, 11g Release 2 (11.2). Ora-

cle.

Blakeley, J. (1997). In Compcon ’97. Proceedings, IEEE,

title=Universal data access with OLE DB, pages 2–7.

G¨orlitz, O. (2005). Inhaltsorientierte Indexierung auf Basis

k¨unstlicher neuronaler Netze. PhD thesis.

Guo, L. and Wu, H. (2009). Design and implementation of

TDS protocol analyzer. In Computer Science and In-

formation Technology, 2009. ICCSIT 2009. 2nd IEEE

International Conference on, pages 633–636.

IBM (2009). SQL Reference, Volume 1. IBM Corporation.

Kansy, T. and Schwichtenberg, H. (2012). Datenbankpro-

grammierung mit .NET 4.5: Mit Visual Studio 2012

und SQL Server 2012. .NET-Bibliothek. Hanser Fach-

buchverlag.

Leuoth, S., Adam, A., and Benn, W. (2010). Proﬁt of ex-

tending standard relational databases with the Intelli-

gent Cluster Index (ICIx). In ICARCV, pages 1198–

1205. IEEE.

Melnick, J. (2009). Oracle Call Interface Programmer’s

Guide, 11g Release 2 (11.2). Oracle.

Menon, R. (2005). Expert Oracle JDBC Programming.

Apress.

Phoonsarakun, P., Adam, A., Lamtanyakul, K., and Benn,

W. (2013). Extensible Database Communication

Modiﬁcation Framework. In Singh, R. K., editor, Pro-

ceedings of the Second International Conference on

Advances in Information Technology AIT 2013.

Rich, B. (2011). Oracle Database Reference, 11g Release

2 (11.2).

Stolze, K. and Steinbach, T. (2003). DB2 Index Extensions

by example and in detail, IBM Developer works DB2

library.

The Open Group (2011). DRDA V5 Vol. 1: Distributed Re-

lational Database Architecture.

ExternalDatabaseExtensionFramework

255
