Transparent Access to Relational Databases in the Cloud using a

Multi-tenant ESB

Steve Strauch, Vasilios Andrikopoulos, Santiago G´omez S´aez and Frank Leymann

Institute of Architecture of Application Systems, University of Stuttgart, Stuttgart, Germany

Keywords:

Data Access Layer, Relational Databases, Enterprise Service Bus (ESB), Multi-tenancy.

Abstract:

In the last years Cloud computing has become popular among IT organizations aiming to reduce their opera-

tional costs. Applications can be designed to run in the Cloud, or can be partially or completely migrated to

it. Migrating the data layer of an application to the Cloud, however, implies that existing applications might

need to be adapted in order to access their migrated to the Cloud databases. In this work we examine how we

can use an existing ESB to enable transparent access to the relational data store running either in the Cloud or

on-premise. The goal of our approach is to minimize the effort required to adapt the application. In particu-

lar, we discuss the requirements and prototype realization of a Cloud aware data access layer for transparent

data access, using an existing open source and multi-tenant aware ESB as the basis. We then evaluate the

performance of our proposed solution by considering different Cloud providers and using example data from

an existing benchmark as application workload.

1 INTRODUCTION

With the advent of Cloud services beyond Infrastruc-

ture as a Service (IaaS) solutions (Mell and Grance,

2011), the migration of individual application layers

or even individual architectural components to the

Cloud, becomes possible. Applications are usually

built using the three layers pattern: Presentation, Busi-

ness Logic, and Data (Fowler et al., 2002). The mi-

gration of the Data layer to the Cloud is the focus

of this work. Application data is typically moved to

the Cloud for Cloud bursting, data analysis, or backup

and archiving purposes. We distinguish between two

different types of interaction with databases in the

Cloud. On the one hand there is the direct interac-

tion with a database hosted on the Cloud as a data

store that takes place on a ﬁne granular level, e.g., by

using SQL commands. The second interaction type

relies on a service interface to interact with the Cloud

database, as in the case of e.g. Amazon SimpleDB

which becomes a data service. This requires interac-

tion on the level of the service interface that is more

coarse grained compared to the interaction when us-

ing SQL for instance. We therefore need to consider

both types of interactions in the following. In ad-

dition to relational databases (Codd, 1970), widely

established in industry and research Not Only SQL

Amazon SimpleDB: http://aws.amazon.com/de/simpledb/

(NoSQL)

solutions have become increasingly popu-

lar in recent years (Sadalage and Fowler, 2012). For

the scope of this work we focus only on relational

databases.

Looking at the Data Layer in particular, the layer

can be subdivided into the Data Access Layer (DAL)

and the Database Layer (DBL). The DAL is an ab-

straction layer encapsulating the data access func-

tionality, while the DBL provides persistence and re-

trieval capabilities. As discussed in (Andrikopoulos

et al., 2013), the migration of the Data Layer to the

Cloud includes two main steps: the migration of the

DBL to the Cloud, and the adaptation of the DAL to

enable Cloud data access. The DBL can either be mi-

grated completely or partially to the Cloud. In the lat-

ter case, the DBL is distributed using both non-Cloud

technologies (local databases), and data stores and ser-

vices. Thus, the distribution of the DBL essentially

changes the border of the application compared to tra-

ditional applications. The assumption in our work is

that the DBL has already been migrated to the Cloud,

and therefore we focus on the DAL. As a consequence

of the tight coupling of the Business Logic layer with

the DBL in traditional applications built without using

any service-oriented or Cloud technology, the Busi-

ness Logic layer must be explicitly aware of the loca-

tion of the data and the data store it is interacting with.

List of NoSQL Databases: http://nosql-database.org

Strauch S., Andrikopoulos V., Goméz Sáez S. and Leymann F..

Transparent Access to Relational Databases in the Cloud using a Multi-tenant ESB.

DOI: 10.5220/0004835900050014

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 5-14

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Therefore, any change to the location of the DBL re-

sults in the need for adapting the Business Logic layer,

not only to rewire the connection to the DBL, but also

to cope with potentially less ﬁne granular interaction

types when moving to data service solutions.

In order to minimize the impact of this adapta-

tion, in this work we propose the use of the Enter-

prise Service Bus (ESB) technology (Chappell, 2004)

as the means to decouple the Business Logic from the

Database Layer by leveraging the Data Access Layer.

The ESB technology as the messaging infrastructure

between applications and services addresses the es-

sential requirement of application integration while

ensuring loose coupling. In the recent years it has be-

come as a result ubiquitous in enterprise computing

environments. ESBs control message handling dur-

ing the interaction between applications and services,

allowing for dynamic routing, and are at the core of

each Service-Oriented Architecture (SOA) (Josuttis,

2007). It is only natural therefore to enable the distri-

bution of the DBL in the Cloud by taking advantage

of the dynamic routing features of ESBs, allowing for

hosting the database both on-premise and off-premise.

As to the extend of our knowledge there is no solution

so far that supports this, we want to enable the com-

munication between the Business Logic and the DBL

via the ESB (DAL) using the native database commu-

nication protocol. For this purpose, we build on an ex-

isting open source ESB previously extended for multi-

tenancy (Strauch et al., 2012a; Strauch et al., 2013b)

to enable transparent access to multiple data sources

both locally, and in the Cloud.

Our contribution therefore can be summarized by

offering:

• The identiﬁcation of requirements for enabling

transparent data access to data stores and data ser-

vices.

• The design and realization of CDASMix, a multi-

tenant aware ESB solution that enables transpar-

ent data access to databases both on-premise and

off-premise.

• A performance evaluation of our proposal, estab-

lishing the impact of introducing an ESB as the

DAL between the application and the database

across different deployment options.

The remaining of the paper is structured as fol-

lows: Section 2 identiﬁes the requirements for sup-

porting transparent data access for databases that have

been migrated to the Cloud. Based on these require-

ments, Section 3 discusses the architecture and imple-

mentation of our proposal. Section 4 provides a per-

formance evaluation for this realization for different

database and deployment options considering differ-

ent providers. The paper closes with Section 5 and

Section 6 summarizing related work, and concluding

with some future work, respectively.

2 TRANSPARENT CLOUD DATA

ACCESS REQUIREMENTS

The set of functional and non-functional requirements

for transparent Cloud data access we present in this

section has been identiﬁed during our work in various

EU research projects and especially during the collab-

oration with industry partners. The requirements are

geared towards minimizing the impact to the Business

Logic and Presentation application layers of adapt-

ing the application to cope with the migration of the

database to the Cloud (Andrikopoulos et al., 2013).

2.1 Functional Requirements

The following functionalities must be offered by any

DAL that provides transparent access to databases in

the Cloud.

Interaction with Data Stores and Data Services:

The DAL must support both ﬁne- and coarse-

grained types of interactions, through SQL and

service APIs, respectively.

Management and Conﬁguration: The DAL must

provide management and conﬁguration capabil-

ities for both data stores and data services, e.g.

registration of a new data store, including its con-

ﬁguration data, e.g. database schemas, database

system endpoint URL, etc.

On-premise and Off-premise Support: The DAL

has to support data stores and data services that

are either hosted on-premise or off-premise and

using Cloud or non Cloud technologies.

Transparent Data Access: As the database layer

might be distributed between on-premise and

off-premise using Cloud and non-Cloud tech-

nologies, the business logic is no longer aware

where the data is located compared to traditional

applications. Thus, the DAL must determine au-

tonomously the data store or data service the re-

quest should be forwarded to, based on the re-

quest sent by the Business Logic layer.

Caching: As the migration of the database to the

Cloud introduces a potentially high distance be-

tween the different application layers measured

in network hops, the DAL has to support caching

in order to mitigate the consequences of network

latency.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

2.2 Non-functional Requirements

In addition to the required functionalities, a DAL en-

abling Cloud data access should also respect the fol-

lowing properties.

NFR

Loose Coupling: The DAL must allow for

Cloud data stores or data services to be

changed without affecting the Business Logic

layer, except from the necessary reconﬁgura-

tion of the connection to the data store or data

service.

NFR

Security: As the DAL stores information on

the available data stores and data services in-

cluding their internal structure, e.g. database

schemas and access credentials, third parties

have to be prevented from gaining access to

these data.

NFR

Backward Compatibility & Extensibility:

DAL components have to be compatible with

directly wiring the business logic with a spe-

ciﬁc data store, as in traditional applications.

Furthermore, extensibility has to be ensured

in order to integrate the components with

future technologies and solutions, e.g. new

types of data services in the Cloud.

As discussed in the previous section, the proposed

approach builds on the use of the ESB technology

as the realization of these requirements. However,

given the fact that multiple organizational domains

may have access to the same data stores or services,

it has to be ensured that each organization is conﬁned

to their own data. While modern Relational Database

Systems (RDBMSs) have been offeringthis capability

for a while, multi-tenancy on the level of middleware

is still an open issue. For this purpose, in (Strauch

et al., 2012b) we identify a set of requirements for

multi-tenancy for ESB solutions. These requirements,

summarized in the following, have also to be taken

into consideration when designing and implementing

a transparent DAL solution using an ESB.

More speciﬁcally, tenant-based identiﬁcation and

hierarchical access control have to be supported, as

the ESB has to manage and identify multiple ten-

ants (organizationaldomains) and their corresponding

users. For the administration and management of both

tenants and users, customizable interfaces have to be

provided, including both Web service interfaces and

GUIs. Through these interfaces, the tenant-based de-

ployment and conﬁguration of the ESB and the ser-

vices available for a speciﬁc tenant should be man-

aged in a transparent way. As other multi-tenant com-

ponents in a PaaS environment request similar infor-

mation, e.g. workﬂow engines, the ESB should offer a

shared registry of services and of tenants and users for

other PaaS components. Furthermore, services and

applications that are not multi-tenant aware should

still be able to seamlessly use and transparently inter-

act with the ESB.

In addition, both data isolation and performance

isolation have to be ensured, in order to avoid that ten-

ants acquire access to data or computing resources of

other tenants. In order to address the security aspect,

corresponding conﬁdentiality, authorization, authenti-

cation, and integrity mechanisms have to be realized

on tenant and user level. Finally, the ESB components

must be extensible and reusable by other components

in the PaaS environment to ensure independence from

a speciﬁc technology or solution. All of these require-

ments are considered in the following discussion.

3 CLOUD DATA ACCESS

SUPPORT IN ServiceMix

In this section we discuss CDASMix (Cloud Data Ac-

cess Support in ServiceMix), an architectural and im-

plementation approach which fulﬁlls the requirements

identiﬁed in the previous section. As the basis for the

design and implementation of our approach, we reuse

and extend the ESB

multi-tenant aware ESB solu-

tion

, as presented in (Strauch et al., 2013a). ESB

enhances the Apache ServiceMix 4.3 JBI container

with multi-tenant communication support within ser-

vice endpoints deployed in the ESB, and multi-tenant

aware dynamic endpoint deployment capabilities. As

shown in Fig. 1, the ESB

architecture contains

three layers: Presentation, Business Logic, and Re-

sources. The Presentation and Business Logic layers

deﬁne a generic interface and logic design approach

of a multi-tenant aware administration and manage-

ment application for ESBs. The Resources layer con-

tains the ESB-speciﬁc instances cluster, databases for

tenant-related information, and an intermediary com-

ponent to mediate the management communication

between the upper layers and the ESB instance cluster.

However, ESB

focuses on enabling multi-tenancy

at the communication level between application ser-

vices, rather than on application’s data access. There-

fore, the remaining of this section describes the ex-

tensions realized for CDASMix in each of the sys-

tem’s layers highlighted in Fig. 1 to enable transpar-

ent Cloud data access support, and provide a deeper

insight on the realized components. An extended de-

scription of the architectural and implementation ap-

ESB

: http://www.iaas.uni-stuttgart.de/esbmt/

Apache ServiceMix: http://servicemix.apache.org

TransparentAccesstoRelationalDatabasesintheCloudusingaMulti-tenantESB

Presentation

Business

Logic

Resources

Web Service API

Configuration Registry Manager

Tenant Registry Manager

Service Registry Manager

JBI Container Manager

Service Assembly Manager

Service Registry

Database Cluster

Configuration

Registry Database

JBI Container

Instance Cluster

Access Layer

Web UI

Tenant Registry

Database

Message Broker

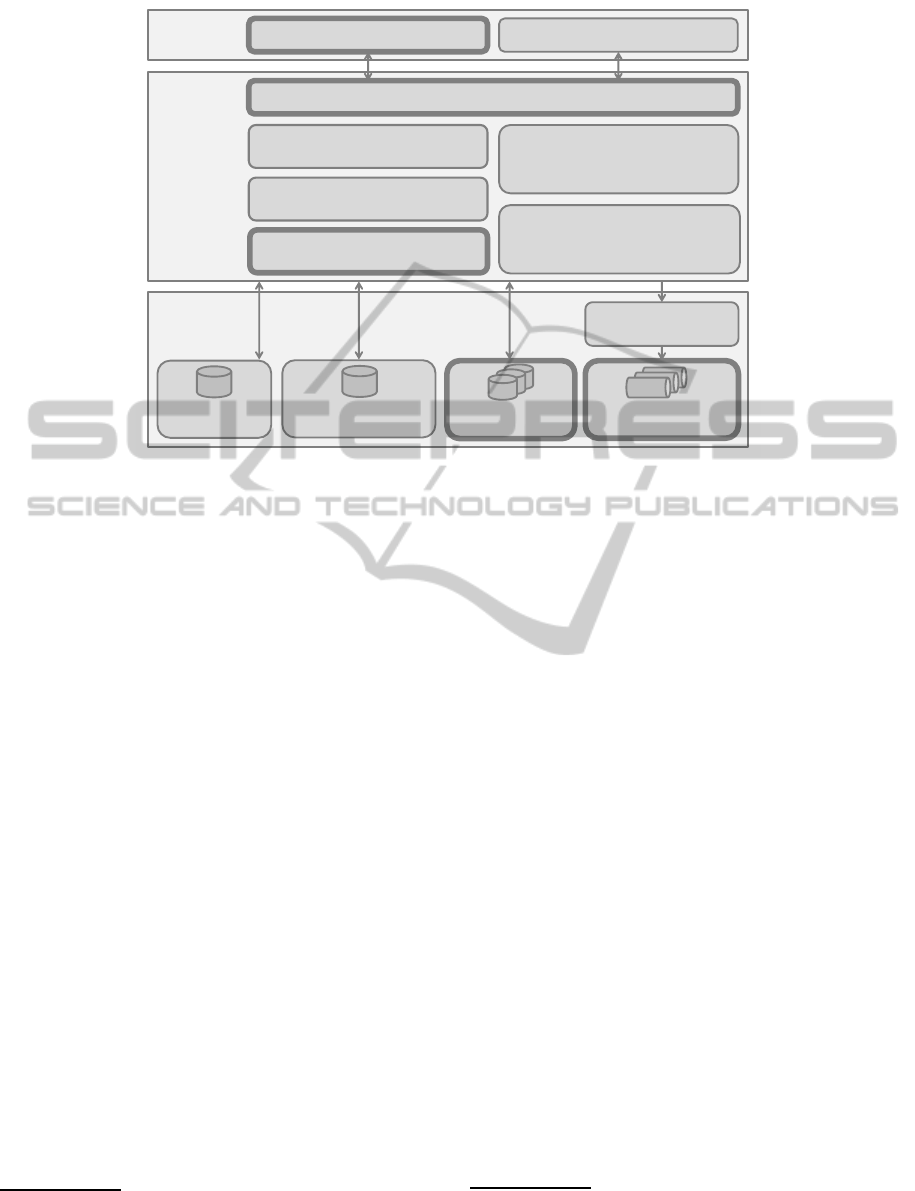

Figure 1: Architecture of CDASMix based on ESB

proaches used is provided in (G´omez S´aez, 2013).

3.1 Resources Layer

The Resources Layer of CDASMix consists of a set

of registries and multiple JBI containers which con-

stitute a JBI Container Instance Cluster, as described

in Fig. 1. JBI containers provide support for message

routing and transformation, as in traditional ESB so-

lutions. ESB

, and by extension CDASMix, relies

on the OSGi Framework

in order to allow compo-

nents to be deployed in a loosely coupled way. The

ServiceMix solution at the core of ESB

is equipped

for this purpose with several OSGi components which

realize the ESB functionality complying to the JBI

speciﬁcation. For example, the ServiceMix-http Bind-

ing Component (BC) supports routing of HTTP re-

quests, and the Apache Camel

Service Engine (SE)

realizes a set of known Enterprise Integration Pat-

terns (Hohpe and Woolf, 2003). The Normalized

Message Router (NMR) provides integration support

between JBI and OSGi components within the ESB

through a message-based interface. JBI components

provided by ServiceMix supportmultiple communica-

tion protocols (e.g. HTTP, SMTP, JMS, etc.) by mar-

shaling and demarshaling protocol-speciﬁc messages

into a standardized internal Normalized Message For-

mat (NMF) (Rademakers and Dirksen, 2008). Nev-

ertheless, database system native communication pro-

OSGi Version 4.3: http://www.osgi.org/Download/

Release4V43/

Apache Camel: http://camel.apache.org

tocols are not supported, as they are solution-speciﬁc.

We focus our approach by providing communication

support for a well known and widely used database

system, MySQL

. The same approach however can

be used to provide support for other systems too, e.g.

PostgresSQL

Figure 2 zooms in the architecture of one ESB in-

stance in the cluster in order to illustrate how trans-

parent message routing and transformation of applica-

tion data requests was realized in CDASMix based on

the ESB

architecture. More speciﬁcally, the devel-

oped

MySQL Proxy

is an OSGi component that imple-

ments an OSGi- and JBI-compliant version of a Java-

based MySQL proxy (NFR

). As the default MySQL

Proxy shipped with MySQL distributions is imple-

mented in the C programming language, the existing

open source Java-based MySQL Proxy in Myosotis

Tungsten Connector

was reused and extended. The

MySQL OSGi bundle implements the native MySQL

communication protocol and is fully integrated with

the JBI container via the Normalized Message API, an

OSGi bundle which exposes an interface for accessing

the NMR endpoint registries and routing operations.

In order to mitigate the latency introduced by using

CDASMix as an intermediate communication compo-

nent between the application architecture layers, the

caching mediation pattern presented in (Rao et al.,

2006) is realized within CDASMix. Thus, a caching

component ensures high performance of SQL read op-

MySQL: http://www.mysql.com

PostgresSQL: http://www.postgresql.org

Tungsten Replicator: http://myosotis.continuent.org

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

OSGi Environment

JBI Environment

Presentation

Business

Logic

Resources

Web Service API

Configuration Registry Manager

Tenant Registry Manager

Service Registry Manager

JBI Container Manager

Service Assembly Manager

Service Registry

Database Cluster

Configuration

Registry Database

JBI Container

Instance Cluster

Access Layer

Web UI

Tenant Registry

Database

Message Broker

Instance Cluster

JBI Container

Tenant Registry

Standardized Interfaces for Service Engines

Standardized Interfaces for Binding Components

Normalized Message Router

External

Application

SMX-Camel

-mt

MySQL

Proxy

SMX-

Camel

cdasmixJDBC

Backend Cloud Data Store Provider

Registry-Cache

Legend

Message Flow

OSGi Component

JBI Component

JNDI

NMR API

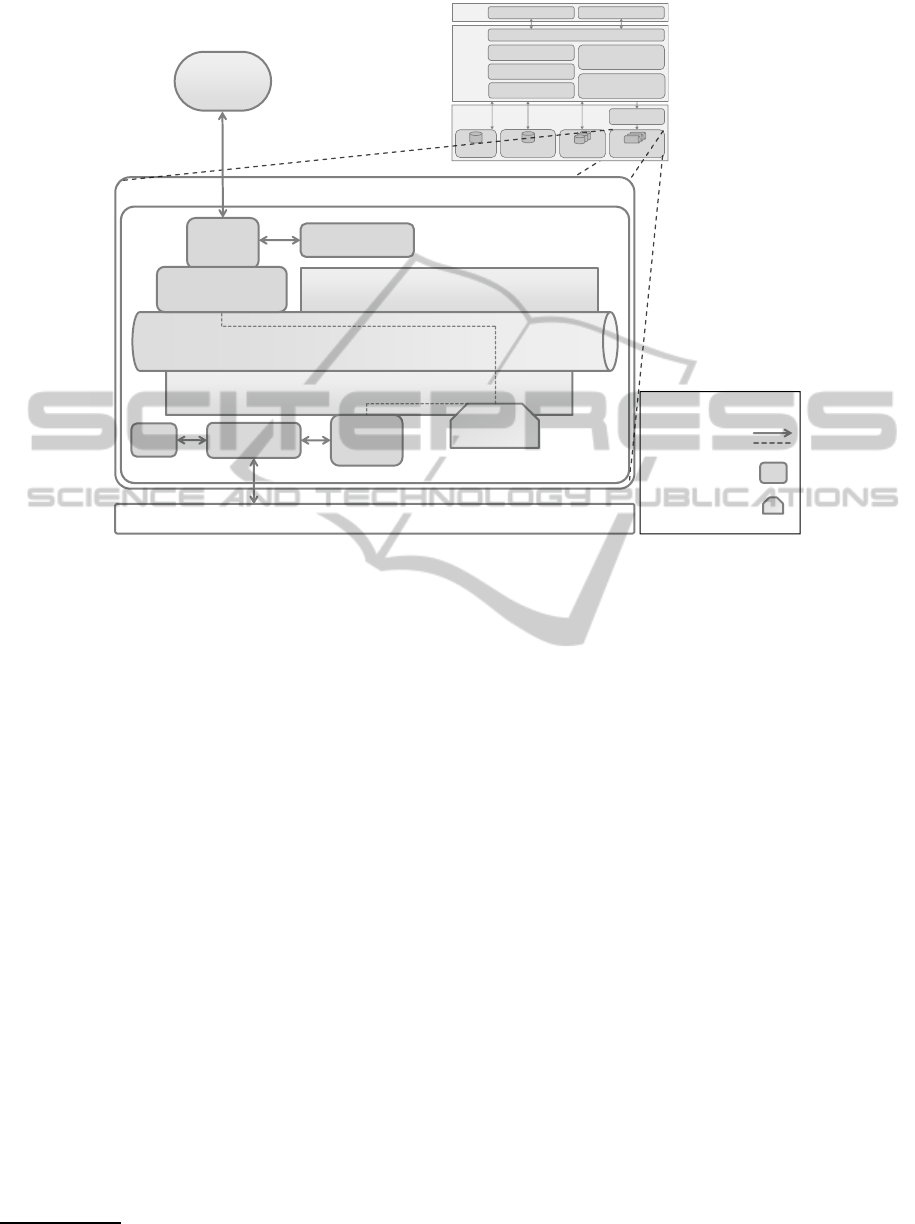

Figure 2: Architecture of an ESB Instance.

erations in CDASMix by utilizing a Least Recently

Used (LRU) caching policy conﬁgured in Ehcache

2.6.0

, and by deleting cache records when SQL

statements involve data modiﬁcation (FR

). There-

fore, the caching strategy does not only aim to re-

duce the latency of accessing data through the ESB,

but also intends to reduce the NMR system resources

consumption.

The ESB

Camel SE 2011.11 (denoted as

SMX-Camel-mt

in Fig. 2) provides multi-tenancy and

integration support between the JBI environment and

the Enterprise Integration Patterns realizations of

Apache Camel. In CDASMix, a custom Camel com-

ponent named

CamelcdasmixJDBC

(see Fig. 2) was

developed for dynamically connecting to backend

data sources via multiple database system communi-

cation protocols (FR

, NFR

). This component is ac-

cessed through a camel endpoint in the

SMX-Camel

component (Fig. 2). Database connections are reg-

istered in the JNDI component of ServiceMix to de-

crease the latency produced by creating one database

connection per user per received request. The JBI

speciﬁcation limits the inclusion of referenced pack-

ages in the SU during build time, rather than during

runtime as in OSGi. Therefore, extensions realized

on the

CamelcdasmixJDBC

component, e.g. support-

ing a new database system, require updating, build-

Ehcache 2.6.0: http://ehcache.org

ing, and redeploying the service units referencing the

CamelcdasmixJDBC

component. Utilizing the Ser-

viceMix Camel SE OSGi component enables loading

CamelcdasmixJDBC

component packages during

runtime (NFR

CDASMix utilizes the existing ESB

reg-

istries in the Resources layer, described extensively

in (Strauch et al., 2012b; Strauch et al., 2013b). A

database schema modiﬁcation in the Service Registry

Database Cluster was necessary (Fig. 1), as it must be

extended to persist tenant-related Cloud data access

management information. We identify two required

types of information when executing SQL statements

on RDBMSs: connection related, and database re-

lated. The former contains the required information

to connect to a database instance, e.g. access creden-

tials, database URL, etc., while the latter includes in-

formation about the database schema, e.g. table iden-

tiﬁers. Therefore, we create a data structure which

persists the tenant’s backend database connection and

structure information for enabling transparent access

through one physical endpoint in CDASMix, to multi-

ple backend data stores or data services located either

on-premise or off-premise (FR

, FR

3.2 Business Logic Layer

The Business Logic layer of ESB

enables role-

based access control for administration and manage-

TransparentAccesstoRelationalDatabasesintheCloudusingaMulti-tenantESB

ment of the JBI Container Instance Cluster (Strauch

et al., 2012b; Strauch et al., 2013b) (NFR

). Enabling

transparent Cloud data access support in CDASMix

does not require architectural modiﬁcations on this

layer, but demands implementation extensions for ad-

ministrating access and persistence operations on the

information related to tenant’s backend data stores.

Therefore, we extend the components highlighted in

Fig. 1. The Access Layer is extended with operations

executable at the tenant operator role level. The Ser-

vice Registry Manager component is extended with

operationsfor persisting and accessing the CDASMix-

related data in the Service Registry Database Cluster.

3.3 Presentation Layer

The Presentation layer contains the Web UI and the

Web services API components which allow the cus-

tomization, administration, management, and inter-

action with the other layers (Strauch et al., 2012b;

Strauch et al., 2013b). In CDASMix, no modiﬁca-

tions on the Web UI were required, but a set of op-

erations for conﬁguring the transparent data access

through CDASMix was included in the Web services

API (FR

4 EVALUATION

In this section we present the performance evaluation

of our proposal. Therefore, we deﬁne the method and

the experimental setup (Section 4.1), and discuss the

experimental results (Section 4.2).

4.1 Evaluation Method & Experimental

Setup

The evaluation of CDASMix in this work focuses on

measuring the impact of introducing the ESB between

an application and its migrated to the Cloud database.

Three main scenarios are taken into consideration for

this purpose, based on different Cloud infrastructures

where the database can be deployed, as shown in

Fig. 3:

1. in an RDBMS on the same VM as CDASMix

(VM0 on Flexiscale

);

2. in an RDBMS hosted on a VM of a different

Cloud provider (CDASMix on VM0 (Flexiscale)

and MySQL hosted on Amazon EC2

(VM1));

and

Flexiant Flexiscale: http://www.ﬂexiscale.com

Amazon EC2: http://aws.amazon.com/ec2/

3. in a DBaaS solution (Amazon RDS

) with the

CDASMix hosted on VM0.

For each of the scenarios, we compare the direct ac-

cess to the database with a transparent access to the

database through CDASMix. In order to simplify

the discussion, we only use one tenant for database

requests across all scenarios. Evaluating the multi-

tenancy capabilities offered by CDASMix are the sub-

ject of ongoing future work.

For purposes of creating a data set and queries

over it, we use the TPC-H benchmark

which em-

phasizes large volumes of data, queries with high

degree of complexity, and answering critical busi-

ness questions. The TPC-H benchmark provides a

set of operations for generating different volumes of

data, and a set of complex queries for a predeﬁned

database schema. The benchmark was used to create

the database schema and populate it with a ﬁxed data

volume, which was consequently imported into the

two MySQL deployments (on Flexiscale and Ama-

zon) and on Amazon RDS. The generated data set has

a total size of 1GB distributed among 8 tables, con-

forming to the TPC-H database schema.

A set of three complex (SQL)

SELECT

queries ex-

tracted from the benchmark was combined with two

simpler

UPDATE

statements and used as the basis for

an artiﬁcial work load. Figure 4 lists one of the select

queries used as part of this process. The work load

used consists of arbitrarily executed queries in a set

of ten data requests in a loop of ten iterations, for a to-

tal of a hundred queries, where queries are distributed

in a N updates to M selects ratio, with (N, M) = (3, 7).

The ratio used was selected in order to force the cache

of CDASMix to ﬂush relatively often (roughly once

every three queries).

Apache JMeter

is used for load driving pur-

poses from a local computer, using the JDBC Connec-

tion Conﬁguration and MySQL Connector/J (5.1.22)

driver to submit the queries. In the case of di-

rect connections to MySQL on Flexiant/Amazon EC2

and Amazon RDS, the loader has to be conﬁgured

separately to address the various endpoints of the

databases (connections D1, D2 and D3 in Fig. 3).

When CDASMix is used, JMeter is conﬁgured only

once with an ESB endpoint (connection E in Fig. 3)

and the redirection of the queries to the various

databases through connections E1 to E3 uses the con-

ﬁguration mechanisms offered by CDASMix, as ex-

plained in the previous section. JMeter is set up to

measure the elapsed time for each request to be pro-

Amazon RDS: http://aws.amazon.com/rds/

Transaction Processing Performance Council

Benchmark

H http://www.tpc.org/tpch/

Apache JMeter 2.9: http://jmeter.apache.org

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

Updated Experimental Setup – CDASMix

VM0 (Flexiscale)

Local Network

Apache

JMeter 2.9

CDASMix

MySQL 5.1

TPC-H

Amazon RDS

MySQL 5.1 instance

TPC-H

VM1 (Amazon EC2)

MySQL 5.1

TPC-H

D2 D3

E3 E2 E1

Legend

Message Flow

Measurement Point

Throughput and

Transfer Rate

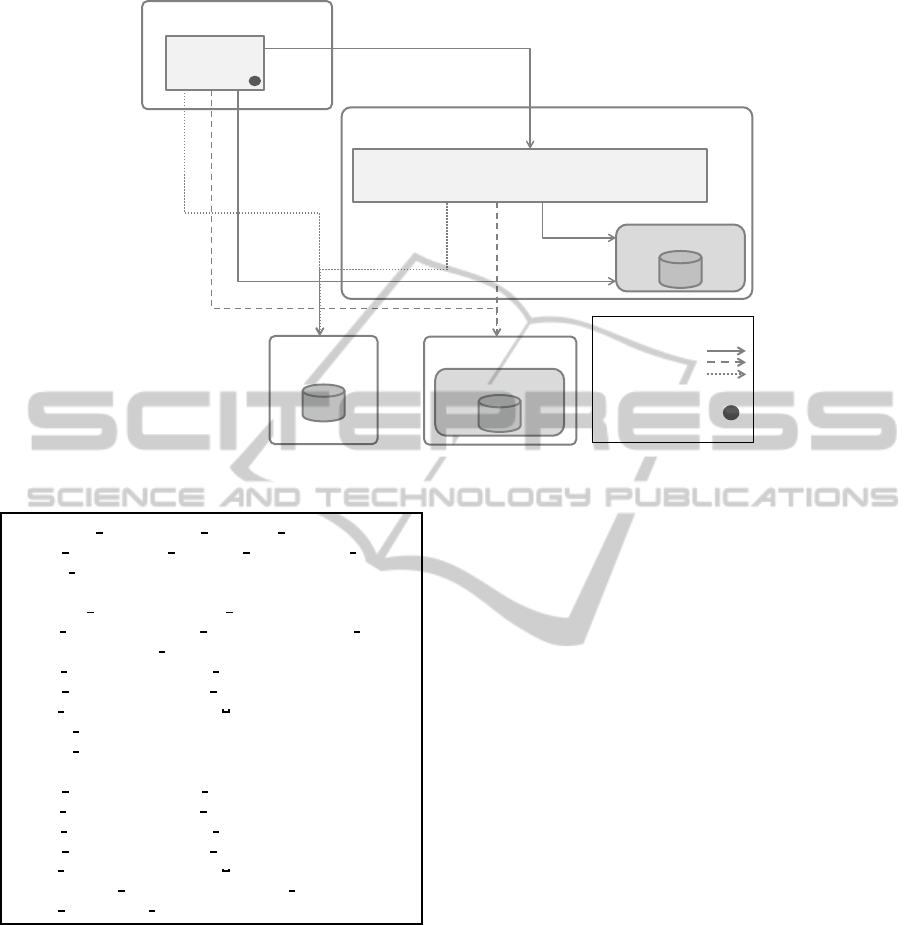

Figure 3: Overview of the Experimental Setup.

s e l e c t s a c c t b a l , s name , n name ,

p partkey , p mfgr , s address , s phone

, s comment from part , supplier ,

partsupp , nation , r egi on

where p partkey = ps p a r t k e y and

s suppkey = ps suppkey and p s i z e

= 47 and p t ype l i ke ’%BRASS’ and

s nat ionkey = n na tionkey and

n regionkey = r regionk e y and

r name = ’MIDDLE EAST’ and

ps suppl ycost = ( s e l e c t min (

ps suppl ycost ) from partsupp ,

supplier , nation , r egi on where

p partkey = ps partkey and

s suppkey = ps suppkey and

s nat ionkey = n na tionkey and

n regionkey = r regionk e y and

r name = ’MIDDLE EAST’ )

order by s a c c t b a l desc , n name ,

s name , p partkey l i m i t 100;

Figure 4: Sample SQL Query Used.

cessed, out of which we calculate the average through-

put of the load in executed transactions per second.

In terms of the experimental setup shown in Fig. 3,

the virtual machine VM0 (8GB RAM, 4 CPUs AMD

Opteron 2GHz with 512KB cache) hosted in the Flex-

iscale infrastructure runs Ubuntu 10.04 Linux OS.

Deploying CDASMix and JBIMulti2 in VM0 also

required the deployment of the JOnAS 5.2.2 appli-

cation server (for JBIMulti2), and the PostgreSQL

9.1.1 database (for the registries). The maximum

JVM memory heap size of the ServiceMix process

was set to 1GB. In the same VM, a MySQL 5.1.67

database system with an internal cache size of 16MB

was installed. In the Amazon AWS Cloud infras-

tructure, both the Amazon EC2 VM and the Ama-

zon RDS database are hosted in the

eu-west-1a

availability zone. An

m1.xlarge

EC2 instance run-

ning the Ubuntu 12.04.2 LTS OS was created, and

MySQL 5.1.67 database system was deployed on it,

with an internal cache size of 16MB. In Amazon

RDS, a

db.m1.xlarge

instance was created, run-

ning a MySQL 5.1.69 engine version, as the MySQL

5.1.67 engine version is not available.

4.2 Experimental Results

Figure 5 summarizes the measurements taken for the

deﬁned work load across the three database deploy-

ment scenarios. In addition, and for purposes of estab-

lishing a baseline, the average throughputwith JMeter

installed directly on VM0 (i.e. on the same VM) as

the database was measured to be 0,15 transactions per

second for the deﬁned work load. When compared

with the direct access to the same database from a lo-

cal machine using the same load (leftmost column in

Fig. 5) it can be concluded that network latency be-

tween the local machine and Flexiscale results in an

average of 3,52% decrease in throughput. The effect

of this latency has to be factored in for the remaining

analysis whenever CDASMix is used.

In particular, the following conclusions can be

drawn when examining Fig. 5:

• When comparing direct access to MySQL from

TransparentAccesstoRelationalDatabasesintheCloudusingaMulti-tenantESB

0,00

0,02

0,04

0,06

0,08

0,10

0,12

0,14

0,16

0,18

Flexiscale EC2 RDS

0,1560

0,1408

0,1234

0,1459

0,1351

0,1735

Direct

CDASMix

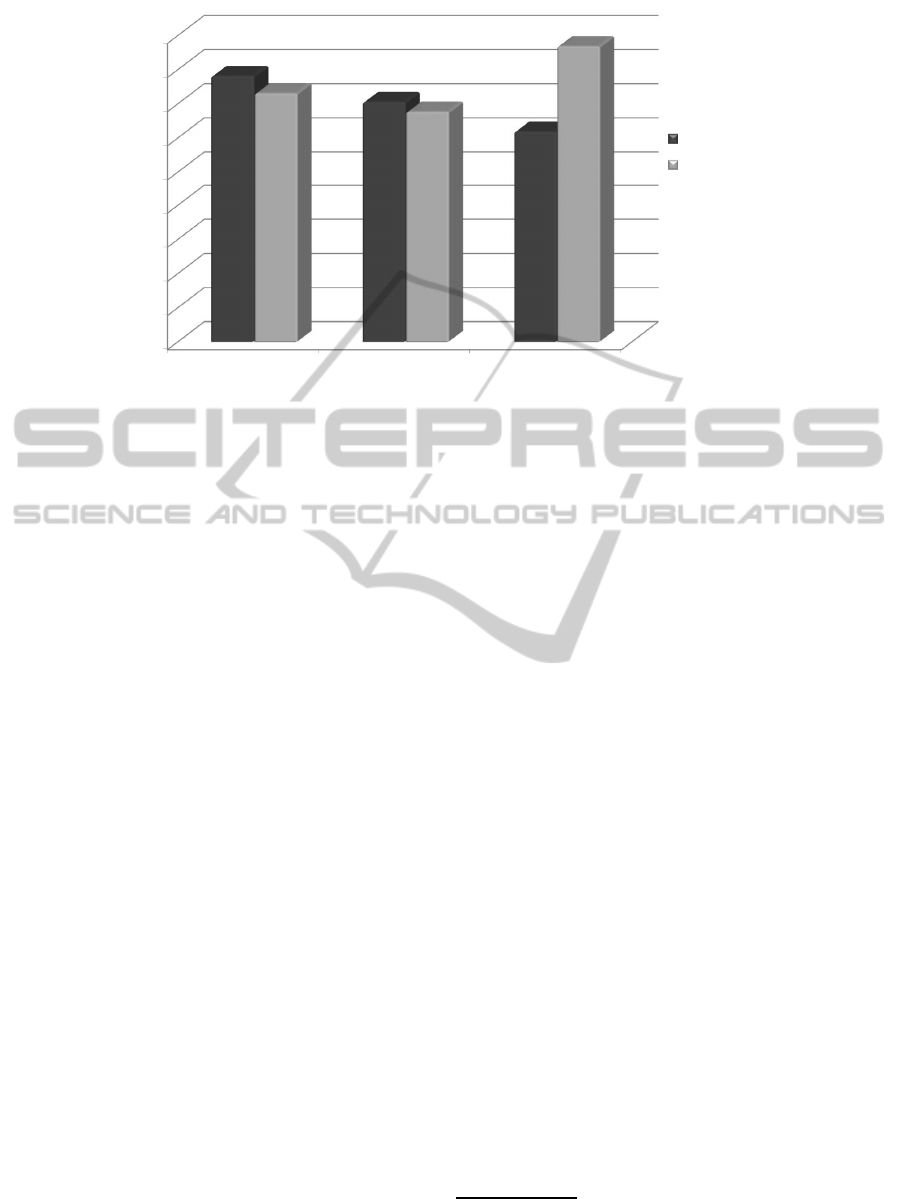

Figure 5: Average Throughput (Transactions per Second): Without (Direct) and With Using CDASMix

the (local) loader with indirect access through

CDASMix, a 6,47% decrease in throughput is ob-

served. Taking into account the 3,52% decrease

due to network latency, we can conclude that the

actual impact of introducing CDASMix amounts

to 3%, which can be considered acceptable for

many applications.

• A similarly low impact is also observed when

comparing direct and indirect access to the same

MySQL engine as before but on a different

provider (EC2), with 4% decrease in throughput.

The presence of caching on CDASMix is assumed

to mitigate the effect of the additional network la-

tency between the two providers (Flexiscale), re-

sulting in better throughput when compared with

the ﬁrst scenario (i.e. Flexiscale only).

• The effect of caching is more eminent in the case

of accessing RDS through CDASMix, where de-

spite the additional network latency, using CDAS-

Mix actually improves throughput by 40,54%.

However, in both cases, further evaluation of the

effect of caching in relation to network latency is

required.

In summary therefore, the effect of introducing

CDASMix between an application and its database is

acceptable for the majority of applications. Further-

more, any adversarial effects to performance, due to

additional computations and dependence on network

behavior, have to be measured against the beneﬁts of

the ﬂexibility provided by the transparency of the data

access layer.

5 RELATED WORK

To the extend of our knowledge, there is no existing

approach aiming at using an ESB solution for trans-

parent data access to databases in the Cloud. Most

ESB solutions do provide support for storing data

in relational database systems (RDBMS). However,

all of them focus on providing access to databases

through JDBC connections that are meant to be used

for ESB-internal purposes. Fuse ESB, for exam-

ple, provides JDBC data source support enabling

users to connect to a database and make SQL based

queries and data manipulations (FuseSource Corpo-

ration, 2013). However, it does not provide native

support for incoming database messages, e.g. in the

MySQL communication protocol, because data con-

sumer endpoints supporting native database proto-

cols are not deployable. The integration framework

Apache Camel provides access to RDBMSs through

the Camel-jdbc

component, but it also does not

support interaction via native database communica-

tion protocol messages through consumer endpoints.

Data sources in producer endpoints must be conﬁg-

ured in both Apache Camel and existing ESBs prior

their deployment, e.g. using Spring. This require-

ment forces the data sources’ access conﬁguration to

be statically created, rather than dynamically created

during runtime. JBoss Enterprise Data Service Plat-

form

by Red Hat, Inc. provides data services with

Service-Oriented Architecture (SOA) support and an

ESB (Red Hat, Inc, 2011). Accessing the database

Apache Camel JDBC: http://camel.apache.org/jdbc.html

JBoss Data Services Platform: http://www.redhat.com/

products/jbossenterprisemiddleware/data-services

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

layer using technologies implementing an architec-

tural paradigm like SOA, however, might require

adapting the application, and in particular the upper

(presentation and business logic) architecture layers,

in order to support these technologies. One of the

main goals of our approach is to minimize the re-

quired adaptations of the upper application architec-

ture layers when migrating the database layer partially

or completely to the Cloud by introducing an ESB as

DAL.

In terms of the performance evaluation of our

approach, the different benchmarks and metrics de-

veloped in the domain of Cloud computing in the

recent years focus on Cloud-related features such

as elasticity (Brebner, 2012), performance isola-

tion (Krebs et al., 2012), or on virtualization tech-

nology (Makhija et al., 2006). Given the absence

of a commonly agreed approach for the evalua-

tion of Cloud-enabled middleware components (like

the ESB), in previous work (Strauch et al., 2013b)

we extended an ESB-speciﬁc benchmark developed

by AdroitLogic (AdroitLogic Private Ltd., 2011).

This work however focused on evaluating the multi-

tenancy awareness aspects of our proposed ESB so-

lution, and it is not suitable for evaluating transpar-

ent data access. On the other hand, there are vari-

ous established transaction processing and database

benchmarks addressing performance evaluation of re-

lational databases, e.g. the TPC-* benchmarks from

the Transaction Processing Performance Council

and YCSB for Cloud database services (Cooper et al.,

2010). Evaluating an ESB as transparent data access

layer for accessing databases on-premise or in the

Cloud is not covered by these existing benchmarks.

For this purpose, and as discussed in the Section 4,

we use an artiﬁcial work load taken from the TPC-H

benchmark and Apache JMeter as the driver for this

load.

6 CONCLUSIONS AND FUTURE

WORK

In the previous sections we presented our proposal for

using an ESB solution as the application Data Access

Layer in order to enable transparent data access to

multiple data sources, both on- and off-premise (i.e.

in the Cloud). A set of requirements were identiﬁed

for this purpose in terms of necessary functionalities,

e.g. support of both data stores, i.e. databases hosted

on an IaaS infrastructure, and Databases as a Service

Transaction Processing Performance Council: http://

www.tpc.org

solutions, and of additional non-functional properties

like security. Using the ESB as the DAL for multi-

ple organizational domains (tenants) also incurs addi-

tional requirements to be considered.

The CDASMix solution discussed in this work ad-

dresses these requirements by building on a multi-

tenant-aware ESB solution called ESB

that has

been presented in (Strauch et al., 2013a). Adapting

ESB

to allow applications to communicate with a

database through the ESB required a number of mod-

iﬁcations to it, including database-aware routing com-

ponents, the implementation of a messaging proxy

for native JDBC communications, and caching mech-

anisms for increased performance. The resulting solu-

tion, CDASMix, allows applications to communicate

using JDBC with it, while transparently redirecting

their (SQL) requests to databases either on-premise

or in the Cloud. As shown during the evaluation sec-

tion, the impact of introducing CDASMix as the ap-

plication DAL, when compared to direct access to the

database from the application, results in acceptable

performance degradation for the used workload and

database.

Our current efforts focus on expanding the eval-

uation of CDASMix to include the effect of multi-

tenancy on performance when multiple applications

use the same CDASMix instance, and improving the

generality of our ﬁndings by introducing multiple

workloads. Of particular interest to our work is our

ongoing investigation on the interplay between the

caching done on the level of CDASMix and that of

the used database engine, in order to identify the

optimal caching strategy for the ESB (G´omez S´aez

et al., 2014). Furthermore, in terms of future work,

we plan to support further database system commu-

nication protocols beyond MySQL, and enable the

SQL statement transformations between different en-

gines, e.g. MySQL to PostgreSQL, or between their

versions. Communication and statement transfor-

mation support for non-relational database engines

(NoSQL) offered as services in the Cloud like Ama-

zon DynamoDB

, Google Cloud Storage

, and

MongoHQ

is also under development.

ACKNOWLEDGEMENTS

The research leading to these results has received

funding from projects 4CaaSt (grant agreement no.

Amazon DynamoDB: http://aws.amazon.com/

dynamodb/

Google Cloud Storage: http://cloud.google.com/

storage

MongoHQ: https://www.mongohq.com

TransparentAccesstoRelationalDatabasesintheCloudusingaMulti-tenantESB

258862) and Allow Ensembles (grant agreement

no. 600792) part of the European Union’s Seventh

Framework Programme (FP7/2007-2013) and the

German government funded BMBF project ECHO

(01XZ13023G).

REFERENCES

AdroitLogic Private Ltd. (2011). Performance Frame-

work and ESB Performance Benchmarking.

http://www.esbperformance.org.

Andrikopoulos, V., Binz, T., Leymann, F., and Strauch, S.

(2013). How to Adapt Applications for the Cloud En-

vironment. Computing, 95(6):493–535.

Brebner, P. (2012). Is your Cloud Elastic Enough?: Perfor-

mance Modelling the Elasticity of Infrastructure as a

Service (IaaS) Cloud Applications. In Proceedings of

ICPE’12, pages 263–266.

Chappell, D. A. (2004). Enterprise Service Bus. O’Reilly

Media, Inc.

Codd, E. F. (1970). A Relational Model of Data for Large

Shared Data Banks. Commun. ACM, 13(6):377–387.

Cooper, B. F. et al. (2010). Benchmarking Cloud Serving

Systems with YCSB. In Proceedings of SOCC’10,

pages 143–154. ACM.

Fowler, M. et al. (2002). Patterns of Enterprise Application

Architecture. Addison-Wesley Professional.

FuseSource Corporation (2013). Fuse ESB

4.4 – Conﬁguring and Running Fuse ESB.

http://fusesource.com/docs/esb/4.4/esb

runtime/.

G´omez S´aez, S. (2013). Extending an Open Source En-

terprise Service Bus for Cloud Data Access Support.

Diploma Thesis, Universit¨at Stuttgart, Fakult¨at Infor-

matik, Elektrotechnik und Informationstechnik, Ger-

many.

G´omez S´aez, S., Andrikopoulos, V., Leymann, F., and

Strauch, S. (2014). Evaluating Caching Strategies for

Cloud Data Access Using an Enterprise Service Bus.

In Proceedings of IEEE IC2E’14. IEEE Computer So-

ciety.

Hohpe, G. and Woolf, B. (2003). Enterprise Integration Pat-

terns: Designing, Building, and Deploying Messaging

Solutions. Addison-Wesley Professional.

Josuttis, N. (2007). SOA in Practice. O’Reilly Media, Inc.

Krebs, R., Momm, C., and Kounev, S. (2012). Metrics and

Techniques for Quantifying Performance Isolation in

Cloud Environments. In Proceedings of QoSA’12,

pages 91–100. ACM.

Makhija, V. et al. (2006). VMmark: A Scalable Benchmark

for Virtualized Systems. Technical Report VMware-

TR-2006-002, VMware, Inc.

Mell, P. and Grance, T. (2011). The NIST Deﬁnition of

Cloud Computing.

Rademakers, T. and Dirksen, J. (2008). Open-Source ESBs

in Action. Manning Publications Co., Greenwich, CT,

USA.

Rao, F. Y. et al. (2006). Cache Mediation Pattern. In Pro-

ceedings of EuroPloP’06. Universitaetsverlag Kon-

stanz.

Red Hat, Inc (2011). Gap Analysis: The Case for Data

Services.

Sadalage, P. J. and Fowler, M. (2012). NoSQL Distilled: A

Brief Guide to the Emerging World of Polyglot Persis-

tence. Addison-Wesley Professional.

Strauch, S., Andrikopoulos, V., G´omez S´aez, S., and Ley-

mann, F. (2013a). ESB

: A Multi-tenant Aware En-

terprise Service Bus. International Journal of Next-

Generation Computing, 4(3):230–249.

Strauch, S., Andrikopoulos, V., G´omez S´aez, S., and Ley-

mann, F. (2013b). Implementation and Evaluation of

a Multi-tenant Open-Source ESB. In Proceedings of

ESOCC’13, volume 8135 of Lecture Notes in Com-

puter Science (LNCS), pages 79–93. Springer Berlin

Heidelberg.

Strauch, S., Andrikopoulos, V., G´omez S´aez, S., Ley-

mann, F., and Muhler, D. (2012a). Enabling Tenant-

Aware Administration and Management for JBI Envi-

ronments. In Proceedings of SOCA’12, pages 206–

213. IEEE Computer Society Conference Publishing

Services.

Strauch, S., Andrikopoulos, V., Leymann, F., and Muhler, D.

(2012b). ESB

: Enabling Multi-Tenancy in Enter-

prise Service Buses. In Proceedings of CloudCom’12,

pages 456–463. IEEE Computer Society Press.

All links were last followed on January 30, 2014.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience
