The Eclipse Java Metamodel

Scaffolding Software Engineering Research on Java Projects with MDE Techniques

Pedro Janeiro Coimbra

and Fernando Brito e Abreu

2,3

ADETTI-IUL, Av.

das Forc¸as Armadas, 1649-026 Lisboa, Portugal

DCTI, ISCTE-IUL, Av.

das Forc¸as Armadas, 1649-026 Lisboa, Portugal

CITI, FCT/UNL, Quinta da Torre, 2829-516 Caparica, Portugal

Keywords:

Model-Driven Engineering, Metamodeling Techniques, Eclipse IDE, Java Projects, Software Metrics.

Abstract:

Java on the Eclipse IDE is a frequent choice for software development nowadays. Software Engineering

researchers have built program analysis tools in that environment for several purposes. However, that requires

a deep understanding of Eclipse internals, such as the Java AST.

This paper discusses the feasibility of a metamodel-driven approach to scaffold the construction of such tools.

Its core is the Eclipse Java Metamodel (EJMM), obtained through reverse engineering. The latter is instantiated

with meta-objects representing the constructs of a given Java program. We then use OCL to traverse programs

very easily. To validate the feasibility of our metamodel-driven approach to program analysis, we developed

an Eclipse plug-in based on it, to support the metamodel-driven measurement (M2DM) approach.

1 INTRODUCTION

Over the past decade several Software Engineering

researchers have proposed Java code analysis tools,

often with a focus on software measurement (Wilkie

and Harmer, 2002; Cahill et al., 2002; Antoniol et al.,

2003; McQuillan, 2011). As a follow-up, we searched

for opportunities within the Eclipse IDE to further aid

research over Java software systems using MDE tech-

niques. Our attention turned to the set of Eclipse plug-

ins called Eclipse Java Development Tools (JDT)

(The Eclipse Foundation, 2013), which offer control

and access to typical compiler and IDE functions for

code interpretation and project analysis. Several such

tools have been developed as Eclipse plug-ins, but

producing them requires a thorough knowledge of the

Eclipse core internals, such as the Java AST. As dis-

tancing software analysis from the complex parsing

logic to a more commonly understood OO perspec-

tive became a subject of study (Antoniol et al., 2003),

we tasked ourselves to create the Eclipse Java Meta-

model, hereinafter referred as EJMM, by reverse en-

gineering the relevant parts of the Eclipse JDT.

Our main objective here is to show the feasibil-

ity of a higher level of abstraction upon which re-

searchers can perform applied research using Java

programs as the object of study. Examples may

include program comprehension, metrics collection,

code smells detection, program transformations (e.g.,

refactoring actions) or program evolution. In other

words, we seek a metamodel-driven approach to scaf-

fold the research upon Java code repositories.

To reify this proposal, we developed an Eclipse

plug-in supporting a model-driven representation of

Java programs based on EJMM instantiation. Using

this higher-level abstraction we can traverse programs

very easily, using model-driven techniques such as

executing OCL expressions upon the EJMM. To as-

sess the feasibility of our approach, we built a plug-

in for metrics collection on top of it, thus obtaining

a MetaModel-Driven Measurement (M2DM) tool for

Java, within the Eclipse environment. M2DM was

initially proposed in (Brito e Abreu, 2001).

This paper is organized as follows: section 2 de-

scribes the EJMM; section 3 describes the generic ar-

chitecture of our M2DM Eclipse plug-in, based on

EJMM, as well as choices regarding its instantiation

process and its expected validation; section 4 presents

a few examples of the use of OCL to traverse the

EJMM; section 5 presents a preliminary validation;

section 6 describes the related work; ﬁnally, section 7

draws some conclusions and outlines future work.

392

Janeiro Coimbra P. and Brito e Abreu F..

The Eclipse Java Metamodel - Scaffolding Software Engineering Research on Java Projects with MDE Techniques.

DOI: 10.5220/0004715303920399

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 392-399

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

2 ECLIPSE JAVA METAMODEL

The EJMM was obtained by reverse engineering and

composing two Eclipse JDT components: the Eclipse

Java Model (hereinafter referred as EJM) and the

Eclipse Abstract Syntax Tree (or AST for short). The

EJM contains several interfaces that provide a vision

over a Java project’s structure under a tree architec-

ture. The AST, on the other hand, deals with parsed

source code. It allows the analysis of a source code

ﬁle represented also as a tree, down to each statement

and expression that compose the methods of a class

(The Eclipse Foundation, 2013; Kuhn and Thomann,

2006). Although the EJM already provides a fairly

complete vision of the software’s structure (including,

for instance, which classes are declared, as well as

their ﬁelds and methods), the AST provides the minu-

tia of a software application that can only be found

within the code itself. The two components com-

plement each other to create a highly detailed Java

metamodel. However, the EJMM does not employ

the EJM’s and the AST’s tree structures. Instead, we

adopted a simpler and more direct representation of a

Java project, with meta-associations connecting spe-

ciﬁc metaclasses. The node metaclasses remain, but

purely as a means to generalize different metaclasses

and to disclose the information they contain.

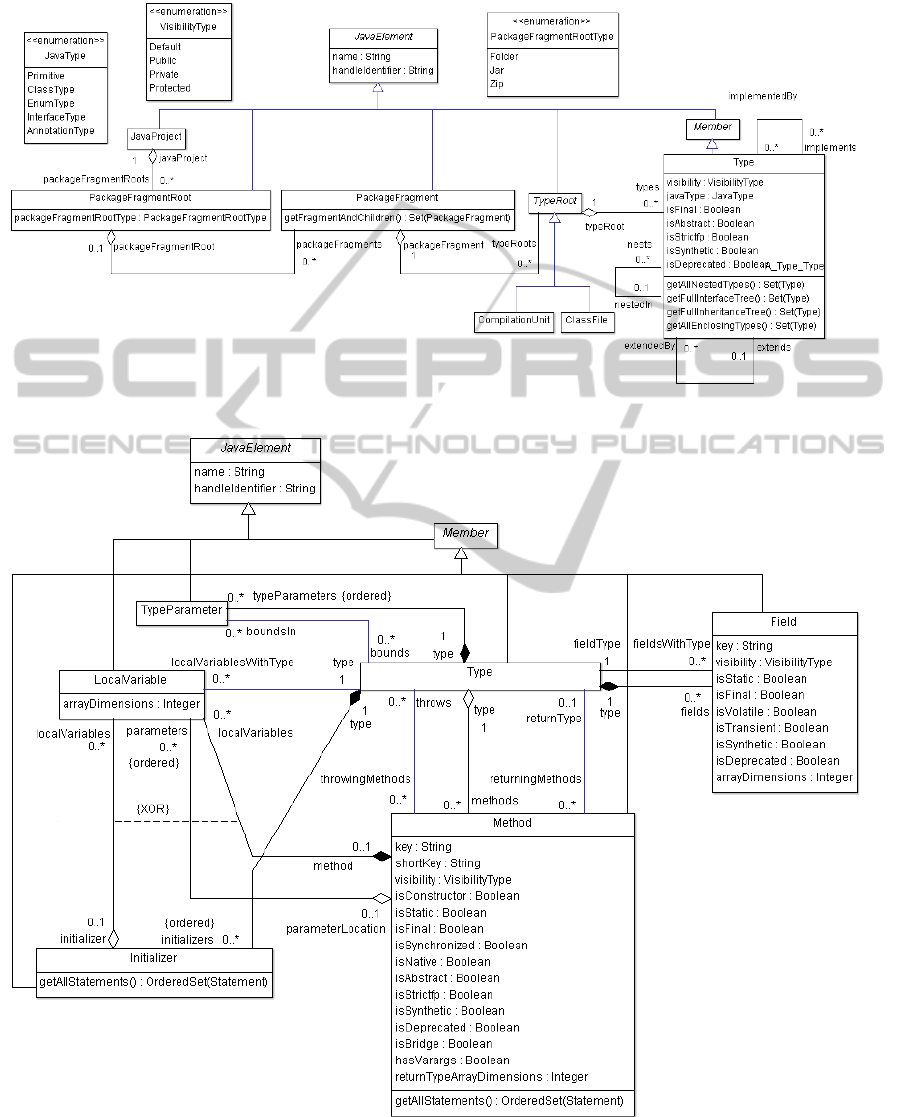

Figure 1 represents the basic structure of a Java

project and its hierarchical structure, including type

inheritance and interface implementations. All meta-

classes in Fig. 1 inherit, directly or indirectly, from

the base JavaElement metaclass. The latter repre-

sents any node of a project tree, confers it a name (the

one declared in the source code) and an unique iden-

tiﬁer. Also included in this diagram are three enumer-

ations: visibility types, Java types and package frag-

ment root types. The ﬁrst determines the visibility of

an element (public, private, protected or default). The

Java types enumeration characterizes the Type meta-

object (Java class, interface, annotation type or enu-

meration). Package fragment roots can be folders or

archives and the latter can be jar or zip ﬁles.

Figure 2 shows the contents of the Type metaclass,

such as ﬁelds, methods, static initializers and type pa-

rameters. These components are referred to as mem-

bers in the EJM and such is reﬂected by the abstract

metaclass Member from which they inherit. The Lo-

calVariable metaclass is a special case - since a local

variable can only be located in one place, the meta-

associations between it and either Method or Initial-

izer are mutually exclusive. This can be checked by

the following OCL invariant deﬁned in the EJMM:

context LocalVariable

inv localVariableExclusiveLocation:

self.parameterLocation.isDefined() xor

self.method.isDefined() xor

self.initializer.isDefined()

The ﬁelds arrayDimensions and returnTypeArray-

Dimensions determine the number of array dimen-

sions a LocalVariable, Field or a Method’s returnType

has.

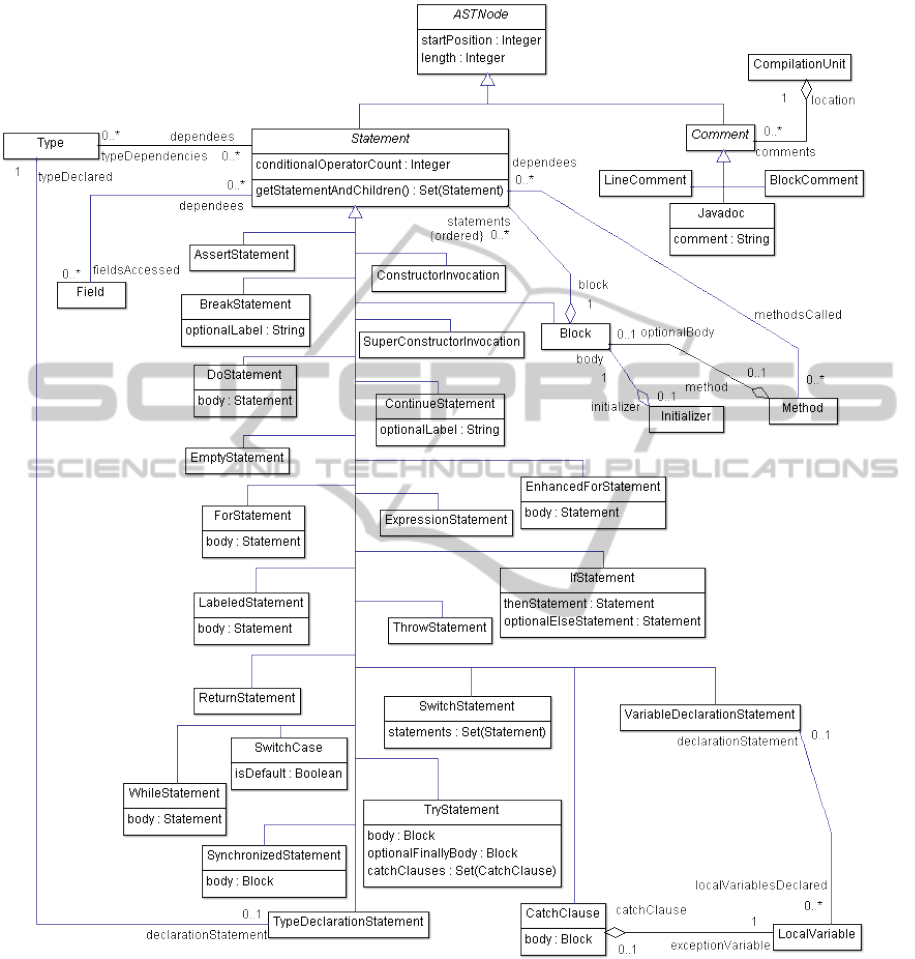

In the ﬁnal diagram (Fig. 3), the AST metaclasses

are depicted. Inheriting from a base ASTNode meta-

class, only comments and statements have been cho-

sen to be included in the EJMM. Comments are di-

rectly linked to compilation units through a single

meta-association. Statements can take several shapes,

but only Block statements are meta-associated to ini-

tializers or methods. Much like local variables, the

Block’s meta-associations are mutually exclusive - a

block can only be associated with either an Initializer

or a Method, or none at all. This can be upheld with

the following OCL constraint:

context Block

inv blockExclusiveLocation:

not(self.method.isDefined() and

self.initializer.isDefined())

Note that a Block may not be necessarily linked

directly to a Method or Initializer. Instead, it may be

a part of another Statement (for instance, a Block may

be the thenStatement of an IfStatement), in which case

both meta-associations will be undeﬁned.

All other statement types can only be found as ag-

gregate parts of blocks, directly, or as part of other

statements within the aggregation. Furthermore, there

are extra meta-associations to represent dependencies

between a Statement and a Type (typeDependencies),

Field (ﬁeldsAccessed) or Method (methodsCalled).

The latter represents the types, ﬁelds and methods

that are used or invoked and used by the expressions

that compose the statement in question. These depen-

dency meta-associations are based on the AST bind-

ings found in expressions contained inside statements,

that hold several information about their contents.

The ﬁeld startPosition of the ASTNode metaclass in-

dicates the ﬁrst character byte of the piece of code that

a node represents within the entire block of code from

which the AST was generated. Thus, when analyz-

ing the code of a compilation unit, the startPosition

indicates the location of the node in the source ﬁle.

The length ﬁeld indicates the size of the piece of code

in bytes. The Statement metaclass contains a condi-

tionalOperatorCount ﬁeld that represents the number

of conditional expressions contained in the statement,

plus the number of conditional operators used by the

expressions contained in the statement (speciﬁcally,

TheEclipseJavaMetamodel-ScaffoldingSoftwareEngineeringResearchonJavaProjectswithMDETechniques

393

”and” operators, ”or” operators and conditional ex-

pressions). This ﬁeld can be used for deﬁning metrics

such as the cyclomatic complexity (McCabe, 1976).

The previous metaclasses are based on the

homonymous EJM interfaces (within org.eclipse.

jdt.core package) or AST classes (within org.

eclipse.jdt.core.dom package). A full list of

metaclass origins can be found in (Coimbra, 2013).

While most metaclass ﬁelds derived from the

original ﬁelds or getters, some of Type, Method

and Field derived from an integer ﬂag of the

corresponding interfaces. The ﬂags, deﬁned in

org.eclipse.jdt.core.Flags, differentiate members vis-

ibility (reﬂected on the enumeration VisibilityType) or

Java types (enumeration JavaType). Flags were also

used to create the isFinal, isSynthetic, isDeprecated,

isStatic, isSynchronized, isNative, isBridge, has-

Varargs, isVolatile, isTransient and isStrictfp ﬁelds.

Several auxiliary methods are declared in the

metaclasses to support the deﬁnition of OCL state-

ments. Examples include recursive methods that re-

turn the hierarchical children or parents of a given

meta-object (e.g., all statements contained in a block,

or all components of a type’s superclass hierarchy).

Meta-associations are representations of getters

found in the metaclasses’ origin. A special case was

found in the relation between PackageFragmentRoot

and PackageFragment, as the original IPackageFrag-

mentRoot provides IPackageFragments through the

generic Java model child getter, rather than a speciﬁc

one for package fragments. For most statement types,

ﬁelds have been translated into ﬁelds in their corre-

sponding metaclass. The most notable exception is

the Block metaclass, as its contents is translated to a

single aggregation of Statement.

Due to space constraints the full EJMM cannot be

described herein. Please refer to (Coimbra, 2013).

3 M2DM TOOL BASED ON EJMM

As a ﬁrst application of the EJMM, we created an

open-source M2DM tool for Java, as an Eclipse

plug-in (QUASAR, 2013b). The components of

this tool are: i) a widely used open-source metrics

plug-in for Eclipse produced by Frank Sauer (Sauer,

2013), ii) an OCL compiler embedded in the UML-

based Speciﬁcation Environment (USE) (Gogolla

et al., 2007; Database Systems Group, University

of Bremen, 2013), iii) a facade component interface

named J-USE, produced within the QUASAR group

(QUASAR, 2013a), that provides a Java API for USE

services and, ﬁnally, iv) a transformation component

that goes through EJM and the Java AST and gen-

erates EJMM instances by requesting USE services

through J-USE. J-USE allows loading UML mod-

els or metamodels, instantiate them, evaluate deﬁned

OCL constraints (invariants, pre and post-conditions)

and execute other OCL expressions as queries over

the model or metamodel instances. Those queries are

indeed traversal operations upon the EJMM that al-

low evaluating expressions on concrete instantiations,

that is, on actual Java programs. Frank Sauer’s plug-

in will only provide the functionality related to dis-

playing and exporting metrics.

The EJMM is deﬁned as a USE speciﬁcation ﬁle

(UML class diagram in textual format) distributed

with the plug-in. A metrics set deﬁnition is expressed

using OCL upon the EJMM on a separate USE spec-

iﬁcation ﬁle. The user will then be able to deﬁne and

load new metric sets. In most tools (like the one from

Frank Sauer) the metrics calculation algorithms are

embedded somewhere in the tool’s source code, thus

hampering the addition of new metrics, due to the un-

derstandability effort required for creating the exten-

sion and producing a new executable.

4 USING OCL UPON THE EJMM

We will now present a few examples of using OCL

to traverse the EJMM and retrieve speciﬁc data or

meta-objects. The ﬁrst is the well-known method’s

cyclomatic complexity metric (McCabe, 1976), using

Frank Sauer’s plug-in algorithm:

context Method

cyclomaticComplexity(): Integer =

self.getAllStatements()->select(s |

not(s.oclIsKindOf(ReturnStatement)))

.conditionalOperatorCount->

excluding(oclUndefined(Integer))->sum +

self.getAllStatements()->select(s |

s.oclIsKindOf(CatchClause) or

s.oclIsKindOf(DoStatement) or

s.oclIsKindOf(ForStatement) or

s.oclIsKindOf(IfStatement) or

(s.oclIsKindOf(SwitchCase) and

not(s.oclAsType(SwitchCase).isDefault)) or

s.oclIsKindOf(WhileStatement))->size

The next examples are taken from of our imple-

mentation of the FLAME (Formal Library for Aiding

Metrics Extraction) library (Baroni, 2002). The full

implementation can be found in (QUASAR, 2013b).

context Type

children(): Set(Type) =

self.extendedBy->union(self.implementedBy)

CHIN(): Integer =

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

394

children()->size

definedFeatures() : Set(Member) =

self.fields->union(self.methods)->asSet

definedOperations() : Set(Method) =

self.definedFeatures()->select(f |

f.oclIsKindOf(Method))->collect(f |

f.oclAsType(Method))->asSet

definedAttributes() : Set(Field) =

self.definedFeatures()->select(f |

f.oclIsKindOf(Field))->collect(f |

f.oclAsType(Field))->asSet

5 VALIDATION

Validating a metrics collection tool requires the iden-

tiﬁcation of its quality model. Therefore, we start by

enumerating its quality characteristics:

• Transparency - the calculation algorithms used in

metrics collection should be clearly identiﬁed;

• Extensibility - new metrics should be easy to add;

• Scalability - the metrics collection process should

not degrade drastically with reasonably large sys-

tems, given regular computing resources;

• Accuracy - the collected values for the metrics

should be accurate.

Regarding transparency, recall that metrics deﬁni-

tions are contained in separate ﬁles. Since OCL has

good expressiveness, anyone familiar with the seman-

tics of UML class diagrams will understand the met-

rics collection algorithms, as the one provided earlier.

Tool extensibility (i.e. adding new metrics sets)

is straightforward because the concepts used in met-

rics formalization are those deﬁned in the EJMM. We

just need to create a new ﬁle with the OCL deﬁni-

tions of the corresponding metrics. This capability is

evidenced by the availability of the MOOD (Brito e

Abreu and Carapuca, 1994) and the MOOSE (Chi-

damber and Kemerer, 1994) metrics sets built on top

of FLAME, made available at (QUASAR, 2013b).

To test the scalability, we ran the M2DM tool upon

Java projects of increasing size, comparing the dura-

tion of the instantiation process. We chose ﬁve differ-

ent projects as test cases, including three key compo-

nents of the M2DM plug-in itself: J-USE (QUASAR,

2013a), Frank Sauer’s metrics plug-in (Sauer, 2013)

and the USE tool (Database Systems Group, Uni-

versity of Bremen, 2013). The remaining two are a

widely-used case-study for research purposes, JHot-

Draw (Gamma and Eggenschwiler, 2013), and a pop-

ular open-source application, SweetHome3D (Puy-

baret, 2013), which enjoys over one hundred thousand

weekly downloads at the time of writing. We recorded

the amount of EJMM objects and links created and

the duration of the full instantiation process. Tests

were made on a machine with a dual-core processor

running at 3GHz each and 4GB of physical memory,

and 1024 maximum JVM heap size. Tests consisted

of running the instantiation process ﬁfty times upon

each project, from largest to smallest, under the same

Eclipse session, and registering the total duration in

seconds for the whole instantiation process. Its aver-

age value, represented in Table 1, allows claiming that

the M2DM plug-in scales up nicely.

Table 1: Instantiation process test results.

Project #Objects #Links Time(s)

J-USE (v.1.0) 3491 10356 0.7

Metrics (v.1.3.6) 17240 43303 4.3

JHotDraw (v.6.0) 64147 112806 13.8

SweetHome3D (v.4.0) 136716 311791 44.3

USE (v.3.0.6) 211452 395460 93.5

Regarding accuracy, our validation approach is

based on a comparison between the values of the

same metrics collected with the M2DM tool, with

those obtained with the Frank Sauer plug-in. The lat-

ter is in use for several years and has a large num-

ber of downloads and several updates, so we had a

good conﬁdence that its calculated values could be

used as a benchmark. The ﬁrst metric tested was

the method’s cyclomatic complexity (McCabe, 1976),

taking a random sample of 1005 non-abstract methods

from non-interface and non-nested types from JHot-

Draw’s source code. Out of 1005 cases, 6 presented

different values between the prototype and Frank

Sauer’s plug-in, 5 of which were due to the M2DM

approach not factoring the complexity of methods of

anonymous classes inside an analyzed method and 1

differing due to Frank Sauer’s plug-in counting occur-

rences of ”&&” and ”||” in commented code. Further

accuracy tests are still required, but it is worth men-

tioning that this preliminary test allowed us to unveil

a bug in Frank Sauer’s plug-in.

6 RELATED WORK

Development of model-driven metrics tools has long

been a research subject. In this section we will brieﬂy

survey, chronologically, related proposals.

The Java Metrics Reporter (JMR) (Cahill et al.,

2002) pioneered in using a Java Model to calculate

metrics. The latter is much akin to Eclipse JDT’s

EJM, sharing a similar hierarchical structure and a

single node class from which all Java elements inherit

TheEclipseJavaMetamodel-ScaffoldingSoftwareEngineeringResearchonJavaProjectswithMDETechniques

395

(named JElement). Extensions to the Java Model and

implementation of metrics calculation is done by sub-

classing JMR’s Java Model. Though this approach is

stated to be much simpler than straight parser logic,

it would still entail some programming effort. This

technique is similar to what is commonly found in ex-

isting Eclipse metrics plug-ins, such as Frank Sauer’s

metrics tool (Sauer, 2013), using EJM-supplied data.

Unfortunately, at the time of writing, we have not

been able to ﬁnd it available online.

The Extensible Metrics toolBench for Empirical

Research (EMBER) uses a database schema to rep-

resent a metamodel aimed at OO languages such as

C++ and Java (Wilkie and Harmer, 2002). It parsed

the target software project to load the database and

SQL queries were used to calculate metrics. Since

the database schema aims to ﬁt several OO languages,

it is more generic than the EJMM proposed herein.

This lack of detail shows up in the absence of type pa-

rameters, method statements or annotations, and pre-

vents the calculation of well-known metrics such as

the weighted methods per class (Chidamber and Ke-

merer, 1994) using McCabe’s cyclomatic complexity

metric (McCabe, 1976).

Antoniol et al. proposed a tool that navigates Java

AST objects using OCL expressions (Antoniol et al.,

2003). The authors use a metamodel based on the

JavaCC compiling rules and exemplify its functional-

ities by formalizing a small set of software metrics.

Their approach is similar to ours, though using a dif-

ferent metamodel. Their AST metamodel retains a

node tree structure, whereas our EJMM aims to cap-

ture more directly a Java project’s structure (despite

that both the EJM and Eclipse AST have similar node

tree structures). Furthermore, since their metamodel

comprises only the AST, it excludes the project’s

overall structure (e.g., folders and packages). This

drawback prevents the calculation of coarse-grained

metrics, such as those deﬁned at module / subsystem

or system levels, like the MOOD metrics set (Brito e

Abreu and Carapuca, 1994).

The Design-Metrics (DM) Crawler allows to col-

lect, store, display and analyze object-oriented de-

sign metrics from XMI ﬁles using XQuery expres-

sions (El Wakil et al., 2005). XQuery queries are

used to formalize and calculate metrics. Their au-

thors claimed this language allows the deﬁnition of

complex metrics more easily than OCL, since it is

possible to deﬁne variables and control ﬂow. While

the ﬁrst version of OCL had some limitations regard-

ing those aspects, OCL2 has removed those limita-

tions. We found no evidence that this tool could be

used with Java.

The Metrino tool is a metrics tool that aimed to

measure any software devised in any Domain Spe-

ciﬁc Language with metamodels based on the Meta

Object Facility, using OCL for the deﬁnition of do-

main rules (Engelhardt et al., 2009). OCL is also used

for the deﬁnition and calculation of metrics, under

OMGs Software Metrics Metamodel. Currently, it is

available online and afﬁliated with the ModelBus tool

(Hein et al., 2013). Their authors claim that Metrino

can be used for UML models, as well as for any Do-

main Speciﬁc Modeling Language (DSL) based on

MOF, but not for Java.

MoDisco is an Eclipse open source framework

dedicated to Model Driven Reverse Engineering

(MDRE) by supporting the development of tools for

legacy migration or modernization, quality assurance

or retro-documentation (Bruneliere et al., 2010). It al-

lows Java reverse engineering, including a Java meta-

model, corresponding discoverer and transformation

to OMG’s Knowledge Discovery Metamodel (KDM).

MoDisco Java metamodel is also based on the Eclipse

AST, extended with metaclasses to represent Java

project components such as packages and compilation

units. As for metrics deﬁnition, they can be expressed

with Java queries on a separate project that uses the

MoDisco API. This allows a separation of concerns,

by detaching metrics deﬁnition from its collection in-

ternals. Nevertheless, our solution provides a higher

abstraction level, granted by the use of the FLAME

OCL API upon the EJMM.

McQuillan proposed a MOF-compliant meta-

model for metrics extraction for Java and UML mod-

els (McQuillan, 2011). Metrics formalization was

also in OCL over that metamodel. To test and imple-

ment this technique, the author claims to have devel-

oped the Deﬁning Metrics at the Meta-Level (dMML)

tool, capable of measuring Java programs. Unfortu-

nately this seems to have been a research prototype

only, for academic purposes, since it is not available

online for evaluation.

Other non model-driven approaches, like meta-

programming, exist for metrics deﬁnition and calcula-

tion. One such example is Rascal, a Domain Speciﬁc

Language (DSL) that has been used mainly for source

code analysis and transformation. Its speciﬁc con-

structs include the visit statement (for structure-shy

traversal and transformation of arbitrary data such as

parse trees), comprehensions (for querying and creat-

ing sets, relations, maps or lists) and regular expres-

sions (for string matching), that can be used to deﬁne

source code metrics. In (Klint et al., 2010), for in-

stance, the authors used Rascal to construct generic

(parse-tree-based) metric calculators for comparing

six implementations of the same DSL using differ-

ent languages (Java, JavaScript, C#) and DSL tools

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

396

(ANTLR, OMeta, Microsoft M).

7 CONCLUSIONS/FUTURE

WORK

The proposed EJMM metamodel was instantiated

with data provided by the Java Model and the Eclipse

JDT’s AST. It allowed the formalization in OCL (and

collection) of several metrics sets on top of it easily.

It matches very closely the concepts of the Java lan-

guage and, in our view, is a better alternative when

compared with related works that sacriﬁce function-

ality for the sake of portability.

Although we have mainly used our MDE tech-

nique for metrics collection, we realized that the cur-

rent plug-in architecture (except for the Frank Sauer’s

metrics visualization component) is generic and it

may be applied to develop other tools that require

Java source code analysis, in areas such as program

comprehension, code smells detection, refactoring or

software evolution, to name a few. Demonstrating the

feasibility of our approach in those research areas will

be a subject of our future work.

REFERENCES

Antoniol, G., Di Penta, M., and Merlo, E. (2003). Yaab (yet

another ast browser): using ocl to navigate asts. In

Intern. Workshop on Program Comprehension, pages

13–22. IEEE.

Baroni, A. L. (2002). Formal Deﬁnition of Object-Oriented

Design Metrics. Msc thesis, Vrije Universiteit Brussel

(VUB), Brussels, Belgium.

Brito e Abreu, F. (2001). Using ocl to formalize ob-

ject oriented metrics deﬁnitions. Technical Report

ES007/2001, INESC.

Brito e Abreu, F. and Carapuca, R. (1994). Object-oriented

software engineering: Measuring and controlling the

development process. In 4th International Conference

on Software Quality, McLean, Virginia, USA. Ameri-

can Society for Quality.

Bruneliere, H., Cabot, J., Jouault, F., and Madiot, F.

(2010). Modisco: a generic and extensible framework

for model driven reverse engineering. In ASE’10,

ASE’10, pages 173–174, New York, NY, USA. ACM.

Cahill, J., Hogan, J. M., and Thomas, R. (2002). The java

metrics reporter - an extensible tool for oo software

analysis. In 9th Asia-Paciﬁc Software Engineering

Conference, pages 507–516.

Chidamber, S. R. and Kemerer, C. F. (1994). A metrics

suite for object oriented design. IEEE Transactions

on Software Engineering, 20(6):476–493.

Coimbra, P. J. (2013). An Eclipse Plug-in for Metamodel

Driven Measurement. Msc thesis, ISCTE-IUL, Lis-

bon, Portugal.

Database Systems Group, University of Bremen

(2013). Sourceforge.net: The uml-based

speciﬁcation environment. http:// source-

forge.net/apps/mediawiki/useocl/. Accessed: 2013-

05-30.

El Wakil, M., El Bastawissi, A., Boshra, M., and Fahmy,

A. (2005). A novel approach to formalize and collect

object-oriented design-metrics. In 9th Intern. Conf. on

Empirical Assessment in Software Engineering.

Engelhardt, M., Hein, C., Ritter, T., and Wagner, M. (2009).

Generation of formal model metrics for mof based do-

main speciﬁc languages. Electronic Communications

of the EASST, 24.

Gamma, E. and Eggenschwiler, T. (2013). Jhotdraw start

page. Accessed: 13-08-2013.

Gogolla, M., Bttner, F., and Richters, M. (2007). Use:

A uml-based speciﬁcation environment for validat-

ing uml and ocl. Science of Computer Programming,

69(13):27–34.

Hein, C., Engelhardt, M., Ritter, T., and Wag-

ner, M. (2013). Metrino. http://www. mod-

elbus.org/modelbus/index.php/metrino. Accessed:

2013-05-30.

Klint, P., van der Storm, T., and Vinju, J. (2010). On the

impact of dsl tools on the maintainability of language

implementations. In 10th Workshop on Language De-

scriptions, Tools and Applications, LDTA ’10, pages

10:1–10:9, New York, NY, USA. ACM.

Kuhn, T. and Thomann, O. (2006). Eclipse cor-

ner article: Abstract syntax tree. http://

www.eclipse.org/articles/article.php?ﬁle=Article-

JavaCodeManipulation

AST/index.html. Accessed:

2013-05-30.

McCabe, T. J. (1976). A complexity measure. IEEE Trans-

actions on Software Engineering, SE-2(4):308–320.

McQuillan, J. A. (2011). Using Model Driven Engineer-

ing to Reliably Automate the Measurement of Object-

Oriented Software. Phd thesis, National University of

Ireland, Maynooth.

Puybaret, E. (2013). Sweet home 3d - draw ﬂoor plans and

arrange furniture freely:. Accessed: 15-09-2013.

QUASAR (2013a). Java facade and code generator for

use (uml-based speciﬁcation environment). http://

code.google.com/p/j-use/. Accessed: 2013-05-30.

QUASAR (2013b). Metamodel driven measurement

(m2dm) tool. https://code.google.com/p/m2dm/. Ac-

cessed: 2013-09-06.

Sauer, F. (2013). Metrics 1.3.6. http:// met-

rics.sourceforge.net/. Accessed: 2013-05-30.

The Eclipse Foundation (2013). Eclipse

java development tools (jdt) overview.

http://www.eclipse.org/jdt/overview.php. Accessed:

2013-05-30.

Wilkie, F. G. and Harmer, T. J. (2002). Tool support

for measuring complexity in heterogeneous object-

oriented software. In ICSM’2002, pages 152–161.

TheEclipseJavaMetamodel-ScaffoldingSoftwareEngineeringResearchonJavaProjectswithMDETechniques

397

APPENDIX

Figure 1: Eclipse Java Metamodel - Java Project Structure.

Figure 2: Eclipse Java Metamodel - Type Components.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

398

Figure 3: Eclipse Java Metamodel - Abstract Syntax Tree Components.

TheEclipseJavaMetamodel-ScaffoldingSoftwareEngineeringResearchonJavaProjectswithMDETechniques

399
