Specifying Trace Directives for UML Attributes and State Machines

Hamoud Aljamaan, Timothy C. Lethbridge, Omar Badreddin, Geoffrey Guest and Andrew Forward

School of Electrical Engineering and Computer Science, University of Ottawa, Ottawa, Ontario, Canada

Keywords: Tracing, UML, Trace Directive, Attributes, State Machines, Umple.

Abstract: Developers using model driven development (MDD) to develop systems lack the ability to specify traces

that operate at the model level. This results in specification of traces at the generated code level. In this

paper, we are proposing trace directives that operate at the model level to specify the tracing of UML

attributes and state machines. Trace directives are implemented as part of the Umple textual modeling

language, thus these directives can be expressed in a textual form. Trace code will be injected into system

source code that corresponds to trace directives specified at the model level.

1 INTRODUCTION

Over the history of software, software development

has been continuously becoming more complex.

Many researchers and software practitioners have

strived to simplify the process of software

development by introducing levels of abstraction. In

the early days of the software industry, software

developers created software using assembly

languages and machine code. As these languages

became inadequate, successively higher-level

programming languages were introduced as

abstraction layers over machine code. Nowadays, as

software complexity increases, researchers are

directing their attention to model driven

development (MDD).

Huge advantages are gained when software

developers adopt the MDD approach (Selic 2003,

Sendall, Kozaczynski 2003), with models

representing the main artifact in the development

cycle. One of the biggest advantages is the ability to

view targeted systems at a high level of abstraction

as compared to programming languages.

Tracing is used to understand the behaviour of

systems in order to debug or monitor them. Data

collected while tracing ranges from the output of

simple programmed log commands to more

sophisticated traces containing lower-level events

triggered by tools that dynamically instrument user

and kernel spaces. However, injecting trace code

into a system is not a trivial task and controlling

tracing so it is both effective and efficient is even

more difficult.

Historically, developers have traced software

using techniques such as adding simple print

statements, breakpoints in a debugger, or more

sophisticated tracing tools such as Dtrace (Cantrill

2006, Cantrill, Shapiro & Leventhal 2004) or Linux

Linux Trace Toolkit - next generation

(LTTNG)(Desnoyers, Dagenais 2009, Desnoyers et

al. 2012) that allows tracing to be initiated either at

compile time or run time. In situations where code is

generated, such as when a pre-processor or model

driven development is involved, these tracing

techniques tend to be limited to working with

generated code. They therefore require the

understanding of the generated code’s structure, and

require extra work to map changes and

understanding to the original source. Furthermore,

tracing code needs replacing when the code is re-

generated. Tracing thus occurs at a level of

abstraction below the level at which the system is

implemented.

Existing techniques focus on tracing at the code

level: tracing function/method calls, lines executed,

variables being set, etc. There has been little or no

research into tracing at the model level. In this

paper, we propose the notion of trace directives that

operate at the model level by defining its syntax,

implementing the parser, code generator and tests.

Our tracing language, which we call Model Oriented

Tracing Language (MOTL) is incorporated into the

Umple technology for model-oriented programming

(Forward, Lethbridge & Brestovansky 2009,

Forward et al. 2012, Lethbridge, Forward &

Badreddin 2010, Lethbridge et al. 2011) . Trace

Aljamaan H., C. Lethbridge T., Badreddin O., Guest G. and Forward A..

Specifying Trace Directives for UML Attributes and State Machines.

DOI: 10.5220/0004711500790086

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 79-86

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

directives will allow developers to gain the ability to

specify traces of different UML entities at the model

level without the need to modify the generated code.

This field, which we call model-oriented tracing, is

currently immature, so there are tremendous

opportunities to make contributions.

The remainder of this paper is as follows:

Section 2 sheds light on the model oriented tracing

research area and specifies the research problem we

are addressing. Section 3 provides technical

background necessary for our proposed tracing

directives. Section 4 explores the details of our

proposed trace directives. Section 5 illustrates the

usage of trace directives by example. Section 6

presents related work in the literature. Finally, the

paper is concluded in Section 7.

2 MODEL-ORIENTED TRACING

The concept of model-oriented tracing is the

following: A developer modeling in UML, and

generating much of their system directly from the

UML model, should be able to indicate that they

want any of the UML entities to be traced. The

developer should not be forced to inject tracing into

generated code, which he or she may never

otherwise look at, and which is subject to re-

generation every time the system changes.

Examples of UML entities to trace include:

 Attributes: Tracing attributes is conceptually

similar to tracing variables, except that the level

of abstraction is higher because the

implementation of the attribute is deferred to the

code generator, and the attribute may have

automatically managed constraints, specialized

initialization conditions, and triggers such that

changes to the attribute cause system events.

 State machines: Tracing can be performed at

state entry and exit, as well when particular

transitions occur or when named events occur.

Since state machines can be nested at several

levels of depth, tracing can be scoped to certain

substates. Tracing of attributes can be

constrained to occur in specific states.

The above examples are the focus of this paper,

but we are working on tracing UML associations,

and it would still be possible to trace functions,

methods and lines of code as has been traditionally

possible. The key is that model-oriented tracing adds

another level of abstraction to the elements that can

be traced.

2.1 Problem Statement

The problem statement for this research is as follows

(Aljamaan, Lethbridge 2012):

Developers frequently need to deploy tracing to

debug programs, to test them in a white-box manner,

to understand their internal behaviour and to detect

anomalies such as hacker intrusion or performance

degradation. Current technologies, however, only

allow injecting traces into functions (procedures or

methods) and data items. The ability to

systematically trace at the model level is missing,

since there are no tools available to meet this need.

3 UMPLE

Umple (Timothy C. Lethbridge et al. 2011,

Badreddin, Forward & Lethbridge 2012, Forward,

Badreddin & Lethbridge 2010, Forward et al. 2011)

is a technology for modeling textually in UML and

can be seen as both a modeling and a programming

language. Software developers can represent UML

concepts such as classes, attributes, associations and

state machines in Umple, and can embed ordinary

methods in an Umple class. As a result, an Umple

program looks like a standard program (e.g. in Java)

with some extra features added.

Part of the Umple philosophy is that software

developers describing the system at a high level of

abstraction will have less code to write and hence

will have higher productivity. Umple users can

specify the following high level constructs, most of

which are based on UML. The Umple user manual

provided full details (Cruise 2013) :

 Classes and Interfaces

 Attributes

 State Machines: Umple provides a complete and

powerful textual specification of state machines

at the model level. Umple supports nested or

concurrent states, transitions with guards, entry

or exit actions, and interruptible activities.

 Associations: These specify the sets of links

among objects that can exist at run time.

 Patterns: Umple supports the singleton and

immutable patterns plus the definition of

database-style keys.

 Aspect Orientation: Umple users can insert

code to be run before (i.e. as a precondition) or

after (i.e. as a postcondition) Umple-defined

actions on attributes, associations and the

components of state machines.

Developing in Umple can be performed using

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

standard command-line tools (Lethbridge, Forward

& Badreddin 2012) , using an Eclipse plugin, or, for

small systems, with UmpleOnline (Lethbridge T.C.,

Forward & Badreddin 2012) . Programmers can use

Umple in the manner they are accustomed, adding

UML constructs as they gain confidence. On the

other hand, modelers can take the opposite approach,

starting with high-level models and then adding

methods to specify detailed algorithms and in order

to fully implement other details of the system not

covered by the modeling constructs. Readers are

referred to UmpleOnline (Lethbridge T.C., Forward

& Badreddin 2012) for a list of systems modeled in

Umple.

4 TRACE DIRECTIVES

Tracing is specified using structured trace directives

that can be placed anywhere in Umple code

describing a model. Generally, a trace directive is

structured as follows:

trace <UMLconstruct> <Constraints> ;

Trace directives start with a keyword ‘trace’ and end

with a semicolon ‘;’. After the trace keyword, a

UML construct to be traced is specified (attribute,

association, state, etc.). The scope of tracing can be

limited using appropriate optional constraints and

conditions that can switch tracing on or off in certain

situations. In addition, constraints can be used to

specify data that will be outputted.

4.1 Attribute Tracing

Trace directives allow the tracing of attributes at the

model level; trace output can be generated whenever

an attribute value is changed (i.e. a setter is called)

or/and when the value is accessed (i.e. the getter

method is called). Moreover, attribute tracing can be

limited based on constraints such as a condition

being true or a maximum number of trace

occurrences being reached.

Attribute tracing can occur in three modes: when

the attribute value is accessed, changed, or both.

Therefore, a selection of three keywords for each

mode can be used as follows:

 Attribute value changed: When ‘set’ keyword

is specified before the traced attribute, tracing

occurs when the attribute setter method is

executed. This is also the default case when no

keyword is specified before the traced attribute

in a trace directive.

 Attribute value accessed: When ‘get’ keyword

is specified before the traced attribute, tracing

occurs when the attribute getter method is

executed.

 Attribute value accessed or changed: When

both keywords ‘set’ and ‘get’ separated by ‘,’ are

used, tracing occurs either when getter or setter

methods are executed.

4.2 State Machine Tracing

Developers can specify that they want a certain state,

transition, or event to be traced, and have the ability

to limit the scope of tracing to a certain level of

substates, or trigger tracing when certain trace-based

conditions become true. The following are some

details:

 State: Tracing a state means trace output will be

recorded for each incoming and outgoing

transition. In addition, substates are traced,

recursively. But, if tracing of substates is not

desired and tracing scope should be limited to a

certain level, then the ‘level’ keyword can be

specified followed by an integer to represent the

tracing level (i.e. recursion depth); level 0 would

mean trace the current level and no substates.

 Limiting to entry and exit: Tracing a state

normally involves the tracing of its entries and

exits, but tracing can be limited to either case. In

a trace directive, we can use the ‘entry’ keyword

before a traced state to indicate tracing of its

entries only, or the ‘exit’ keyword to indicate

tracing of its exits.

 Transitions: A trace directive can trace a

specific transition by using keyword ‘transition’

which involves the tracing of the original state,

the destination state and the triggering event.

 Events: All occurrences of an event name may

be traced too.

4.3 Trace Control with Constraints

We identified various ways to control the scope of

tracing and what needs to be traced. Tracing can be

controlled by specifying post- or pre-conditions that

need to be satisfied before tracing triggers. In

addition, just as with attributes, tracing can be

controlled by time manipulation and the

specification of number occurrences.

4.3.1 Basic Conditions

Basic conditions are used to control tracing by

injecting code that outputs trace data only upon

condition satisfaction. Conditions can be either pre-

SpecifyingTraceDirectivesforUMLAttributesandStateMachines

conditions or post-conditions. The ‘where’ keyword

is used to inject tracing code with a pre-condition.

The ‘giving’ keyword is used to inject tracing code

with a post-condition. Note that these condition

expressions work the same regardless of the entity

being traced – i.e. they apply to state machines and

methods. The ‘giving’ keyword is so-named because

the tracing occurs when the operation ‘gives’ a

certain result.

4.3.2 Occurrences

In addition to basic conditions, the functionality of

tracing for a certain number of occurrences (i.e.

appearances) of trace output is implemented. This is

achieved by using the ‘for’ keyword followed by an

integer to specify the number of trace output

occurrences desired.

4.3.3 Timeline

Tracing can be limited for a period bracketed by a

condition. Two keywords were designated for this

purpose: The ‘until’ keyword triggers tracing to start

and continues tracing until a given condition is

satisfied, after which tracing stops permanently. The

‘after’ keyword provides the opposite behaviour;

tracing will start once a given condition is satisfied

and then continues indefinitely without any

interruption.

4.3.4 Record

There are situations where tracing may necessitate

the monitoring of other UML constructs for

debugging and analysis purposes such as the tracing

of additional attributes, state machines etc. We have

provided the ability to specify these using the

‘record’ keyword. In addition, this record statement

can be used to record an arbitrary string.

4.4 Trace Output

Trace directives written at the model level will inject

traces in the source code generated from the model.

Data collected from these injected traces depends on

the tracing technology being used. We implemented

two primitive tracers that collect a wide variety of

information during run time. These tracers are:

 Console: Tracing using print statements has been

used since the beginning of software. It forms the

most basic and primitive type of debugging.

However, being primitive doesn’t necessarily

mean that it’s of no importance. It can be used

for educational purposes or in situations where

no deep tracing is needed. The console tracer

directs trace output to standard error.

 File: Tracing output is stored in a specific file,

which can act as a trace log file. Such files are

stored for later analysis.

Information collected once a trace is triggered

during run time consists of static, dynamic, and hard

coded values as shown in Table 1. Dynamic values

indicate that values differ for different traces (e.g.

traces are triggered in different points of time). On

the other hand, there some static values are recorded

once a trace triggers (e.g. trace directive information

that relates to triggered trace). Finally, we have

identified a list of hard coded values to indicate what

kind of operation triggered this trace (e.g. at_s

means trace is triggered by an attribute set).

Table 1: Trace output components.

Output component Value

Timestamp D

namic

Threa

Dynamic

ame of Umple File Static

Line numbe

Static

Class name Static

ect hash code D

namic

Operation Hard code

We plan to add tracers for tools like Dtrace and

LTTNG. Tracer selection is done using a tracer

statement, which is structured as follows:

tracer <TracerType> ;

The tracer statement starts with ‘tracer’ keyword

followed by the tracer chosen and ends with a

semicolon ‘;’. If no tracer statement is included in

the model, then trace output is directed to standard

error.

5 EXAMPLE

In this section we present a student registration

system to show capabilities and expressiveness of

our proposed trace directives in specifying tracing at

the model level. The student registration system

consists of four classes with attributes and

associations between them. In addition, a state

machine is defined inside class CourseSection to

handle and capture the desired dynamic behaviour of

our system. Umple code for the student registration

system is provided in the Appendix.

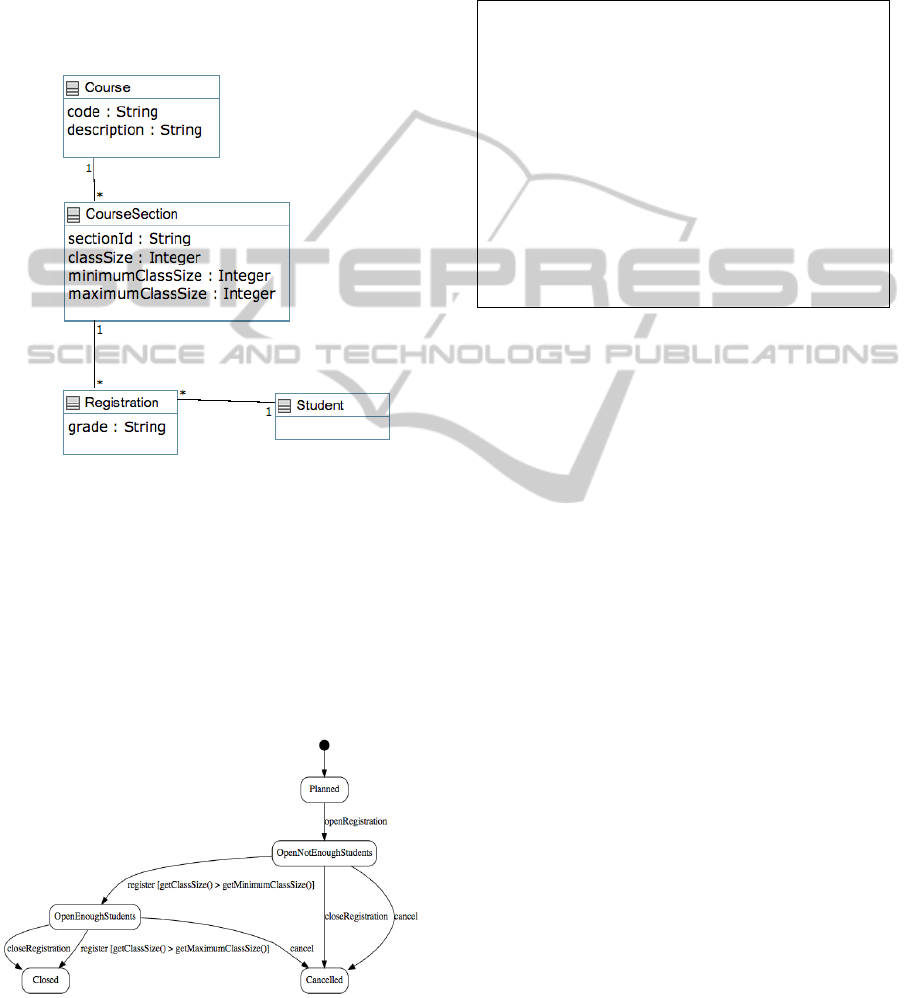

Figure 1 shows the class diagram for the student

registration system. Each course has a unique course

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

code with course description. Each course can have

zero to many course sections, but a course section

can be assigned to one course. Each course section

has attributes to hold the information related to a

course section such as minimum and maximum

number of students allowed in the class if it is to be

taught, the current class size, and the section id. A

course section can have zero to many registration

with a single student assigned to each registration.

Figure 1: Student registration system class diagram.

Figure 2 shows the state machine diagram for the

student registration system. There are five states

with different events to transit between states. For

example, the initial state is the Planned state and the

event openRegistration triggers a transition from

state Planned to state OpenNotEnoughStudents.

Some events are guarded, such as the register event

from state OpenNotEnoughStudents to state

OpenEnoughStudents.

Figure 2: Student registration system state machine.

Now, developers can utilize the expressiveness of

trace directives to specify traces at the model level

for any debugging, monitoring, or analysis purposes.

Using code mixins in Umple, trace directives can be

written as a tracing script and seen as independent

from the model. The Next code snippet shows a

wide range of possible trace directives, followed by

their description:

class CourseSection

{

// Trace directive 1

trace classSize record sectionId;

// Trace directive 2

trace sectionId where [classSize

== maximumClassSize];

// Trace directive 3

trace CourseSectionStm;

// Trace directive 4

trace entry Cancelled record

classSize;

// Trace directive 5

trace Closed record classSize;

}

Listing 1: Student registration system trace directives.

 Trace directive 1. Developer wants to keep

track of any changes to class size in a course

section. Trace of class size and course section id

will trigger when the value of class size is

changed (i.e. the class size set method is called).

 Trace directive 2. Trace ids of course sections

with their class size reaching the maximum

capacity.

 Trace directive 3. Trace the whole state

machine that includes all states with any events

and transitions.

 Trace directive 4. The developer might want to

check the class size of cancelled sections for

debugging and analysis purposes.

 Trace directive 5. Developer would like to track

the class size of closed sections.

6 RELATED WORK

Limited research has been found that tackles the

problem of specifying traces at the model level.

Different approaches have been proposed to allow

developers to trace models either through executable

models, or by executing generated code from

models. Each approach has its advantages and

disadvantages. However, none of them provided a

complete specification of traces at the model level.

G. Eakman (Eakman 2000) introduced the idea

of instrumenting UML models for debugging

purposes. Systems are more visible at the model

SpecifyingTraceDirectivesforUMLAttributesandStateMachines

level than at the code where it’s difficult to visualize

systems due to implementation details. The main

objective of this idea is that model level

instrumentation will provide full access to the

system under test at the level of UML modeling,

allowing a glass box approach to testing with greater

observability, controllability, and testability. The

proposed instrumentation will occur at the

translational process where UML models are

mapped to the implementation (i.e. targeted

programming language) by the model compiler.

Hence, the model compiler will be responsible for

the insertion of instrumentation into generated code

and ensuring that instrumentation will not add any

additional functionality to the software, other than

enhanced testability.

In Eakman’s proposed instrumentation approach,

important data values, attributes, inputs, and control

points must be identified and appropriate

instrumentation added. Instrumentation can be

triggered based on data access and/or dynamic

behaviour. In data access situations, attributes values

can be monitored and state machines response to an

event can be recorded, while in dynamic behaviour,

creation and deletion of instances and/or

associations are monitored.

A. Derezinska and M. Szczykulski (Derezinska,

Szczykulski 2013) presented a framework for

executable UML, called FXU, that performs

transformation from a UML class and state machine

model into a C# implementation. Their framework

consists of two main components: a code generator

that assumes direct model transformation to the

target code, and a runtime library that contains

realization of different UML meta-model elements.

As an extension to this framework, the FXU tracer

(Derezinska, Szczykulski 2010) was designed to

allow the tracing of state machine execution

generated in C# code. Tracing will be specified and

commence after the state machine execution using

log files created in the FXU environment. The FXU

tracer is intended to help increase state machine

comprehension and verify state machines

behavioural correctness. Many disadvantages and

drawbacks can be seen from this tool design:

 Specification of traces can only be done after the

execution of the application and not

simultaneously as the application is being

executed.

 The FXU tracer can only use trace logs produced

by the FXU environment.

 There is no control of information collected

during state machine execution, which results in

collecting irrelevant information and producing

massive files.

 The authors indicate that not all events can be

traced since the FXU environment doesn’t log all

events that occur during state machines

execution.

 Tracing of state machines can’t be specified in

terms of other UML constructs (e.g. tracing a

state when an attribute has a certain value).

 This tool is limited to C#

K. Mehner (Mehner 2002) developed the JaVis

environment for visualizing and debugging of

concurrent and sequential Java programs. Their

motivation is that debugging of concurrent Java

programs is complex due to usage of threads. The

JaVis environment consists of three stages:

collecting traces while executing, visualizing these

traces, and performing thread deadlock detection and

analysis.

The tracing component of JaVis uses the Java

Debug Interface (JDI) of the Java Platform

Debugger Architecture to allow the collection of

debugging and tracing information from a running

Java programs. Traces are represented in a textual

format with each trace entry consisting of a single

line. Each trace line contains a method entry, a

method exit, object IDs, calling thread, and other

information that can be used for deadlock detection.

Usage of JDI provides advantages when used for

tracing such as it allows tracing of remote and

already running Java programs and does not require

the source code to be modified. After the generation

of traces, they are visualized using UML 1.6

sequence and collaboration diagrams. These

diagrams will show dependencies between different

program threads to help detect deadlocks.

To conclude, a limited number of research papers

have been found that directly relate to our work,

which is an indication that this area needs further

investigation. One paper (Eakman 2000) shared the

same research objectives as ours but didn’t provide

any deep details or any sort of implementation

strategies. Our trace directives should significantly

contribute to the area of model-driven development.

7 CONCLUSIONS

This paper explored and presented the notion of

trace directives that allows modelers to specify

traces of UML attributes and state machines at the

model level. Syntax of proposed directives is

explained and implementation is incorporated as part

of the Umple technology. Trace directives are

expressed in a textual form with a simplified syntax

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

and can be written as a trace script independent of

the model. Usage of these directives is described by

an example. Currently, the proposed trace directives

are limited by the capabilities of the modeling

language (Umple).

We foresee many directions for our research.

Next in our research roadmap, we plan to implement

tracing of associations by allowing modelers to

specify tracing of associations and base tracing

constraints on the cardinalities of associations.

Support of additional tracers (e.g. LTTNG) is

planned. Experiments will be conducted to evaluate

the usability and usefulness of our proposed trace

directives.

ACKNOWLEDGEMENTS

Hamoud Aljamaan would like to thank King Fahd

University of Petroleum and Minerals (KFUPM) for

their financial support during his PhD studies. We

also thank Ericsson, Defence Research and

Development Canada (DRDC), and NSERC for

sponsoring this research.

REFERENCES

Aljamaan, H. & Lethbridge, T. C. 2012, "Towards Tracing

at the Model Level", 19th Working Conference on

Reverse Engineering (WCRE), 2012, 15-18 Oct. 2012,

pp. 495.

Badreddin, O., Forward, A. & Lethbridge, T. C. 2012,

"Model oriented programming: an empirical study of

comprehension", Proceedings of the 2012 Conference

of the Center for Advanced Studies on Collaborative

Research, , pp. 73-86.

Cantrill, B. 2006, "Hidden in Plain Sight", Queue, vol. 4,

no. 1, pp. 26-36.

Cantrill, B. M., Shapiro, M. W. & Leventhal, A.H. 2004,

"Dynamic instrumentation of production systems",

Proceedings of the annual conference on USENIX

Annual Technical ConferenceUSENIX Association, ,

pp. 2.

Cruise 2013, Umple User manual. Available: http://

cruise.site.uottawa.ca/umple/UsingUmpleOnline.html.

Derezinska, A. & Szczykulski, M. 2013, "Towards C#

Application Development Using UML State

Machines: A Case Study" in Emerging Trends in

Computing, Informatics, Systems Sciences, and

Engineering, eds. T. Sobh & K. Elleithy, Springer

New York, , pp. 793-803; 68.

Derezinska, A. & Szczykulski, M. 2010, "Tracing of state

machine execution in the model-driven development

framework", 2nd International Conference on

Information Technology (ICIT), 2010, 28-30 June

2010, pp. 109.

Desnoyers, M. & Dagenais, M. 2009, "LTTng, Filling the

Gap Between Kernel Instrumentation and a Widely

Usable Kernel Tracer", Linux Foundation

Collaboration Summit.

Desnoyers, M., McKenney, P. E., Stern, A.S., Dagenais,

M. R. & Walpole, J. 2012, "User-Level

Implementations of Read-Copy Update", IEEE

Transactions on Parallel and Distributed Systems, vol.

23, no. 2, pp. 375-382.

Eakman, G. 2000, "Strategies for Debugging Embedded

Systems", Embedded Systems Programming, , pp.

139-147.

Forward, A., Badreddin, O., Lethbridge, T. C. & Solano, J.

2011, "Modeldriven rapid prototyping with Umple",

Software: Practice and Experience, .

Forward, A., Badreddin, O. & Lethbridge, T.C. 2010,

"Umple: Towards Combining Model Driven with

Prototype Driven System Development", IEEE

International Symposium on Rapid System Prototyping

(RSP).

Forward, A., Lethbridge, T. C. & Brestovansky, D. 2009,

"Improving program comprehension by enhancing

program constructs: An analysis of the Umple

language", IEEE 17th International Conference on

Program Comprehension, 2009 (ICPC '09), pp. 311.

Forward, A., Badreddin, O., Lethbridge, T. C. & Solano, J.

2012, "Model-driven rapid prototyping with Umple",

Software Practice and Experience, vol. 42, no. 7, pp.

781-797.

Lethbridge T. C., Forward, A. & Badreddin, O. 2012,

Umple language online. Available: http://try.umple.

org [2013, October/20].

Lethbridge, T. C., Forward, A. & Badreddin, O. 2012,

Umple Google Code project.

Lethbridge, T. C., Forward, A. & Badreddin, O. 2010,

"Umplification: Refactoring to Incrementally Add

Abstraction to a Program", 17th Working Conference

on Reverse Engineering (WCRE), 2010, pp. 220.

Lethbridge, T. C., Mussbacher, G., Forward, A. &

Badreddin, O. 2011, "Teaching UML using umple:

Applying model-oriented programming in the

classroom", Proceedings of the 2011 24th IEEE-CS

Conference on Software Engineering Education and

Training, IEEE Computer Society, pp. 421.

Mehner, K. 2002, "JaVis: A UML-Based Visualization

and Debugging Environment for Concurrent Java

Programs", Revised Lectures on Software

Visualization, International Seminar, Springer-Verlag,

pp. 163.

Selic, B. 2003, "The pragmatics of model-driven

development", IEEE Software, vol. 20, no. 5, pp. 19-

25.

Sendall, S. & Kozaczynski, W. 2003, "Model

transformation: the heart and soul of model-driven

software development", IEEE Software, vol. 20, no. 5,

pp. 42-45.

Timothy C. Lethbridge, Gunter Mussbacher, Andrew

Forward & Omar Badreddin 2011, "Teaching UML

Using Umple: Applying Model-OrientedProgramming

in the Classroom", CSEE&T, , pp. 421-428.

SpecifyingTraceDirectivesforUMLAttributesandStateMachines

APPENDIX

// **** Description

// In this Appendix, we present the

// Umple code written to model the

// Student registration system

// **** Information

// 4 classes

// 1 State Machine

class Course {

code;

description;

1 -- * CourseSection;

}

class CourseSection

{

sectionId;

Integer classSize = 0;

Integer minimumClassSize = 10;

Integer maximumClassSize = 100;

// State machine

CourseSectionStm

{

Planned

{

openRegistration ->

OpenNotEnoughStudents;

}

OpenNotEnoughStudents

{

closeRegistration -> Cancelled;

cancel -> Cancelled;

getMinimumClassSize()]

-> OpenEnoughStudents;

}

OpenEnoughStudents {

closeRegistration -> Closed;

cancel -> Cancelled;

getMaximumClassSize()] ->

Closed;

}

Cancelled {}

Closed {}

}

// Code mixins

boolean requestToRegister(Student

aStudent)

{

setClassSize(getClassSize() + 1);

}

class Student {}

class Registration {

grade;

* -- 1 CourseSection;

* -- 1 Student;

}

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment
