Visualizations for Text Re-use

Stefan J

anicke

, Annette Geßner

, Marco B

uchler

and Gerik Scheuermann

Image and Signal Processing Group, Institute for Computer Science, Leipzig University, Leipzig, Germany

ottingen Centre for Digital Humanities, University of G

ottingen, G

ottingen, Germany

Keywords:

Text Re-use, Text Visualization, Bible Visualization, Intertextuality, Digital Humanities.

Abstract:

In this paper, we present various visualizations for the Text Re-use found between texts of a collection to

support humanists in answering a broad palette of research questions. When juxtaposing all texts of a corpus

in the form of tuples, we propose the Text Re-use Grid as a distant reading method that emphasizes text tuples

with systematic or repetitive Text Re-use. In contrast, the Text Re-use Browser allows for close reading of the

Text Re-use between the two texts of a tuple. Additionally, we present Sentence Alignment Flows to improve

the readability for Text Variant Graphs on sentence level that are used to compare various text editions to each

other. Finally, we portray ﬁndings of the humanists of our project using the proposed visualizations.

1 INTRODUCTION

Text Re-use is deﬁned as the oral or the written re-

production of textual content (B

uchler, 2013) and is

roughly divided into two types. On the one hand, a

text passage is re-used deliberately, like direct quotes

and allusions

, and phrases like winged words and

wisdom sayings. Translations of a text into other lan-

guages also count to this group and is called interlin-

gual Text Re-use. A very popular form of deliberate

Text Re-use is plagiarism. It has gained major atten-

tion in the recent years, mainly driven by plagiarism

allegations in politics. On the other hand, a Text Re-

use may be unintended, like boilerplates, e-mail head-

ers or the repetition of news agency texts when writ-

ing daily newspapers (Clough et al., 2002). Further

examples are idioms, battle cries and so called multi

word units.

The interdisciplinary Digital Humanities project

eTRACES

that wants to discover all these kinds of

intertextual similarities between historical texts of a

given corpus meets two major challenges. Since

manual detection of re-used text passages is virtually

impossible for the collaborating humanists, the ﬁrst

challenge is the automation of this process for unsu-

pervized Text Re-use detection. For this purpose, the

TRACER tool was developed, so that traces of re-used

An allusion is ”an expression designed to call some-

thing to mind without mentioning it explicitly” (Oxford En-

glish Dictionary)

http://etraces.e-humanities.net/

text are annotated automatically when operating on

vast collections of texts. To ﬁnally create new digital

editions of texts, the humanists of the project want to

analyze, evaluate and revise the found results. This

leads to the second challenge: the transformation of

these results into intuitive visual interfaces that sup-

port the humanists in achieving their goals.

One focus of the project is the detection and visu-

alization of Text Re-uses within the Bible; the given

corpus consists of seven different English translations

(see Section 3.3). The humanists are particularly in-

terested how speciﬁc phrases spread in a text – so

called Repetitive Text Re-use – and which texts share

patterns of consecutive similar sentences – so called

Systematic Text Re-use (see Section 3.2). Further-

more, the analysis of these similar sentences regard-

ing structure, context and used expressions is of spe-

cial interest.

This paper shows, how visualizations help to an-

swer the humanist’s questions. Although particularly

designed for the Bible data of the project, the follow-

ing visualizations for Text Re-use can be adapted for

an arbitrary collection of texts:

• Text Re-use Grid: a chart that juxtaposes all texts

of a collection (e.g., Bible books) in relation to the

number and the type (systematic and/or repetitive)

of the detected Text Re-uses,

• Text Re-use Browser: a user interface that allows

for the inspection and browsing through all Text

Re-uses between two or more texts,

Jänicke S., Geßner A., Büchler M. and Scheuermann G..

Visualizations for Text Re-use.

DOI: 10.5220/0004692500590070

In Proceedings of the 5th International Conference on Information Visualization Theory and Applications (IVAPP-2014), pages 59-70

ISBN: 978-989-758-005-5

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

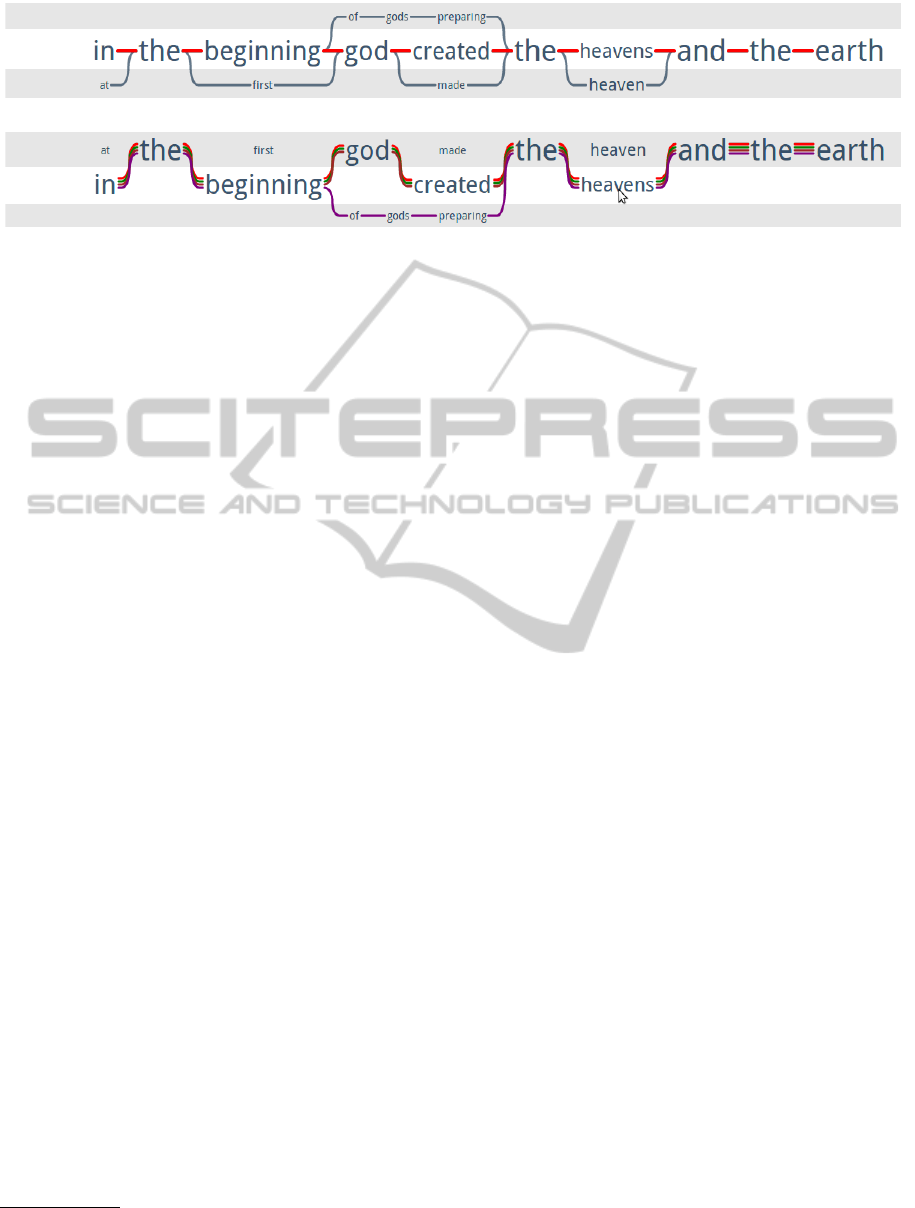

• Sentence Alignment Flow: a transformation of

aligned sentences (e.g., Bible verses) into an in-

teractive visualization that improves the readabil-

ity of so called Text Variant Graphs.

2 RELATED WORK

With the steadily growing amount of digital texts

that can be retrieved through web portals like Google

Books

or HathiTrust

, visualizations for the contents

and its metadata gain more and more popularity. A

lot of work has been done in the ﬁeld of text visu-

alization. We want to emphasize these ones that are

topically close to our work and which were inspiring

for designing Text Re-use visualizations for the Bible.

2.1 Text Re-use Visualizations

For displaying the results of an automatic detection of

Text Re-uses in ancient Greek texts, B

uchler provides

a frontend called CitationGraph that visualizes the

Text Re-use found for a certain author in an ancient

Greek text corpus by number, citing authors, years

of citing authors and passages of the book (B

uchler

et al., 2010). Additionally, the user can inspect in-

dividual text snippets with highlighted re-used pas-

sages. This approach has proven useful to humanists

in the eAQUA project (Geßner, 2010).

For displaying the variants for a quote, Leskovec

introduced the phrase graph (Leskovec et al., 2009),

with vertices in the form of phrase clusters and di-

rected edges for relations (inclusions) among the cor-

responding phrases.

Lee uses a static Dot Plot View for plotting Text

Re-use found between Bible books (Lee, 2007). As

introduced by Gibbs and McIntyre (Gibbs and McIn-

tyre, 1970), the Dot Plot View is used in bioinformat-

ics to compare two genome sequences to each other.

A single dot marks a correlation between the genomes

and multiple dots form patterns that indicate similar

genomic segments. Lee utilizes this approach to high-

light patterns of systematic Text Re-use.

The GuttenPlag Wiki (GuttenPlag, 2013) provides

several visualizations for plagiarized passages of Gut-

tenberg’s dissertation

. A complete overview of the

whole text is given and each page, chapter or plagia-

rized text passage receives its own block. Coloring is

used to show the amount of re-used text or to indicate

http://books.google.de/

http://www.hathitrust.org/

In 2011, the current German Federal Minister of De-

fence Karl-Theodor zu Guttenberg was convicted of plagia-

rizing his doctoral dissertation.

certain authors of the original source. The usage of

colored blocks is also a common practice to visualize

re-used program code passages (Freire, 2008; Ribler

and Abrams, 2000).

All these visualizations focus on displaying the

extent of Text Re-use of a given source text, or a text

that contains lots of re-used passages. A comparative

overview between all texts of a text collection is not

provided. For this purpose, we present the Text Re-use

Grid in Section 4.1.

2.2 Alignment Visualizations

Data alignments are common tasks in various re-

search ﬁelds. The visualization of ontology align-

ments in the form of graphs for a better under-

standing of speciﬁc semantic relations is an exam-

ple from the semantic web community (Lanzenberger

and Sampson, 2006). In bioinformatics, there are nu-

merous tools for the visualization of sequence align-

ments (Procter et al., 2010). For example, genome

alignment visualizations are used to help researchers

to quickly detect important genomic variations (Her-

big et al., 2012). Thereby, distinct colored paths indi-

cate distinct genomes.

A lot of use cases also exist for the alignment of

texts. Cheesman offers a visualization for the align-

ment of multilingual text passages in Shakespeare’s

Othello in the form of a web interface, where the user

can interactively browse through the texts of two edi-

tions (Cheesman et al., 2012). In contrast, B

uchler

provides a horizontal alignment of Text Re-uses be-

tween text passages of the same language (B

uchler

et al., 2010). The original text snippet is drawn as a

main branch and variations of Text Re-use candidates

are sub-branches with a certain color. This solution

works ﬁne for small examples with minor variations,

but it fails for major differences, especially, when

multiple Text Re-uses share the same sub-branches.

A similar visualization for the uncertainty in lattice

graphs supports also various sub-branches (Collins

et al., 2007). But merging of multiple nodes of the

same kind is not provided, although the metaphor for

uncertainty could be used for this purpose.

A visualization, which allows for weighted nodes

is the Word Tree (Wattenberg and Vi

egas, 2008). It

arranges a set of sentences that start with the same set

of words in the form of a tree. Each variation results

in a split into several leaves. Thereby, the font size of

a node label reﬂects the number of occurrences.

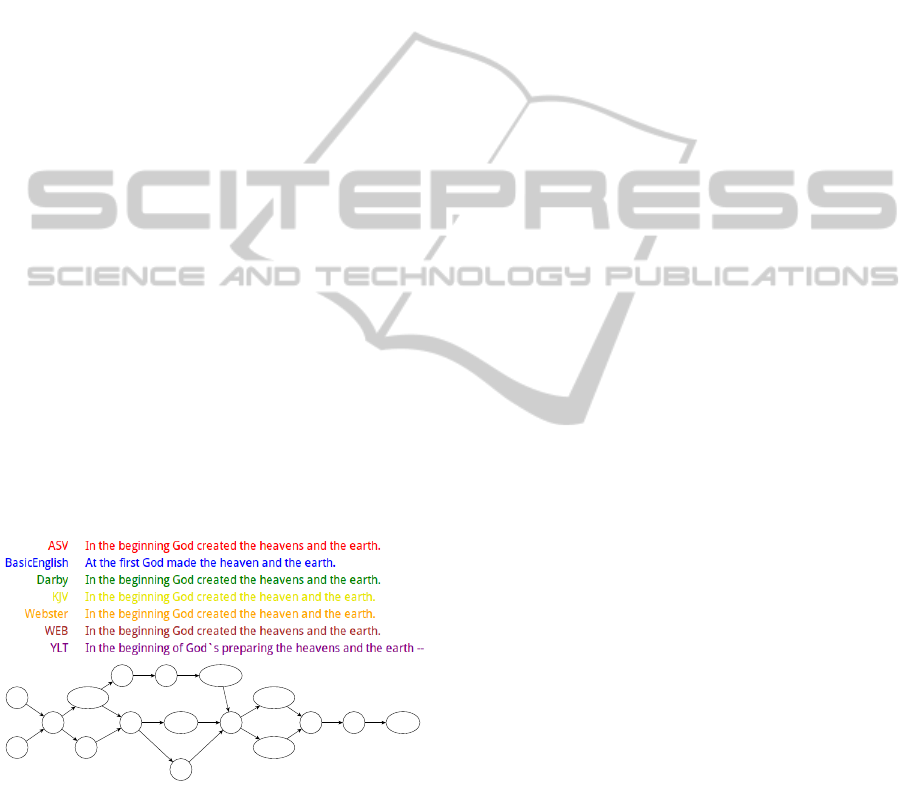

A graph visualization for Text Variant Graphs – a

data structure representing various editions of a text –

is proposed by Andrews (Andrews and Van Zundert,

2013). It can be seen as an extension of B

uchler’s

IVAPP2014-InternationalConferenceonInformationVisualizationTheoryandApplications

approach. The graph provides a lot of interaction

means for humanists to work on the automatic text

alignment results like merging and splitting of ver-

tices. However, it is hard for the user to follow how

one edition disseminates in the graph. Furthermore,

the vertices do not reﬂect the amount of occurrences

and synonyms are not properly aligned to each other.

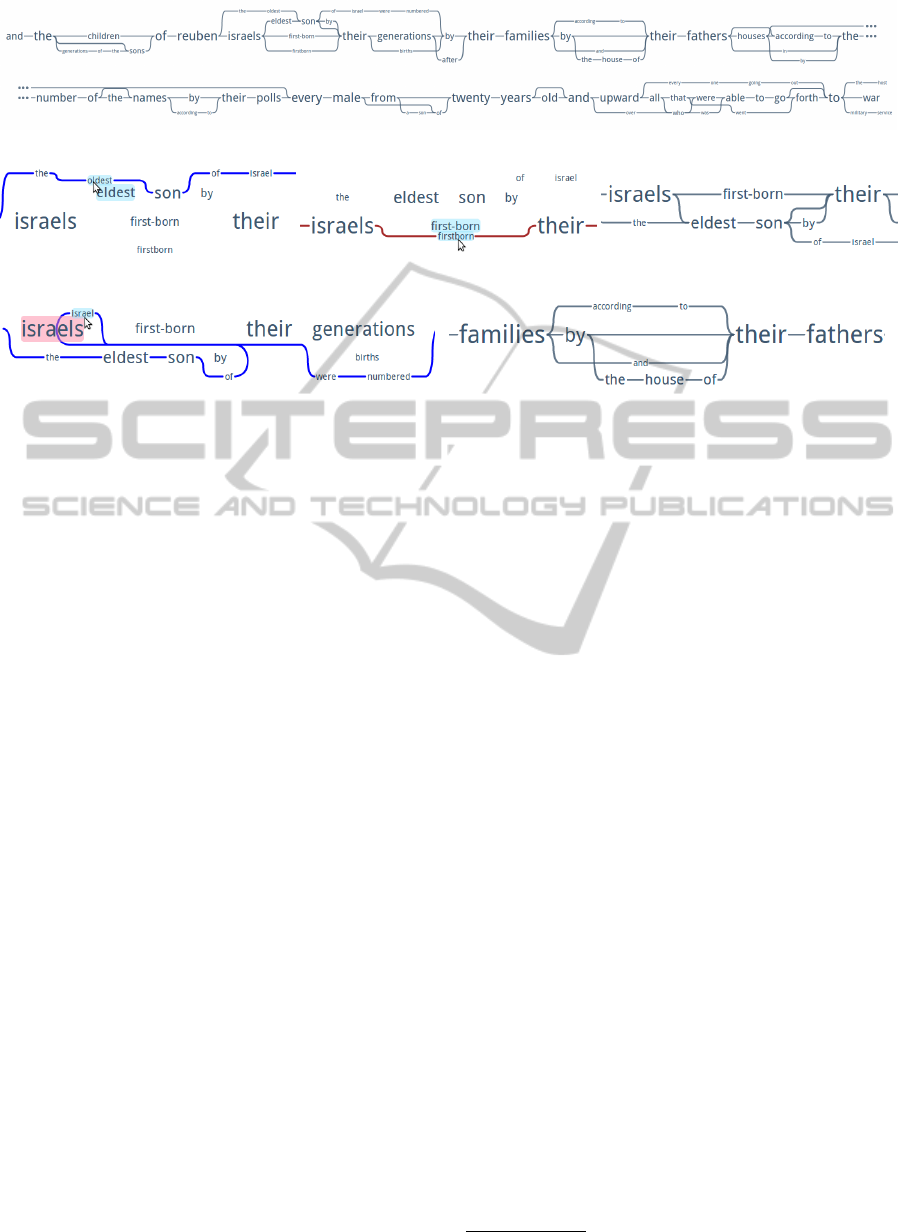

In section 4.3, we propose the Sentence Alignment

Flow that combines Andrews’ concept and some of

the other presented design ideas with the goal to im-

prove the readability for Text Variant Graphs.

2.3 Visualizations of the Bible

Several visualizations exist for cross references be-

tween Bible verses, which are co-occurrences of sim-

ilar events (e.g., ”Jesus walks on the water”), themes

(e.g., ”The Tower of Babel”), or persons (e.g., ”Cain

and Abel”). Therefore, a cross reference can be seen

as a basic form of Text Re-use. The Bible Cross Ref-

erences Visualization (OpenBible.info, 2012) is a grid

with each cell containing a cross reference graph for

each pair of Bible books. So, the observer gets an

imagination about the amount of shared cross refer-

ences between two Bible books. A single graph con-

sists of two vertical axes; in ascending order, each

verse of a book gets a position on the corresponding

axis. When drawing cross references in the form of

connections, the reader gets an overview about co-

occurring entities, but an indication for the type of

Text Re-use is not given, and an exploration of in-

dividual co-occurrences is also not possible. Harri-

son’s visualization (Harrison and R

omhild, 2008) or-

ders all verses on a horizontal axis and represents each

cross reference with an arc between the corresponding

verses. Although edge coloring is used, the presence

of around 64,000 arcs makes the visualization hard to

read and patterns hard to discover.

In this paper, we present visualizations for Text

Re-uses found in the Bible that broaden the capabili-

ties to explore known facts and allow for the discovery

of new insights.

3 TEXT CORPUS

Within the eTRACES project, computer scientists and

humanists collaborate to explore and measure to what

extent Text Re-use passages can be detected auto-

matically. Intuitive, interactive visualizations are the

bridge for the humanists to help understanding and in-

terpreting the computed results. In general, the goal

is to ﬁnd traces of re-used text, more precisely, when,

where and to what extent speciﬁc text passages were

re-used. Independent of the research ﬁeld, the algo-

rithms and visualizations presented in this paper can

be utilized for an arbitrary text collection.

3.1 Text Re-use Data

Let A

, . . . , A

denote a corpus of n texts. After split-

ting each text into a list of sentences, the automatic

Text Re-use detection algorithm searches for Text Re-

uses between each pair of sentences from distinct

texts and within one and the same text. Each found

Text Re-use {a

, b

} consists of the two corresponding

Text Re-use units a

(i-th sentence of text A) and b

( j-

th sentence of text B). The Scoring value t(a

, b

) de-

ﬁnes a weight for {a

, b

} dependent on the sentence

lengths of a

and b

and their Re-use overlap, which is

the proportion of matching and non-matching tokens.

t is ranged in the interval [0, 1]; 0 means no similarity

between two verses, 1 means that a

and b

are equal.

The complete Text Re-use result list contains only rel-

evant Text Re-uses above a certain threshold for t.

A more detailed description of the underlying al-

gorithms for Text Re-use detection and the computa-

tion for t is outside the scope of this paper and can be

found in B

uchler’s dissertation (B

uchler, 2013).

3.2 The Type of Text Re-use

The humanists working in our project – or with Text

Re-use in general – have various research questions.

Therefore, we deﬁne two types of Text Re-use:

Systematic Text Re-use. The consecutive occurence

of the same pattern of Text Re-uses is of particular in-

terest for researchers when comparing different texts

to each other. Such type of Text Re-use could be

an indication for plagiarism. For instance, the pat-

tern {a

, b

}, {a

i+1

, b

j+1

}, {a

i+2

, b

j+2

} is a System-

atic Text Re-use of three consecutive phrases.

Repetitive Text Re-use. This type of Text Re-use ap-

pears, when the researcher is interested in analyzing

a phrase that is frequently used (mostly) in the same

text. The goals in this use case are to explore the con-

texts, in which a phrase appears as well as to what

extent a speciﬁc phrase is spread in the text. Repeti-

tive Text Re-use for a phrase a exists for a set of Text

Re-use pairs in the form {a, b

}, {a, b

}, . . .

3.3 Bible Data

Since the Bible is known as one of the most often read

and studied books, and therefore, easily evaluable, it

was chosen as a proof of concept for the project. The

sample text corpus that is used as the leading example

VisualizationsforTextRe-use

for this paper contains seven different English trans-

lations of the Bible:

• King James Version (KJV): Early modern English

translation of the Bible with the intention to reﬂect

the vision of the Church of England at that time

(released in 1611).

• Webster’s Revision (Webster): Revised KJV with

grammatical changes and the replacement of ar-

chaic words into modern English (1833).

• Young’s Literal Translation (YLT): Strictly lit-

eral translation of the original Hebrew and Greek

texts; verses conform to Hebrew syntax (1862).

• Darby Version (Darby): Translated as exactly as

possible from Hebrew and Greek texts to create a

modern version for the unlearned (1890).

• American Standard Version (ASV): Version of the

KJV with a strong focus on the USA (1901).

• Bible in Basic English (BasicEnglish): Bible

translation with a limited English vocabulary

(around 1000 words), so that more people world-

wide can read and understand the text (1965).

• World English Bible (WEB): Revision of ASV

with the goal of global validity (2000).

The Bible versions were reduced to a total of

28,632 verses that are included in all seven transla-

tions. The automatic Text Re-use detection algorithm

iterates over all verse tuples for all pairwise permuta-

tions of Bible editions. In this context, {a

, b

} indi-

cates a Text Re-use between the i-th verse of edition

A and the j-th verse of edition B.

4 VISUALIZATION DESIGN

The conscientious analyzation and interpretation of

small text passages – called Close Reading – is a ma-

jor technique for researches in literary criticism. But

the digital age with algorithms that automatically re-

trieve vast amounts of data expedite Distant Read-

ing methods (Moretti, 2005) that give the observer an

impression about the data distribution. The Informa-

tion Seeking Mantra ”Overview ﬁrst, zoom and ﬁlter,

details-on-demand” (Shneiderman, 1996) is accom-

plished, when distant reading views are interactively

used to switch to close reading views. The task is to

provide a visualization that shows an overview of the

data, so that patterns potentially interesting for the ob-

server are salient. A drill down on these patterns for

further exploration is the bridge between distant and

close reading.

The visualizations we present in this chapter real-

ize this process for Text Re-use data. The Text Re-use

Grid is a distant reading visualization that highlights

frequent, systematic and repetitive Text Re-uses be-

tween each text pair of a given corpus. It can be used

to drill down and explore a preferred pair in the Text

Re-use Browser. Like the Sentence Alignment Flow

that allows to analyze various occurrences of re-used

phrases, this visualization also supports close reading

for Text Re-uses.

4.1 Text Re-use Grid

The intention of this visualization is to give the re-

searcher an overview of the distribution of Text Re-

uses between all texts of a corpus. We transform the

result of the automatic Text Re-use detection algo-

rithm into an intuitive, readable visual interface that

immediately (1) reﬂects the amount of Text Re-uses

between each pair of texts, and (2) provides evidence

for the type of Text Re-use.

Text Re-use Amount σ. σ is the number of Text Re-

uses detected between two texts.

Systematic Text Re-use Index λ. λ is an assess-

ment for structures of systematic Text Re-use be-

tween two texts A and B with an ordered list of sen-

tences, so that A = {a

f irst

, . . . , a

last

} and B =

f irst

, . . . , b

last

}. To detect these structures,

we preliminary ﬁlter a list of Text Re-uses {a

, b

}

found between A and B. A Text Re-use {a

, b

} is

removed if:

• it contains a repeatedly re-used sentence a

or/and

(repetitive Text Re-use), or

• it has no adjacent Text Re-use {a

, b

} within a

certain neighborhood ε (isolated Text Re-use), so

that:

ε =

i − u

j − v

< 10

Empirically, we determined 10 as the best value to

separate between systematic (ε < 10) and isolated

Text Re-use (ε ≥ 10). The ﬁlter process results in a

decomposition of the remaining n Text Re-uses into

m clusters C = {c

, . . . , c

} containing more

than one Text Re-use each. For each of these clus-

ters c

with

Text Re-uses in total, we compute a

correlation coefﬁcient ρ(c

) as

ρ(c

) =

∑

}∈c

(i −

)( j −

)

∑

}∈c

(i −

)

∑

}∈c

( j −

)

with

∑

}∈c

and

∑

}∈c

IVAPP2014-InternationalConferenceonInformationVisualizationTheoryandApplications

to estimate the strength of the linear relationship be-

tween the Text Re-uses in c

. Finally, the Systematic

Text Re-use Index is deﬁned as:

λ =

∑

h=0

ρ(c

)

λ ranges in the interval [0, 1], whereas high values

indicate that patterns of systematic Text Re-uses are

contained. Low values occur, when the Text Re-uses

are mostly repetitive or independent from each other.

Repetitive Text Re-use Index ω. In contrast to λ,

ω is a measure for the amount of repetitive Text Re-

use. Let N denote the number of Text Re-uses found

between two texts A and B. To deﬁne ω, we remove

each Text Re-use {a

, b

}, if both sentences a

and b

occur only once within all Text Re-uses. Finally, we

deﬁne ω in the interval [0, 1] with the remaining n Text

Re-uses as

ω =

Grid Visualization. For the visual mapping, we con-

struct a grid with each cell representing the Text Re-

uses found between two texts of a corpus. For each

cell, we compute σ, λ and ω for the corresponding

two texts. The cells are displayed in the form of

rectangles with bounds proportional to the lengths of

the corresponding texts. Interactively, the user can

change the display to equal-sized squares, so that

even cells representing short texts are properly vis-

ible. Although zooming is possible, the available

screen space limits the number of texts that can be

visually compared to each other.

Because of the importance for the humanists to

detect and analyze texts with extensive systematic or

repetitive Text Re-use, we use a speciﬁc coloring for

the grid cells, so that the type of Text Re-use (repre-

sented by λ and ω) and the amount of Text Re-use (σ)

can be easily recognized. As the human’s ability to

discriminate colors is limited, we chose a class based

approach to compute a limited number of cell colors.

As proposed by Slocum et. al, we chose an optimal

classiﬁcation method (Slocum et al., 2009) to group

the cells into two sets of classes in dependency of σ,

λ and ω. With the Jenks-Caspall-Algorithm (Jenks

and Caspall, 1971) using reiterative cycling, we com-

pute a conﬁgurable number of classes. We receive n

classes α

, . . . , α

for the amount of Text Re-use with

containing the cells with smallest σ and α

con-

taining the cells with the largest σ. We use the class

(1 ≤ i ≤ n) to deﬁne the saturation of a cell color:

saturation =

· 100

Thus, high amounts of Text Re-use receive highly sat-

urated, and few amounts lightly saturated colors. Fur-

thermore, we compute m classes β

, . . . , β

for the

type of Text Re-use (systematic or repetitive), so that

contains the cells with the smallest λ (or ω) and

contains the cells with the largest λ (or ω). For

the mapping of these classes to colors, we facilitate

color temperature. Therefore, we utilized the ”Cold-

Hot” color scale Diehl proposes (Diehl, 2007) for the

EpoSee tool from blue (cold) to red (hot). We deter-

mine the hue of a cell color for a cell with class β

(1 ≤ j ≤ m) as

hue = 240 +

j − 1

m − 1

· 120

So, we receive cold hues for cell colors with less,

and hot hues for cell colors with a lot of systematic

(or repetitive) Text Re-use between the correspond-

ing texts. The visual attraction of hot colors also ﬁts

to the importance for the humanists to discover texts

with extensive systematic or repetitive Text Re-use.

Finally, using value = 100 a cell color is deﬁned in the

HSV color space. The resultant colors for n = m = 3

and for n = m = 4 are shown in Figure 1.

n=m=3

n=m=4

λ,ω

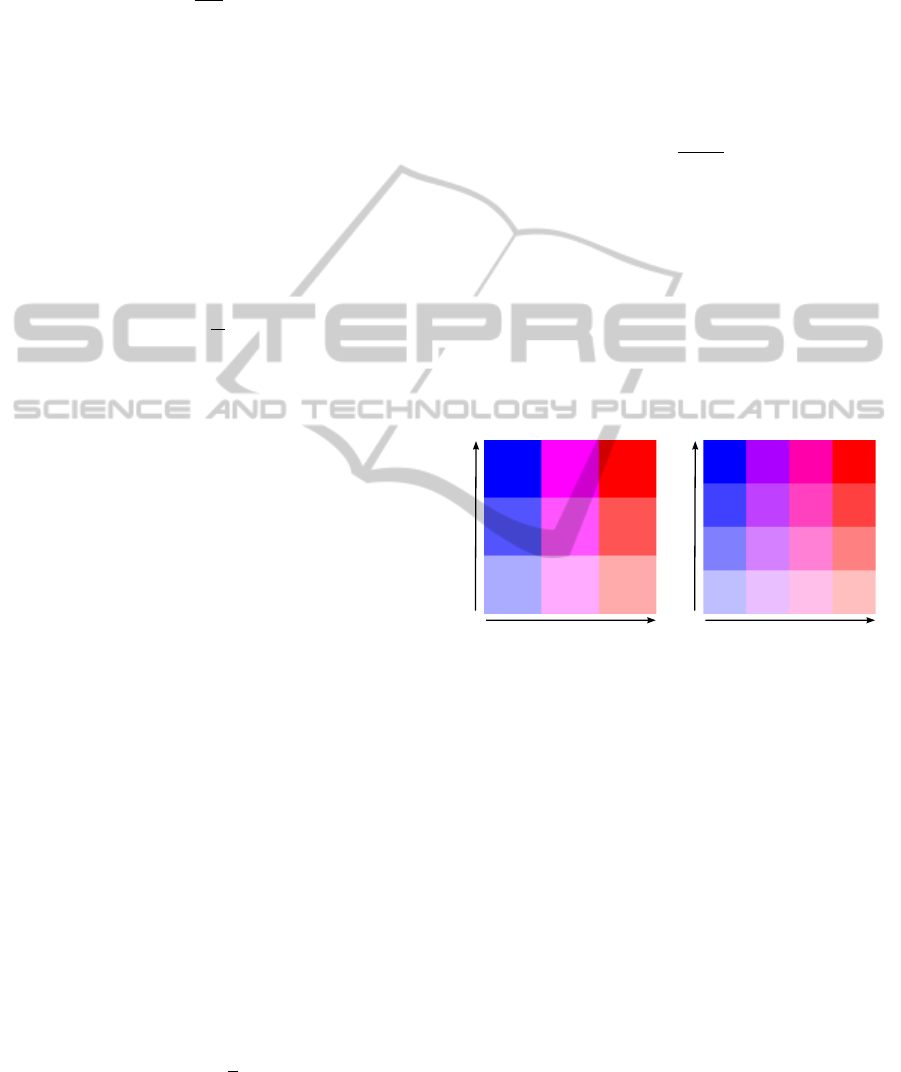

Figure 1: Resultant colors for the Text Re-use Grid.

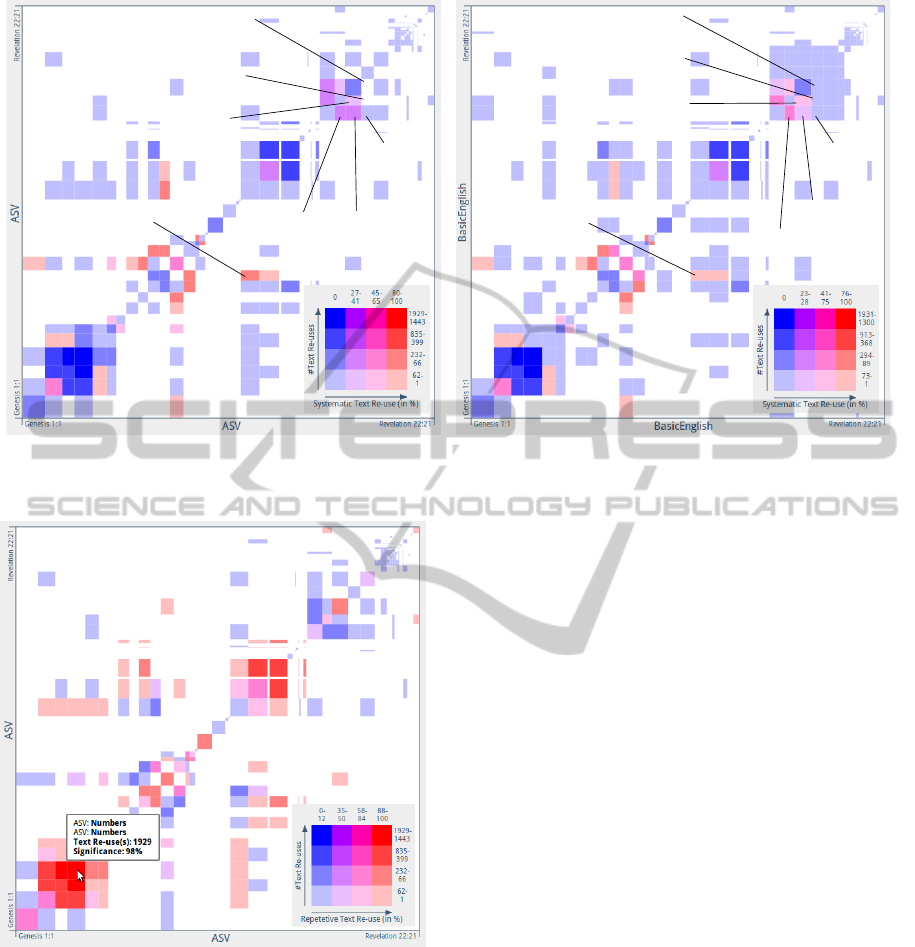

In Figures 2(a) and 3, the resultant Text Re-use

Grids for the Bible books of the American Standard

Version compared to each other highlighting system-

atic and repetitive Text Re-use can be seen. With the

help of a legend, the user is able to immediately cat-

egorize type and amount of Text Re-use between two

texts. Interactively, the user can change from high-

lighting systematic to highlighting repetitive Text Re-

use. By mouse clicking onto a cell, the user has the

ability to switch from the distant reading grid view to

a close reading browser view that is explained in the

next section.

4.2 Text Re-use Browser

In order to allow the inspection of Text Re-uses found

between two texts A = {a

f irst

, . . . , a

last

} and

B = {b

f irst

, . . . , b

last

}, the Text Re-use Browser

provides two panels for this purpose: a Dot Plot View

and a Text Re-use Reader.

VisualizationsforTextRe-use

Luke/John

Text Re-uses: 0

Significance: 0%

Mark/John

0, 0%

Matthew/John

2, 0%

Mark/Luke

47, 27%

Matthew/Luke

76, 27%

Matthew/Mark

104, 44%

2Kings/Isaiah

66, 100%

(a) Juxtaposition for ASV/ASV.

2Kings/Isaiah

69, 100%

Mark/John

5, 0%

Mark/Luke

53, 46%

Matthew/John

4, 0%

Matthew/Luke

72, 23%

Matthew/Mark

108, 43%

Luke/John

Text Re-uses: 1

Significance: 0%

(b) Juxtaposition for BasicEnglish/BasicEnglish.

Figure 2: Text Re-use Grid showing juxtapositions of Bible books highlighting systematic Text Re-use.

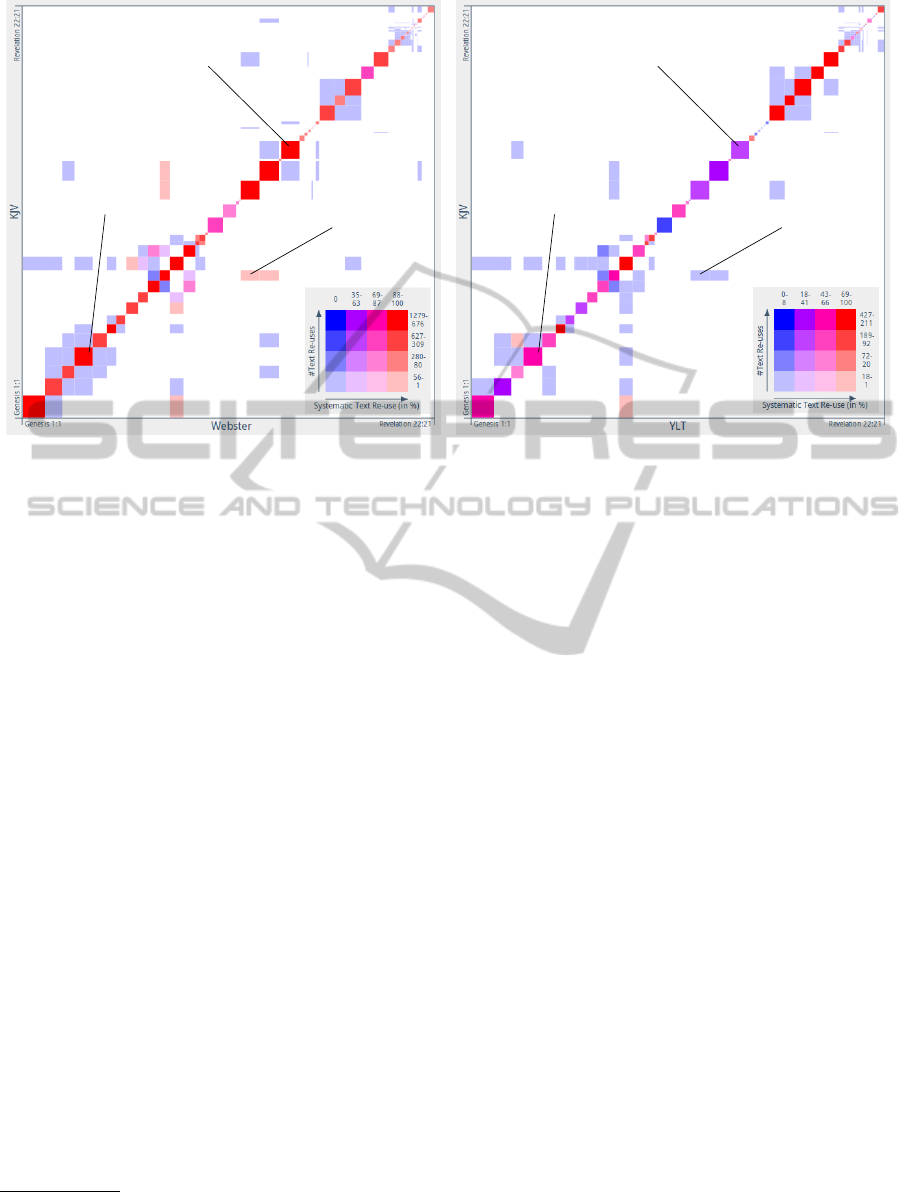

Figure 3: Text Re-use Grid showing juxtaposition for

ASV/ASV highlighting repetitive Text Re-use.

Dot Plot View. We also utilize the approach of a Dot

Plot View to emphasize the types of Text Re-use be-

tween the given texts. In contrast to Lee (Lee, 2007),

we provide an interactive chart, where the number

of sentences of A deﬁnes the range for the x-axis, and

the number

of sentences of B deﬁnes the range for

the y-axis. Each Text Re-use for a sentence pair is

drawn as a single dot. As in bioinformatics, speciﬁc

patterns indicate speciﬁc Text Re-use types. Diago-

nal patterns highlight sections that contain systematic

Text Re-use (Figure 4(a)), whereas vertical and hori-

zontal dot arrangements appear for phrase repetitions

(Figure 5(a)). By selecting a dot via mouse click, a

popup with the corresponding sentences and a Sen-

tence Alignment Flow (see Section 4.3) is shown. In-

teractively, the user is also able to zoom into a rectan-

gular region of interest (ROI).

Text Re-use Reader. This panel allows for brows-

ing A and B in two opposite windows. Whenever a

re-used sentence appears in the viewport of one win-

dow, a connection to the opposite sentence is drawn

in the central area between the windows. A click on

a connection scrolls both texts, so that the sentences

of the corresponding Text Re-use are placed on the

same horizontal level, and a step-by-step exploration

of consecutive Text Re-use is possible. A mouseover

highlights these words in both sentences, for which

matches were detected with the sentence alignment

algorithm (see Section 4.3). An additional overview

for the texts gives an impression about all occurring

Text Re-uses, and can be utilized to directly jump to a

dedicated position. In both views, an accumulation of

parallel lines is an indication for systematic Text Re-

use (Figure 4(b)), and hubs (a single sentence of one

text that is connected to a plenty of sentences of the

opposite text) occur for repetitive Text Re-use (Fig-

ure 5(b)).

Both panels are linked to each other. A dot selec-

tion in the Dot Plot View triggers a scrolling of the

texts to the corresponding positions, whereas a con-

nection selection in the Text Re-use Reader opens the

IVAPP2014-InternationalConferenceonInformationVisualizationTheoryandApplications

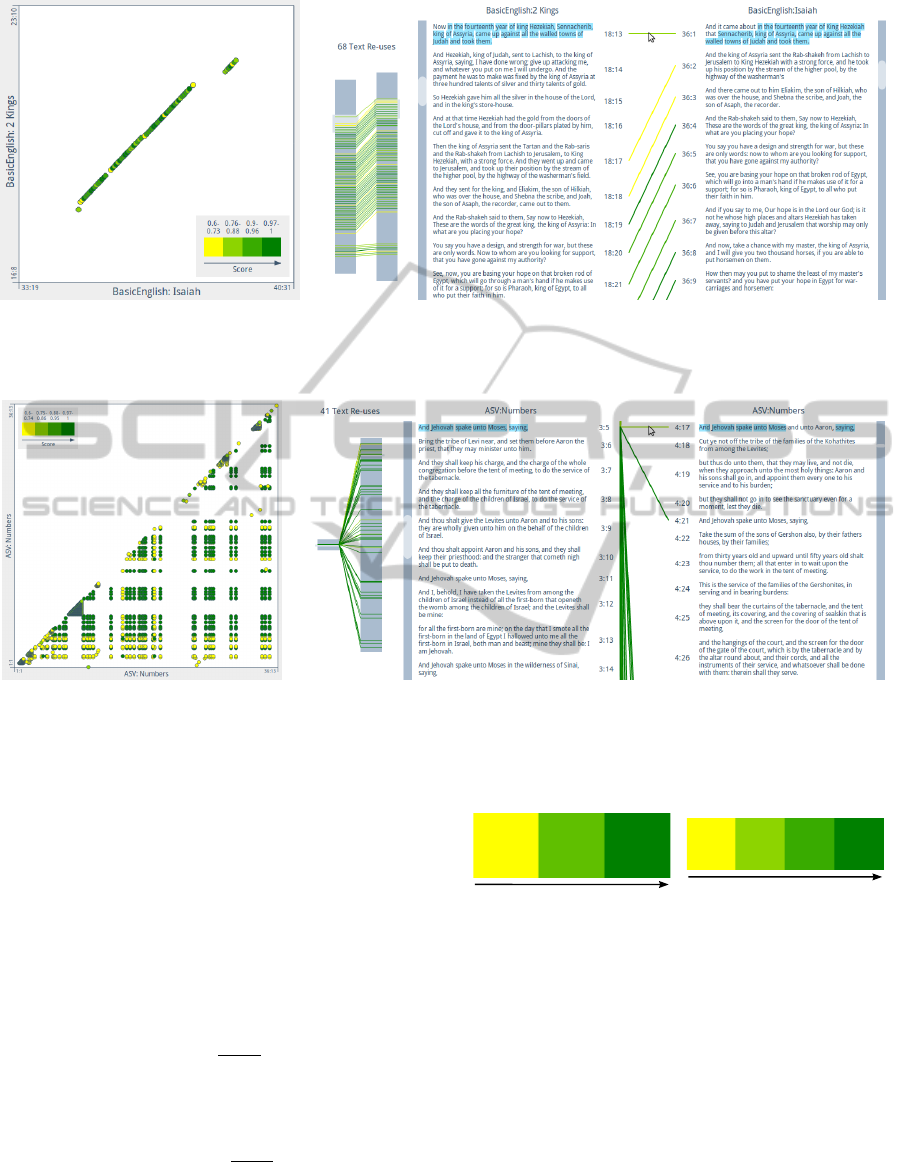

(a) Diagonal pattern in the Dot Plot View. (b) Parallel lines in the Text Re-use Reader.

Figure 4: Text Re-use Browser components showing systematic Text Re-use found for the Bible books 2 Kings and Isaiah.

(a) Vertical and horizontal patterns in

the Dot Plot View.

(b) Spread of the re-used verse 3:5 is visible in the Text Re-use Reader.

Figure 5: Text Re-use Browser components showing repetitive Text Re-use found in the Bible book Numbers.

popup for the corresponding dot. For coloring the

Text Re-use glyphs (dots, connections), we use again

a class based approach. We group the Text Re-uses

in dependency of their scoring value t into p classes

, . . . , γ

, so that γ

contains Text Re-uses with the

smallest t, and γ

these ones with the largest t. In or-

der to avoid misinterpretations, we chose a different

color scheme compared to the Text Re-use Grid (Sec-

tion 4.1). The hue of a glyph color for a Text Re-use

with class γ

(1 ≤ k ≤ p) ranges from yellow to green:

hue = 60 +

k − 1

p − 1

· 60

To gain visually distinctive colors, the color value

ranges between 100 and 50

value = 100 −

k − 1

p − 1

· 50

and with saturation = 100 all glyph colors are deﬁned

in the HSV color space. Figure 6 shows the resultant

colors for p = 3 and p = 4.

p=3

p=4

Figure 6: Resultant colors for the Text Re-use Browser.

Some text juxtapositions contain a lot of Text Re-

uses that also create various patterns for Text Re-use.

Therefore, we enable the user to visually ﬁlter for spe-

ciﬁc Text Re-uses. Firstly, we allow to hide glyphs of

repetitive Text Re-use, and secondly, a slider can be

used to hide isolated glyphs without adjacent glyphs

in a certain neighborhood. Thirdly, the user is able

to only display the Text Re-uses for a speciﬁc phrase.

Thus, a drill-down to highlight only signiﬁcant sys-

tematic or repetitive Text Re-use patterns is possible.

VisualizationsforTextRe-use

4.3 Sentence Alignment Flow

Humanists are interested in phrasing variants of a re-

used entity and the contexts in which a speciﬁc phrase

appears. The Sentence Alignment Flow is an interac-

tive user interface that supports this task by visual-

izing a sentence alignment for a set of Text Re-uses.

Furthermore, we provide several means of interaction

to explore and modify the visualization and the under-

lying data structure.

Let S = {s

, . . . , s

} denote a set of sentences that

share the same re-used entity. Preliminarily, we con-

vert each sentence to lower case and remove punctu-

ation characters. Afterwards, the sentences are split

into tokens.

Sentence Alignment. We construct a directed acyclic

graph G = (V, E) as data structure for the sentence

alignment. Each vertex v = {s

, u

, . . . } ∈ V is an

aggregation of aligned tokens {s

, u

, . . . } that are

equal to each other. The token degree

is the num-

ber of tokens assigned to v, and v(s

) is the corre-

sponding vertex in G for a sentence token s

. We use

a brute force algorithm to align the sentence tokens

to each other. Thereby, we merge tokens of different

sentences and use this alignment solution that reaches

a maximum number of merge iterations while keep-

ing G acyclic. Finally, each token of each sentence

is a component of exactly one vertex of G. We insert

a directed edge between two vertices, if they contain

consecutive tokens for at least one sentence. Figure 7

shows such a graph for seven editions of the ﬁrst Bible

verse.

the

earthand

heaven

heavens

first

god

beginning

gods

preparing

created

made

Figure 7: Sentence alignment DAG for seven editions.

Graph Visualization. The corresponding token of

a vertex is used for labeling. As Wattenberg pro-

poses (Wattenberg and Vi

egas, 2008), we also use

font size as a metaphor to reﬂect the number of oc-

currences of individual tokens. We layout the vertices

of G by placing the corresponding labels onto hori-

zontal layers. The height of a layer depends on the

maximum height of the labels placed on it. We start

by placing the labels for the vertices v(s

), . . . , v(s

|s|

)

for an arbitrary sentence s ∈ S in left-to-right order

on layer 0 (main branch). By default, we choose the

sentence s with the maximum value for

|s|

∑

i=1

|v(s

which has lots of tokens assigned to vertices with

large token degrees. Then, we iteratively search for

the shortest path {v

, . . . , v

} ∈ G with assigned lay-

ers for v

and v

and the vertices of the subpath p =

, . . . , v

n−1

} without an assigned layer. Let i denote

the layer of v

and j the layer of v

. We aim to place

p as close as possible to its adjacent vertices v

and

. Starting with layer k = max(|i|, | j|), we iteratively

search for a layer with free space for the labels of the

vertices of p in the order k, k+1, k −1, k +2, k−2, etc.

If the total width of the labels of p is larger than the

space between v

and v

, we preliminary stretch the

distance between v

and v

. After the proper layer is

found, we move all vertices of G horizontally, so that

(1) the labels do not overlap each other, (2) a min-

imum space of conﬁgurable width between all adja-

cent vertices is given, and (3) each vertex is placed in

the barycenter of its neighbors. We perform this pro-

cess for all paths containing vertices without assigned

layers to complete the layout for the Sentence Align-

ment Flow. We draw undirected edges (for the user

the direction is obvious) between the vertices in the

form of horizontal lines of the same layer. To ensure

a good readability of the graph, we use a horizontal

line with a connection in the form of a B

ezier curve

for edges connecting vertices of different layers.

One application for this visualization is the align-

ment of seven editions of an individual Bible verse.

For the color selection to identify the seven differ-

ent sentence ﬂows, we chose the following colors of

the 12-color palette for categorial usage suggested by

Ware (Ware, 2004) to facilitate maximal visual differ-

entiation by the user: red, blue, green, yellow, orange,

brown, and purple. Furthermore, we use a gray hue to

draw the edges of the graph. The resultant Sentence

Alignment Flows for seven editions of the ﬁrst Bible

verse using the ASV and BasicEnglish edition as main

branch on layer 0 are shown in Figure 8.

To also support the work of researchers for textual

criticism, who are interested in comparing different

text editions to each other, we enable the user-driven

modiﬁcation of the underlying data structure. By

dragging the labels over the surface, the user is able to

merge vertices when it doesn’t create cycles. We use

cyan and pink colors to signalize feasible and permit-

ted user-driven merge interactions. Furthermore, the

splitting of a vertex v with a token degree |v| > 1 is

IVAPP2014-InternationalConferenceonInformationVisualizationTheoryandApplications

layer -1

layer 0

layer +1

(a) Sentence Alignment Flow using the ASV as main branch (layer 0).

layer 0

layer +1

layer +2

(b) Sentence Alignment Flow using the BasicEnglish edition as main branch (layer 0). Sentence ﬂows containing the token

”heavens” are highlighted.

Figure 8: Sentence Alignment Flows for the ﬁrst verse of seven Bible editions.

also possible. Thus, the graph can be modiﬁed step-

wise to gain the desired alignment and to correct po-

tential errors of the alignment algorithm.

4.4 Implementation Notes

We implemented the proposed visualizations in

JavaScript in the form of modules to facilitate the in-

tegration into web-based research platforms that are

widely used in the Digital Humanities. We provide

a JSON interface for the Text Re-use data; within

our project, an Apache Solr

backend dynamically

serves the required information. We use the Rapha

JavaScript library

for rendering all glyphs in the form

of Scalable Vector Graphics.

Thus, the reponse time when loading a visualiza-

tion depends on the used client browser and the num-

ber of glyphs to be displayed. For the Bible use case,

the approximate number of rectangles in the Text Re-

use Browser is 300, and the number of dots (lines) in

the Dot Plot View (Text Re-use Reader) ranges from

0 to around 2,000.

5 RESULTS

We worked together with three humanists experi-

enced in the ﬁeld of textual criticism in order to de-

velop and improve the usability of the presented Text

Re-use visualizations as well as to ensure their sci-

entiﬁc beneﬁt. Initially, we discussed in what way

we could support the humanists in answering their re-

search questions. In face to face sessions, we demon-

strated the current status and gave some time to work

with the visualizations. In subsequent interviews,

we ﬁgured out problems and discussed potential en-

hancements of the design (e.g. color mapping). In this

http://lucene.apache.org/solr/

http://raphaeljs.com/

section, we present the humanist’s ﬁnal evaluation of

the visualizations and their ﬁndings for the Bible data.

One of the major purposes was the utilization of

the Text Re-use visualizations for various research

questions. These can be divided into different per-

spectives: the user has the opportunity to either com-

pare the same or different sections of the same text

(e.g., an edition of the Bible), or texts from different

editions (e.g., various editions of the Bible). Further-

more, the possibility to determine the relevance of the

results either by the amount of systematic or repetitive

Text Re-use, and the division into different visualiza-

tions that allow for a ”more distant” or a ”more close”

view on the text is of great interest.

Biblical books of the same or two different edi-

tions that have a lot of systematic or repetitive Text

Re-use are easy to ﬁnd by using the Text Re-use Grid.

Focusing on the diagonal line of books being com-

pared with their pendant in the same or another Bible

version and the squares next to them, some ”clusters”

of Biblical books seeming to have systematic and/or

repetitive interdependencies can be ﬁgured out easily.

Especially when comparing books of the same Bible

version regarding systematic Text Re-use, the visual-

ization shows for the three evangelists Matthew, Mark

and Luke strong interdependencies, whilst John has

few or no Text Re-use at all with those three – con-

ﬁrming a well known fact by visualizing it. We de-

tect these interdependencies for the ASV Bible (Fig-

ure 2(a)); the simpliﬁed language of the BasicEnglish

edition yet increases this effect (Figure 2(b)). But the

visualization also reveals other insights by highlight-

ing other cells of the grid. For example, there is an in-

dication for vast systematic Text Re-use between the

book 2 Kings and Isaiah in both Bible editions. Pick-

ing the corresponding cell in the Text Re-use Browser

allows for close reading and reveals a large system-

atic Text Re-use pattern starting from 2 Kings 18:13

and Isaiah 36:1 (Figure 4). Those are results caus-

VisualizationsforTextRe-use

2 Kings/Isaiah

42, 100%

Ezekiel/Ezekiel

Text Re-uses: 886

Significance: 99%

Numbers/Numbers

1279, 95%

(a) Juxtapositions for KJV/Webster.

2 Kings/Isaiah

9, 0%

Ezekiel/Ezekiel

Text Re-uses: 166

Significance: 29%

Numbers/Numbers

221, 64%

(b) Juxtapositions for KJV/YLT.

Figure 9: Text Re-use Grid showing juxtapositions of Bible books for different editions highlighting systematic Text Re-use.

ing the user to gain knowledge that wasn’t expected

or even looked for

. When comparing various edi-

tions of the Bible to each other, the majority of Text

Re-uses depends on the same Bible verses in the same

Bible books. The Text Re-use Browser can be used to

determine how similar or different translations of the

Bible are. Especially here the Sentence Alignment

Flow can be used to further explore the syntactic sim-

ilarity between verses.

When juxtaposing the KJV and its revised version

Webster (Figure 9(a)) the systematic Text Re-use pat-

tern for 2 Kings and Isaiah is still highlighted. For

the juxtaposition of the KJV and the YLT that uses a

different sentence syntax, the overall number of Text

Re-uses strongly decreases and a systematic Text Re-

use pattern for 2 Kings and Isaiah is not detected (Fig-

ure 9(b)).

Researchers interested in biblical expressions and

phrases are interested in those results with a high rele-

vance concerning repetitive Text Re-use. Those seem

to be found mainly inside one book of one edition,

for instance, the book Numbers of the ASV offers

1,929 results (Figure 3) that can be compared in the

Text Re-use Browser (Figure 5(a)). The Text Re-use

Reader supports the process of exploring how a spe-

ciﬁc phrase is spread in a book (Figure 5(b)).

An even closer look at the speciﬁc structure of the

same verses in different translations can be done with

This so called serendipity effect is ”the occurrence and

development of events by chance in a happy or beneﬁcial

way” (Oxford English Dictionary)

the Sentence Alignment Flow that is very useful for

philological matters. Variations are easy to detect,

for example many synonyms as seen in Figure 10(a)

for the verse 1:20 of Numbers like ”eldest son” and

the variation ”oldest son”, ”ﬁrst born” and the vari-

ation ”ﬁrst-born”. Now – depending on the research

question – those words can be differentiated to deter-

mine how many translators used which variation to

determine different translation techniques. But it is

also possible to merge single variations by dragging

and dropping the matching words and simple vari-

ations like ”eldest” and ”oldest” or ”ﬁrst-born” and

”ﬁrstborn” to concentrate on variations more com-

plex (Figure 10(b)). A merge of ”israels” and ”israel”

would create a cycle in the data structure, and there-

fore, is not possible due to various sentence structures

(Figure 10(c)). In this verse, the words between ”fam-

ilies” and ”their fathers” are of great interest because

they vary a lot, using the single words ”and” (once)

or ”by” (twice) or the phrases ”according to” (once)

and ”by the house of” (three times). The number

of uses in different translations of the Bible implies

that the long, possibly more precise and most often

used phrase ”by the house of” could be the most lit-

eral translation of the original text, an impression that

can now be researched and veriﬁed or falsiﬁed (Fig-

ure 10(d)).

IVAPP2014-InternationalConferenceonInformationVisualizationTheoryandApplications

(a) The complete Sentence Alignment Flow for Numbers 1:20.

(b) Valid merge steps for ”oldest”/”eldest” (left) and ”ﬁrstborn”/”ﬁrst-born” (middle) and the ﬁnal structure (right).

Figure 10: Features of the Sentence Alignment Flow for seven editions of Numbers 1:20.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we presented three visualizations for

Text Re-use. The Text Re-use Grid is a novel ap-

proach to discover type and amount of Text Re-use

between each pair of texts of a given text corpus. At

the researcher’s convenience, one is able to highlight

either grid cells with frequent systematic or repeti-

tive Text Re-use. However, the Text Re-use Grid can

only be applied to a limited text corpus, since the

user’s available screen space constrains the size of the

cells to be displayed. A dynamic grid allocating more

screen space to cells that are relevant dependent on

the research question could be an alternative. The Text

Re-use Browser facilitates a further exploration of the

Text Re-use between two texts. In contrast to the

Text Re-use Grid, which is a distant reading visualiza-

tion, the Text Re-use Browser allows for close read-

ing of individual text passages. This switch between

both perspectives turned out to be an important aspect

for the collaborating humanists. With the Sentence

Alignment Flow, we developed a further close read-

ing visualization for so called Text Variant Graphs.

In comparison to the approach of Andrews (Andrews

and Van Zundert, 2013), we focused on improving the

readability of the visualization. Instead of vertices,

we place the vertices’ labels with variable font size

that reﬂect the number of occurences on horizontal

layers. We attached great importance to the vertical

alignment of variations of editions to allow easy de-

tection of synonyms. To support the collation process

for the researchers of textual criticism, we provide an

interactive interface that allows for a user-driven mod-

iﬁcation of the alignment to potentially create new

editions of the given text. For a broad deployment of

the Sentence Alignment Flow in the humanities, we

need to extend the visualization with more means for

the annotation of editions.

During the development phase, the humanists of

our project steadily evaluated the design of the Text

Re-use visualizations. We wanted to ensure creating

an intuitive and ﬂexible system to be able to help an-

swering various research questions. The ﬁndings of

the humanists listed in Section 5 conﬁrm the bene-

ﬁt of this iterative process that should be always per-

formed when developing visualizations for humanis-

tic applications. The humanists also stated that our

visualizations can help to determine, whether English

versions of the Bible that claim to translate the He-

brew and ancient Greek original very literally, do this

in a similar way or not and which one could be con-

sidered the most literal one. Furthermore, the visual-

izations could also be used trying to determine how

exactly literature is cited, when looking for indirect

transmission doing textual criticism (Geßner, 2010).

Designed for the Bible data of the eTRACES

project, we will test and evaluate the proposed visual-

izations for other text collections in the future. Firstly,

the humanists aim at investigating the Text Re-use of

Bible passages in the works of Friedrich Schiller. Sec-

ondly, an extraction and analyzation of Text Re-uses

among the historical texts within the Perseus Digital

Library

is planned.

http://www.perseus.tufts.edu/

VisualizationsforTextRe-use

ACKNOWLEDGEMENTS

The authors like to thank Christian Heine for fruitful

discussions and Markus Ackermann and Muhammad

Faisal Cheema for proofreading. This research was

funded by the German Federal Ministry of Education

and Research.

REFERENCES

Andrews, T. L. and Van Zundert, J. J. (2013). An Interactive

Interface for Text Variant Graph Models. In Proceed-

ings of the Digital Humanities 2013.

uchler, M. (2013). Informationstechnische Aspekte des

Historical Text Re-use.

uchler, M., Geßner, A., Eckart, T., and Heyer, G. (2010).

Unsupervised Detection and Visualisation of Textual

Reuse on Ancient Greek Texts. Journal of the Chicago

Colloquium on Digital Humanities and Computer Sci-

ence, 1(2).

Cheesman, T., Thiel, S., Flanagan, K., Zhao, G., Ehrmann,

A., Laramee, R. S., Hope, J., and Berry, D. M. (2012).

Translation Arrays: Exploring Cultural Heritage Texts

Across Languages. In Proceedings of the Digital Hu-

manities 2012.

Clough, P., Gaizauskas, R., Piao, S. S. L., and Wilks, Y.

(2002). METER: MEasuring TExt Reuse. In Pro-

ceedings of the 40th Annual Meeting on Association

for Computational Linguistics, ACL ’02, pages 152–

159, Stroudsburg, PA, USA. Association for Compu-

tational Linguistics.

Collins, C., Carpendale, S., and Penn, G. (2007). Visualiza-

tion of Uncertainty in Lattices to Support Decision-

Making. In Proceedings of the 9th Joint Eurograph-

ics / IEEE VGTC conference on Visualization, EU-

ROVIS’07, pages 51–58, Aire-la-Ville, Switzerland,

Switzerland. Eurographics Association.

Diehl, S. (2007). Software Visualization: Visualizing

the Structure, Behaviour, and Evolution of Software.

Springer-Verlag New York, Inc., Secaucus, NJ, USA.

Freire, M. (2008). Visualizing Program Similarity in the AC

Plagiarism Detection System. In Proceedings of the

working conference on Advanced visual interfaces,

AVI ’08, pages 404–407, New York, NY, USA. ACM.

Geßner, A. (2010). Das automatische Aufﬁnden der

indirekten

Uberlieferung des Platonischen Timaios

und die Bedeutung des Tools CitationGraph f

ur die

Forschung. In Schubert, C. and Heyer, G., editors,

Das Portal eAQUA, pages 26–41.

Gibbs, A. J. and McIntyre, G. A. (1970). The Dia-

gram, a Method for Comparing Sequences. Its Use

with Amino Acid and Nucleotide Sequences. Eur J

Biochem, 16(1):1–11.

GuttenPlag (2013). GuttenPlag Wiki Visualizations.

http://de.guttenplag.wikia.com/wiki/

Visualisierungen (Retrieved 2013-06-10).

Harrison, C. and R

omhild, C. (2008). The Visualization

of the Bible. http://www.chrisharrison.net/

index.php/Visualizations/BibleViz (Retrieved

2013-06-10).

Herbig, A., J

ager, G., Battke, F., and Nieselt, K. (2012).

GenomeRing. Bioinformatics, 28(12):i7–i15.

Jenks, G. F. and Caspall, F. C. (1971). Error on Choro-

plethic Maps: Deﬁnition, Measurement, Reduction.

Annals of the Association of American Geographers,

61(2).

Lanzenberger, M. and Sampson, J. (2006). AlViz - A Tool

for Visual Ontology Alignment. In Proceedings of

the conference on Information Visualization, IV ’06,

pages 430–440, Washington, DC, USA. IEEE Com-

puter Society.

Lee, J. (2007). A Computational Model of Text Reuse in

Ancient Literary Texts. In Association for Compu-

tational Linguistics, editor, Proceedings of the 45th

Annual Meeting of the Association of Computational

Linguistics, pages 472–479.

Leskovec, J., Backstrom, L., and Kleinberg, J. (2009).

Meme-tracking and the Dynamics of the News Cy-

cle. In Proceedings of the 15th ACM SIGKDD in-

ternational conference on Knowledge discovery and

data mining, KDD ’09, pages 497–506, New York,

NY, USA. ACM.

Moretti, F. (2005). Graphs, Maps, Trees: Abstract Models

for a Literary History. Verso.

OpenBible.info (2012). Bible Cross References Inter-

active Visualization. http://www.openbible.

info/labs/cross-references/visualization

(Retrieved 2013-06-10).

Procter, J. B., Thompson, J., Letunic, I., Creevey, C.,

Jossinet, F., and Barton, G. J. (2010). Visualization

of multiple alignments, phylogenies and gene family

evolution. Nature methods, 7(3 Suppl):S16–S25.

Ribler, R. L. and Abrams, M. (2000). Using Visualization

to Detect Plagiarism in Computer Science Classes.

In Proceedings of the IEEE Symposium on Informa-

tion Vizualization 2000, INFOVIS ’00, pages 173–

178, Washington, DC, USA. IEEE Computer Society.

Shneiderman, B. (1996). The Eyes Have It: A Task by Data

Type Taxonomy for Information Visualizations. In Vi-

sual Languages, Proceedings, pages 336–343.

Slocum, T. A., McMaster, R. B., Kessler, F. C., and Howard,

H. H. (2009). Thematic Cartography and Geovisual-

ization. Prentice Hall Series in Geographic Informa-

tion Science. Prentice Hall, 3rd, international edition.

Ware, C. (2004). Information Visualization: Perception for

Design. Morgan Kaufmann Publishers Inc., San Fran-

cisco, CA, USA.

Wattenberg, M. and Vi

egas, F. B. (2008). The Word

Tree, an Interactive Visual Concordance. IEEE Trans-

actions on Visualization and Computer Graphics,

14(6):1221–1228.

IVAPP2014-InternationalConferenceonInformationVisualizationTheoryandApplications
