In Search of a Car

Utilizing a 3D Model with Context for Object Detection

Mikael Nilsson and H˚akan Ard¨o

Centre of Mathematical Sciences, Lund University, Lund, Sweden

Keywords:

3D Model, Foreground/Background Segmentation, Context, Trafﬁc, Camera Calibration, Ground-plane.

Abstract:

Automatic video analysis of interactions between road users is desired for city and road planning. A ﬁrst step

of such a system is object localization of road users. In this work, we present a method of detecting a speciﬁc

car in an intersection from a monocular camera image. A camera calibration and segmentation are utilized

as inputs by the method in order to detect a car. Using these inputs, a sampled search space in the ground

plane, including rotations, is explored with a 3D model of a car in order to produce output in form of rectangle

detections in the ground plane. Evaluation on real recorded data, with ground truth for one car using GPS,

indicates that a car can be detected in over 90% of the time with an average error around 0.5m.

1 INTRODUCTION

Access to accurate positions of road users is desirable

in calibration for simulations, ﬁnding potential bottle-

necks, and ﬁnding potential dangers in existing road

networks. The task of localizing each road user, uti-

lizing one or several cameras, is indeed a desirable

feature. Previous works with similar problem formu-

lation has been approached in several ways. For ex-

ample, some papers explore model based approaches

(Koller et al., 1993; Ferryman et al., 1997; Tan et al.,

1998; Li et al., 2009). Others aim to ﬁnd an oc-

cupancy map from multiple views (Khan and Shah,

2006). Some formulate the problem in a probabilistic

framework, for example by combining results from

Markov Chain Monte Carlo (MCMC) and a Hidden

Markov Model (HMM) (Song and Nevatia, 2007).

Detection based methods has recently gained some at-

tention (Pepik et al., 2012; Nilsson et al., 2013). Re-

cently, a method utilizing 3D primitives, and monoc-

ular view, presented promising results (Carr et al.,

2012). In that work, cars were modeled as boxes and

pedestrians as cylinders in order to position objects

in the ground-plane. This work proposes a way to

search for a 3D model of a car which is more detailed

than a box. In addition, a 3D context of the object

is proposed to be utilized in order to get a more re-

liable score. One way to look at our proposal is that

we exploit graphics techniques in a brute-force man-

ner (dense sampling and rotation) in order to solve a

computer vision problem. The different parts of the

proposed method can be found in Fig.1.

2 DETECTING A CAR USING A

3D MODEL WITH CONTEXT

The aim of this section is to describe the operations

performed in order to localize a speciﬁc car model,

see Fig. 1. A description of the different setup and

processing units for the solution will follow. The cam-

era calibration will be addressed in 2.1, the search

space in 2.2, the forgound/background segmentation

in 2.3, the 3D model search in 2.4 and 2.5, and ﬁnally

the non-maximum suppression in 2.6.

2.1 Camera Calibration

In order to get a camera calibration from an inter-

section used in the experiments, manually selected

points had their 3D positions measured with a Leica

GX1230 GG. These points were also manually po-

sitioned in an image from a static mounted camera,

placed high up in a water tower, and the correspond-

ing points were used for calibration, see Fig. 2. Cal-

ibration was performed using Tsai calibration (Tsai,

1987). The ﬁnal camera parameters, are then used for

mappings between the image frame and the world co-

ordinate system.

2.2 Search Space - Sampled Ground

Plane and Rotations

The space used to search for a speciﬁc 3D model is

here chosen as a rectangle in the ground-plane z = 0

419

Nilsson M. and Ardö H..

In Search of a Car - Utilizing a 3D Model with Context for Object Detection.

DOI: 10.5220/0004685304190424

In Proceedings of the 9th International Conference on Computer Vision Theory and Applications (VISAPP-2014), pages 419-424

ISBN: 978-989-758-004-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Camera

Calibration

Define

Search Space

Foreground/Background

Segmentation

Setup

Processing

3DSearch

3DModel

NonͲMaximum

Supression

Detection Rectangles

inGround Plane

ImageFrame

Figure 1: Overview of proposed solution.

Figure 2: Calibration points used in image. These positions

were measured in the world coordinate system using a high

precision GPS.

Figure 3: Ground plane with positions for the dense grid

(left) and the masked position for the current view (right).

with around ten centimeters steps in each direction.

Further, a mask is manually created to remove posi-

tions outside the road as well as those that are covered

by buildings in the viewpoint, see Fig. 3. At each po-

sition, the angle for the object is further explored, here

at 22.5 degree steps. Thus, in principle this can be

viewed as an occupancy map (Khan and Shah, 2006).

By using a max operator for scores found at all angles

at each position a visualization similar to occupancy

maps can be produced.

2.3 Foreground/Background

Segmentation

As input a probabilistic background/foreground seg-

mentation algorithm was used (Ard¨o and Sv¨ard,

2014). It produces an image that in each pixel stores

the probability that this pixel currently shows a mov-

ing object as opposed to the static background. To

make it robust to lighting variations and shadows, it

does not utilize the image intensities directly. Instead

it preprocesses the input frame by calculating the gra-

dient direction in each pixel, and then the segmenta-

tion is based on those preprocessed input frames in-

stead.

Gradient directions is a good feature when the gra-

dient magnitudes are high, but can be very noisy when

the magnitudes are low. This means that some gra-

dient orientations are matched with more conﬁdence

than others. This uncertainty is estimated, which

means that more weight can be put on the conﬁdent

matches than those with higher uncertainty. This is

achieved by using the probability distribution of gra-

dient orientations parameterized by a signal to noise

ratio deﬁned as the gradient magnitude divided by the

standard deviation of the noise. The noise level is rea-

sonably invariant over time, while the magnitude has

to be measured for every frame. Using this proba-

bility distribution the segmentation can be posed as

a Bayesian classiﬁcation problem with two classes,

background and foreground. The classiﬁcation yields

a probability for each pixel that represents how likely

it is that it belongs to each of the classes.

The gradient directions of the current input frame

are compared with a background model that is con-

structed and updated online using recursive quantile

estimation (Ard¨o and

Astr¨om, 2009). That model

consists of two parts: i. A background image esti-

mated as the median of the latest observed gradient

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

420

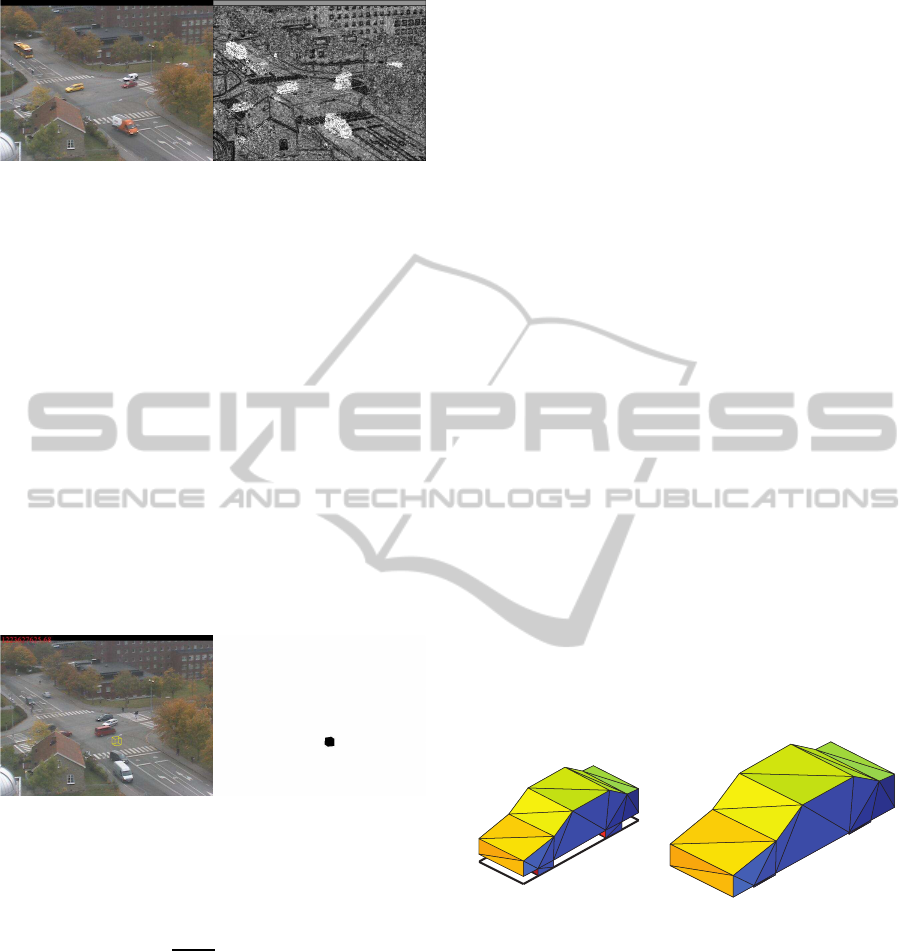

Figure 4: Image frame (left) and the foregound/background

segmentation used (right).

directions ii. A noise level image estimated from the

25%- and 75%-quantiles of the latest observed gradi-

ent directions. An example of the segmentation can

be found in Fig. 4.

2.4 Fast Box Search for Rapid Rejection

Note that the sampled space in the scenario described

above results in 8000+ positions with angles to check

with the 3D model. In order to speed up this pro-

cess, a simpler box of size 1.5× 1.5 × 1.5 meters is

used initially and with steps of one meter instead of

10 centimeters and with no rotation applied. This box

is deﬁned by 12 triangles. Mapping the triangles from

world to image and rasterizing them produces a set of

pixels B

x,y

for a given position (x, y) in meters from

the ground plane, see Fig. 5.

Figure 5: A 3D box model shown as a yellow wire frame

in the image (left) and the corresponding rasterized pixels

creating a set of pixels B

x,y

indicated in black (right).

From the set of pixels B

x,y

a box score can be

found as

x,y

∑

k∈B

x,y

P(k). (1)

where P(k) is the probabilistic segmentation for a

pixel k = [i j]

. A threshold, θ

box

, on this box

score is then applied in order to see if a more de-

tailed search for the 3D model with rotation should

take place around the point checked. Thus, a grid

search is applied in the search space. In a way, this

can be viewed as a 3D search variant of a sliding win-

dow cascade commonly used for object detection in

images to quickly reject uninteresting patches (Viola

and Jones, 2001; Doll´ar et al., 2012).

2.5 3D Model of the Car and Context

The 3D model used is that of a Toyota Corolla, a

sedan car. This car was used in the experiments and

also equipped with GPS sensors, which will be ex-

ploited as ground truth in the experiments. This car

was manually measured with a foot ruler and a 3D

model was created using a triangle mesh with 60 tri-

angles, see Fig. 6. Note that the chosen model is more

sophisticated than a box model (Carr et al., 2012)

but not detailed in comparison to 10000+ triangles

meshes not uncommonly used in the gaming indus-

try. The reason for this model trade off is to strike a

balance between processing speed and performance.

Given a correct model for the sought object, a more

sophisticated model than a box will improve the local-

ization accuracy. However, an overly detailed model,

for example considering adding wing mirrors, will be

a bottleneck performance-wise and not add any sig-

niﬁcant amount to localization accuracy. This since

the automatic foregound/background segmentation is

noisy in practice. Furthermore, even with a close to

perfect segmenter, the pixel resolution required to ex-

tract some details, is not available with the current

camera used.

In order to produce some context around the car,

a mid point for the 3D car model is found (middle of

rectangle in x, y and z at the half height of the car)

and then scaling the points with a factor f

context

> 1

produces a car larger than the original. Additionally,

any scaled point getting a negative z value, i.e. below

the ground plane, is set to zero, see Fig. 6.

Figure 6: 3D model of a Toyota Corolla using 60 triangles

and its rectangle footprint (left) and the enlarged 3D model

(right) used to capture context.

Similar to the box described earlier, given a po-

sition (x, y) in meters from the ground plane and an

angle a in degrees, both the car model and the en-

larged car model are placed and rotated. First, the

enlarged model is transformed from world to image

coordinates and rasterized. Second, the original car

model undergoes the same process. Thus, in the im-

age, two sets of pixels are formed, the object set O

x,y,a

and enlarged object set E

x,y,a

. From these two sets the

context set C

x,y,a

is formed as the difference

x,y,a

= E

x,y,a

\ O

x,y,a

. (2)

InSearchofaCar-Utilizinga3DModelwithContextforObjectDetection

421

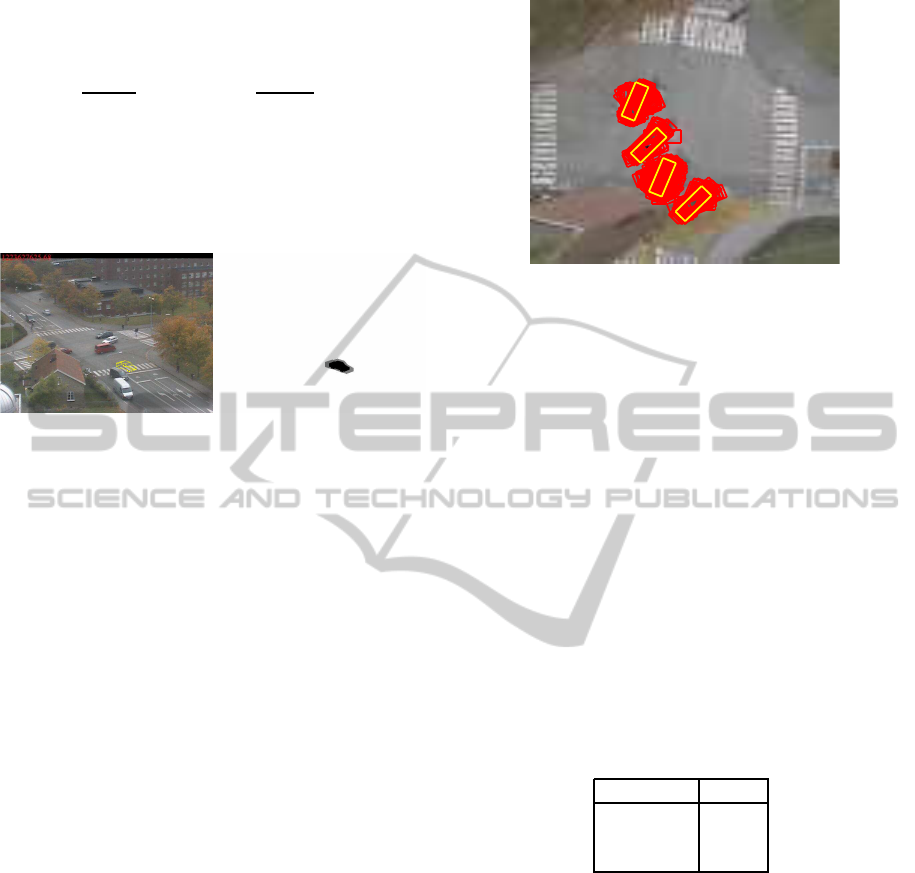

An example of the object and context set are shown

in Fig. 7. An object score, o

x,y,a

, for a given position

and rotation is found as

x,y,a

∑

k∈O

x,y,a

P(k) −

context

x,y,a

∑

k∈C

x,y,a

P(k)

(3)

where α

context

is a variable used to strike a balance

between object and its context. In order to produce a

detection, in form of a rotated rectangle in the ground

plane, a threshold, θ

object

, on o

x,y,a

is employed.

Figure 7: 3D car model as yellow wire frame in image (left)

and the corresponding rasterized pixels creating a set of ob-

ject pixels O

x,y,a

indicated in black and context pixels C

x,y,a

in gray (right).

The importance of context is to aid the decision

from other objects in the scene. For example, con-

sider the case when a bus, truck or a larger than a car

vehicle is present. Not utilizing context would imply

that the highest score possible might be when extract-

ing a score within this larger object and creating sev-

eral detections within it with the car model. Thus, the

context where pixels should be close to zero will aid

this case and produce a lower score.

2.6 Non-maximum Suppression on

Rotated Rectangles in the Ground

Plane

Output from the search of the speciﬁc object is ro-

tated rectangles in the ground plane. Typically multi-

ple overlapping detections for each instance of a car.

The Non-Maximum Suppression (NMS) method em-

ployed here is similar to the non-rotated boundingbox

suppression (Felzenszwalb et al., 2010), but here rota-

tions have to be considered also. Detections are sorted

according to their score and are greedily removed if

the bounding boxes are more than 0% covered. That

is, no cars are allowed to overlap in the ﬁnal output,

by a bounding box of a previously selected detection.

The overlap check for the rotated boxes can be per-

formed using a general polygon clipper or the sepa-

rating axis theorem. An example of the outputs (red)

from applying threshold θ

object

to the object score

in Eq. 3, and the corresponding result (yellow) after

NMS, can be found in Fig. 8.

Figure 8: Non-Maxmimum Supression (NMS) of rotated

rectangles in orto-view. Red rectangles are detections from

the 3D model search and yellow rectangles are the result

after NMS.

3 EXPERIMENTS

The setup used has been explained throughout Sec-

tion 2. Brieﬂy, the 13 3D points measured at the in-

tersection as well as manually positioned in the im-

age, see Fig. 2, were used to calibrate the camera.

The search space was deﬁned and occluded areas re-

moved, see Fig. 3. Foreground/background segmen-

tation was perform on frames of video from the cam-

era. The 3D box and car model was used and de-

tections passing thresholds θ

box

and θ

object

undergoes

non-maximum suppression of rotated rectangles in

the ground plane. The parameters used in the experi-

ments can be found in Table 1.

Table 1: Default values used in experiments.

Parameter Value

box

0.45

object

0.2

context

In order to evaluate a speciﬁc detection within the

scene, the car used was equipped with two GPS sen-

sors. The sensors were placed in the front and at the

back of the car. Given these positions, it is possible to

sync the GPS to the camera in time and to ﬁnd an ex-

pected rectangle footprint in the ground plane at every

frame. An example from a single frame can be found

in Fig. 9.

A video sequence with mixed trafﬁc and with the

GPS-equipped car performing a left turn was investi-

gated. During this turn, the middle position of some

rectangle detected by the proposed system managed

to be located inside the GPS rectangle 91.4% of the

time, a decent result considering monocular view and

the complexity of the mixed trafﬁc. Furthermore,

the mean difference between the middle points of the

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

422

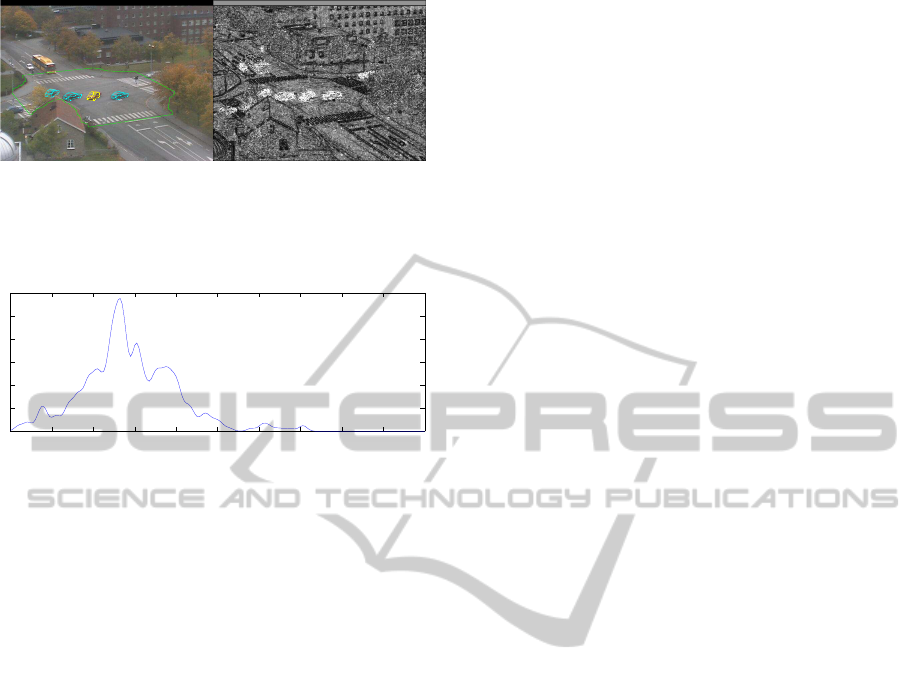

Figure 9: Examples of detections (cyan) and the detection

that match to GPS position of the car (yellow) and the corre-

sponding foreground background segmentation (right). The

green border indicates the area in which the search takes

place.

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

x, distance error [m]

f(x), estimated pdf [%]

Figure 10: Parzen estimate (h = 0.02) of density for euclid-

ian distances between middle of rectangles from detection

and GPS.

rectangles (detected and GPS), in the cases where it

was considered to be detected, was around 0.5m. A

Parzen window estimated density (Parzen, 1962) for

this distance can be found in Fig. 10.

4 CONCLUSIONS

A system searching for a speciﬁc 3D shape, a

car in this case, has been presented. The pro-

posed methodology utilizes camera calibration, a de-

ﬁned search space in the ground-plane, and fore-

ground/background segmentation. Given this, the 3D

object, with additional context, is proposed to be uti-

lized in order to ﬁnd a score for detection. Further,

a non-maximum suppression on rotated rectangles in

the ground plane is conducted to yield ﬁnal detec-

tions. The system has been applied to real data with

mixed trafﬁc. Ground truth for one car in this data

could be extracted by the use of a GPS. Experiments

on this real data indicate that the car could be de-

tected in 91.4% of the time it was visible and inside

the search area. Furthermore, detections matching the

ground-truth has an average error of 0.5m.

5 DISCUSSION AND FUTURE

WORK

While the results are promising, improvements to the

proposed framework to handle more complexity and

improvement of accuracy is here discussed. For

starters, currently only one model has been used, a

sedan car, this should be extended with more relevant

3D shapes (vans, trucks, pedestrians, bicyclists etc).

A straight forward way to perform this is to use the

system described up to the Non-Maximum Suppres-

sion (NMS) for serval 3D shapes and then perform

NMS for all objects.

Another extension is to place more cameras to bet-

ter handle occlusions. Different approaches could be

adopted here. One way could be to run the whole

system up to NMS for all views. This way a score

fusion could be adopted before NMS, possibly with

some weighting, to produce scores taking into ac-

count scores from all views.

The system propped here does not perform any

temporal processing. One possibility is to extend the

system with a following tracking and thus making

temporal assignments and smoothing. Given tracks to

an object, yet another extension could be to adjust a

detected 3D model further by optimizing the position,

the angle, and the 3D shape. For example, by allow-

ing the 3D points, which deﬁnes the shape, freedom

to move with some constraints.

REFERENCES

Ard¨o, H. and

Astr¨om, K. (2009). Bayesian formulation

of image patch matching using cross-correlation. In

Third ACM/IEEE International Conference on Dis-

tributed Smart Cameras, pages 1–8.

Ard¨o, H. and Sv¨ard, L. (2014). Bayesian formulation of gra-

dient orientation matching. Submitted to CVPR 2014.

Carr, P., Sheikh, Y., and Matthews, I. (2012). Monocu-

lar object detection using 3d geometric primitives. In

Fitzgibbon, A., Lazebnik, S., Perona, P., Sato, Y., and

Schmid, C., editors, Computer Vision ECCV 2012,

volume 7572 of Lecture Notes in Computer Science,

pages 864–878. Springer Berlin Heidelberg.

Doll´ar, P., Appel, R., and Kienzle, W. (2012). Crosstalk

cascades for frame-rate pedestrian detection. In Pro-

ceedings of the 12th European conference on Com-

puter Vision - Volume Part II, ECCV’12, pages 645–

659, Berlin, Heidelberg. Springer-Verlag.

Felzenszwalb, P., Girshick, R., McAllester, D., and Ra-

manan, D. (2010). Object detection with discrim-

inatively trained part-based models. Pattern Analy-

sis and Machine Intelligence, IEEE Transactions on,

32(9):1627–1645.

Ferryman, J., Worrall, A., Sullivan, G., and Baker, K.

(1997). Visual surveillance using deformable mod-

els of vehicles. Robotics and Autonomous Systems,

19(34):315 – 335.

Khan, S. M. and Shah, M. (2006). A multiview approach

to tracking people in crowded scenes using a planar

InSearchofaCar-Utilizinga3DModelwithContextforObjectDetection

423

homography constraint. In In European Conference

on Computer Vision.

Koller, D., Danilidis, K., and Nagel, H.-H. (1993). Model-

based object tracking in monocular image sequences

of road trafﬁc scenes. Int. J. Comput. Vision,

10(3):257–281.

Li, Y., Gu, L., and Kanade, T. (2009). A robust shape

model for multi-view car alignment. In The IEEE In-

ternational Conference on Computer Vision and Pat-

tern Recognition.

Nilsson, M., Ard¨o, H., Laureshyn, A., and Persson, A.

(2013). Reduced search space for rapid bicycle detec-

tion. In International Conference on Pattern Recogni-

tion Applications and Methods (ICPRAM).

Parzen, E. (1962). On estimation of a probability den-

sity function and mode. The Annals of Mathematical

Statistics, 33(3):pp. 1065–1076.

Pepik, B., Stark, M., Gehler, P., and Schiele, B. (2012).

Teaching 3d geometry to deformable part models. In

IEEE Conference on Computer Vision and Pattern

Recognition (CVPR) 2012, Providence, RI, USA. ac-

cepted as oral.

Song, X. and Nevatia, R. (2007). Detection and tracking

of moving vehicles in crowded scenes. In Motion and

Video Computing, 2007. WMVC ’07. IEEE Workshop

on, pages 4–4.

Tan, T. N., Sullivan, G. D., and Baker, K. D. (1998). Model-

based localisation and recognition of road vehicles.

Int. J. Comput. Vision, 27(1):5–25.

Tsai, R. (1987). A versatile camera calibration technique

for high-accuracy 3d machine vision metrology using

off-the-shelf tv cameras and lenses. Robotics and Au-

tomation, IEEE Journal of, 3(4):323–344.

Viola, P. and Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features. In In Proceed-

ings of the 2001 IEEE Computer Society Conference

on Computer Vision and Pattern Recognition (CVPR),

volume 1, pages 511–518.

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

424
